Qiscus bot esp8266
This document discusses using an ESP8266 wireless SoC module to create a Qiscus bot. The ESP8266 can be programmed without an additional microcontroller. It has GPIO pins to communicate with sensors or other modules. The NodeMCU firmware supports MQTT, encryption, and SQLite. The Arduino IDE can be used for debugging and development after configuring the board settings. An ESP8266 Qiscus bot repo is provided that allows configuring app ID and token and sending/receiving messages through the Qiscus API. Integrating sensors and cameras with the ESP8266 and creating a bot are discussed as works in progress.
Qiscus bot esp8266
- 1. Qiscus bot for ESP8266 QiscusES /now Ashari Juang @2019 Wireless SoC (System on Chip)

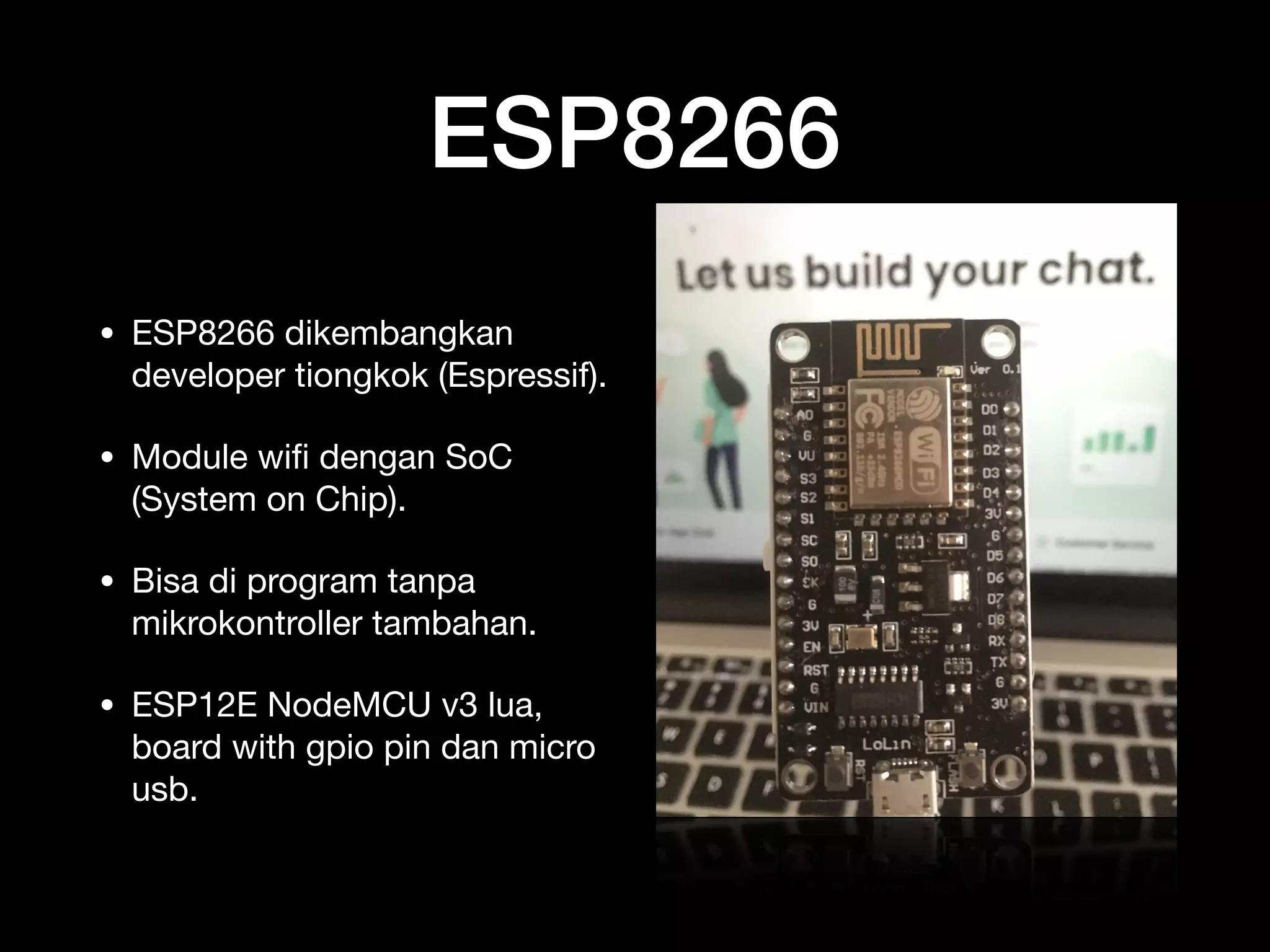

- 2. ESP8266 • ESP8266 dikembangkan developertiongkok (Espressif). • Module wifi dengan SoC (System on Chip). • Bisa di program tanpa mikrokontroller tambahan. • ESP12E NodeMCU v3 lua, board with gpio pin dan micro usb.
- 4. GPIO Pin • Pinuntuk komunikasi dengan sensor atau module lain • beberapa pin konsisten mengeluarkan tegangan 3.3v dan ground. https://alselectro.wordpress.com/2017/10/21/nodemcu-getting-started-with-arduino-core-1-gpio-pins-network-access/
- 5. NodeMCU firmware • Custombuild • Support mqtt client(connect, publish, subs, etc) • Suport crypto (encrypt, decrypt, etc) • Support sqlite but large size
- 6. Debug and Develop •Arduino IDE • Need update board model esp8266 • Board config : • cpu freq 80Mhz • flash size 4mb • upload speed 115200 • port, follow your driver usb port(mac /dev/cu.wchusbserial... • Serial monitor, and set serial port. example : 74880 and set 74880 baud on serial monitor
- 7. ESP8266 Qiscus • Repohttps://github.com/asharijuang/ESP8266-QiscusBot • Main Feature : • Config appid, token • Get message with sync api (polling) • Send message • Integration with Arduino
- 8. Flow ESP8266 @hijuju NLP + statemachine Qiscus Server Qiscus Client (kiwari) @hijuju or @juang ML
- 9. WIP • Xiaomi dafangcamera, telegram bot and motion detect. • [TODO] Motion detect is late • [TODO] Image Recognize • NodeMCU and ESP8622 Qiscus Bot. • [TODO] Try receive input sensor • [TODO] integrate LCD • IP Camera and image recognise with ESP32.
