1. which you
always wanted
LOAD TESTING
by @antyadev

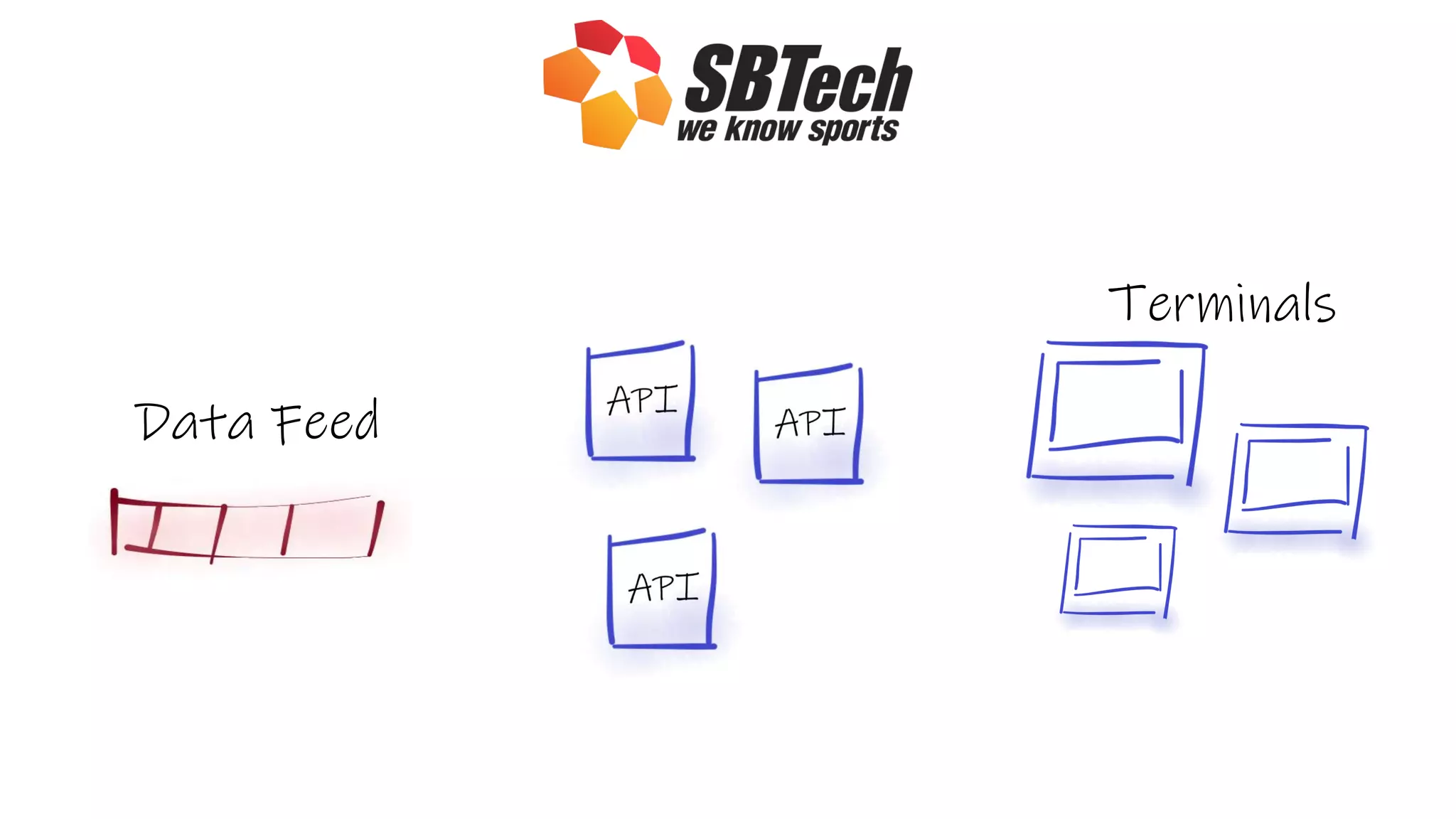

3. Data Feed
Terminals

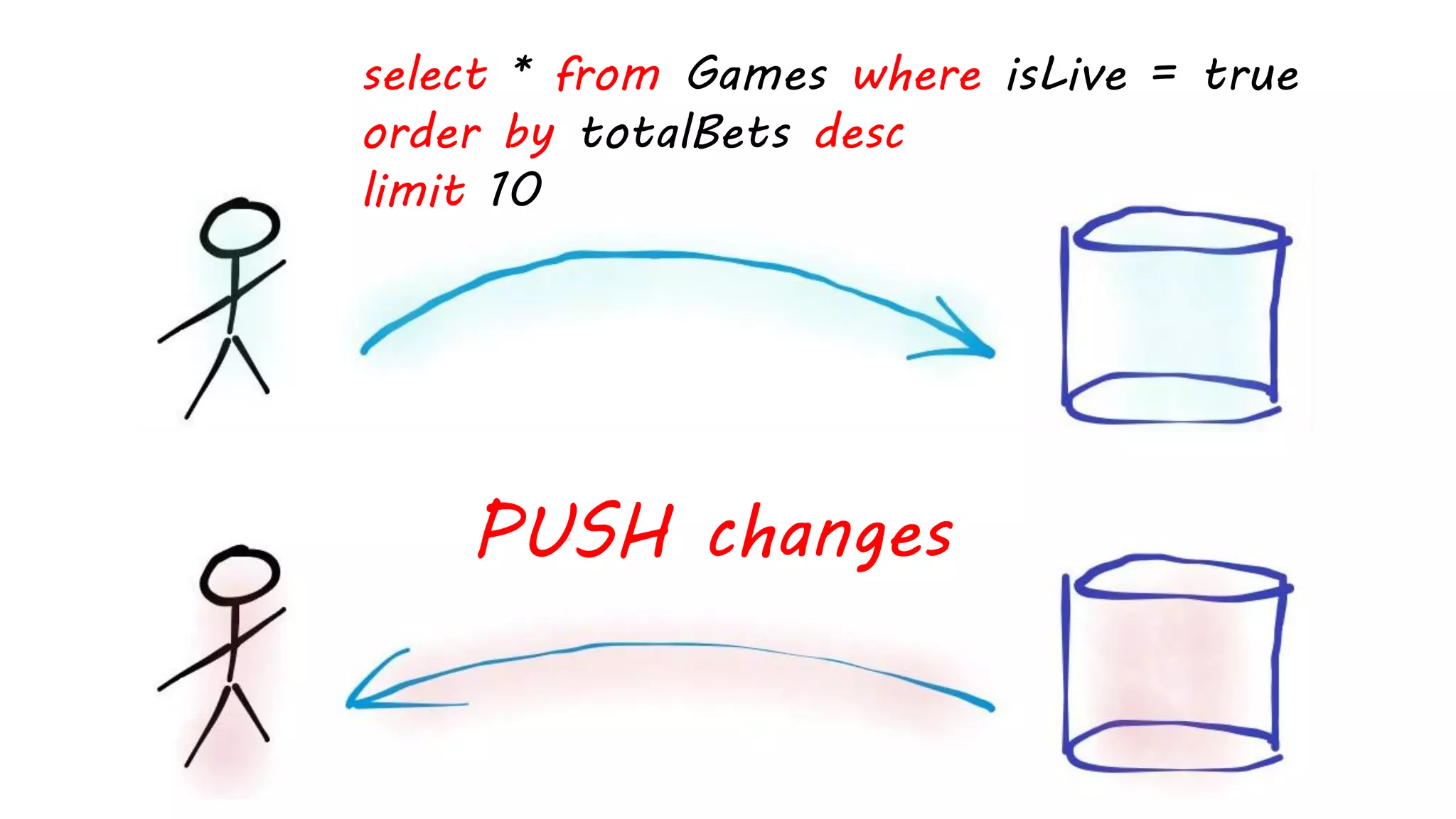

6. select * from Games where isLive = true
order by totalBets desc
limit 10
PUSH changes

7. Sports Data
API

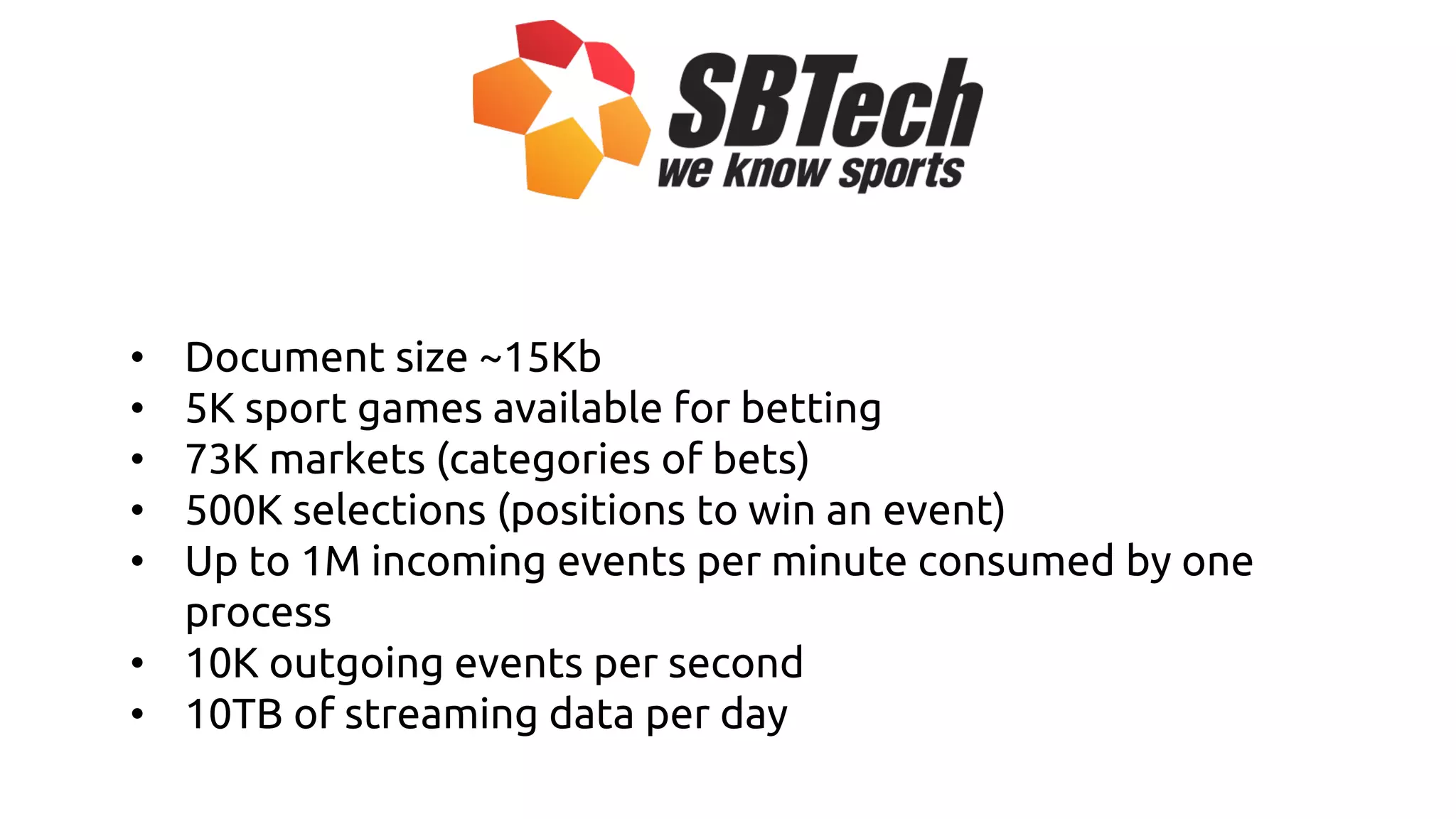

8. • Document size ~15Kb
• 5K sport games available for betting
• 73K markets (categories of bets)
• 500K selections (positions to win an event)
• Up to 1M incoming events per minute consumed by one
process
• 10K outgoing events per second
• 10TB of streaming data per day

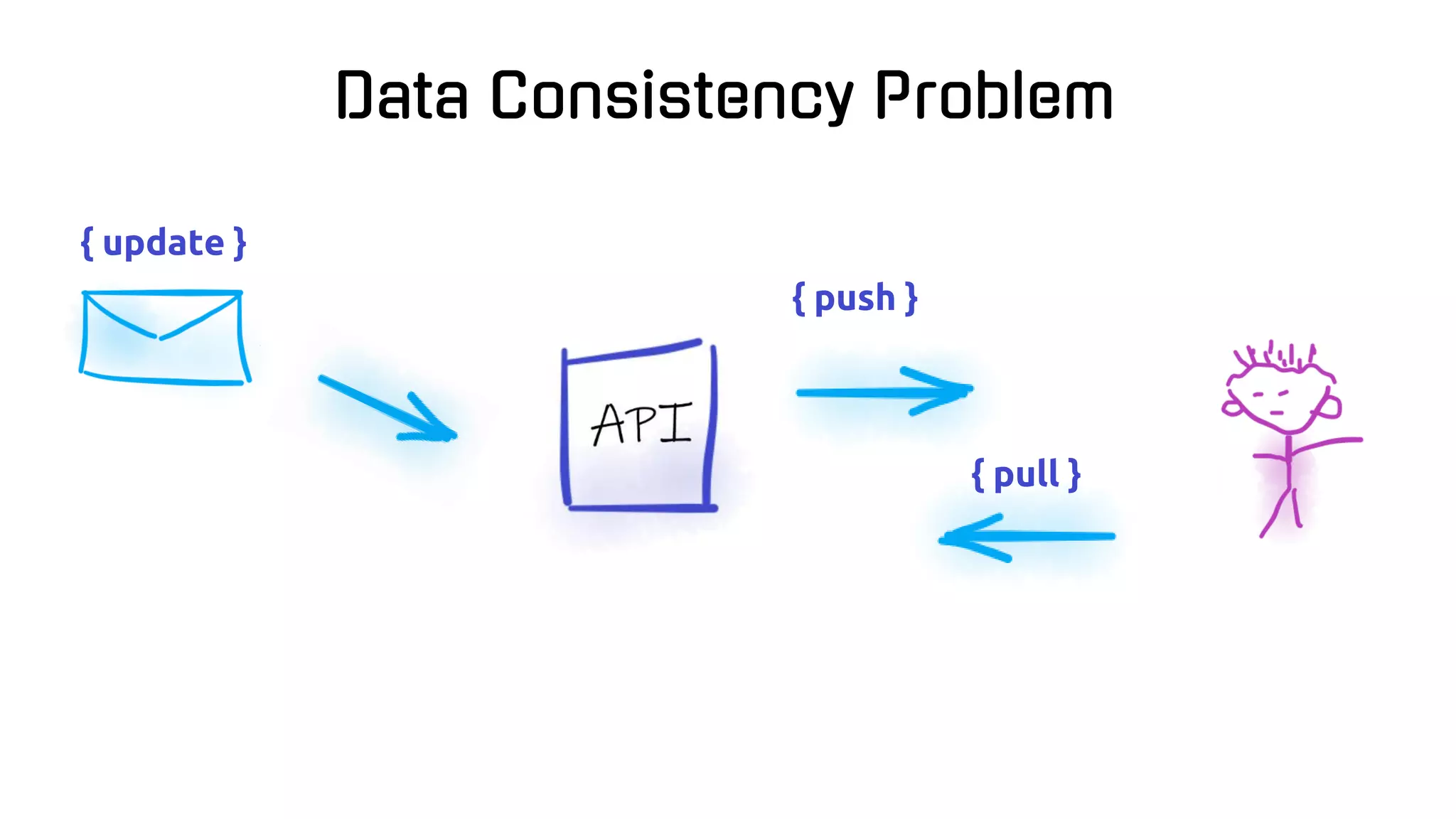

9. { update }
{ push }
{ pull }
Data Consistency Problem

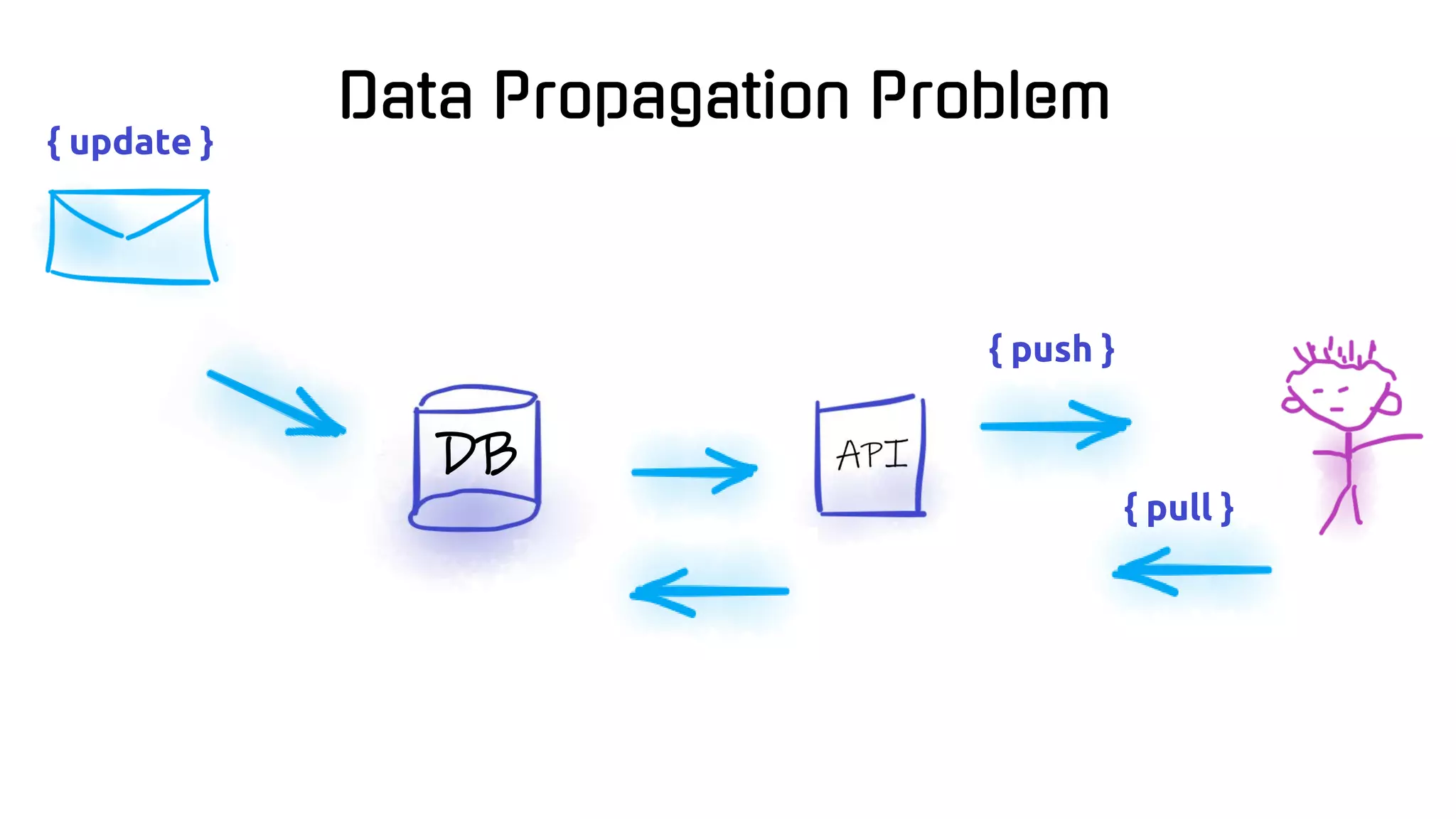

10. { update }
{ push }
{ pull }
Data Propagation Problem
DB

11. Agenda
- The real need of load testing
- Load testing basics
- Current state of load testing on 2019
- NBomber – your drug to load testing

12. Do you know
how many
concurrent requests
your service
can handle?

13. The real need of Load Testing
- Choose technology stack
- Prove architecture design (POC)
- System regression (CI/CD pipeline)
- Explore system limits

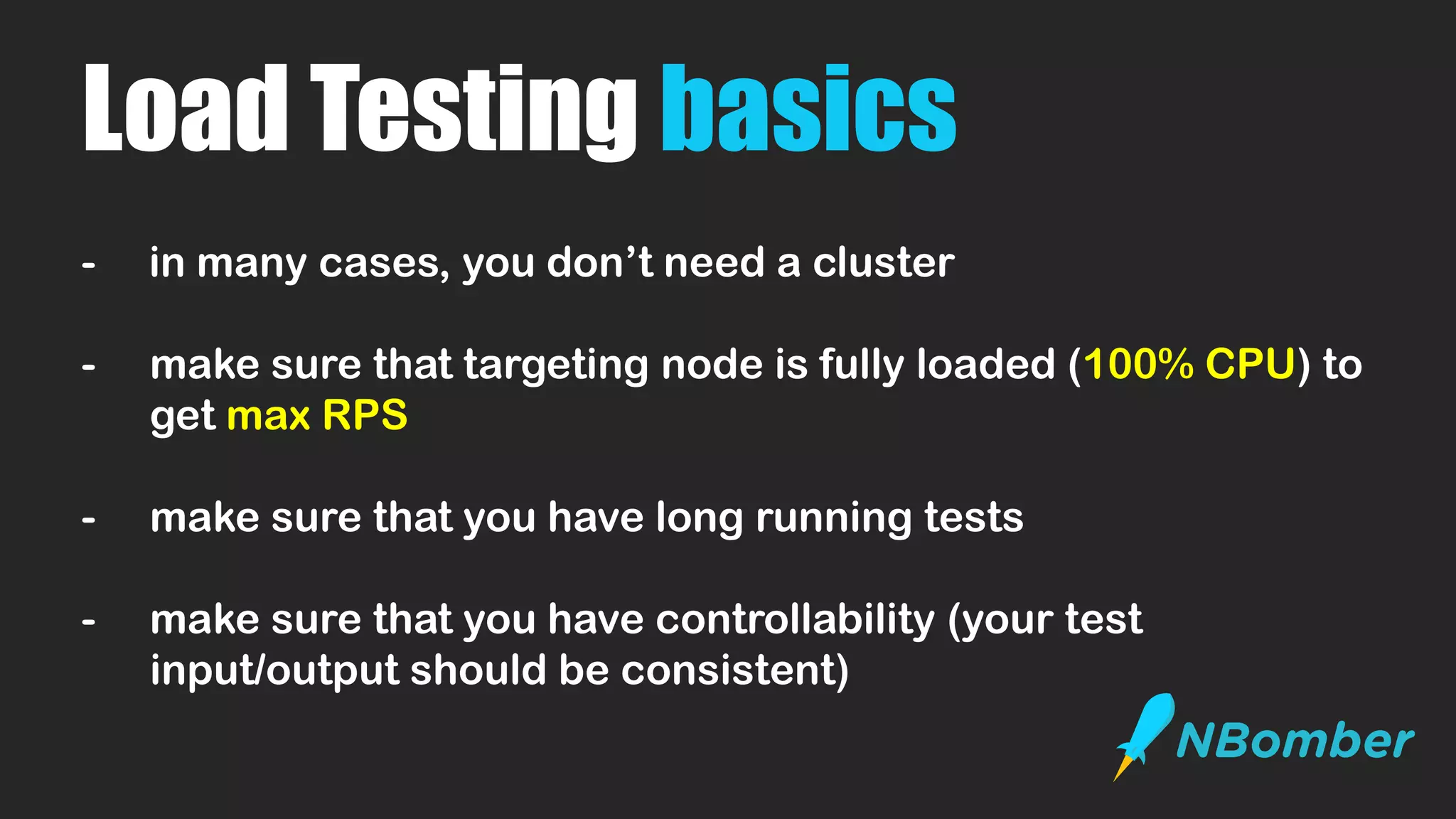

14. Load Testing basics
- in many cases, you don’t need a cluster
- make sure that targeting node is fully loaded (100% CPU) to
get max RPS
- make sure that you have long running tests
- make sure that you have controllability (your test
input/output should be consistent)

15. Current state
of
Load Testing

16. Load Testing
is not easy

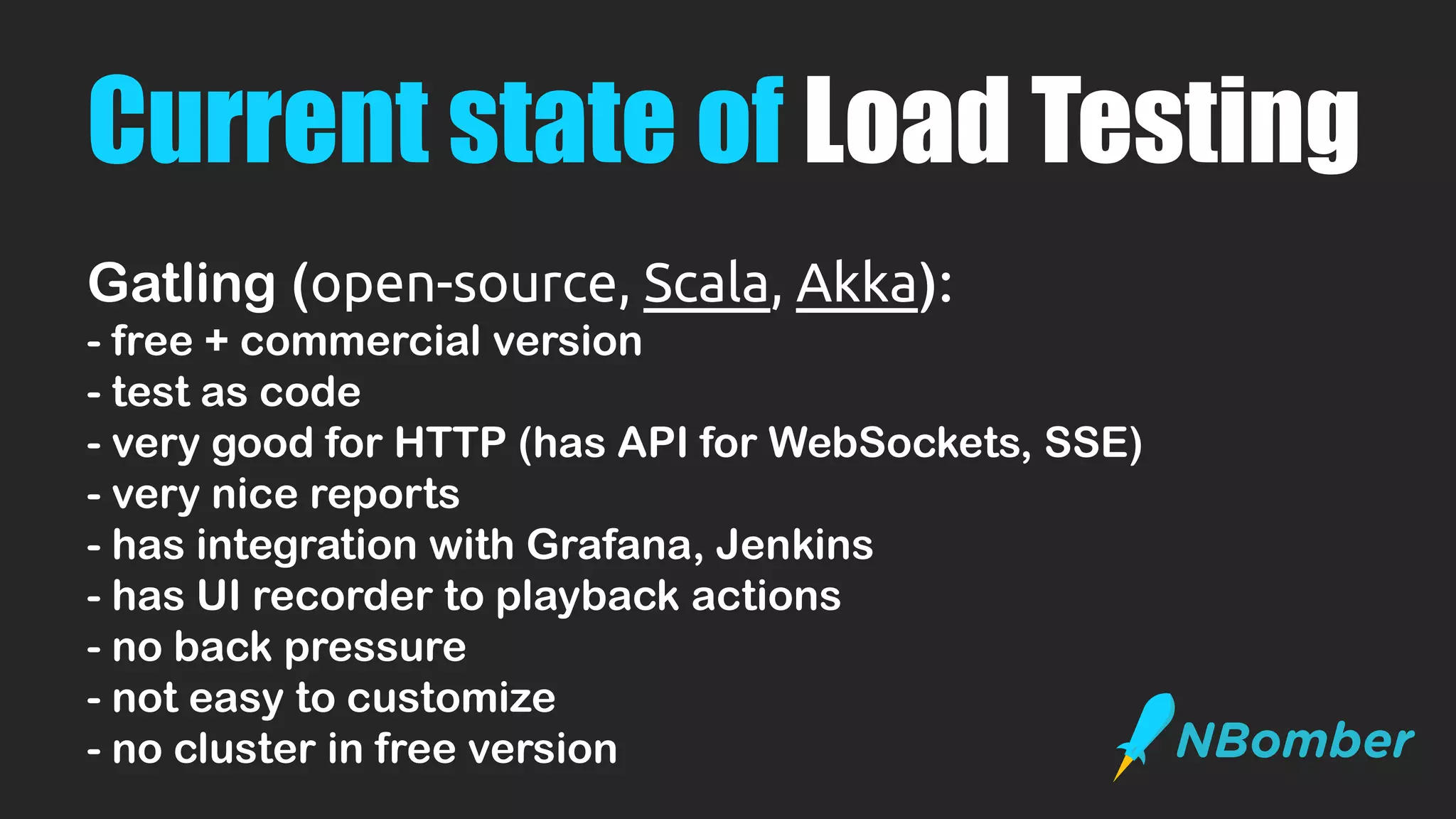

17. Current state of Load Testing
Gatling (open-source, Scala, Akka):
- free + commercial version
- test as code
- very good for HTTP (has API for WebSockets, SSE)
- very nice reports
- has integration with Grafana, Jenkins
- has UI recorder to playback actions
- no back pressure
- not easy to customize
- no cluster in free version

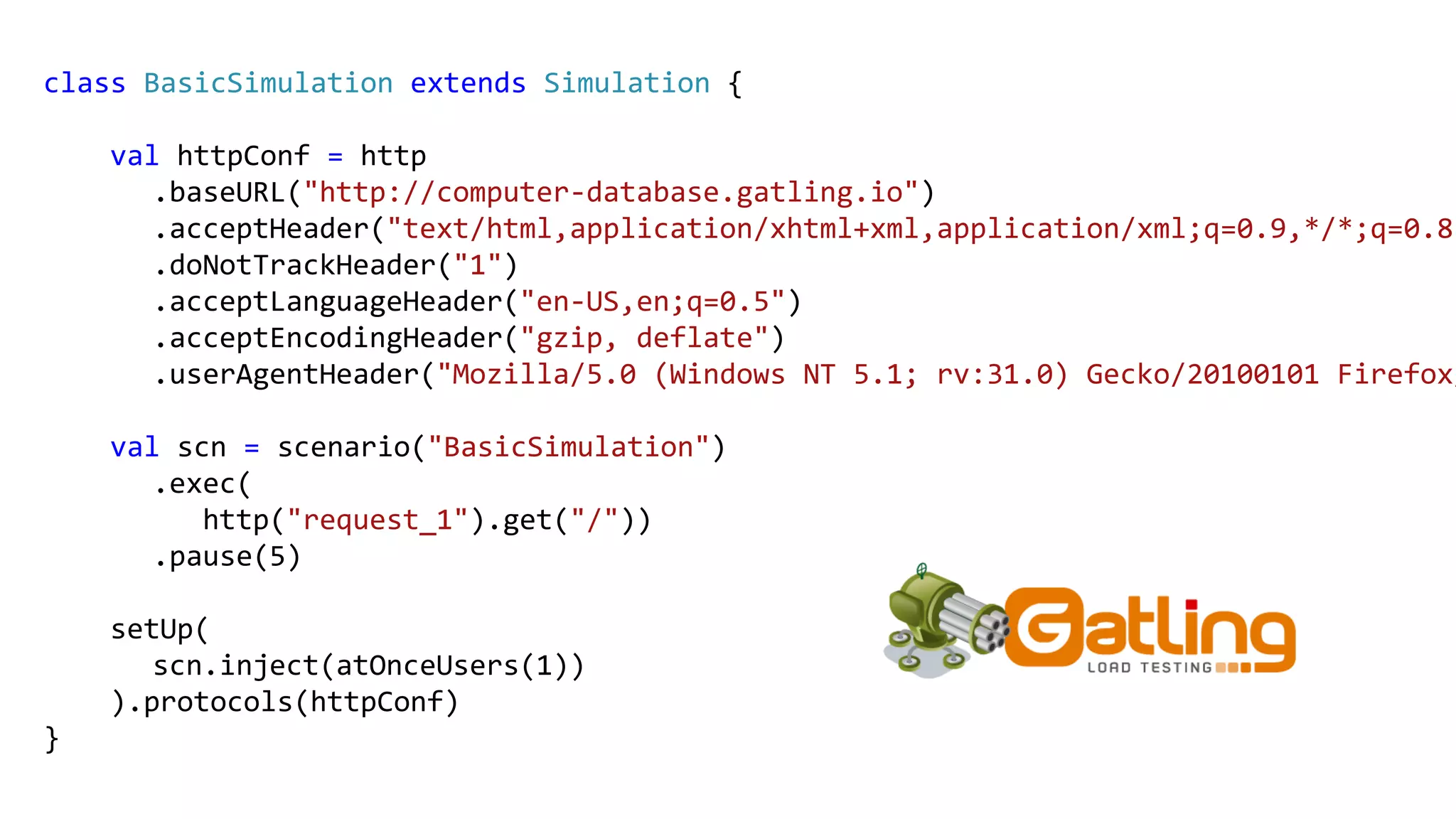

18. class BasicSimulation extends Simulation {
val httpConf = http
.baseURL("http://computer-database.gatling.io")
.acceptHeader("text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8"
.doNotTrackHeader("1")
.acceptLanguageHeader("en-US,en;q=0.5")
.acceptEncodingHeader("gzip, deflate")
.userAgentHeader("Mozilla/5.0 (Windows NT 5.1; rv:31.0) Gecko/20100101 Firefox/
val scn = scenario("BasicSimulation")
.exec(
http("request_1").get("/"))
.pause(5)
setUp(
scn.inject(atOnceUsers(1))
).protocols(httpConf)
}

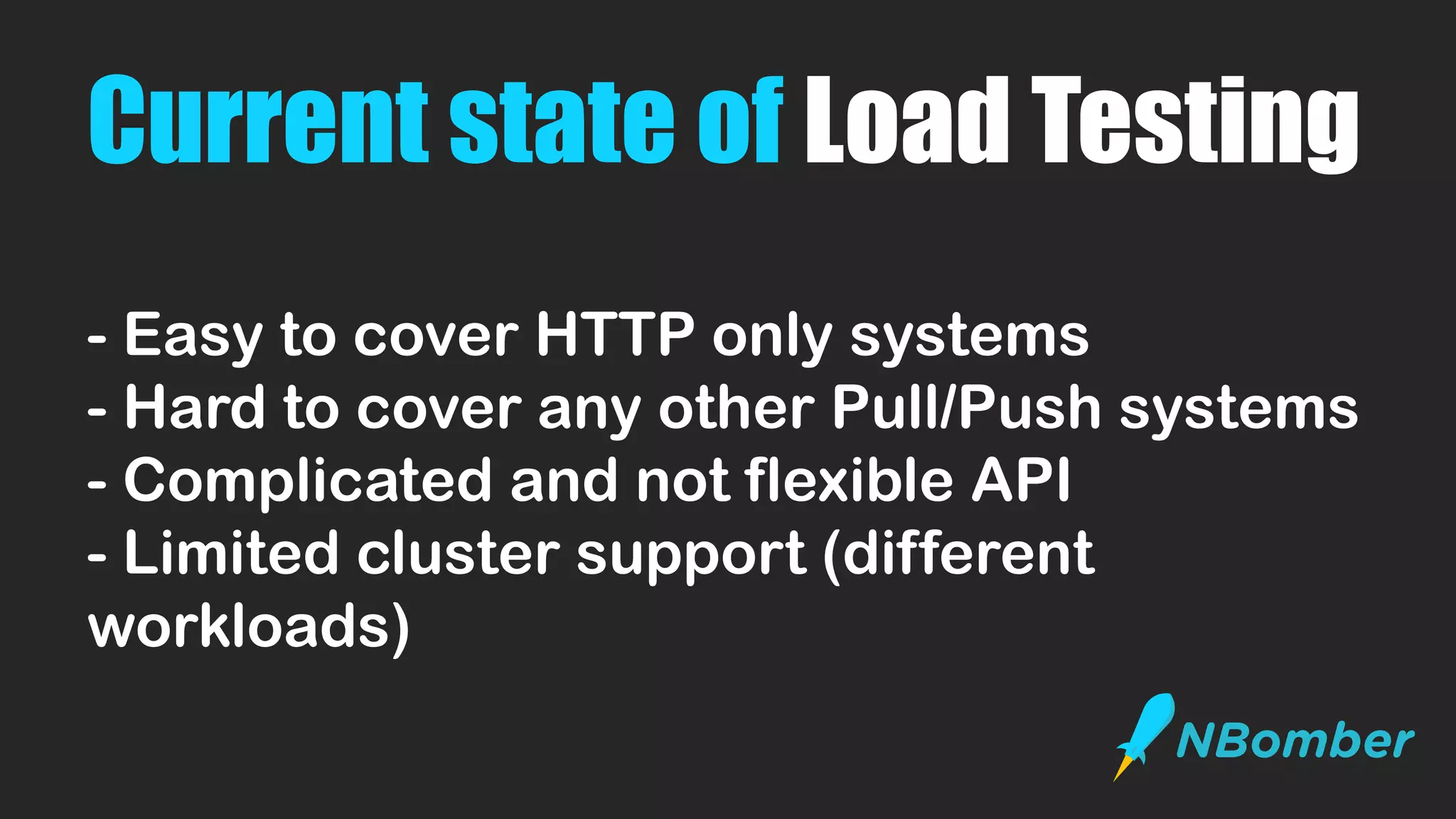

19. Current state of Load Testing
- Easy to cover HTTP only systems
- Hard to cover any other Pull/Push systems
- Complicated and not flexible API
- Limited cluster support (different
workloads)

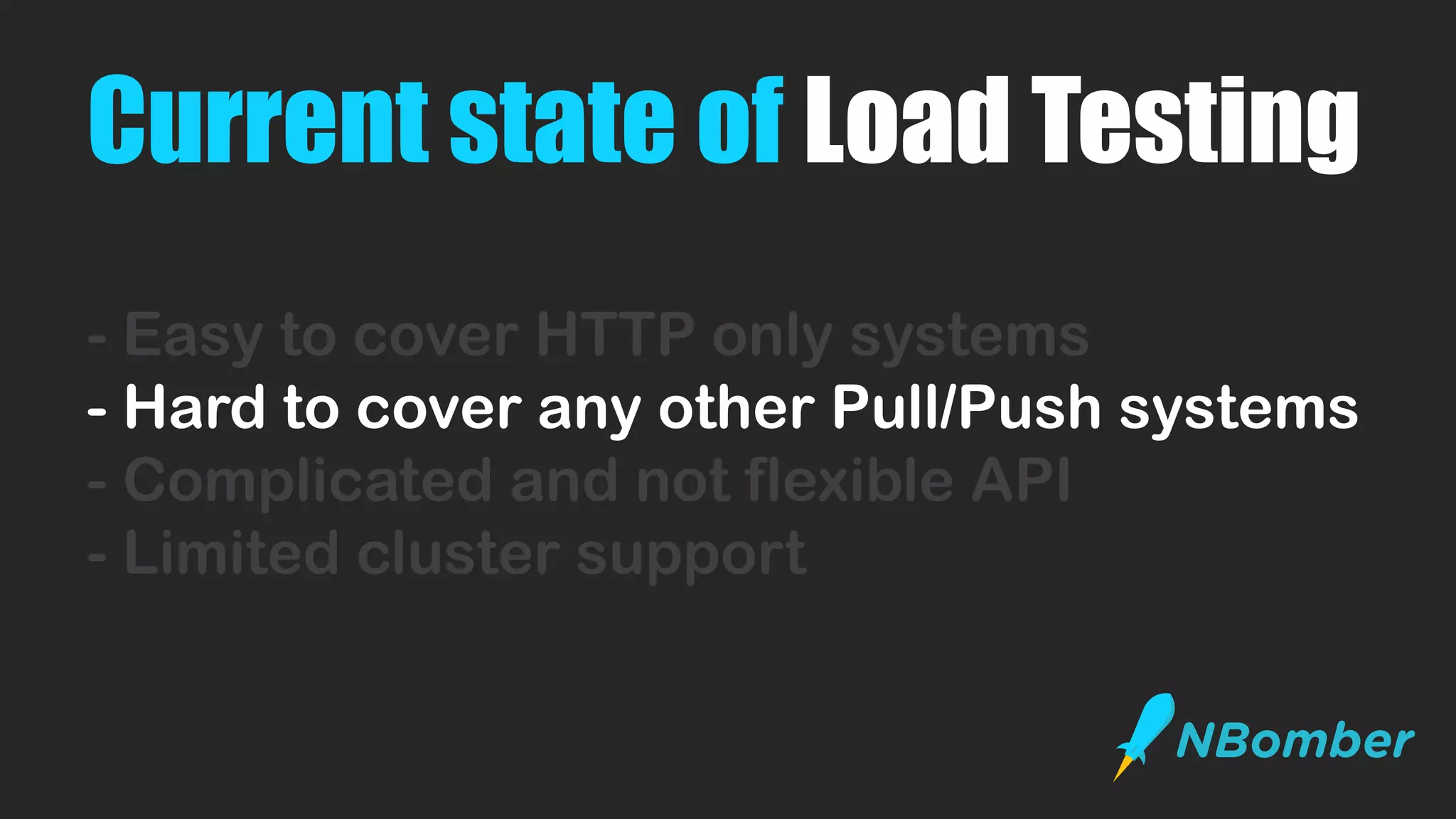

20. Current state of Load Testing
- Easy to cover HTTP only systems
- Hard to cover any other Pull/Push systems
- Complicated and not flexible API
- Limited cluster support

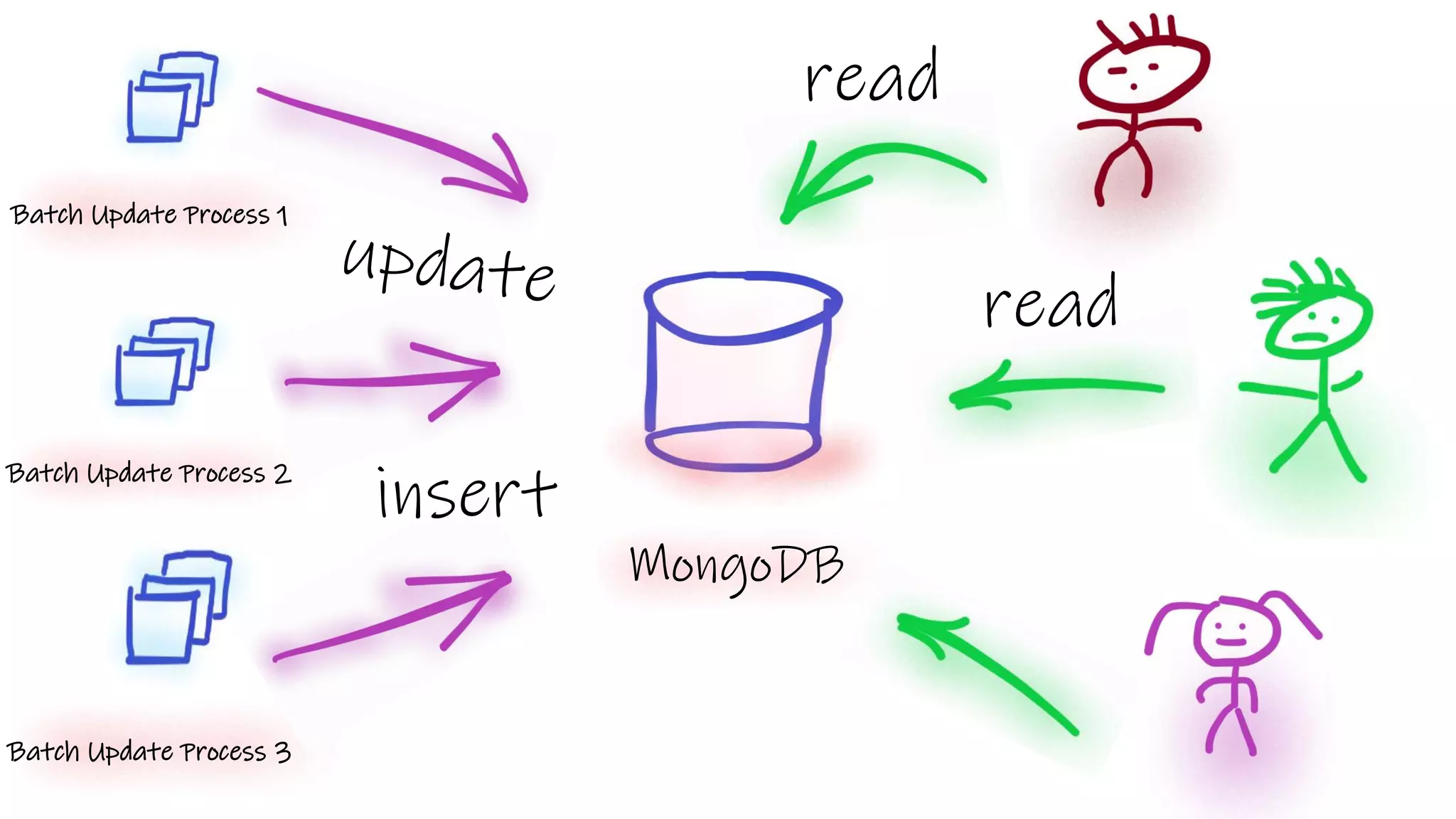

21. Batch Update Process 1
Batch Update Process 3
MongoDB
Batch Update Process 2
insert
read
read

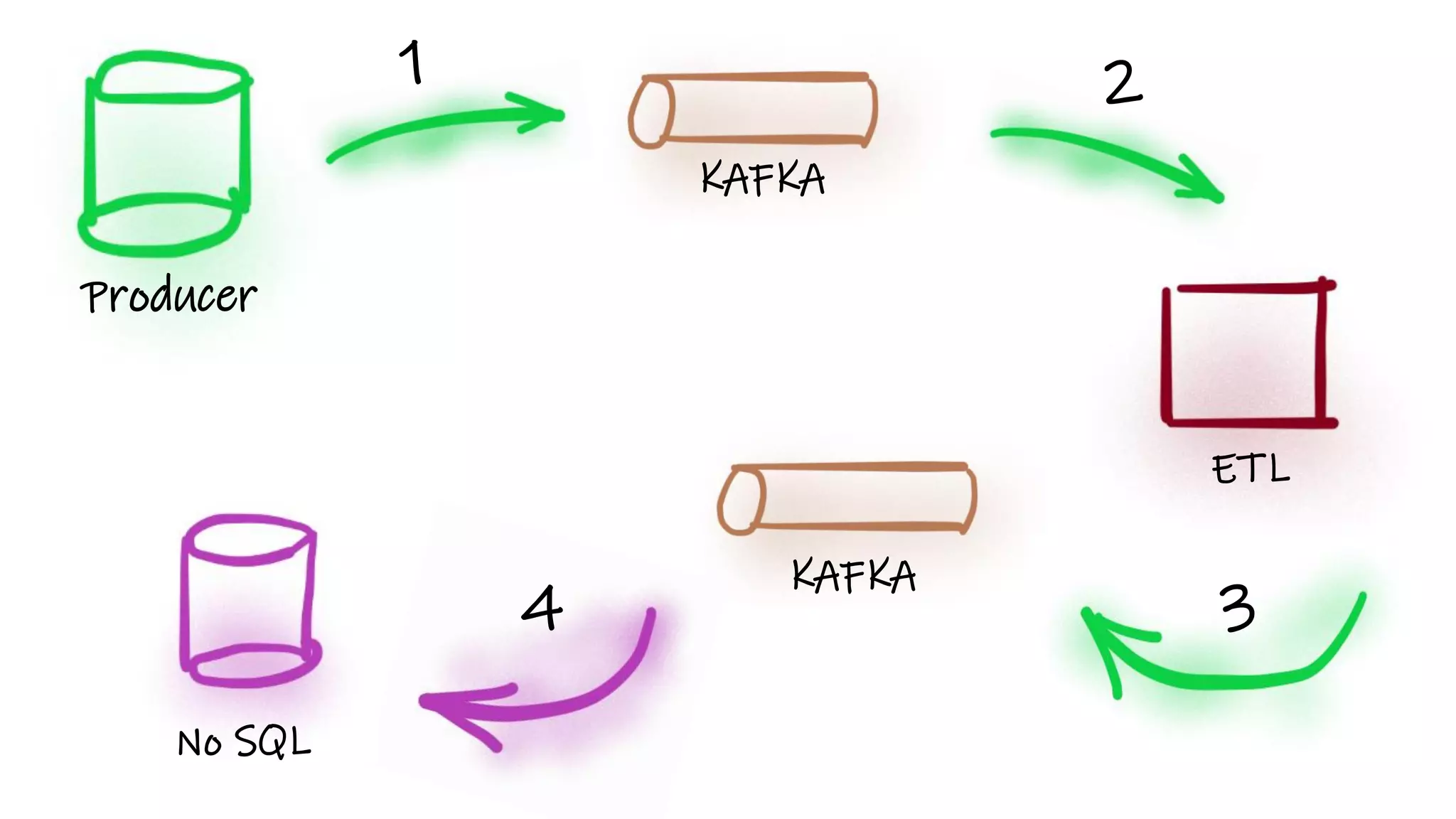

22. Producer
KAFKA
ETL
KAFKA
No SQL
1 2
34

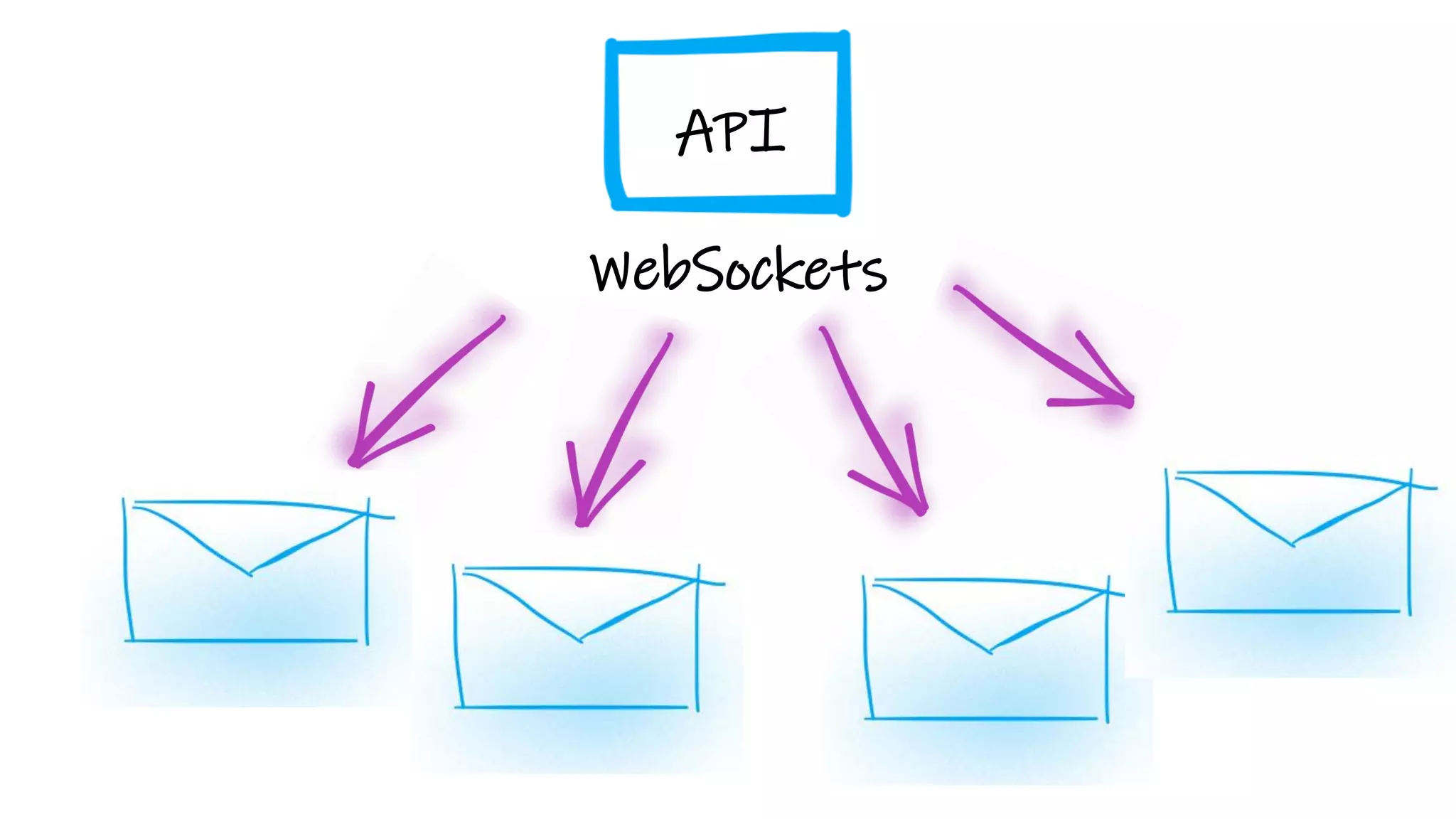

23. WebSockets
API

25. What about
1 Million
connections???

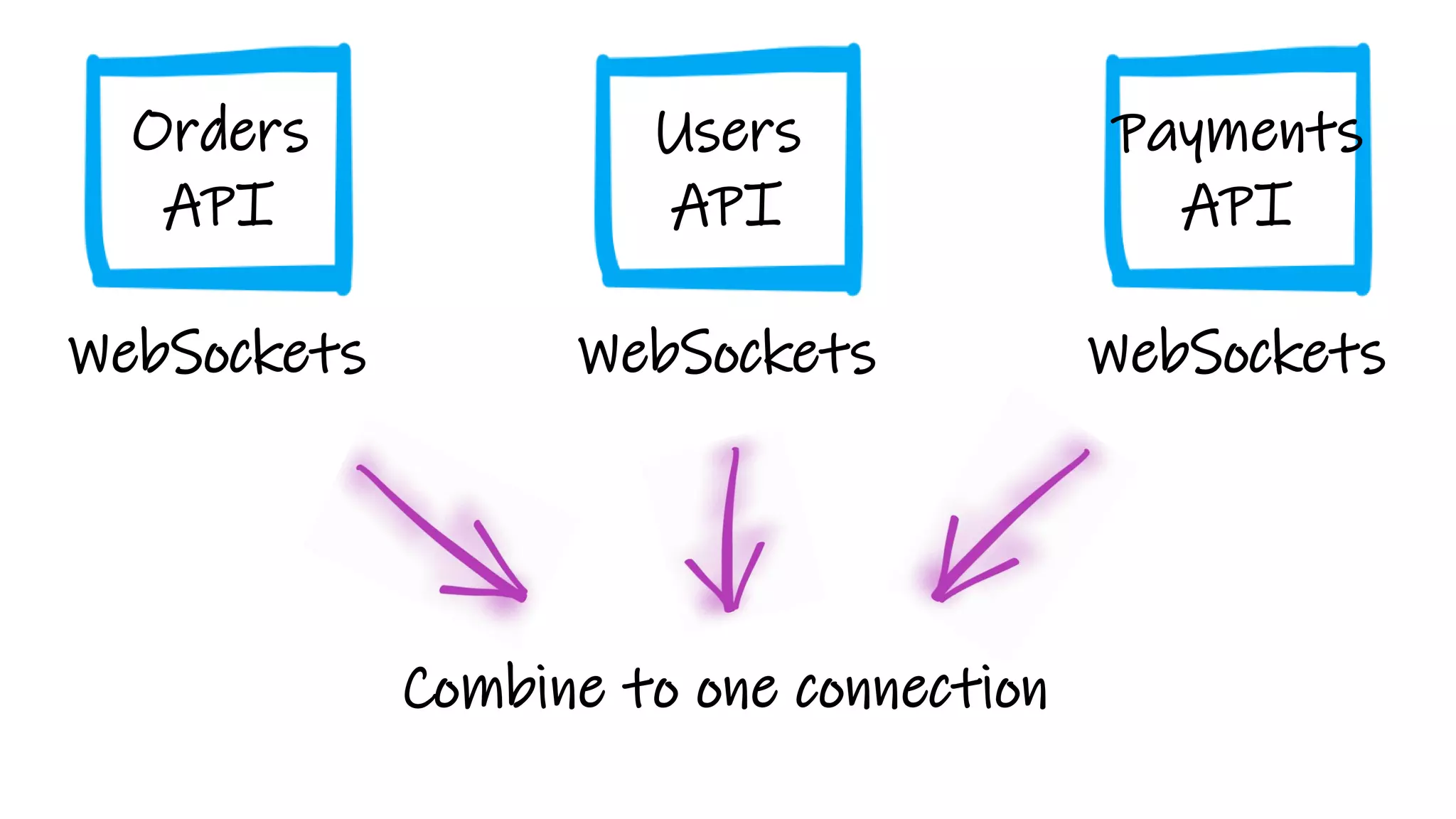

26. WebSockets
Users
API
WebSockets
Payments
API
WebSockets
Orders
API
Combine to one connection

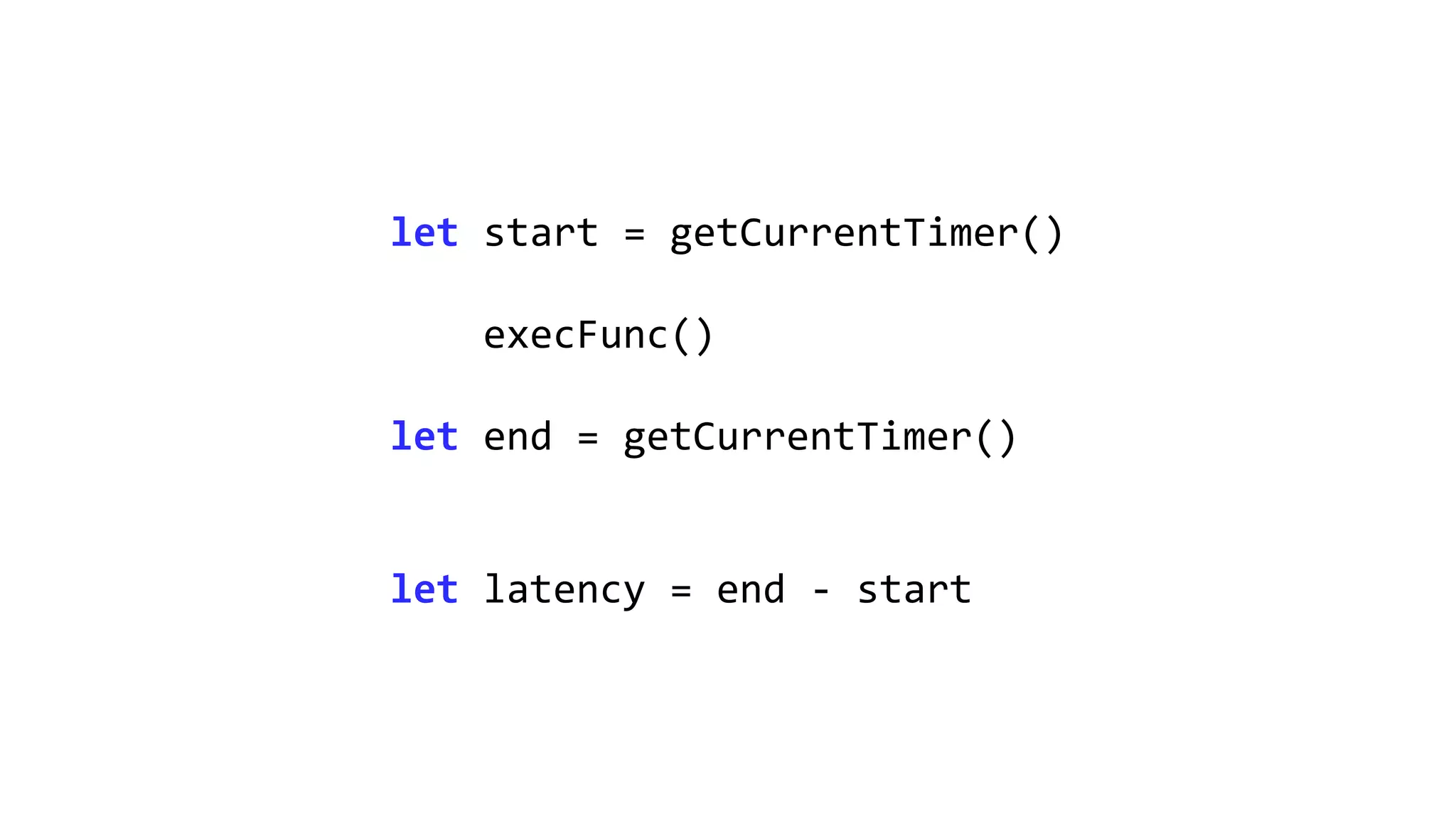

27. let start = getCurrentTimer()
execFunc()
let end = getCurrentTimer()
let latency = end - start

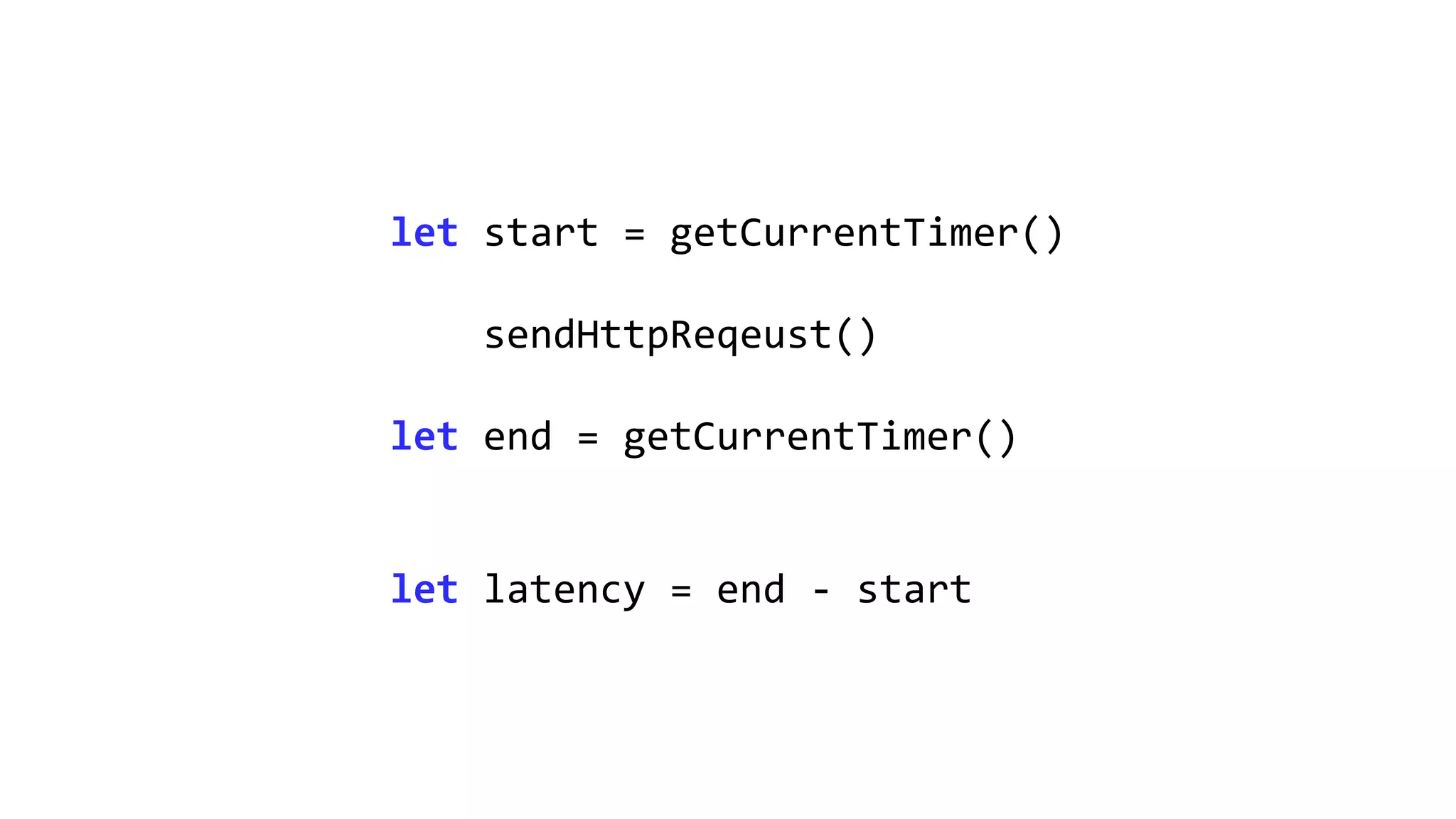

28. let start = getCurrentTimer()
sendHttpReqeust()
let end = getCurrentTimer()
let latency = end - start

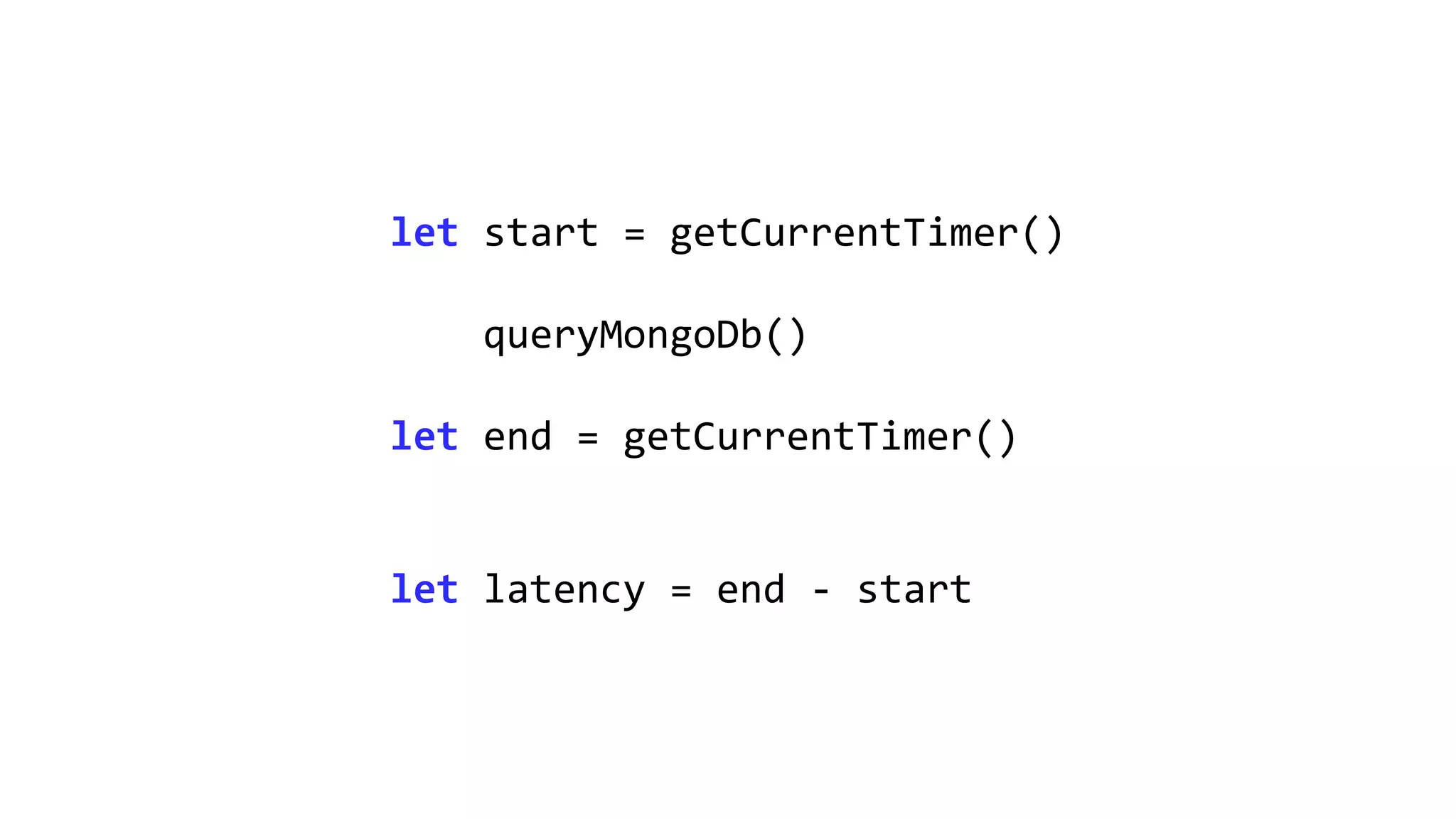

29. let start = getCurrentTimer()
queryMongoDb()
let end = getCurrentTimer()
let latency = end - start

30. let start = getCurrentTimer()
publishToKafka()
let end = getCurrentTimer()
let latency = end - start

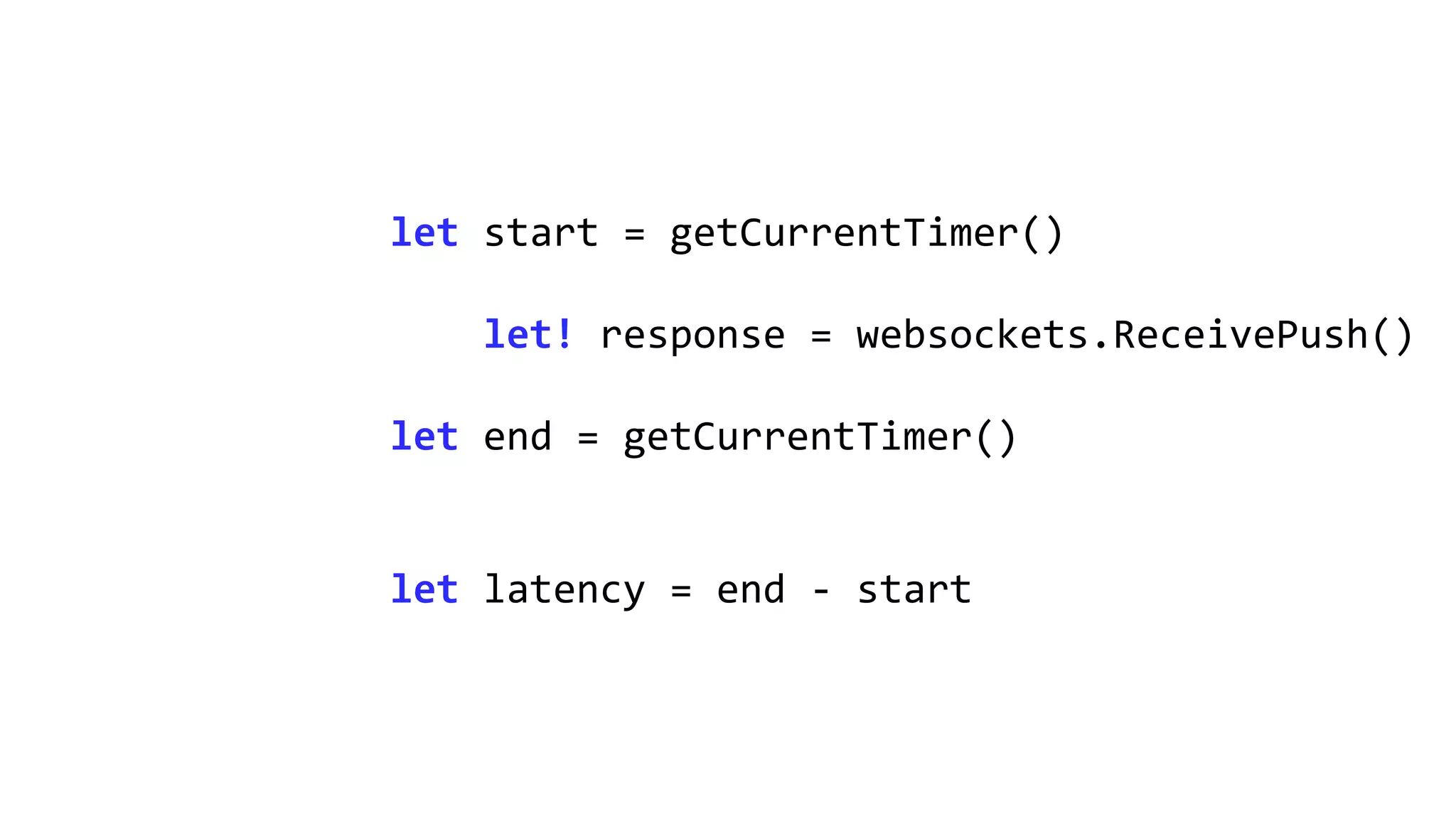

31. let start = getCurrentTimer()
let! response = websockets.ReceivePush()
let end = getCurrentTimer()
let latency = end - start

32. Load test any system
https://nbomber.com
PM> Install-Package NBomber

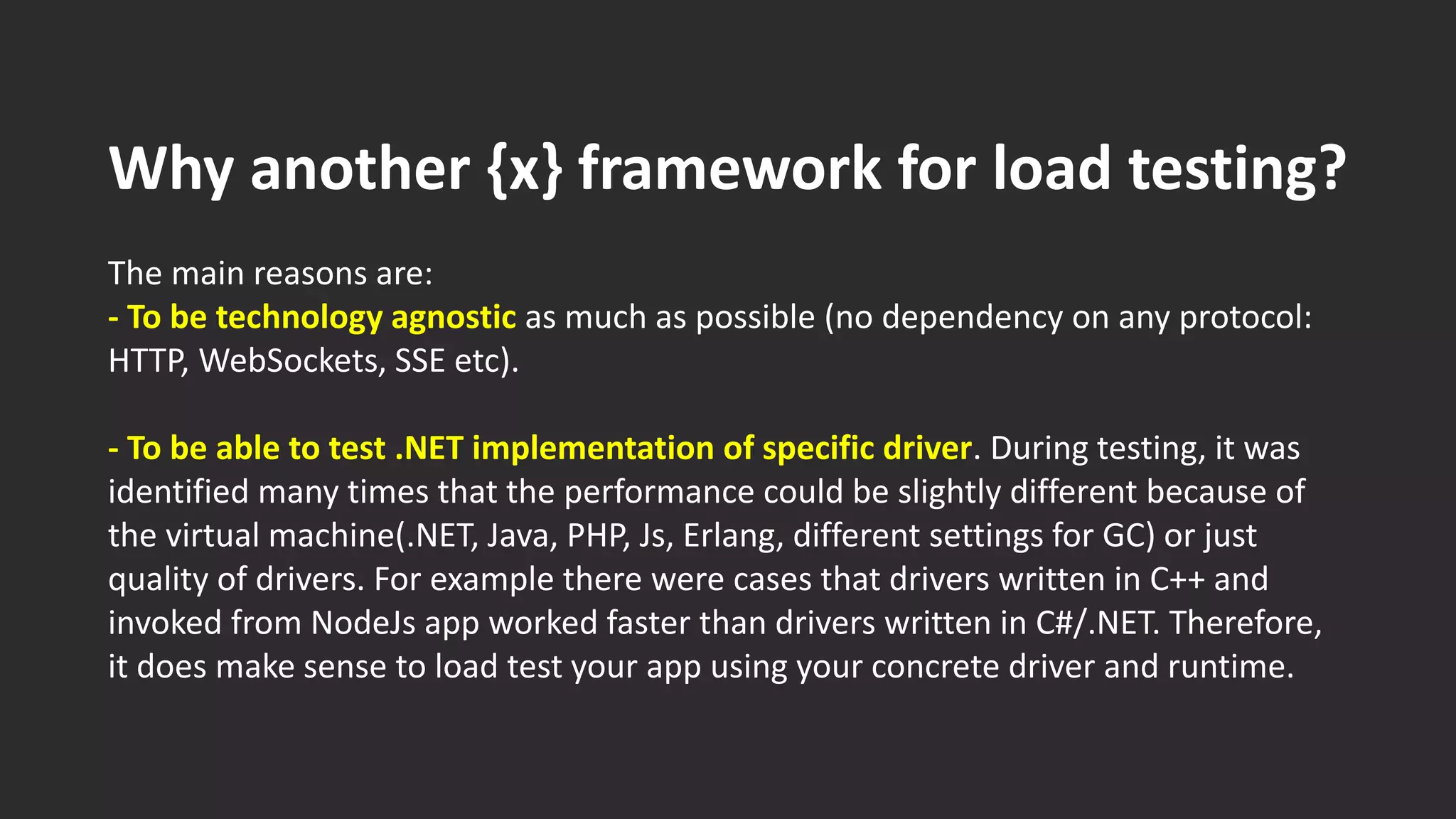

33. Why another {x} framework for load testing?
The main reasons are:
- To be technology agnostic as much as possible (no dependency on any protocol:
HTTP, WebSockets, SSE etc).
- To be able to test .NET implementation of specific driver. During testing, it was
identified many times that the performance could be slightly different because of
the virtual machine(.NET, Java, PHP, Js, Erlang, different settings for GC) or just
quality of drivers. For example there were cases that drivers written in C++ and
invoked from NodeJs app worked faster than drivers written in C#/.NET. Therefore,
it does make sense to load test your app using your concrete driver and runtime.

34. - Technology agnostic
(no dependency on HTTP, WebSockets, SSE)
- Very simple API
(to test Pull and Push scenarios)
- CI/CD integration

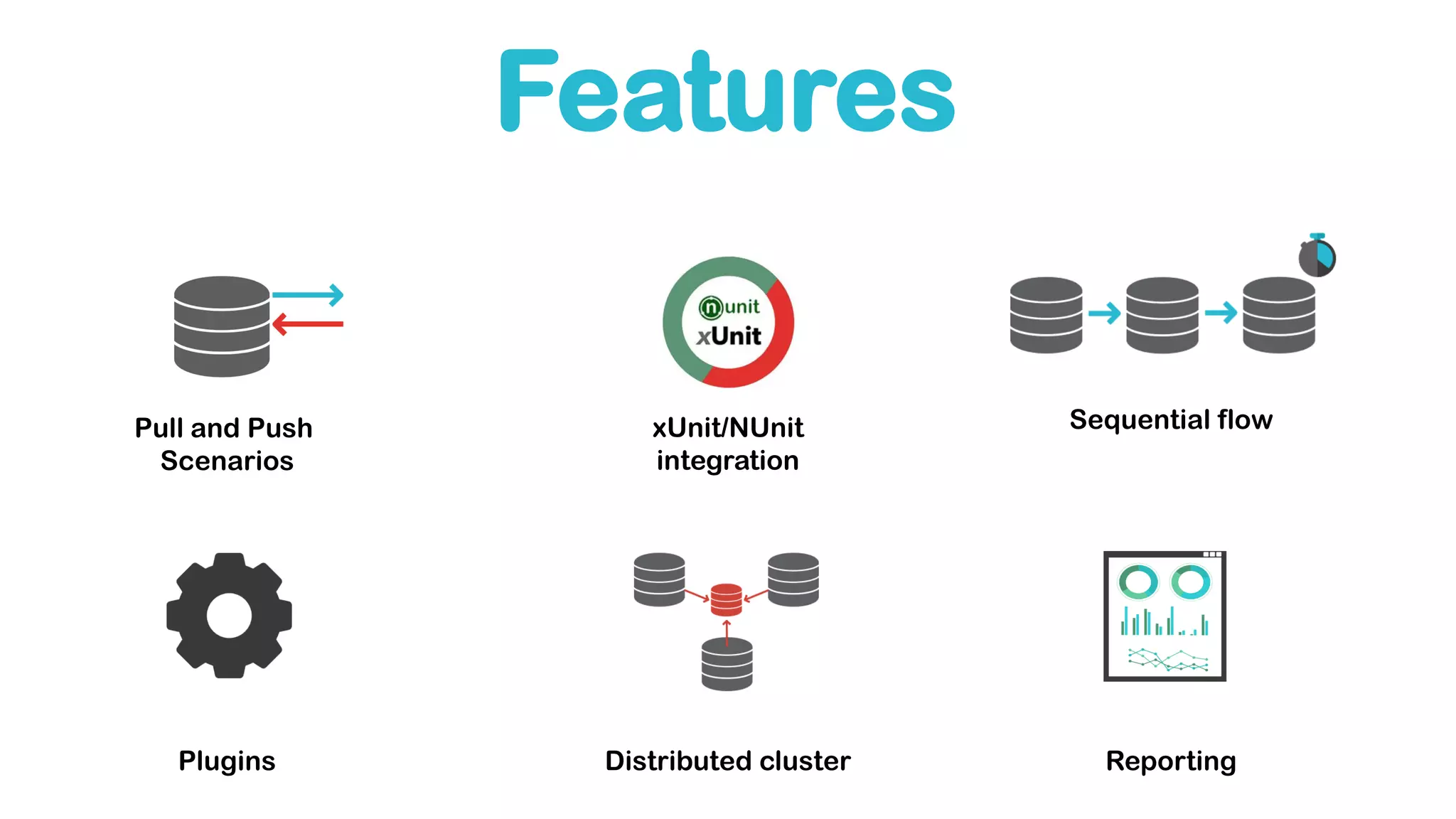

35. Pull and Push
Scenarios
xUnit/NUnit
integration
Sequential flow
ReportingDistributed clusterPlugins
Features

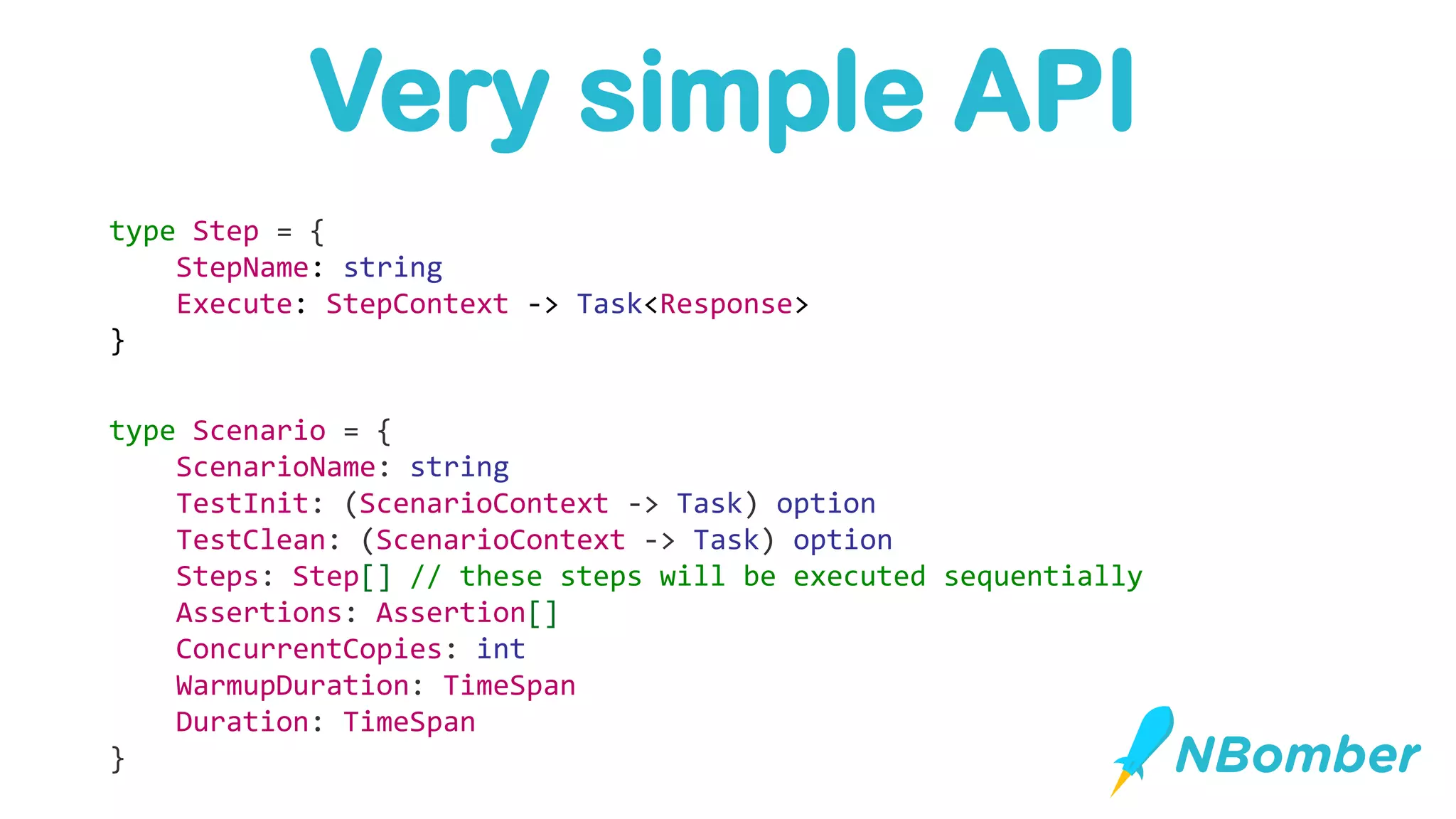

36. type Scenario = {
ScenarioName: string
TestInit: (ScenarioContext -> Task) option
TestClean: (ScenarioContext -> Task) option
Steps: Step[] // these steps will be executed sequentially
Assertions: Assertion[]
ConcurrentCopies: int
WarmupDuration: TimeSpan
Duration: TimeSpan
}
type Step = {
StepName: string
Execute: StepContext -> Task<Response>
}
Very simple API

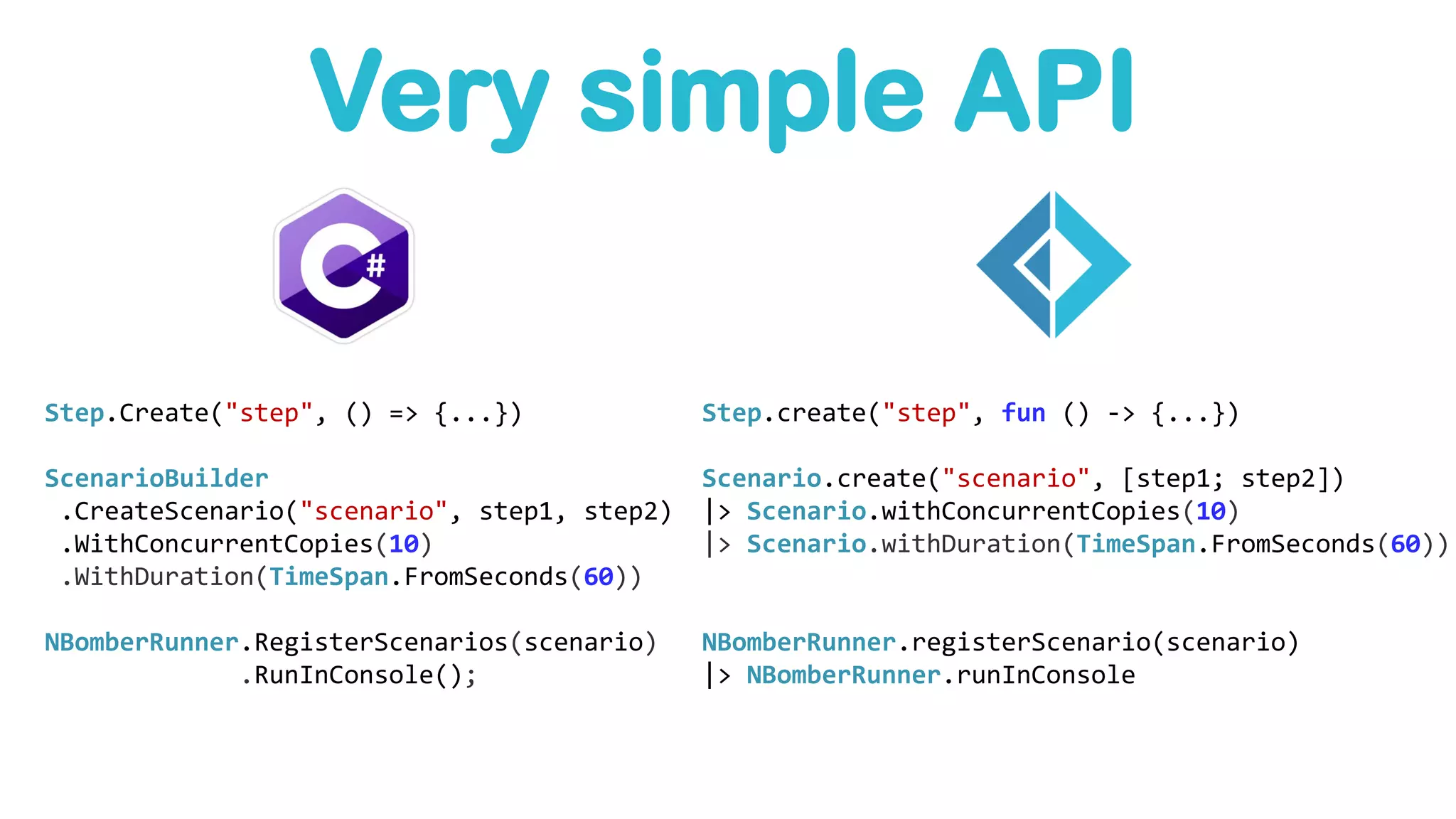

37. Very simple API
Step.Create("step", () => {...})
ScenarioBuilder
.CreateScenario("scenario", step1, step2)
.WithConcurrentCopies(10)
.WithDuration(TimeSpan.FromSeconds(60))
NBomberRunner.RegisterScenarios(scenario)
.RunInConsole();
Step.create("step", fun () -> {...})
Scenario.create("scenario", [step1; step2])
|> Scenario.withConcurrentCopies(10)
|> Scenario.withDuration(TimeSpan.FromSeconds(60))
NBomberRunner.registerScenario(scenario)
|> NBomberRunner.runInConsole

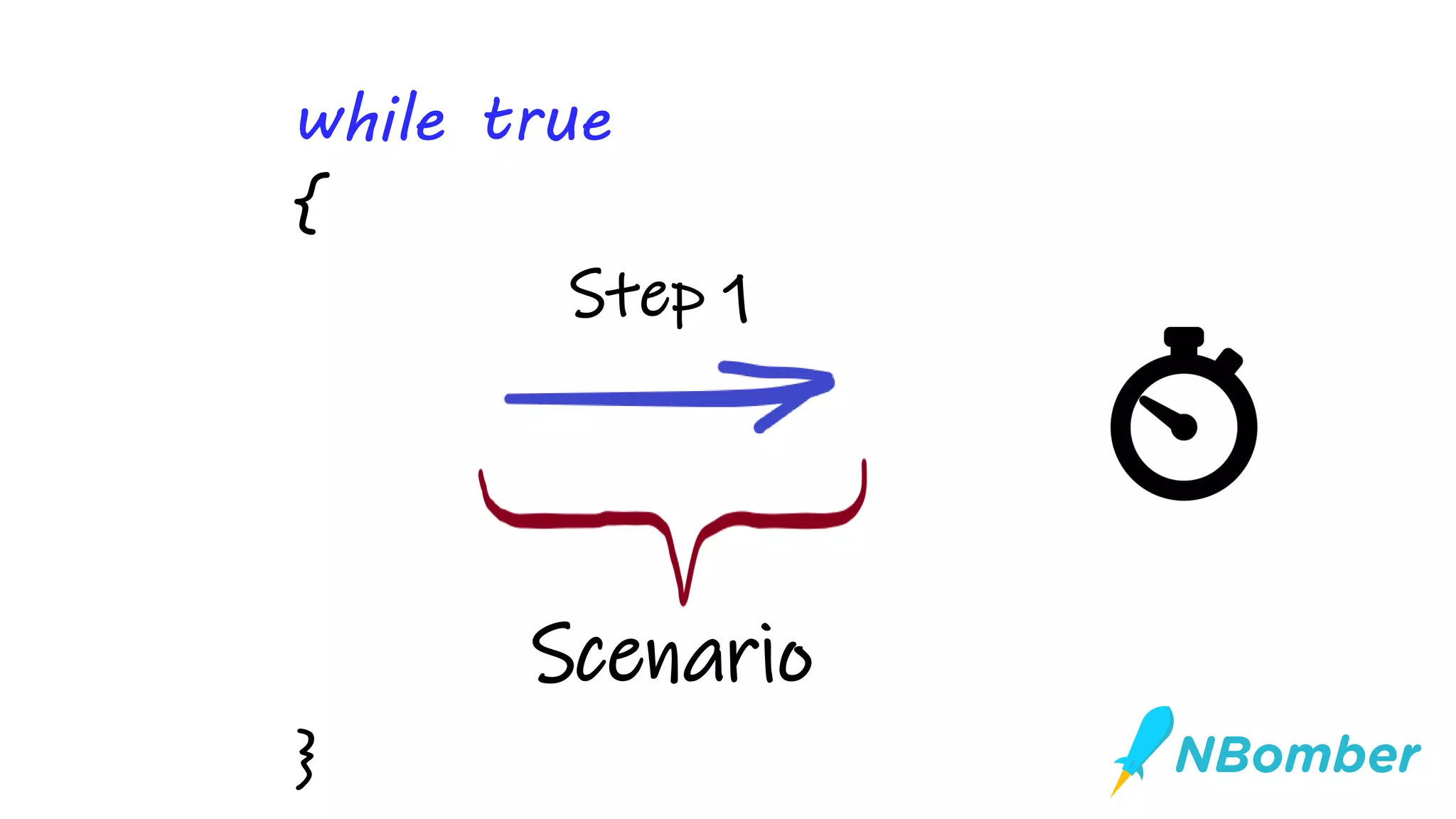

38. Step 1
Scenario
while true
{
}

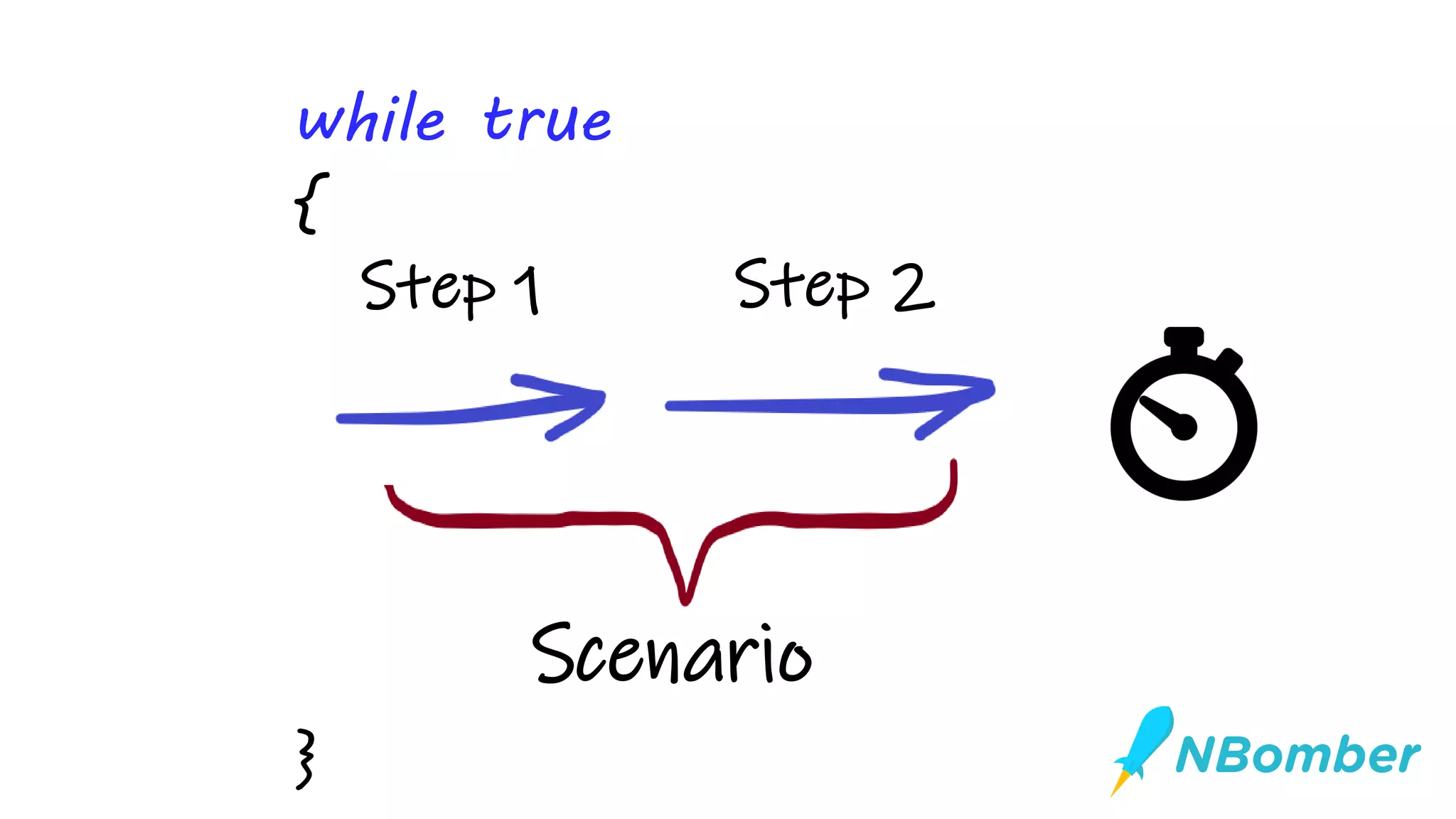

39. Scenario
Step 2Step 1
}
while true
{

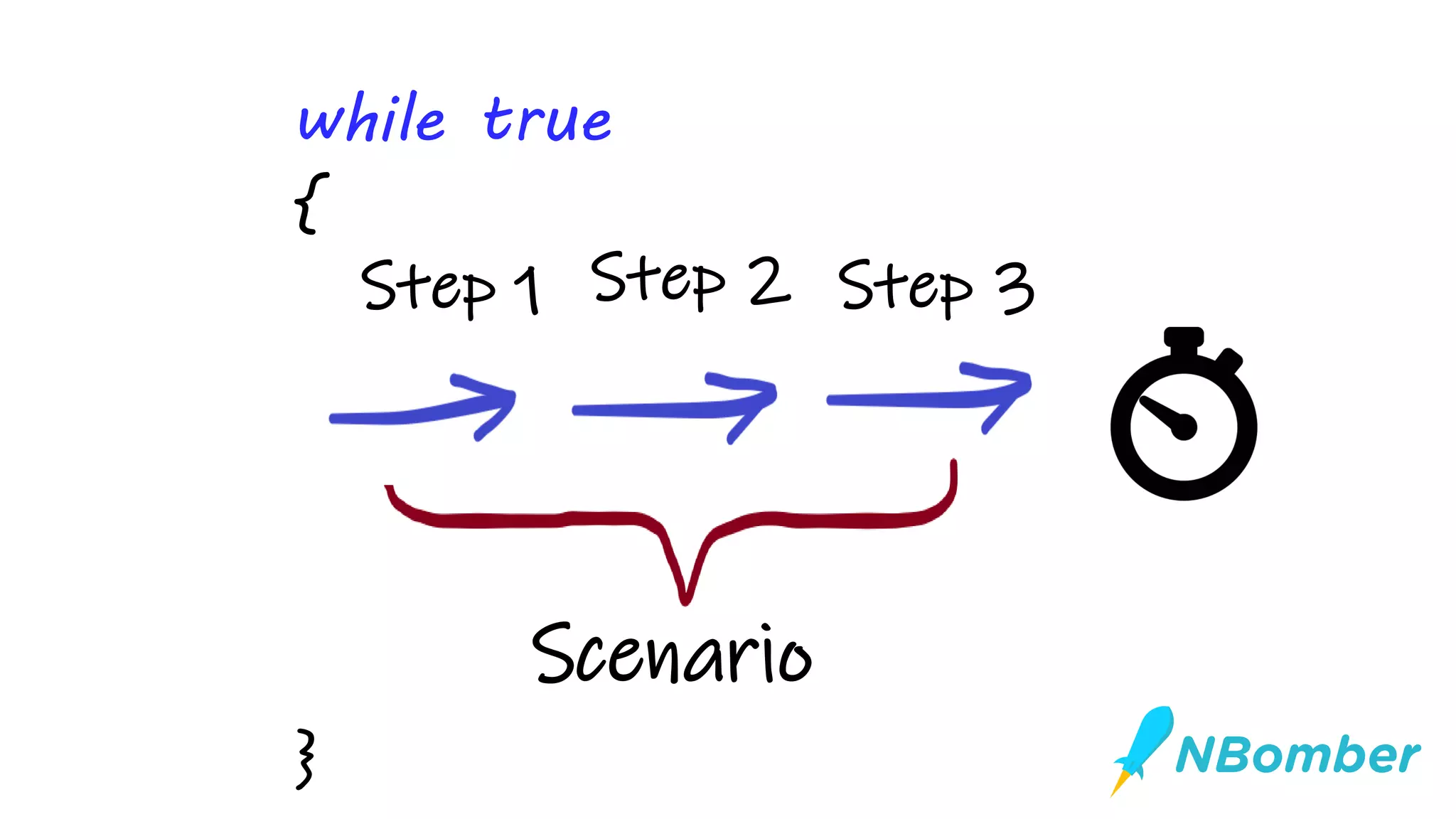

40. Scenario
Step 3Step 1 Step 2
}
while true
{

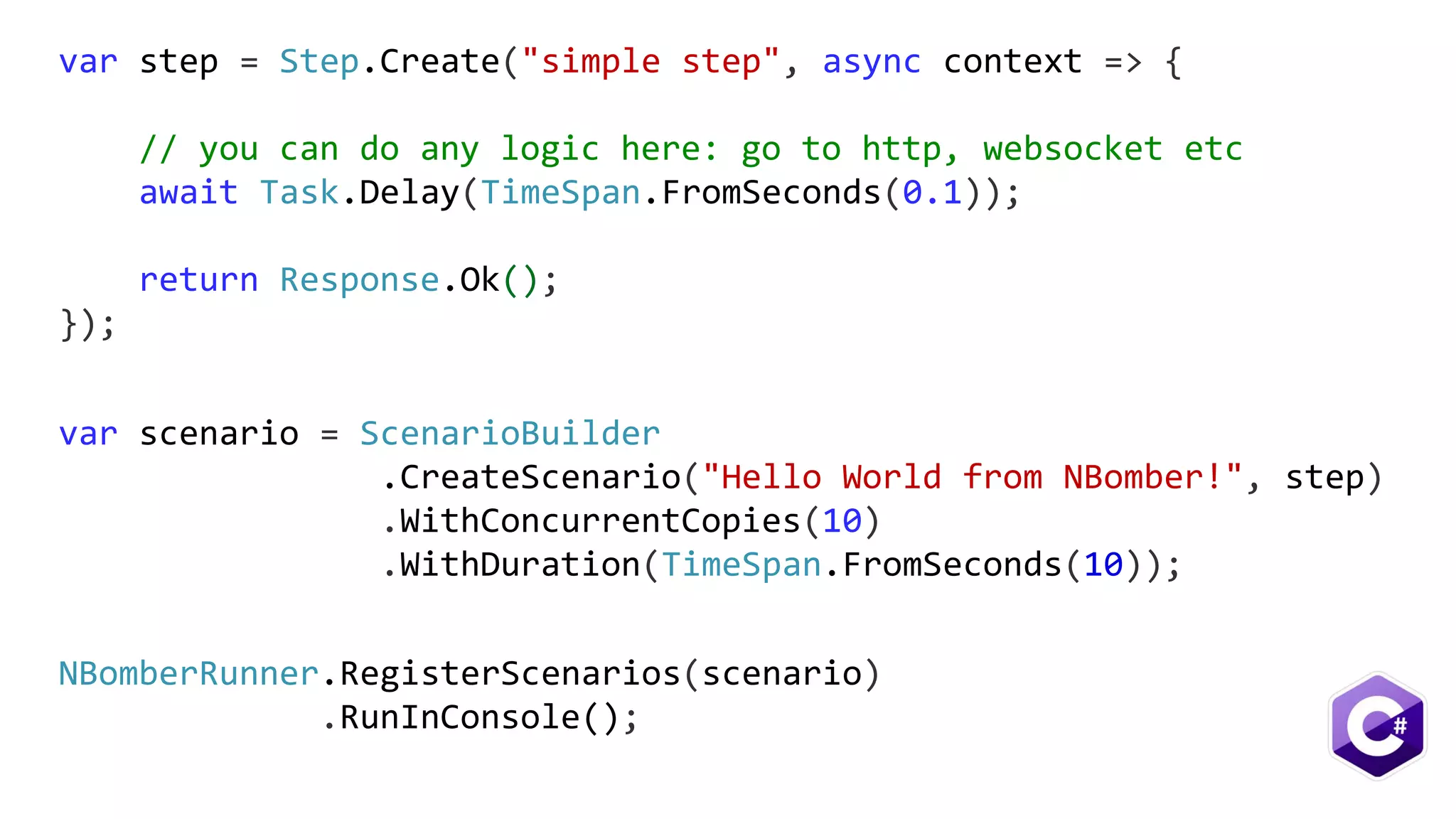

41. var scenario = ScenarioBuilder
.CreateScenario("Hello World from NBomber!", step)
.WithConcurrentCopies(10)
.WithDuration(TimeSpan.FromSeconds(10));
var step = Step.Create("simple step", async context => {
// you can do any logic here: go to http, websocket etc
await Task.Delay(TimeSpan.FromSeconds(0.1));
return Response.Ok();
});
NBomberRunner.RegisterScenarios(scenario)
.RunInConsole();

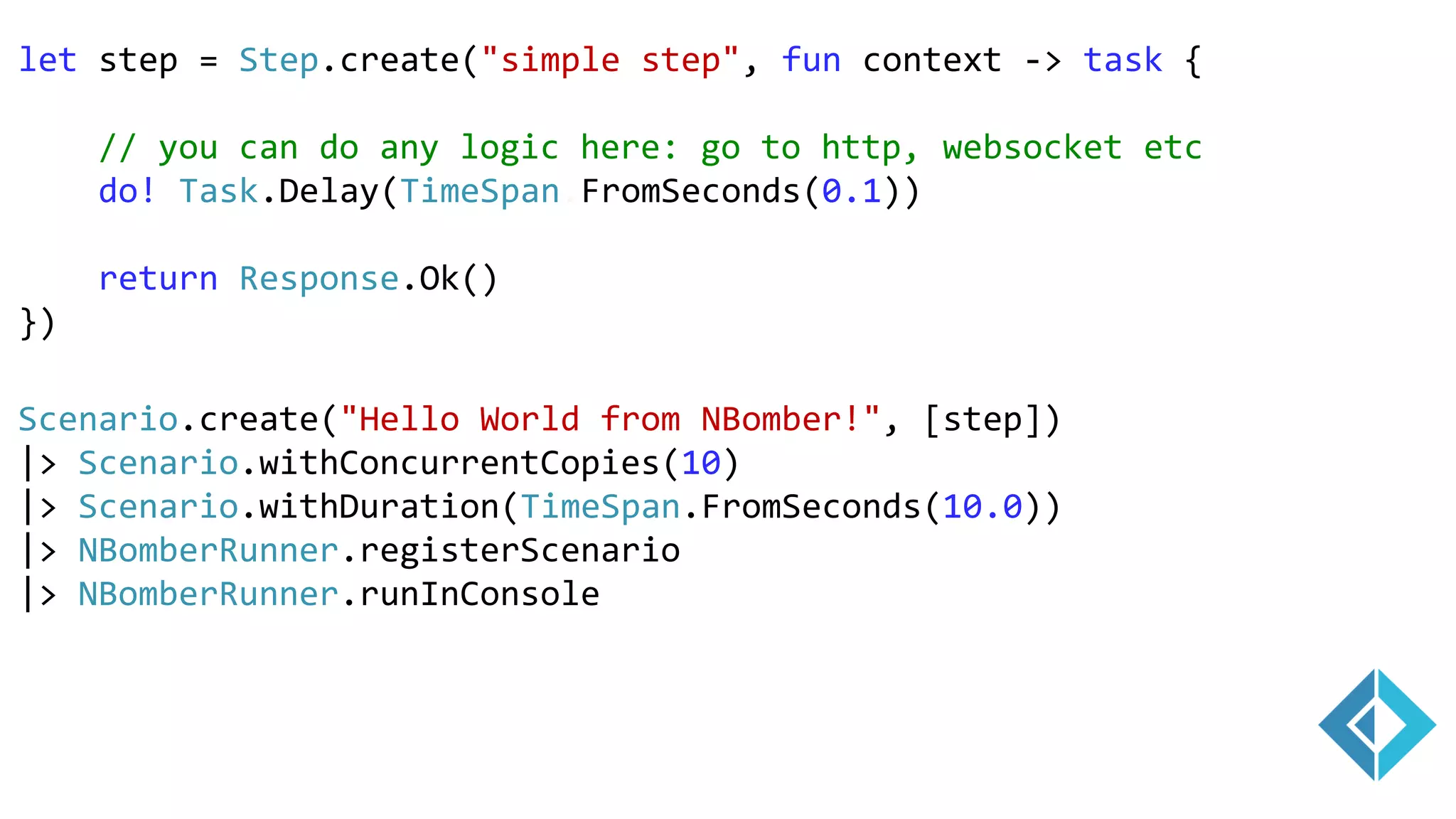

42. let step = Step.create("simple step", fun context -> task {
// you can do any logic here: go to http, websocket etc
do! Task.Delay(TimeSpan.FromSeconds(0.1))
return Response.Ok()
})
Scenario.create("Hello World from NBomber!", [step])
|> Scenario.withConcurrentCopies(10)
|> Scenario.withDuration(TimeSpan.FromSeconds(10.0))
|> NBomberRunner.registerScenario
|> NBomberRunner.runInConsole

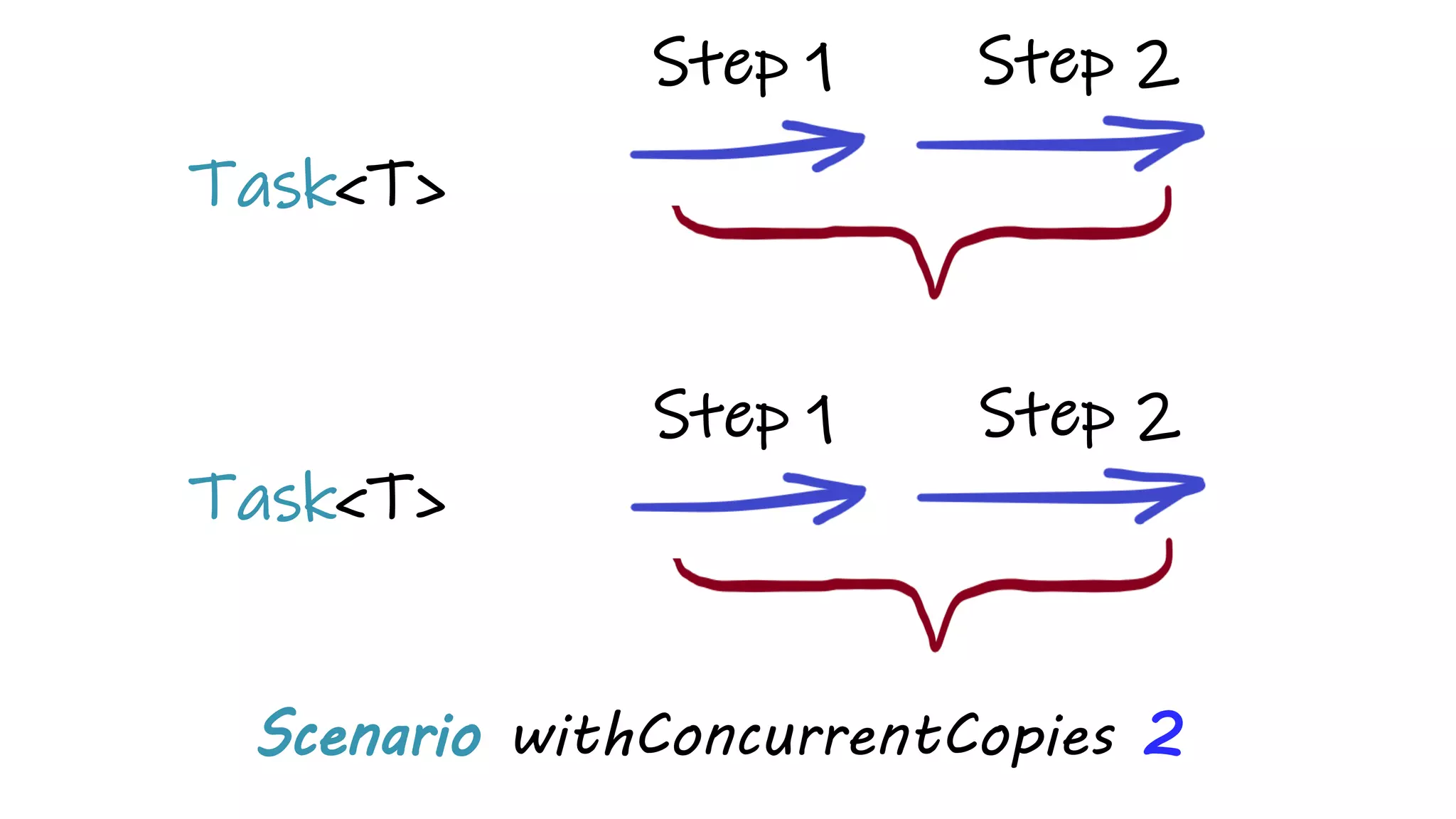

43. Scenario withConcurrentCopies 2

44. Scenario withConcurrentCopies 2
Task<T>
Task<T>
Step 2Step 1
Step 2Step 1

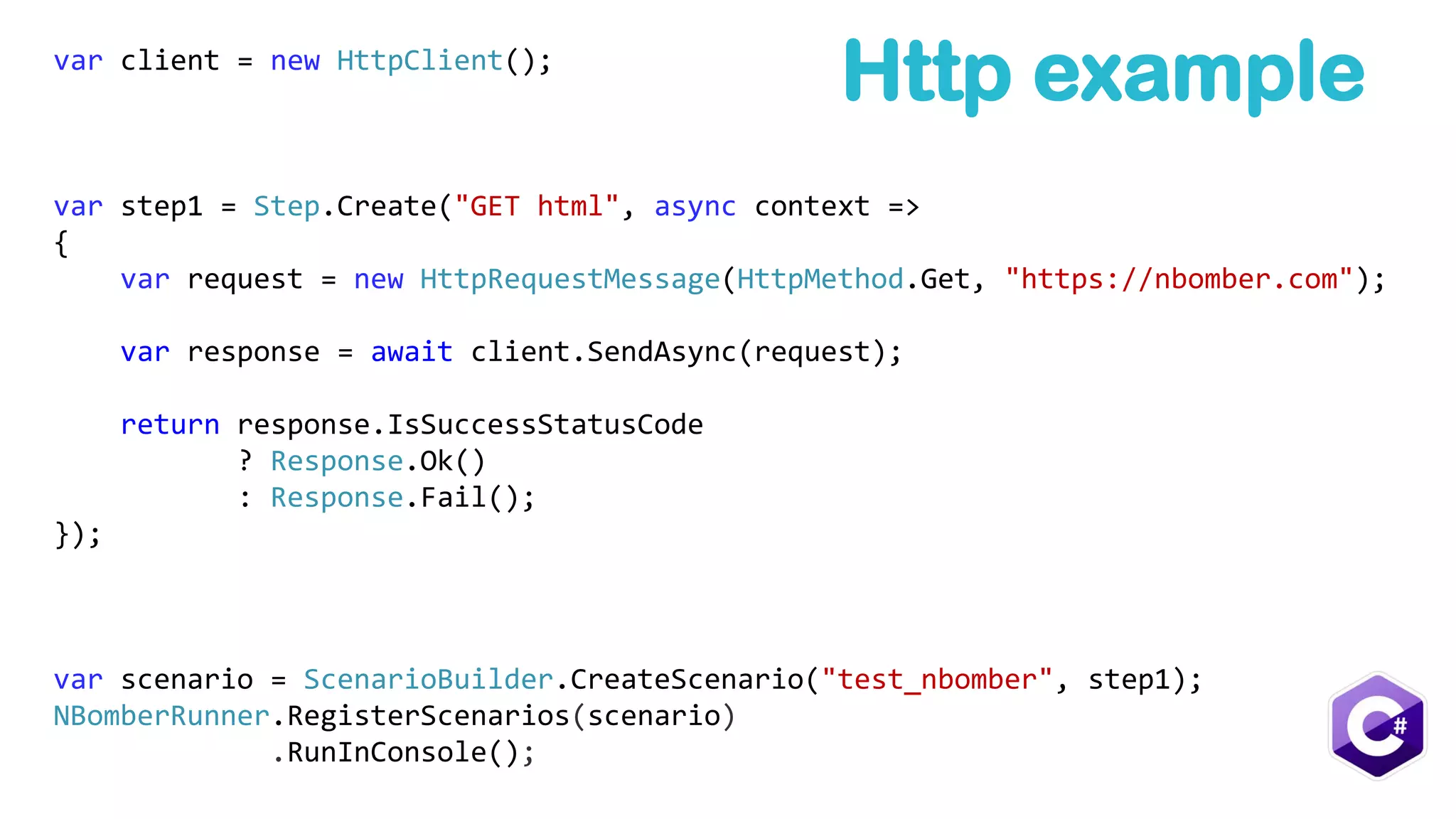

45. var client = new HttpClient();
var step1 = Step.Create("GET html", async context =>
{
var request = new HttpRequestMessage(HttpMethod.Get, "https://nbomber.com");
var response = await client.SendAsync(request);
return response.IsSuccessStatusCode
? Response.Ok()
: Response.Fail();
});
var scenario = ScenarioBuilder.CreateScenario("test_nbomber", step1);
NBomberRunner.RegisterScenarios(scenario)
.RunInConsole();
Http example

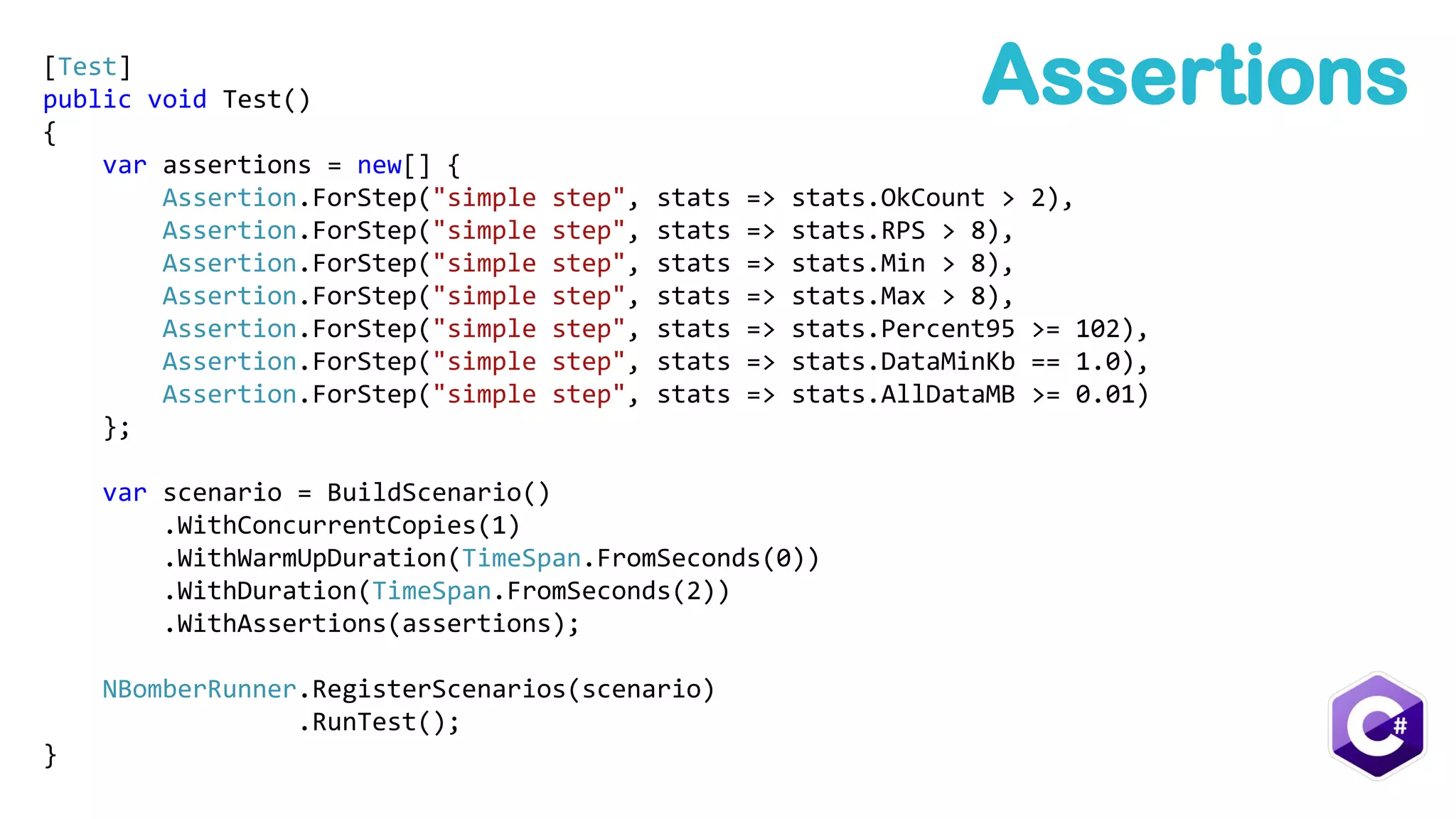

46. Assertions[Test]
public void Test()
{
var assertions = new[] {
Assertion.ForStep("simple step", stats => stats.OkCount > 2),
Assertion.ForStep("simple step", stats => stats.RPS > 8),
Assertion.ForStep("simple step", stats => stats.Min > 8),
Assertion.ForStep("simple step", stats => stats.Max > 8),
Assertion.ForStep("simple step", stats => stats.Percent95 >= 102),
Assertion.ForStep("simple step", stats => stats.DataMinKb == 1.0),
Assertion.ForStep("simple step", stats => stats.AllDataMB >= 0.01)
};
var scenario = BuildScenario()
.WithConcurrentCopies(1)
.WithWarmUpDuration(TimeSpan.FromSeconds(0))
.WithDuration(TimeSpan.FromSeconds(2))
.WithAssertions(assertions);
NBomberRunner.RegisterScenarios(scenario)
.RunTest();
}

47. .Http
https://nbomber.com
PM> Install-Package NBomber.Http

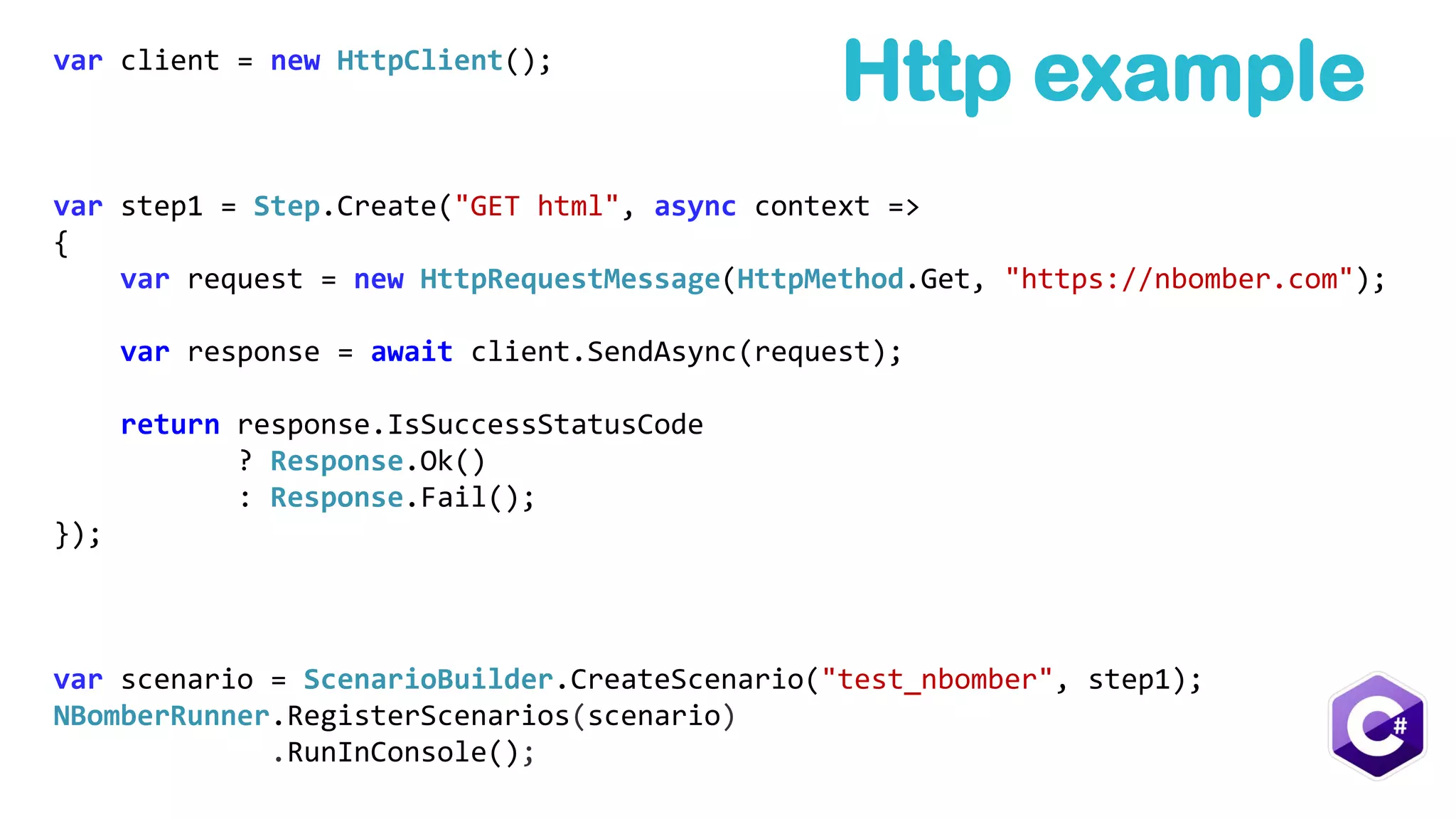

48. var client = new HttpClient();
var step1 = Step.Create("GET html", async context =>
{
var request = new HttpRequestMessage(HttpMethod.Get, "https://nbomber.com");
var response = await client.SendAsync(request);
return response.IsSuccessStatusCode
? Response.Ok()
: Response.Fail();
});
var scenario = ScenarioBuilder.CreateScenario("test_nbomber", step1);
NBomberRunner.RegisterScenarios(scenario)
.RunInConsole();
Http example

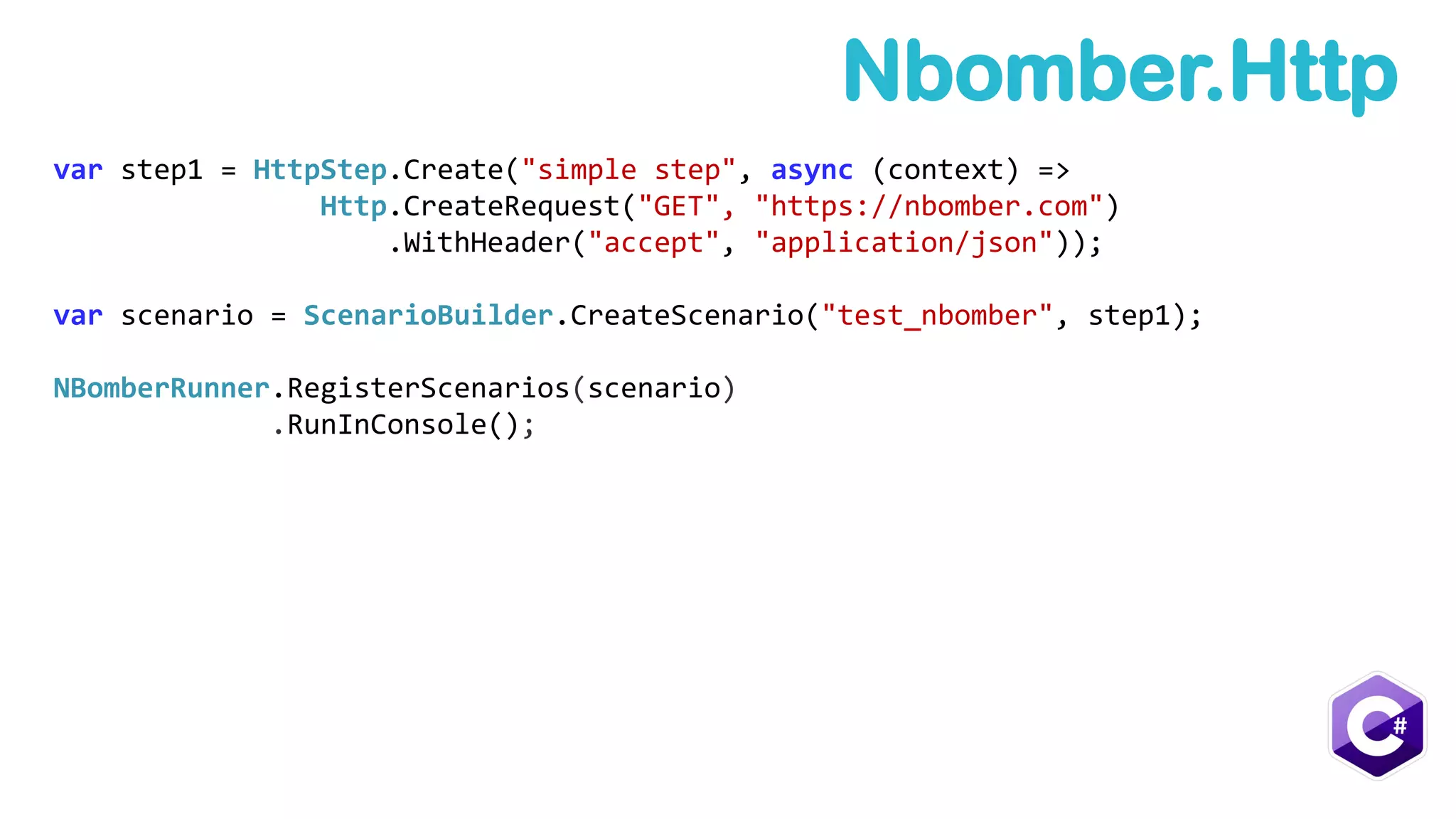

49. var step1 = HttpStep.Create("simple step", async (context) =>
Http.CreateRequest("GET", "https://nbomber.com")
.WithHeader("accept", "application/json"));
var scenario = ScenarioBuilder.CreateScenario("test_nbomber", step1);
NBomberRunner.RegisterScenarios(scenario)
.RunInConsole();
Nbomber.Http

53. Advanced
Example

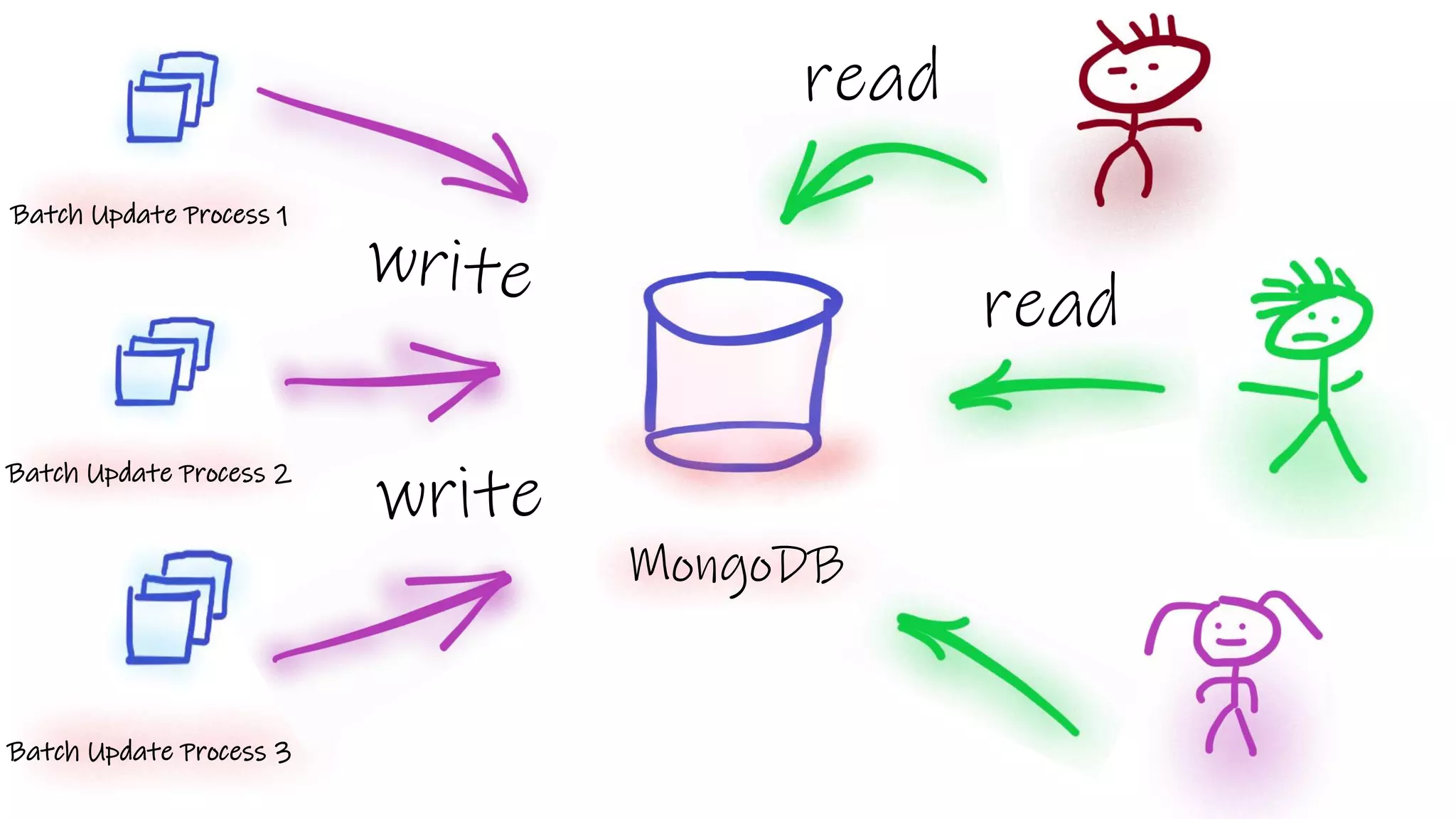

54. Batch Update Process 1
Batch Update Process 3
MongoDB
Batch Update Process 2
write
read
read

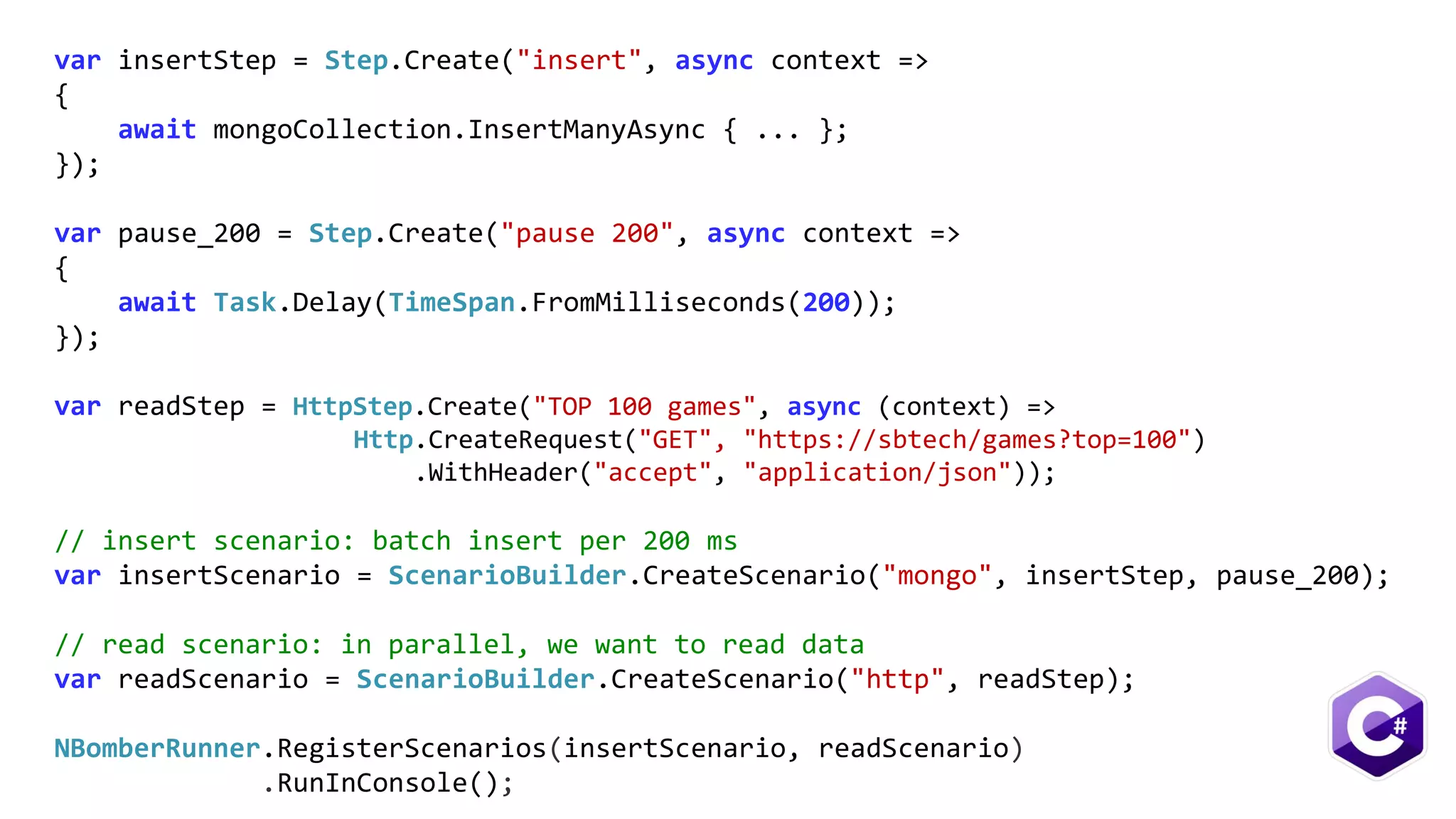

55. var insertStep = Step.Create("insert", async context =>
{
await mongoCollection.InsertManyAsync { ... };
});
var pause_200 = Step.Create("pause 200", async context =>
{
await Task.Delay(TimeSpan.FromMilliseconds(200));
});
var readStep = HttpStep.Create("TOP 100 games", async (context) =>
Http.CreateRequest("GET", "https://sbtech/games?top=100")
.WithHeader("accept", "application/json"));
// insert scenario: batch insert per 200 ms
var insertScenario = ScenarioBuilder.CreateScenario("mongo", insertStep, pause_200);
// read scenario: in parallel, we want to read data
var readScenario = ScenarioBuilder.CreateScenario("http", readStep);
NBomberRunner.RegisterScenarios(insertScenario, readScenario)
.RunInConsole();

56. The Kids
want cluster

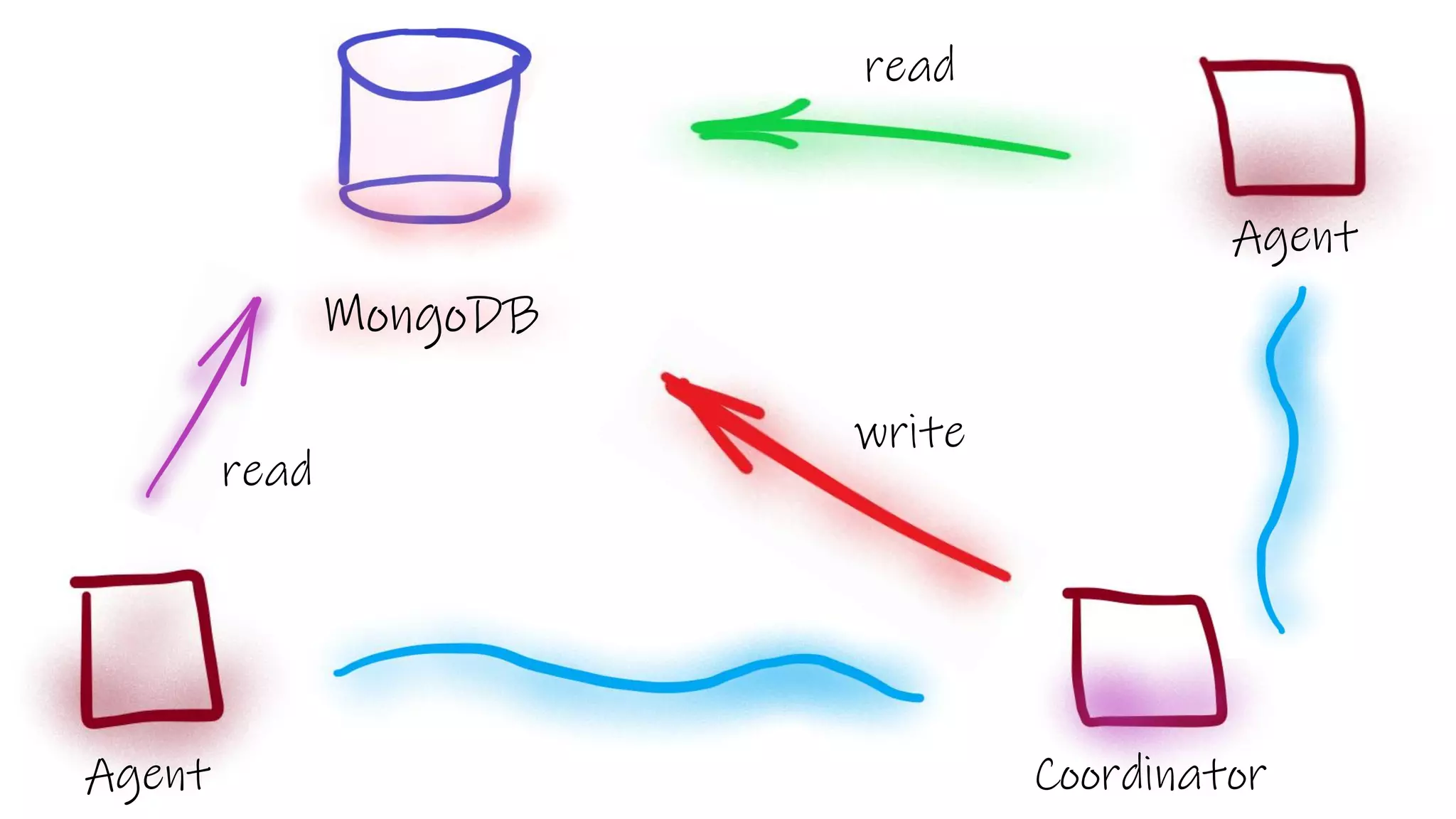

57. Agent
Agent
Coordinator
MongoDB
read
write
read

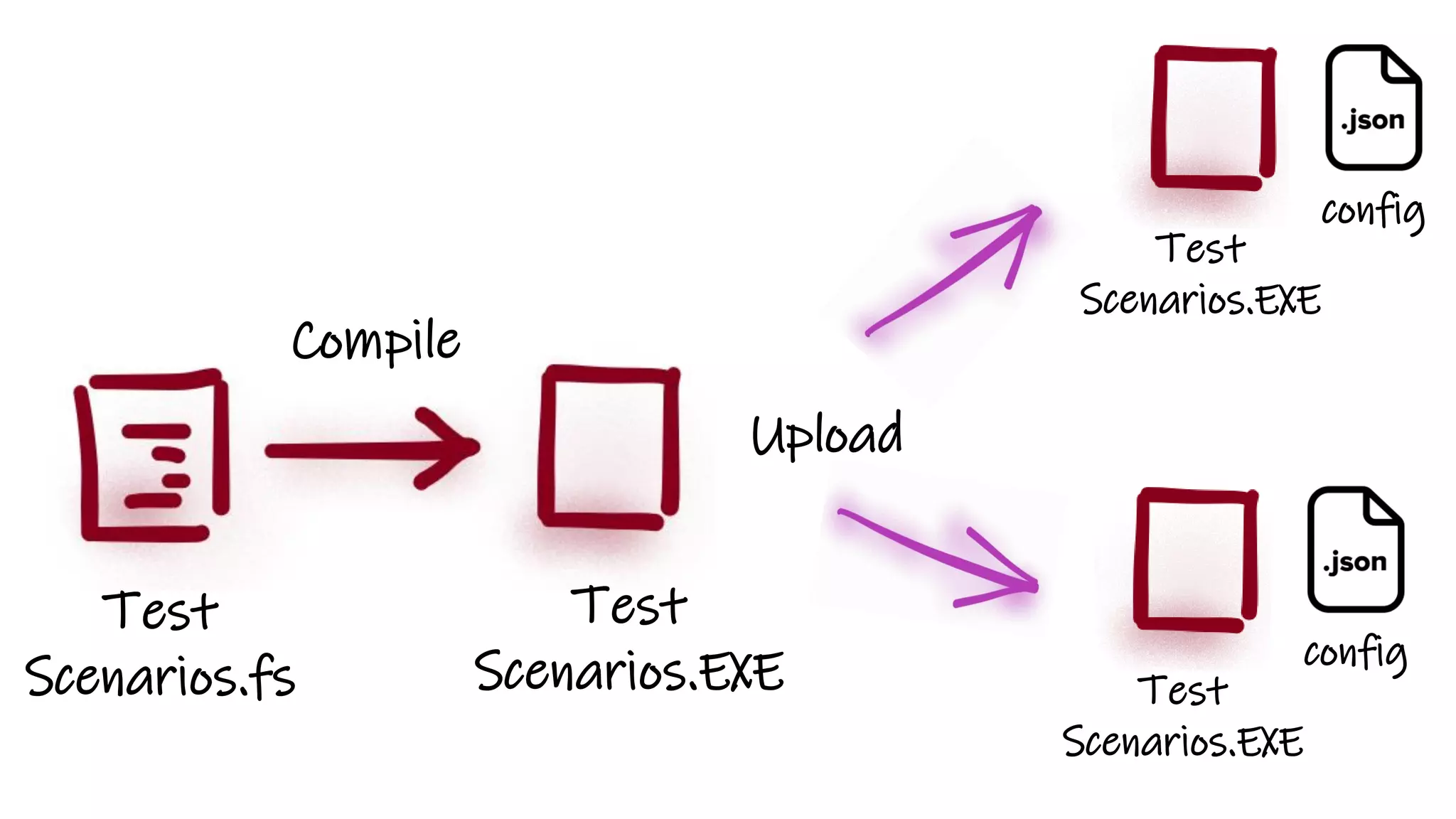

58. Test
Scenarios.fs
Compile
Test
Scenarios.EXE
Upload
Test
Scenarios.EXE
config
Test
Scenarios.EXE
config

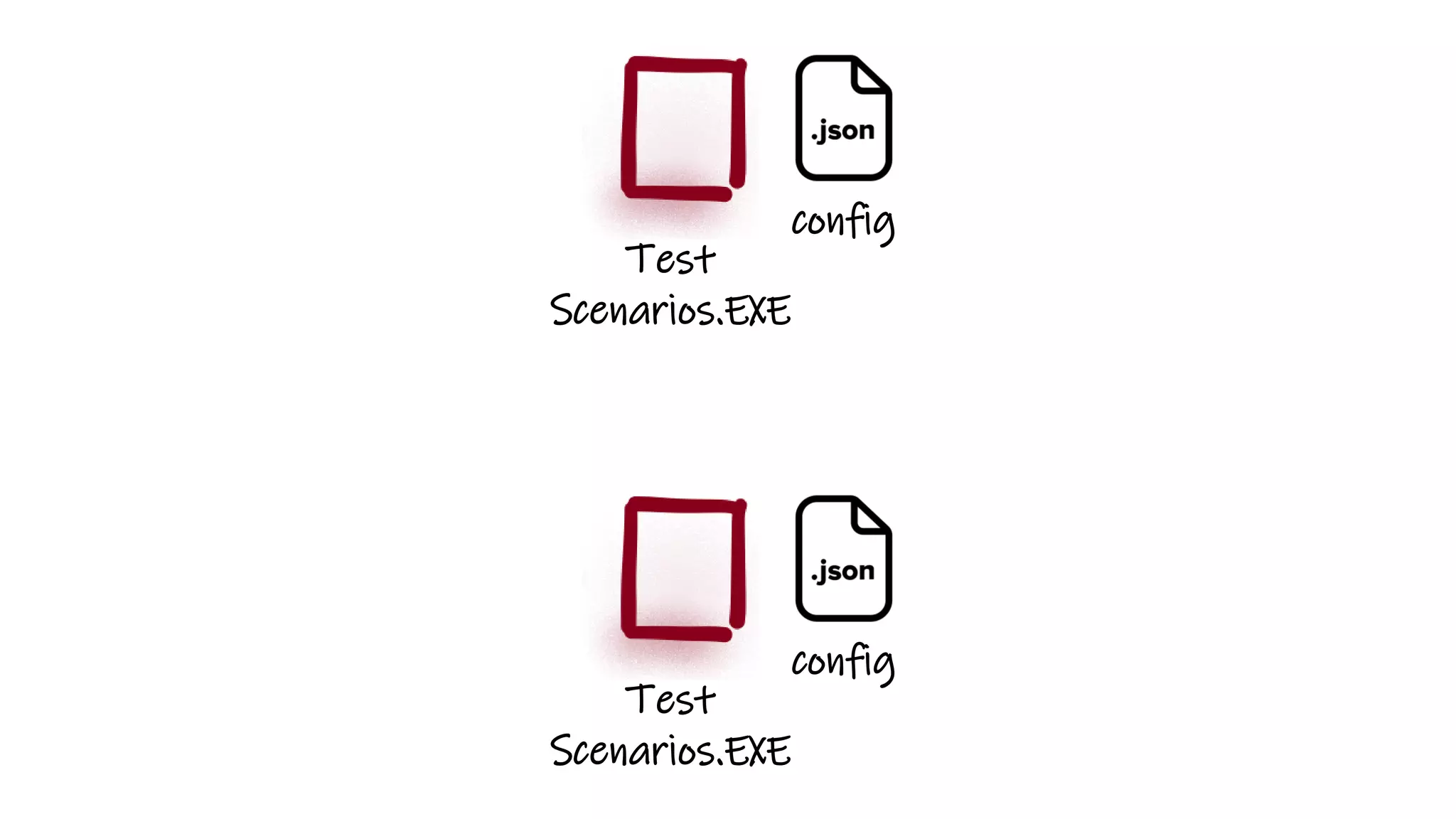

59. Test
Scenarios.EXE
config
Test
Scenarios.EXE
config

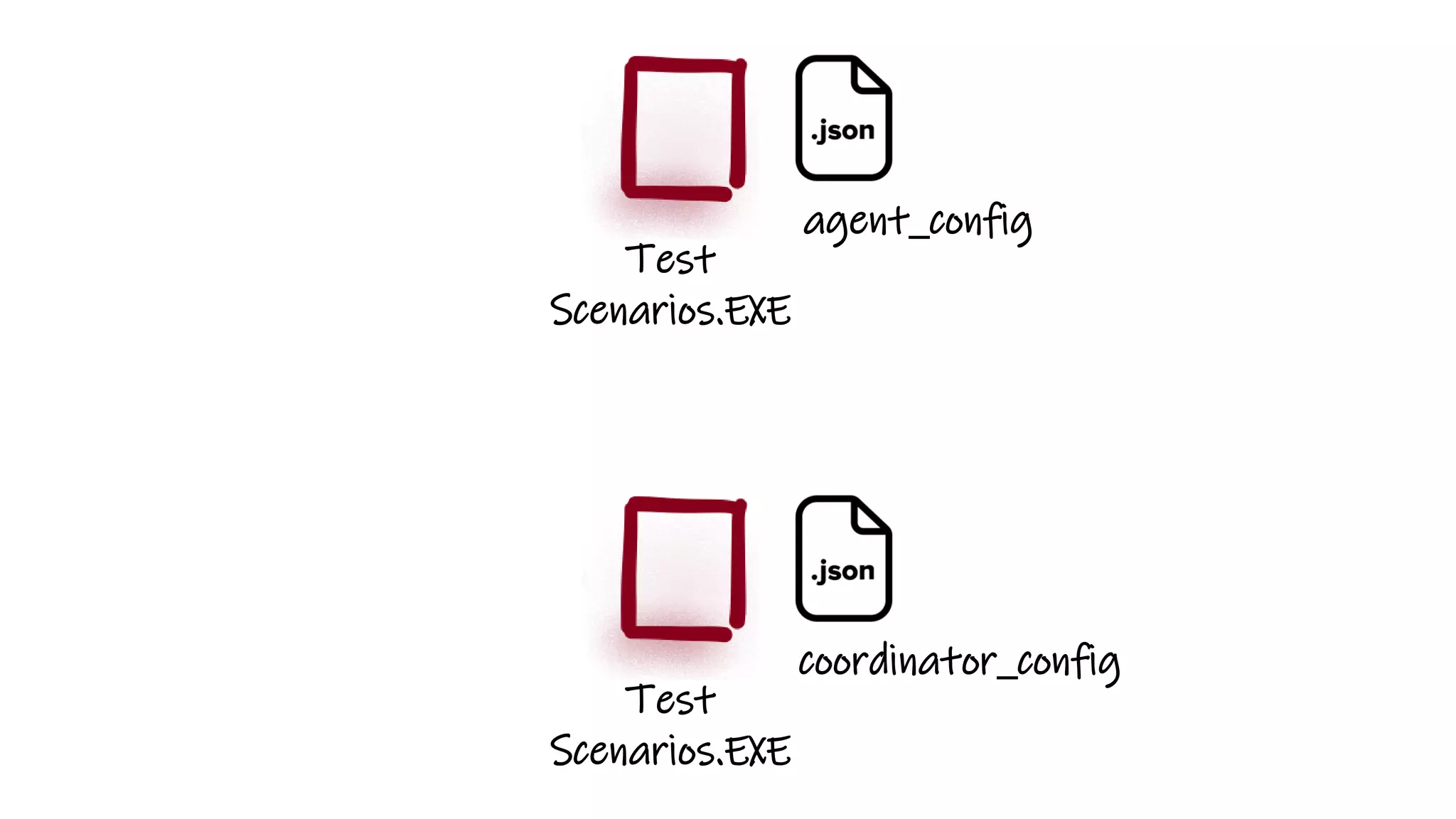

60. Test
Scenarios.EXE
coordinator_config
Test
Scenarios.EXE
agent_config

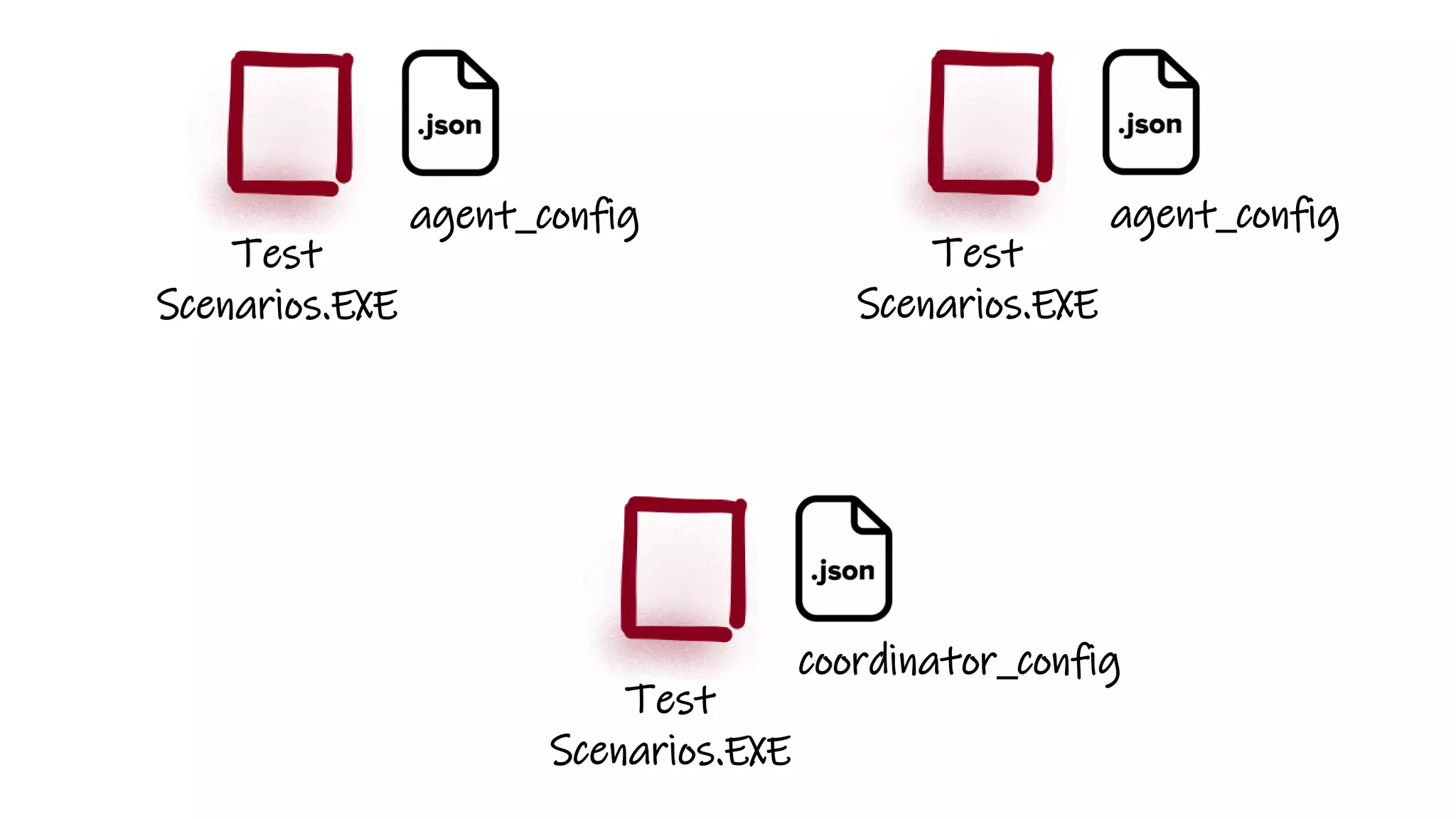

61. Test
Scenarios.EXE
coordinator_config
Test
Scenarios.EXE
agent_config
Test
Scenarios.EXE
agent_config

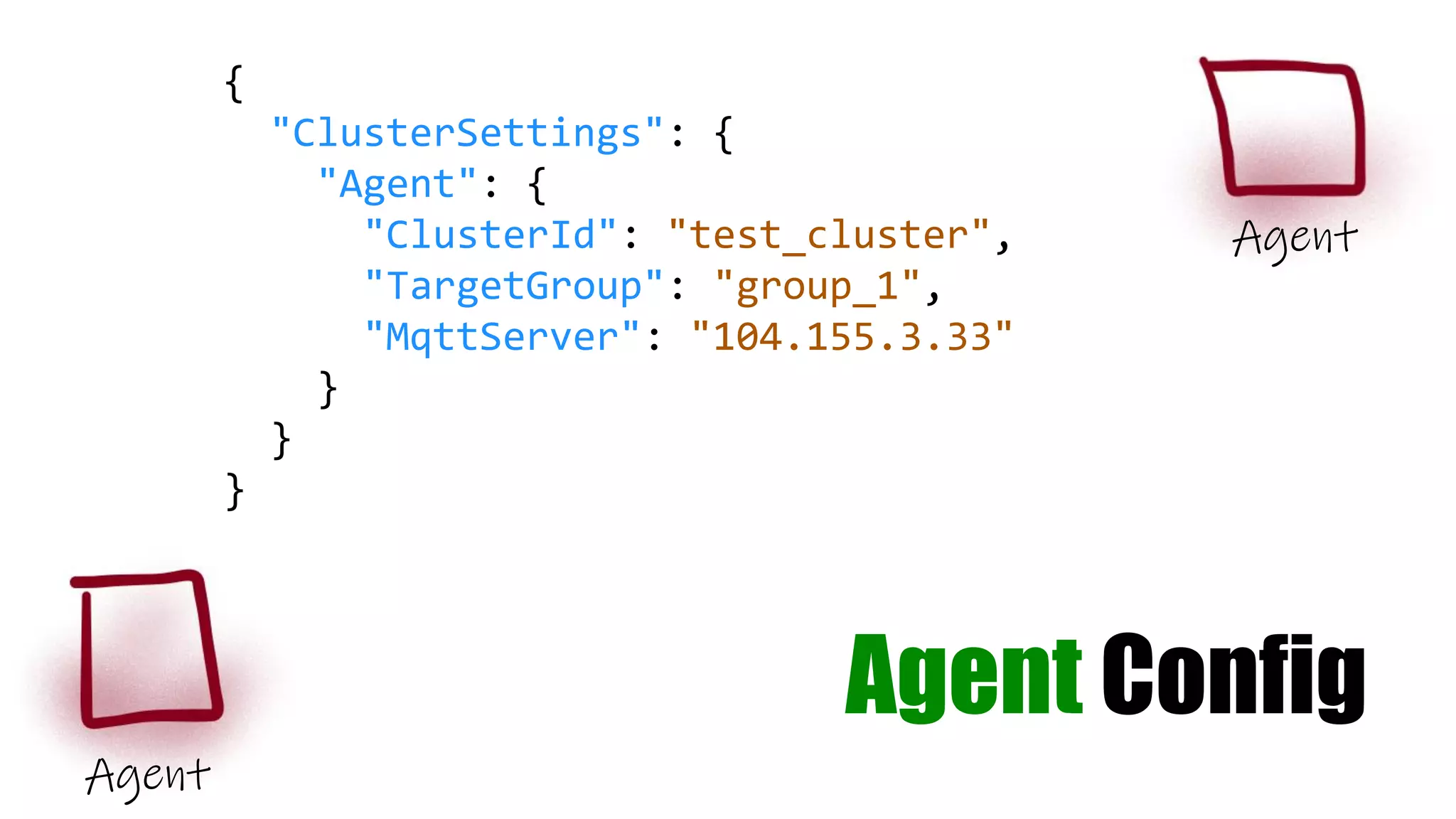

62. {
"ClusterSettings": {
"Agent": {
"ClusterId": "test_cluster",
"TargetGroup": "group_1",
"MqttServer": "104.155.3.33"
}
}
}
Agent
Agent
Agent Config

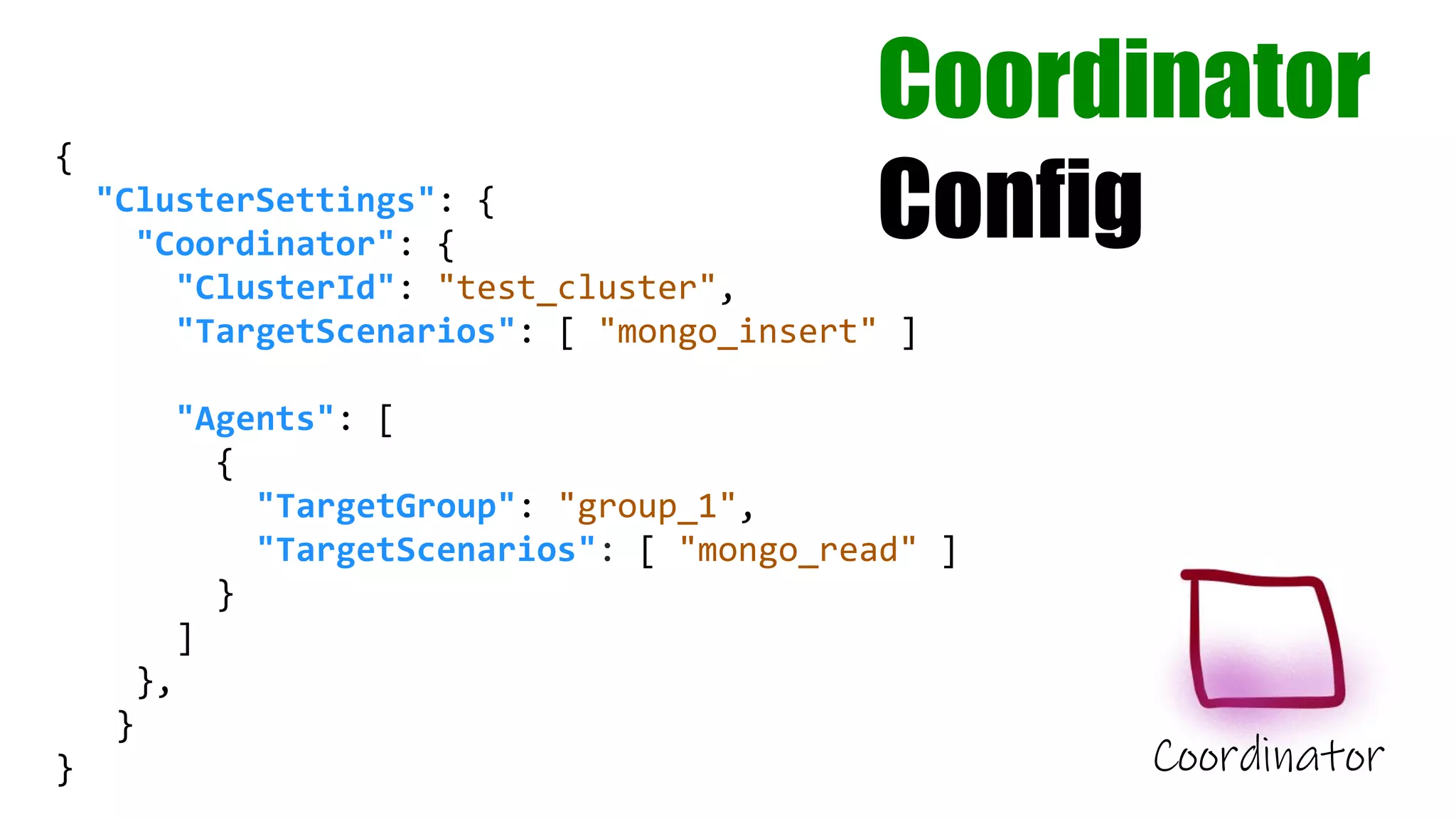

63. Coordinator
Config
{
"ClusterSettings": {
"Coordinator": {
"ClusterId": "test_cluster",
"TargetScenarios": [ "mongo_insert" ]
"Agents": [
{
"TargetGroup": "group_1",
"TargetScenarios": [ "mongo_read" ]
}
]
},
}
} Coordinator

64. The Kids
want PUSH

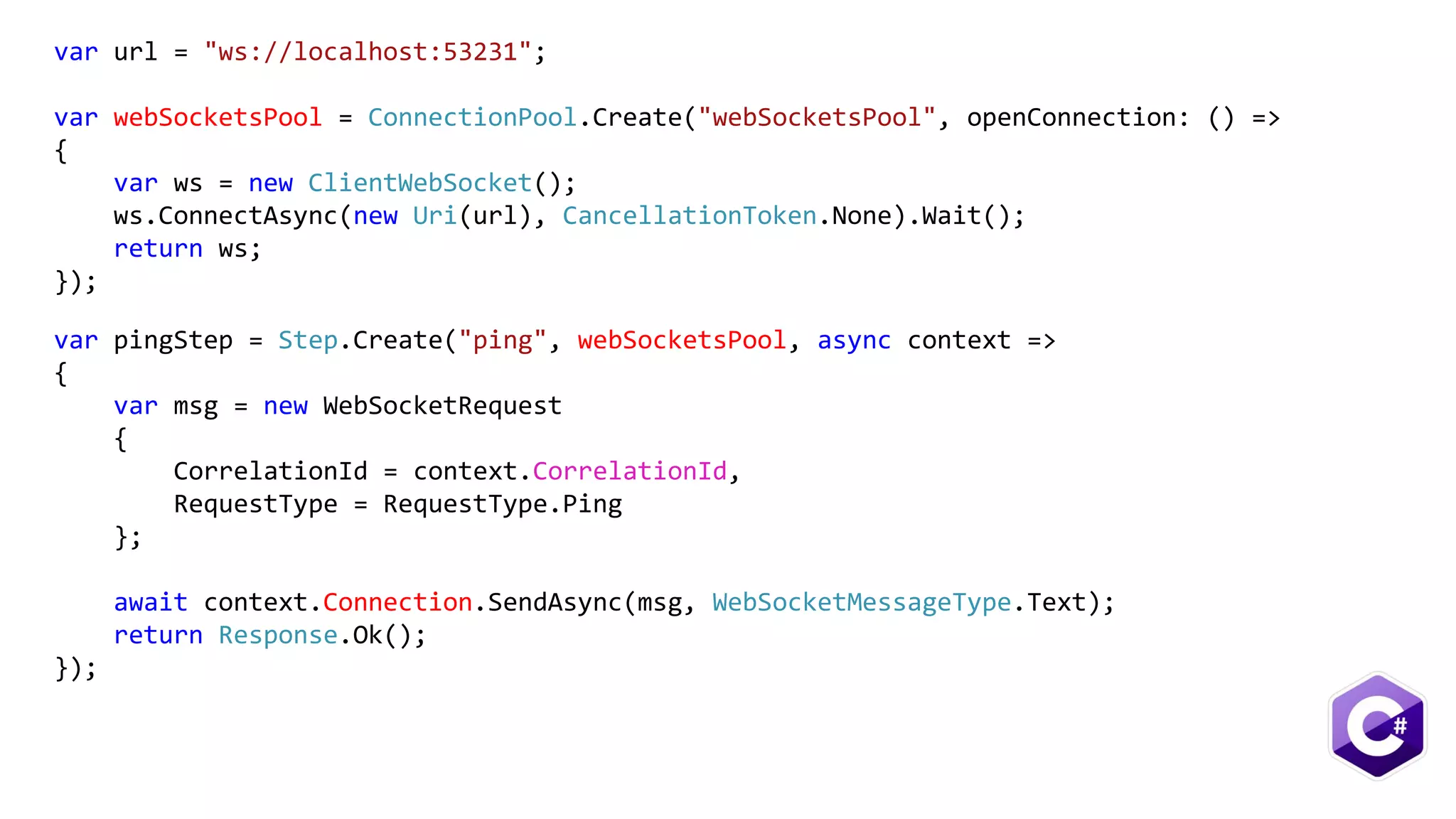

65. var url = "ws://localhost:53231";
var webSocketsPool = ConnectionPool.Create("webSocketsPool", openConnection: () =>
{
var ws = new ClientWebSocket();
ws.ConnectAsync(new Uri(url), CancellationToken.None).Wait();
return ws;
});
var pingStep = Step.Create("ping", webSocketsPool, async context =>
{
var msg = new WebSocketRequest
{
CorrelationId = context.CorrelationId,
RequestType = RequestType.Ping
};
await context.Connection.SendAsync(msg, WebSocketMessageType.Text);
return Response.Ok();
});

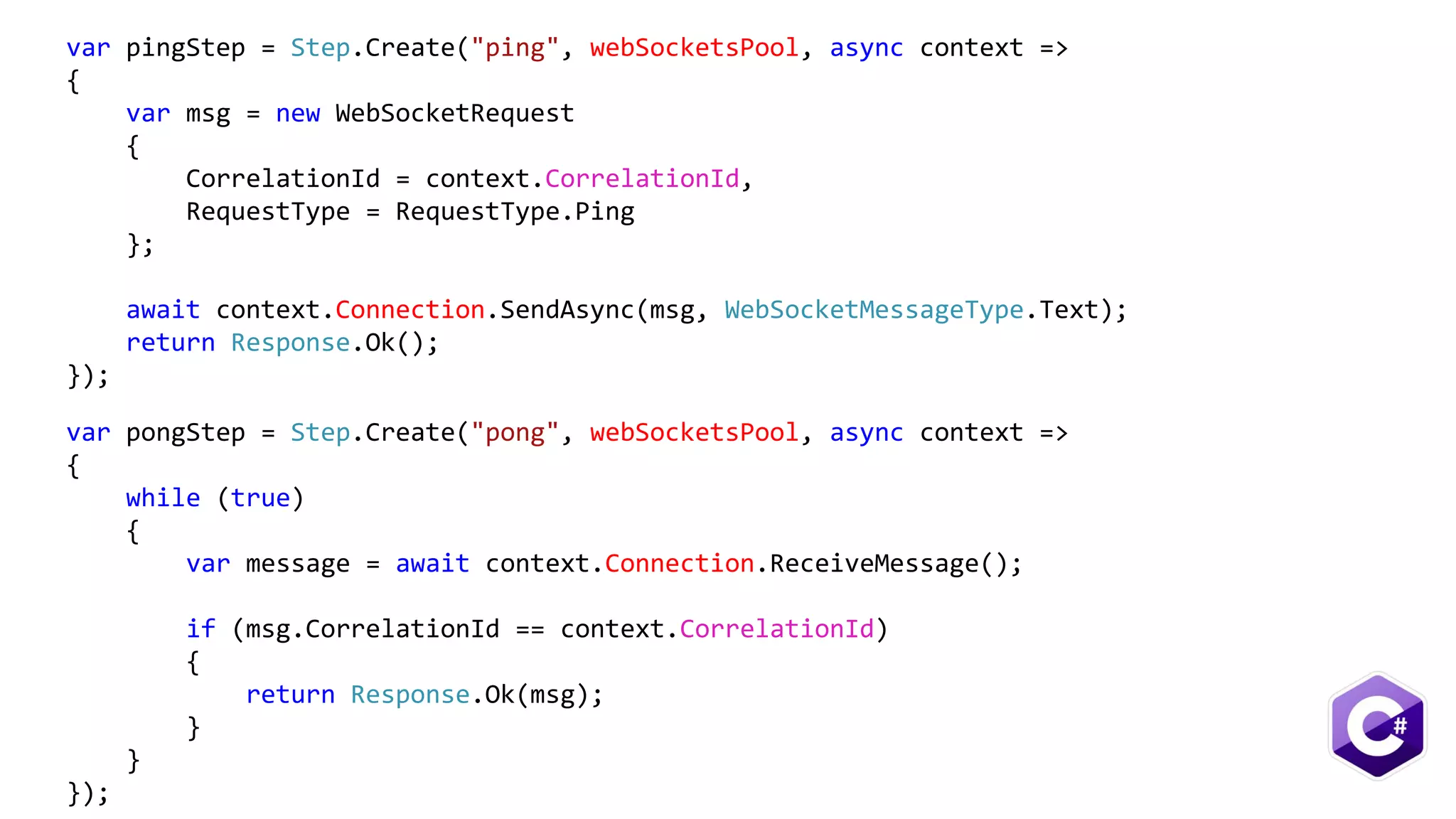

66. var pingStep = Step.Create("ping", webSocketsPool, async context =>
{
var msg = new WebSocketRequest
{
CorrelationId = context.CorrelationId,
RequestType = RequestType.Ping
};
await context.Connection.SendAsync(msg, WebSocketMessageType.Text);
return Response.Ok();
});
var pongStep = Step.Create("pong", webSocketsPool, async context =>
{
while (true)
{
var message = await context.Connection.ReceiveMessage();
if (msg.CorrelationId == context.CorrelationId)
{
return Response.Ok(msg);
}
}
});

67. Internals

68. NBomber
Runner

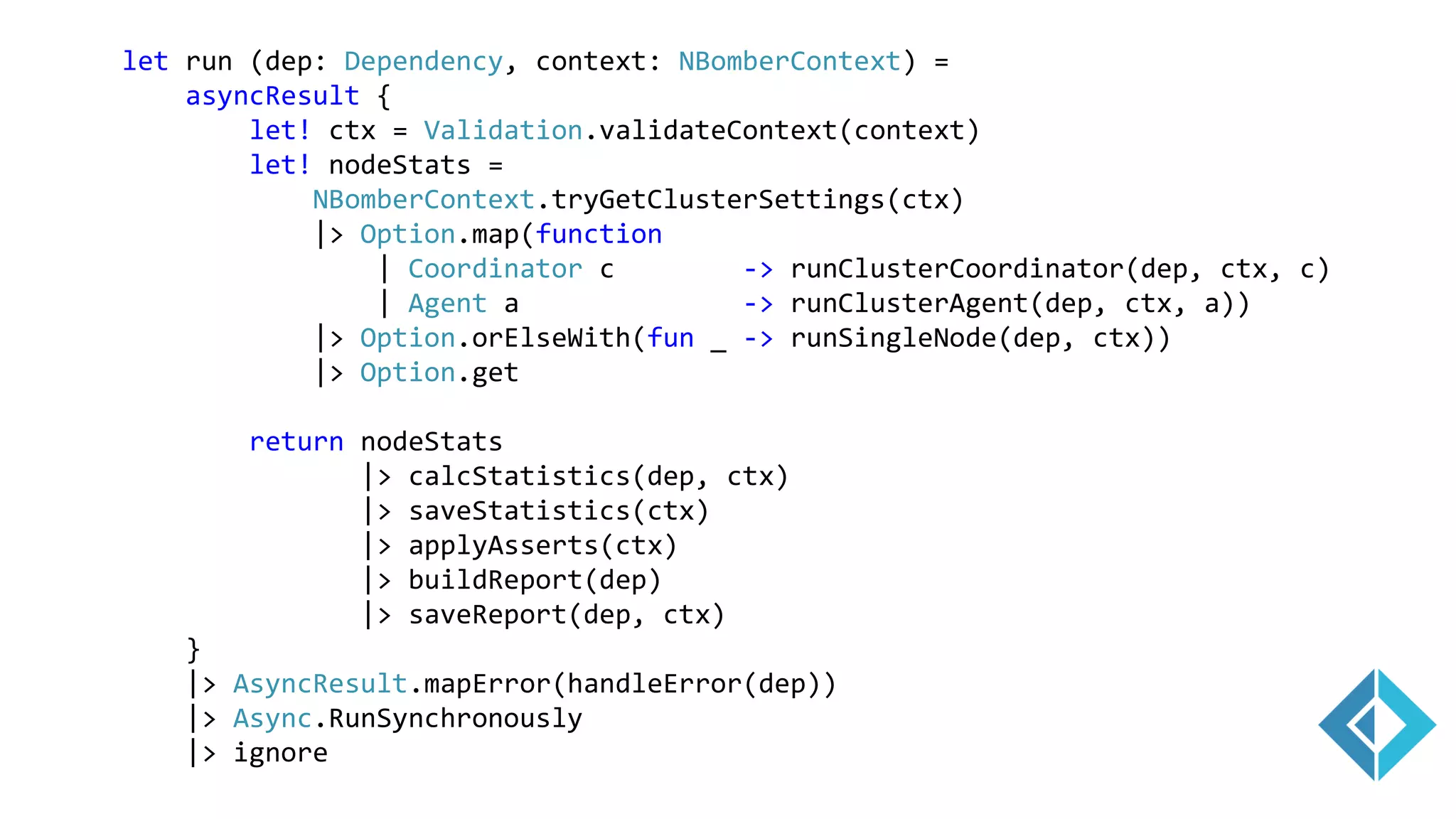

69. let run (dep: Dependency, context: NBomberContext) =
asyncResult {
let! ctx = Validation.validateContext(context)
let! nodeStats =
NBomberContext.tryGetClusterSettings(ctx)
|> Option.map(function
| Coordinator c -> runClusterCoordinator(dep, ctx, c)
| Agent a -> runClusterAgent(dep, ctx, a))
|> Option.orElseWith(fun _ -> runSingleNode(dep, ctx))
|> Option.get
return nodeStats
|> calcStatistics(dep, ctx)
|> saveStatistics(ctx)
|> applyAsserts(ctx)
|> buildReport(dep)
|> saveReport(dep, ctx)
}
|> AsyncResult.mapError(handleError(dep))
|> Async.RunSynchronously
|> ignore

70. Validation

71. type Result<TOk, TError> =
<!>
<*>
>>=
>=>

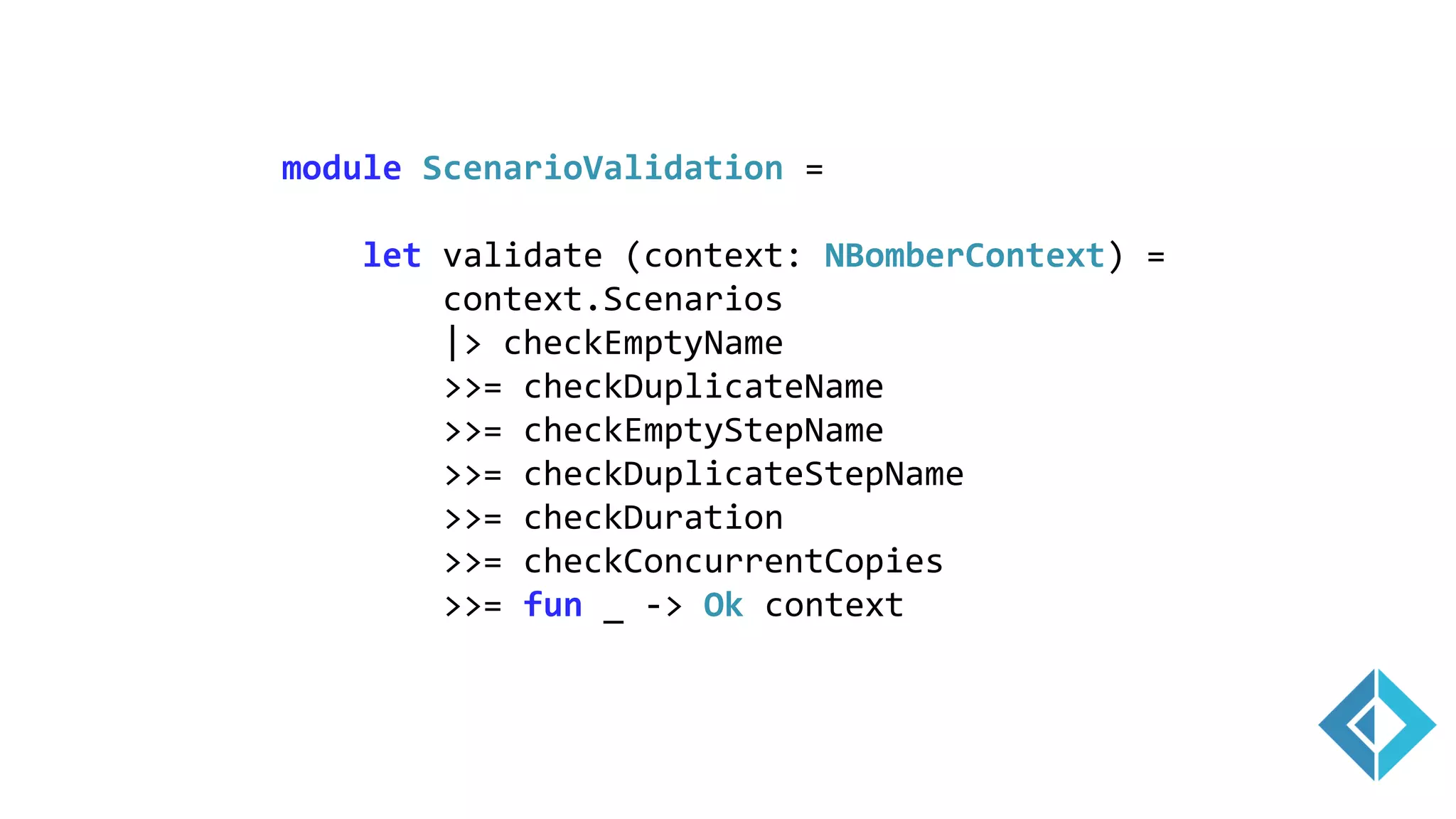

72. module ScenarioValidation =
let validate (context: NBomberContext) =
context.Scenarios
|> checkEmptyName
>>= checkDuplicateName
>>= checkEmptyStepName
>>= checkDuplicateStepName
>>= checkDuration
>>= checkConcurrentCopies
>>= fun _ -> Ok context

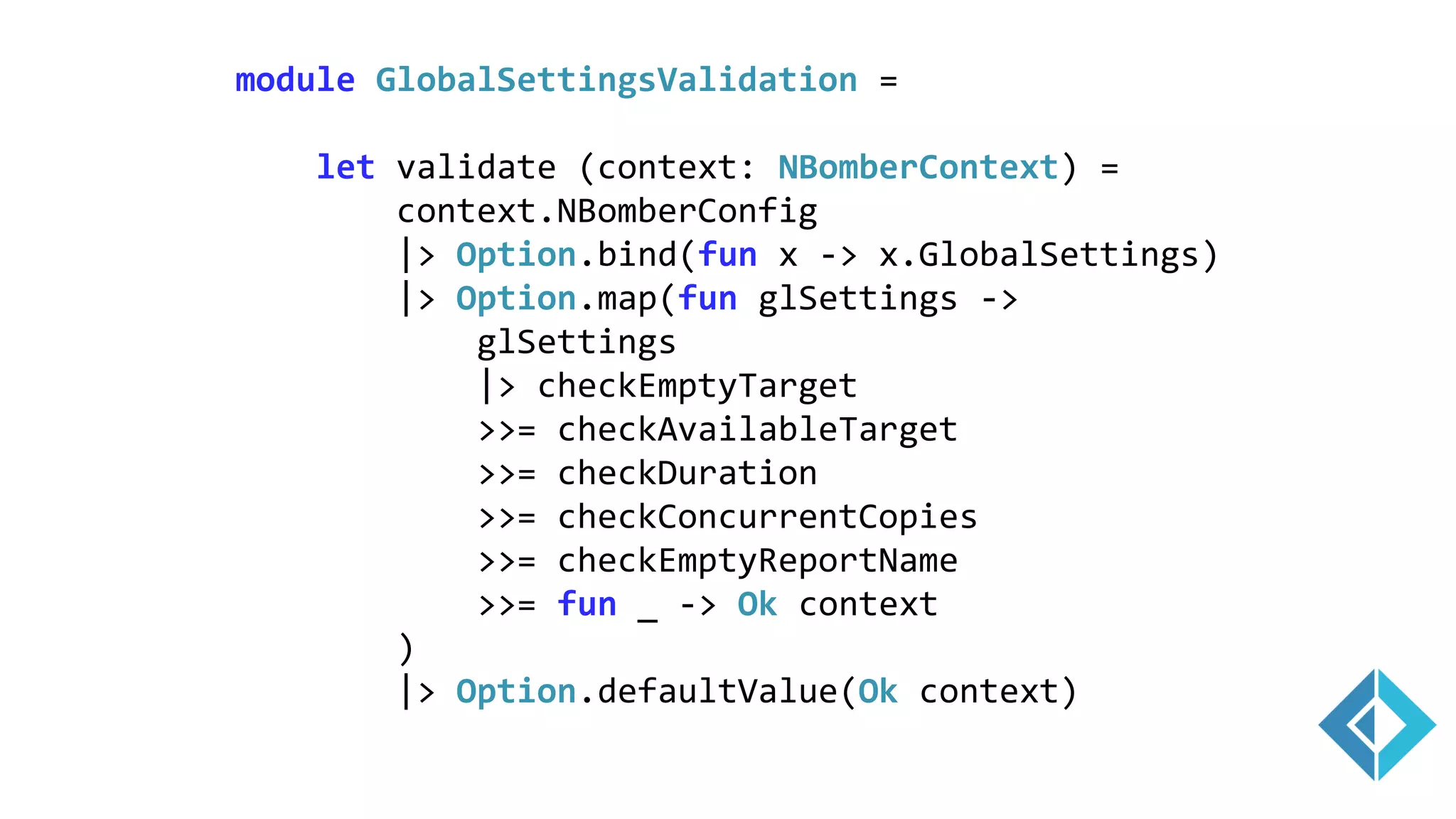

73. module GlobalSettingsValidation =
let validate (context: NBomberContext) =
context.NBomberConfig
|> Option.bind(fun x -> x.GlobalSettings)
|> Option.map(fun glSettings ->
glSettings
|> checkEmptyTarget
>>= checkAvailableTarget
>>= checkDuration
>>= checkConcurrentCopies
>>= checkEmptyReportName
>>= fun _ -> Ok context
)
|> Option.defaultValue(Ok context)

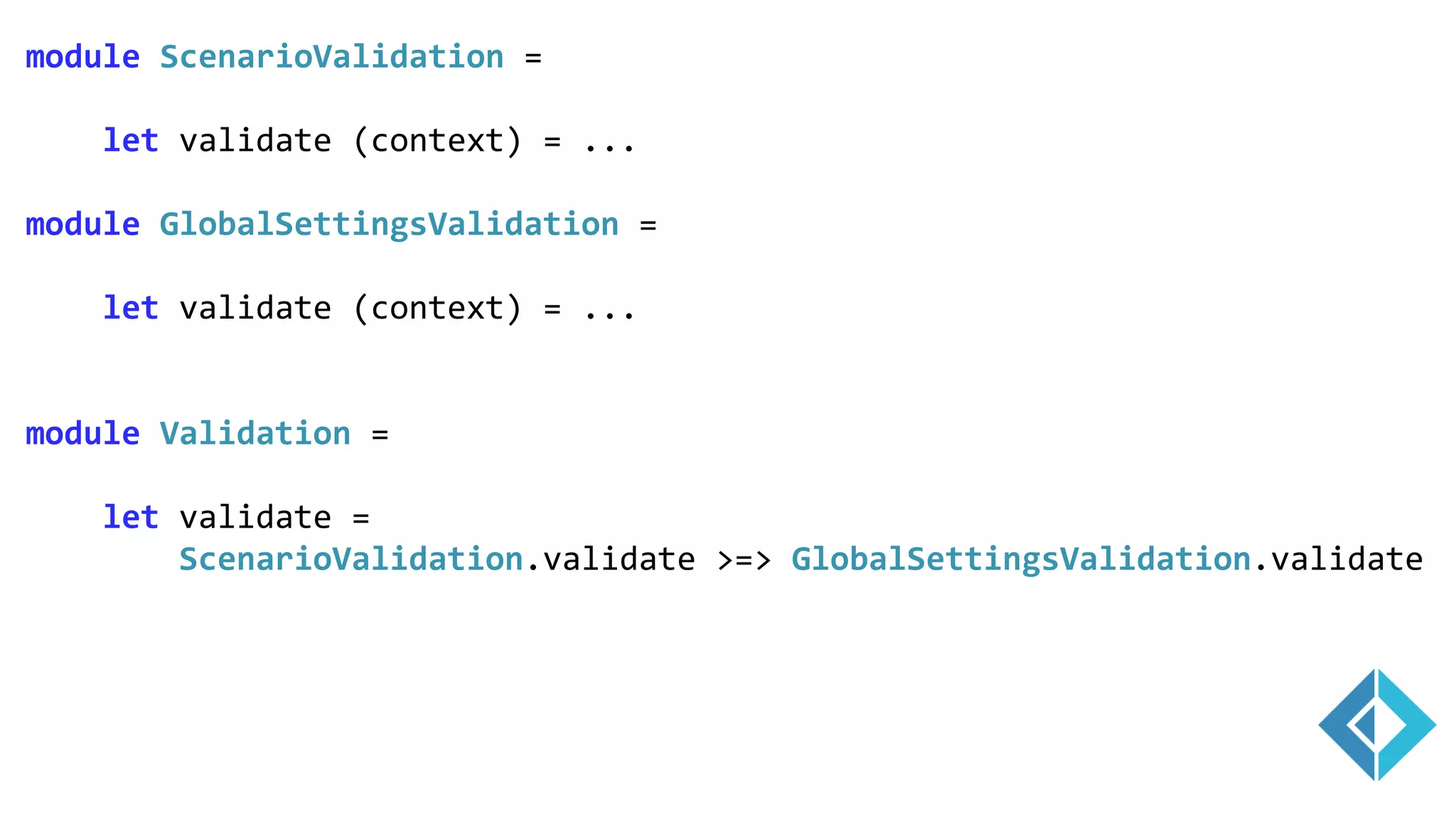

74. module ScenarioValidation =
let validate (context) = ...
module GlobalSettingsValidation =
let validate (context) = ...
module Validation =
let validate =
ScenarioValidation.validate >=> GlobalSettingsValidation.validate

75. Type Safe
Cluster
(>>=)

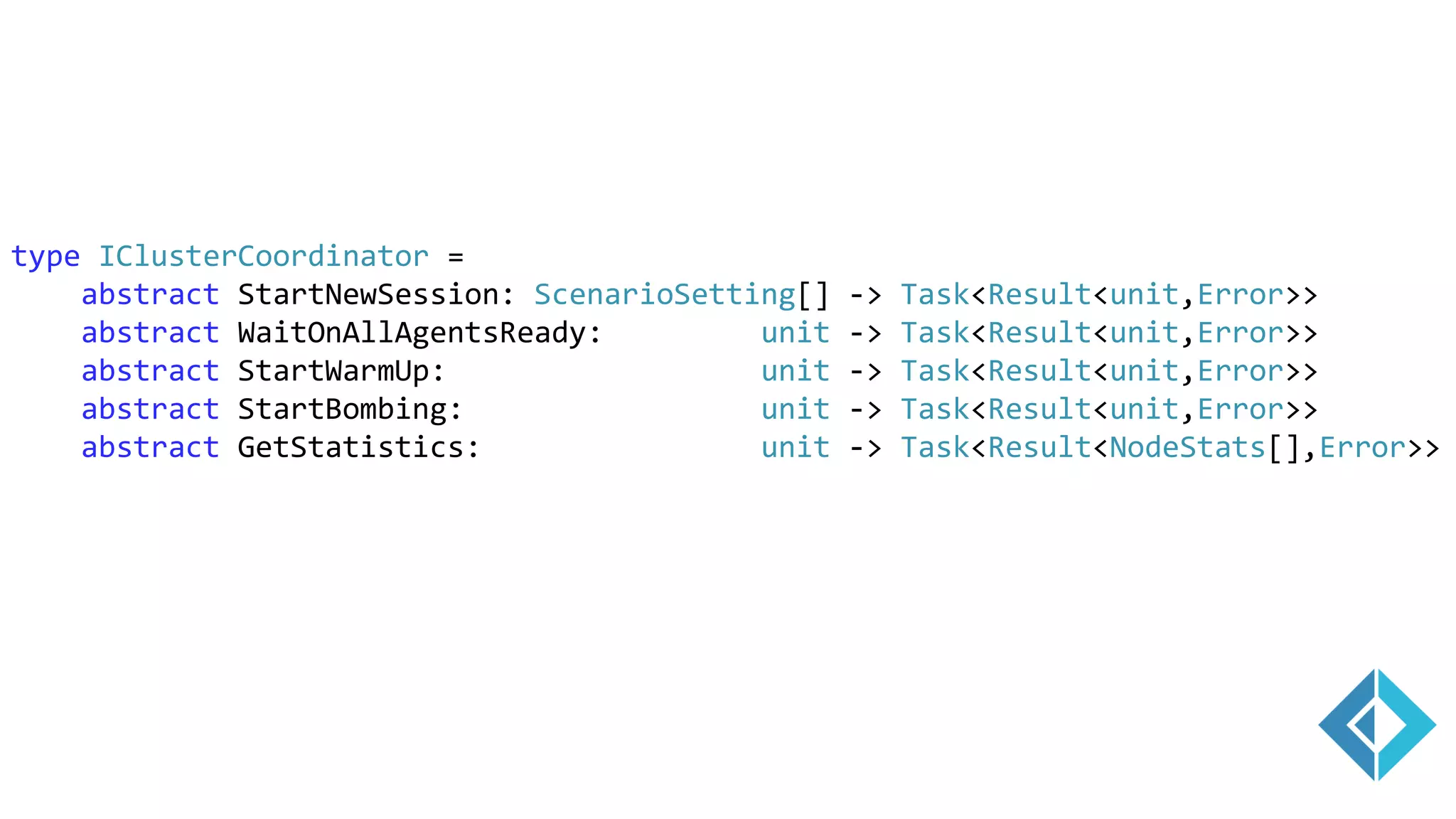

76. type IClusterCoordinator =
abstract StartNewSession: ScenarioSetting[] -> Task<Result<unit,Error>>
abstract WaitOnAllAgentsReady: unit -> Task<Result<unit,Error>>
abstract StartWarmUp: unit -> Task<Result<unit,Error>>
abstract StartBombing: unit -> Task<Result<unit,Error>>
abstract GetStatistics: unit -> Task<Result<NodeStats[],Error>>

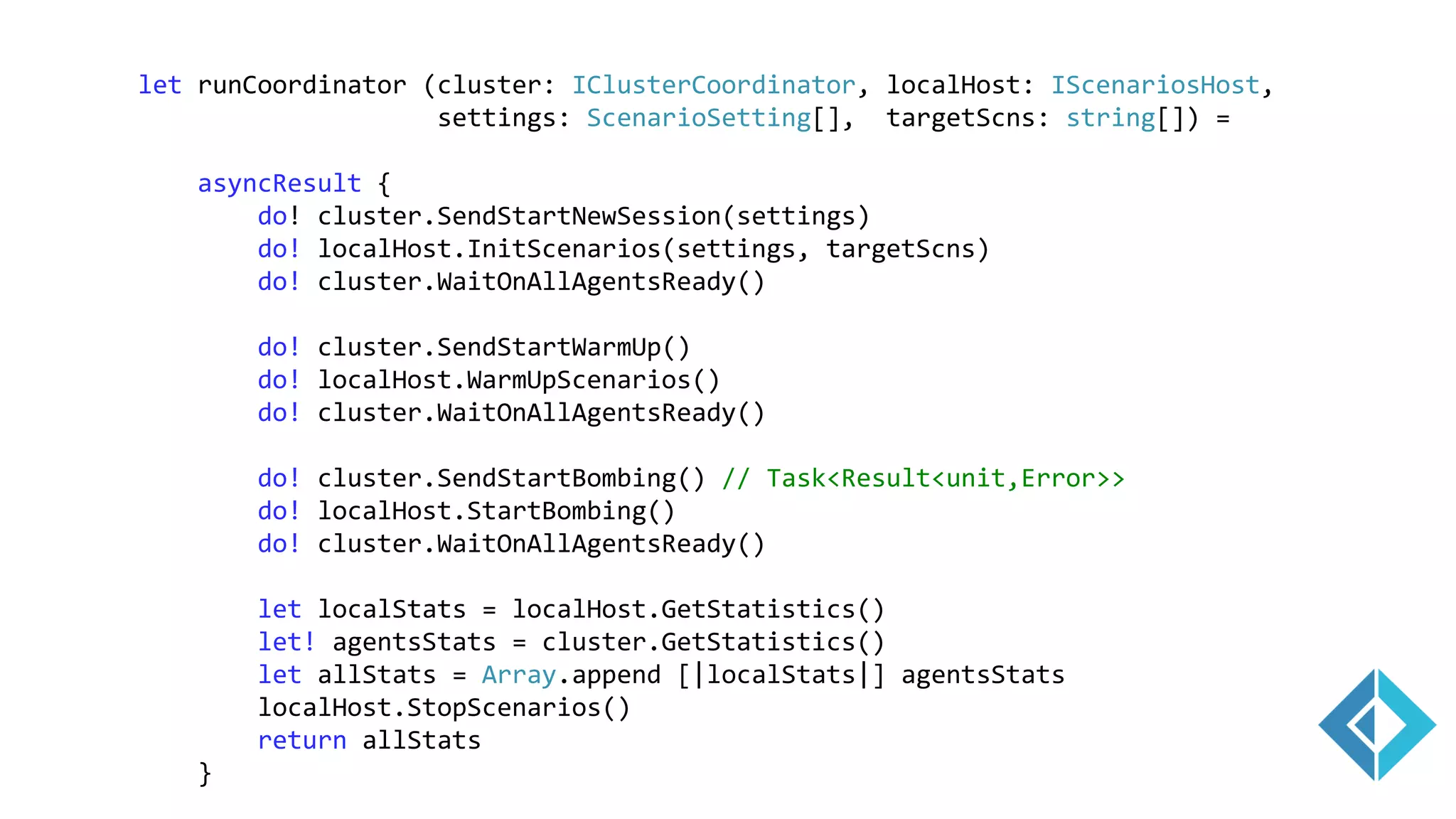

77. let runCoordinator (cluster: IClusterCoordinator, localHost: IScenariosHost,
settings: ScenarioSetting[], targetScns: string[]) =
asyncResult {
do! cluster.SendStartNewSession(settings)
do! localHost.InitScenarios(settings, targetScns)
do! cluster.WaitOnAllAgentsReady()
do! cluster.SendStartWarmUp()
do! localHost.WarmUpScenarios()
do! cluster.WaitOnAllAgentsReady()
do! cluster.SendStartBombing() // Task<Result<unit,Error>>
do! localHost.StartBombing()
do! cluster.WaitOnAllAgentsReady()
let localStats = localHost.GetStatistics()
let! agentsStats = cluster.GetStatistics()
let allStats = Array.append [|localStats|] agentsStats
localHost.StopScenarios()
return allStats
}

78. - (2663) LOC
- (6) OOP objects
- (~160) functions
Summary

85. THANKS
@antyadev
antyadev@gmail.com
http://nbomber.com
