The document contains technical drawings for 5 individual pieces and an assembly drawing combining the pieces. Each piece drawing is labeled with the student's name, drawing name, scale, and date. The assembly drawing brings together the 5 pieces, similarly labeled at the bottom. A parts list at the end identifies each piece and its quantity in the assembly.

1. PRODUCED BY AN AUTODESK EDUCATIONAL PRODUCT
PRODUCED BY AN AUTODESK EDUCATIONAL PRODUCTPRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
STUDENT NAME DRAWING NAME SCALE DATE

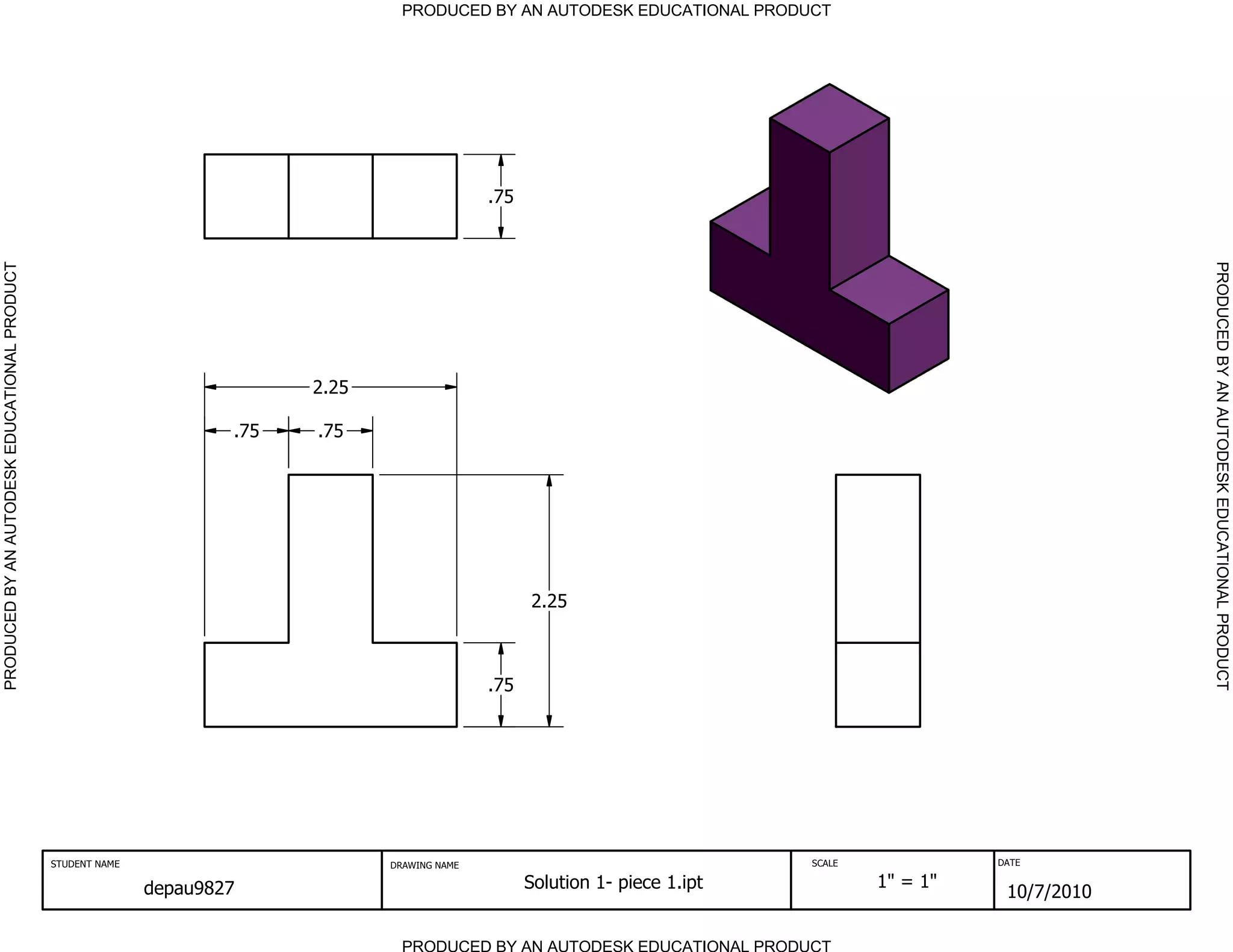

depau9827 Solution 1- piece 1.ipt 1" = 1"
10/7/2010
.75 .75
2.25
.75
2.25
.75

2. PRODUCED BY AN AUTODESK EDUCATIONAL PRODUCT
PRODUCED BY AN AUTODESK EDUCATIONAL PRODUCTPRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
STUDENT NAME DRAWING NAME SCALE DATE

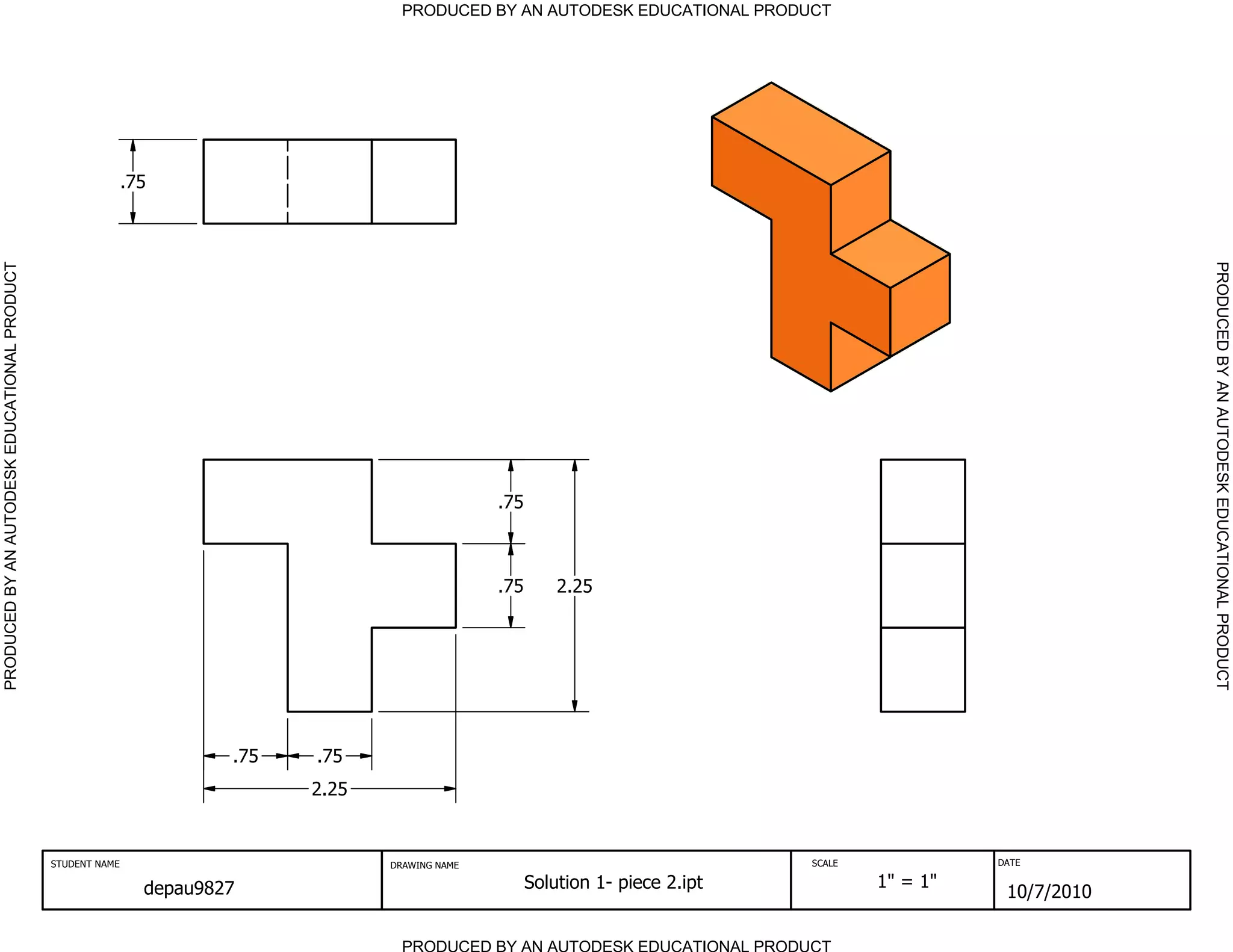

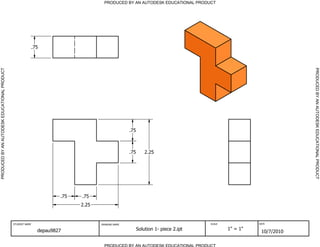

depau9827 Solution 1- piece 2.ipt 1" = 1"
10/7/2010
.75
.75
.75
2.25
.75
.75
2.25

3. PRODUCED BY AN AUTODESK EDUCATIONAL PRODUCT
PRODUCED BY AN AUTODESK EDUCATIONAL PRODUCTPRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
STUDENT NAME DRAWING NAME SCALE DATE
depau9827 Solution 1- piece 3.ipt 1" = 1"
10/7/2010
1.50
.75
2.25
.75
1.50
.75
2.25

4. PRODUCED BY AN AUTODESK EDUCATIONAL PRODUCT
PRODUCED BY AN AUTODESK EDUCATIONAL PRODUCTPRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
STUDENT NAME DRAWING NAME SCALE DATE

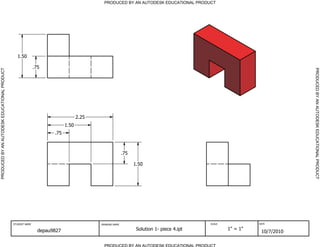

depau9827 Solution 1- piece 4.ipt 1" = 1"
10/7/2010
.75
1.50
2.25
.75
1.50
1.50
.75

5. PRODUCED BY AN AUTODESK EDUCATIONAL PRODUCT
PRODUCED BY AN AUTODESK EDUCATIONAL PRODUCTPRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
STUDENT NAME DRAWING NAME SCALE DATE

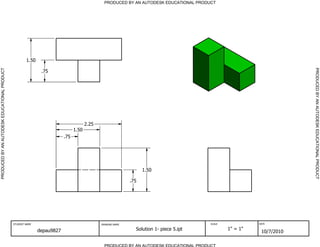

depau9827 Solution 1- piece 5.ipt 1" = 1"
10/7/2010
.75
1.50
.75
1.50
.75
1.50
2.25

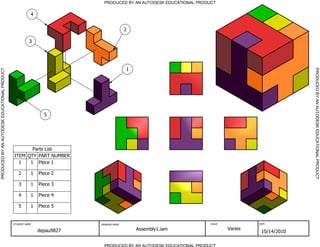

6. Parts List
PART NUMBERQTYITEM
Piece 111
Piece 212
Piece 313
Piece 414
Piece 515
PRODUCED BY AN AUTODESK EDUCATIONAL PRODUCT
PRODUCED BY AN AUTODESK EDUCATIONAL PRODUCTPRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT
STUDENT NAME DRAWING NAME SCALE DATE
depau9827 Assembly1.iam Varies
10/14/2010
2
1
3
4
5
