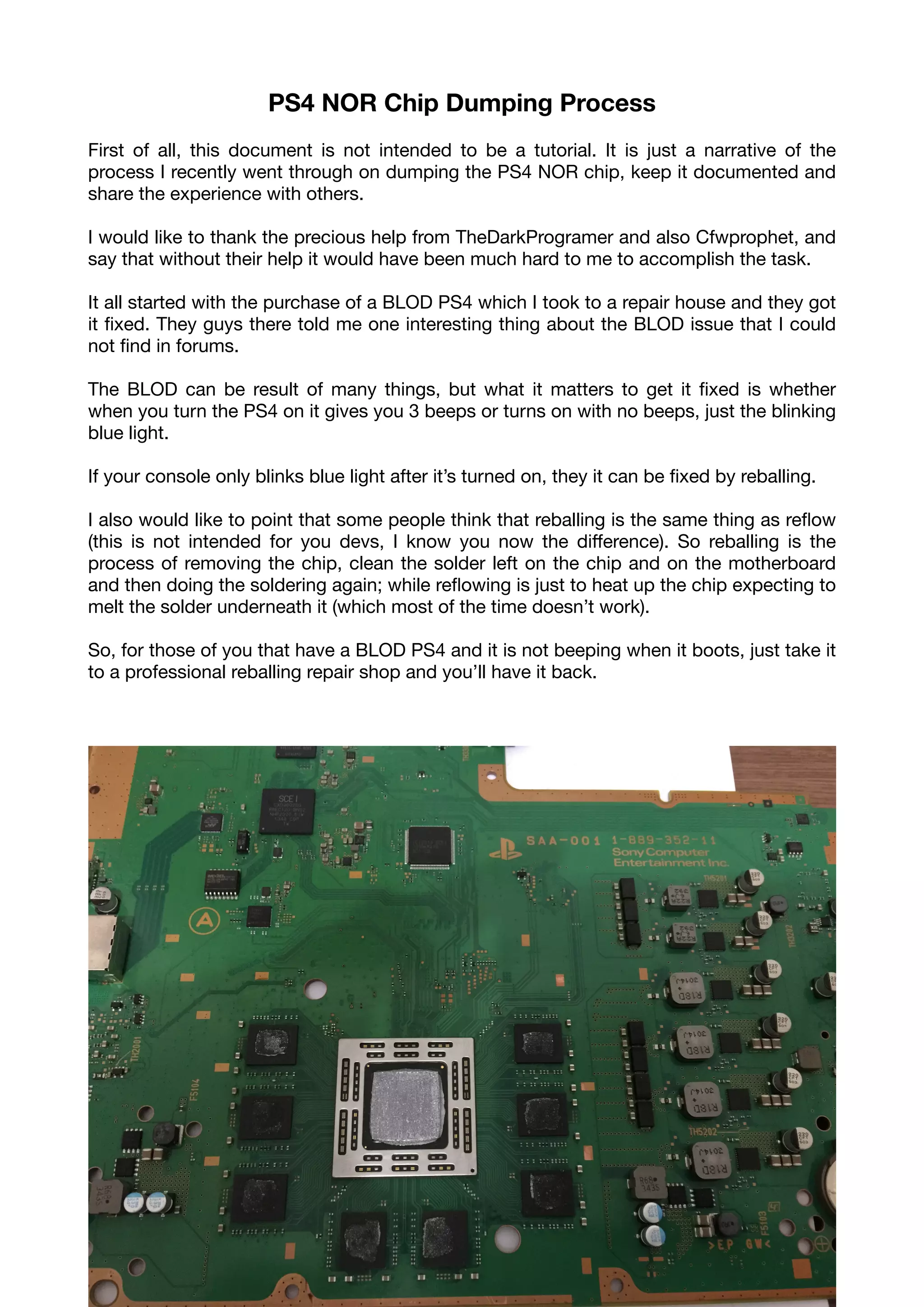

PS4 NOR Chip Dumping Process
First of all, this document is not intended to be a tutorial. It is just a narrative of the
process I recently went through on dumping the PS4 NOR chip, keep it documented and
share the experience with others.

I would like to thank the precious help from TheDarkProgramer and also Cfwprophet, and
say that without their help it would have been much hard to me to accomplish the task.

It all started with the purchase of a BLOD PS4 which I took to a repair house and they got
it fixed. They guys there told me one interesting thing about the BLOD issue that I could
not find in forums.

The BLOD can be result of many things, but what it matters to get it fixed is whether
when you turn the PS4 on it gives you 3 beeps or turns on with no beeps, just the blinking
blue light.

If your console only blinks blue light after it’s turned on, they it can be fixed by reballing.

I also would like to point that some people think that reballing is the same thing as reflow
(this is not intended for you devs, I know you now the difference). So reballing is the
process of removing the chip, clean the solder left on the chip and on the motherboard
and then doing the soldering again; while reflowing is just to heat up the chip expecting to
melt the solder underneath it (which most of the time doesn’t work).

So, for those of you that have a BLOD PS4 and it is not beeping when it boots, just take it
to a professional reballing repair shop and you’ll have it back.

Ok, the PS4 used is a US black model, serial number MB076678134 and motherboard
SAA-001.

Reaching the NOR chip MX25L25635FMI-10G my ﬁrst impression was that the task
would be quite hard since I don’t have much experience in desoldering such SOIC chips.

For desoldering I followed TheDarkProgramer tip not to use heat gun cause it could
damage the motherboard. So I used my simple soldering iron and watched some youtube
tutorials on how to remove smds.

The desoldering process was quite long and the tools I used were:

a) Soldering iron;

b) Liquid ﬂux;

c) Desoldering wire wick.

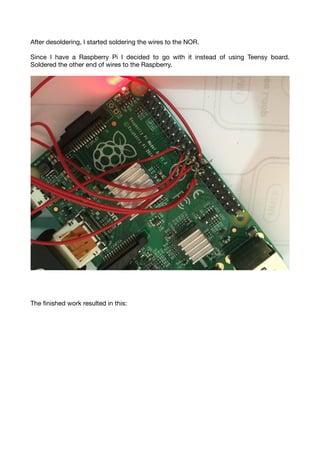

After desoldering, I started soldering the wires to the NOR.

Since I have a Raspberry Pi I decided to go with it instead of using Teensy board.
Soldered the other end of wires to the Raspberry.

The ﬁnished work resulted in this:

Now it’s would be showtime. I used Jaicrab's tool JaiSpi v1.0, but when I tried first to
read the chip I got my first error: form Terminal: “Error opening device /dev/spidev0.0”.

For those who try and get this error is not related to the NOR chip or with the tool. The
problem was that SPI interface was not enabled on my Raspberry Pi, so fixed by going to
raspi-config and set it enabled by default.

My second attempt I could establish a connecting but was not getting the correct info on
the chip. Actually I got ID: 0xC33019 unknown! for the chip info.

But I tried a third attempt and this one I got the correct info from the chip: ID: 0xC22019
MX25L25635.

But I noticed that whenever I tried a new read from the chip it would alternate between ID:
0xC33019 unknown! and ID: 0xC22019 MX25L25635. But since I was getting the correct
info too I decided to make the dump. In fact I did 10 dumps.

Each dump took 30s to complete.

Now it was time to check the dump with Cfwprophet’s PS4 AC1D Flash-Tool. After
checking each dump with the tool, I was getting 5 errors out of 36 and then I got worried,
because I thought that the connections and soldering was fine.

But then I decided to try to make a better connection between the chip and Raspberry Pi
in order to get a 0 error dump.

So next step was to build my ow PCB and get the NOR chip soldered to it and I came up
with this drawn by hand:

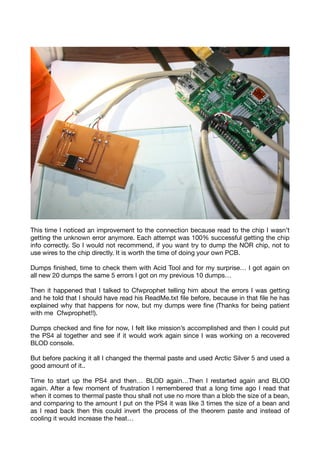

I also wanted to use better wires and use connectors instead of soldering them directly to
the board GPIO. So the ﬁnal package was this:

This time I noticed an improvement to the connection because read to the chip I wasn’t
getting the unknown error anymore. Each attempt was 100% successful getting the chip
info correctly. So I would not recommend, if you want try to dump the NOR chip, not to
use wires to the chip directly. It is worth the time of doing your own PCB.

Dumps finished, time to check them with Acid Tool and for my surprise… I got again on
all new 20 dumps the same 5 errors I got on my previous 10 dumps…

Then it happened that I talked to Cfwprophet telling him about the errors I was getting
and he told that I should have read his ReadMe.txt file before, because in that file he has
explained why that happens for now, but my dumps were fine (Thanks for being patient
with me Cfwprophet!!).

Dumps checked and fine for now, I felt like mission’s accomplished and then I could put
the PS4 al together and see if it would work again since I was working on a recovered
BLOD console.

But before packing it all I changed the thermal paste and used Arctic Silver 5 and used a
good amount of it..

Time to start up the PS4 and then… BLOD again…Then I restarted again and BLOD
again. After a few moment of frustration I remembered that a long time ago I read that
when it comes to thermal paste thou shall not use no more than a blob the size of a bean,
and comparing to the amount I put on the PS4 it was like 3 times the size of a bean and
as I read back then this could invert the process of the theorem paste and instead of
cooling it would increase the heat…

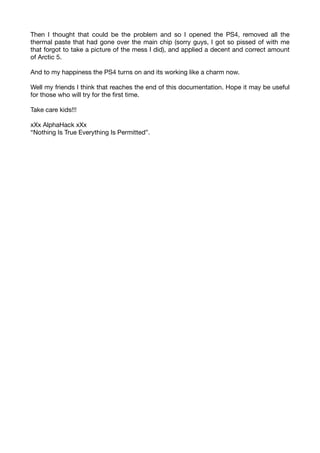

Then I thought that could be the problem and so I opened the PS4, removed all the
thermal paste that had gone over the main chip (sorry guys, I got so pissed of with me
that forgot to take a picture of the mess I did), and applied a decent and correct amount
of Arctic 5.

And to my happiness the PS4 turns on and its working like a charm now.

Well my friends I think that reaches the end of this documentation. Hope it may be useful
for those who will try for the ﬁrst time.

Take care kids!!!

xXx AlphaHack xXx

“Nothing Is True Everything Is Permitted”.
