1. Group Innovation
12/01/12

2. Project modify
Change Legs to Base
Before After

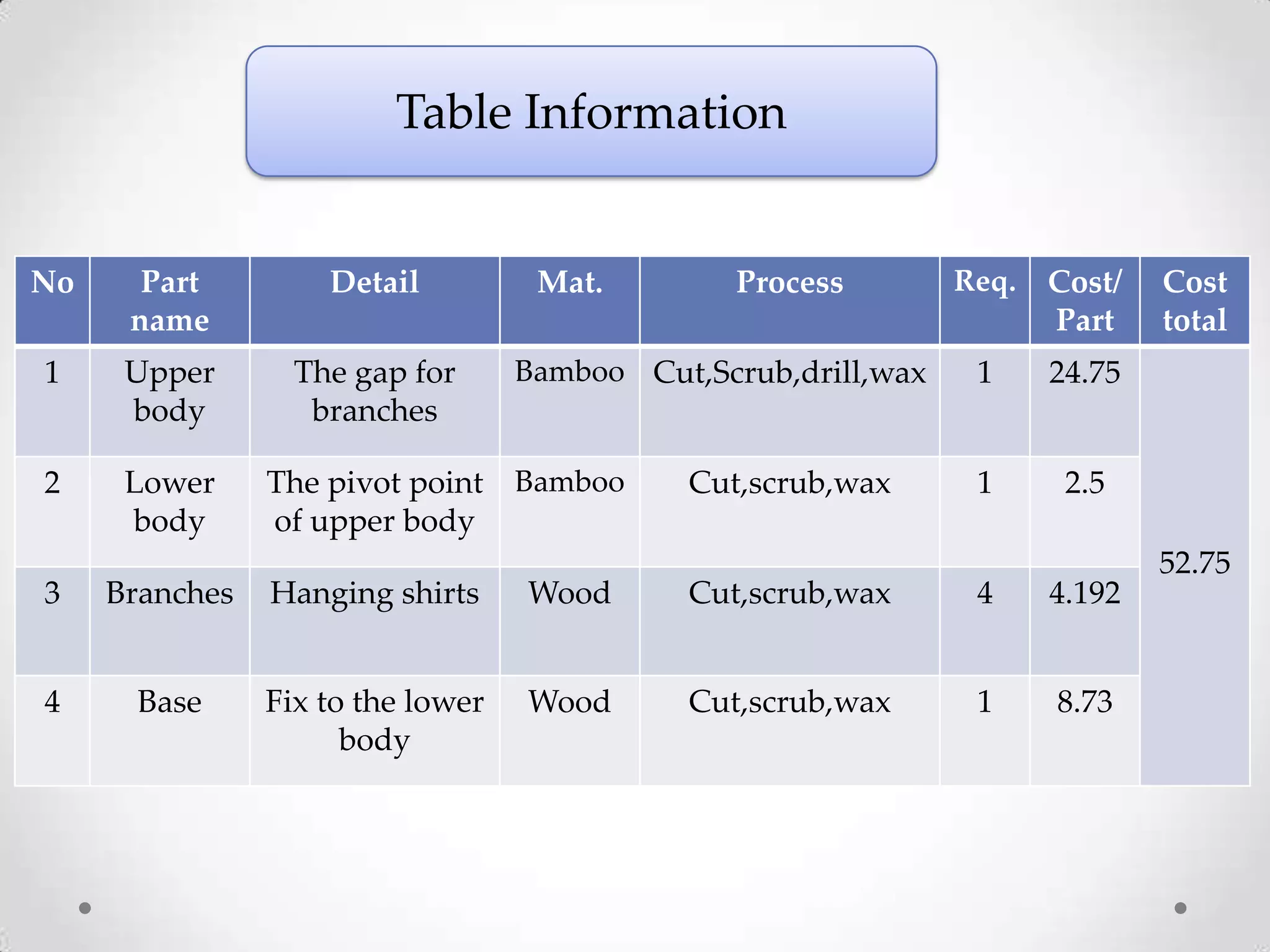

3. Table Information
No Part Detail Mat. Process Req. Cost/ Cost
name Part total
1 Upper The gap for Bamboo Cut,Scrub,drill,wax 1 24.75
body branches
2 Lower The pivot point Bamboo Cut,scrub,wax 1 2.5
body of upper body
52.75
3 Branches Hanging shirts Wood Cut,scrub,wax 4 4.192
4 Base Fix to the lower Wood Cut,scrub,wax 1 8.73
body

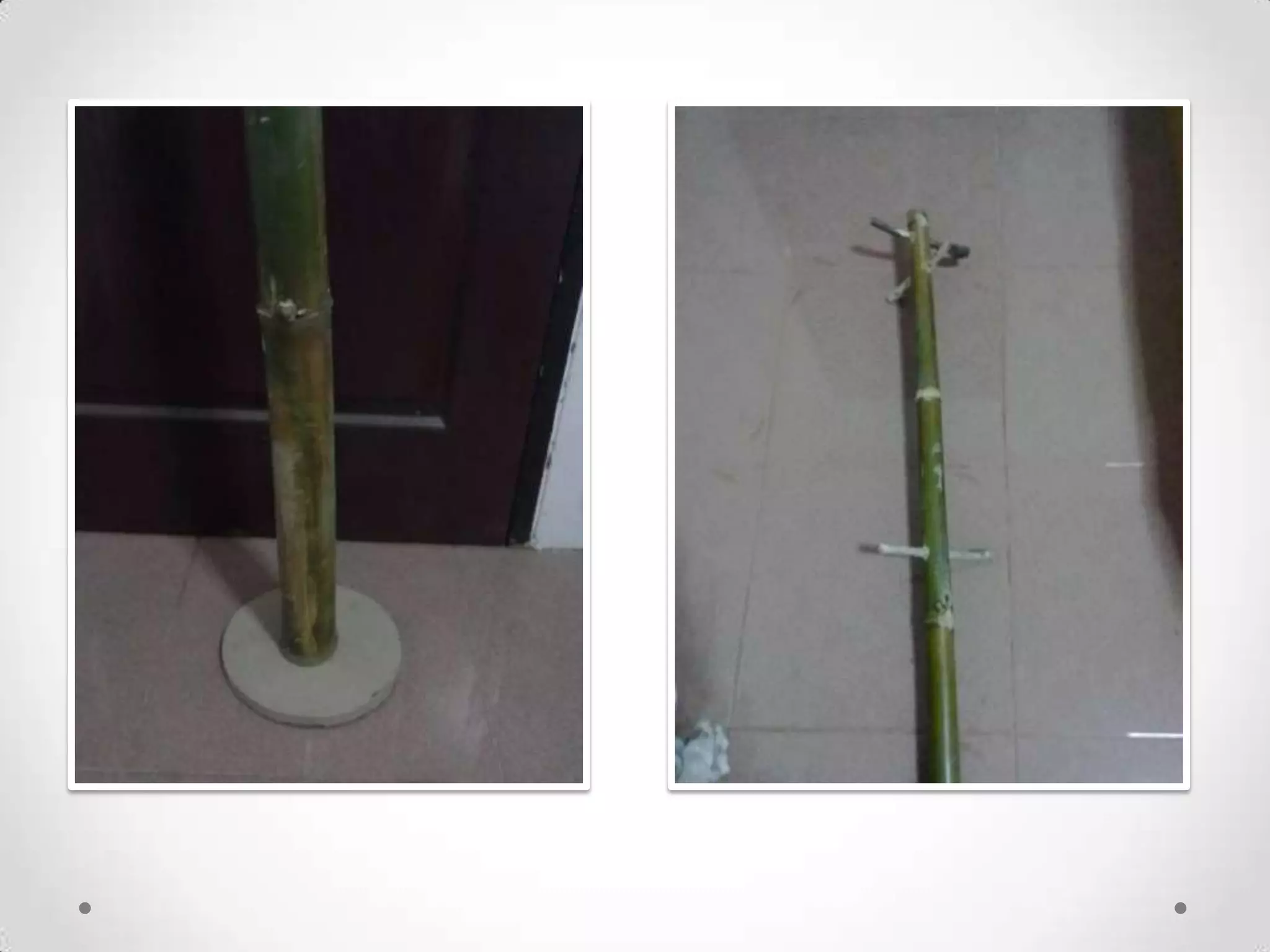

6. Develop your first prototype
- Record the number of hours spent in each
manufacturing process.
1. Cut
- Upper Body 5 minutes
- Lower Body 4 minutes
- Branches 4 minutes
2. Drill
- Upper Body 4 minutes
3. Scrub 10 minutes
4. Wax 30 minutes

7. Develop your first prototype
- Provide difficulties and problems
encountered during the prototype
development.
= -The body of bamboo is not straight.
-The pivot point have friction.
- Provide the solutions for your second
prototype.
= -Fine the body of bamboo that straight.
-Coating by Jarabi.

8. Thank you
