- 1. Cisco Confidential© 2012Cisco and/or its affiliates. All rights reserved. 1 Cloupia Product Overview and Demo Presentation Phani Penmethsa - Technical Marketing Engineer January 17, 2013

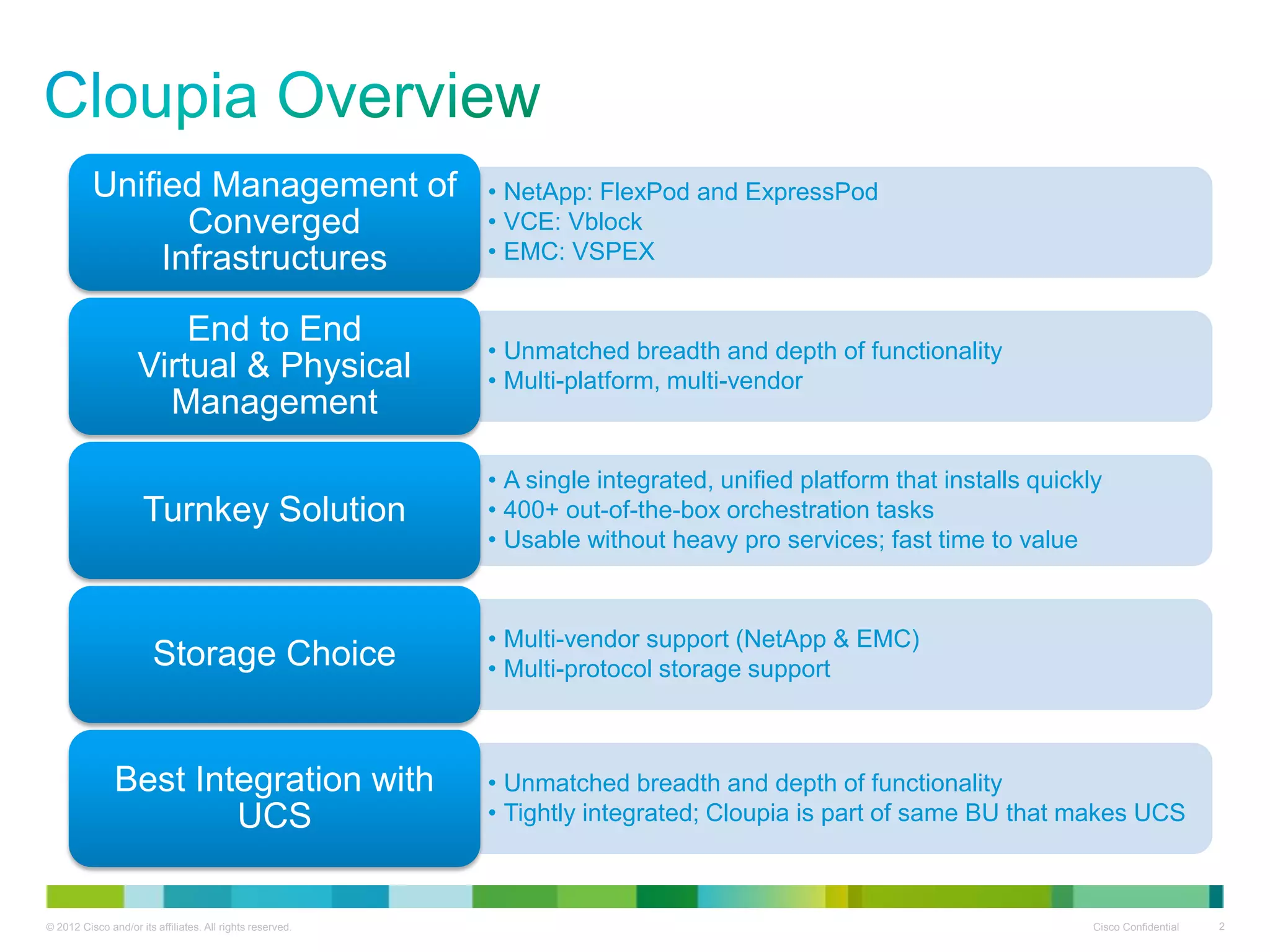

- 2. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Confidential 2 • NetApp: FlexPod and ExpressPod • VCE: Vblock • EMC: VSPEX Unified Management of Converged Infrastructures • Unmatched breadth and depth of functionality • Multi-platform, multi-vendor End to End Virtual & Physical Management • A single integrated, unified platform that installs quickly • 400+ out-of-the-box orchestration tasks • Usable without heavy pro services; fast time to value Turnkey Solution • Multi-vendor support (NetApp & EMC) • Multi-protocol storage supportStorage Choice • Unmatched breadth and depth of functionality • Tightly integrated; Cloupia is part of same BU that makes UCS Best Integration with UCS

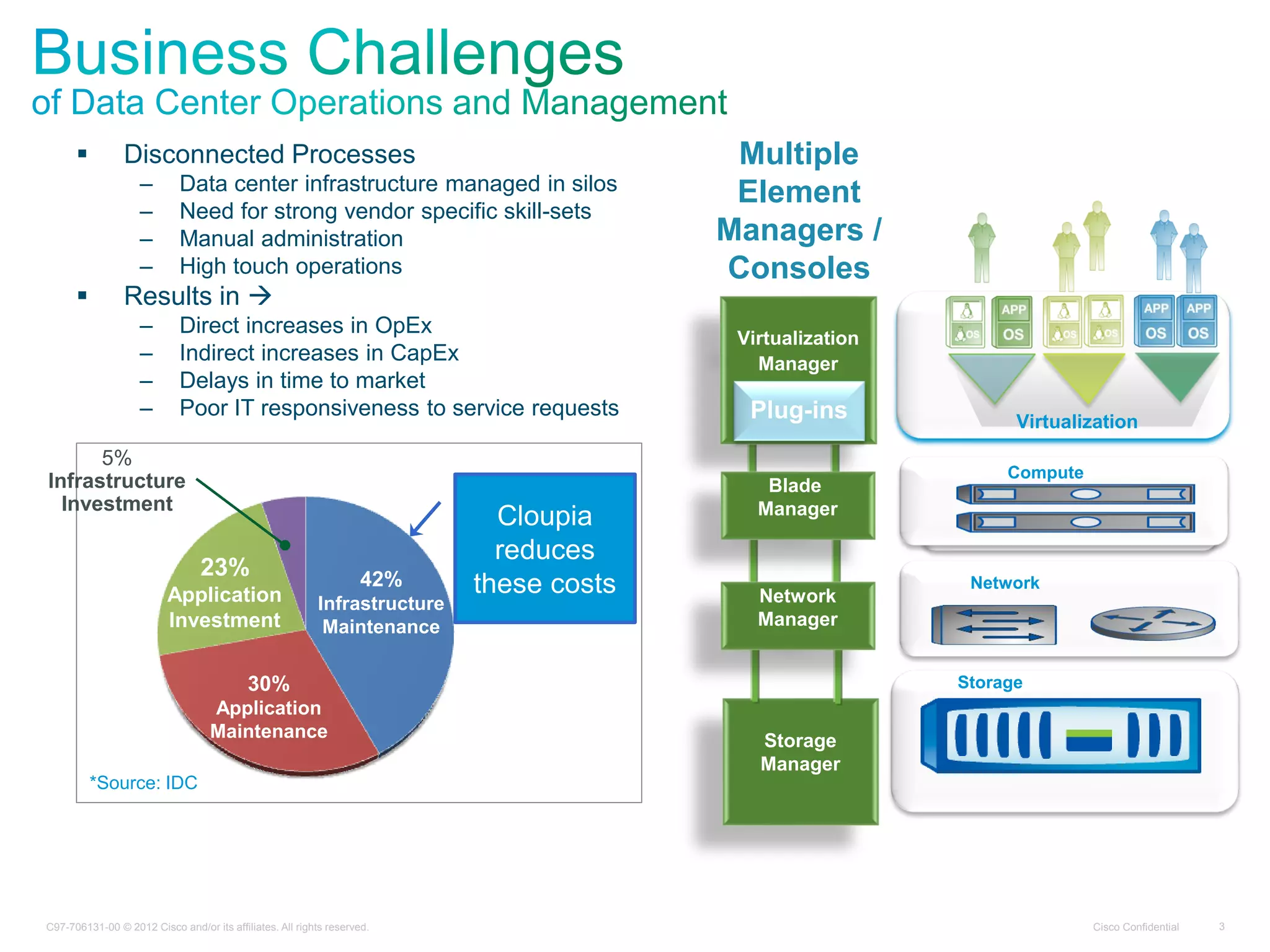

- 3. Cisco ConfidentialC97-706131-00 ©2012 Cisco and/or its affiliates. All rights reserved. 3 Virtualization Disconnected Processes – Data center infrastructure managed in silos – Need for strong vendor specific skill-sets – Manual administration – High touch operations Results in – Direct increases in OpEx – Indirect increases in CapEx – Delays in time to market – Poor IT responsiveness to service requests 42% Infrastructure Maintenance 30% Application Maintenance 23% Application Investment 5% Infrastructure Investment Virtualization Manager Plug-ins Storage Manager Network Manager Blade Manager *Source: IDC Compute Network Storage Multiple Element Managers / Consoles Cloupia reduces these costs

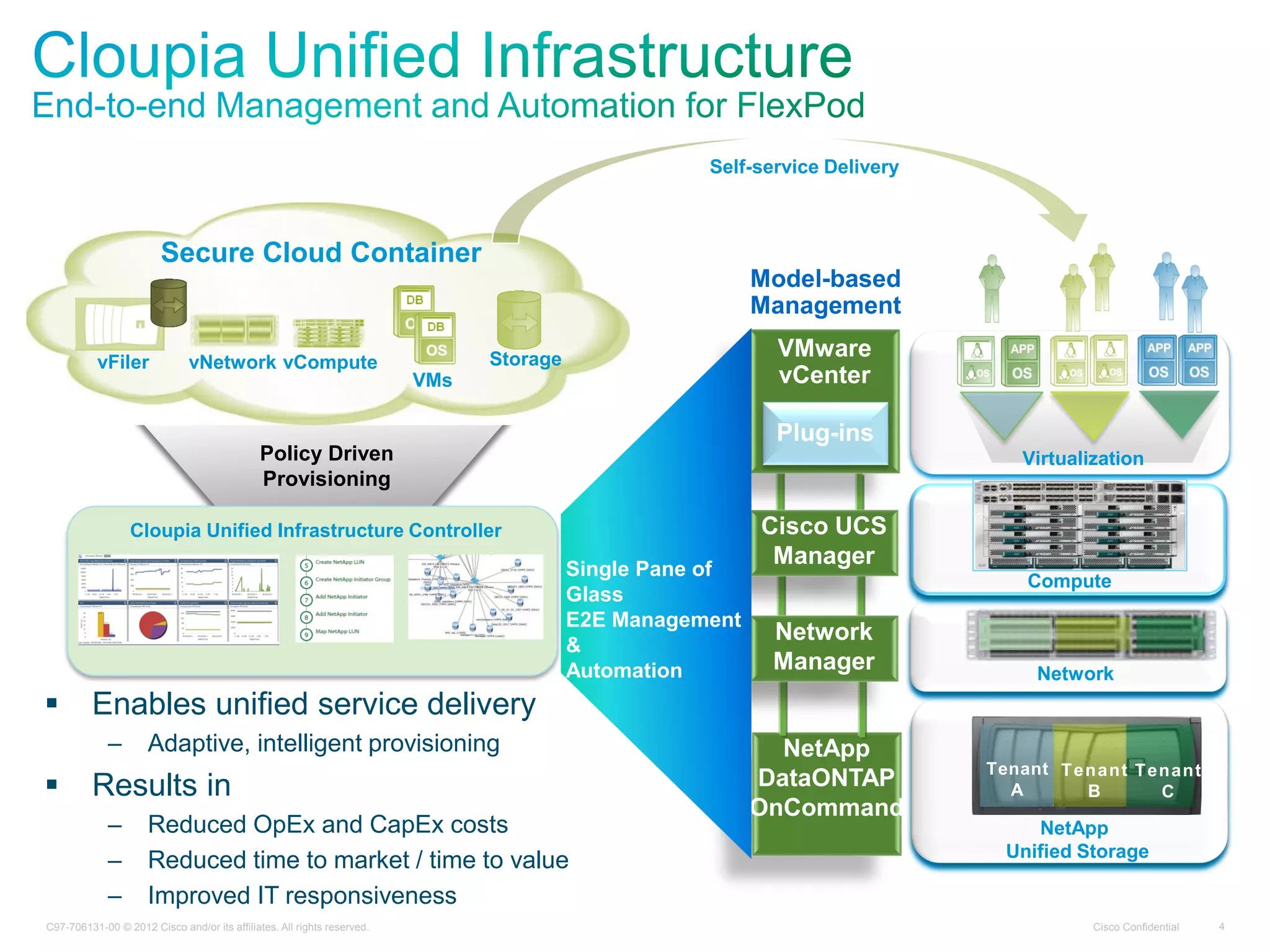

- 4. Cisco ConfidentialC97-706131-00 ©2012 Cisco and/or its affiliates. All rights reserved. 4 Policy Driven Provisioning vFiler Storage VMs vNetwork vCompute Cloupia Unified Infrastructure Controller Secure Cloud Container Self-service Delivery NetApp Unified Storage Virtualization Network Compute Tenant A Tenant B Tenant C VMware vCenter Plug-ins NetApp DataONTAP OnCommand Network Manager Cisco UCS ManagerSingle Pane of Glass E2E Management & Automation Enables unified service delivery – Adaptive, intelligent provisioning Results in – Reduced OpEx and CapEx costs – Reduced time to market / time to value – Improved IT responsiveness Model-based Management

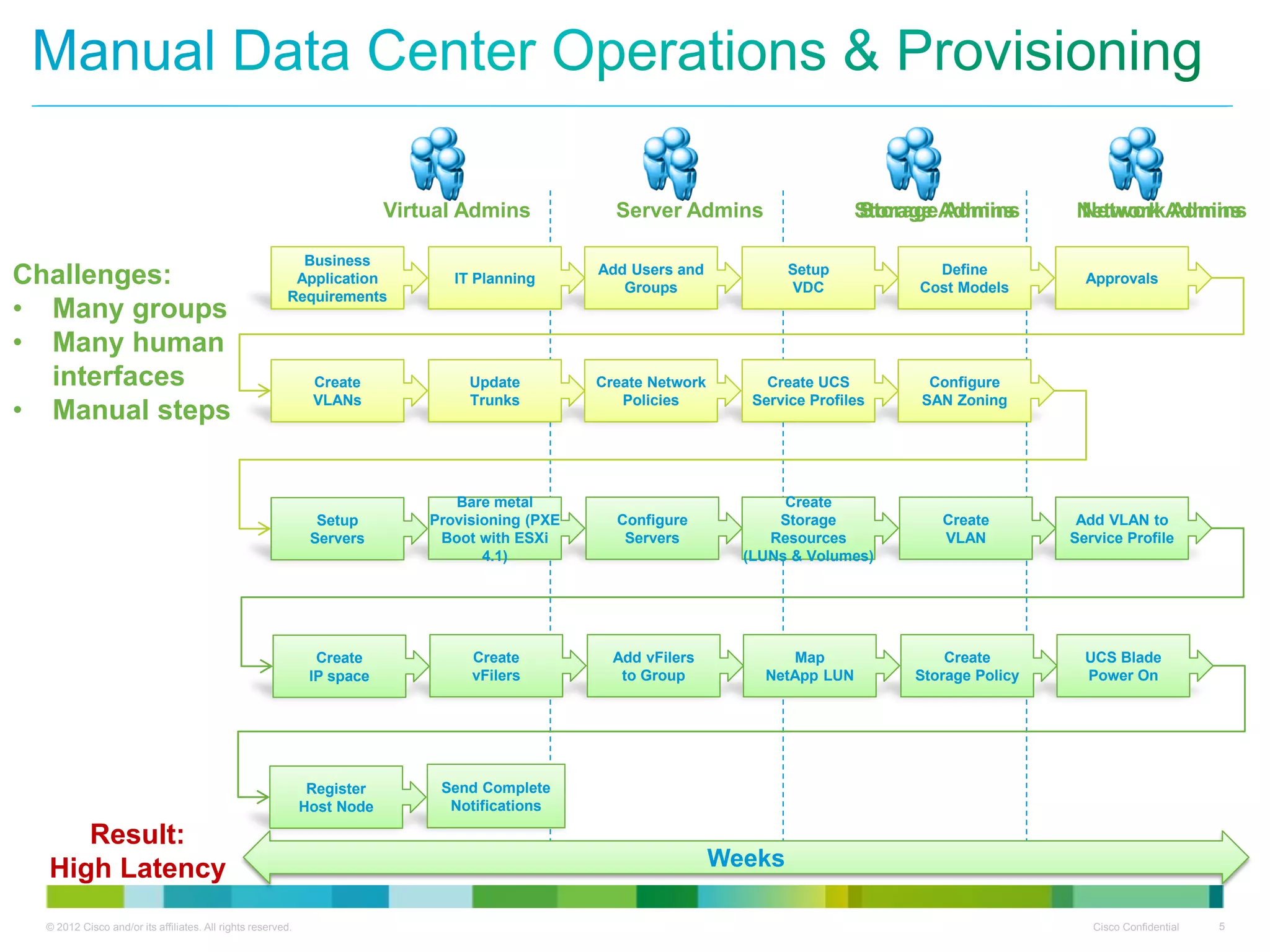

- 5. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Confidential 5 Business Application Requirements IT Planning Add Users and Groups Setup VDC Define Cost Models Approvals Create VLANs Update Trunks Create Network Policies Create UCS Service Profiles Configure SAN Zoning Setup Servers Bare metal Provisioning (PXE Boot with ESXi 4.1) Configure Servers Create Storage Resources (LUNs & Volumes) Create VLAN Add VLAN to Service Profile Create IP space Create vFilers Add vFilers to Group Map NetApp LUN Create Storage Policy UCS Blade Power On Register Host Node Challenges: • Many groups • Many human interfaces • Manual steps Result: High Latency Send Complete Notifications Weeks Virtual Admins Server Admins Storage Admins Network AdminsStorage Admins Network Admins

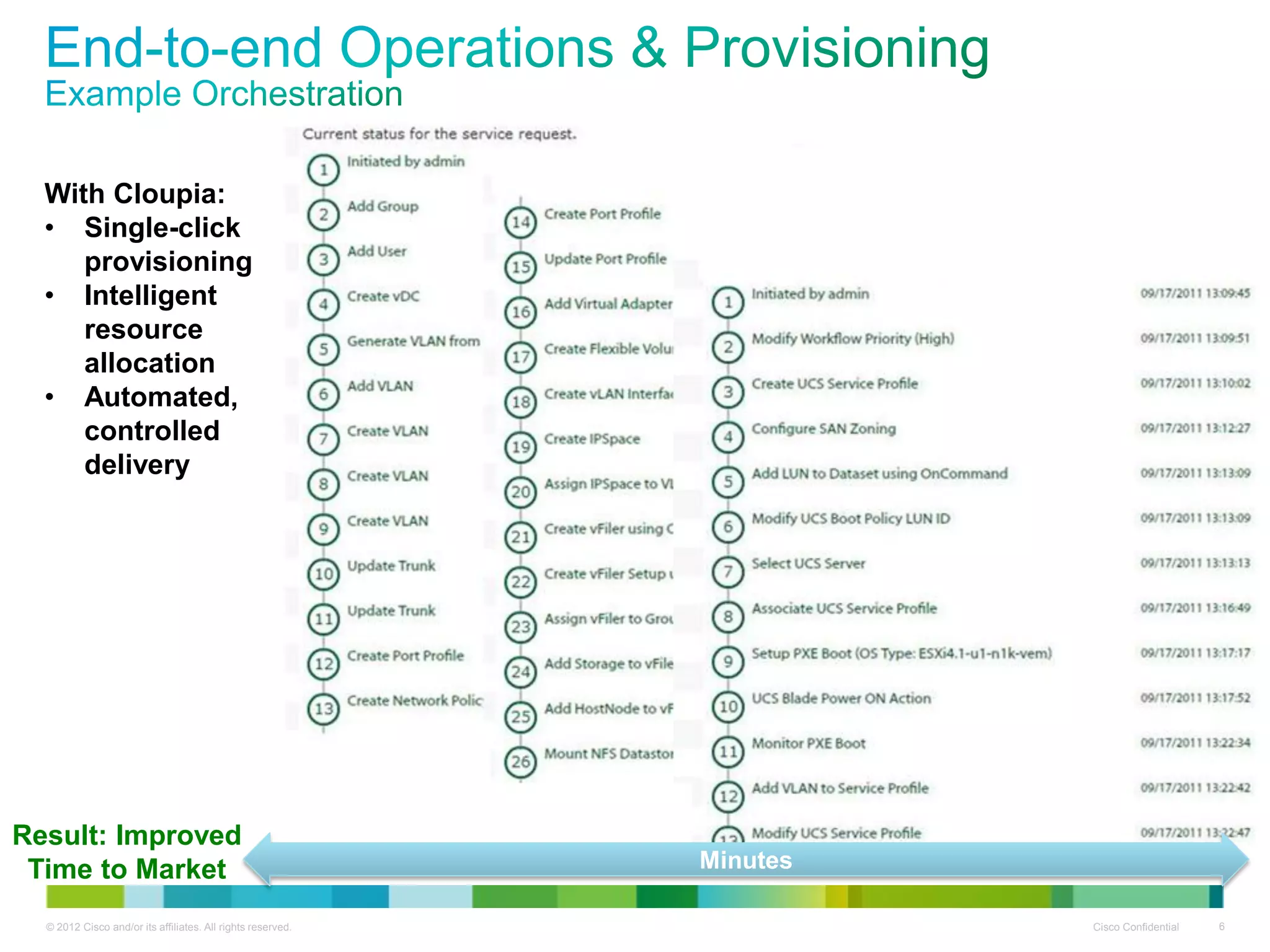

- 6. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Confidential 6 With Cloupia: • Single-click provisioning • Intelligent resource allocation • Automated, controlled delivery Result: Improved Time to Market Minutes

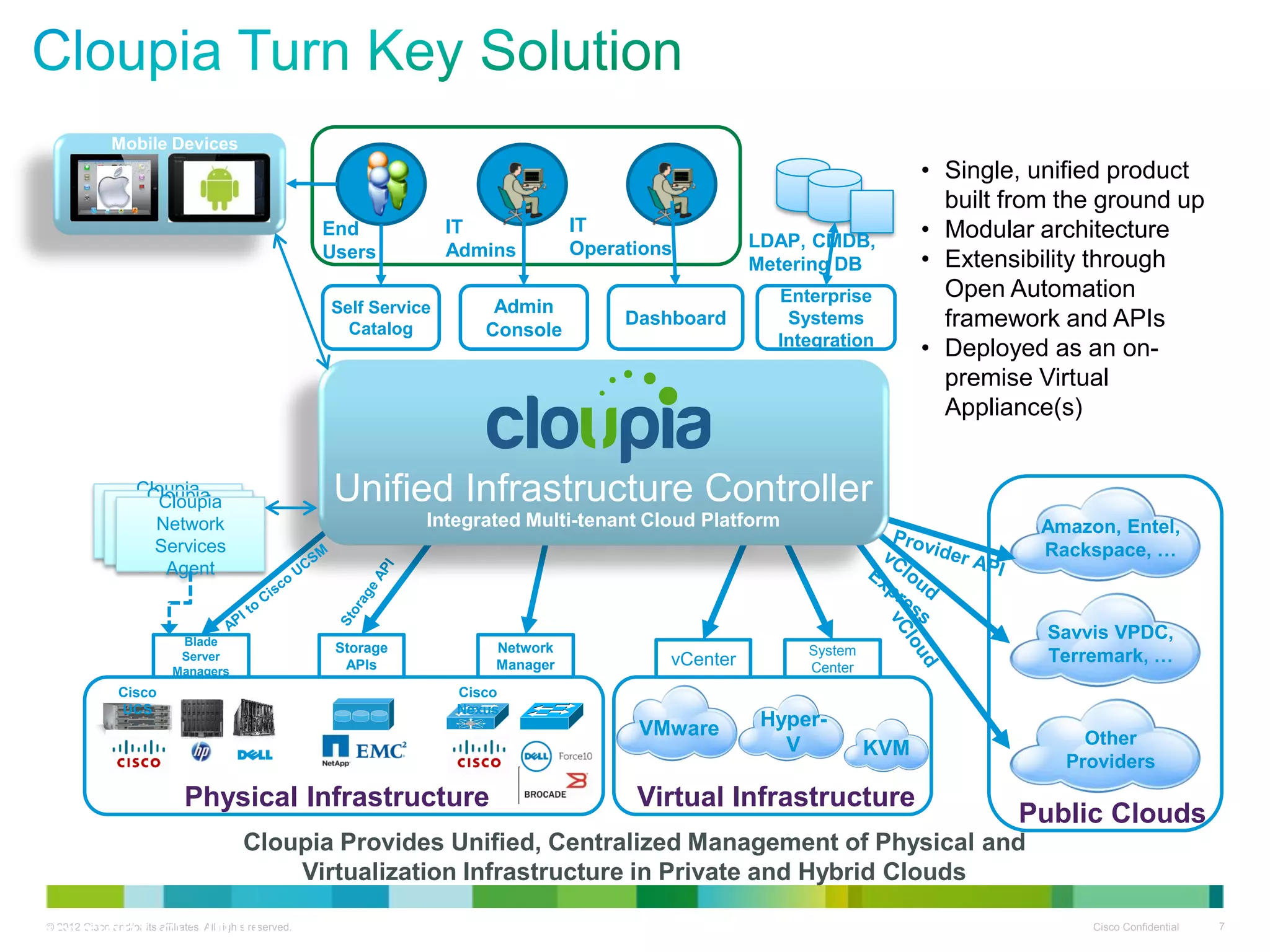

- 7. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Confidential 7 Self Service Catalog Cloupia Unified Infrastructure Controller Multi-tenant & integrated cloud platform Admin Console Dashboard Virtual Infrastructure Amazon, Entel, Rackspace, … VMware Hyper- V vCenter System Center Enterprise Systems Integration IT Admins End Users IT Operations LDAP, CMDB, Metering DB Blade Server Managers Network Manager Storage APIs • Single, unified product built from the ground up • Modular architecture • Extensibility through Open Automation framework and APIs • Deployed as an on- premise Virtual Appliance(s) Cisco UCS Copyright © 2009 - 2012 Cloupia, Unified Infrastructure Controller Integrated Multi-tenant Cloud Platform Cloupia Network Services Agent Cloupia Network Services Agent Cloupia Network Services Agent Cloupia Provides Unified, Centralized Management of Physical and Virtualization Infrastructure in Private and Hybrid Clouds KVM Savvis VPDC, Terremark, … Other Providers Physical Infrastructure Cisco Nexus Public Clouds Mobile Devices
- 8. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Confidential 8

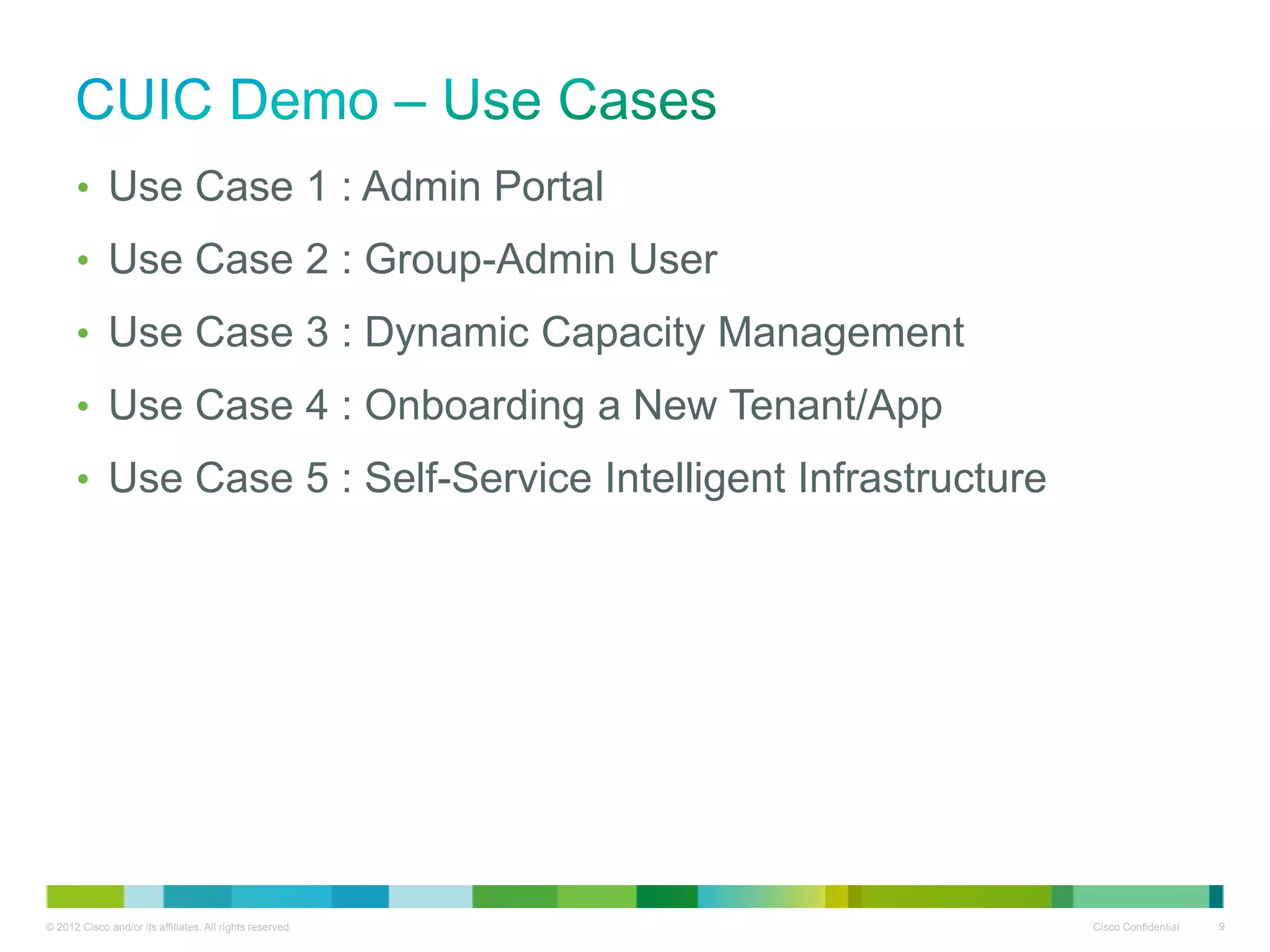

- 9. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Confidential 9 • Use Case 1 : Admin Portal • Use Case 2 : Group-Admin User • Use Case 3 : Dynamic Capacity Management • Use Case 4 : Onboarding a New Tenant/App • Use Case 5 : Self-Service Intelligent Infrastructure

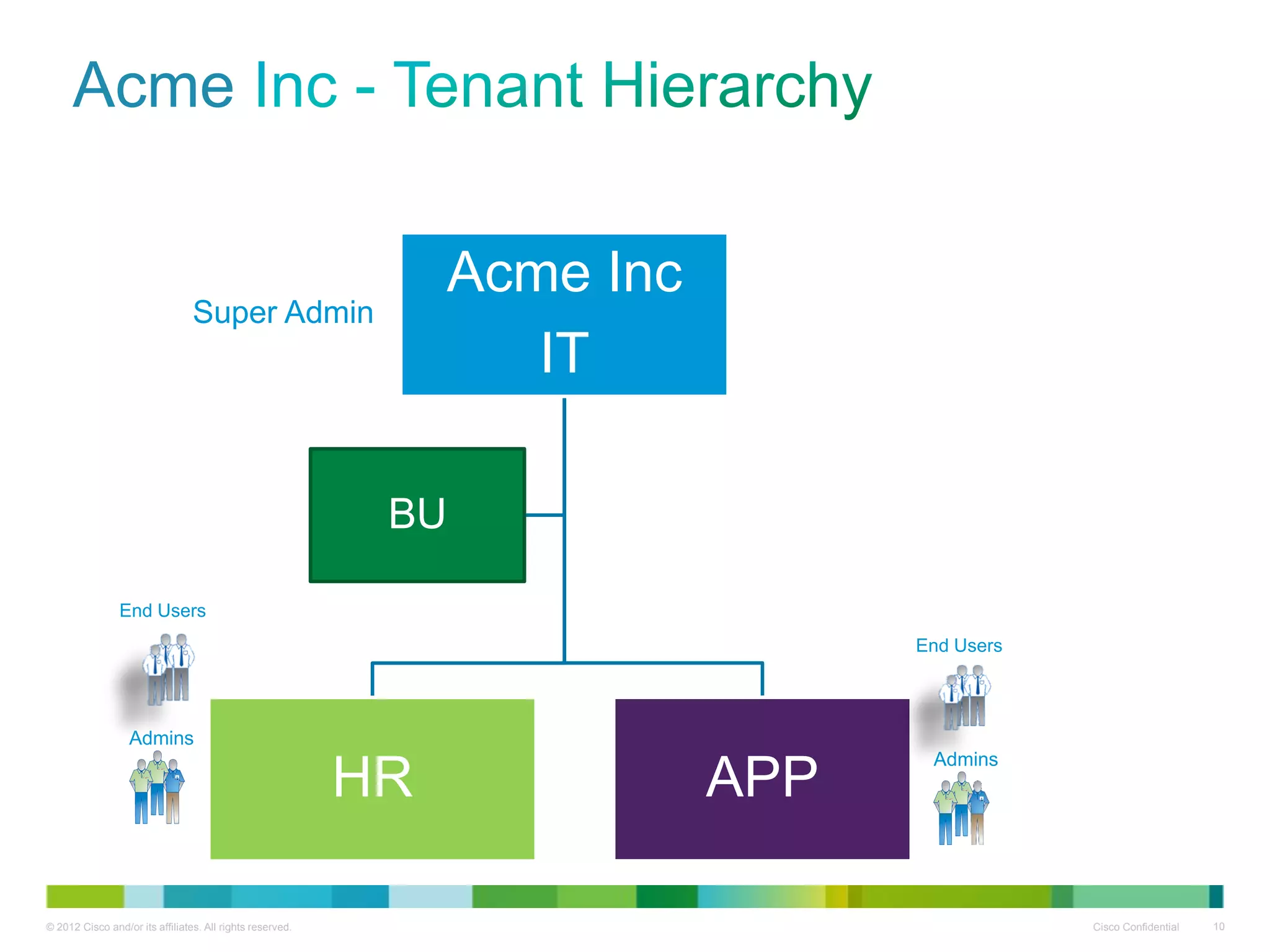

- 10. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Confidential 10 Acme Acme Inc IT HR APP BU Super Admin Admins End Users End Users Admins

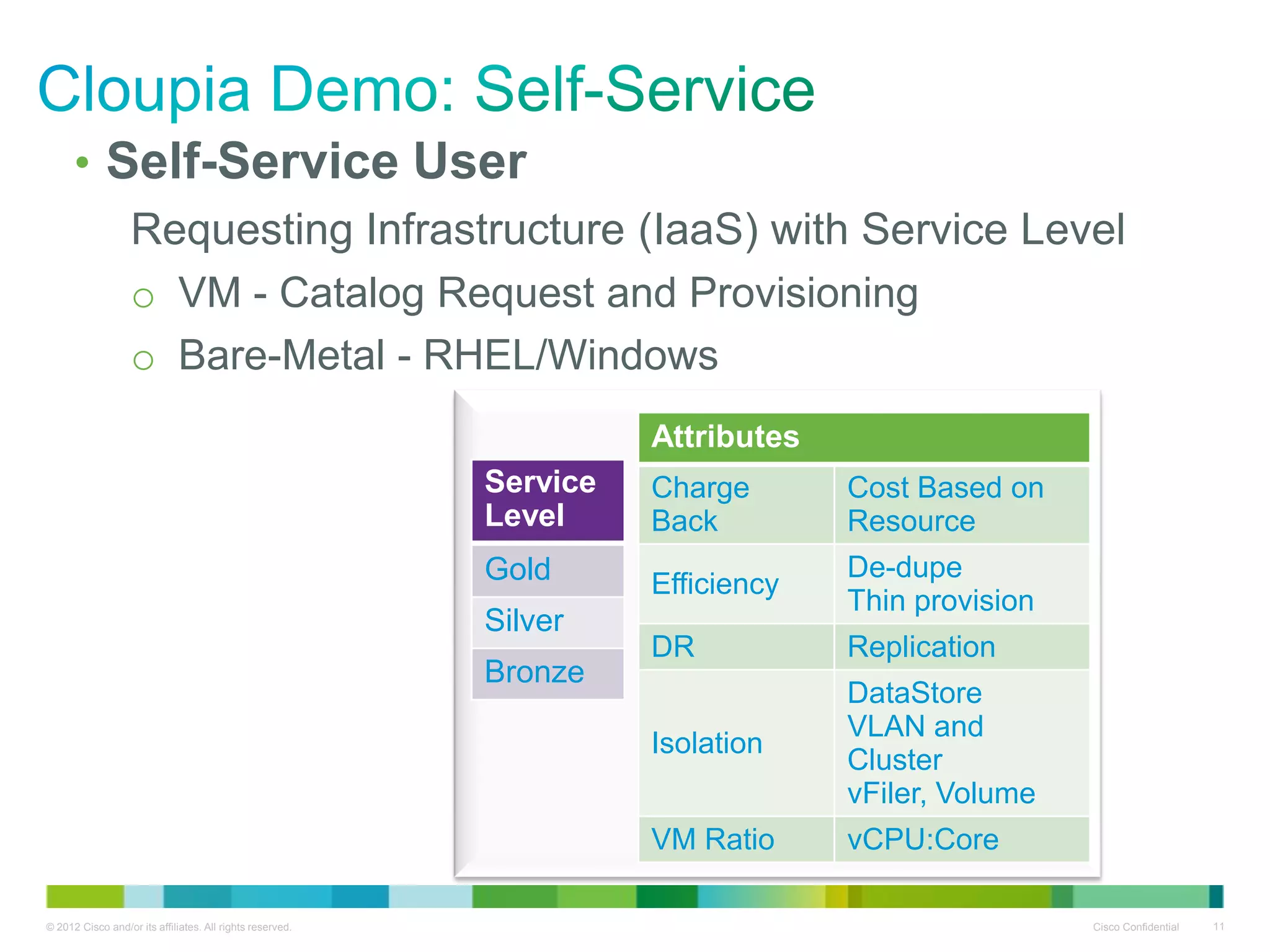

- 11. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Confidential 11 • Self-Service User Requesting Infrastructure (IaaS) with Service Level o VM - Catalog Request and Provisioning o Bare-Metal - RHEL/Windows Service Level Gold Silver Bronze Attributes Charge Back Cost Based on Resource Efficiency De-dupe Thin provision DR Replication Isolation DataStore VLAN and Cluster vFiler, Volume VM Ratio vCPU:Core
- 12. Cisco ConfidentialC97-706131-00 ©2012 Cisco and/or its affiliates. All rights reserved. 12 Tops Sauce Crust Thick Thin Tossed Herb Stuffed Original Meat Pesto Blanca Garlic Cheeses Meats Veggies Fruits Herbs My Favorites Herbivore Delight Kids Love Cheese Carnivore Craving Order a la Carte Add to Favorites Order from Favorites “I want pizza.”

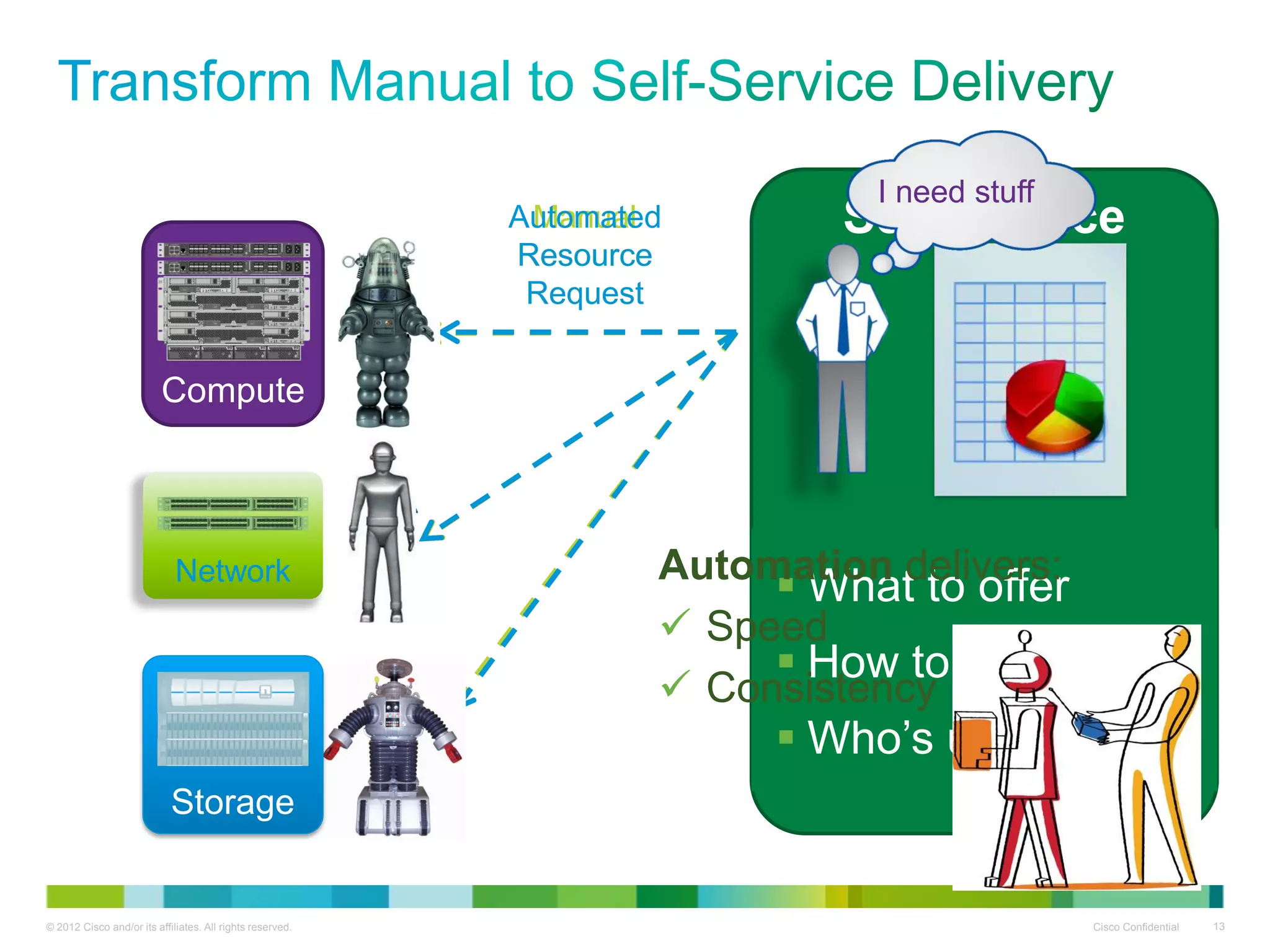

- 13. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Confidential 13 Self-Service What to offer How to deliver Who’s using what? Network Compute Manual Resource Request Automated Resource Request I need stuff Automation delivers: Speed Consistency Storage

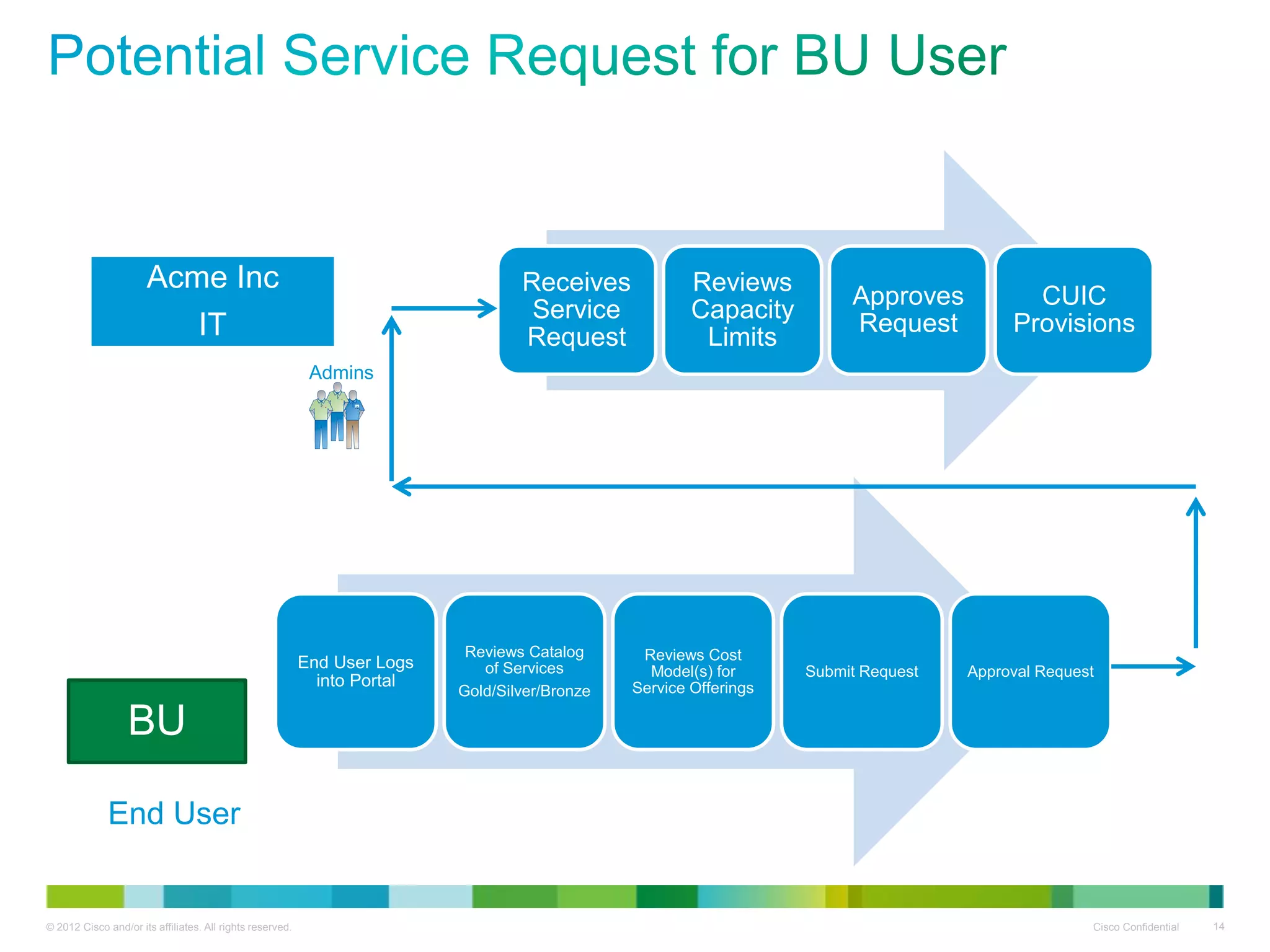

- 14. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Confidential 14 Receives Service Request Reviews Capacity Limits Approves Request CUIC Provisions End User End User Logs into Portal Reviews Catalog of Services Gold/Silver/Bronze Reviews Cost Model(s) for Service Offerings Submit Request Approval Request Admins BU Acme Inc IT

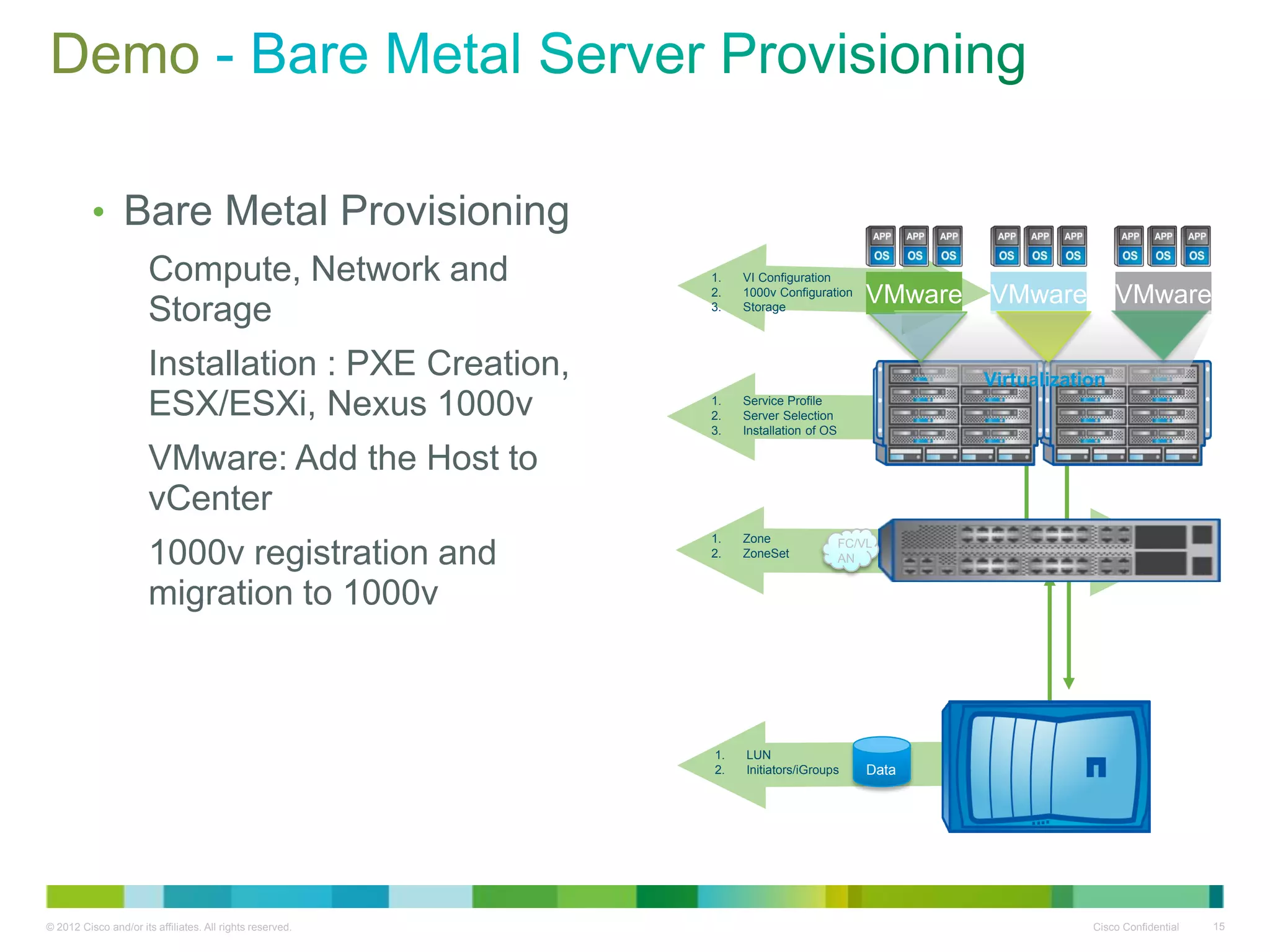

- 15. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Confidential 15 Demo • Bare Metal Provisioning Compute, Network and Storage Installation : PXE Creation, ESX/ESXi, Nexus 1000v VMware: Add the Host to vCenter 1000v registration and migration to 1000v VMware VMware VMware Virtualization Data FC/VL AN 1. Service Profile 2. Server Selection 3. Installation of OS 1. LUN 2. Initiators/iGroups 1. Zone 2. ZoneSet 1. VI Configuration 2. 1000v Configuration 3. Storage

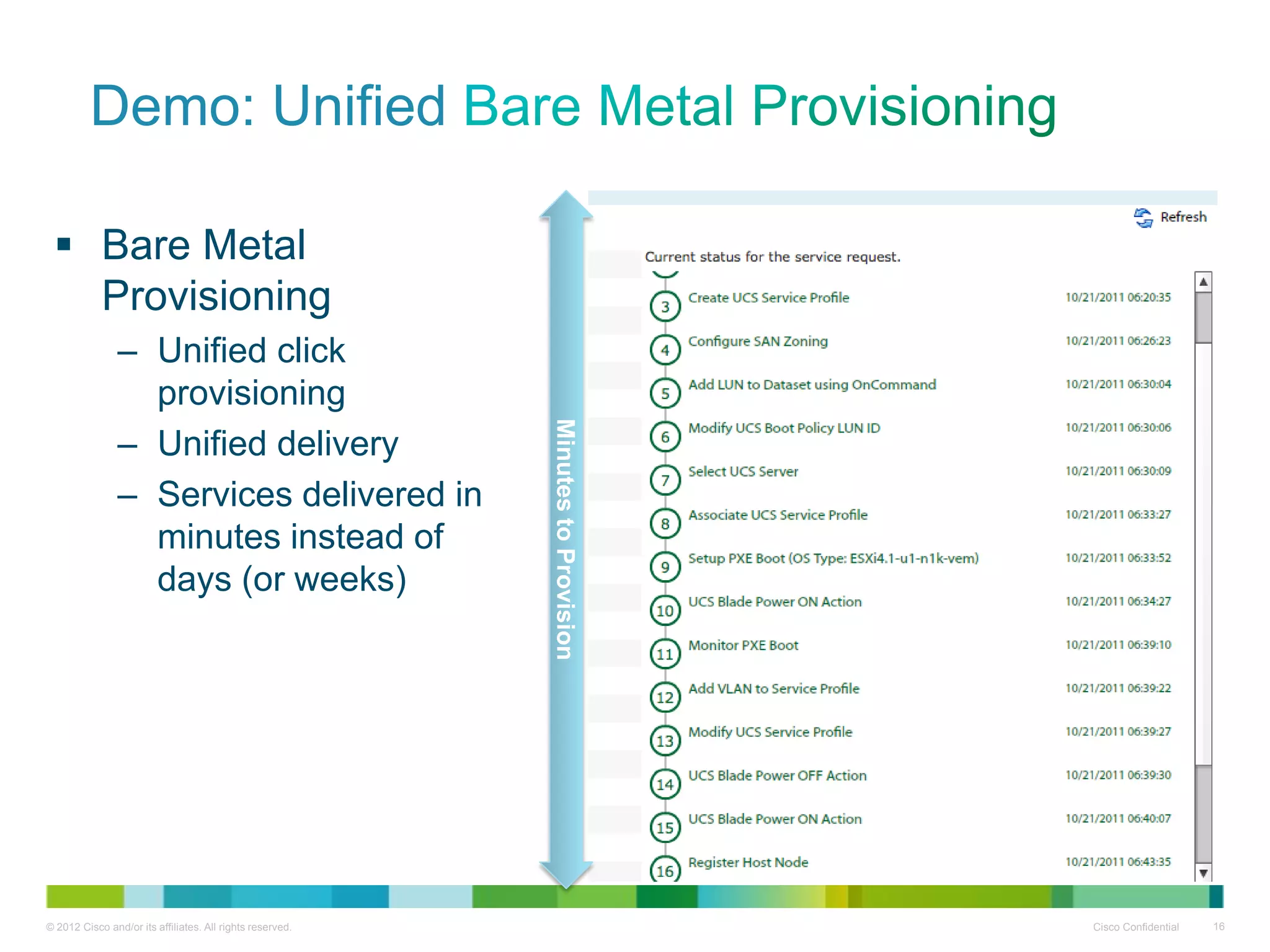

- 16. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Confidential 16 Demo: Unified Bare Metal Provisioning – Unified click provisioning – Unified delivery – Services delivered in minutes instead of days (or weeks) MinutestoProvision

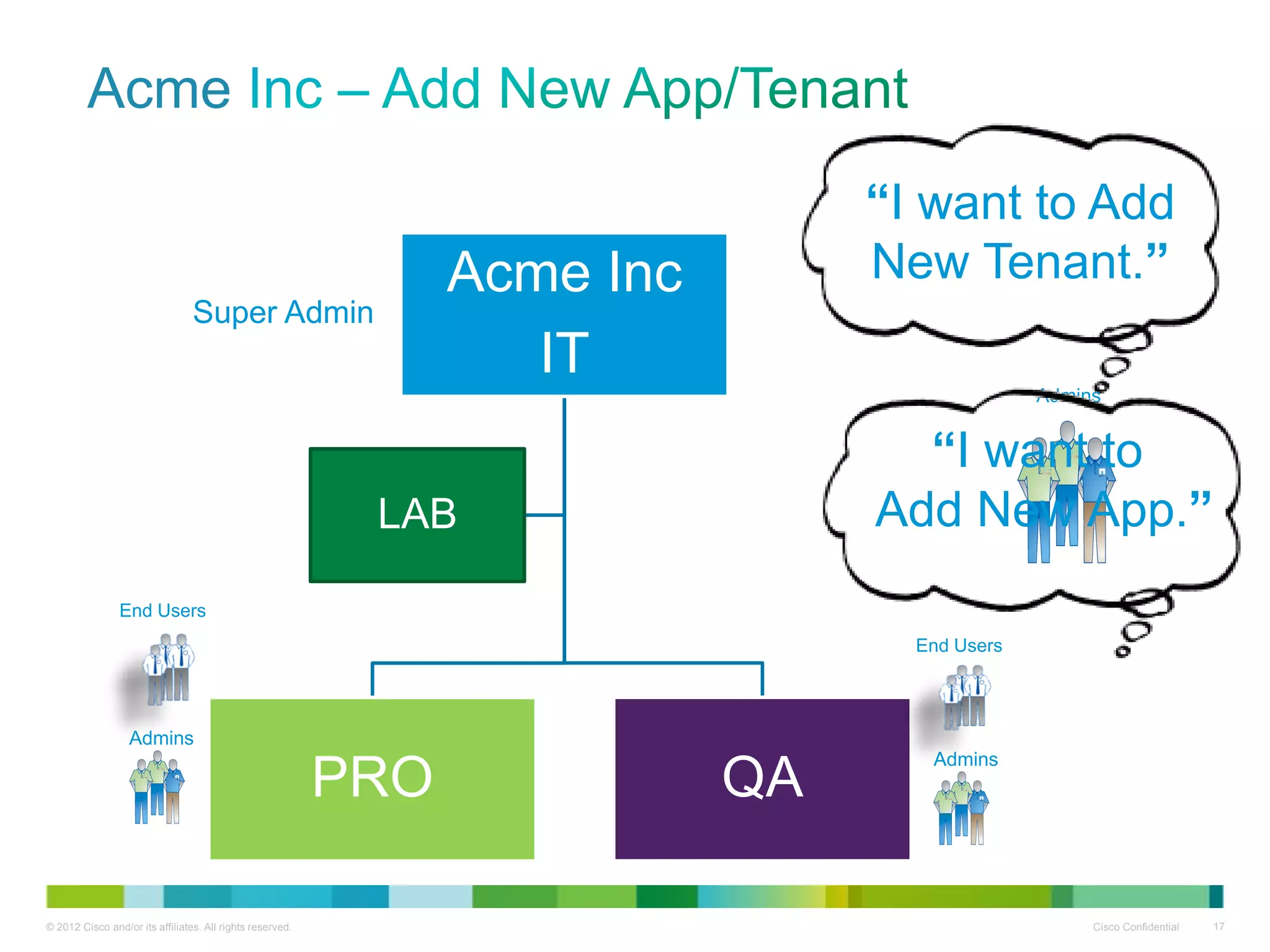

- 17. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Confidential 17 Acme Acme Inc IT PRO QA LAB Super Admin Admins End Users End Users Admins “I want to Add New Tenant.” Admins “I want to Add New App.”

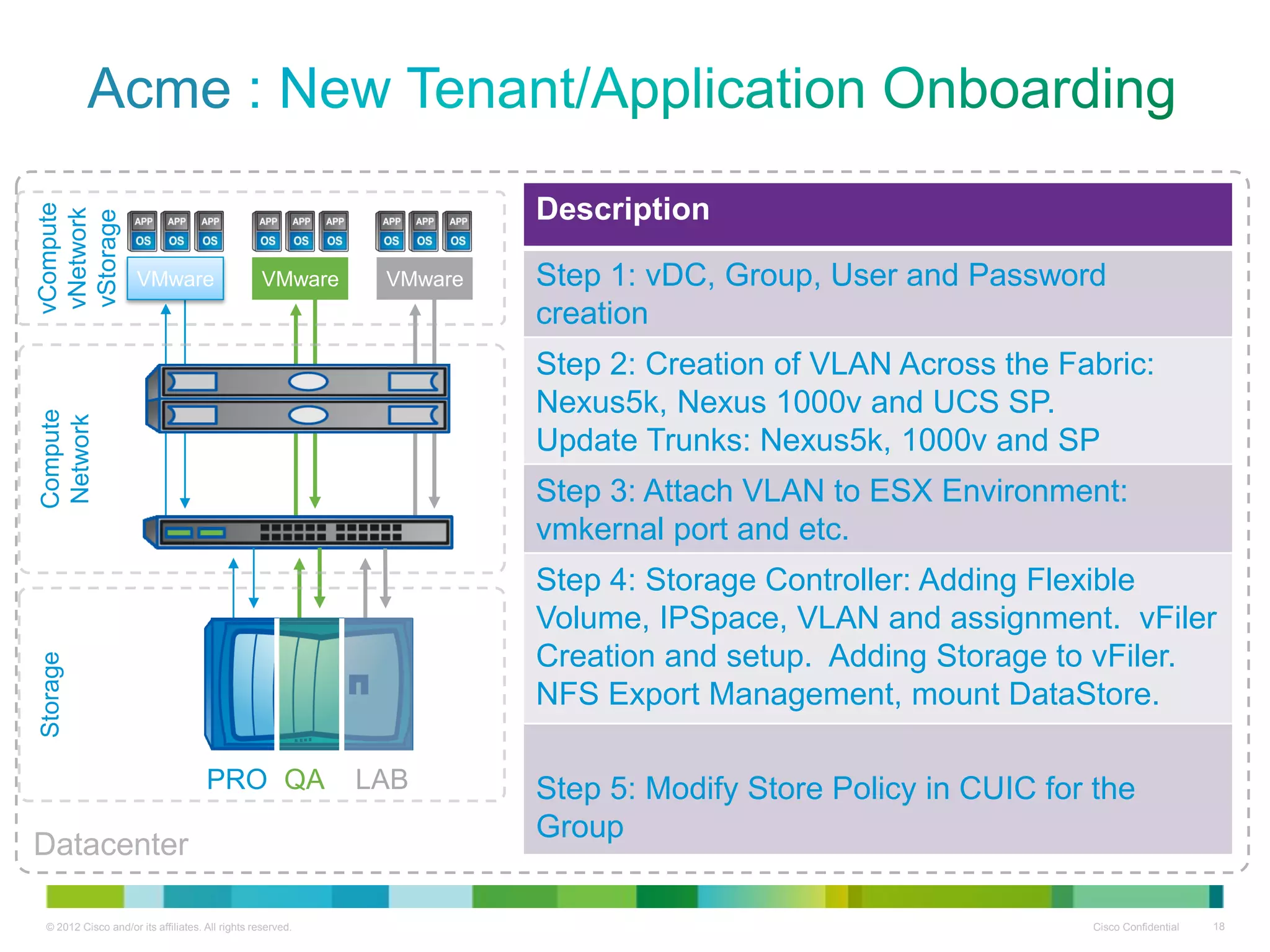

- 18. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Confidential 18 PRO QA LAB VMware VMware VMware vCompute vNetwork vStorage Compute Network Storage Datacenter Description Step 1: vDC, Group, User and Password creation Step 2: Creation of VLAN Across the Fabric: Nexus5k, Nexus 1000v and UCS SP. Update Trunks: Nexus5k, 1000v and SP Step 3: Attach VLAN to ESX Environment: vmkernal port and etc. Step 4: Storage Controller: Adding Flexible Volume, IPSpace, VLAN and assignment. vFiler Creation and setup. Adding Storage to vFiler. NFS Export Management, mount DataStore. Step 5: Modify Store Policy in CUIC for the Group Acme

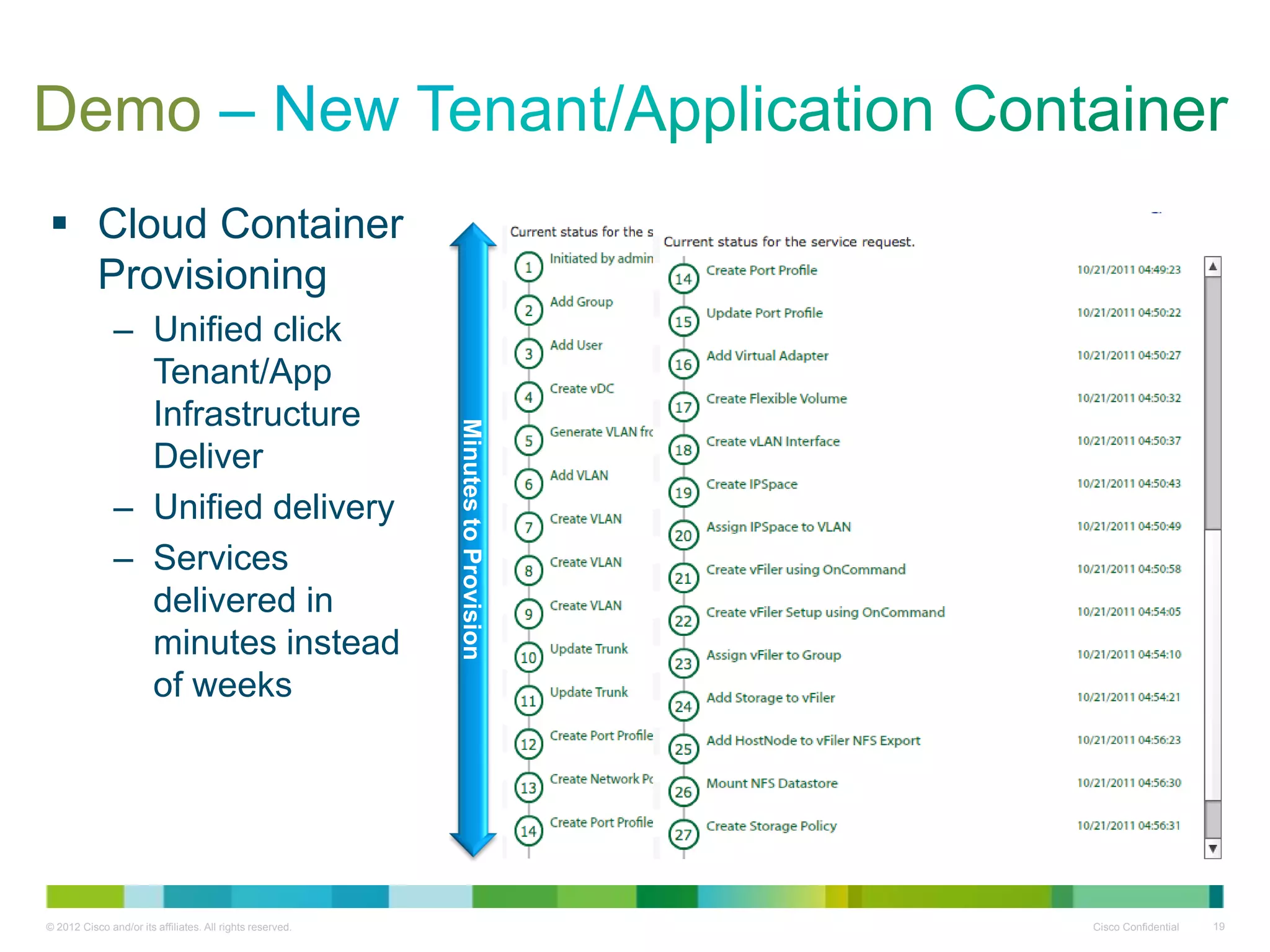

- 19. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Confidential 19 Demo Cloud Container Provisioning – Unified click Tenant/App Infrastructure Deliver – Unified delivery – Services delivered in minutes instead of weeks MinutestoProvision

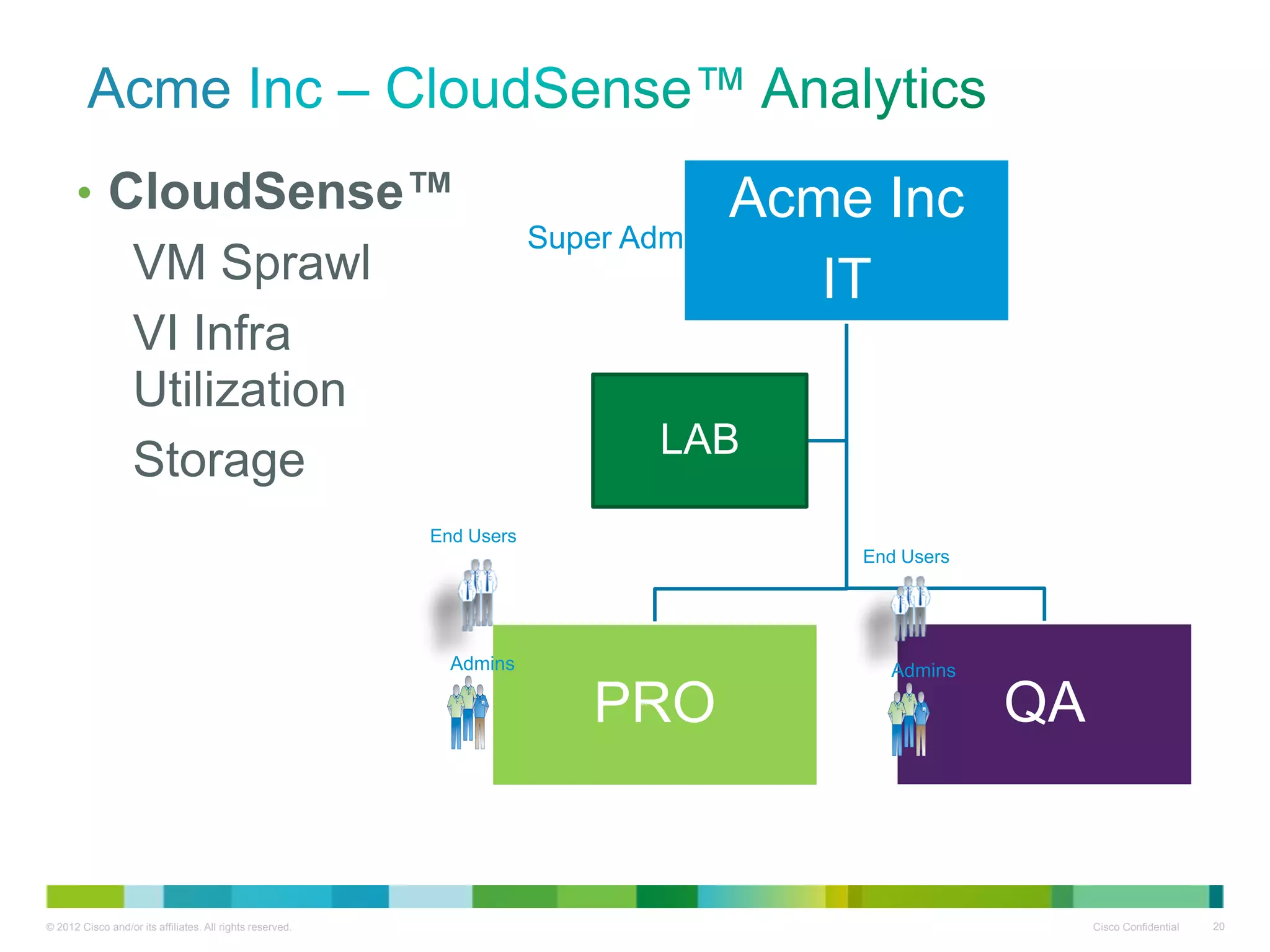

- 20. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Confidential 20 Acme Acme Inc IT PRO QA LAB Super Admin Admins End Users End Users Admins • CloudSense™ VM Sprawl VI Infra Utilization Storage

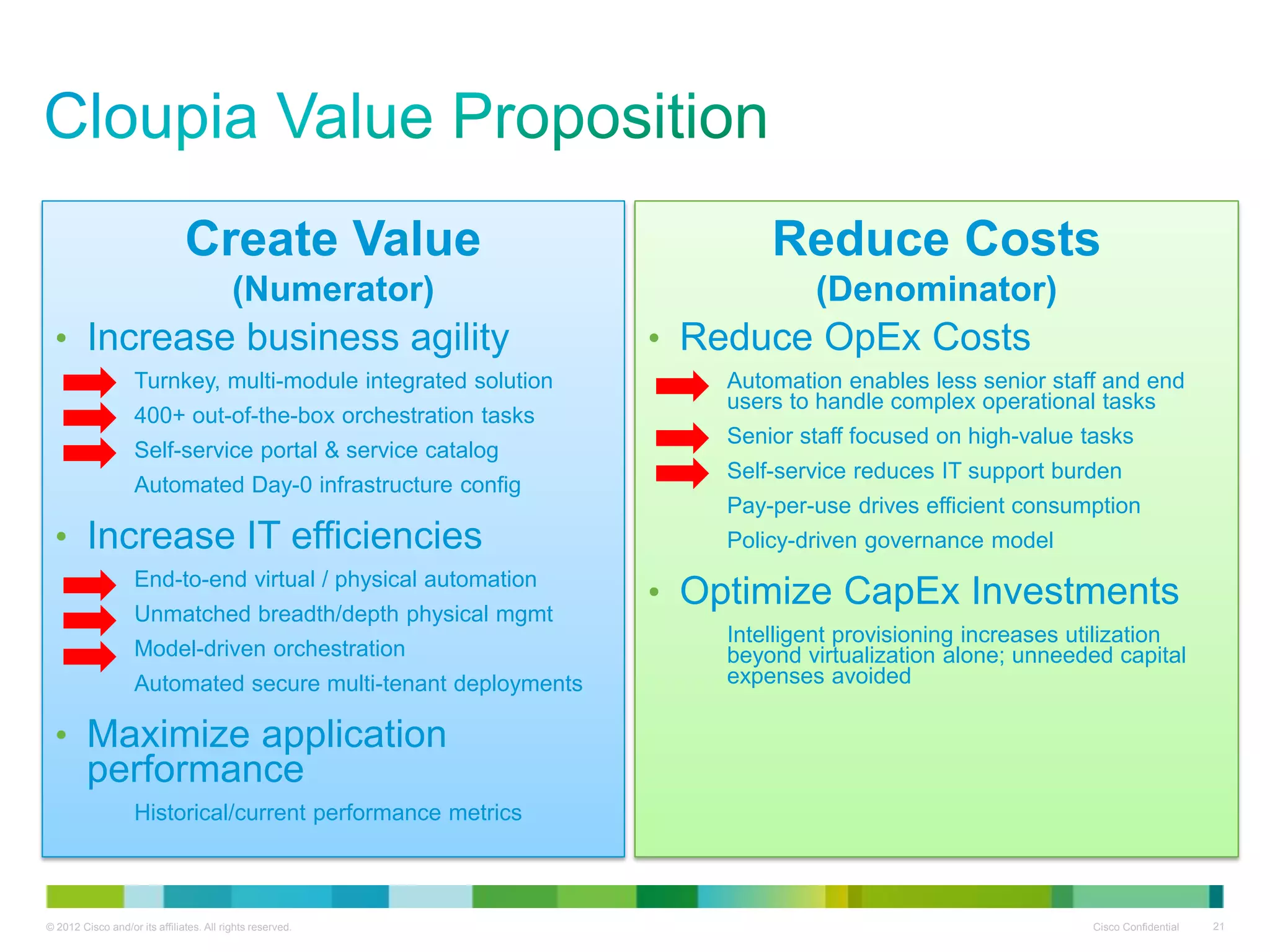

- 21. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Confidential 21 Create Value (Numerator) Reduce Costs (Denominator) • Increase business agility Turnkey, multi-module integrated solution 400+ out-of-the-box orchestration tasks Self-service portal & service catalog Automated Day-0 infrastructure config • Increase IT efficiencies End-to-end virtual / physical automation Unmatched breadth/depth physical mgmt Model-driven orchestration Automated secure multi-tenant deployments • Maximize application performance Historical/current performance metrics • Reduce OpEx Costs Automation enables less senior staff and end users to handle complex operational tasks Senior staff focused on high-value tasks Self-service reduces IT support burden Pay-per-use drives efficient consumption Policy-driven governance model • Optimize CapEx Investments Intelligent provisioning increases utilization beyond virtualization alone; unneeded capital expenses avoided

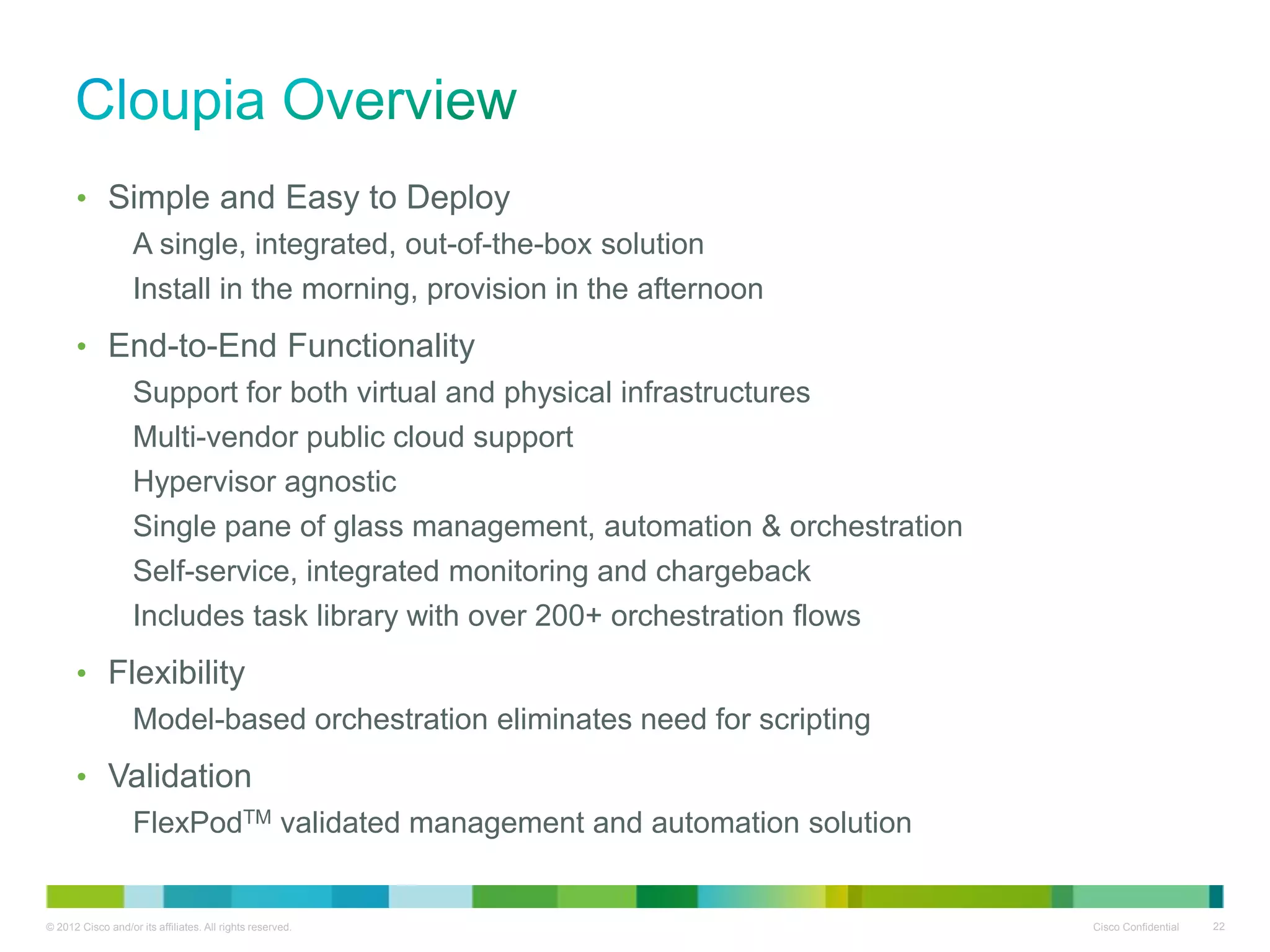

- 22. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Confidential 22 • Simple and Easy to Deploy A single, integrated, out-of-the-box solution Install in the morning, provision in the afternoon • End-to-End Functionality Support for both virtual and physical infrastructures Multi-vendor public cloud support Hypervisor agnostic Single pane of glass management, automation & orchestration Self-service, integrated monitoring and chargeback Includes task library with over 200+ orchestration flows • Flexibility Model-based orchestration eliminates need for scripting • Validation FlexPodTM validated management and automation solution
