![07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 10
PrefetchML DSL
import ''http://www.example.com/Java''
plan samplePlan {
use cache LRU[size=100, chunk=10]
rule r1: on starting
fetch Package.allInstances()
rule r2: on access type ClassDeclaration
fetch self.bodyDeclarations.modifier
}
Package
+ name : String
ClassDeclaration
+ name : String
BodyDeclaration
+ name : String
Modifier
+ kind : VisibilityKind
*
1
ownedElements
*
bodyDeclarations
modifier](https://image.slidesharecdn.com/slideprefetch-161108040304/85/PrefetchML-a-Framework-for-Prefetching-and-Caching-models-10-320.jpg)

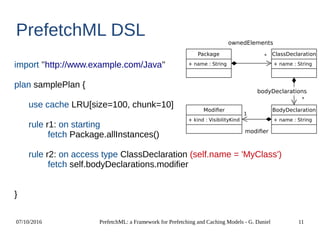

![07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 11
PrefetchML DSL
import ''http://www.example.com/Java''
plan samplePlan {
use cache LRU[size=100, chunk=10]
rule r1: on starting
fetch Package.allInstances()
rule r2: on access type ClassDeclaration (self.name = 'MyClass')
fetch self.bodyDeclarations.modifier
}
Package
+ name : String
ClassDeclaration
+ name : String
BodyDeclaration
+ name : String
Modifier
+ kind : VisibilityKind
*
1
ownedElements
*
bodyDeclarations
modifier](https://image.slidesharecdn.com/slideprefetch-161108040304/85/PrefetchML-a-Framework-for-Prefetching-and-Caching-models-11-320.jpg)
![07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 12
PrefetchML DSL
import ''http://www.example.com/Java''
plan samplePlan {
use cache LRU[size=100, chunk=10]
rule r1: on starting
fetch Package.allInstances()
rule r2: on access type ClassDeclaration (self.name = 'MyClass')
fetch self.bodyDeclarations.modifier
remove type Package
}
Package
+ name : String
ClassDeclaration
+ name : String
BodyDeclaration
+ name : String
Modifier
+ kind : VisibilityKind
*
1
ownedElements
*
bodyDeclarations
modifier](https://image.slidesharecdn.com/slideprefetch-161108040304/85/PrefetchML-a-Framework-for-Prefetching-and-Caching-models-12-320.jpg)
Uploaded byJordi Cabot
PrefetchML: a Framework for Prefetching and Caching models
PrefetchML is a framework designed for prefetching and caching models, improving the performance of I/O intensive applications by loading necessary data into memory beforehand. It features a domain-specific language (DSL) for defining high-level prefetching and caching rules, and its engine operates transparently with various databases. Future work includes automatic generation of plans and dynamic adaptation of cache rules based on access patterns.
More Related Content
![[scala.by] Launching new application fast](https://cdn.slidesharecdn.com/ss_thumbnails/scala-150330014222-conversion-gate01-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to PrefetchML: a Framework for Prefetching and Caching models
PrefetchML: a Framework for Prefetching and Caching models
- 1. PrefetchML: a Frameworkfor Prefetching and Caching Models Jordi Cabot ICREA-UOC jordi.cabot@icrea.cat Gwendal Daniel Inria - Mines Nantes & Lina gwendal.daniel@inria.fr Gerson Sunyé Inria - Mines Nantes & Lina gerson.sunye@inria.fr
- 2. 07/10/2016 PrefetchML: aFramework for Prefetching and Caching Models - G. Daniel 2 Introduction ● Prefetching – Bring objects into memory before they are requested ● Caching – Retain objects in memory to speed-up their access ● Integrated in databases and file systems – Speeds-up I/O intensive applications
- 3. 07/10/2016 PrefetchML: aFramework for Prefetching and Caching Models - G. Daniel 3 Introduction ● Database prefetchers & caches – Lack of fine-grained configuration ● Elements to load ● Usage scenario – Tightly coupled to data representation ● Low level of abstraction ● Not reusable – Not a common in NoSQL stores
- 4. 07/10/2016 PrefetchML: aFramework for Prefetching and Caching Models - G. Daniel 4 Introduction ● We need to prefetch and cache models – Scalable Persistence Frameworks ● Databases to store large models (relational, NoSQL, ...) ● Latencies to bring elements from the database ● I/O intensive
- 5. 07/10/2016 PrefetchML: aFramework for Prefetching and Caching Models - G. Daniel 5 Introduction ● We need to prefetch and cache models – Metamodel informations ● High-level prefetching rules ● Decoupled from data representation
- 6. 07/10/2016 PrefetchML: aFramework for Prefetching and Caching Models - G. Daniel 6 PrefetchML ● A prefetching and caching framework at the model level PrefetchML DSL PrefetchML Engine – Metamodel and model level – Use case dependent – Readable – Datastore-independent – Transparent for the persistence solution rule definition rule execution
- 7. 07/10/2016 PrefetchML: aFramework for Prefetching and Caching Models - G. Daniel 7 PrefetchML DSL ● Define prefetching and caching rules grouped in plans ● Event-based language – Model loading – Element access, update, deletion – OCL guards ● OCL loading instructions ● Cache management – Define cache policy – Remove cached elements

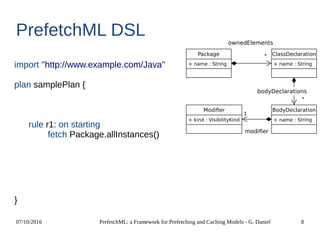

- 8. 07/10/2016 PrefetchML: aFramework for Prefetching and Caching Models - G. Daniel 8 PrefetchML DSL import ''http://www.example.com/Java'' plan samplePlan { rule r1: on starting fetch Package.allInstances() } Package + name : String ClassDeclaration + name : String BodyDeclaration + name : String Modifier + kind : VisibilityKind * 1 ownedElements * bodyDeclarations modifier

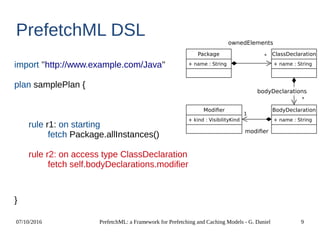

- 9. 07/10/2016 PrefetchML: aFramework for Prefetching and Caching Models - G. Daniel 9 PrefetchML DSL import ''http://www.example.com/Java'' plan samplePlan { rule r1: on starting fetch Package.allInstances() rule r2: on access type ClassDeclaration fetch self.bodyDeclarations.modifier } Package + name : String ClassDeclaration + name : String BodyDeclaration + name : String Modifier + kind : VisibilityKind * 1 ownedElements * bodyDeclarations modifier
- 10. 07/10/2016 PrefetchML: aFramework for Prefetching and Caching Models - G. Daniel 10 PrefetchML DSL import ''http://www.example.com/Java'' plan samplePlan { use cache LRU[size=100, chunk=10] rule r1: on starting fetch Package.allInstances() rule r2: on access type ClassDeclaration fetch self.bodyDeclarations.modifier } Package + name : String ClassDeclaration + name : String BodyDeclaration + name : String Modifier + kind : VisibilityKind * 1 ownedElements * bodyDeclarations modifier
- 11. 07/10/2016 PrefetchML: aFramework for Prefetching and Caching Models - G. Daniel 11 PrefetchML DSL import ''http://www.example.com/Java'' plan samplePlan { use cache LRU[size=100, chunk=10] rule r1: on starting fetch Package.allInstances() rule r2: on access type ClassDeclaration (self.name = 'MyClass') fetch self.bodyDeclarations.modifier } Package + name : String ClassDeclaration + name : String BodyDeclaration + name : String Modifier + kind : VisibilityKind * 1 ownedElements * bodyDeclarations modifier
- 12. 07/10/2016 PrefetchML: aFramework for Prefetching and Caching Models - G. Daniel 12 PrefetchML DSL import ''http://www.example.com/Java'' plan samplePlan { use cache LRU[size=100, chunk=10] rule r1: on starting fetch Package.allInstances() rule r2: on access type ClassDeclaration (self.name = 'MyClass') fetch self.bodyDeclarations.modifier remove type Package } Package + name : String ClassDeclaration + name : String BodyDeclaration + name : String Modifier + kind : VisibilityKind * 1 ownedElements * bodyDeclarations modifier
- 13. 07/10/2016 PrefetchML: aFramework for Prefetching and Caching Models - G. Daniel 13 PrefetchML Engine ● Rule execution engine ● Executes loading instructions ● Captures events ● Transparent to the modeling framework ● Database independent – Specialized connectors

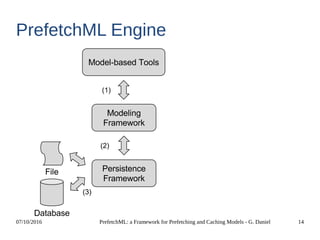

- 14. 07/10/2016 PrefetchML: aFramework for Prefetching and Caching Models - G. Daniel 14 PrefetchML Engine

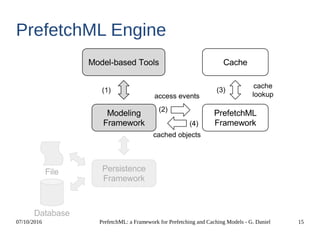

- 15. 07/10/2016 PrefetchML: aFramework for Prefetching and Caching Models - G. Daniel 15 PrefetchML Engine
- 16. 07/10/2016 PrefetchML: aFramework for Prefetching and Caching Models - G. Daniel 16 PrefetchML Engine
- 17. 07/10/2016 PrefetchML: aFramework for Prefetching and Caching Models - G. Daniel 17 PrefetchML Engine
- 18. 07/10/2016 PrefetchML: aFramework for Prefetching and Caching Models - G. Daniel 18 Tooling ● PrefetchML Editor – XText editor – Navigation hints – Rule validation
- 19. 07/10/2016 PrefetchML: aFramework for Prefetching and Caching Models - G. Daniel 19 Tooling
- 20. 07/10/2016 PrefetchML: aFramework for Prefetching and Caching Models - G. Daniel 20 Evaluation Q1 Q2 Q3 0 2 4 6 8 10 12 14 16 18 No Pref. EMF Pref. NeoEMF Pref. ExecutionTime(s) Q1 Q2 Q3 0 1 2 3 4 5 6 7 8 9 ExecutionTime(s) ● Model containing 2 million elements ● MDT OCL over NeoEMF/Graph Cold Execution (empty cache) Warmed Execution
- 21. 07/10/2016 PrefetchML: aFramework for Prefetching and Caching Models - G. Daniel 21 Conclusion ● Model-level prefetching & caching framework ● PrefetchML DSL: defines prefetching and caching rules at a high level of abstraction ● PrefetchML Engine: captures events, trigger rules, cache model elements
- 22. 07/10/2016 PrefetchML: aFramework for Prefetching and Caching Models - G. Daniel 22 Conclusion ● Future work – Automatic generation of PrefetchML plans ● ATL transformations ● Code analysis – Dynamic discovery of frequent access patterns ● Log mining ● Switch on/off plans when needed ● Add/remove rules at runtime
- 23. 07/10/2016 PrefetchML: aFramework for Prefetching and Caching Models - G. Daniel 23 Questions? Websites / Repositories PrefetchML: https://github.com/atlanmod/Prefetching_Caching_DSL NeoEMF: neoemf.com https://github.com/atlanmod Thank you for your attention! https://github.com/SOM-Research
- 24. 07/10/2016 PrefetchML: aFramework for Prefetching and Caching Models - G. Daniel 24 PrefetchML Engine
