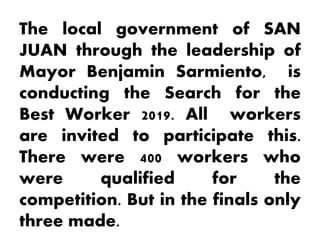

The local government of SAN
JUAN through the leadership of
Mayor Benjamin Sarmiento, is
conducting the Search for the
Best Worker 2019. All workers
are invited to participate this.
There were 400 workers who
were qualified for the
competition. But in the finals only
three made.
“I am Kim Marga, from Muraya.
I am the Best Worker because I am
carrying the world.”
“No! You are not the best worker. I am Dim Muron, taga
malamin. I am the BEST WORKER because I am Pushing two
mountains so that people can walk along the roads And
bridges.”
“I think I am the best worker.
I am Juan Obrero a taga San Isidro.
I am a construction worker, I build fences.”
Remember that
the judges are well
known physicists
and scientists. If
you are one Of the
judges,
who do you think
is the best worker?
Why?

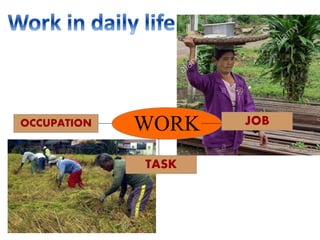

WORK JOB
OCCUPATION
TASK
There is WORK done in this picture.
FORCE
MOTION
SAME DIRECTION
FORCE
MOTION
SAME DIRECTION
FORCE
MOTION
SAME DIRECTION
FORCE
MOTION
SAME DIRECTION

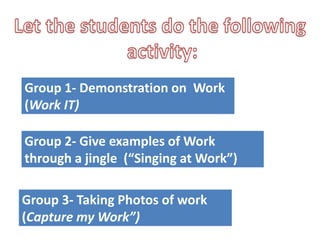

Group 1- Demonstration on Work
(Work IT)
Group 2- Give examples of Work
through a jingle (“Singing at Work”)
Group 3- Taking Photos of work
(Capture my Work”)

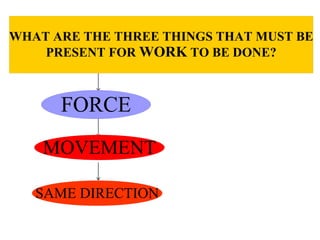

WHAT ARE THE THREE THINGS THAT MUST BE
PRESENT FOR WORK TO BE DONE?
FORCE
MOVEMENT
SAME DIRECTION
SEARCH FOR THE BEST WORKER
And the winner is.....

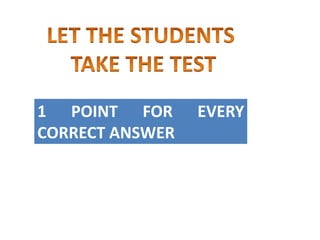

1 POINT FOR EVERY
CORRECT ANSWER

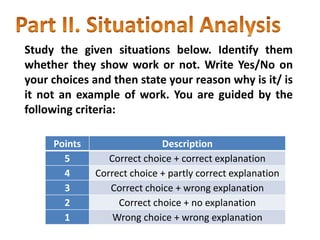

Study the given situations below. Identify them
whether they show work or not. Write Yes/No on
your choices and then state your reason why is it/ is
it not an example of work. You are guided by the
following criteria:
Points Description
5 Correct choice + correct explanation
4 Correct choice + partly correct explanation
3 Correct choice + wrong explanation
2 Correct choice + no explanation
1 Wrong choice + wrong explanation

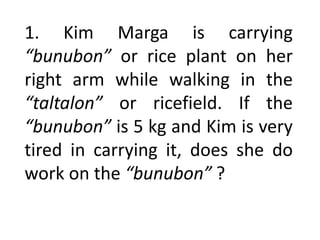

1. Kim Marga is carrying
“bunubon” or rice plant on her
right arm while walking in the
“taltalon” or ricefield. If the
“bunubon” is 5 kg and Kim is very
tired in carrying it, does she do
work on the “bunubon” ?
2. Your carabao is very tired in
pulling the “arado” or plow
and it’s more than 2 hours
that it’s exposed on the farm,
does the carabao do work on
the plow?
3. Gim Muyod is
pulling a rope with a
constant speed of 20
m/s, is there a work
done by Gim on the
rope?

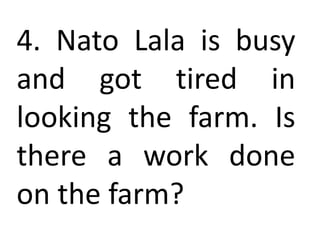

4. Nato Lala is busy
and got tired in
looking the farm. Is
there a work done
on the farm?

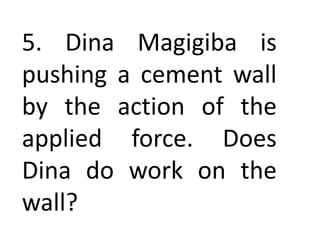

5. Dina Magigiba is
pushing a cement wall
by the action of the
applied force. Does
Dina do work on the
wall?

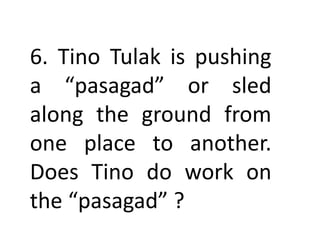

6. Tino Tulak is pushing
a “pasagad” or sled
along the ground from
one place to another.
Does Tino do work on
the “pasagad” ?
make a 1 minute essay on this
statement: “Work badly done is worst
than work undone.”

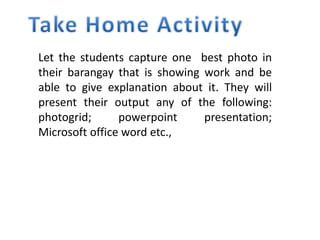

Let the students capture one best photo in
their barangay that is showing work and be
able to give explanation about it. They will
present their output any of the following:
photogrid; powerpoint presentation;
Microsoft office word etc.,
“If Plan A did not
work. The alphabet
has 26 more letters.
Stay Cool!”

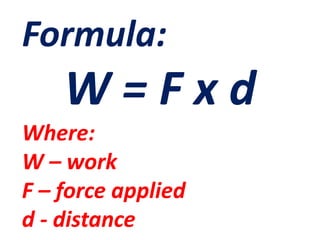

Formula:
W = F x d
Where:
W – work
F – force applied
d - distance
Force is measured in
newtons (N).
Distance is measured in
meters (m).
Work is measured in
newton-meters (N.m) or
Joule (J) – in honor of James Prescott Joule for
his accomplishment in the study of work and energy.

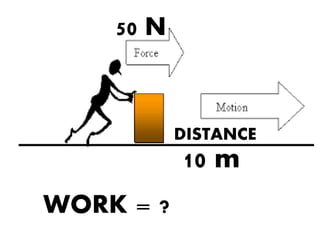

50 N
DISTANCE
10 m
WORK = ?

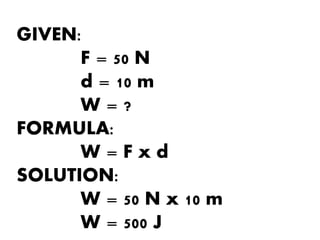

GIVEN:
F = 50 N
d = 10 m
W = ?
FORMULA:
W = F x d
SOLUTION:
W = 50 N x 10 m
W = 500 J

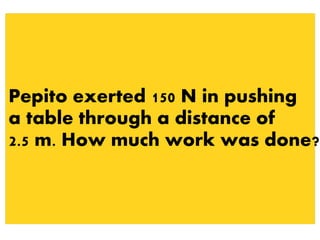

Pepito exerted 150 N in pushing
a table through a distance of
2.5 m. How much work was done?
