This document appears to be a portfolio from Mauri Samp showcasing various vehicle design projects he has worked on since 1994. It includes 3D models and drawings of pickup trucks, motorcycles, city cars, sports cars and electric vehicles. Many of the projects were class assignments or contest entries. The portfolio demonstrates Samp's evolution as a vehicle designer from early sketches to fully 3D modeled designs. It provides images and details on over 15 different vehicle concepts.

1. 2016 // MAURI SAMP`S PORTFOLIO

2. 2016 // MAURI SAMP`S PORTFOLIOsampmotors

3. 2016 // MAURI SAMP`S PORTFOLIOsampmotors
04 05

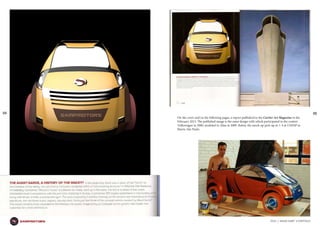

On the cover and on the following pages, a report published in the Cartier Art Magazine in the
February 2015. The published image is the same design with which participated in the contest
Volkswagen in 2000, modeled in Alias in 2009. Below, the mock-up pick-up in 1: 4 at UNESP in
Bauru, São Paulo.

4. 2016 // MAURI SAMP`S PORTFOLIOsampmotors
06 07
Above and left, images of the
inside of the pick-up mode-
led in 3D Max in 2000. The
project has already provided
at the time the replacement
rearview video cameras.
The left, mock-up painting
process done in polyurethane.
Above and below other images of BullDog pick-up remodeled in 2009 in Alias.
The project included a series of accessories of which completely closed the
bucket.
bulldog

5. 2016 // MAURI SAMP`S PORTFOLIOsampmotors
08 09

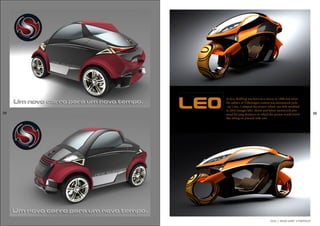

In fact, BullDog was born as a citycar in 1998 and when
the subject of Volkswagen contest was announced, pick-
-up 1 ton.; I adapted the project which was only modeled
in 2016 (images left). Above and below motorcycle pro-
posal for long distances in which the person would travel
like sitting on a bench with cars.
leo

6. 2016 // MAURI SAMP`S PORTFOLIOsampmotors
10 11

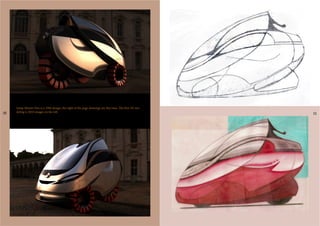

Samp Motors Neo is a 1994 design, the right of the page drawings are this time. The first 3D mo-
deling is 2010 images on the left.

7. 2016 // MAURI SAMP`S PORTFOLIOsampmotors
12 13
I decided to do a redesign of Neo now in 2016. I changed the
rear tire for a motorcycle tire although a slightly larger size. Ver-
são 3D interativa em http://bit.ly/21SVEd1.neo Also this year, I decided to make a proposal for a new Isetta,
in honor of the 100th anniversary of the BMW, which I na-
med the Samp Motors Iso.iso

8. 2016 // MAURI SAMP`S PORTFOLIOsampmotors
14 15
Proposal for restyling Fiat Uno,
which worked on its launch in
2010 in Bahia answering ques-
tions from internet users about
their doubts about the new vehi-
cle. This is my first project with
over 500 views on Behance.
I’m starting to get good results with my method of creation that creates the vehicle directly in 3D
modeling without going through the initial phase of sketches, which still is not so good.
uno

9. 2016 // MAURI SAMP`S PORTFOLIOsampmotors
16 17

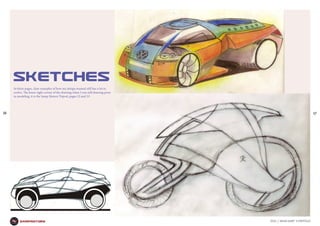

In these pages, clear examples of how my design manual still has a lot to
evolve. The lower right corner of the drawing when I was still drawing prior
to modeling, it is the Samp Motors Tripod, pages 22 and 23.
sketches

10. 2016 // MAURI SAMP`S PORTFOLIOsampmotors
18 19
Proposal for a sports car for Audi. Some
important technical issues were tempo-
rarily put aside in favor of design intent.

11. 2016 // MAURI SAMP`S PORTFOLIOsampmotors
20 21

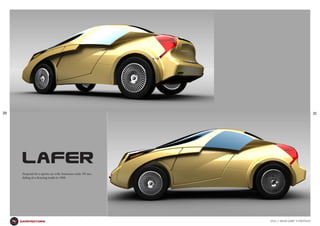

Proposal for a sports car with American-style. 3D mo-
deling of a drawing made in 1998.
lafer

12. 2016 // MAURI SAMP`S PORTFOLIOsampmotors
22 23

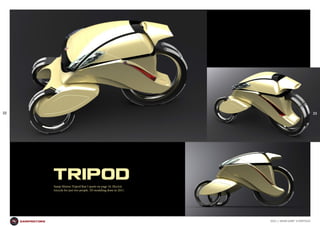

Samp Motors Tripod that I quote on page 16. Electric
tricycle for just two people. 3D modeling done in 2011.
tripod

13. 2016 // MAURI SAMP`S PORTFOLIOsampmotors
24 25

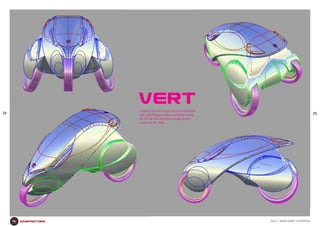

Another electric tricycle project unfinalized
with style Peugeot, which ended up losing
the 3D file, but with these images a new
model can be made.
vert

14. 2016 // MAURI SAMP`S PORTFOLIOsampmotors
26 27

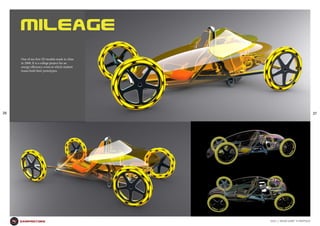

One of my first 3D models made in Alias
in 2008. It is a college project for an
energy efficiency event in which student
teams built their prototypes.
mileage

15. 2016 // MAURI SAMP`S PORTFOLIOsampmotors

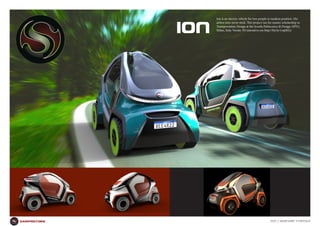

Ion is an electric vehicle for two people in tandem position. His
airless tires never stick. This project ran for master scholarship in
Transportation Design at the Scuola Politecnica di Design (SPD),
Milan, Italy. Versão 3D interativa em http://bit.ly/1rqhKGr
ION
