IBM PowerVM Virtualization Technology on IBM POWER7 Systems

89 Fifth Avenue, 7th Floor
New York, NY 10003
www.TheEdison.com
212.367.7400
White Paper
IBM PowerVM Virtualization
Technology on IBM POWER7 Systems
A Comparison of PowerVM and
VMware vSphere (4.1 & 5.0)
Virtualization Performance

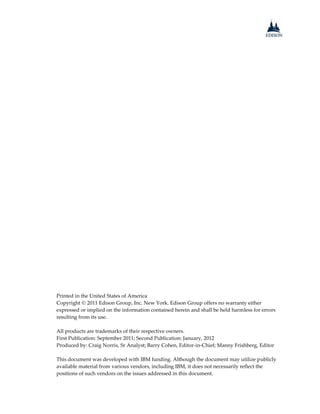

Printed in the United States of America
Copyright  2011 Edison Group, Inc. New York. Edison Group offers no warranty either
expressed or implied on the information contained herein and shall be held harmless for errors
resulting from its use.
All products are trademarks of their respective owners.
First Publication: September 2011; Second Publication: January, 2012
Produced by: Craig Norris, Sr Analyst; Barry Cohen, Editor-in-Chief; Manny Frishberg, Editor
This document was developed with IBM funding. Although the document may utilize publicly
available material from various vendors, including IBM, it does not necessarily reflect the
positions of such vendors on the issues addressed in this document.

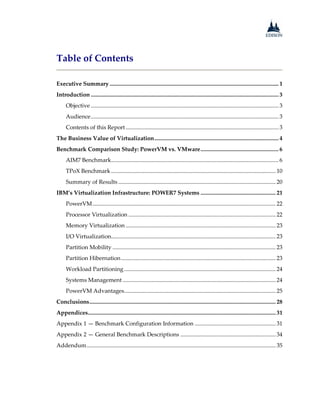

Table of Contents
Executive Summary ..................................................................................................................... 1
Introduction .................................................................................................................................. 3
Objective .................................................................................................................................. 3
Audience.................................................................................................................................. 3
Contents of this Report.......................................................................................................... 3
The Business Value of Virtualization...................................................................................... 4
Benchmark Comparison Study: PowerVM vs. VMware...................................................... 6
AIM7 Benchmark.................................................................................................................... 6

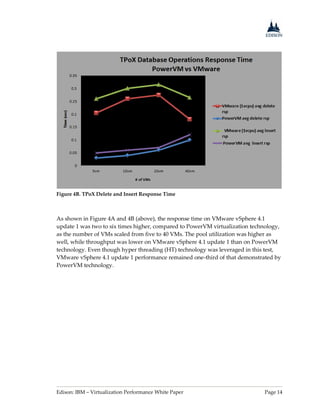

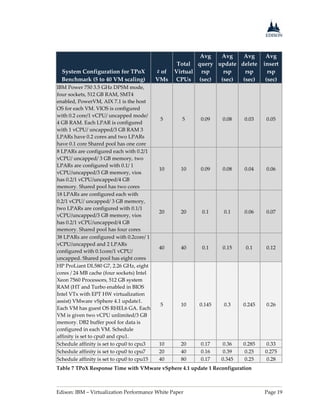

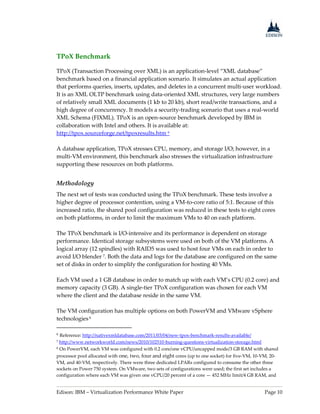

TPoX Benchmark.................................................................................................................. 10

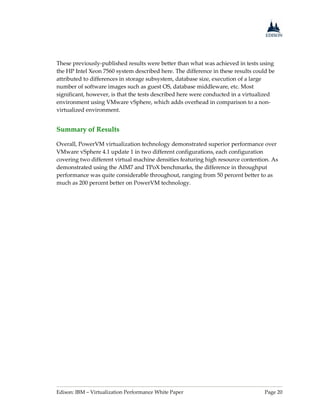

Summary of Results ............................................................................................................. 20
IBM’s Virtualization Infrastructure: POWER7 Systems .................................................... 21
PowerVM............................................................................................................................... 22

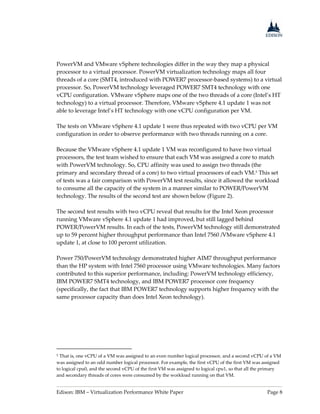

Processor Virtualization ...................................................................................................... 22

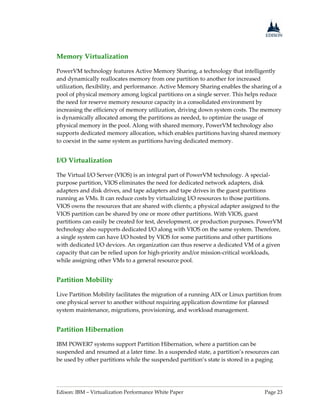

Memory Virtualization ........................................................................................................ 23
I/O Virtualization.................................................................................................................. 23
Partition Mobility ................................................................................................................. 23
Partition Hibernation........................................................................................................... 23
Workload Partitioning......................................................................................................... 24
Systems Management .......................................................................................................... 24
PowerVM Advantages......................................................................................................... 25

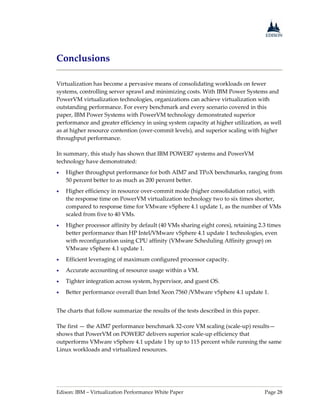

Conclusions................................................................................................................................. 28
Appendices.................................................................................................................................. 31

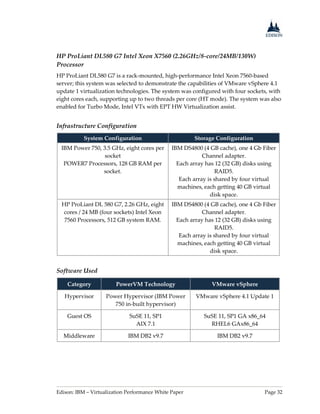

Appendix 1 — Benchmark Configuration Information ........................................................ 31
Appendix 2 — General Benchmark Descriptions .................................................................. 34

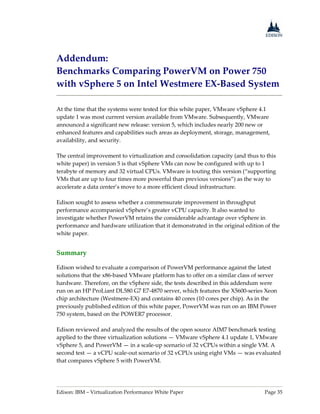

Addendum................................................................................................................................... 35

Edison: IBM – Virtualization Performance White Paper Page 1

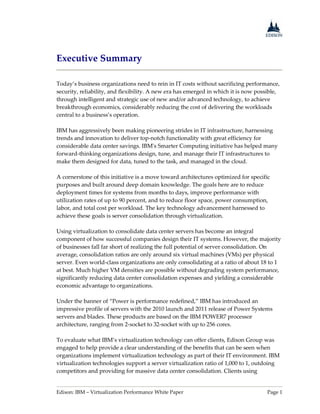

Executive Summary
Today’s business organizations need to rein in IT costs without sacrificing performance,
security, reliability, and flexibility. A new era has emerged in which it is now possible,
through intelligent and strategic use of new and/or advanced technology, to achieve
breakthrough economics, considerably reducing the cost of delivering the workloads
central to a business’s operation.
IBM has aggressively been making pioneering strides in IT infrastructure, harnessing
trends and innovation to deliver top-notch functionality with great efficiency for
considerable data center savings. IBM's Smarter Computing initiative has helped many
forward-thinking organizations design, tune, and manage their IT infrastructures to
make them designed for data, tuned to the task, and managed in the cloud.
A cornerstone of this initiative is a move toward architectures optimized for specific
purposes and built around deep domain knowledge. The goals here are to reduce
deployment times for systems from months to days, improve performance with
utilization rates of up to 90 percent, and to reduce floor space, power consumption,
labor, and total cost per workload. The key technology advancement harnessed to
achieve these goals is server consolidation through virtualization.
Using virtualization to consolidate data center servers has become an integral
component of how successful companies design their IT systems. However, the majority
of businesses fall far short of realizing the full potential of server consolidation. On
average, consolidation ratios are only around six virtual machines (VMs) per physical
server. Even world-class organizations are only consolidating at a ratio of about 18 to 1
at best. Much higher VM densities are possible without degrading system performance,
significantly reducing data center consolidation expenses and yielding a considerable
economic advantage to organizations.
Under the banner of “Power is performance redefined,” IBM has introduced an
impressive profile of servers with the 2010 launch and 2011 release of Power Systems
servers and blades. These products are based on the IBM POWER7 processor
architecture, ranging from 2-socket to 32-socket with up to 256 cores.
To evaluate what IBM’s virtualization technology can offer clients, Edison Group was
engaged to help provide a clear understanding of the benefits that can be seen when
organizations implement virtualization technology as part of their IT environment. IBM
virtualization technologies support a server virtualization ratio of 1,000 to 1, outdoing
competitors and providing for massive data center consolidation. Clients using

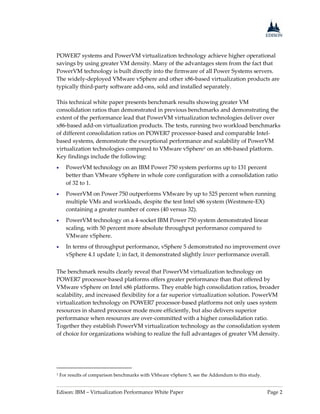

POWER7 systems and PowerVM virtualization technology achieve higher operational
savings by using greater VM density. Many of the advantages stem from the fact that
PowerVM technology is built directly into the firmware of all Power Systems servers.
The widely-deployed VMware vSphere and other x86-based virtualization products are
typically third-party software add-ons, sold and installed separately.
This technical white paper presents benchmark results showing greater VM
consolidation ratios than demonstrated in previous benchmarks and demonstrating the
extent of the performance lead that PowerVM virtualization technologies deliver over
x86-based add-on virtualization products. The tests, running two workload benchmarks
of different consolidation ratios on POWER7 processor-based and comparable Intel-
based systems, demonstrate the exceptional performance and scalability of PowerVM
virtualization technologies compared to VMware vSphere1 on an x86-based platform.
Key findings include the following:
 PowerVM technology on an IBM Power 750 system performs up to 131 percent
better than VMware vSphere in whole core configuration with a consolidation ratio
of 32 to 1.
 PowerVM on Power 750 outperforms VMware by up to 525 percent when running
multiple VMs and workloads, despite the test Intel x86 system (Westmere-EX)
containing a greater number of cores (40 versus 32).
 PowerVM technology on a 4-socket IBM Power 750 system demonstrated linear
scaling, with 50 percent more absolute throughput performance compared to
VMware vSphere.
 In terms of throughput performance, vSphere 5 demonstrated no improvement over
vSphere 4.1 update 1; in fact, it demonstrated slightly lower performance overall.
The benchmark results clearly reveal that PowerVM virtualization technology on
POWER7 processor-based platforms offers greater performance than that offered by
VMware vSphere on Intel x86 platforms. They enable high consolidation ratios, broader
scalability, and increased flexibility for a far superior virtualization solution. PowerVM
virtualization technology on POWER7 processor-based platforms not only uses system
resources in shared processor mode more efficiently, but also delivers superior
performance when resources are over-committed with a higher consolidation ratio.
Together they establish PowerVM virtualization technology as the consolidation system
of choice for organizations wishing to realize the full advantages of greater VM density.
1 For results of comparison benchmarks with VMware vSphere 5, see the Addendum to this study.

Introduction
Objective
The objective of this white paper is to compare the performance of PowerVM
virtualization technologies on POWER7 processor-based server platforms against
VMware vSphere on comparable Intel x86 platforms. It describes tests using industry-
standard benchmarks to compare virtualization technologies. The results were
reviewed, analyzed, and presented by Edison Group.
Audience
This paper is intended for anyone interested in the advantages of server consolidation
through virtualization. IT managers, CIOs, system architects, and others will find
valuable information that will help them further enhance and adopt virtualization
technology within their IT environments.
Contents of this Report
This white paper contains the following major sections:
 The Business Value of Virtualization — This section discusses the business value
propositions underlying the benchmark evaluations presented in this paper.
 Benchmark Comparison Study: PowerVM Virtualization Technology vs. VMware
vSphere 4.1 update 1 — This section presents the comparative testing, describing the
test bed setup, the benchmarks, the actual tests, and the results of the tests.
 IBM’s Virtualization Infrastructure: POWER7 Processor-Based Systems — This
section describes the Power Systems virtualization infrastructure, its components,
and its advantages.
 Appendices — The appendices contain configuration information and general
descriptions for the benchmarks used in the tests discussed in this paper
 Addendum — Benchmark Comparison Study: PowerVM Virtualization
Technology vs. VMware vSphere 5 — This section presents the comparative results
with VMware vSphere 5 on an HP ProLiant DL580 G7 E7-4870 server — which
features the X5600-series Xeon (Westmere-EX) chip architecture.

The Business Value of Virtualization
Inefficiencies have cropped up in data center operations as applications, workloads, and
data have multiplied. These include: underutilization of server processor capacity,
memory bottlenecks that restrict performance, server sprawl and its related difficulties
in deployment and management, as well as higher energy bills from excessive power
demands. Such inefficiencies increase costs, both through expenditures for equipment
purchases and licensing, as well as through greater demands on administrative staff
resources, etc.
Virtualization technologies allow IT organizations to consolidate workloads running on
multiple operating systems and software stacks, and to dynamically allocate platform
resources to meet specific business and application requirements. Server virtualization,
the foundation platform for today’s data center, is quickly reaching maturity. More than
half of business server workloads are now deployed on virtual machines. According to
IDC, 2 virtualization has become the default build for new server installations, driving
down costs and establishing the foundation for more efficient and flexible configurations
and technology platforms. The average size of virtualized workloads increased threefold
between 2006 and 2009. The performance of virtualization is a critical factor to realize
success of server pools and cloud computing (and is also a key component in IBM’s
roadmap in its Smarter Computing initiative).
Well-implemented virtualization solutions may be employed to:
 Reduce hardware expenditures by consolidating multiple environments, including
underutilized servers, and systems with varied and dynamic resource requirements.
 Reduce costs for power and cooling, floor space, hardware maintenance, and
software licensing.
 Grow and shrink resources dynamically according to business needs.
 Deploy new workloads through provisioning VMs or new systems rapidly to meet
changing business demands.
 Develop and test applications in secure, independent domains while allocating
production to its own domain on the same system.
 Transfer live workloads to support server migrations, balance system load, or avoid
planned downtime that can otherwise adversely impact productivity.
 Control server sprawl, reducing system management costs.
2 The Value of Memory-Dense Servers: IBM’s System x MAX5 for its eX5 Server Family, March 2010, IDC

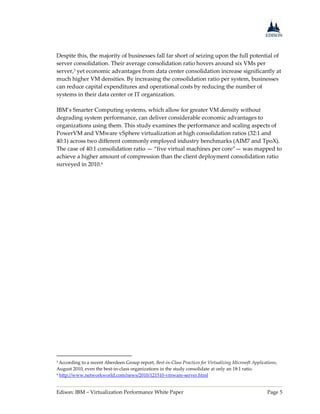

Despite this, the majority of businesses fall far short of seizing upon the full potential of
server consolidation. Their average consolidation ratio hovers around six VMs per
server,3 yet economic advantages from data center consolidation increase significantly at
much higher VM densities. By increasing the consolidation ratio per system, businesses
can reduce capital expenditures and operational costs by reducing the number of
systems in their data center or IT organization.
IBM’s Smarter Computing systems, which allow for greater VM density without
degrading system performance, can deliver considerable economic advantages to
organizations using them. This study examines the performance and scaling aspects of
PowerVM and VMware vSphere virtualization at high consolidation ratios (32:1 and
40:1) across two different commonly employed industry benchmarks (AIM7 and TpoX).
The case of 40:1 consolidation ratio — “five virtual machines per core”— was mapped to
achieve a higher amount of compression than the client deployment consolidation ratio
surveyed in 2010.4
3 According to a recent Aberdeen Group report, Best-in-Class Practices for Virtualizing Microsoft Applications,
August 2010, even the best-in-class organizations in the study consolidate at only an 18:1 ratio.
4 http://www.networkworld.com/news/2010/121510-vmware-server.html

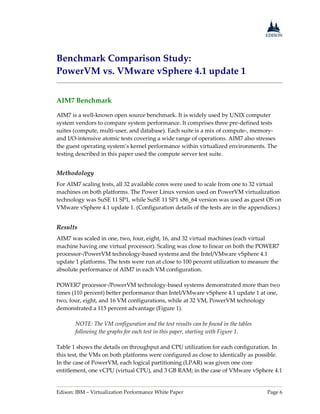

Benchmark Comparison Study:
PowerVM vs. VMware vSphere 4.1 update 1
AIM7 Benchmark
AIM7 is a well-known open source benchmark. It is widely used by UNIX computer
system vendors to compare system performance. It comprises three pre-defined tests
suites (compute, multi-user, and database). Each suite is a mix of compute-, memory-
and I/O-intensive atomic tests covering a wide range of operations. AIM7 also stresses
the guest operating system’s kernel performance within virtualized environments. The
testing described in this paper used the compute server test suite.
Methodology
For AIM7 scaling tests, all 32 available cores were used to scale from one to 32 virtual
machines on both platforms. The Power Linux version used on PowerVM virtualization
technology was SuSE 11 SP1, while SuSE 11 SP1 x86_64 version was used as guest OS on
VMware vSphere 4.1 update 1. (Configuration details of the tests are in the appendices.)
Results
AIM7 was scaled in one, two, four, eight, 16, and 32 virtual machines (each virtual
machine having one virtual processor). Scaling was close to linear on both the POWER7
processor-/PowerVM technology-based systems and the Intel/VMware vSphere 4.1
update 1 platforms. The tests were run at close to 100 percent utilization to measure the
absolute performance of AIM7 in each VM configuration.
POWER7 processor-/PowerVM technology-based systems demonstrated more than two
times (110 percent) better performance than Intel/VMware vSphere 4.1 update 1 at one,
two, four, eight, and 16 VM configurations, while at 32 VM, PowerVM technology
demonstrated a 115 percent advantage (Figure 1).
NOTE: The VM configuration and the test results can be found in the tables
following the graphs for each test in this paper, starting with Figure 1.
Table 1 shows the details on throughput and CPU utilization for each configuration. In
this test, the VMs on both platforms were configured as close to identically as possible.
In the case of PowerVM, each logical partitioning (LPAR) was given one core
entitlement, one vCPU (virtual CPU), and 3 GB RAM; in the case of VMware vSphere 4.1

update 1, each VM was given one vCPU and 3 GB RAM, with the remainder left at
default options.

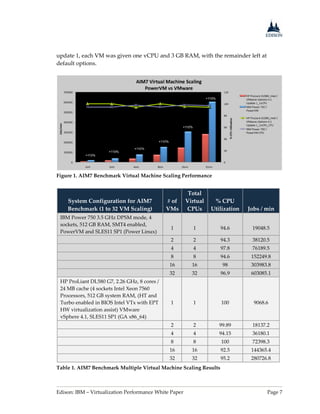

Figure 1. AIM7 Benchmark Virtual Machine Scaling Performance
System Configuration for AIM7
Benchmark (1 to 32 VM Scaling)
# of
VMs
Total
Virtual
CPUs
% CPU
Utilization Jobs / min
IBM Power 750 3.5 GHz DPSM mode, 4
sockets, 512 GB RAM, SMT4 enabled,
PowerVM and SLES11 SP1 (Power Linux)
1 1 94.6 19048.5
2 2 94.3 38120.5
4 4 97.8 76189.5
8 8 94.6 152249.8
16 16 98 303983.8
32 32 96.9 603085.1
HP ProLiant DL580 G7, 2.26 GHz, 8 cores /
24 MB cache (4 sockets Intel Xeon 7560
Processors, 512 GB system RAM, (HT and
Turbo enabled in BIOS Intel VTx with EPT
HW virtualization assist) VMware
vSphere 4.1, SLES11 SP1 (GA x86_64)
1 1 100 9068.6
2 2 99.89 18137.2
4 4 94.15 36180.1
8 8 100 72398.3
16 16 92.5 144365.4
32 32 95.2 280726.8
Table 1. AIM7 Benchmark Multiple Virtual Machine Scaling Results

PowerVM and VMware vSphere technologies differ in the way they map a physical
processor to a virtual processor. PowerVM virtualization technology maps all four
threads of a core (SMT4, introduced with POWER7 processor-based systems) to a virtual
processor. So, PowerVM technology leveraged POWER7 SMT4 technology with one
vCPU configuration. VMware vSphere maps one of the two threads of a core (Intel’s HT
technology) to a virtual processor. Therefore, VMware vSphere 4.1 update 1 was not
able to leverage Intel’s HT technology with one vCPU configuration per VM.
The tests on VMware vSphere 4.1 update 1 were thus repeated with two vCPU per VM
configuration in order to observe performance with two threads running on a core.
Because the VMware vSphere 4.1 update 1 VM was reconfigured to have two virtual
processors, the test team wished to ensure that each VM was assigned a core to match
with PowerVM technology. So, CPU affinity was used to assign two threads (the
primary and secondary thread of a core) to two virtual processors of each VM.5 This set
of tests was a fair comparison with PowerVM test results, since it allowed the workload
to consume all the capacity of the system in a manner similar to POWER/PowerVM
technology. The results of the second test are shown below (Figure 2).
The second test results with two vCPU reveal that results for the Intel Xeon processor
running VMware vSphere 4.1 update 1 had improved, but still lagged behind
POWER/PowerVM results. In each of the tests, PowerVM technology still demonstrated
up to 59 percent higher throughput performance than Intel 7560 /VMware vSphere 4.1
update 1, at close to 100 percent utilization.
Power 750/PowerVM technology demonstrated higher AIM7 throughput performance
than the HP system with Intel 7560 processor using VMware technologies. Many factors
contributed to this superior performance, including: PowerVM technology efficiency,
IBM POWER7 SMT4 technology, and IBM POWER7 processor core frequency
(specifically, the fact that IBM POWER7 technology supports higher frequency with the
same processor capacity than does Intel Xeon technology).
5 That is, one vCPU of a VM was assigned to an even number logical processor, and a second vCPU of a VM
was assigned to an odd number logical processor. For example, the first vCPU of the first VM was assigned
to logical cpu0, and the second vCPU of the first VM was assigned to logical cpu1, so that all the primary
and secondary threads of cores were consumed by the workload running on that VM.

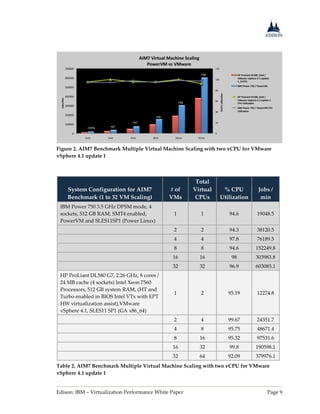

Figure 2. AIM7 Benchmark Multiple Virtual Machine Scaling with two vCPU for VMware
vSphere 4.1 update 1
# of
VMs
Total
Virtual
CPUs
% CPU
Utilization
Jobs /
min
PowerVM and SLES11SP1 (Power Linux)
1 1 94.6 19048.5
2 2 94.3 38120.5
4 4 97.8 76189.5
8 8 94.6 152249.8
16 16 98 303983.8
32 32 96.9 603085.1
HP ProLiant DL580 G7, 2.26 GHz, 8 cores /
24 MB cache (4 sockets) Intel Xeon 7560
Processors, 512 GB system RAM, (HT and
Turbo enabled in BIOS Intel VTx with EPT
HW virtualization assist),VMware
vSphere 4.1, SLES11 SP1 (GA x86_64)
1 2 95.19 12274.8
2 4 99.67 24351.7
4 8 95.75 48671.4
8 16 95.32 97531.6
16 32 99.8 190598.1
32 64 92.09 379976.1
Table 2. AIM7 Benchmark Multiple Virtual Machine Scaling with two vCPU for VMware
vSphere 4.1 update 1

TPoX Benchmark
TPoX (Transaction Processing over XML) is an application-level “XML database”
benchmark based on a financial application scenario. It simulates an actual application
that performs queries, inserts, updates, and deletes in a concurrent multi-user workload.
It is an XML OLTP benchmark using data-oriented XML structures, very large numbers
of relatively small XML documents (1 kb to 20 kb), short read/write transactions, and a
high degree of concurrency. It models a security-trading scenario that uses a real-world
XML Schema (FIXML). TPoX is an open-source benchmark developed by IBM in
collaboration with Intel and others. It is available at:
http://tpox.sourceforge.net/tpoxresults.htm 6
A database application, TPoX stresses CPU, memory, and storage I/O; however, in a
multi-VM environment, this benchmark also stresses the virtualization infrastructure
supporting these resources on both platforms.
Methodology
The next set of tests was conducted using the TPoX benchmark. These tests involve a
higher degree of processor contention, using a VM-to-core ratio of 5:1. Because of this
increased ratio, the shared pool configuration was reduced in these tests to eight cores
on both platforms, in order to limit the maximum VMs to 40 on each platform.
The TPoX benchmark is I/O-intensive and its performance is dependent on storage
performance. Identical storage subsystems were used on both of the VM platforms. A
logical array (12 spindles) with RAID5 was used to host four VMs on each in order to
avoid I/O blender 7. Both the data and logs for the database are configured on the same
set of disks in order to simplify the configuration for hosting 40 VMs.
Each VM used a 1 GB database in order to match up with each VM’s CPU (0.2 core) and
memory capacity (3 GB). A single-tier TPoX configuration was chosen for each VM
where the client and the database reside in the same VM.
The VM configuration has multiple options on both PowerVM and VMware vSphere
technologies8
6 Reference: http://nativexmldatabase.com/2011/03/04/new-tpox-benchmark-results-available/
7 http://www.networkworld.com/news/2010/102510-burning-questions-virtualization-storage.html
8 On PowerVM, each VM was configured with 0.2 core/one vCPU/uncapped mode/3 GB RAM with shared
processor pool allocated with one, two, four and eight cores (up to one socket) for five-VM, 10-VM, 20-
VM, and 40-VM, respectively. There were three dedicated LPARs configured to consume the other three
sockets on Power 750 system. On VMware, two sets of configurations were used; the first set includes a
configuration where each VM was given one vCPU/20 percent of a core — 452 MHz limit/4 GB RAM, and

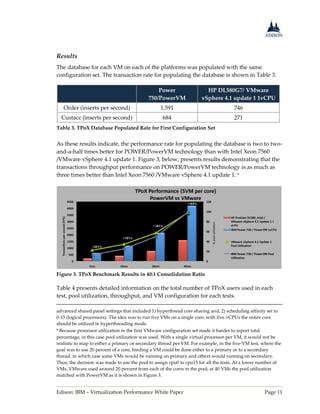

Results
The database for each VM on each of the platforms was populated with the same
configuration set. The transaction rate for populating the database is shown in Table 3.
Power
750/PowerVM
HP DL580G7/ VMware
vSphere 4.1 update 1 1vCPU
Order (inserts per second) 1,591 746
Custacc (inserts per second) 684 271
Table 3. TPoX Database Populated Rate for First Configuration Set
As these results indicate, the performance rate for populating the database is two to two-
and-a-half times better for POWER/PowerVM technology than with Intel Xeon 7560
/VMware vSphere 4.1 update 1. Figure 3, below, presents results demonstrating that the
transactions throughput performance on POWER/PowerVM technology is as much as
three times better than Intel Xeon 7560 /VMware vSphere 4.1 update 1. 9
Figure 3. TPoX Benchmark Results in 40:1 Consolidation Ratio
Table 4 presents detailed information on the total number of TPoX users used in each
test, pool utilization, throughput, and VM configuration for each tests.
advanced shared panel settings that included 1) hyperthread core sharing and, 2) scheduling affinity set to
0-15 (logical processors). The idea was to run five VMs on a single core; with five vCPUs the entire core
should be utilized in hyperthreading mode.
9 Because processor utilization in the first VMware configuration set made it harder to report total
percentage, in this case pool utilization was used. With a single virtual processor per VM, it would not be
realistic to map to either a primary or secondary thread per VM. For example, in the five-VM test, where the
goal was to use 20 percent of a core, binding a VM could be done either to a primary or to a secondary
thread, in which case some VMs would be running on primary and others would running on secondary.
Thus, the decision was made to use the pool to assign cpu0 to cpu15 for all the tests. At a lower number of
VMs, VMware used around 20 percent from each of the cores in the pool; at 40 VMs the pool utilization
matched with PowerVM as it is shown in Figure 3.

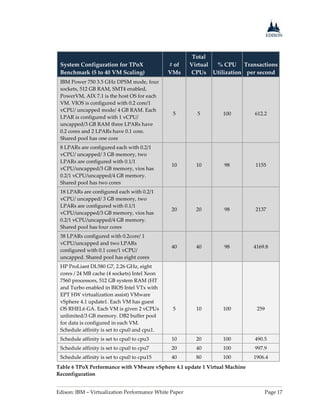

System Configuration for TPoX
# of
VMs
Total
Virtual
CPUs
Total # of
TPoX
Users
% Pool
Utilization
Transactions
per second
PowerVM, AIX 7.1 is the host OS for
each VM. VIOS is configured with 0.2
core/1 vCPU/ uncapped mode/ 4 GB
RAM. Each LPAR is configured with 1
vCPU/ uncapped/3 GB RAM 3 LPARs
have 0.2 cores and 2 LPARs have 0.1
core Shared pool has one core
5 5 50 12.5 612.2
8 LPARs are configured each with 0.2/1
vCPU/ uncapped/ 3 GB memory, 2
LPARs are configured with 0.1/1
vCPU/uncapped/3 GB memory, vios
has 0.2/1 vCPU/uncapped/4 GB
memory. Shared pool has two cores
10 10 100 24.5 1155
18 LPARs are configured each with
0.2/1 vCPU/ uncapped/ 3 GB memory,
2 LPARs are configured with 0.1/1
memory. Shared pool has four cores
20 20 200 49 2137
38 LPARs configured with 0.2core/
1vCPU/uncapped and 2 LPARs
configured with 0.1core/1vCPU/
uncapped. Shared pool has eight cores
40 40 400 98 4169.8
HP ProLiant DL580 G7, 2.26 GHz, eight
cores / 24 MB cache (4 sockets) Intel
Xeon 7560 Processors, 512 GB system
RAM (HT and Turbo enabled in BIOS
Intel VTx with EPT HW virtualization
assist) VMware vSphere 4.1 update1.
Each VM has guest OS RHEL6 GA.
Each VM is given 0.2 of a core/1
vCPU/3 GB memory. DB2 buffer pool
for data is configured in each VM.
Schedule affinity is set to cpu0 and
cpu1.
5 5 50 21.8 203.18
Schedule affinity is set to cpu0 to cpu3 10 10 100 33.89 397.15
Table 4. TPoX Benchmark Results

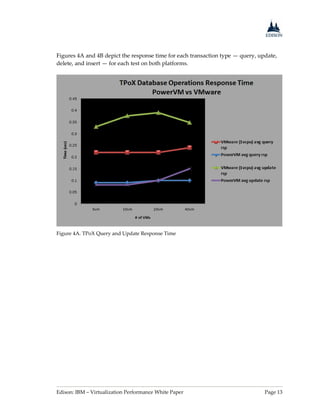

Figures 4A and 4B depict the response time for each transaction type — query, update,
delete, and insert — for each test on both platforms.
Figure 4A. TPoX Query and Update Response Time

Figure 4B. TPoX Delete and Insert Response Time
As shown in Figure 4A and 4B (above), the response time on VMware vSphere 4.1
update 1 was two to six times higher, compared to PowerVM virtualization technology,
as the number of VMs scaled from five to 40 VMs. The pool utilization was higher as
well, while throughput was lower on VMware vSphere 4.1 update 1 than on PowerVM
technology. Even though hyper threading (HT) technology was leveraged in this test,
VMware vSphere 4.1 update 1 performance remained one-third of that demonstrated by
PowerVM technology.

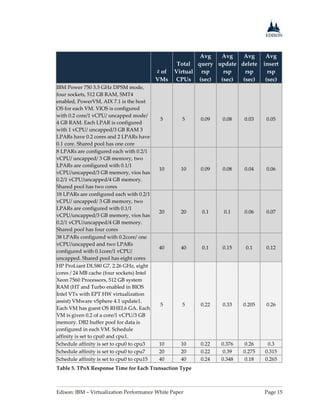

# of
VMs
Total
Virtual
CPUs
Avg
query
rsp
(sec)
Avg
update
rsp
(sec)
Avg
delete
rsp
(sec)
Avg
insert
rsp
(sec)
IBM Power 750 3.5 GHz DPSM mode,
four sockets, 512 GB RAM, SMT4
enabled, PowerVM, AIX 7.1 is the host
OS for each VM. VIOS is configured
with 0.2 core/1 vCPU/ uncapped mode/
4 GB RAM. Each LPAR is configured
with 1 vCPU/ uncapped/3 GB RAM 3
LPARs have 0.2 cores and 2 LPARs have
0.1 core. Shared pool has one core
5 5 0.09 0.08 0.03 0.05
vCPU/ uncapped/ 3 GB memory, two
vCPU/uncapped/3 GB memory, vios has
0.2/1 vCPU/uncapped/4 GB memory.
Shared pool has two cores
10 10 0.09 0.08 0.04 0.06
Shared pool has four cores
20 20 0.1 0.1 0.06 0.07
38 LPARs configured with 0.2core/ one
vCPU/uncapped and two LPARs
configured with 0.1core/1 vCPU/
40 40 0.1 0.15 0.1 0.12
cores / 24 MB cache (four sockets) Intel
Each VM has guest OS RHEL6 GA. Each
VM is given 0.2 of a core/1 vCPU/3 GB
memory. DB2 buffer pool for data is
configured in each VM. Schedule
affinity is set to cpu0 and cpu1.
5 5 0.22 0.33 0.205 0.26
Schedule affinity is set to cpu0 to cpu3 10 10 0.22 0.376 0.26 0.3
Table 5. TPoX Response Time for Each Transaction Type

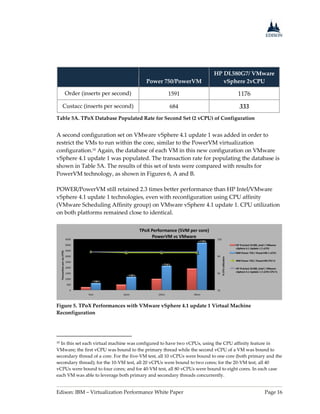

Power 750/PowerVM
HP DL580G7/ VMware
vSphere 2vCPU
Order (inserts per second) 1591 1176
Custacc (inserts per second) 684 333
Table 5A. TPoX Database Populated Rate for Second Set (2 vCPU) of Configuration
A second configuration set on VMware vSphere 4.1 update 1 was added in order to
restrict the VMs to run within the core, similar to the PowerVM virtualization
configuration.10 Again, the database of each VM in this new configuration on VMware
vSphere 4.1 update 1 was populated. The transaction rate for populating the database is
shown in Table 5A. The results of this set of tests were compared with results for
PowerVM technology, as shown in Figures 6, A and B.
POWER/PowerVM still retained 2.3 times better performance than HP Intel/VMware
vSphere 4.1 update 1 technologies, even with reconfiguration using CPU affinity
(VMware Scheduling Affinity group) on VMware vSphere 4.1 update 1. CPU utilization
on both platforms remained close to identical.
Figure 5. TPoX Performances with VMware vSphere 4.1 update 1 Virtual Machine
Reconfiguration
10 In this set each virtual machine was configured to have two vCPUs, using the CPU affinity feature in
VMware; the first vCPU was bound to the primary thread while the second vCPU of a VM was bound to
secondary thread of a core. For the five-VM test, all 10 vCPUs were bound to one core (both primary and the
secondary thread); for the 10-VM test, all 20 vCPUs were bound to two cores; for the 20-VM test, all 40
vCPUs were bound to four cores; and for 40-VM test, all 80 vCPUs were bound to eight cores. In each case
each VM was able to leverage both primary and secondary threads concurrently.

# of
VMs
Total
Virtual
CPUs
% CPU
Utilization
Transactions
per second
IBM Power 750 3.5 GHz DPSM mode, four
PowerVM, AIX 7.1 is the host OS for each
VM. VIOS is configured with 0.2 core/1
vCPU/ uncapped mode/ 4 GB RAM. Each
LPAR is configured with 1 vCPU/
uncapped/3 GB RAM three LPARs have
0.2 cores and 2 LPARs have 0.1 core.
Shared pool has one core
5 5 100 612.2
Shared pool has two cores
10 10 98 1155
Shared pool has four cores
20 20 98 2137
38 LPARs configured with 0.2core/ 1
vCPU/uncapped and two LPARs
configured with 0.1 core/1 vCPU/
40 40 98 4169.8
cores / 24 MB cache (4 sockets) Intel Xeon
7560 processors, 512 GB system RAM (HT
and Turbo enabled in BIOS Intel VTx with
EPT HW virtualization assist) VMware
vSphere 4.1 update1. Each VM has guest
OS RHEL6 GA. Each VM is given 2 vCPUs
unlimited/3 GB memory. DB2 buffer pool
for data is configured in each VM.
Schedule affinity is set to cpu0 and cpu1.
5 10 100 259
Schedule affinity is set to cpu0 to cpu3 10 20 100 490.5
Table 6 TPoX Performance with VMware vSphere 4.1 update 1 Virtual Machine
Reconfiguration

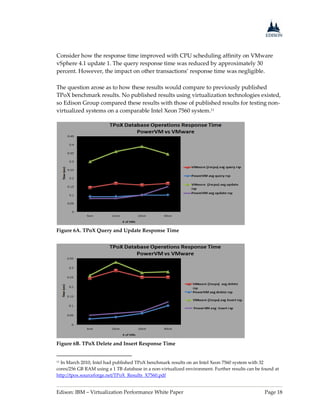

Consider how the response time improved with CPU scheduling affinity on VMware
vSphere 4.1 update 1. The query response time was reduced by approximately 30
percent. However, the impact on other transactions’ response time was negligible.
The question arose as to how these results would compare to previously published
TPoX benchmark results. No published results using virtualization technologies existed,
so Edison Group compared these results with those of published results for testing non-
virtualized systems on a comparable Intel Xeon 7560 system.11
Figure 6A. TPoX Query and Update Response Time
Figure 6B. TPoX Delete and Insert Response Time
11 In March 2010, Intel had published TPoX benchmark results on an Intel Xeon 7560 system with 32
cores/256 GB RAM using a 1 TB database in a non-virtualized environment. Further results can be found at
http://tpox.sourceforge.net/TPoX_Results_X7560.pdf

Benchmark (5 to 40 VM scaling)
# of
VMs
Total
Virtual
CPUs
Avg
query
rsp
(sec)
Avg
update
rsp
(sec)
Avg
delete
rsp
(sec)
Avg
insert
rsp
(sec)
IBM Power 750 3.5 GHz DPSM mode,
four sockets, 512 GB RAM, SMT4
enabled, PowerVM, AIX 7.1 is the host
OS for each VM. VIOS is configured
with 0.2 core/1 vCPU/ uncapped mode/
4 GB RAM. Each LPAR is configured
with 1 vCPU/ uncapped/3 GB RAM 3
LPARs have 0.2 cores and two LPARs
have 0.1 core Shared pool has one core
5 5 0.09 0.08 0.03 0.05
LPARs are configured with 0.1/ 1
memory. Shared pool has two cores
10 10 0.09 0.08 0.04 0.06
18 LPARs are configured each with
0.2/1 vCPU/ uncapped/ 3 GB memory,
two LPARs are configured with 0.1/1
memory. Shared pool has four cores
20 20 0.1 0.1 0.06 0.07
38 LPARs are configured with 0.2core/ 1
vCPU/uncapped and 2 LPARs
configured with 0.1core/1 vCPU/
40 40 0.1 0.15 0.1 0.12
cores / 24 MB cache (four sockets) Intel
Each VM has guest OS RHEL6 GA. Each
VM is given two vCPU unlimited/3 GB
memory. DB2 buffer pool for data is
configured in each VM. Schedule
affinity is set to cpu0 and cpu1.
5 10 0.145 0.3 0.245 0.26
Table 7 TPoX Response Time with VMware vSphere 4.1 update 1 Reconfiguration

These previously-published results were better than what was achieved in tests using
the HP Intel Xeon 7560 system described here. The difference in these results could be
attributed to differences in storage subsystem, database size, execution of a large
number of software images such as guest OS, database middleware, etc. Most
significant, however, is that the tests described here were conducted in a virtualized
environment using VMware vSphere, which adds overhead in comparison to a non-
virtualized environment.
Summary of Results
Overall, PowerVM virtualization technology demonstrated superior performance over
VMware vSphere 4.1 update 1 in two different configurations, each configuration
covering two different virtual machine densities featuring high resource contention. As
demonstrated using the AIM7 and TPoX benchmarks, the difference in throughput
performance was quite considerable throughout, ranging from 50 percent better to as
much as 200 percent better on PowerVM technology.

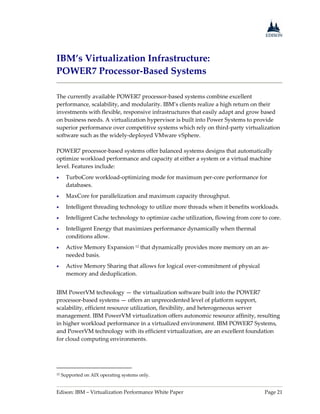

IBM’s Virtualization Infrastructure:
POWER7 Processor-Based Systems
The currently available POWER7 processor-based systems combine excellent
performance, scalability, and modularity. IBM’s clients realize a high return on their
investments with flexible, responsive infrastructures that easily adapt and grow based
on business needs. A virtualization hypervisor is built into Power Systems to provide
superior performance over competitive systems which rely on third-party virtualization
software such as the widely-deployed VMware vSphere.
POWER7 processor-based systems offer balanced systems designs that automatically
optimize workload performance and capacity at either a system or a virtual machine
level. Features include:
 TurboCore workload-optimizing mode for maximum per-core performance for
databases.
 MaxCore for parallelization and maximum capacity throughput.
 Intelligent threading technology to utilize more threads when it benefits workloads.
 Intelligent Cache technology to optimize cache utilization, flowing from core to core.
 Intelligent Energy that maximizes performance dynamically when thermal
conditions allow.
 Active Memory Expansion 12 that dynamically provides more memory on an as-
needed basis.
 Active Memory Sharing that allows for logical over-commitment of physical
memory and deduplication.
IBM PowerVM technology — the virtualization software built into the POWER7
processor-based systems — offers an unprecedented level of platform support,
scalability, efficient resource utilization, flexibility, and heterogeneous server
management. IBM PowerVM virtualization offers autonomic resource affinity, resulting
in higher workload performance in a virtualized environment. IBM POWER7 Systems,
and PowerVM technology with its efficient virtualization, are an excellent foundation
for cloud computing environments.
12 Supported on AIX operating systems only.

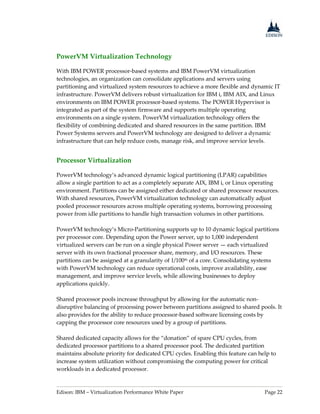

PowerVM Virtualization Technology
With IBM POWER processor-based systems and IBM PowerVM virtualization
technologies, an organization can consolidate applications and servers using
partitioning and virtualized system resources to achieve a more flexible and dynamic IT
infrastructure. PowerVM delivers robust virtualization for IBM i, IBM AIX, and Linux
environments on IBM POWER processor-based systems. The POWER Hypervisor is
integrated as part of the system firmware and supports multiple operating
environments on a single system. PowerVM virtualization technology offers the
flexibility of combining dedicated and shared resources in the same partition. IBM
Power Systems servers and PowerVM technology are designed to deliver a dynamic
infrastructure that can help reduce costs, manage risk, and improve service levels.
Processor Virtualization
PowerVM technology’s advanced dynamic logical partitioning (LPAR) capabilities
allow a single partition to act as a completely separate AIX, IBM i, or Linux operating
environment. Partitions can be assigned either dedicated or shared processor resources.
With shared resources, PowerVM virtualization technology can automatically adjust
pooled processor resources across multiple operating systems, borrowing processing
power from idle partitions to handle high transaction volumes in other partitions.
PowerVM technology’s Micro-Partitioning supports up to 10 dynamic logical partitions
per processor core. Depending upon the Power server, up to 1,000 independent
virtualized servers can be run on a single physical Power server — each virtualized
server with its own fractional processor share, memory, and I/O resources. These
partitions can be assigned at a granularity of 1/100th of a core. Consolidating systems
with PowerVM technology can reduce operational costs, improve availability, ease
management, and improve service levels, while allowing businesses to deploy
applications quickly.
Shared processor pools increase throughput by allowing for the automatic non-
disruptive balancing of processing power between partitions assigned to shared pools. It
also provides for the ability to reduce processor-based software licensing costs by
capping the processor core resources used by a group of partitions.
Shared dedicated capacity allows for the “donation” of spare CPU cycles, from
dedicated processor partitions to a shared processor pool. The dedicated partition
maintains absolute priority for dedicated CPU cycles. Enabling this feature can help to
increase system utilization without compromising the computing power for critical
workloads in a dedicated processor.

Memory Virtualization
PowerVM technology features Active Memory Sharing, a technology that intelligently
and dynamically reallocates memory from one partition to another for increased
utilization, flexibility, and performance. Active Memory Sharing enables the sharing of a
pool of physical memory among logical partitions on a single server. This helps reduce
the need for reserve memory resource capacity in a consolidated environment by
increasing the efficiency of memory utilization, driving down system costs. The memory
is dynamically allocated among the partitions as needed, to optimize the usage of
physical memory in the pool. Along with shared memory, PowerVM technology also
supports dedicated memory allocation, which enables partitions having shared memory
to coexist in the same system as partitions having dedicated memory.
I/O Virtualization
The Virtual I/O Server (VIOS) is an integral part of PowerVM technology. A special-
purpose partition, VIOS eliminates the need for dedicated network adapters, disk
adapters and disk drives, and tape adapters and tape drives in the guest partitions
running as VMs. It can reduce costs by virtualizing I/O resources to those partitions.
VIOS owns the resources that are shared with clients; a physical adapter assigned to the
VIOS partition can be shared by one or more other partitions. With VIOS, guest
partitions can easily be created for test, development, or production purposes. PowerVM
technology also supports dedicated I/O along with VIOS on the same system. Therefore,
a single system can have I/O hosted by VIOS for some partitions and other partitions
with dedicated I/O devices. An organization can thus reserve a dedicated VM of a given
capacity that can be relied upon for high-priority and/or mission-critical workloads,
while assigning other VMs to a general resource pool.
Partition Mobility
Live Partition Mobility facilitates the migration of a running AIX or Linux partition from
one physical server to another without requiring application downtime for planned
system maintenance, migrations, provisioning, and workload management.
Partition Hibernation
IBM POWER7 systems support Partition Hibernation, where a partition can be
suspended and resumed at a later time. In a suspended state, a partition’s resources can
be used by other partitions while the suspended partition’s state is stored in a paging

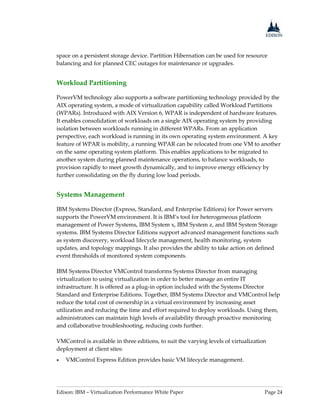

space on a persistent storage device. Partition Hibernation can be used for resource
balancing and for planned CEC outages for maintenance or upgrades.
Workload Partitioning
PowerVM technology also supports a software partitioning technology provided by the
AIX operating system, a mode of virtualization capability called Workload Partitions
(WPARs). Introduced with AIX Version 6, WPAR is independent of hardware features.
It enables consolidation of workloads on a single AIX operating system by providing
isolation between workloads running in different WPARs. From an application
perspective, each workload is running in its own operating system environment. A key
feature of WPAR is mobility, a running WPAR can be relocated from one VM to another
on the same operating system platform. This enables applications to be migrated to
another system during planned maintenance operations, to balance workloads, to
provision rapidly to meet growth dynamically, and to improve energy efficiency by
further consolidating on the fly during low load periods.
Systems Management
IBM Systems Director (Express, Standard, and Enterprise Editions) for Power servers
supports the PowerVM environment. It is IBM’s tool for heterogeneous platform
management of Power Systems, IBM System x, IBM System z, and IBM System Storage
systems. IBM Systems Director Editions support advanced management functions such
as system discovery, workload lifecycle management, health monitoring, system
updates, and topology mappings. It also provides the ability to take action on defined
event thresholds of monitored system components.
IBM Systems Director VMControl transforms Systems Director from managing
virtualization to using virtualization in order to better manage an entire IT
infrastructure. It is offered as a plug-in option included with the Systems Director
Standard and Enterprise Editions. Together, IBM Systems Director and VMControl help
reduce the total cost of ownership in a virtual environment by increasing asset
utilization and reducing the time and effort required to deploy workloads. Using them,
administrators can maintain high levels of availability through proactive monitoring
and collaborative troubleshooting, reducing costs further.
VMControl is available in three editions, to suit the varying levels of virtualization
deployment at client sites:
 VMControl Express Edition provides basic VM lifecycle management.

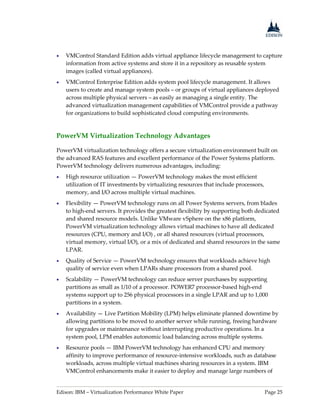

 VMControl Standard Edition adds virtual appliance lifecycle management to capture
information from active systems and store it in a repository as reusable system
images (called virtual appliances).
 VMControl Enterprise Edition adds system pool lifecycle management. It allows
users to create and manage system pools – or groups of virtual appliances deployed
across multiple physical servers – as easily as managing a single entity. The
advanced virtualization management capabilities of VMControl provide a pathway
for organizations to build sophisticated cloud computing environments.
PowerVM Virtualization Technology Advantages
PowerVM virtualization technology offers a secure virtualization environment built on
the advanced RAS features and excellent performance of the Power Systems platform.
PowerVM technology delivers numerous advantages, including:
 High resource utilization — PowerVM technology makes the most efficient
utilization of IT investments by virtualizing resources that include processors,
memory, and I/O across multiple virtual machines.
 Flexibility — PowerVM technology runs on all Power Systems servers, from blades
to high-end servers. It provides the greatest flexibility by supporting both dedicated
and shared resource models. Unlike VMware vSphere on the x86 platform,
PowerVM virtualization technology allows virtual machines to have all dedicated
resources (CPU, memory and I/O) , or all shared resources (virtual processors,
virtual memory, virtual I/O), or a mix of dedicated and shared resources in the same
LPAR.
 Quality of Service — PowerVM technology ensures that workloads achieve high
quality of service even when LPARs share processors from a shared pool.
 Scalability — PowerVM technology can reduce server purchases by supporting
partitions as small as 1/10 of a processor. POWER7 processor-based high-end
systems support up to 256 physical processors in a single LPAR and up to 1,000
partitions in a system.
 Availability — Live Partition Mobility (LPM) helps eliminate planned downtime by
allowing partitions to be moved to another server while running, freeing hardware
for upgrades or maintenance without interrupting productive operations. In a
system pool, LPM enables autonomic load balancing across multiple systems.
 Resource pools — IBM PowerVM technology has enhanced CPU and memory
affinity to improve performance of resource-intensive workloads, such as database
workloads, across multiple virtual machines sharing resources in a system. IBM

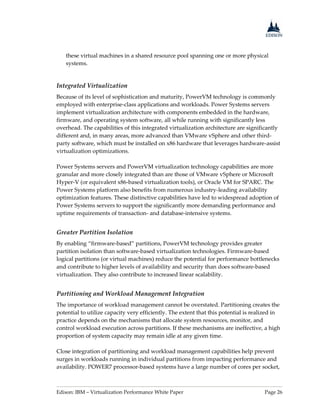

VMControl enhancements make it easier to deploy and manage large numbers of

these virtual machines in a shared resource pool spanning one or more physical
systems.
Integrated Virtualization
Because of its level of sophistication and maturity, PowerVM technology is commonly
employed with enterprise-class applications and workloads. Power Systems servers
implement virtualization architecture with components embedded in the hardware,
firmware, and operating system software, all while running with significantly less
overhead. The capabilities of this integrated virtualization architecture are significantly
different and, in many areas, more advanced than VMware vSphere and other third-
party software, which must be installed on x86 hardware that leverages hardware-assist
virtualization optimizations.
Power Systems servers and PowerVM virtualization technology capabilities are more
granular and more closely integrated than are those of VMware vSphere or Microsoft
Hyper-V (or equivalent x86-based virtualization tools), or Oracle VM for SPARC. The
Power Systems platform also benefits from numerous industry-leading availability
optimization features. These distinctive capabilities have led to widespread adoption of
Power Systems servers to support the significantly more demanding performance and
uptime requirements of transaction- and database-intensive systems.
Greater Partition Isolation
By enabling “firmware-based” partitions, PowerVM technology provides greater
partition isolation than software-based virtualization technologies. Firmware-based
logical partitions (or virtual machines) reduce the potential for performance bottlenecks
and contribute to higher levels of availability and security than does software-based
virtualization. They also contribute to increased linear scalability.
Partitioning and Workload Management Integration
The importance of workload management cannot be overstated. Partitioning creates the
potential to utilize capacity very efficiently. The extent that this potential is realized in
practice depends on the mechanisms that allocate system resources, monitor, and
control workload execution across partitions. If these mechanisms are ineffective, a high
proportion of system capacity may remain idle at any given time.
Close integration of partitioning and workload management capabilities help prevent
surges in workloads running in individual partitions from impacting performance and
availability. POWER7 processor-based systems have a large number of cores per socket,

abundant memory, and a great deal of I/O bandwidth per core. They also support a high
number of threads per core with simultaneous multithreading (SMT). Different
workloads can benefit from different processor core thread settings; processor-intensive
workloads might benefit from using one thread (SMT1) while workloads that are I/O-
intensive can benefit from using several. POWER7 processor-based systems support up
to an SMT4 setting.
Thus, POWER7 processor-based systems consolidate an unprecedented number of
partitions and can handle workload surges more effectively, for demonstrably higher
performance.
Accommodating Greater Consolidation Density
PowerVM technology is optimized to handle business-critical systems and complex
multi-partition production environments. IBM Power Systems and PowerVM
technologies allow a high consolidation ratio and thus greater levels of efficiency in
utilization.

Conclusions
Virtualization has become a pervasive means of consolidating workloads on fewer
systems, controlling server sprawl and minimizing costs. With IBM Power Systems and
PowerVM virtualization technologies, organizations can achieve virtualization with
outstanding performance. For every benchmark and every scenario covered in this
paper, IBM Power Systems with PowerVM technology demonstrated superior
performance and greater efficiency in using system capacity at higher utilization, as well
as at higher resource contention (over-commit levels), and superior scaling with higher
throughput performance.
In summary, this study has shown that IBM POWER7 systems and PowerVM
technology have demonstrated:
 Higher throughput performance for both AIM7 and TPoX benchmarks, ranging from
50 percent better to as much as 200 percent better.
 Higher efficiency in resource over-commit mode (higher consolidation ratio), with
the response time on PowerVM virtualization technology two to six times shorter,
compared to response time for VMware vSphere 4.1 update 1, as the number of VMs
scaled from five to 40 VMs.
 Higher processor affinity by default (40 VMs sharing eight cores), retaining 2.3 times
better performance than HP Intel/VMware vSphere 4.1 update 1 technologies, even
with reconfiguration using CPU affinity (VMware Scheduling Affinity group) on
VMware vSphere 4.1 update 1.
 Efficient leveraging of maximum configured processor capacity.
 Accurate accounting of resource usage within a VM.
 Tighter integration across system, hypervisor, and guest OS.
 Better performance overall than Intel Xeon 7560 /VMware vSphere 4.1 update 1.
The charts that follow summarize the results of the tests described in this paper.
The first — the AIM7 performance benchmark 32-core VM scaling (scale-up) results—
shows that PowerVM on POWER7 delivers superior scale-up efficiency that
outperforms VMware vSphere 4.1 update 1 by up to 115 percent while running the same
Linux workloads and virtualized resources.

0
100000
200000
300000
400000
500000
600000
700000
Jobs/min
1VM 2VM 4VM 8VM 16VM 32VM
Number of Virtual Machines
AIM7 Performance Benchmark
32 VM Scale-out on 32 cores
VMware vSphere 4.1 on HP DL580(1vcpu) VMware vSphere 4.1 on HP DL580(2vcpu)
PowerVM on Power 750(1vcpu)
In fact, PowerVM on POWER7 retains its superiority even configured with an additional
virtual CPU per VM.
The second chart — the TPOX performance benchmark 5 VM per core (scale-out) —
shows that PowerVM on POWER7 delivers robust scale-out efficiency that outperforms
VMware vSphere 4.1 update 1 by up to 201 percent while running the same workloads
and virtualized resources.

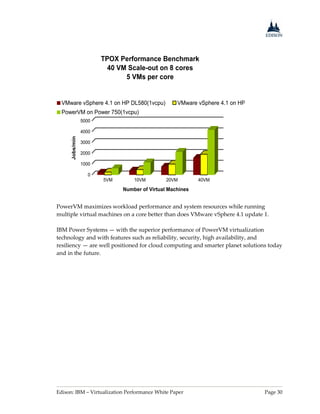

0
1000
2000
3000
4000
5000
Jobs/min
5VM 10VM 20VM 40VM
Number of Virtual Machines
TPOX Performance Benchmark
40 VM Scale-out on 8 cores
5 VMs per core
VMware vSphere 4.1 on HP DL580(1vcpu) VMware vSphere 4.1 on HP DL580(2vcpu)
PowerVM on Power 750(1vcpu)
PowerVM maximizes workload performance and system resources while running
multiple virtual machines on a core better than does VMware vSphere 4.1 update 1.
IBM Power Systems — with the superior performance of PowerVM virtualization
technology and with features such as reliability, security, high availability, and
resiliency — are well positioned for cloud computing and smarter planet solutions today
and in the future.

Appendices
Appendix 1 — Benchmark Configuration Information
IBM started competitive research on PowerVM virtualization in 2009 and published two
papers 13 comparing IBM POWER processor-based systems and PowerVM virtualization
technologies to Microsoft Hyper-V and VMware vSphere 4.0 update 1 running on an HP
ProLiant DL 370 G6/ Intel Xeon 5570 processors. Both these studies, which show the
superior performance of POWER processors and PowerVM technology, took a
simplified approach to answering the two most commonly expressed considerations in
deploying virtualization technologies:
1. How efficient is the technology?
2. How well does the technology scale?
The current study builds upon those simple premises to include two additional
considerations:
1. How efficient is the technology when resources are in high contention?
2. How well does it scale as virtual machine density increases?
Test Bed Setup
The servers employed for this study were chosen for their equivalencies from the
standpoint of core and socket count.
IBM POWER7 Processor-Based Server
The IBM POWER7 processor-based IBM Power 750 Express system was used in this
study to demonstrate the capabilities of IBM’s PowerVM virtualization technology. The
system was configured with four sockets, 3.5 GHz, 32 cores (eight per socket) supporting
up to four threads (SMT4) per core, and 512 GB of RAM.
13 A Comparison of PowerVM and x86-Based Virtualization Performance, Oct 2009
http://www-03.IBM.com/support/techdocs/atsmastr.nsf/WebIndex/WP101574
A Comparison of PowerVM and VMware Virtualization Performance, April 2010
http://www.spectrumconsulting.co.nz/aix/wp-content/uploads/PowerVM_VMware.pdf

HP ProLiant DL580 G7 Intel Xeon X7560 (2.26GHz/8-core/24MB/130W)
Processor
HP ProLiant DL580 G7 is a rack-mounted, high-performance Intel Xeon 7560-based
server; this system was selected to demonstrate the capabilities of VMware vSphere 4.1
update 1 virtualization technologies. The system was configured with four sockets, with
eight cores each, supporting up to two threads per core (HT mode). The system was also
enabled for Turbo Mode, Intel VTx with EPT HW Virtualization assist.
Infrastructure Configuration
System Configuration Storage Configuration
IBM Power 750, 3.5 GHz, eight cores per
socket
POWER7 Processors, 128 GB RAM per
socket.
IBM DS4800 (4 GB cache), one 4 Gb Fiber
Channel adapter.
Each array has 12 (32 GB) disks using
RAID5.
Each array is shared by four virtual
machines, each getting 40 GB virtual
disk space.
HP ProLiant DL 580 G7, 2.26 GHz, eight
cores / 24 MB (four sockets) Intel Xeon
7560 Processors, 512 GB system RAM.
IBM DS4800 (4 GB cache), one 4 Gb Fiber
Channel adapter.
Each array has 12 (32 GB) disks using
RAID5.
Each array is shared by four virtual
machines, each getting 40 GB virtual
disk space.
Software Used
Category PowerVM Technology VMware vSphere
Hypervisor Power Hypervisor (IBM Power
750 in-built hypervisor)
VMware vSphere 4.1 Update 1
Guest OS SuSE 11, SP1
AIX 7.1
SuSE 11, SP1 GA x86_64
RHEL6 GAx86_64
Middleware IBM DB2 v9.7 IBM DB2 v9.7

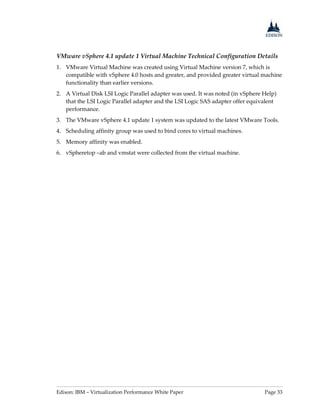

VMware vSphere 4.1 update 1 Virtual Machine Technical Configuration Details
1. VMware Virtual Machine was created using Virtual Machine version 7, which is
compatible with vSphere 4.0 hosts and greater, and provided greater virtual machine
functionality than earlier versions.
2. A Virtual Disk LSI Logic Parallel adapter was used. It was noted (in vSphere Help)
that the LSI Logic Parallel adapter and the LSI Logic SAS adapter offer equivalent
performance.
3. The VMware vSphere 4.1 update 1 system was updated to the latest VMware Tools.
4. Scheduling affinity group was used to bind cores to virtual machines.
5. Memory affinity was enabled.
6. vSpheretop –ab and vmstat were collected from the virtual machine.

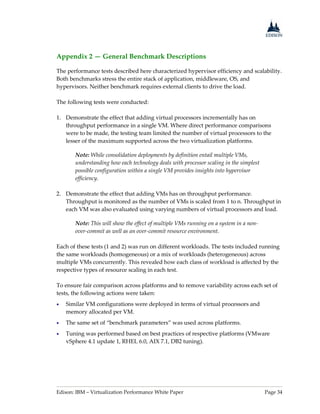

Appendix 2 — General Benchmark Descriptions
The performance tests described here characterized hypervisor efficiency and scalability.
Both benchmarks stress the entire stack of application, middleware, OS, and
hypervisors. Neither benchmark requires external clients to drive the load.
The following tests were conducted:
1. Demonstrate the effect that adding virtual processors incrementally has on
throughput performance in a single VM. Where direct performance comparisons
were to be made, the testing team limited the number of virtual processors to the
lesser of the maximum supported across the two virtualization platforms.
Note: While consolidation deployments by definition entail multiple VMs,
understanding how each technology deals with processor scaling in the simplest
possible configuration within a single VM provides insights into hypervisor
efficiency.
2. Demonstrate the effect that adding VMs has on throughput performance.
Throughput is monitored as the number of VMs is scaled from 1 to n. Throughput in
each VM was also evaluated using varying numbers of virtual processors and load.
Note: This will show the effect of multiple VMs running on a system in a non-
over-commit as well as an over-commit resource environment.
Each of these tests (1 and 2) was run on different workloads. The tests included running
the same workloads (homogeneous) or a mix of workloads (heterogeneous) across
multiple VMs concurrently. This revealed how each class of workload is affected by the
respective types of resource scaling in each test.
To ensure fair comparison across platforms and to remove variability across each set of
tests, the following actions were taken:
 Similar VM configurations were deployed in terms of virtual processors and
memory allocated per VM.
 The same set of “benchmark parameters” was used across platforms.
 Tuning was performed based on best practices of respective platforms (VMware
vSphere 4.1 update 1, RHEL 6.0, AIX 7.1, DB2 tuning).

Addendum:
Benchmarks Comparing PowerVM on Power 750
with vSphere 5 on Intel Westmere EX-Based System
At the time that the systems were tested for this white paper, VMware vSphere 4.1
update 1 was most current version available from VMware. Subsequently, VMware
announced a significant new release: version 5, which includes nearly 200 new or
enhanced features and capabilities such areas as deployment, storage, management,
availability, and security.
The central improvement to virtualization and consolidation capacity (and thus to this
white paper) in version 5 is that vSphere VMs can now be configured with up to 1
terabyte of memory and 32 virtual CPUs. VMware is touting this version (“supporting
VMs that are up to four times more powerful than previous versions”) as the way to
accelerate a data center’s move to a more efficient cloud infrastructure.
Edison sought to assess whether a commensurate improvement in throughput
performance accompanied vSphere’s greater vCPU capacity. It also wanted to
investigate whether PowerVM retains the considerable advantage over vSphere in
performance and hardware utilization that it demonstrated in the original edition of the
white paper.
Summary
Edison wished to evaluate a comparison of PowerVM performance against the latest
solutions that the x86-based VMware platform has to offer on a similar class of server
hardware. Therefore, on the vSphere side, the tests described in this addendum were
run on an HP ProLiant DL580 G7 E7-4870 server, which features the X5600-series Xeon
chip architecture (Westmere-EX) and contains 40 cores (10 cores per chip). As in the
previously published edition of this white paper, PowerVM was run on an IBM Power
750 system, based on the POWER7 processor.
Edison reviewed and analyzed the results of the open source AIM7 benchmark testing
applied to the three virtualization solutions — VMware vSphere 4.1 update 1, VMware
vSphere 5, and PowerVM — in a scale-up scenario of 32 vCPUs within a single VM. A
second test — a vCPU scale-out scenario of 32 vCPUs using eight VMs — was evaluated
that compares vSphere 5 with PowerVM.

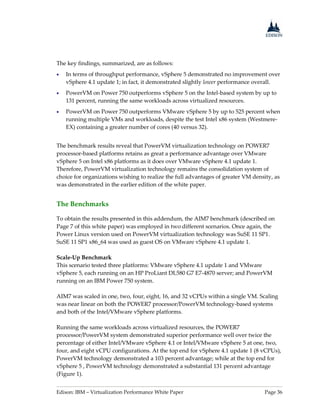

The key findings, summarized, are as follows:
 In terms of throughput performance, vSphere 5 demonstrated no improvement over
vSphere 4.1 update 1; in fact, it demonstrated slightly lower performance overall.
 PowerVM on Power 750 outperforms vSphere 5 on the Intel-based system by up to
131 percent, running the same workloads across virtualized resources.
 PowerVM on Power 750 outperforms VMware vSphere 5 by up to 525 percent when
running multiple VMs and workloads, despite the test Intel x86 system (Westmere-
EX) containing a greater number of cores (40 versus 32).
The benchmark results reveal that PowerVM virtualization technology on POWER7
processor-based platforms retains as great a performance advantage over VMware
vSphere 5 on Intel x86 platforms as it does over VMware vSphere 4.1 update 1.
Therefore, PowerVM virtualization technology remains the consolidation system of
choice for organizations wishing to realize the full advantages of greater VM density, as
was demonstrated in the earlier edition of the white paper.
The Benchmarks
To obtain the results presented in this addendum, the AIM7 benchmark (described on
Page 7 of this white paper) was employed in two different scenarios. Once again, the
Power Linux version used on PowerVM virtualization technology was SuSE 11 SP1.
SuSE 11 SP1 x86_64 was used as guest OS on VMware vSphere 4.1 update 1.
Scale-Up Benchmark
This scenario tested three platforms: VMware vSphere 4.1 update 1 and VMware
vSphere 5, each running on an HP ProLiant DL580 G7 E7-4870 server; and PowerVM
running on an IBM Power 750 system.
AIM7 was scaled in one, two, four, eight, 16, and 32 vCPUs within a single VM. Scaling
was near linear on both the POWER7 processor/PowerVM technology-based systems
and both of the Intel/VMware vSphere platforms.
Running the same workloads across virtualized resources, the POWER7
processor/PowerVM system demonstrated superior performance well over twice the
percentage of either Intel/VMware vSphere 4.1 or Intel/VMware vSphere 5 at one, two,
four, and eight vCPU configurations. At the top end for vSphere 4.1 update 1 (8 vCPUs),
PowerVM technology demonstrated a 103 percent advantage; while at the top end for
vSphere 5 , PowerVM technology demonstrated a substantial 131 percent advantage
(Figure 1).

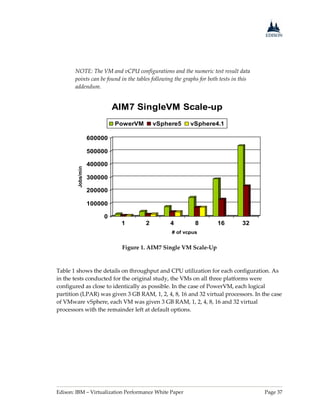

NOTE: The VM and vCPU configurations and the numeric test result data
points can be found in the tables following the graphs for both tests in this
addendum.
0
100000
200000
300000
400000
500000
600000
Jobs/min
1 2 4 8 16 32
# of vcpus
AIM7 SingleVM Scale-up
PowerVM vSphere5 vSphere4.1
Figure 1. AIM7 Single VM Scale-Up
Table 1 shows the details on throughput and CPU utilization for each configuration. As
in the tests conducted for the original study, the VMs on all three platforms were
configured as close to identically as possible. In the case of PowerVM, each logical
partition (LPAR) was given 3 GB RAM, 1, 2, 4, 8, 16 and 32 virtual processors. In the case
of VMware vSphere, each VM was given 3 GB RAM, 1, 2, 4, 8, 16 and 32 virtual
processors with the remainder left at default options.

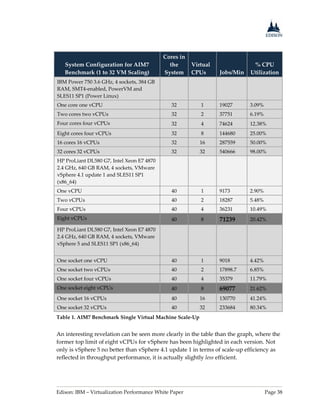

Cores in
the
System
Virtual
CPUs Jobs/Min
% CPU
Utilization
IBM Power 750 3.6 GHz, 4 sockets, 384 GB
RAM, SMT4-enabled, PowerVM and
SLES11 SP1 (Power Linux)
One core one vCPU 32 1 19027 3.09%
Two cores two vCPUs 32 2 37751 6.19%
Four cores four vCPUs 32 4 74624 12.38%
Eight cores four vCPUs 32 8 144680 25.00%
16 cores 16 vCPUs 32 16 287559 50.00%
32 cores 32 vCPUs 32 32 540666 98.00%
HP ProLiant DL580 G7, Intel Xeon E7 4870
2.4 GHz, 640 GB RAM, 4 sockets, VMware
vSphere 4.1 update 1 and SLES11 SP1
(x86_64)
One vCPU 40 1 9173 2.90%
Two vCPUs 40 2 18287 5.48%
Four vCPUs 40 4 36231 10.49%
Eight vCPUs 40 8 71239 20.42%
HP ProLiant DL580 G7, Intel Xeon E7 4870
2.4 GHz, 640 GB RAM, 4 sockets, VMware
vSphere 5 and SLES11 SP1 (x86_64)
One socket one vCPU 40 1 9018 4.42%
One socket two vCPUs 40 2 17898.7 6.85%
One socket four vCPUs 40 4 35379 11.79%
One socket eight vCPUs 40 8 69077 21.62%
One socket 16 vCPUs 40 16 130770 41.24%
One socket 32 vCPUs 40 32 233684 80.34%
Table 1. AIM7 Benchmark Single Virtual Machine Scale-Up
An interesting revelation can be seen more clearly in the table than the graph, where the
former top limit of eight vCPUs for vSphere has been highlighted in each version. Not
only is vSphere 5 no better than vSphere 4.1 update 1 in terms of scale-up efficiency as
reflected in throughput performance, it is actually slightly less efficient.

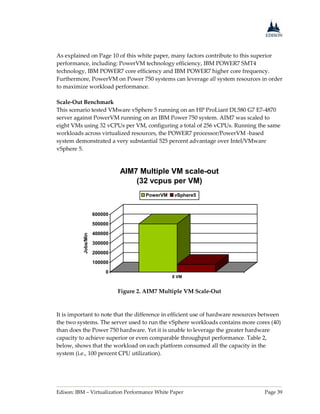

As explained on Page 10 of this white paper, many factors contribute to this superior
performance, including: PowerVM technology efficiency, IBM POWER7 SMT4
technology, IBM POWER7 core efficiency and IBM POWER7 higher core frequency.
Furthermore, PowerVM on Power 750 systems can leverage all system resources in order
to maximize workload performance.
Scale-Out Benchmark
This scenario tested VMware vSphere 5 running on an HP ProLiant DL580 G7 E7-4870
server against PowerVM running on an IBM Power 750 system. AIM7 was scaled to
eight VMs using 32 vCPUs per VM, configuring a total of 256 vCPUs. Running the same
workloads across virtualized resources, the POWER7 processor/PowerVM -based
system demonstrated a very substantial 525 percent advantage over Intel/VMware
vSphere 5.
0
100000
200000
300000
400000
500000
600000
Jobs/Min
8 VM
AIM7 Multiple VM scale-out
(32 vcpus per VM)
PowerVM vSphere5
Figure 2. AIM7 Multiple VM Scale-Out
It is important to note that the difference in efficient use of hardware resources between
the two systems. The server used to run the vSphere workloads contains more cores (40)
than does the Power 750 hardware. Yet it is unable to leverage the greater hardware
capacity to achieve superior or even comparable throughput performance. Table 2,
below, shows that the workload on each platform consumed all the capacity in the
system (i.e., 100 percent CPU utilization).

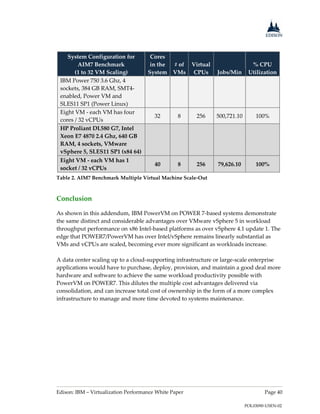

System Configuration for
AIM7 Benchmark
(1 to 32 VM Scaling)
Cores
in the
System
# of
VMs
Virtual
CPUs Jobs/Min
% CPU
Utilization
IBM Power 750 3.6 Ghz, 4
sockets, 384 GB RAM, SMT4-
enabled, Power VM and
SLES11 SP1 (Power Linux)
Eight VM - each VM has four
cores / 32 vCPUs
32 8 256 500,721.10 100%
HP Proliant DL580 G7, Intel
Xeon E7 4870 2.4 Ghz, 640 GB
RAM, 4 sockets, VMware
vSphere 5, SLES11 SP1 (x84 64)
Eight VM - each VM has 1
socket / 32 vCPUs
40 8 256 79,626.10 100%
Table 2. AIM7 Benchmark Multiple Virtual Machine Scale-Out
Conclusion
As shown in this addendum, IBM PowerVM on POWER 7-based systems demonstrate
the same distinct and considerable advantages over VMware vSphere 5 in workload
throughput performance on x86 Intel-based platforms as over vSphere 4.1 update 1. The
edge that POWER7/PowerVM has over Intel/vSphere remains linearly substantial as
VMs and vCPUs are scaled, becoming ever more significant as workloads increase.
A data center scaling up to a cloud-supporting infrastructure or large-scale enterprise
applications would have to purchase, deploy, provision, and maintain a good deal more
hardware and software to achieve the same workload productivity possible with
PowerVM on POWER7. This dilutes the multiple cost advantages delivered via
consolidation, and can increase total cost of ownership in the form of a more complex
infrastructure to manage and more time devoted to systems maintenance.
POL03090-USEN-02

IBM PowerVM Virtualization Technology on IBM POWER7 Systems

More Related Content

What's hot

Viewers also liked

Similar to IBM PowerVM Virtualization Technology on IBM POWER7 Systems

More from IBM India Smarter Computing

Recently uploaded

IBM PowerVM Virtualization Technology on IBM POWER7 Systems
