The document outlines the design and materials for a playground structure that includes climbing nets, swings, slides, and an underground passage. It lists activities like climbing, swinging, sliding down a fireman's pole, and crawling through tunnels. The materials include different sizes of structural tubing in various colors for frames, as well as flanges and rivets to connect the pieces together.

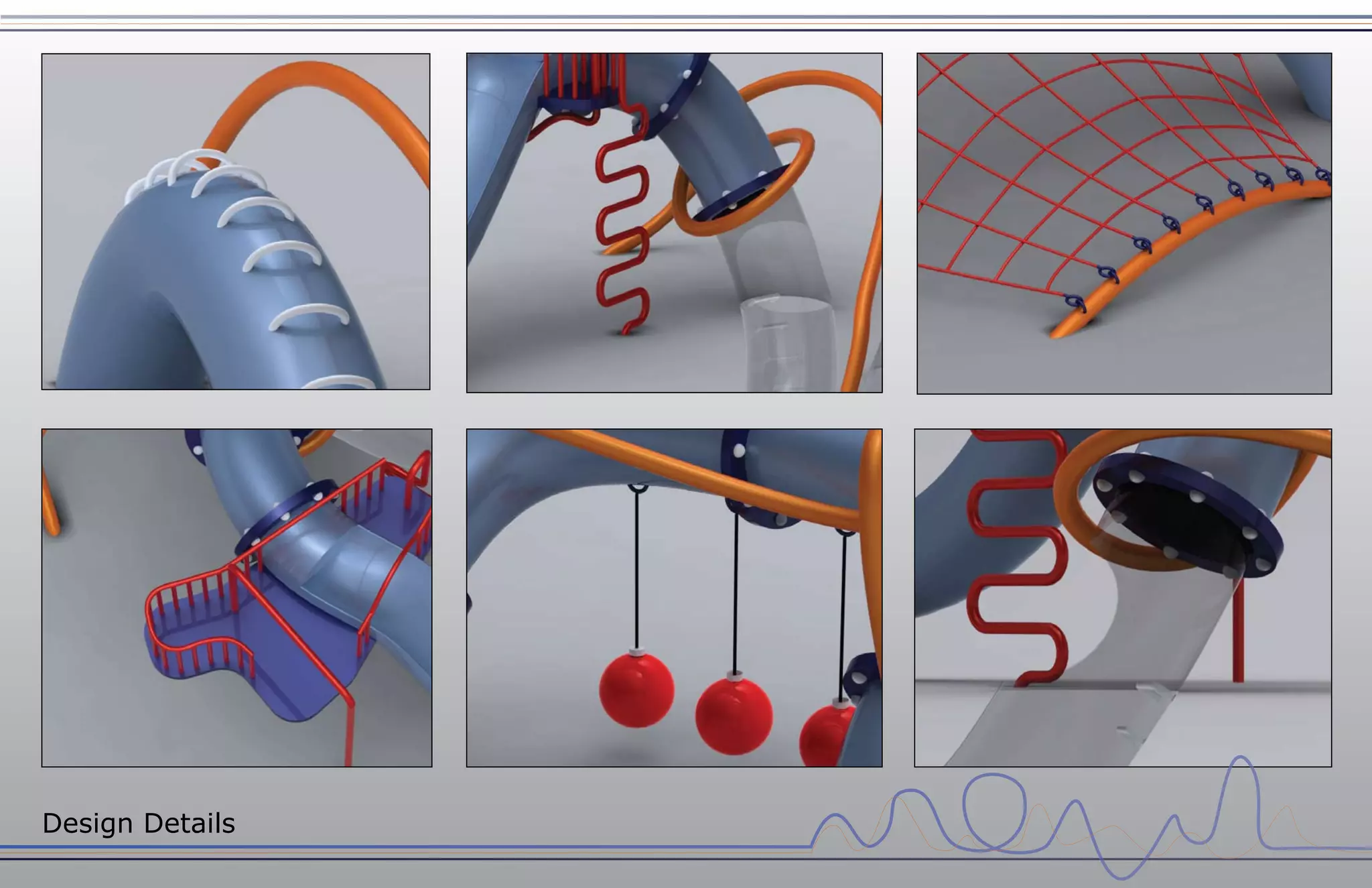

1. Design Details

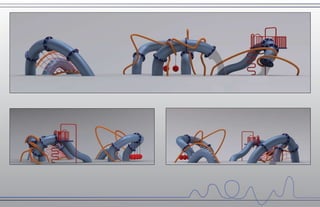

2. Sketches

5. Climbing Swings
Climbing Net Slide :: Crawling
Activities

6. Activities :: Climbing

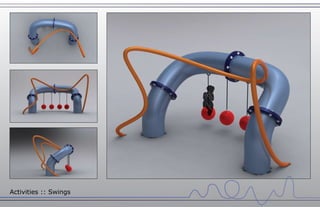

7. Activities :: Swings

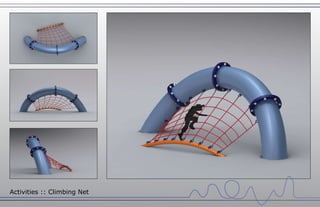

8. Activities :: Climbing Net

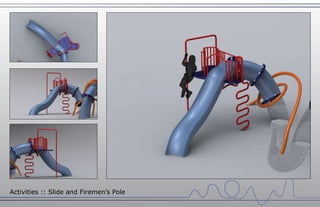

9. Activities :: Slide and Firemen’s Pole

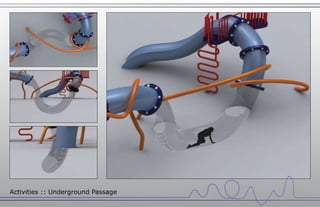

10. Activities :: Underground Passage

11. 36” dia structural tubing, metallic
blue paint
36” dia tempered plastic tubing,
transparent
6” dia structural tubing, metallic
orange paint
3” dia structural tubing, metallic
red paint
2” dia structural tubing, white
metallic paint
(2) 48” dia x 2” thick riveted
flangles,
metallic saphire paint
3” dia rivets, white metallic paint
Materials
