![The StreamIt Project
• Applications
StreamIt Program
– DES and Serpent [PLDI 05]
– MPEG-2 [IPDPS 06]
– SAR, DSP benchmarks, JPEG, …
Front-end
• Programmability
– StreamIt Language (CC 02)
– Teleport Messaging (PPOPP 05)
– Programming Environment in Eclipse (P-PHEC 05)
Annotated Java
• Domain Specific Optimizations
– Linear Analysis and Optimization (PLDI 03)
– Optimizations for bit streaming (PLDI 05)
– Linear State Space Analysis (CASES 05)
Simulator
(Java Library)
Stream-Aware
Optimizations
• Architecture Specific Optimizations
– Compiling for Communication-Exposed
Architectures (ASPLOS 02)
– Phased Scheduling (LCTES 03)
– Cache Aware Optimization (LCTES 05)
– Load-Balanced Rendering
(Graphics Hardware 05)
13
Uniprocessor
backend
Cluster
backend
Raw
backend
IBM X10
backend
C/C++
MPI-like
C/C++
C per tile +
msg code
Streaming
X10 runtime](https://image.slidesharecdn.com/pipeline-20parallelism-131201230909-phpapp01/85/Pipeline-parallelism-13-320.jpg)
![Model of Computation
• Synchronous Dataflow [Lee ‘92]
A/D
– Graph of autonomous filters
– Communicate via FIFO channels
Band Pass
• Static I/O rates
– Compiler decides on an order
of execution (schedule)
Detect
– Static estimation of
computation
LED
14
Duplicate
Detect
Detect
Detect
LED
LED
LED](https://image.slidesharecdn.com/pipeline-20parallelism-131201230909-phpapp01/85/Pipeline-parallelism-14-320.jpg)
![Example StreamIt Filter
0
1
2
3
4
5
6
7
8
9 10 11
FIR
0
1
output
float→float filter FIR (int N, float[N] weights) {
work push 1 pop 1 peek N {
float result = 0;
Stateless
for (int i = 0; i < N; i++) {
result += weights[i] ∗ peek(i);
}
pop();
push(result);
}
}
15
input](https://image.slidesharecdn.com/pipeline-20parallelism-131201230909-phpapp01/85/Pipeline-parallelism-15-320.jpg)
![Example StreamIt Filter
0
1
2
3
4
5
6
7
8
9 10 11
FIR
0
1
output
float→float filter FIR (int N, float[N] weights) {
N) {
;
Stateful
work push 1 pop 1 peek N {
float result = 0;
weights = adaptChannel(weights);
for (int i = 0; i < N; i++) {
result += weights[i] ∗ peek(i);
}
pop();
push(result);
}
}
16
input](https://image.slidesharecdn.com/pipeline-20parallelism-131201230909-phpapp01/85/Pipeline-parallelism-16-320.jpg)
![Related Work
• Streaming languages:
– Brook [Buck et al. ’04]
– StreamC/KernelC [Kapasi ’03, Das et al. ’06]
– Cg [Mark et al. ‘03]
– SPUR [Zhang et al. ‘05]
• Streaming for Multicores:
– Brook [Liao et al., ’06]
• Ptolemy [Lee ’95]
• Explicit parallelism:
– OpenMP, MPI, & HPF
38](https://image.slidesharecdn.com/pipeline-20parallelism-131201230909-phpapp01/85/Pipeline-parallelism-38-320.jpg)
Uploaded byDr. C.V. Suresh Babu
Pipeline parallelism
The document discusses mapping streaming applications to multicore architectures. It proposes a 3-phase approach: 1) Coarsen the stream graph by fusing stateless pipelines to reduce communication and expose optimization opportunities. 2) Data parallelize stateless filters to occupy all cores while preserving task parallelism. 3) Software pipeline stateful filters to exploit pipeline parallelism. Evaluation shows the coarse-grained approach achieves good parallelism with low synchronization overhead.
More Related Content
More from Dr. C.V. Suresh Babu
Pipeline parallelism
- 1. Exploiting Coarse-Grained Task, Data,and Pipeline Parallelism in Stream Programs Dr. C.V. Suresh Babu 1

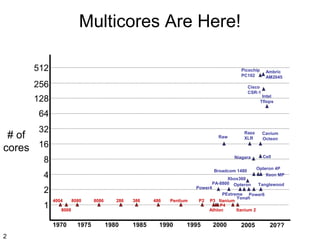

- 2. Multicores Are Here! 512 Picochip PC102 256 Ambric AM2045 Cisco CSR-1 128 Intel Tflops 64 32 #of cores 16 Raw 8 Niagara Broadcom 1480 4 2 1 4004 8080 8086 286 386 486 Pentium 8008 1970 2 Raza XLR 1975 1980 1985 1990 Cavium Octeon Cell Opteron 4P Xeon MP Xbox360 PA-8800 Opteron Tanglewood Power4 PExtreme Power6 Yonah P2 P3 Itanium P4 Athlon Itanium 2 1995 2000 2005 20??
- 3. Multicores Are Here! 512 256 128 64 32 #of cores 16 8 4 For uniprocessors, Uniprocessors: C was: C •is the common Portable machine language •High Performance •Composable •Malleable •Maintainable Picochip PC102 Cisco CSR-1 Intel Tflops Raw 1 8086 286 386 486 Broadcom 1480 Pentium 8008 1970 3 8080 1975 1980 1985 1990 Raza XLR Niagara 2 4004 Ambric AM2045 Cavium Octeon Cell Opteron 4P Xeon MP Xbox360 PA-8800 Opteron Tanglewood Power4 PExtreme Power6 Yonah P2 P3 Itanium P4 Athlon Itanium 2 1995 2000 2005 20??

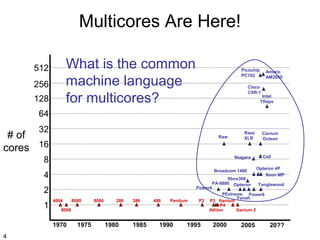

- 4. Multicores Are Here! Whatis the common machine language for multicores? 512 256 128 Picochip PC102 Ambric AM2045 Cisco CSR-1 Intel Tflops 64 32 # of cores 16 Raw 8 Niagara Broadcom 1480 4 2 1 4004 8080 8086 286 386 486 Pentium 8008 1970 4 Raza XLR 1975 1980 1985 1990 Cavium Octeon Cell Opteron 4P Xeon MP Xbox360 PA-8800 Opteron Tanglewood Power4 PExtreme Power6 Yonah P2 P3 Itanium P4 Athlon Itanium 2 1995 2000 2005 20??

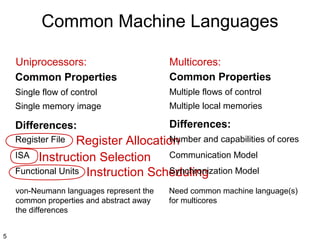

- 5. Common Machine Languages Uniprocessors: CommonProperties Multicores: Common Properties Single flow of control Multiple flows of control Single memory image Multiple local memories Differences: Differences: Number and capabilities of cores Register Allocation Communication Model ISA Instruction Selection Synchronization Model Functional Units Instruction Scheduling Register File von-Neumann languages represent the common properties and abstract away the differences 5 Need common machine language(s) for multicores

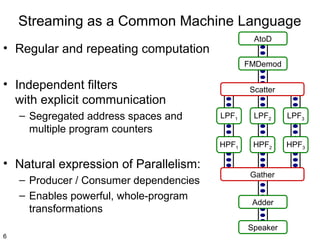

- 6. Streaming as aCommon Machine Language AtoD • Regular and repeating computation FMDemod • Independent filters with explicit communication – Segregated address spaces and multiple program counters Scatter – Producer / Consumer dependencies – Enables powerful, whole-program transformations LPF2 LPF3 HPF1 • Natural expression of Parallelism: LPF1 HPF2 HPF3 Gather Adder Speaker 6
- 7. Types of Parallelism TaskParallelism – Parallelism explicit in algorithm – Between filters without producer/consumer relationship Scatter Gather 7 Task Data Parallelism – Peel iterations of filter, place within scatter/gather pair (fission) – parallelize filters with state Pipeline Parallelism – Between producers and consumers – Stateful filters can be parallelized
- 8. Types of Parallelism TaskParallelism – Parallelism explicit in algorithm Data Parallel – Between filters without Gather producer/consumer relationship Scatter Pipeline Scatter Gather Data 8 Task Data Parallelism – Between iterations of a stateless filter – Place within scatter/gather pair (fission) – Can’t parallelize filters with state Pipeline Parallelism – Between producers and consumers – Stateful filters can be parallelized

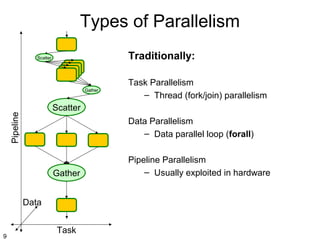

- 9. Types of Parallelism Traditionally: Scatter Gather Pipeline Scatter DataParallelism – Data parallel loop (forall) Gather Data 9 Task Parallelism – Thread (fork/join) parallelism Task Pipeline Parallelism – Usually exploited in hardware
- 10. Problem Statement Given: – Streamgraph with compute and communication estimate for each filter – Computation and communication resources of the target machine Find: – Schedule of execution for the filters that best utilizes the available parallelism to fit the machine resources 10
- 11. Our 3-Phase Solution Coarsen Granularity Data Parallelize Software Pipeline 1.Coarsen: Fuse stateless sections of the graph 2. Data Parallelize: parallelize stateless filters 3. Software Pipeline: parallelize stateful filters Compile to a 16 core architecture – 11 11.2x mean throughput speedup over single core

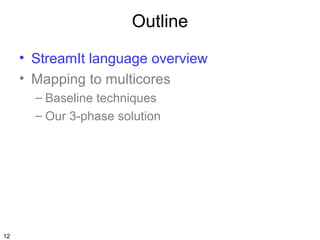

- 12. Outline • StreamIt languageoverview • Mapping to multicores – Baseline techniques – Our 3-phase solution 12
- 13. The StreamIt Project •Applications StreamIt Program – DES and Serpent [PLDI 05] – MPEG-2 [IPDPS 06] – SAR, DSP benchmarks, JPEG, … Front-end • Programmability – StreamIt Language (CC 02) – Teleport Messaging (PPOPP 05) – Programming Environment in Eclipse (P-PHEC 05) Annotated Java • Domain Specific Optimizations – Linear Analysis and Optimization (PLDI 03) – Optimizations for bit streaming (PLDI 05) – Linear State Space Analysis (CASES 05) Simulator (Java Library) Stream-Aware Optimizations • Architecture Specific Optimizations – Compiling for Communication-Exposed Architectures (ASPLOS 02) – Phased Scheduling (LCTES 03) – Cache Aware Optimization (LCTES 05) – Load-Balanced Rendering (Graphics Hardware 05) 13 Uniprocessor backend Cluster backend Raw backend IBM X10 backend C/C++ MPI-like C/C++ C per tile + msg code Streaming X10 runtime
- 14. Model of Computation •Synchronous Dataflow [Lee ‘92] A/D – Graph of autonomous filters – Communicate via FIFO channels Band Pass • Static I/O rates – Compiler decides on an order of execution (schedule) Detect – Static estimation of computation LED 14 Duplicate Detect Detect Detect LED LED LED

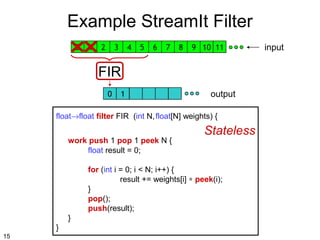

- 15. Example StreamIt Filter 0 1 2 3 4 5 6 7 8 910 11 FIR 0 1 output float→float filter FIR (int N, float[N] weights) { work push 1 pop 1 peek N { float result = 0; Stateless for (int i = 0; i < N; i++) { result += weights[i] ∗ peek(i); } pop(); push(result); } } 15 input
- 16. Example StreamIt Filter 0 1 2 3 4 5 6 7 8 910 11 FIR 0 1 output float→float filter FIR (int N, float[N] weights) { N) { ; Stateful work push 1 pop 1 peek N { float result = 0; weights = adaptChannel(weights); for (int i = 0; i < N; i++) { result += weights[i] ∗ peek(i); } pop(); push(result); } } 16 input
- 17. StreamIt Language Overview •StreamIt is a novel language for streaming – Exposes parallelism and communication – Architecture independent – Modular and composable – Simple structures composed to creates complex graphs filter pipeline may be any StreamIt language construct splitjoin splitter parallel computation joiner – Malleable – Change program behavior with small modifications feedback loop joiner 17 splitter

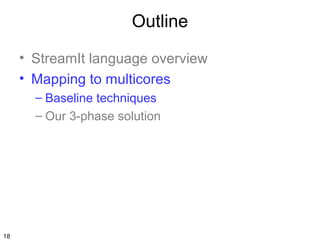

- 18. Outline • StreamIt languageoverview • Mapping to multicores – Baseline techniques – Our 3-phase solution 18

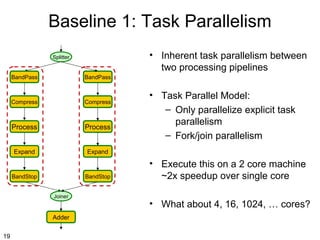

- 19. Baseline 1: TaskParallelism • Inherent task parallelism between two processing pipelines Splitter BandPass BandPass Compress Compress Process Process Expand Expand BandStop BandStop Joiner Adder 19 • Task Parallel Model: – Only parallelize explicit task parallelism – Fork/join parallelism • Execute this on a 2 core machine ~2x speedup over single core • What about 4, 16, 1024, … cores?

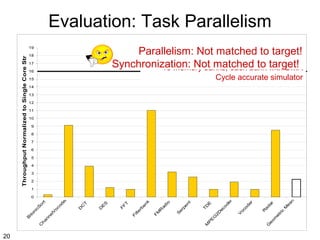

- 20. Throughput Normalized toSingle Core StreamIt Evaluation: Task Parallelism Raw Microprocessor Parallelism: Not matched to target! 16 inorder, single-issue cores with D$ and I$ Synchronization: Not matched to with DMA 16 memory banks, each bank target! 19 18 17 16 Cycle accurate simulator 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 20 n M ea da r m et ric R a G eo er oc od V od er G 2D ec T D E P E M t S er pe n F M R ad i o k er ba n F ilt T F F D E S T D C oc lV nn e C ha B it o ni cS or t od e r 0

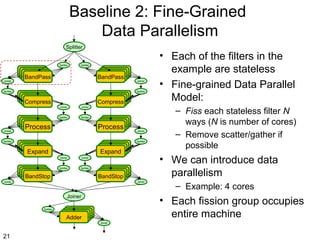

- 21. Baseline 2: Fine-Grained DataParallelism Splitter Splitter Joiner Splitter BandPass BandPass BandPass BandPass BandPass BandPass BandPass BandPass Splitter Splitter Compress Compress Compress Compress Compress Compress Compress Compress Joiner Joiner Splitter Process Process Process Process Joiner Splitter Splitter Expand Expand Expand Expand BandStop BandStop BandStop BandStop Process Process Process Process Expand Expand Expand Expand Joiner Splitter Splitter Joiner Splitter BandStop BandStop BandStop BandStop Joiner Joiner Splitter – Fiss each stateless filter N ways (N is number of cores) – Remove scatter/gather if possible • We can introduce data parallelism Joiner Joiner – Example: 4 cores • Each fission group occupies entire machine BandStop BandStop BandStop Adder Adder Joiner 21 Joiner • Each of the filters in the example are stateless • Fine-grained Data Parallel Model:
- 22. 22 G E et ri c ea n ad ar M R Vo co de r G 2D ec od er eo m PE TD Se rp en t ad io 16 R an k Task Fine-Grained Data FM T ES C FF T D D 17 Vo co de r or t 18 Fi lte rb ha nn el ThroughputNormalized to Single Core StreamIt 19 M C Bi to ni cS Evaluation: Fine-Grained Data Parallelism Good Parallelism! Too Much Synchronization! 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

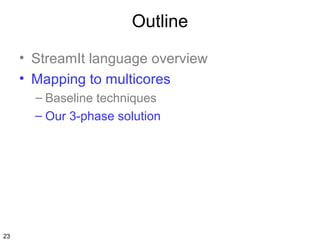

- 23. Outline • StreamIt languageoverview • Mapping to multicores – Baseline techniques – Our 3-phase solution 23

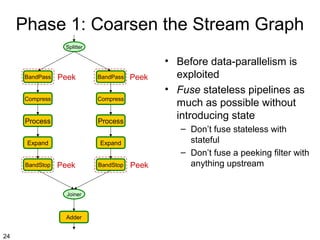

- 24. Phase 1: Coarsenthe Stream Graph Splitter BandPass Peek BandPass Compress Compress Process Process Expand Expand BandStop Peek Joiner Adder 24 Peek BandStop Peek • Before data-parallelism is exploited • Fuse stateless pipelines as much as possible without introducing state – Don’t fuse stateless with stateful – Don’t fuse a peeking filter with anything upstream

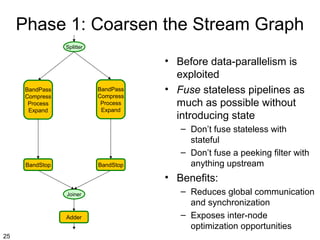

- 25. Phase 1: Coarsenthe Stream Graph Splitter BandPass Compress Process Expand BandPass Compress Process Expand BandStop BandStop • Before data-parallelism is exploited • Fuse stateless pipelines as much as possible without introducing state – Don’t fuse stateless with stateful – Don’t fuse a peeking filter with anything upstream • Benefits: Joiner Adder 25 – Reduces global communication and synchronization – Exposes inter-node optimization opportunities
- 26. Phase 2: DataParallelize Data Parallelize for 4 cores Splitter BandPass Compress Process Expand BandPass Compress Process Expand BandStop BandStop Joiner Adder Adder Adder Adder Joiner 26 Splitter Fiss 4 ways, to occupy entire chip
- 27. Phase 2: DataParallelize Data Parallelize for 4 cores Splitter Splitter Splitter BandPass BandPass Compress Compress Process Process Expand Expand BandPass BandPass Compress Compress Process Process Expand Expand Joiner Joiner BandStop BandStop Joiner Adder Adder Adder Adder Joiner 27 Splitter Task parallelism! Each fused filter does equal work Fiss each filter 2 times to occupy entire chip

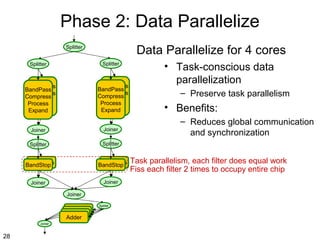

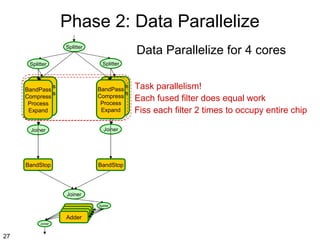

- 28. Phase 2: DataParallelize Data Parallelize for 4 cores Splitter Splitter Splitter BandPass BandPass Compress Compress Process Process Expand Expand BandPass BandPass Compress Compress Process Process Expand Expand Joiner Joiner Splitter – Preserve task parallelism • Benefits: – Reduces global communication and synchronization Splitter BandStop BandStop BandStop BandStop Joiner Joiner Joiner Adder Adder Adder Adder Joiner 28 • Task-conscious data parallelization Splitter Task parallelism, each filter does equal work Fiss each filter 2 times to occupy entire chip

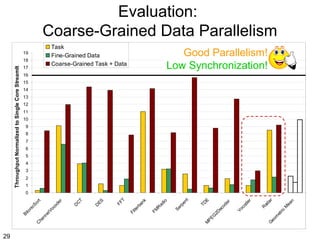

- 29. Evaluation: Coarse-Grained Data Parallelism Task Fine-GrainedData Coarse-Grained Task + Data 19 Throughput Normalized to Single Core StreamIt 18 17 Good Parallelism! Low Synchronization! 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 29 n r M ea ad a G eo m et ri c R r co de Vo r ec od e EG 2D TD E M P t rp en Se ad io FM R rb an k Fi l te T FF ES D CT D er lV oc od ha nn e C Bi to ni c So rt 0

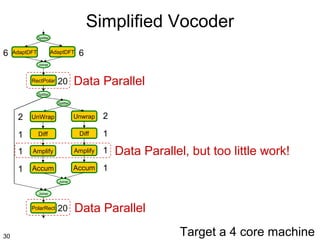

- 30. Simplified Vocoder Splitter 6 AdaptDFT AdaptDFT 6 Joiner RectPolar 20 Data Parallel Splitter Splitter 2 UnWrap Unwrap 2 1 Diff Diff 1 1 Amplify Amplify 1 1 Accum Accum 1 DataParallel, but too little work! Joiner Joiner PolarRect 30 20 Data Parallel Target a 4 core machine

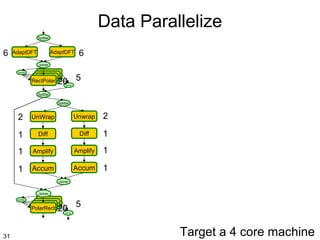

- 31. Data Parallelize Splitter 6 AdaptDFT AdaptDFT 6 Joiner Splitter RectPolar RectPolar RectPolar RectPolar 20 5 Joiner Splitter Splitter 2 UnWrap Unwrap 2 1 Diff Diff 1 1 Amplify Amplify 1 1 Accum Accum 1 Joiner Joiner Splitter RectPolar RectPolar RectPolar PolarRect 205 Joiner 31 Target a 4 core machine

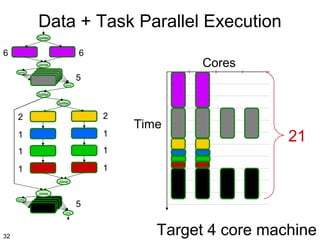

- 32. Data + TaskParallel Execution Splitter 6 6 Cores Joiner Splitter 5 Joiner Splitter Splitter 2 2 1 1 1 1 1 1 Time 21 Joiner Joiner Splitter 5 RectPolar Joiner 32 Target 4 core machine

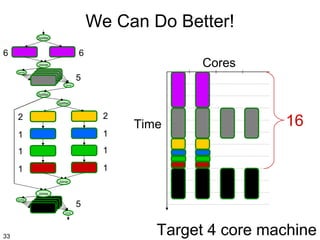

- 33. We Can DoBetter! Splitter 6 6 Cores Joiner Splitter 5 Joiner Splitter Splitter 2 2 1 1 1 1 1 1 Time 16 Joiner Joiner Splitter 5 RectPolar Joiner 33 Target 4 core machine

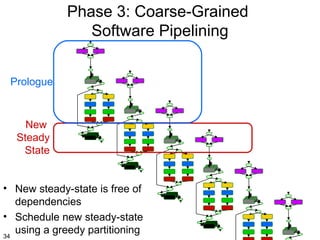

- 34. Phase 3: Coarse-Grained SoftwarePipelining Prologue New Steady State RectPolar RectPolar • New steady-state is free of dependencies • Schedule new steady-state using a greedy partitioning 34 RectPolar RectPolar

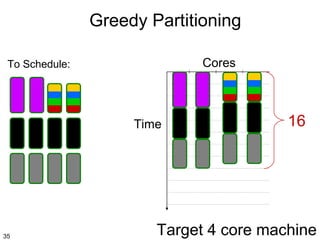

- 35. Greedy Partitioning Cores To Schedule: Time 35 16 Target4 core machine

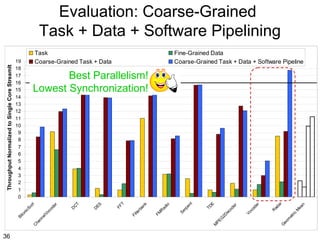

- 36. M ea n ad ar c et ri co de r Vo R G eo m M PE G 2D ec od er TD E rp en t Se ad io FM R rb an k Fi lte T FF ES D CT ha nn el Vo co de r C 36 Fine-Grained Data Coarse-Grained Task+ Data + Software Pipeline Best Parallelism! Lowest Synchronization! D 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 Task Coarse-Grained Task + Data Bi to ni cS or t Throughput Normalized to Single Core StreamIt Evaluation: Coarse-Grained Task + Data + Software Pipelining

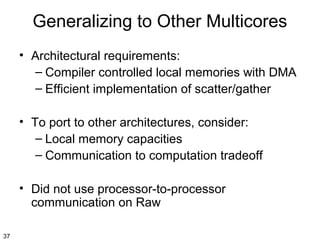

- 37. Generalizing to OtherMulticores • Architectural requirements: – Compiler controlled local memories with DMA – Efficient implementation of scatter/gather • To port to other architectures, consider: – Local memory capacities – Communication to computation tradeoff • Did not use processor-to-processor communication on Raw 37

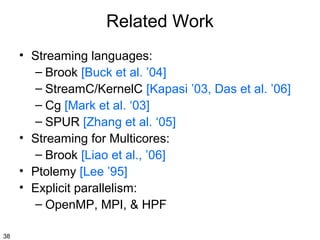

- 38. Related Work • Streaminglanguages: – Brook [Buck et al. ’04] – StreamC/KernelC [Kapasi ’03, Das et al. ’06] – Cg [Mark et al. ‘03] – SPUR [Zhang et al. ‘05] • Streaming for Multicores: – Brook [Liao et al., ’06] • Ptolemy [Lee ’95] • Explicit parallelism: – OpenMP, MPI, & HPF 38

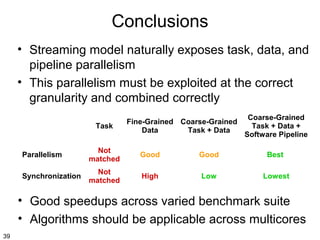

- 39. Conclusions • Streaming modelnaturally exposes task, data, and pipeline parallelism • This parallelism must be exploited at the correct granularity and combined correctly Task Fine-Grained Coarse-Grained Data Task + Data Coarse-Grained Task + Data + Software Pipeline Parallelism Not matched Good Good Best Synchronization Not matched High Low Lowest • Good speedups across varied benchmark suite • Algorithms should be applicable across multicores 39
