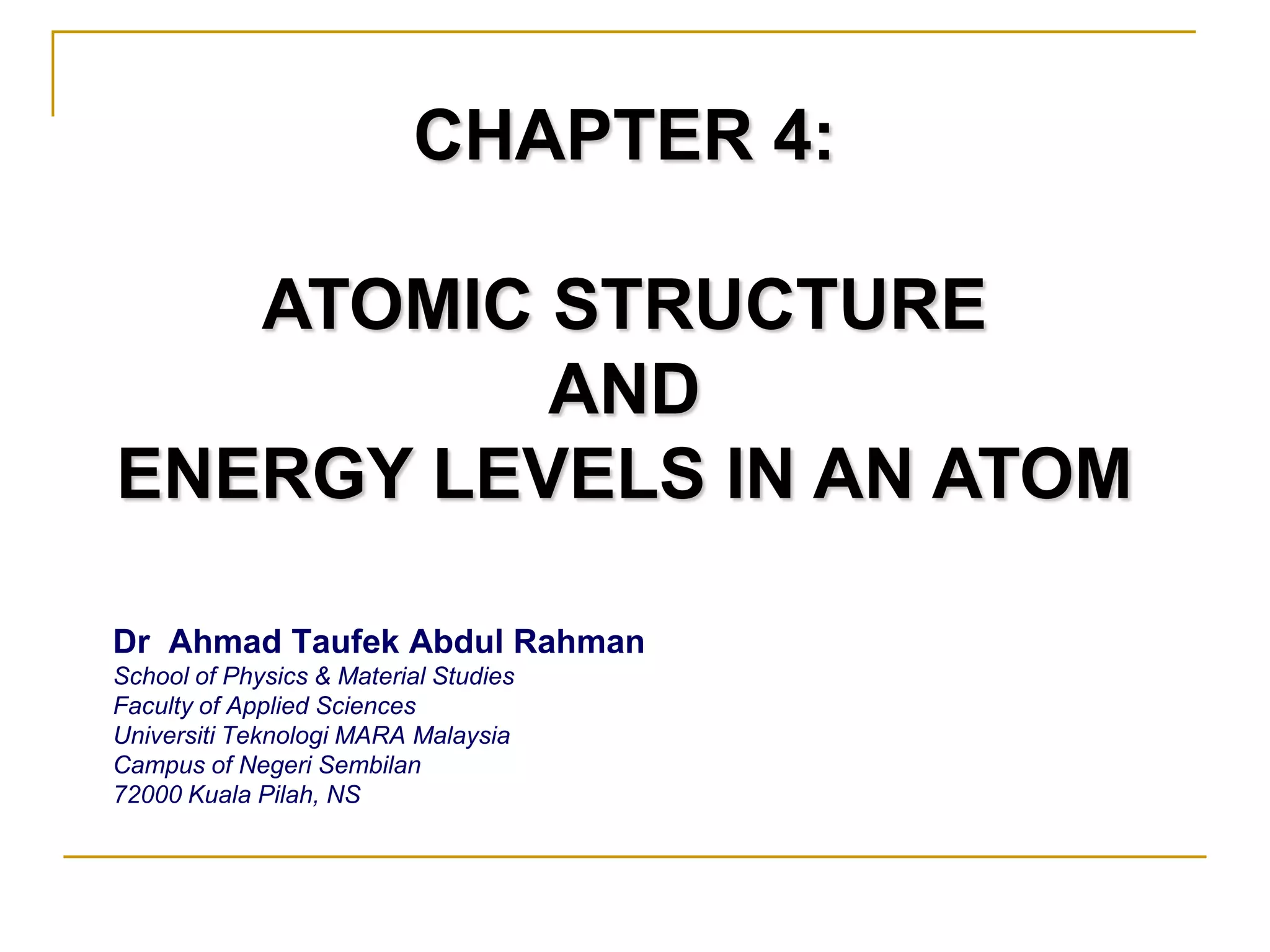

1. CHAPTER 4:
ATOMIC STRUCTURE
AND
ENERGY LEVELS IN AN ATOM
Dr Ahmad Taufek Abdul Rahman
School of Physics & Material Studies
Faculty of Applied Sciences
Universiti Teknologi MARA Malaysia
Campus of Negeri Sembilan
72000 Kuala Pilah, NS

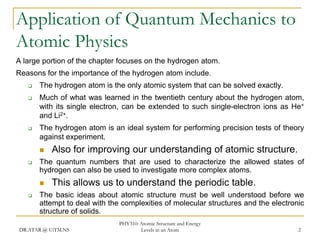

2. Application of Quantum Mechanics to
Atomic Physics
A large portion of the chapter focuses on the hydrogen atom.
Reasons for the importance of the hydrogen atom include.

The hydrogen atom is the only atomic system that can be solved exactly.

Much of what was learned in the twentieth century about the hydrogen atom,
with its single electron, can be extended to such single-electron ions as He+
and Li2+.

The hydrogen atom is an ideal system for performing precision tests of theory
against experiment.


The quantum numbers that are used to characterize the allowed states of
hydrogen can also be used to investigate more complex atoms.


Also for improving our understanding of atomic structure.
This allows us to understand the periodic table.
The basic ideas about atomic structure must be well understood before we
attempt to deal with the complexities of molecular structures and the electronic
structure of solids.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
2

3. Other Ideas in Atomic Physics
The full mathematical solution of the Schrödinger equation applied to the hydrogen
atom gives a complete and beautiful description of the atom’s properties.
Quantum numbers are used to characterize various allowed states in the atom.
The quantum numbers have physical significance.
Certain quantum states are affected by a magnetic field.
The exclusion principle is important for understanding the properties of multielectron
atoms and the arrangement of the elements in the periodic table.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
3

4. Atomic Spectra
All objects emit thermal radiation characterized by a continuous distribution of
wavelengths.
A discrete line spectrum is observed when a low-pressure gas is subjected to an
electric discharge.
Observation and analysis of these spectral lines is called emission spectroscopy.
The simplest line spectrum is that for atomic hydrogen.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
4

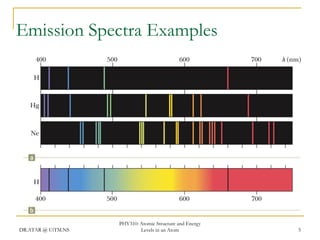

5. Emission Spectra Examples
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
5

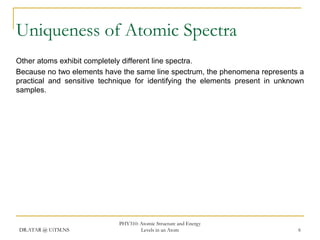

6. Uniqueness of Atomic Spectra
Other atoms exhibit completely different line spectra.
Because no two elements have the same line spectrum, the phenomena represents a
practical and sensitive technique for identifying the elements present in unknown
samples.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
6

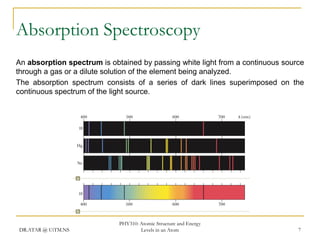

7. Absorption Spectroscopy
An absorption spectrum is obtained by passing white light from a continuous source
through a gas or a dilute solution of the element being analyzed.
The absorption spectrum consists of a series of dark lines superimposed on the
continuous spectrum of the light source.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
7

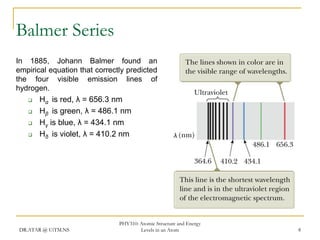

8. Balmer Series
In 1885, Johann Balmer found an
empirical equation that correctly predicted
the four visible emission lines of
hydrogen.




Hα is red, λ = 656.3 nm
Hβ is green, λ = 486.1 nm
Hγ is blue, λ = 434.1 nm
Hδ is violet, λ = 410.2 nm
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
8

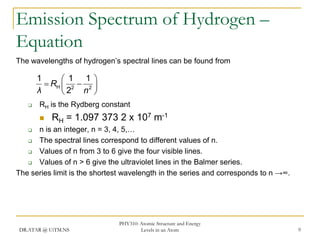

9. Emission Spectrum of Hydrogen –
Equation
The wavelengths of hydrogen’s spectral lines can be found from
1
 1 1
 RH  2  2 
λ
2 n 

RH is the Rydberg constant

RH = 1.097 373 2 x 107 m-1
n is an integer, n = 3, 4, 5,…

The spectral lines correspond to different values of n.

Values of n from 3 to 6 give the four visible lines.

Values of n > 6 give the ultraviolet lines in the Balmer series.
The series limit is the shortest wavelength in the series and corresponds to n →∞.

DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
9

10. Other Hydrogen Series
Other series were also discovered and their wavelengths can be calculated:
Lyman series:
1
1

Paschen series:
Brackett series:
 RH  1  2  n  2, 3, 4,
λ
 n 
1
 1 1
 RH  2  2  n  4, 5, 6,
λ
3 n 
1
 1 1
 RH  2  2  n  5, 6, 7,
λ
4 n 
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
10

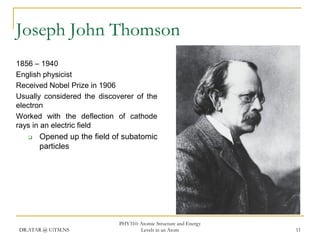

11. Joseph John Thomson
1856 – 1940
English physicist
Received Nobel Prize in 1906
Usually considered the discoverer of the
electron
Worked with the deflection of cathode
rays in an electric field

Opened up the field of subatomic
particles
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
11

12. Early Models of the Atom,
Thomson’s
J. J. Thomson established the charge to
mass ratio for electrons.
His model of the atom



A volume of positive charge
Electrons embedded throughout
the volume
The atom as a whole would be
electrically neutral.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
12

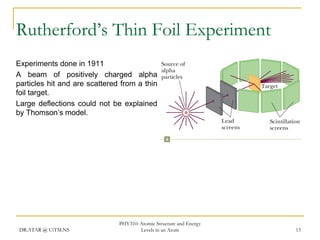

13. Rutherford’s Thin Foil Experiment
Experiments done in 1911
A beam of positively charged alpha
particles hit and are scattered from a thin
foil target.
Large deflections could not be explained
by Thomson’s model.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
13

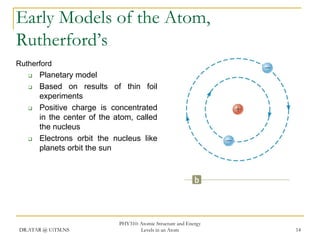

14. Early Models of the Atom,
Rutherford’s
Rutherford




Planetary model
Based on results of thin foil
experiments
Positive charge is concentrated
in the center of the atom, called
the nucleus
Electrons orbit the nucleus like
planets orbit the sun
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
14

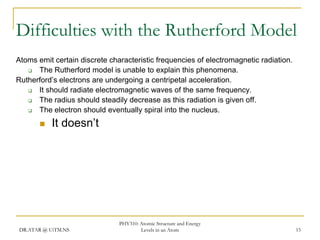

15. Difficulties with the Rutherford Model
Atoms emit certain discrete characteristic frequencies of electromagnetic radiation.

The Rutherford model is unable to explain this phenomena.
Rutherford’s electrons are undergoing a centripetal acceleration.

It should radiate electromagnetic waves of the same frequency.

The radius should steadily decrease as this radiation is given off.

The electron should eventually spiral into the nucleus.

It doesn’t
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
15

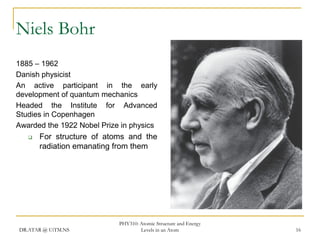

16. Niels Bohr
1885 – 1962
Danish physicist
An active participant in the early
development of quantum mechanics
Headed the Institute for Advanced
Studies in Copenhagen
Awarded the 1922 Nobel Prize in physics

For structure of atoms and the
radiation emanating from them
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
16

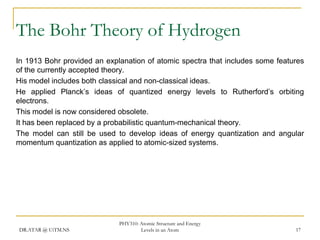

17. The Bohr Theory of Hydrogen
In 1913 Bohr provided an explanation of atomic spectra that includes some features
of the currently accepted theory.
His model includes both classical and non-classical ideas.
He applied Planck’s ideas of quantized energy levels to Rutherford’s orbiting
electrons.
This model is now considered obsolete.
It has been replaced by a probabilistic quantum-mechanical theory.
The model can still be used to develop ideas of energy quantization and angular
momentum quantization as applied to atomic-sized systems.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
17

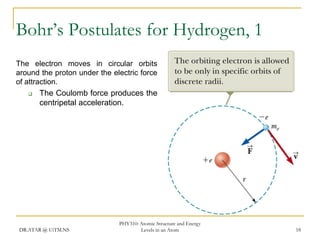

18. Bohr’s Postulates for Hydrogen, 1
The electron moves in circular orbits
around the proton under the electric force
of attraction.

The Coulomb force produces the
centripetal acceleration.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
18

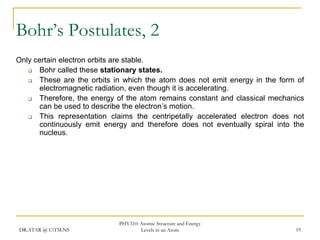

19. Bohr’s Postulates, 2
Only certain electron orbits are stable.

Bohr called these stationary states.

These are the orbits in which the atom does not emit energy in the form of
electromagnetic radiation, even though it is accelerating.

Therefore, the energy of the atom remains constant and classical mechanics
can be used to describe the electron’s motion.

This representation claims the centripetally accelerated electron does not
continuously emit energy and therefore does not eventually spiral into the
nucleus.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
19

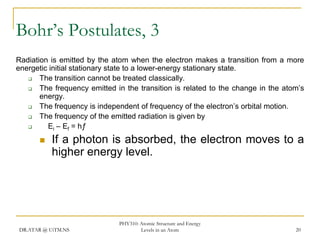

20. Bohr’s Postulates, 3
Radiation is emitted by the atom when the electron makes a transition from a more
energetic initial stationary state to a lower-energy stationary state.

The transition cannot be treated classically.

The frequency emitted in the transition is related to the change in the atom’s
energy.

The frequency is independent of frequency of the electron’s orbital motion.

The frequency of the emitted radiation is given by

Ei – Ef = hƒ

If a photon is absorbed, the electron moves to a
higher energy level.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
20

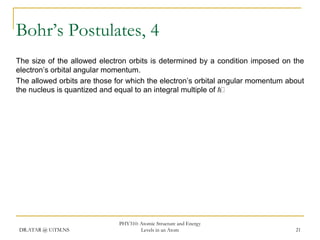

21. Bohr’s Postulates, 4
The size of the allowed electron orbits is determined by a condition imposed on the
electron’s orbital angular momentum.
The allowed orbits are those for which the electron’s orbital angular momentum about
the nucleus is quantized and equal to an integral multiple of h
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
21

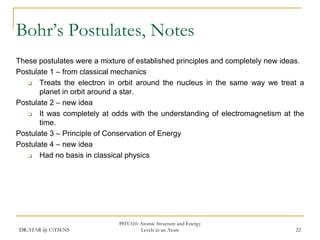

22. Bohr’s Postulates, Notes
These postulates were a mixture of established principles and completely new ideas.
Postulate 1 – from classical mechanics

Treats the electron in orbit around the nucleus in the same way we treat a
planet in orbit around a star.
Postulate 2 – new idea

It was completely at odds with the understanding of electromagnetism at the
time.
Postulate 3 – Principle of Conservation of Energy
Postulate 4 – new idea

Had no basis in classical physics
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
22

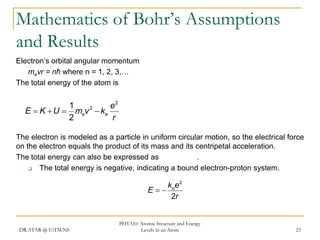

23. Mathematics of Bohr’s Assumptions
and Results
Electron’s orbital angular momentum
mevr = nħ where n = 1, 2, 3,…
The total energy of the atom is
1
e2
2
E  K  U  mev  ke
2
r
The electron is modeled as a particle in uniform circular motion, so the electrical force
on the electron equals the product of its mass and its centripetal acceleration.
The total energy can also be expressed as
.

The total energy is negative, indicating a bound electron-proton system.
k ee 2
E
2r
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
23

24. Bohr Radius
The radii of the Bohr orbits are quantized
n 2 2
rn 
mekee 2


n  1, 2, 3,
This shows that the radii of the allowed orbits have discrete values—they are
quantized.
This result is based on the assumption that the electron can exist only in
certain allowed orbits determined by n (Bohr’s postulate 4).


When n = 1, the orbit has the smallest radius, called the
Bohr radius, ao
ao = 0.052 9 nm
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
24

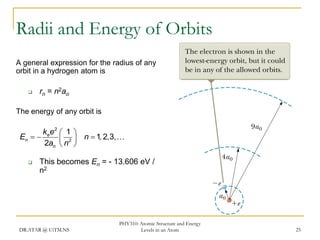

25. Radii and Energy of Orbits
A general expression for the radius of any
orbit in a hydrogen atom is

rn = n2ao
The energy of any orbit is
k ee 2  1 
En  
  n  1, 2,3, 
2ao  n 2 

This becomes En = - 13.606 eV /
n2
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
25

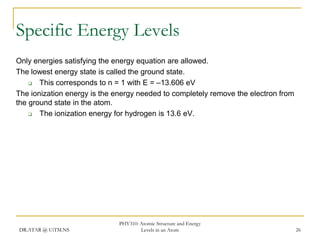

26. Specific Energy Levels
Only energies satisfying the energy equation are allowed.
The lowest energy state is called the ground state.

This corresponds to n = 1 with E = –13.606 eV
The ionization energy is the energy needed to completely remove the electron from
the ground state in the atom.

The ionization energy for hydrogen is 13.6 eV.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
26

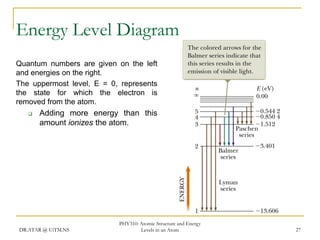

27. Energy Level Diagram
Quantum numbers are given on the left
and energies on the right.
The uppermost level, E = 0, represents
the state for which the electron is
removed from the atom.

Adding more energy than this
amount ionizes the atom.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
27

28. Frequency and Wavelength of Emitted
Photons
The frequency of the photon emitted when the electron makes a transition from an
outer orbit to an inner orbit is
Ei  Ef kee 2  1
1
ƒ

 2  2
h
2aoh  nf ni 
It is convenient to look at the wavelength instead.
The wavelengths are found by
 1 1
1 ƒ kee 2  1 1 
 
 2   RH  2  2 

λ c 2aohc  nf2 ni 
 nf ni 
The value of RH from Bohr’s analysis is in excellent agreement with the experimental
value.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
28

29. Extension to Other Atoms
Bohr extended his model for hydrogen to other elements in which all but one electron
had been removed.
rn   n 2 
ao
Z
k ee 2  Z 2 
En  
 2  n  1, 2, 3,
2ao  n 

Z is the atomic number of the element and is the number of protons in the
nucleus.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
29

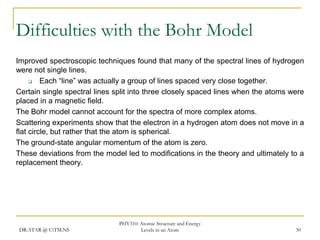

30. Difficulties with the Bohr Model
Improved spectroscopic techniques found that many of the spectral lines of hydrogen
were not single lines.

Each ―line‖ was actually a group of lines spaced very close together.
Certain single spectral lines split into three closely spaced lines when the atoms were
placed in a magnetic field.
The Bohr model cannot account for the spectra of more complex atoms.
Scattering experiments show that the electron in a hydrogen atom does not move in a
flat circle, but rather that the atom is spherical.
The ground-state angular momentum of the atom is zero.
These deviations from the model led to modifications in the theory and ultimately to a
replacement theory.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
30

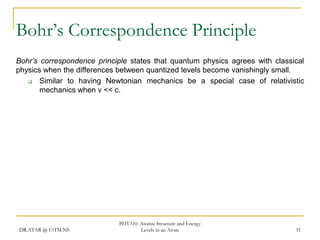

31. Bohr’s Correspondence Principle
Bohr’s correspondence principle states that quantum physics agrees with classical
physics when the differences between quantized levels become vanishingly small.

Similar to having Newtonian mechanics be a special case of relativistic
mechanics when v << c.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
31

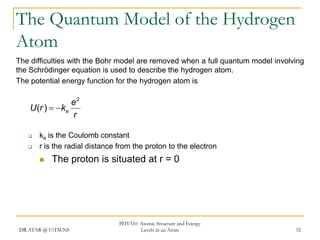

32. The Quantum Model of the Hydrogen
Atom
The difficulties with the Bohr model are removed when a full quantum model involving
the Schrödinger equation is used to describe the hydrogen atom.
The potential energy function for the hydrogen atom is
e2
U (r )  ke
r


ke is the Coulomb constant
r is the radial distance from the proton to the electron

The proton is situated at r = 0
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
32

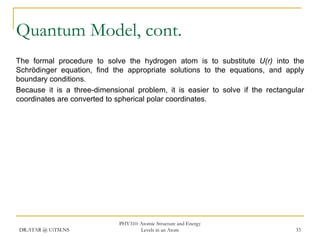

33. Quantum Model, cont.
The formal procedure to solve the hydrogen atom is to substitute U(r) into the
Schrödinger equation, find the appropriate solutions to the equations, and apply
boundary conditions.
Because it is a three-dimensional problem, it is easier to solve if the rectangular
coordinates are converted to spherical polar coordinates.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
33

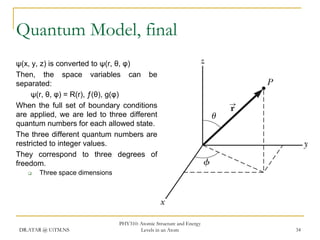

34. Quantum Model, final
ψ(x, y, z) is converted to ψ(r, θ, φ)
Then, the space variables can be
separated:
ψ(r, θ, φ) = R(r), ƒ(θ), g(φ)
When the full set of boundary conditions
are applied, we are led to three different
quantum numbers for each allowed state.
The three different quantum numbers are
restricted to integer values.
They correspond to three degrees of
freedom.

Three space dimensions
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
34

35. Principal Quantum Number
The first quantum number is associated with the radial function R(r).

It is called the principal quantum number.

It is symbolized by n.
The potential energy function depends only on the radial coordinate r.
The energies of the allowed states in the hydrogen atom are the same En values
found from the Bohr theory.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
35

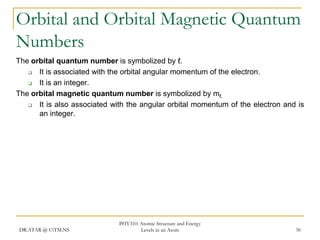

36. Orbital and Orbital Magnetic Quantum
Numbers
The orbital quantum number is symbolized by ℓ.

It is associated with the orbital angular momentum of the electron.

It is an integer.
The orbital magnetic quantum number is symbolized by mℓ.

It is also associated with the angular orbital momentum of the electron and is
an integer.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
36

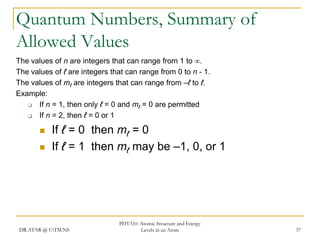

37. Quantum Numbers, Summary of
Allowed Values
The values of n are integers that can range from 1 to 
The values of ℓ are integers that can range from 0 to n - 1.
The values of mℓ are integers that can range from –ℓ to ℓ.
Example:

If n = 1, then only ℓ = 0 and mℓ = 0 are permitted

If n = 2, then ℓ = 0 or 1


If ℓ = 0 then mℓ = 0
If ℓ = 1 then mℓ may be –1, 0, or 1
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
37

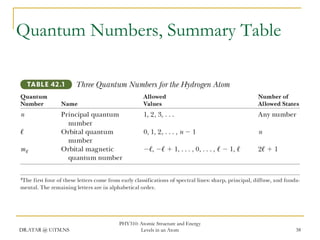

38. Quantum Numbers, Summary Table
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
38

39. Shells
Historically, all states having the same principle quantum number are said to form a
shell.

Shells are identified by letters K, L, M,… for which n = 1, 2, 3, …
All states having the same values of n and ℓ are said to form a subshell.

The letters s, p, d, f, g, h, .. are used to designate the subshells for which ℓ = 0,
1, 2, 3,…
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
39

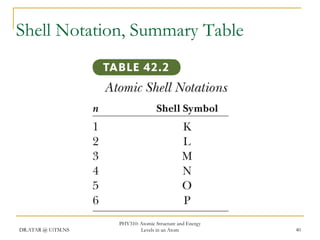

40. Shell Notation, Summary Table
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
40

41. Subshell Notation, Summary Table
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
41

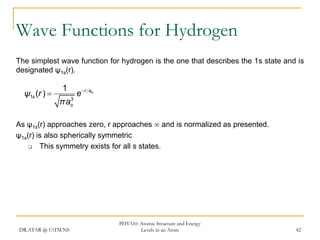

42. Wave Functions for Hydrogen
The simplest wave function for hydrogen is the one that describes the 1s state and is
designated ψ1s(r).
ψ1s (r ) 
1
3
πao
e r ao
As ψ1s(r) approaches zero, r approaches  and is normalized as presented.
ψ1s(r) is also spherically symmetric

This symmetry exists for all s states.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
42

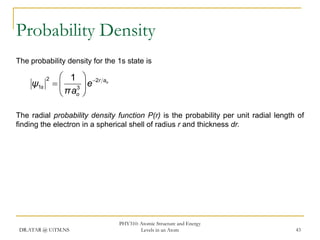

43. Probability Density
The probability density for the 1s state is
ψ1s
2
 1  2r ao
  3 e
 πao 
The radial probability density function P(r) is the probability per unit radial length of
finding the electron in a spherical shell of radius r and thickness dr.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
43

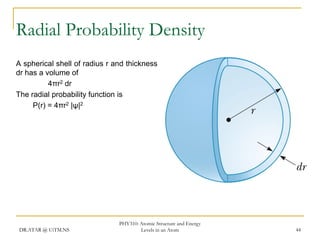

44. Radial Probability Density
A spherical shell of radius r and thickness
dr has a volume of
4πr2 dr
The radial probability function is
P(r) = 4πr2 |ψ|2
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
44

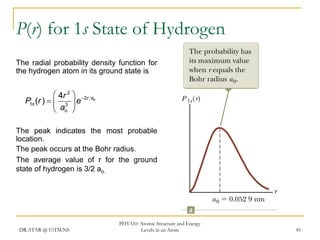

45. P(r) for 1s State of Hydrogen
The radial probability density function for
the hydrogen atom in its ground state is
 4r 2  2r ao
P1s (r )   3  e
 ao 
The peak indicates the most probable
location.
The peak occurs at the Bohr radius.
The average value of r for the ground
state of hydrogen is 3/2 ao.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
45

46. Electron Clouds
According to quantum mechanics, the
atom has no sharply defined boundary as
suggested by the Bohr theory.
The charge of the electron is extended
throughout a diffuse region of space,
commonly called an electron cloud.
This shows the probability density as a
function of position in the xy plane.
The darkest area, r = ao, corresponds to
the most probable region.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
46

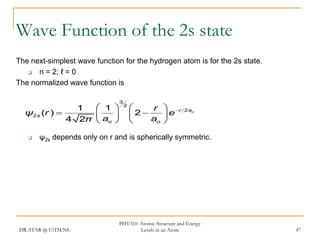

47. Wave Function of the 2s state
The next-simplest wave function for the hydrogen atom is for the 2s state.

n = 2; ℓ = 0
The normalized wave function is
 1 
1
ψ2s (r ) 


4 2π  ao 

3
2

r  r
2

e
ao 

2ao
ψ2s depends only on r and is spherically symmetric.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
47

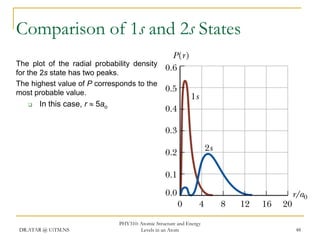

48. Comparison of 1s and 2s States
The plot of the radial probability density
for the 2s state has two peaks.
The highest value of P corresponds to the
most probable value.

In this case, r  5ao
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
48

49. Physical Interpretation of ℓ
The magnitude of the angular momentum of an electron moving in a circle of radius r
is
L = mevr
The direction of the angular momentum vector is perpendicular to the plane of the
circle.

The direction is given by the right hand rule.
In the Bohr model, the angular momentum of the electron is restricted to multiples of
.

This incorrectly predicts that the ground state of hydrogen has one unit of
angular momentum.

If L is taken to be zero in the Bohr model, the electron must be pictured as a
particle oscillating along a straight line through the nucleus.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
49

50. Physical Interpretation
of ℓ, cont.
Quantum mechanics resolves these difficulties found in the Bohr model.
According to quantum mechanics, an atom in a state whose principle quantum
number is n can take on the following discrete values of the magnitude of the orbital
angular momentum:
L      1 


  0,1, 2, , n  1
L can equal zero, which causes great difficulty when attempting to apply
classical mechanics to this system.
In the quantum mechanical representation, the electron cloud for the L = 0
state is spherically symmetric and has no fundamental rotation axis.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
50

51. Physical Interpretation of mℓ
The atom possesses an orbital angular momentum.
There is a sense of rotation of the electron around the nucleus, so that a magnetic
moment is present due to this angular momentum.
There are distinct directions allowed for the magnetic moment vector with respect to
the magnetic field vector .

Because the magnetic moment μ of the atom can be related to the angular

momentum vector, L the discrete direction of the magnetic moment vector translates
,
into the fact that the direction of angular momentum is quantized.
the
Therefore, Lz, the projection of L along the z axis, can have only discrete values.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
51

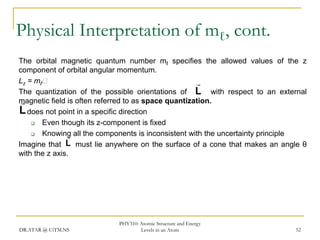

52. Physical Interpretation of mℓ, cont.
The orbital magnetic quantum number mℓ specifies the allowed values of the z
component of orbital angular momentum.
Lz = mℓ

The quantization of the possible orientations of L with respect to an external
magnetic field is often referred to as space quantization.

L does not point in a specific direction

Even though its z-component is fixed

Knowing all the components is inconsistent with the uncertainty principle

Imagine that L must lie anywhere on the surface of a cone that makes an angle θ
with the z axis.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
52

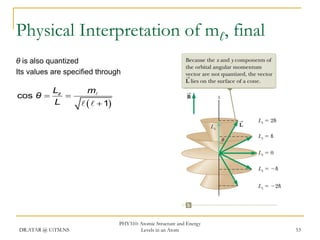

53. Physical Interpretation of mℓ, final
θ is also quantized
Its values are specified through
cos θ 
Lz

L
DR.ATAR @ UiTM.NS
m
    1
PHY310: Atomic Structure and Energy
Levels in an Atom
53

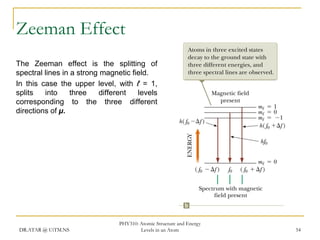

54. Zeeman Effect
The Zeeman effect is the splitting of
spectral lines in a strong magnetic field.
In this case the upper level, with ℓ = 1,
splits
into
three
different
levels
corresponding to the three different
directions of µ.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
54

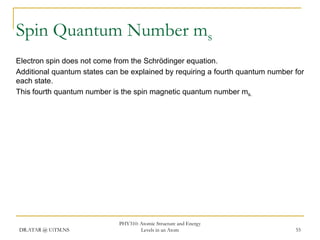

55. Spin Quantum Number ms
Electron spin does not come from the Schrödinger equation.
Additional quantum states can be explained by requiring a fourth quantum number for
each state.
This fourth quantum number is the spin magnetic quantum number ms.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
55

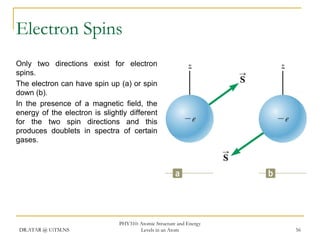

56. Electron Spins
Only two directions exist for electron
spins.
The electron can have spin up (a) or spin
down (b).
In the presence of a magnetic field, the
energy of the electron is slightly different
for the two spin directions and this
produces doublets in spectra of certain
gases.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
56

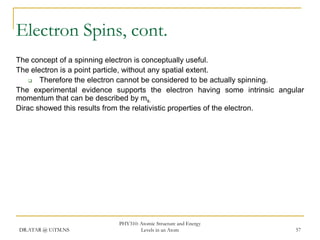

57. Electron Spins, cont.
The concept of a spinning electron is conceptually useful.
The electron is a point particle, without any spatial extent.

Therefore the electron cannot be considered to be actually spinning.
The experimental evidence supports the electron having some intrinsic angular
momentum that can be described by ms.
Dirac showed this results from the relativistic properties of the electron.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
57

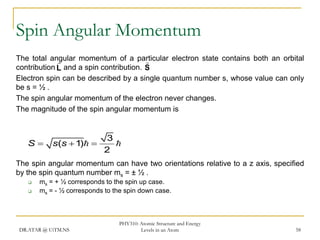

58. Spin Angular Momentum
The total angular momentum of a particular electron state contains both an orbital


contribution L and a spin contribution. S
Electron spin can be described by a single quantum number s, whose value can only
be s = ½ .
The spin angular momentum of the electron never changes.
The magnitude of the spin angular momentum is
S
s(s  1) 
3

2
The spin angular momentum can have two orientations relative to a z axis, specified
by the spin quantum number ms = ± ½ .


ms = + ½ corresponds to the spin up case.
ms = - ½ corresponds to the spin down case.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
58

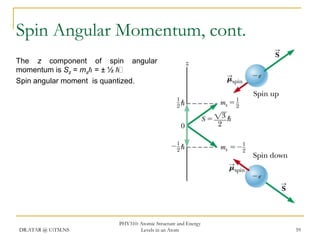

59. Spin Angular Momentum, cont.
The z component of spin angular
momentum is Sz = msh = ± ½ h
Spin angular moment is quantized.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
59

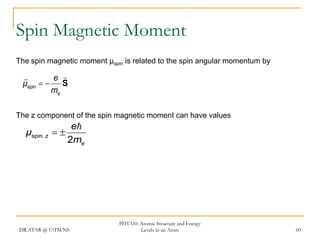

60. Spin Magnetic Moment
The spin magnetic moment µspin is related to the spin angular momentum by

e 
μspin   S
me
The z component of the spin magnetic moment can have values
μspin , z
e

2me
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
60

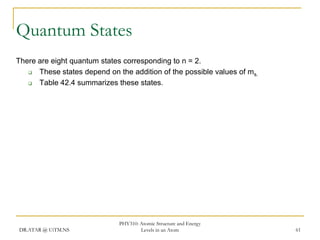

61. Quantum States
There are eight quantum states corresponding to n = 2.

These states depend on the addition of the possible values of ms.

Table 42.4 summarizes these states.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
61

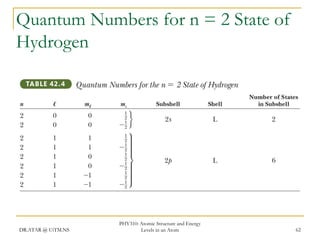

62. Quantum Numbers for n = 2 State of
Hydrogen
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
62

63. Wolfgang Pauli
1900 – 1958
Austrian physicist
Important review article on relativity

At age 21
Discovery of the exclusion principle
Explanation of the connection between
particle spin and statistics
Relativistic quantum electrodynamics
Neutrino hypothesis
Hypotheses of nuclear spin
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
63

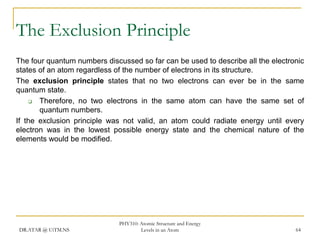

64. The Exclusion Principle
The four quantum numbers discussed so far can be used to describe all the electronic
states of an atom regardless of the number of electrons in its structure.
The exclusion principle states that no two electrons can ever be in the same
quantum state.

Therefore, no two electrons in the same atom can have the same set of
quantum numbers.
If the exclusion principle was not valid, an atom could radiate energy until every
electron was in the lowest possible energy state and the chemical nature of the
elements would be modified.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
64

65. Filling Subshells
The electronic structure of complex atoms can be viewed as a succession of filled
levels increasing in energy.
Once a subshell is filled, the next electron goes into the lowest-energy vacant state.

If the atom were not in the lowest-energy state available to it, it would radiate
energy until it reached this state.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
65

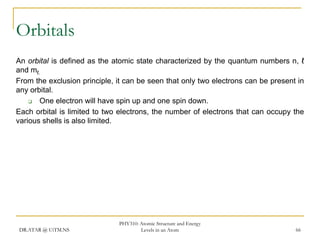

66. Orbitals
An orbital is defined as the atomic state characterized by the quantum numbers n, ℓ
and mℓ.
From the exclusion principle, it can be seen that only two electrons can be present in
any orbital.

One electron will have spin up and one spin down.
Each orbital is limited to two electrons, the number of electrons that can occupy the
various shells is also limited.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
66

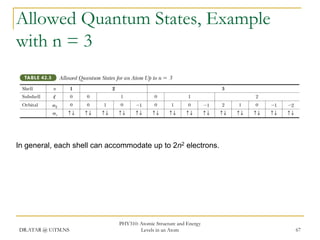

67. Allowed Quantum States, Example
with n = 3
In general, each shell can accommodate up to 2n2 electrons.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
67

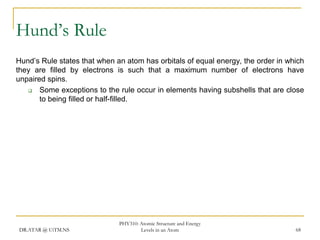

68. Hund’s Rule
Hund’s Rule states that when an atom has orbitals of equal energy, the order in which
they are filled by electrons is such that a maximum number of electrons have
unpaired spins.

Some exceptions to the rule occur in elements having subshells that are close
to being filled or half-filled.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
68

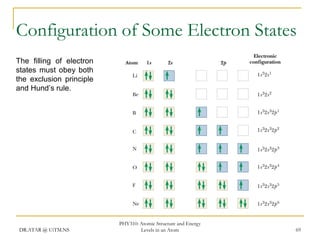

69. Configuration of Some Electron States
The filling of electron
states must obey both
the exclusion principle
and Hund’s rule.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
69

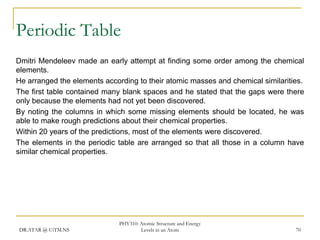

70. Periodic Table
Dmitri Mendeleev made an early attempt at finding some order among the chemical
elements.
He arranged the elements according to their atomic masses and chemical similarities.
The first table contained many blank spaces and he stated that the gaps were there
only because the elements had not yet been discovered.
By noting the columns in which some missing elements should be located, he was
able to make rough predictions about their chemical properties.
Within 20 years of the predictions, most of the elements were discovered.
The elements in the periodic table are arranged so that all those in a column have
similar chemical properties.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
70

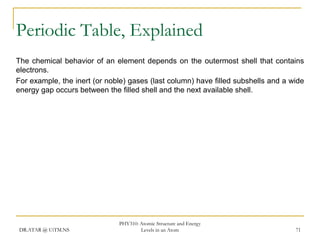

71. Periodic Table, Explained
The chemical behavior of an element depends on the outermost shell that contains
electrons.
For example, the inert (or noble) gases (last column) have filled subshells and a wide
energy gap occurs between the filled shell and the next available shell.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
71

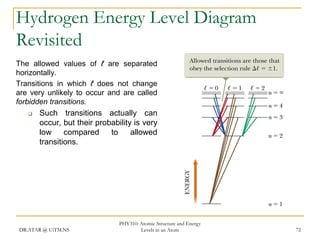

72. Hydrogen Energy Level Diagram
Revisited
The allowed values of ℓ are separated
horizontally.
Transitions in which ℓ does not change
are very unlikely to occur and are called
forbidden transitions.

Such transitions actually can
occur, but their probability is very
low
compared
to
allowed
transitions.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
72

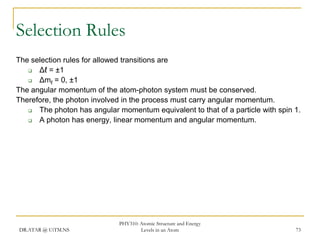

73. Selection Rules
The selection rules for allowed transitions are

Δℓ = ±1

Δmℓ = 0, ±1
The angular momentum of the atom-photon system must be conserved.
Therefore, the photon involved in the process must carry angular momentum.

The photon has angular momentum equivalent to that of a particle with spin 1.

A photon has energy, linear momentum and angular momentum.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
73

74. Multielectron Atoms
For multielectron atoms, the positive nuclear charge Ze is largely shielded by the
negative charge of the inner shell electrons.

The outer electrons interact with a net charge that is smaller than the nuclear
charge.
Allowed energies are
En

2
13.6 eV  Zeff

n2
Zeff depends on n and ℓ
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
74

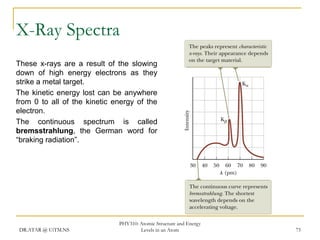

75. X-Ray Spectra
These x-rays are a result of the slowing
down of high energy electrons as they
strike a metal target.
The kinetic energy lost can be anywhere
from 0 to all of the kinetic energy of the
electron.
The continuous spectrum is called
bremsstrahlung, the German word for
―braking radiation‖.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
75

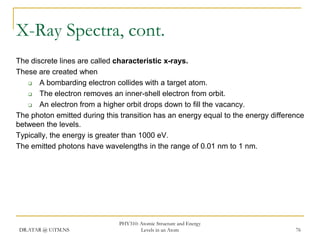

76. X-Ray Spectra, cont.
The discrete lines are called characteristic x-rays.
These are created when

A bombarding electron collides with a target atom.

The electron removes an inner-shell electron from orbit.

An electron from a higher orbit drops down to fill the vacancy.
The photon emitted during this transition has an energy equal to the energy difference
between the levels.
Typically, the energy is greater than 1000 eV.
The emitted photons have wavelengths in the range of 0.01 nm to 1 nm.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
76

77. Moseley Plot
Henry G. J. Moseley plotted the values of
atoms as shown.
λ is the wavelength of the Kα line of each
element.

The Kα line refers to the photon
emitted when an electron falls
from the L to the K shell.
From this plot, Moseley developed a
periodic table in agreement with the one
based on chemical properties.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
77

78. Stimulated Absorption
When a photon has energy hƒ equal to
the difference in energy levels, it can be
absorbed by the atom.
This is called stimulated absorption
because the photon stimulates the atom
to make the upward transition.
At ordinary temperatures, most of the
atoms in a sample are in the ground
state.
The absorption of the photon causes
some of the atoms to be raised to excited
states.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
78

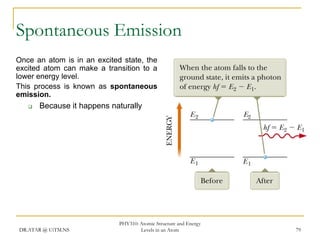

79. Spontaneous Emission
Once an atom is in an excited state, the
excited atom can make a transition to a
lower energy level.
This process is known as spontaneous
emission.

Because it happens naturally
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
79

80. Stimulated Emission
In addition to spontaneous emission,
stimulated emission occurs.
Stimulated emission may occur when the
excited state is a metastable state.
A metastable state is a state whose
lifetime is much longer than the typical 108 s.
An incident photon can cause the atom to
return to the ground state without being
absorbed.
Therefore, you have two photons with
identical energy, the emitted photon and
the incident photon.

They both are in phase and travel in the same
direction.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
80

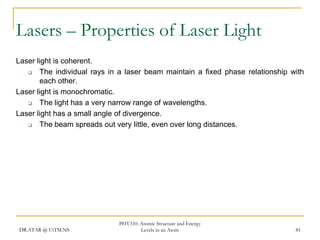

81. Lasers – Properties of Laser Light
Laser light is coherent.

The individual rays in a laser beam maintain a fixed phase relationship with
each other.
Laser light is monochromatic.

The light has a very narrow range of wavelengths.
Laser light has a small angle of divergence.

The beam spreads out very little, even over long distances.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
81

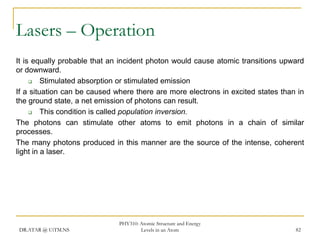

82. Lasers – Operation
It is equally probable that an incident photon would cause atomic transitions upward
or downward.

Stimulated absorption or stimulated emission
If a situation can be caused where there are more electrons in excited states than in
the ground state, a net emission of photons can result.

This condition is called population inversion.
The photons can stimulate other atoms to emit photons in a chain of similar
processes.
The many photons produced in this manner are the source of the intense, coherent
light in a laser.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
82

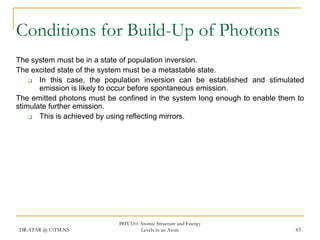

83. Conditions for Build-Up of Photons
The system must be in a state of population inversion.
The excited state of the system must be a metastable state.

In this case, the population inversion can be established and stimulated
emission is likely to occur before spontaneous emission.
The emitted photons must be confined in the system long enough to enable them to
stimulate further emission.

This is achieved by using reflecting mirrors.
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
83

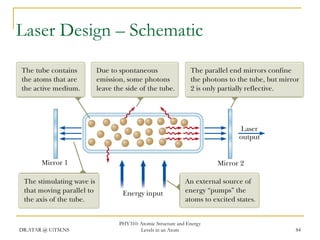

84. Laser Design – Schematic
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
84

85. Energy-Level Diagram for Neon in
a Helium-Neon Laser
The atoms emit 632.8-nm
through stimulated emission.
The transition is E3* to E2

photons
* indicates a metastable state
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
85

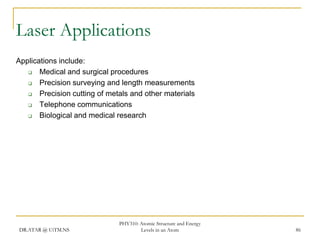

86. Laser Applications
Applications include:

Medical and surgical procedures

Precision surveying and length measurements

Precision cutting of metals and other materials

Telephone communications

Biological and medical research
DR.ATAR @ UiTM.NS
PHY310: Atomic Structure and Energy
Levels in an Atom
86
