Perforated drainage pipe, also called weeping tile, is primarily used for home drainage systems. It is located along the footing and around the inner and outer edge of the home. Weeping tile provides advantages like being lightweight, corrosion resistant, and unaffected by freeze-thaw cycles. However, it can become clogged over time and be difficult to clear. Weeping tile is installed by digging a trench, laying gravel, placing the pipe, and backfilling the trench. Proper compaction of the backfilled soil is important to prevent issues with the drainage system over time.

1. USES AND APPLICATION
• Mainly used for the drainage system
• Primary function is “collection” and “distribution”
• Located along your home’s footing and around its
inner and outer edge
September 27,2022 PERFORATED DRAINAGE PIPE/ WEEPING TILE
1
https://www.therealsealllc.com/wp-content/uploads/2021/10/Types-of-drain-tile-systems-1024x536.jpeg
1

2. A D V A N T A G E S & D I S A D V A N T A G E S
2
September 27,2022 PERFORATED DRAINAGE PIPE/ WEEPING TILE
• Lightweight
• Availability in Wide range of sizes
• Highly chemical and corrosion resistant
providing a long service life
• Unaffected by freeze-thaw cycles
• Corrugated profile
• Weeping tile installation provides you a
moisture-free, clean and dry foundation.
• Clogging
• Harder to clear when clogged
https://www.fixyourwaterybasement.com/weeping-tile/

3. METHODOLOGY
3

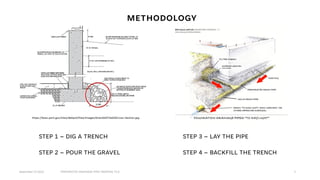

STEP 1 – DIG A TRENCH STEP 3 – LAY THE PIPE
STEP 2 – POUR THE GRAVEL STEP 4 – BACKFILL THE TRENCH
September 27,2022 PERFORATED DRAINAGE PIPE/ WEEPING TILE
https://basc.pnnl.gov/sites/default/files/images/Drain%20Tile%20Cross-Section.jpg

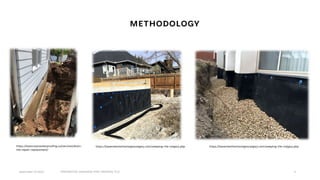

4. METHODOLOGY
4
September 27,2022 PERFORATED DRAINAGE PIPE/ WEEPING TILE
https://basementtechnologiescalgary.com/weeping-tile-calgary.php
https://basementtechnologiescalgary.com/weeping-tile-calgary.php
https://eastcoastwaterproofing.ca/services/drain-
tile-repair-replacement/

5. 5

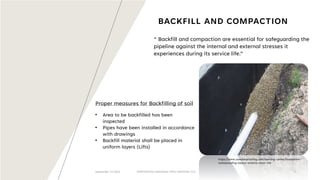

BACKFILL AND COMPACTION
“ Backfill and compaction are essential for safeguarding the
pipeline against the internal and external stresses it
experiences during its service life.”
https://www.uswaterproofing.com/learning-center/foundation-
waterproofing-basics-exterior-drain-tile
• Area to be backfilled has been
inspected
• Pipes have been installed in accordance
with drawings
• Backfill material shall be placed in
uniform layers (Lifts)
Proper measures for Backfilling of soil
September 27,2022 PERFORATED DRAINAGE PIPE/ WEEPING TILE

6. 6

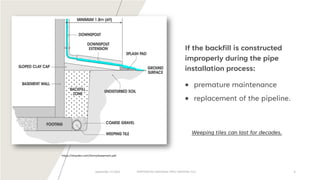

If the backfill is constructed
improperly during the pipe
installation process:
• premature maintenance
• replacement of the pipeline.
https://drayden.com/forms/basement.pdf
Weeping tiles can last for decades.
September 27,2022 PERFORATED DRAINAGE PIPE/ WEEPING TILE

7. PROPER MEASURES FOR COMPACTION OF SOIL
Fill material in trench shall be compacted in layers to a stable
condition.
• Fill materials should carefully compact.
• Maintain optimum moisture content during backfill and
compaction
• Determine the appropriate compactor equipment and
number of passes.
o Type of soil,
o Placement of Water/moisture content
o lift thickness
7
September 27,2022 PERFORATED DRAINAGE PIPE/ WEEPING TILE

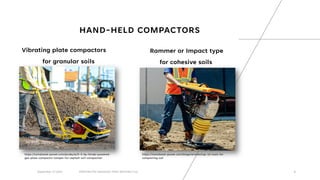

8. HAND-HELD COMPACTORS
Vibrating plate compactors
for granular soils
https://tomahawk-power.com/blogs/articles/top-10-tools-for-
compacting-soil
https://tomahawk-power.com/products/5-5-hp-honda-powered-
gas-plate-compactor-tamper-for-asphalt-soil-compaction
8
September 27,2022 PERFORATED DRAINAGE PIPE/ WEEPING TILE
Rammer or Impact type
for cohesive soils

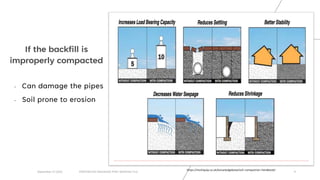

9. • Can damage the pipes
• Soil prone to erosion
If the backfill is
improperly compacted
https://multiquip.co.uk/knowledgebase/soil-compaction-handbook/
9
September 27,2022 PERFORATED DRAINAGE PIPE/ WEEPING TILE

10. LOGISTICS
• The Home Depot
Product Brand: RELN, MOLE-Pipe
• Lowe’s Home Improvement
Product Brand: Big “O”
• Rona Home and Garden
Product Brand: RELN, MOLE-Pipe, Big “O”
• Canadian Tire
Product Brand: MOLE-Pipe
10
September 27,2022 PERFORATED DRAINAGE PIPE/ WEEPING TILE

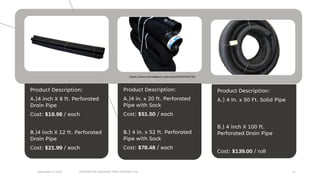

11. Product Description:
A.)4 inch X 8 ft. Perforated
Drain Pipe
Cost: $19.98 / each
B.)4 inch X 12 ft. Perforated
Drain Pipe
Cost: $21.99 / each
Product Description:
A.)4 in. x 20 ft. Perforated
Pipe with Sock
Cost: $51.50 / each
B.) 4 in. x 52 ft. Perforated
Pipe with Sock
Cost: $78.48 / each
Product Description:
A.) 4 In. x 50 Ft. Solid Pipe
B.) 4 inch X 100 ft.
Perforated Drain Pipe
Cost: $139.00 / roll
https://www.homedepot.ca/product/PERFORATED
11
September 27,2022 PERFORATED DRAINAGE PIPE/ WEEPING TILE

12. 12
September 27,2022 PERFORATED DRAINAGE PIPE/ WEEPING TILE

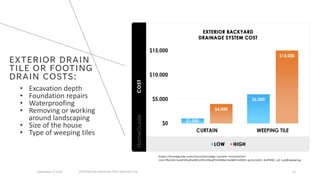

EXTERIOR DRAIN
TILE OR FOOTING
DRAIN COSTS:
https://homeguide.com/costs/drainage-system-installation-
cost?fbclid=IwAR3DyWwM1sZhCU0eqP1Hl0MeLhaMRrtoDDO-qvUxisZk1-bsPMDl_o2-Lyk#weeping
• Excavation depth
• Foundation repairs
• Waterproofing
• Removing or working
around landscaping
• Size of the house
• Type of weeping tiles
