Introduction to .NET
Eng. Mohamed Ebrahim Atia

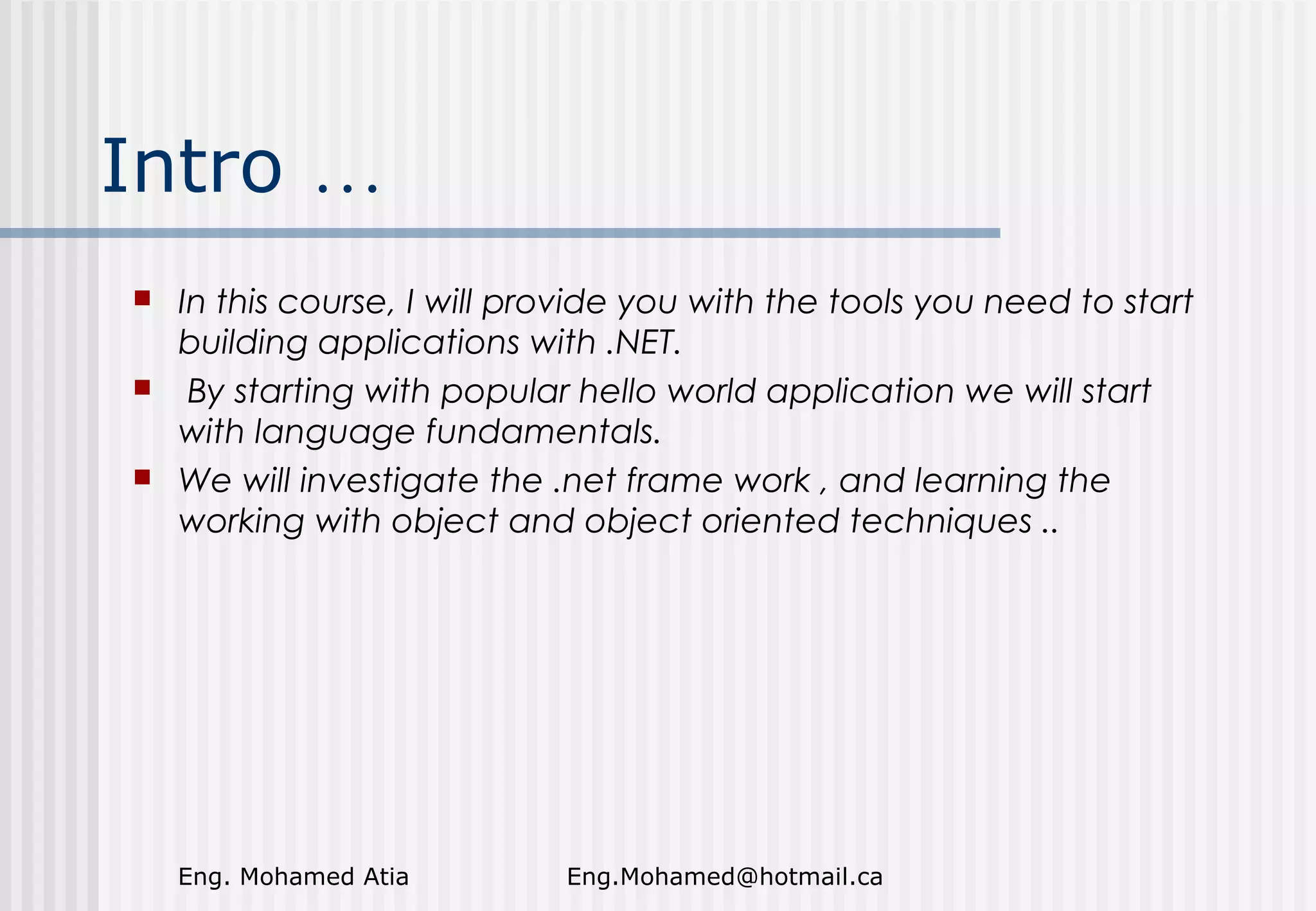

Intro …






In this course, I will provide you with the tools you need to start
building applications with .NET.
By starting with popular hello world application we will start
with language fundamentals.
We will investigate the .net frame work , and learning the
working with object and object oriented techniques ..

Eng. Mohamed Atia

Eng.Mohamed@hotmail.ca

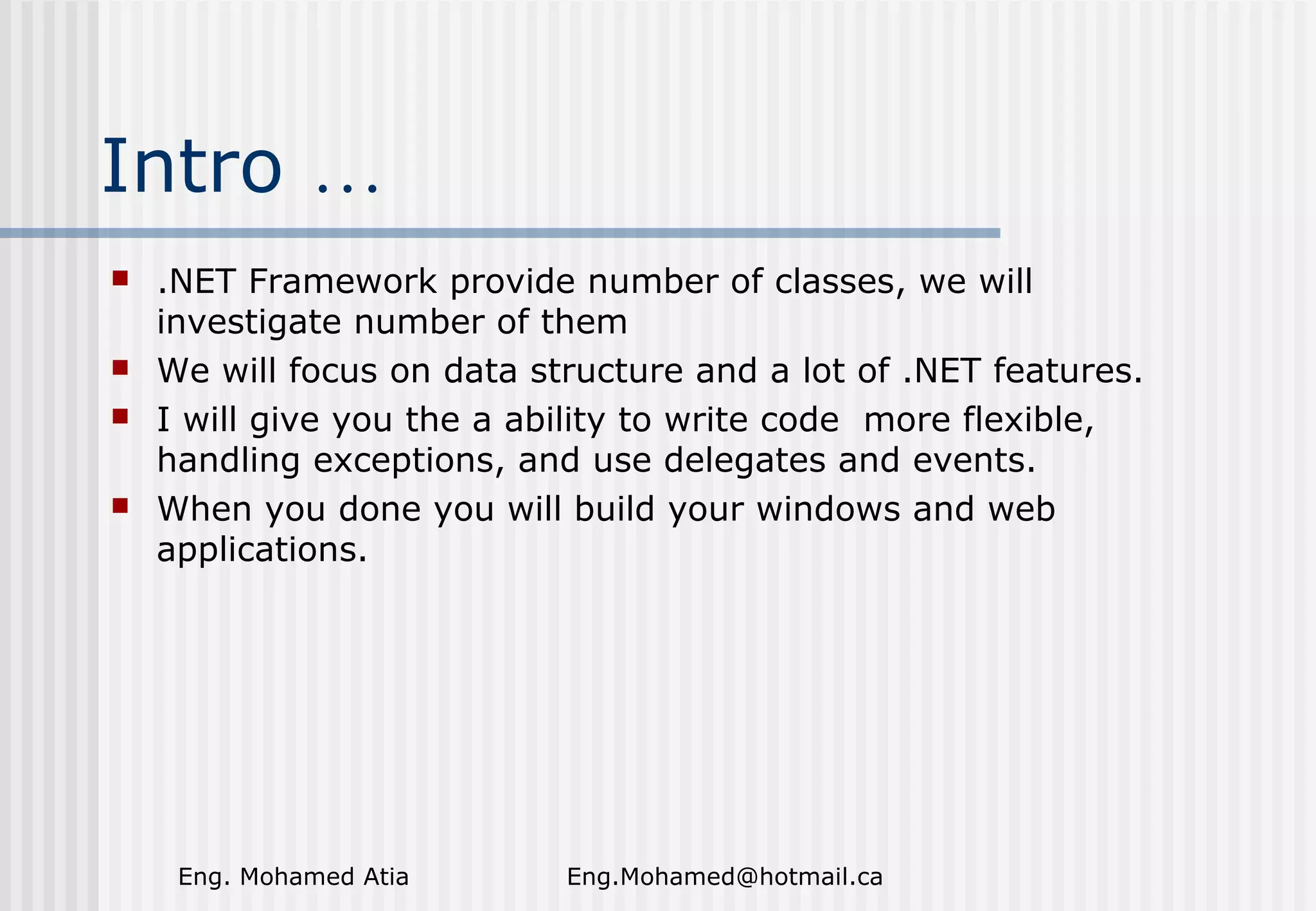

Intro …







.NET Framework provide number of classes, we will
investigate number of them
We will focus on data structure and a lot of .NET features.
I will give you the a ability to write code more flexible,
handling exceptions, and use delegates and events.
When you done you will build your windows and web
applications.

Eng. Mohamed Atia

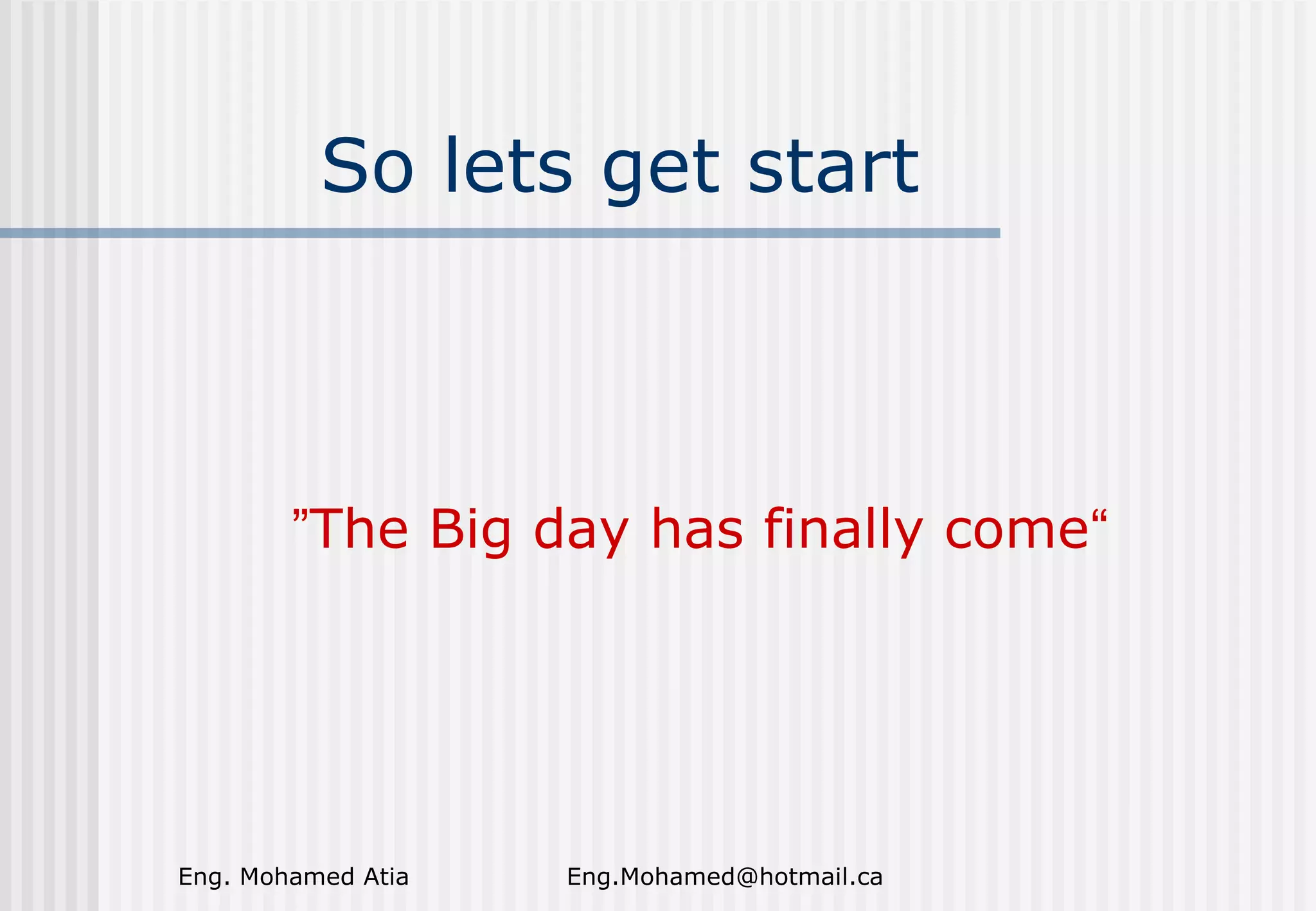

So lets get start

”The Big day has finally come“

Eng. Mohamed Atia

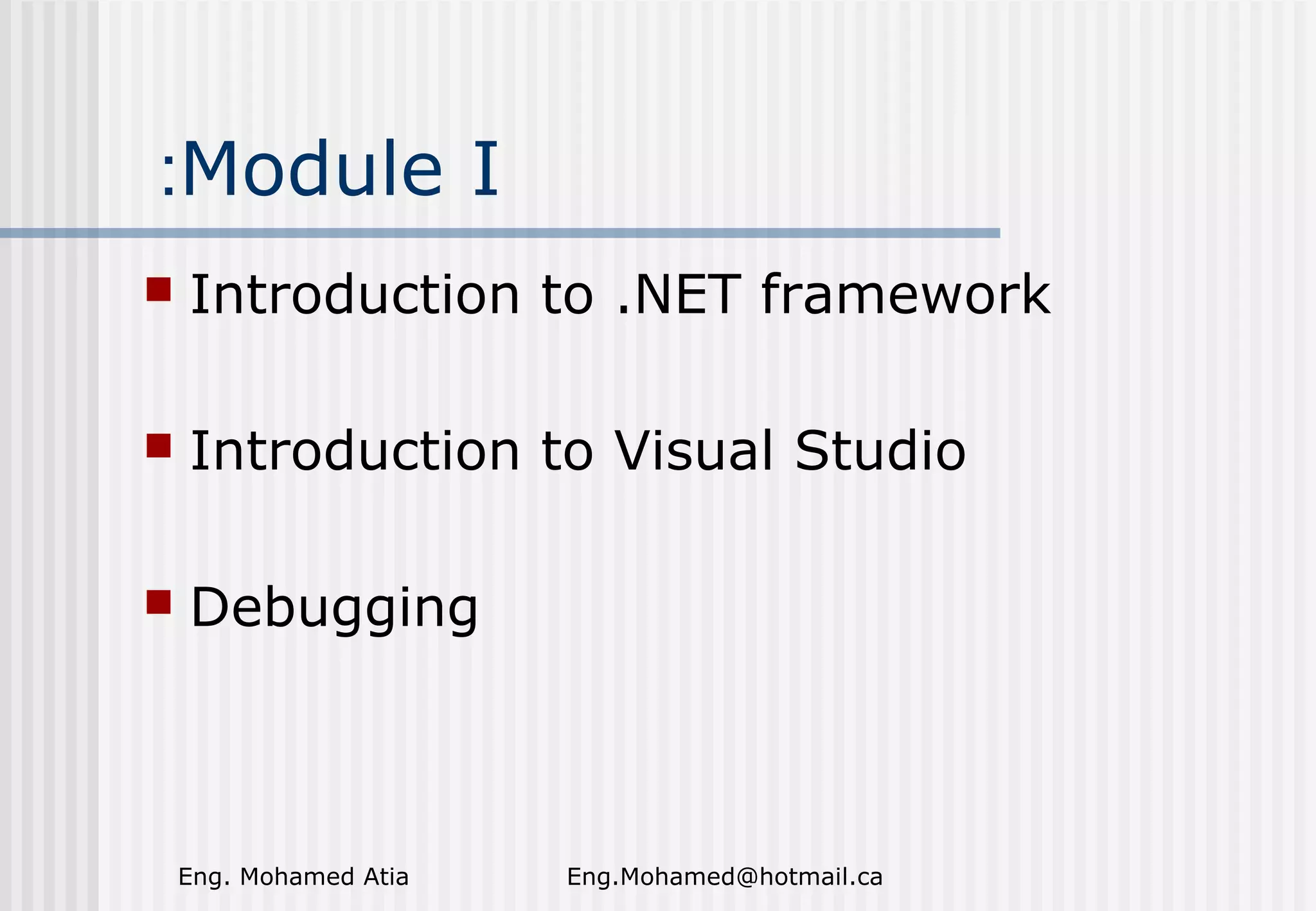

:Module I


Introduction to .NET framework



Introduction to Visual Studio



Debugging

Eng. Mohamed Atia

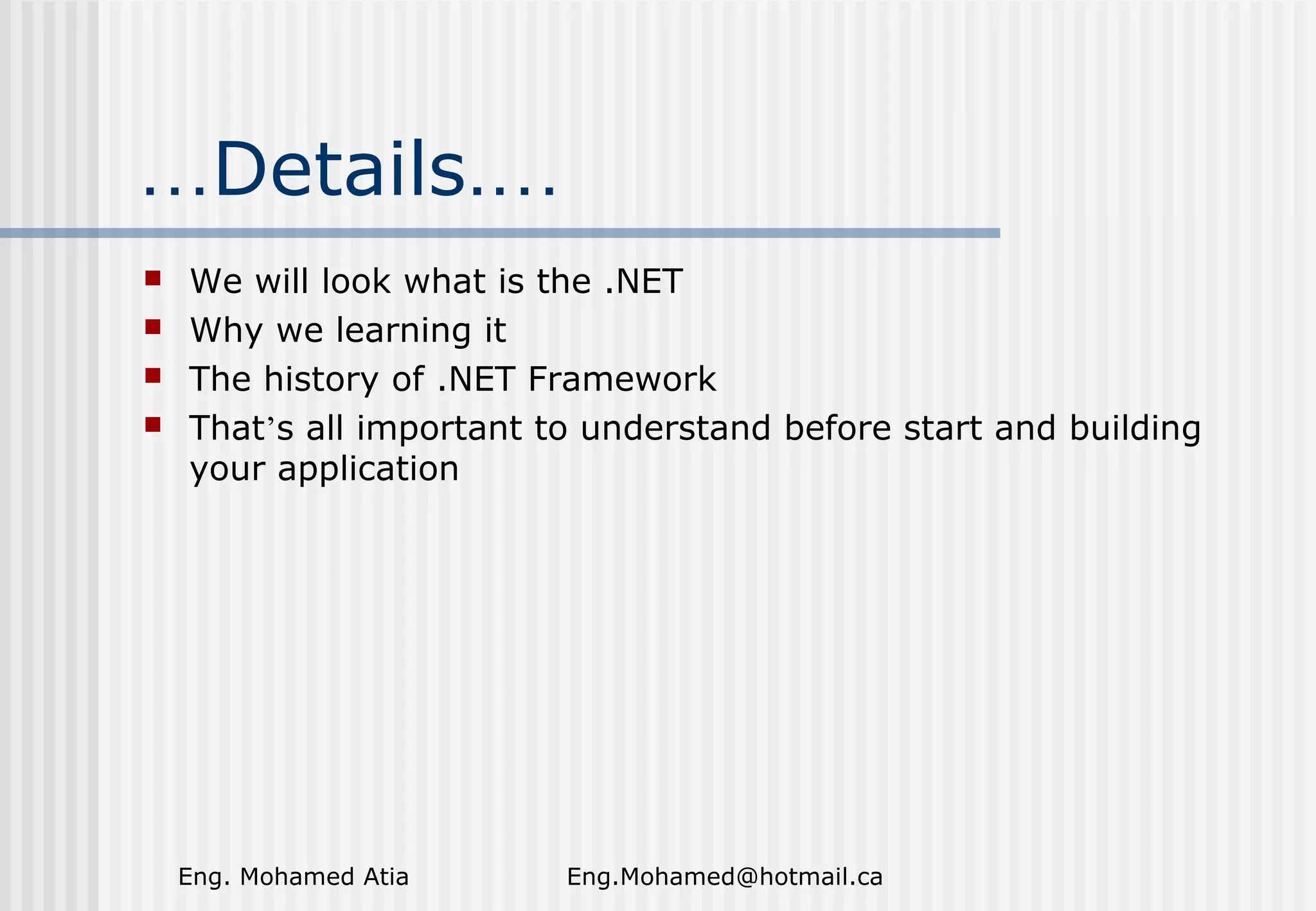

…Details.…





We will look what is the .NET
Why we learning it
The history of .NET Framework
That’s all important to understand before start and building
your application

Eng. Mohamed Atia

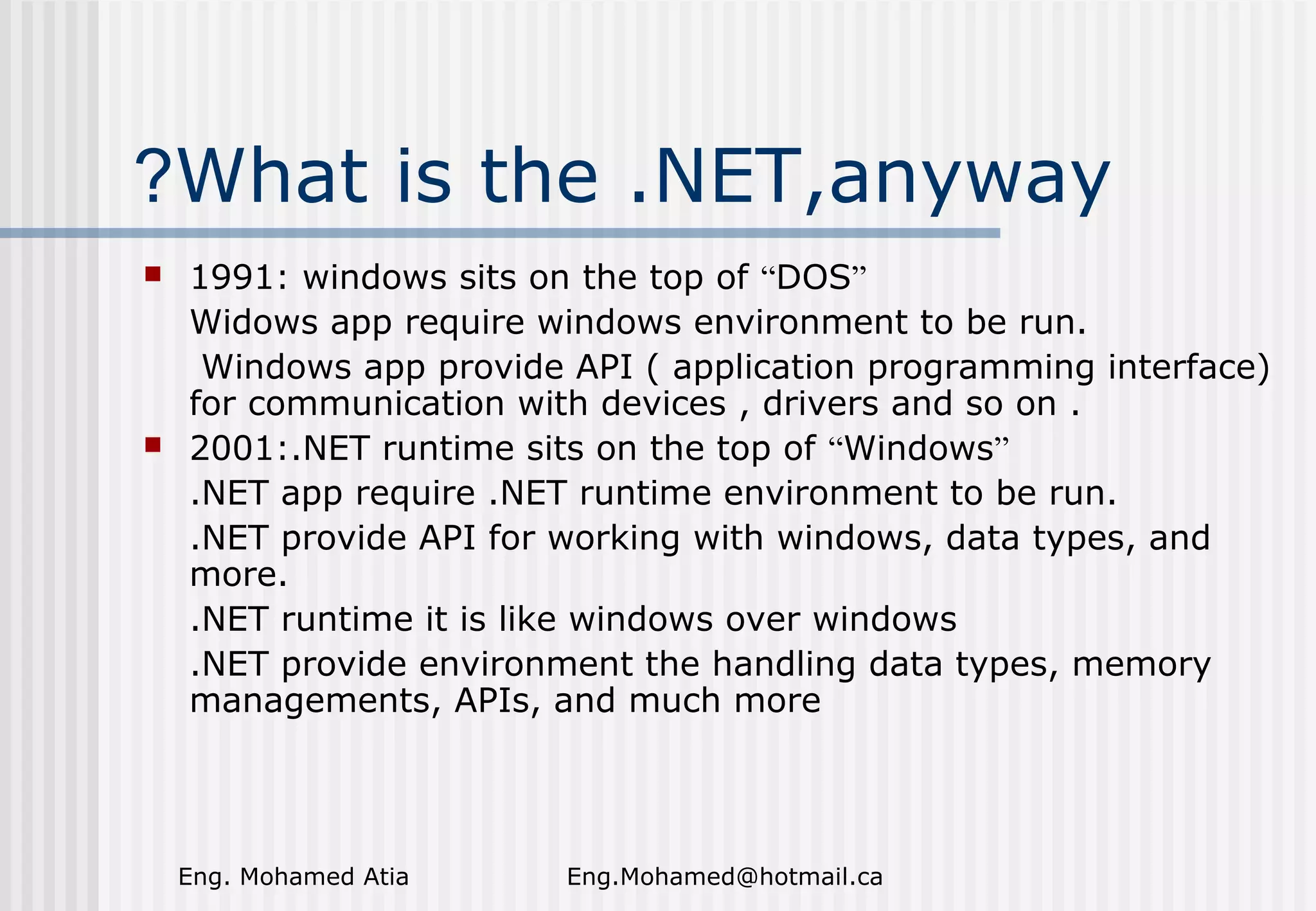

?What is the .NET,anyway




1991: windows sits on the top of “DOS”
Widows app require windows environment to be run.
Windows app provide API ( application programming interface)
for communication with devices , drivers and so on .
2001:.NET runtime sits on the top of “Windows”
.NET app require .NET runtime environment to be run.
.NET provide API for working with windows, data types, and
more.
.NET runtime it is like windows over windows
.NET provide environment the handling data types, memory
managements, APIs, and much more

Eng. Mohamed Atia

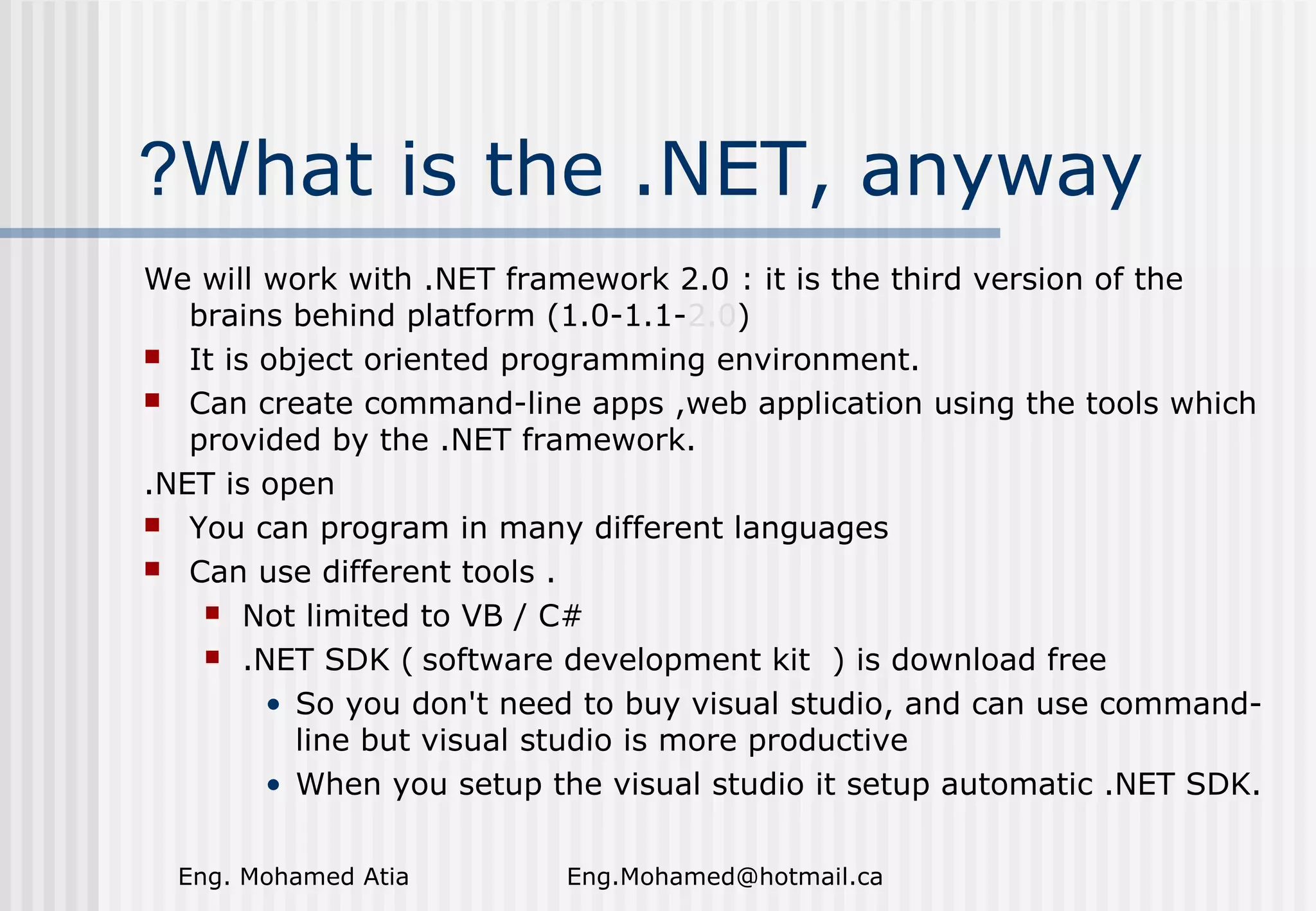

?What is the .NET, anyway
We will work with .NET framework 2.0 : it is the third version of the
brains behind platform (1.0-1.1-2.0)
 It is object oriented programming environment.
 Can create command-line apps ,web application using the tools which
provided by the .NET framework.
.NET is open
 You can program in many different languages
 Can use different tools .
 Not limited to VB / C#
 .NET SDK ( software development kit ) is download free
• So you don't need to buy visual studio, and can use commandline but visual studio is more productive
• When you setup the visual studio it setup automatic .NET SDK.
Eng. Mohamed Atia

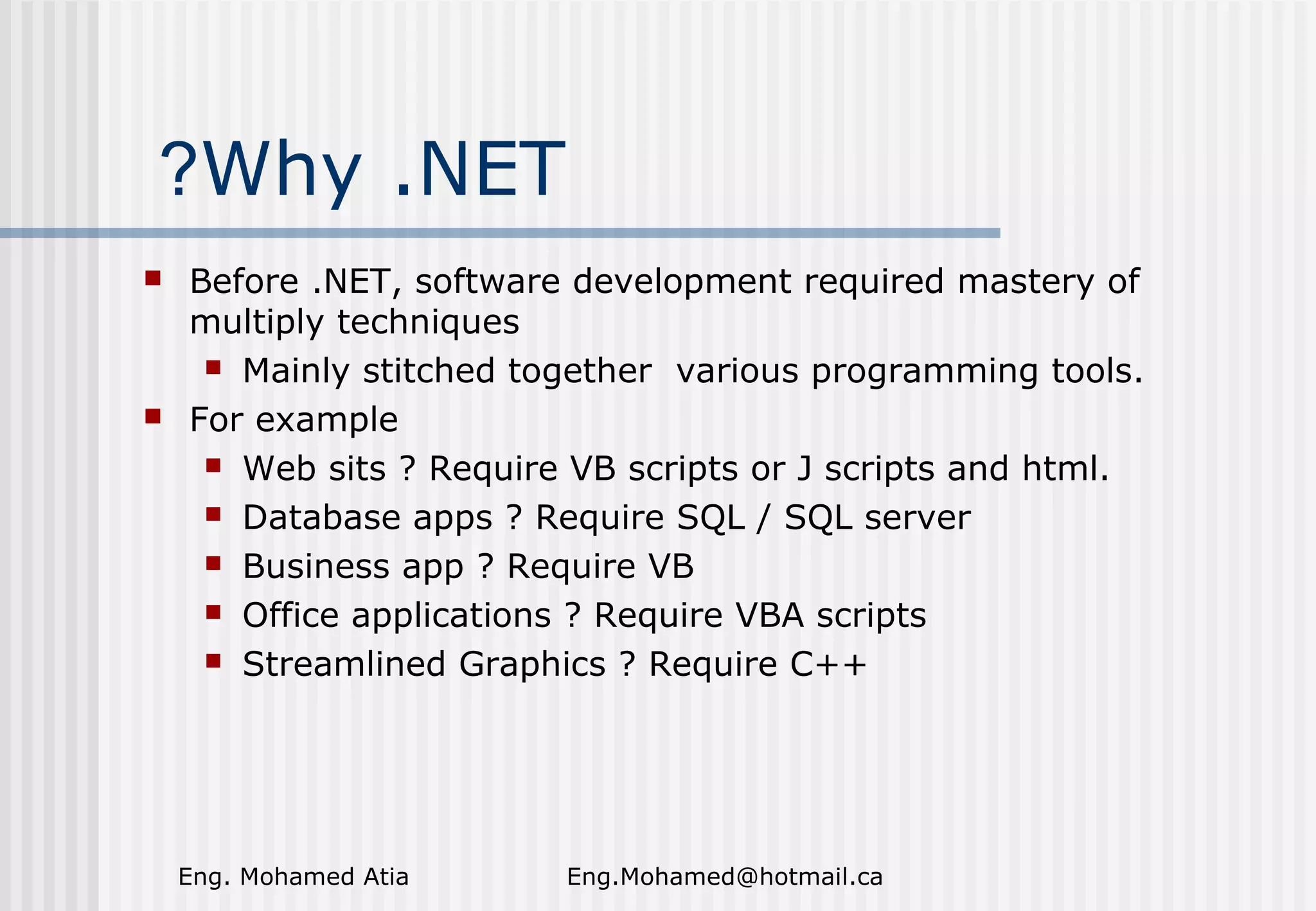

?Why .NET




Before .NET, software development required mastery of
multiply techniques
 Mainly stitched together various programming tools.
For example
 Web sits ? Require VB scripts or J scripts and html.
 Database apps ? Require SQL / SQL server
 Business app ? Require VB
 Office applications ? Require VBA scripts
 Streamlined Graphics ? Require C++

Eng. Mohamed Atia

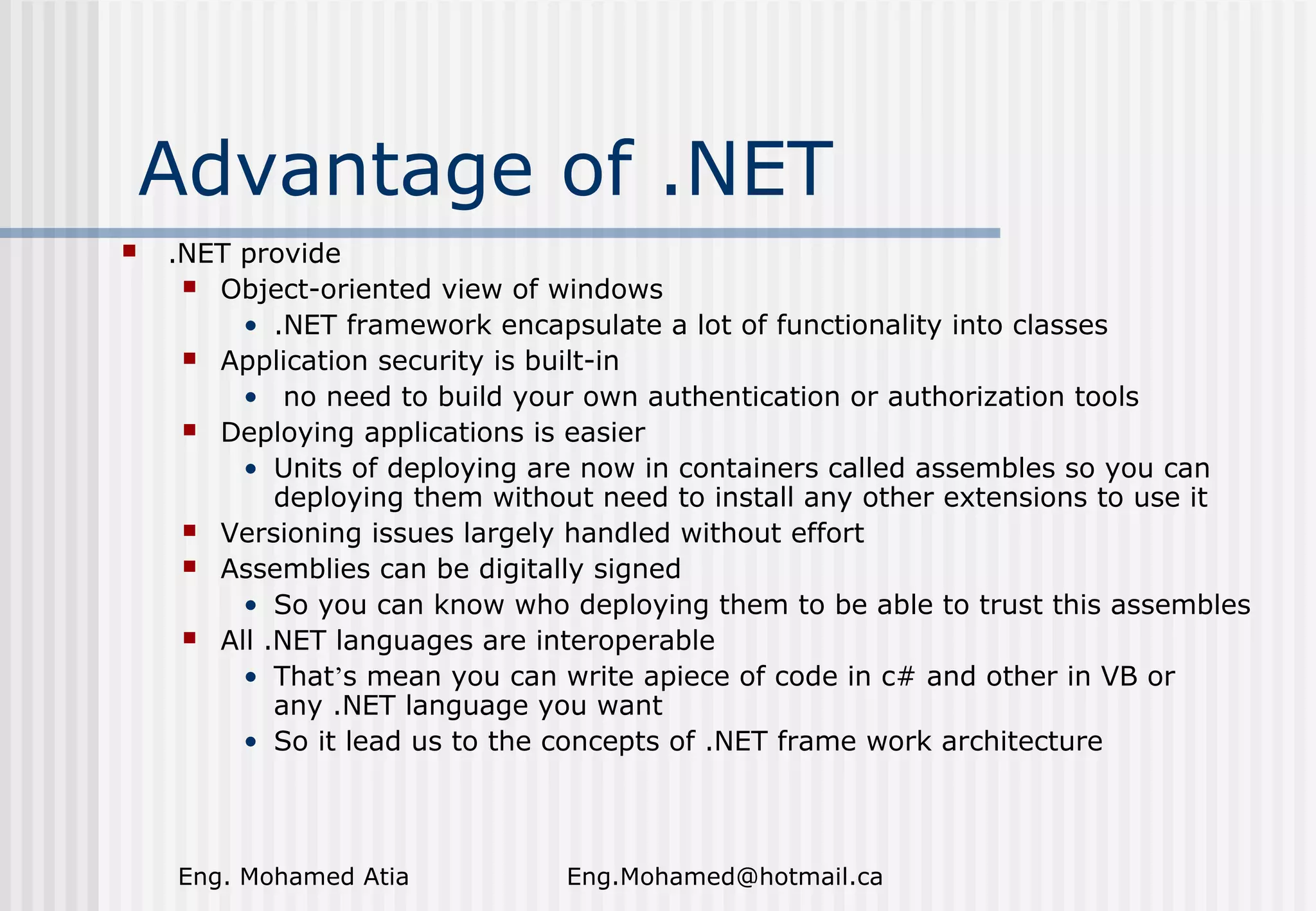

Advantage of .NET


.NET provide
 Object-oriented view of windows
• .NET framework encapsulate a lot of functionality into classes
 Application security is built-in
• no need to build your own authentication or authorization tools
 Deploying applications is easier
• Units of deploying are now in containers called assembles so you can
deploying them without need to install any other extensions to use it
 Versioning issues largely handled without effort
 Assemblies can be digitally signed
• So you can know who deploying them to be able to trust this assembles
 All .NET languages are interoperable
• That’s mean you can write apiece of code in c# and other in VB or
any .NET language you want

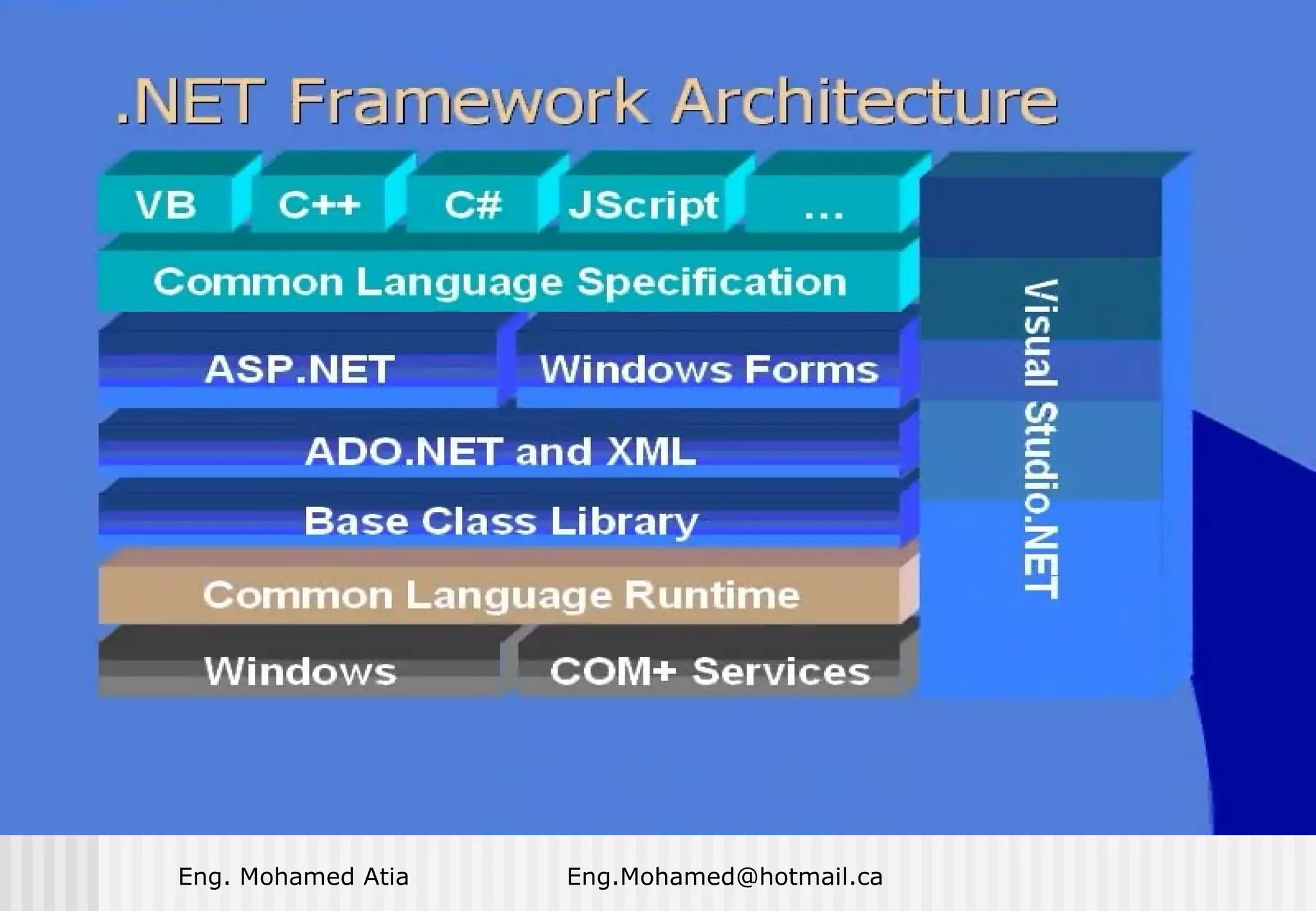

• So it lead us to the concepts of .NET frame work architecture

Eng. Mohamed Atia


Eng. Mohamed Atia

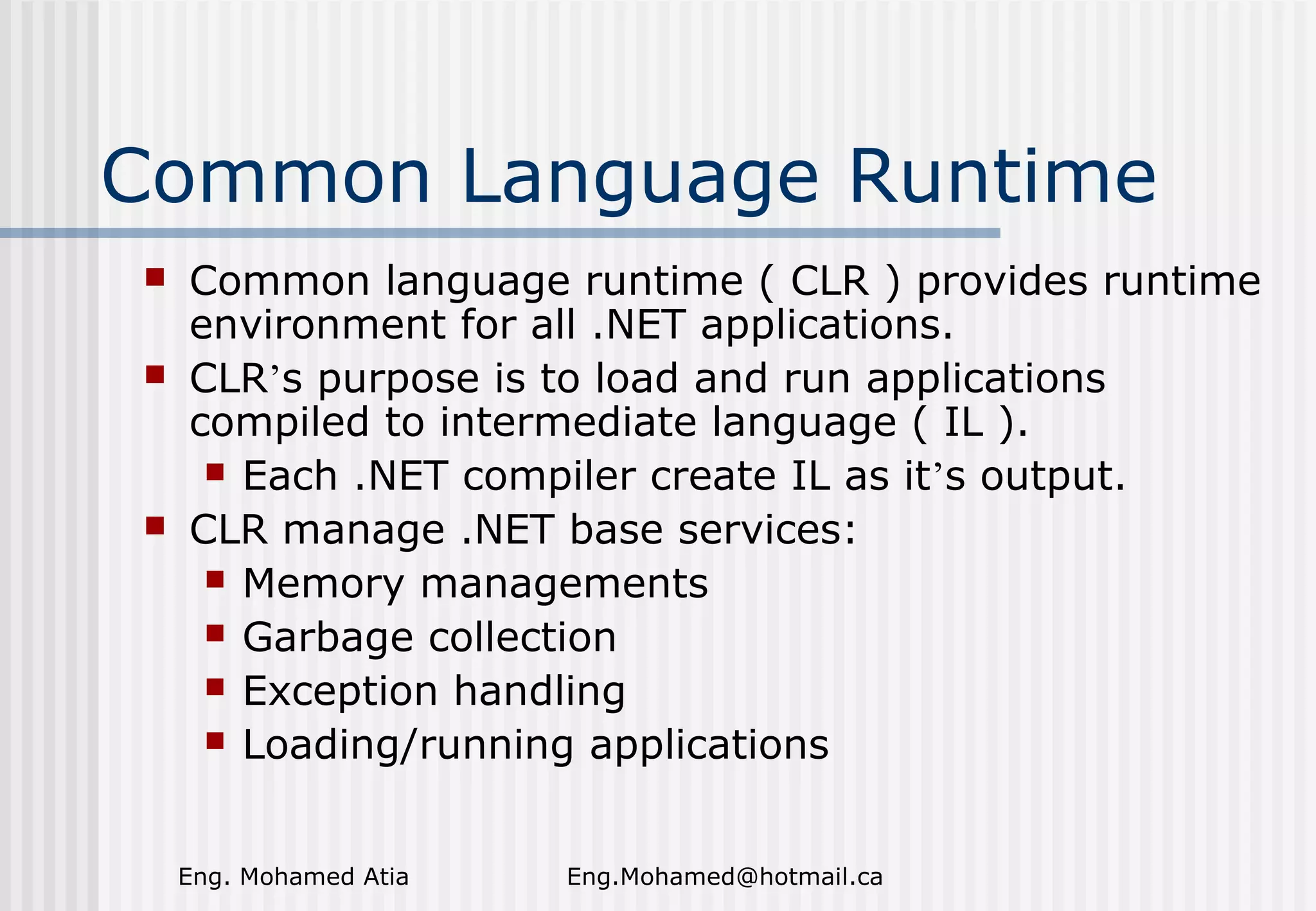

Common Language Runtime





Common language runtime ( CLR ) provides runtime
environment for all .NET applications.
CLR’s purpose is to load and run applications
compiled to intermediate language ( IL ).
 Each .NET compiler create IL as it’s output.
CLR manage .NET base services:
 Memory managements
 Garbage collection
 Exception handling
 Loading/running applications
Eng. Mohamed Atia

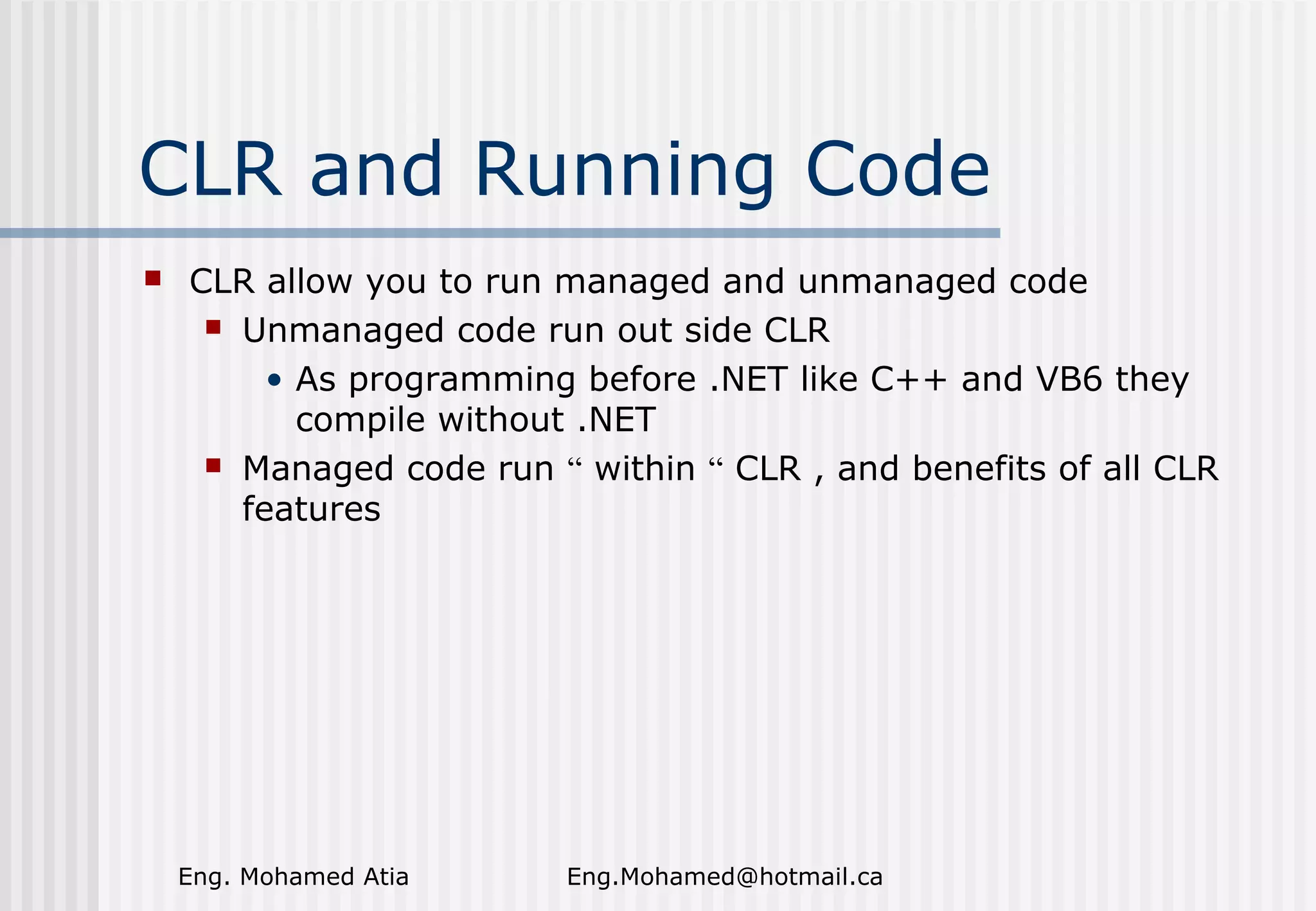

CLR and Running Code


CLR allow you to run managed and unmanaged code
 Unmanaged code run out side CLR
• As programming before .NET like C++ and VB6 they
compile without .NET
 Managed code run “ within “ CLR , and benefits of all CLR
features

Eng. Mohamed Atia

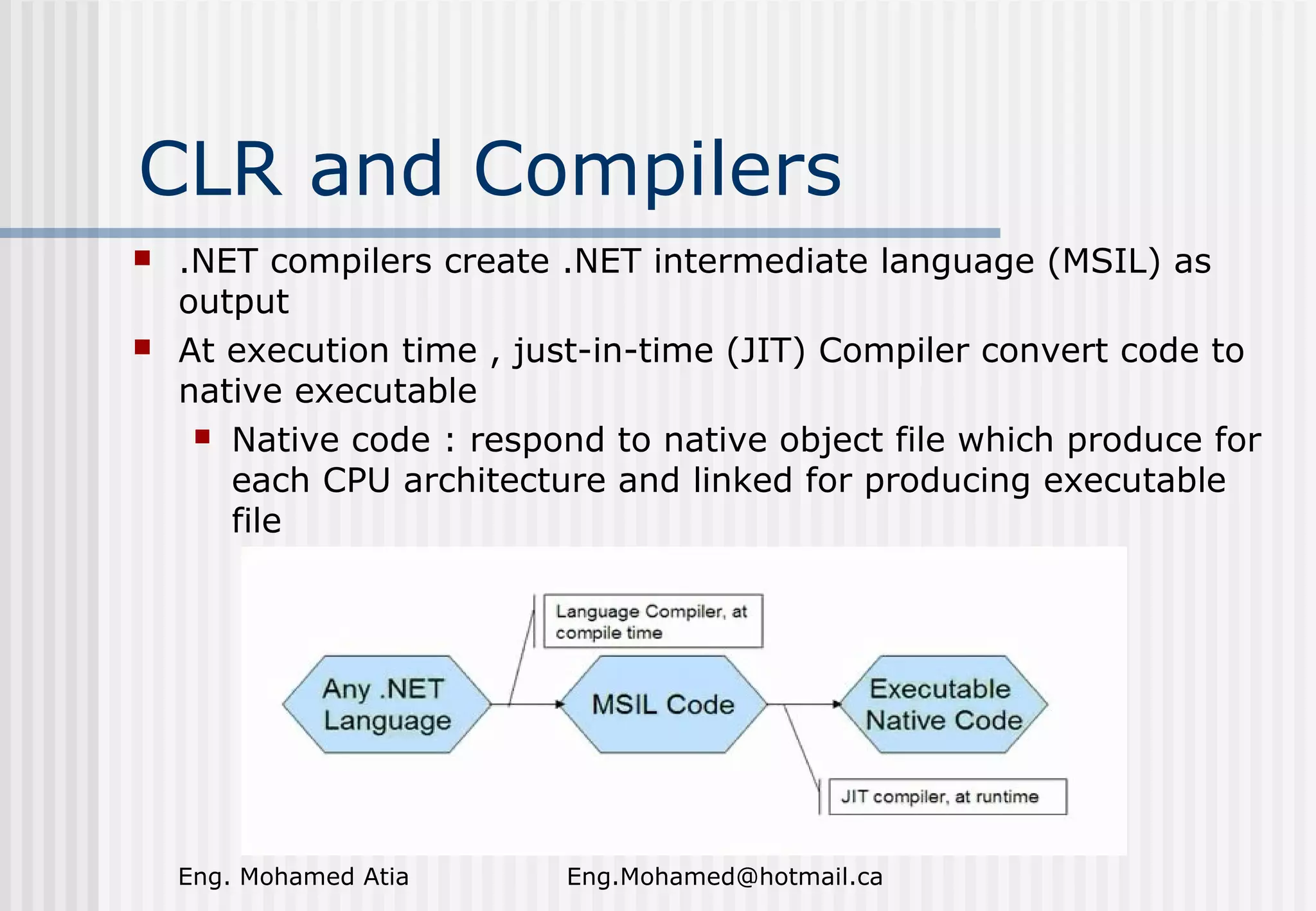

CLR and Compilers




.NET compilers create .NET intermediate language (MSIL) as
output
At execution time , just-in-time (JIT) Compiler convert code to
native executable
 Native code : respond to native object file which produce for
each CPU architecture and linked for producing executable
file

Eng. Mohamed Atia

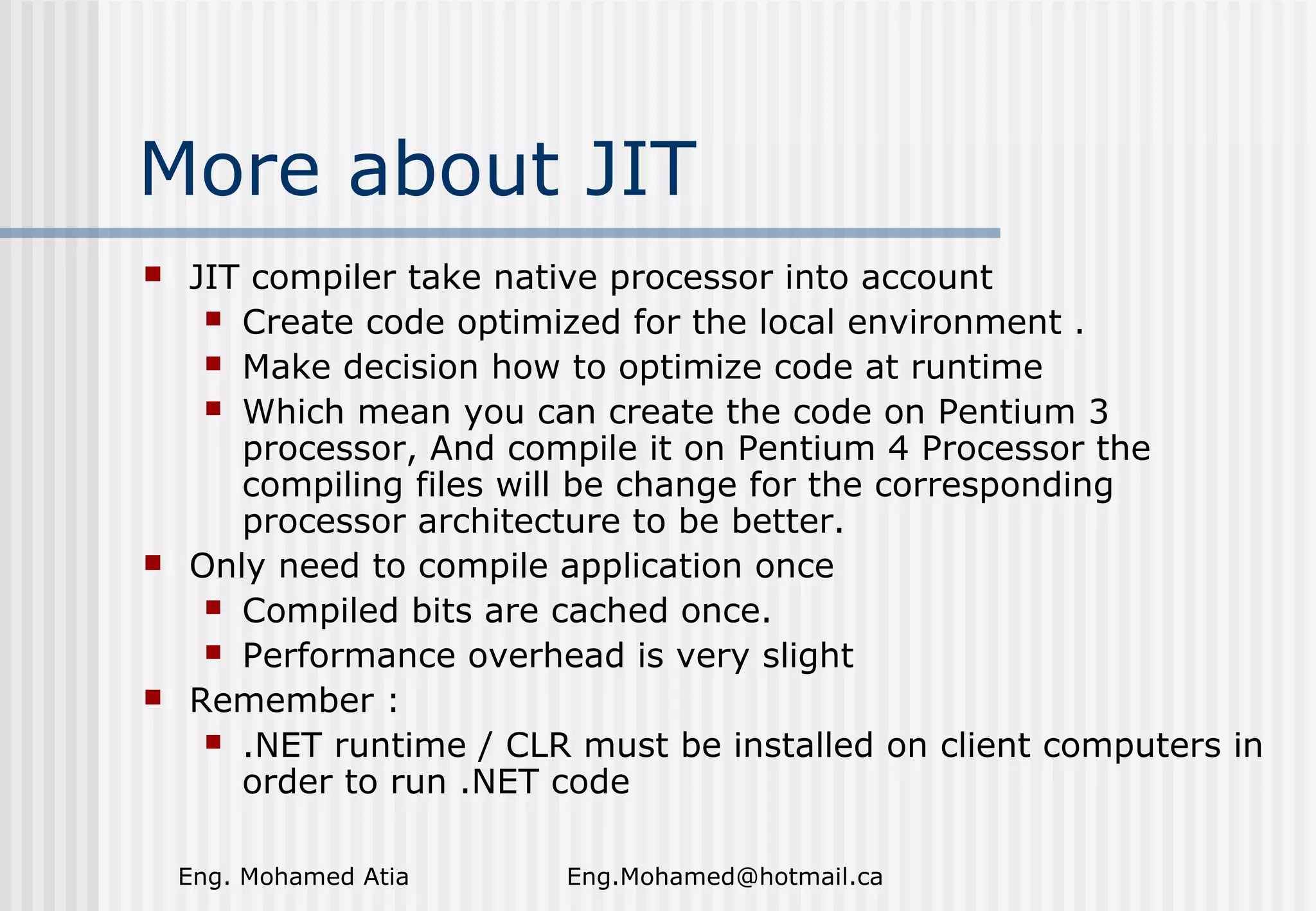

More about JIT






JIT compiler take native processor into account
 Create code optimized for the local environment .
 Make decision how to optimize code at runtime
 Which mean you can create the code on Pentium 3
processor, And compile it on Pentium 4 Processor the
compiling files will be change for the corresponding
processor architecture to be better.
Only need to compile application once
 Compiled bits are cached once.
 Performance overhead is very slight
Remember :
 .NET runtime / CLR must be installed on client computers in
order to run .NET code
Eng. Mohamed Atia

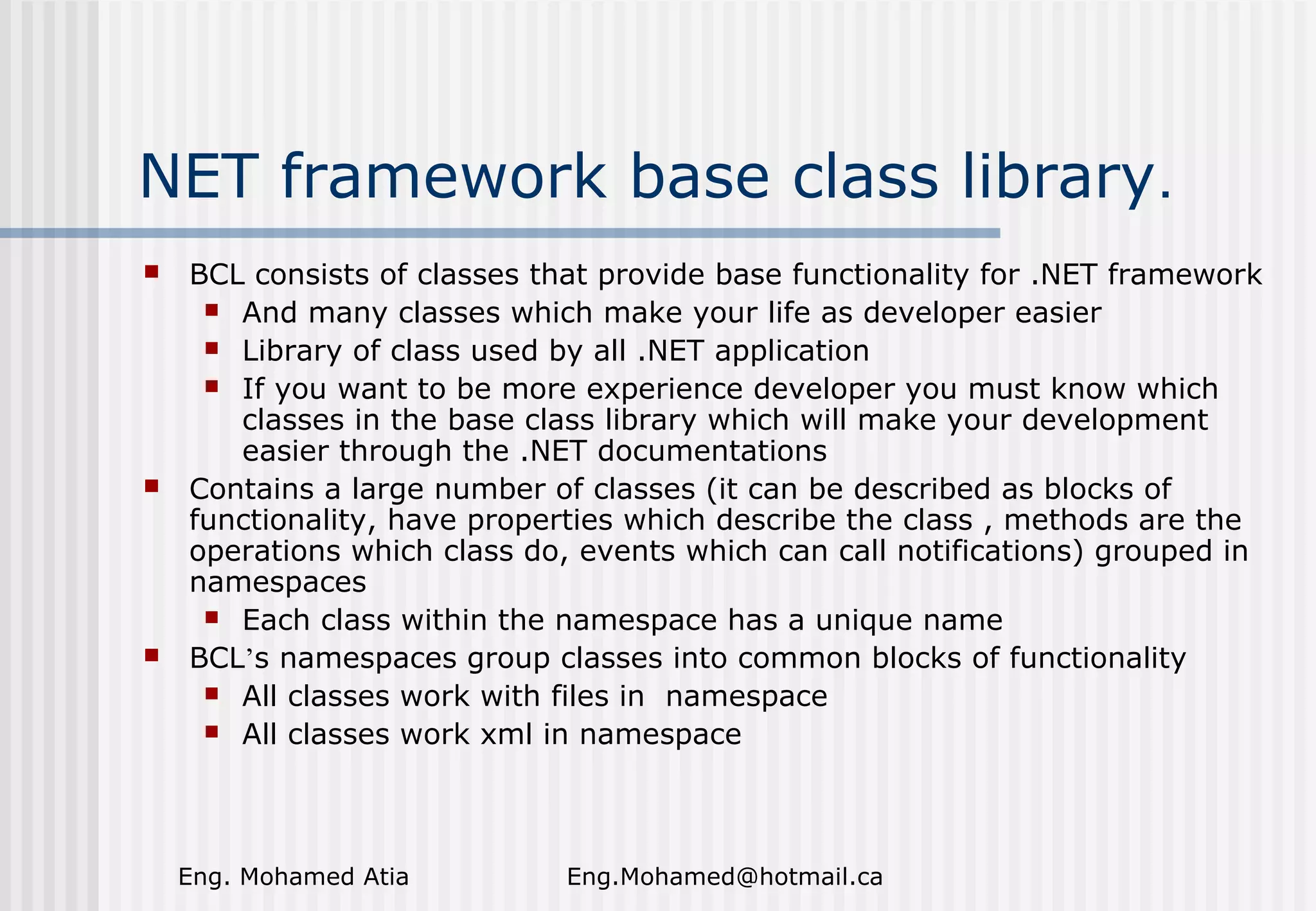

NET framework base class library.






BCL consists of classes that provide base functionality for .NET framework
 And many classes which make your life as developer easier
 Library of class used by all .NET application
 If you want to be more experience developer you must know which
classes in the base class library which will make your development
easier through the .NET documentations
Contains a large number of classes (it can be described as blocks of
functionality, have properties which describe the class , methods are the
operations which class do, events which can call notifications) grouped in
namespaces
 Each class within the namespace has a unique name
BCL’s namespaces group classes into common blocks of functionality
 All classes work with files in namespace
 All classes work xml in namespace

Eng. Mohamed Atia

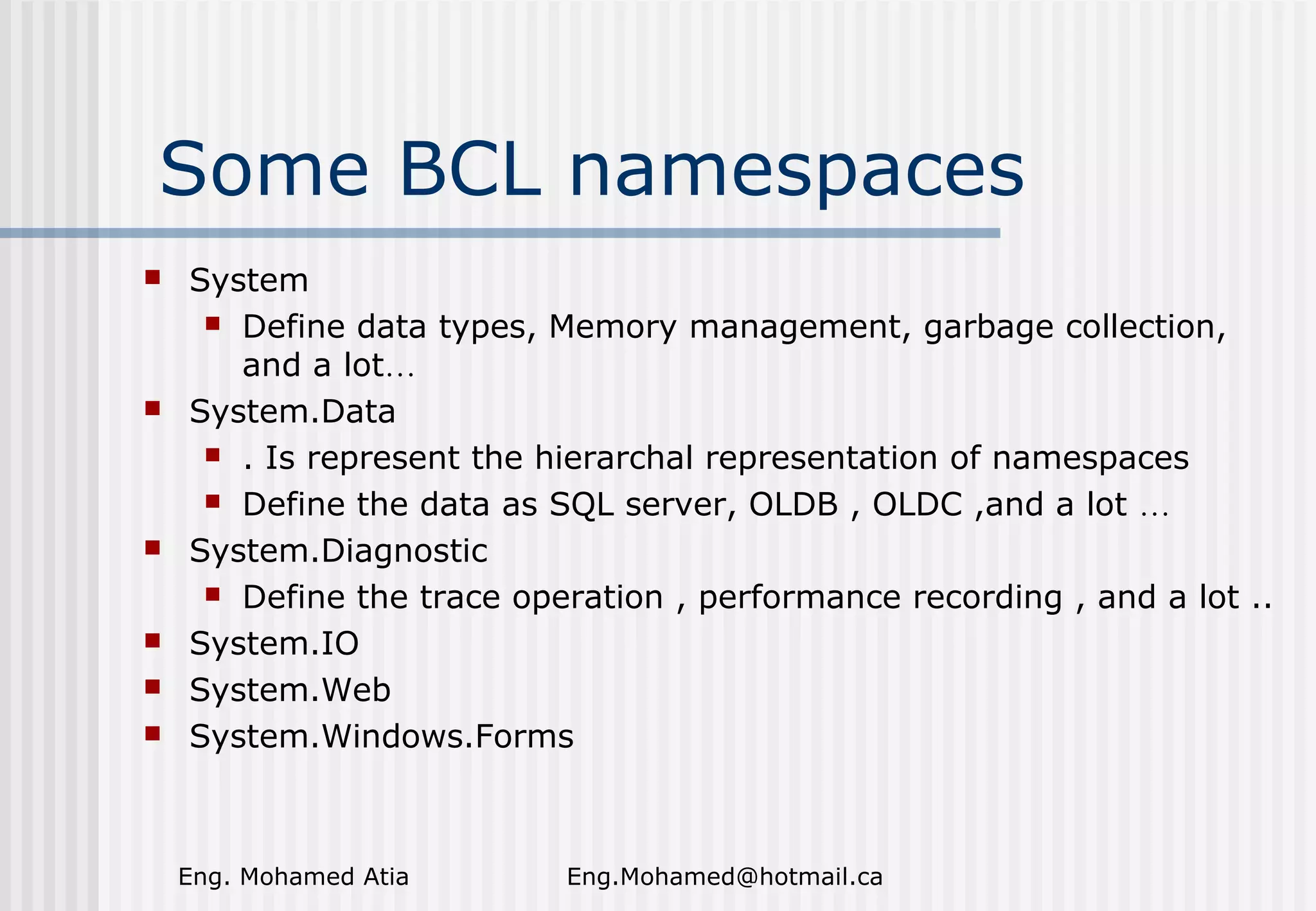

Some BCL namespaces










System
 Define data types, Memory management, garbage collection,
and a lot…
System.Data
 . Is represent the hierarchal representation of namespaces
 Define the data as SQL server, OLDB , OLDC ,and a lot …
System.Diagnostic
 Define the trace operation , performance recording , and a lot ..
System.IO
System.Web
System.Windows.Forms

Eng. Mohamed Atia

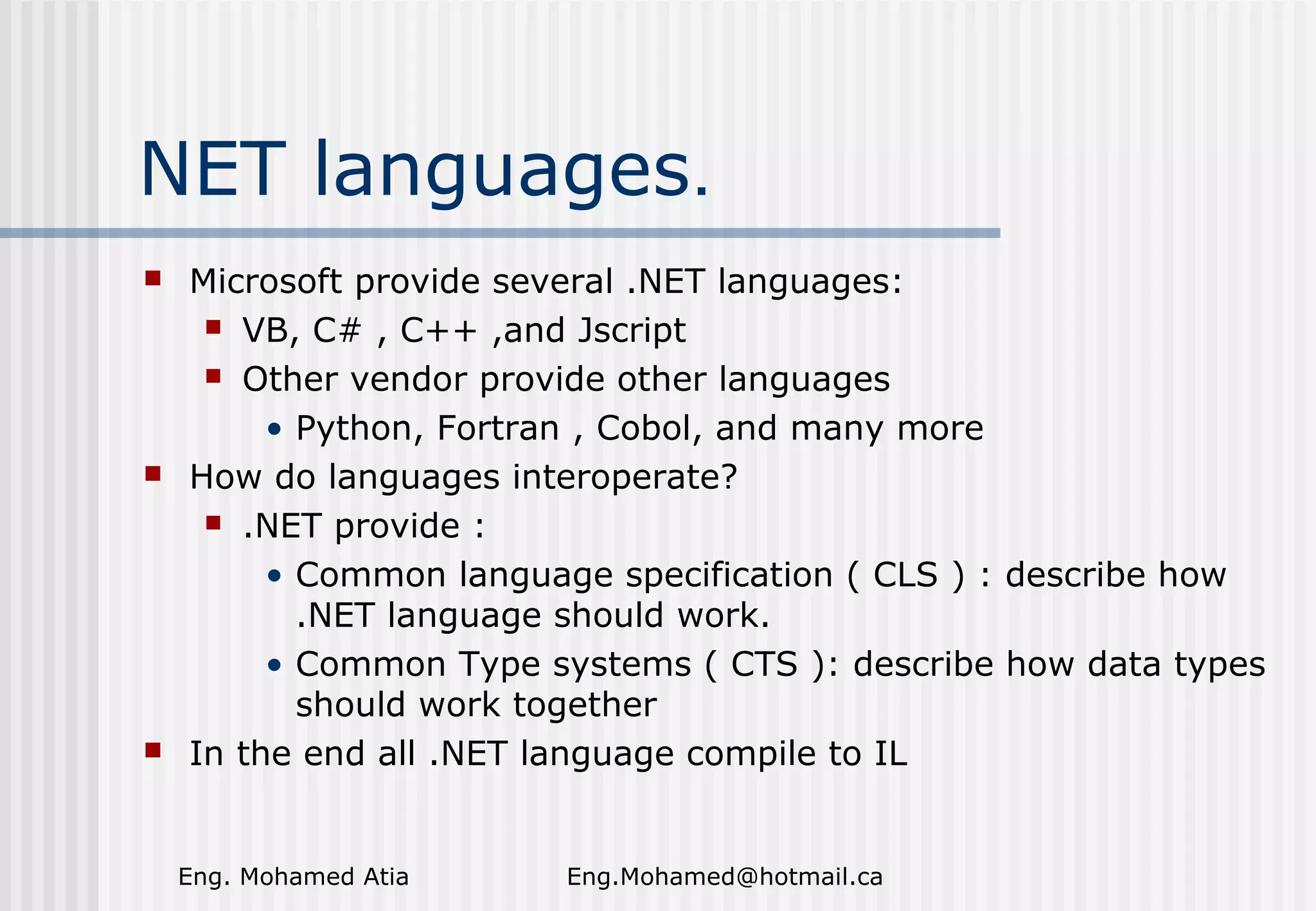

NET languages.






Microsoft provide several .NET languages:
 VB, C# , C++ ,and Jscript
 Other vendor provide other languages
• Python, Fortran , Cobol, and many more
How do languages interoperate?
 .NET provide :
• Common language specification ( CLS ) : describe how
.NET language should work.
• Common Type systems ( CTS ): describe how data types
should work together
In the end all .NET language compile to IL

Eng. Mohamed Atia

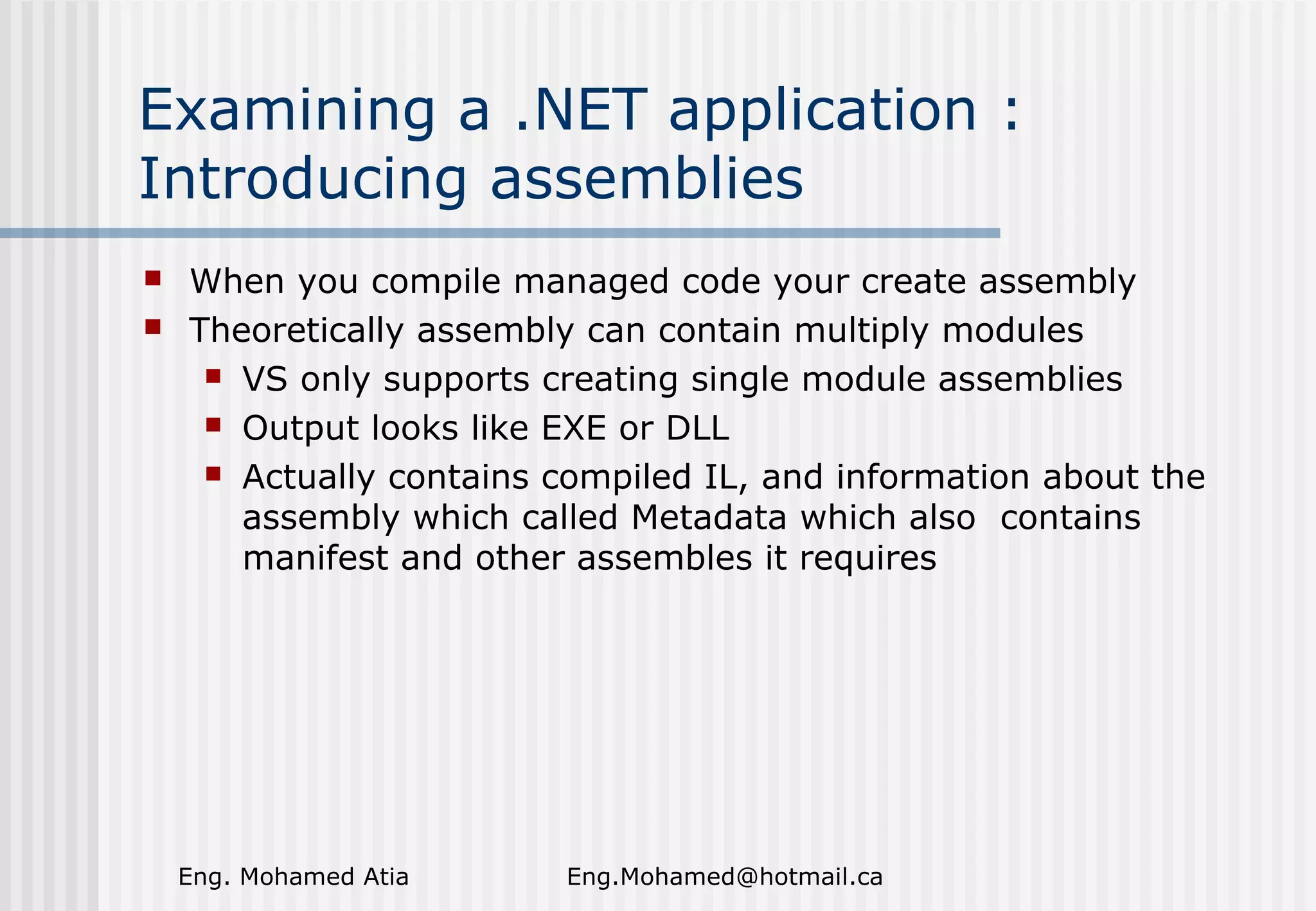

Examining a .NET application :
Introducing assemblies



When you compile managed code your create assembly
Theoretically assembly can contain multiply modules
 VS only supports creating single module assemblies
 Output looks like EXE or DLL
 Actually contains compiled IL, and information about the
assembly which called Metadata which also contains
manifest and other assembles it requires

Eng. Mohamed Atia

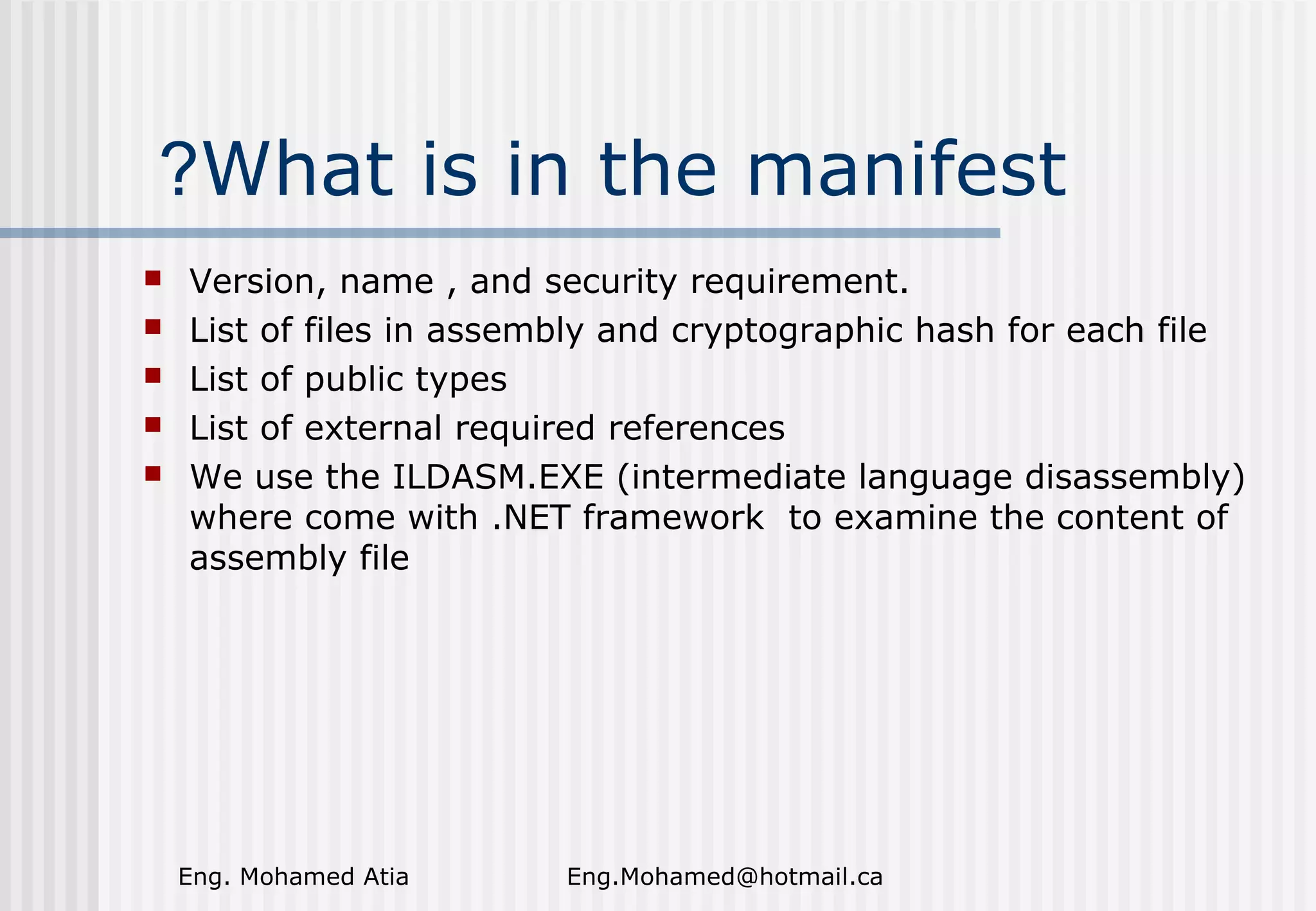

?What is in the manifest






Version, name , and security requirement.
List of files in assembly and cryptographic hash for each file
List of public types
List of external required references
We use the ILDASM.EXE (intermediate language disassembly)
where come with .NET framework to examine the content of
assembly file

Eng. Mohamed Atia

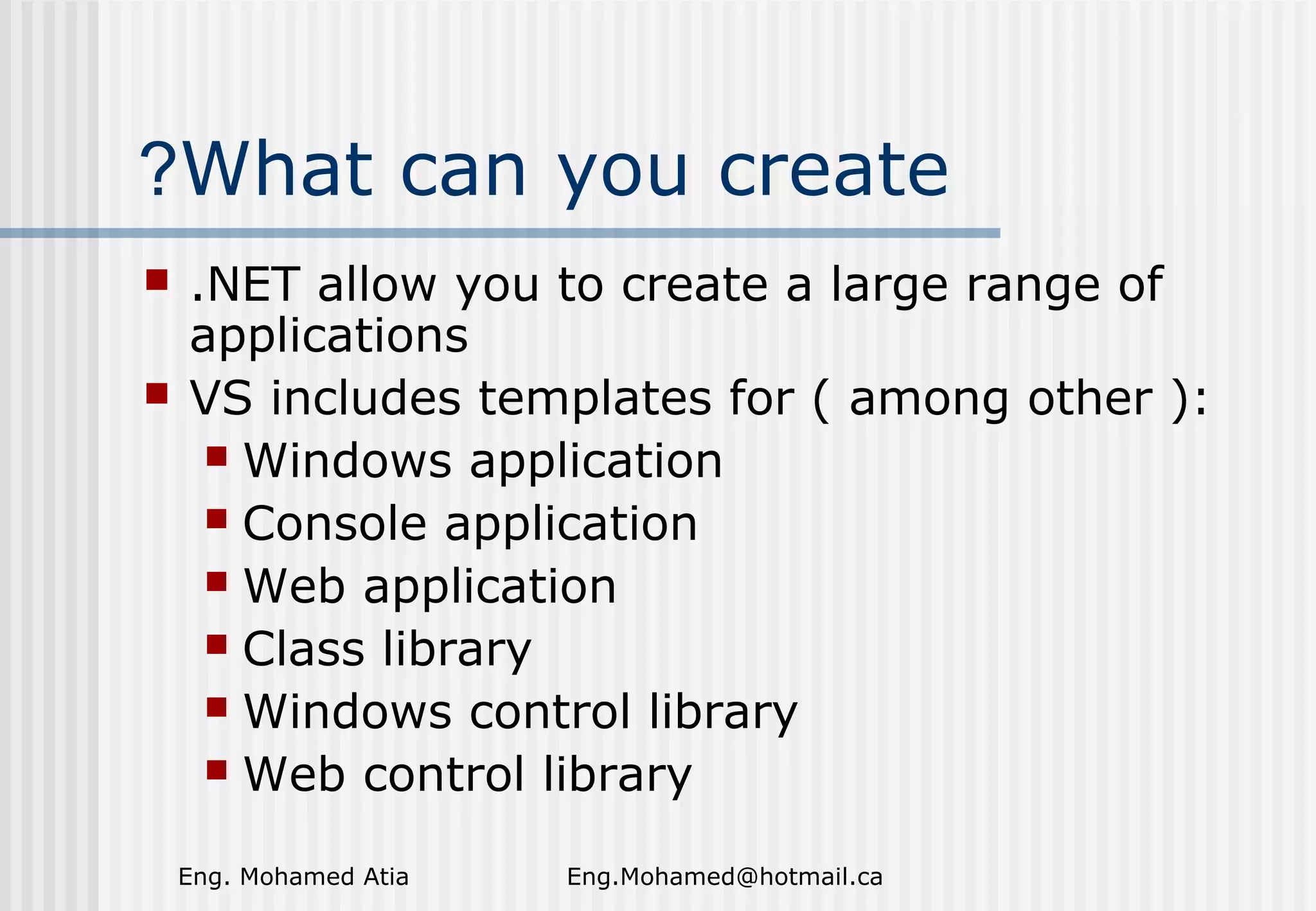

?What can you create



.NET allow you to create a large range of
applications
VS includes templates for ( among other ):
 Windows application
 Console application
 Web application
 Class library
 Windows control library
 Web control library
Eng. Mohamed Atia

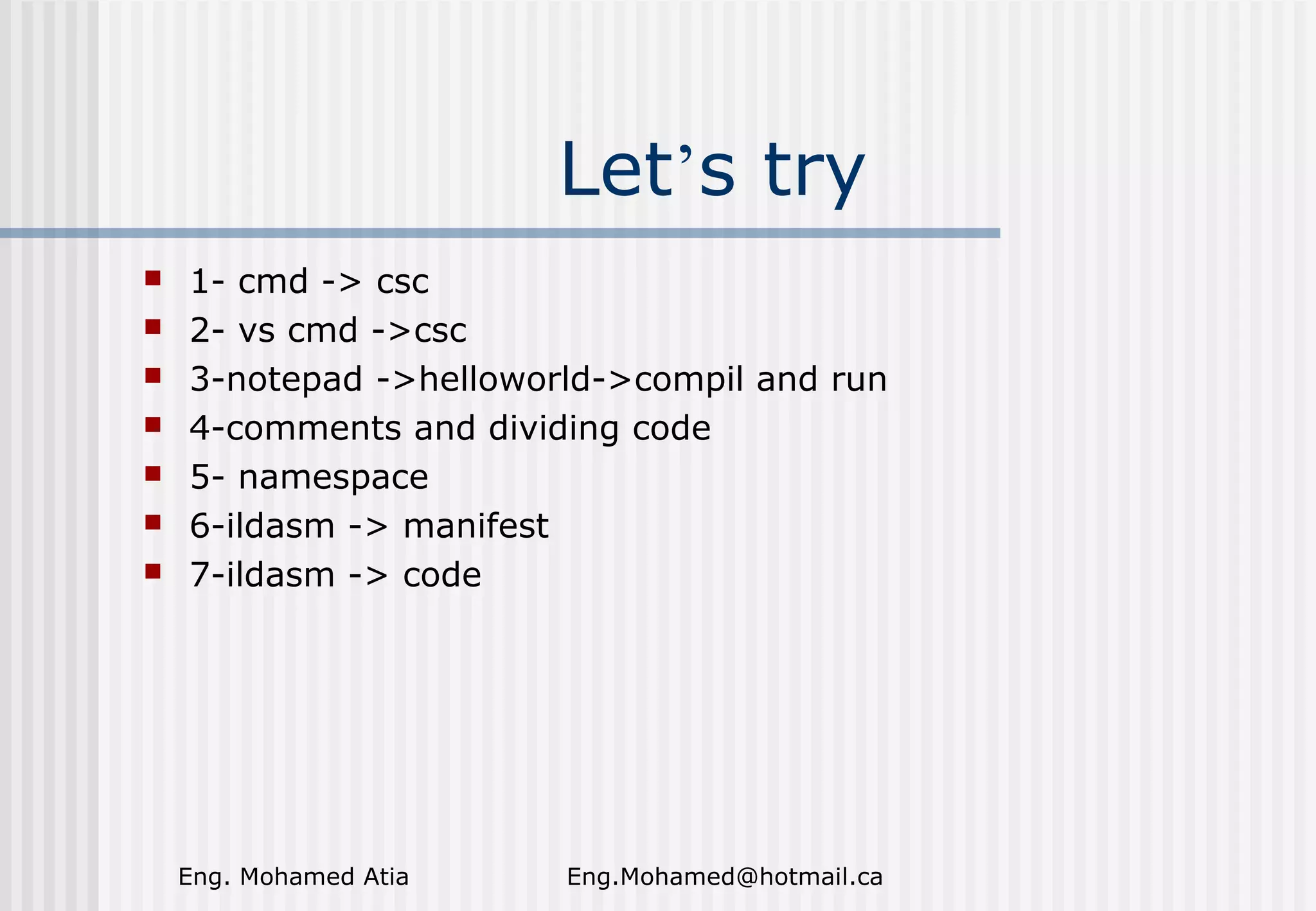

Let’s try








1- cmd -> csc
2- vs cmd ->csc
3-notepad ->helloworld->compil and run
4-comments and dividing code
5- namespace
6-ildasm -> manifest
7-ildasm -> code

Eng. Mohamed Atia

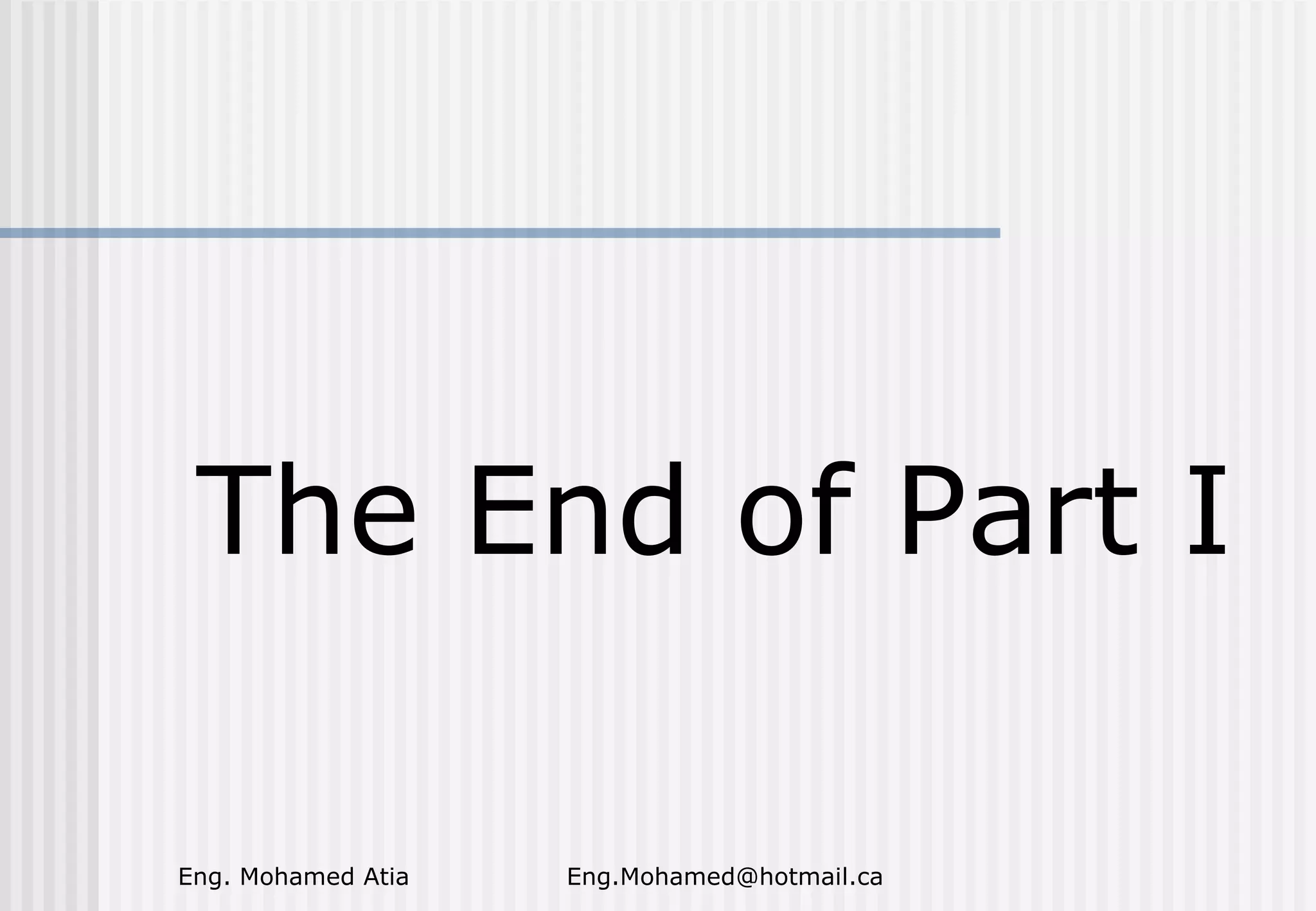

The End of Part I
