![receivers:
otlp:
protocols:
grpc:
max_recv_msg_size_mib: 32
max_concurrent_streams: 16
read_buffer_size: 1024
write_buffer_size: 1024
keepalive:
server_parameters:
max_connection_idle: 10s
processors:
memory_limiter:
ballast_size_mib: 192
check_interval: 5s
limit_mib: 448
spike_limit_mib: 64
batch:
send_batch_size: 64
timeout: 15s
exporters:
jaeger:
endpoint: jaeger.monitoring.svc.storefront-development.local.:14250
timeout: 10s
sending_queue:
enabled: true
num_consumers: 2
queue_size: 10
retry_on_failure:
enabled: true
initial_interval: 10s
max_interval: 60s
max_elapsed_time: 10m
prometheusremotewrite:
namespace: "monitoring"
sending_queue:
enabled: true
num_consumers: 2
queue_size: 10
retry_on_failure:
enabled: true
initial_interval: 10s
max_interval: 60s
max_elapsed_time: 10m
endpoint: ":8888"
ca_file: "/etc/pki/tls/certs/carbon-lb.pem"
write_buffer_size: 524288
headers:
Prometheus-Remote-Write-Version: "0.1.0"
X-Scope-OrgID: 234
extensions:
health_check:
port: 13133
zpages:
endpoint: :55679
service:
extensions: [zpages, health_check]
pipelines:
traces:
receivers: [otlp]
processors: [memory_limiter, batch]
exporters: [jaeger]
metrics:
receivers: [otlp]
processors: [memory_limiter, batch]
exporters: [prometheusremotewrite]
Full Configuration File Example](https://image.slidesharecdn.com/otelforoperators-1-201109165601/75/OpenTelemetry-For-Operators-23-2048.jpg)
Uploaded byKevin Brockhoff
OpenTelemetry For Operators
This document provides an overview of OpenTelemetry for operators. It discusses some of the limitations of current observability platforms and how OpenTelemetry addresses these issues. It introduces the OpenTelemetry project which combines distributed tracing, metrics, and logging APIs. It describes the OpenTelemetry Collector which receives, processes, and exports telemetry data. It provides examples of Collector configuration and running it in production. It also discusses some innovations in the observability space from vendors like Dynatrace, New Relic, Splunk SignalFX, and others.
More Related Content
Similar to OpenTelemetry For Operators
![Jacob Marble [InfluxData] | Observability with InfluxDB IOx and OpenTelemetry...](https://cdn.slidesharecdn.com/ss_thumbnails/influxdbioxandopentelemetry-27-oct-2021jmarble-211022195239-thumbnail.jpg?width=640&height=640&fit=bounds)
OpenTelemetry For Operators
- 1. OpenTelemetry For Operators Presented byKevin Brockhoff Apache 2.0 Licensed

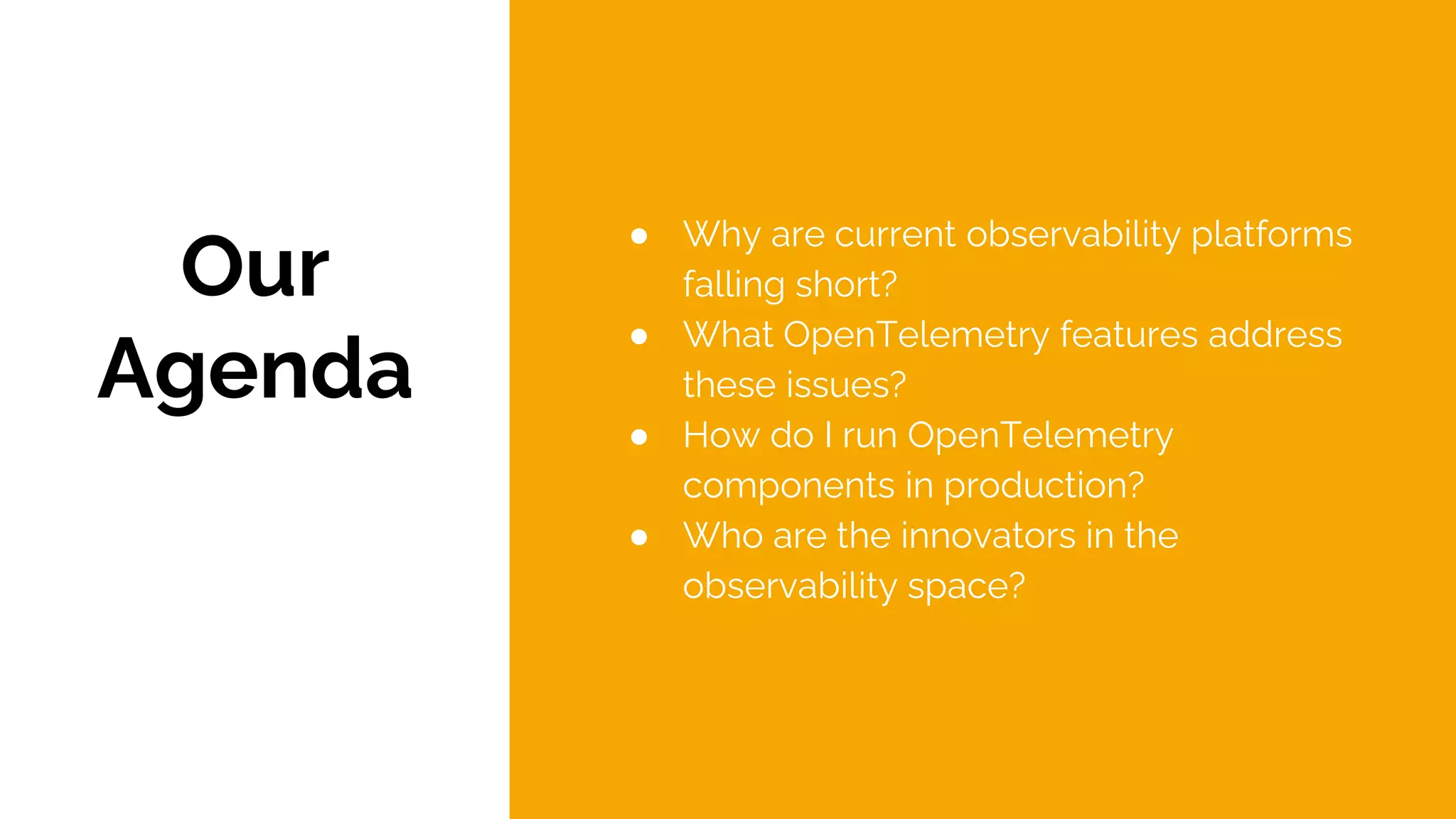

- 2. Our Agenda ● Why arecurrent observability platforms falling short? ● What OpenTelemetry features address these issues? ● How do I run OpenTelemetry components in production? ● Who are the innovators in the observability space?

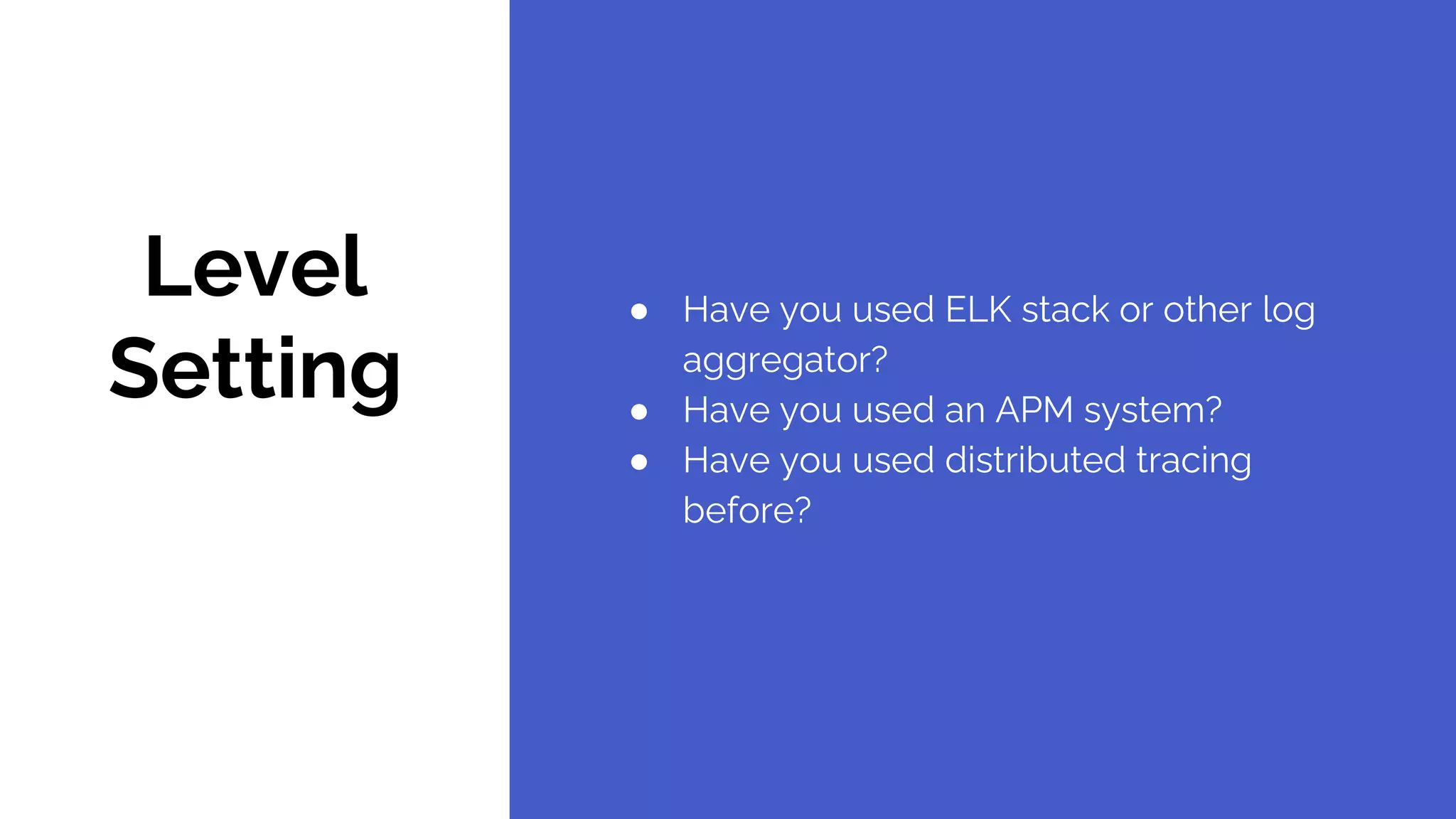

- 3. Level Setting ● Have youused ELK stack or other log aggregator? ● Have you used an APM system? ● Have you used distributed tracing before?
- 4. Who am I? ●Kevin Brockhoff - Senior Consultant, Daugherty Business Solutions ○ Solving difficult cloud adoption challenges for Daugherty's Fortune 500 clients ○ OpenTelemetry committer since early stages of the project ○ Github: https://github.com/kbrockhoff ○ Linkedin: https://www.linkedin.com/in/kevi n-brockhoff-a557877/
- 5.

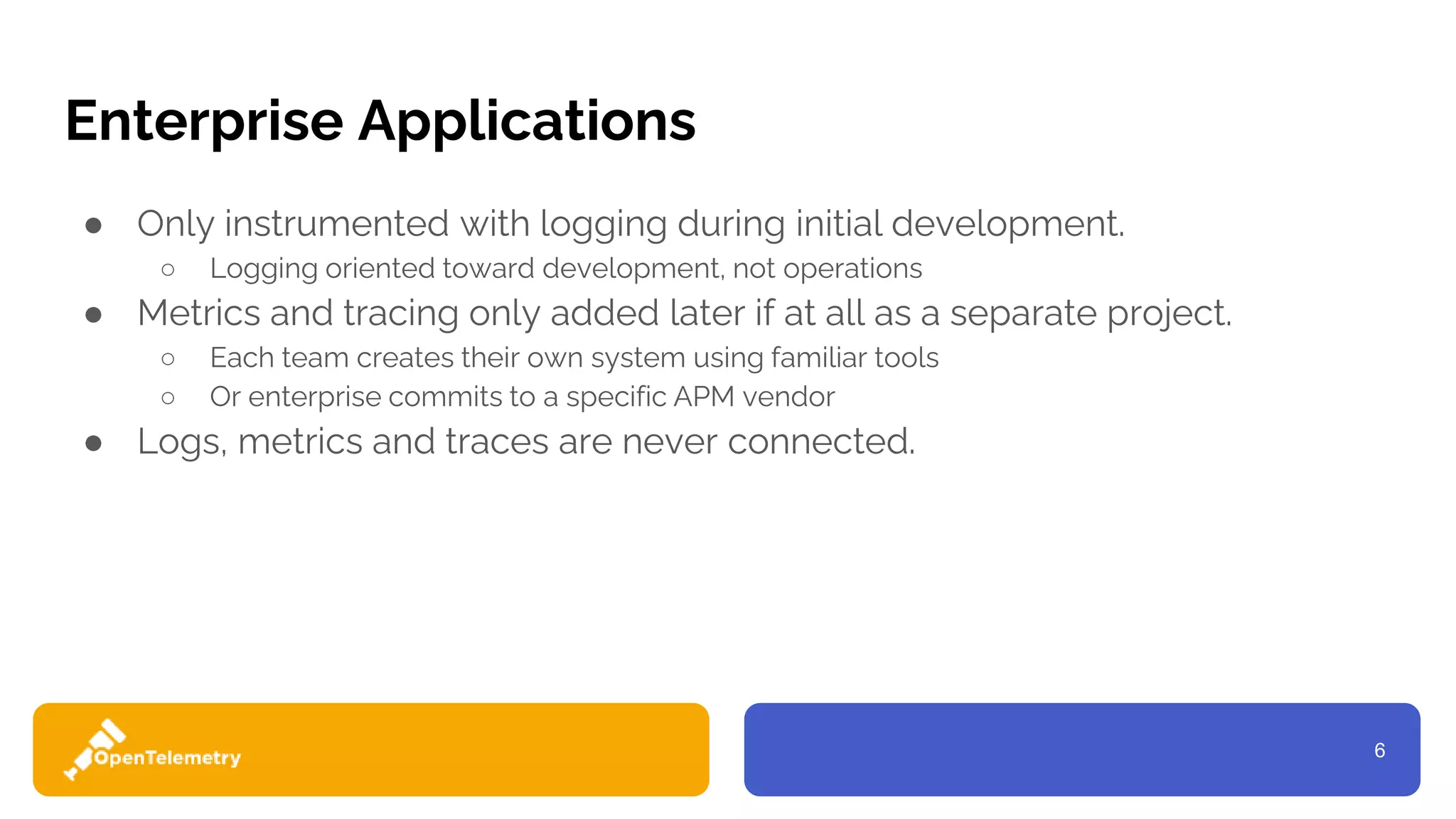

- 6. 6 Enterprise Applications ● Onlyinstrumented with logging during initial development. ○ Logging oriented toward development, not operations ● Metrics and tracing only added later if at all as a separate project. ○ Each team creates their own system using familiar tools ○ Or enterprise commits to a specific APM vendor ● Logs, metrics and traces are never connected.

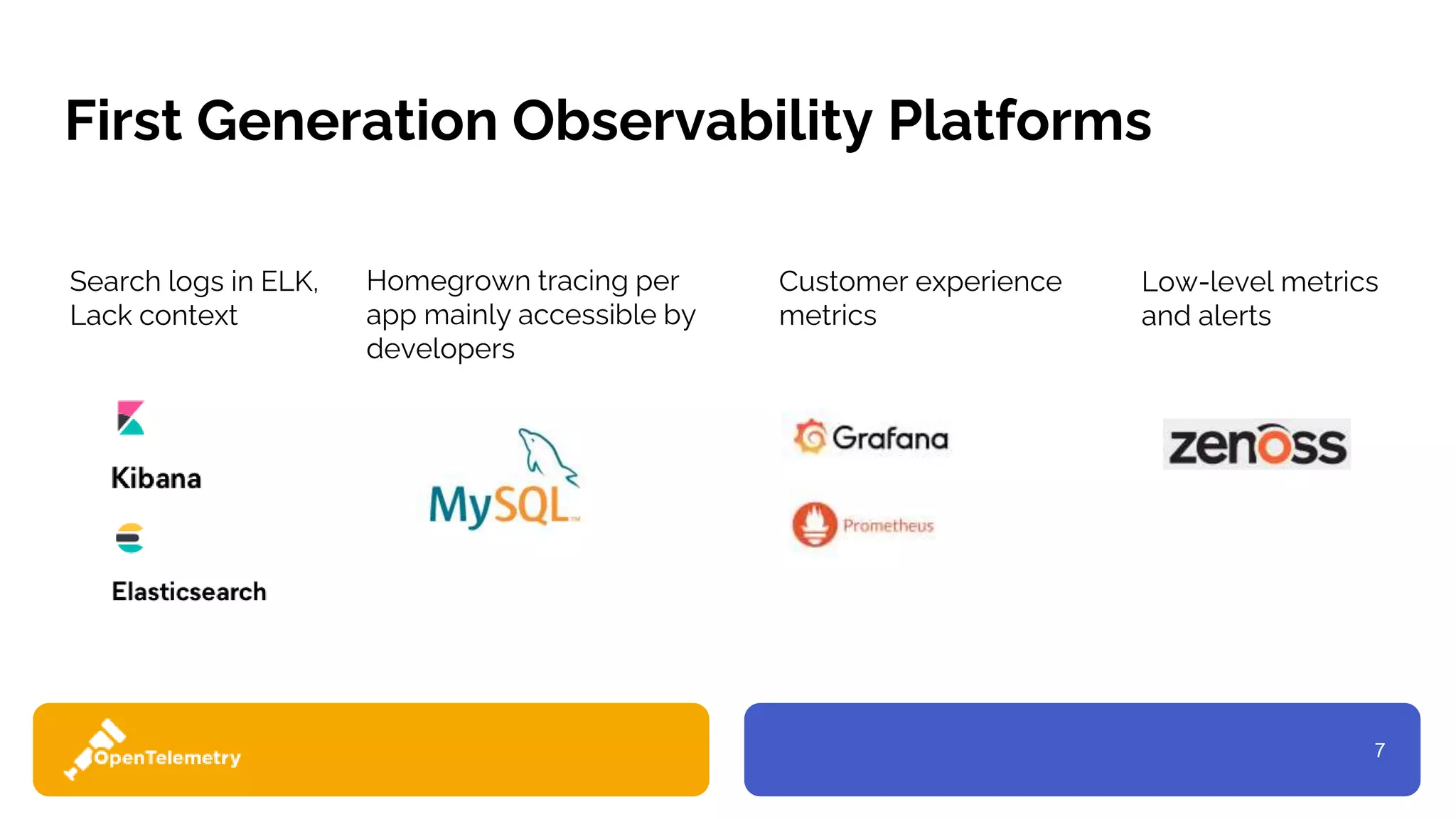

- 7. 7 First Generation ObservabilityPlatforms Search logs in ELK, Lack context Homegrown tracing per app mainly accessible by developers Customer experience metrics Low-level metrics and alerts
- 8.

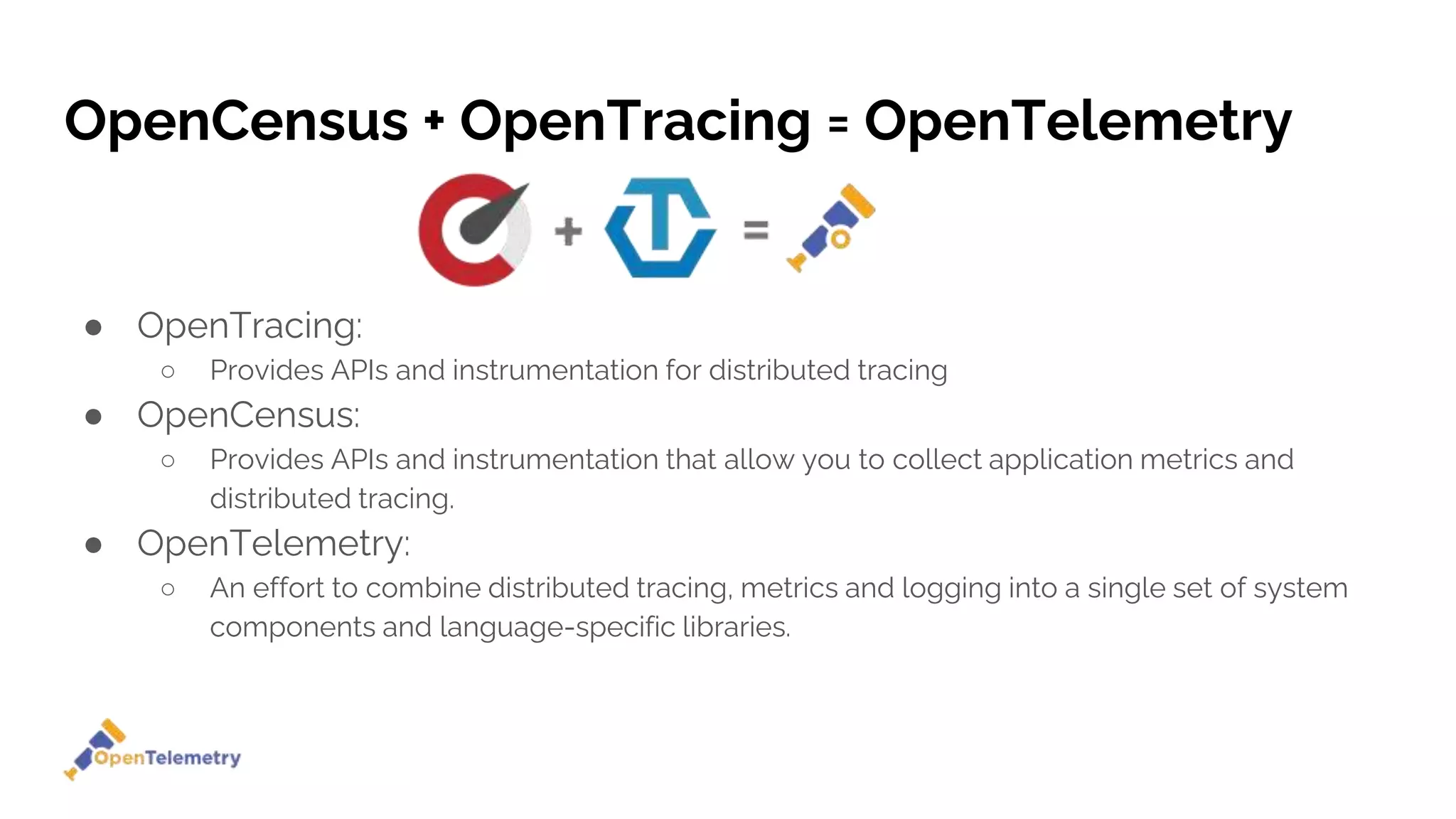

- 9. OpenCensus + OpenTracing= OpenTelemetry ● OpenTracing: ○ Provides APIs and instrumentation for distributed tracing ● OpenCensus: ○ Provides APIs and instrumentation that allow you to collect application metrics and distributed tracing. ● OpenTelemetry: ○ An effort to combine distributed tracing, metrics and logging into a single set of system components and language-specific libraries.

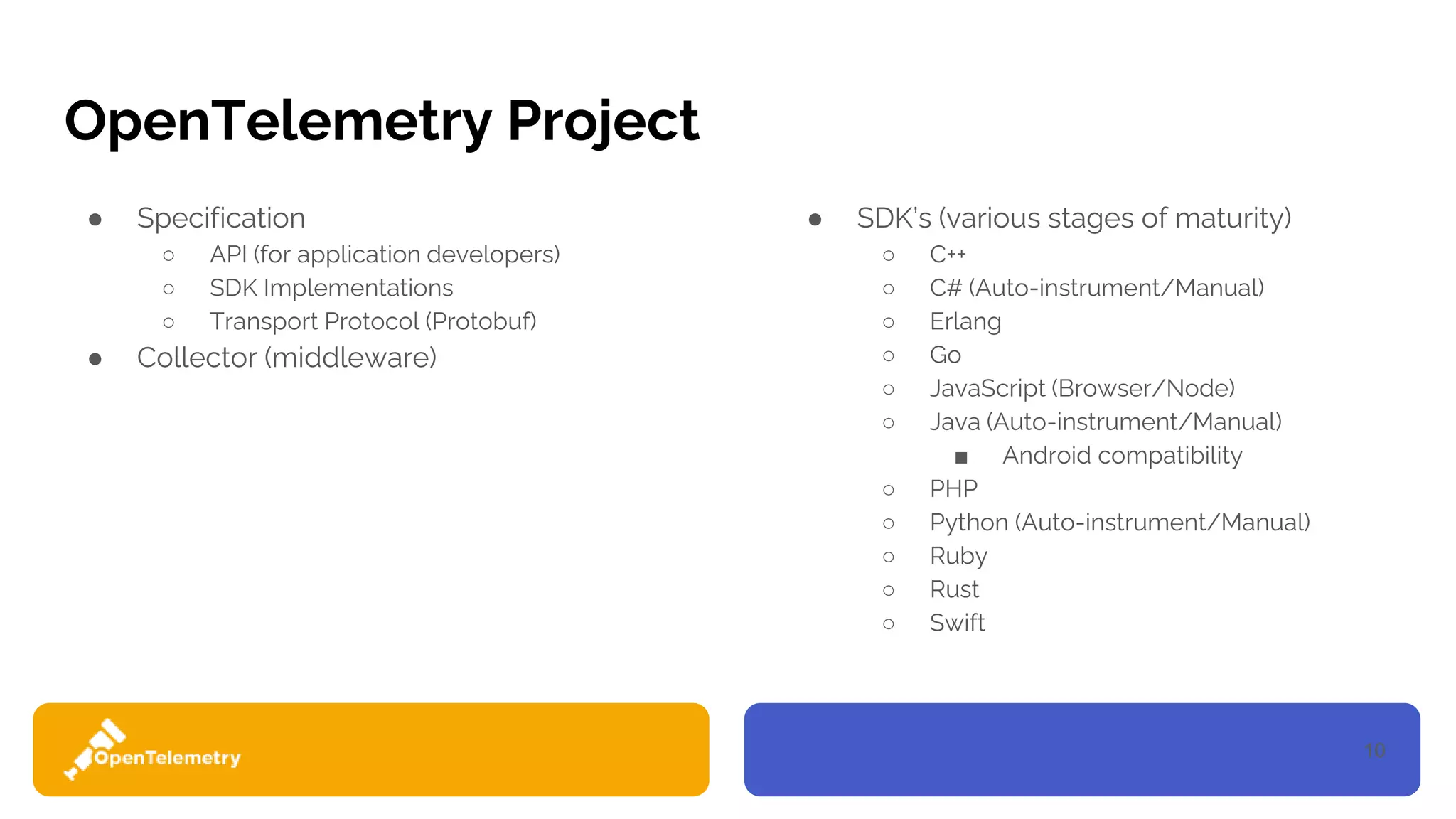

- 10. 10 OpenTelemetry Project ● Specification ○API (for application developers) ○ SDK Implementations ○ Transport Protocol (Protobuf) ● Collector (middleware) ● SDK’s (various stages of maturity) ○ C++ ○ C# (Auto-instrument/Manual) ○ Erlang ○ Go ○ JavaScript (Browser/Node) ○ Java (Auto-instrument/Manual) ■ Android compatibility ○ PHP ○ Python (Auto-instrument/Manual) ○ Ruby ○ Rust ○ Swift

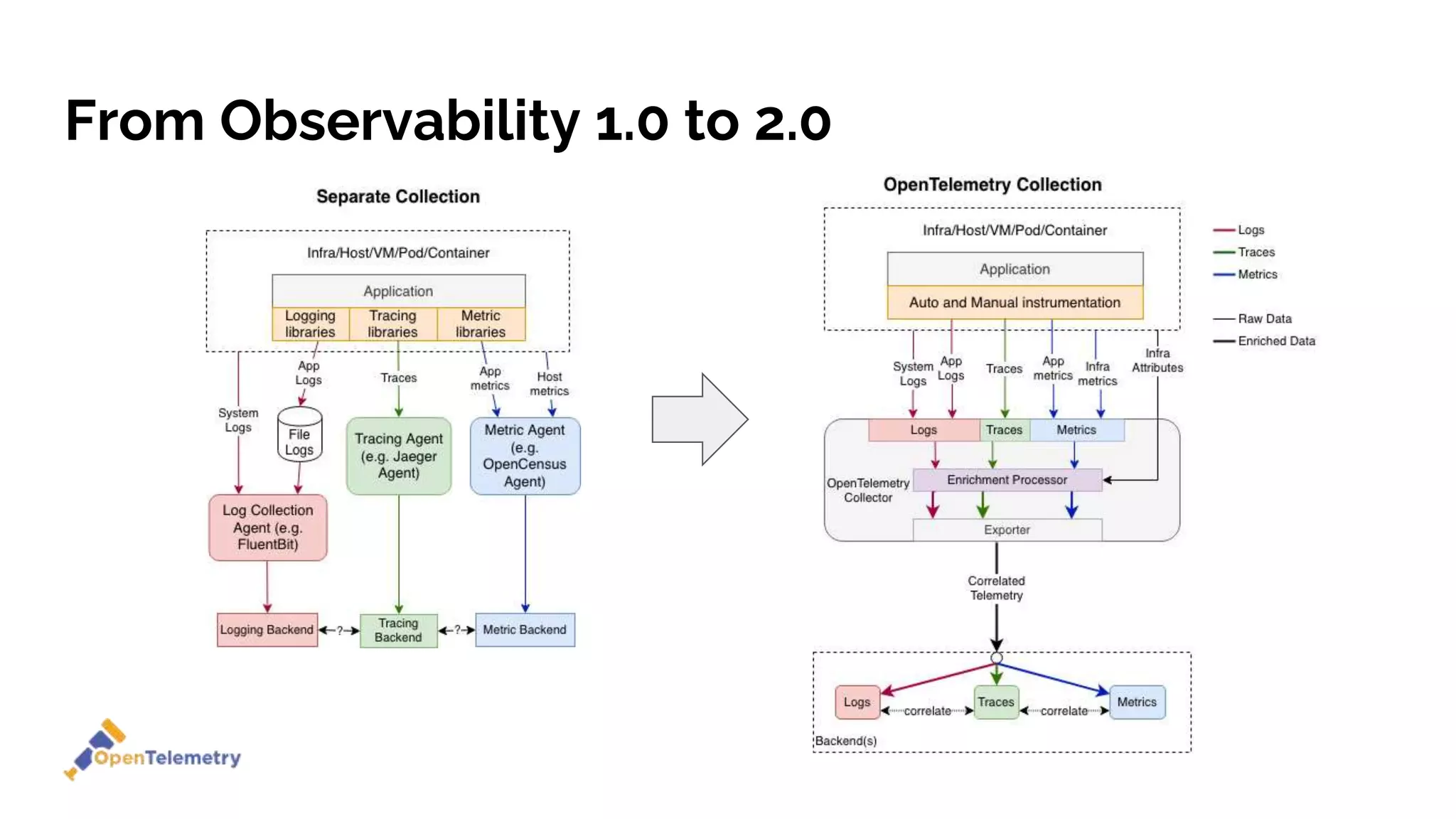

- 11. From Observability 1.0to 2.0
- 12.

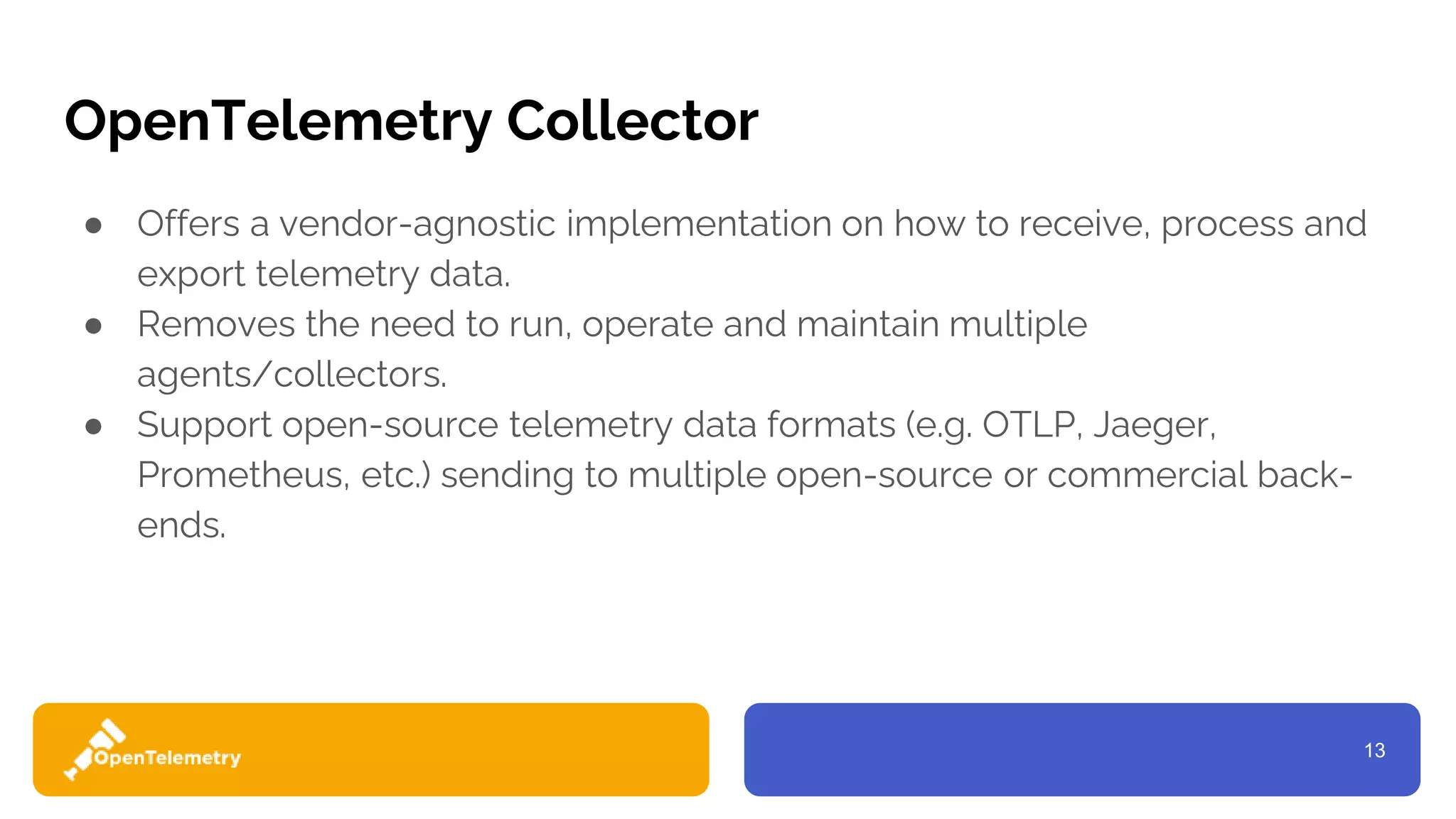

- 13. 13 OpenTelemetry Collector ● Offersa vendor-agnostic implementation on how to receive, process and export telemetry data. ● Removes the need to run, operate and maintain multiple agents/collectors. ● Support open-source telemetry data formats (e.g. OTLP, Jaeger, Prometheus, etc.) sending to multiple open-source or commercial back- ends.

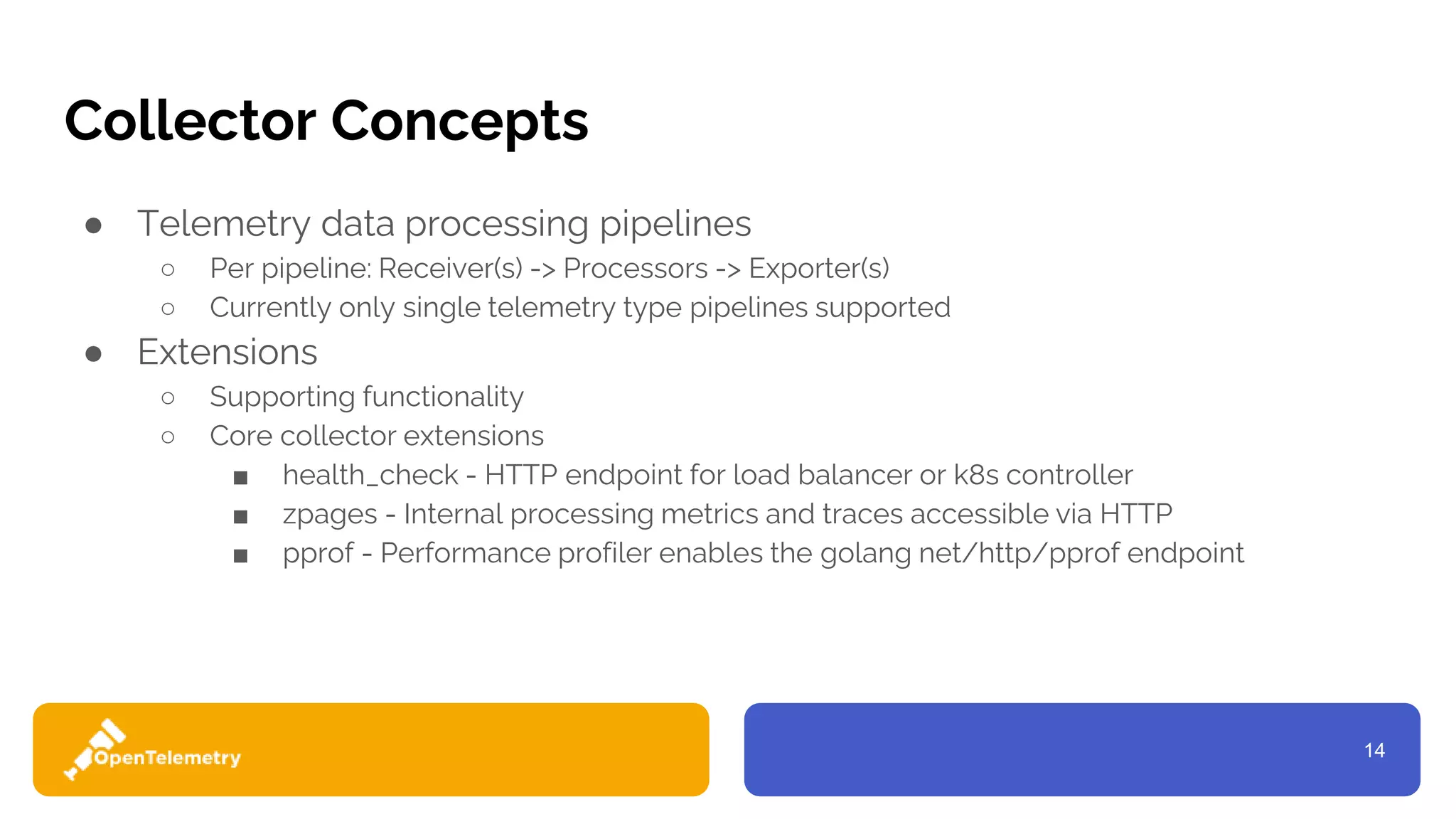

- 14. 14 Collector Concepts ● Telemetrydata processing pipelines ○ Per pipeline: Receiver(s) -> Processors -> Exporter(s) ○ Currently only single telemetry type pipelines supported ● Extensions ○ Supporting functionality ○ Core collector extensions ■ health_check - HTTP endpoint for load balancer or k8s controller ■ zpages - Internal processing metrics and traces accessible via HTTP ■ pprof - Performance profiler enables the golang net/http/pprof endpoint

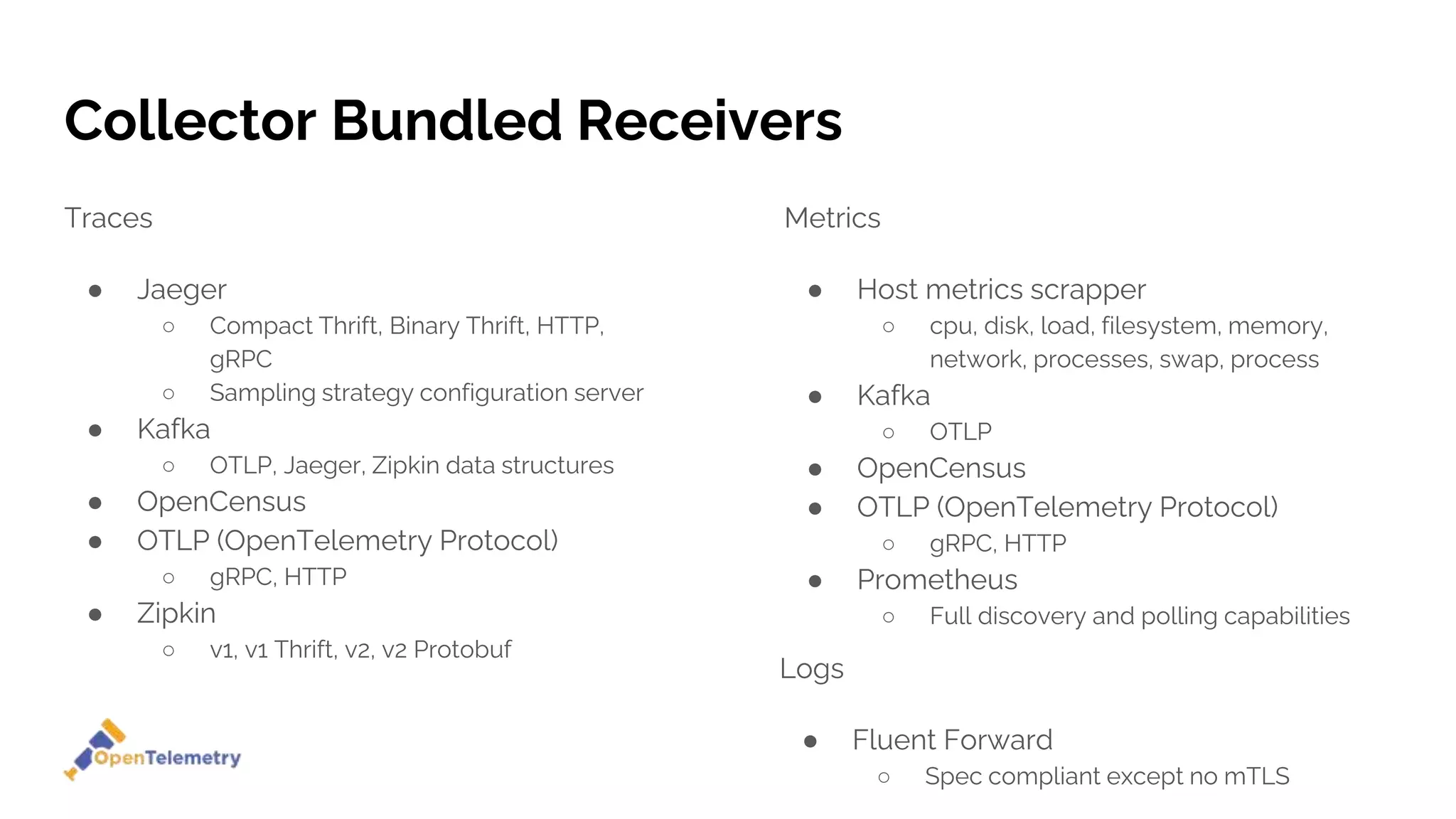

- 15. Collector Bundled Receivers Traces ●Jaeger ○ Compact Thrift, Binary Thrift, HTTP, gRPC ○ Sampling strategy configuration server ● Kafka ○ OTLP, Jaeger, Zipkin data structures ● OpenCensus ● OTLP (OpenTelemetry Protocol) ○ gRPC, HTTP ● Zipkin ○ v1, v1 Thrift, v2, v2 Protobuf Metrics ● Host metrics scrapper ○ cpu, disk, load, filesystem, memory, network, processes, swap, process ● Kafka ○ OTLP ● OpenCensus ● OTLP (OpenTelemetry Protocol) ○ gRPC, HTTP ● Prometheus ○ Full discovery and polling capabilities Logs ● Fluent Forward ○ Spec compliant except no mTLS

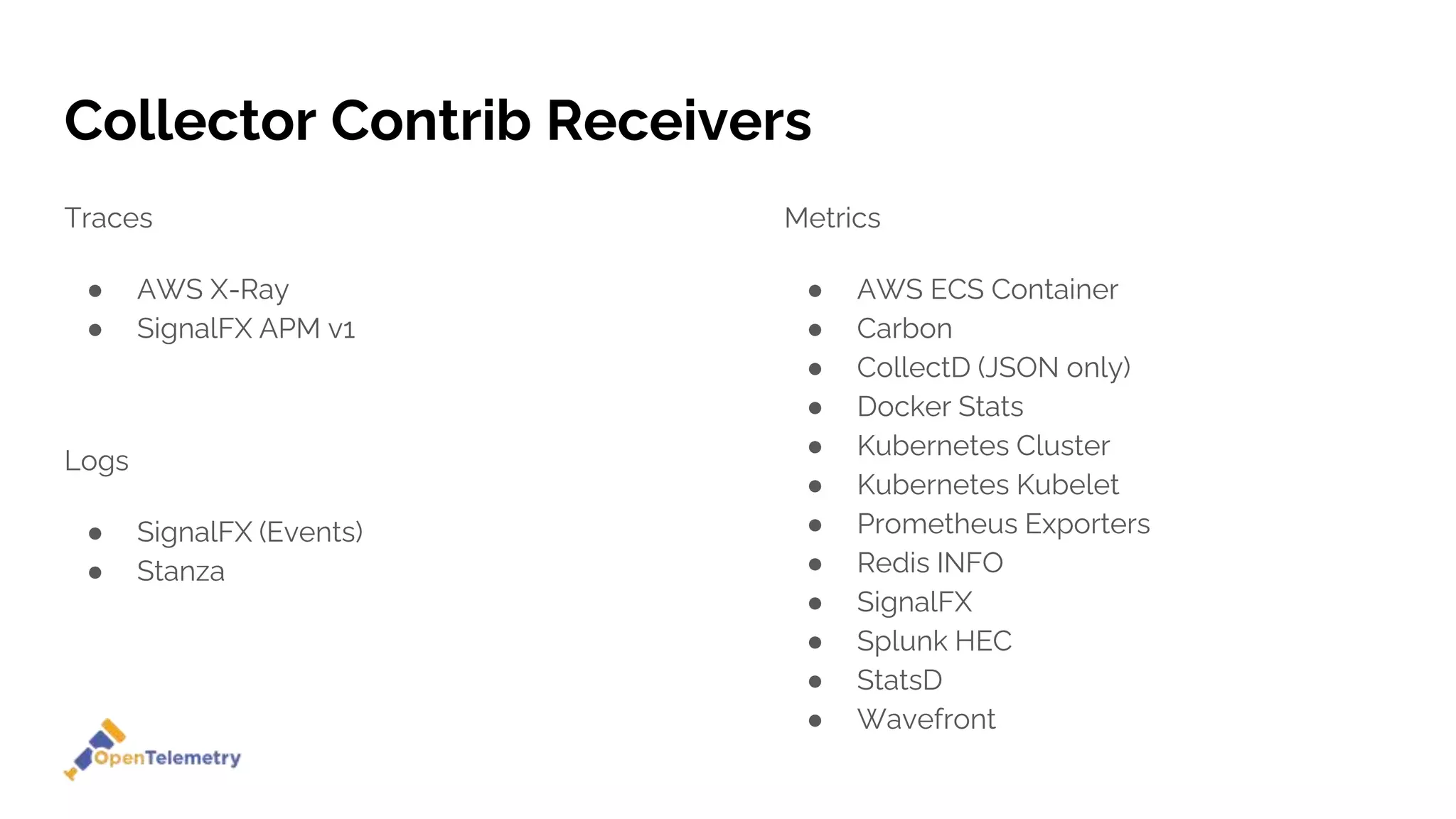

- 16. Collector Contrib Receivers Traces ●AWS X-Ray ● SignalFX APM v1 Metrics ● AWS ECS Container ● Carbon ● CollectD (JSON only) ● Docker Stats ● Kubernetes Cluster ● Kubernetes Kubelet ● Prometheus Exporters ● Redis INFO ● SignalFX ● Splunk HEC ● StatsD ● Wavefront Logs ● SignalFX (Events) ● Stanza

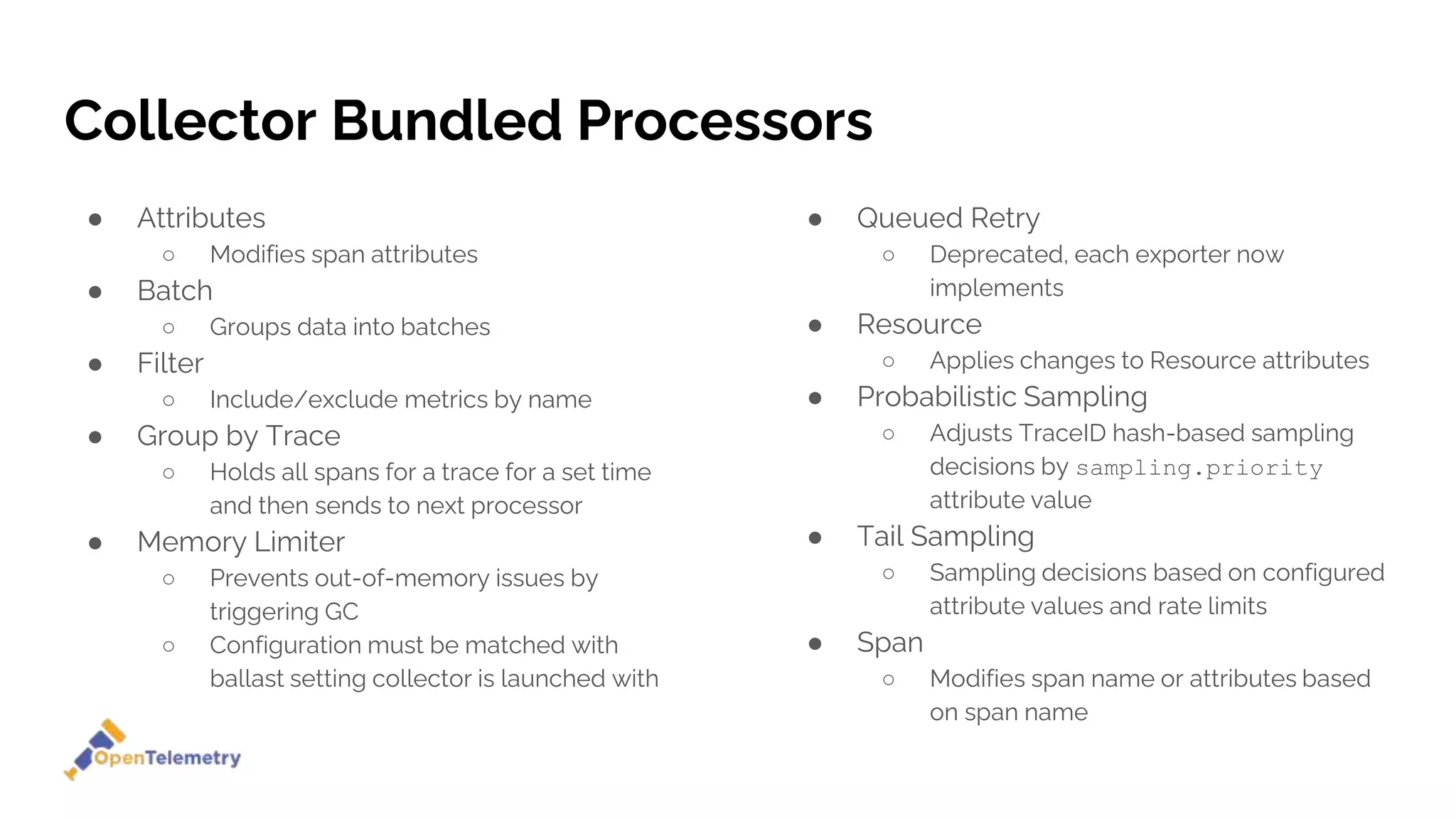

- 17. Collector Bundled Processors ●Attributes ○ Modifies span attributes ● Batch ○ Groups data into batches ● Filter ○ Include/exclude metrics by name ● Group by Trace ○ Holds all spans for a trace for a set time and then sends to next processor ● Memory Limiter ○ Prevents out-of-memory issues by triggering GC ○ Configuration must be matched with ballast setting collector is launched with ● Queued Retry ○ Deprecated, each exporter now implements ● Resource ○ Applies changes to Resource attributes ● Probabilistic Sampling ○ Adjusts TraceID hash-based sampling decisions by sampling.priority attribute value ● Tail Sampling ○ Sampling decisions based on configured attribute values and rate limits ● Span ○ Modifies span name or attributes based on span name

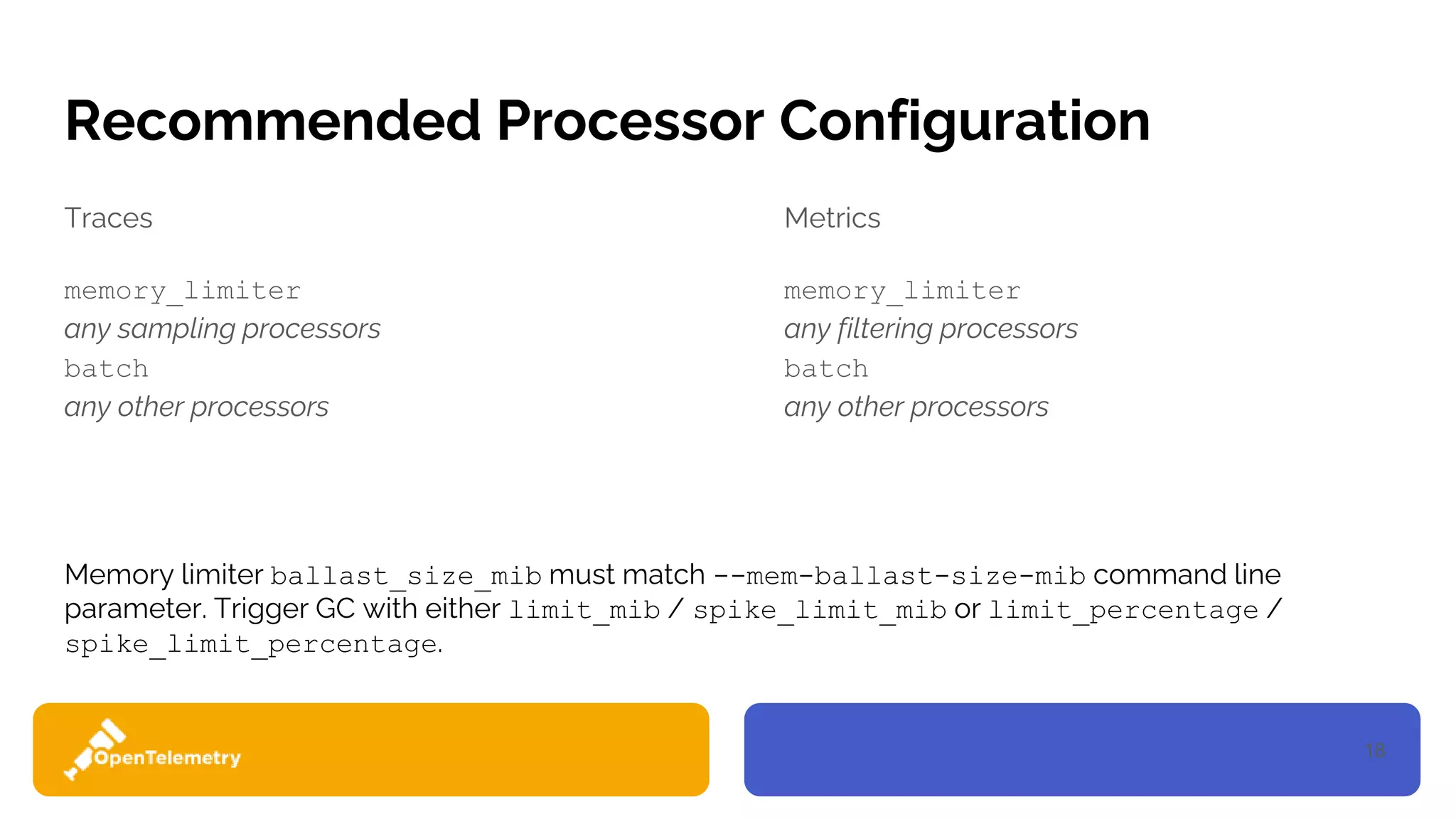

- 18. 18 Recommended Processor Configuration Traces memory_limiter anysampling processors batch any other processors Metrics memory_limiter any filtering processors batch any other processors Memory limiter ballast_size_mib must match --mem-ballast-size-mib command line parameter. Trigger GC with either limit_mib / spike_limit_mib or limit_percentage / spike_limit_percentage.

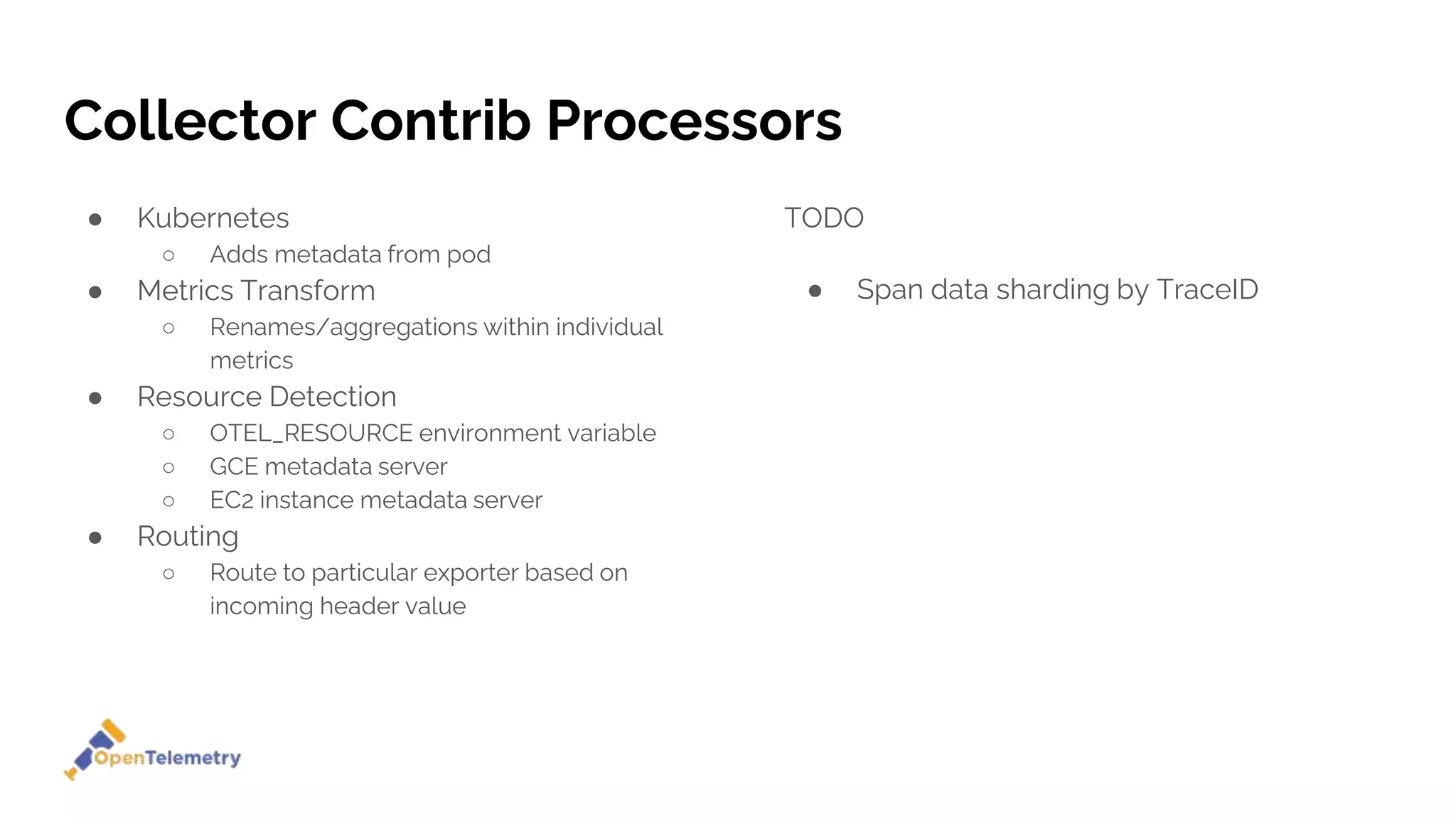

- 19. Collector Contrib Processors ●Kubernetes ○ Adds metadata from pod ● Metrics Transform ○ Renames/aggregations within individual metrics ● Resource Detection ○ OTEL_RESOURCE environment variable ○ GCE metadata server ○ EC2 instance metadata server ● Routing ○ Route to particular exporter based on incoming header value TODO ● Span data sharding by TraceID

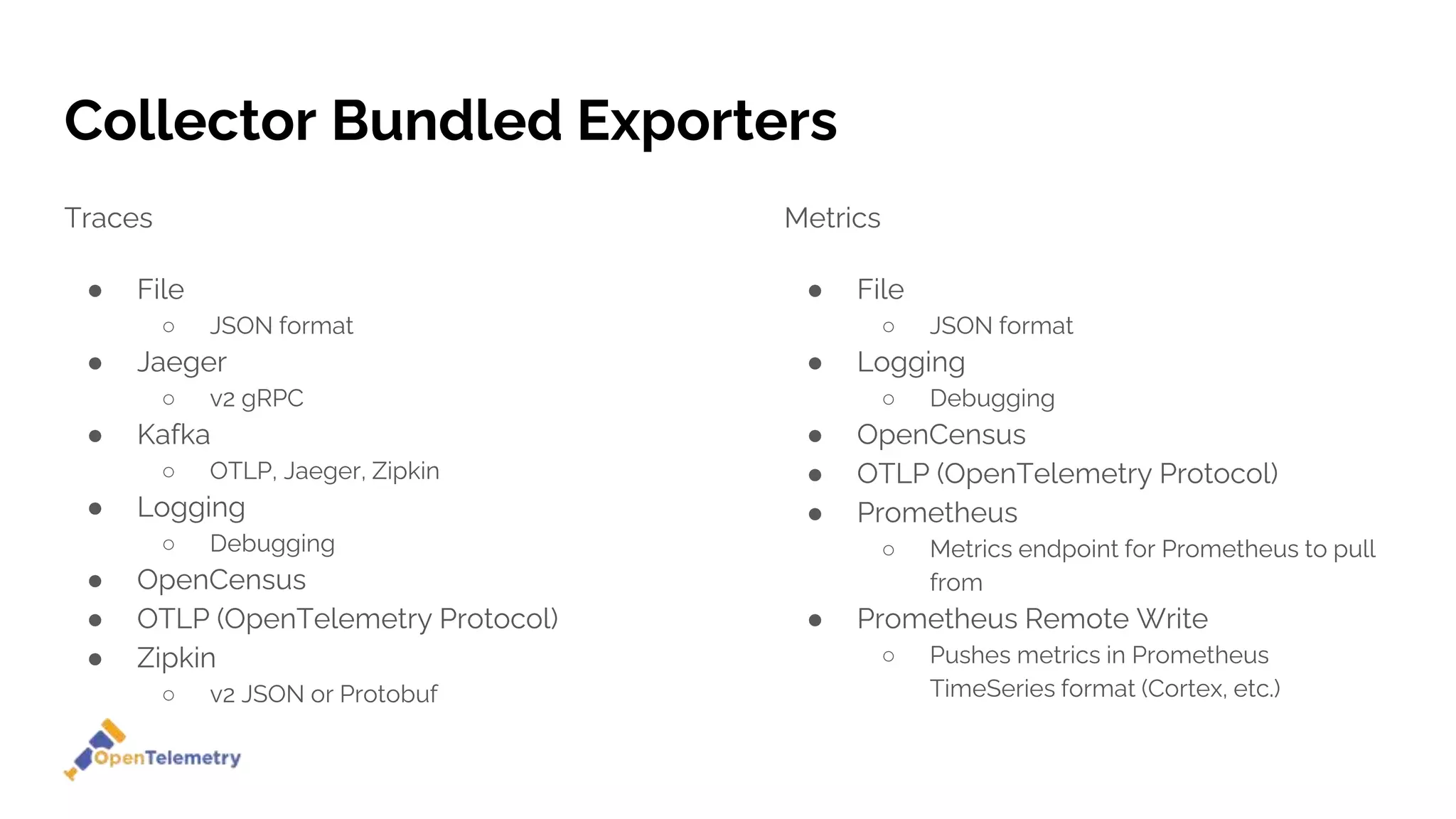

- 20. Collector Bundled Exporters Traces ●File ○ JSON format ● Jaeger ○ v2 gRPC ● Kafka ○ OTLP, Jaeger, Zipkin ● Logging ○ Debugging ● OpenCensus ● OTLP (OpenTelemetry Protocol) ● Zipkin ○ v2 JSON or Protobuf Metrics ● File ○ JSON format ● Logging ○ Debugging ● OpenCensus ● OTLP (OpenTelemetry Protocol) ● Prometheus ○ Metrics endpoint for Prometheus to pull from ● Prometheus Remote Write ○ Pushes metrics in Prometheus TimeSeries format (Cortex, etc.)

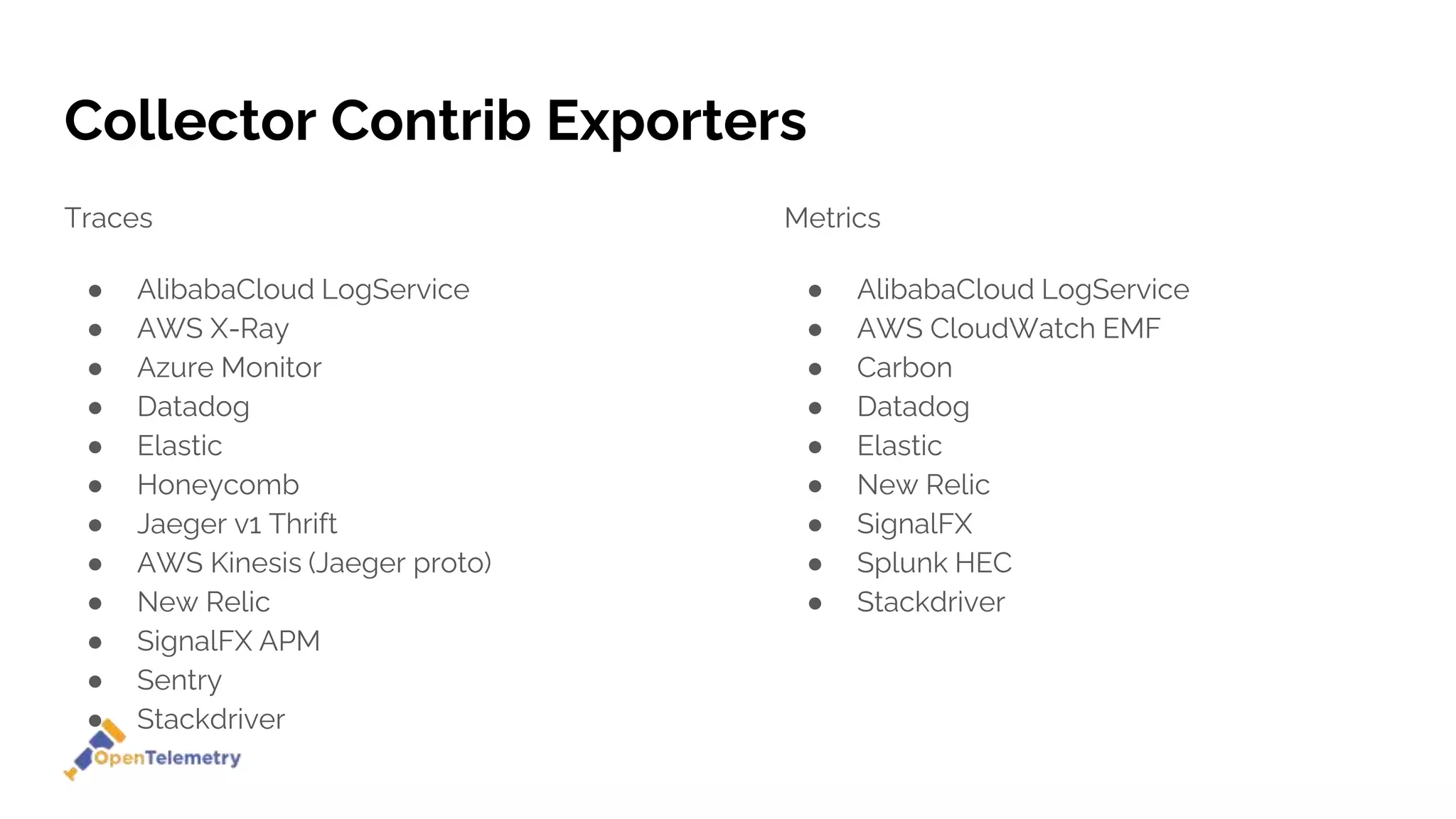

- 21. Collector Contrib Exporters Traces ●AlibabaCloud LogService ● AWS X-Ray ● Azure Monitor ● Datadog ● Elastic ● Honeycomb ● Jaeger v1 Thrift ● AWS Kinesis (Jaeger proto) ● New Relic ● SignalFX APM ● Sentry ● Stackdriver Metrics ● AlibabaCloud LogService ● AWS CloudWatch EMF ● Carbon ● Datadog ● Elastic ● New Relic ● SignalFX ● Splunk HEC ● Stackdriver

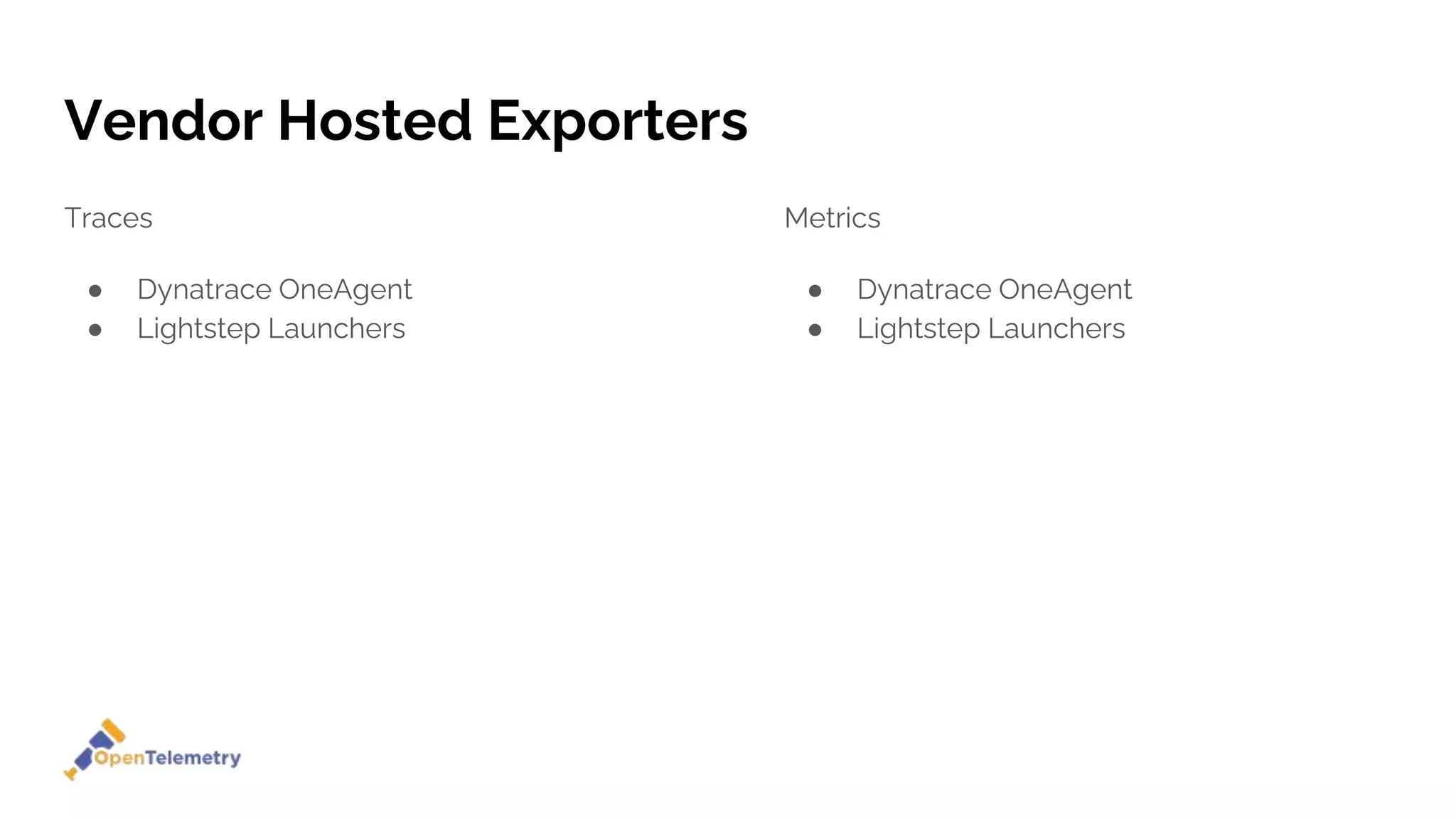

- 22. Vendor Hosted Exporters Traces ●Dynatrace OneAgent ● Lightstep Launchers Metrics ● Dynatrace OneAgent ● Lightstep Launchers

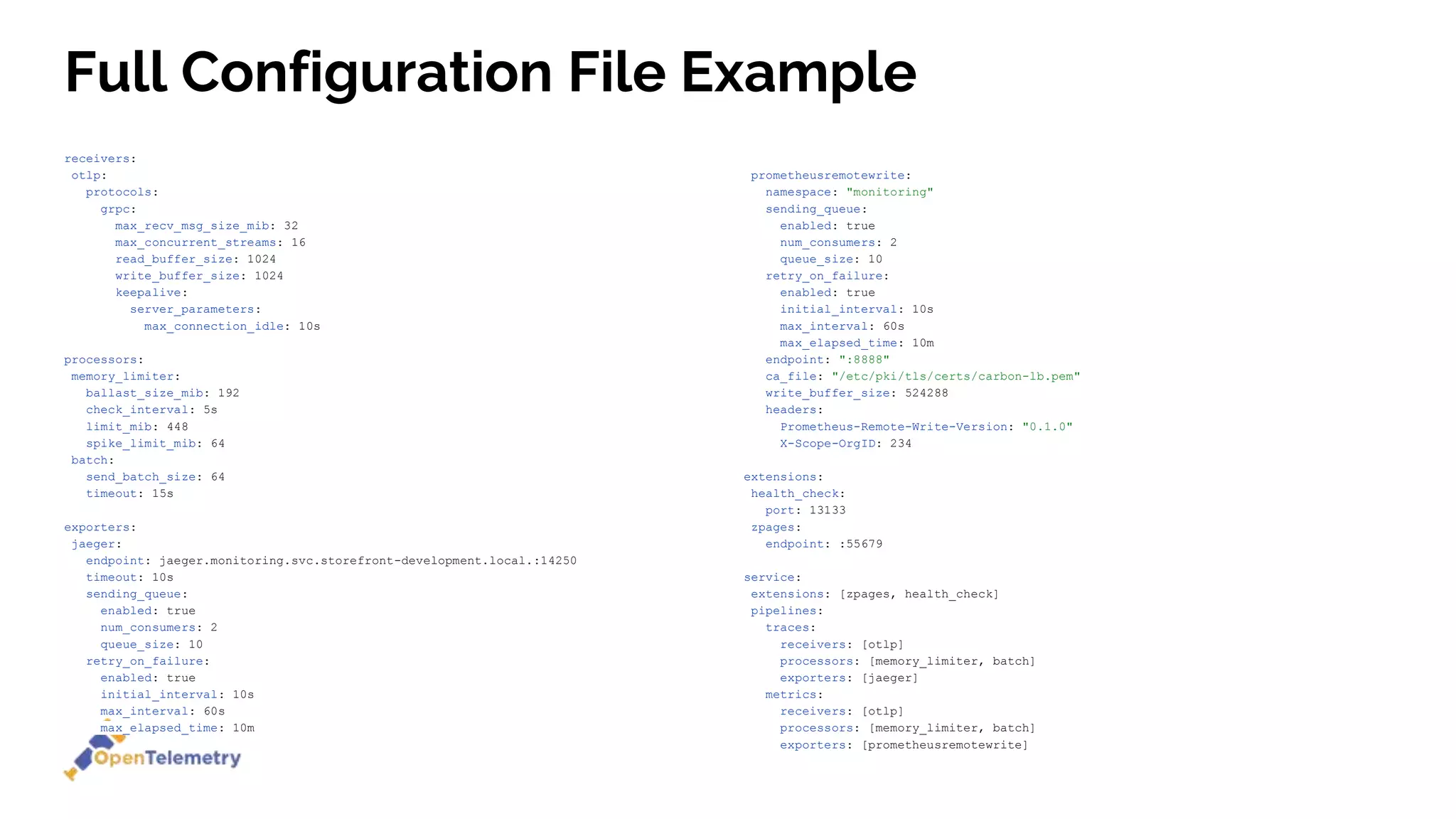

- 23. receivers: otlp: protocols: grpc: max_recv_msg_size_mib: 32 max_concurrent_streams: 16 read_buffer_size:1024 write_buffer_size: 1024 keepalive: server_parameters: max_connection_idle: 10s processors: memory_limiter: ballast_size_mib: 192 check_interval: 5s limit_mib: 448 spike_limit_mib: 64 batch: send_batch_size: 64 timeout: 15s exporters: jaeger: endpoint: jaeger.monitoring.svc.storefront-development.local.:14250 timeout: 10s sending_queue: enabled: true num_consumers: 2 queue_size: 10 retry_on_failure: enabled: true initial_interval: 10s max_interval: 60s max_elapsed_time: 10m prometheusremotewrite: namespace: "monitoring" sending_queue: enabled: true num_consumers: 2 queue_size: 10 retry_on_failure: enabled: true initial_interval: 10s max_interval: 60s max_elapsed_time: 10m endpoint: ":8888" ca_file: "/etc/pki/tls/certs/carbon-lb.pem" write_buffer_size: 524288 headers: Prometheus-Remote-Write-Version: "0.1.0" X-Scope-OrgID: 234 extensions: health_check: port: 13133 zpages: endpoint: :55679 service: extensions: [zpages, health_check] pipelines: traces: receivers: [otlp] processors: [memory_limiter, batch] exporters: [jaeger] metrics: receivers: [otlp] processors: [memory_limiter, batch] exporters: [prometheusremotewrite] Full Configuration File Example

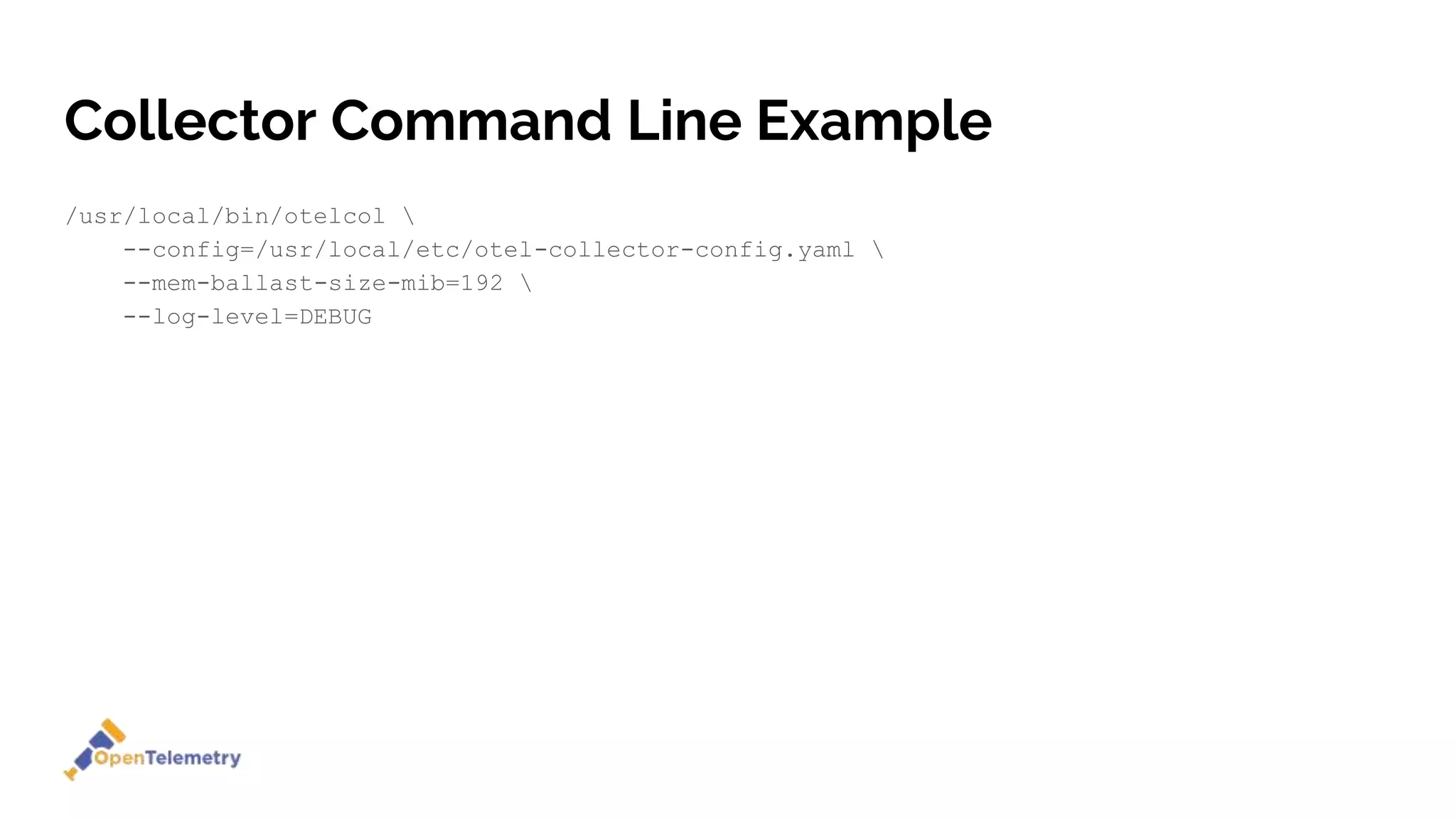

- 24. Collector Command LineExample /usr/local/bin/otelcol --config=/usr/local/etc/otel-collector-config.yaml --mem-ballast-size-mib=192 --log-level=DEBUG

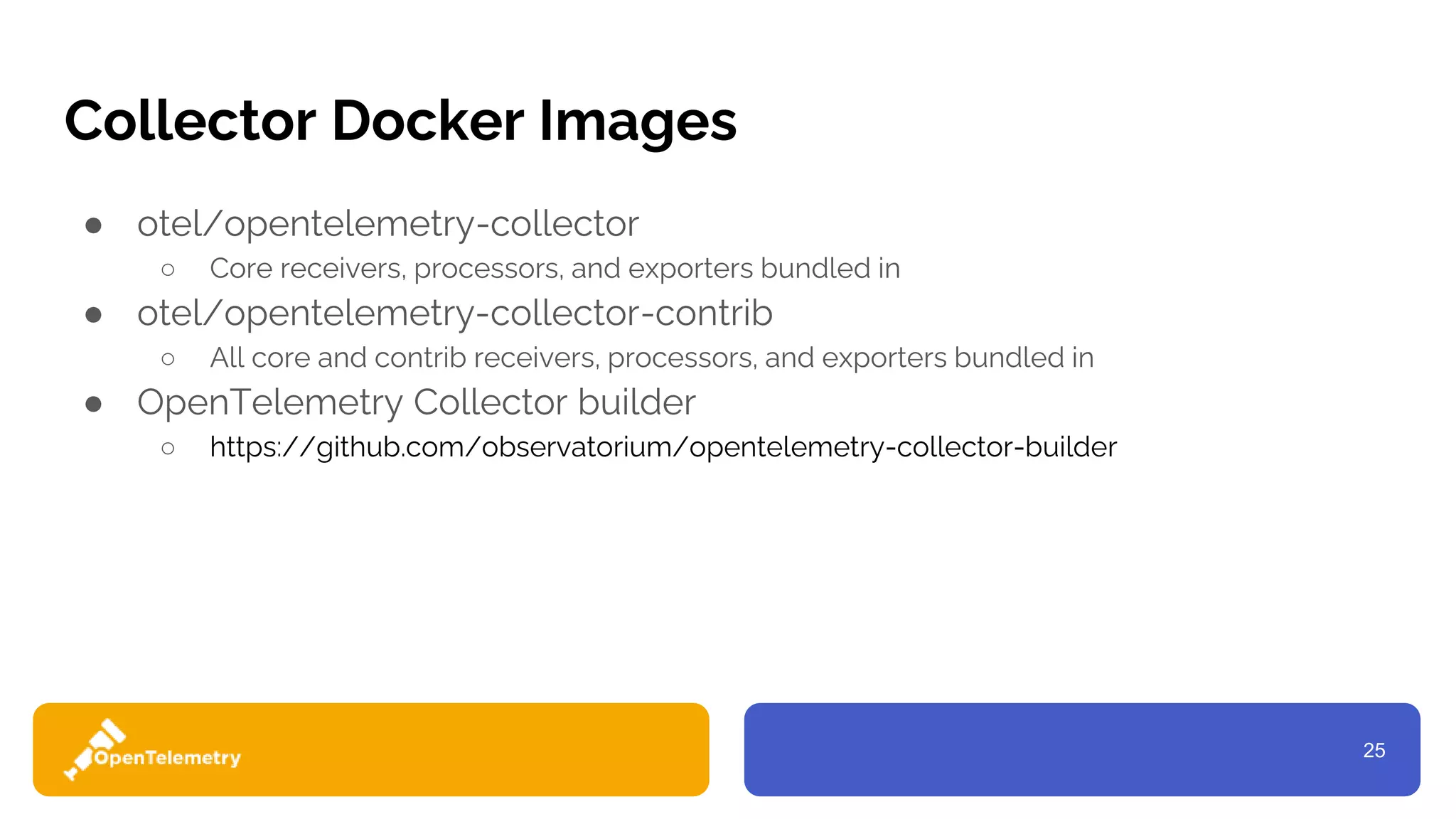

- 25. 25 Collector Docker Images ●otel/opentelemetry-collector ○ Core receivers, processors, and exporters bundled in ● otel/opentelemetry-collector-contrib ○ All core and contrib receivers, processors, and exporters bundled in ● OpenTelemetry Collector builder ○ https://github.com/observatorium/opentelemetry-collector-builder
- 26. 26 Other Collector Installs ●RPM ○ Produced by opentelemetry-collector build ● Debian ○ Produced by opentelemetry-collector build

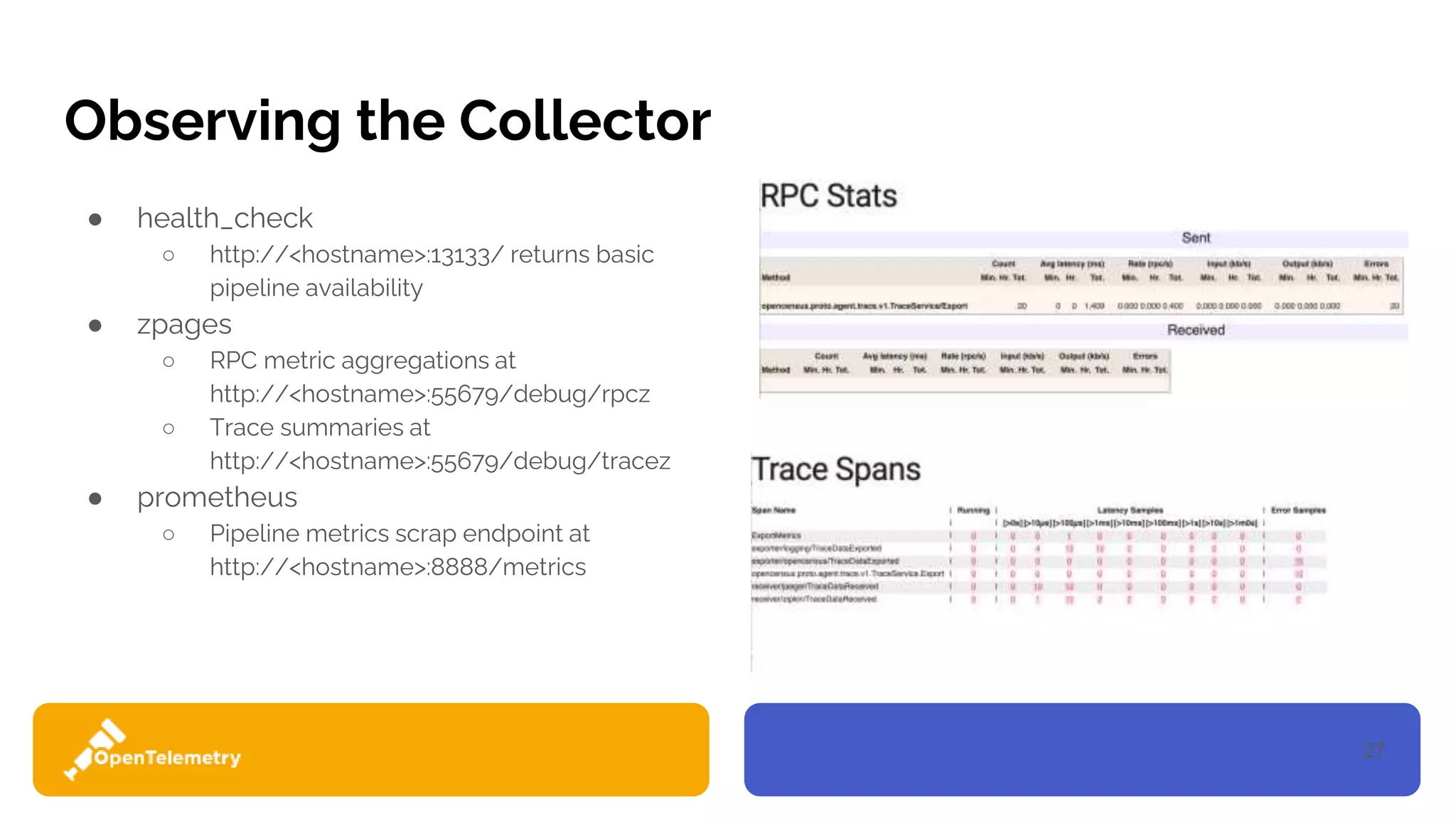

- 27. 27 Observing the Collector ●health_check ○ http://<hostname>:13133/ returns basic pipeline availability ● zpages ○ RPC metric aggregations at http://<hostname>:55679/debug/rpcz ○ Trace summaries at http://<hostname>:55679/debug/tracez ● prometheus ○ Pipeline metrics scrap endpoint at http://<hostname>:8888/metrics

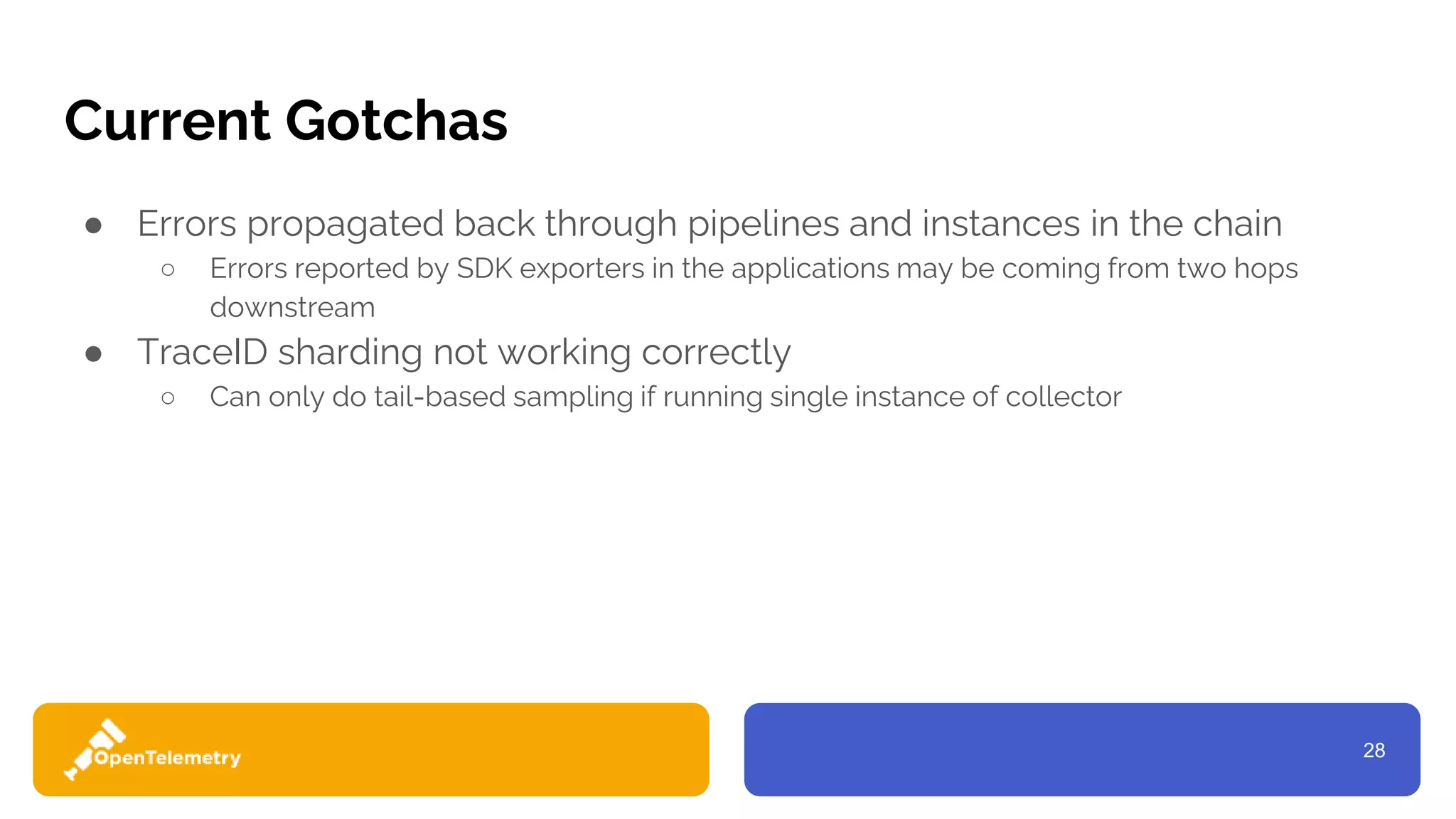

- 28. 28 Current Gotchas ● Errorspropagated back through pipelines and instances in the chain ○ Errors reported by SDK exporters in the applications may be coming from two hops downstream ● TraceID sharding not working correctly ○ Can only do tail-based sampling if running single instance of collector

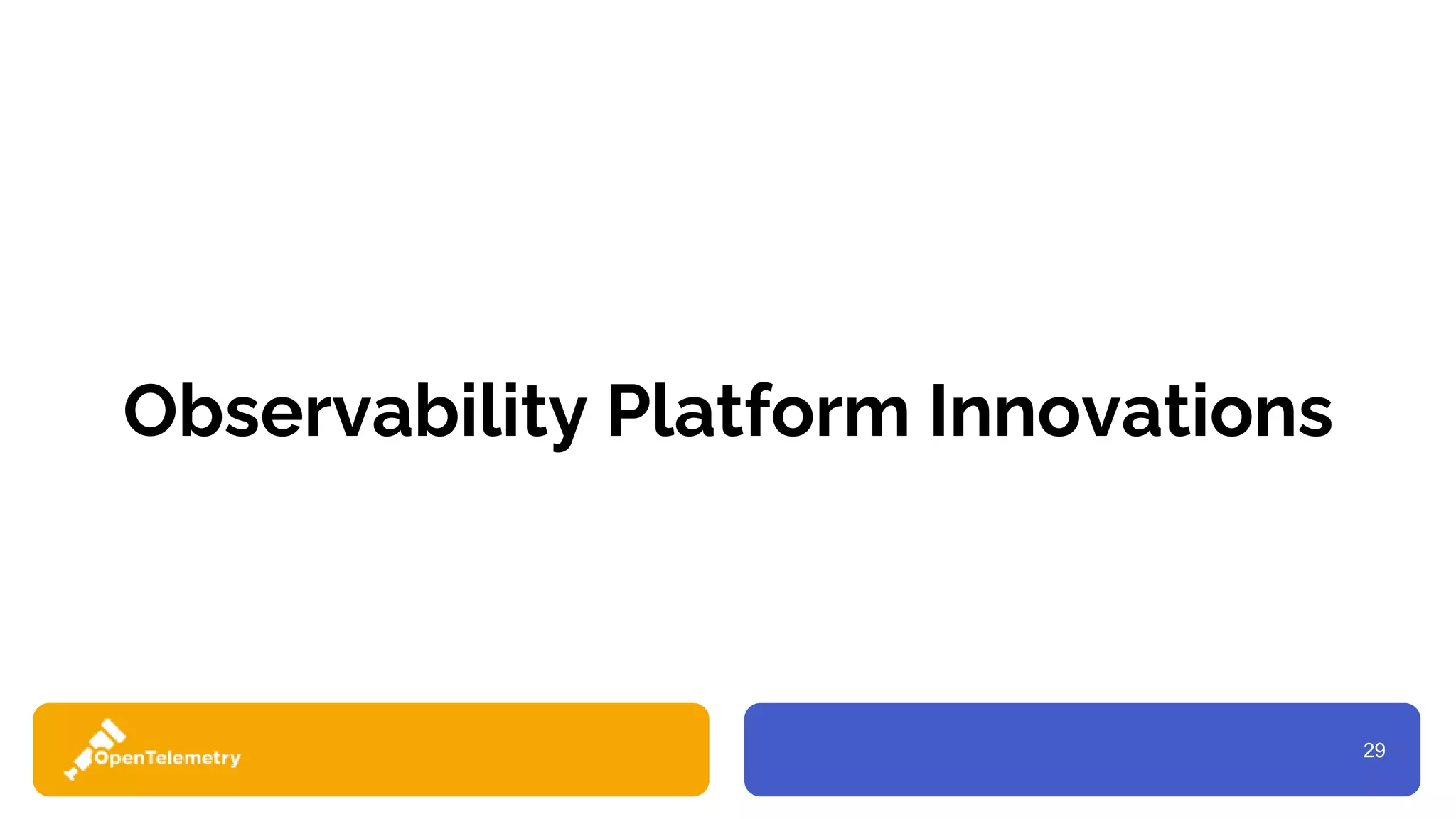

- 29.

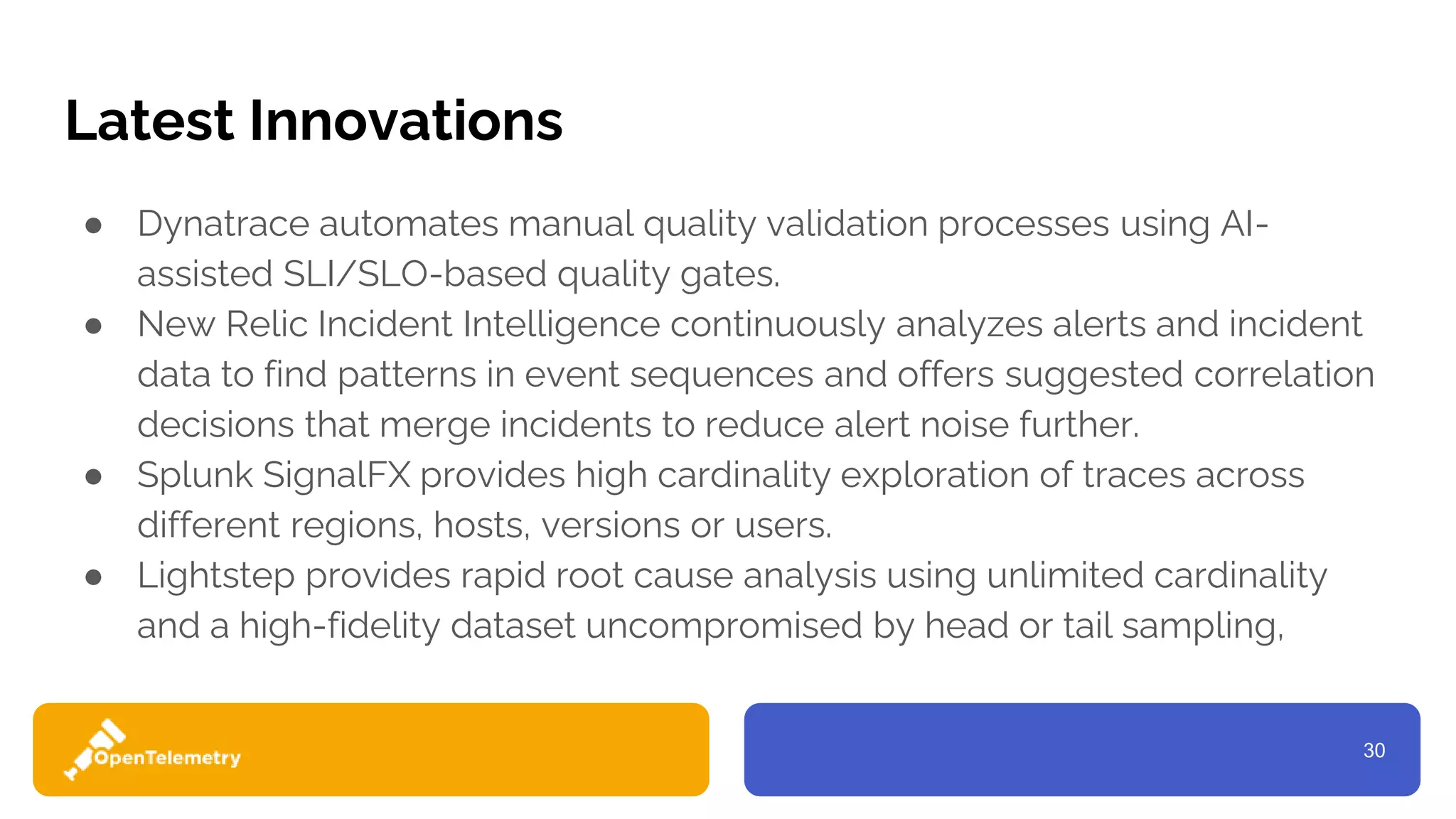

- 30. 30 Latest Innovations ● Dynatraceautomates manual quality validation processes using AI- assisted SLI/SLO-based quality gates. ● New Relic Incident Intelligence continuously analyzes alerts and incident data to find patterns in event sequences and offers suggested correlation decisions that merge incidents to reduce alert noise further. ● Splunk SignalFX provides high cardinality exploration of traces across different regions, hosts, versions or users. ● Lightstep provides rapid root cause analysis using unlimited cardinality and a high-fidelity dataset uncompromised by head or tail sampling,

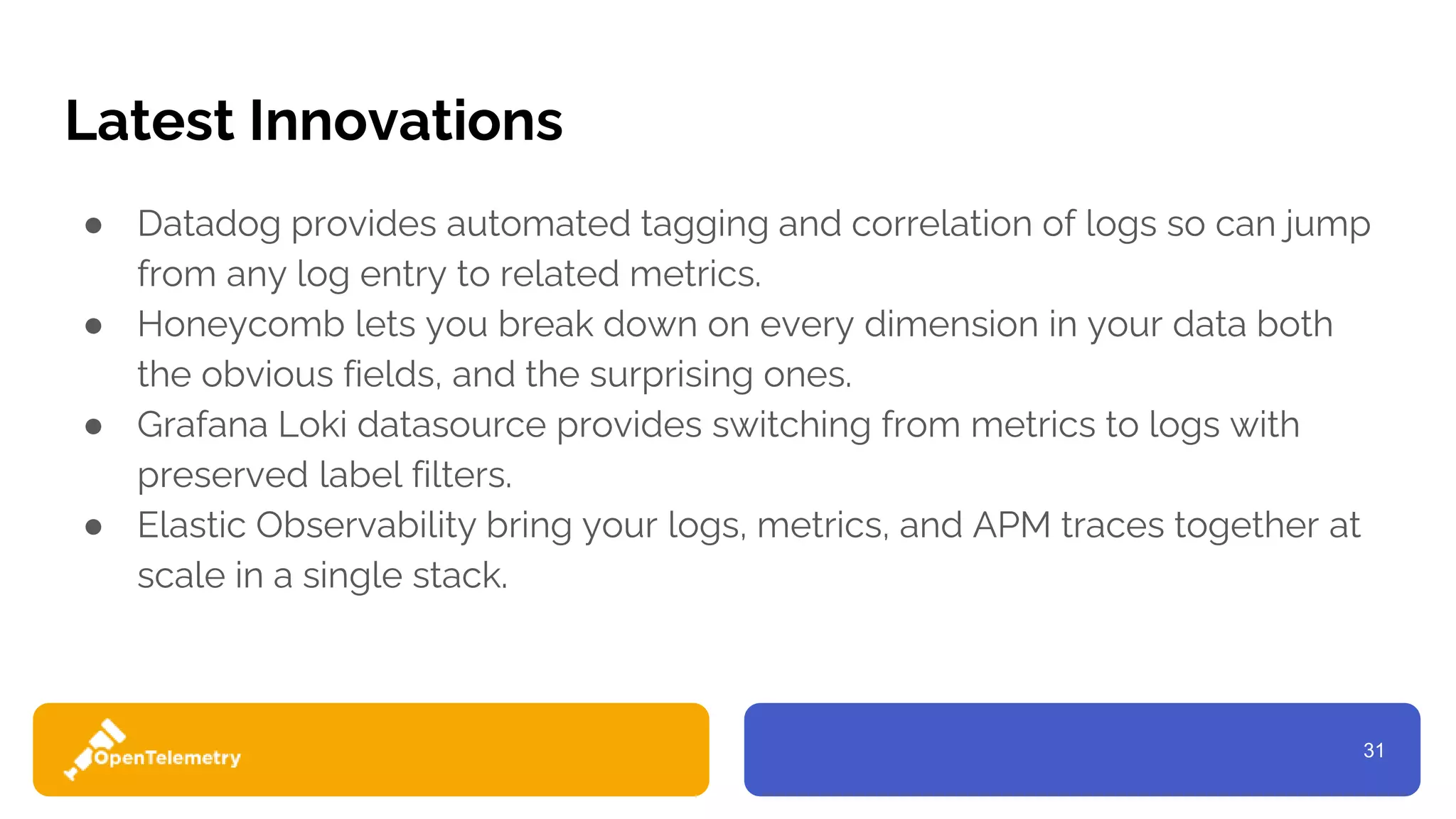

- 31. 31 Latest Innovations ● Datadogprovides automated tagging and correlation of logs so can jump from any log entry to related metrics. ● Honeycomb lets you break down on every dimension in your data both the obvious fields, and the surprising ones. ● Grafana Loki datasource provides switching from metrics to logs with preserved label filters. ● Elastic Observability bring your logs, metrics, and APM traces together at scale in a single stack.
- 32.
