OpenDaylight SDN Controller - Introduction

This document provides an overview of OpenDaylight (ODL) and instructions for getting started with ODL on a Raspberry Pi 3 using Mininet and the REST interface. It includes the following sections: 1. Introduction to ODL including its architecture, community, and releases. 2. Instructions for installing Java, downloading and running ODL, and installing features using Karaf. 3. Directions for connecting Mininet to the ODL instance and using DLUX and RESTconf to view and interact with the network topology and nodes. 4. Information on the REST interface and how to use curl and Yang UI/Yangman to send requests and view responses regarding the network topology and inventory.

Embed presentation

Download as PDF, PPTX
1 / 56 ODL OpenDaylight Eueung Mulyana https://telematika.org/remark/odl CodeLabs | Attribution-ShareAlike CC BY-SA

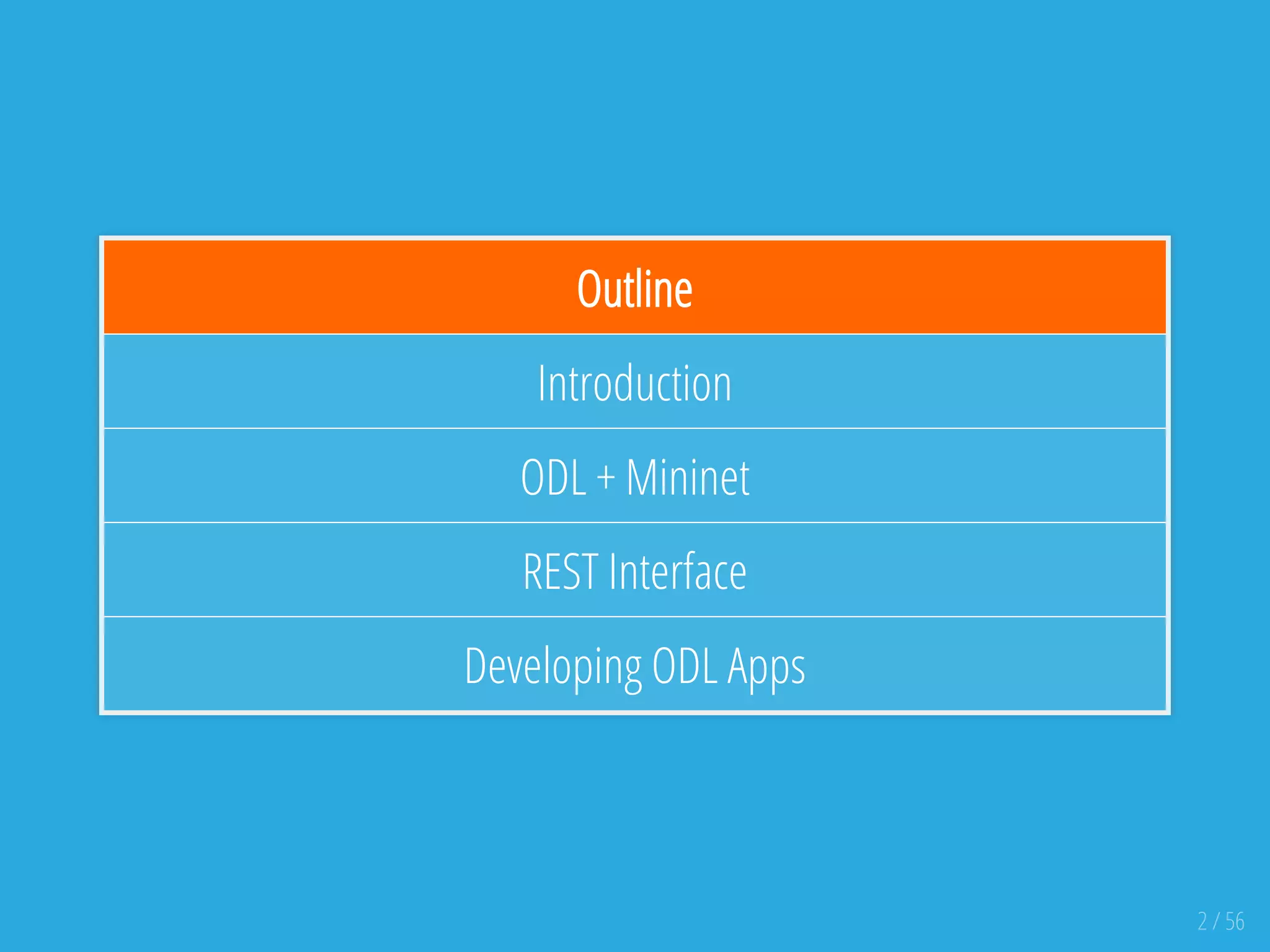

Outline Introduction ODL + Mininet REST Interface Developing ODL Apps 2 / 56

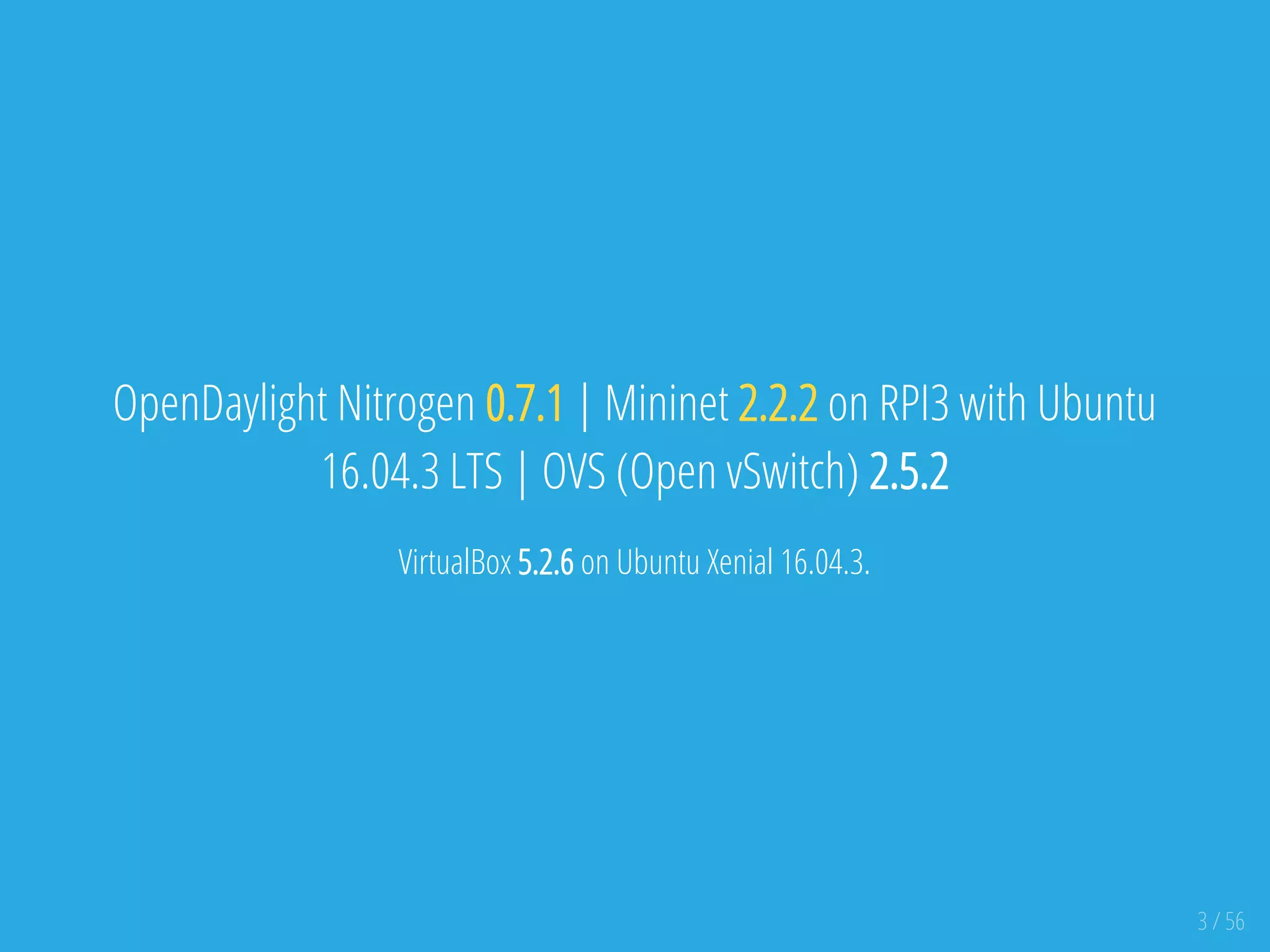

OpenDaylight Nitrogen 0.7.1 | Mininet 2.2.2 on RPI3 with Ubuntu 16.04.3 LTS | OVS (Open vSwitch) 2.5.2 VirtualBox 5.2.6 on Ubuntu Xenial 16.04.3. 3 / 56
Introduction 4 / 56

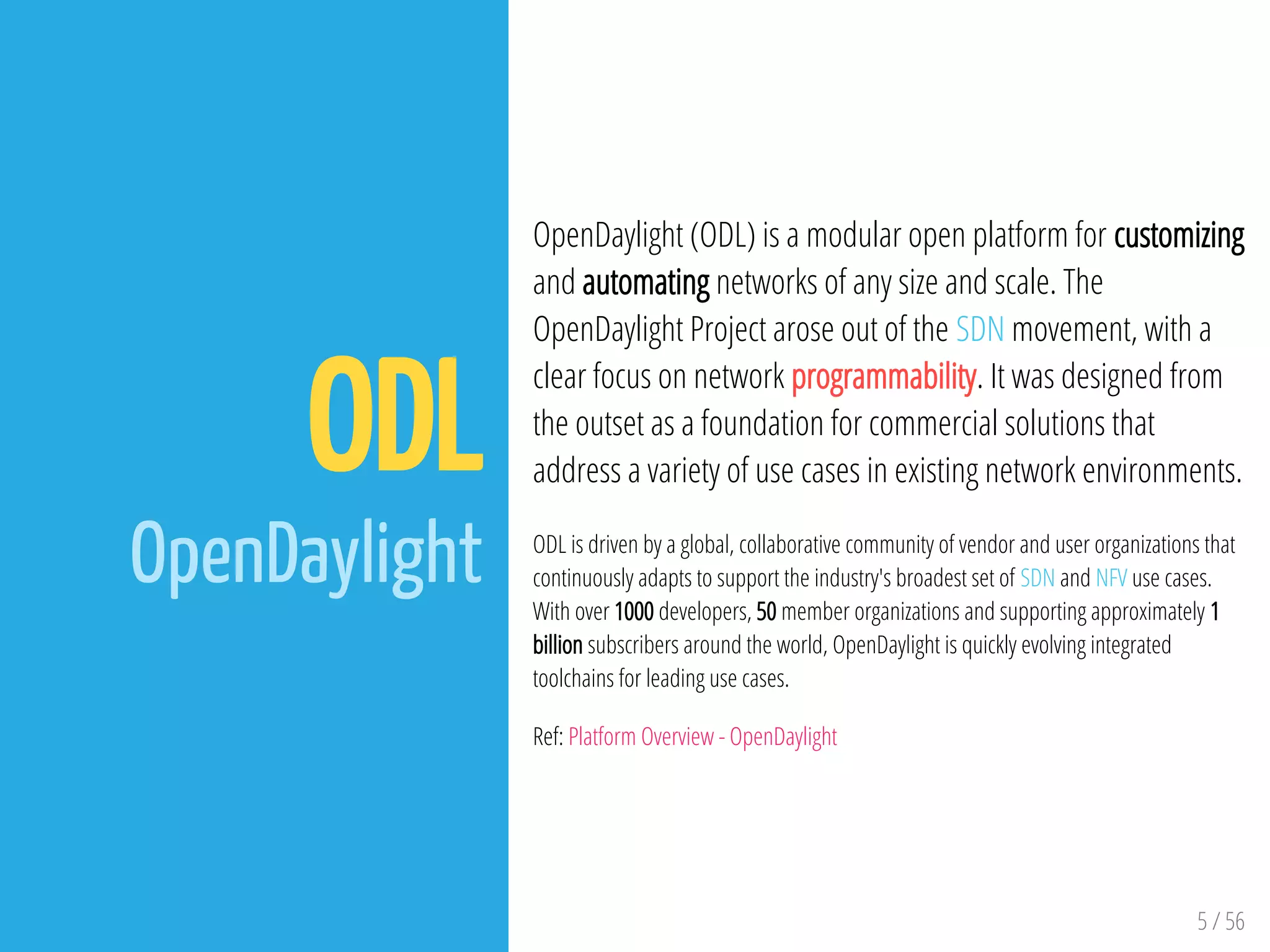

5 / 56 ODL OpenDaylight OpenDaylight (ODL) is a modular open platform for customizing and automating networks of any size and scale. The OpenDaylight Project arose out of the SDN movement, with a clear focus on network programmability. It was designed from the outset as a foundation for commercial solutions that address a variety of use cases in existing network environments. ODL is driven by a global, collaborative community of vendor and user organizations that continuously adapts to support the industry's broadest set of SDN and NFV use cases. With over 1000 developers, 50 member organizations and supporting approximately 1 billion subscribers around the world, OpenDaylight is quickly evolving integrated toolchains for leading use cases. Ref: Platform Overview - OpenDaylight

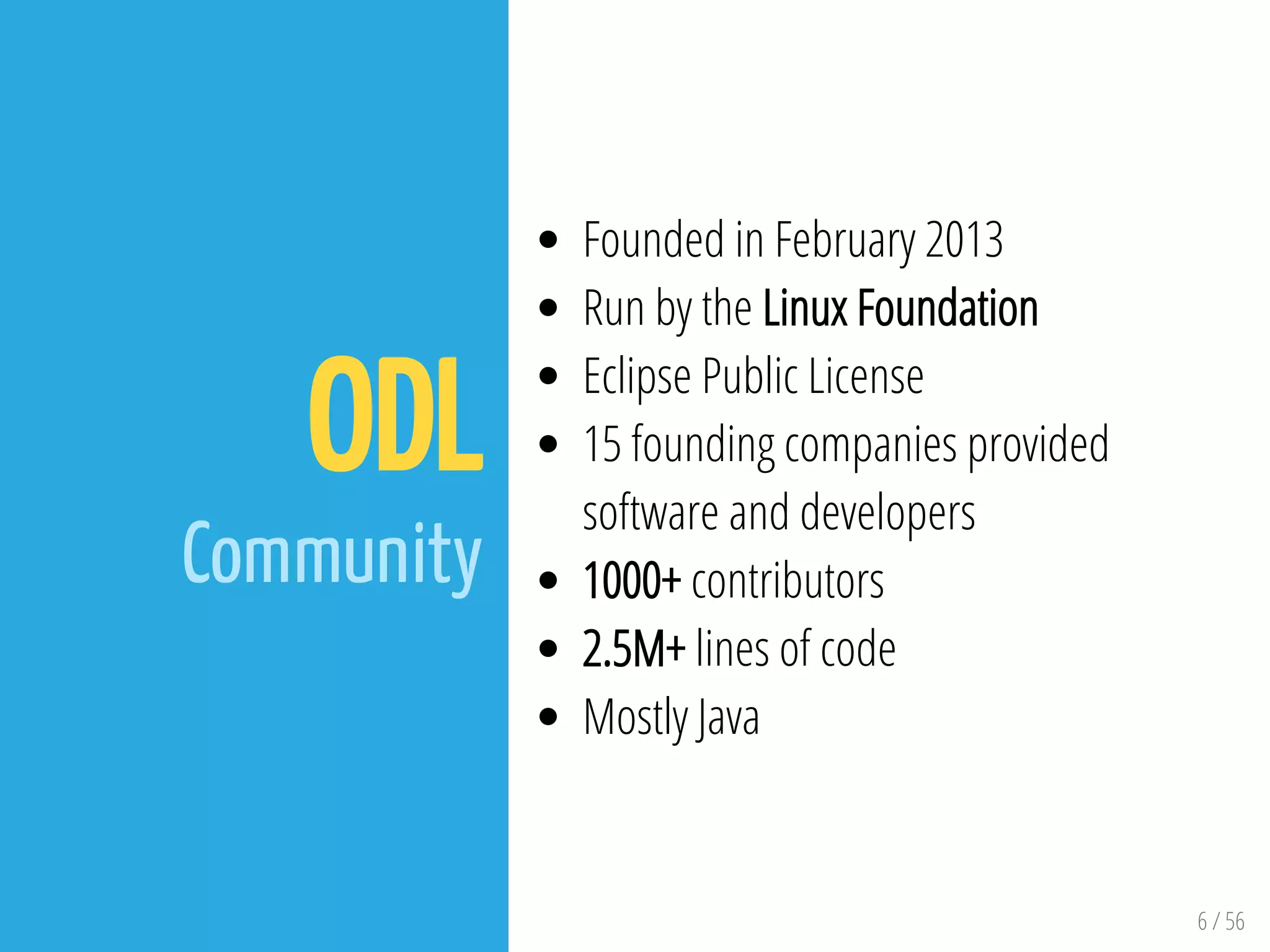

6 / 56 ODL Community Founded in February 2013 Run by the Linux Foundation Eclipse Public License 15 founding companies provided software and developers 1000+ contributors 2.5M+ lines of code Mostly Java

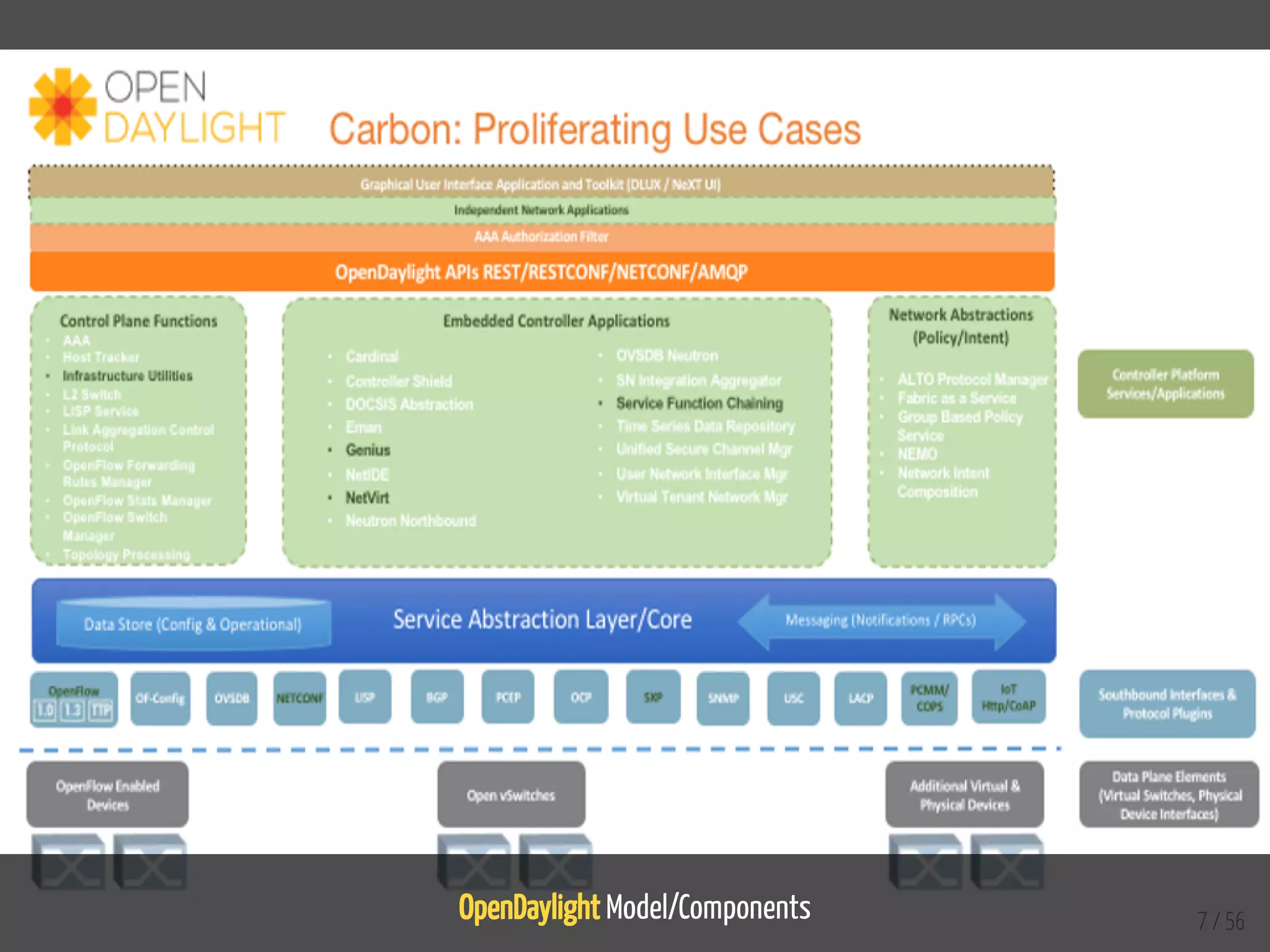

OpenDaylight Model/Components 7 / 56

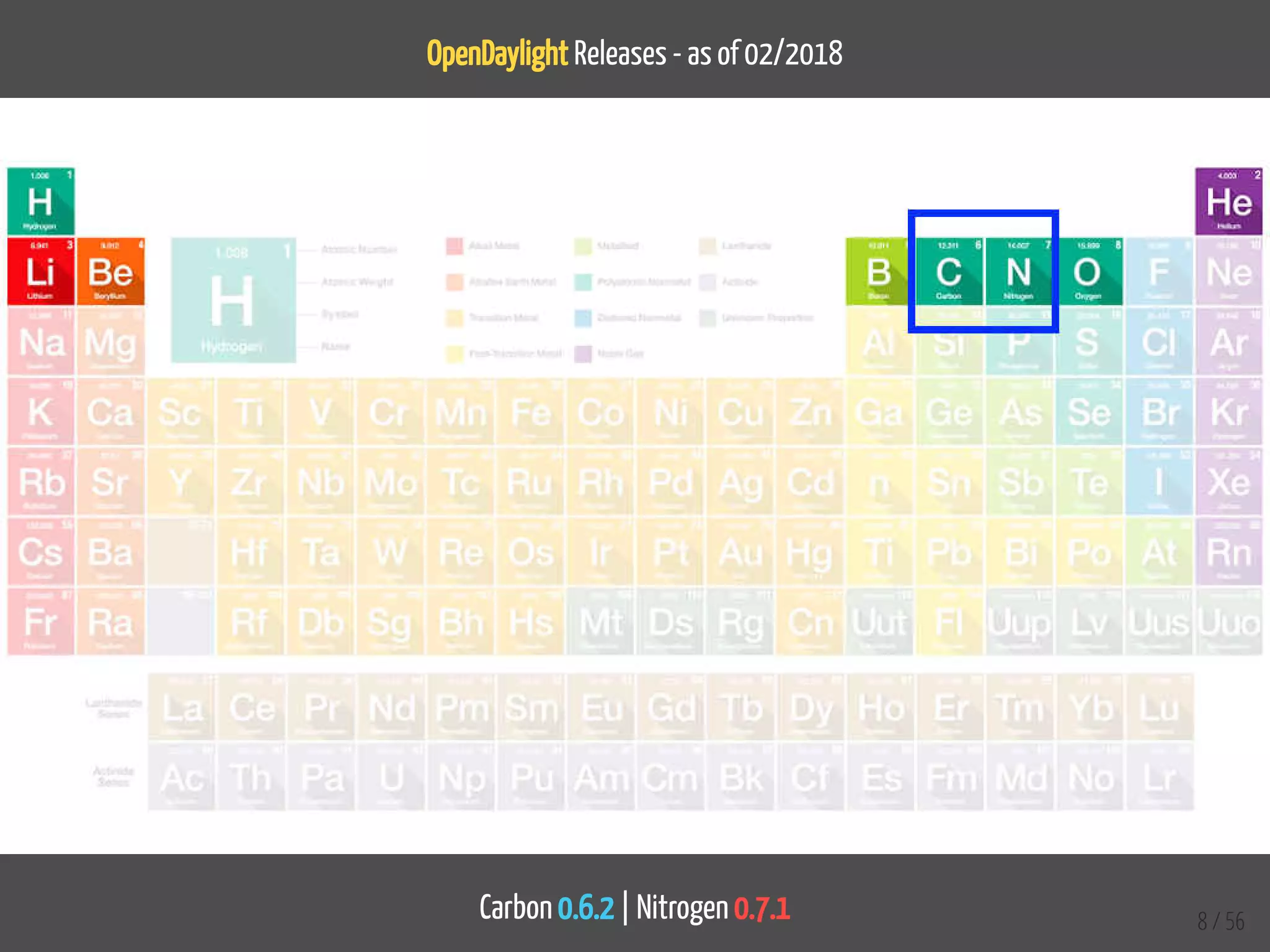

OpenDaylight Releases - as of 02/2018 Carbon 0.6.2 | Nitrogen 0.7.1 8 / 56

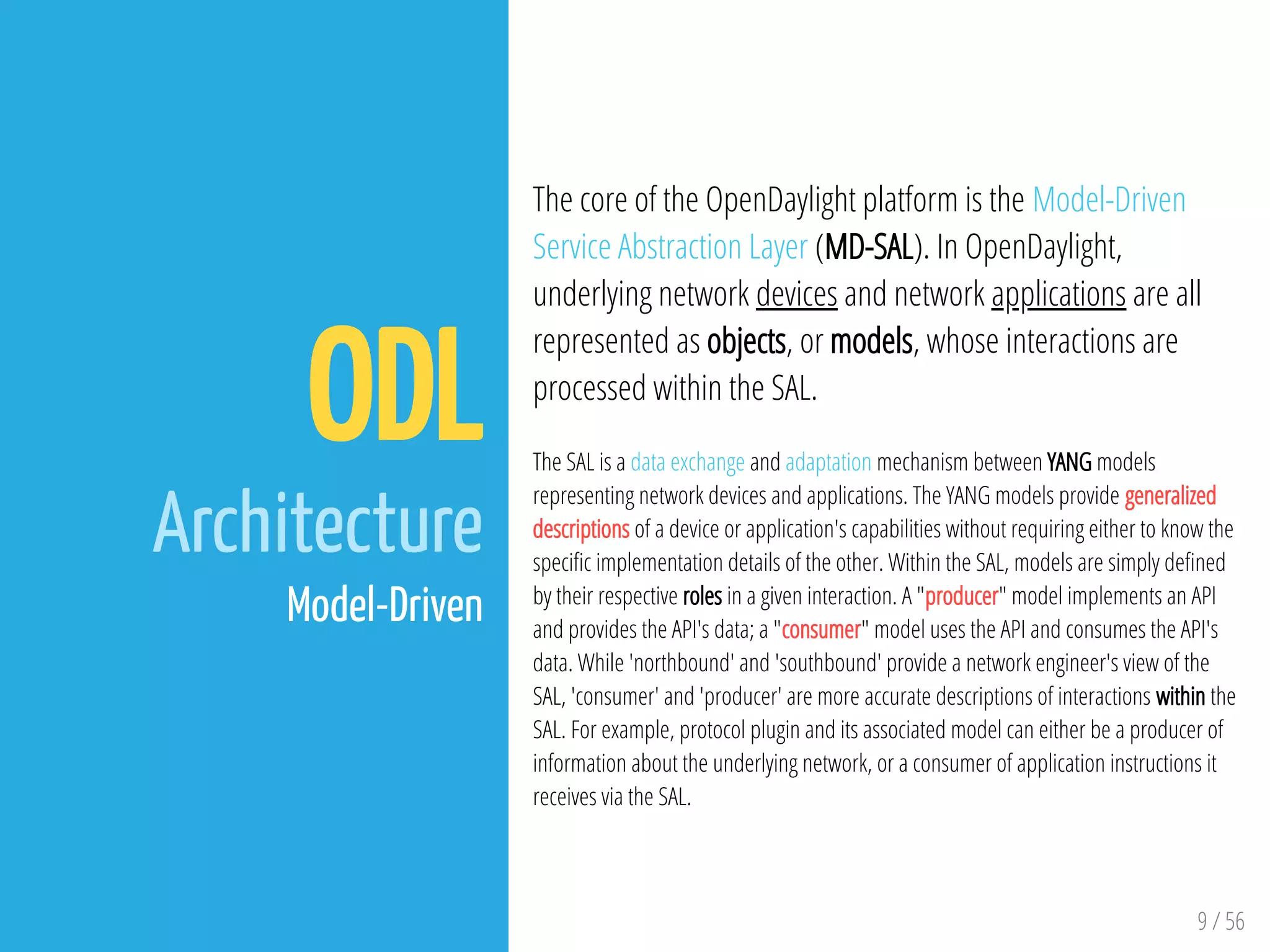

9 / 56 ODL Architecture Model-Driven The core of the OpenDaylight platform is the Model-Driven Service Abstraction Layer (MD-SAL). In OpenDaylight, underlying network devices and network applications are all represented as objects, or models, whose interactions are processed within the SAL. The SAL is a data exchange and adaptation mechanism between YANG models representing network devices and applications. The YANG models provide generalized descriptions of a device or application's capabilities without requiring either to know the speci c implementation details of the other. Within the SAL, models are simply de ned by their respective roles in a given interaction. A "producer" model implements an API and provides the API's data; a "consumer" model uses the API and consumes the API's data. While 'northbound' and 'southbound' provide a network engineer's view of the SAL, 'consumer' and 'producer' are more accurate descriptions of interactions within the SAL. For example, protocol plugin and its associated model can either be a producer of information about the underlying network, or a consumer of application instructions it receives via the SAL.

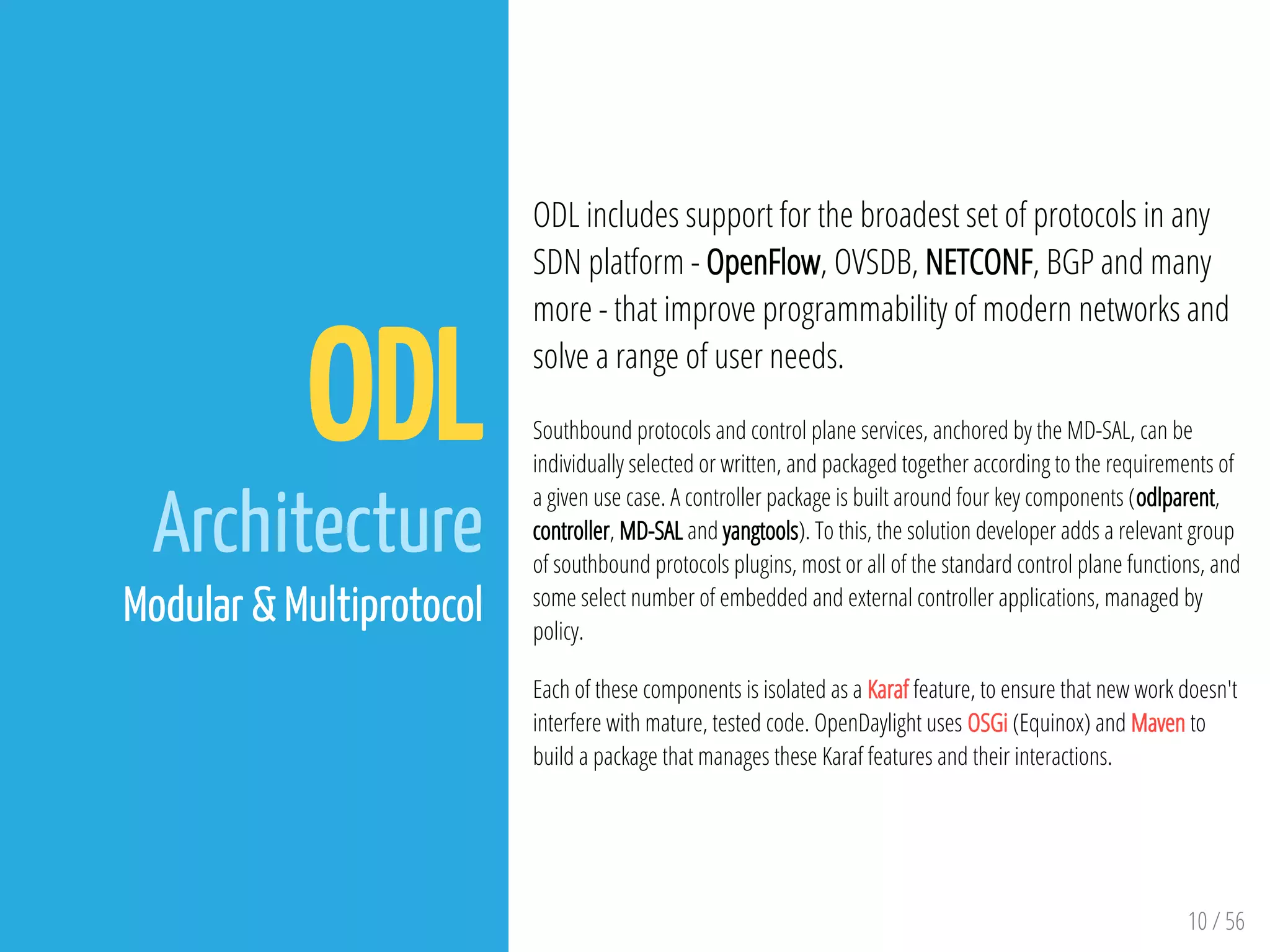

10 / 56 ODL Architecture Modular & Multiprotocol ODL includes support for the broadest set of protocols in any SDN platform - OpenFlow, OVSDB, NETCONF, BGP and many more - that improve programmability of modern networks and solve a range of user needs. Southbound protocols and control plane services, anchored by the MD-SAL, can be individually selected or written, and packaged together according to the requirements of a given use case. A controller package is built around four key components (odlparent, controller, MD-SAL and yangtools). To this, the solution developer adds a relevant group of southbound protocols plugins, most or all of the standard control plane functions, and some select number of embedded and external controller applications, managed by policy. Each of these components is isolated as a Karaf feature, to ensure that new work doesn't interfere with mature, tested code. OpenDaylight uses OSGi (Equinox) and Maven to build a package that manages these Karaf features and their interactions.

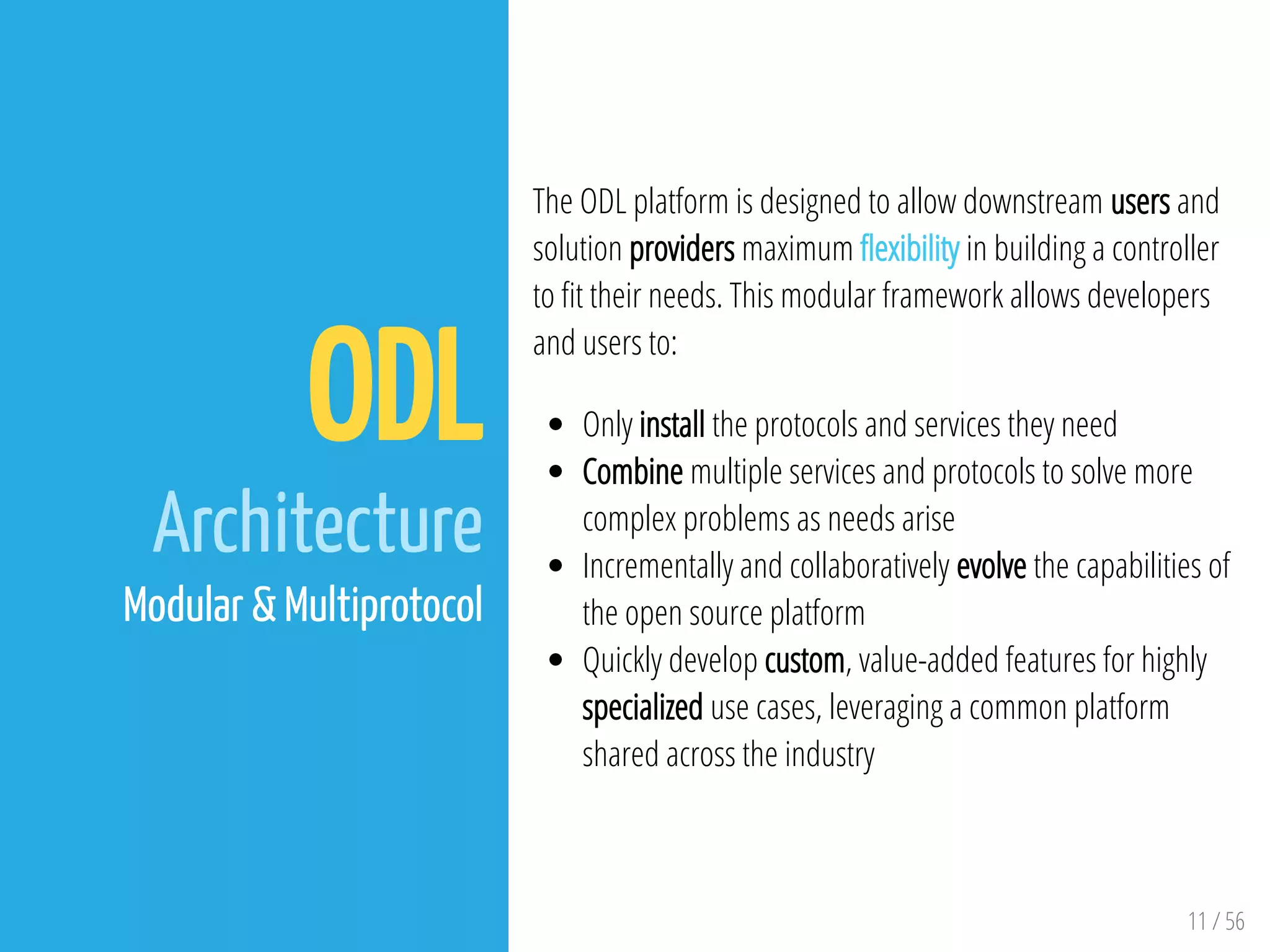

11 / 56 ODL Architecture Modular & Multiprotocol The ODL platform is designed to allow downstream users and solution providers maximum exibility in building a controller to t their needs. This modular framework allows developers and users to: Only install the protocols and services they need Combine multiple services and protocols to solve more complex problems as needs arise Incrementally and collaboratively evolve the capabilities of the open source platform Quickly develop custom, value-added features for highly specialized use cases, leveraging a common platform shared across the industry
Getting Started ODL + Mininet 12 / 56

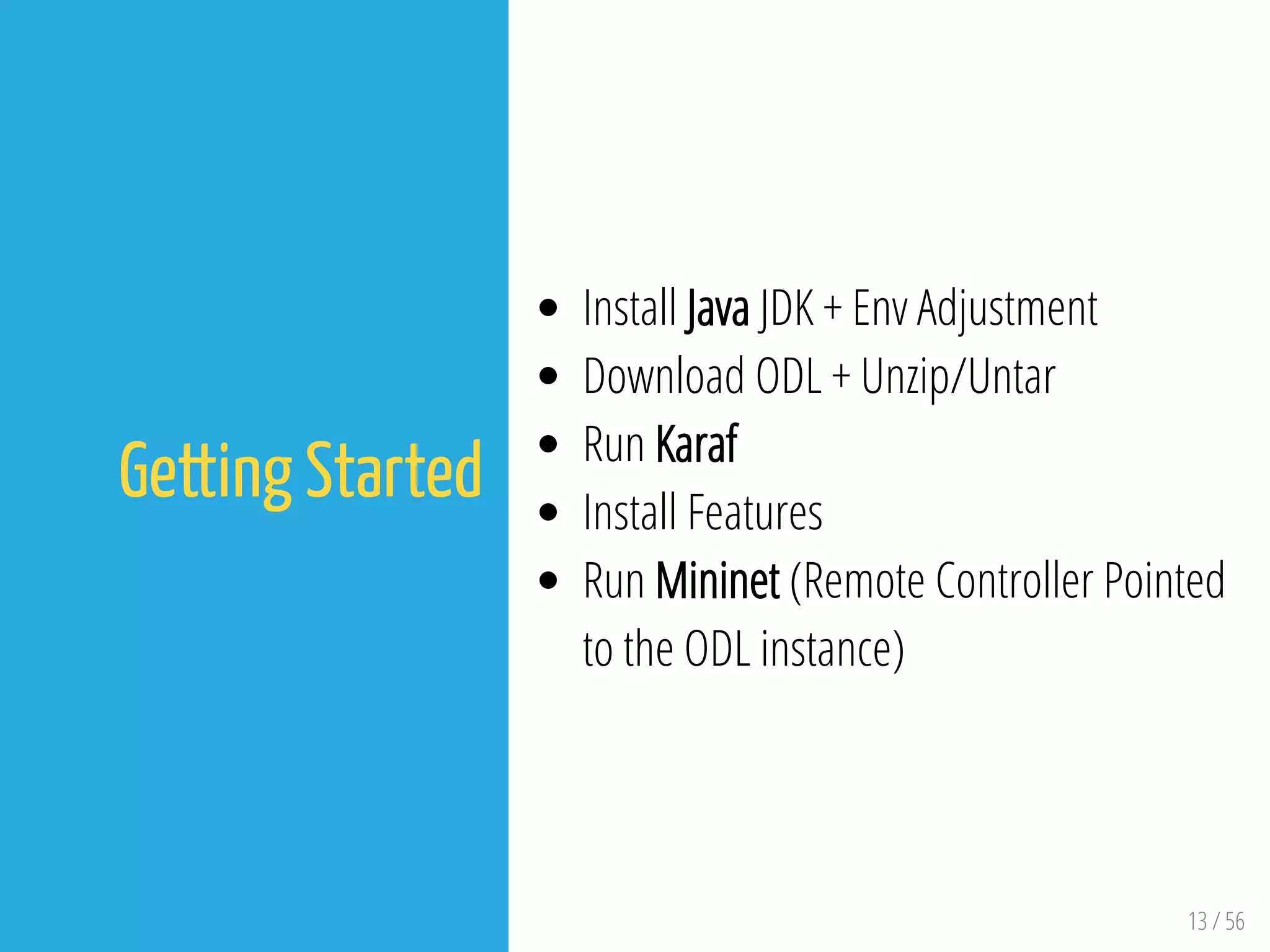

13 / 56 Getting Started Install Java JDK + Env Adjustment Download ODL + Unzip/Untar Run Karaf Install Features Run Mininet (Remote Controller Pointed to the ODL instance)
14 / 56 Installation Java Dependency $ sudo apt-get install unzip zip tree $ sudo apt-get install software-properties-common -y && sudo add-apt-repository ppa:webupd8team/java -y && sudo apt-get update && echo "oracle-java8-installer shared/accepted-oracle-license-v1-1 select true" | sudo debconf-s sudo apt-get install oracle-java8-installer oracle-java8-set-default -y $ java -version java version "1.8.0_161" Java(TM) SE Runtime Environment (build 1.8.0_161-b12) Java HotSpot(TM) 64-Bit Server VM (build 25.161-b12, mixed mode) $ which java /usr/bin/java $ echo $JAVA_HOME $ nano .profile export JAVA_HOME=/usr/lib/jvm/java-8-oracle/ $ source .profile

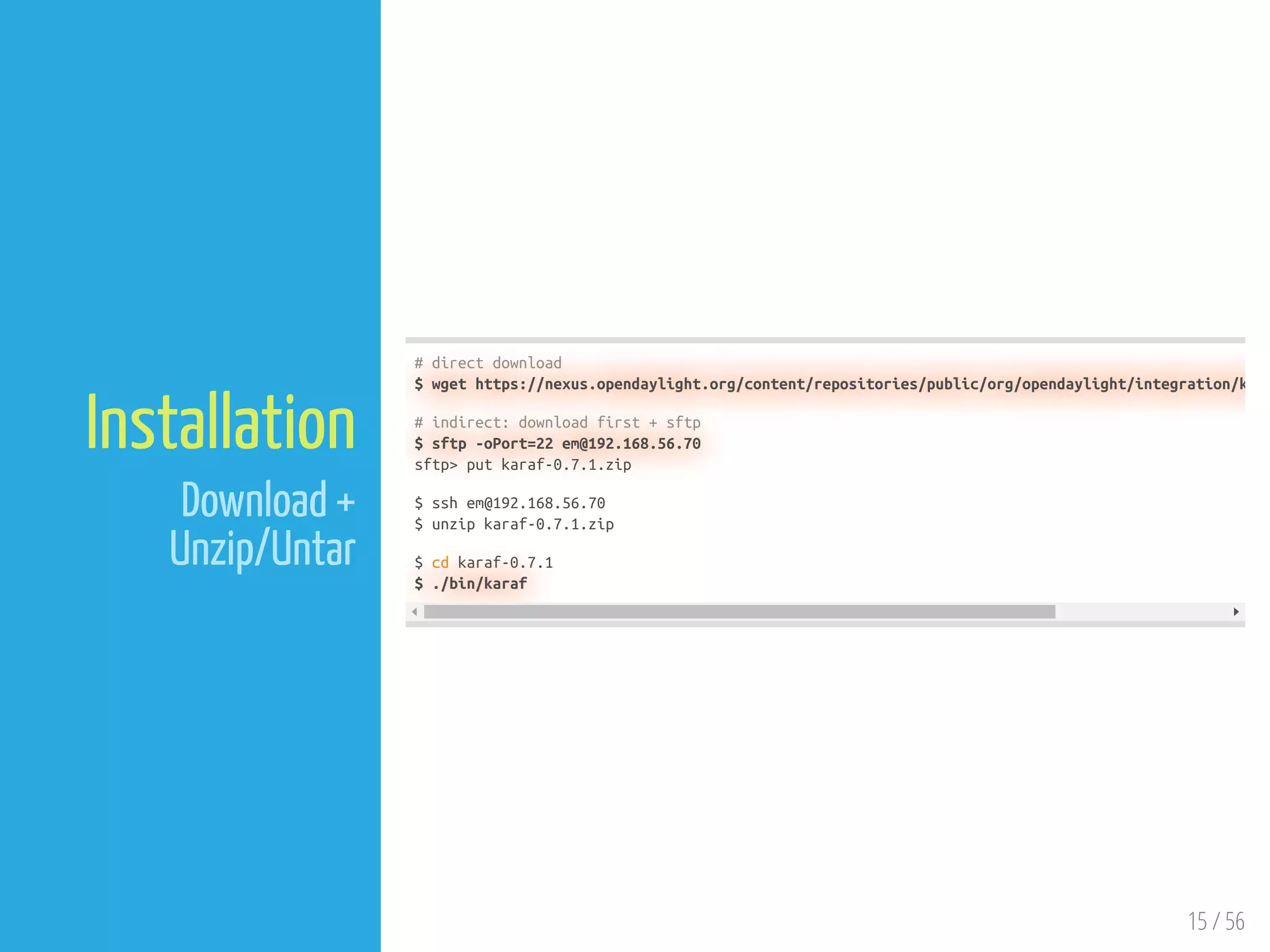

15 / 56 Installation Download + Unzip/Untar # direct download $ wget https://nexus.opendaylight.org/content/repositories/public/org/opendaylight/integration/k # indirect: download first + sftp $ sftp -oPort=22 em@192.168.56.70 sftp> put karaf-0.7.1.zip $ ssh em@192.168.56.70 $ unzip karaf-0.7.1.zip $ cd karaf-0.7.1 $ ./bin/karaf

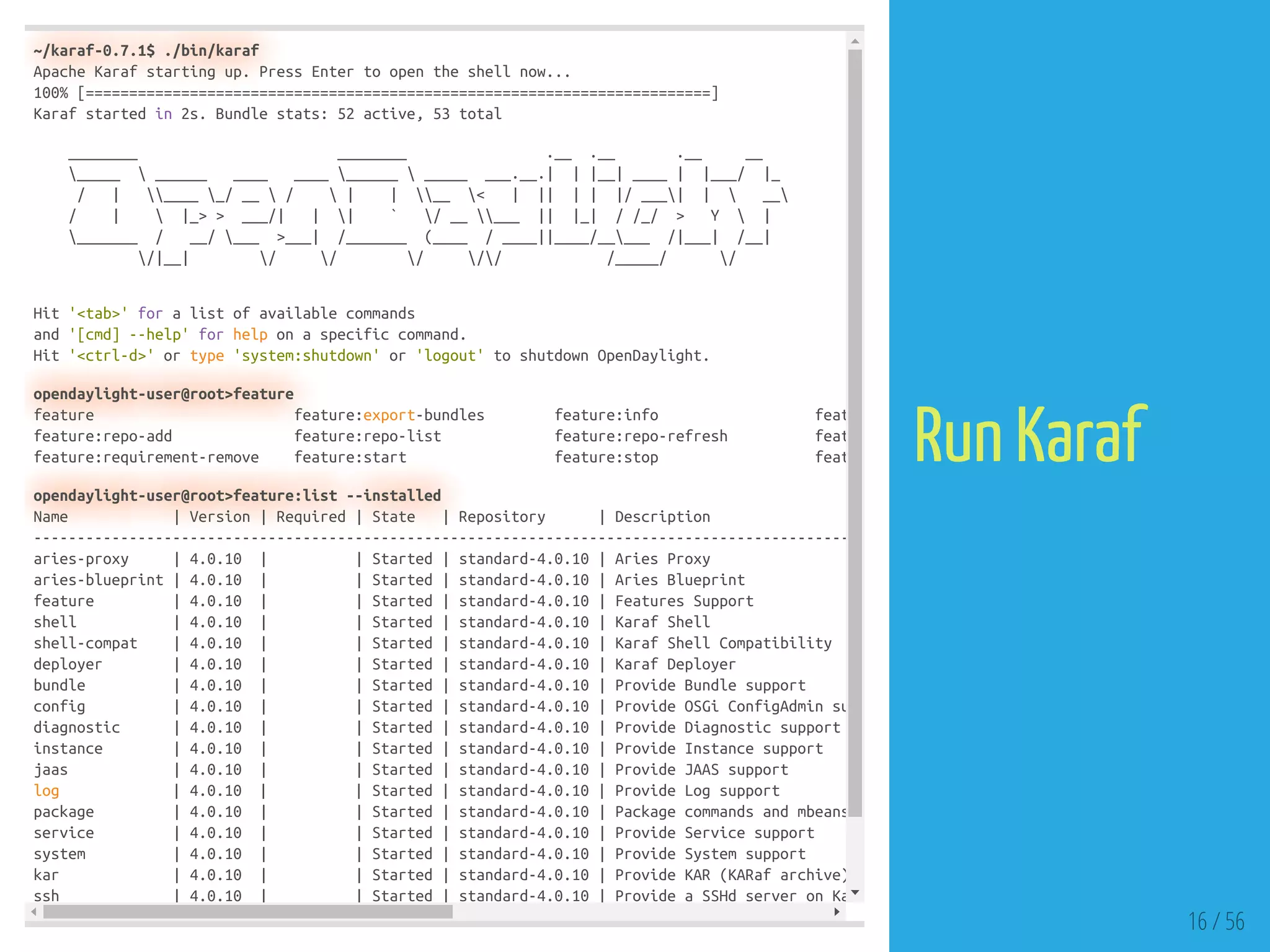

~/karaf-0.7.1$ ./bin/karaf Apache Karaf starting up. Press Enter to open the shell now... 100% [========================================================================] Karaf started in 2s. Bundle stats: 52 active, 53 total ________ ________ .__ .__ .__ __ _____ ______ ____ ____ ______ _____ ___.__.| | |__| ____ | |___/ |_ / | ____ _/ __ / | | __ < | || | | |/ ___| | __ / | |_> > ___/| | | ` / __ ___ || |_| / /_/ > Y | _______ / __/ ___ >___| /_______ (____ / ____||____/_____ /|___| /__| /|__| / / / // /_____/ / Hit '<tab>' for a list of available commands and '[cmd] --help' for help on a specific command. Hit '<ctrl-d>' or type 'system:shutdown' or 'logout' to shutdown OpenDaylight. opendaylight-user@root>feature feature feature:export-bundles feature:info feat feature:repo-add feature:repo-list feature:repo-refresh feat feature:requirement-remove feature:start feature:stop feat opendaylight-user@root>feature:list --installed Name | Version | Required | State | Repository | Description ---------------------------------------------------------------------------------------------- aries-proxy | 4.0.10 | | Started | standard-4.0.10 | Aries Proxy aries-blueprint | 4.0.10 | | Started | standard-4.0.10 | Aries Blueprint feature | 4.0.10 | | Started | standard-4.0.10 | Features Support shell | 4.0.10 | | Started | standard-4.0.10 | Karaf Shell shell-compat | 4.0.10 | | Started | standard-4.0.10 | Karaf Shell Compatibility deployer | 4.0.10 | | Started | standard-4.0.10 | Karaf Deployer bundle | 4.0.10 | | Started | standard-4.0.10 | Provide Bundle support config | 4.0.10 | | Started | standard-4.0.10 | Provide OSGi ConfigAdmin su diagnostic | 4.0.10 | | Started | standard-4.0.10 | Provide Diagnostic support instance | 4.0.10 | | Started | standard-4.0.10 | Provide Instance support jaas | 4.0.10 | | Started | standard-4.0.10 | Provide JAAS support log | 4.0.10 | | Started | standard-4.0.10 | Provide Log support package | 4.0.10 | | Started | standard-4.0.10 | Package commands and mbeans service | 4.0.10 | | Started | standard-4.0.10 | Provide Service support system | 4.0.10 | | Started | standard-4.0.10 | Provide System support kar | 4.0.10 | | Started | standard-4.0.10 | Provide KAR (KARaf archive) ssh | 4.0.10 | | Started | standard-4.0.10 | Provide a SSHd server on Ka 16 / 56 Run Karaf

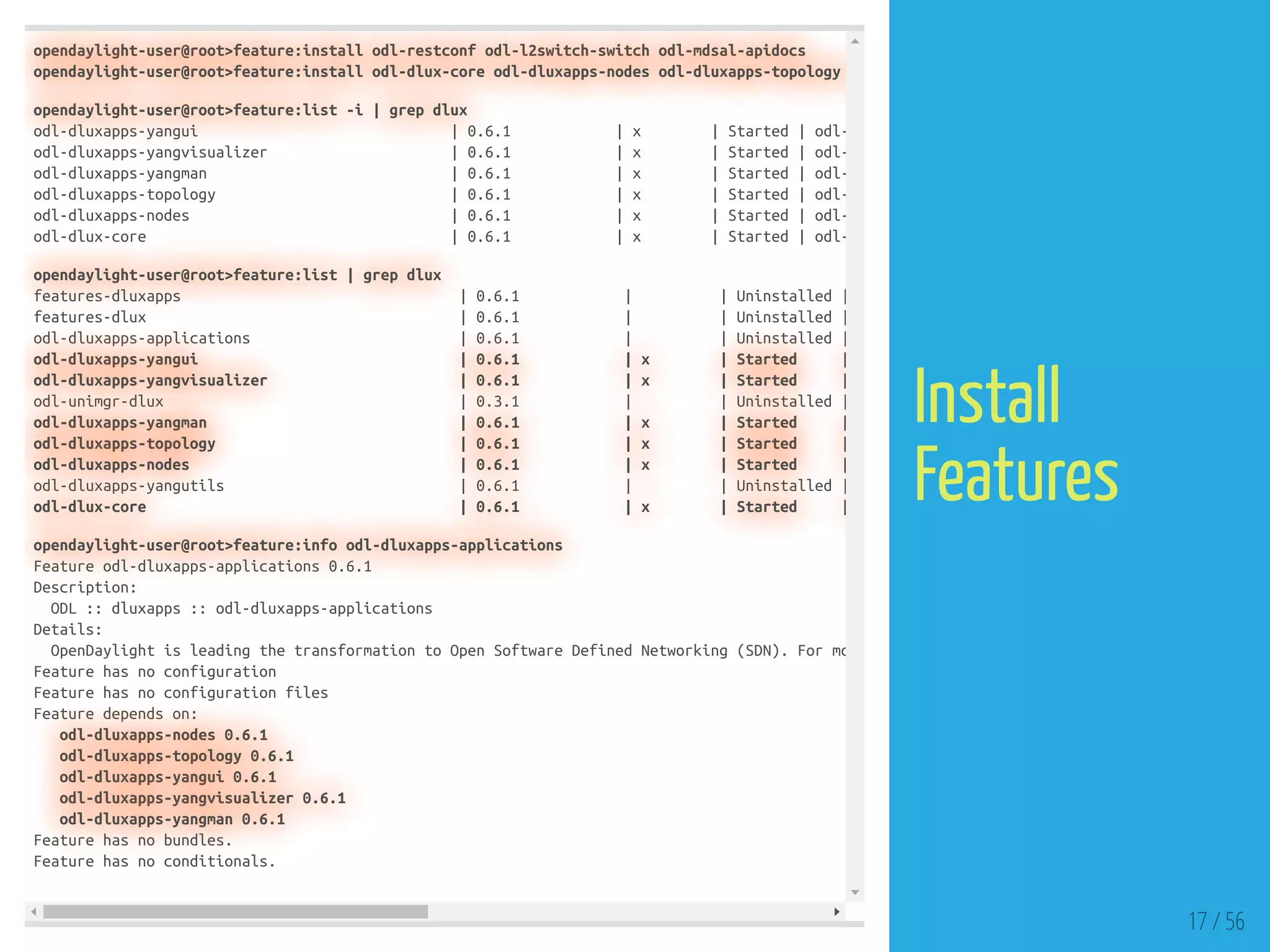

opendaylight-user@root>feature:install odl-restconf odl-l2switch-switch odl-mdsal-apidocs opendaylight-user@root>feature:install odl-dlux-core odl-dluxapps-nodes odl-dluxapps-topology opendaylight-user@root>feature:list -i | grep dlux odl-dluxapps-yangui | 0.6.1 | x | Started | odl- odl-dluxapps-yangvisualizer | 0.6.1 | x | Started | odl- odl-dluxapps-yangman | 0.6.1 | x | Started | odl- odl-dluxapps-topology | 0.6.1 | x | Started | odl- odl-dluxapps-nodes | 0.6.1 | x | Started | odl- odl-dlux-core | 0.6.1 | x | Started | odl- opendaylight-user@root>feature:list | grep dlux features-dluxapps | 0.6.1 | | Uninstalled | features-dlux | 0.6.1 | | Uninstalled | odl-dluxapps-applications | 0.6.1 | | Uninstalled | odl-dluxapps-yangui | 0.6.1 | x | Started | odl-dluxapps-yangvisualizer | 0.6.1 | x | Started | odl-unimgr-dlux | 0.3.1 | | Uninstalled | odl-dluxapps-yangman | 0.6.1 | x | Started | odl-dluxapps-topology | 0.6.1 | x | Started | odl-dluxapps-nodes | 0.6.1 | x | Started | odl-dluxapps-yangutils | 0.6.1 | | Uninstalled | odl-dlux-core | 0.6.1 | x | Started | opendaylight-user@root>feature:info odl-dluxapps-applications Feature odl-dluxapps-applications 0.6.1 Description: ODL :: dluxapps :: odl-dluxapps-applications Details: OpenDaylight is leading the transformation to Open Software Defined Networking (SDN). For mo Feature has no configuration Feature has no configuration files Feature depends on: odl-dluxapps-nodes 0.6.1 odl-dluxapps-topology 0.6.1 odl-dluxapps-yangui 0.6.1 odl-dluxapps-yangvisualizer 0.6.1 odl-dluxapps-yangman 0.6.1 Feature has no bundles. Feature has no conditionals. 17 / 56 Install Features

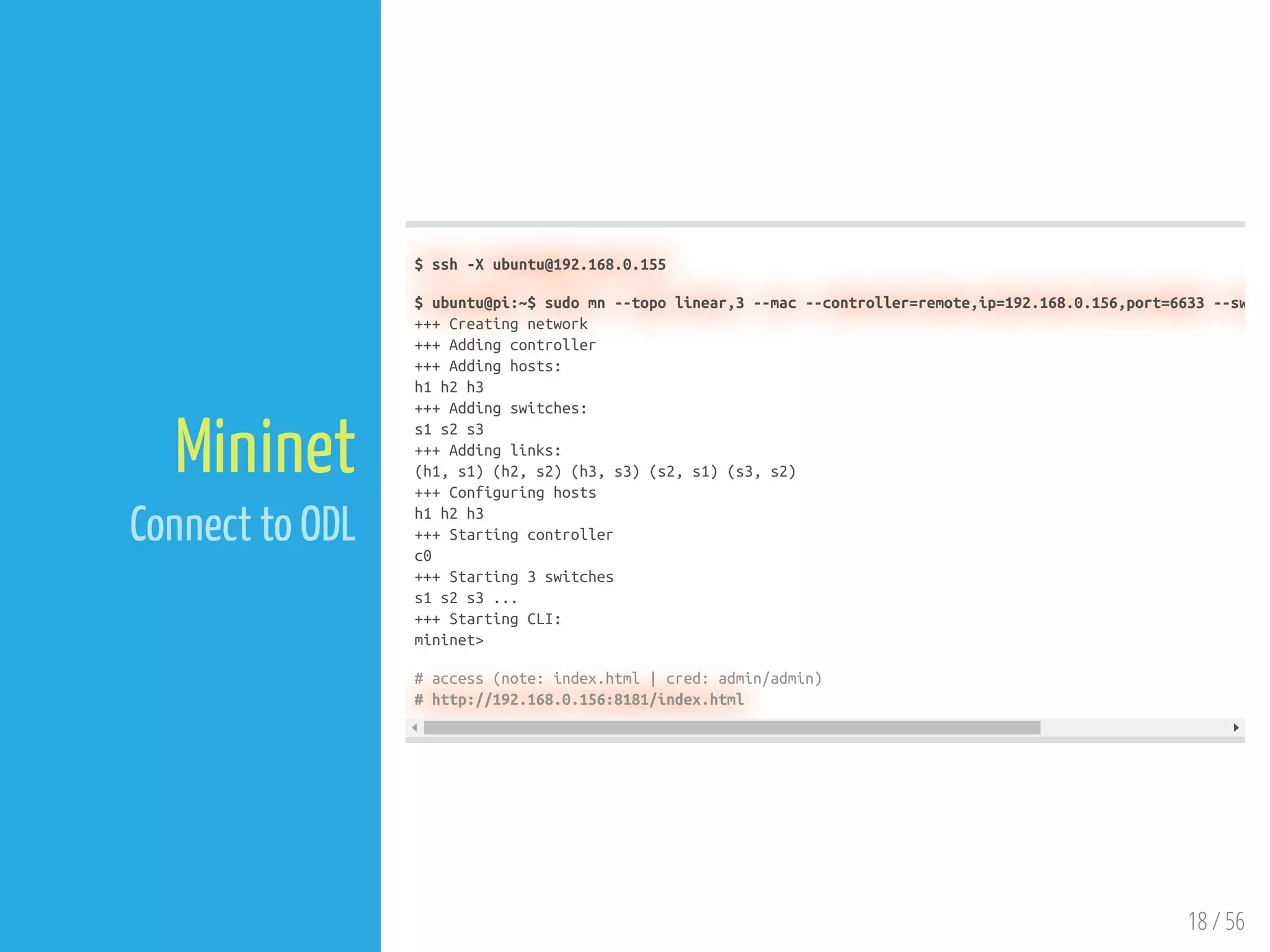

18 / 56 Mininet Connect to ODL $ ssh -X ubuntu@192.168.0.155 $ ubuntu@pi:~$ sudo mn --topo linear,3 --mac --controller=remote,ip=192.168.0.156,port=6633 --sw +++ Creating network +++ Adding controller +++ Adding hosts: h1 h2 h3 +++ Adding switches: s1 s2 s3 +++ Adding links: (h1, s1) (h2, s2) (h3, s3) (s2, s1) (s3, s2) +++ Configuring hosts h1 h2 h3 +++ Starting controller c0 +++ Starting 3 switches s1 s2 s3 ... +++ Starting CLI: mininet> # access (note: index.html | cred: admin/admin) # http://192.168.0.156:8181/index.html
DLUX - Topology 19 / 56
DLUX - Node 20 / 56
DLUX - Node - Node Connectors 21 / 56

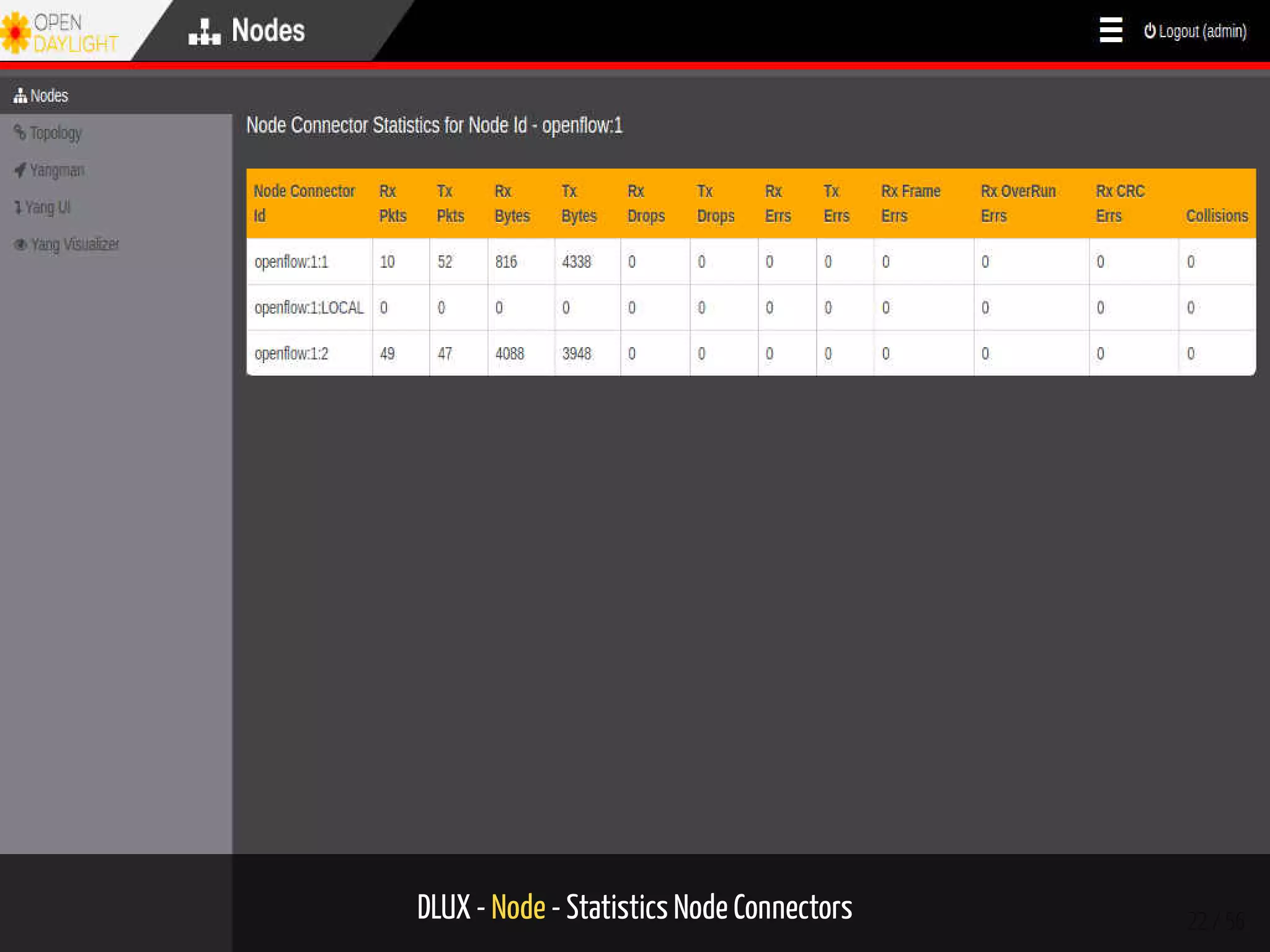

DLUX - Node - Statistics Node Connectors 22 / 56
23 / 56 Mininet pings mininet> h1 ping -c1 h3 PING 10.0.0.3 (10.0.0.3) 56(84) bytes of data. 64 bytes from 10.0.0.3: icmp_seq=1 ttl=64 time=33.1 ms --- 10.0.0.3 ping statistics --- 1 packets transmitted, 1 received, 0% packet loss, time 0ms rtt min/avg/max/mdev = 33.188/33.188/33.188/0.000 ms mininet> pingall +++ Ping: testing ping reachability h1 -> h2 h3 h2 -> h1 h3 h3 -> h1 h2 +++ Results: 0% dropped (6/6 received)

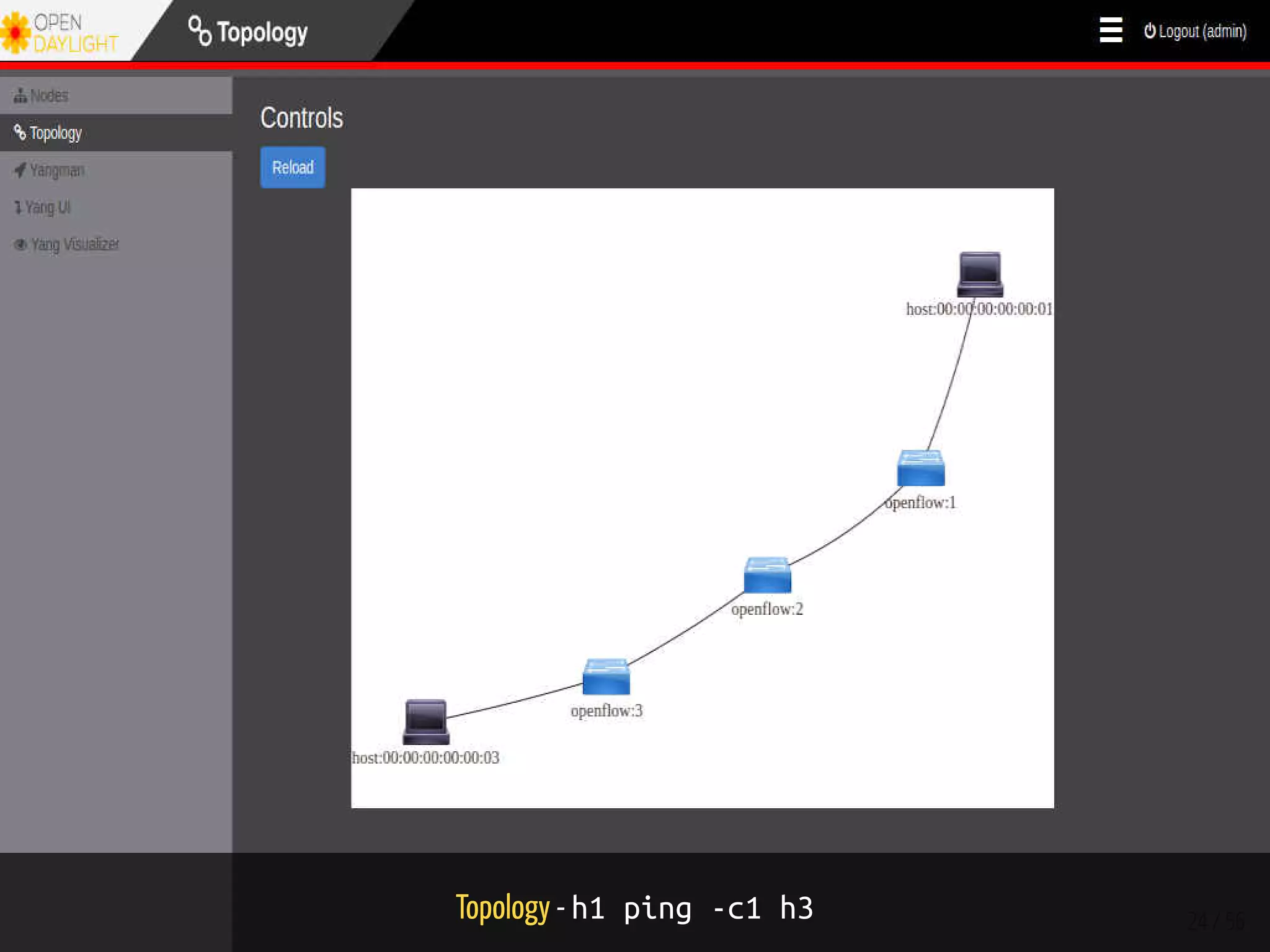

Topology - h1 ping -c1 h3 24 / 56
Topology - pingall 25 / 56
REST Interface 26 / 56

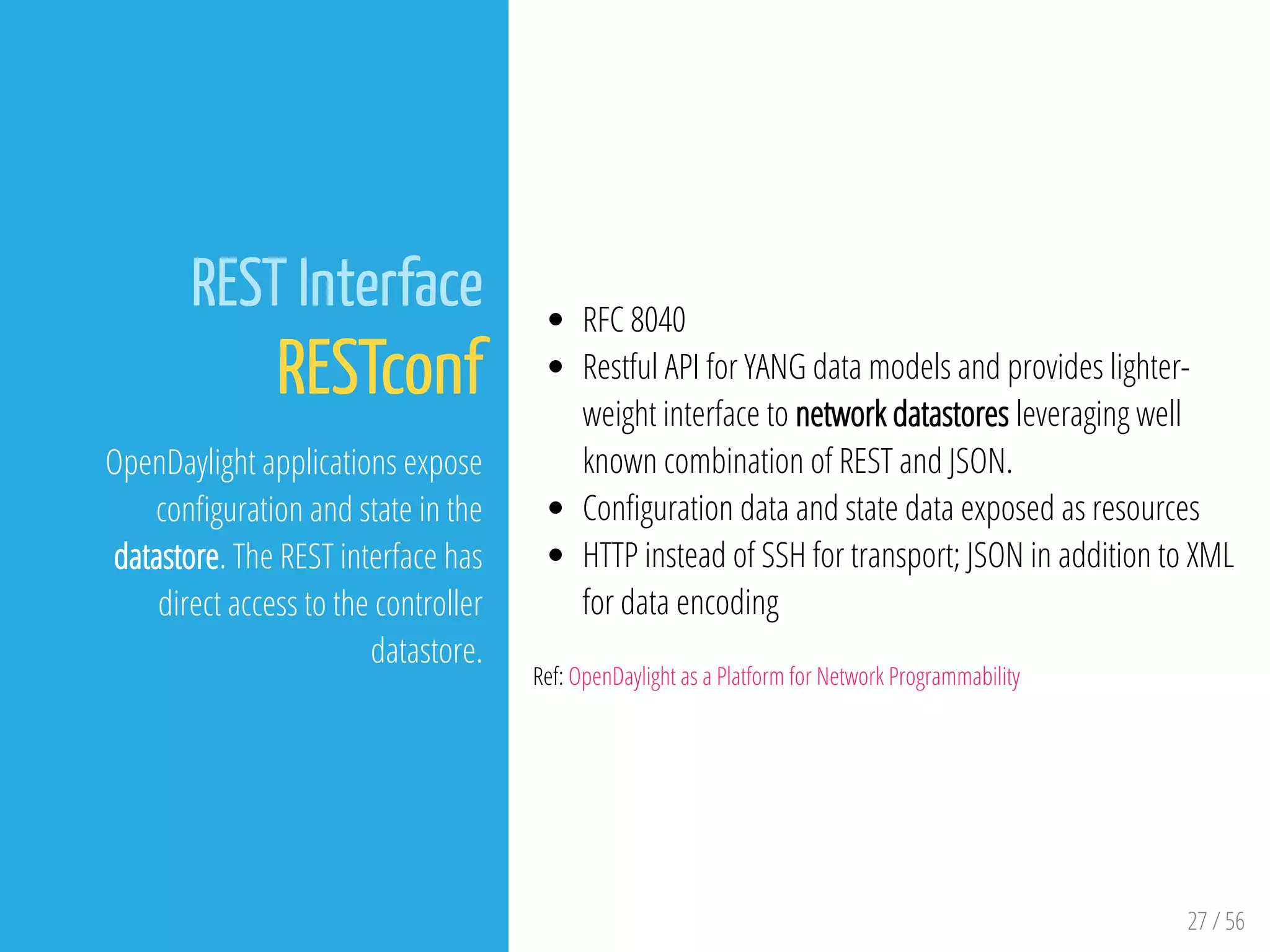

27 / 56 REST Interface RESTconf OpenDaylight applications expose con guration and state in the datastore. The REST interface has direct access to the controller datastore. RFC 8040 Restful API for YANG data models and provides lighter- weight interface to network datastores leveraging well known combination of REST and JSON. Con guration data and state data exposed as resources HTTP instead of SSH for transport; JSON in addition to XML for data encoding Ref: OpenDaylight as a Platform for Network Programmability
High Level Manageability Architecture - (Eckel/Cisco) 28 / 56
29 / 56 RESTconf http://<IP>:8181/restconf/* # This is where users create/read/update/delete (POST, GET, PUT, DELETE) application configurati http://<IP>:8181/restconf/restconf/config/* # This is where applications write state and users read it (GET). http://<IP>:8181/restconf/restconf/operational/* # Most popular databases are topology and inventory: GET http://<IP>:8181/restconf/operational/network-topology:network-topology/ GET http://<IP>:8181/restconf/operational/opendaylight-inventory:nodes/ # Access via curl curl --user "admin":"admin" -H "Accept: application/json" -H "Content-type: application/json" -X # Header: # Authorization (basic): admin/admin # Accept (answer body): application/xml or application/json # Content-Type (request body): application/xml or application/json
Yang UI - network-topology | Send 30 / 56
Yang UI - network-topology | Display Topology 31 / 56

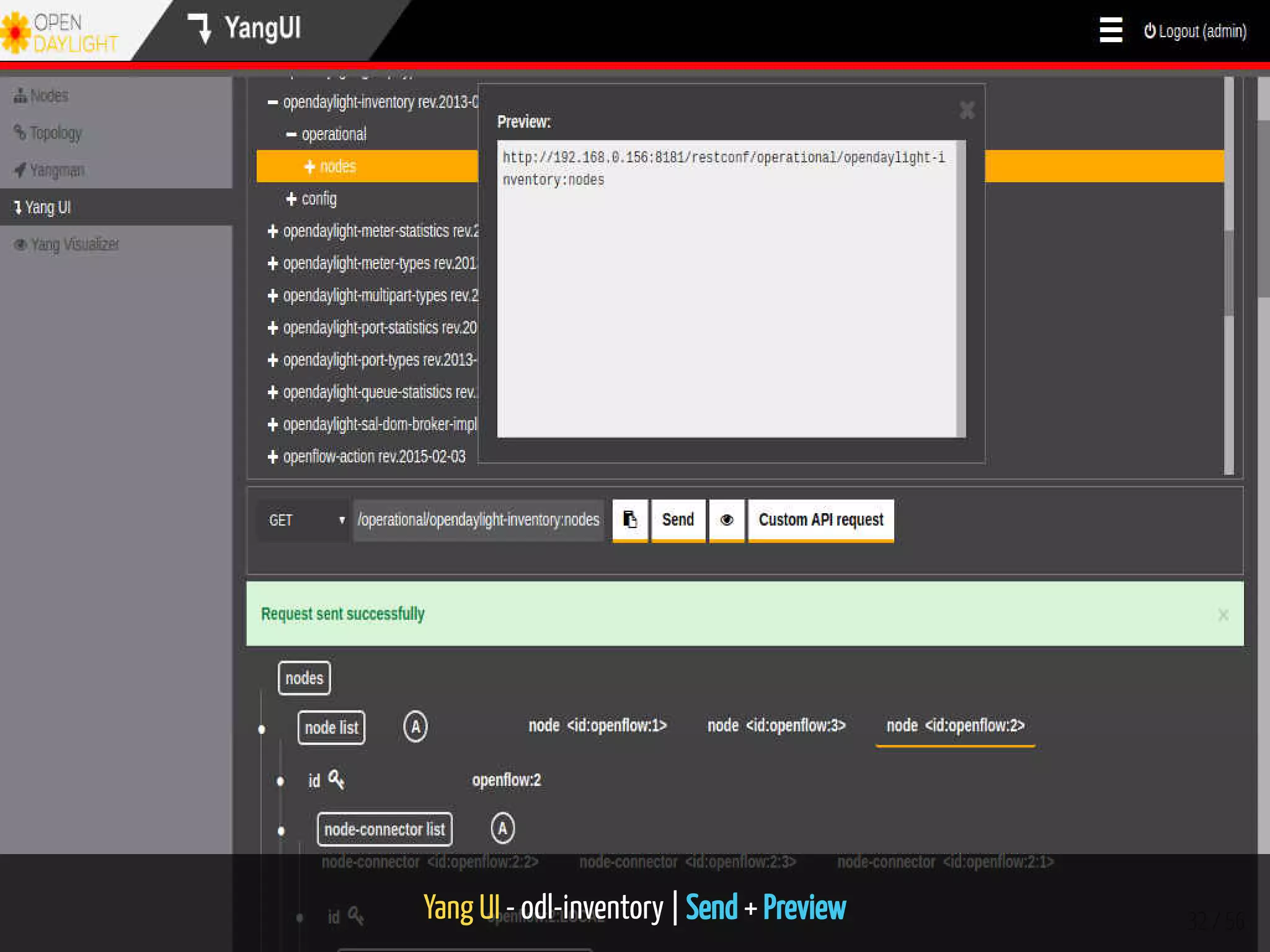

Yang UI - odl-inventory | Send + Preview 32 / 56

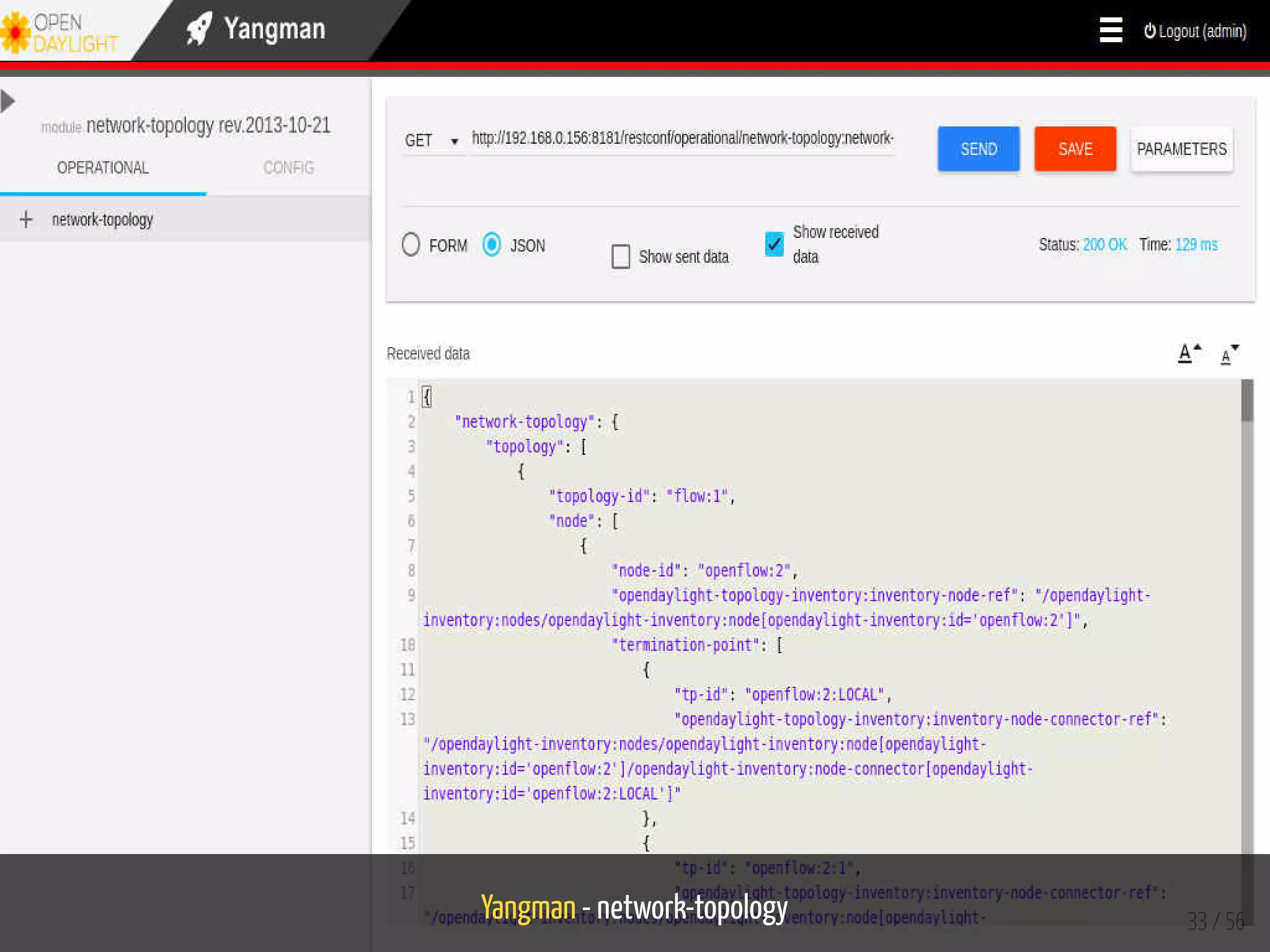

Yangman - network-topology 33 / 56
External via Postman - network-topology 34 / 56

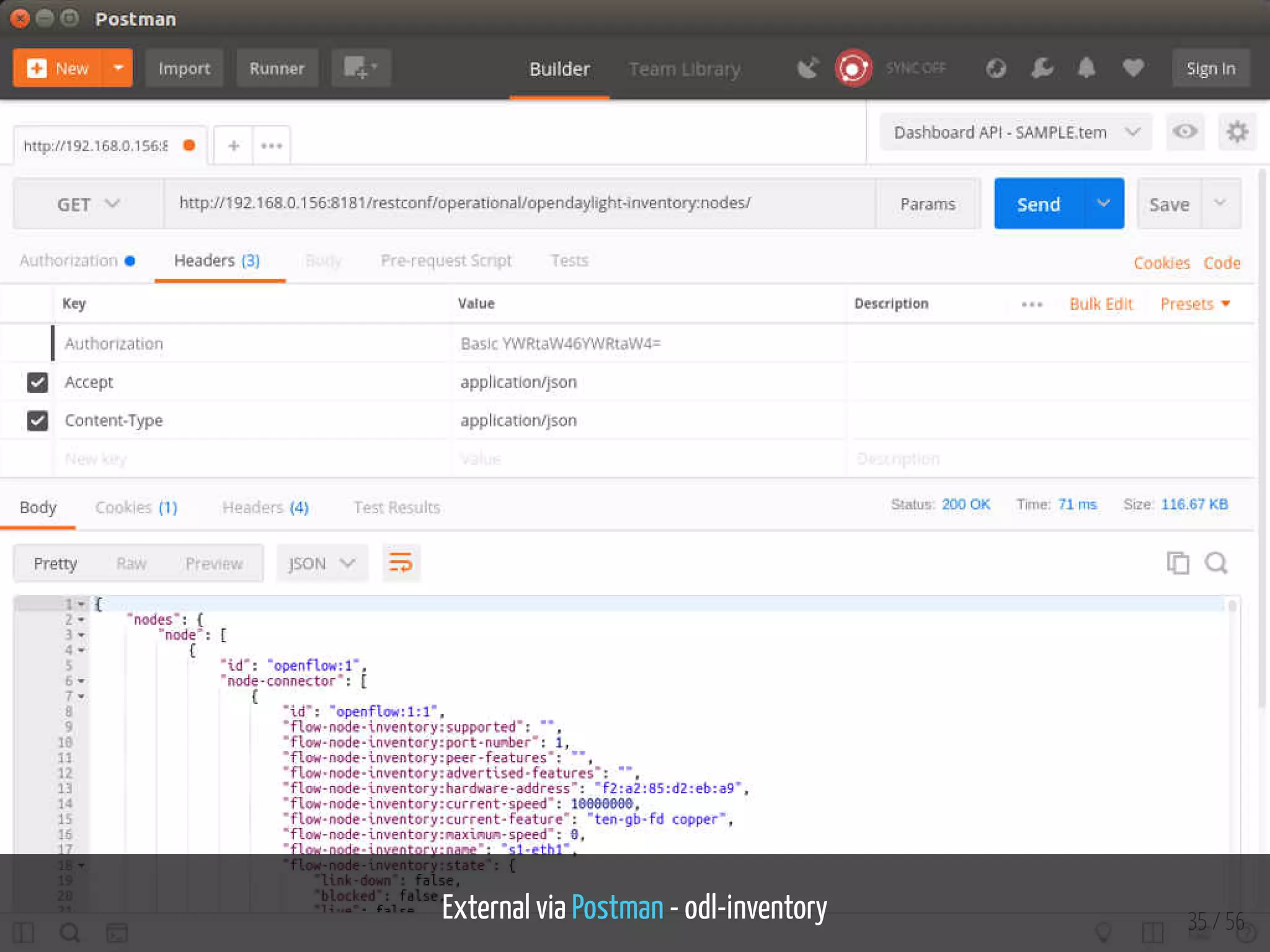

External via Postman - odl-inventory 35 / 56

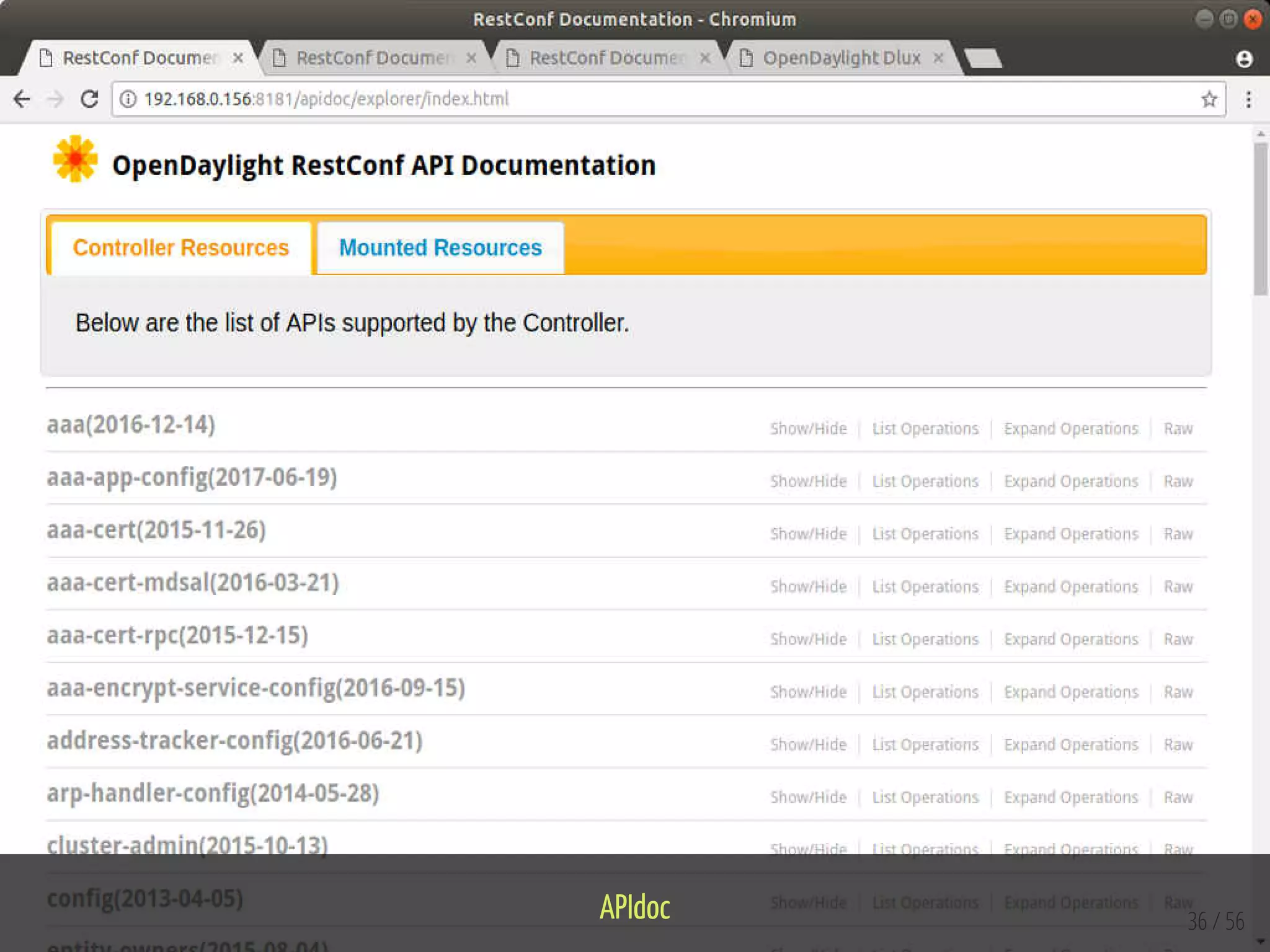

APIdoc 36 / 56
APIdoc 37 / 56

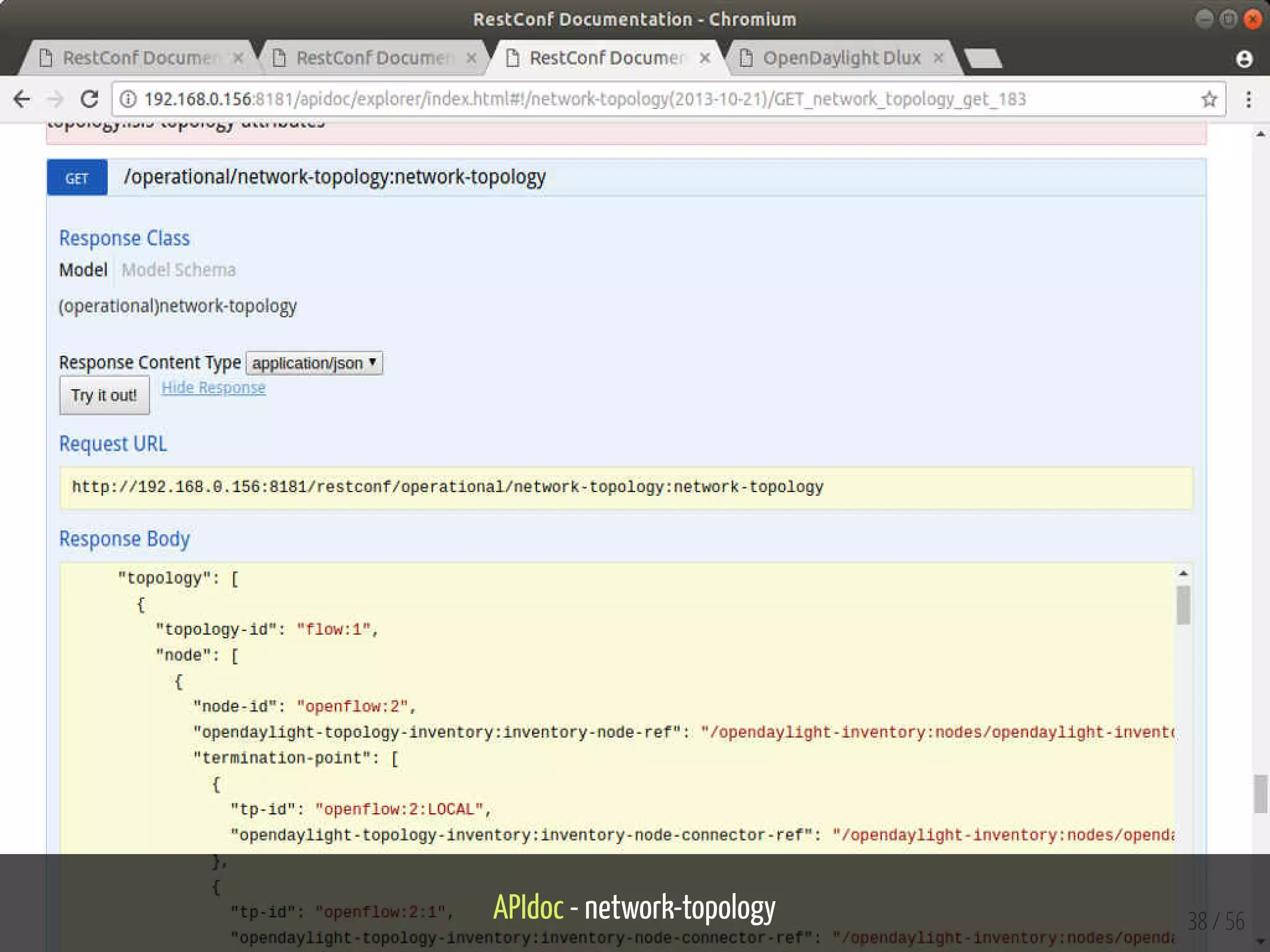

APIdoc - network-topology 38 / 56
Introduction Developing ODL Apps 39 / 56

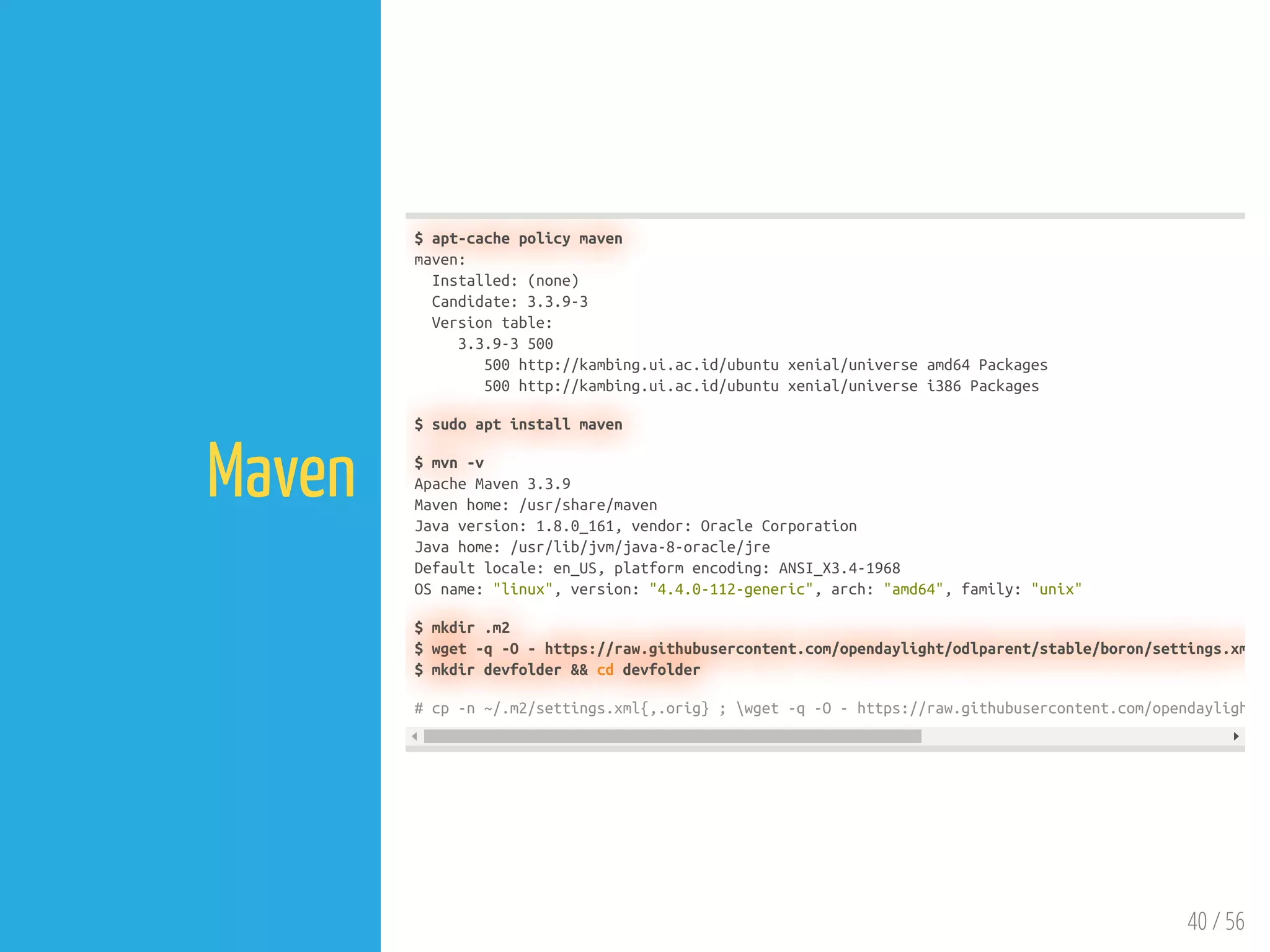

40 / 56 Maven $ apt-cache policy maven maven: Installed: (none) Candidate: 3.3.9-3 Version table: 3.3.9-3 500 500 http://kambing.ui.ac.id/ubuntu xenial/universe amd64 Packages 500 http://kambing.ui.ac.id/ubuntu xenial/universe i386 Packages $ sudo apt install maven $ mvn -v Apache Maven 3.3.9 Maven home: /usr/share/maven Java version: 1.8.0_161, vendor: Oracle Corporation Java home: /usr/lib/jvm/java-8-oracle/jre Default locale: en_US, platform encoding: ANSI_X3.4-1968 OS name: "linux", version: "4.4.0-112-generic", arch: "amd64", family: "unix" $ mkdir .m2 $ wget -q -O - https://raw.githubusercontent.com/opendaylight/odlparent/stable/boron/settings.xm $ mkdir devfolder && cd devfolder # cp -n ~/.m2/settings.xml{,.orig} ; wget -q -O - https://raw.githubusercontent.com/opendayligh

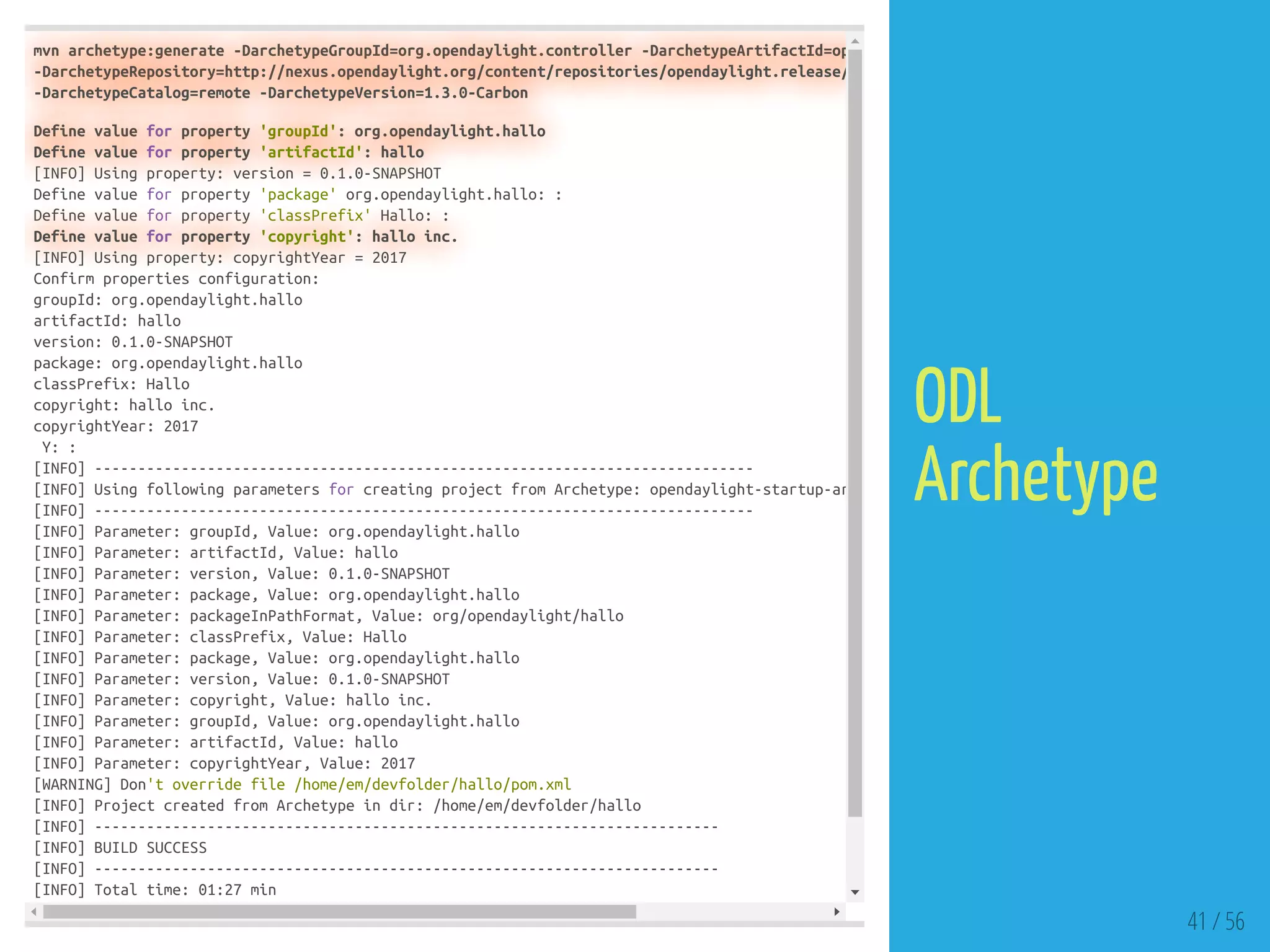

mvn archetype:generate -DarchetypeGroupId=org.opendaylight.controller -DarchetypeArtifactId=op -DarchetypeRepository=http://nexus.opendaylight.org/content/repositories/opendaylight.release/ -DarchetypeCatalog=remote -DarchetypeVersion=1.3.0-Carbon Define value for property 'groupId': org.opendaylight.hallo Define value for property 'artifactId': hallo [INFO] Using property: version = 0.1.0-SNAPSHOT Define value for property 'package' org.opendaylight.hallo: : Define value for property 'classPrefix' Hallo: : Define value for property 'copyright': hallo inc. [INFO] Using property: copyrightYear = 2017 Confirm properties configuration: groupId: org.opendaylight.hallo artifactId: hallo version: 0.1.0-SNAPSHOT package: org.opendaylight.hallo classPrefix: Hallo copyright: hallo inc. copyrightYear: 2017 Y: : [INFO] ---------------------------------------------------------------------------- [INFO] Using following parameters for creating project from Archetype: opendaylight-startup-ar [INFO] ---------------------------------------------------------------------------- [INFO] Parameter: groupId, Value: org.opendaylight.hallo [INFO] Parameter: artifactId, Value: hallo [INFO] Parameter: version, Value: 0.1.0-SNAPSHOT [INFO] Parameter: package, Value: org.opendaylight.hallo [INFO] Parameter: packageInPathFormat, Value: org/opendaylight/hallo [INFO] Parameter: classPrefix, Value: Hallo [INFO] Parameter: package, Value: org.opendaylight.hallo [INFO] Parameter: version, Value: 0.1.0-SNAPSHOT [INFO] Parameter: copyright, Value: hallo inc. [INFO] Parameter: groupId, Value: org.opendaylight.hallo [INFO] Parameter: artifactId, Value: hallo [INFO] Parameter: copyrightYear, Value: 2017 [WARNING] Don't override file /home/em/devfolder/hallo/pom.xml [INFO] Project created from Archetype in dir: /home/em/devfolder/hallo [INFO] ------------------------------------------------------------------------ [INFO] BUILD SUCCESS [INFO] ------------------------------------------------------------------------ [INFO] Total time: 01:27 min 41 / 56 ODL Archetype

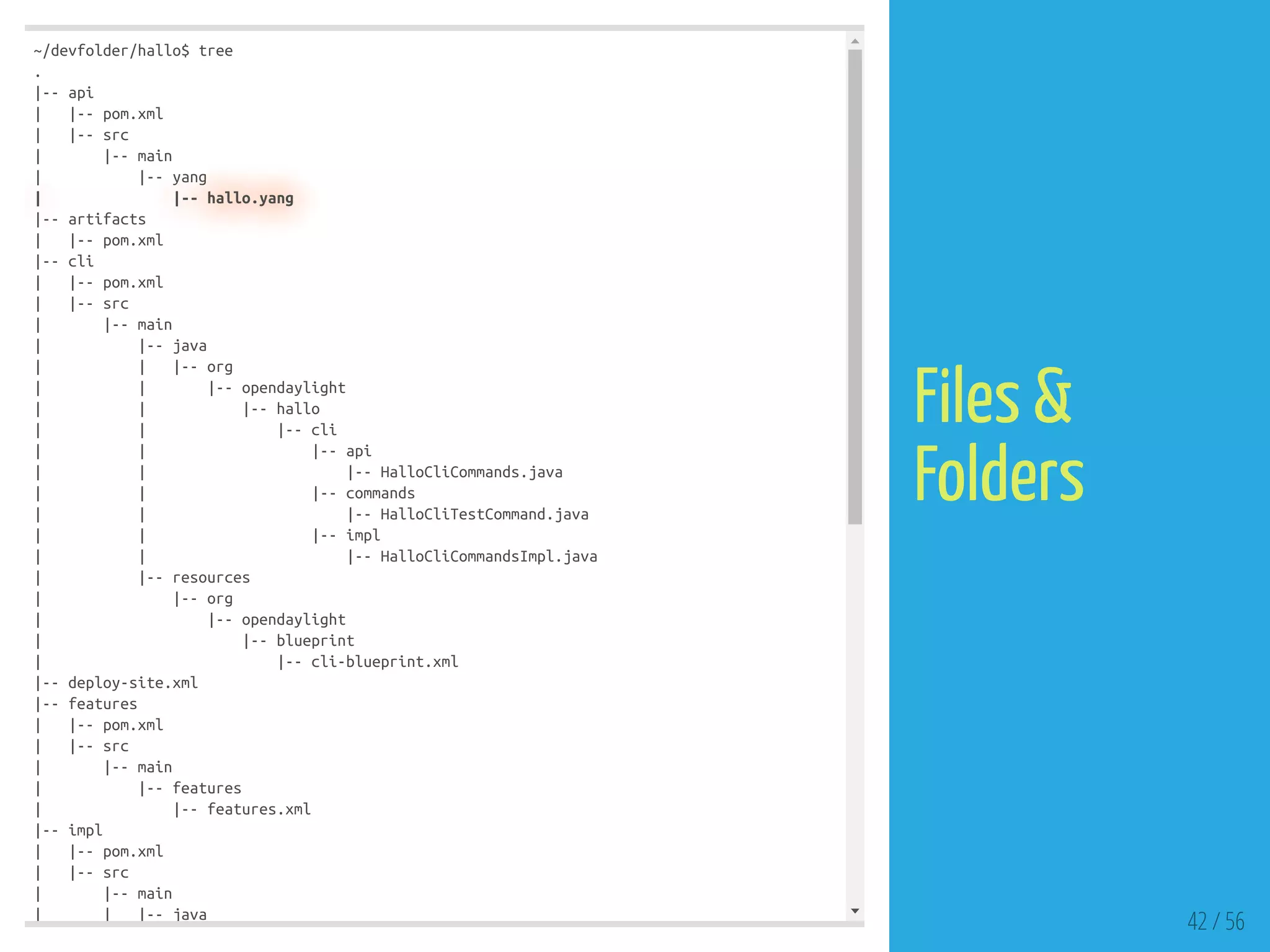

~/devfolder/hallo$ tree . |-- api | |-- pom.xml | |-- src | |-- main | |-- yang | |-- hallo.yang |-- artifacts | |-- pom.xml |-- cli | |-- pom.xml | |-- src | |-- main | |-- java | | |-- org | | |-- opendaylight | | |-- hallo | | |-- cli | | |-- api | | |-- HalloCliCommands.java | | |-- commands | | |-- HalloCliTestCommand.java | | |-- impl | | |-- HalloCliCommandsImpl.java | |-- resources | |-- org | |-- opendaylight | |-- blueprint | |-- cli-blueprint.xml |-- deploy-site.xml |-- features | |-- pom.xml | |-- src | |-- main | |-- features | |-- features.xml |-- impl | |-- pom.xml | |-- src | |-- main | | |-- java 42 / 56 Files & Folders
~/devfolder/hallo$ mvn clean install -DskipTests ... [INFO] ------------------------------------------------------------------------ [INFO] Reactor Summary: [INFO] [INFO] ODL :: org.opendaylight.hallo :: hallo-api ......... SUCCESS [03:04 min] [INFO] ODL :: org.opendaylight.hallo :: hallo-impl ........ SUCCESS [ 52.270 s] [INFO] ODL :: org.opendaylight.hallo :: hallo-cli ......... SUCCESS [ 18.734 s] [INFO] ODL :: org.opendaylight.hallo :: hallo-features .... SUCCESS [12:12 min] [INFO] ODL :: org.opendaylight.hallo :: hallo-karaf ....... SUCCESS [11:21 min] [INFO] ODL :: org.opendaylight.hallo :: hallo-artifacts ... SUCCESS [ 1.753 s] [INFO] ODL :: org.opendaylight.hallo :: hallo-it .......... SUCCESS [ 48.589 s] [INFO] hallo .............................................. SUCCESS [ 32.835 s] [INFO] ------------------------------------------------------------------------ [INFO] BUILD SUCCESS [INFO] ------------------------------------------------------------------------ [INFO] Total time: 31:49 min [INFO] Finished at: 2018-02-05T03:36:20+07:00 [INFO] Final Memory: 223M/718M [INFO] ------------------------------------------------------------------------ ~/devfolder/hallo$ $ karaf/target/assembly/bin/karaf ~/devfolder/hallo$ karaf/target/assembly/bin/karaf Apache Karaf starting up. Press Enter to open the shell now... 100% [========================================================================] Karaf started in 37s. Bundle stats: 294 active, 294 total ________ ________ .__ .__ .__ __ _____ ______ ____ ____ ______ _____ ___.__.| | |__| ____ | |___/ |_ / | ____ _/ __ / | | __ < | || | | |/ ___| | __ / | |_> > ___/| | | ` / __ ___ || |_| / /_/ > Y | _______ / __/ ___ >___| /_______ (____ / ____||____/_____ /|___| /__| /|__| / / / // /_____/ / Hit '<tab>' for a list of available commands and '[cmd] --help' for help on a specific command. Hit '<ctrl-d>' or type 'system:shutdown' or 'logout' to shutdown OpenDaylight. opendaylight-user@root>log:display | grep Hallo 43 / 56 Build

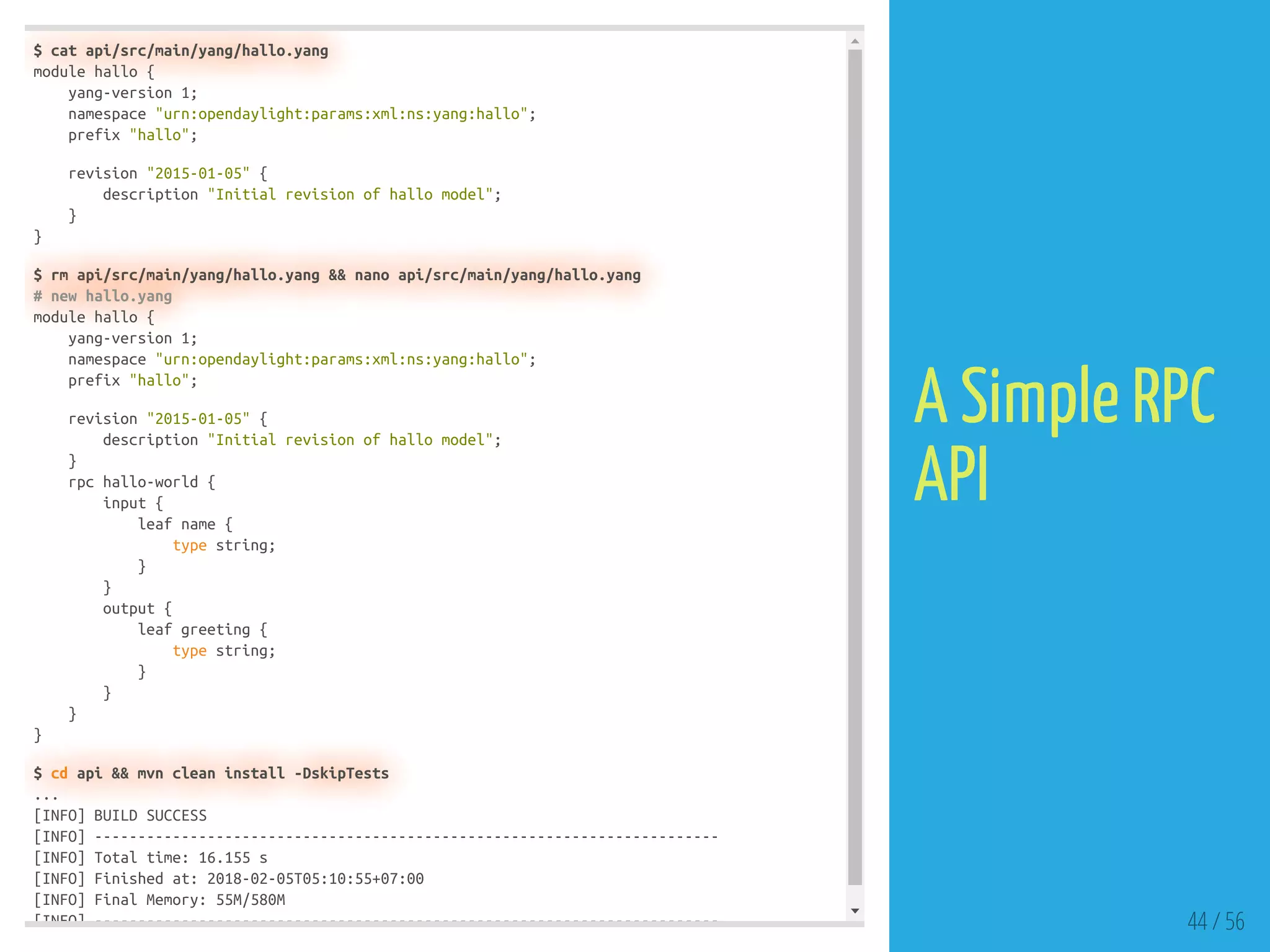

$ cat api/src/main/yang/hallo.yang module hallo { yang-version 1; namespace "urn:opendaylight:params:xml:ns:yang:hallo"; prefix "hallo"; revision "2015-01-05" { description "Initial revision of hallo model"; } } $ rm api/src/main/yang/hallo.yang && nano api/src/main/yang/hallo.yang # new hallo.yang module hallo { yang-version 1; namespace "urn:opendaylight:params:xml:ns:yang:hallo"; prefix "hallo"; revision "2015-01-05" { description "Initial revision of hallo model"; } rpc hallo-world { input { leaf name { type string; } } output { leaf greeting { type string; } } } } $ cd api && mvn clean install -DskipTests ... [INFO] BUILD SUCCESS [INFO] ------------------------------------------------------------------------ [INFO] Total time: 16.155 s [INFO] Finished at: 2018-02-05T05:10:55+07:00 [INFO] Final Memory: 55M/580M [INFO] ------------------------------------------------------------------------ 44 / 56 A Simple RPC API

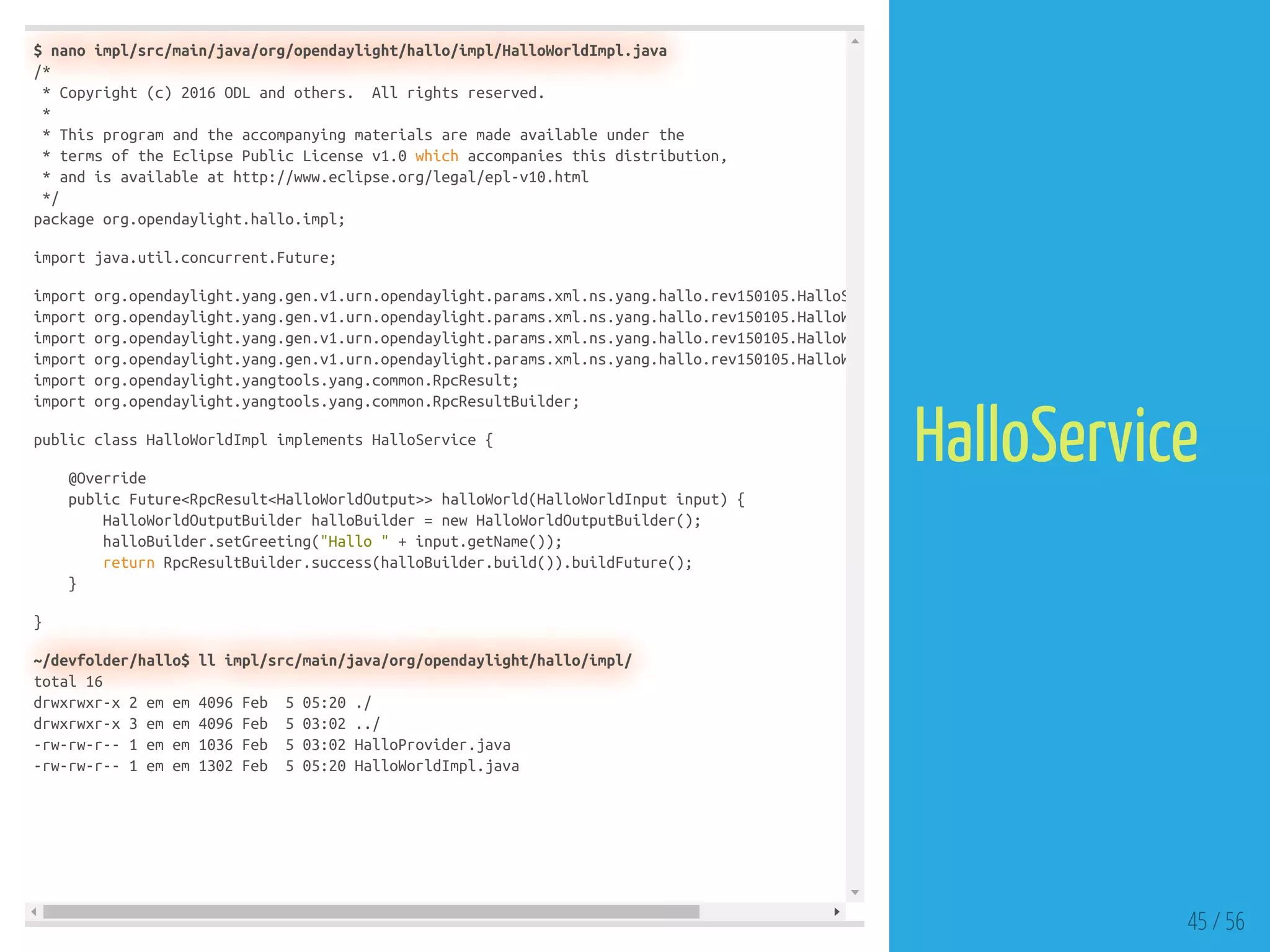

$ nano impl/src/main/java/org/opendaylight/hallo/impl/HalloWorldImpl.java /* * Copyright (c) 2016 ODL and others. All rights reserved. * * This program and the accompanying materials are made available under the * terms of the Eclipse Public License v1.0 which accompanies this distribution, * and is available at http://www.eclipse.org/legal/epl-v10.html */ package org.opendaylight.hallo.impl; import java.util.concurrent.Future; import org.opendaylight.yang.gen.v1.urn.opendaylight.params.xml.ns.yang.hallo.rev150105.HalloS import org.opendaylight.yang.gen.v1.urn.opendaylight.params.xml.ns.yang.hallo.rev150105.HalloW import org.opendaylight.yang.gen.v1.urn.opendaylight.params.xml.ns.yang.hallo.rev150105.HalloW import org.opendaylight.yang.gen.v1.urn.opendaylight.params.xml.ns.yang.hallo.rev150105.HalloW import org.opendaylight.yangtools.yang.common.RpcResult; import org.opendaylight.yangtools.yang.common.RpcResultBuilder; public class HalloWorldImpl implements HalloService { @Override public Future<RpcResult<HalloWorldOutput>> halloWorld(HalloWorldInput input) { HalloWorldOutputBuilder halloBuilder = new HalloWorldOutputBuilder(); halloBuilder.setGreeting("Hallo " + input.getName()); return RpcResultBuilder.success(halloBuilder.build()).buildFuture(); } } ~/devfolder/hallo$ ll impl/src/main/java/org/opendaylight/hallo/impl/ total 16 drwxrwxr-x 2 em em 4096 Feb 5 05:20 ./ drwxrwxr-x 3 em em 4096 Feb 5 03:02 ../ -rw-rw-r-- 1 em em 1036 Feb 5 03:02 HalloProvider.java -rw-rw-r-- 1 em em 1302 Feb 5 05:20 HalloWorldImpl.java 45 / 56 HalloService
$ cat impl/src/main/resources/org/opendaylight/blueprint/impl-blueprint.xml <?xml version="1.0" encoding="UTF-8"?> <!-- vi: set et smarttab sw=4 tabstop=4: --> <!-- Copyright (c) 2017 hallo inc. and others. All rights reserved. This program and the accompanying materials are made available under the terms of the Eclipse Public License v1.0 which accompanies this distribution, and is available at http://www.eclipse.org/legal/epl-v10.html --> <blueprint xmlns="http://www.osgi.org/xmlns/blueprint/v1.0.0" xmlns:odl="http://opendaylight.org/xmlns/blueprint/v1.0.0" odl:use-default-for-reference-types="true"> <reference id="dataBroker" interface="org.opendaylight.controller.md.sal.binding.api.DataBroker" odl:type="default" /> <reference id="rpcRegistry" interface="org.opendaylight.controller.sal.binding.api.RpcProviderRegistry"/> <bean id="provider" class="org.opendaylight.hallo.impl.HalloProvider" init-method="init" destroy-method="close"> <argument ref="dataBroker" /> <argument ref="rpcRegistry" /> </bean> </blueprint> 46 / 56 RPC Registry Reference

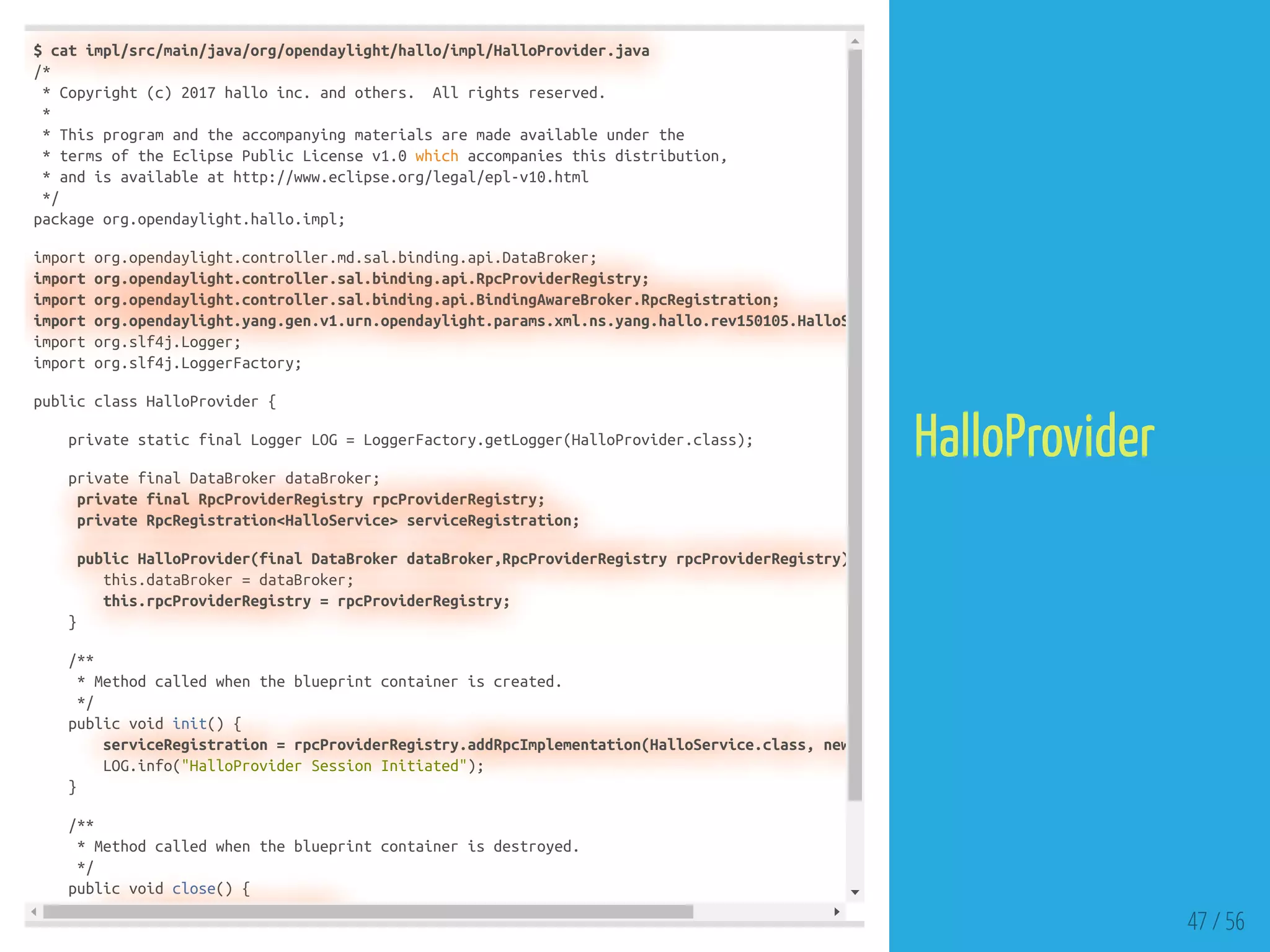

$ cat impl/src/main/java/org/opendaylight/hallo/impl/HalloProvider.java /* * Copyright (c) 2017 hallo inc. and others. All rights reserved. * * This program and the accompanying materials are made available under the * terms of the Eclipse Public License v1.0 which accompanies this distribution, * and is available at http://www.eclipse.org/legal/epl-v10.html */ package org.opendaylight.hallo.impl; import org.opendaylight.controller.md.sal.binding.api.DataBroker; import org.opendaylight.controller.sal.binding.api.RpcProviderRegistry; import org.opendaylight.controller.sal.binding.api.BindingAwareBroker.RpcRegistration; import org.opendaylight.yang.gen.v1.urn.opendaylight.params.xml.ns.yang.hallo.rev150105.HalloS import org.slf4j.Logger; import org.slf4j.LoggerFactory; public class HalloProvider { private static final Logger LOG = LoggerFactory.getLogger(HalloProvider.class); private final DataBroker dataBroker; private final RpcProviderRegistry rpcProviderRegistry; private RpcRegistration<HalloService> serviceRegistration; public HalloProvider(final DataBroker dataBroker,RpcProviderRegistry rpcProviderRegistry) this.dataBroker = dataBroker; this.rpcProviderRegistry = rpcProviderRegistry; } /** * Method called when the blueprint container is created. */ public void init() { serviceRegistration = rpcProviderRegistry.addRpcImplementation(HalloService.class, new LOG.info("HalloProvider Session Initiated"); } /** * Method called when the blueprint container is destroyed. */ public void close() { 47 / 56 HalloProvider

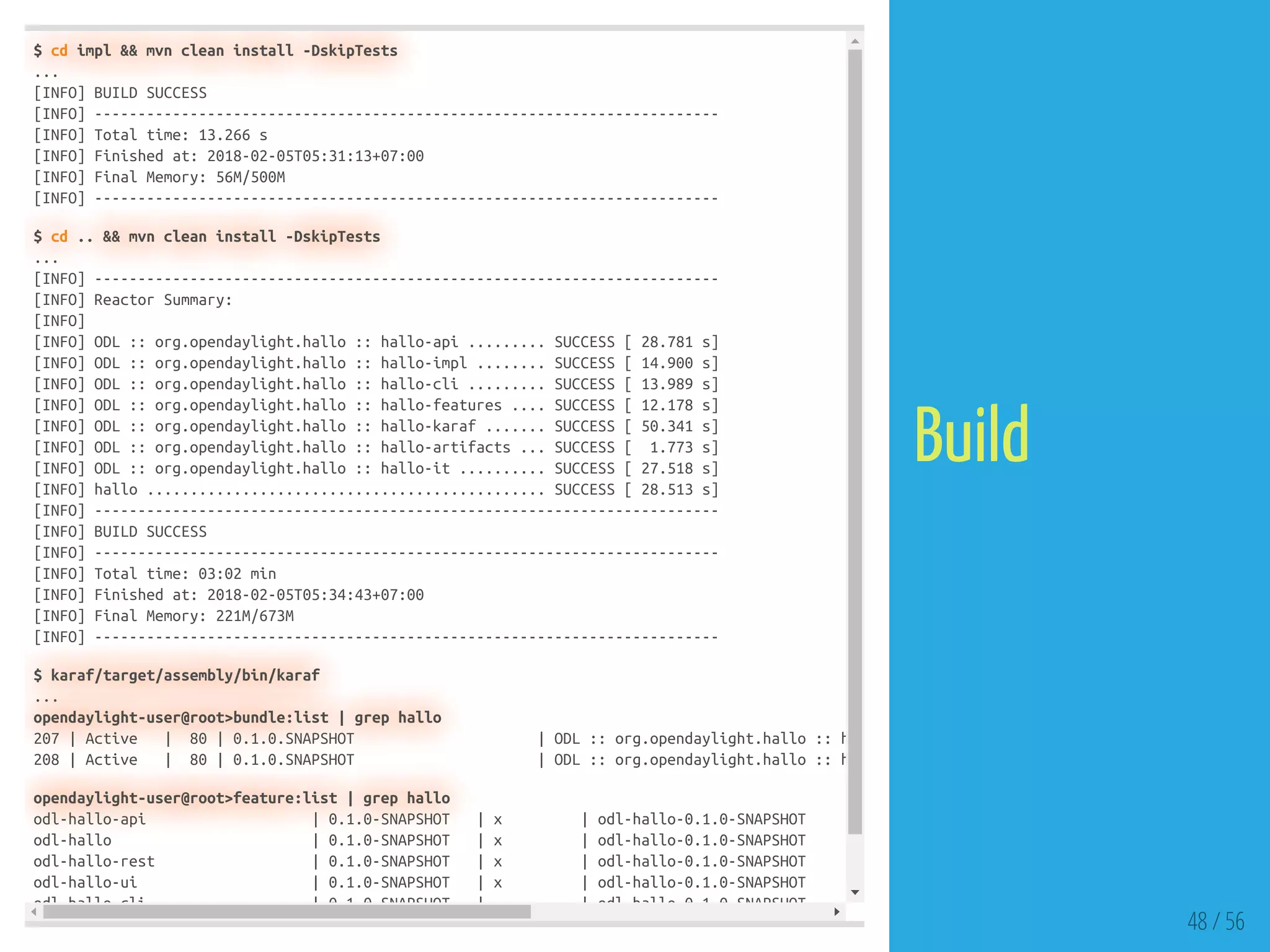

$ cd impl && mvn clean install -DskipTests ... [INFO] BUILD SUCCESS [INFO] ------------------------------------------------------------------------ [INFO] Total time: 13.266 s [INFO] Finished at: 2018-02-05T05:31:13+07:00 [INFO] Final Memory: 56M/500M [INFO] ------------------------------------------------------------------------ $ cd .. && mvn clean install -DskipTests ... [INFO] ------------------------------------------------------------------------ [INFO] Reactor Summary: [INFO] [INFO] ODL :: org.opendaylight.hallo :: hallo-api ......... SUCCESS [ 28.781 s] [INFO] ODL :: org.opendaylight.hallo :: hallo-impl ........ SUCCESS [ 14.900 s] [INFO] ODL :: org.opendaylight.hallo :: hallo-cli ......... SUCCESS [ 13.989 s] [INFO] ODL :: org.opendaylight.hallo :: hallo-features .... SUCCESS [ 12.178 s] [INFO] ODL :: org.opendaylight.hallo :: hallo-karaf ....... SUCCESS [ 50.341 s] [INFO] ODL :: org.opendaylight.hallo :: hallo-artifacts ... SUCCESS [ 1.773 s] [INFO] ODL :: org.opendaylight.hallo :: hallo-it .......... SUCCESS [ 27.518 s] [INFO] hallo .............................................. SUCCESS [ 28.513 s] [INFO] ------------------------------------------------------------------------ [INFO] BUILD SUCCESS [INFO] ------------------------------------------------------------------------ [INFO] Total time: 03:02 min [INFO] Finished at: 2018-02-05T05:34:43+07:00 [INFO] Final Memory: 221M/673M [INFO] ------------------------------------------------------------------------ $ karaf/target/assembly/bin/karaf ... opendaylight-user@root>bundle:list | grep hallo 207 | Active | 80 | 0.1.0.SNAPSHOT | ODL :: org.opendaylight.hallo :: h 208 | Active | 80 | 0.1.0.SNAPSHOT | ODL :: org.opendaylight.hallo :: h opendaylight-user@root>feature:list | grep hallo odl-hallo-api | 0.1.0-SNAPSHOT | x | odl-hallo-0.1.0-SNAPSHOT odl-hallo | 0.1.0-SNAPSHOT | x | odl-hallo-0.1.0-SNAPSHOT odl-hallo-rest | 0.1.0-SNAPSHOT | x | odl-hallo-0.1.0-SNAPSHOT odl-hallo-ui | 0.1.0-SNAPSHOT | x | odl-hallo-0.1.0-SNAPSHOT odl hallo cli | 0 1 0 SNAPSHOT | | odl hallo 0 1 0 SNAPSHOT 48 / 56 Build
Test via RestConf/Swagger 49 / 56
Test via RestConf/Swagger 50 / 56

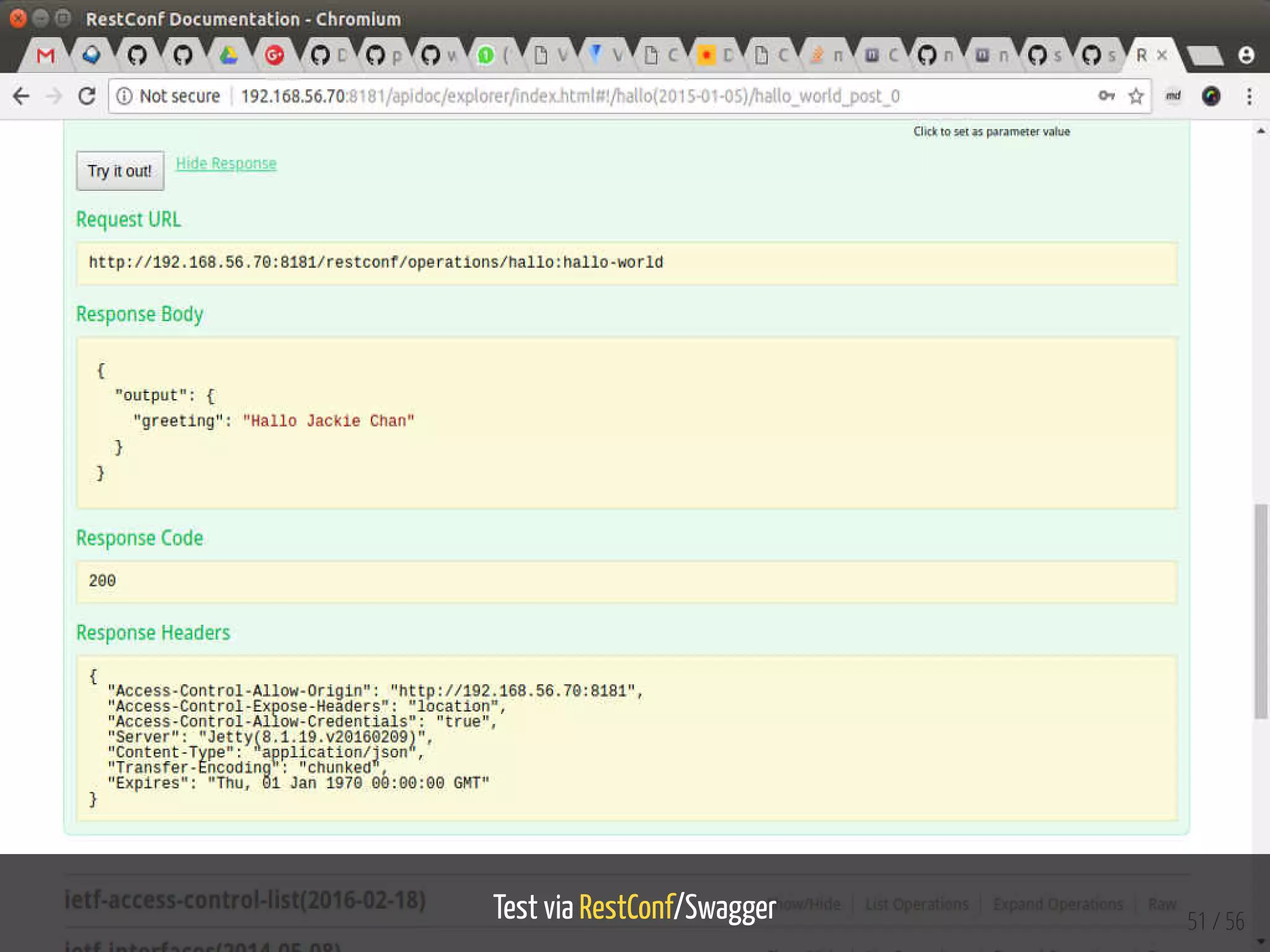

Test via RestConf/Swagger 51 / 56
Test via Postman 52 / 56
Test via Postman 53 / 56
Refs/Resources 54 / 56
Refs/Resources 1. Platform Overview - OpenDaylight 2. Using the OpenDaylight SDN Controller with the Mininet Network Emulator 3. ODL_Summit_OpenFlow_Tutorial 4. OpenDaylight User Guide - OpenDaylight Documentation Nitrogen documentation 5. Getting Started Guide - OpenDaylight Documentation Nitrogen documentation 6. OpenDaylight Application Developer's tutorial | SDN Hub 7. CiscoDevNet/yangman: YANGMAN o ers dynamically generated UI forms and native JSON representation based on RESTCONF APIs 8. OpenDaylight as a Platform for Network Programmability 9. OpenDaylight Controller:MD-SAL:Startup Project Archetype 10. Developing Apps on the OpenDaylight controller - Nitrogen 11. RFC 8040 - RESTCONF Protocol 55 / 56
56 / 56 ENDEueung Mulyana https://telematika.org/remark/odl CodeLabs | Attribution-ShareAlike CC BY-SA
