The document discusses open source lab equipment initiatives led by Urs Gaudenz at Gaudi Labs, incorporating various scientific devices and projects. It highlights contributions from multiple collaborators and showcases DIY lab equipment that can be made from everyday objects. Key examples include the OpenPCR machine and a computer webcam microscope, alongside the promotion of open science and workshops for community engagement.

1. Open Source Lab Equipment
Urs Gaudenz
MSc Microtechnology (EPFL)
Neustadtstrasse 7
6003 Lucern
info@gaudi.ch
UniverCité 2015
OPEN SOURCE
GENERIC LAB EQUIPMENT
& SCIENTIFIC DEVICES

2. Open Source Lab Equipment GaudiLabs

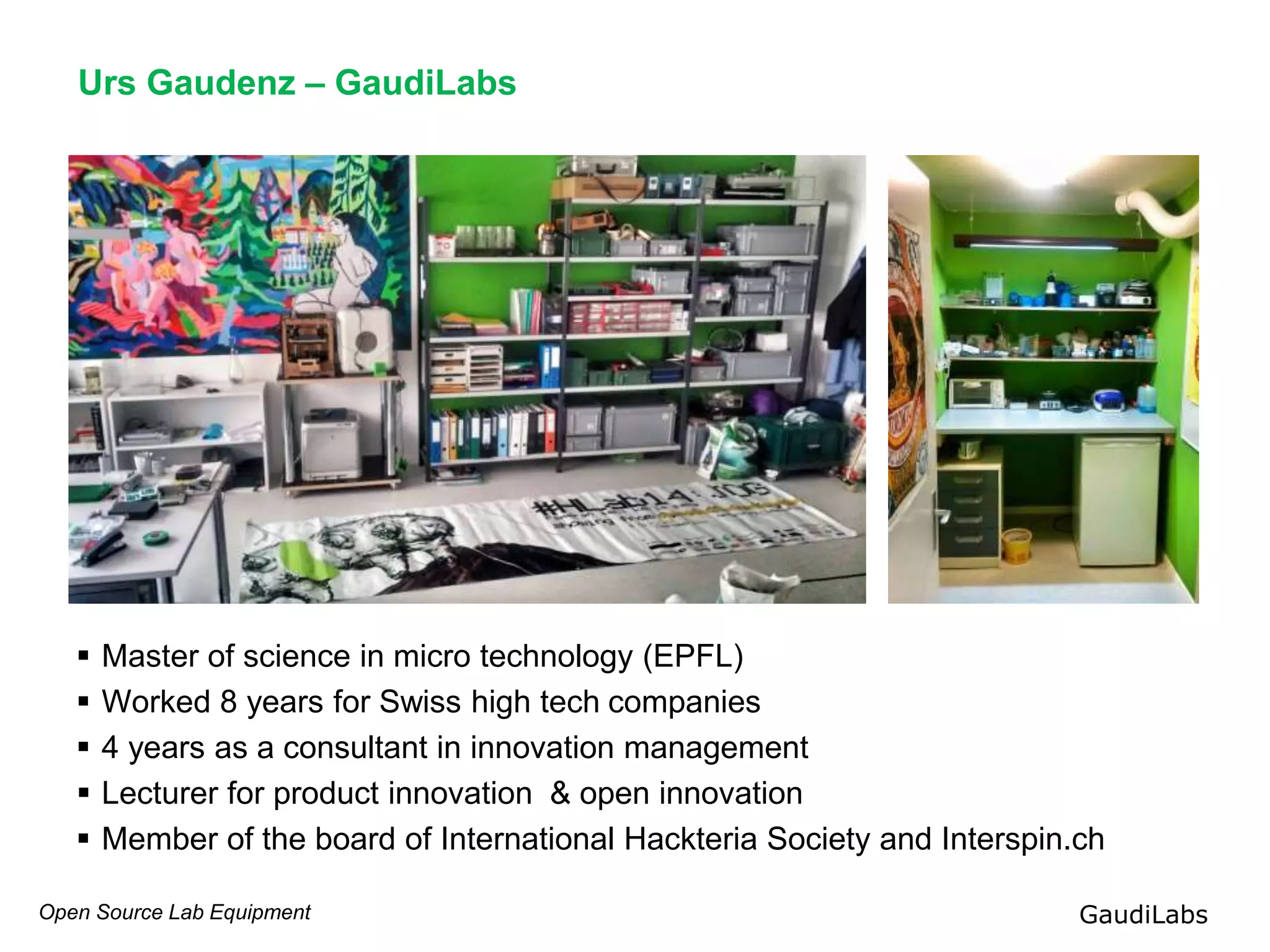

Urs Gaudenz – GaudiLabs
 Master of science in micro technology (EPFL)
 Worked 8 years for Swiss high tech companies
 4 years as a consultant in innovation management
 Lecturer for product innovation & open innovation
 Member of the board of International Hackteria Society and Interspin.ch

3. Open Source Lab Equipment GaudiLabs
A Hackteria Network Project
Industrie-
Design
Marc R. Dusseiller
Andy Gracie
Sachiko Hirosue
Nur Akbar Arofatullah
Yashas Shetty
Denisa Kera
Brian Degger
Rüdiger Trojok
And many more…

4. Open Source Lab Equipment GaudiLabs
OPEN SOURCE
GENERIC LAB EQUIPMENT

5. Open Source Lab Equipment GaudiLabs

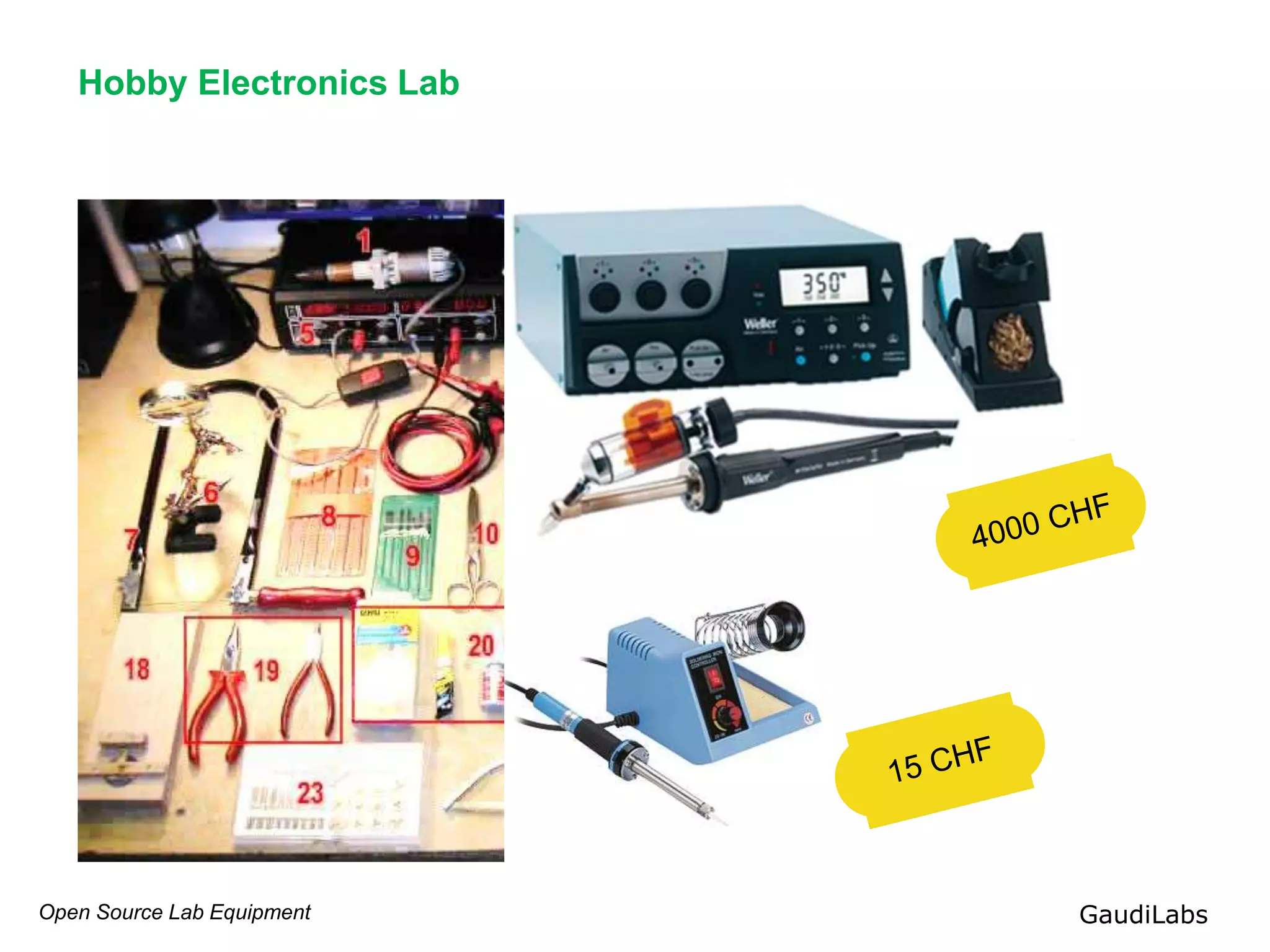

Hobby Electronics Lab

6. Open Source Lab Equipment GaudiLabs
Hobby Biology Lab?
?

7. Open Source Lab Equipment GaudiLabs

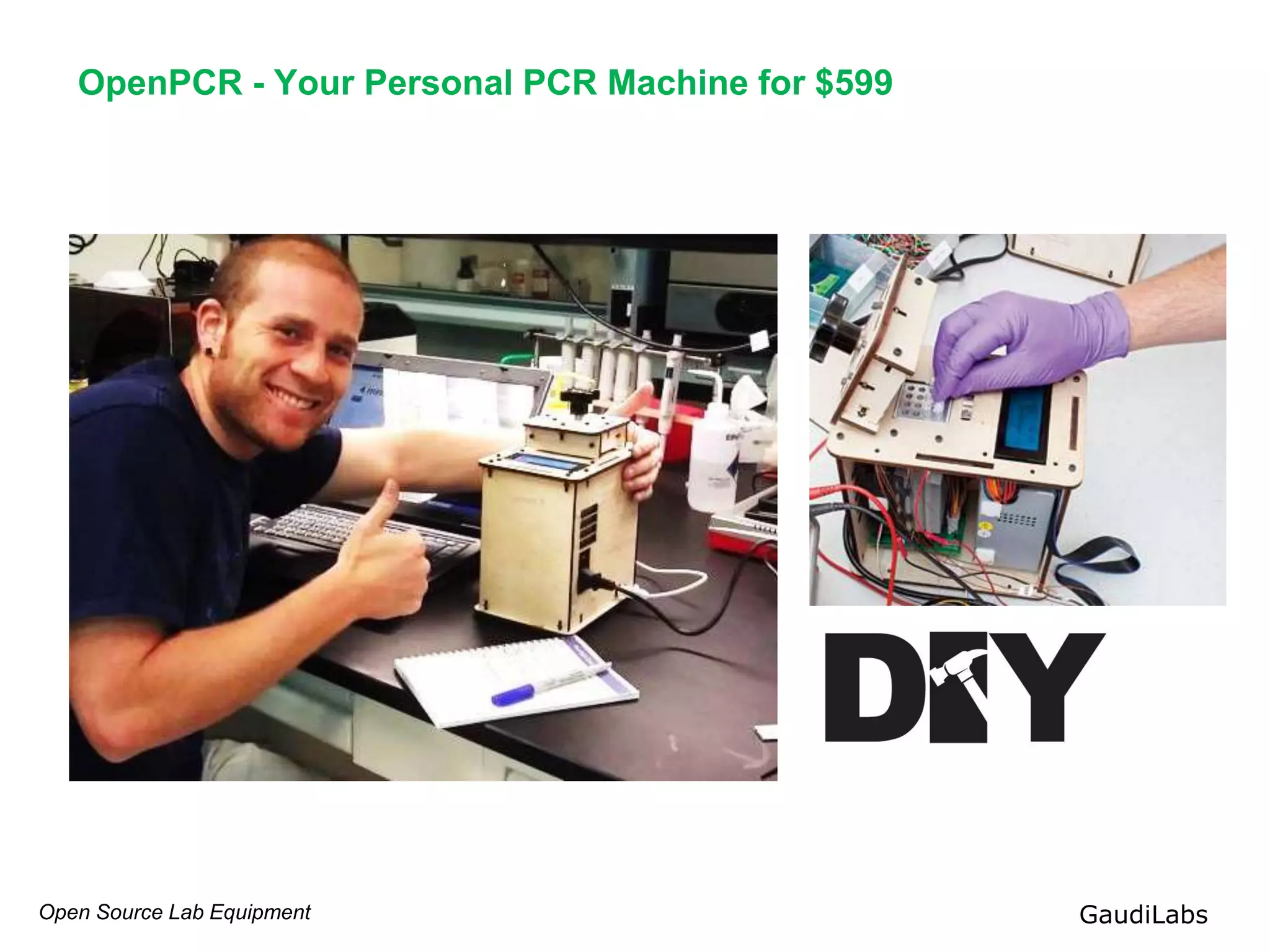

OpenPCR - Your Personal PCR Machine for $599

8. Open Source Lab Equipment GaudiLabs

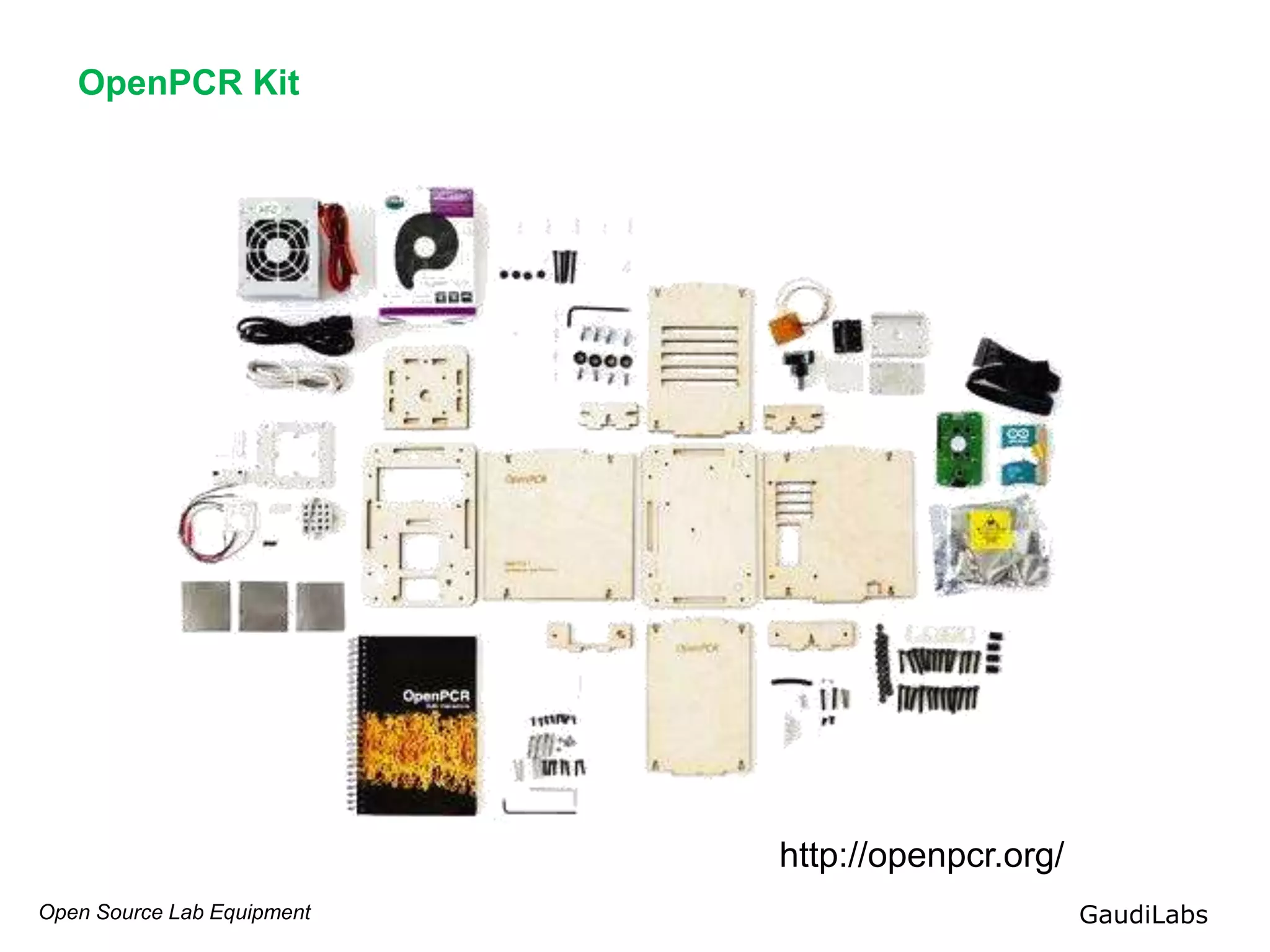

OpenPCR Kit
http://openpcr.org/

9. Open Source Lab Equipment GaudiLabs

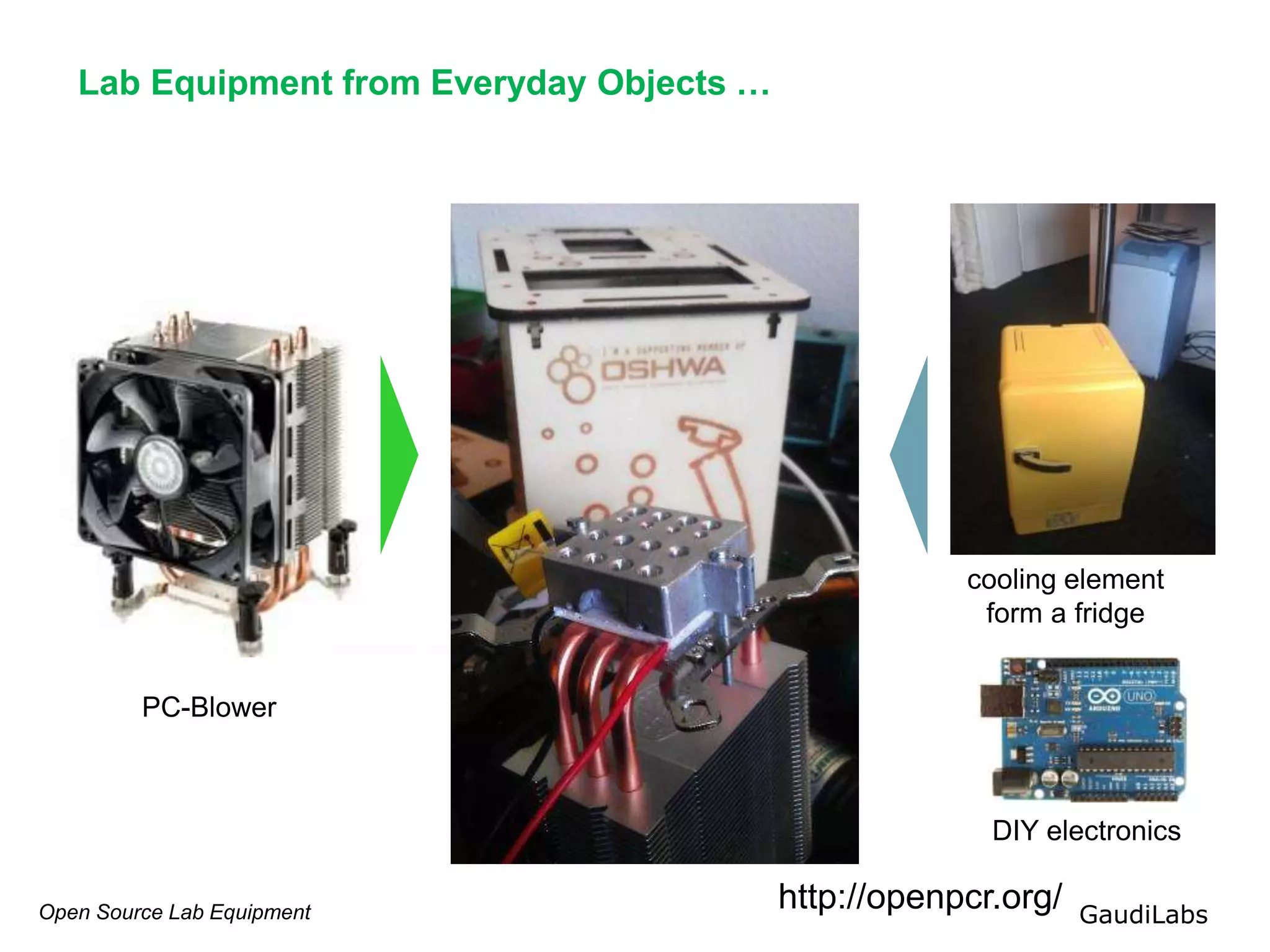

Lab Equipment from Everyday Objects …
cooling element
form a fridge
DIY electronics
PC-Blower
http://openpcr.org/

10. Open Source Lab Equipment GaudiLabs

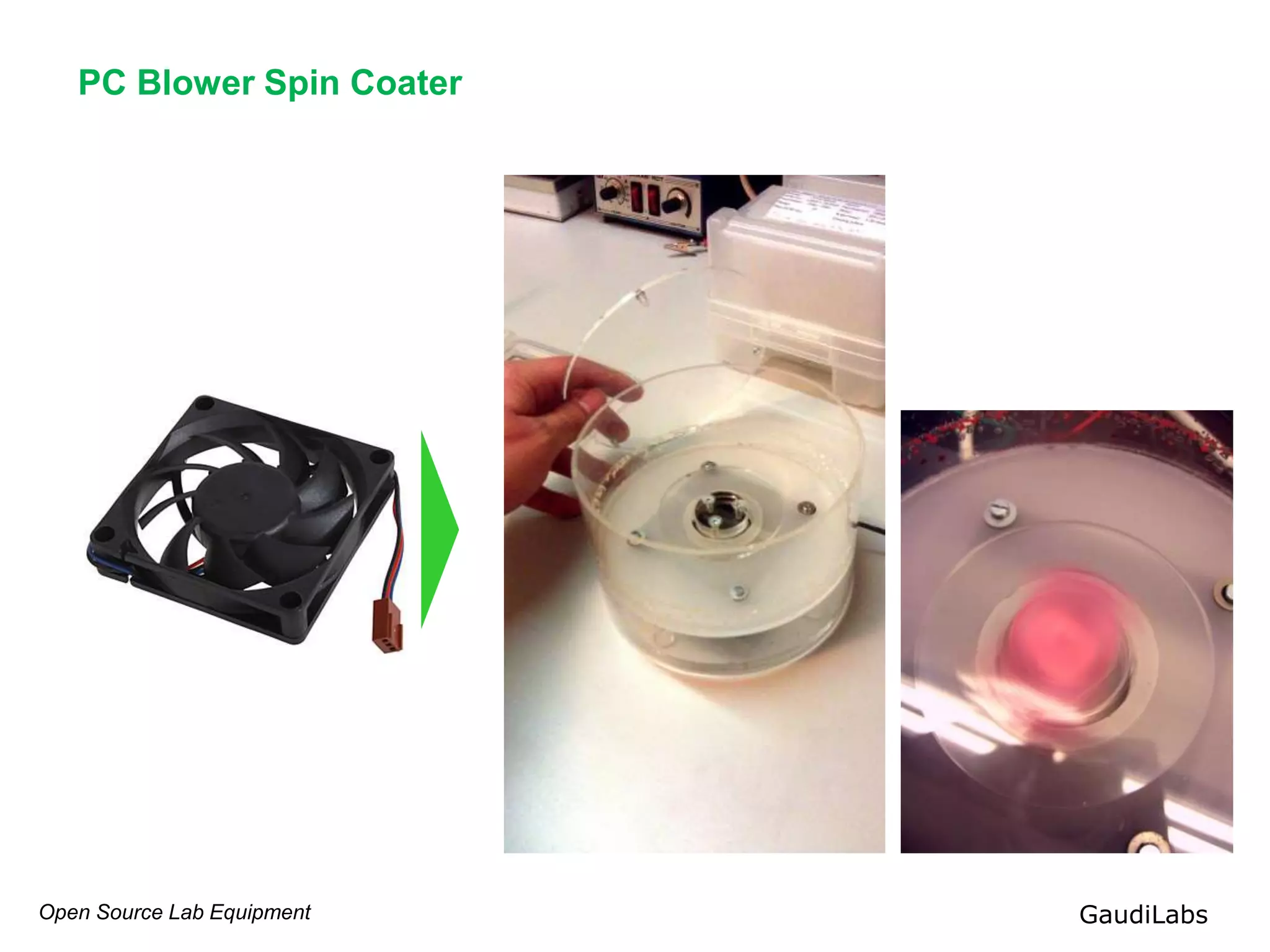

PC Blower Spin Coater

11. Open Source Lab Equipment GaudiLabs

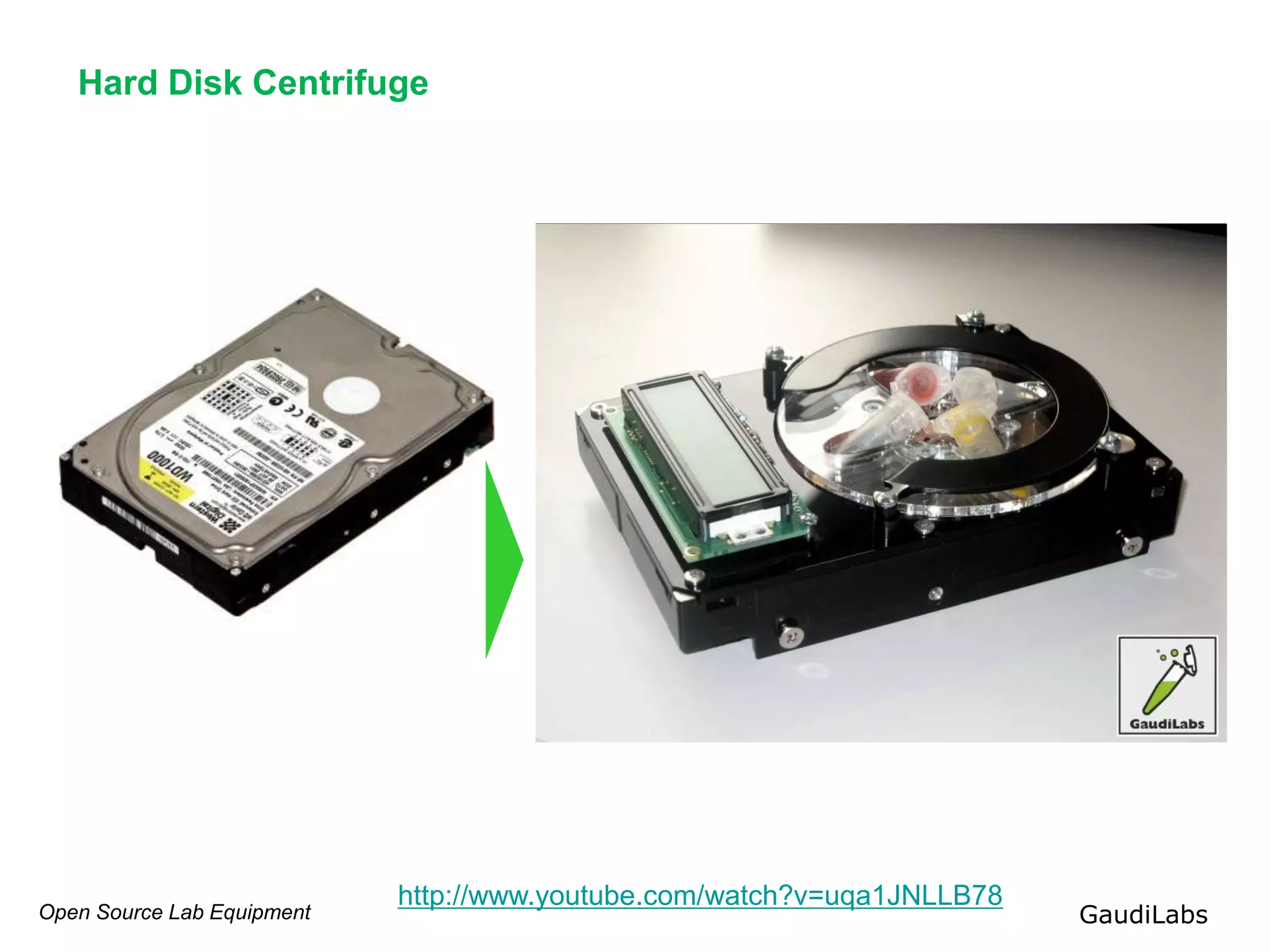

Hard Disk Centrifuge
http://www.youtube.com/watch?v=uqa1JNLLB78

12. Open Source Lab Equipment GaudiLabs

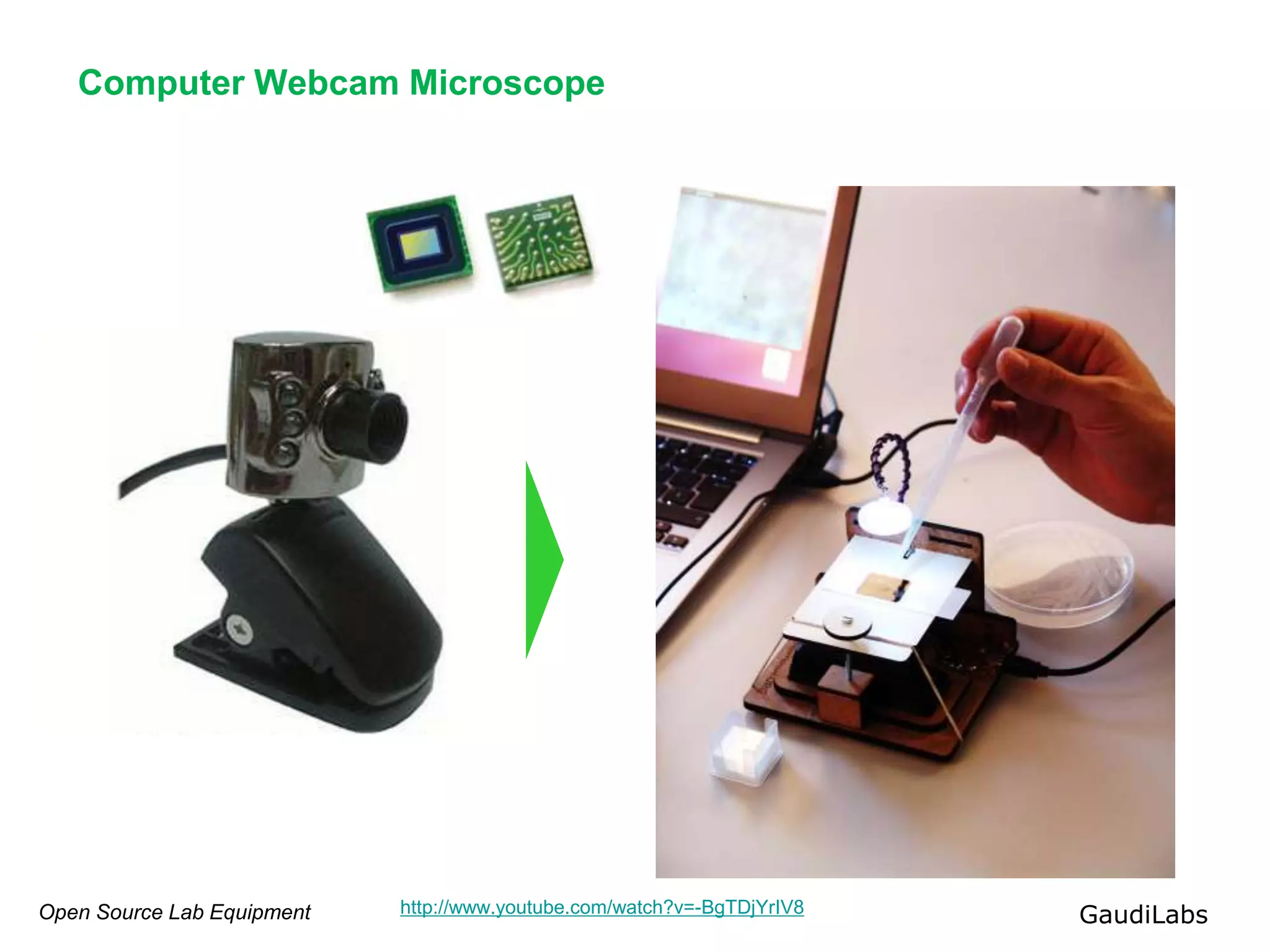

Computer Webcam Microscope
http://www.youtube.com/watch?v=-BgTDjYrIV8

13. Open Source Lab Equipment GaudiLabs

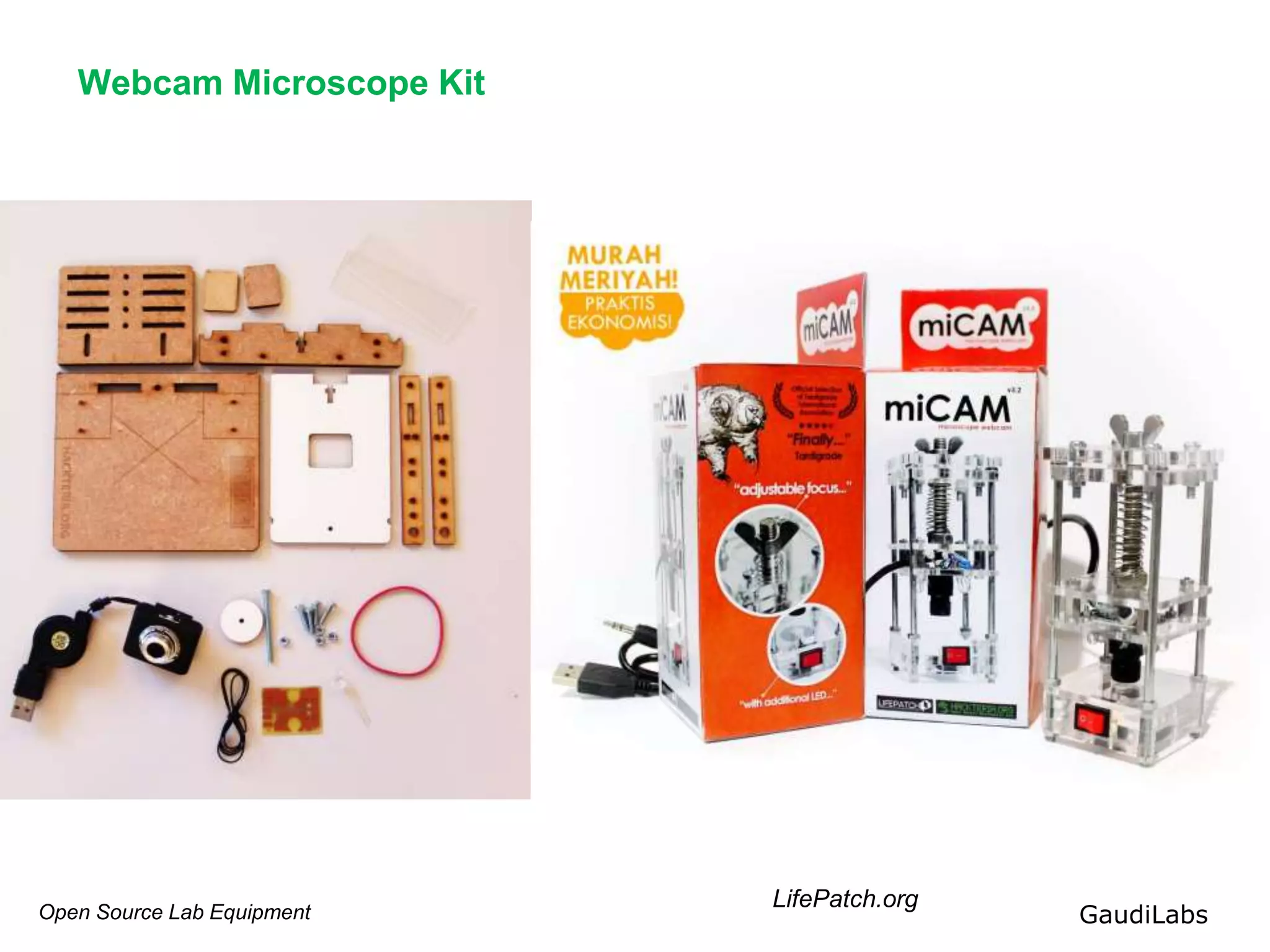

Webcam Microscope Kit
LifePatch.org

14. Open Source Lab Equipment GaudiLabs

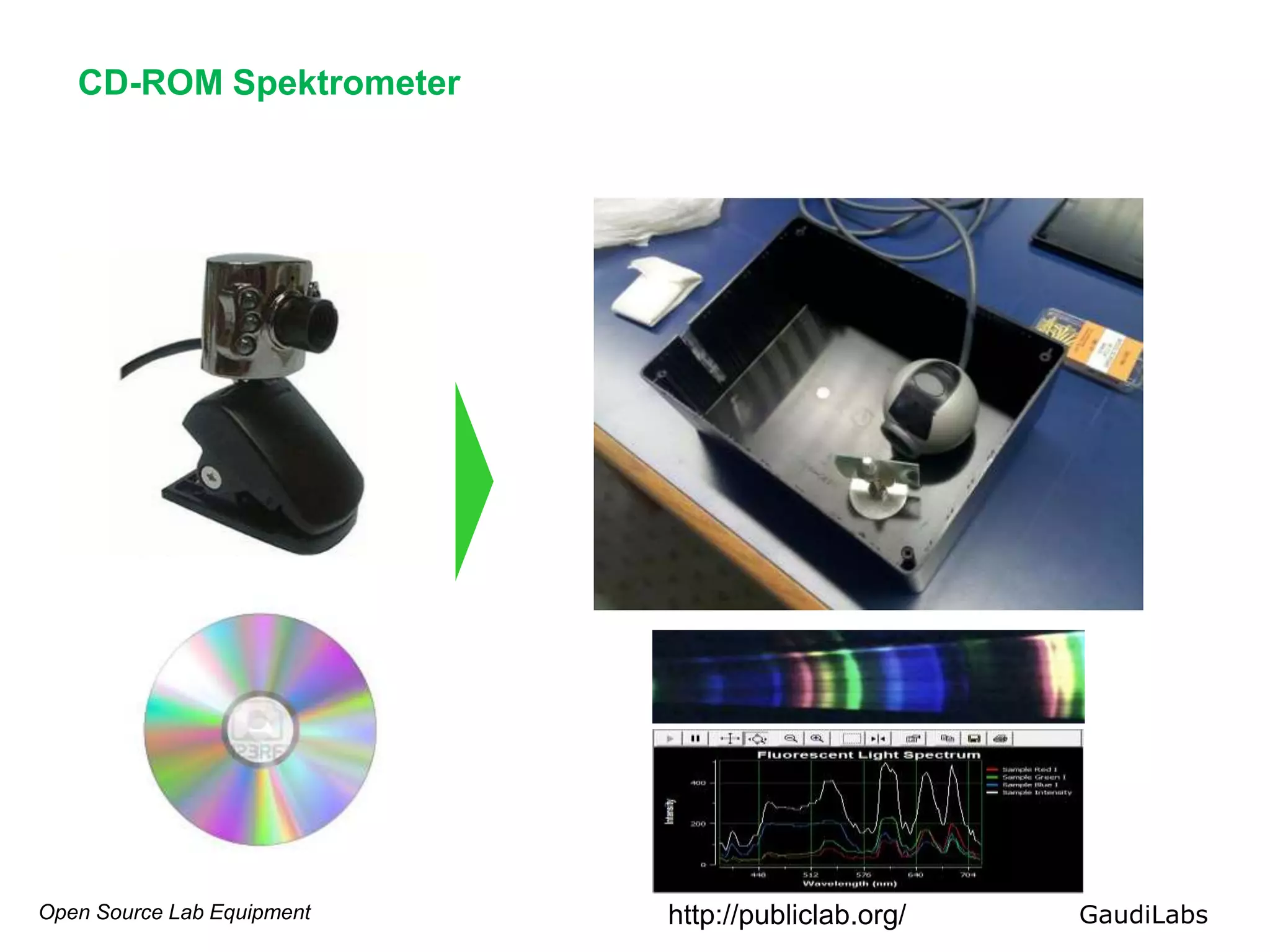

CD-ROM Spektrometer
http://publiclab.org/

15. Open Source Lab Equipment GaudiLabs

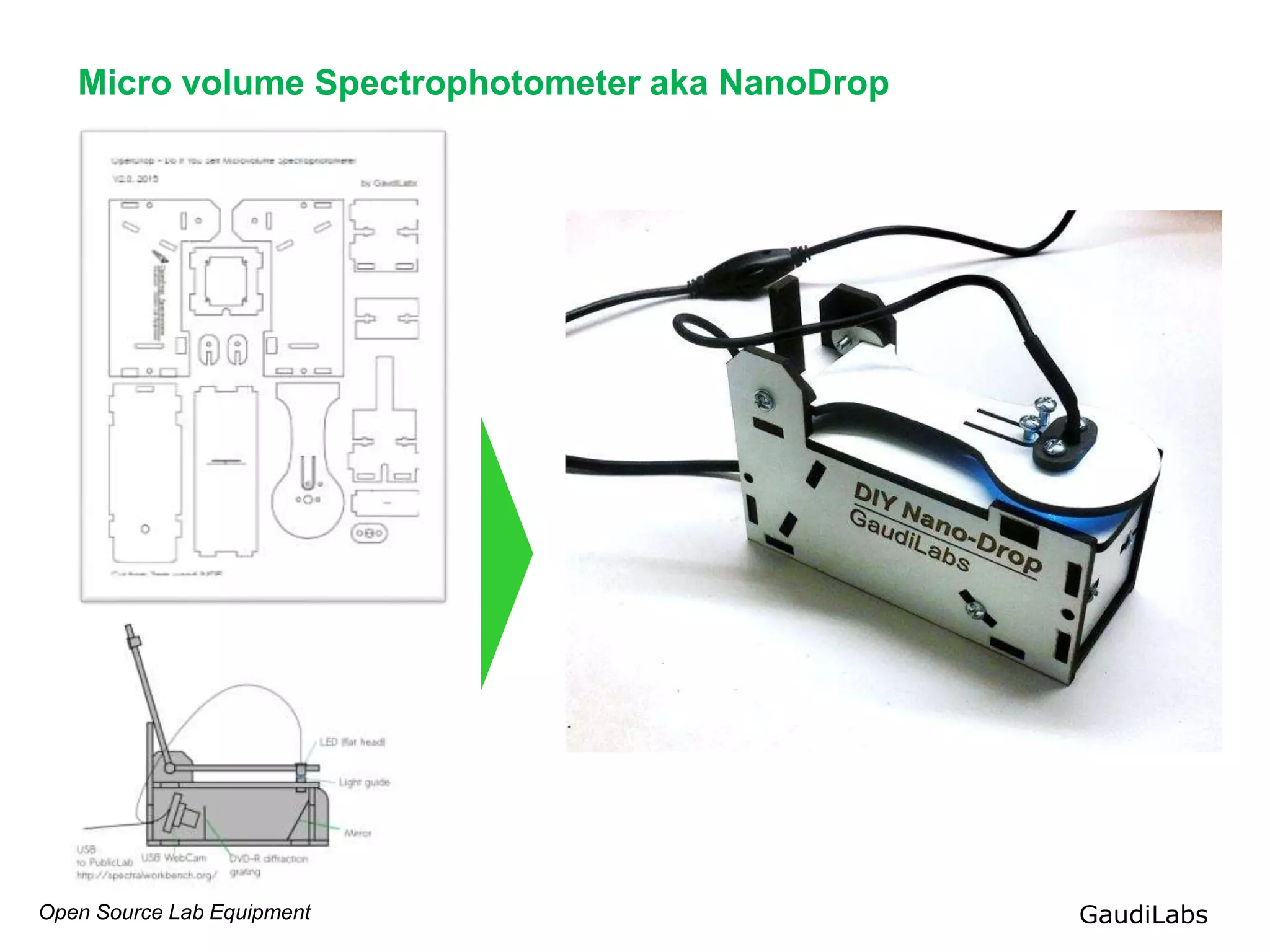

Micro volume Spectrophotometer aka NanoDrop

16. Open Source Lab Equipment GaudiLabs

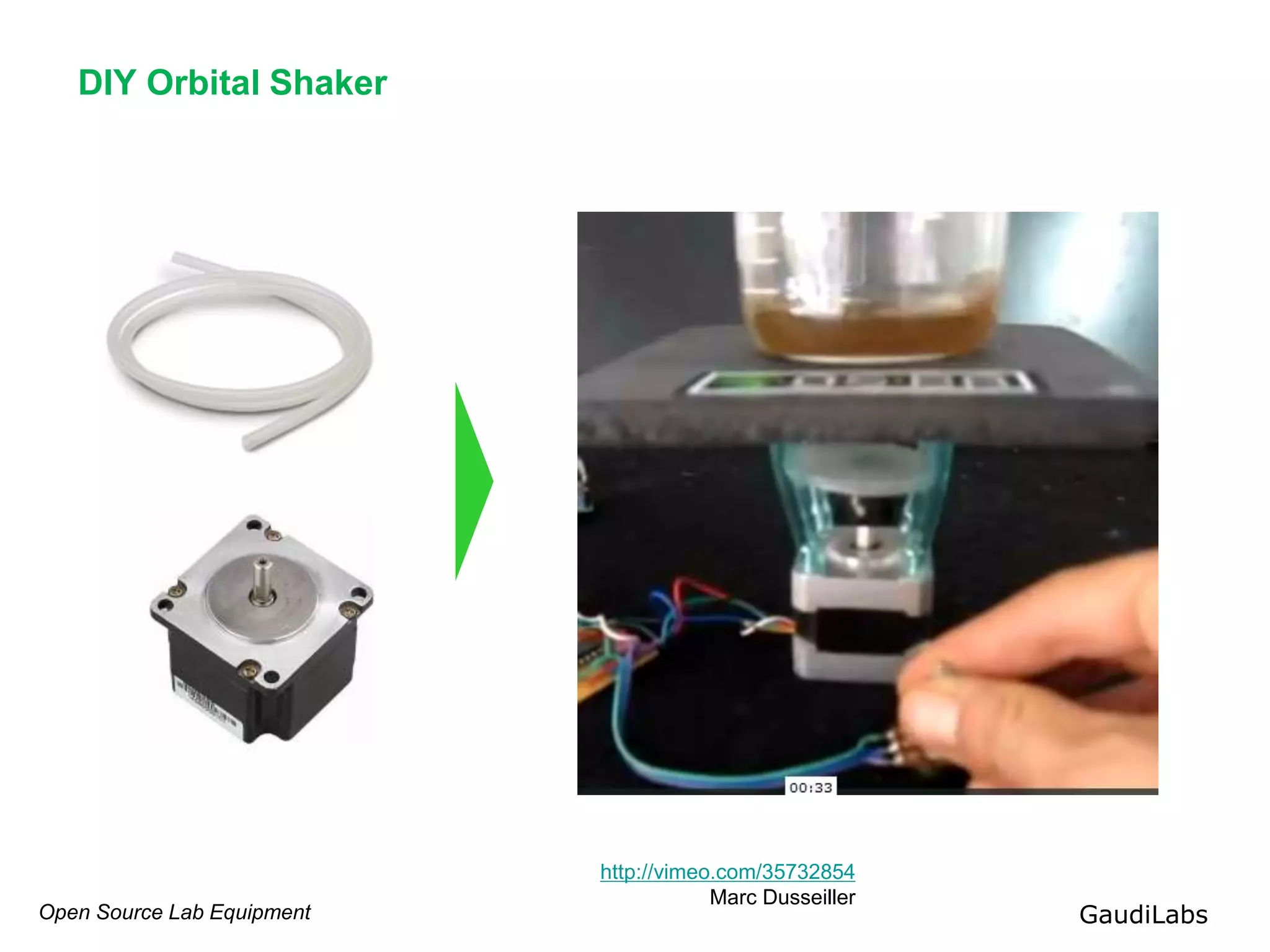

DIY Orbital Shaker
http://vimeo.com/35732854
Marc Dusseiller

17. Open Source Lab Equipment GaudiLabs

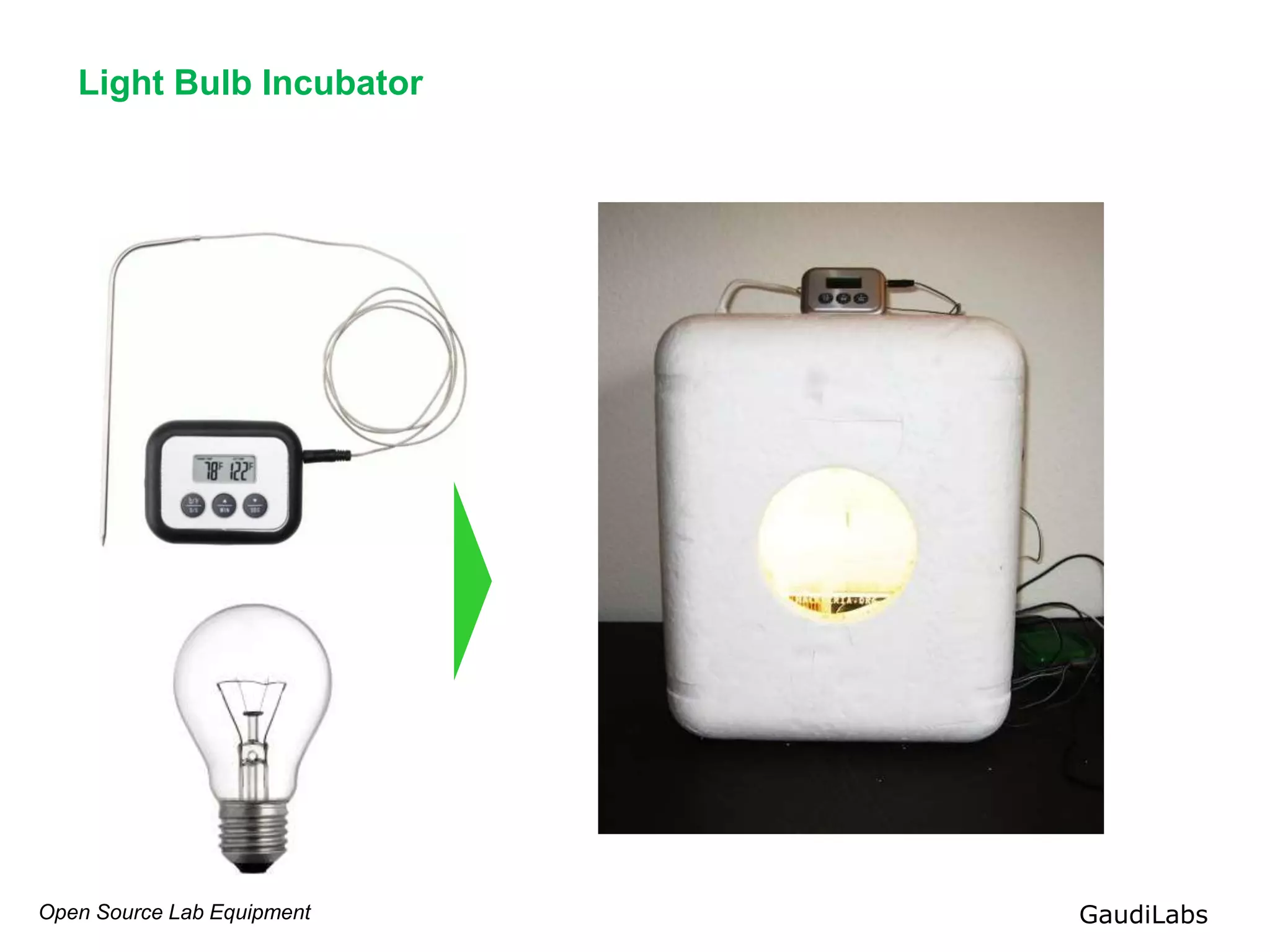

Light Bulb Incubator

18. Open Source Lab Equipment GaudiLabs

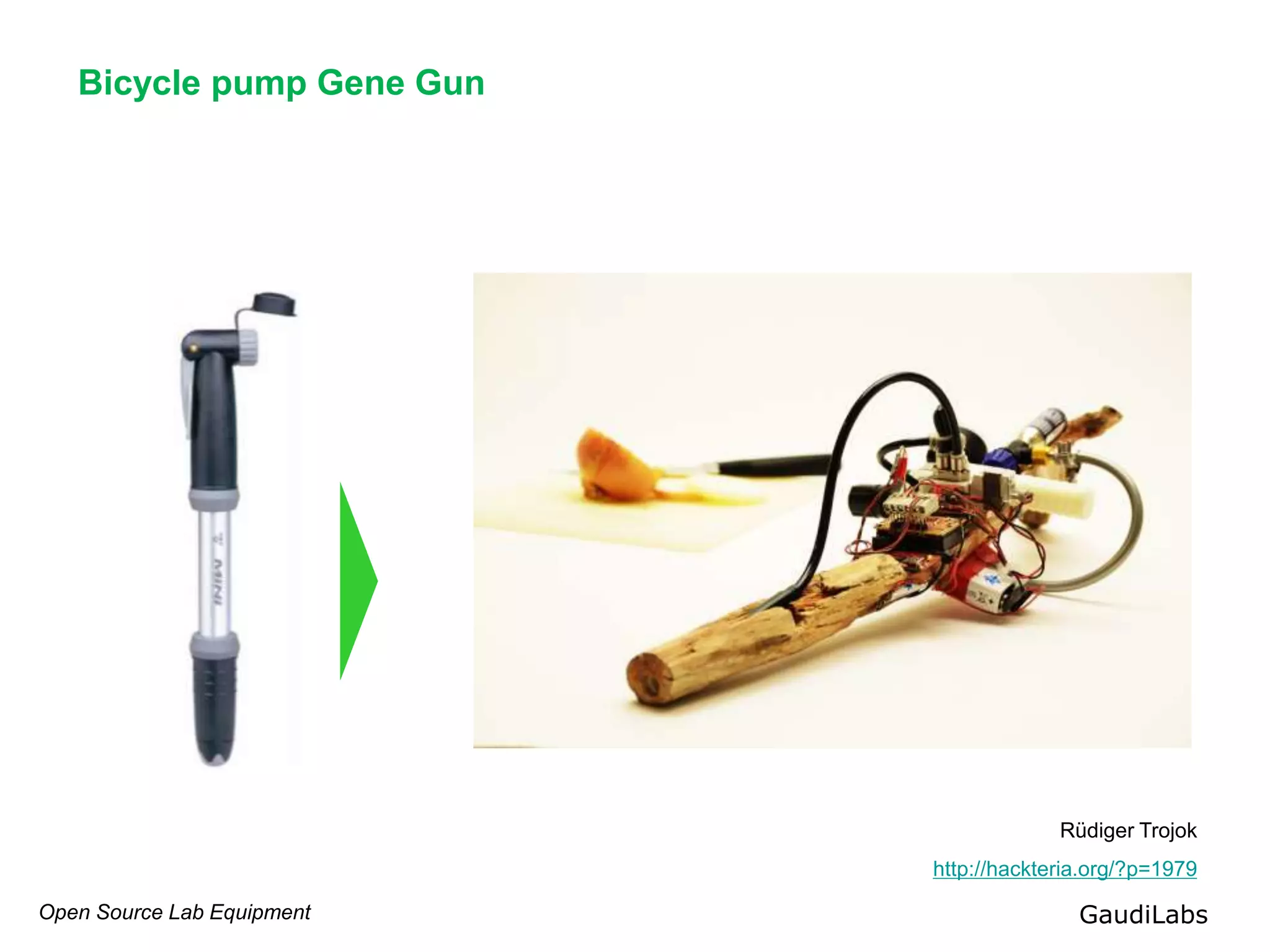

Bicycle pump Gene Gun
Rüdiger Trojok
http://hackteria.org/?p=1979

19. Open Source Lab Equipment GaudiLabs

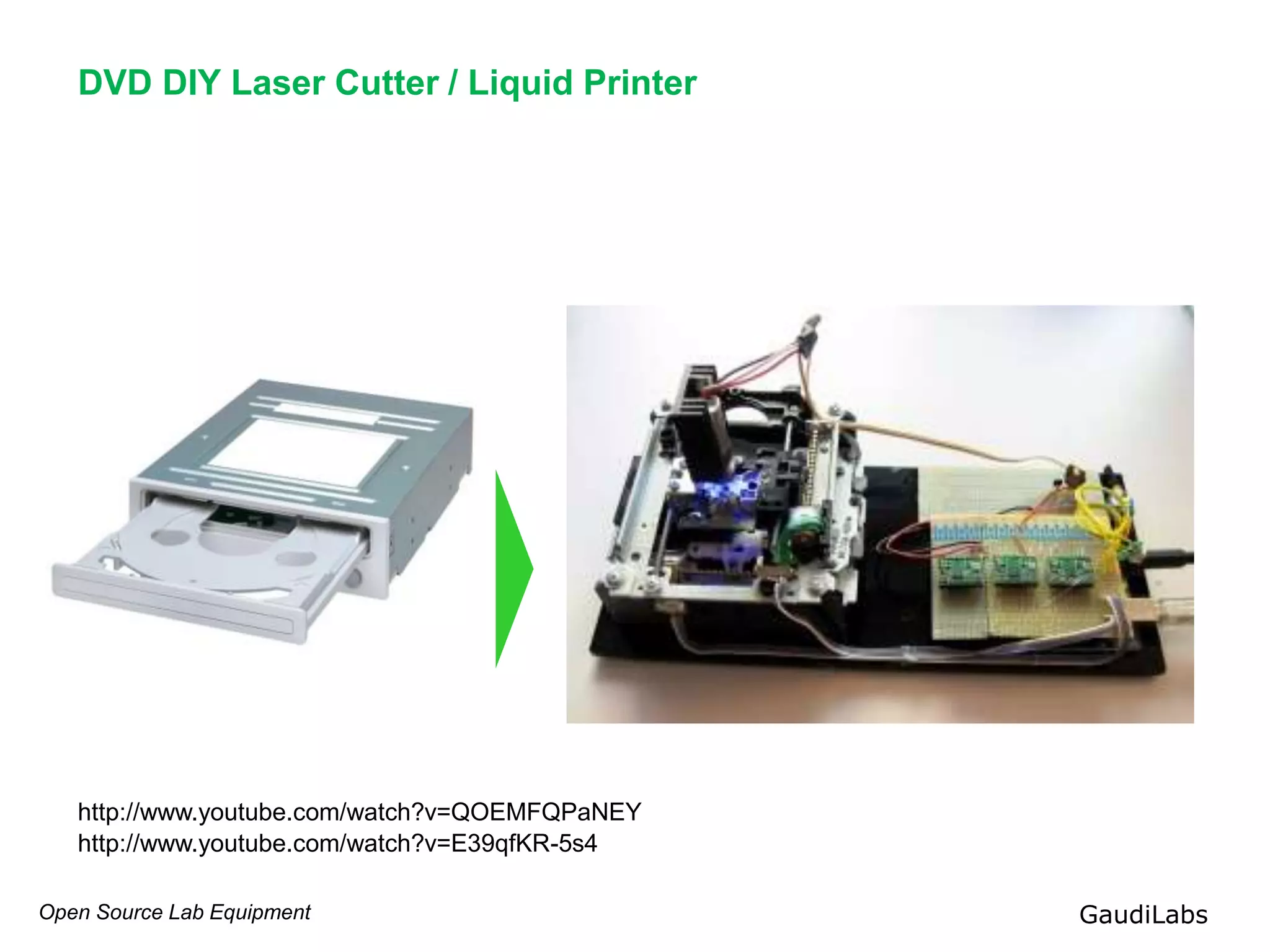

DVD DIY Laser Cutter / Liquid Printer
http://www.youtube.com/watch?v=E39qfKR-5s4
http://www.youtube.com/watch?v=QOEMFQPaNEY

20. Open Source Lab Equipment GaudiLabs

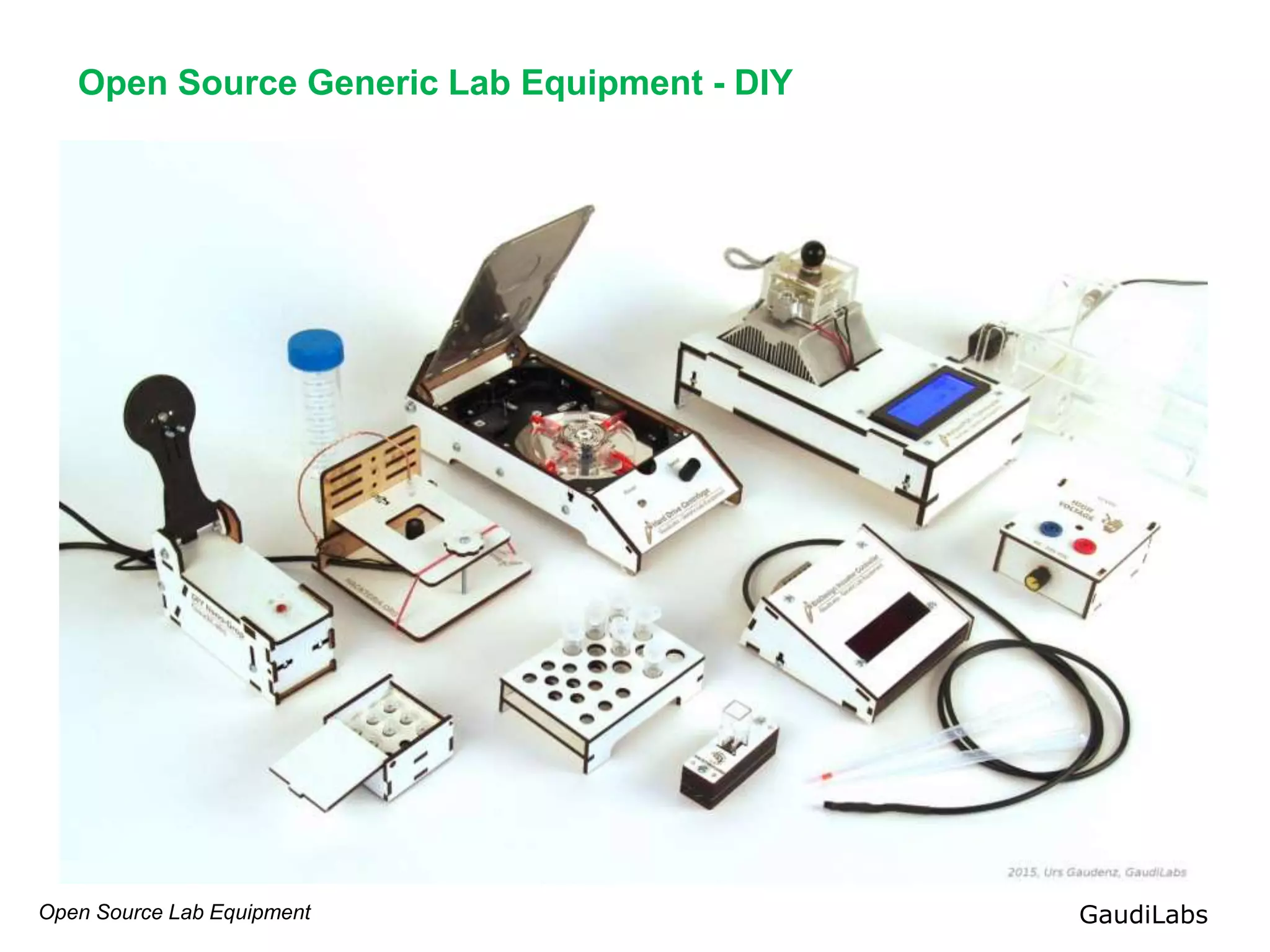

Open Source Generic Lab Equipment - DIY

21. Open Source Lab Equipment GaudiLabs
Mobile Lab Hackaton – Biotehna Ljubljana

22. Open Source Lab Equipment GaudiLabs

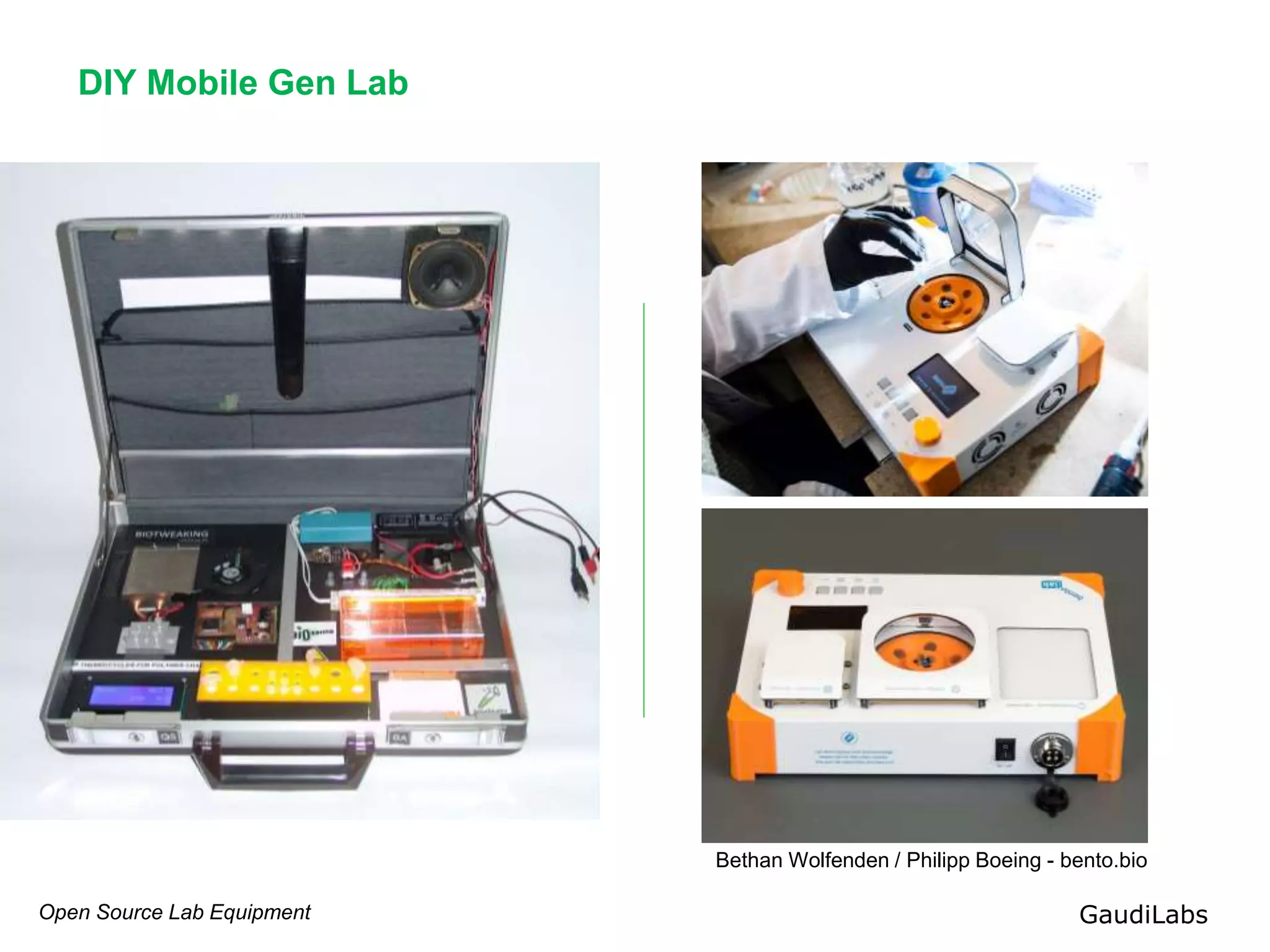

DIY Mobile Gen Lab
Bethan Wolfenden / Philipp Boeing - bento.bio

23. Open Source Lab Equipment GaudiLabs
OPEN SOURCE
SCIENTIFIC DEVICES

24. Open Source Lab Equipment GaudiLabs

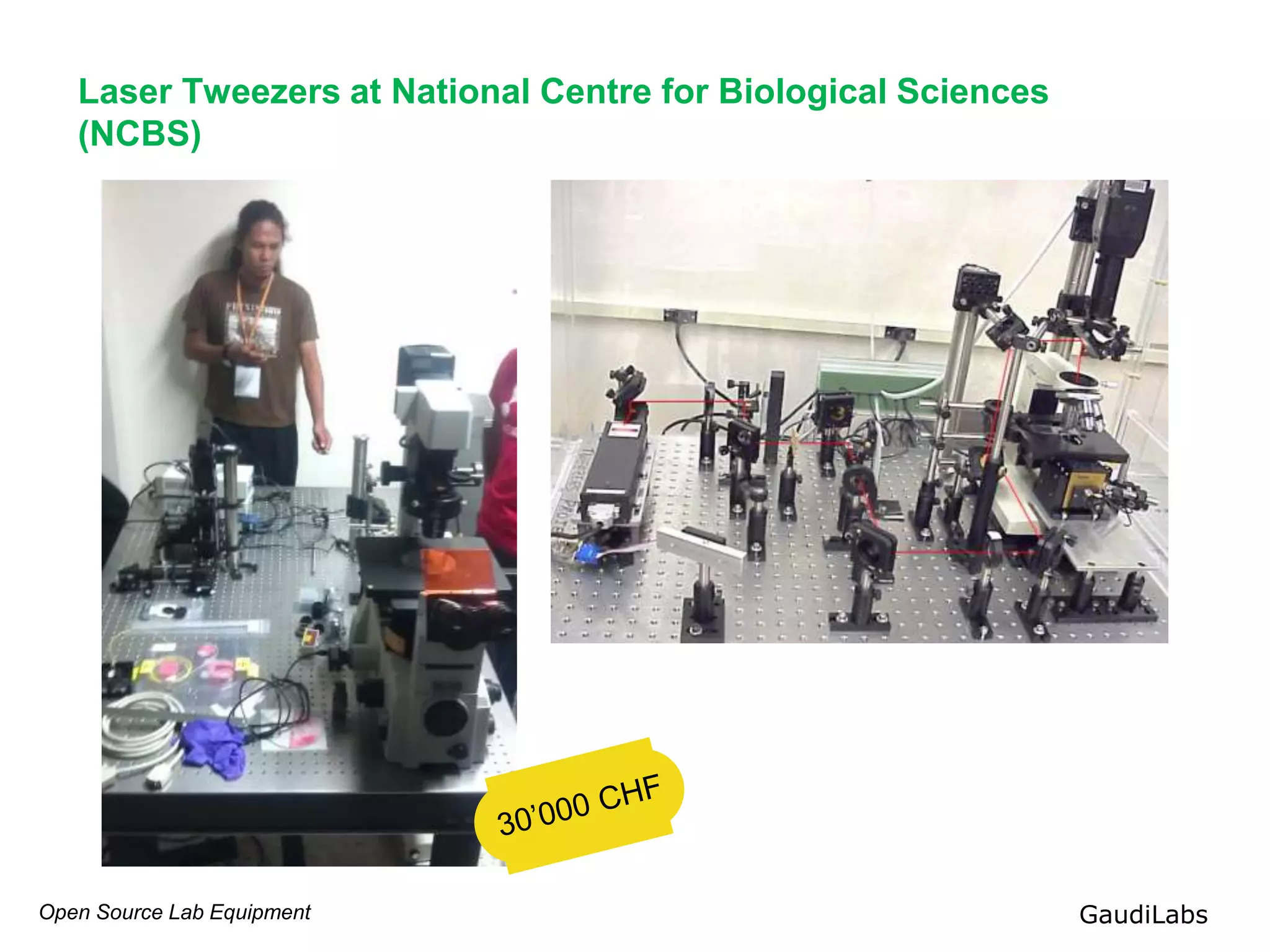

Laser Tweezers at National Centre for Biological Sciences
(NCBS)

25. Open Source Lab Equipment GaudiLabs

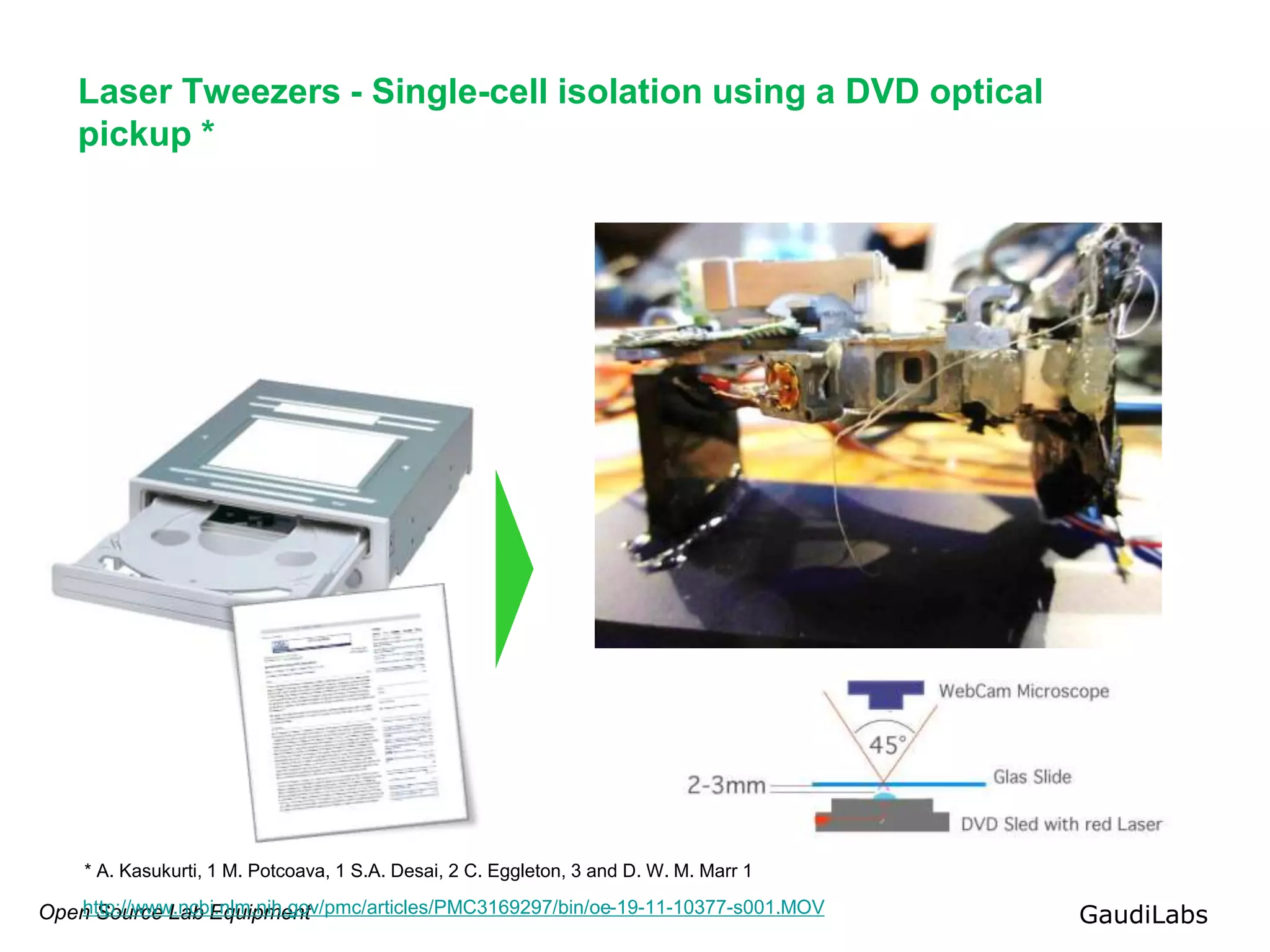

Laser Tweezers - Single-cell isolation using a DVD optical
pickup *
* A. Kasukurti, 1 M. Potcoava, 1 S.A. Desai, 2 C. Eggleton, 3 and D. W. M. Marr 1
http://www.ncbi.nlm.nih.gov/pmc/articles/PMC3169297/bin/oe-19-11-10377-s001.MOV

26. Open Source Lab Equipment GaudiLabs

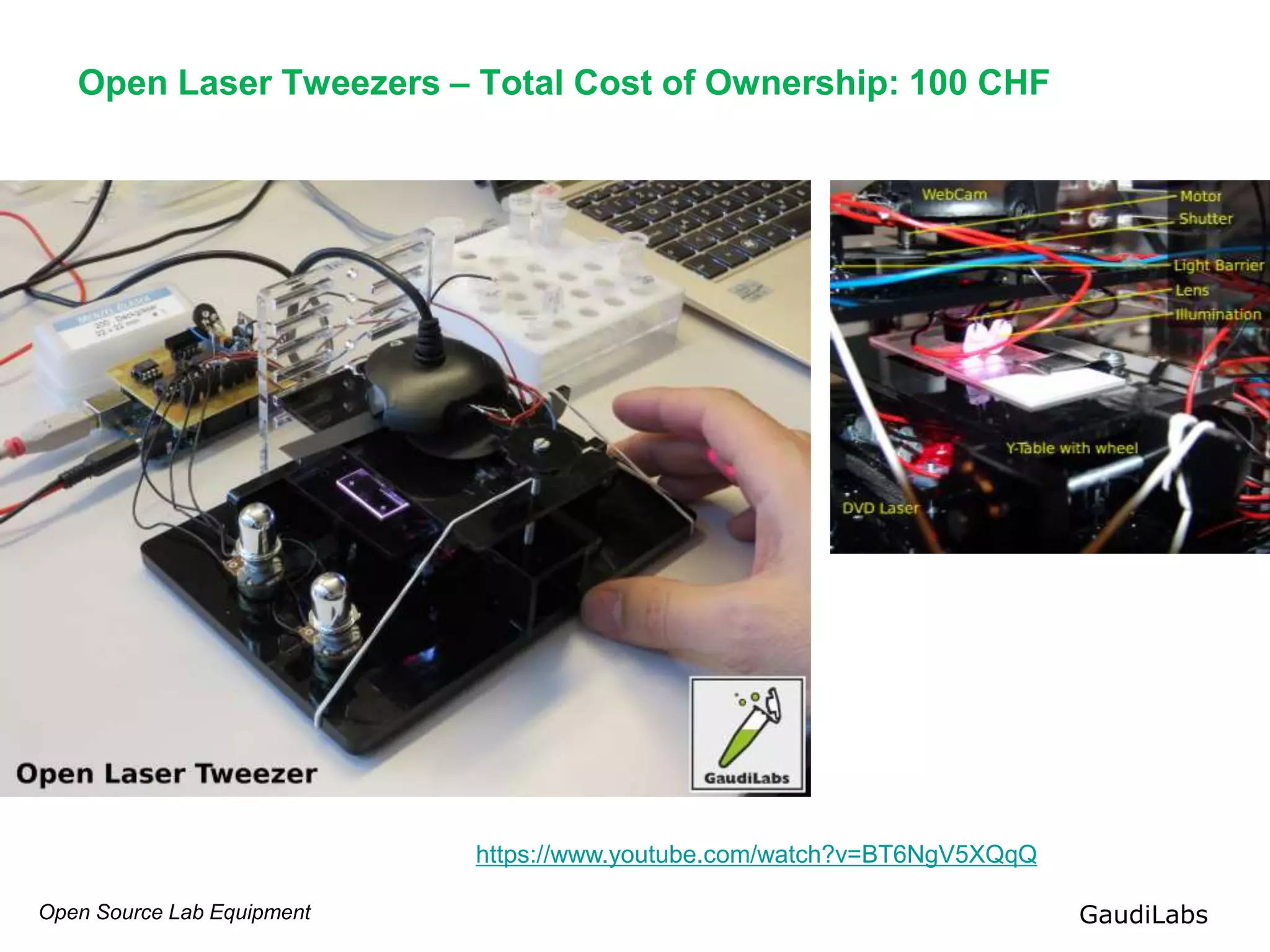

Open Laser Tweezers – Total Cost of Ownership: 100 CHF
https://www.youtube.com/watch?v=BT6NgV5XQqQ

27. Open Source Lab Equipment GaudiLabs

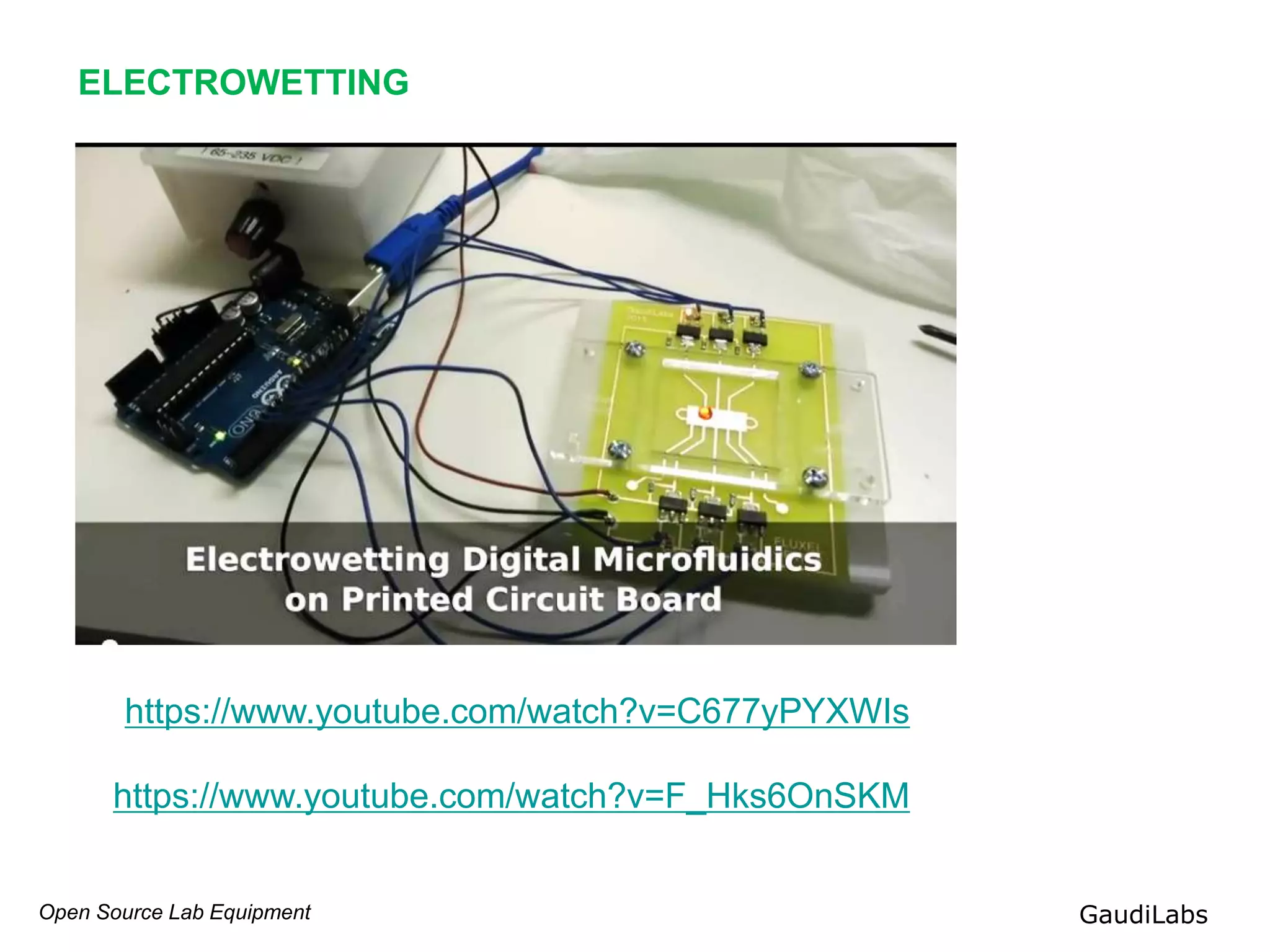

ELECTROWETTING
ONE MORE THING: ELECTROWETTING
https://www.youtube.com/watch?v=C677yPYXWIs
https://www.youtube.com/watch?v=F_Hks6OnSKM

28. Open Source Lab Equipment GaudiLabs

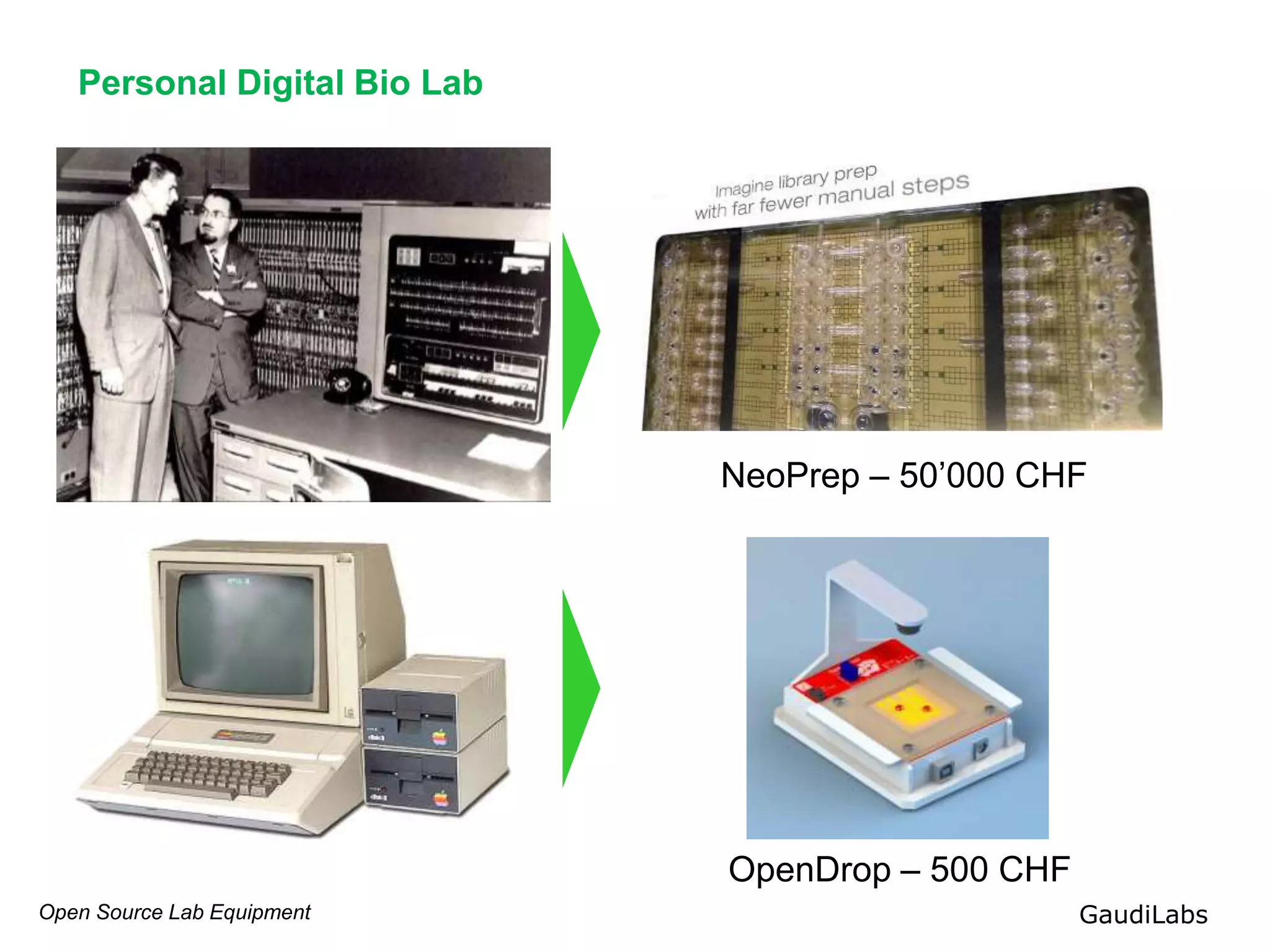

Personal Digital Bio Lab
NeoPrep – 50’000 CHF
OpenDrop – 500 CHF

29. Open Source Lab Equipment GaudiLabs

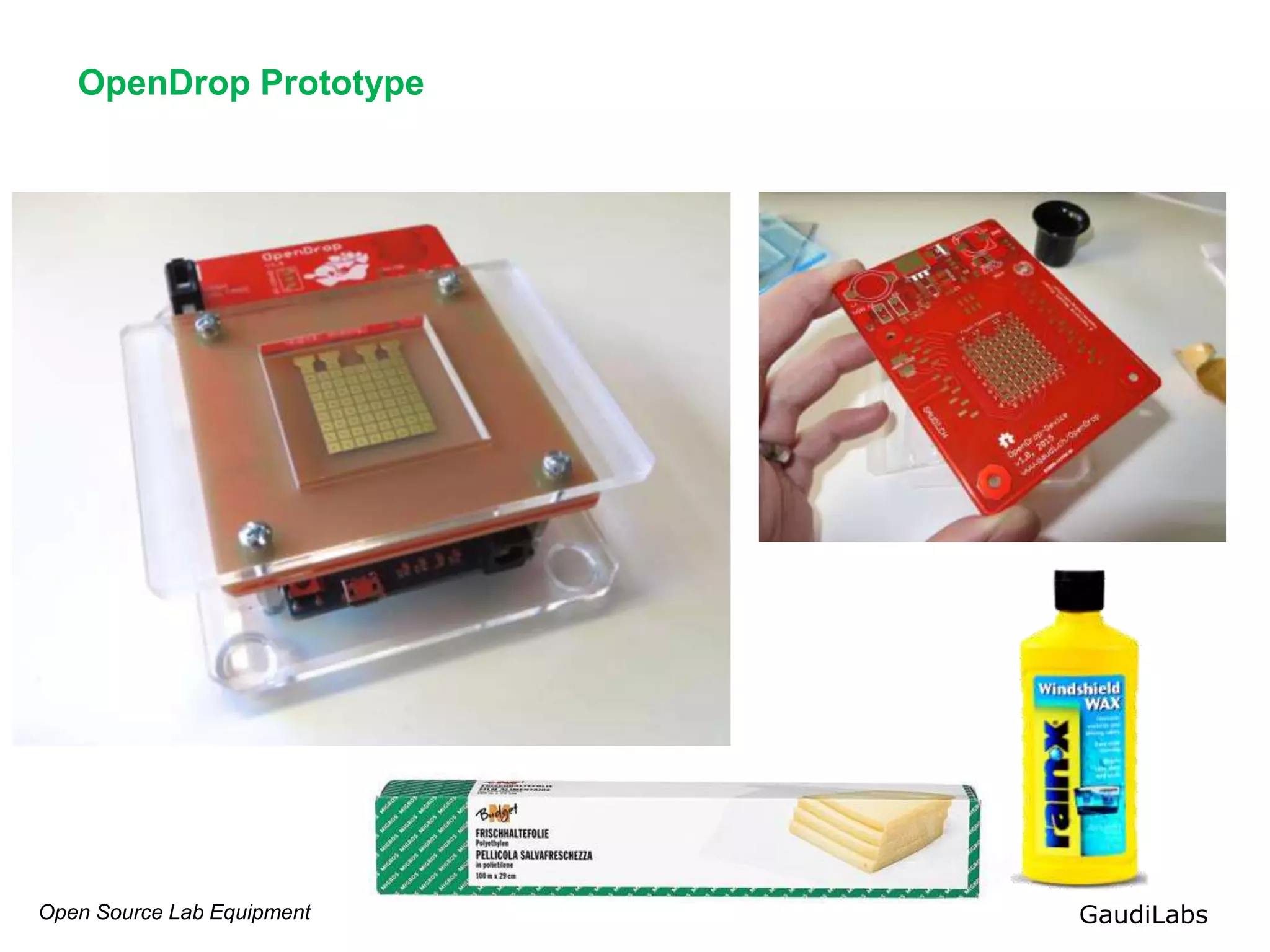

OpenDrop Prototype

30. WEB PLATFORM

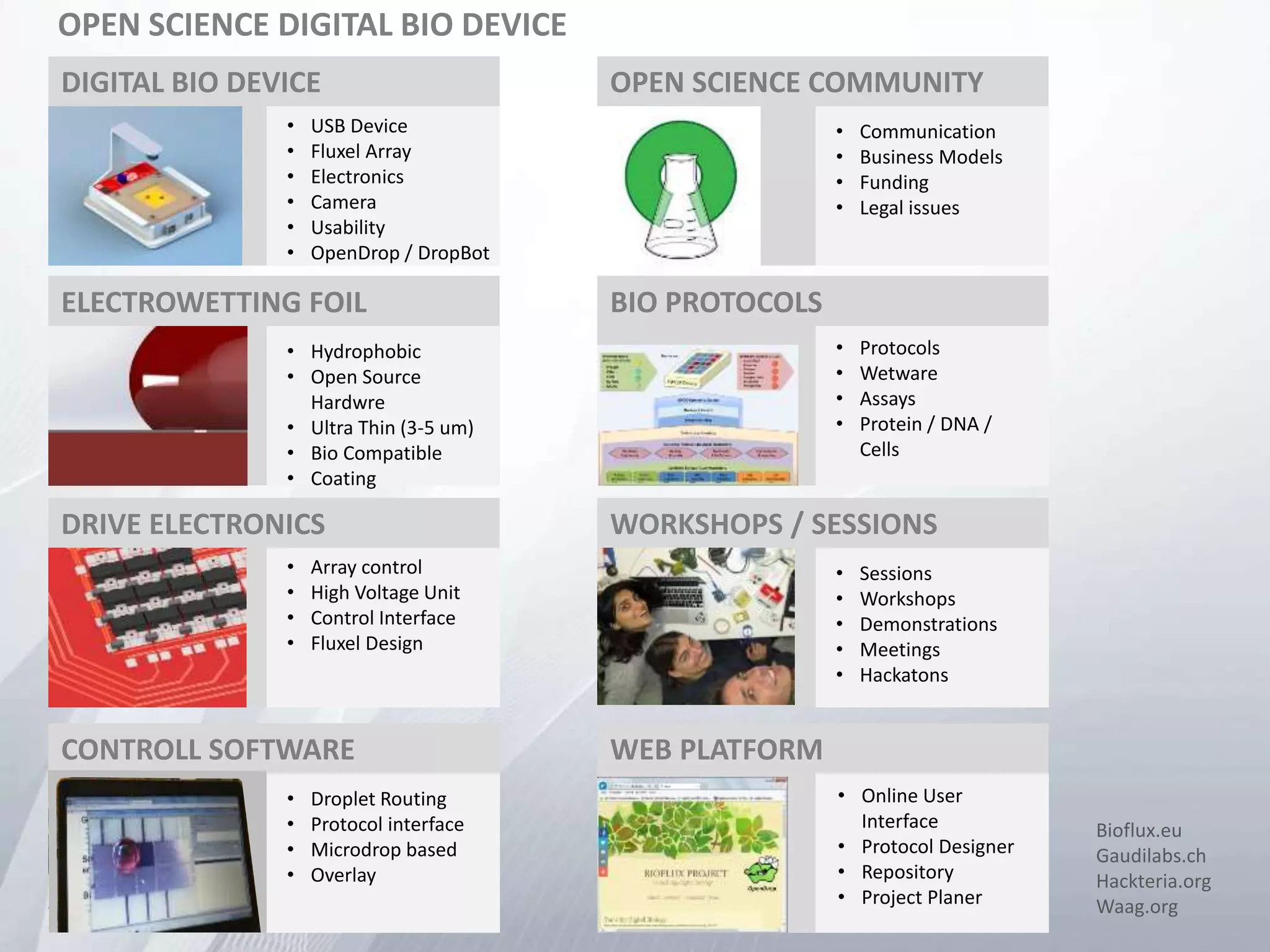

OPEN SCIENCE DIGITAL BIO DEVICE
DIGITAL BIO DEVICE
• USB Device
• Fluxel Array
• Electronics
• Camera
• Usability
• OpenDrop / DropBot
ELECTROWETTING FOIL
• Hydrophobic
• Open Source
Hardwre
• Ultra Thin (3-5 um)
• Bio Compatible
• Coating
DRIVE ELECTRONICS
• Array control
• High Voltage Unit
• Control Interface
• Fluxel Design
CONTROLL SOFTWARE
• Droplet Routing
• Protocol interface
• Microdrop based
• Overlay
OPEN SCIENCE COMMUNITY
• Communication
• Business Models
• Funding
• Legal issues
WORKSHOPS / SESSIONS
• Sessions
• Workshops
• Demonstrations
• Meetings
• Hackatons
• Protocols
• Wetware
• Assays
• Protein / DNA /
Cells
• Online User
Interface
• Protocol Designer
• Repository
• Project Planer
BIO PROTOCOLS
Bioflux.eu
Gaudilabs.ch
Hackteria.org
Waag.org

31. Open Source Lab Equipment GaudiLabs
