Bioflux presented at the 'Do It Together - Digital Biology' seminar in January 2016 in Berlin, showcasing the OpenDrop V2 and other digital biology tools. OpenDrop V2 features include a high voltage driver, electrode array, Arduino microcontroller, WiFi module, and various ports for sensors. The design emphasizes open-source principles and is compatible with a range of bio-related applications.

1. BIOFLUX
presented at
Do It Together - Digital Biology
a seminar organized by
in January 2016, Berlin

2. OpenDrop V2
+more
Digital Biology – Do It Together Conferenc
13.15. Januar 2016, Berlin
Urs Gaudenz
Rüdiger Trojok Mirela Alistar
Eugenio Battaglia
with

3. OPEN HARDWARE

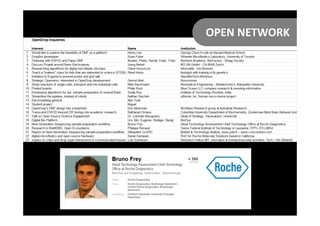

4. OPEN NETWORK

5. OPEN NETWORK

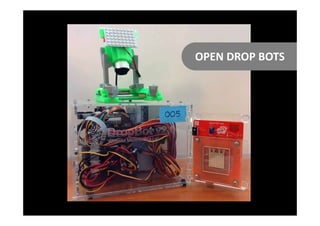

6. OPEN DROP BOTS

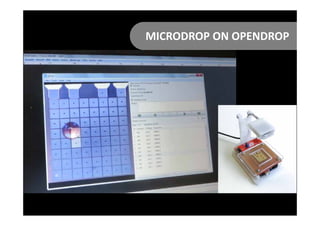

7. MICRODROP ON OPENDROP

8. OPENDROP V2

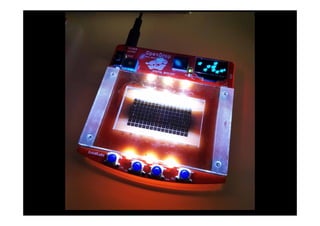

10. Features:
‐ 2x High Voltage Driver Chip HV507
‐ 16×8 electrodes array, 2.75mm2 in size
‐ Arduino Micro
‐ 4 buttons
‐ tiny OLED Display
‐ WIFI module
‐ fancy LEDs
‐ Liquid connection ports
‐ prepared for Sensors / Pad Heating
‐ micro USB
‐ 10×10 cm PCB
‐ NixiePSU (voltage readable or controllable)
‐ Design on open source KiCAD
OPENDROP V2

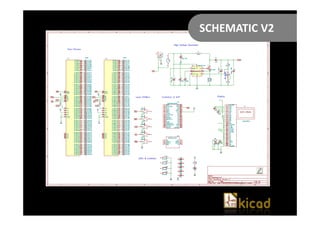

14. SCHEMATIC V2

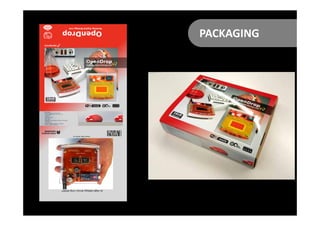

15. PACKAGING

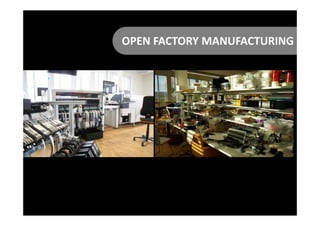

16. OPEN FACTORY MANUFACTURING

18. HYDROPHOBIC FOIL

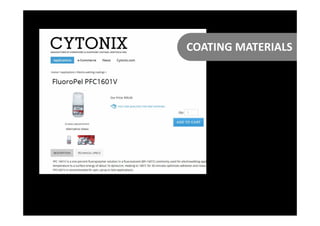

19. COATING MATERIALS

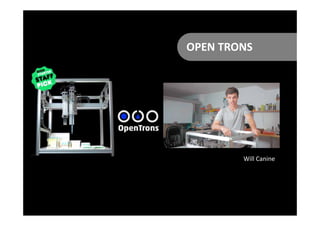

20. Will Canine
OPEN TRONS

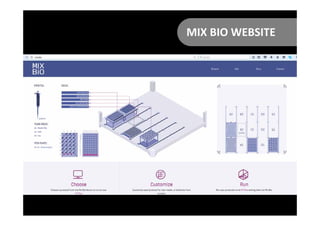

21. MIX BIO WEBSITE

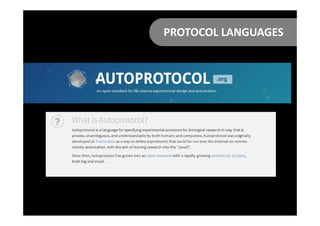

22. PROTOCOL LANGUAGES

23. OPEN WETWARE

24. BIO CODER

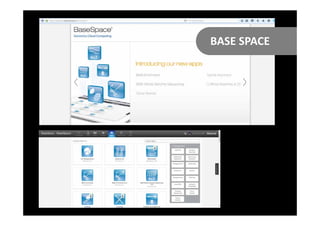

25. BASE SPACE

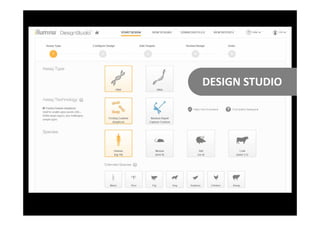

26. DESIGN STUDIO

27. OPEN SCIENCE HARDWARE
