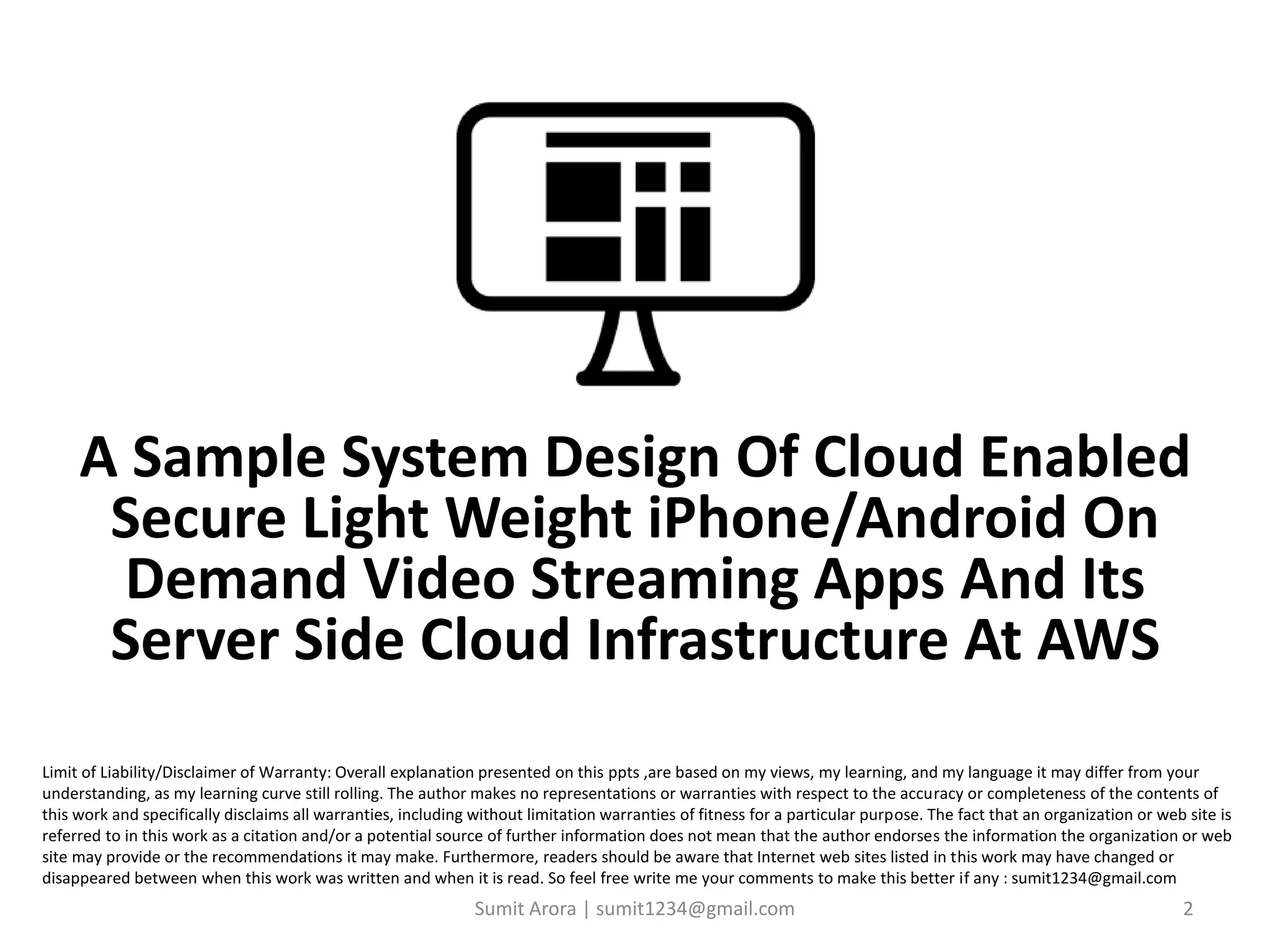

A Sample System Design Of Cloud Enabled
Secure Light Weight iPhone/Android On
Demand Video Streaming Apps And Its
Server Side Cloud Infrastructure At AWS

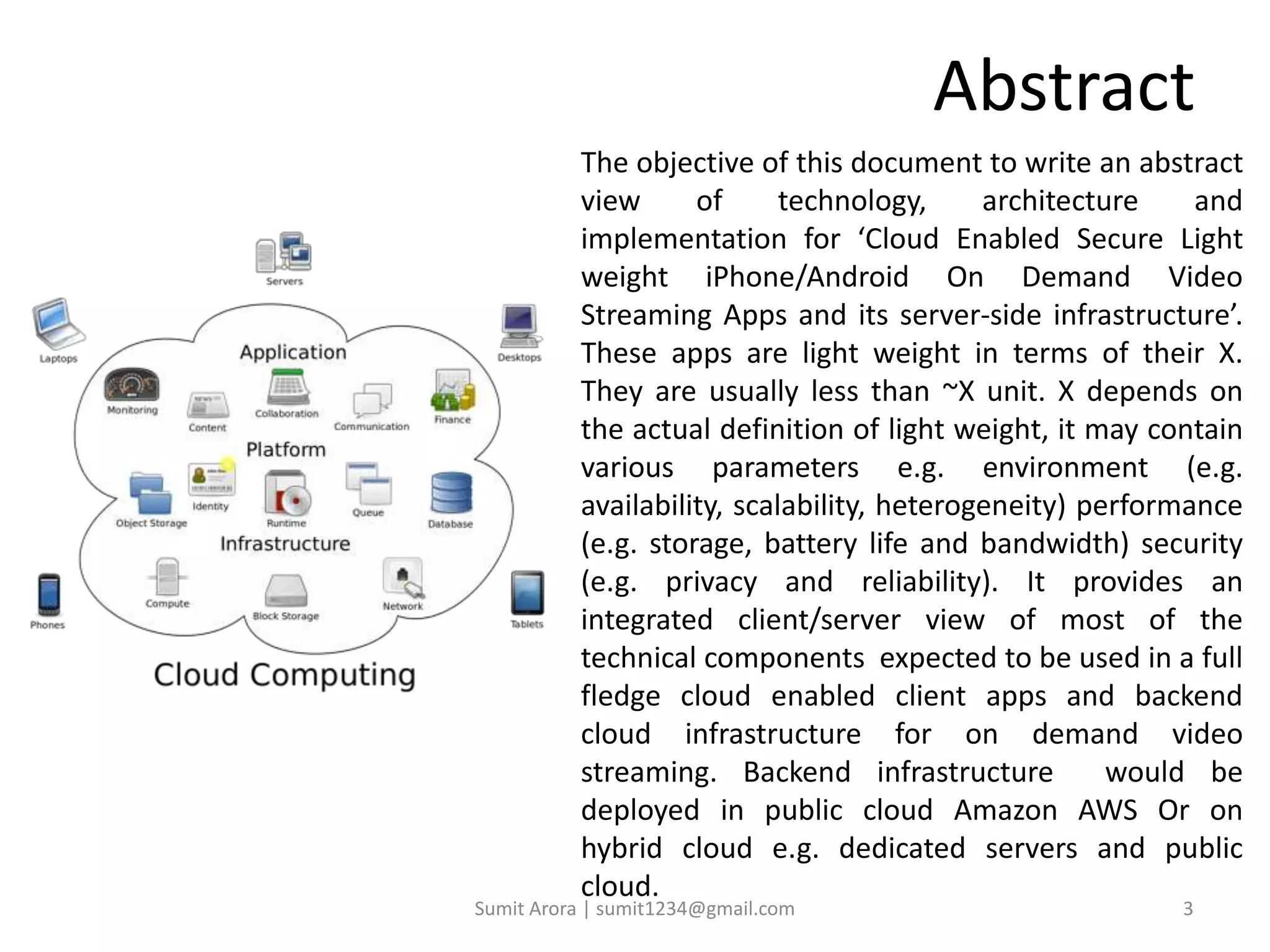

3. Abstract
The objective of this document to write an abstract
view of technology, architecture and
implementation for ‘Cloud Enabled Secure Light
weight iPhone/Android On Demand Video
Streaming Apps and its server-side infrastructure’.
These apps are light weight in terms of their X.
They are usually less than ~X unit. X depends on
the actual definition of light weight, it may contain
various parameters e.g. environment (e.g.
availability, scalability, heterogeneity) performance
(e.g. storage, battery life and bandwidth) security
(e.g. privacy and reliability). It provides an
integrated client/server view of most of the
technical components expected to be used in a full
fledge cloud enabled client apps and backend
cloud infrastructure for on demand video
streaming. Backend infrastructure would be
deployed in public cloud Amazon AWS Or on
hybrid cloud e.g. dedicated servers and public
cloud.
Sumit Arora | sumit1234@gmail.com 3

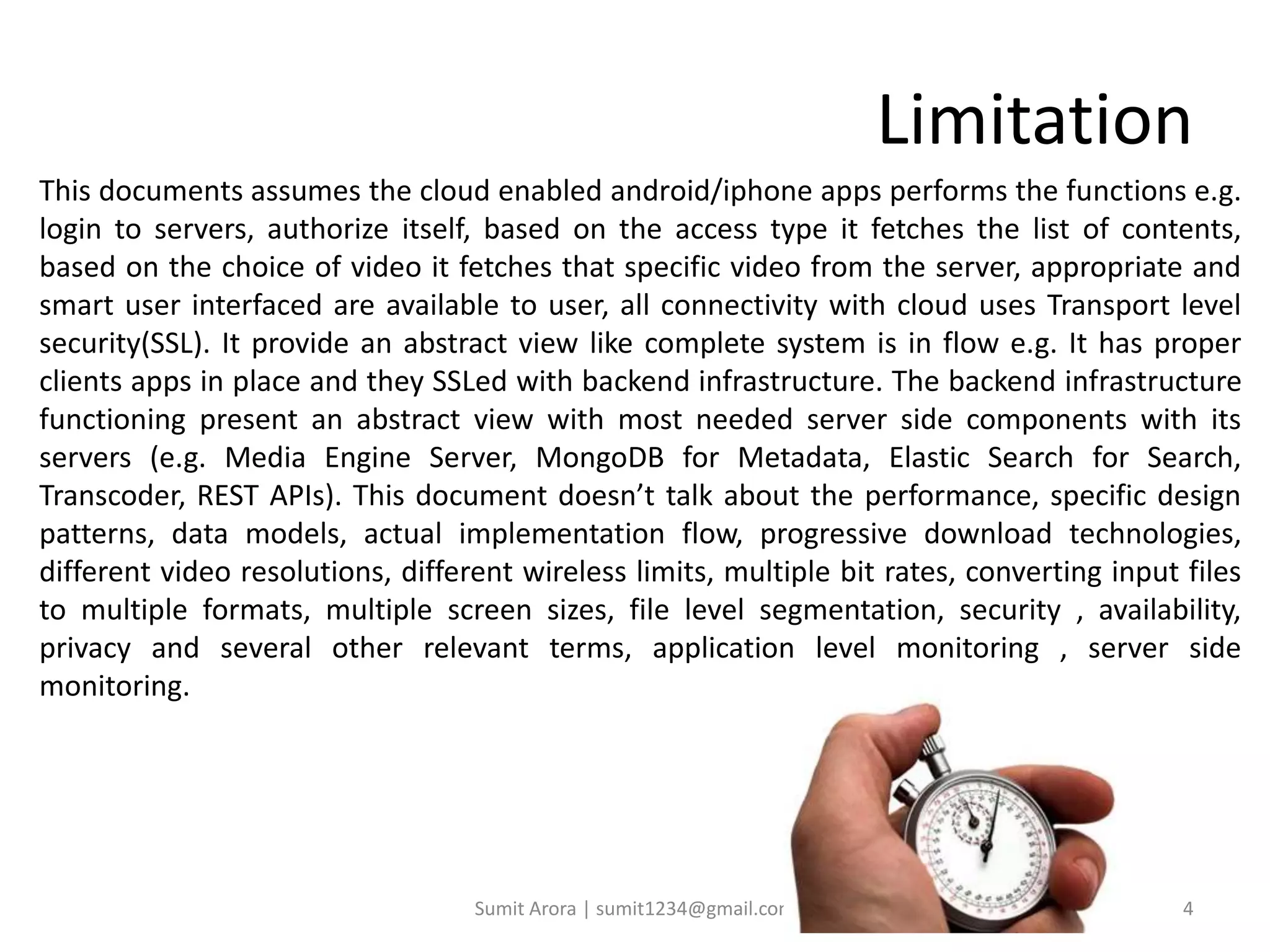

4. Limitation
This documents assumes the cloud enabled android/iphone apps performs the functions e.g.
login to servers, authorize itself, based on the access type it fetches the list of contents,
based on the choice of video it fetches that specific video from the server, appropriate and
smart user interfaced are available to user, all connectivity with cloud uses Transport level
security(SSL). It provide an abstract view like complete system is in flow e.g. It has proper
clients apps in place and they SSLed with backend infrastructure. The backend infrastructure
functioning present an abstract view with most needed server side components with its
servers (e.g. Media Engine Server, MongoDB for Metadata, Elastic Search for Search,
Transcoder, REST APIs). This document doesn’t talk about the performance, specific design
patterns, data models, actual implementation flow, progressive download technologies,
different video resolutions, different wireless limits, multiple bit rates, converting input files
to multiple formats, multiple screen sizes, file level segmentation, security , availability,
privacy and several other relevant terms, application level monitoring , server side
monitoring.
Sumit Arora | sumit1234@gmail.com 4

5. Server Side Infrastructure

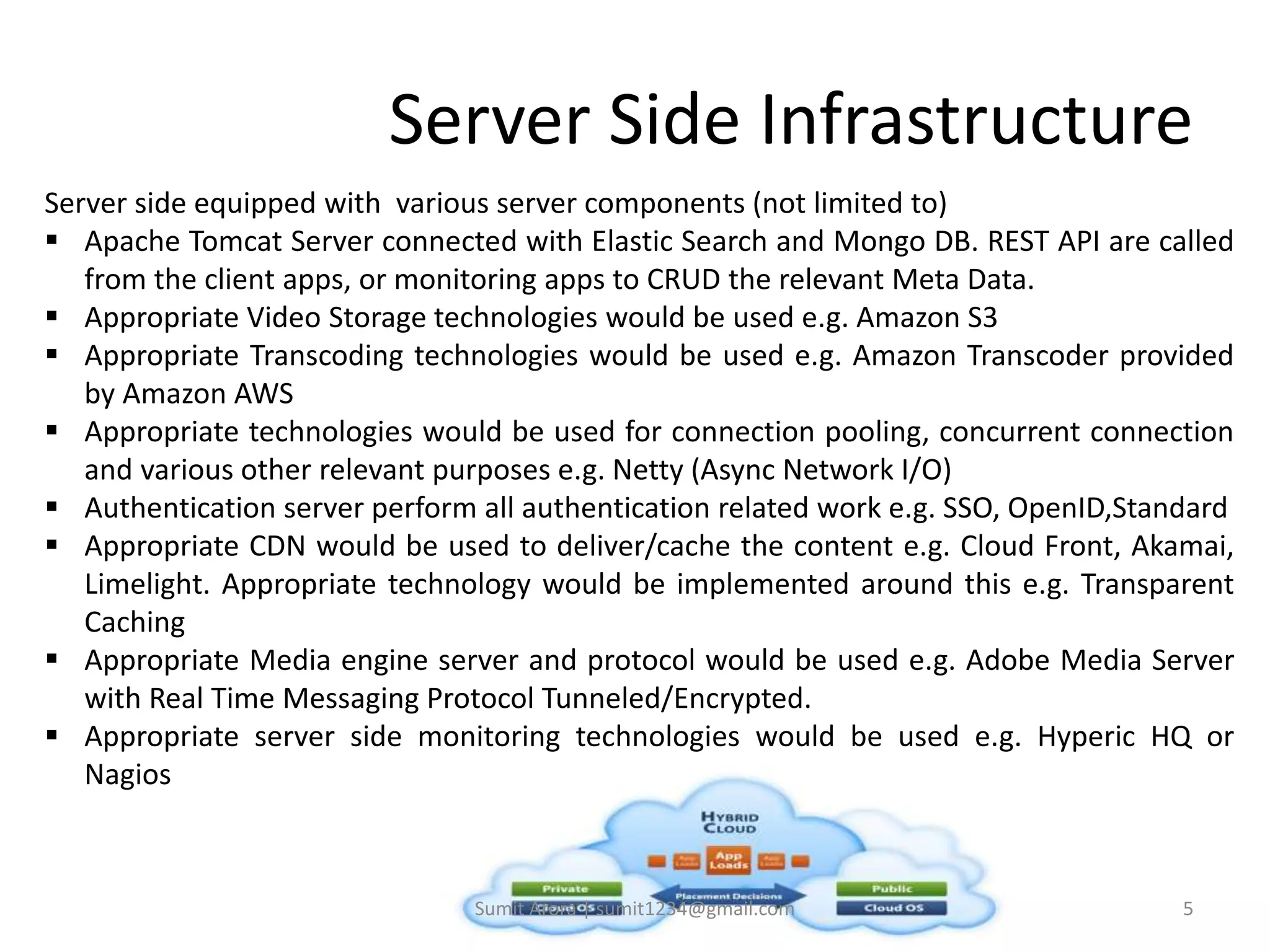

Server side equipped with various server components (not limited to)
 Apache Tomcat Server connected with Elastic Search and Mongo DB. REST API are called
from the client apps, or monitoring apps to CRUD the relevant Meta Data.
 Appropriate Video Storage technologies would be used e.g. Amazon S3
 Appropriate Transcoding technologies would be used e.g. Amazon Transcoder provided
by Amazon AWS
 Appropriate technologies would be used for connection pooling, concurrent connection
and various other relevant purposes e.g. Netty (Async Network I/O)
 Authentication server perform all authentication related work e.g. SSO, OpenID,Standard
 Appropriate CDN would be used to deliver/cache the content e.g. Cloud Front, Akamai,
Limelight. Appropriate technology would be implemented around this e.g. Transparent
Caching
 Appropriate Media engine server and protocol would be used e.g. Adobe Media Server
with Real Time Messaging Protocol Tunneled/Encrypted.
 Appropriate server side monitoring technologies would be used e.g. Hyperic HQ or
Nagios
Sumit Arora | sumit1234@gmail.com 5

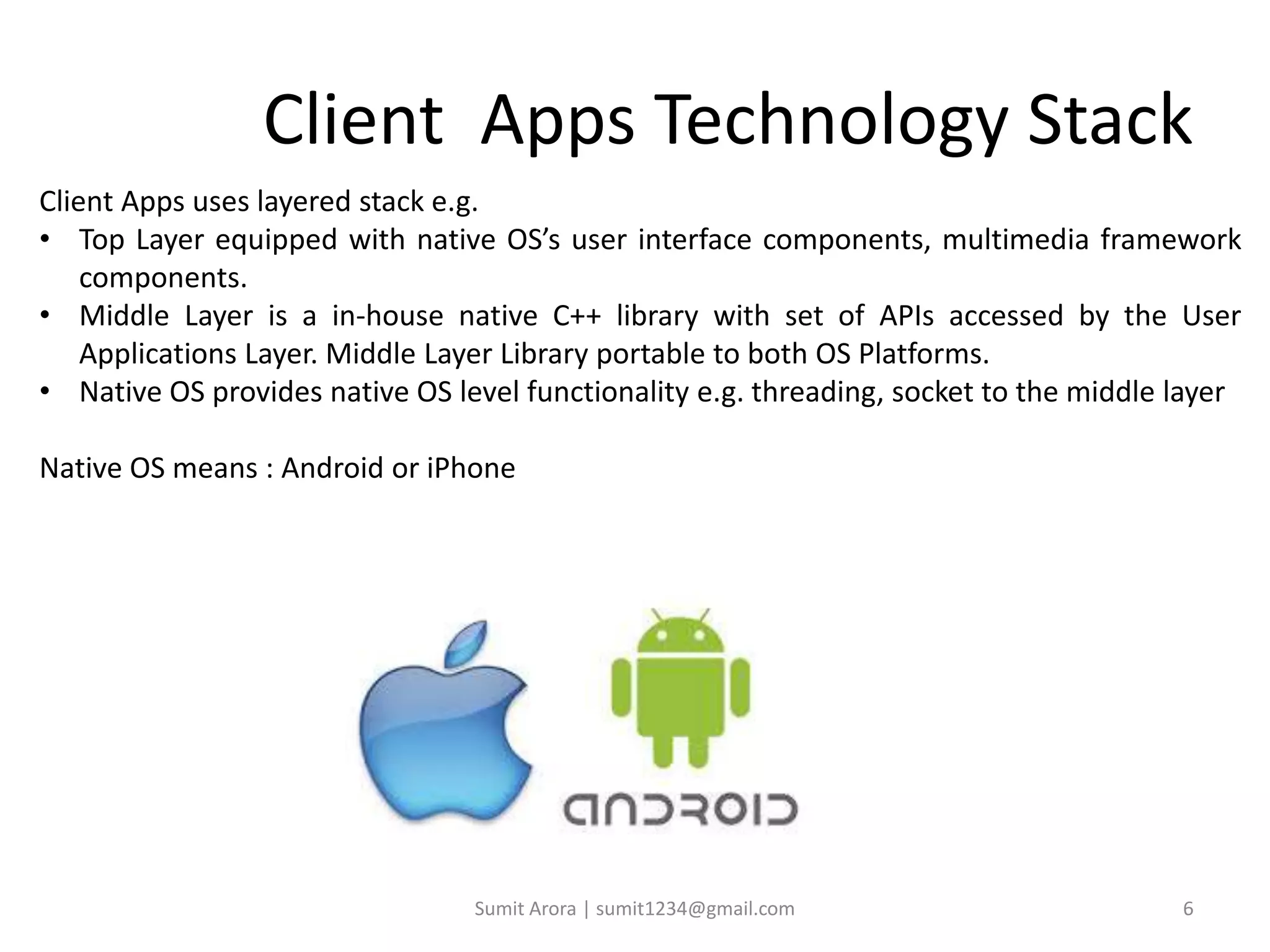

6. Client Apps Technology Stack
Client Apps uses layered stack e.g.
• Top Layer equipped with native OS’s user interface components, multimedia framework
components.
• Middle Layer is a in-house native C++ library with set of APIs accessed by the User
Applications Layer. Middle Layer Library portable to both OS Platforms.
• Native OS provides native OS level functionality e.g. threading, socket to the middle layer
Native OS means : Android or iPhone
Sumit Arora | sumit1234@gmail.com 6

7. Tomcat
Server
Amazon EC2 Instance
Meta Data
MongoDB
Amazon EC2 Instance
Elastic Search
Server
Amazon EC2 Instance
Adobe Flash
Media Server
RTMPE/RTMPTE
Amazon Elastic
Transcoder
Authentication
Server
Login/Password
OAuth2.0/SSO/OpenID Amazon S3
Video File StorageRoute-53 DNS
Load
Balancers
Netty
(Connection Pooling)
Async Network I/O
iOS Android
iPhone
User Interfaces
iOS UIKit Framework
OpenSSL
Secure Socket Layer
Android User
Interfaces
Android Multimedia
Framework
Java.X.Net.SSL
Java Security
Framework
REST APIs
(Create, Update,
Retrieve, Delete)
Monitoring
Nagios or Hyeric HQ
Monitoring
Nagios or Hyeric HQ
CDN
Akamai,
Limelight,
Level-3
Monitoring
Nagios or Hyeric HQ
Transparent
Caching

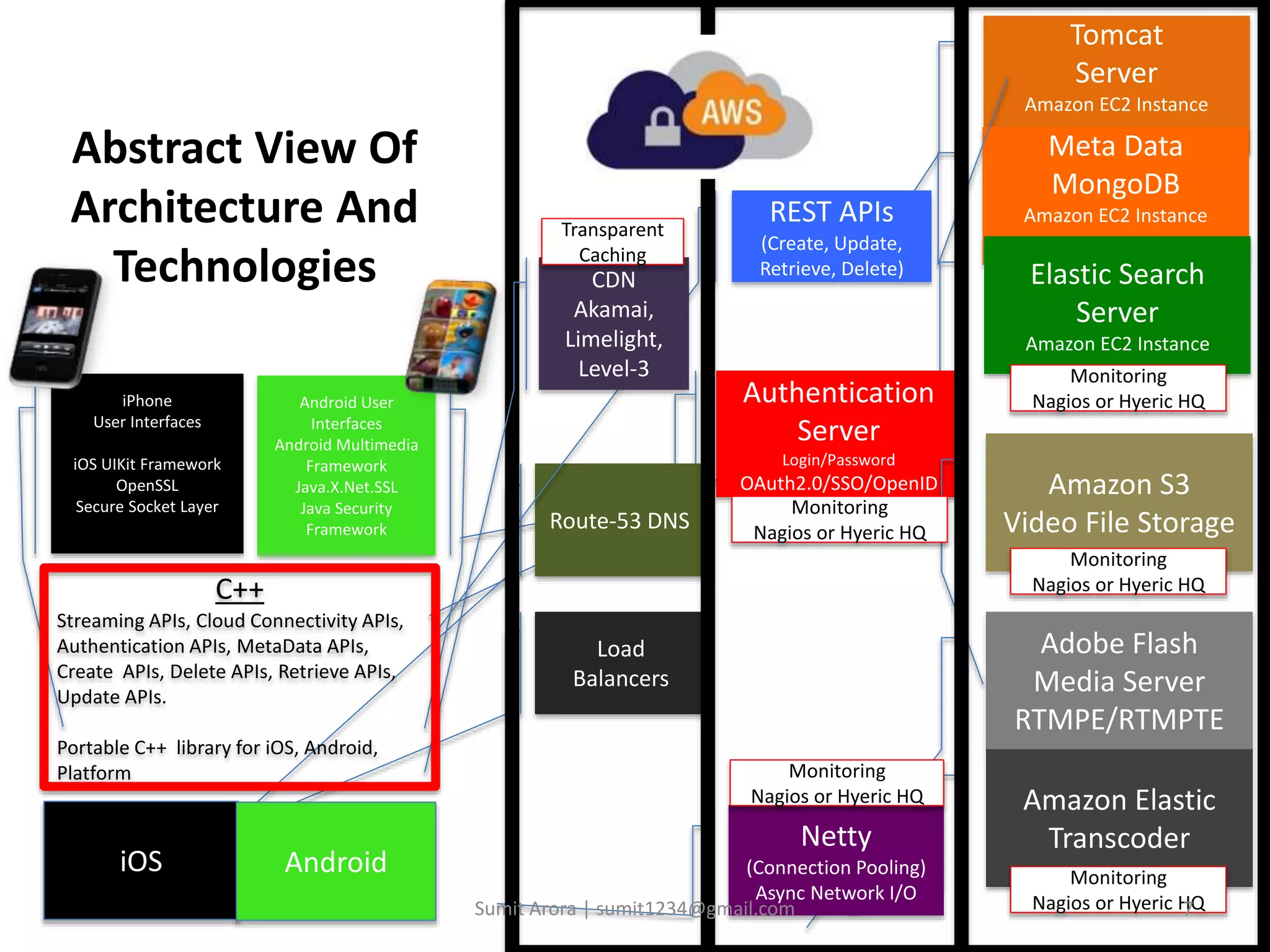

Abstract View Of
Architecture And
Technologies
Monitoring
Nagios or Hyeric HQ
Monitoring
Nagios or Hyeric HQ
C++
Streaming APIs, Cloud Connectivity APIs,
Authentication APIs, MetaData APIs,
Create APIs, Delete APIs, Retrieve APIs,
Update APIs.
Portable C++ library for iOS, Android,
Platform
Sumit Arora | sumit1234@gmail.com 7

8. Appendix
Sumit Arora | sumit1234@gmail.com 8

9. Streaming

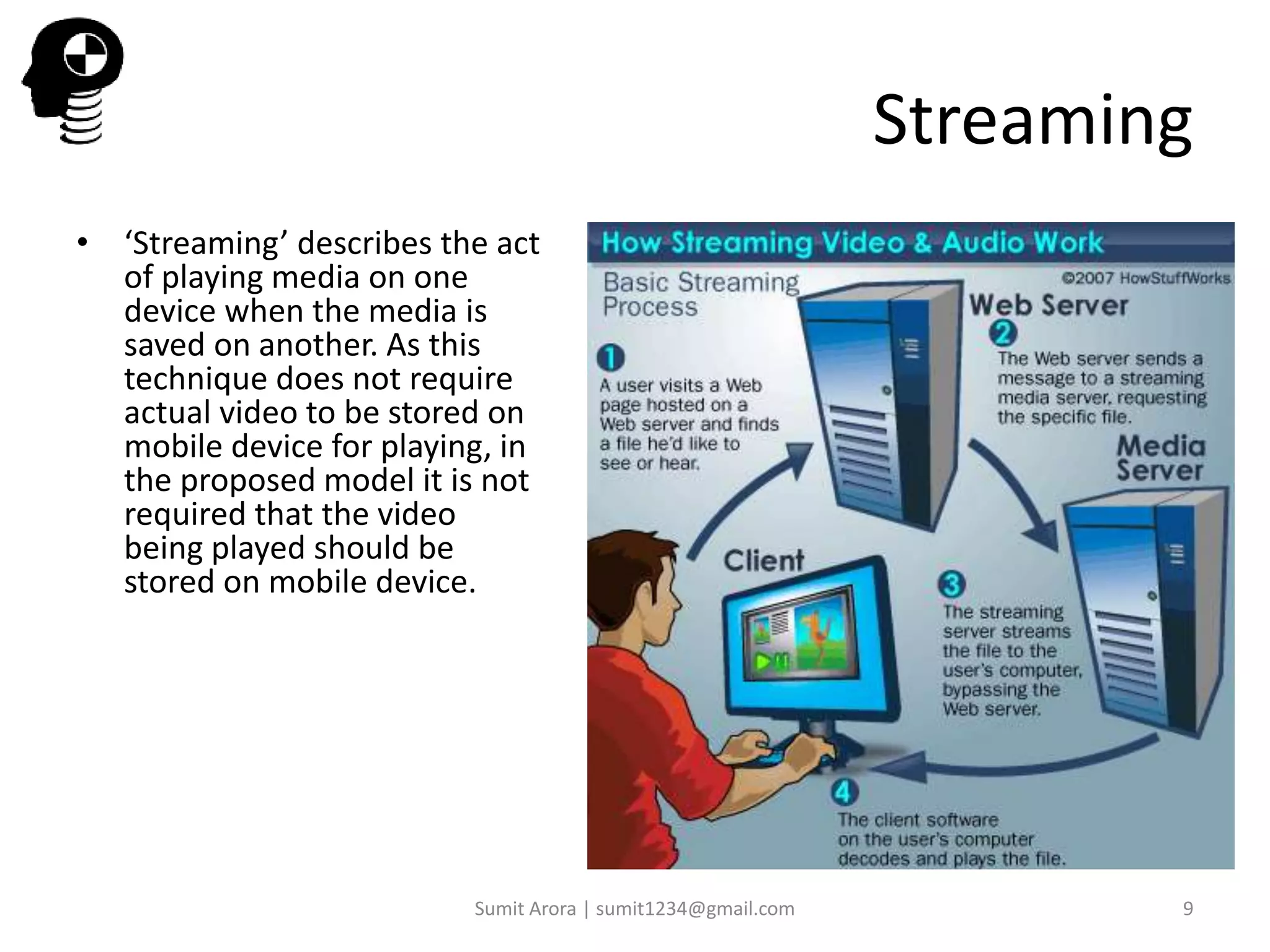

• ‘Streaming’ describes the act
of playing media on one
device when the media is
saved on another. As this
technique does not require
actual video to be stored on
mobile device for playing, in
the proposed model it is not
required that the video
being played should be
stored on mobile device.
Sumit Arora | sumit1234@gmail.com 9

10. Challenges

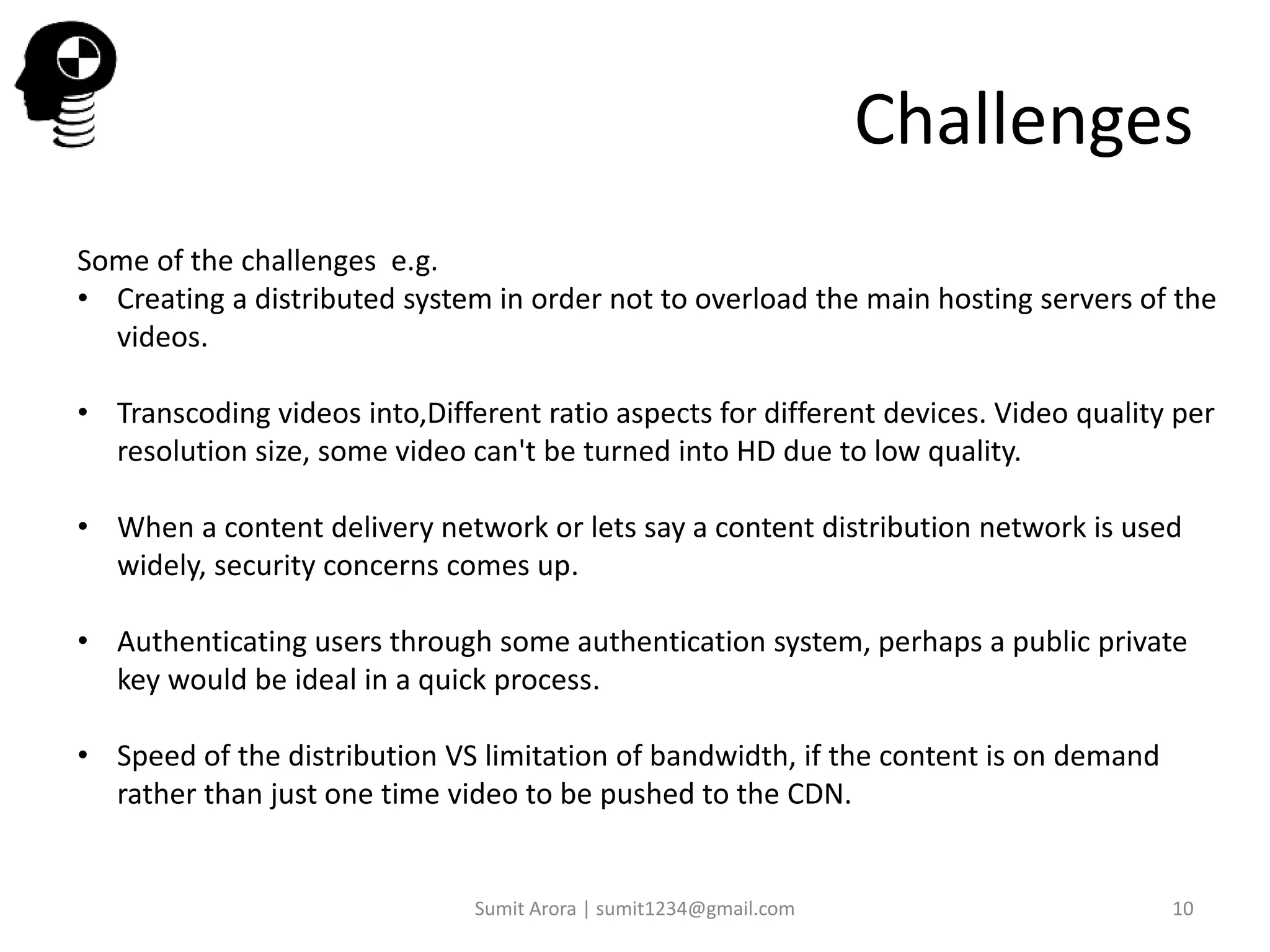

Some of the challenges e.g.
• Creating a distributed system in order not to overload the main hosting servers of the
videos.
• Transcoding videos into,Different ratio aspects for different devices. Video quality per
resolution size, some video can't be turned into HD due to low quality.
• When a content delivery network or lets say a content distribution network is used
widely, security concerns comes up.
• Authenticating users through some authentication system, perhaps a public private
key would be ideal in a quick process.
• Speed of the distribution VS limitation of bandwidth, if the content is on demand
rather than just one time video to be pushed to the CDN.
Sumit Arora | sumit1234@gmail.com 10

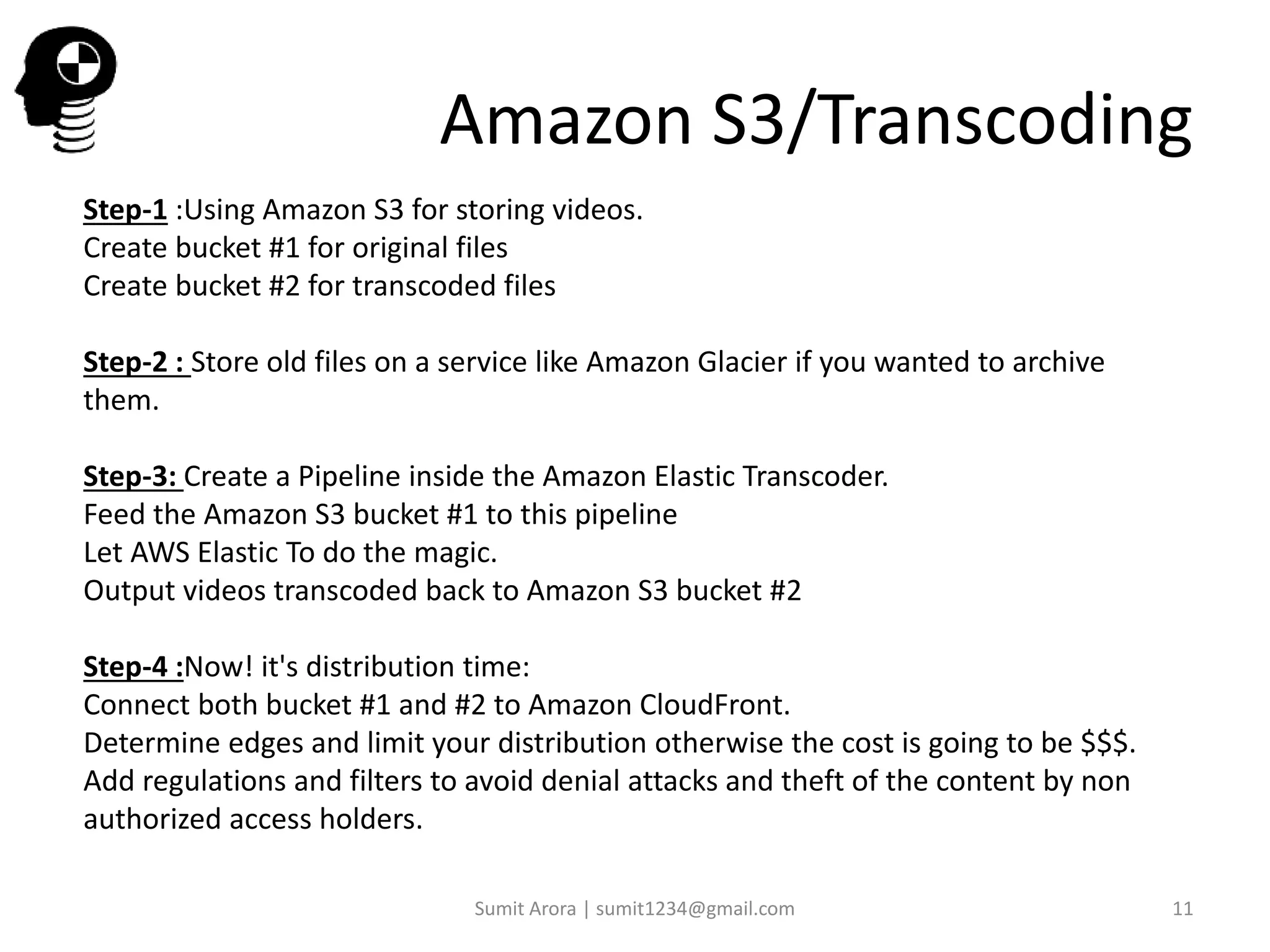

11. Step-1 :Using Amazon S3 for storing videos.
Create bucket #1 for original files
Create bucket #2 for transcoded files
Step-2 : Store old files on a service like Amazon Glacier if you wanted to archive
them.
Step-3: Create a Pipeline inside the Amazon Elastic Transcoder.
Feed the Amazon S3 bucket #1 to this pipeline
Let AWS Elastic To do the magic.
Output videos transcoded back to Amazon S3 bucket #2
Step-4 :Now! it's distribution time:
Connect both bucket #1 and #2 to Amazon CloudFront.
Determine edges and limit your distribution otherwise the cost is going to be $$$.
Add regulations and filters to avoid denial attacks and theft of the content by non
authorized access holders.
Amazon S3/Transcoding
