NTXISSACSC4 - Array Networks - A Layered Approach to Web and Application Security

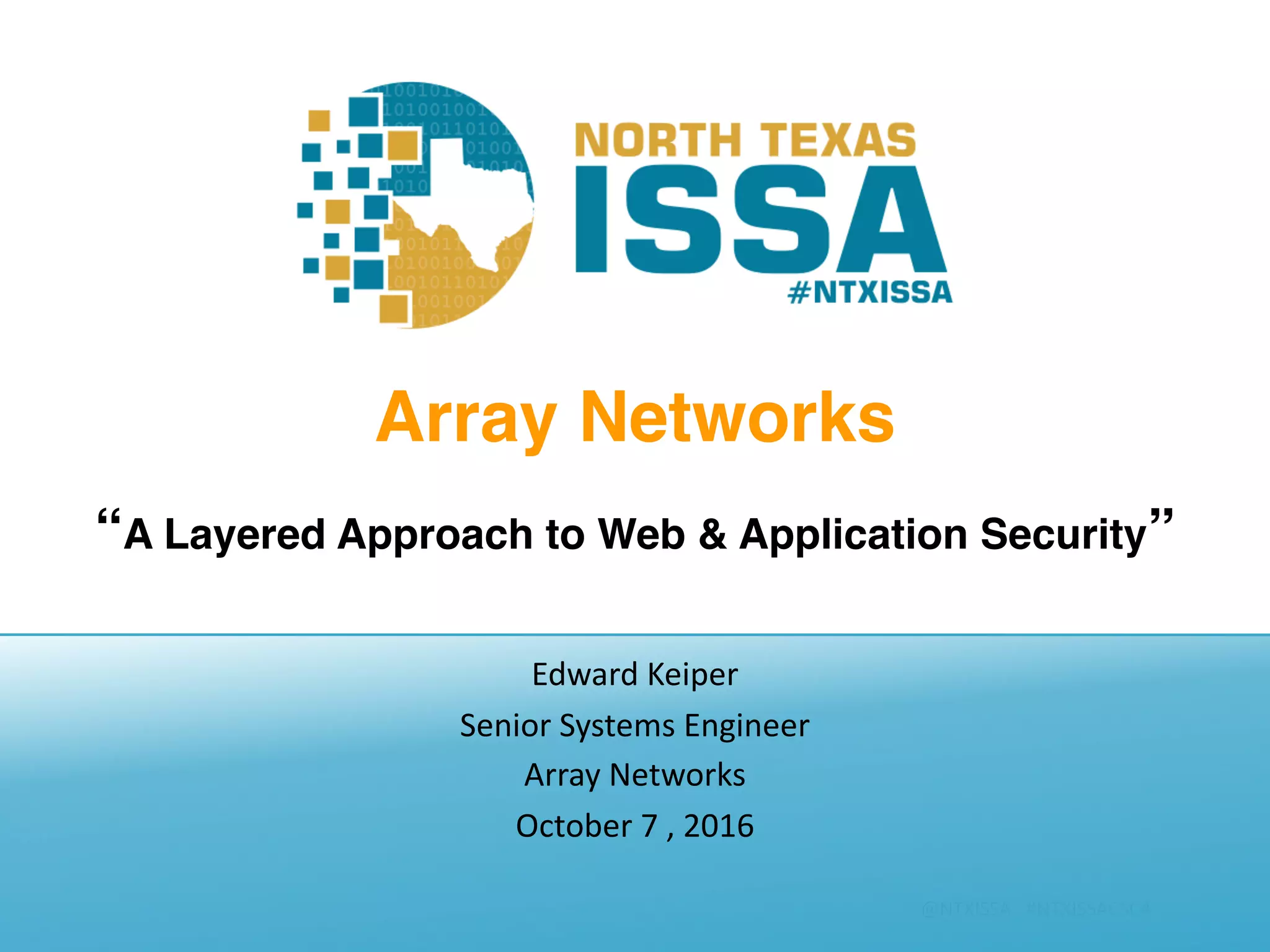

- 1. @NTXISSA #NTXISSACSC4 Array Networks “A Layered Approach to Web & Application Security” Edward Keiper Senior Systems Engineer Array Networks October 7 , 2016

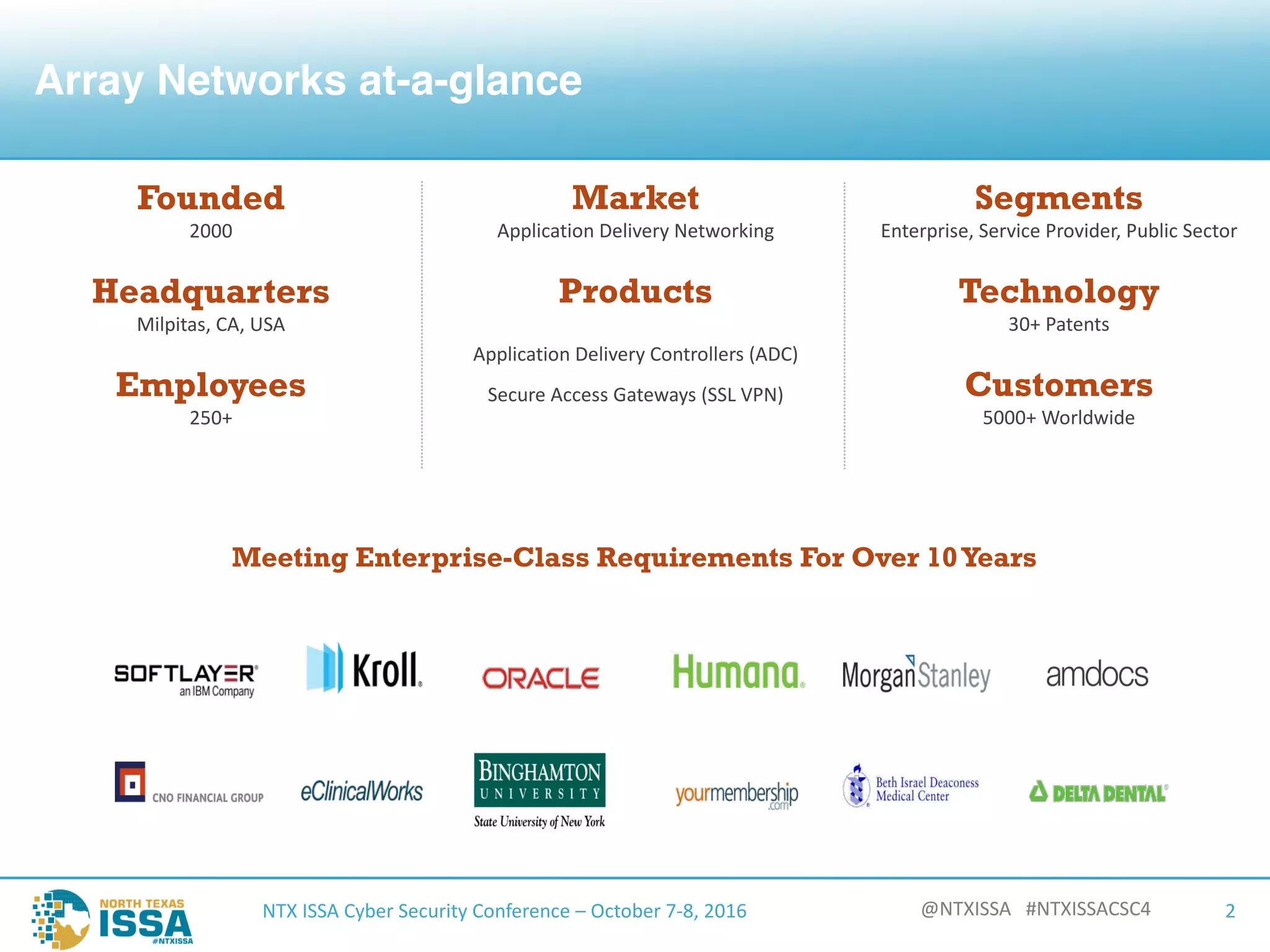

- 2. @NTXISSA #NTXISSACSC4NTX ISSA Cyber Security Conference – October 7-8, 2016 2 Array Networks at-a-glance Founded 2000 Headquarters Milpitas, CA, USA Employees 250+ Market Application Delivery Networking Products Application Delivery Controllers (ADC) Secure Access Gateways (SSL VPN) Segments Enterprise, Service Provider, Public Sector Technology 30+ Patents Customers 5000+ Worldwide Meeting Enterprise-Class Requirements For Over 10Years
- 3. @NTXISSA #NTXISSACSC4NTX ISSA Cyber Security Conference – October 7-8, 2016 3 Why a multi-layer approach? § Encryption creates the need for at least two levels of security - SSL (HTTPS) traffic passes directly through traditional firewalls, bypassing rules, policies and inspection - SSL traffic on the rise, used for both remote and mobile access and for an ever increasing number of Web sites and applications SSL
- 4. @NTXISSA #NTXISSACSC4NTX ISSA Cyber Security Conference – October 7-8, 2016 4 multi-layer security protects against… DoS (Deny Of Service) Back Doors Flash Events Web Exploitation& DefacingLand Attack Ping Attack SynFlood Attack Unreachable Host Attack Tear Drop Attack Buffer Overflow Attack Parser Evasion Attacks Directory Traversal Attack High Bit Shellcode Protection Security Exploitation (Port scan) Cross Site Scripting Impersonation & Breach of Privacy Code Red SQL InjectionHeartbleed
- 5. @NTXISSA #NTXISSACSC4NTX ISSA Cyber Security Conference – October 7-8, 2016 5 Multi-layer security architecture (cont.) § Firewall perimeter security - The first line of defense, rules-based network level packet filtering; no visibility to SSL § SSL termination and traffic inspection - Traffic from secure applications are terminated on ADCs, decrypted and inspected traffic may be sent to servers or to advanced security appliances for further inspection - Traffic from remote access users are terminated on SSL VPNs, decrypted and inspected traffic may be sent to servers or to advanced security appliances § Advanced security appliances - Further inspection of smaller volume of pre-screened traffic
- 6. @NTXISSA #NTXISSACSC4 NTX ISSA Cyber Security Conference – October 7-8, 2016 6 Multi-layer security architecture Firewall Perimeter Security IPS/IDS ATP Malware ADC HTTP/S Web App Traffic SSL VPN HTTPS Remote Access Traffic External & Remote Users Networks Apps Data
- 7. @NTXISSA #NTXISSACSC4NTX ISSA Cyber Security Conference – October 7-8, 2016 7 Multi-layer security architecture (cont.) § Layer-3 stateful packet filtering - Per-customer interface (VLAN/MNET), ingress packet filtering (source/destination IP, port, protocol), 1000 ACLs, packet deny/drop log, dynamic access list, permit-only network access § Layer-4 TCP stateful inspection - TCP stateful inspection, L4 packet sanitization, reverse proxy (client packet does not touch server), syn-cookie protection against TCP syn floods and DOS attacks § Layer-7 content filtering, WAF & DDoS - URL filtering, configurable access control (limit connections per port to prevent DDoS attack), application session control, HTTP protocol validation and policy filtering, attack signature filtering, input validation, XSS prevention, virtual patching
- 8. @NTXISSA #NTXISSACSC4NTX ISSA Cyber Security Conference – October 7-8, 2016 8 SSL VPN multi-layer security § End-point security - Scan for personal firewalls, anti-virus software, browsers, operating systems, service packs, patches – apply adaptable remediation options for non-compliant clients § Advanced authentication, authorization and auditing - LDAP, Microsoft Active Directory, RADIUS, RSA SecurID, LocalDB, SSL client certificates, multi-factor authentication including RSA, Duo, Swivel, Syferlock and others § Deep packet inspection and WRM - Buffer overflow protection, syn-flood protection, URL filtering, configurable access control (limit connections per port to prevent DDoS attack), Web resource mapping with payload inspection and HTTP NATing
- 9. @NTXISSA #NTXISSACSC4NTX ISSA Cyber Security Conference – October 7-8, 2016 9 SSL VPN security architecture End Point Security Host Checking Adaptive Policies Secure Desktop Cache Cleaning • Eliminates all elements of browser cache • Local sandbox prevents data leakage S S L AAA • Supports all industry standards (AD, RADIUS, LDAP, SecureID) • RSA certified • Unique SSL integration • Fine grain ACLs • L3, L4 and L7 • External mapping • Black list and white list • Full audit trail • Who, what and when • Syslog support • Configurable email alerts F W P r o x y File Shares • Clientless access to shared directories • CIFS/NFS Web Apps • Clientless Web application support Networks • Full L3 VPN • Any IP protocol • L4 redirection • Denial of Service (DoS) attack protection • ACLs (Layer 4) • URL filtering (Layer 7) • Network probe logging • All standard cipher-suites • Hardware-accelerated • 2048-bit key lengths • Client-side certificates • Complete separation between non-secured and secured networks Desktops • Desktops • Terminal Server Applications
- 10. @NTXISSA #NTXISSACSC4NTX ISSA Cyber Security Conference – October 7-8, 2016 10 SSL VPN secure remote and mobile access § Any resource, any access method, any device, anywhere Remote Workers & Road Warriors on Laptops Home & Small Office Workers on PCs Mobile Workers on Smart Phones & Tablets Physical & Virtual Desktops Client Server & Mobile Apps File Sharing Web Applications Limits network exposure and guards against data leakageImproves productivity Remote Networks & Infrastructure
- 11. @NTXISSA #NTXISSACSC4NTX ISSA Cyber Security Conference – October 7-8, 2016 11 Multi-layer security architecture (cont.) § Security - SSL encryption, WAF, Web proxy - Application-level data protection § Acceleration - SSL offloading, compression, caching, traffic shaping, etc. - 10x better server efficiency and application performance § High availability - Server load balancing, GSLB, link load balancing - 24/7 application uptime Application Servers External Users Internal Users Storage
- 12. @NTXISSA #NTXISSACSC4NTX ISSA Cyber Security Conference – October 7-8, 2016 12 Hardware and software portfolio APV Series Application Delivery Controllers AG Series Secure Access Gateways Availability, scalability, performance, control and security for applications, Web sites, online transactions and cloud services Load balancing, SSL offloading, caching, compression, application security, L7 scripting and other network functions Achieves ROI by improving application performance and server efficiency Secure access to business applications from any remote or mobile device for any user anywhere SSL VPN virtual portals, L3 – L7 access, AAA, end-point security, single sign-on, Web firewall and dual-factor authentication Achieves ROI by increasing productivity and mitigating business disruptions
- 13. @NTXISSA #NTXISSACSC4NTX ISSA Cyber Security Conference – October 7-8, 2016 13 Security-hardened OS and platform § Only exposes service ports – no backdoors § Secured network management – SSL and HTTPS - Explicit disallows Telnet due to security risk of account/password sniffing § Tested and hardened against a range of network attacks - Hacking tools from eEye (ncx.exe, iishack.exe) - Nessus scan - NMAP - Filters malformed packets such as Smurf attach and local broadcast attacks § High-availability and cluster capability
- 14. @NTXISSA #NTXISSACSC4NTX ISSA Cyber Security Conference – October 7-8, 2016 14 Proprietary secured SSL stack § Used for all production traffic, proven immune to Heartbleed, Bash, Shellshock and other recent vulnerabilities - Customers did not need to patch or remediate any Array products - Bought time for remediation and patching of backend servers as necessary § Delivers both better security and higher levels of performance - Pared-back, buttoned-down design runs faster and presents fewer attack vectors - Cannot guarantee 100% immune for all potential vulnerabilities, but has proven provide a higher level of security and immunity vs. OpenSSL
- 15. @NTXISSA #NTXISSACSC4NTX ISSA Cyber Security Conference – October 7-8, 2016 15 Flexible appliance options • Dedicated, multi-tenant and virtual ADC appliances • Enables IaaS providers to offer customers a full range of load balancing service options optimized either for flexibility or performance • VMware, XenServer, OpenXen and KVM • Scalable from 10Mbps to 4Gbps • Up to 32 vAPV ADC instances • Dedicated SSL, I/O, compute resources • Scalable from 2Gbps to 120Mbps • Proven cloud track record vAPV Virtual ADC AVX10650 Multi-Tenant ADC APV Series Dedicated ADCs Flexibility Performance
- 16. @NTXISSA #NTXISSACSC4NTX ISSA Cyber Security Conference – October 7-8, 2016 16 APV Series platforms APV1600/T 3.5/2.5 Gbps 2/2K SSL TPS APV2600 18 Gbps 5.5K SSL TPS APV6600 35 Gbps 25K SSL TPS APV10650 120 Gbps 70K SSL TPS APV7600 80 Gbps 70K SSL TPS APV11600 140 Gbps 70K SSL TPS APV3600 37 Gbps 35K SSL TPS APV3650 30 Gbps 25K SSL TPS Supports 1 to 16 vCPUs VMware, XenServer, OpenXen, KVM, Hyper-V AVX Series Virtualized multi-tenant appliances – up to 16 or 32 vAPV instances, 65 or 115 Gbps and 35K or 70K SSL TPS per system APV6600FIPS 35 Gbps 9K SSL TPS PHYSICAL & VIRTUAL APPLIANCES SCALING UP & OUTFOR
- 17. @NTXISSA #NTXISSACSC4NTX ISSA Cyber Security Conference – October 7-8, 2016 17 AG Series product line PHYSICAL & VIRTUAL APPLIANCES SCALING UP & OUTFOR 10,000 Concurrent Users VMware, XenServer, OpenXen, KVM AG1000 300 Concurrent Users AG1100 3000 Concurrent Users AG1200 25,000 Concurrent Users AG1600 128,000 Concurrent Users AG1500/ AG1500FIPS 72,000 Concurrent Users AG1150 10,000 Concurrent Users AG1000T 600 Concurrent Users
