The document outlines the components of a normal echocardiogram, including principal transducer positions, echo views, and heart structures. It details various scanning maneuvers such as sliding, rocking, rotating, angling, tilting, and sweeping to effectively capture heart anatomy. The learning outcome is to identify heart structures through these echocardiographic techniques.

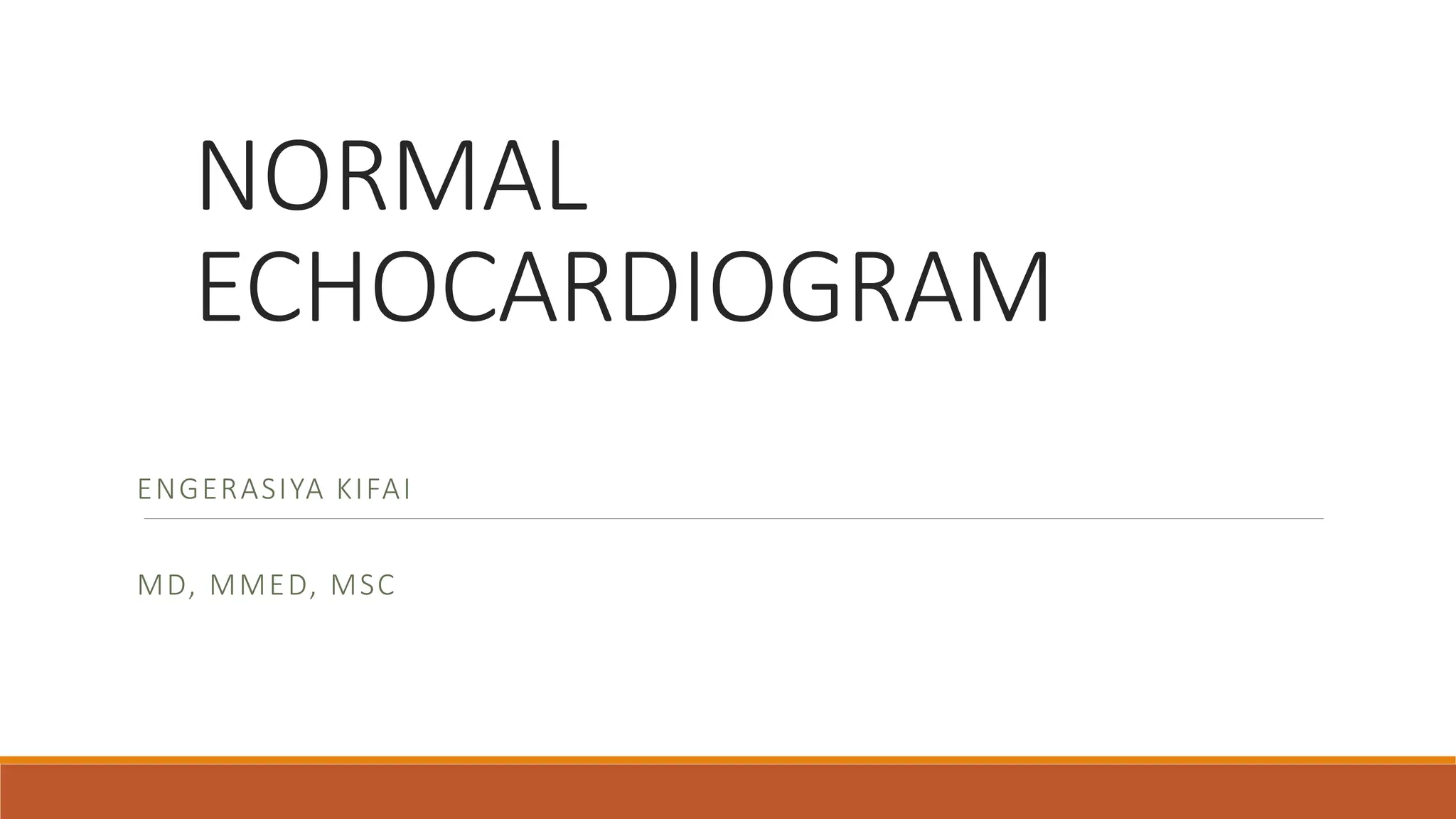

1. NORMAL
ECHOCARDIOGRAM
ENGERASIYA KIFAI
MD, MMED, MSC
WEDNESDAY, 17TH APRIL 2024

2. CONTENTS
Echo windows (principal transducer positions)
Echo views and structures seen in the normal heart
LEARNING OUTCOME
Able to identify structures of the heart in a normal
echocardiogram

3. Echocardiographic windows

4. Scanning Planes of the Heart

5. Scanning maneuvers
1. Slide
2. Rock
3. Rotating
4. Angle
5. Tilt
6. Sweep

6. Scanning maneuvers

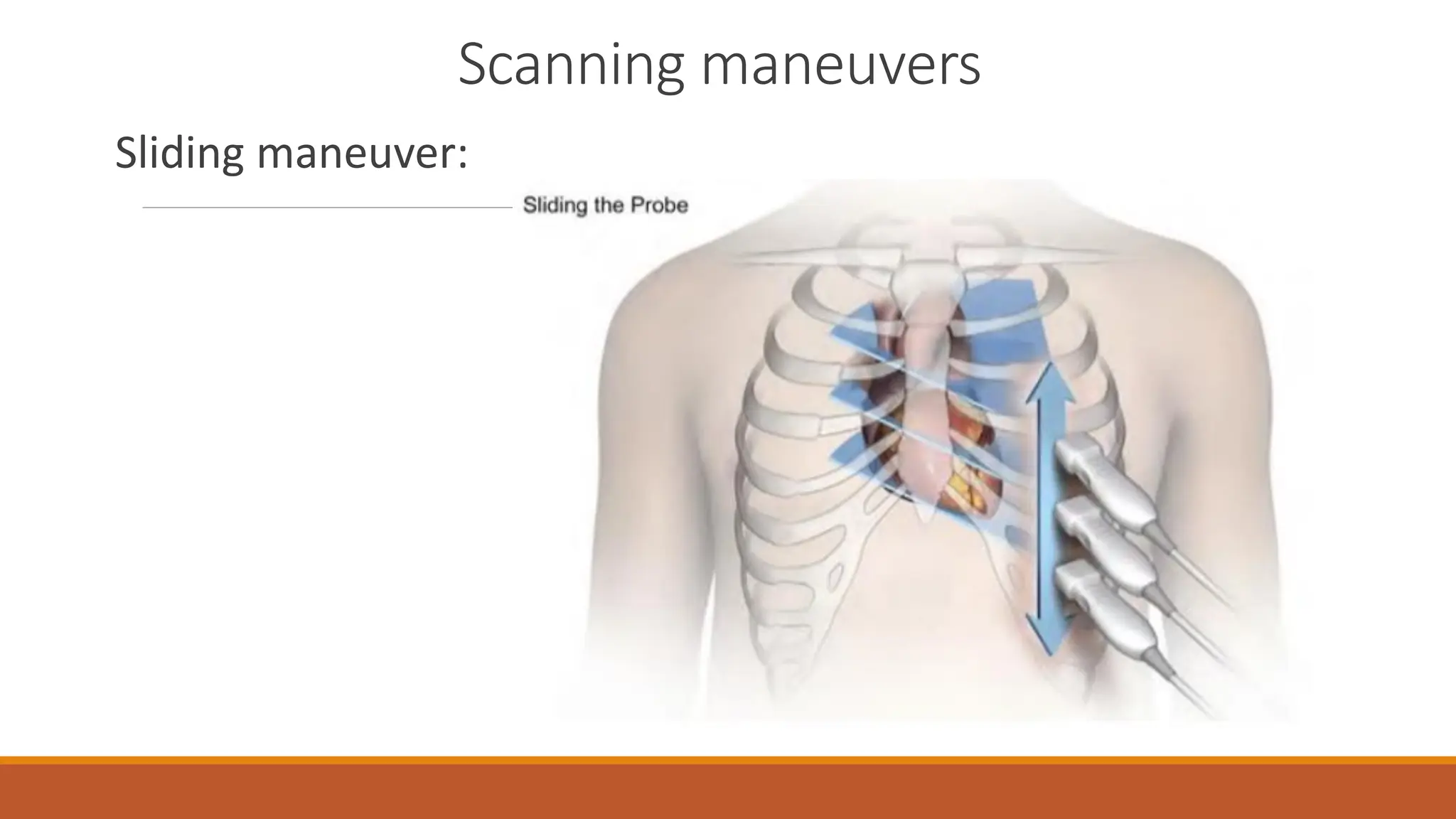

Sliding maneuver:

7. Rocking maneuver:

8. Rotating maneuver:

9. Angle maneuver:

10. Tilt maneuver:

11. Sweep maneuver:
◦ A deliberate action using multiple transducer movements to record
a long video clip to show multiple anatomic structures

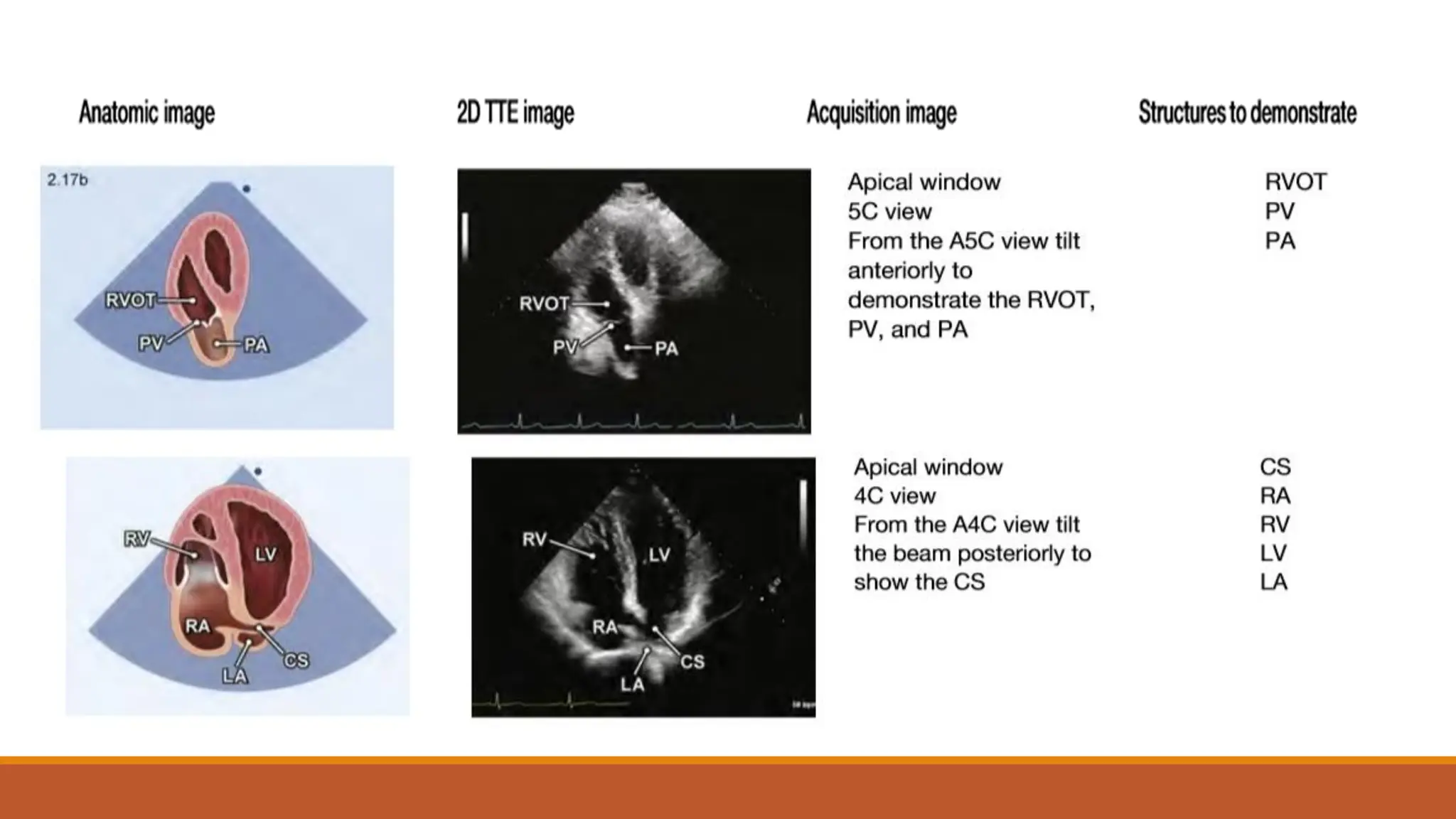

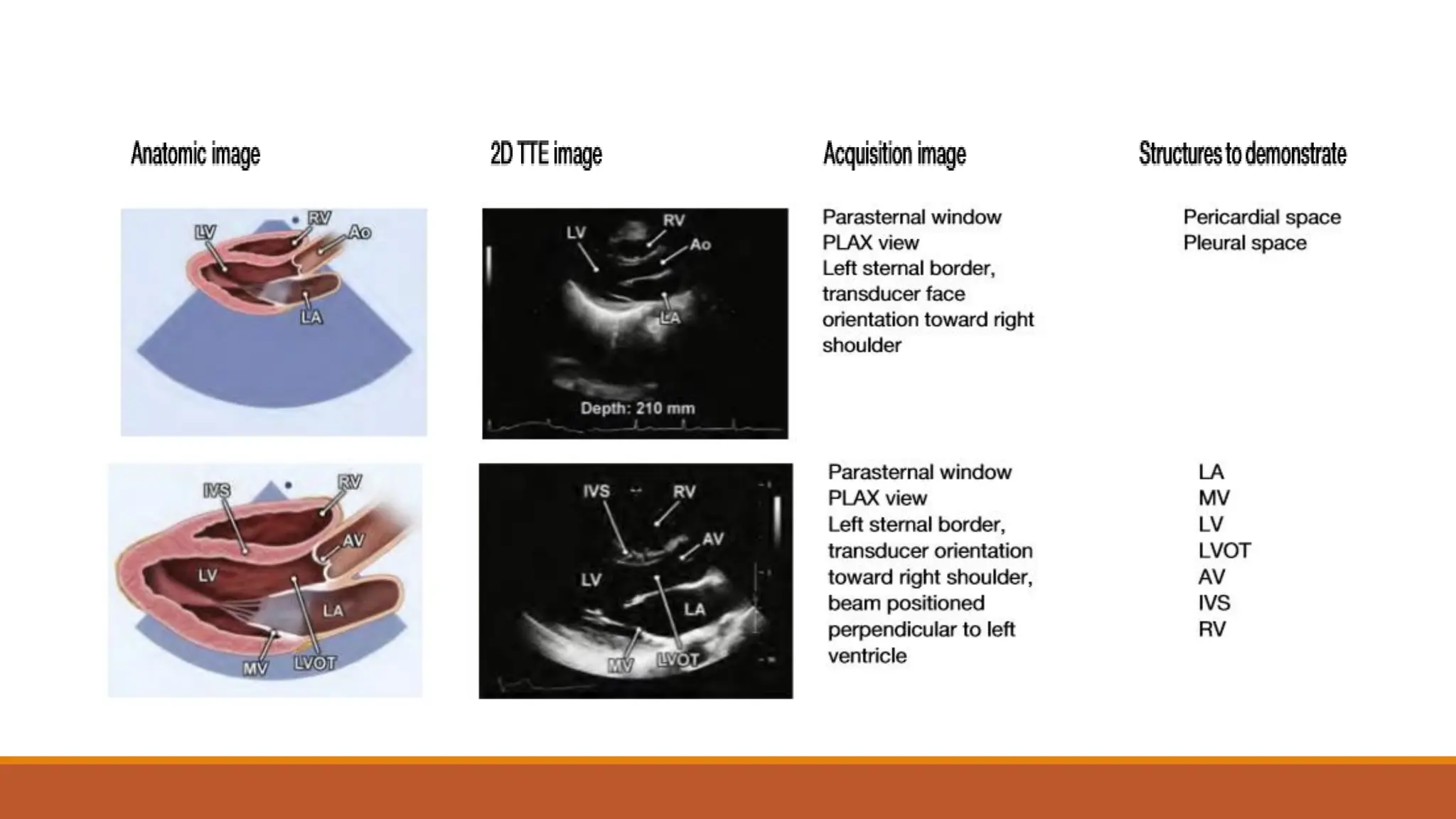

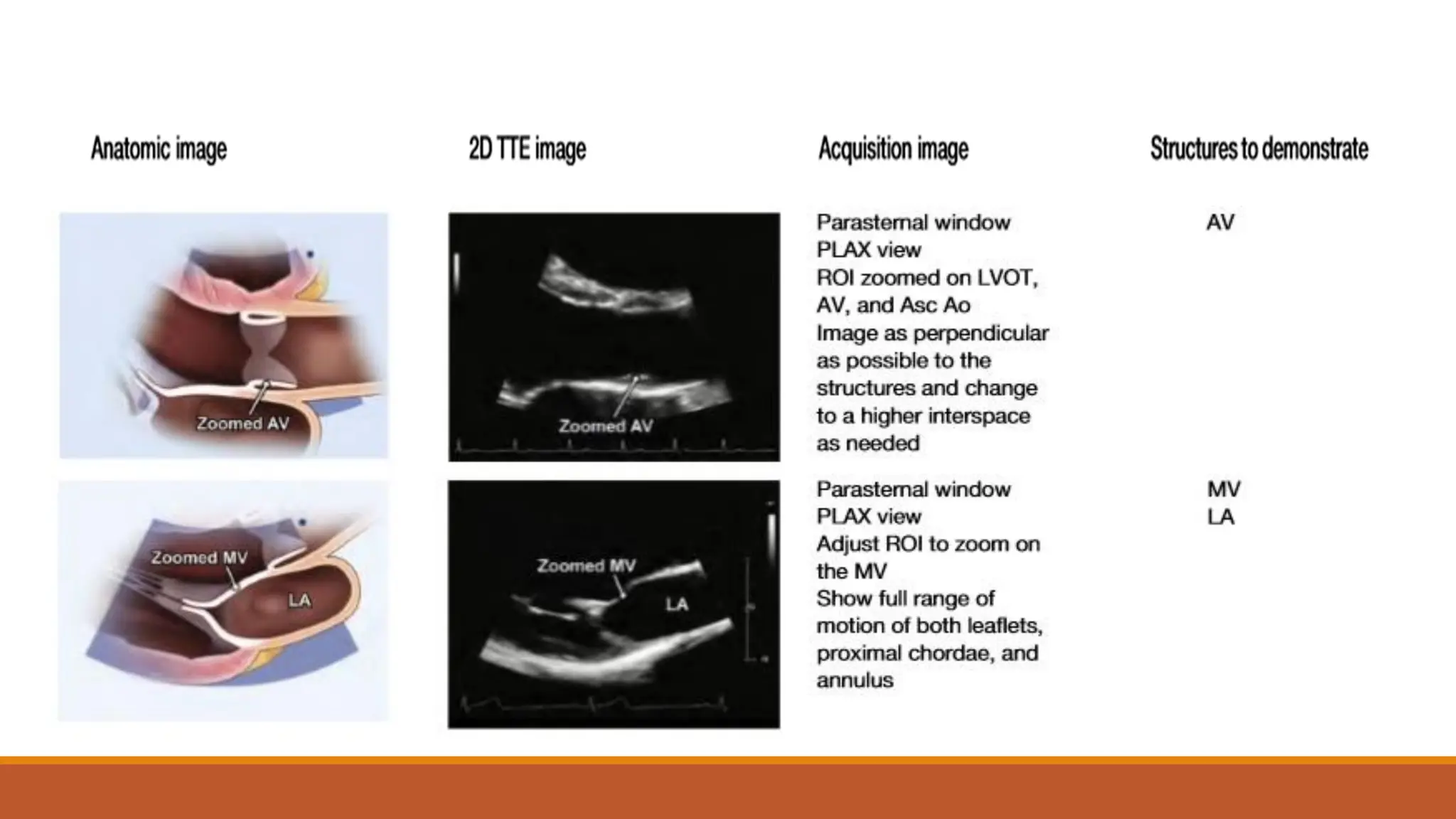

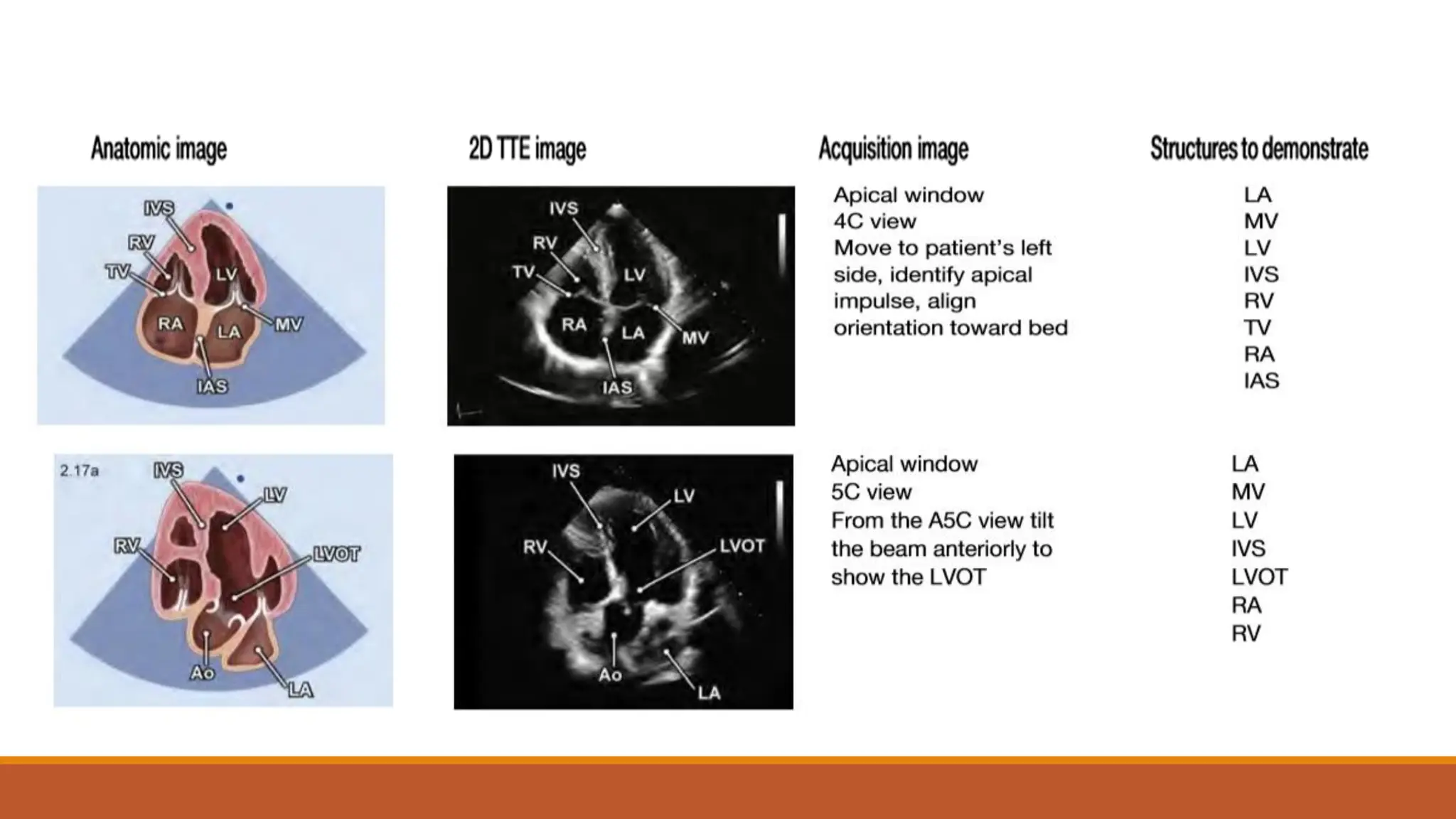

12. Echo views and structures seen in the normal
heart
