1. Network SecurityNetwork Security
Jasleen Kaur

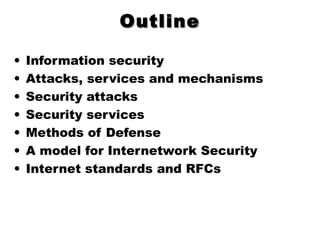

2. OutlineOutline
• Information security
• Attacks, services and mechanisms
• Security attacks
• Security services
• Methods of Defense
• A model for Internetwork Security
• Internet standards and RFCs

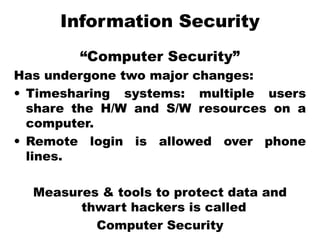

3. Information Security
“Computer Security”
Has undergone two major changes:
• Timesharing systems: multiple users
share the H/W and S/W resources on a
computer.
• Remote login is allowed over phone
lines.
Measures & tools to protect data and
thwart hackers is called
Computer Security

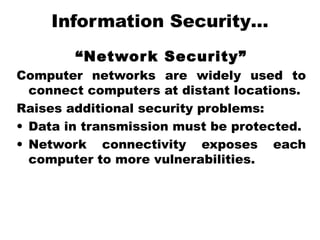

4. Information Security…
“Network Security”
Computer networks are widely used to
connect computers at distant locations.
Raises additional security problems:
• Data in transmission must be protected.
• Network connectivity exposes each
computer to more vulnerabilities.

5. Attacks, Services, Mechanisms
Three aspects of Information
Security:
• Security Attack: Any action that
compromises the security of
information.
• Security Mechanism: A mechanism
that is designed to detect, prevent, or
recover from a security attack.
• Security Service: A service that
enhances the security of data
processing systems and information
transfers. A security service makes use
of one or more security mechanisms.

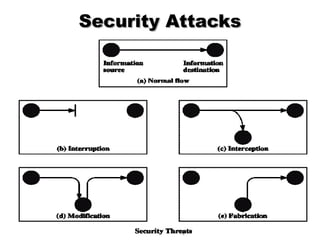

6. Security AttacksSecurity Attacks

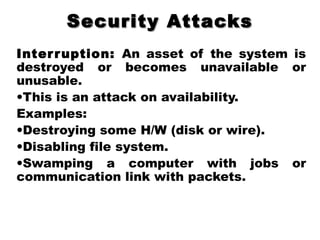

7. Security AttacksSecurity Attacks
Interruption: An asset of the system is
destroyed or becomes unavailable or
unusable.
•This is an attack on availability.
Examples:
•Destroying some H/W (disk or wire).
•Disabling file system.
•Swamping a computer with jobs or
communication link with packets.

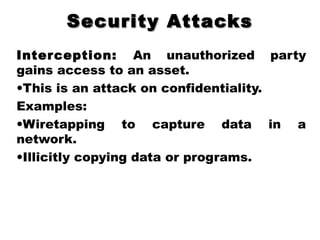

8. Security AttacksSecurity Attacks
Interception: An unauthorized party
gains access to an asset.
•This is an attack on confidentiality.
Examples:
•Wiretapping to capture data in a
network.
•Illicitly copying data or programs.

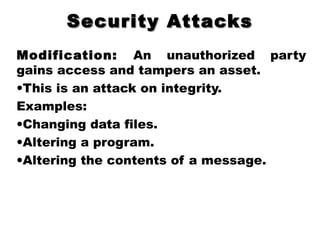

9. Security AttacksSecurity Attacks
Modification: An unauthorized party
gains access and tampers an asset.
•This is an attack on integrity.
Examples:
•Changing data files.
•Altering a program.
•Altering the contents of a message.

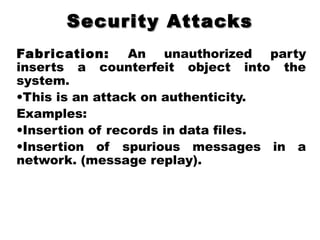

10. Security AttacksSecurity Attacks
Fabrication: An unauthorized party
inserts a counterfeit object into the
system.
•This is an attack on authenticity.
Examples:
•Insertion of records in data files.
•Insertion of spurious messages in a
network. (message replay).

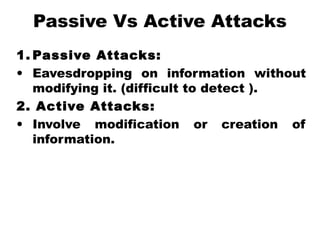

11. Passive Vs Active Attacks
1. Passive Attacks:
• Eavesdropping on information without
modifying it. (difficult to detect ).
2. Active Attacks:
• Involve modification or creation of
information.

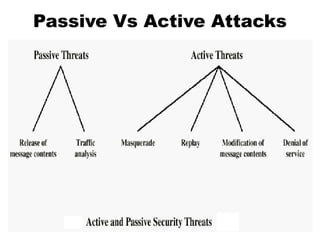

12. Passive Vs Active Attacks

13. Passive Threats
• Release of message contents:
Contents of a message are read.
– A message may be carrying sensitive or
confidential data.
• Traffic analysis: An intruder makes
inferences by observing message
patterns.
– Can be done even if messages are encrypted.
– Inferences: location and identity of hosts.

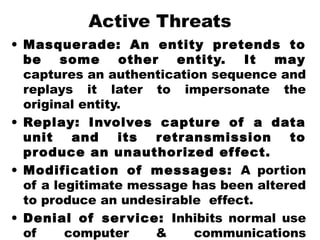

14. Active Threats
• Masquerade: An entity pretends to
be some other entity. It may
captures an authentication sequence and
replays it later to impersonate the
original entity.
• Replay: Involves capture of a data
unit and its retransmission to
produce an unauthorized effect.
• Modification of messages: A portion
of a legitimate message has been altered
to produce an undesirable effect.
• Denial of service: Inhibits normal use
of computer & communications

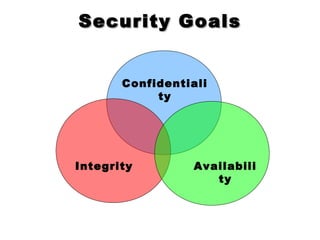

15. Security GoalsSecurity Goals
Integrity
Confidentiali
ty
Availabili
ty

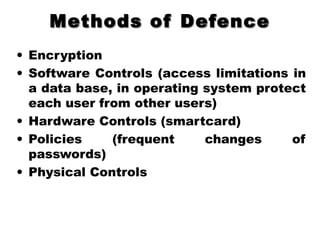

16. Methods of DefenceMethods of Defence
• Encryption
• Software Controls (access limitations in
a data base, in operating system protect
each user from other users)
• Hardware Controls (smartcard)
• Policies (frequent changes of
passwords)
• Physical Controls

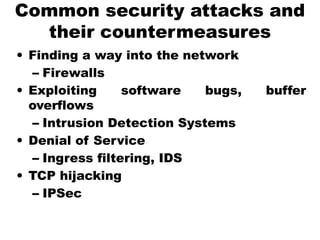

17. Common security attacks and
their countermeasures
• Finding a way into the network
– Firewalls
• Exploiting software bugs, buffer
overflows
– Intrusion Detection Systems
• Denial of Service
– Ingress filtering, IDS
• TCP hijacking
– IPSec

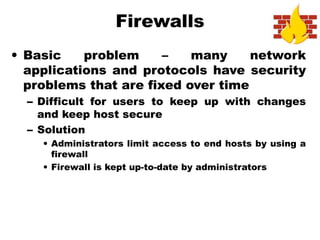

18. Firewalls
• Basic problem – many network
applications and protocols have security
problems that are fixed over time
– Difficult for users to keep up with changes
and keep host secure
– Solution
• Administrators limit access to end hosts by using a
firewall
• Firewall is kept up-to-date by administrators

19. Firewalls
• A firewall is like a castle with a
drawbridge
– Only one point of access into the network
– This can be good or bad
• Can be hardware or software
– Some routers come with firewall
functionality
– ipfw, ipchains, pf on Unix systems, Windows
XP and Mac OS X have built in firewalls

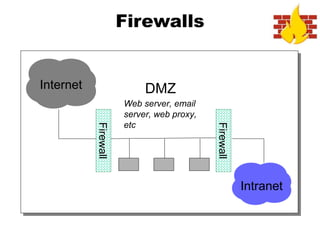

20. Firewalls
Intranet
DMZInternet
Firewall
Firewall
Web server, email
server, web proxy,
etc

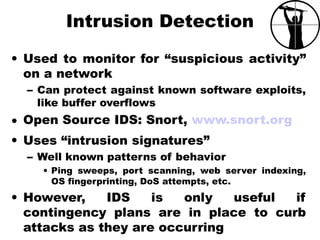

21. Intrusion Detection
• Used to monitor for “suspicious activity”
on a network
– Can protect against known software exploits,
like buffer overflows
• Open Source IDS: Snort, www.snort.org
• Uses “intrusion signatures”
– Well known patterns of behavior
• Ping sweeps, port scanning, web server indexing,
OS fingerprinting, DoS attempts, etc.
• However, IDS is only useful if
contingency plans are in place to curb
attacks as they are occurring

22. Dictionary Attack
• We can run a dictionary attack on the
passwords
– The passwords in /etc/passwd are encrypted
with the crypt(3) function (one-way hash)
– Can take a dictionary of words, crypt() them
all, and compare with the hashed passwords
• This is why your passwords should be
meaningless random junk!
– For example, “sdfo839f” is a good password
• That is not my andrew password
• Please don’t try it either

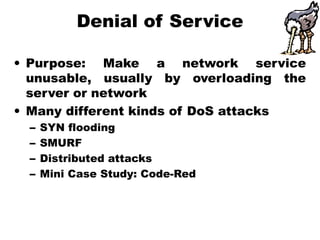

23. Denial of Service
• Purpose: Make a network service
unusable, usually by overloading the
server or network
• Many different kinds of DoS attacks
– SYN flooding
– SMURF
– Distributed attacks
– Mini Case Study: Code-Red

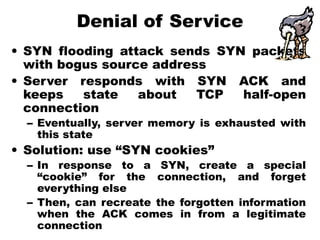

24. Denial of Service
• SYN flooding attack sends SYN packets
with bogus source address
• Server responds with SYN ACK and
keeps state about TCP half-open
connection
– Eventually, server memory is exhausted with
this state
• Solution: use “SYN cookies”
– In response to a SYN, create a special
“cookie” for the connection, and forget
everything else
– Then, can recreate the forgotten information
when the ACK comes in from a legitimate
connection

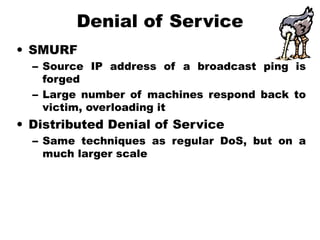

25. Denial of Service
• SMURF
– Source IP address of a broadcast ping is
forged
– Large number of machines respond back to
victim, overloading it
• Distributed Denial of Service
– Same techniques as regular DoS, but on a
much larger scale

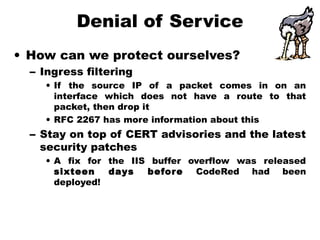

26. Denial of Service
• How can we protect ourselves?
– Ingress filtering
• If the source IP of a packet comes in on an
interface which does not have a route to that
packet, then drop it
• RFC 2267 has more information about this
– Stay on top of CERT advisories and the latest
security patches
• A fix for the IIS buffer overflow was released
sixteen days before CodeRed had been
deployed!

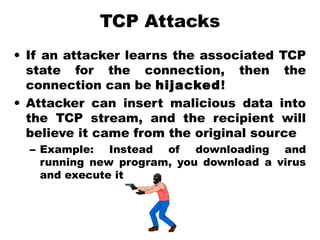

27. TCP Attacks
• If an attacker learns the associated TCP
state for the connection, then the
connection can be hijacked!
• Attacker can insert malicious data into
the TCP stream, and the recipient will
believe it came from the original source
– Example: Instead of downloading and
running new program, you download a virus
and execute it

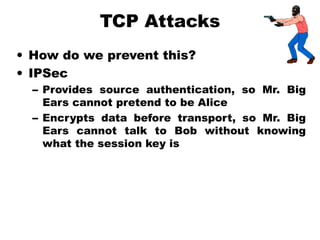

28. TCP Attacks
• How do we prevent this?
• IPSec
– Provides source authentication, so Mr. Big
Ears cannot pretend to be Alice
– Encrypts data before transport, so Mr. Big
Ears cannot talk to Bob without knowing
what the session key is

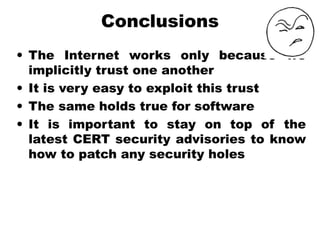

29. Conclusions
• The Internet works only because we
implicitly trust one another
• It is very easy to exploit this trust
• The same holds true for software
• It is important to stay on top of the
latest CERT security advisories to know
how to patch any security holes
