This document provides information about the composition, magnetic characteristics, thermal characteristics, and mechanical properties of N35 neodymium iron boron magnets. The magnets are produced via powder metallurgy, have a residual induction between 1.18-1.23 T, a coercive force between 868-955 kA/m, and maximum energy product between 263-287 kJ/m3. They have an operating temperature of 80°C, a Curie temperature of 310°C, and reversible temperature coefficients for residual induction and coercive force. The preferred geometry for these magnets is a ring.

1. N35
Composition Characteristics
Powder Method Orient
NdFeB Sintered
Magnetic Characteristics
Br (Residual
Induction)
Br (Residual
Induction)
Hcb
(Coercive
Force)
Hcb
(Coercive
Force)
Bhmax
(Maximum
Product
Energy)
Bhmax
(Maximum
Product
Energy)
Hcj (Intrinsic
Coercive
Force)
Hcj (Intrinsic
Coercive
Force)
mT KGs KA/m KOe KJ/m³ MGOe KOe KA/m
1.18-1.23 11.8-12.3 868 10.9 263-287 33-36 12 955
Auxiliary Characteristics
ALB Materials Inc E-mail: sales@albmagnets.com Page 1 of 3
https://www.albmagnets.com/

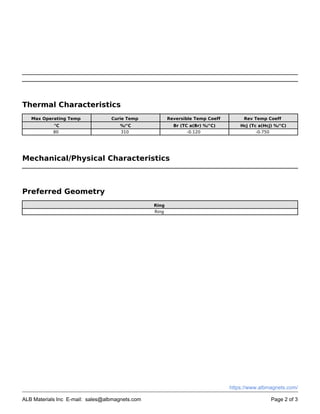

2. Thermal Characteristics
Max Operating Temp Curie Temp Reversible Temp Coeff Rev Temp Coeff
°C %/°C Br (TC a(Br) %/°C) Hcj (Tc a(Hcj) %/°C)
80 310 -0.120 -0.750
Mechanical/Physical Characteristics
Preferred Geometry
Ring
Ring
ALB Materials Inc E-mail: sales@albmagnets.com Page 2 of 3
https://www.albmagnets.com/

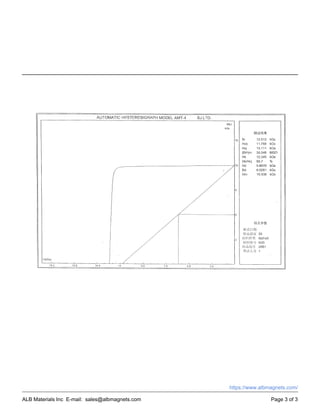

3. ALB Materials Inc E-mail: sales@albmagnets.com Page 3 of 3
