How to Migrate
from
Oracle DB to MariaDB
Bart Oleś, Support Engineer
Presenter
bart@severalnines.com

Copyright 2017 Severalnines AB

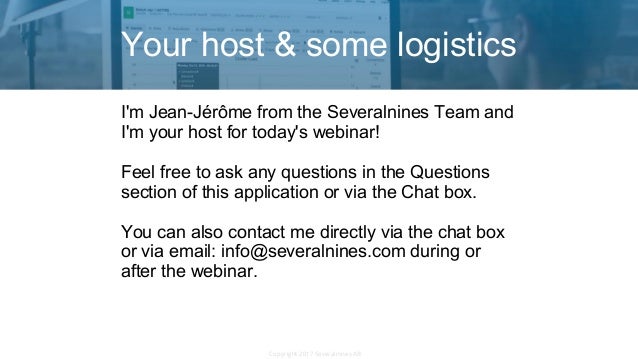

I'm Jean-Jérôme from the Severalnines Team and
I'm your host for today's webinar!
Feel free to ask any questions in the Questions
section of this application or via the Chat box.
You can also contact me directly via the chat box
or via email: info@severalnines.com during or
after the webinar.
Your host & some logistics

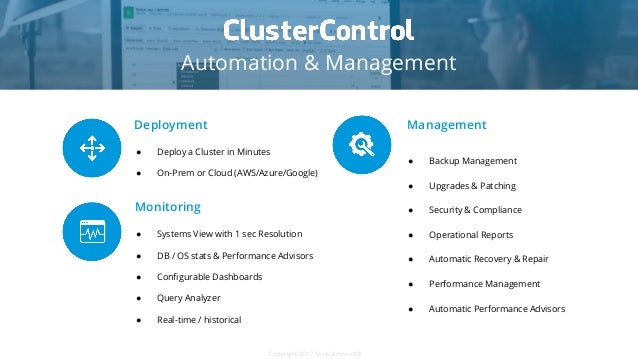

Automation & Management
Deployment
● Deploy a Cluster in Minutes
● On-Prem or Cloud (AWS/Azure/Google)
Monitoring
● Systems View with 1 sec Resolution
● DB / OS stats & Performance Advisors
● Configurable Dashboards
● Query Analyzer
● Real-time / historical
Management
● Backup Management
● Upgrades & Patching
● Security & Compliance
● Operational Reports
● Automatic Recovery & Repair
● Performance Management
● Automatic Performance Advisors

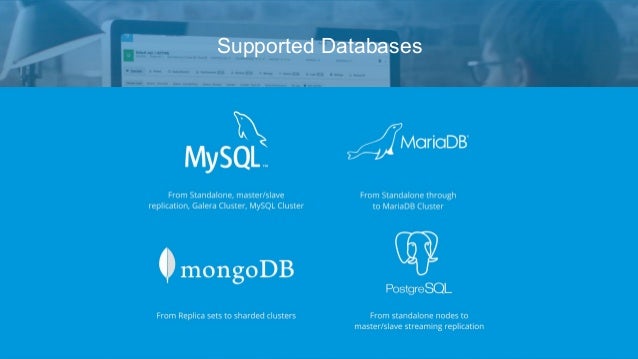

Supported Databases

Our Customers

Poll 1
Which of the following databases do you run in your production
environment:
● MySQL / MariaDB
● PostgreSQL
● SQLServer
● Oracle
● DB2

March 2019
Migrating from Oracle to
MariaDB
Bart Oleś, Support Engineer
Presenter
bart@severalnines.com

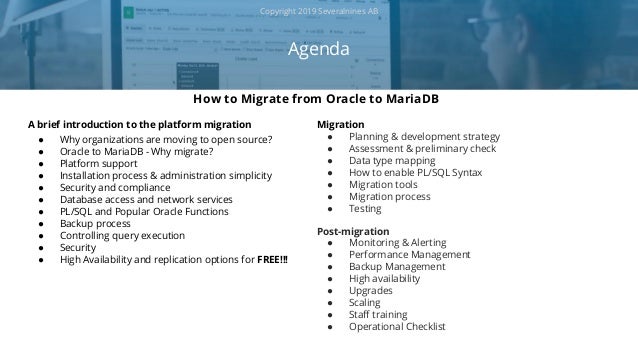

Agenda
A brief introduction to the platform migration
● Why organizations are moving to open source?
● Oracle to MariaDB - Why migrate?
● Platform support
● Installation process & administration simplicity
● Security and compliance
● Database access and network services
● PL/SQL and Popular Oracle Functions
● Backup process
● Controlling query execution
● Security
● High Availability and replication options for FREE!!!
How to Migrate from Oracle to MariaDB
Migration
● Planning & development strategy
● Assessment & preliminary check
● Data type mapping
● How to enable PL/SQL Syntax
● Migration tools
● Migration process
● Testing
Post-migration
● Monitoring & Alerting
● Performance Management
● Backup Management
● High availability
● Upgrades
● Scaling

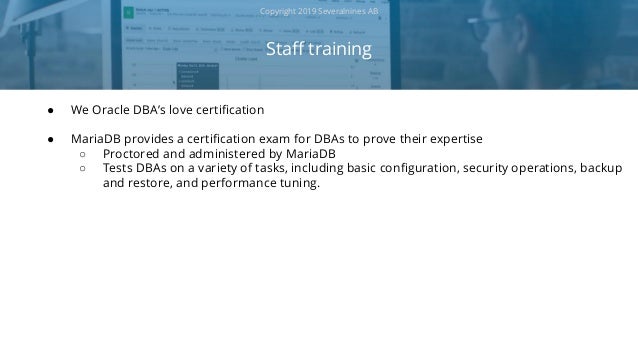

● Staff training

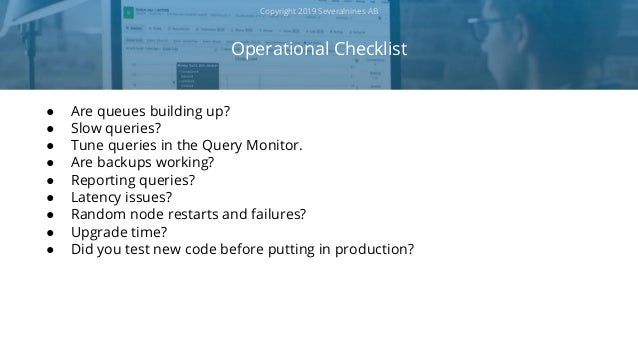

● Operational Checklist

A brief introduction to the platform
migration

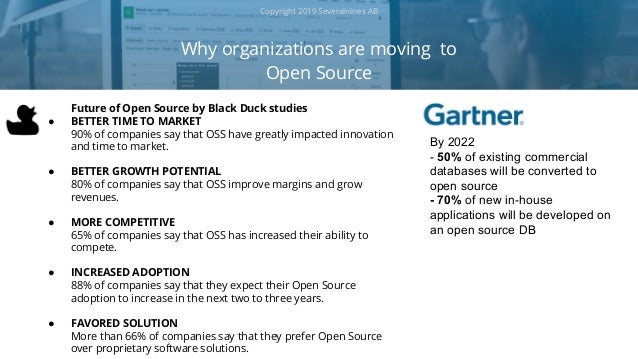

Why organizations are moving to
Open Source
Future of Open Source by Black Duck studies
● BETTER TIME TO MARKET
90% of companies say that OSS have greatly impacted innovation
and time to market.
● BETTER GROWTH POTENTIAL
80% of companies say that OSS improve margins and grow
revenues.
● MORE COMPETITIVE
65% of companies say that OSS has increased their ability to
compete.
● INCREASED ADOPTION
88% of companies say that they expect their Open Source
adoption to increase in the next two to three years.
● FAVORED SOLUTION
More than 66% of companies say that they prefer Open Source
over proprietary software solutions.
By 2022
- 50% of existing commercial
databases will be converted to
open source
- 70% of new in-house
applications will be developed on
an open source DB

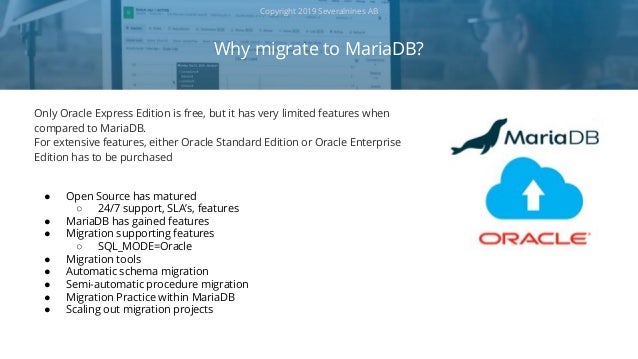

Why migrate to MariaDB?
Only Oracle Express Edition is free, but it has very limited features when
compared to MariaDB.
For extensive features, either Oracle Standard Edition or Oracle Enterprise
Edition has to be purchased
● Open Source has matured
○ 24/7 support, SLA’s, features
● MariaDB has gained features
● Migration supporting features
○ SQL_MODE=Oracle
● Migration tools
● Automatic schema migration
● Semi-automatic procedure migration
● Migration Practice within MariaDB
● Scaling out migration projects

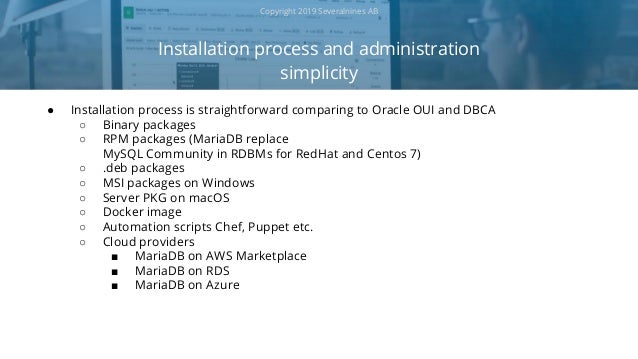

Installation process and administration
simplicity
● Installation process is straightforward comparing to Oracle OUI and DBCA
○ Binary packages
○ RPM packages (MariaDB replace
MySQL Community in RDBMs for RedHat and Centos 7)
○ .deb packages
○ MSI packages on Windows
○ Server PKG on macOS
○ Docker image
○ Automation scripts Chef, Puppet etc.
○ Cloud providers
■ MariaDB on AWS Marketplace
■ MariaDB on RDS
■ MariaDB on Azure

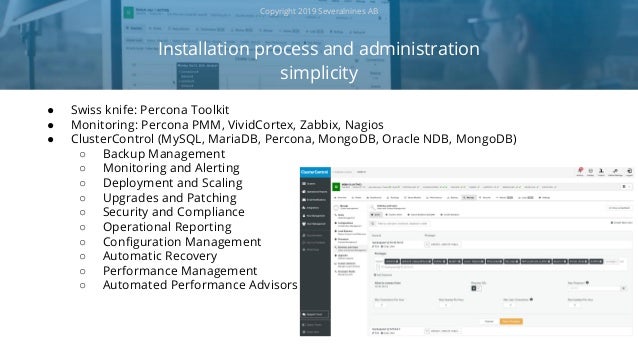

Installation process and administration
simplicity
● Swiss knife: Percona Toolkit
● Monitoring: Percona PMM, VividCortex, Zabbix, Nagios
● ClusterControl (MySQL, MariaDB, Percona, MongoDB, Oracle NDB, MongoDB)
○ Backup Management
○ Monitoring and Alerting
○ Deployment and Scaling
○ Upgrades and Patching
○ Security and Compliance
○ Operational Reporting
○ Configuration Management
○ Automatic Recovery
○ Performance Management
○ Automated Performance Advisors

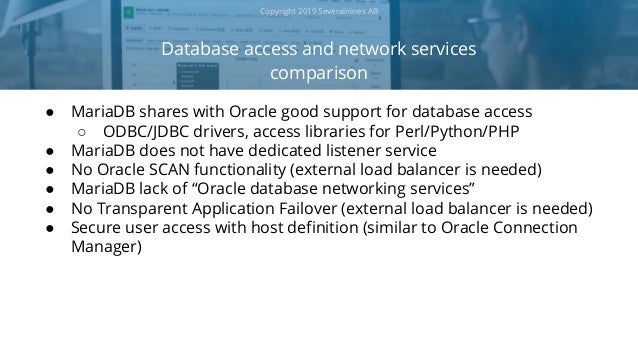

Database access and network services
comparison
● MariaDB shares with Oracle good support for database access
○ ODBC/JDBC drivers, access libraries for Perl/Python/PHP
● MariaDB does not have dedicated listener service
● No Oracle SCAN functionality (external load balancer is needed)
● MariaDB lack of “Oracle database networking services”
● No Transparent Application Failover (external load balancer is needed)
● Secure user access with host definition (similar to Oracle Connection
Manager)

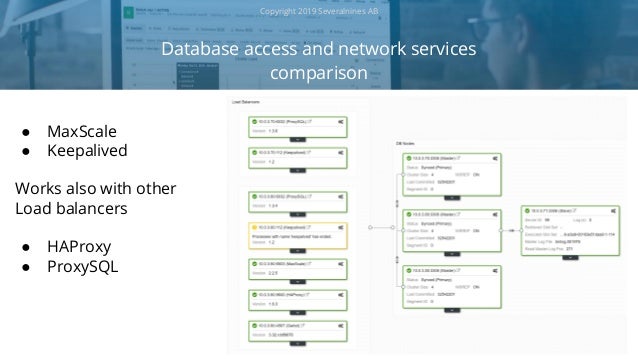

Database access and network services
comparison
● MaxScale
● Keepalived
Works also with other
Load balancers
● HAProxy
● ProxySQL

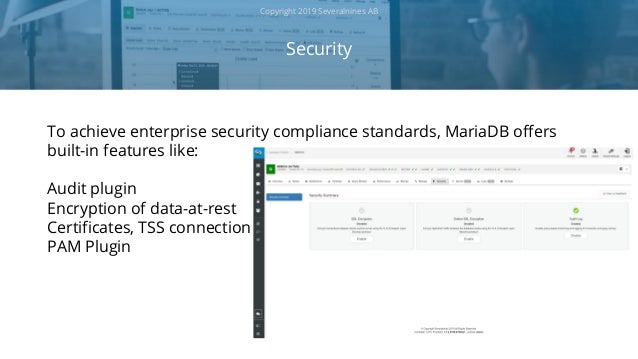

Security
To achieve enterprise security compliance standards, MariaDB offers
built-in features like:
Audit plugin
Encryption of data-at-rest
Certificates, TSS connection
PAM Plugin

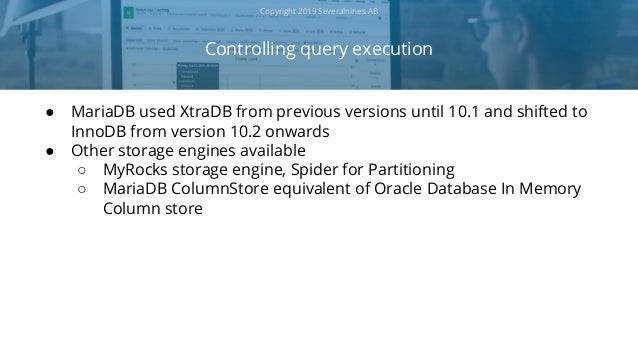

Controlling query execution
● MariaDB used XtraDB from previous versions until 10.1 and shifted to
InnoDB from version 10.2 onwards
● Other storage engines available
○ MyRocks storage engine, Spider for Partitioning
○ MariaDB ColumnStore equivalent of Oracle Database In Memory
Column store

Controlling query execution
By default, MariaDB has the autocommit variable set to ON
Explicitly handle transactional statements to take advantage of
ROLLBACK or SAVEPOINT
Same concept that Oracle uses in terms of commit/rollback/savepoint
For explicit transactions, use START TRANSACTION/BEGIN; <SQL
STATEMENTS>; COMMIT; syntax
START TRANSACTION/BEGIN;
<SQL STATEMENTS>;
COMMIT; syntax.

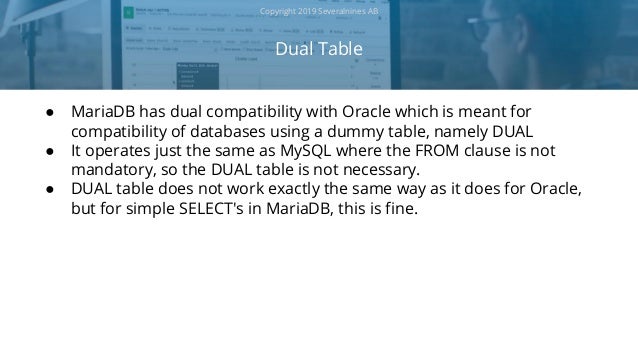

Dual Table
● MariaDB has dual compatibility with Oracle which is meant for
compatibility of databases using a dummy table, namely DUAL
● It operates just the same as MySQL where the FROM clause is not
mandatory, so the DUAL table is not necessary.
● DUAL table does not work exactly the same way as it does for Oracle,
but for simple SELECT's in MariaDB, this is fine.

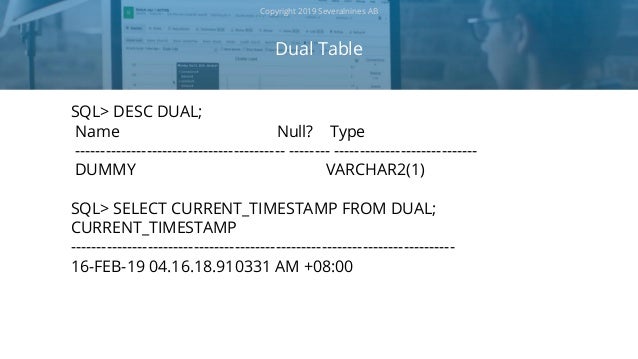

Dual Table
SQL> DESC DUAL;
Name Null? Type
----------------------------------------- -------- ----------------------------
DUMMY VARCHAR2(1)
SQL> SELECT CURRENT_TIMESTAMP FROM DUAL;
CURRENT_TIMESTAMP
---------------------------------------------------------------------------
16-FEB-19 04.16.18.910331 AM +08:00

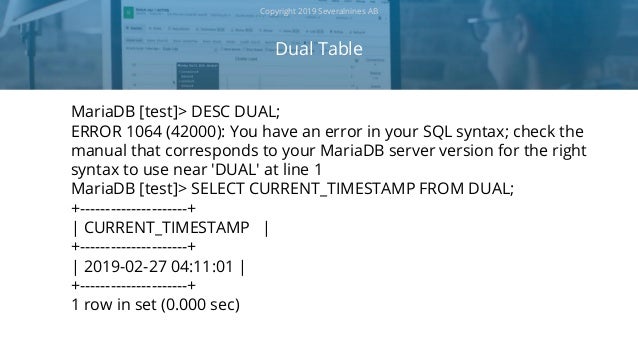

Dual Table
MariaDB [test]> DESC DUAL;
ERROR 1064 (42000): You have an error in your SQL syntax; check the
manual that corresponds to your MariaDB server version for the right
syntax to use near 'DUAL' at line 1
MariaDB [test]> SELECT CURRENT_TIMESTAMP FROM DUAL;
+---------------------+
| CURRENT_TIMESTAMP |
+---------------------+
| 2019-02-27 04:11:01 |
+---------------------+
1 row in set (0.000 sec)

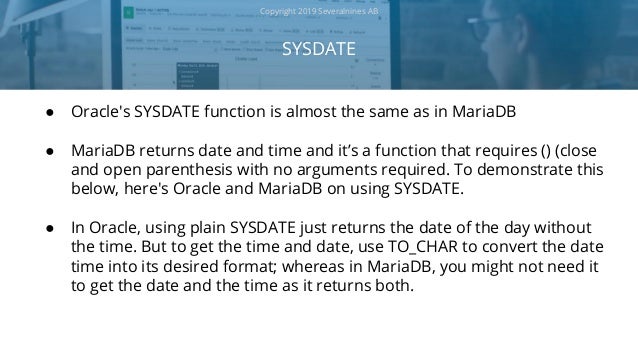

SYSDATE
● Oracle's SYSDATE function is almost the same as in MariaDB
● MariaDB returns date and time and it’s a function that requires () (close
and open parenthesis with no arguments required. To demonstrate this
below, here's Oracle and MariaDB on using SYSDATE.
● In Oracle, using plain SYSDATE just returns the date of the day without
the time. But to get the time and date, use TO_CHAR to convert the date
time into its desired format; whereas in MariaDB, you might not need it
to get the date and the time as it returns both.

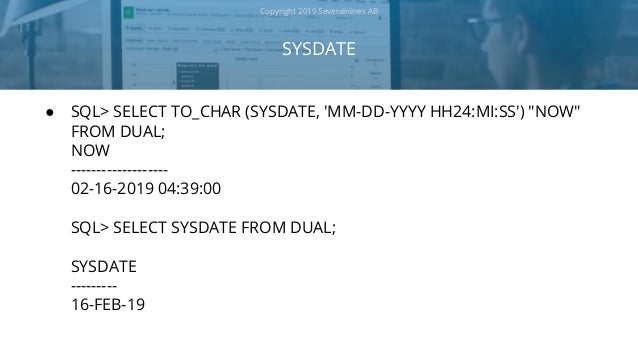

SYSDATE
● SQL> SELECT TO_CHAR (SYSDATE, 'MM-DD-YYYY HH24:MI:SS') "NOW"
FROM DUAL;
NOW
-------------------
02-16-2019 04:39:00
SQL> SELECT SYSDATE FROM DUAL;
SYSDATE
---------
16-FEB-19

SYSDATE
MariaDB [test]> SELECT SYSDATE() FROM DUAL;
+---------------------+
| SYSDATE() |
+---------------------+
| 2019-02-27 04:11:57 |
+---------------------+

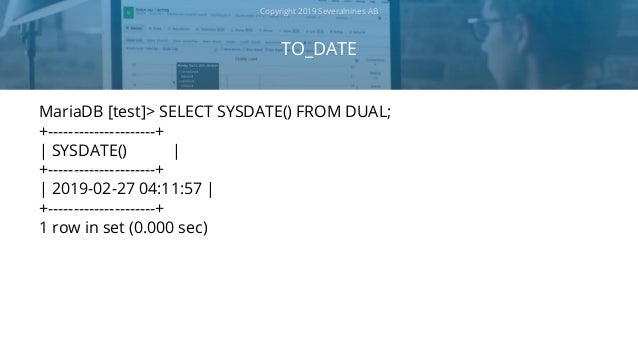

TO_DATE
MariaDB [test]> SELECT SYSDATE() FROM DUAL;
+---------------------+
| SYSDATE() |
+---------------------+
| 2019-02-27 04:11:57 |
+---------------------+

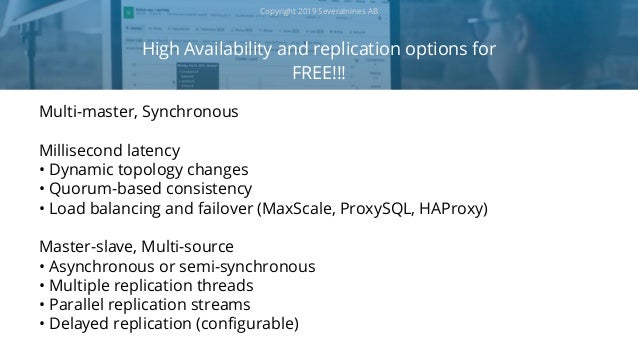

High Availability and replication options for
FREE!!!
Multi-master, Synchronous
Millisecond latency
• Dynamic topology changes
• Quorum-based consistency
• Load balancing and failover (MaxScale, ProxySQL, HAProxy)
Master-slave, Multi-source
• Asynchronous or semi-synchronous
• Multiple replication threads
• Parallel replication streams
• Delayed replication (configurable)

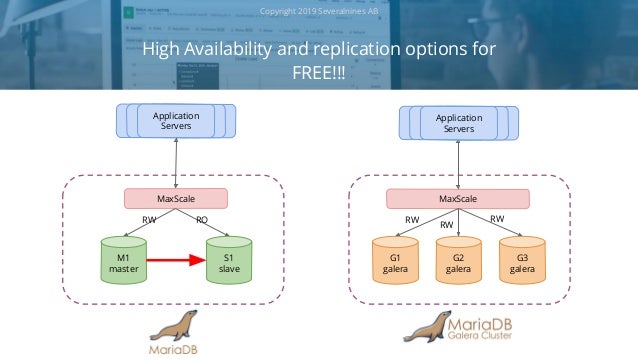

High Availability and replication options for
FREE!!!
M1
master
S1
slave
G1
galera
G2
galera
MaxScale
Application
Servers
Application
Servers
Application
Servers
Application
Servers
Application
Servers
RW RO
G3
galera
MariaDB Cluster
MaxScale
RW
RW
RW
Application
Servers
Application
Servers
Application
Servers
Application
Servers
Application
Servers

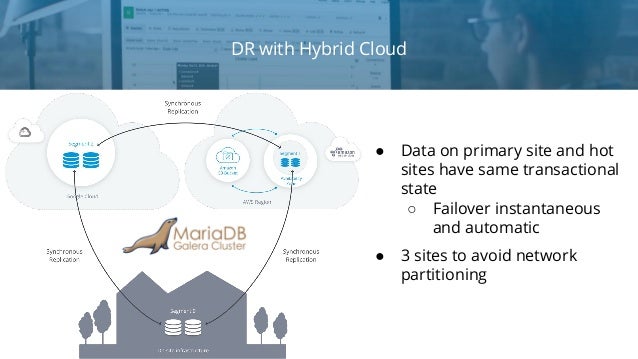

DR with Hybrid Cloud
● Data on primary site and hot
sites have same transactional
state
○ Failover instantaneous
and automatic
● 3 sites to avoid network
partitioning

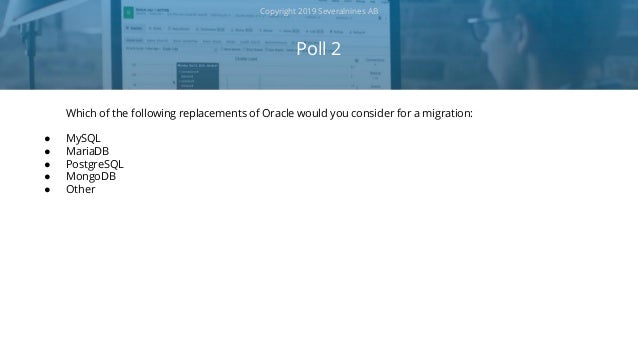

Poll 2
Which of the following replacements of Oracle would you consider for a migration:
● MySQL
● MariaDB
● PostgreSQL
● MongoDB
● Other

Migration

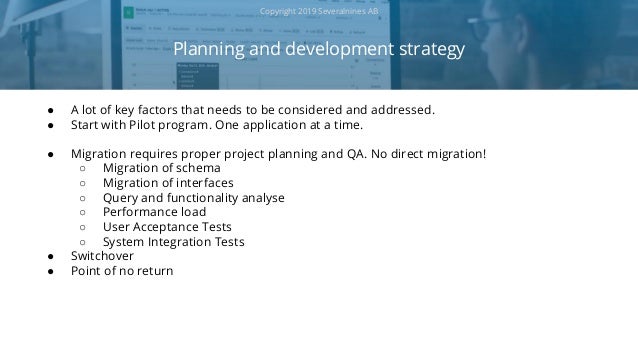

Planning and development strategy
● A lot of key factors that needs to be considered and addressed.
● Start with Pilot program. One application at a time.
● Migration requires proper project planning and QA. No direct migration!
○ Migration of schema
○ Migration of interfaces
○ Query and functionality analyse
○ Performance load
○ User Acceptance Tests
○ System Integration Tests
● Switchover
● Point of no return

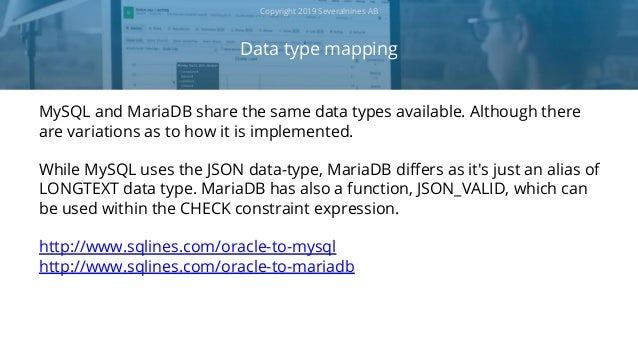

Data type mapping
MySQL and MariaDB share the same data types available. Although there
are variations as to how it is implemented.
While MySQL uses the JSON data-type, MariaDB differs as it's just an alias of
LONGTEXT data type. MariaDB has also a function, JSON_VALID, which can
be used within the CHECK constraint expression.
http://www.sqlines.com/oracle-to-mysql
http://www.sqlines.com/oracle-to-mariadb

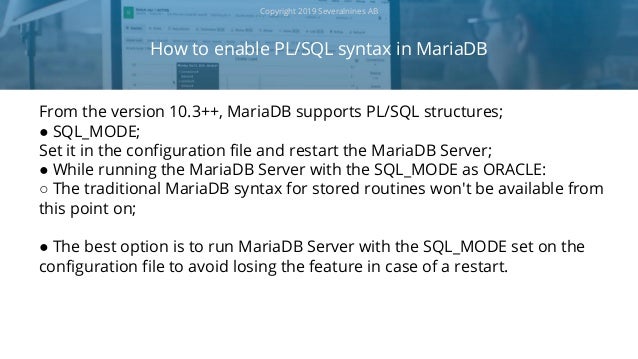

How to enable PL/SQL syntax in MariaDB
From the version 10.3++, MariaDB supports PL/SQL structures;
● SQL_MODE;
Set it in the configuration file and restart the MariaDB Server;
● While running the MariaDB Server with the SQL_MODE as ORACLE:
○ The traditional MariaDB syntax for stored routines won't be available from
this point on;
● The best option is to run MariaDB Server with the SQL_MODE set on the
configuration file to avoid losing the feature in case of a restart.

MariaDB server when running with sql_mode=ORACLE:
○ VARCHAR2 - a synonym to VARCHAR;
○ NUMBER - a synonym to DECIMAL;
○ DATE (with time portion) - a synonym to MariaDB DATETIME;
○ RAW - a synonym to VARBINARY;
○ CLOB - a synonym to LONGTEXT;
○ BLOB - a synonym to LONGBLOB.

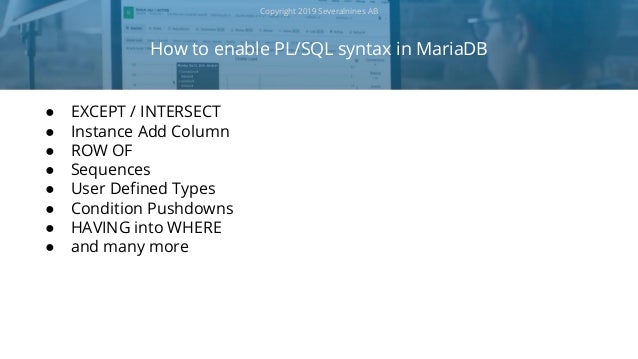

● EXCEPT / INTERSECT
● Instance Add Column
● ROW OF
● Sequences
● User Defined Types
● Condition Pushdowns
● HAVING into WHERE
● and many more

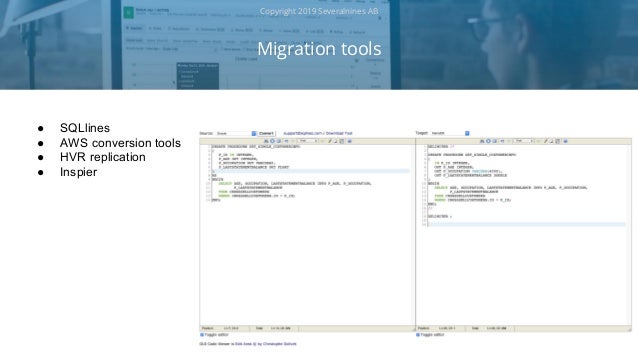

Migration tools
● SQLlines
● AWS conversion tools
● HVR replication
● Inspier

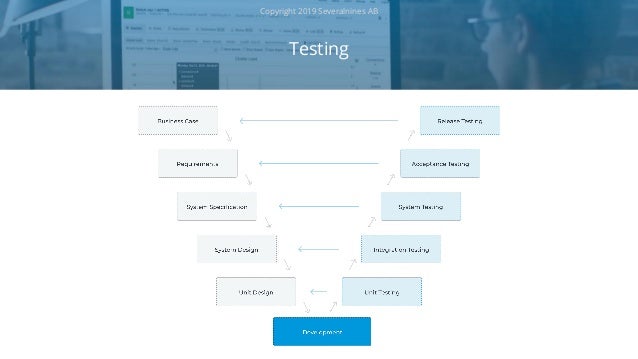

Testing

Post-migration

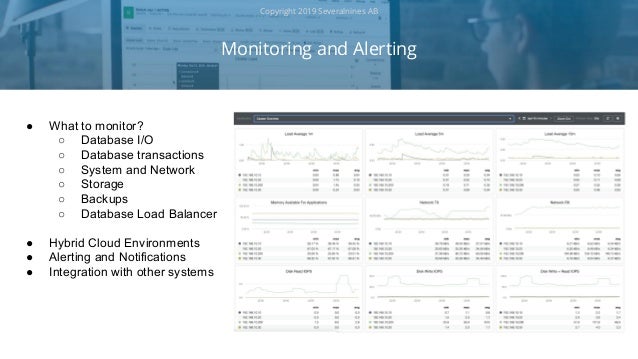

Monitoring and Alerting
● What to monitor?
○ Database I/O
○ Database transactions
○ System and Network
○ Storage
○ Backups
○ Database Load Balancer
● Hybrid Cloud Environments
● Alerting and Notifications
● Integration with other systems

Monitoring and Alerting
● Database Monitoring Tools:
○ PMM (Percona Monitoring and Management
○ BindPlane
○ VividCortex
○ SQL Diagnostic Manager/MONyog
○ ClusterControl
● Other popular tools:
○ Prometheus
○ Graphite
○ TICK Stack From InfluxData
○ OpenTSDB
○ ELK or Elastic Stack

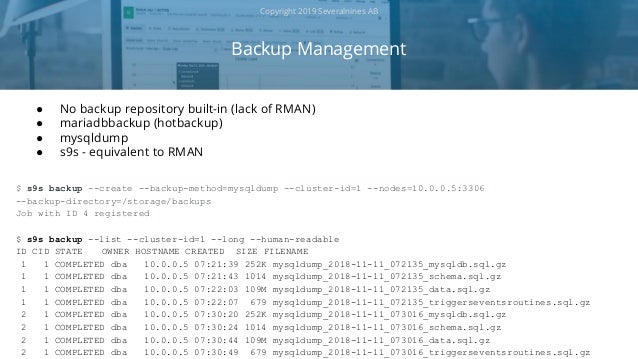

Backup Management
● No backup repository built-in (lack of RMAN)
● mariadbbackup (hotbackup)
● mysqldump
● s9s - equivalent to RMAN
$ s9s backup --create --backup-method=mysqldump --cluster-id=1 --nodes=10.0.0.5:3306
--backup-directory=/storage/backups
Job with ID 4 registered
$ s9s backup --list --cluster-id=1 --long --human-readable
ID CID STATE OWNER HOSTNAME CREATED SIZE FILENAME
1 1 COMPLETED dba 10.0.0.5 07:21:39 252K mysqldump_2018-11-11_072135_mysqldb.sql.gz
1 1 COMPLETED dba 10.0.0.5 07:21:43 1014 mysqldump_2018-11-11_072135_schema.sql.gz
1 1 COMPLETED dba 10.0.0.5 07:22:03 109M mysqldump_2018-11-11_072135_data.sql.gz
1 1 COMPLETED dba 10.0.0.5 07:22:07 679 mysqldump_2018-11-11_072135_triggerseventsroutines.sql.gz
2 1 COMPLETED dba 10.0.0.5 07:30:20 252K mysqldump_2018-11-11_073016_mysqldb.sql.gz
2 1 COMPLETED dba 10.0.0.5 07:30:24 1014 mysqldump_2018-11-11_073016_schema.sql.gz
2 1 COMPLETED dba 10.0.0.5 07:30:44 109M mysqldump_2018-11-11_073016_data.sql.gz
2 1 COMPLETED dba 10.0.0.5 07:30:49 679 mysqldump_2018-11-11_073016_triggerseventsroutines.sql.gz

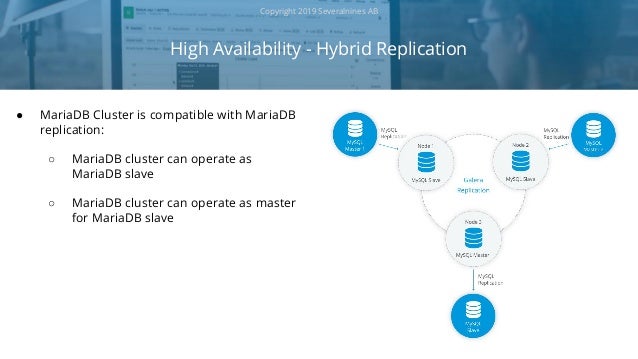

High Availability - Hybrid Replication
● MariaDB Cluster is compatible with MariaDB
replication:
○ MariaDB cluster can operate as
MariaDB slave
○ MariaDB cluster can operate as master
for MariaDB slave

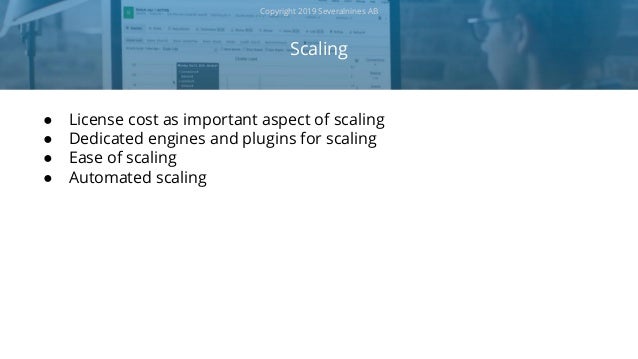

Scaling
● License cost as important aspect of scaling
● Dedicated engines and plugins for scaling
● Ease of scaling
● Automated scaling

Staff training
● We Oracle DBA’s love certification
● MariaDB provides a certification exam for DBAs to prove their expertise
○ Proctored and administered by MariaDB
○ Tests DBAs on a variety of tasks, including basic configuration, security operations, backup
and restore, and performance tuning.

Operational Checklist
● Are queues building up?
● Slow queries?
● Tune queries in the Query Monitor.
● Are backups working?
● Reporting queries?
● Latency issues?
● Random node restarts and failures?
● Upgrade time?
● Did you test new code before putting in production?

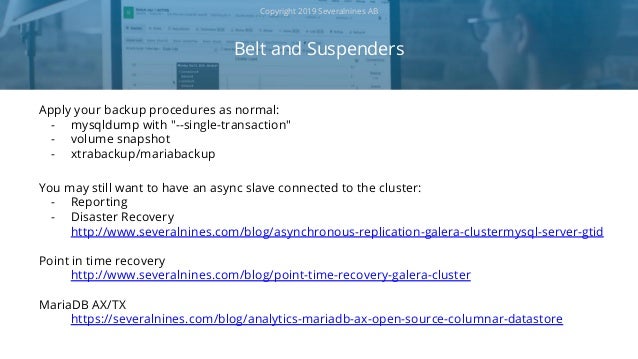

Belt and Suspenders
Apply your backup procedures as normal:
- mysqldump with "--single-transaction"
- volume snapshot
- xtrabackup/mariabackup
You may still want to have an async slave connected to the cluster:
- Reporting
- Disaster Recovery
http://www.severalnines.com/blog/asynchronous-replication-galera-clustermysql-server-gtid
Point in time recovery
http://www.severalnines.com/blog/point-time-recovery-galera-cluster
MariaDB AX/TX
https://severalnines.com/blog/analytics-mariadb-ax-open-source-columnar-datastore

Poll 3
Have you any plans to migrate from Oracle database to an Open Source database?
● Yes, within the next 6 months
● Yes, within 1 year
● Yes, within 2 years
● I do not plan to migrate
● I do not have Oracle database

Q & A

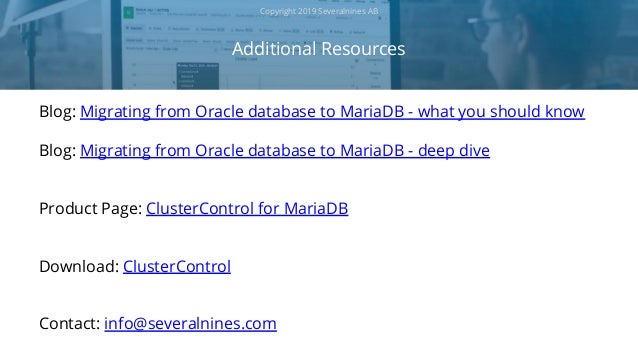

Additional Resources
Blog: Migrating from Oracle database to MariaDB - what you should know
Blog: Migrating from Oracle database to MariaDB - deep dive
Product Page: ClusterControl for MariaDB
Download: ClusterControl
Contact: info@severalnines.com

Additional Resources

Webinar slides: How to Migrate from Oracle DB to MariaDB

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Webinar slides: How to Migrate from Oracle DB to MariaDB

Similar to Webinar slides: How to Migrate from Oracle DB to MariaDB (20)

More from Severalnines

More from Severalnines (20)

Recently uploaded

Recently uploaded (20)

Webinar slides: How to Migrate from Oracle DB to MariaDB
