Multi Stage Docker Build

Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |
Prasenjit Sarkar
Oracle Cloud Infrastructure
July, 2019
Multi-Stage Docker Build for effective
Containers – Why & How

$ whoami
Product Manager
@oracle.com
Technology Stack:
#Docker #Python #K8S
#Istio #Jenkins
#OpenFaaS
Twitter @stretchcloud

Multi_Stage_Build == Layers

Docker Images and Layers

Why is it so important?
 Adding more layers will increase the image size.
 Large images not only takes time to build, but also push
and pull from a Docker registry.
 If you build a much smaller image, then it will not only
reduce the build time but also reduce the time to deploy,
either standalone or in Orchestrated Environment.
 Small_Image == Small_Attacker_Surface.

Docker Multi-Stage Huh?
 Dockerfiles now allow multiple FROM statements.
 Each FROM statement marks the start of a new build
context (accessed by number or name).
 Each new context (FROM) is like starting a new Dockerfile.
 You then copy what you want from any previous context into
the new context. Whichever is the last FROM statement is
the final base image

Multi-stage builds vs Builder
Pattern
 Multi-stage builds (current): Separate stages in a single
Dockerfile. You can copy the contexts from one stage to the
other. The resultant is a smaller final image.
 Builder Pattern: Build, then copy artifacts over. This results in
a smaller image, but it’s a little more complicated. End result
is often something like Dockerfile.build and Dockerfile.final

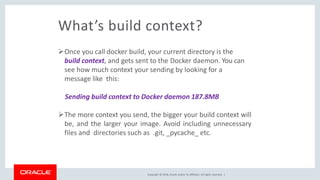

What’s build context?
Once you call docker build, your current directory is the
build context, and gets sent to the Docker daemon. You can
see how much context your sending by looking for a
message like this:
Sending build context to Docker daemon 187.8MB
The more context you send, the bigger your build context will
be, and the larger your image. Avoid including unnecessary
files and directories such as .git, _pycache_ etc.

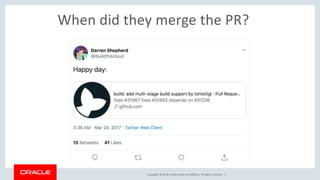

When did they merge the PR?

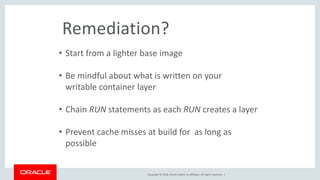

Remediation?
• Start from a lighter base image
• Be mindful about what is written on your
writable container layer
• Chain RUN statements as each RUN creates a layer
• Prevent cache misses at build for as long as
possible

Docker build
 Dockerfile is a series of instructions for building
an image.
 After each docker build command, you will
get a SINGLE image layer.
 Complete docker build execution generates
SINGLE Docker image.

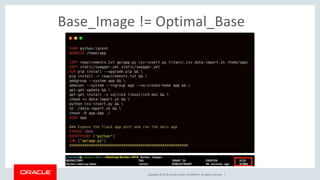

Base_Image != Optimal_Base

Choose the Right Image

Choose the Right Distro

But, wait. What about Full OS?
There are multiple reasons, why you
choose a Full OS
 Security
 Compliance
 Developer Friendly

Problem with Docker Build*
Image we want Image we build
* before Docker 17.05
application

Docker multi-stage build
Benefits
 Single Dockerfile
 One syntax to learn
 Create multiple
stages

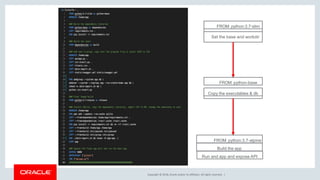

Set the base and workdir
FROM: python:3.7-slim
Copy the executables & db
FROM: python-base
Build the app
FROM: python:3.7-alpine
Run and app and expose API

Multiple_RUN == Multiple_Layers

USER_Switching == More_Layers

Builder Flags you should know about
There are few flags that affect your final image size when
you’re building your image.
--cache-from (another image to cache from)
--compress (compress build context* with gzip)
--no-cache (ignore the cache, more on that in a sec)
--squash (squash new layers into a single layer)**
* don’t know what build context is? I didn’t either. We’ll talk
about it.
**this is still experimental in API 1.25+

Multi Stage Docker Build
