This document discusses transforming XML data to a Java object using MuleSoft's DataWeave transformation language. The transformation flow reads an XML file containing user data, uses DataWeave to map the name and lastName fields to a User object's firstName and lastName properties, and outputs the result as a Java object. The User class is defined with getters and setters for firstName and lastName. DataWeave allows defining the target type as a User object which the transformed payload is cast to.

1. Data Weave Transformation
of MuleSoft ESB via
AnyPointStudio
 Transformation from XML
to Java
Transformation Flow

2. We need to transform from XML to Java with the help of Data weave
Language
Required things:
 Anypoint Studio
 xml input file.
 Mule ESB Runtime 3.7
Sample I/P XML file
<user>
<name>Srikanth</name>
<lastName>vlr</lastName>
</user>

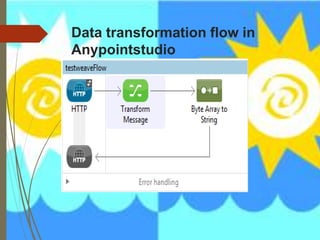

3. Data transformation flow in
Anypointstudio

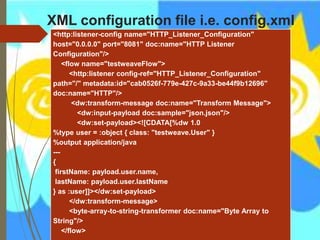

4. XML configuration file i.e. config.xml
<http:listener-config name="HTTP_Listener_Configuration"
host="0.0.0.0" port="8081" doc:name="HTTP Listener
Configuration"/>
<flow name="testweaveFlow">
<http:listener config-ref="HTTP_Listener_Configuration"
path="/" metadata:id="cab0526f-779e-427c-9a33-be44f9b12696"
doc:name="HTTP"/>
<dw:transform-message doc:name="Transform Message">
<dw:input-payload doc:sample="json.json"/>
<dw:set-payload><![CDATA[%dw 1.0
%type user = :object { class: "testweave.User" }
%output application/java
---
{
firstName: payload.user.name,
lastName: payload.user.lastName
} as :user]]></dw:set-payload>
</dw:transform-message>
<byte-array-to-string-transformer doc:name="Byte Array to
String"/>
</flow>

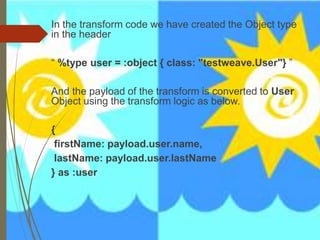

5. In the transform code we have created the Object type
in the header
“ %type user = :object { class: "testweave.User"} ”
And the payload of the transform is converted to User
Object using the transform logic as below.
{
firstName: payload.user.name,
lastName: payload.user.lastName
} as :user

6. Transformation-DataWeave

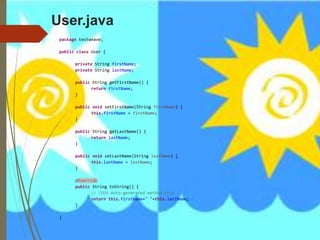

7. User.java
package testweave;
public class User {
private String firstName;
private String lastName;
public String getFirstName() {
return firstName;
}
public void setFirstName(String firstName) {
this.firstName = firstName;
}
public String getLastName() {
return lastName;
}
public void setLastName(String lastName) {
this.lastName = lastName;
}
@Override
public String toString() {
// TODO Auto-generated method stub
return this.firstName+" "+this.lastName;
}
}
