This document describes how to use DataWeave in Mule ESB to convert an XML payload to a Java object. An XML file with user data is the input payload. In the Mule flow, DataWeave is used to transform the XML payload into a User Java object by mapping the name and lastName fields to the firstName and lastName properties of the User class. The User class is defined with getters, setters, and a toString method for the firstName and lastName properties. This allows the XML payload to be converted to a Java object for further processing in Mule or other Java applications.

1. Mule ESB: Data Weave
XML – Java Conversion

2. XML – Java Conversion in Dataweave Mule
Pre-requisites:
 Anypoint Studio
 Mule ESB Runtime 3.7
 xml input file.
Input XML File
<user>
<name>Max</name>
<lastName>Mule</lastName>
</user>

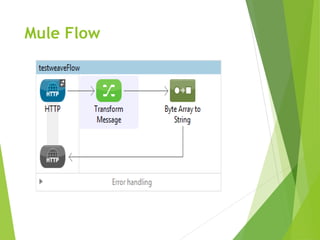

3. Mule Flow

4. Config.xml
<http:listener-config name="HTTP_Listener_Configuration"
host="0.0.0.0" port="8081" doc:name="HTTP Listener
Configuration"/>
<flow name="testweaveFlow">
<http:listener config-ref="HTTP_Listener_Configuration"
path="/" metadata:id="cab0526f-779e-427c-9a33-be44f9b12696"
doc:name="HTTP"/>
<dw:transform-message doc:name="Transform Message">
<dw:input-payload doc:sample="json.json"/>
<dw:set-payload><![CDATA[%dw 1.0
%type user = :object { class: "testweave.User" }
%output application/java
---
{
firstName: payload.user.name,
lastName: payload.user.lastName
} as :user]]></dw:set-payload>
</dw:transform-message>
<byte-array-to-string-transformer doc:name="Byte Array to
String"/>
</flow>

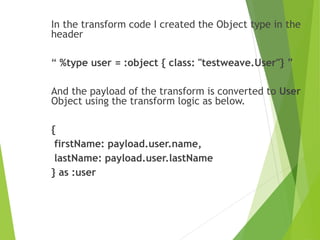

5. In the transform code I created the Object type in the
header
“ %type user = :object { class: "testweave.User"} ”
And the payload of the transform is converted to User
Object using the transform logic as below.
{
firstName: payload.user.name,
lastName: payload.user.lastName
} as :user

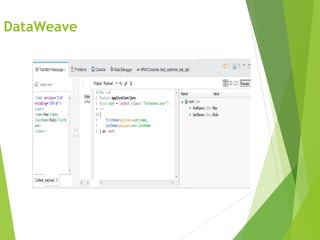

6. DataWeave

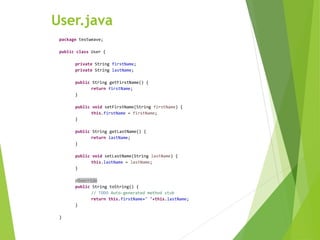

7. User.java
package testweave;
public class User {
private String firstName;
private String lastName;
public String getFirstName() {
return firstName;
}
public void setFirstName(String firstName) {
this.firstName = firstName;
}
public String getLastName() {
return lastName;
}
public void setLastName(String lastName) {
this.lastName = lastName;
}
@Override
public String toString() {
// TODO Auto-generated method stub
return this.firstName+" "+this.lastName;
}
}

8. Thank Q
