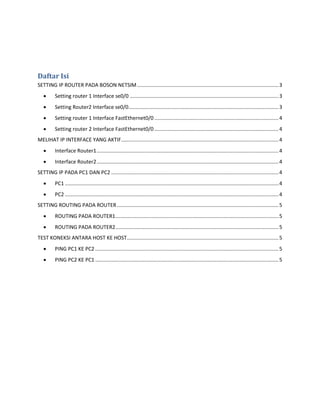

2. Daftar Isi
SETTING IP ROUTER PADA BOSON NETSIM .................................................................................................. 3
 Setting router 1 Interface se0/0 ....................................................................................................... 3
 Setting Router2 Interface se0/0 ........................................................................................................ 3
 Setting router 1 Interface FastEthernet0/0 ...................................................................................... 4
 Setting router 2 Interface FastEthernet0/0 ...................................................................................... 4
MELIHAT IP INTERFACE YANG AKTIF ............................................................................................................. 4
 Interface Router1 .............................................................................................................................. 4
 Interface Router2 .............................................................................................................................. 4
SETTING IP PADA PC1 DAN PC2 .................................................................................................................... 4
 PC1 .................................................................................................................................................... 4
 PC2 .................................................................................................................................................... 4
SETTING ROUTING PADA ROUTER ................................................................................................................ 5
 ROUTING PADA ROUTER1 ................................................................................................................. 5
 ROUTING PADA ROUTER2 ................................................................................................................. 5
TEST KONEKSI ANTARA HOST KE HOST ......................................................................................................... 5
 PING PC1 KE PC2 ............................................................................................................................... 5
 PING PC2 KE PC1 ............................................................................................................................... 5

3. Router1
Port: 1. Serial0/0 ip : 10.10.10.1/8
2. FastEthernet0/0 ip : 147.147.147.1/16
Router2
Port : 1. Serial0/0 ip : 10.10.10.1/8
2. FastEthernet 0/0 ip : 193.193.193.1/24
SETTING IP ROUTER PADA BOSON NETSIM
1. Buat suatu topology seperti gambar dibawah ini
Setting ip pada jaringan WAN antara Router1 dengan Router2
Setting router 1 Interface se0/0
 Router>enable
 Router#config
 Router(config)#interface se0/0
 Router(config-if)#ip address 10.10.10.1 255.0.0.0
 Router(config-if)#clock rate 64000
 Router(config-if)#no shutdown
 Router(config-if)#end
 Router#
Setting Router2 Interface se0/0
 Router>enable
 Router#config
 Router(config)#interface se0/0
 Router(config-if)#ip address 10.10.10.2 255.0.0.0
 Router(config-if)#clock rate 64000
 Router(config-if)#no shutdown
 Router(config-if)#end
 Router#

4. Setting router 1 Interface FastEthernet0/0
 Router>enable
 Router#config
 Router(config)#interface fa0/0
 Router(config-if)#ip address 147.147.147.1 255.255.0.0
 Router(config-if)#no shutdown
 Router(config-if)#end
 Router#
Setting router 2 Interface FastEthernet0/0
 Router>enable
 Router#config
 Router(config)#interface fa0/0
 Router(config-if)#ip address 193.193.193.1 255.255.255.0
 Router(config-if)#no shutdown
 Router(config-if)#end
 Router#
MELIHAT IP INTERFACE YANG AKTIF
Interface Router1
 Router#show ip interface brief
Jika status sudah UP itu tandanya interface sudah aktif
Interface Router2
 Router#show ip interface brief
SETTING IP PADA PC1 DAN PC2
PC1
 IP PC1
/ip digunakan untuk memberikan IP pada PC1
/dg untuk memberikan Default Gateway
PC2

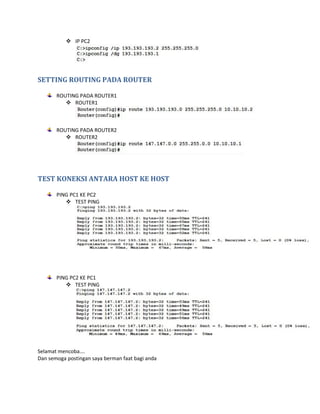

5.  IP PC2
SETTING ROUTING PADA ROUTER
ROUTING PADA ROUTER1
 ROUTER1
ROUTING PADA ROUTER2
 ROUTER2
TEST KONEKSI ANTARA HOST KE HOST
PING PC1 KE PC2
 TEST PING
PING PC2 KE PC1
 TEST PING
