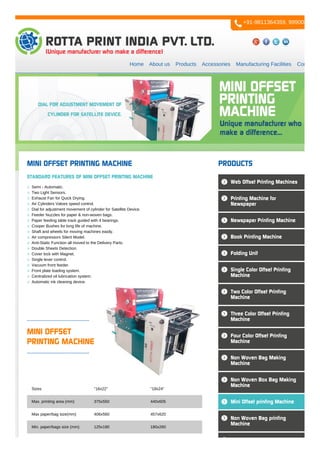

MINI OFFSET
PRINTING MACHINE
Sizes "16x22" "18x24"
Max. printing area (mm) 375x550 440x605
Max paper/bag size(mm) 406x560 457x620
Min. paper/bags size (mm) 125x180 180x260
MINI OFFSET PRINTING MACHINE
STANDARD FEATURES OF MINI OFFSET PRINTING MACHINE
Semi - Automatic.
Two Light Sensors.
Exhaust Fan for Quick Drying.
Air Cylinders Valves speed control.
Dial for adjustment movement of cylinder for Satellite Device.
Feeder Nuzzles for paper & non-woven bags.
Paper feeding table track guided with 4 bearings.
Cooper Bushes for long life of machine.
Shaft and wheels for moving machines easily.
Air compressors Silent Model.
Anti-Static Function all moved to the Delivery Parts.
Double Sheets Detection.
Cover lock with Magnet.
Single lever control.
Vacuum front feeder.
Front plate loading system.
Centralized oil lubrication system.
Automatic ink cleaning device.
PRODUCTS
Web Offset Printing Machines
Printing Machine for
Newspaper
Newspaper Printing Machine
Book Printing Machine
Folding Unit
Single Color Offset Printing
Machine
Two Color Offset Printing
Machine
Three Color Offset Printing
Machine
Four Color Offset Printing
Machine
Non Woven Bag Making
Machine
Non Woven Box Bag Making
Machine
Mini Offset printing Machine
Non Woven Bag printing
Machine
+91-9811364359, 9990084777

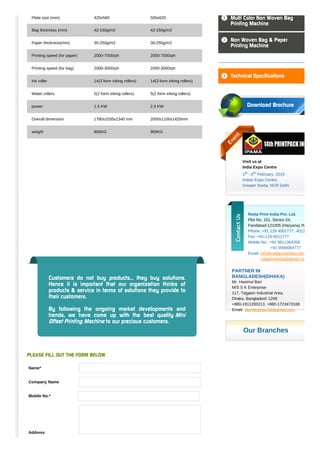

2. Plate size (mm) 420x560 505x620
Bag thickness (mm) 42-150g/m2 42-150g/m2
Paper thickness(mm) 30-250g/m2 30-250g/m2
Printing speed (for paper) 2000-7000rph 2000-7000rph
Printing speed (for bag) 2000-3000rph 2000-3000rph
Ink roller 14(3 form inking rollers) 14(3 form inking rollers)
Water rollers 5(2 form inking rollers) 5(2 form inking rollers)
power 1.5 KW 2.0 KW
Overall dimension 1780x1035x1340 mm 2000x1100x1420mm
weight 800KG 900KG
Customers do not buy products... they buy solutions.
Hence it is important that our organization thinks of
products & service in terms of solutions they provide to
their customers.
By following the ongoing market developments and
trends, we have come up with the best quality Mini
Offset Printing Machine to our precious customers.
