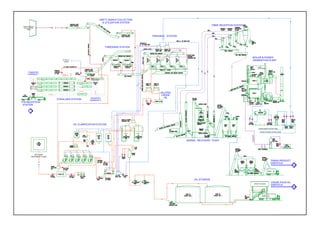

This document outlines the various stations and processes involved in palm oil production, including pressing, threshing, sterilization, oil clarification, transfer between carriages, empty bunch collection, crude oil storage, fiber reception, and an effluent treatment plant. The diagram labels each station and shows the flow of materials between different parts of the palm oil production process.

1. FFB RECEPTION
PRESSING STATION
THRESHING STATION
STATION
STERILIZER STATION
OIL CLARIFICATION STATION
RAMU OIL
TRANSFER
CARRIAGE 1
TRANSFER
CARRIAGE 2
EMPTY BUNCH COLLECTION
DILUTED
CRUDE
TO FIELD /
DRAIN
& UTILIZATION SYSTEM
OIL STORAGE
DISPATCH
CRUDE PALM OILDISPATCH SHED
DISPATCH
FINISH PRODUCT
FIBRE RECEPTION STATION
PLATFORM
FUEL
TOBOILER
FROM DEMIN WATER TANK
FROM FILTERED WATER TANK
BOILER & POWER
GENERATION PLANT
KERNEL RECOVERY PLANT
AREA
COLLECTION
EMPTY BUNCH
EFFLUENT
TREATMENT PLANT
RAMU OIL
OIL
Design by Wong Poh Weng
Drawn by Ibrahim Yusoff
