10. Micro mouse project
• The IEEE Micro mouse competition is an event in which small, mice like robots
• Solve in this case a 16 x 16 maze. The robots are completely autonomous and must be able to
• Find their way through the maze from a starting point at the corner of the maze. The objective
• Of this competition is for the Micro mouse to navigate on its own ability through sensors and
• Programing that the members of its team implicated. The Micro mouse has to reach the
• Centralized finish line in 10 minutes or less.
11. Micro mouse project

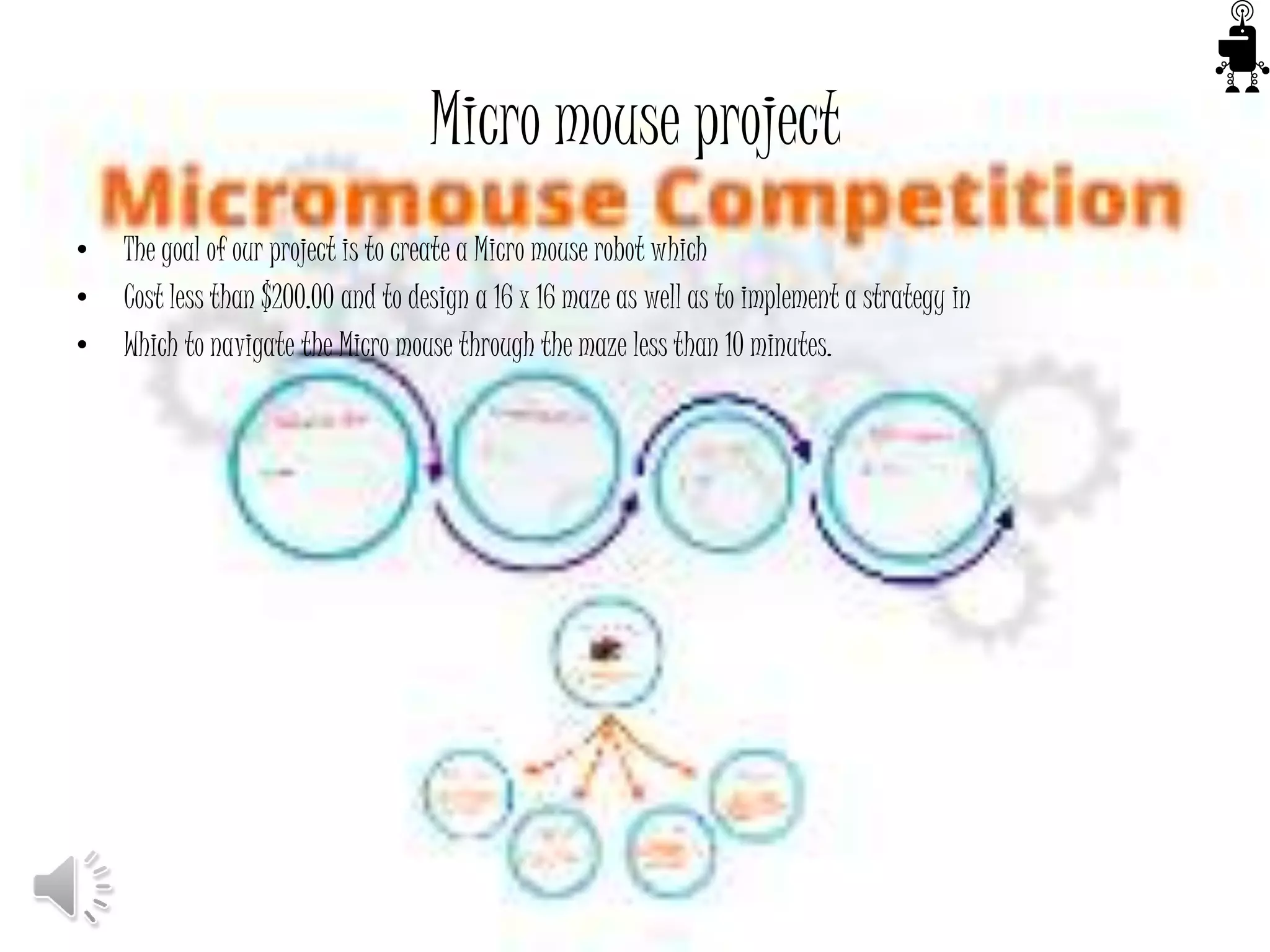

• The goal of our project is to create a Micro mouse robot which
• Cost less than $200.00 and to design a 16 x 16 maze as well as to implement a strategy in
• Which to navigate the Micro mouse through the maze less than 10 minutes.
12. Micro mouse project

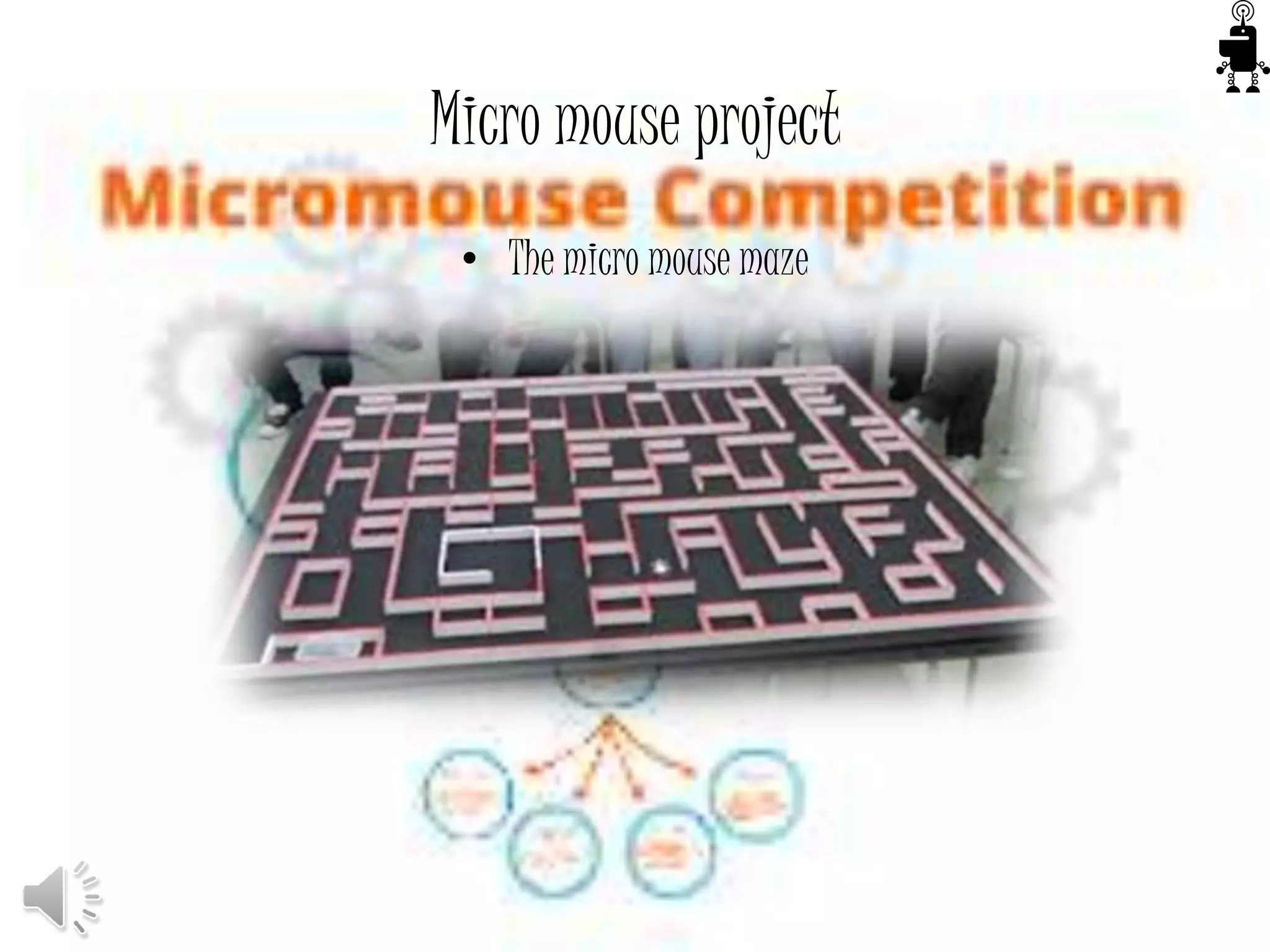

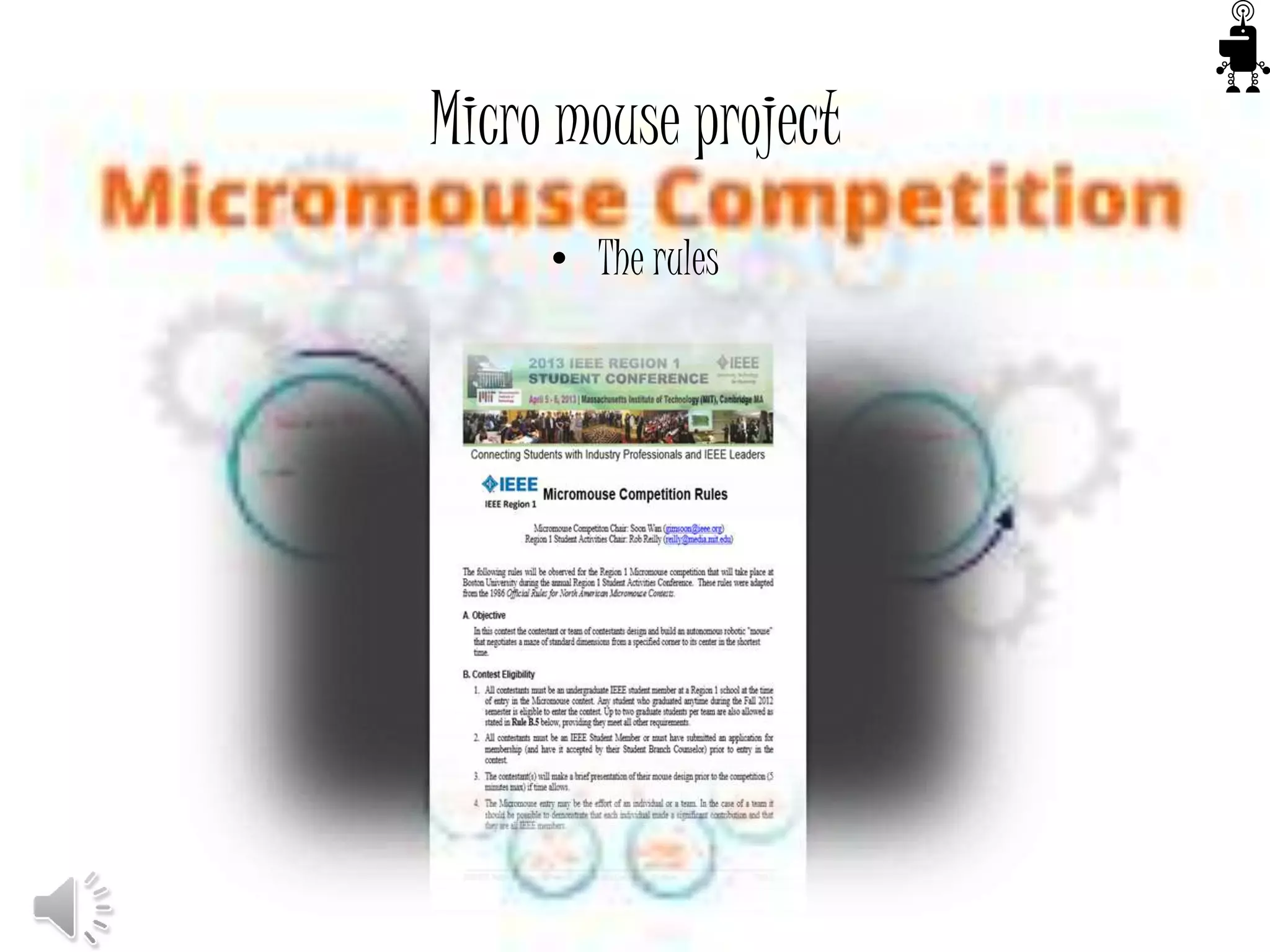

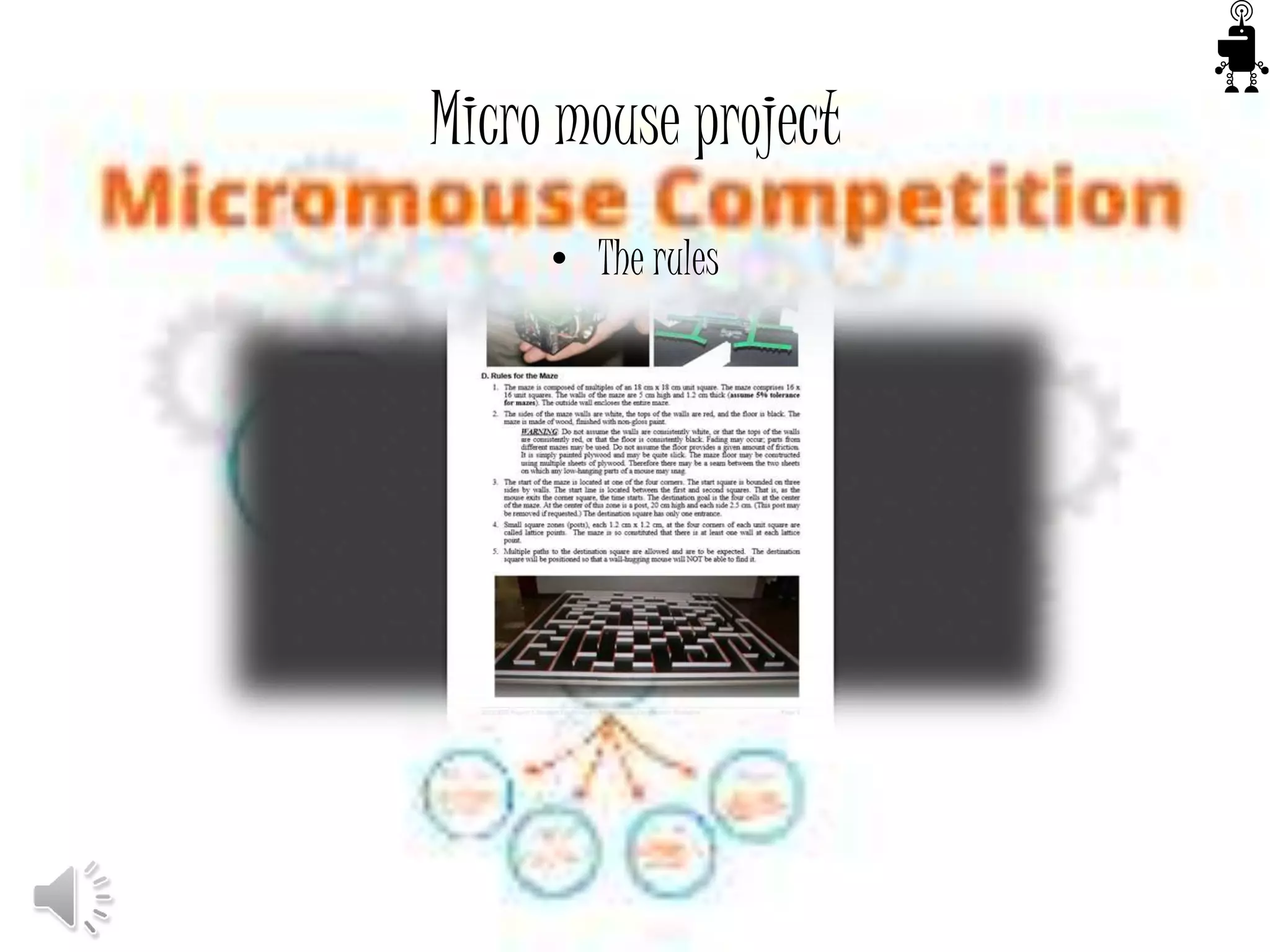

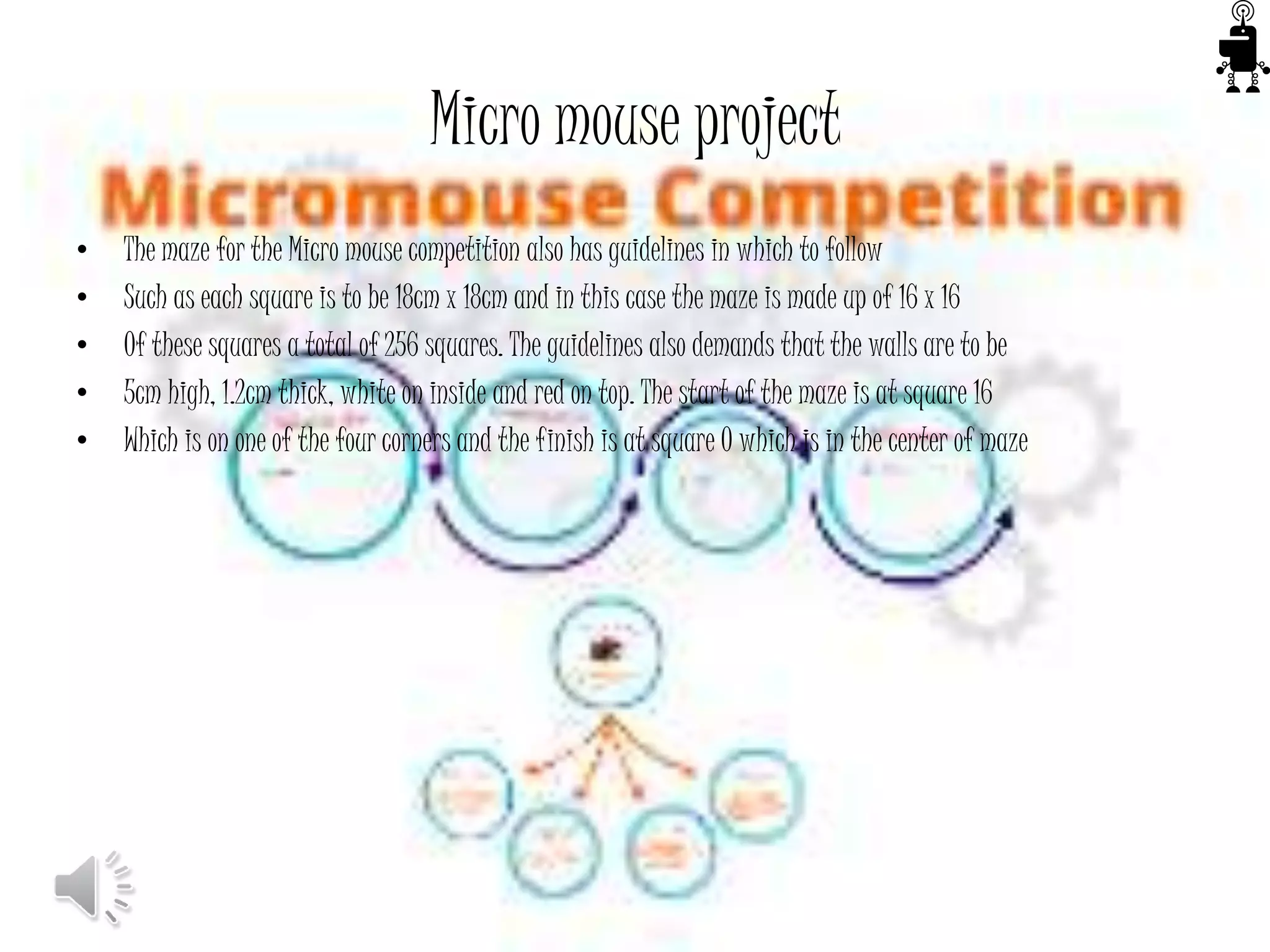

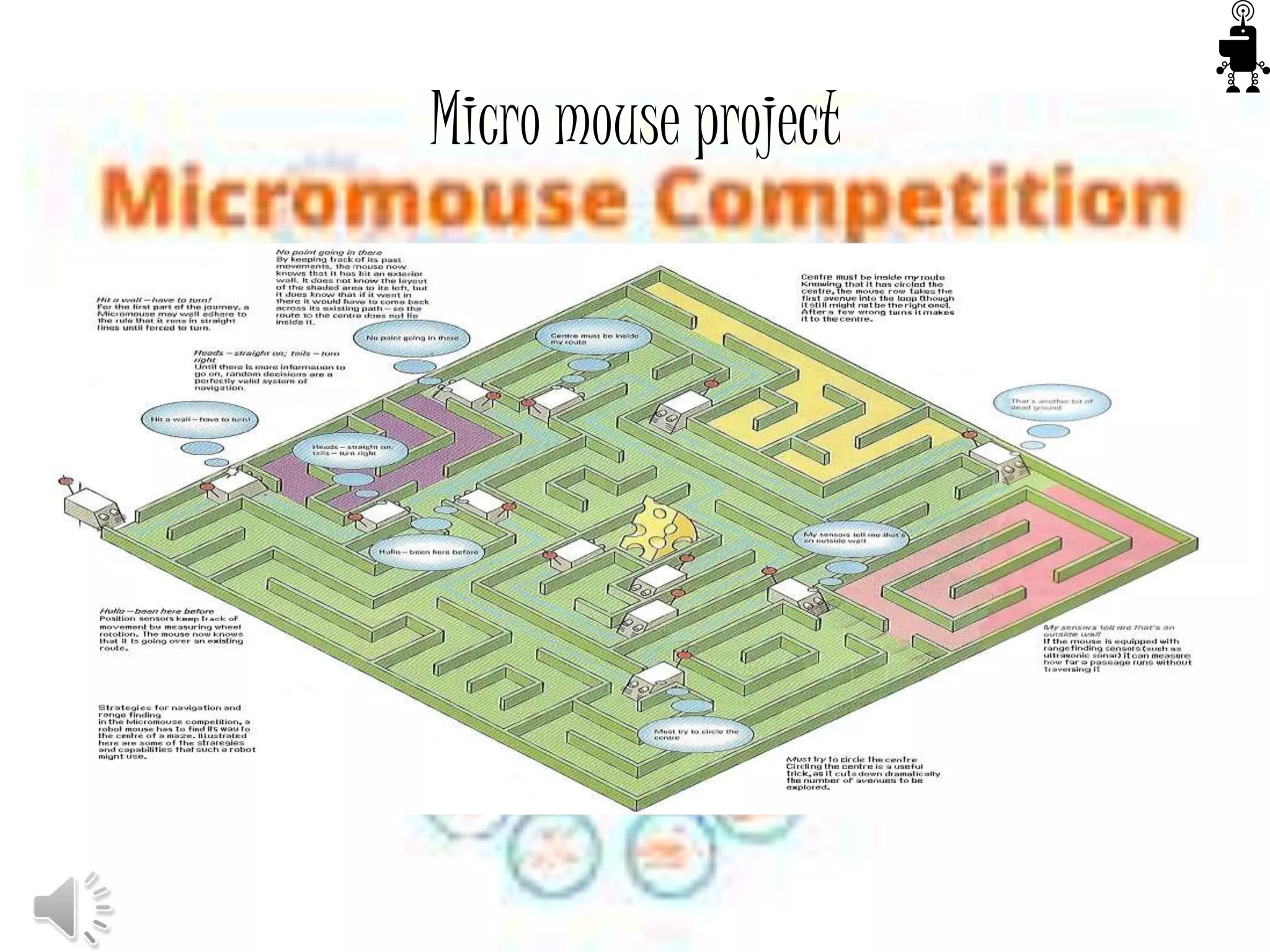

• The maze for the Micro mouse competition also has guidelines in which to follow
• Such as each square is to be 18cm x 18cm and in this case the maze is made up of 16 x 16
• Of these squares a total of 256 squares. The guidelines also demands that the walls are to be
• 5cm high, 1.2cm thick, white on inside and red on top. The start of the maze is at square 16
• Which is on one of the four corners and the finish is at square 0 which is in the center of maze
13. Micro mouse project

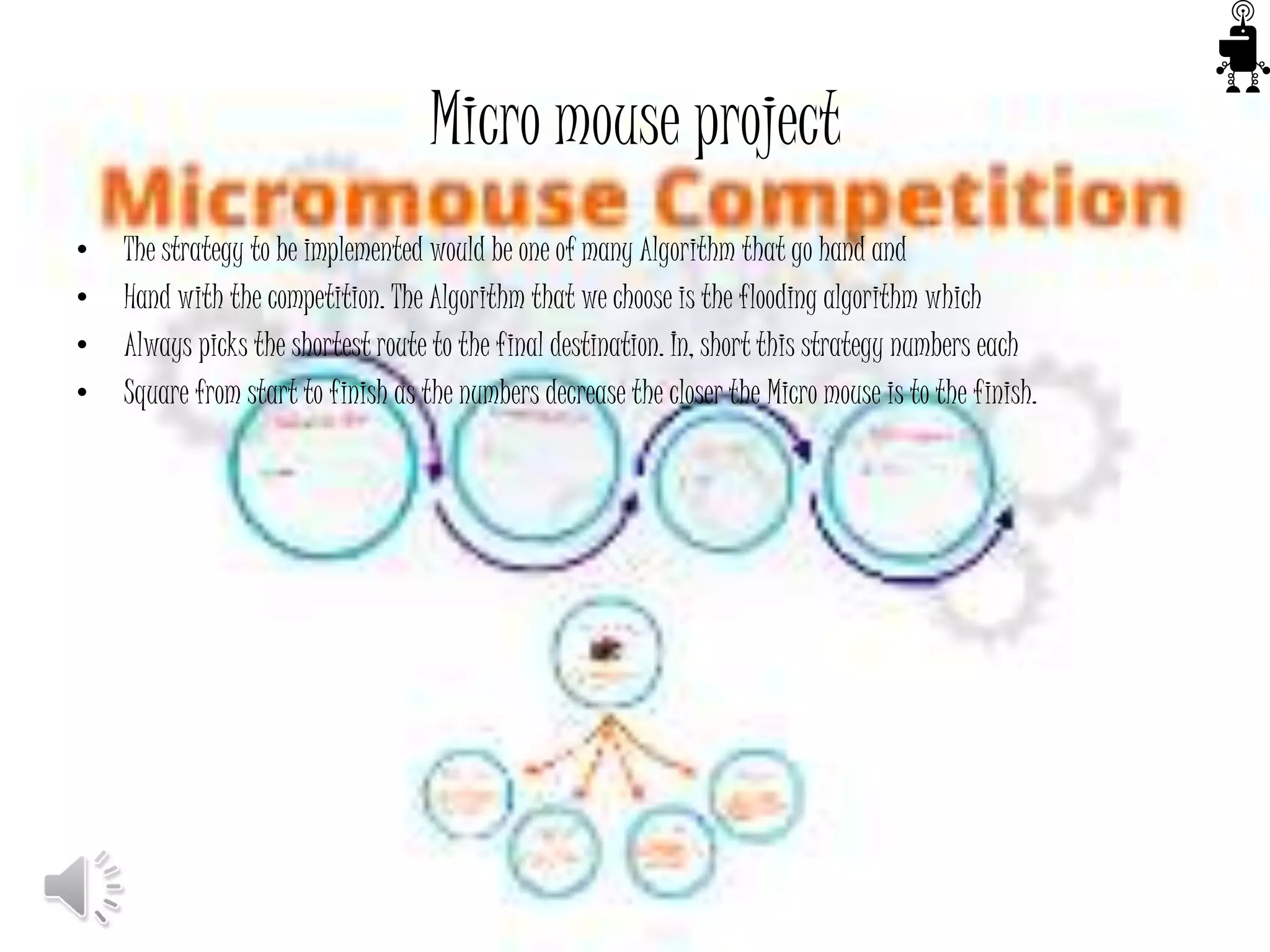

• The strategy to be implemented would be one of many Algorithm that go hand and
• Hand with the competition. The Algorithm that we choose is the flooding algorithm which
• Always picks the shortest route to the final destination. In, short this strategy numbers each
• Square from start to finish as the numbers decrease the closer the Micro mouse is to the finish.
