Check

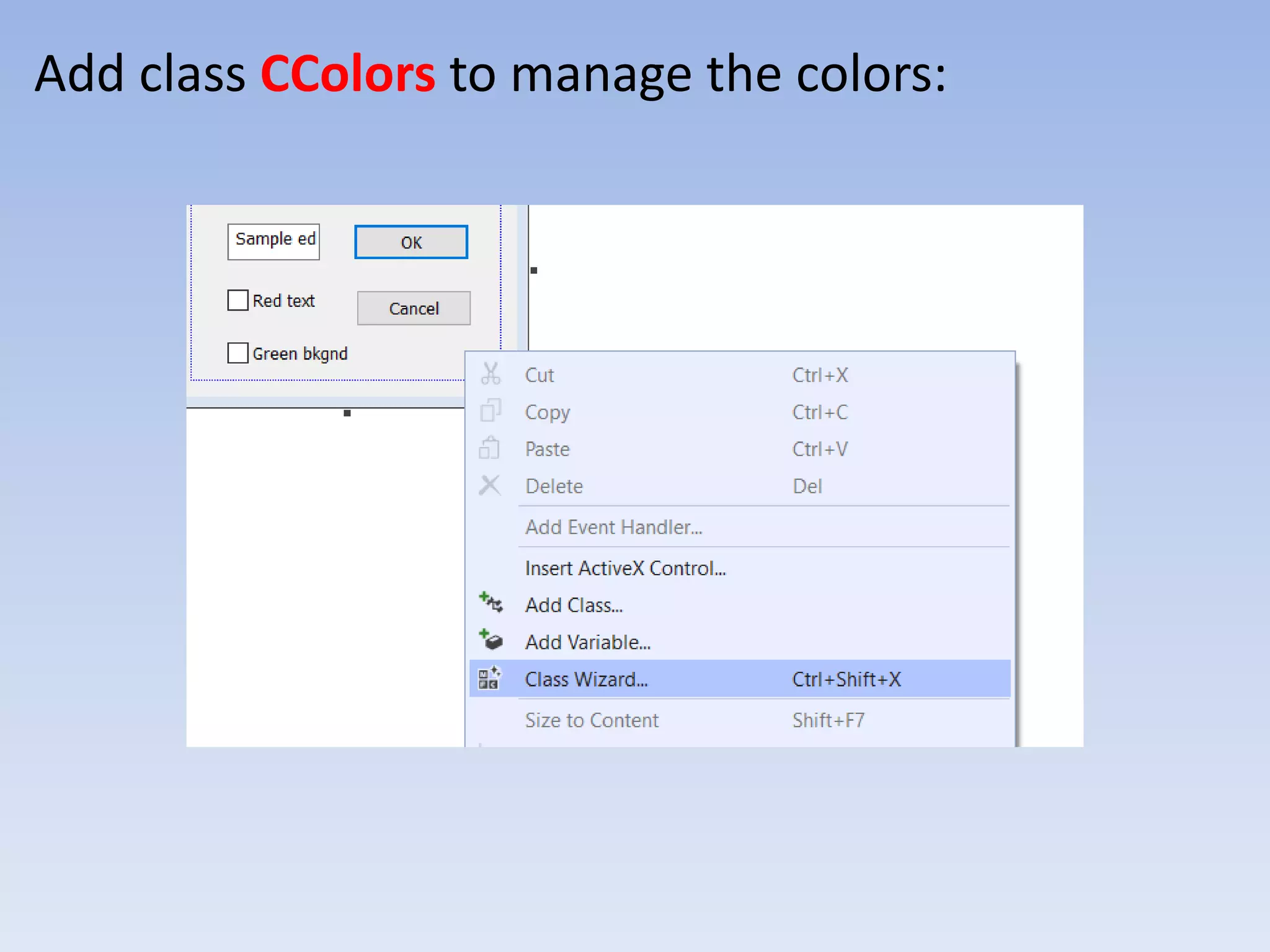

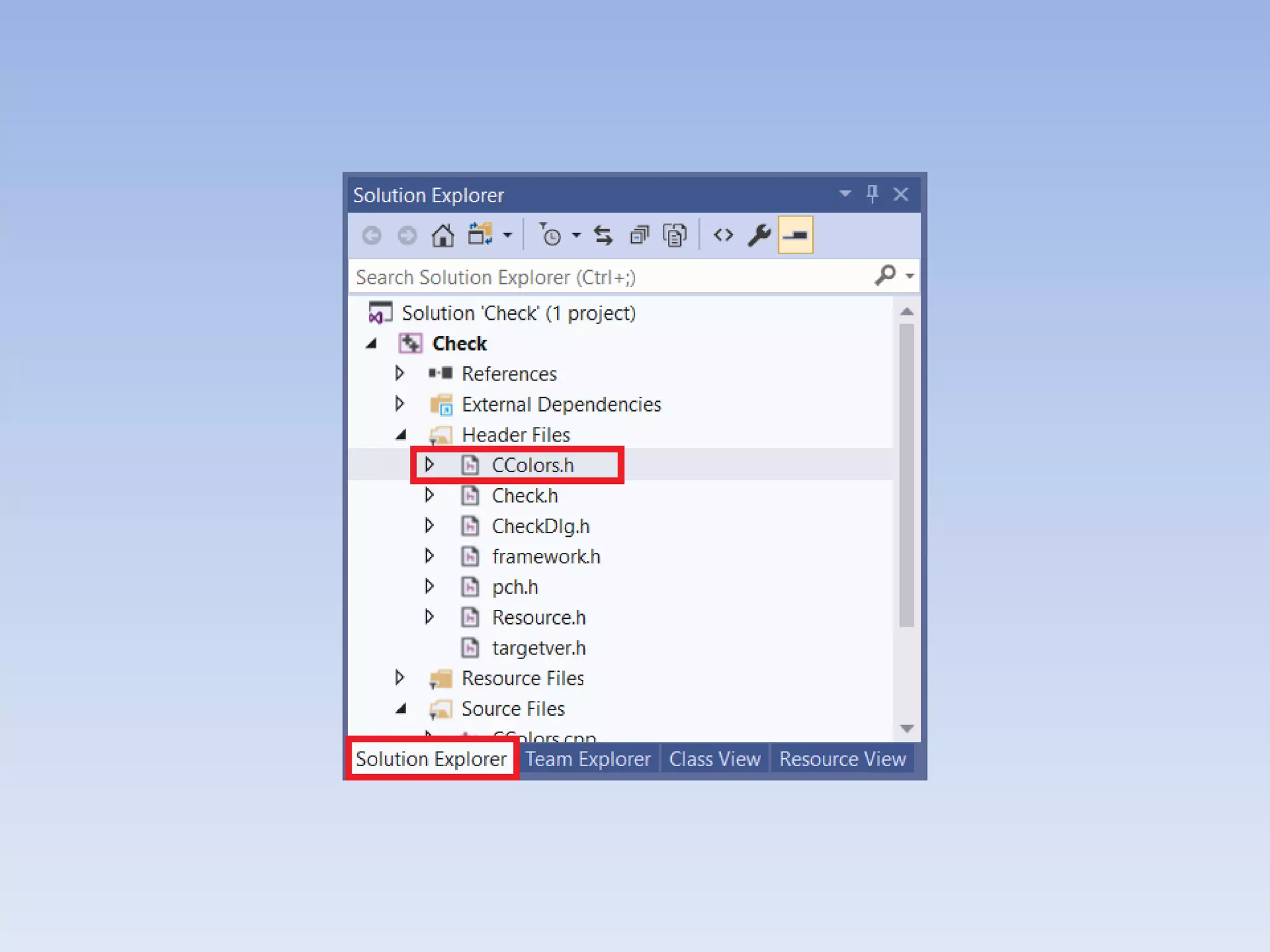

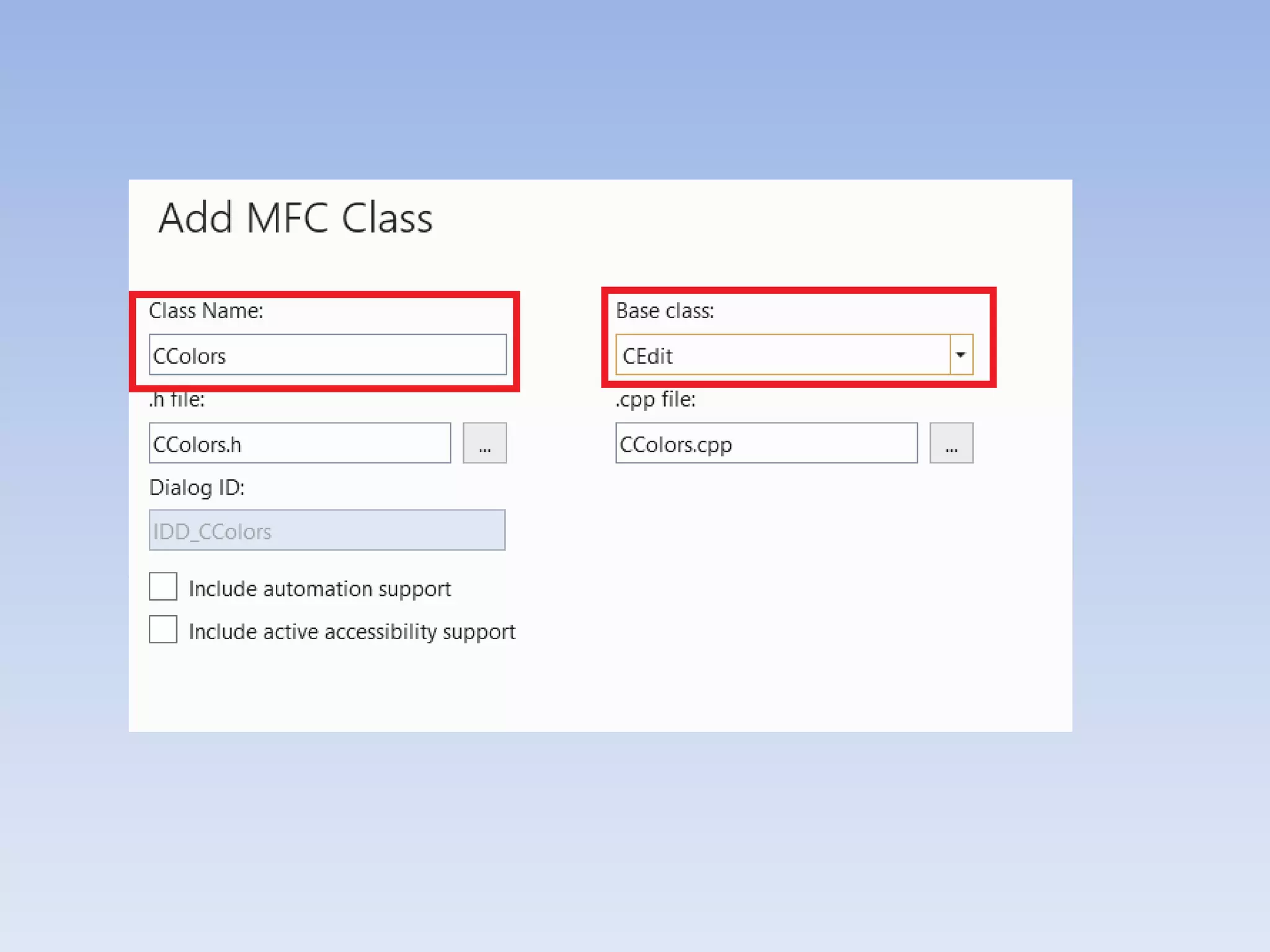

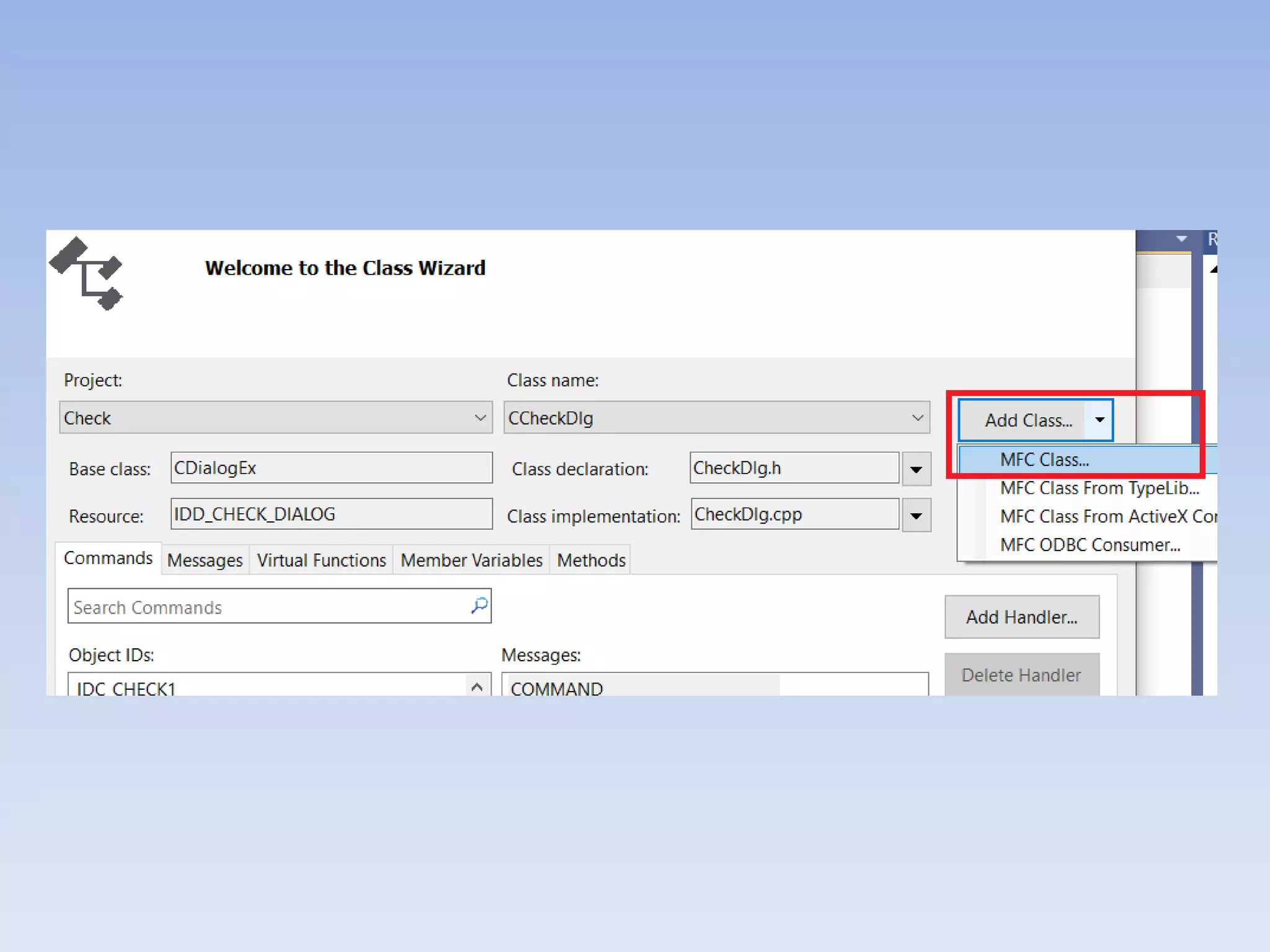

Add class CColors to manage the colors:
Declare 2 variables in CColors.h to manage the colors:
…………………….
public:
COLORREF m_clrText;
COLORREF m_clrBkgnd;
CBrush m_brBkgnd;

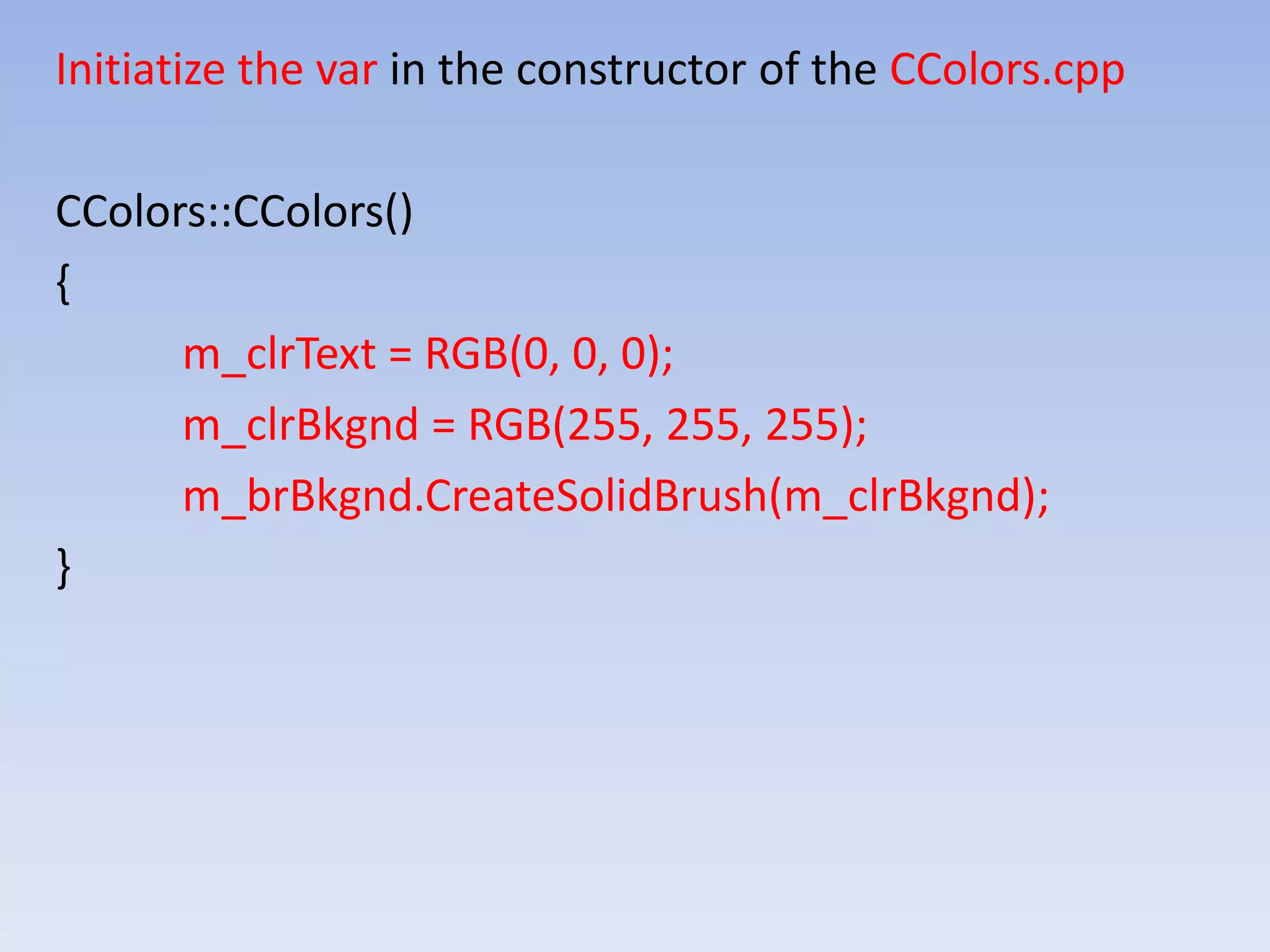

Initiatize the var in the constructor of the CColors.cpp
CColors::CColors()
{
m_clrText = RGB(0, 0, 0);
m_clrBkgnd = RGB(255, 255, 255);
m_brBkgnd.CreateSolidBrush(m_clrBkgnd);
}

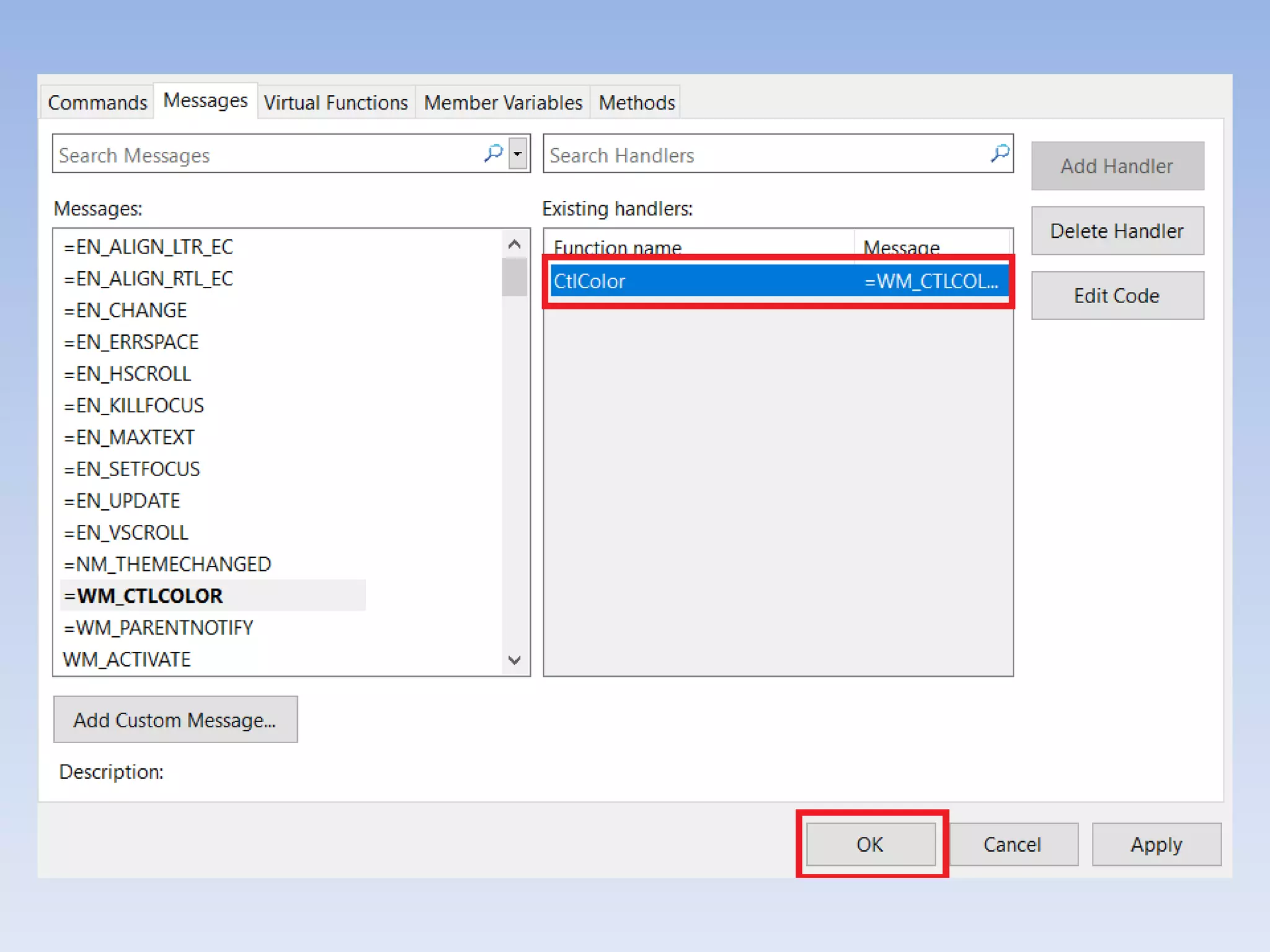

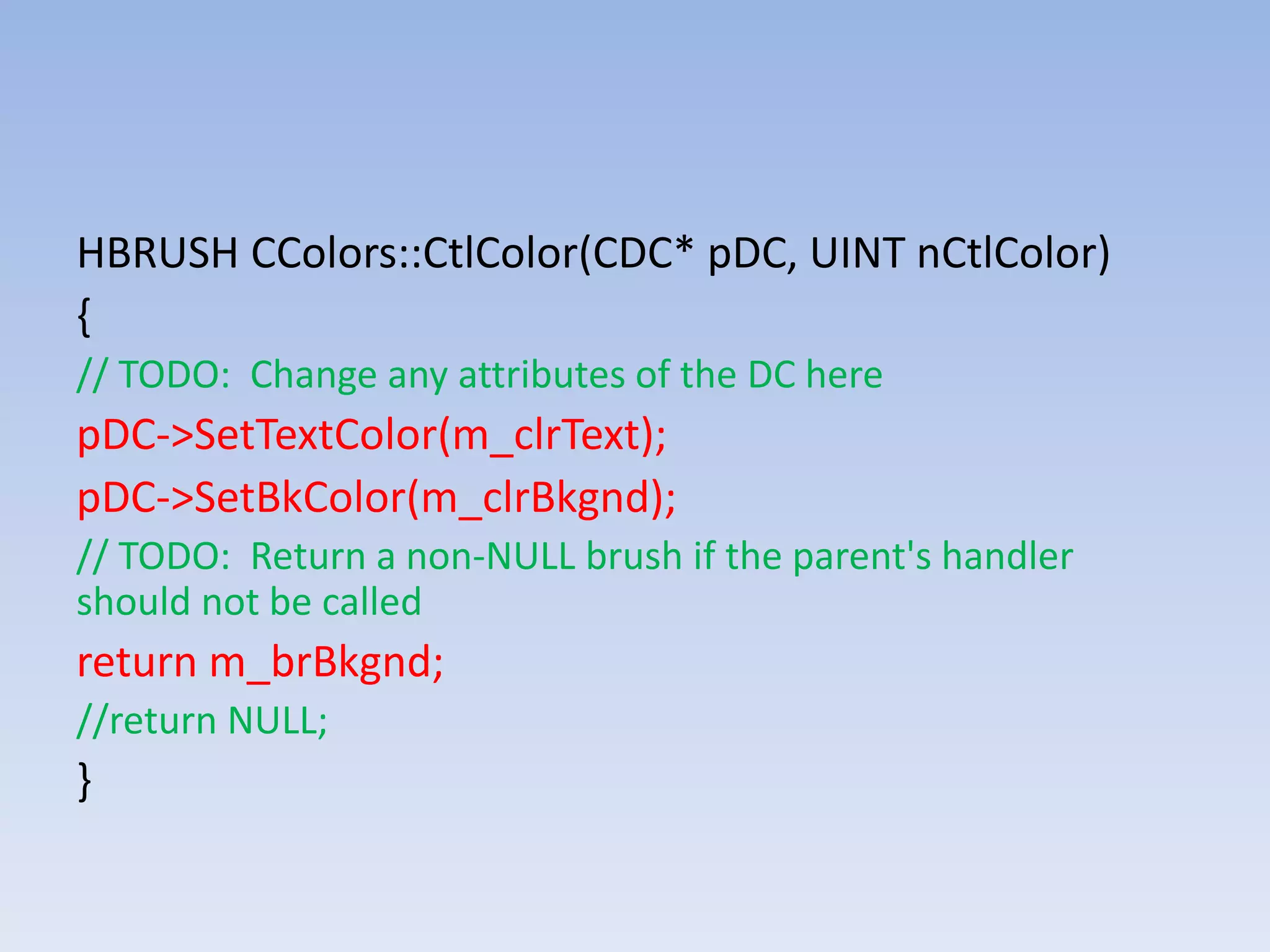

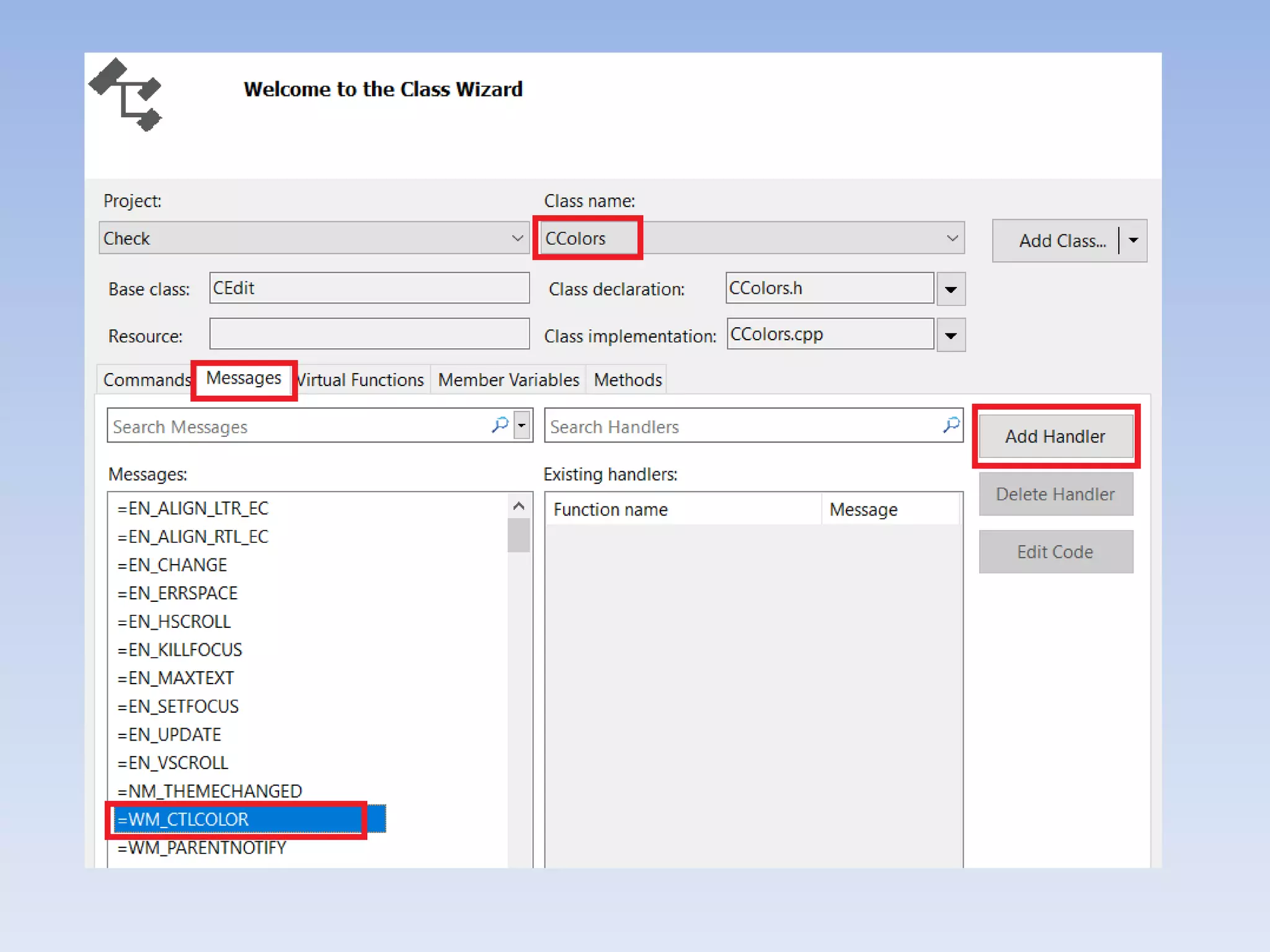

HBRUSH CColors::CtlColor(CDC* pDC, UINT nCtlColor)
{
// TODO: Change any attributes of the DC here
pDC->SetTextColor(m_clrText);
pDC->SetBkColor(m_clrBkgnd);
// TODO: Return a non-NULL brush if the parent's handler
should not be called
return m_brBkgnd;
//return NULL;
}

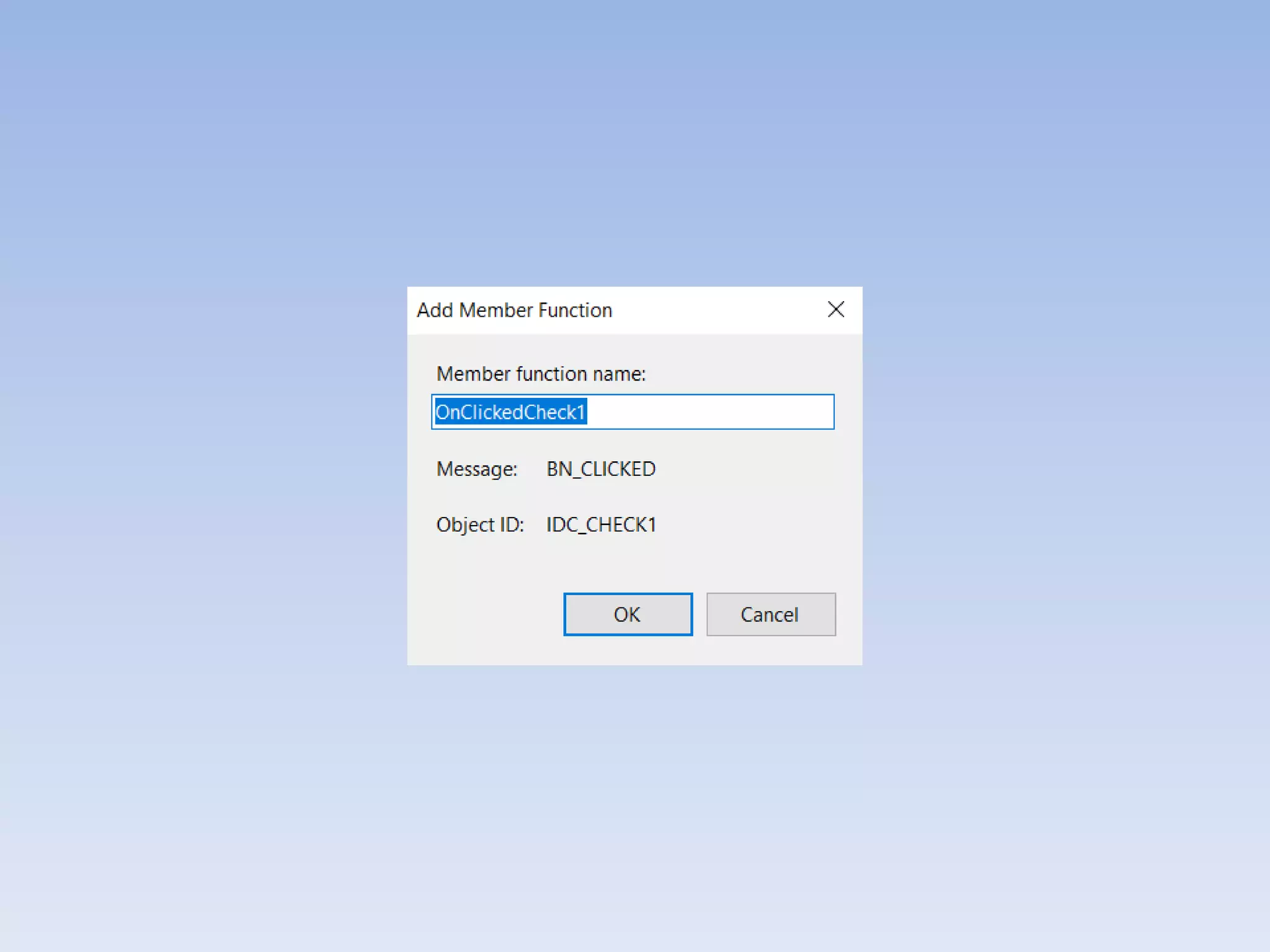

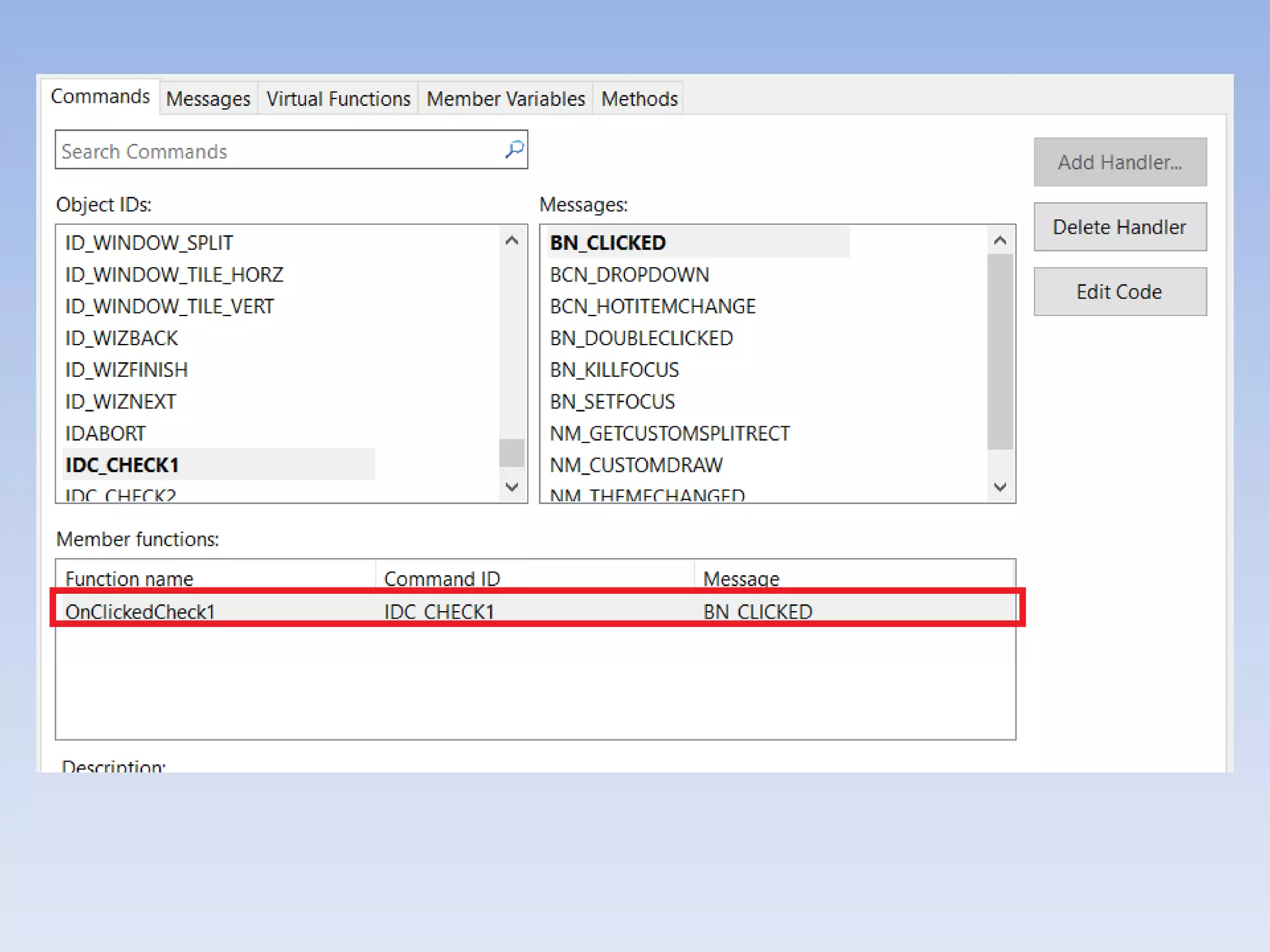

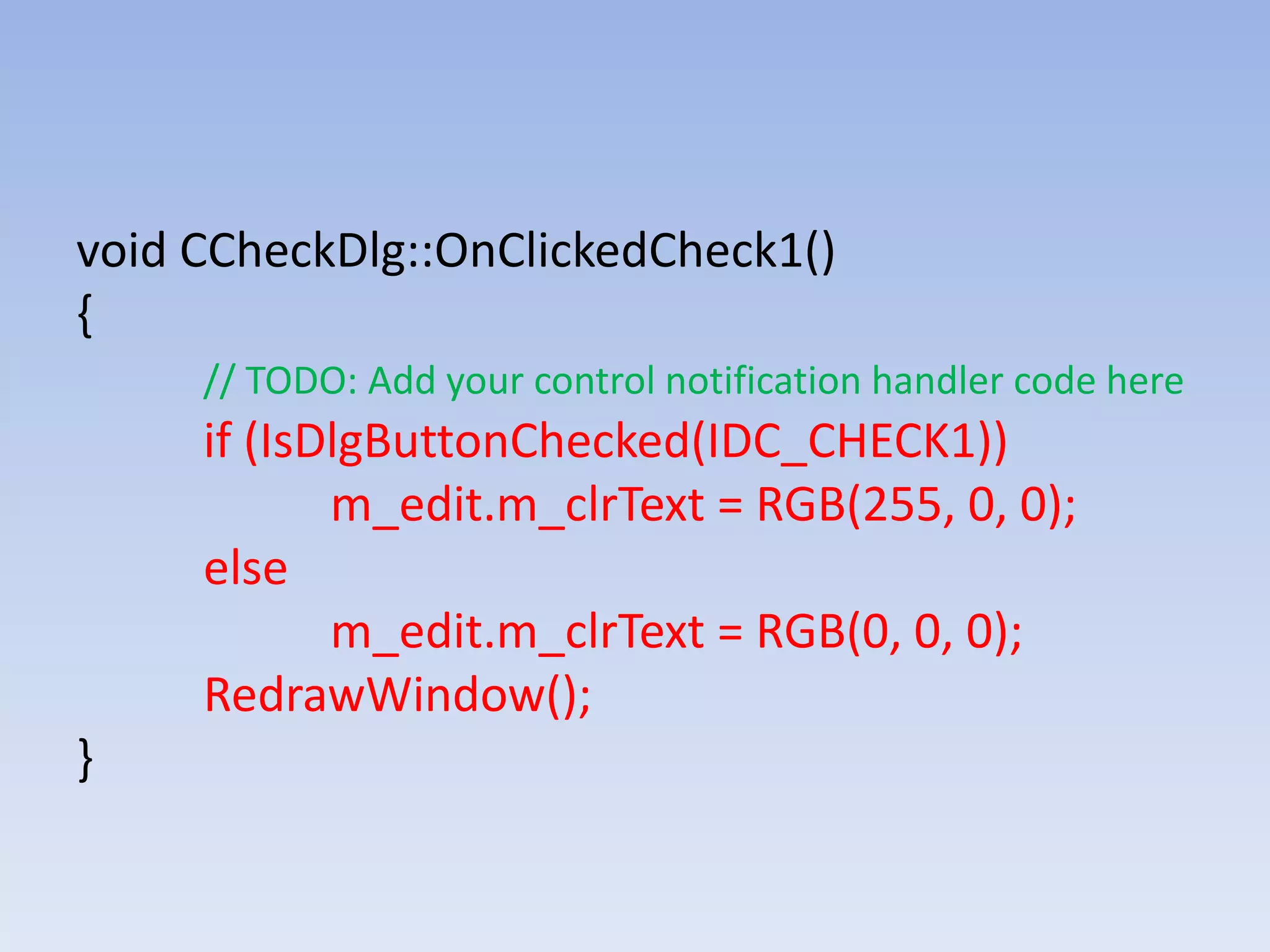

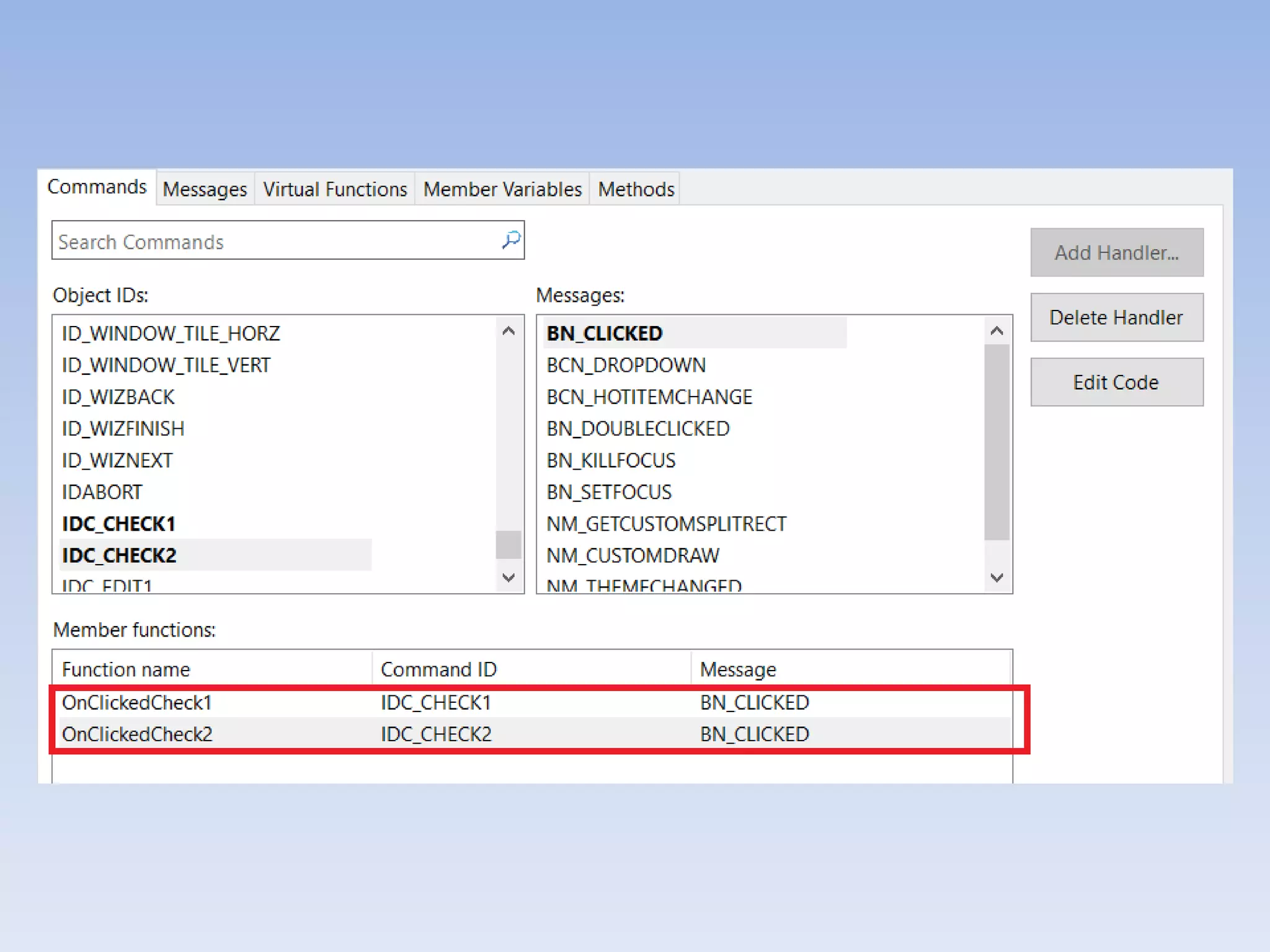

void CCheckDlg::OnClickedCheck1()
{
// TODO: Add your control notification handler code here
if (IsDlgButtonChecked(IDC_CHECK1))
m_edit.m_clrText = RGB(255, 0, 0);
else
m_edit.m_clrText = RGB(0, 0, 0);
RedrawWindow();
}

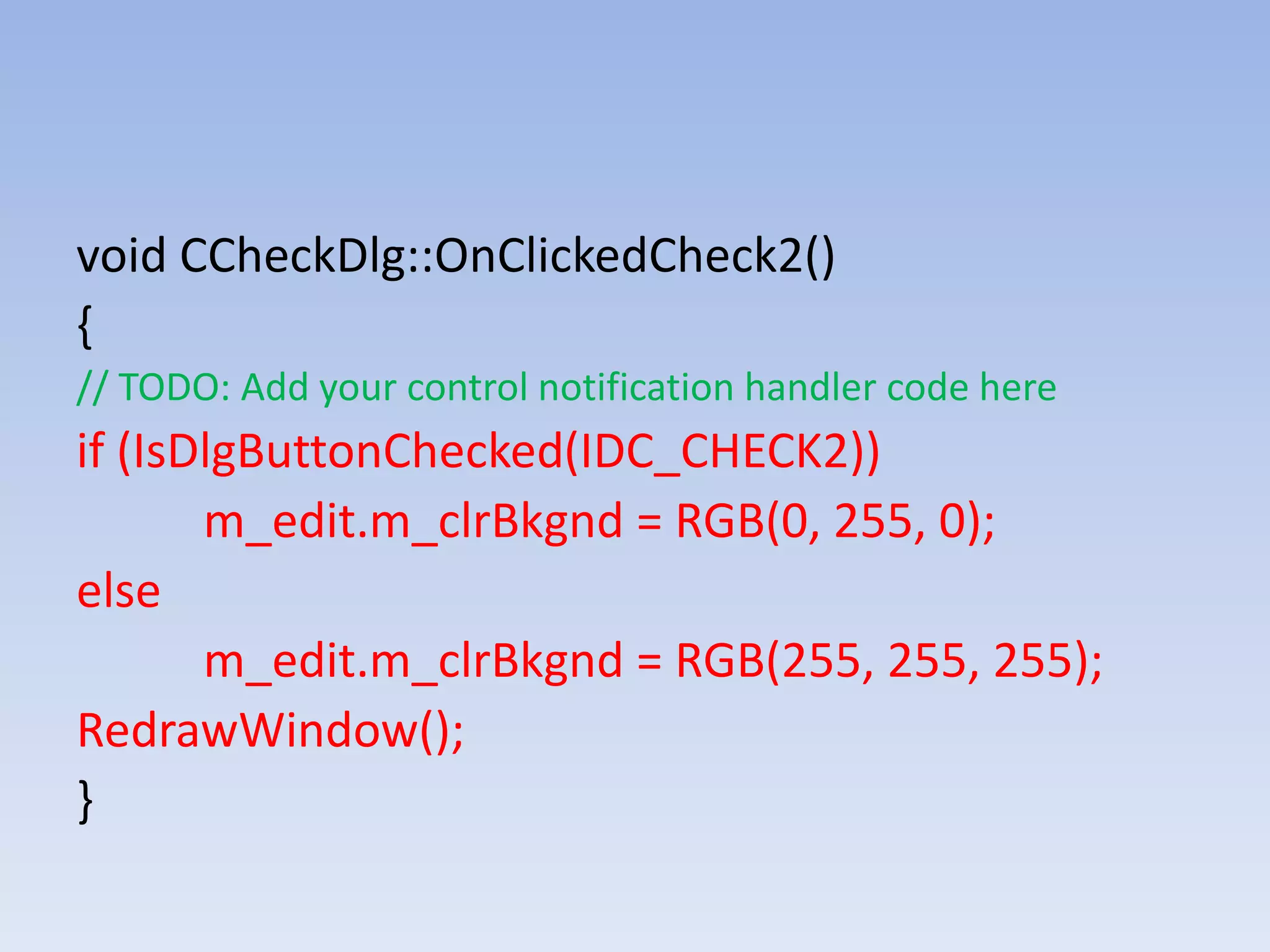

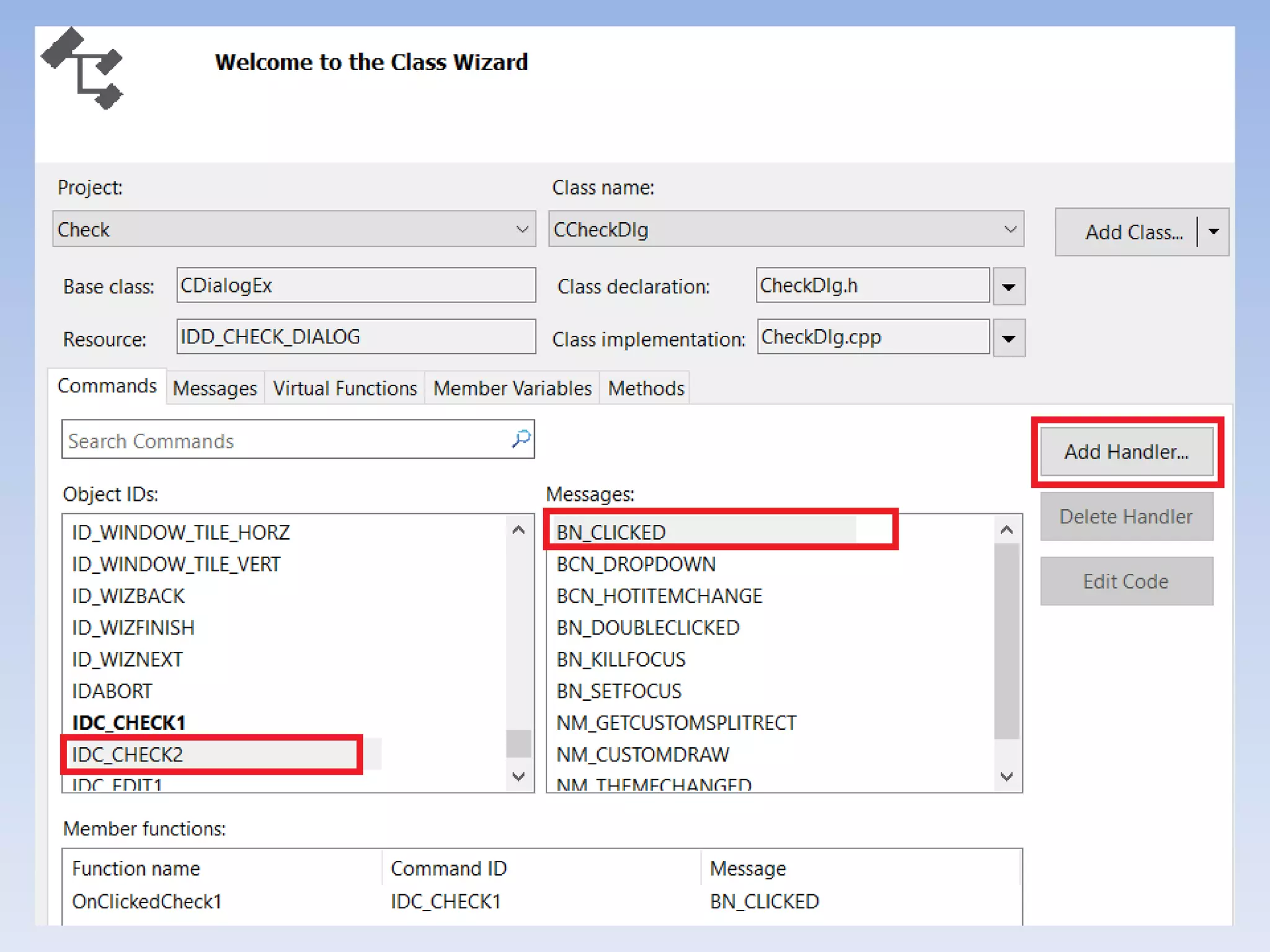

void CCheckDlg::OnClickedCheck2()
{
// TODO: Add your control notification handler code here
if (IsDlgButtonChecked(IDC_CHECK2))
m_edit.m_clrBkgnd = RGB(0, 255, 0);
else
m_edit.m_clrBkgnd = RGB(255, 255, 255);
RedrawWindow();
}

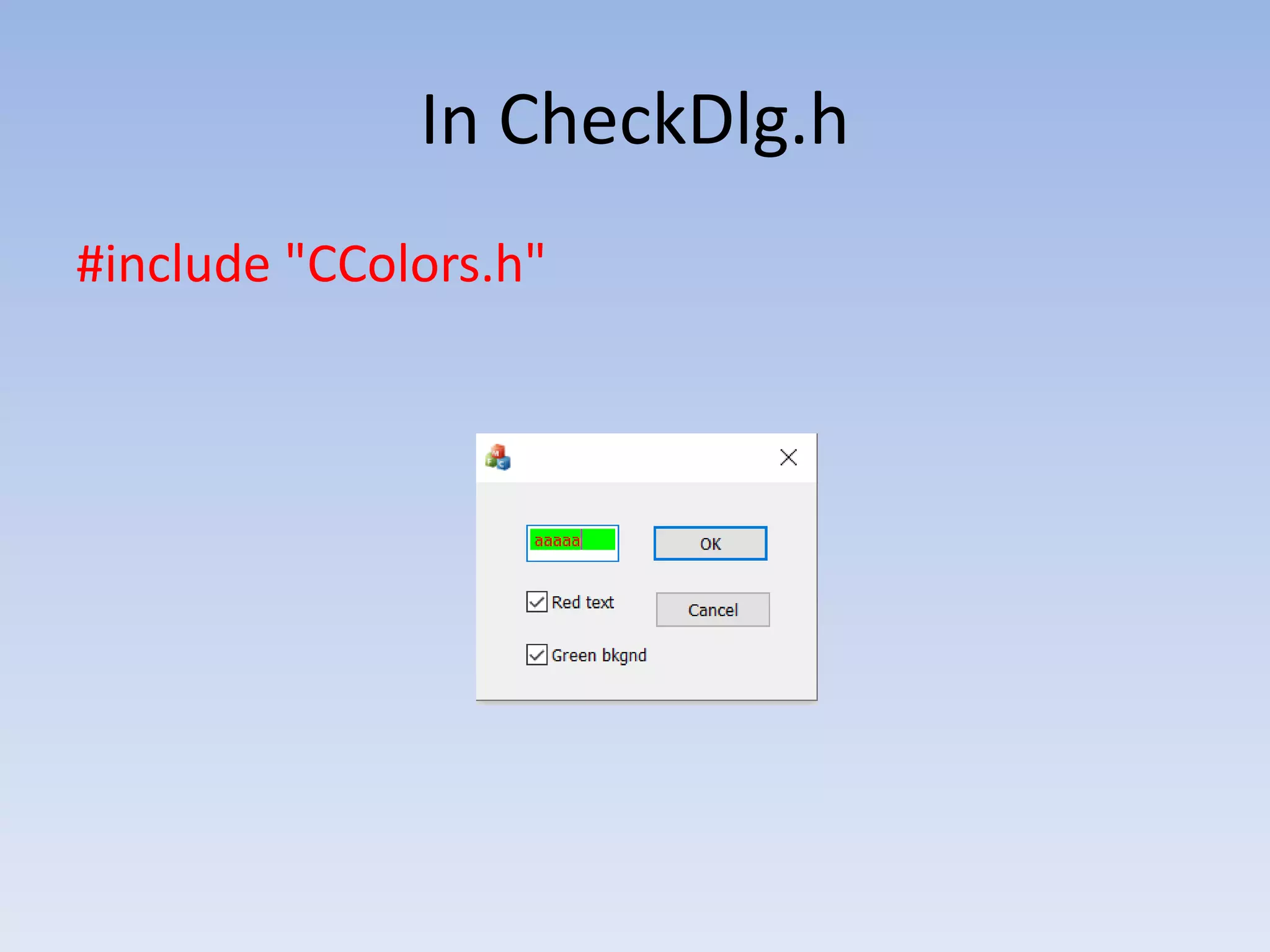

In CheckDlg.h
#include "CColors.h"

More Related Content

More from Razvan Raducanu, PhD

12. edit record
12. edit record12. edit record
12. edit record
Razvan Raducanu, PhD

11. delete record
11. delete record11. delete record
11. delete record
Razvan Raducanu, PhD

10. view one record
10. view one record10. view one record
10. view one record
Razvan Raducanu, PhD

9. add new record
9. add new record9. add new record
9. add new record
Razvan Raducanu, PhD

8. vederea inregistrarilor
8. vederea inregistrarilor8. vederea inregistrarilor
8. vederea inregistrarilor
Razvan Raducanu, PhD

7. copy1
7. copy17. copy1
6. hello popescu 2
6. hello popescu 26. hello popescu 2
6. hello popescu 2
Razvan Raducanu, PhD

5. hello popescu
5. hello popescu5. hello popescu
5. hello popescu
Razvan Raducanu, PhD

4. forme in zend framework 3
4. forme in zend framework 34. forme in zend framework 3
4. forme in zend framework 3
Razvan Raducanu, PhD

3. trimiterea datelor la vederi
3. trimiterea datelor la vederi3. trimiterea datelor la vederi
3. trimiterea datelor la vederi
Razvan Raducanu, PhD

2.routing in zend framework 3
2.routing in zend framework 32.routing in zend framework 3
2.routing in zend framework 3
Razvan Raducanu, PhD

1. zend framework intro
1. zend framework intro1. zend framework intro
1. zend framework intro
Razvan Raducanu, PhD

18. images in symfony 4
18. images in symfony 418. images in symfony 4
18. images in symfony 4
Razvan Raducanu, PhD

17. delete data
17. delete data17. delete data
17. delete data
Razvan Raducanu, PhD

16. edit data
16. edit data16. edit data
16. edit data
Razvan Raducanu, PhD

15. view single data
15. view single data15. view single data
15. view single data
Razvan Raducanu, PhD

14. add data in symfony4
14. add data in symfony4 14. add data in symfony4
14. add data in symfony4
Razvan Raducanu, PhD

13. view data
13. view data13. view data
13. view data
Razvan Raducanu, PhD

12.doctrine view data
12.doctrine view data12.doctrine view data
12.doctrine view data
Razvan Raducanu, PhD

11. move in Symfony 4
11. move in Symfony 411. move in Symfony 4
11. move in Symfony 4
Razvan Raducanu, PhD


More from Razvan Raducanu, PhD (20)

12. edit record
12. edit record12. edit record
12. edit record

11. delete record
11. delete record11. delete record
11. delete record

10. view one record
10. view one record10. view one record
10. view one record

9. add new record
9. add new record9. add new record
9. add new record

8. vederea inregistrarilor
8. vederea inregistrarilor8. vederea inregistrarilor
8. vederea inregistrarilor

7. copy1
7. copy17. copy1
7. copy1

6. hello popescu 2
6. hello popescu 26. hello popescu 2
6. hello popescu 2

5. hello popescu
5. hello popescu5. hello popescu
5. hello popescu

4. forme in zend framework 3
4. forme in zend framework 34. forme in zend framework 3
4. forme in zend framework 3

3. trimiterea datelor la vederi
3. trimiterea datelor la vederi3. trimiterea datelor la vederi
3. trimiterea datelor la vederi

2.routing in zend framework 3
2.routing in zend framework 32.routing in zend framework 3
2.routing in zend framework 3

1. zend framework intro
1. zend framework intro1. zend framework intro
1. zend framework intro

18. images in symfony 4
18. images in symfony 418. images in symfony 4
18. images in symfony 4

17. delete data
17. delete data17. delete data
17. delete data

16. edit data
16. edit data16. edit data
16. edit data

15. view single data
15. view single data15. view single data
15. view single data

14. add data in symfony4
14. add data in symfony4 14. add data in symfony4
14. add data in symfony4

13. view data
13. view data13. view data
13. view data

12.doctrine view data
12.doctrine view data12.doctrine view data
12.doctrine view data

11. move in Symfony 4
11. move in Symfony 411. move in Symfony 4
11. move in Symfony 4


Recently uploaded

The History of Stoke Newington Street Names
The History of Stoke Newington Street NamesThe History of Stoke Newington Street Names
The History of Stoke Newington Street Names
History of Stoke Newington

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT
Jyoti Chand

LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UPLAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
RAHUL

Pengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptxPengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptx
Fajar Baskoro

BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...
BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...
BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...
Nguyen Thanh Tu Collection

Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) CurriculumPhilippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
MJDuyan

Liberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdfLiberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdf
WaniBasim

spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skillsspot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
haiqairshad

Hindi varnamala | hindi alphabet PPT.pdf
Hindi varnamala | hindi alphabet PPT.pdfHindi varnamala | hindi alphabet PPT.pdf
Hindi varnamala | hindi alphabet PPT.pdf
Dr. Mulla Adam Ali

ZK on Polkadot zero knowledge proofs - sub0.pptx
ZK on Polkadot zero knowledge proofs - sub0.pptxZK on Polkadot zero knowledge proofs - sub0.pptx
ZK on Polkadot zero knowledge proofs - sub0.pptx
dot55audits

Main Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docxMain Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docx
adhitya5119

Temple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation resultsTemple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation results
Krassimira Luka

Film vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movieFilm vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movie
Nicholas Montgomery

C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptxC1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
mulvey2

The basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptxThe basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptx
heathfieldcps1

Your Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective UpskillingYour Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective Upskilling
Excellence Foundation for South Sudan

Chapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptxChapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptx
Denish Jangid

Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptxBeyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
EduSkills OECD

How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17
Celine George

How to Create a More Engaging and Human Online Learning Experience
How to Create a More Engaging and Human Online Learning Experience How to Create a More Engaging and Human Online Learning Experience
How to Create a More Engaging and Human Online Learning Experience
Wahiba Chair Training & Consulting


Recently uploaded (20)

The History of Stoke Newington Street Names
The History of Stoke Newington Street NamesThe History of Stoke Newington Street Names
The History of Stoke Newington Street Names

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT

LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UPLAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP

Pengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptxPengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptx

BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...
BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...
BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...

Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) CurriculumPhilippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum

Liberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdfLiberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdf

spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skillsspot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skills

Hindi varnamala | hindi alphabet PPT.pdf
Hindi varnamala | hindi alphabet PPT.pdfHindi varnamala | hindi alphabet PPT.pdf
Hindi varnamala | hindi alphabet PPT.pdf

ZK on Polkadot zero knowledge proofs - sub0.pptx
ZK on Polkadot zero knowledge proofs - sub0.pptxZK on Polkadot zero knowledge proofs - sub0.pptx
ZK on Polkadot zero knowledge proofs - sub0.pptx

Main Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docxMain Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docx

Temple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation resultsTemple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation results

Film vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movieFilm vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movie

C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptxC1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx

The basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptxThe basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptx

Your Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective UpskillingYour Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective Upskilling

Chapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptxChapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptx

Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptxBeyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx

How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17

How to Create a More Engaging and Human Online Learning Experience
How to Create a More Engaging and Human Online Learning Experience How to Create a More Engaging and Human Online Learning Experience
How to Create a More Engaging and Human Online Learning Experience


MFC Check

  • 2.

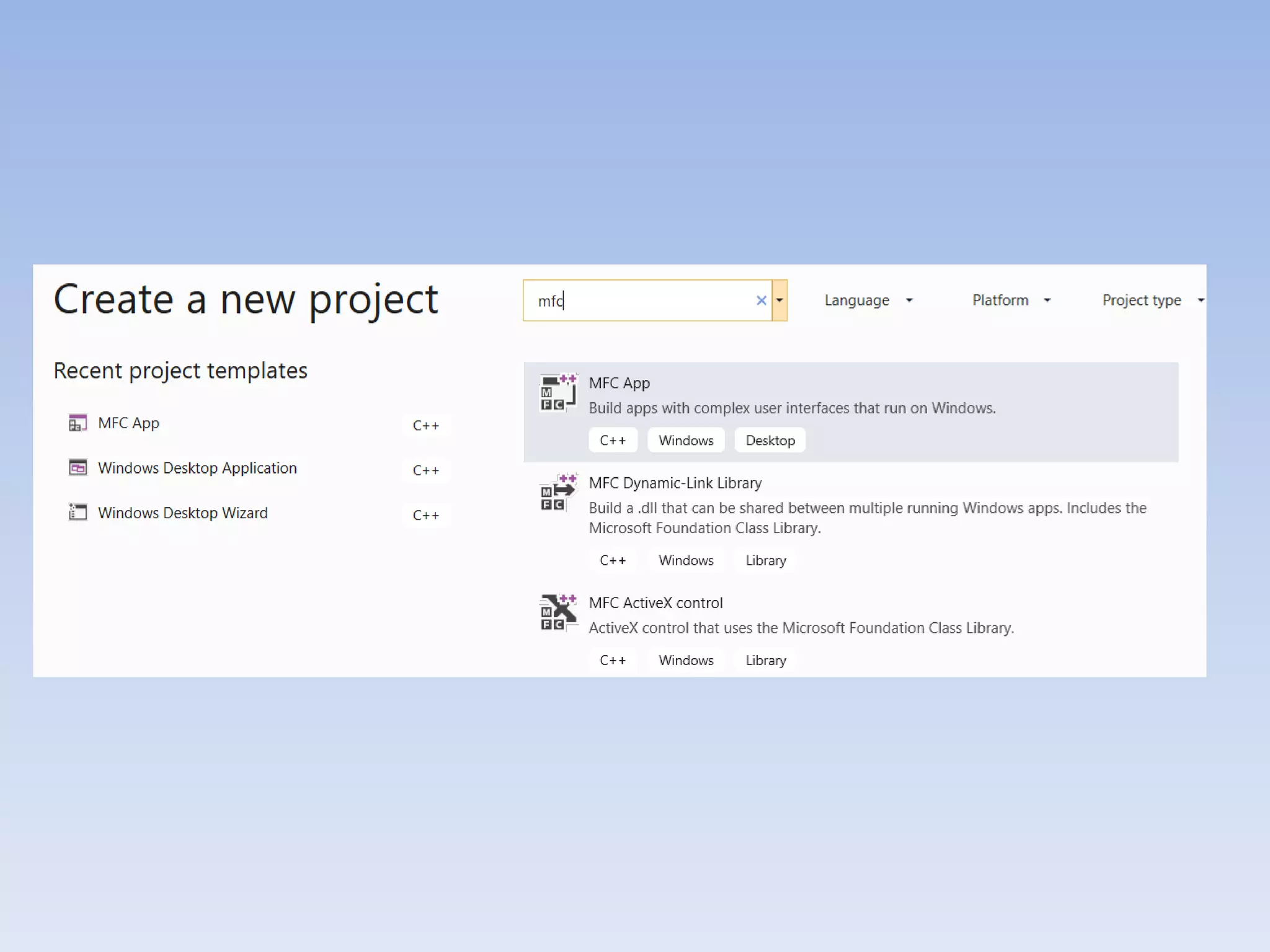

  • 3.
  • 4.
  • 5.

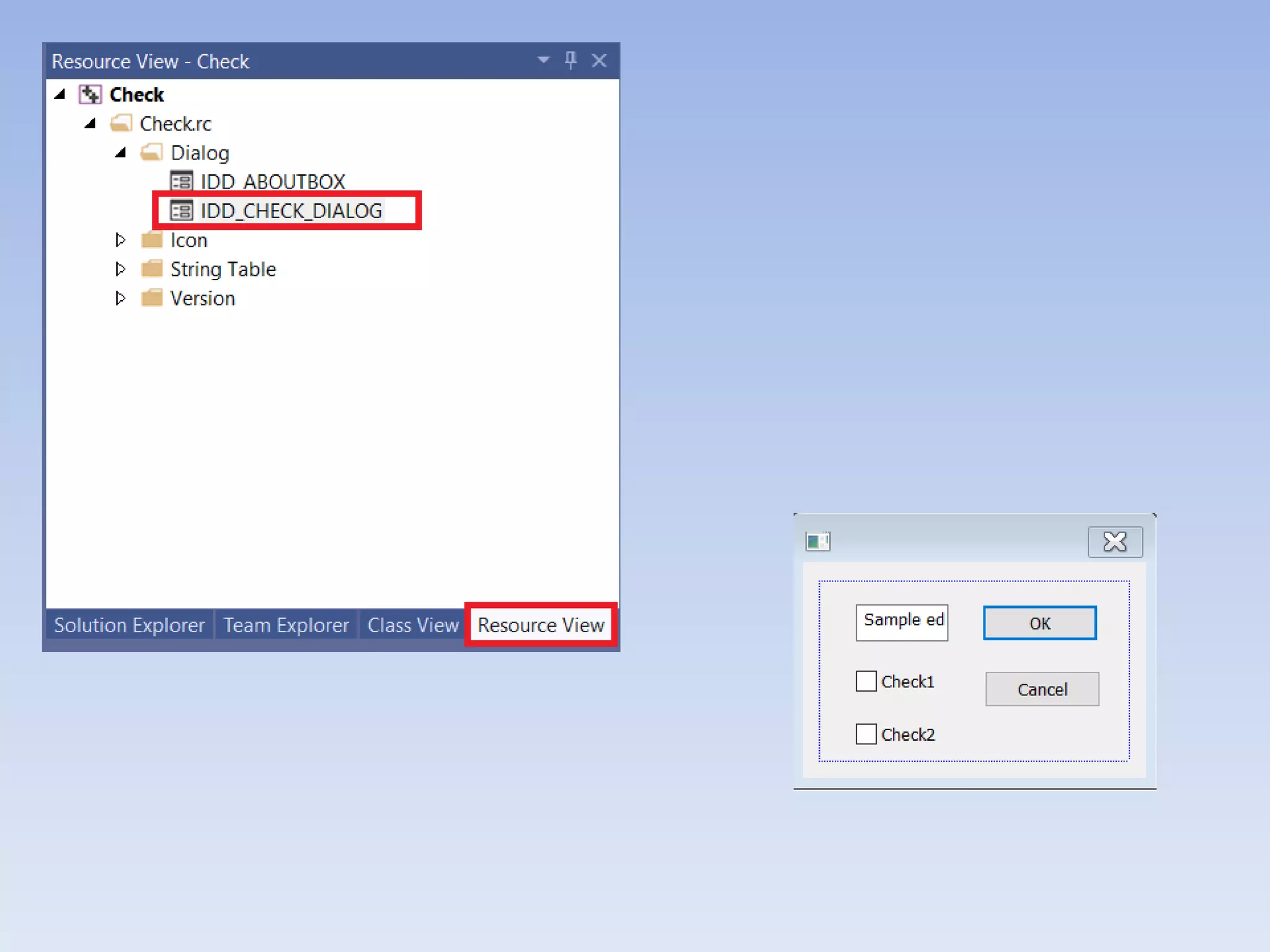

  • 6.
  • 7.

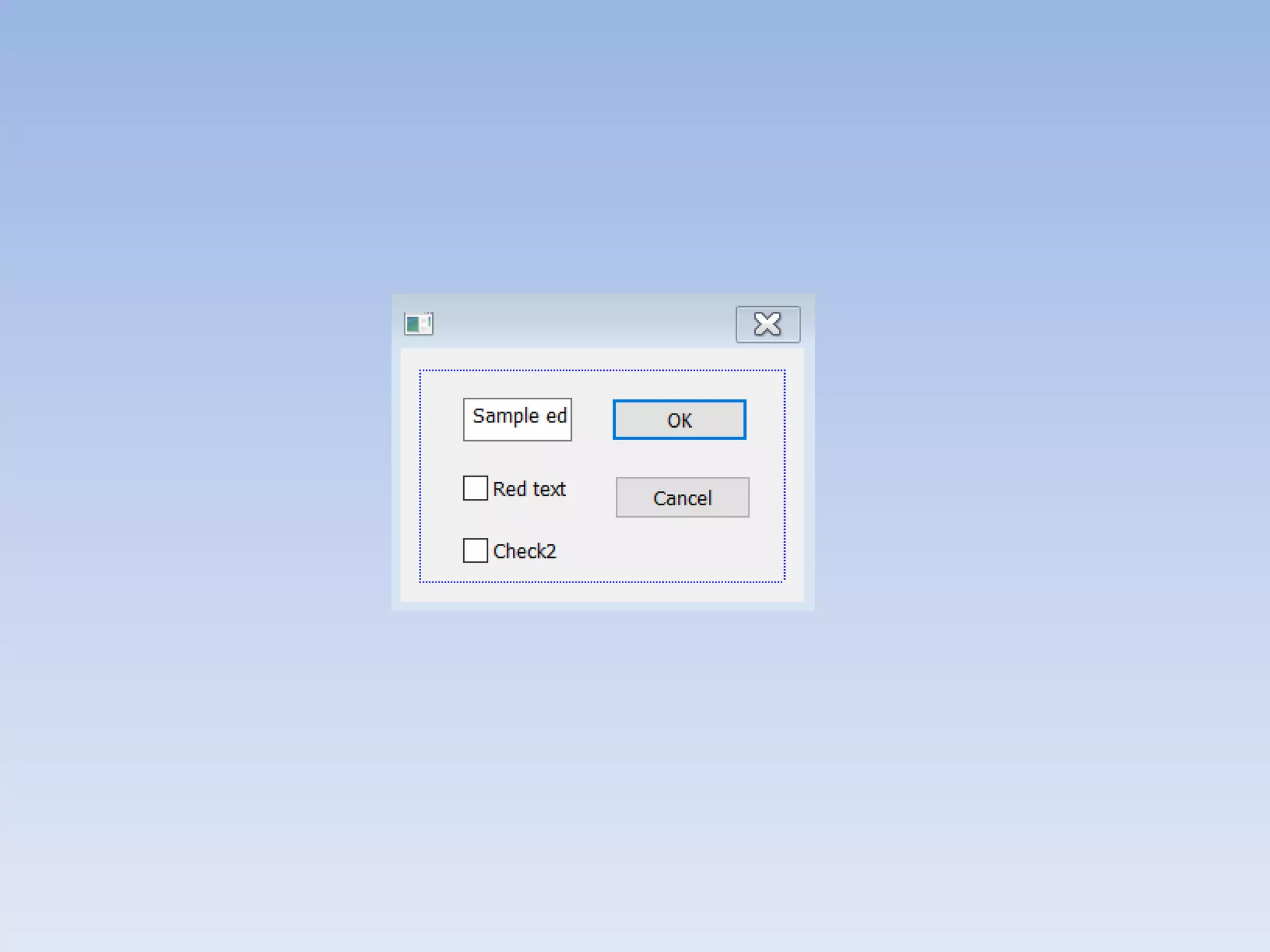

  • 8.

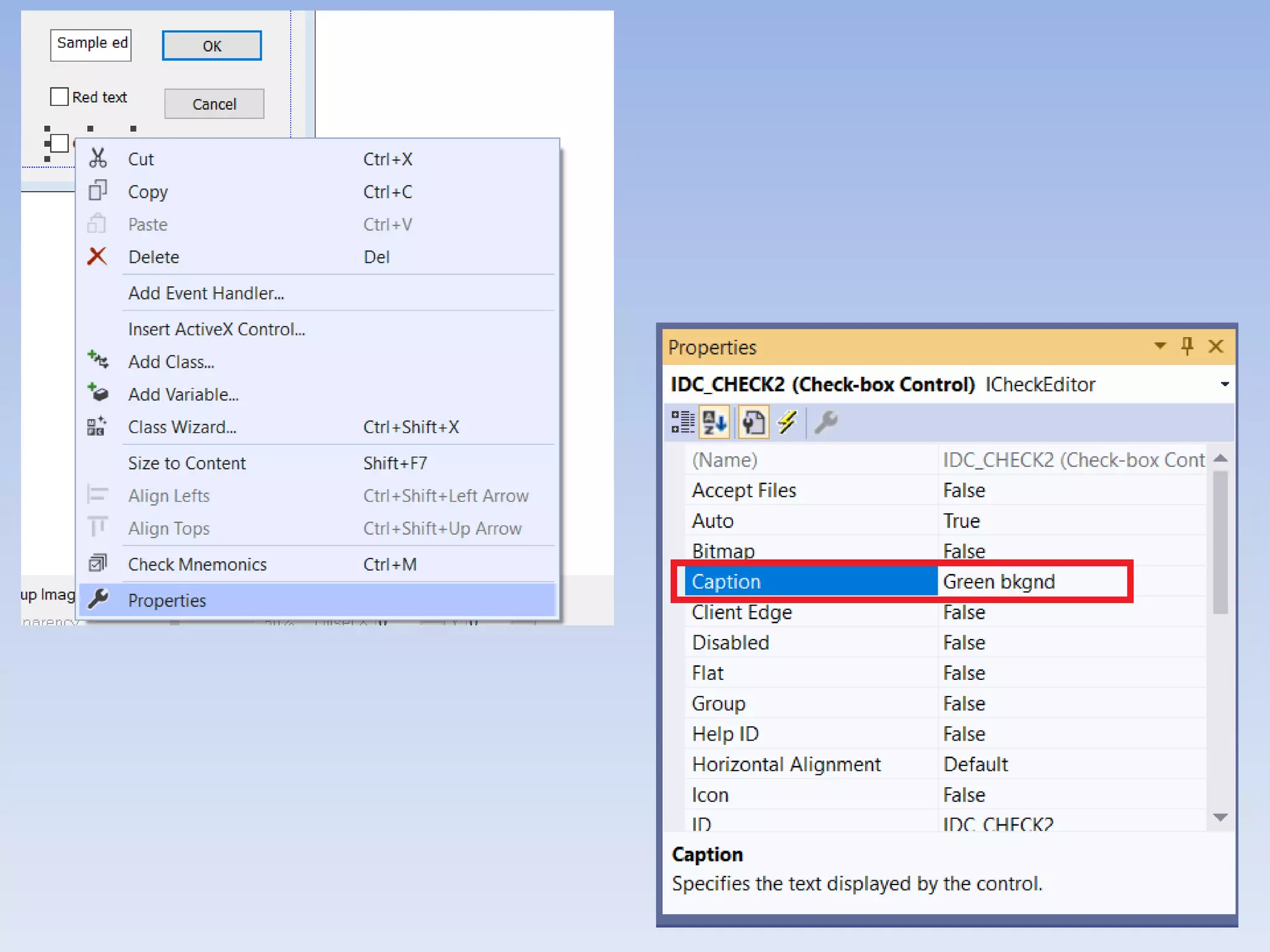

  • 9.

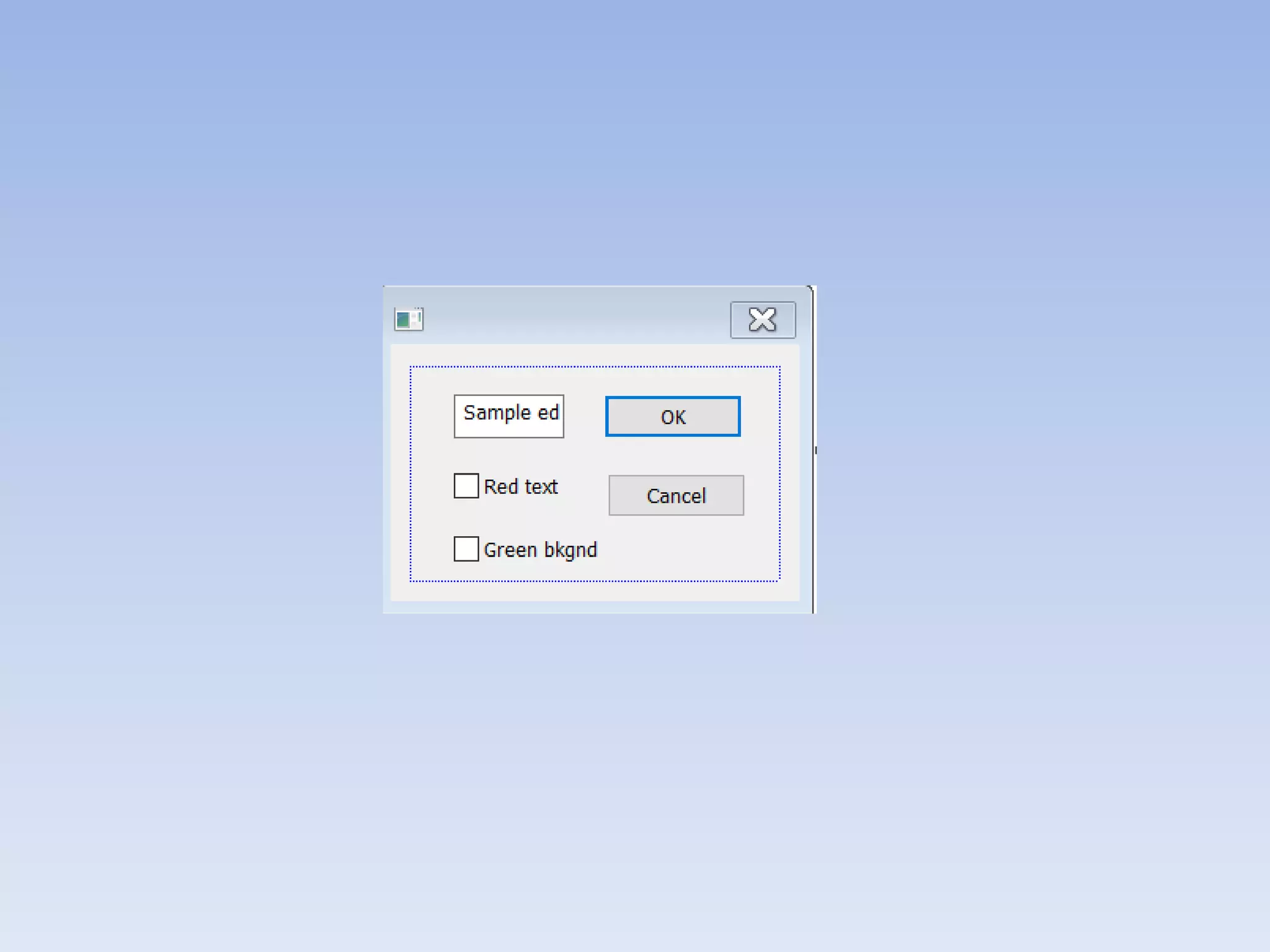

  • 10.
  • 11. Add class CColors to manage the colors:
  • 12.
  • 13.
  • 14.
  • 15. Declare 2 variables in CColors.h to manage the colors: ……………………. public: COLORREF m_clrText; COLORREF m_clrBkgnd; CBrush m_brBkgnd;
  • 16. Initiatize the var in the constructor of the CColors.cpp CColors::CColors() { m_clrText = RGB(0, 0, 0); m_clrBkgnd = RGB(255, 255, 255); m_brBkgnd.CreateSolidBrush(m_clrBkgnd); }

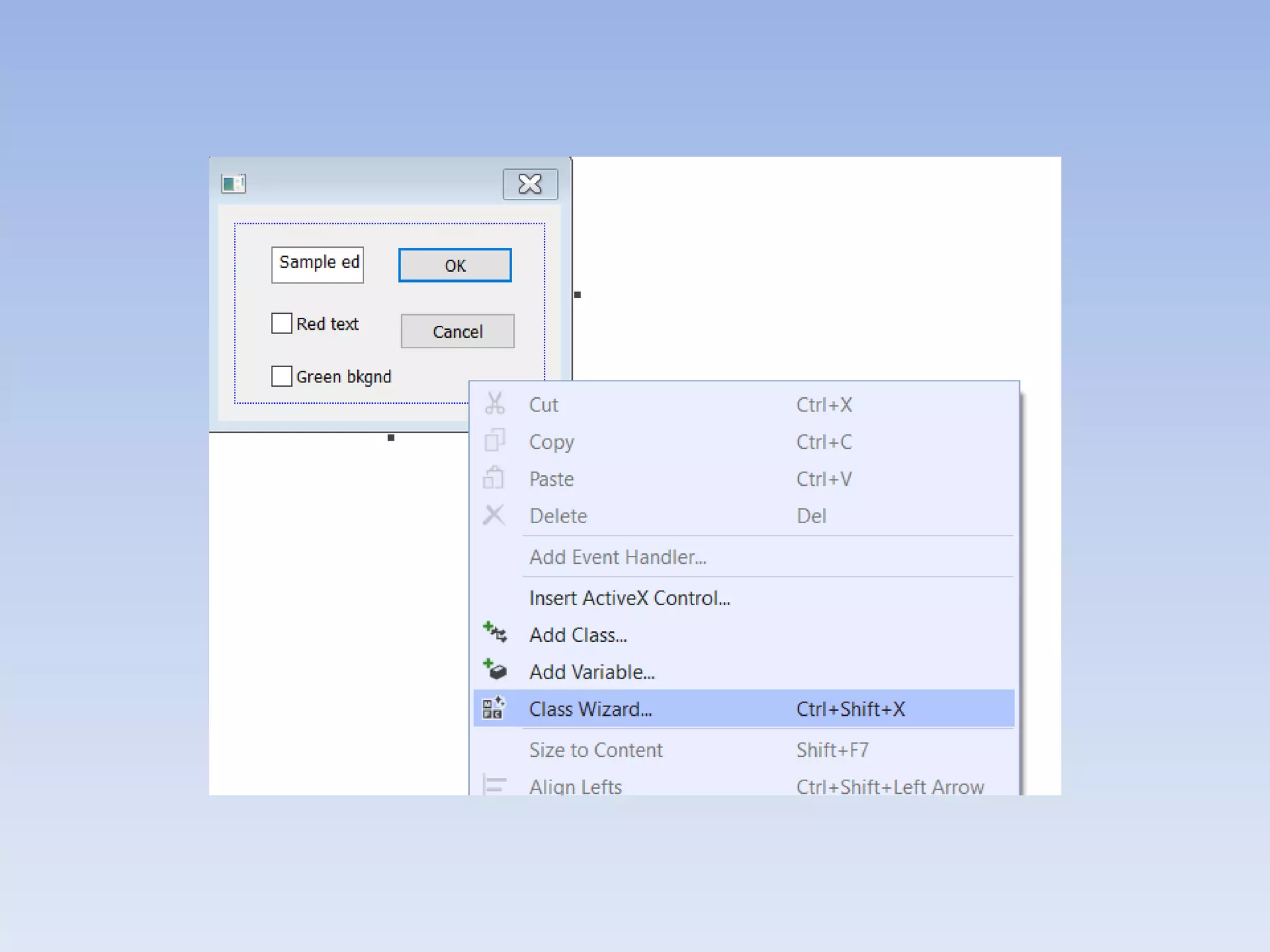

  • 17.
  • 18.
  • 19.
  • 20. HBRUSH CColors::CtlColor(CDC* pDC, UINT nCtlColor) { // TODO: Change any attributes of the DC here pDC->SetTextColor(m_clrText); pDC->SetBkColor(m_clrBkgnd); // TODO: Return a non-NULL brush if the parent's handler should not be called return m_brBkgnd; //return NULL; }
  • 21.

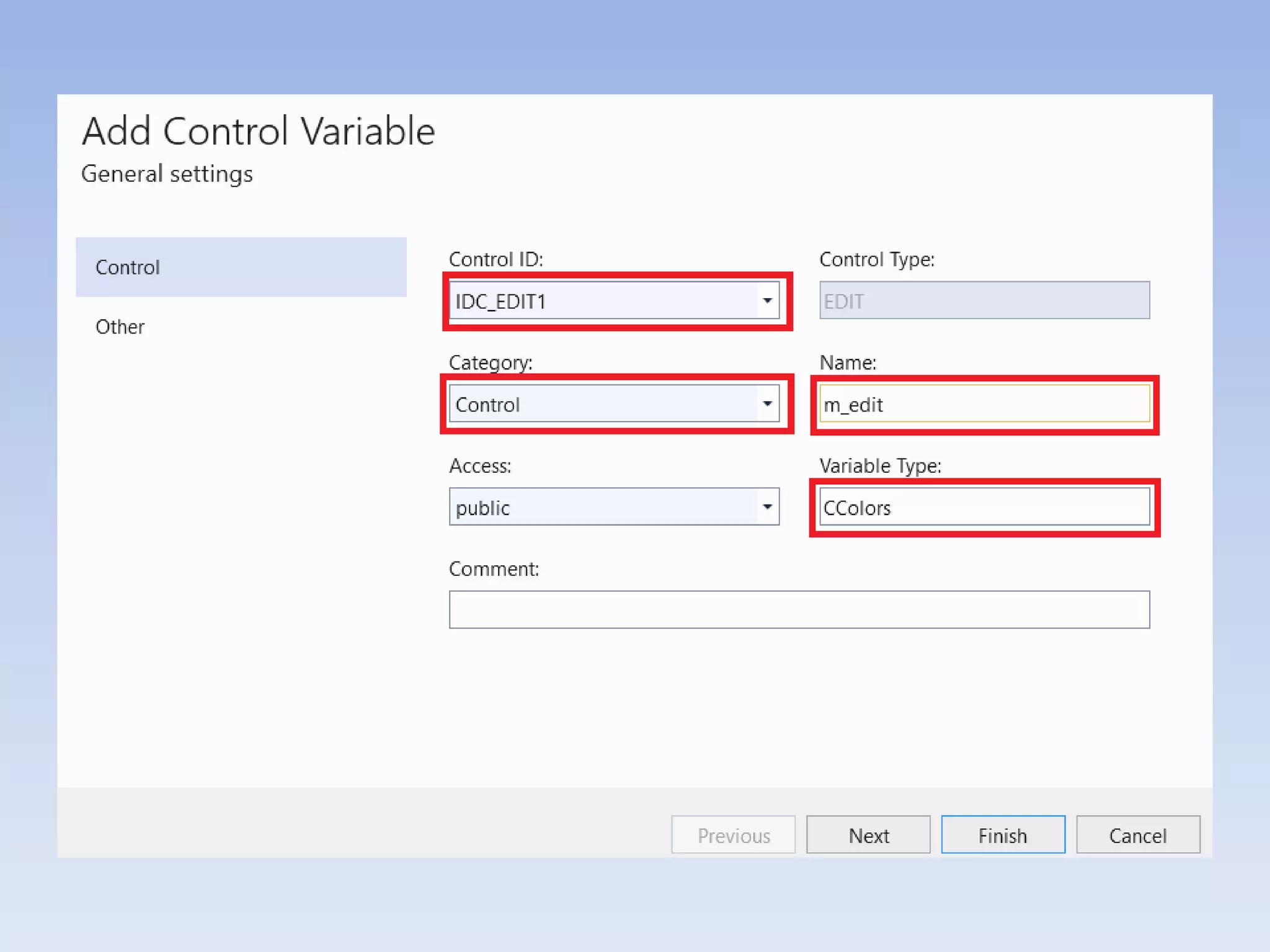

  • 22.
  • 23.
  • 24.
  • 25.
  • 26.
  • 27. void CCheckDlg::OnClickedCheck1() { // TODO: Add your control notification handler code here if (IsDlgButtonChecked(IDC_CHECK1)) m_edit.m_clrText = RGB(255, 0, 0); else m_edit.m_clrText = RGB(0, 0, 0); RedrawWindow(); }

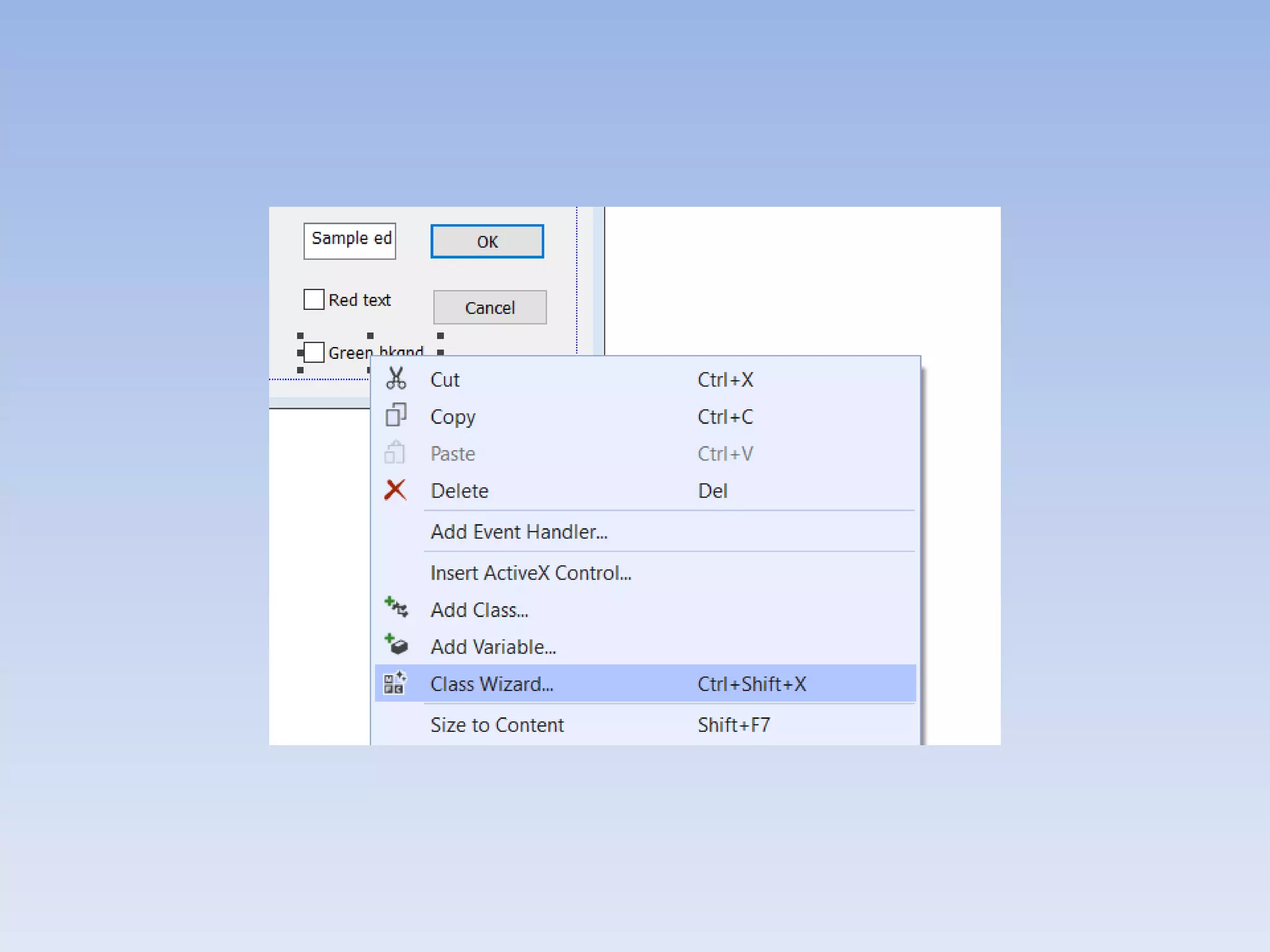

  • 28.
  • 29.
  • 30.
  • 31.
  • 32. void CCheckDlg::OnClickedCheck2() { // TODO: Add your control notification handler code here if (IsDlgButtonChecked(IDC_CHECK2)) m_edit.m_clrBkgnd = RGB(0, 255, 0); else m_edit.m_clrBkgnd = RGB(255, 255, 255); RedrawWindow(); }
