Memcached is an in-memory caching system that improves database performance by caching query results in RAM. It sits between applications and databases, intercepting reads to see if the requested data already exists in the cache. If so, it returns the cached version up to 165,000x faster than from disk. If not, it queries the database and caches the result. Memcached scales horizontally by adding more servers as load increases, distributing the cache transparently across servers. Many large sites use it to cache database queries, user profiles, and other frequently accessed data.

1. MEMCACHED
Sam Warmuth & Dex Delfrate
11/12/09

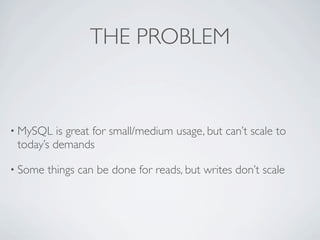

2. THE PROBLEM
• MySQL is great for small/medium usage, but can’t scale to
today’s demands
• Some things can be done for reads, but writes don’t scale

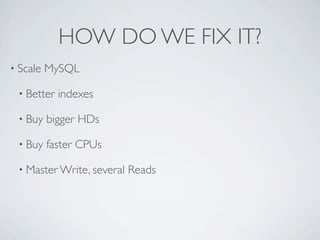

3. HOW DO WE FIX IT?
• Scale MySQL
• Better indexes
• Buy bigger HDs
• Buy faster CPUs
• Master Write, several Reads

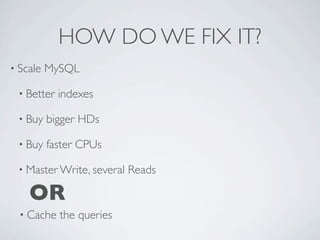

4. HOW DO WE FIX IT?
• Scale MySQL
• Better indexes
• Buy bigger HDs
• Buy faster CPUs
• Master Write, several Reads
OR
• Cache the queries

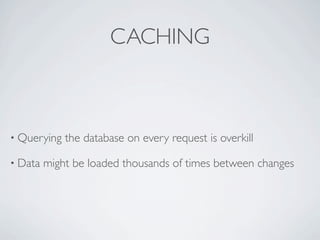

5. CACHING
• Querying the database on every request is overkill
• Data might be loaded thousands of times between changes

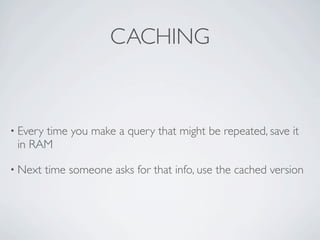

6. CACHING
• Every
time you make a query that might be repeated, save it
in RAM
• Next time someone asks for that info, use the cached version

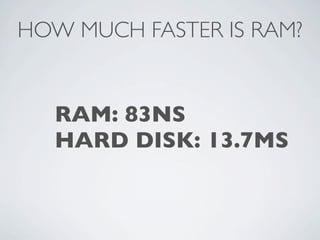

7. HOW MUCH FASTER IS RAM?
RAM: 83NS
HARD DISK: 13.7MS

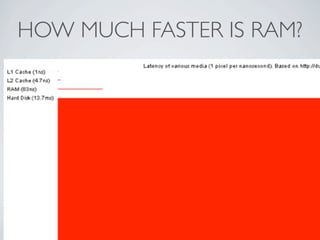

8. HOW MUCH FASTER IS RAM?

9. HOW MUCH FASTER IS RAM?
RAM is 165,000 times faster than disk access

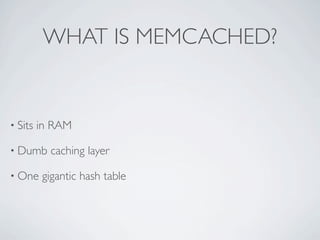

10. WHAT IS MEMCACHED?
• Sits in RAM
• Dumb caching layer
• One gigantic hash table

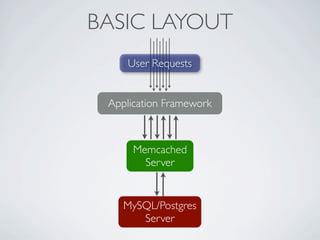

11. BASIC LAYOUT
User Requests
Application Framework
Memcached
Server
MySQL/Postgres
Server

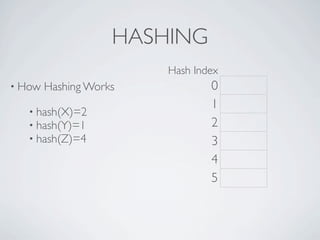

12. HASHING
Hash Index
• How Hashing Works 0
1
• hash(X)=2
• hash(Y)=1 2
• hash(Z)=4 3
4
5

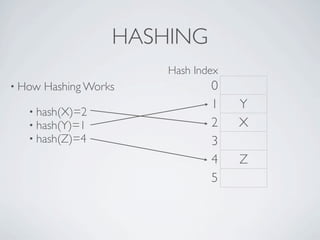

13. HASHING
Hash Index
• How Hashing Works 0
1 Y
• hash(X)=2
• hash(Y)=1 2 X
• hash(Z)=4 3
4 Z
5

14. MULTIPLE SERVERS
Hash Index
0
• Modulo Division
1 Y
• Client calculates hash, runs modulo 2 X
to figure out which server
3
• 3 servers, hash value 4 % 3 = 1 4 Z
(2nd server) 5

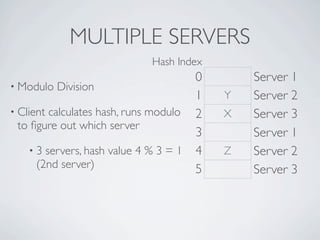

15. MULTIPLE SERVERS
Hash Index
0 Server 1
• Modulo Division
1 Y Server 2
• Client calculates hash, runs modulo 2 X Server 3
to figure out which server
3 Server 1
• 3 servers, hash value 4 % 3 = 1 4 Z Server 2
(2nd server) 5 Server 3

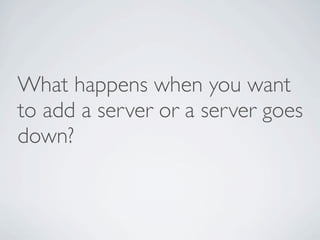

16. What happens when you want
to add a server or a server goes
down?

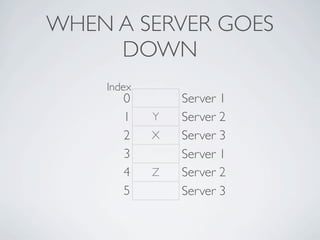

17. WHEN A SERVER GOES
DOWN
Index
0 Server 1
1 Y Server 2
2 X Server 3
3 Server 1
4 Z Server 2
5 Server 3

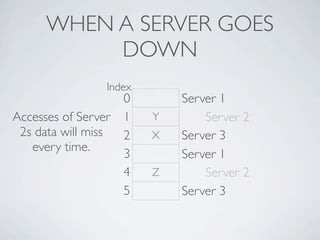

18. WHEN A SERVER GOES
DOWN
Index
0 Server 1
Accesses of Server 1 Y Server 2
2s data will miss 2 X Server 3
every time.
3 Server 1
4 Z Server 2
5 Server 3

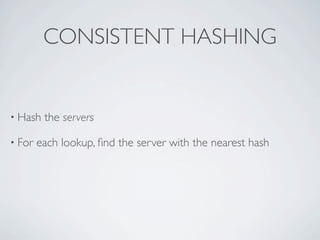

19. CONSISTENT HASHING
• Hash the servers
• For each lookup, find the server with the nearest hash

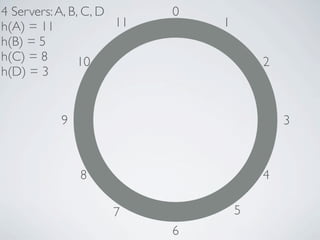

20. 4 Servers: A, B, C, D 0
h(A) = 11 11 1
h(B) = 5
h(C) = 8 10 2
h(D) = 3
9 3
8 4
7 5
6

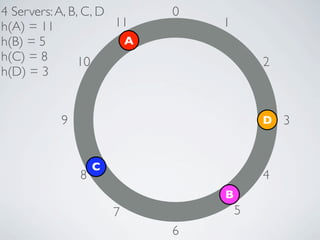

21. 4 Servers: A, B, C, D 0
h(A) = 11 11 1
h(B) = 5 A
h(C) = 8 10 2
h(D) = 3
9 D 3
C
8 4
B
7 5
6

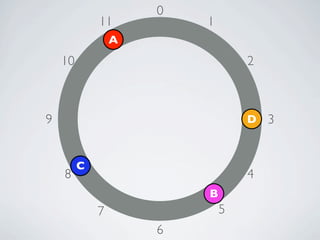

22. 0
11 1
A
10 2
9 D 3
C
8 4
B
7 5
6

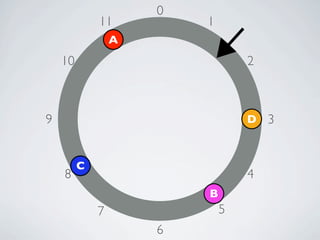

23. 0
11 1
A
10 2
9 D 3
C
8 4
B
7 5
6

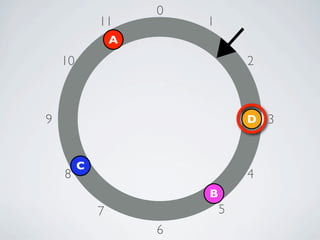

24. 0
11 1
A
10 2
9 D 3
C
8 4
B
7 5
6

25. 0
11 1
A
10 2
9 D 3
C
8 4
B
7 5
6

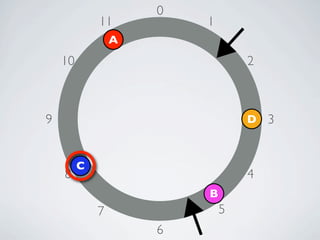

26. 0
11 1
A
10 2
9 D 3
C
8 4
B
7 5
6

27. 0
11 1
A
10 2
9 D 3
C
8 4
B
7 5
6

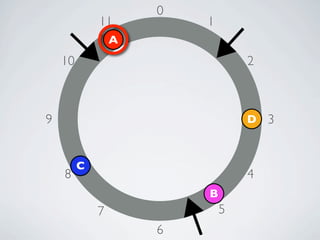

28. 0
11 1
A
10 2
9 D 3
C
8 4
B
7 5
6

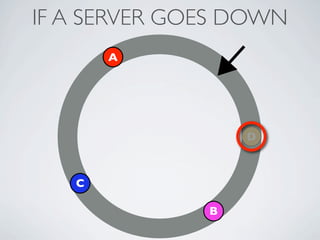

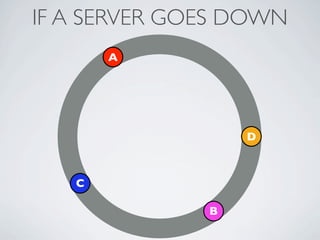

29. IF A SERVER GOES DOWN
A
D
C
B

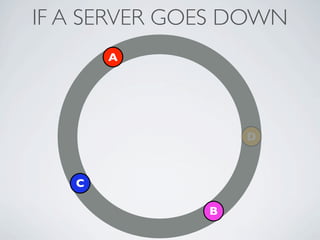

30. IF A SERVER GOES DOWN
A
D
C
B

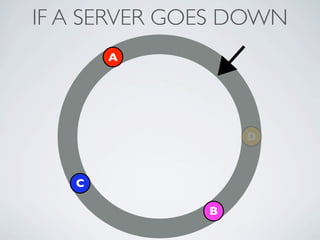

31. IF A SERVER GOES DOWN
A
D
C
B

32. IF A SERVER GOES DOWN
A
D
C
B

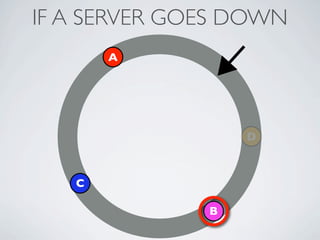

33. IF A SERVER GOES DOWN
A
D
C
B

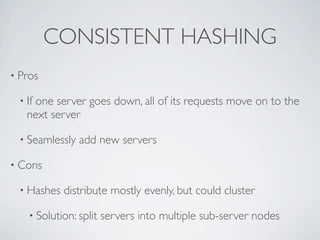

34. CONSISTENT HASHING
• Pros
• If
one server goes down, all of its requests move on to the
next server
• Seamlessly add new servers
• Cons
• Hashes distribute mostly evenly, but could cluster
• Solution: split servers into multiple sub-server nodes

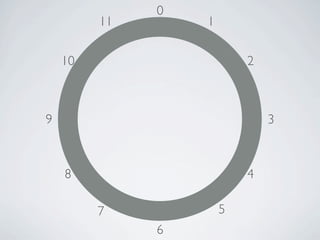

35. 0
11 1
10 2
9 3
8 4
7 5
6

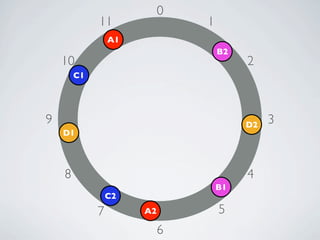

36. 0
11 1
A1
B2
10 2
C1
9 D2 3
D1
8 4
B1
C2
7 A2 5
6

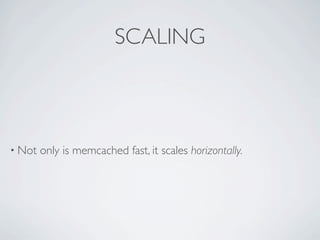

37. SCALING
• Not only is memcached fast, it scales horizontally.

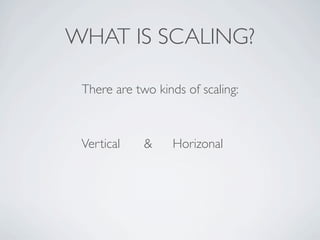

38. WHAT IS SCALING?
There are two kinds of scaling:
Vertical & Horizonal

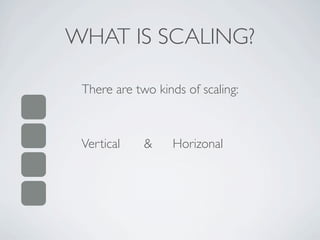

39. WHAT IS SCALING?
There are two kinds of scaling:
Vertical & Horizonal

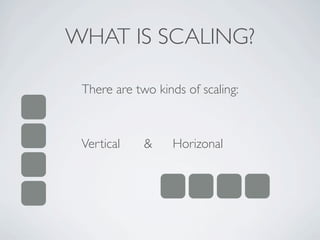

40. WHAT IS SCALING?
There are two kinds of scaling:
Vertical & Horizonal

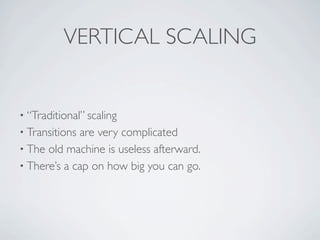

41. VERTICAL SCALING
• “Traditional” scaling
• Transitionsare very complicated
• The old machine is useless afterward.
• There’s a cap on how big you can go.

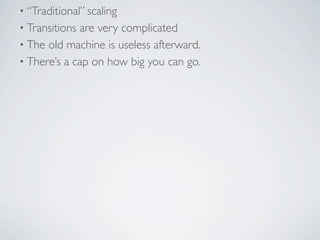

42. • “Traditional” scaling
• Transitionsare very complicated
• The old machine is useless afterward.
• There’s a cap on how big you can go.

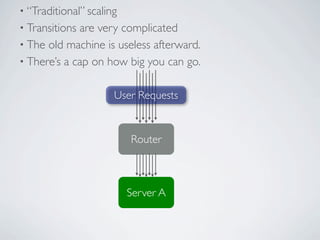

43. • “Traditional” scaling
• Transitionsare very complicated
• The old machine is useless afterward.
• There’s a cap on how big you can go.
User Requests
Router
Server A

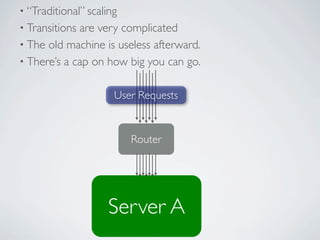

44. • “Traditional” scaling
• Transitionsare very complicated
• The old machine is useless afterward.
• There’s a cap on how big you can go.
User Requests
Router
Server A

45. HORIZONTAL SCALING
• More servers creates more capacity.
• Transparent to the application
• No single point of failure

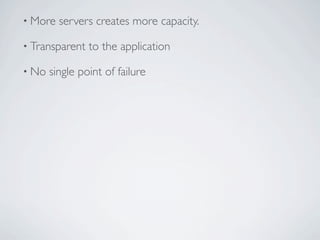

46. • More servers creates more capacity.
• Transparent to the application
• No single point of failure

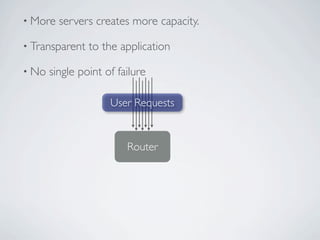

47. • More servers creates more capacity.
• Transparent to the application
• No single point of failure
User Requests
Router

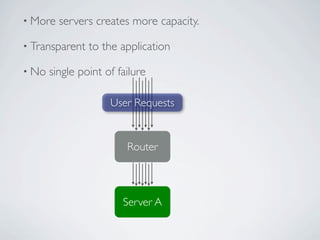

48. • More servers creates more capacity.
• Transparent to the application
• No single point of failure
User Requests
Router
Server A

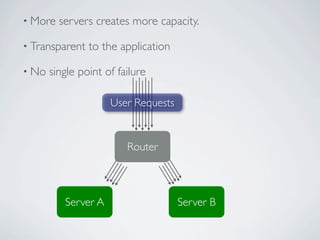

49. • More servers creates more capacity.
• Transparent to the application
• No single point of failure
User Requests
Router
Server A Server B

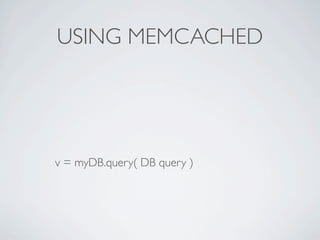

50. USING MEMCACHED
v = myDB.query( DB query )

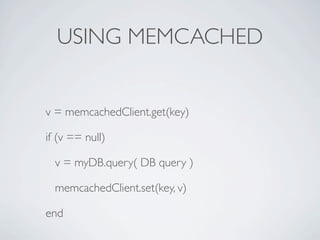

51. USING MEMCACHED
v = memcachedClient.get(key)
if (v == null)
v = myDB.query( DB query )
memcachedClient.set(key, v)
end

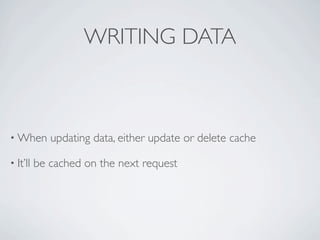

52. WRITING DATA
• When updating data, either update or delete cache
• It’ll be cached on the next request

53. WHO USES IT?
• 350 million active users
• Avg. user is on 55 minutes/day
• Very connected data
• Everyone loads everyone else’s data all the time

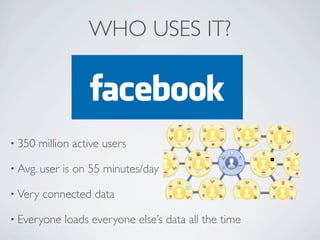

54. WHO USES IT?
• 350 million active users
• Avg. user is on 55 minutes/day
• Very connected data
• Everyone loads everyone else’s data all the time

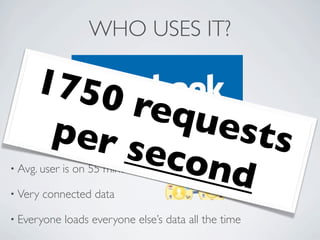

55. WHO USES IT?
1750
requ
per s ests
• 350
econ
million active users
• Avg. user
• Very
d
is on 55 minutes/day
connected data
• Everyone loads everyone else’s data all the time

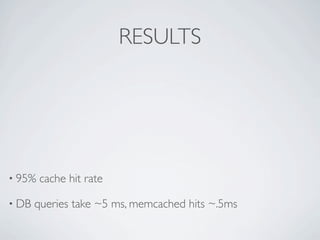

56. RESULTS
• 95% cache hit rate
• DB queries take ~5 ms, memcached hits ~.5ms

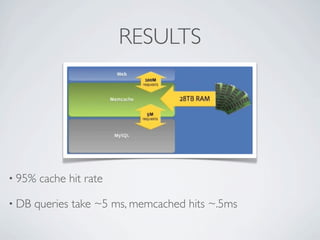

57. RESULTS
• 95% cache hit rate
• DB queries take ~5 ms, memcached hits ~.5ms

58. WHO USES IT?
• More than100 Million Videos, 1 BILLION views/day
• Everyone loads everyone else’s data all the time

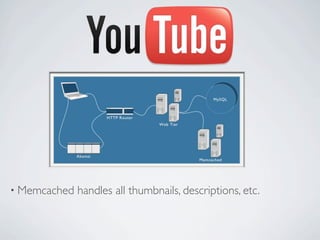

59. • Memcached handles all thumbnails, descriptions, etc.

60. WHO USES IT?
• Over 3 million articles, 7 Billion page views/month
• Saves every version of articles in the database, so cache works
great
• Memcached split over hundreds of servers.

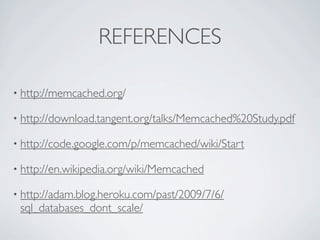

61. REFERENCES
• http://memcached.org/
• http://download.tangent.org/talks/Memcached%20Study.pdf
• http://code.google.com/p/memcached/wiki/Start
• http://en.wikipedia.org/wiki/Memcached
• http://adam.blog.heroku.com/past/2009/7/6/
sql_databases_dont_scale/
