Measurement IV assignment presentation slides
- 1. HENG HENG CONSULTANCY No.4 JalanTaylor’s, 47500 Subang Jaya, Selangor Darul Ehsan, Malaysia TEL: 603-5678 9000 FAX: 603-56778000 Team Leader Sr Lee Ren Jet Sr Tan Jia Yi Sr Lu Siau Vay Sr Tan Kiah Chun Sr Ng Seng He Sr Yeo Dor Een Sr Chong Hui Xin
- 2. CADANGAN MEMBINA SATUUNIT RUMAH BERKEMBAR 2 TINGKAT LOT RB2-01, MUKIM SRI GADING, DAERAH BATU PAHAT, JOHOR DARUK TAKZIM.

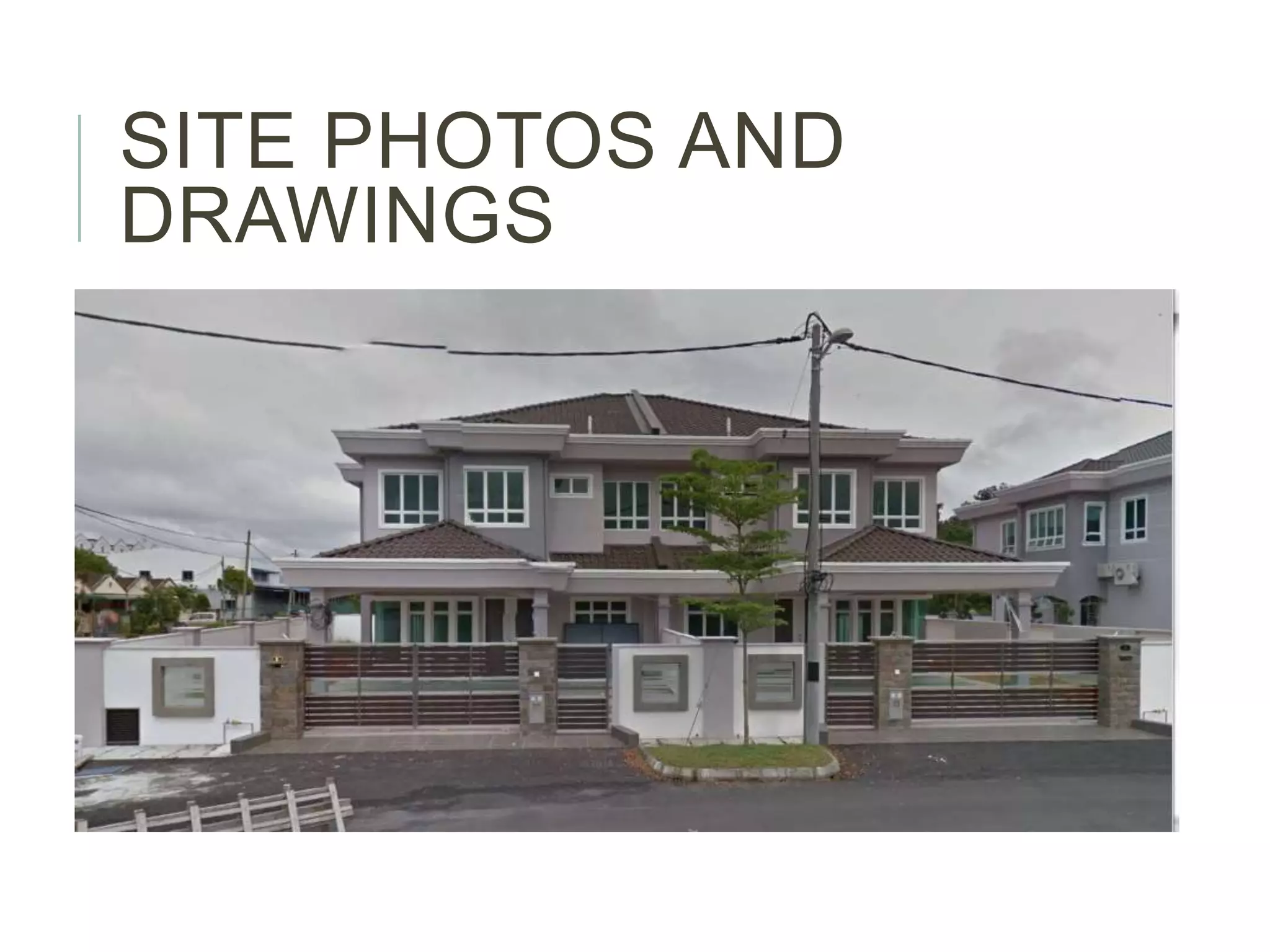

- 3.
- 4.
- 5.
- 6.
- 7.

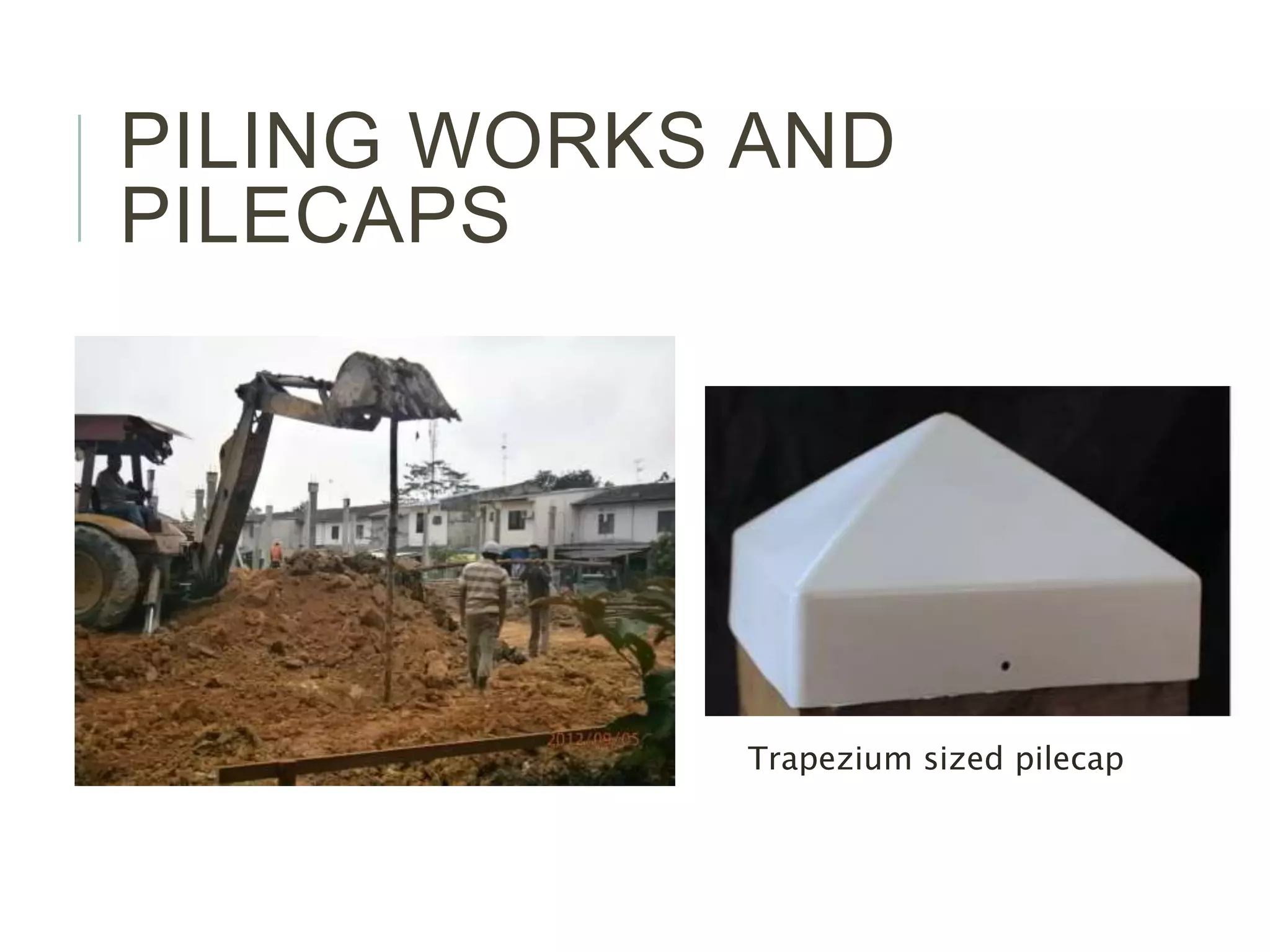

- 8. PILING WORKS AND PILECAPS Trapeziumsized pilecap

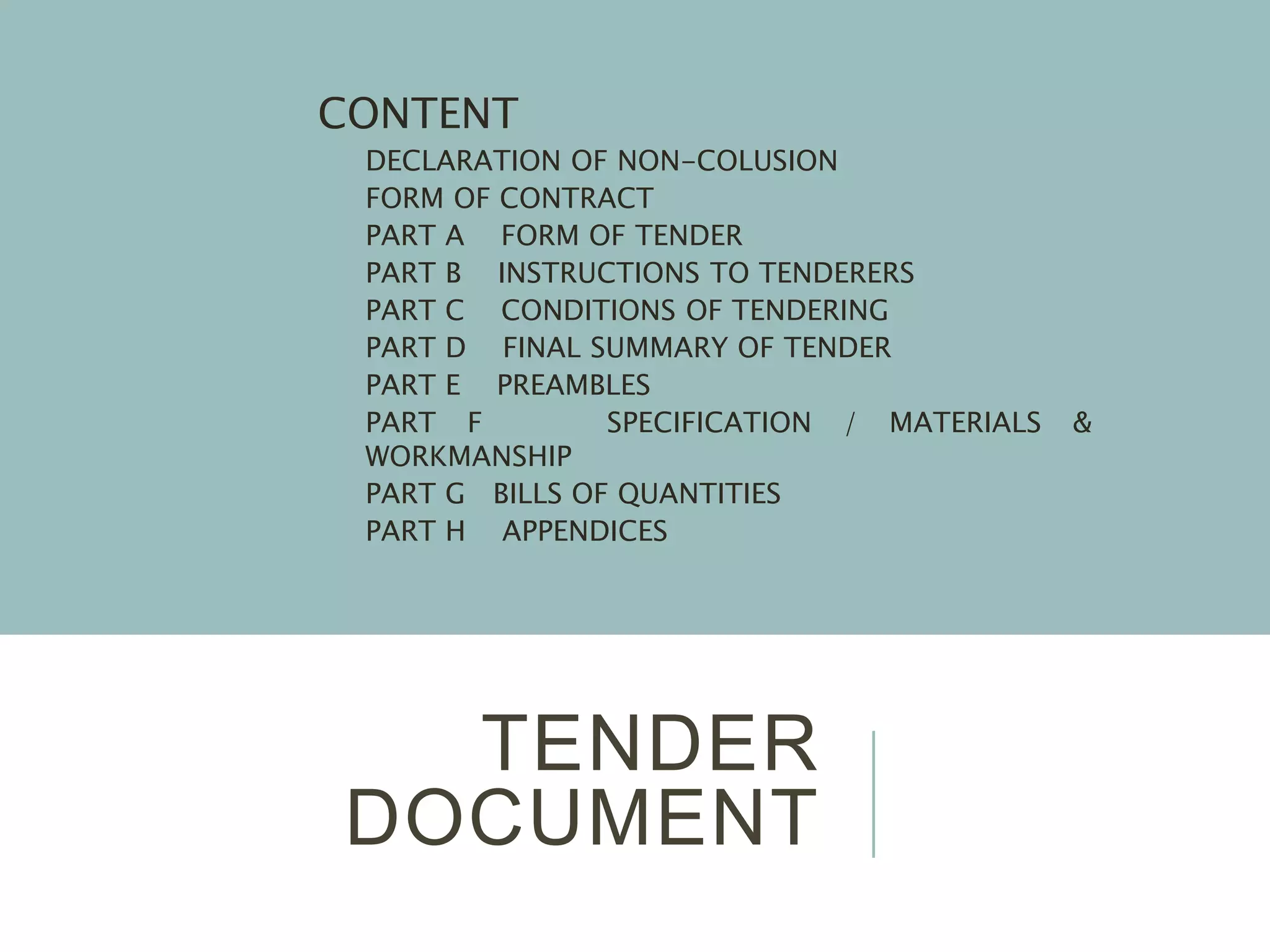

- 9. TENDER DOCUMENT CONTENT 1. DECLARATION OFNON-COLUSION 2. FORM OF CONTRACT 3. PART A FORM OF TENDER 4. PART B INSTRUCTIONS TO TENDERERS 5. PART C CONDITIONS OF TENDERING 6. PART D FINAL SUMMARY OF TENDER 7. PART E PREAMBLES 8. PART F SPECIFICATION / MATERIALS & WORKMANSHIP 9. PART G BILLS OF QUANTITIES 10.PART H APPENDICES

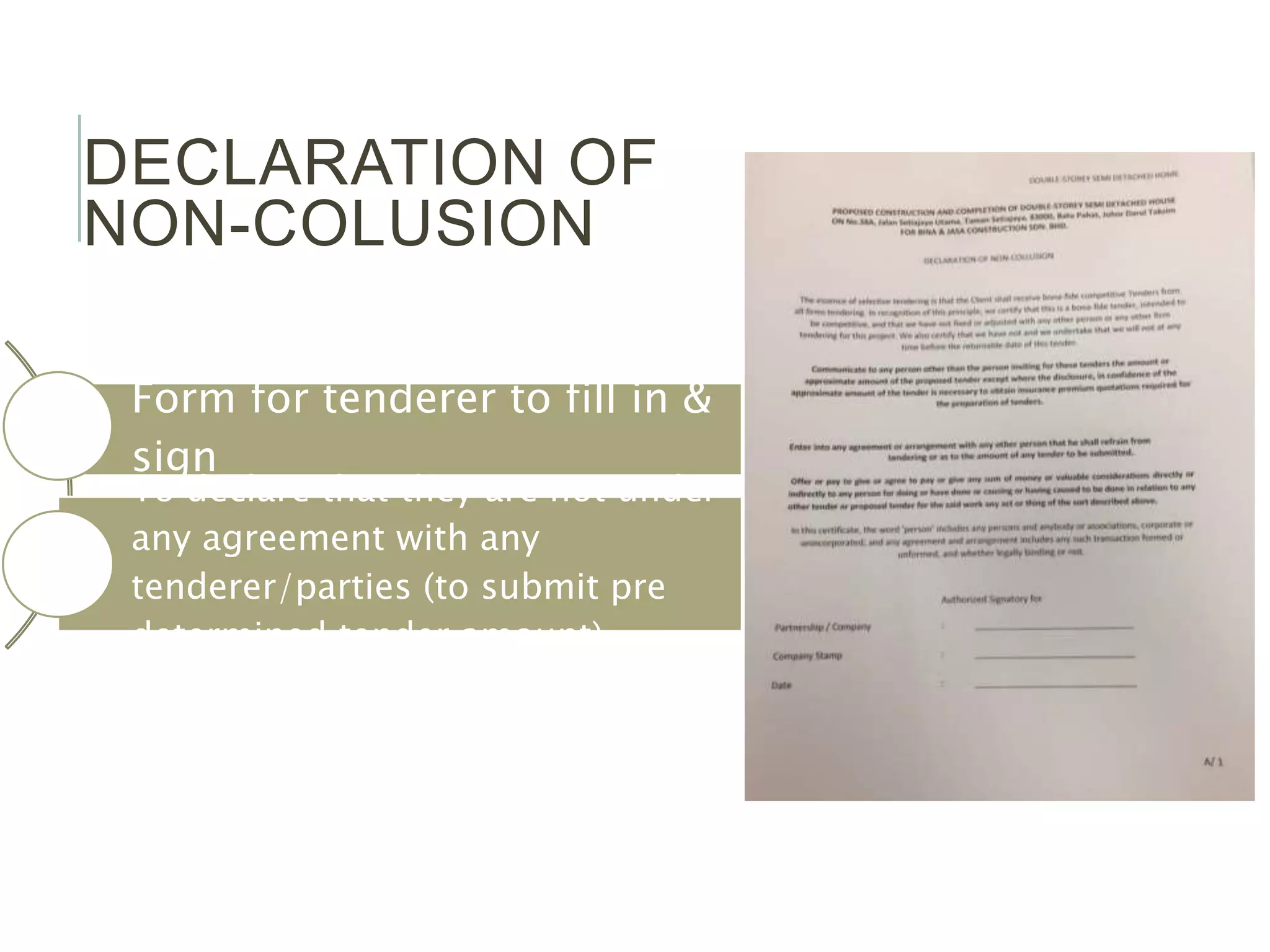

- 10. Form for tendererto fill in & sign To declare that they are not under any agreement with any tenderer/parties (to submit pre determined tender amount) DECLARATION OF NON-COLUSION

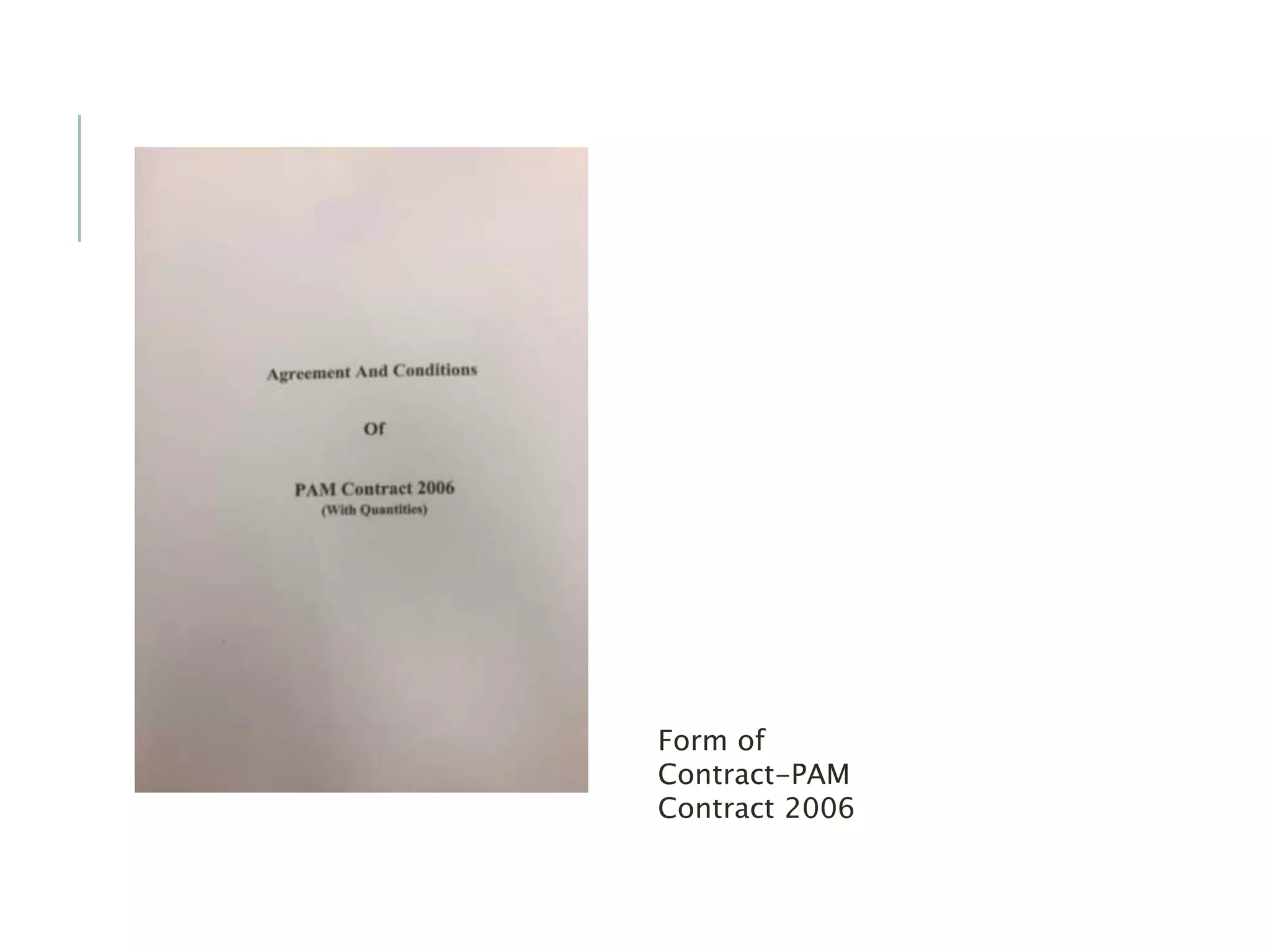

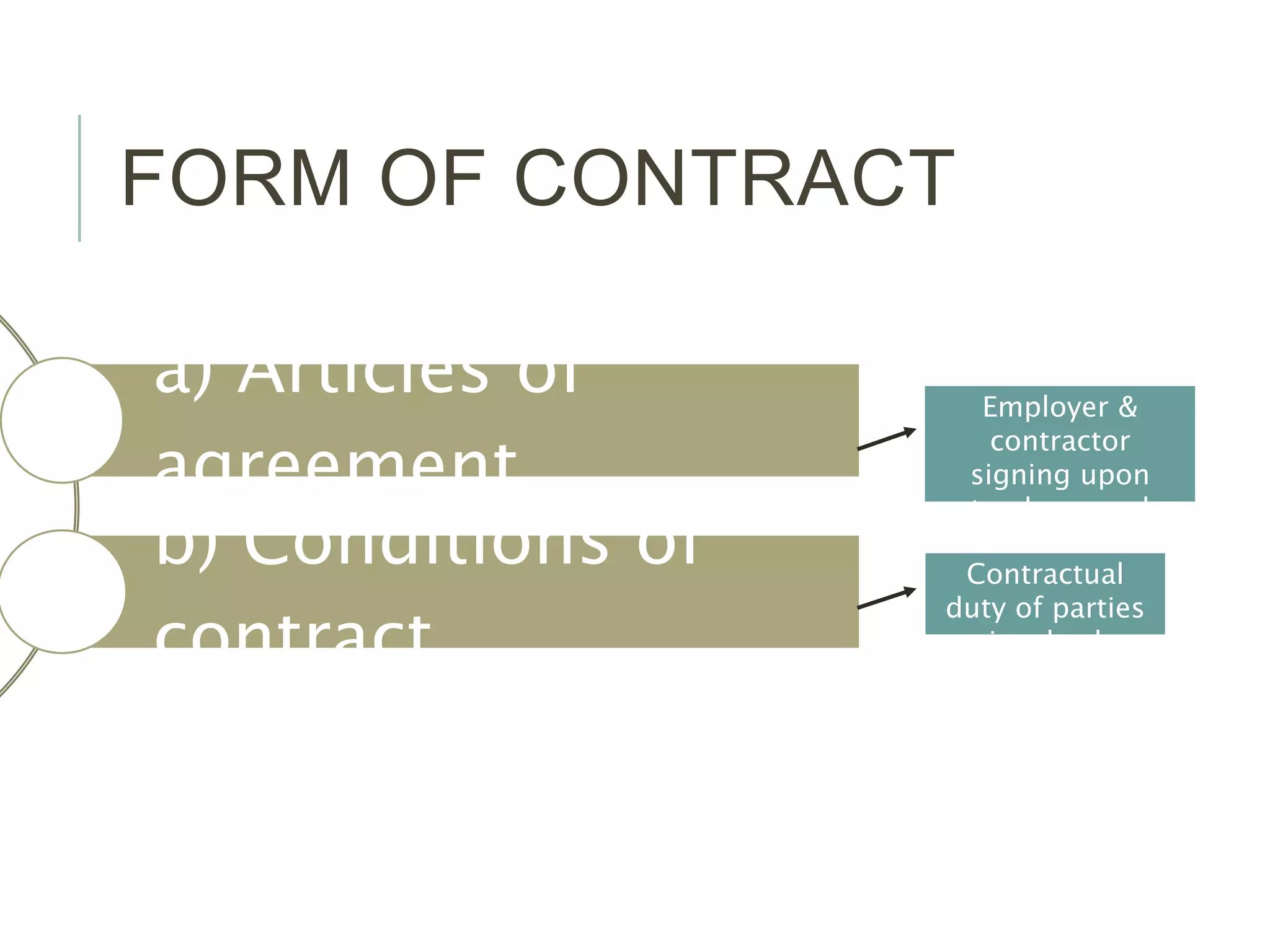

- 11. FORM OF CONTRACT a)Articles of agreement b) Conditions of contract Employer & contractor signing upon tender award Contractual duty of parties involved
- 12.

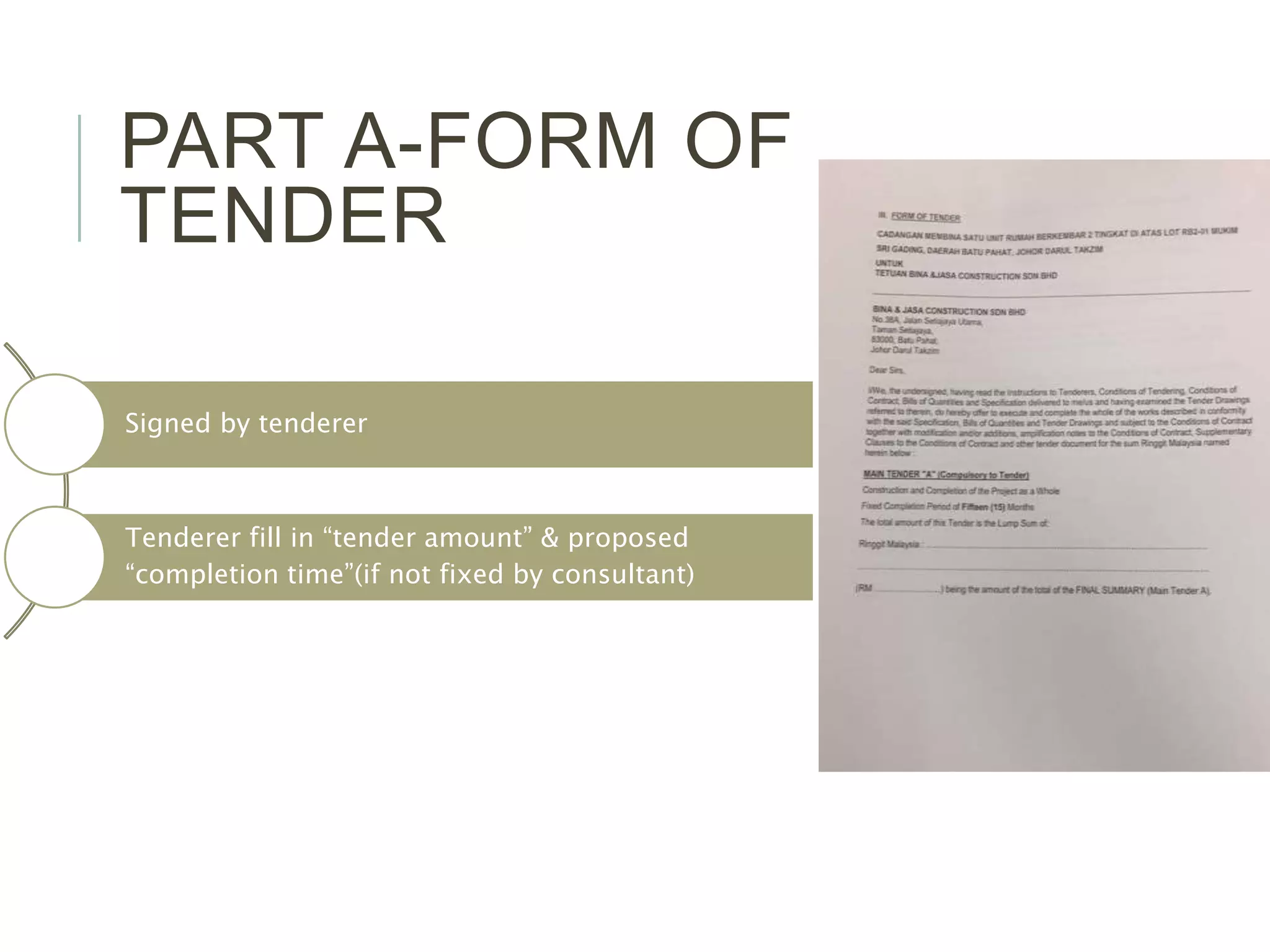

- 13. PART A-FORM OF TENDER Signedby tenderer Tenderer fill in “tender amount” & proposed “completion time”(if not fixed by consultant)

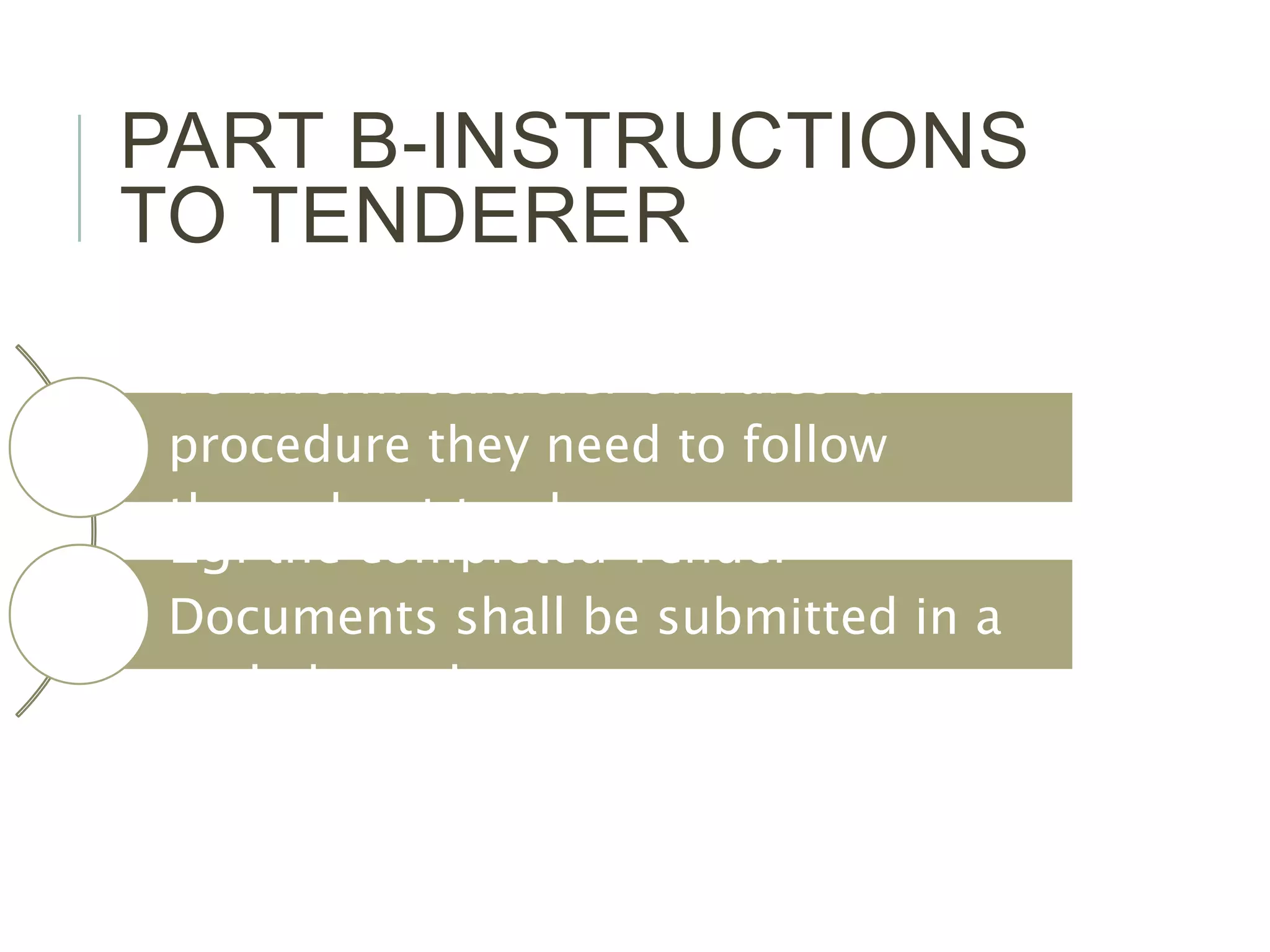

- 14. PART B-INSTRUCTIONS TO TENDERER Toinform tenderer on rules & procedure they need to follow throughout tender process Eg: the completed Tender Documents shall be submitted in a sealed envelope

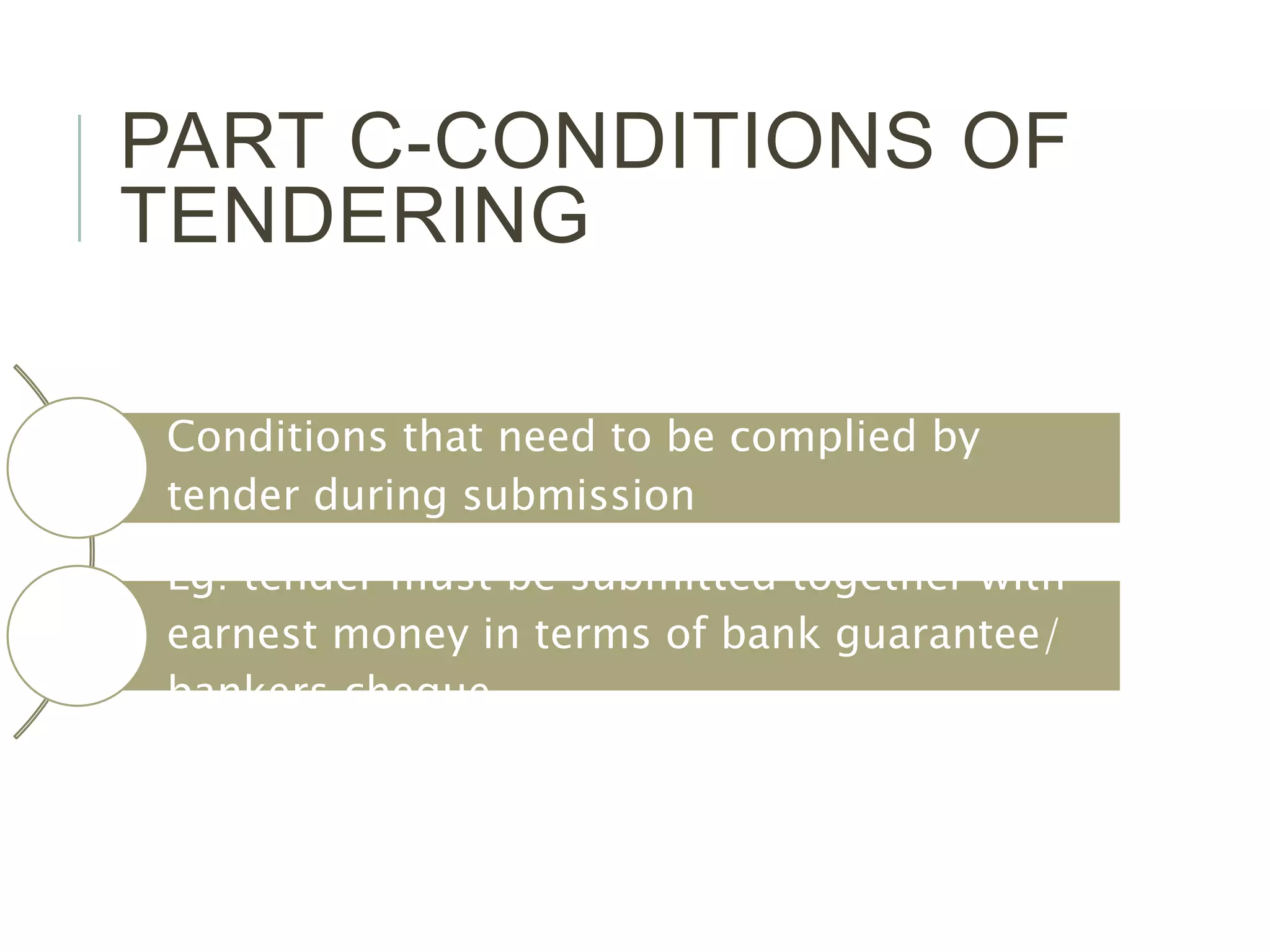

- 15. PART C-CONDITIONS OF TENDERING Conditionsthat need to be complied by tender during submission Eg: tender must be submitted together with earnest money in terms of bank guarantee/ bankers cheque

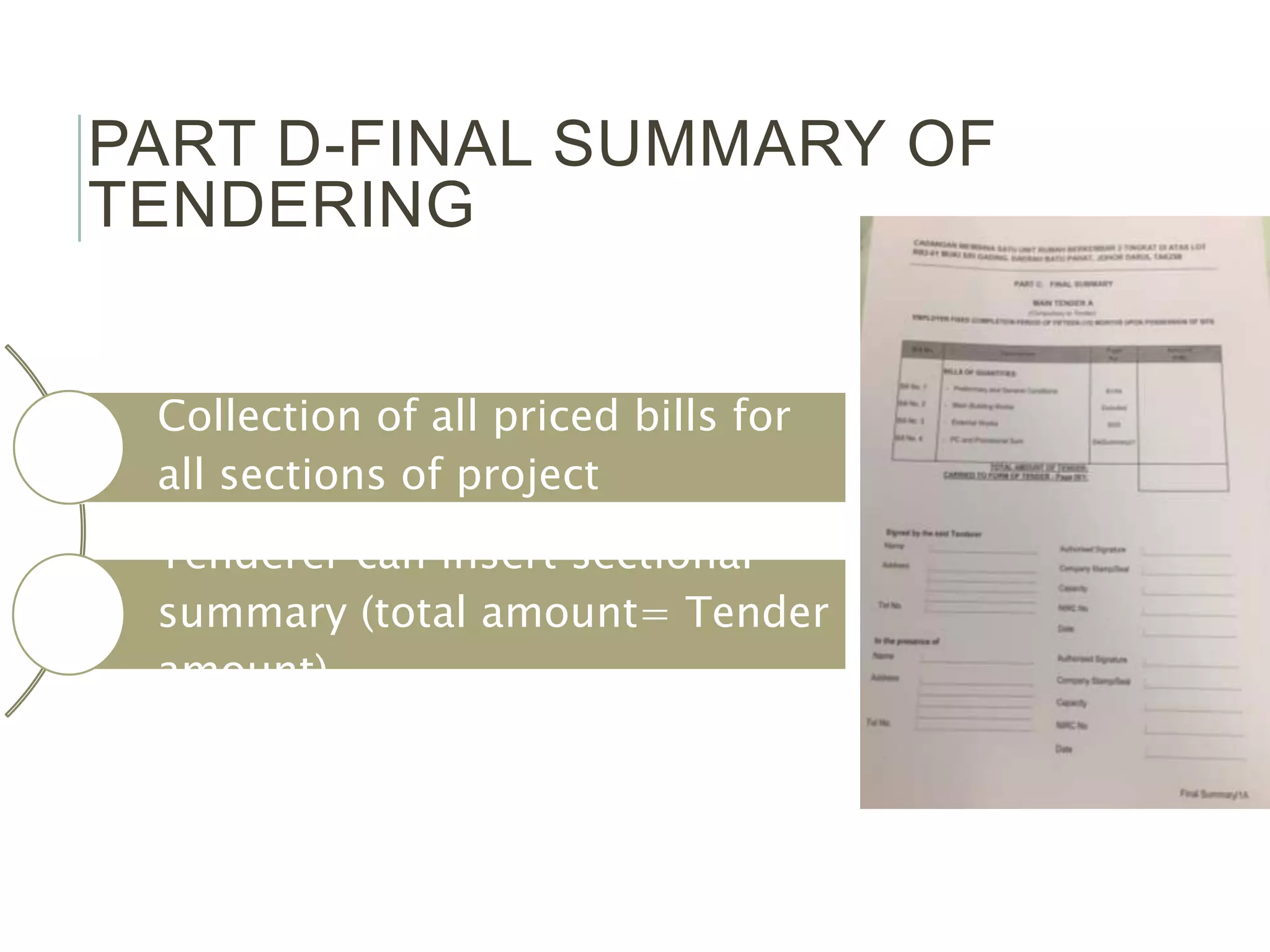

- 16. PART D-FINAL SUMMARYOF TENDERING Collection of all priced bills for all sections of project Tenderer can insert sectional summary (total amount= Tender amount)

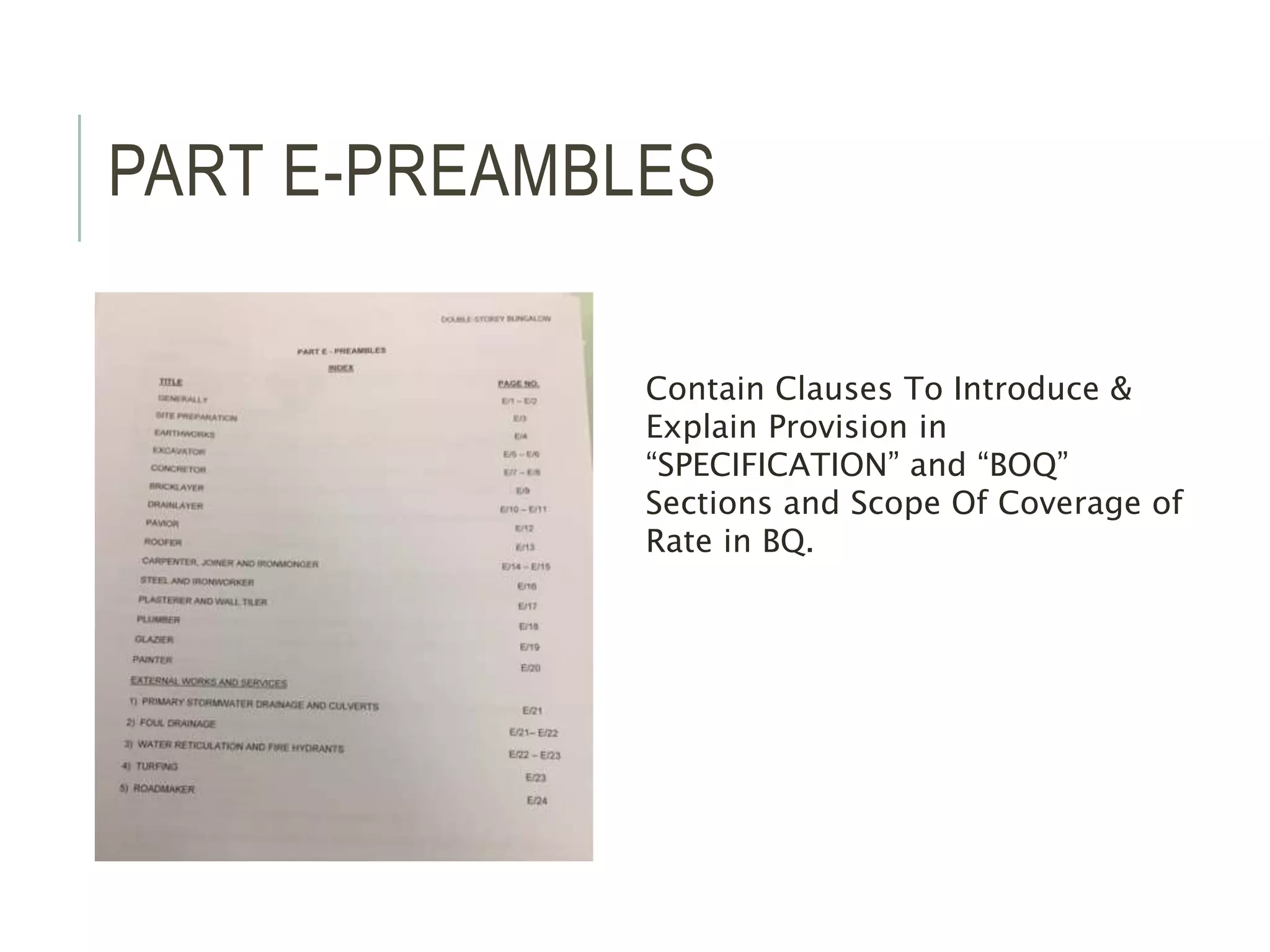

- 17. PART E-PREAMBLES Contain ClausesTo Introduce & Explain Provision in “SPECIFICATION” and “BOQ” Sections and Scope Of Coverage of Rate in BQ.

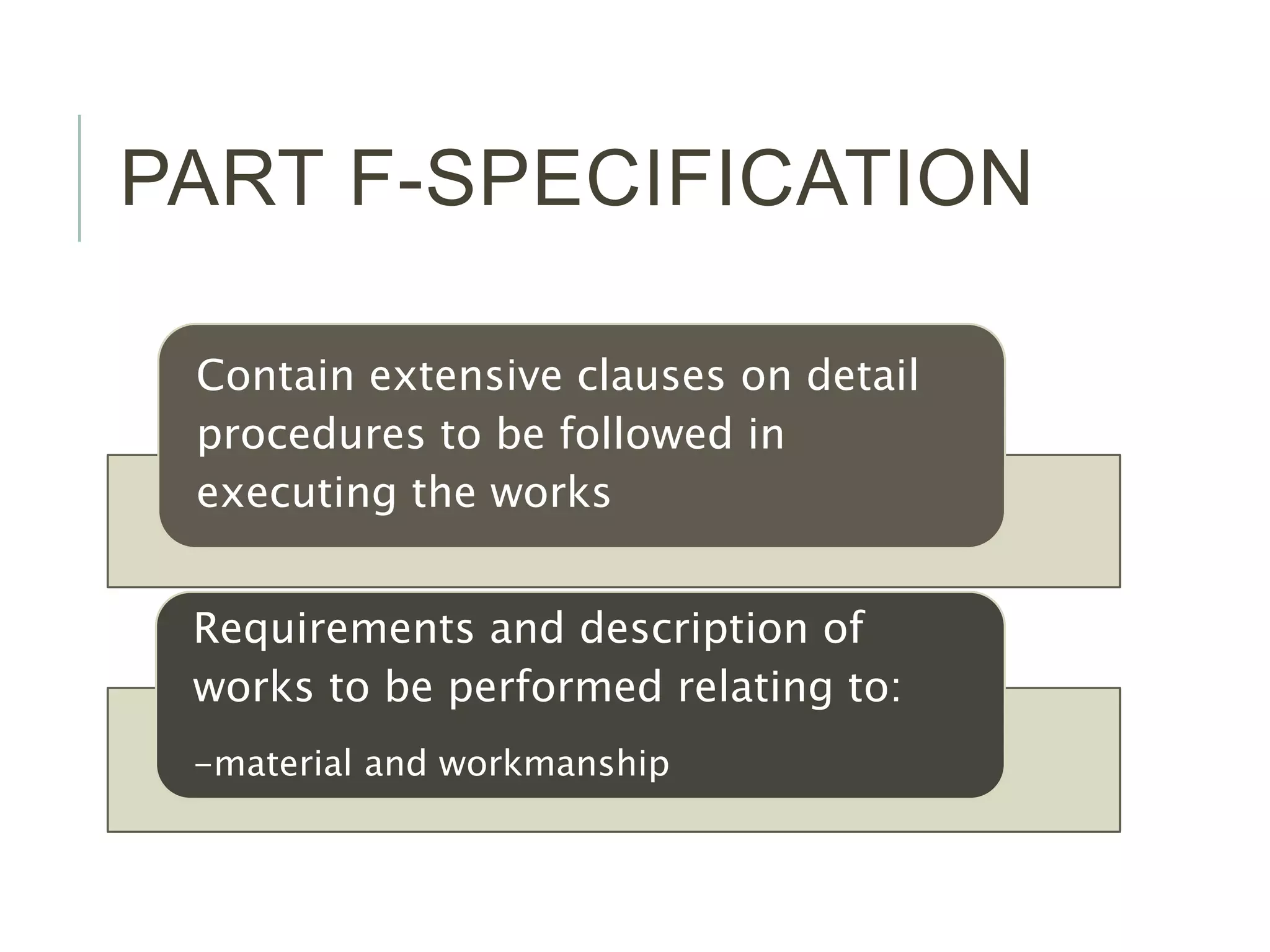

- 18. PART F-SPECIFICATION Contain extensiveclauses on detail procedures to be followed in executing the works Requirements and description of works to be performed relating to: -material and workmanship

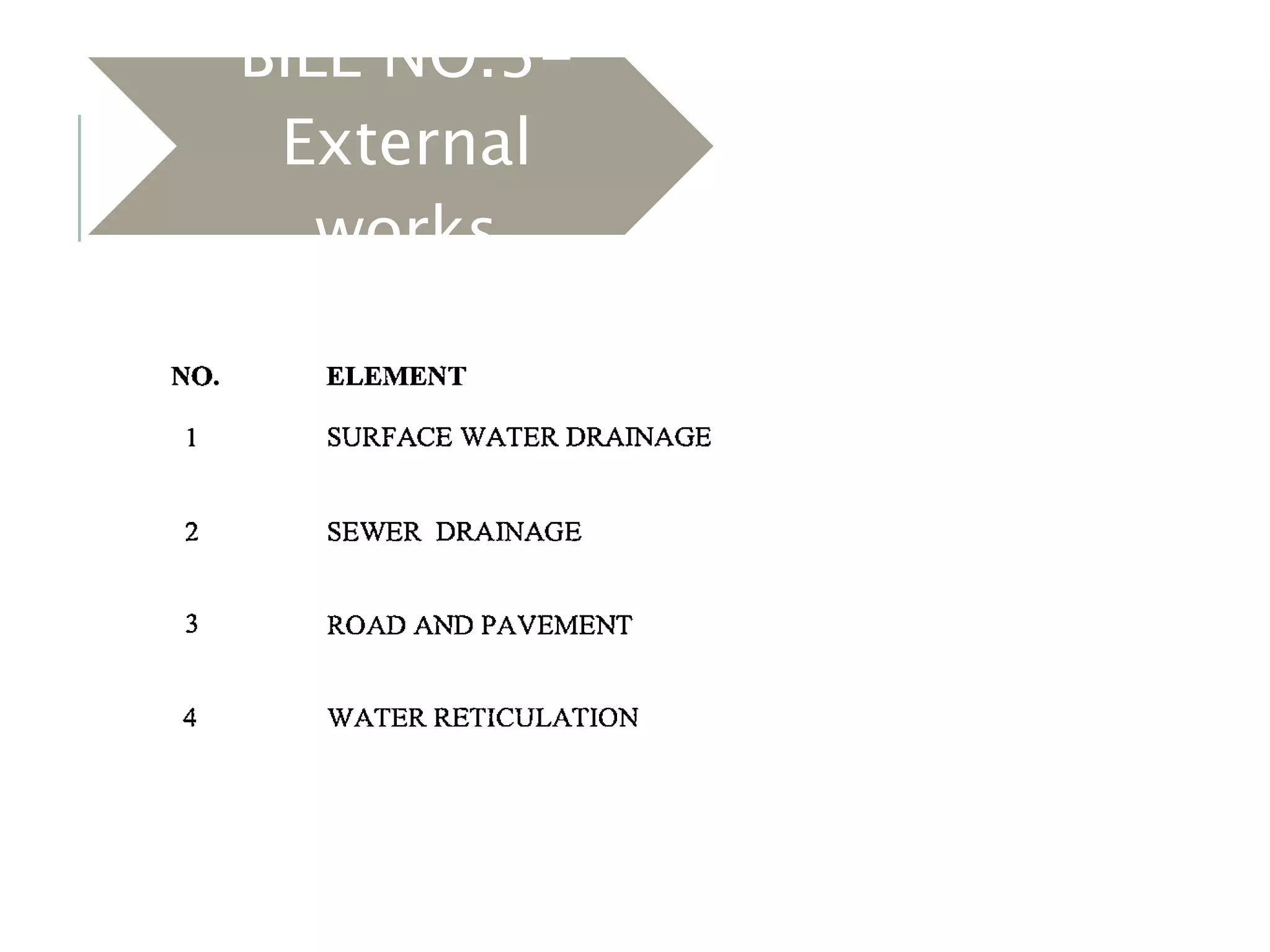

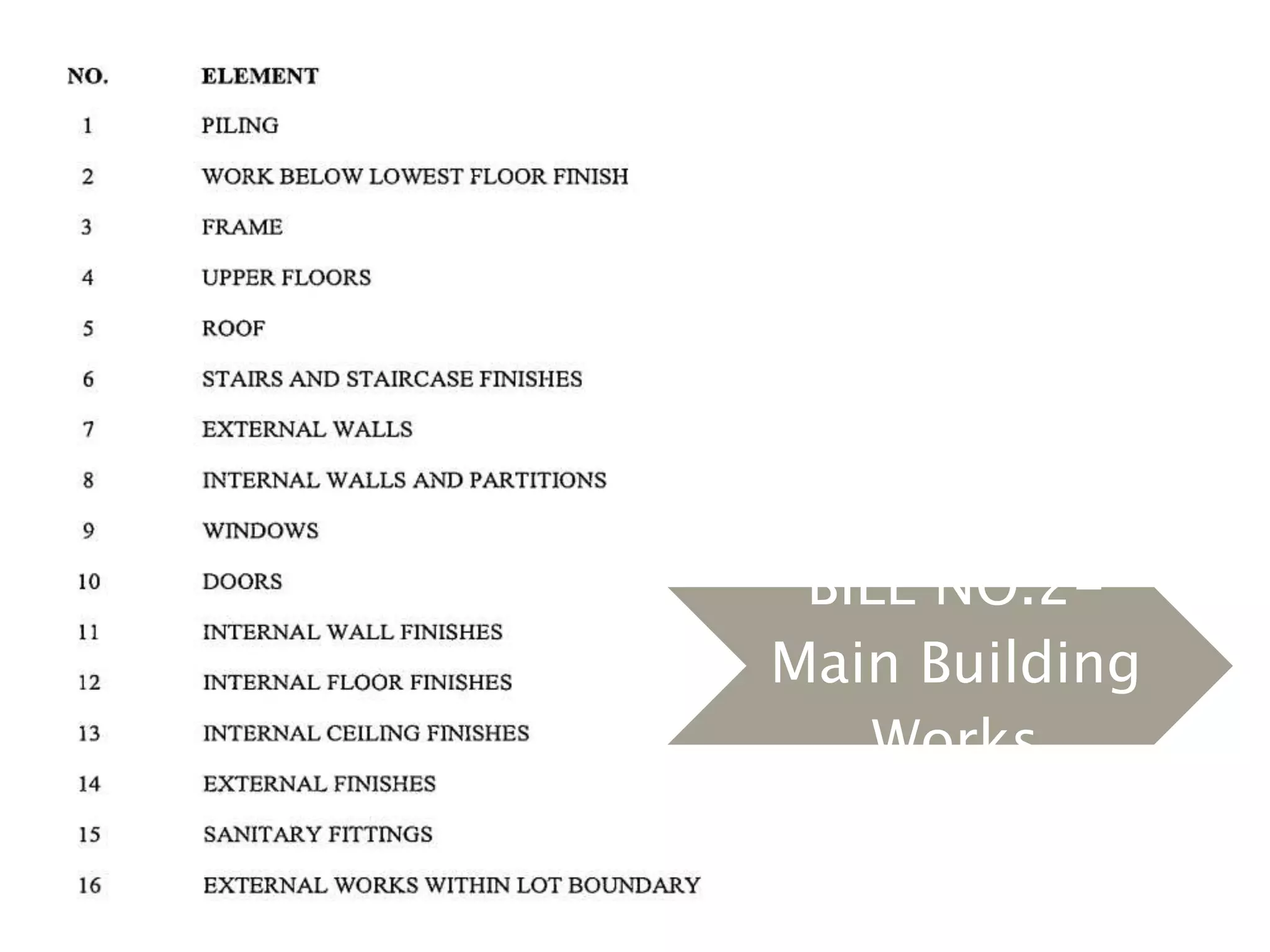

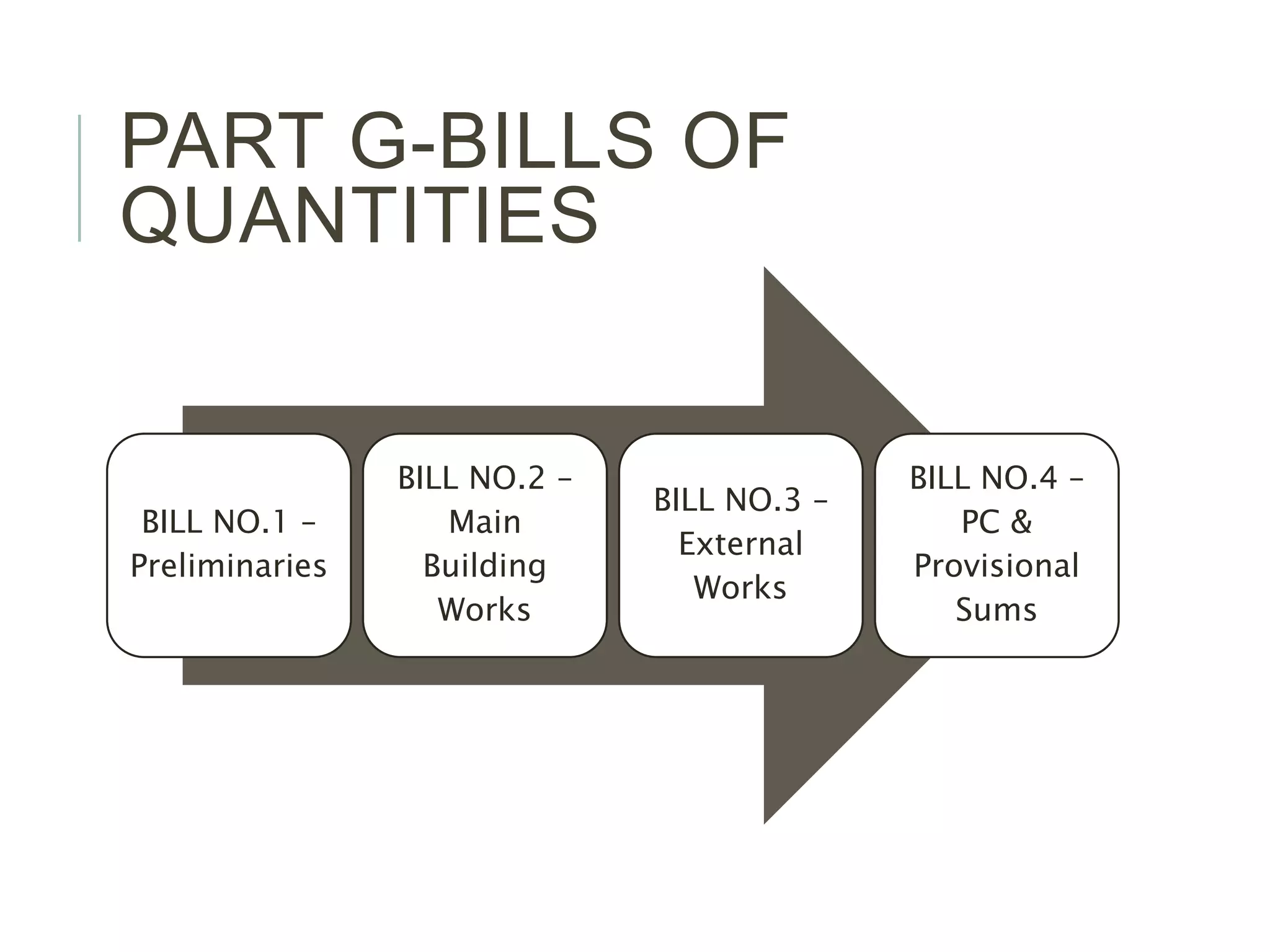

- 19. PART G-BILLS OF QUANTITIES BILLNO.1 – Preliminaries BILL NO.2 – Main Building Works BILL NO.3 – External Works BILL NO.4 – PC & Provisional Sums

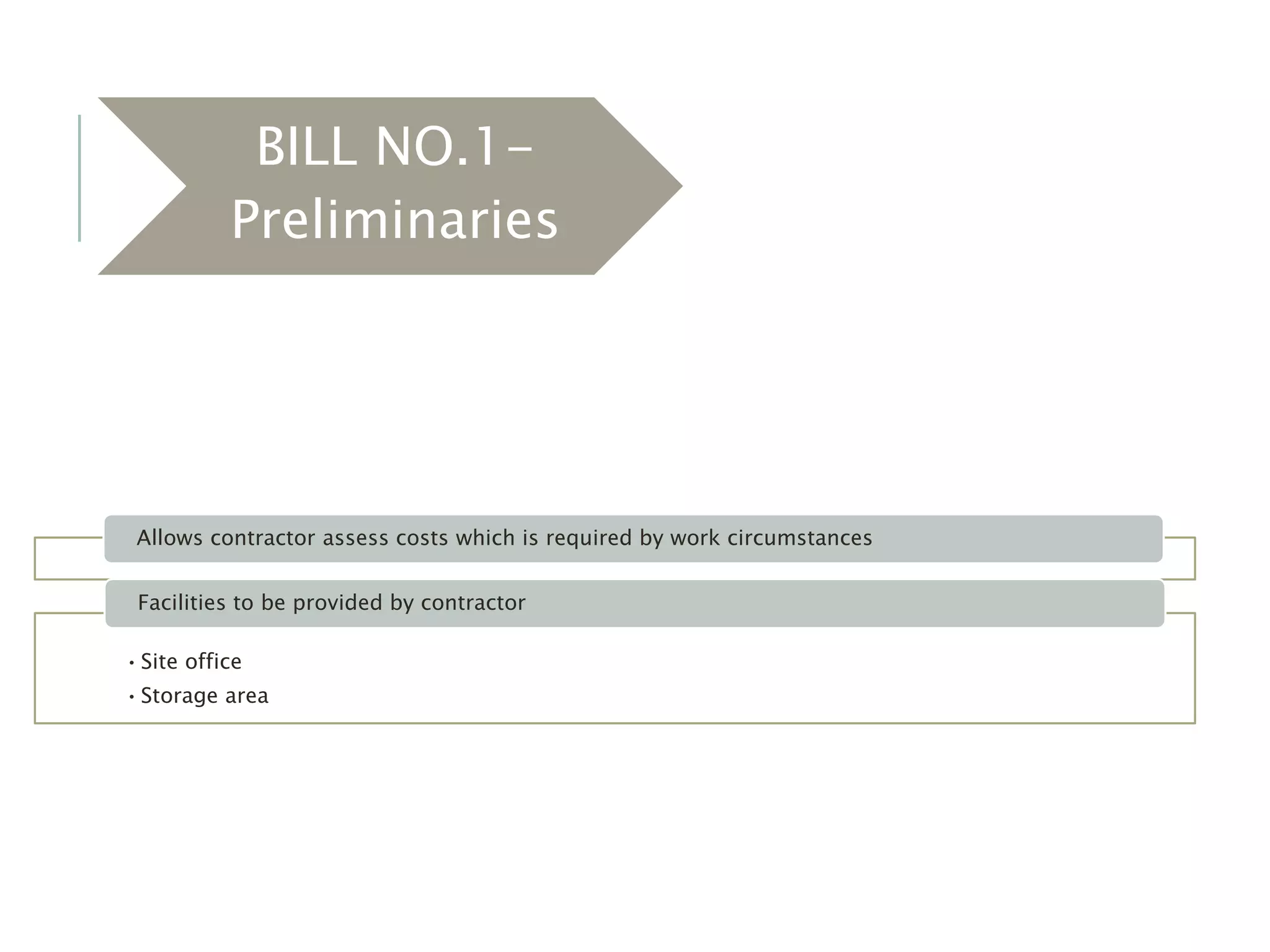

- 20. BILL NO.1- Preliminaries Allows contractorassess costs which is required by work circumstances •Site office •Storage area Facilities to be provided by contractor
- 21.
- 22.

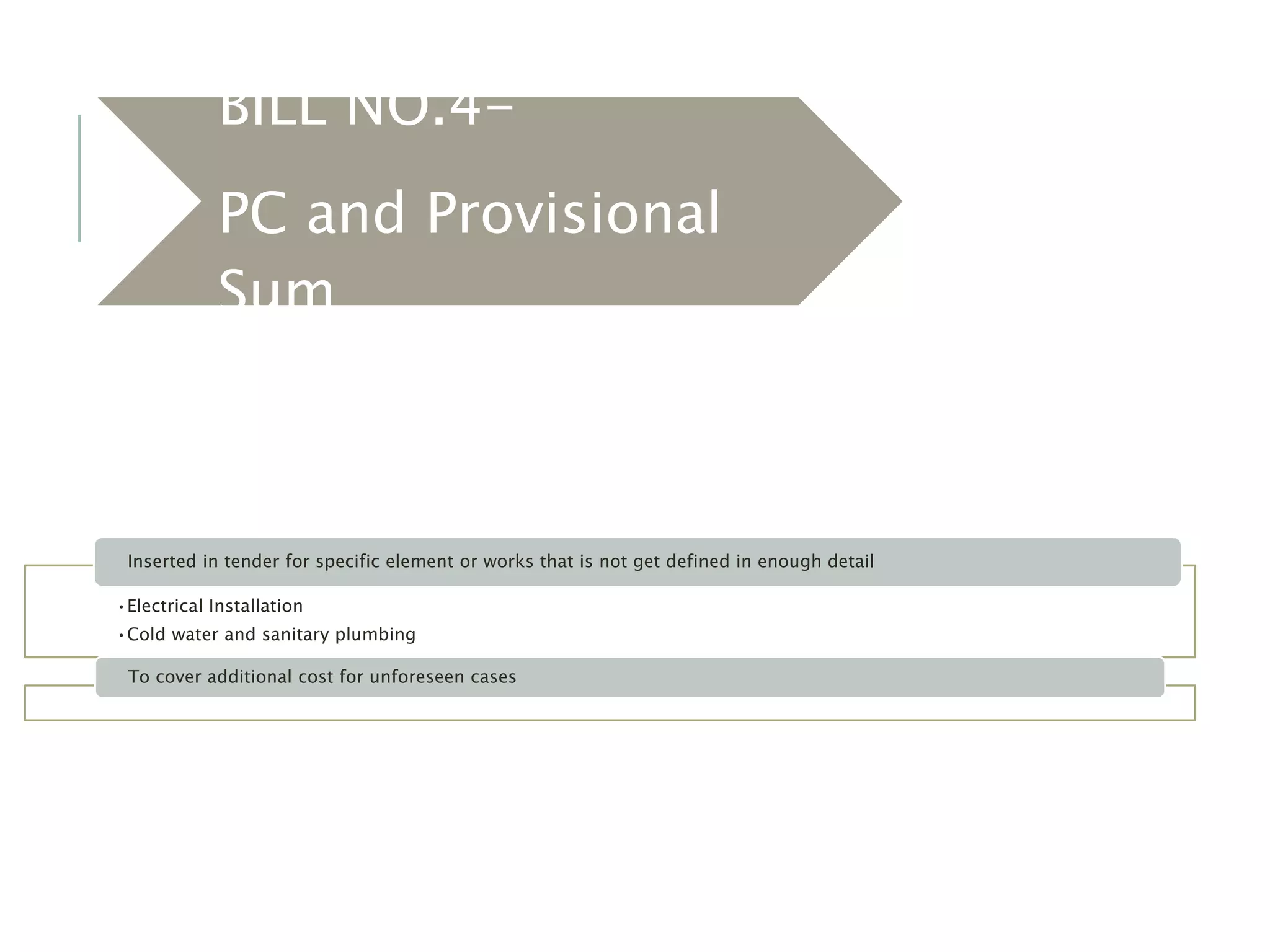

- 23. BILL NO.4- PC andProvisional Sum •Electrical Installation •Cold water and sanitary plumbing Inserted in tender for specific element or works that is not get defined in enough detail To cover additional cost for unforeseen cases
- 24.

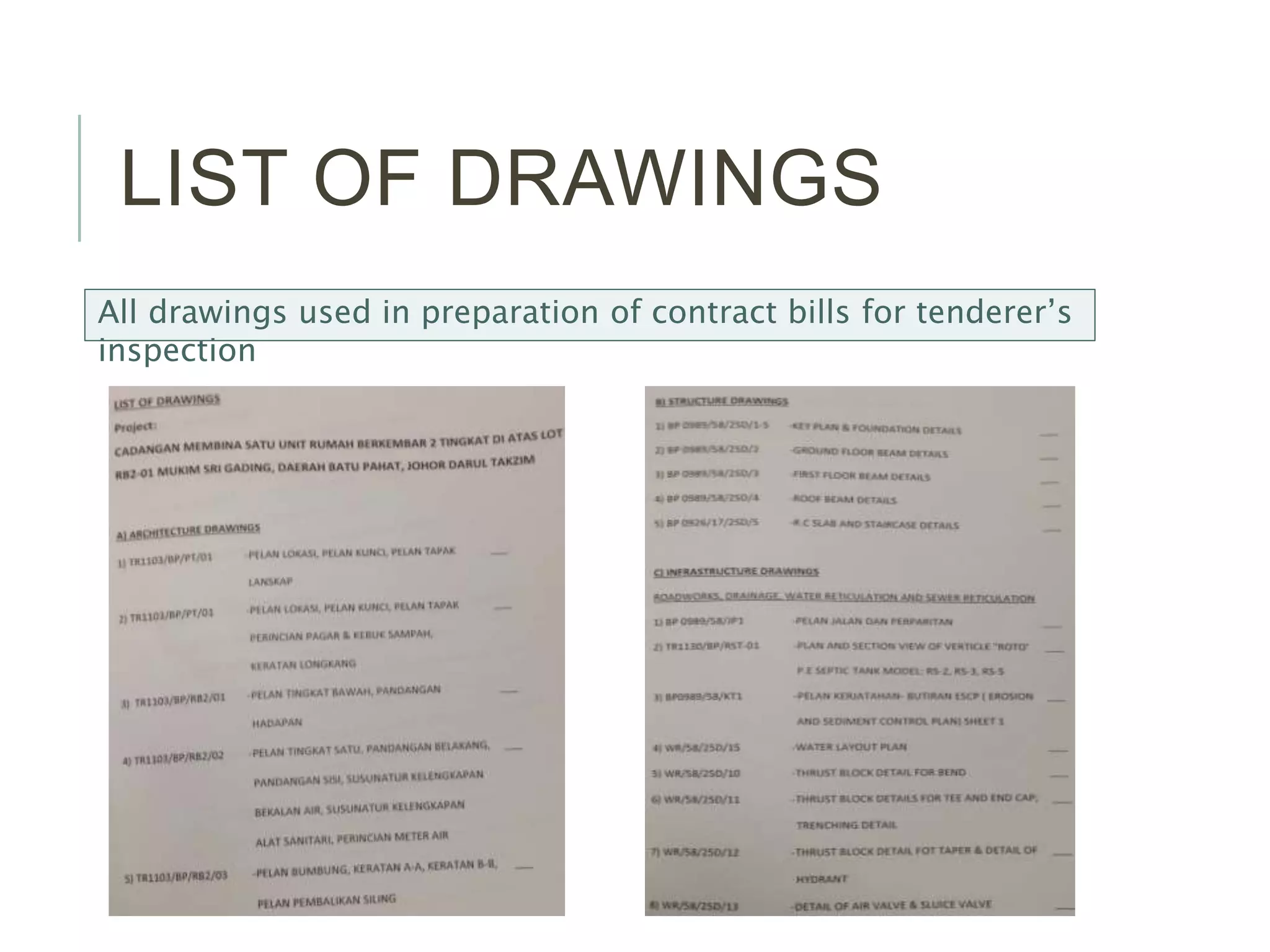

- 25. LIST OF DRAWINGS Alldrawings used in preparation of contract bills for tenderer’s inspection

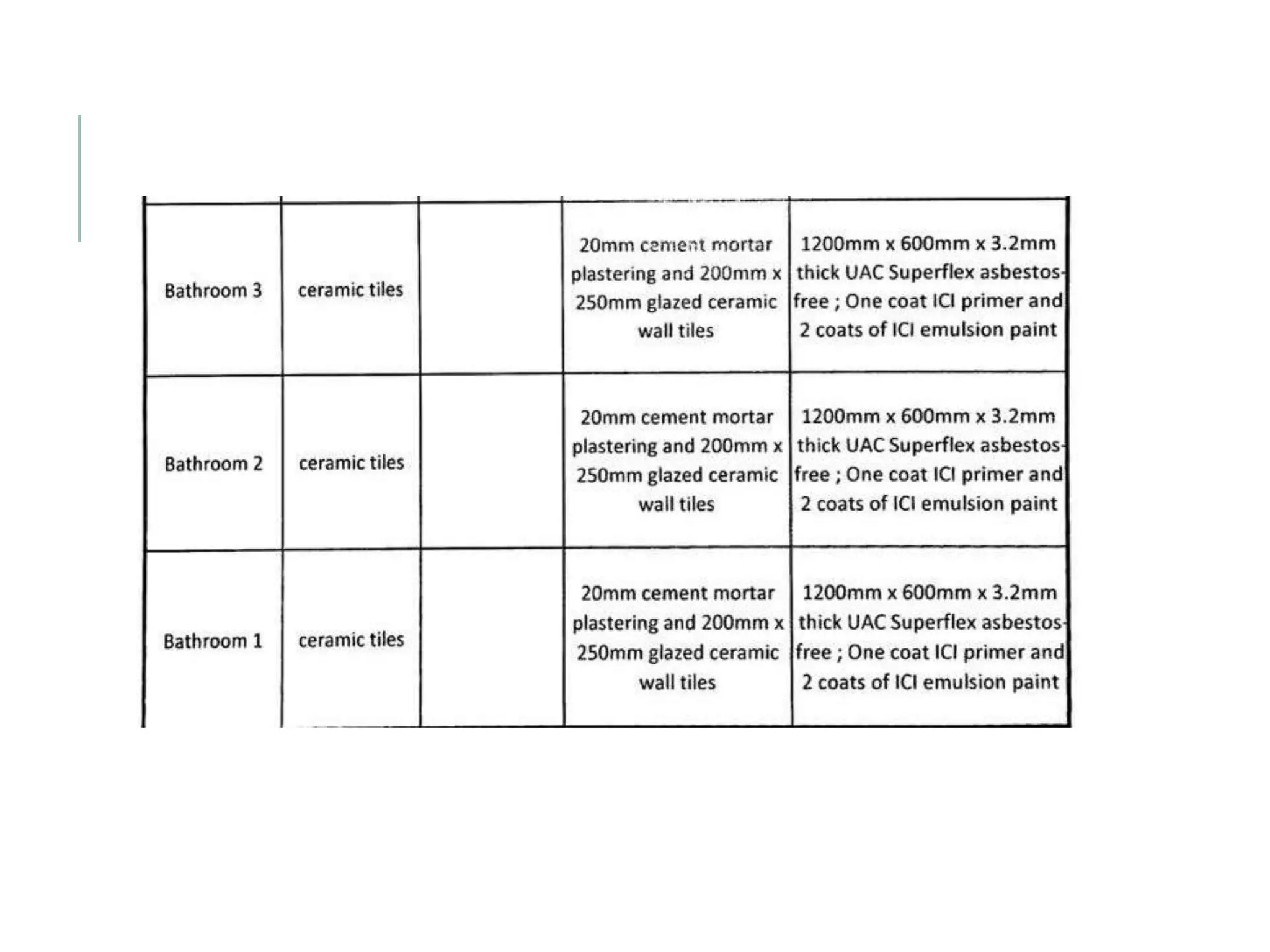

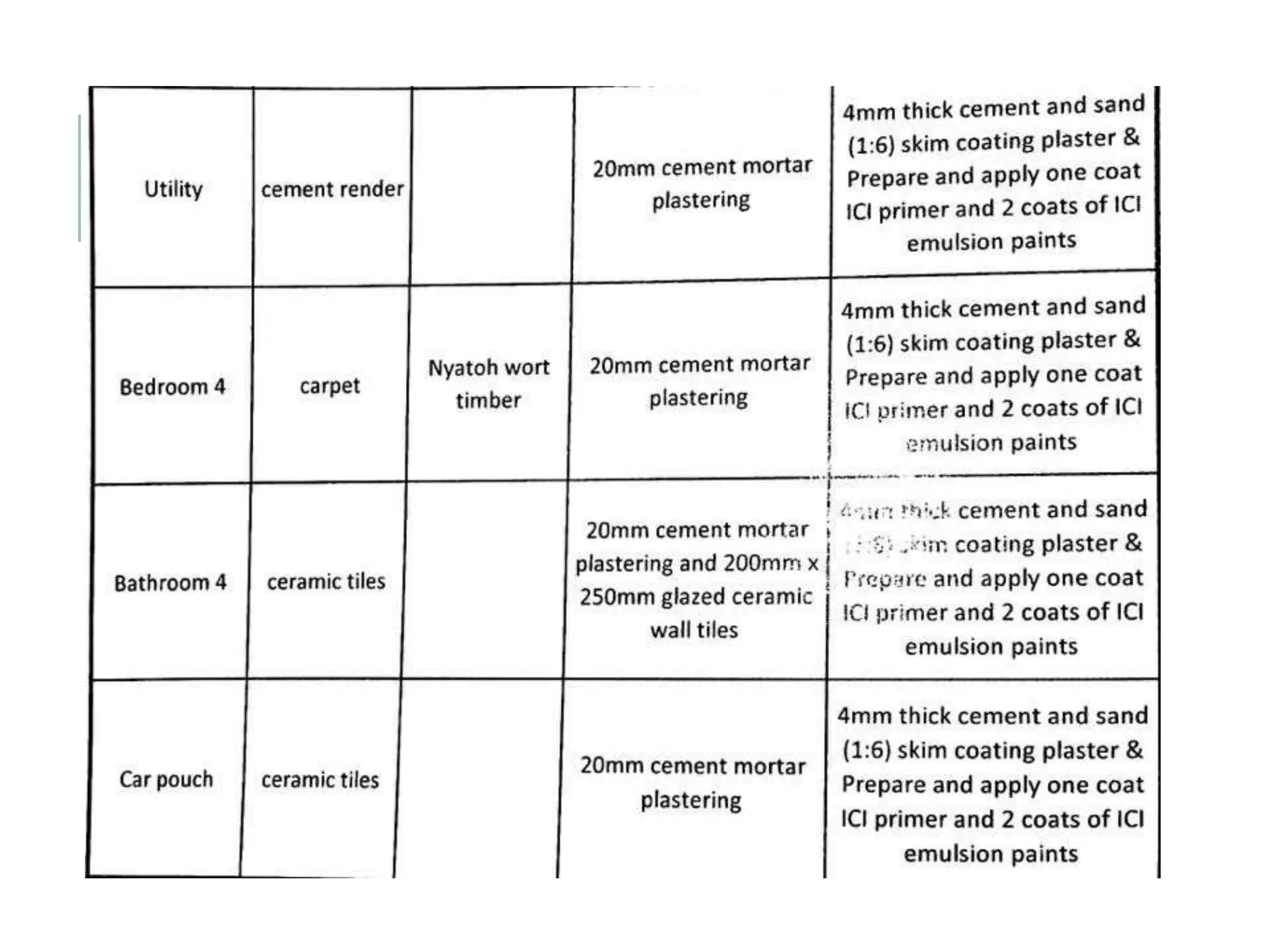

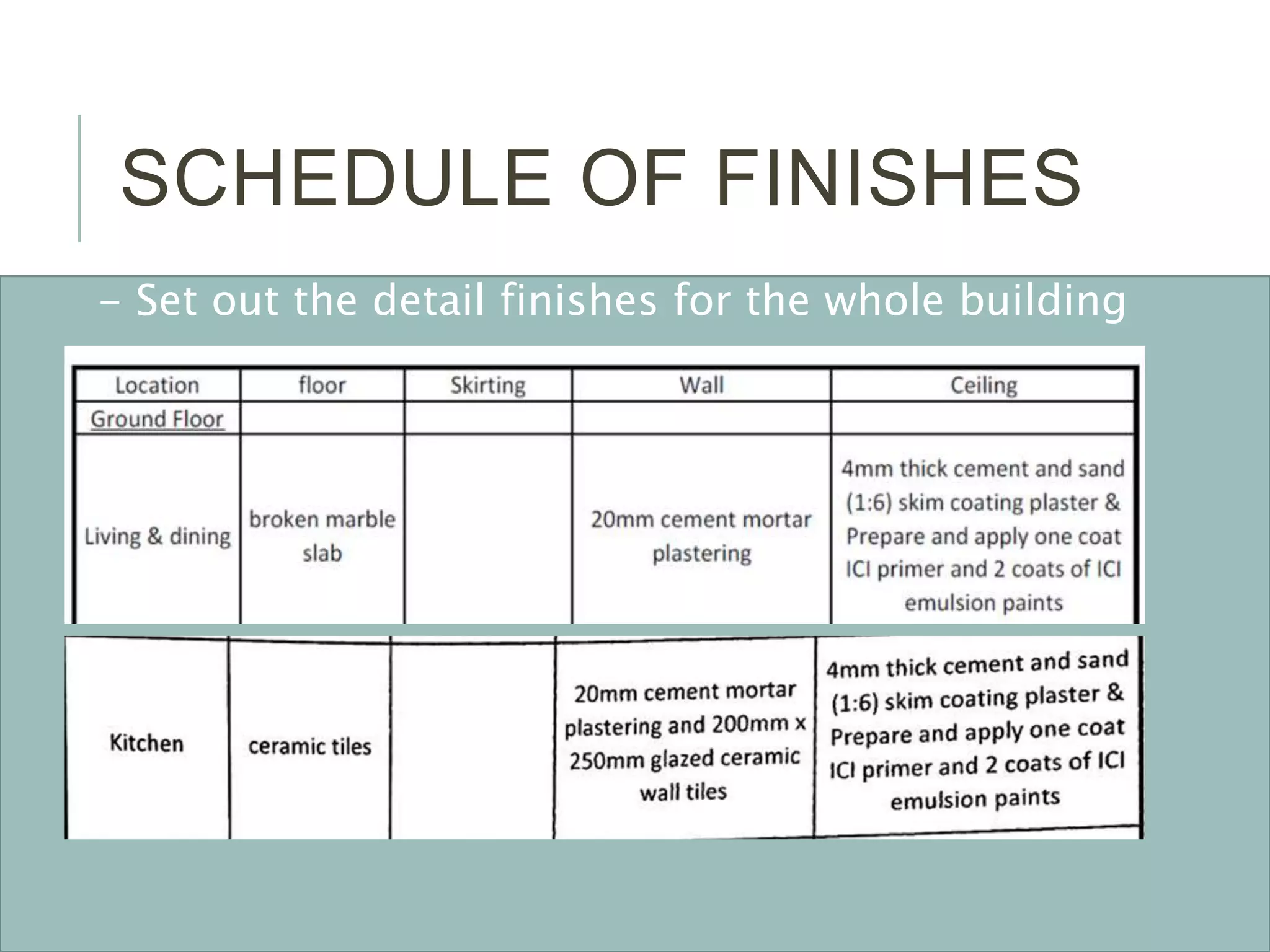

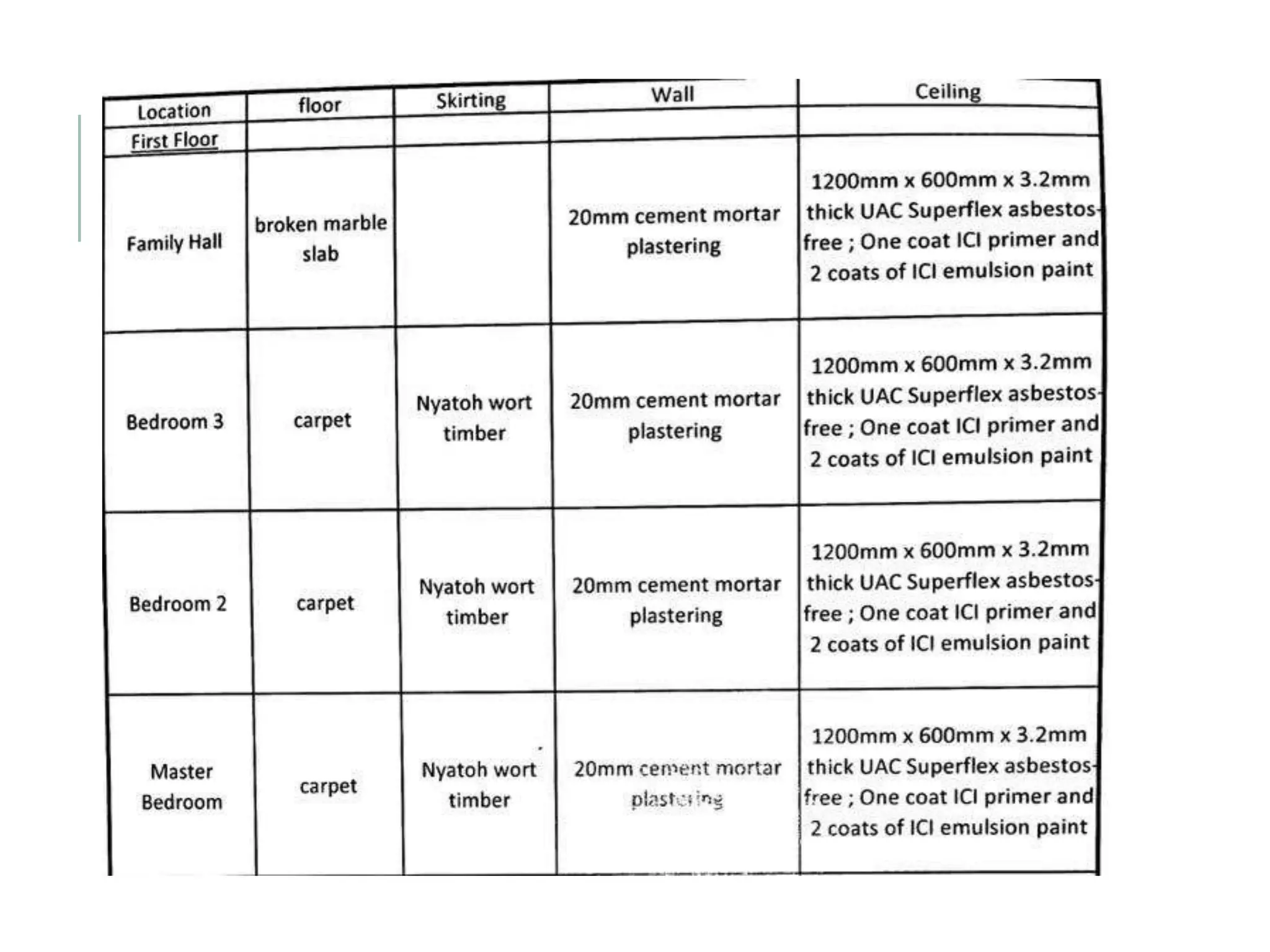

- 26. SCHEDULE OF FINISHES •- Set out the detail finishes for the whole building

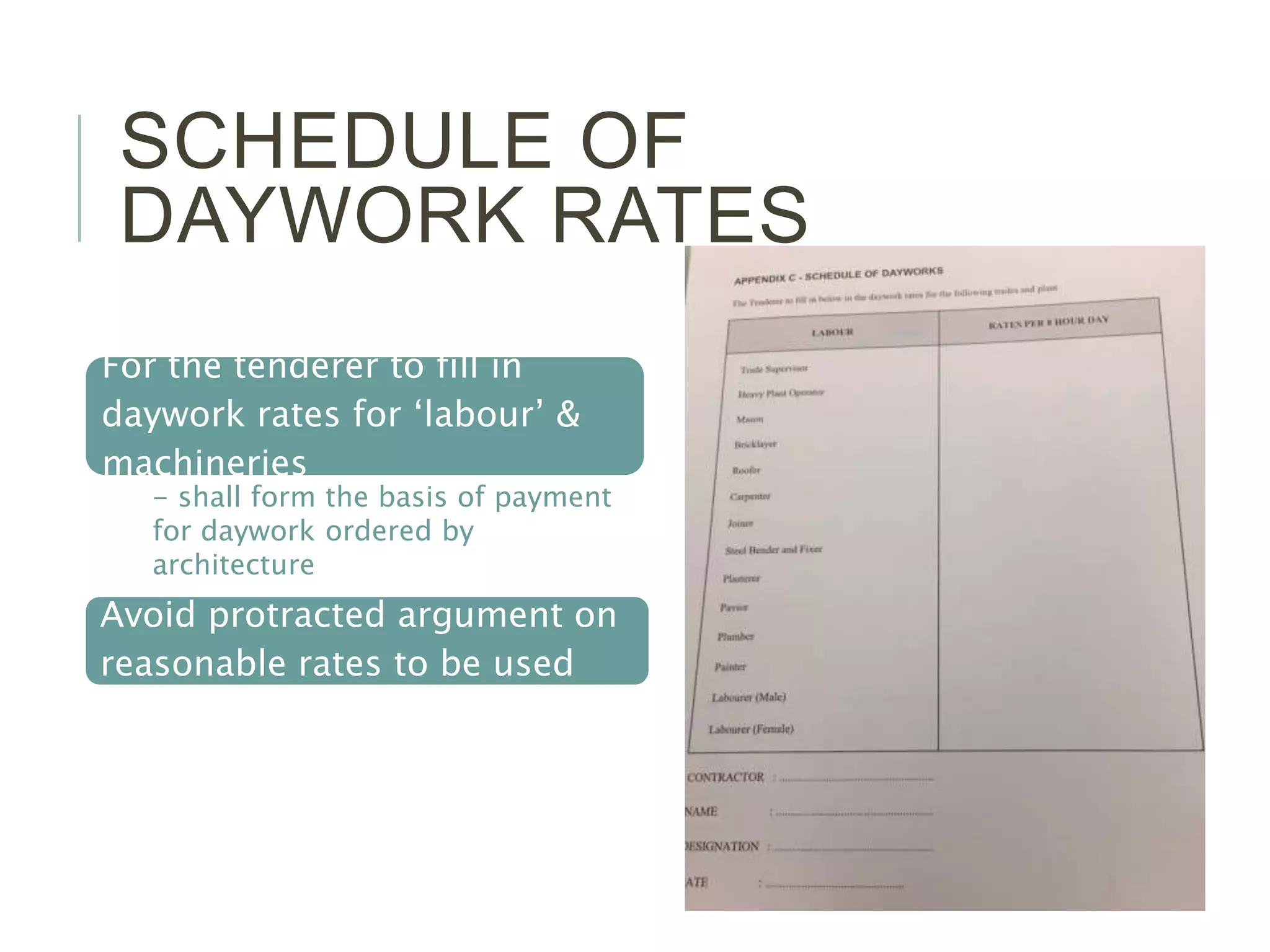

- 30. SCHEDULE OF DAYWORK RATES Forthe tenderer to fill in daywork rates for ‘labour’ & machineries - shall form the basis of payment for daywork ordered by architecture Avoid protracted argument on reasonable rates to be used

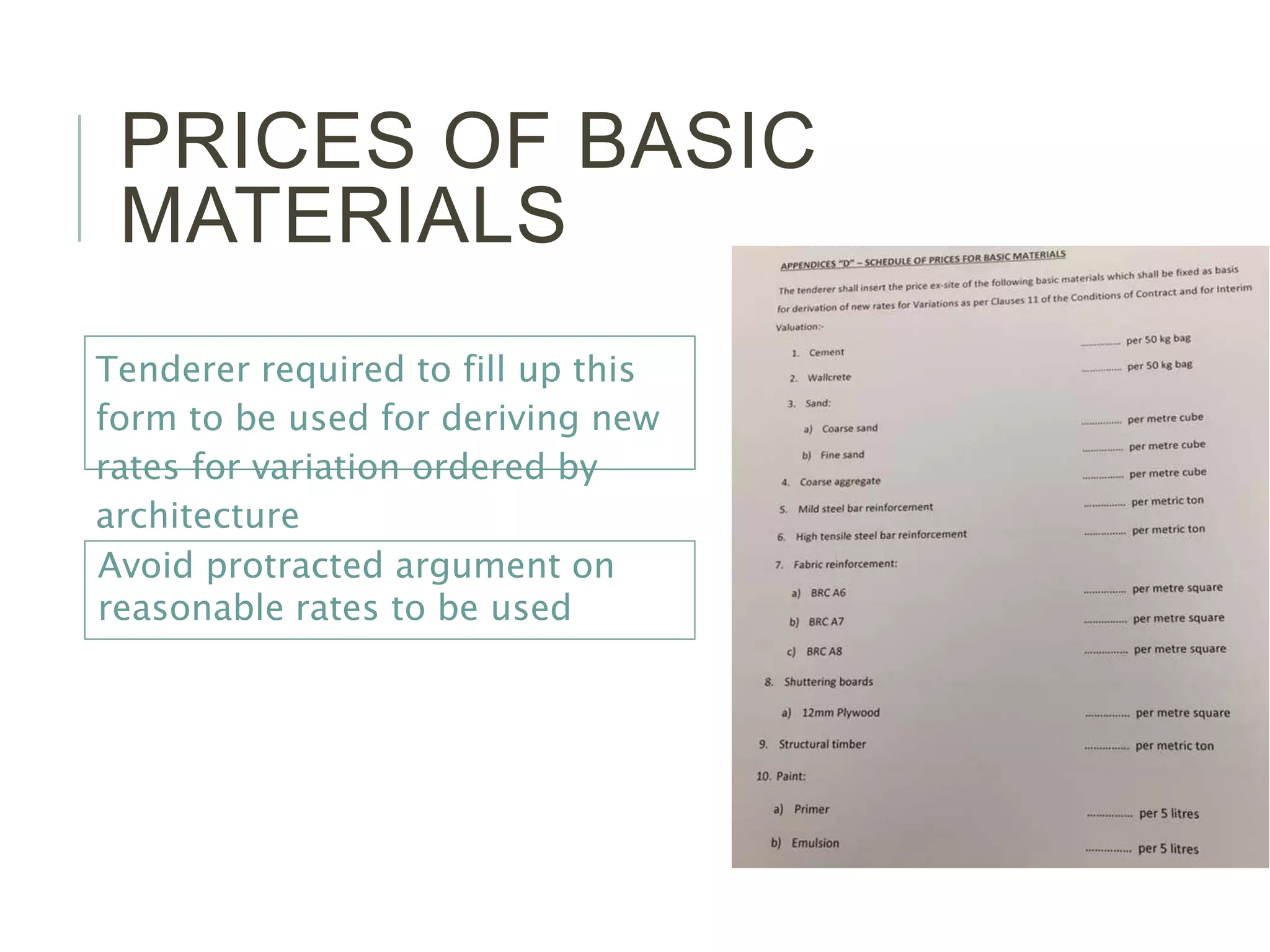

- 31. PRICES OF BASIC MATERIALS Tendererrequired to fill up this form to be used for deriving new rates for variation ordered by architecture Avoid protracted argument on reasonable rates to be used

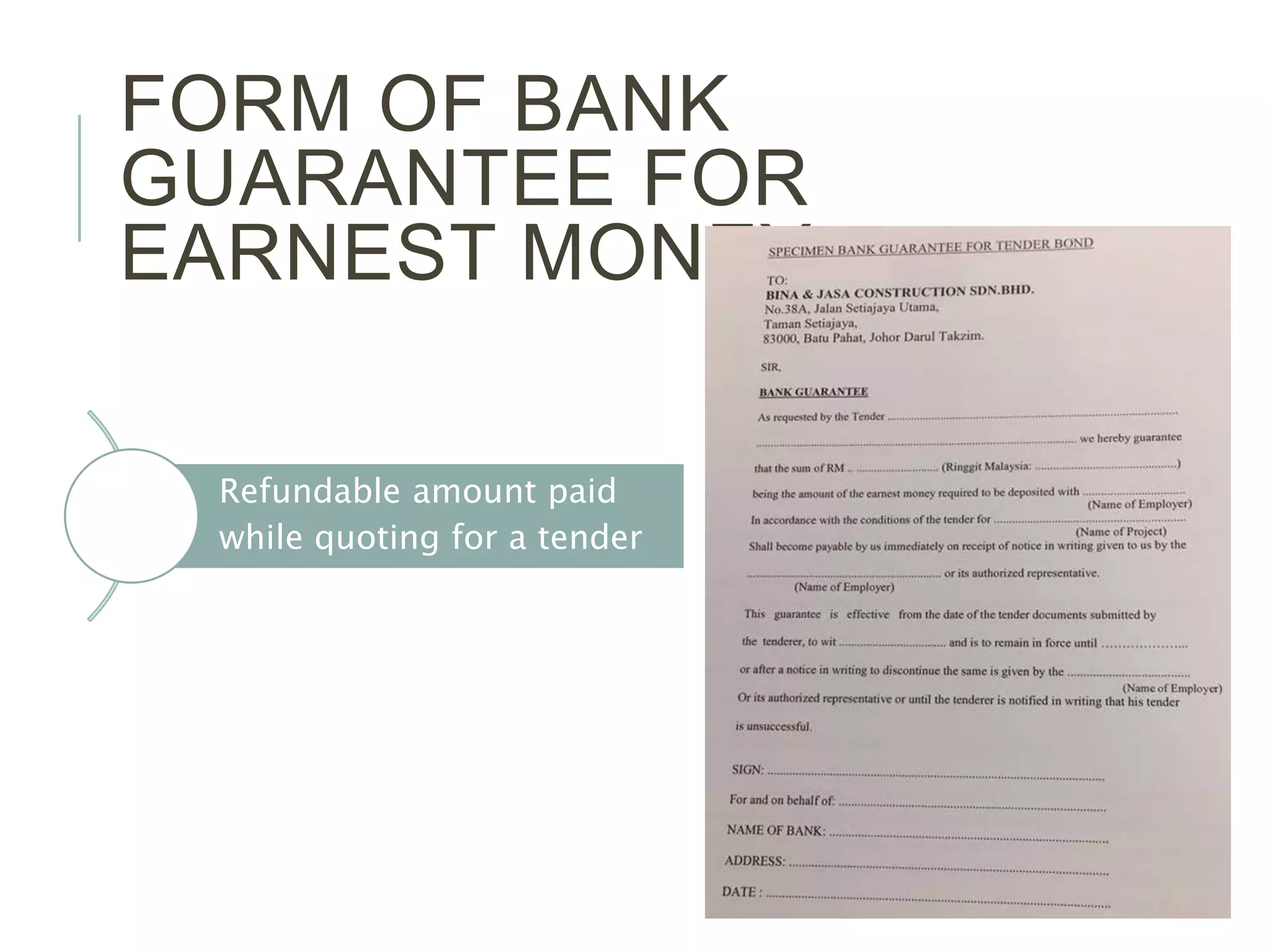

- 32. FORM OF BANK GUARANTEEFOR EARNEST MONEY Refundable amount paid while quoting for a tender

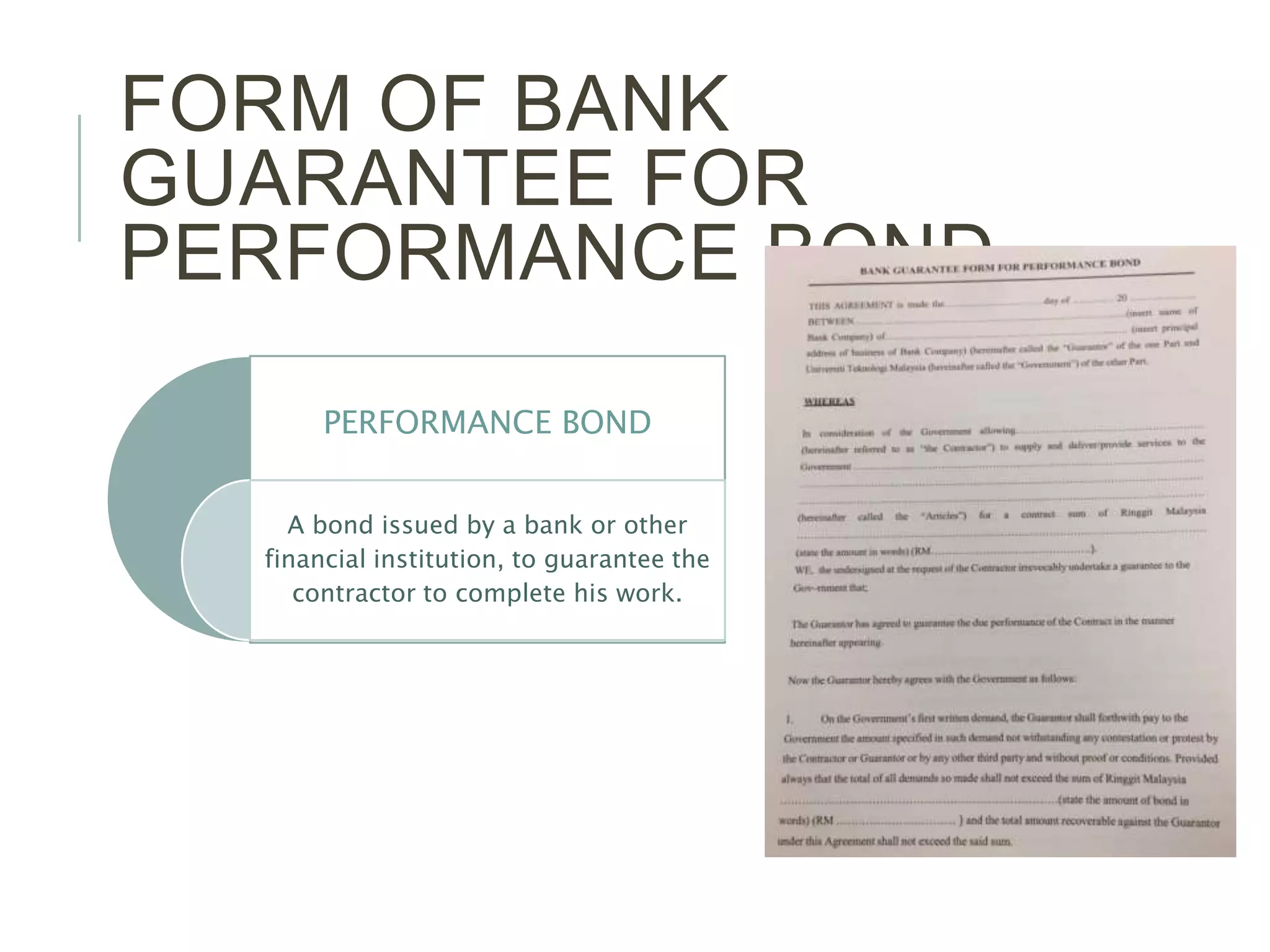

- 33. FORM OF BANK GUARANTEEFOR PERFORMANCE BOND PERFORMANCE BOND A bond issued by a bank or other financial institution, to guarantee the contractor to complete his work.
- 34.
