Maven tutorial
Maven is a build tool and project management tool that can be used for the OHIM project. It provides features like project portability, simple dependency management, and extensibility through plugins. Maven uses a project object model (POM) to manage a project's build configuration and dependencies. It defines a standard directory structure for projects and supports features like profiles, dependencies, plugins and a build lifecycle.
More Related Content
Maven tutorial
- 1. Bucharest, 17th ofFebruary 2011 INTRASOFT International S.A. OHIM – SMS Project Maven 2 Overview

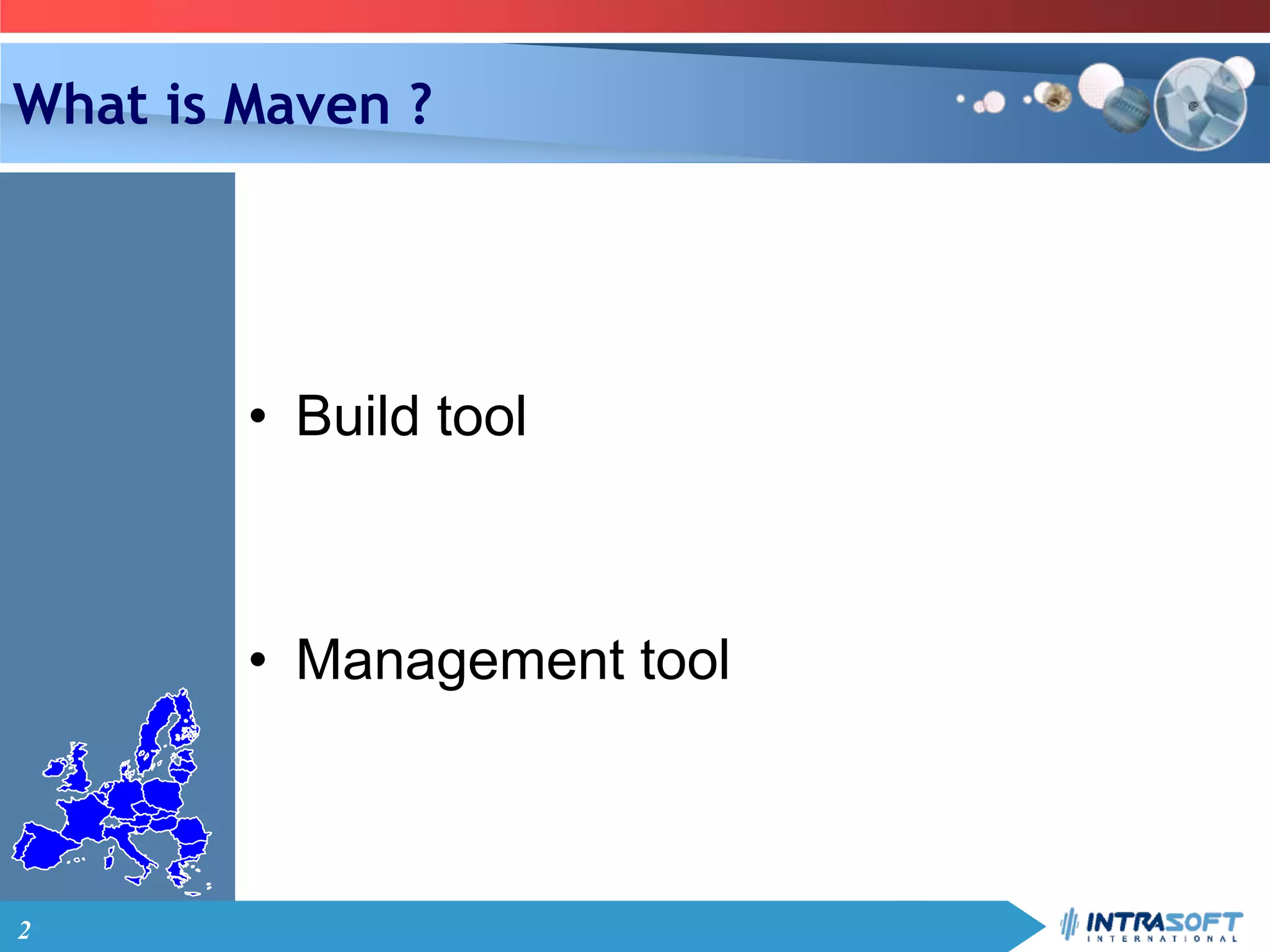

- 2. 2 What is Maven? • Build tool • Management tool
- 3.

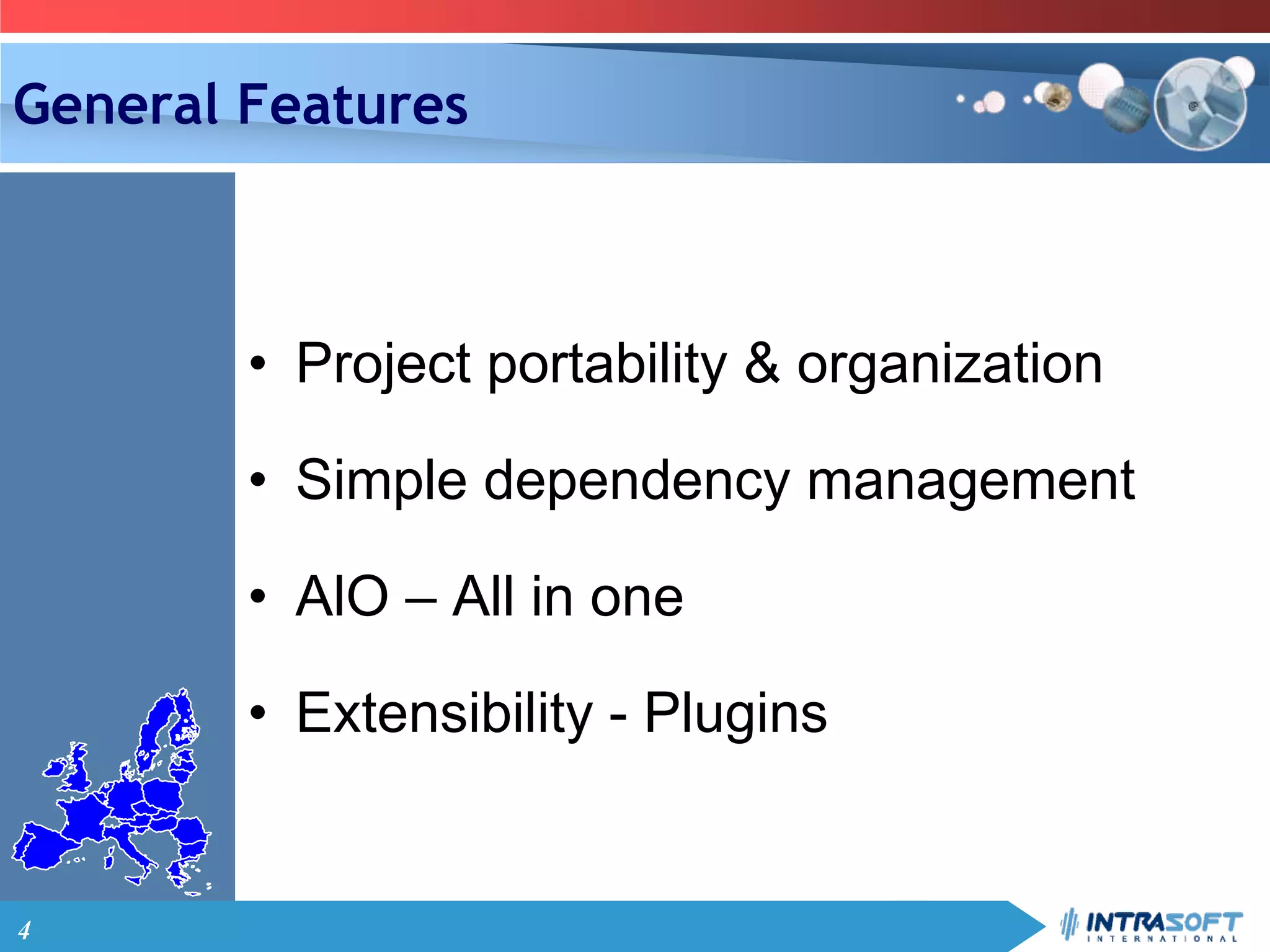

- 4. 4 General Features • Projectportability & organization • Simple dependency management • AlO – All in one • Extensibility - Plugins
- 5.

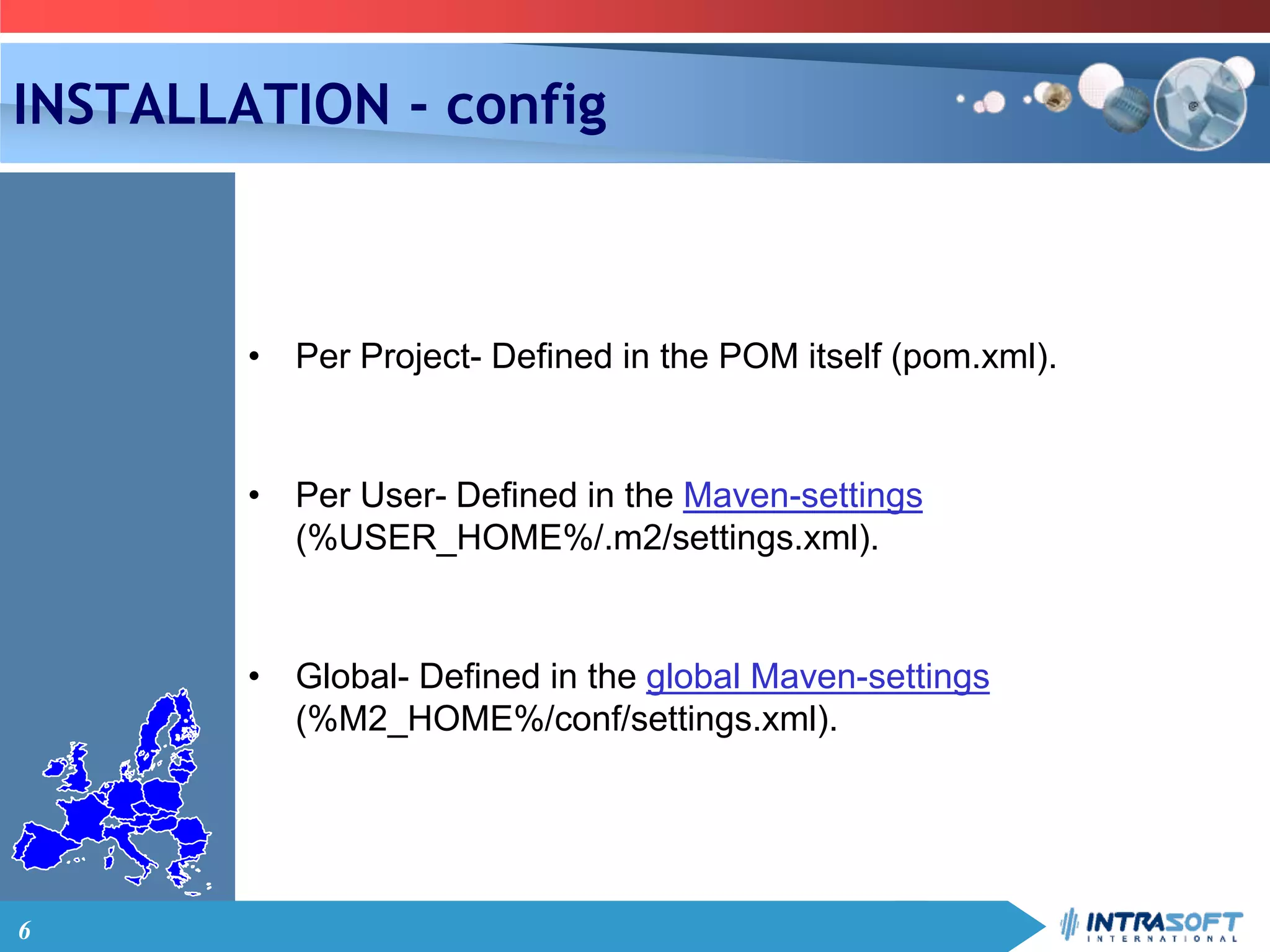

- 6. 6 INSTALLATION - config •Per Project- Defined in the POM itself (pom.xml). • Per User- Defined in the Maven-settings (%USER_HOME%/.m2/settings.xml). • Global- Defined in the global Maven-settings (%M2_HOME%/conf/settings.xml).
- 7.

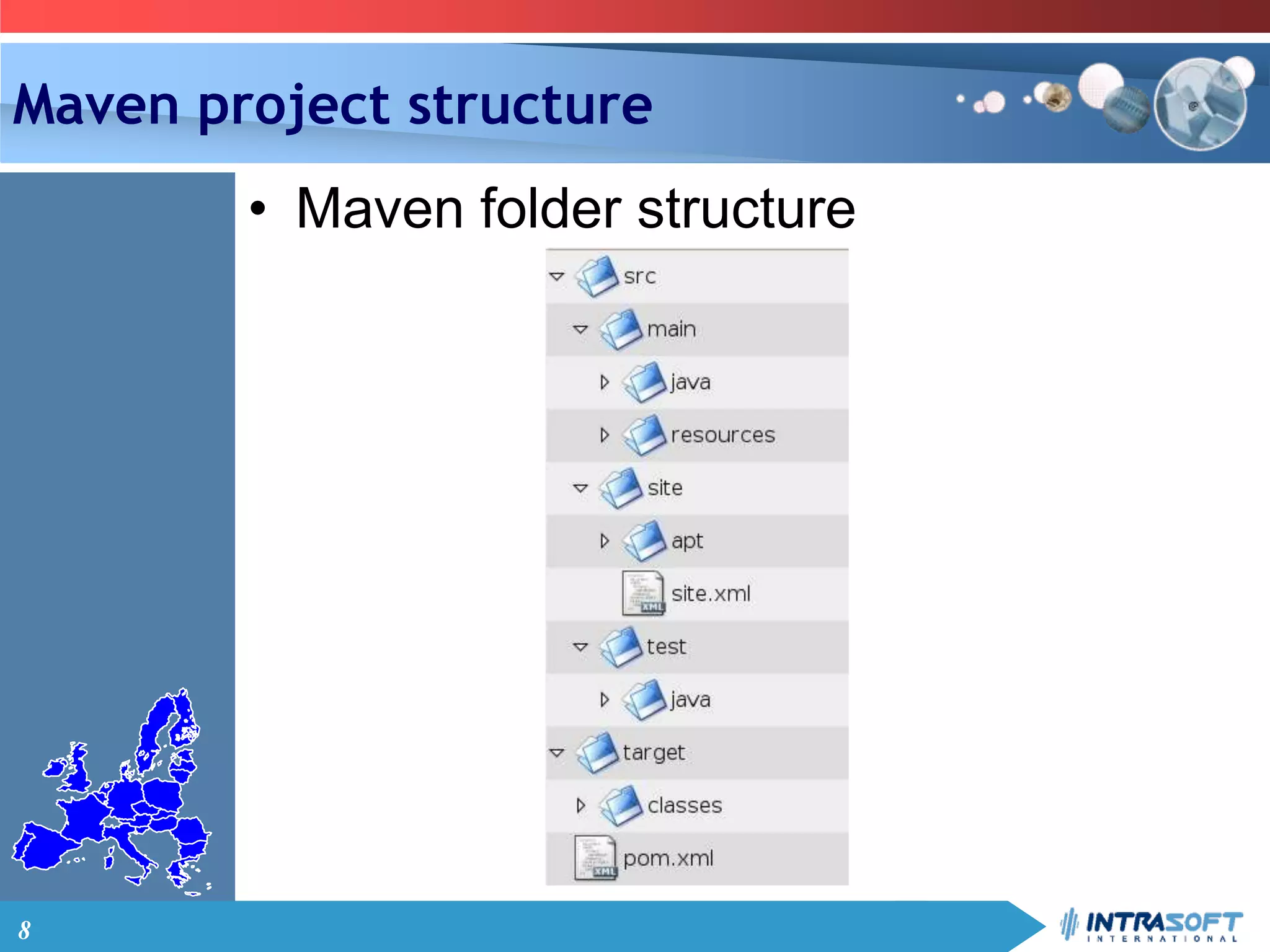

- 8. 8 Maven project structure •Maven folder structure
- 9.
- 10.

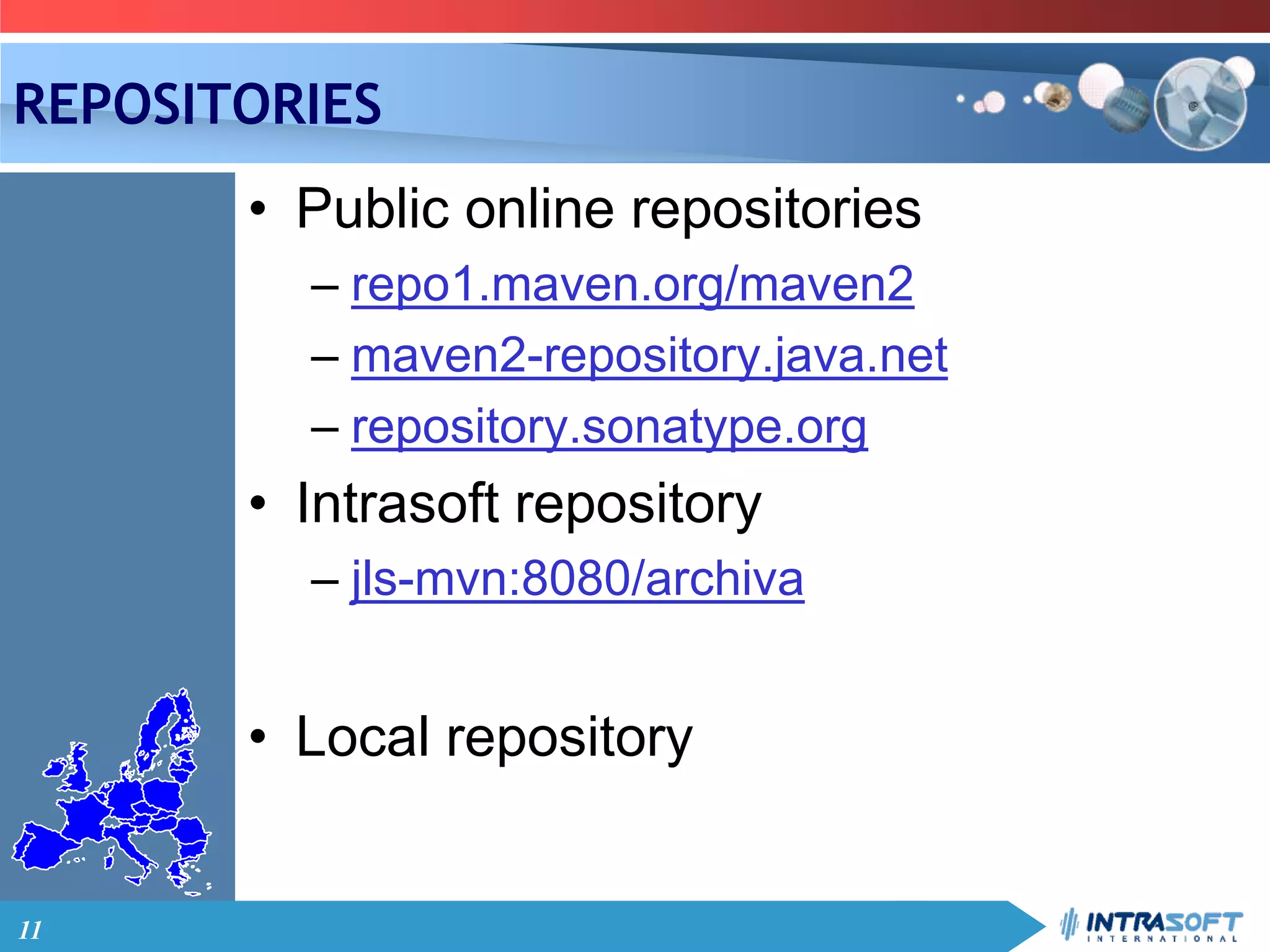

- 11. 11 REPOSITORIES • Public onlinerepositories – repo1.maven.org/maven2 – maven2-repository.java.net – repository.sonatype.org • Intrasoft repository – jls-mvn:8080/archiva • Local repository
- 12.

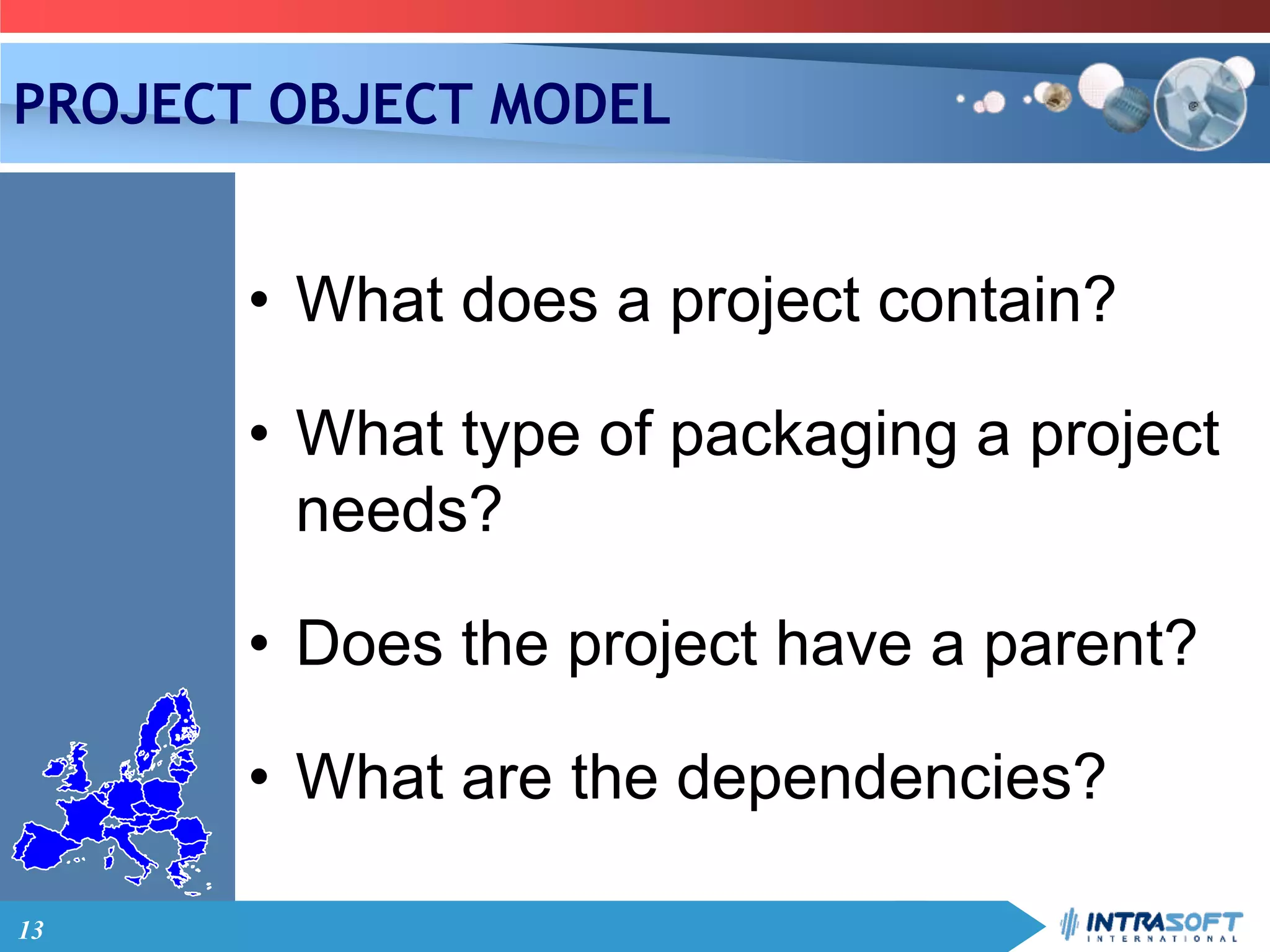

- 13. 13 PROJECT OBJECT MODEL •What does a project contain? • What type of packaging a project needs? • Does the project have a parent? • What are the dependencies?
- 14.

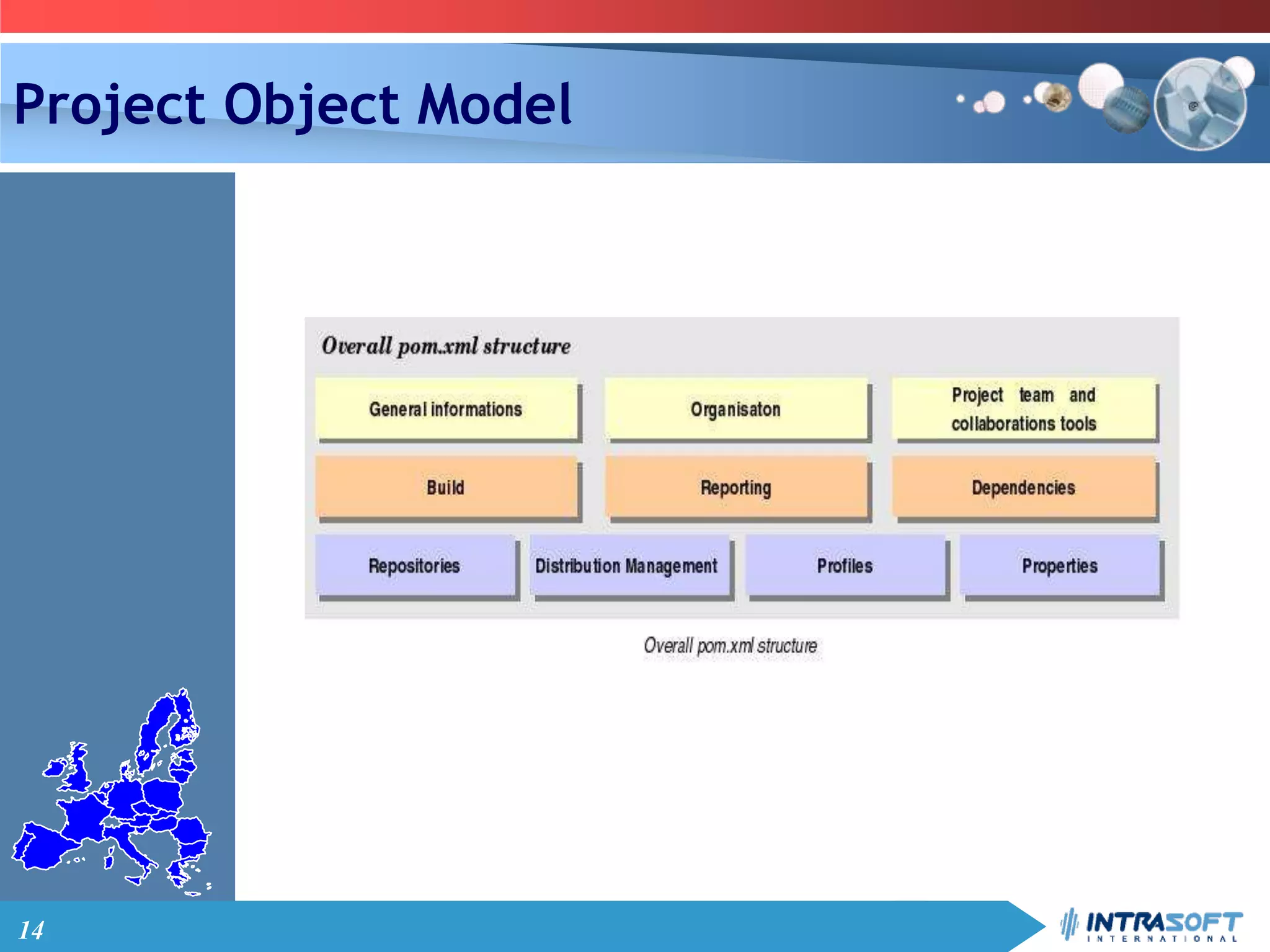

- 15. 15 PROJECT OBJECT MODEL Quickoverview

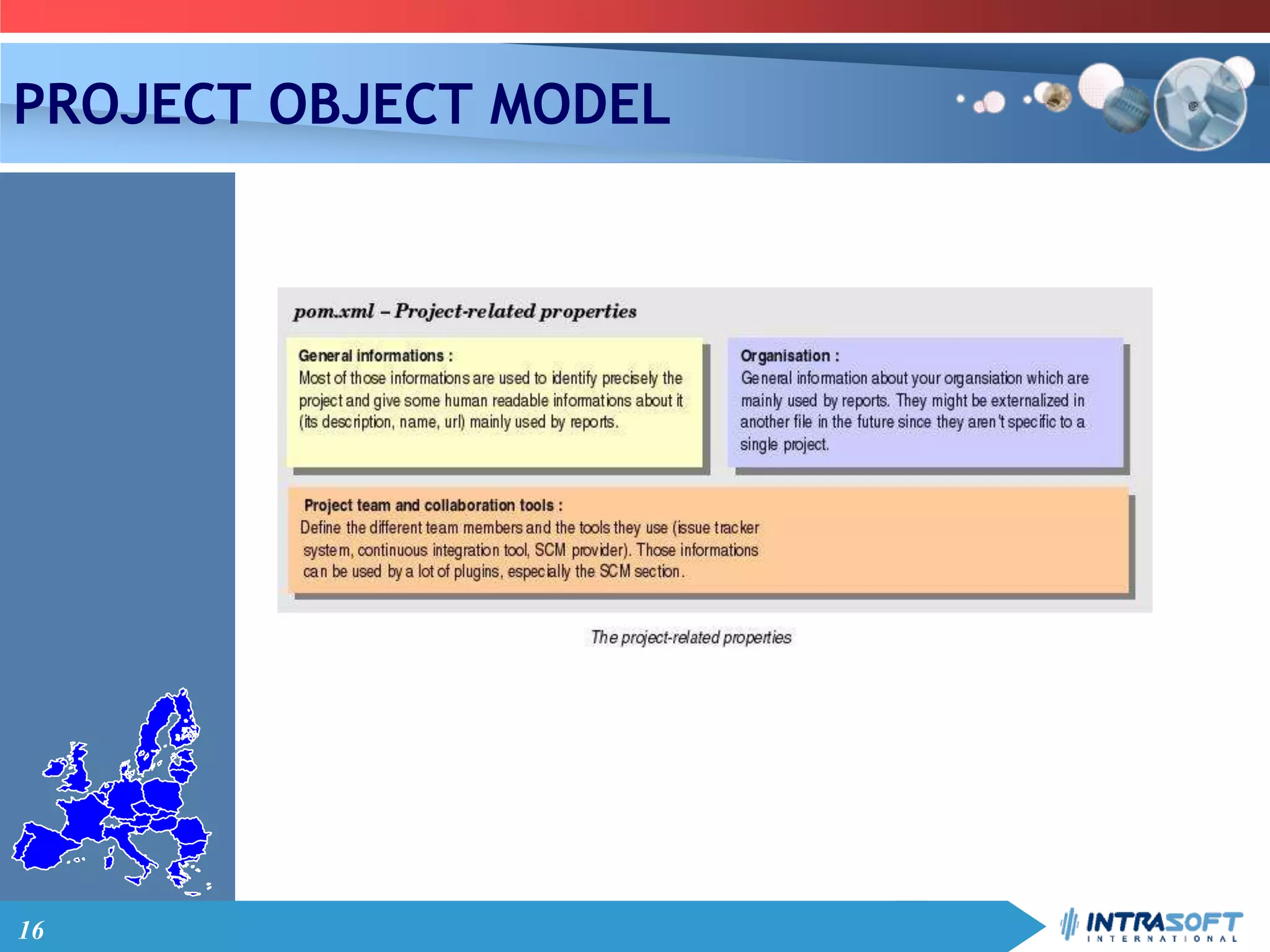

- 16.

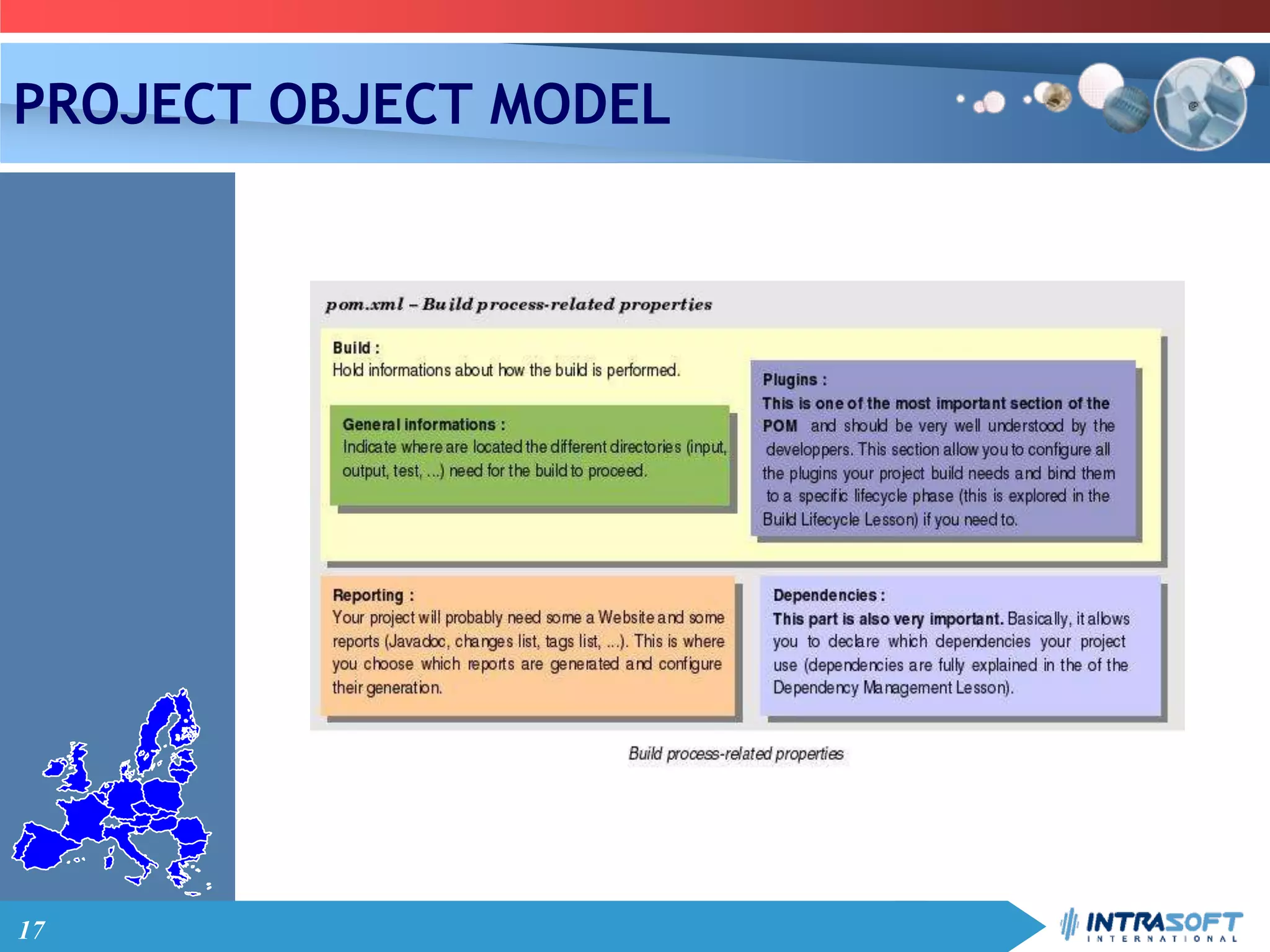

- 17.

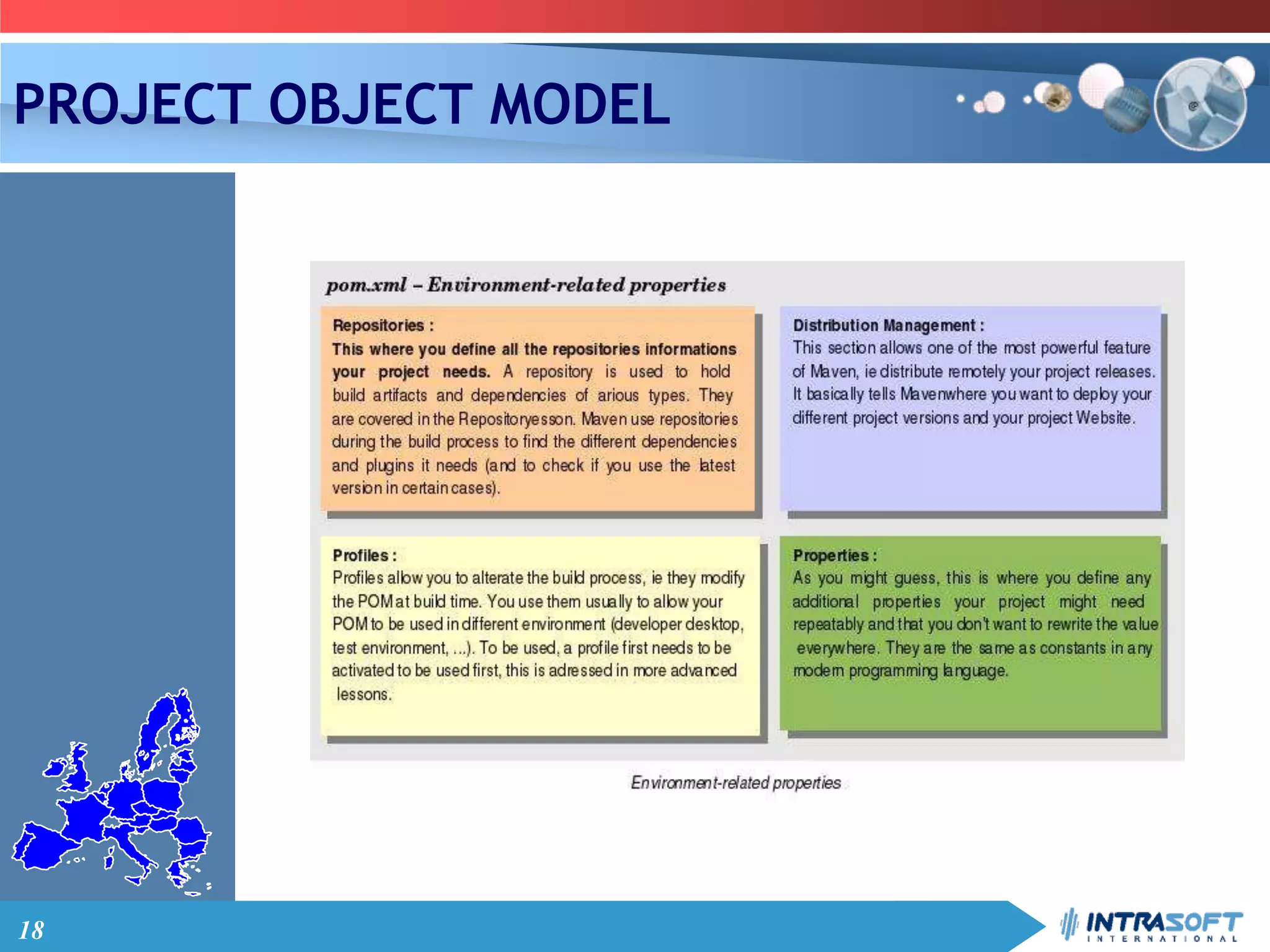

- 18.

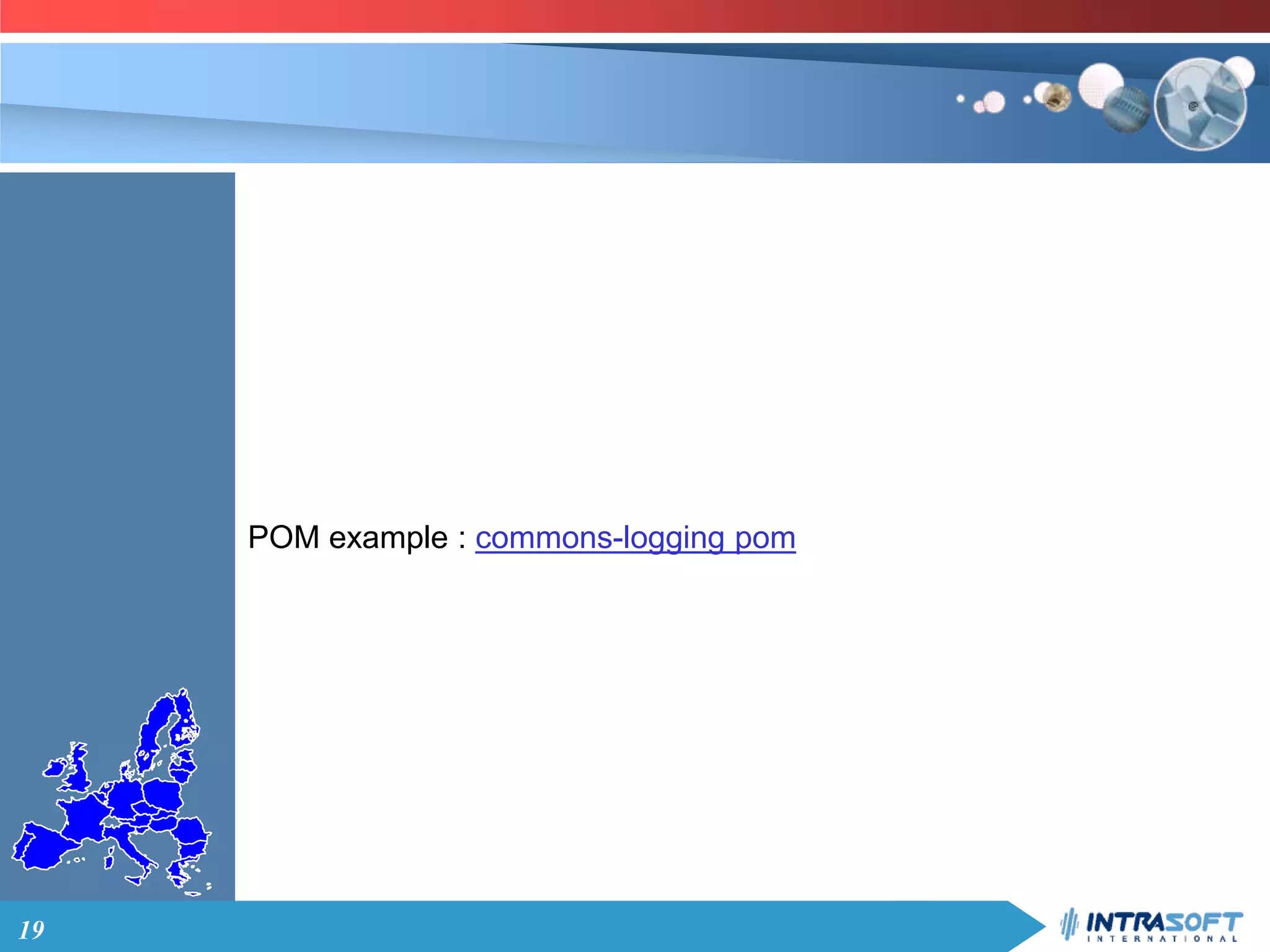

- 19. 19 POM example :commons-logging pom

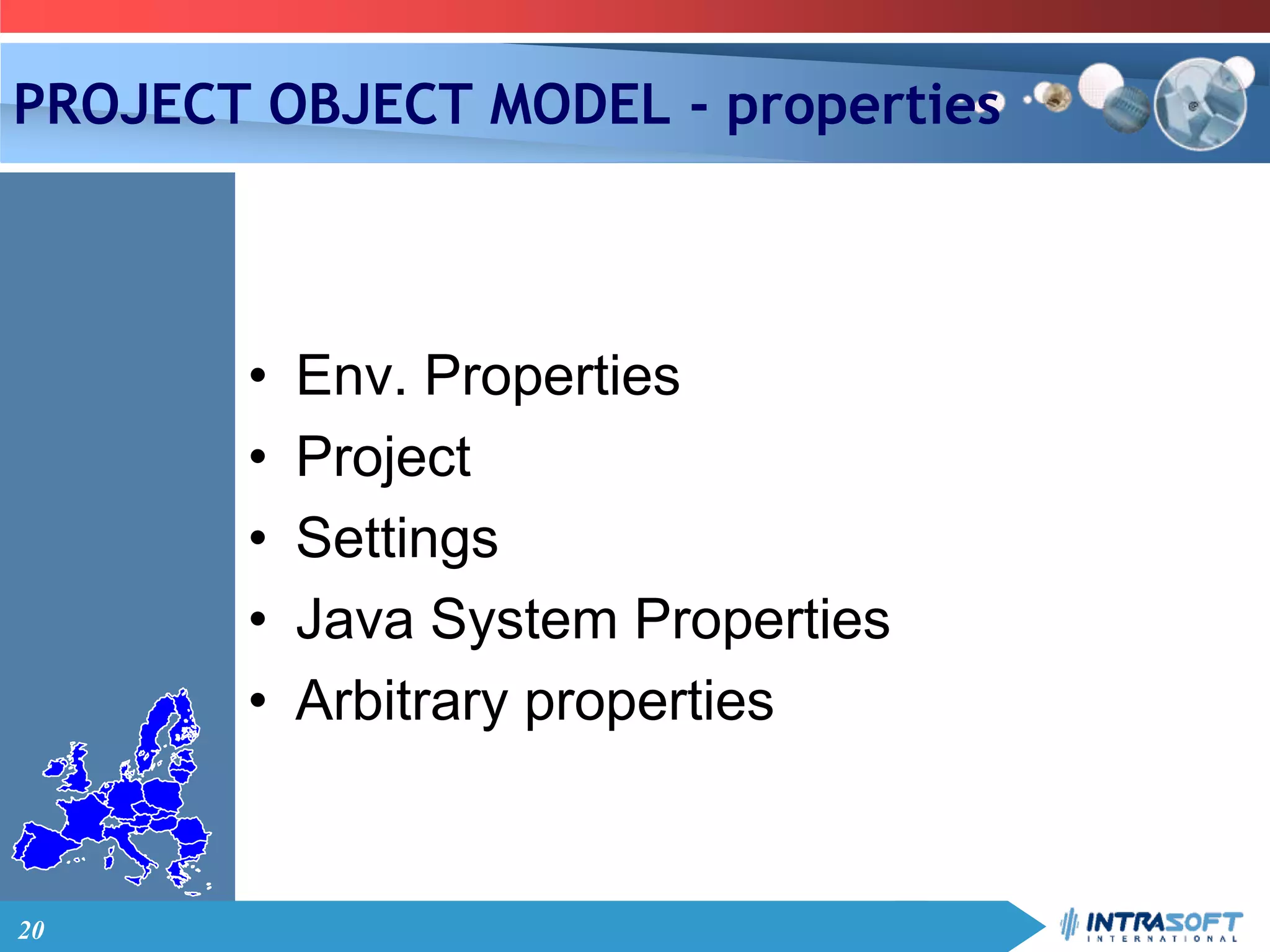

- 20. 20 PROJECT OBJECT MODEL- properties • Env. Properties • Project • Settings • Java System Properties • Arbitrary properties
- 21.

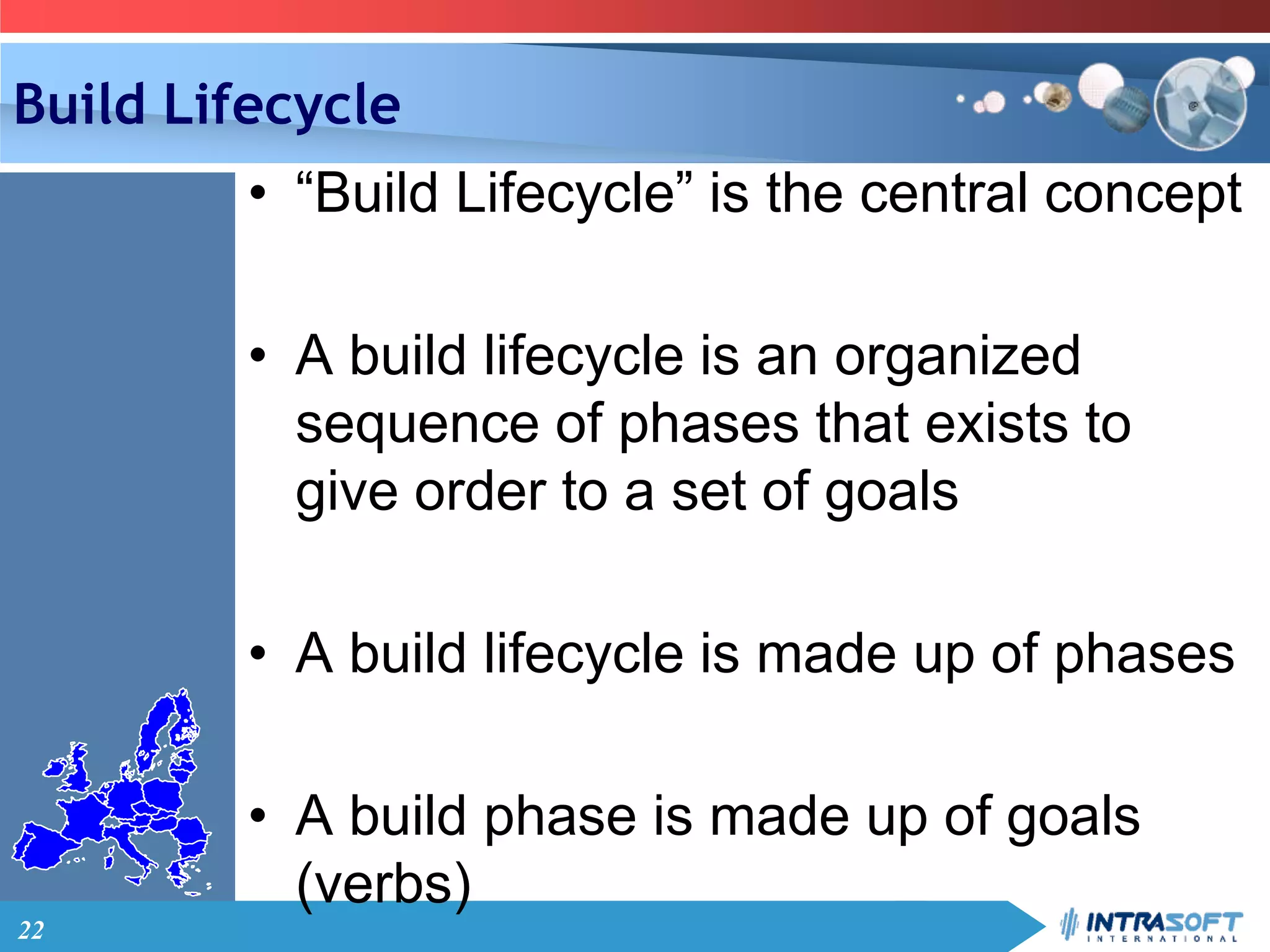

- 22. 22 Build Lifecycle • “BuildLifecycle” is the central concept • A build lifecycle is an organized sequence of phases that exists to give order to a set of goals • A build lifecycle is made up of phases • A build phase is made up of goals (verbs)

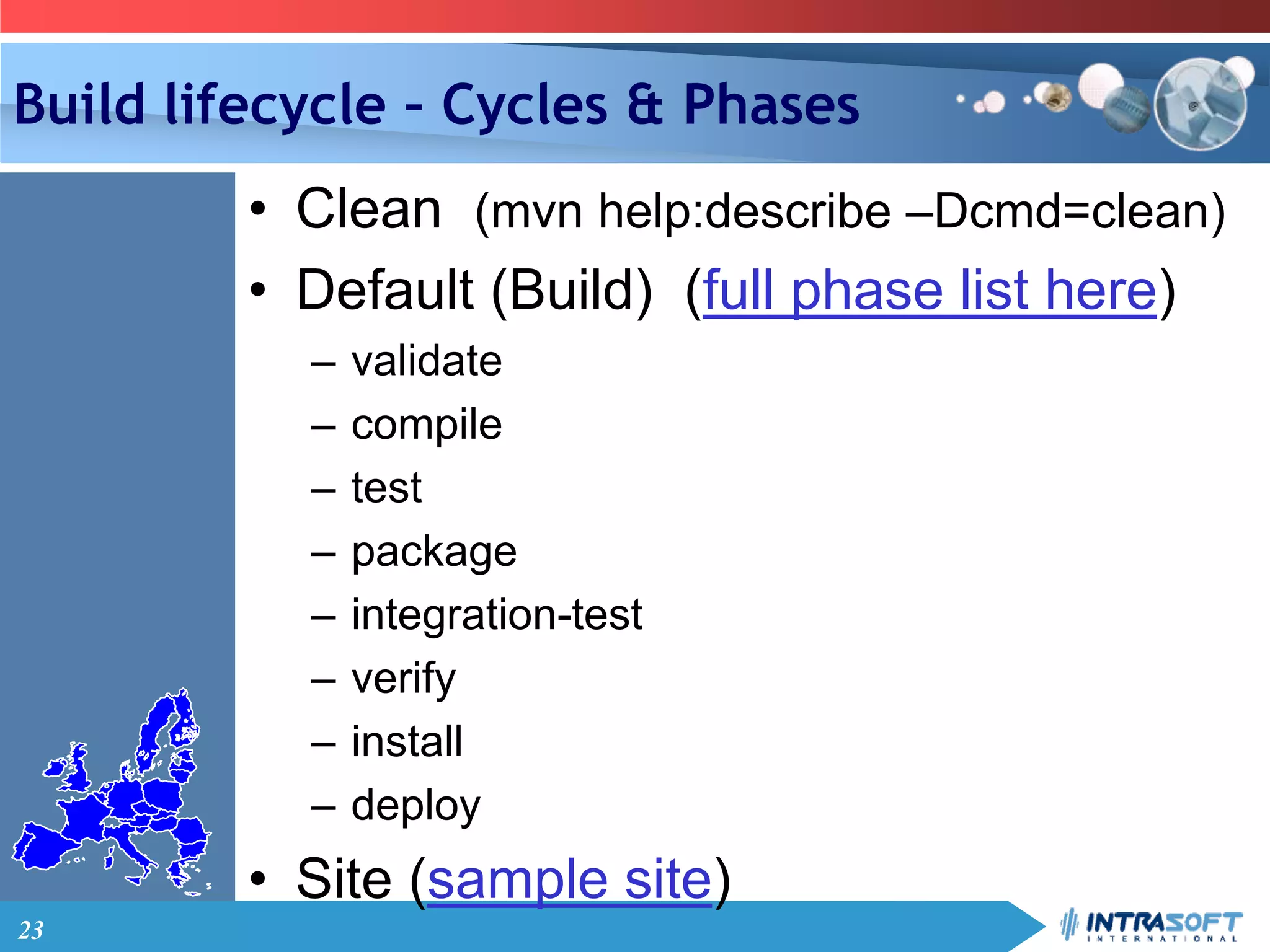

- 23. 23 Build lifecycle –Cycles & Phases • Clean (mvn help:describe –Dcmd=clean) • Default (Build) (full phase list here) – validate – compile – test – package – integration-test – verify – install – deploy • Site (sample site)

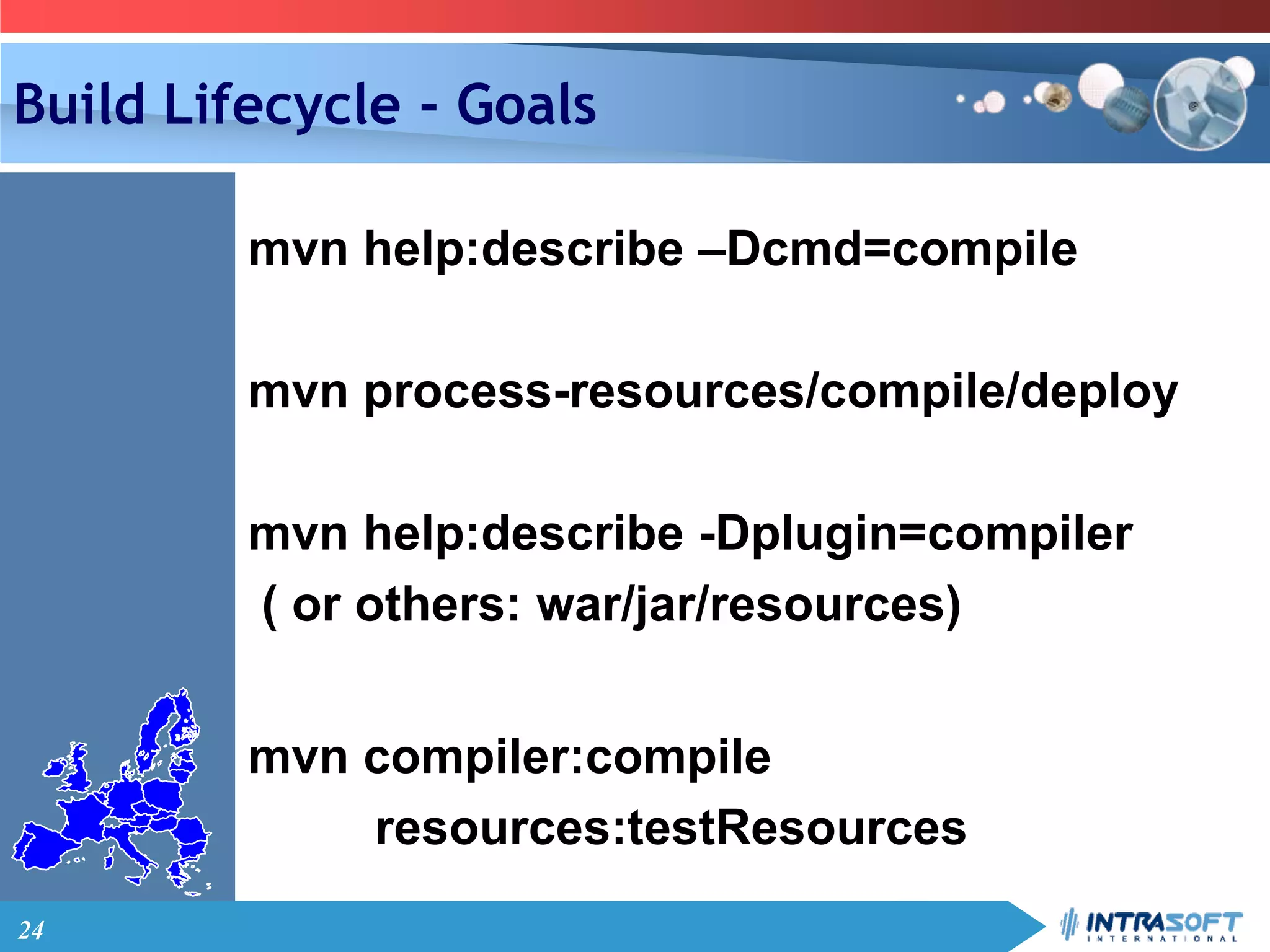

- 24. 24 Build Lifecycle -Goals mvn help:describe –Dcmd=compile mvn process-resources/compile/deploy mvn help:describe -Dplugin=compiler ( or others: war/jar/resources) mvn compiler:compile resources:testResources
- 25.
- 26.
- 27.

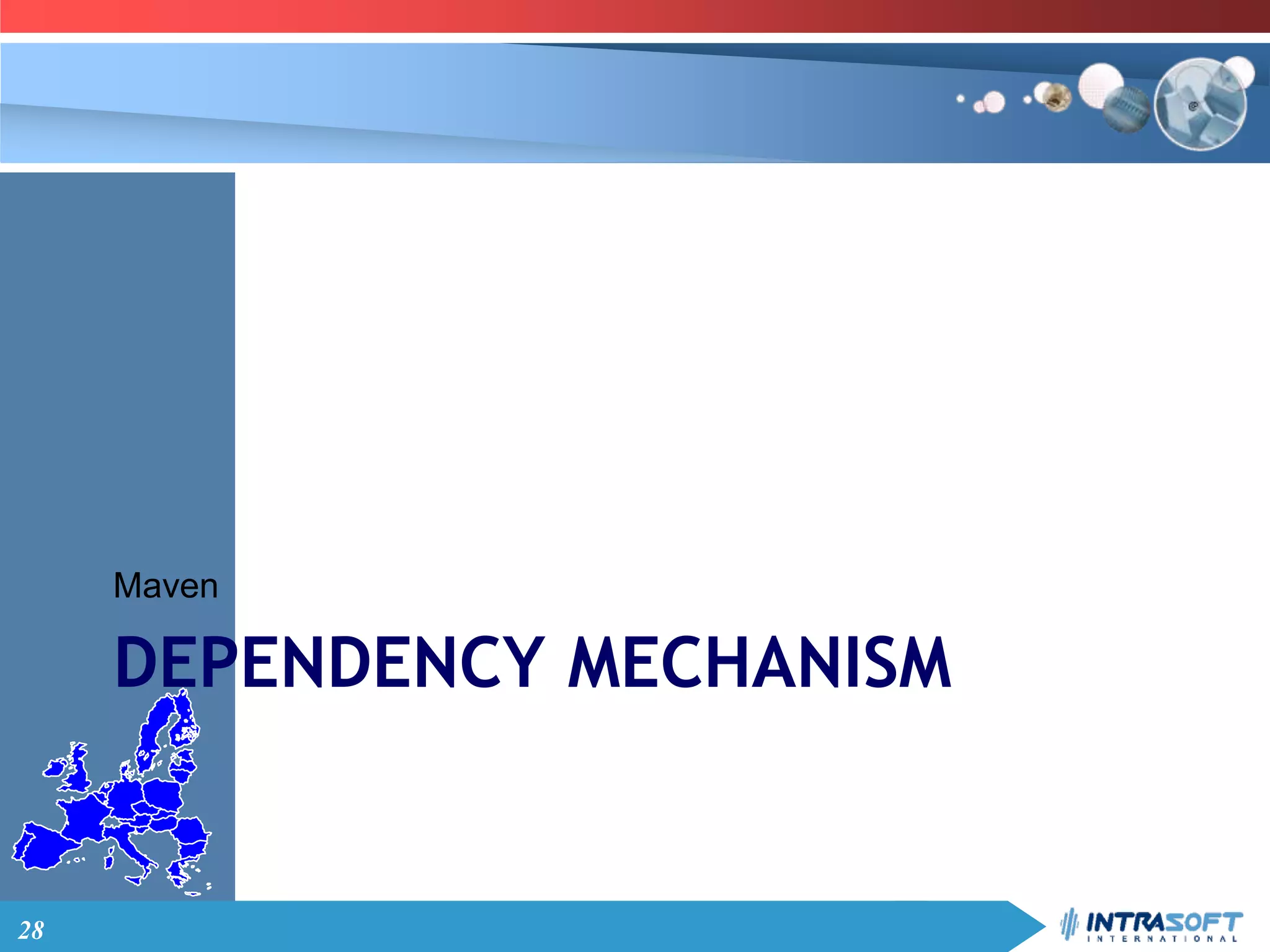

- 28.

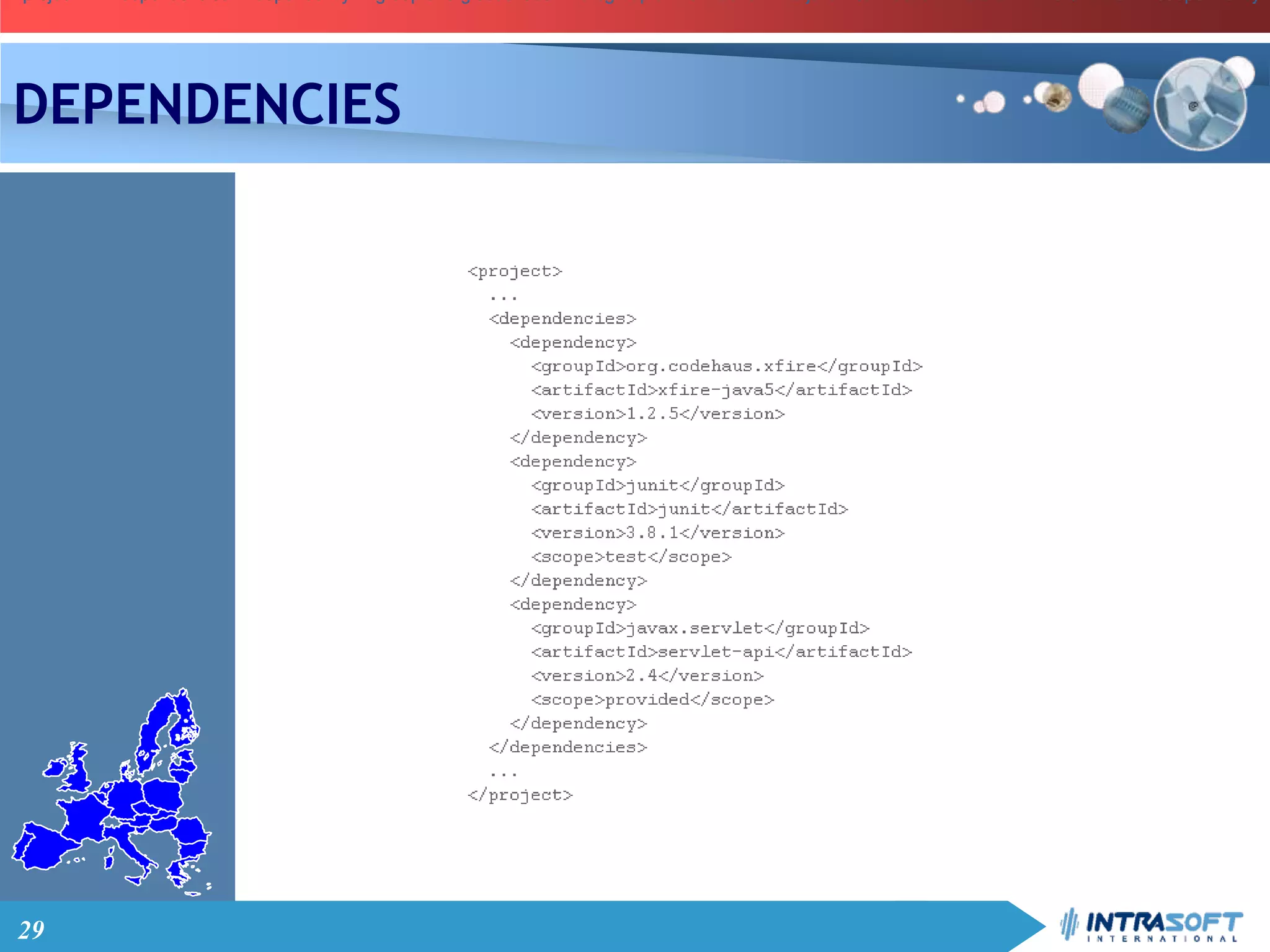

- 29. 29 <project> ... <dependencies><dependency> <groupId>org.codehaus.xfire</groupId> <artifactId>xfire-java5</artifactId> <version>1.2.5</version> </dependency><project> ... <dependencies> <dependency> <groupId>org.codehaus.xfire</groupId> <artifactId>xfire-java5</artifactId> <version>1.2.5</version> </dependency><project> ... <dependencies> <dependency> <groupId>org.codehaus.xfire</groupId> <artifactId>xfire-java5</artifactId> <version>1.2.5</version> </dependency> DEPENDENCIES

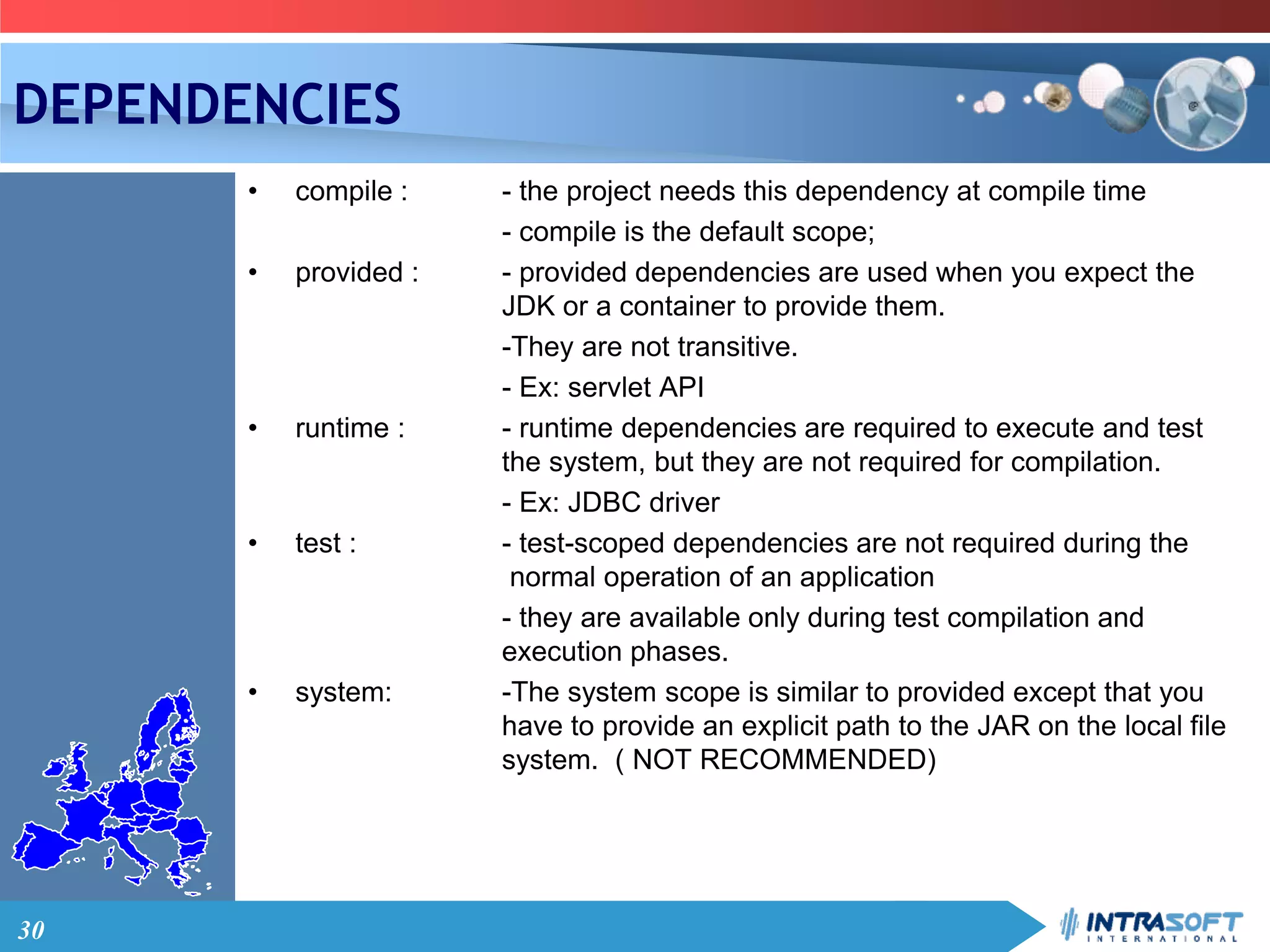

- 30. 30 DEPENDENCIES • compile :- the project needs this dependency at compile time - compile is the default scope; • provided : - provided dependencies are used when you expect the JDK or a container to provide them. -They are not transitive. - Ex: servlet API • runtime : - runtime dependencies are required to execute and test the system, but they are not required for compilation. - Ex: JDBC driver • test : - test-scoped dependencies are not required during the normal operation of an application - they are available only during test compilation and execution phases. • system: -The system scope is similar to provided except that you have to provide an explicit path to the JAR on the local file system. ( NOT RECOMMENDED)

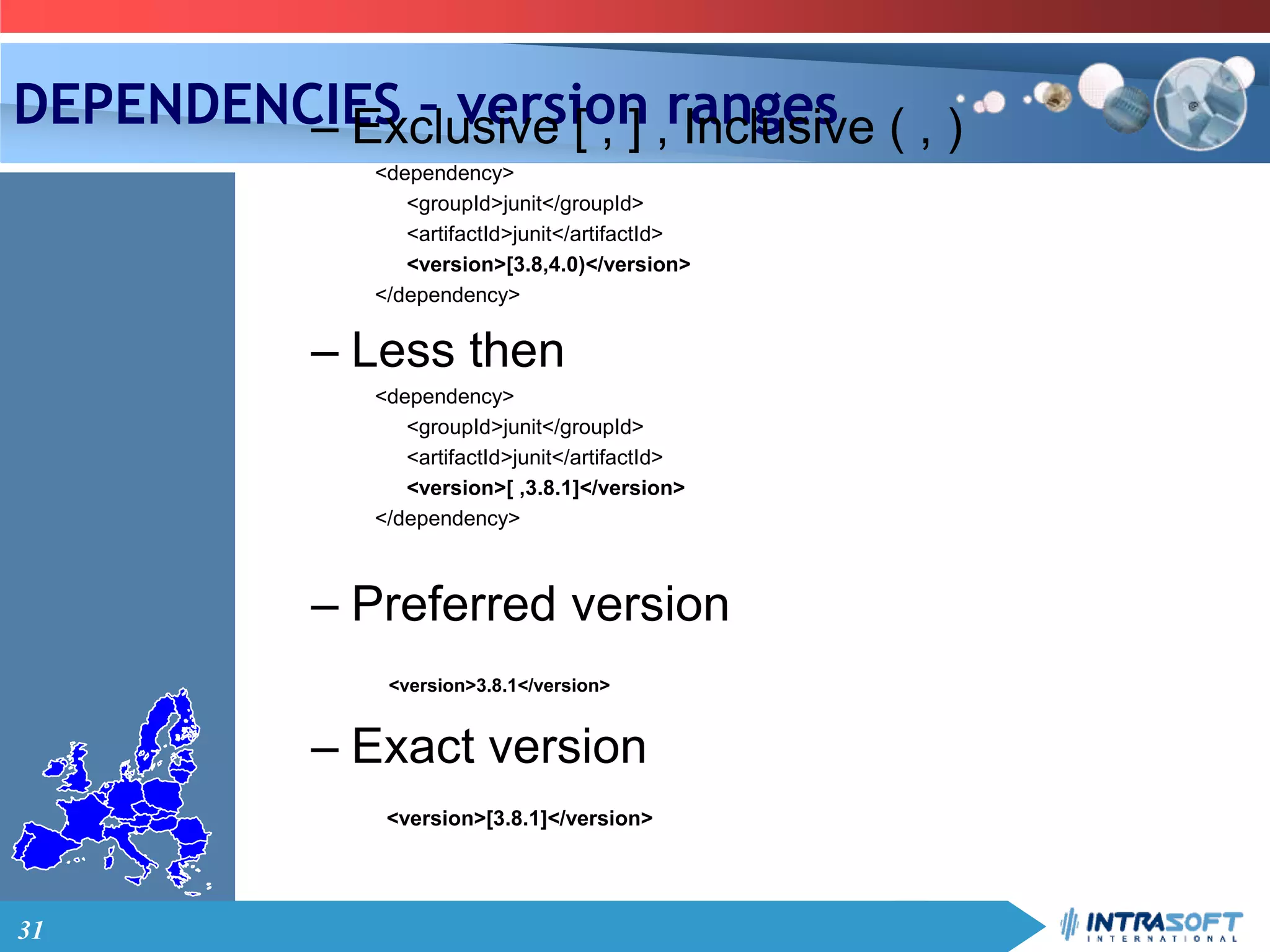

- 31. 31 DEPENDENCIES – versionranges– Exclusive [ , ] , Inclusive ( , ) <dependency> <groupId>junit</groupId> <artifactId>junit</artifactId> <version>[3.8,4.0)</version> </dependency> – Less then <dependency> <groupId>junit</groupId> <artifactId>junit</artifactId> <version>[ ,3.8.1]</version> </dependency> – Preferred version <version>3.8.1</version> – Exact version <version>[3.8.1]</version>

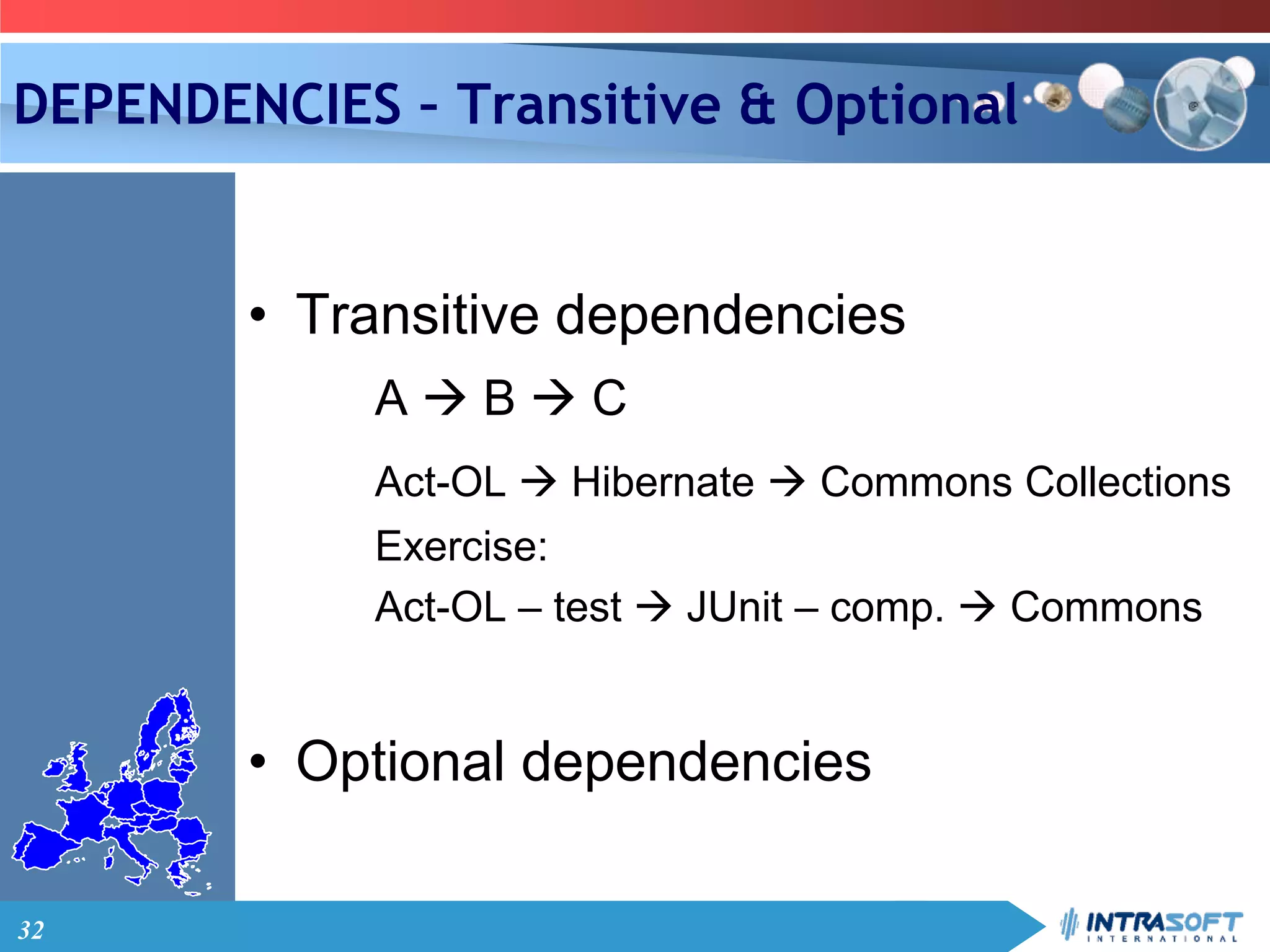

- 32. 32 DEPENDENCIES – Transitive& Optional • Transitive dependencies A B C Act-OL Hibernate Commons Collections Exercise: Act-OL – test JUnit – comp. Commons • Optional dependencies

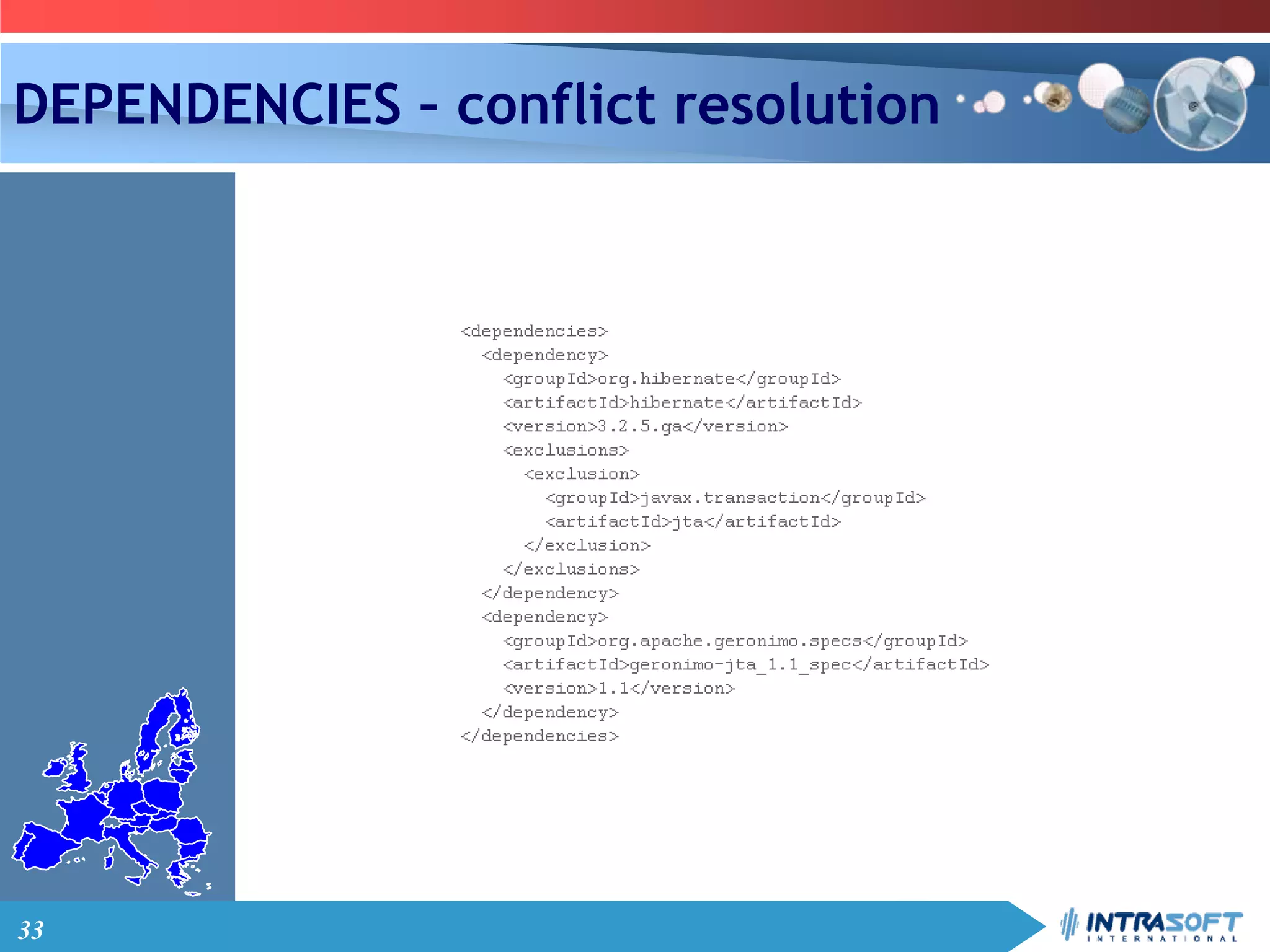

- 33. 33 DEPENDENCIES – conflictresolution

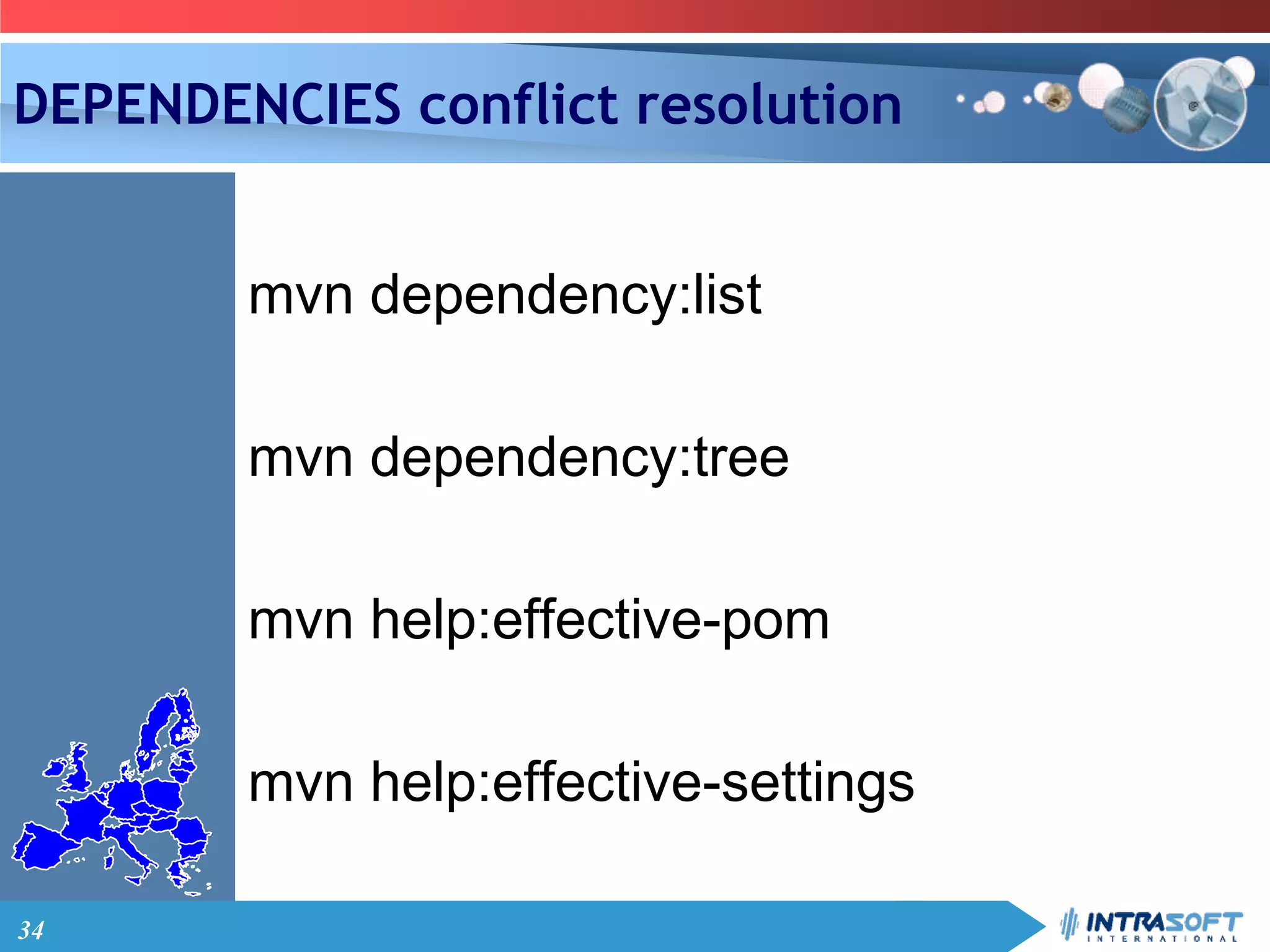

- 34. 34 DEPENDENCIES conflict resolution mvndependency:list mvn dependency:tree mvn help:effective-pom mvn help:effective-settings
- 35.
- 36. 36 PLUGINS – pluginsites maven.apache.org docs.codehaus.org

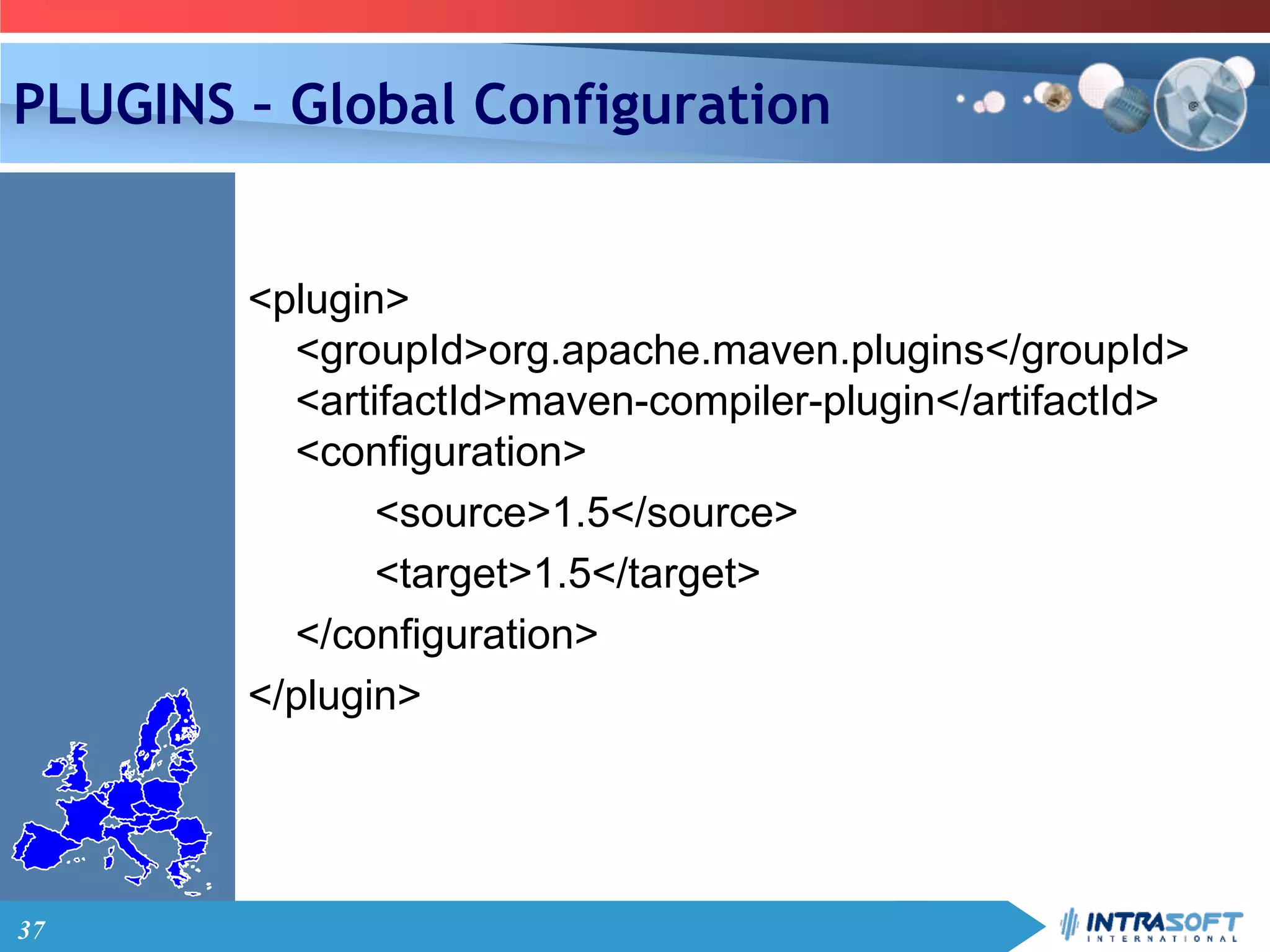

- 37. 37 PLUGINS – GlobalConfiguration <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-compiler-plugin</artifactId> <configuration> <source>1.5</source> <target>1.5</target> </configuration> </plugin>

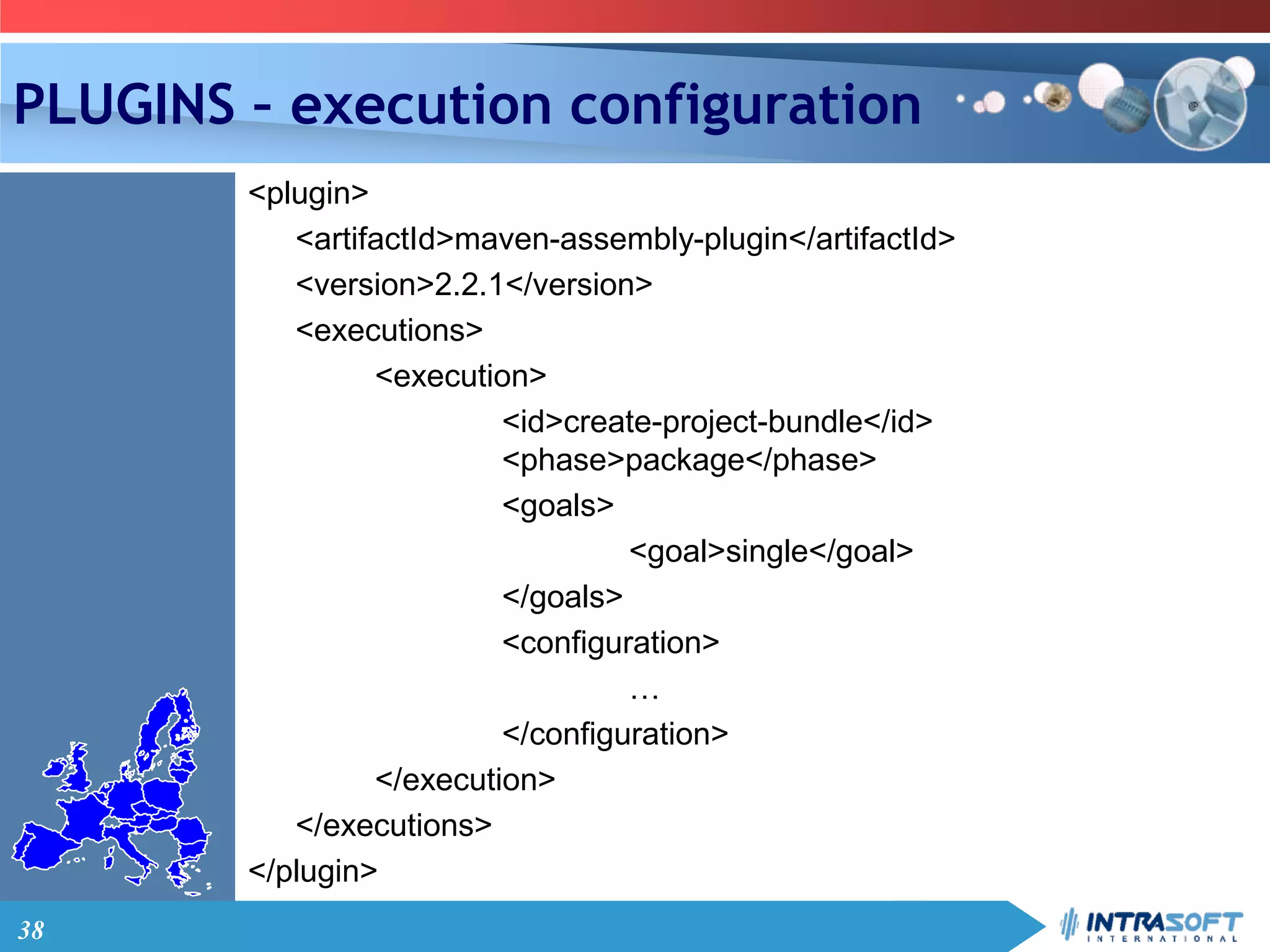

- 38. 38 PLUGINS – executionconfiguration <plugin> <artifactId>maven-assembly-plugin</artifactId> <version>2.2.1</version> <executions> <execution> <id>create-project-bundle</id> <phase>package</phase> <goals> <goal>single</goal> </goals> <configuration> … </configuration> </execution> </executions> </plugin>

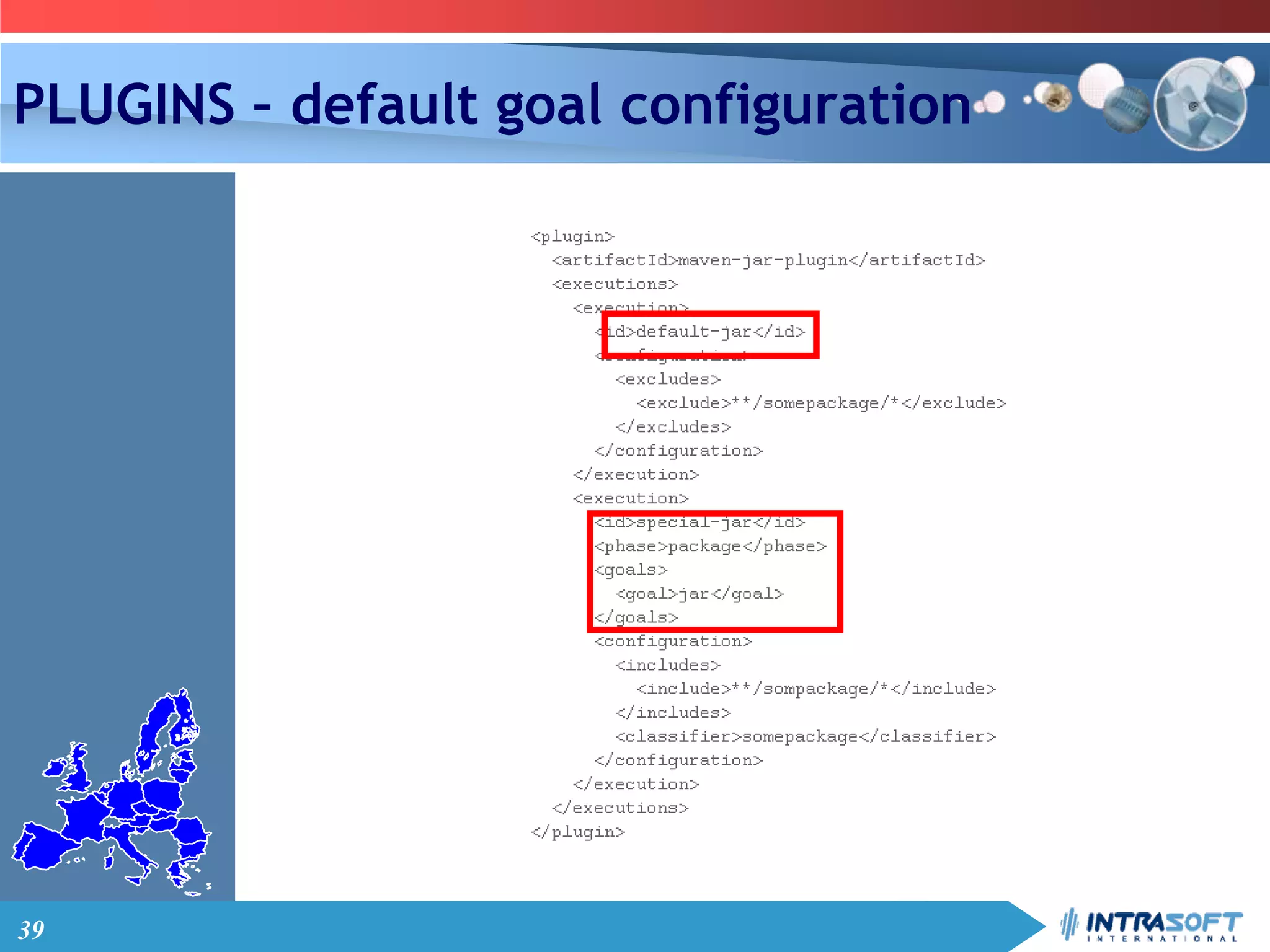

- 39. 39 PLUGINS – defaultgoal configuration
- 40.
- 41.

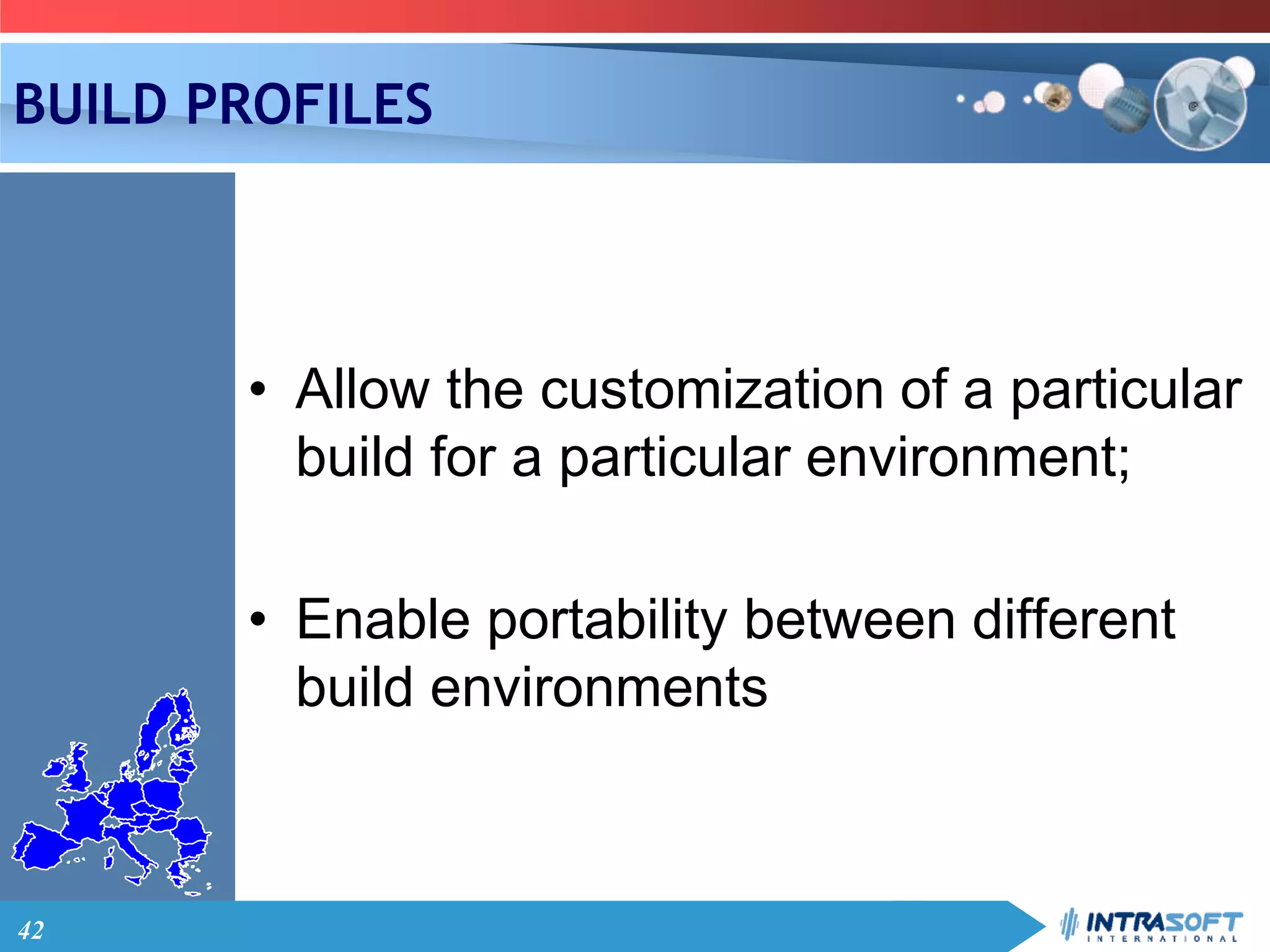

- 42. 42 BUILD PROFILES • Allowthe customization of a particular build for a particular environment; • Enable portability between different build environments
- 43. 43 PROFILES – PROFILETYPES • Per Project- Defined in the POM itself (pom.xml). • Per User- Defined in the Maven-settings (%USER_HOME%/.m2/settings.xml). • Global- Defined in the global Maven-settings (%M2_HOME%/conf/settings.xml).

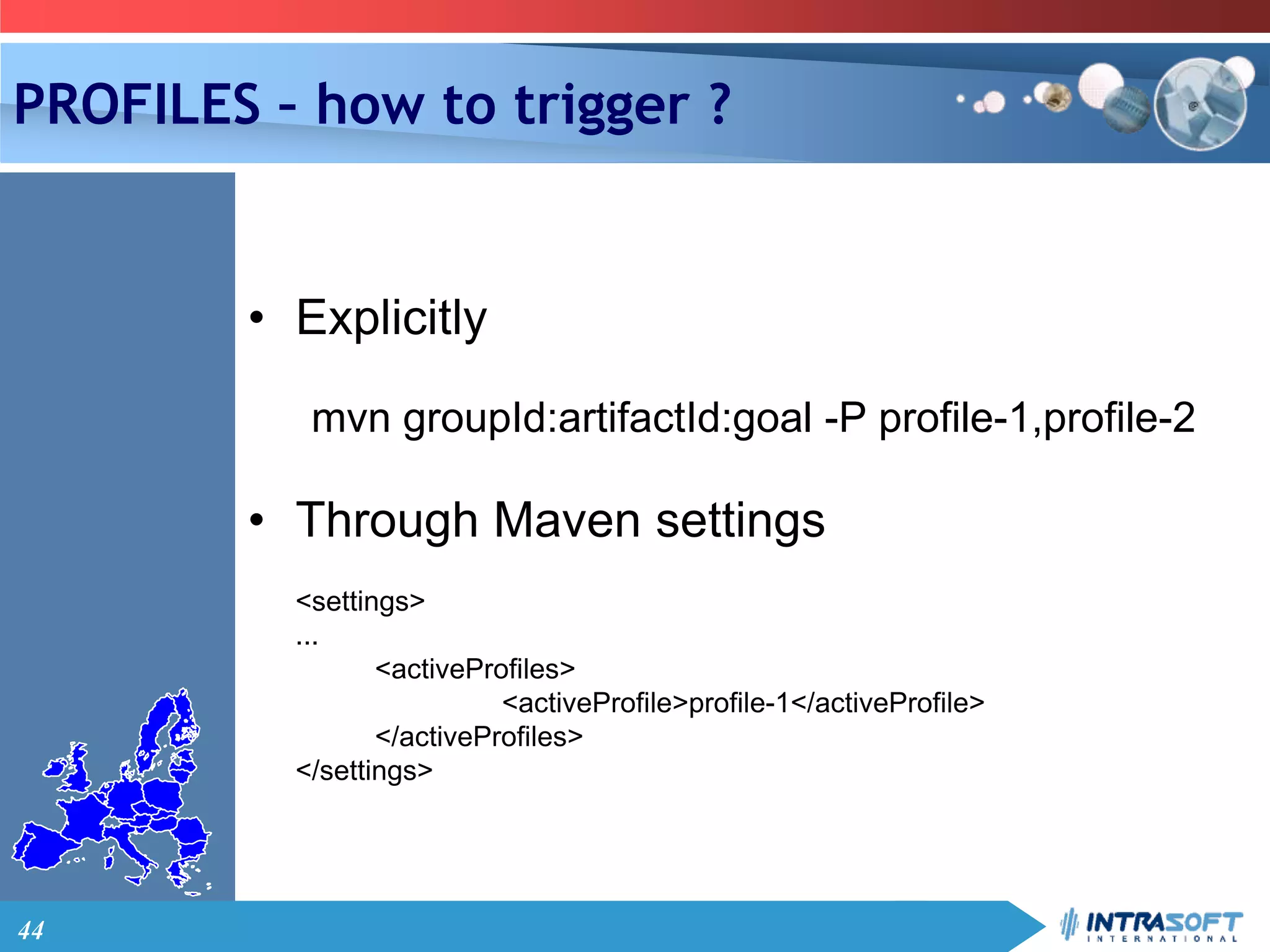

- 44. 44 PROFILES – howto trigger ? • Explicitly mvn groupId:artifactId:goal -P profile-1,profile-2 • Through Maven settings <settings> ... <activeProfiles> <activeProfile>profile-1</activeProfile> </activeProfiles> </settings>

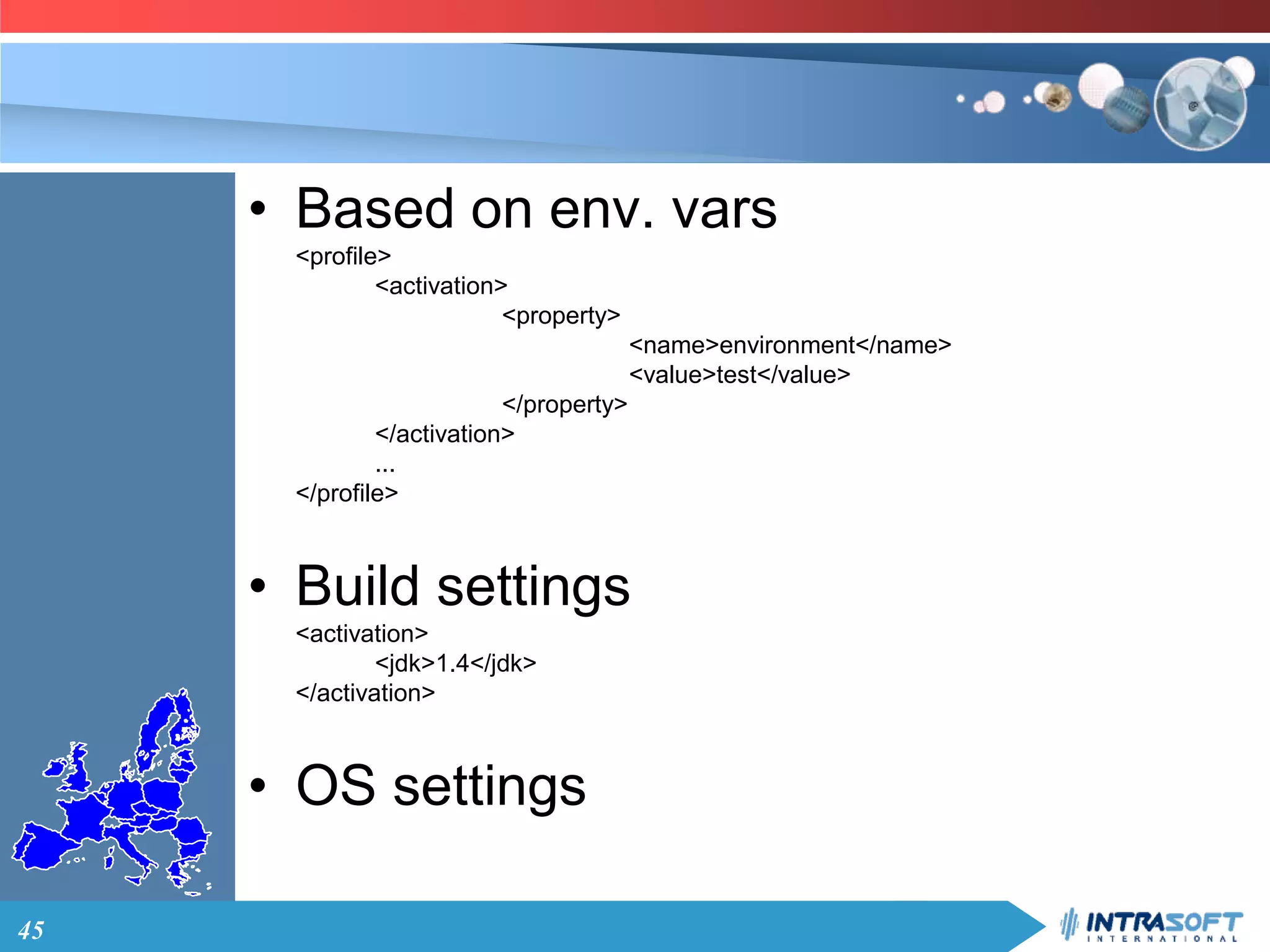

- 45. 45 • Based onenv. vars <profile> <activation> <property> <name>environment</name> <value>test</value> </property> </activation> ... </profile> • Build settings <activation> <jdk>1.4</jdk> </activation> • OS settings
- 46.
- 47.

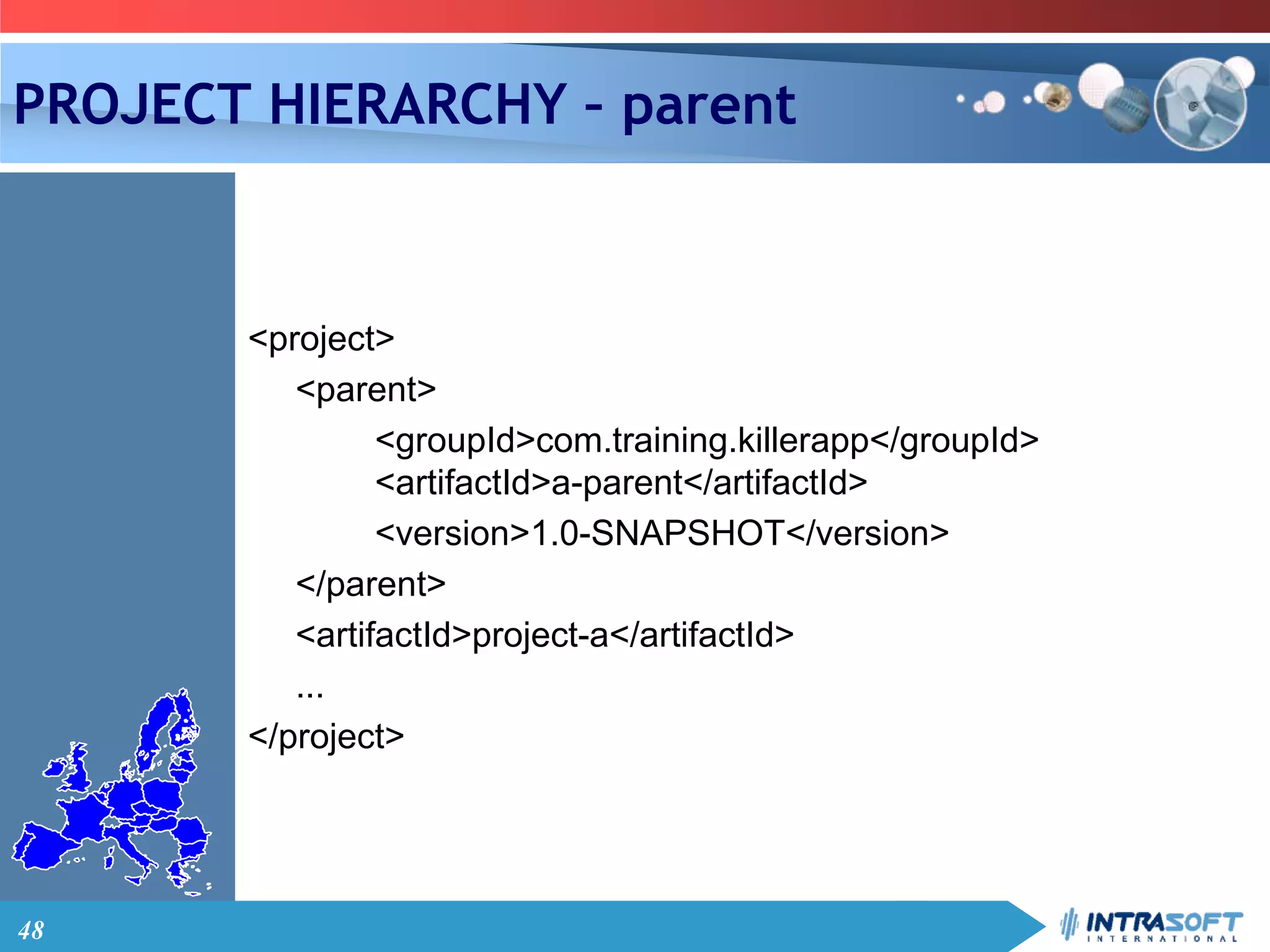

- 48. 48 PROJECT HIERARCHY –parent <project> <parent> <groupId>com.training.killerapp</groupId> <artifactId>a-parent</artifactId> <version>1.0-SNAPSHOT</version> </parent> <artifactId>project-a</artifactId> ... </project>

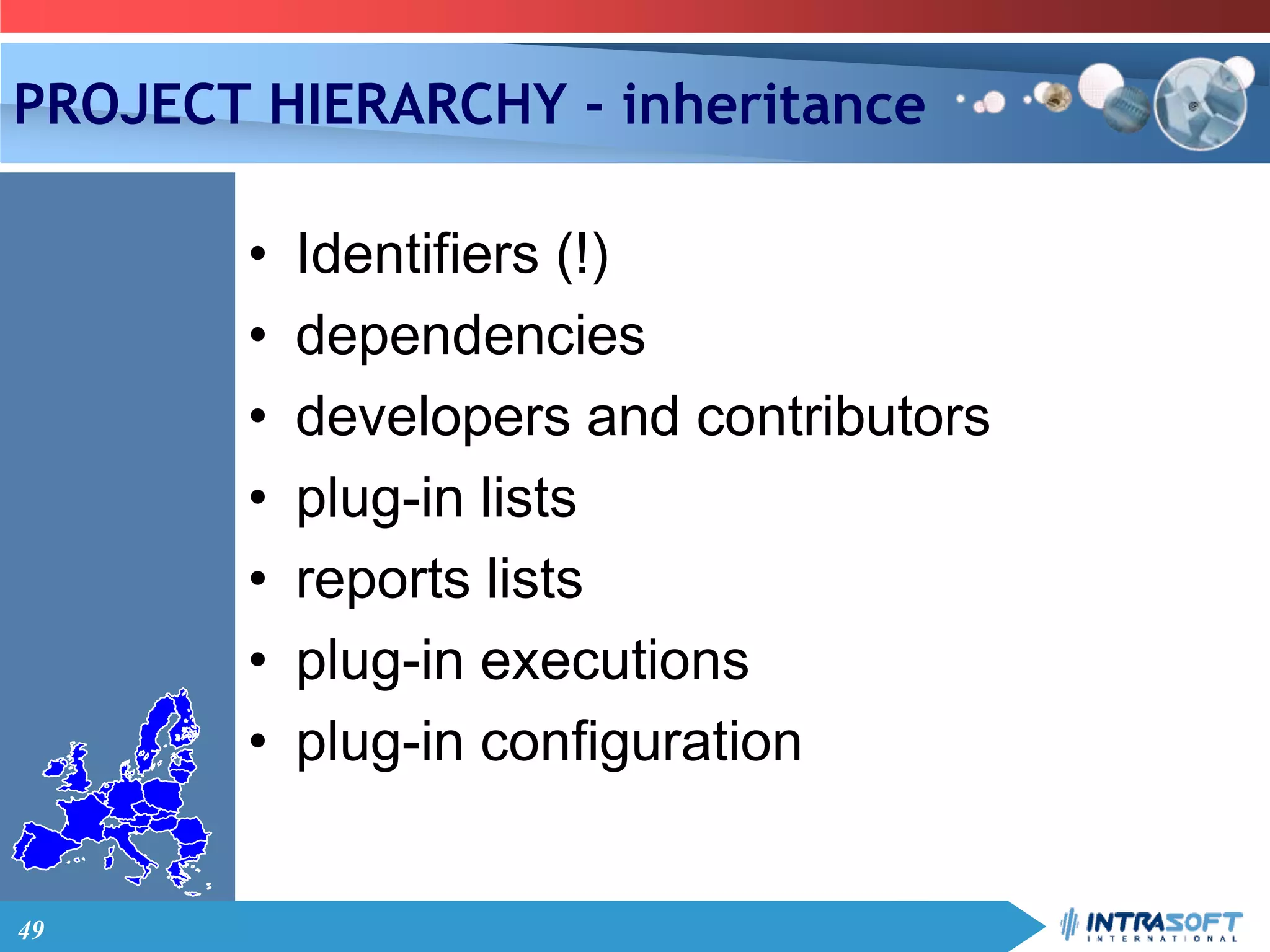

- 49. 49 PROJECT HIERARCHY -inheritance • Identifiers (!) • dependencies • developers and contributors • plug-in lists • reports lists • plug-in executions • plug-in configuration
- 50.
- 51.

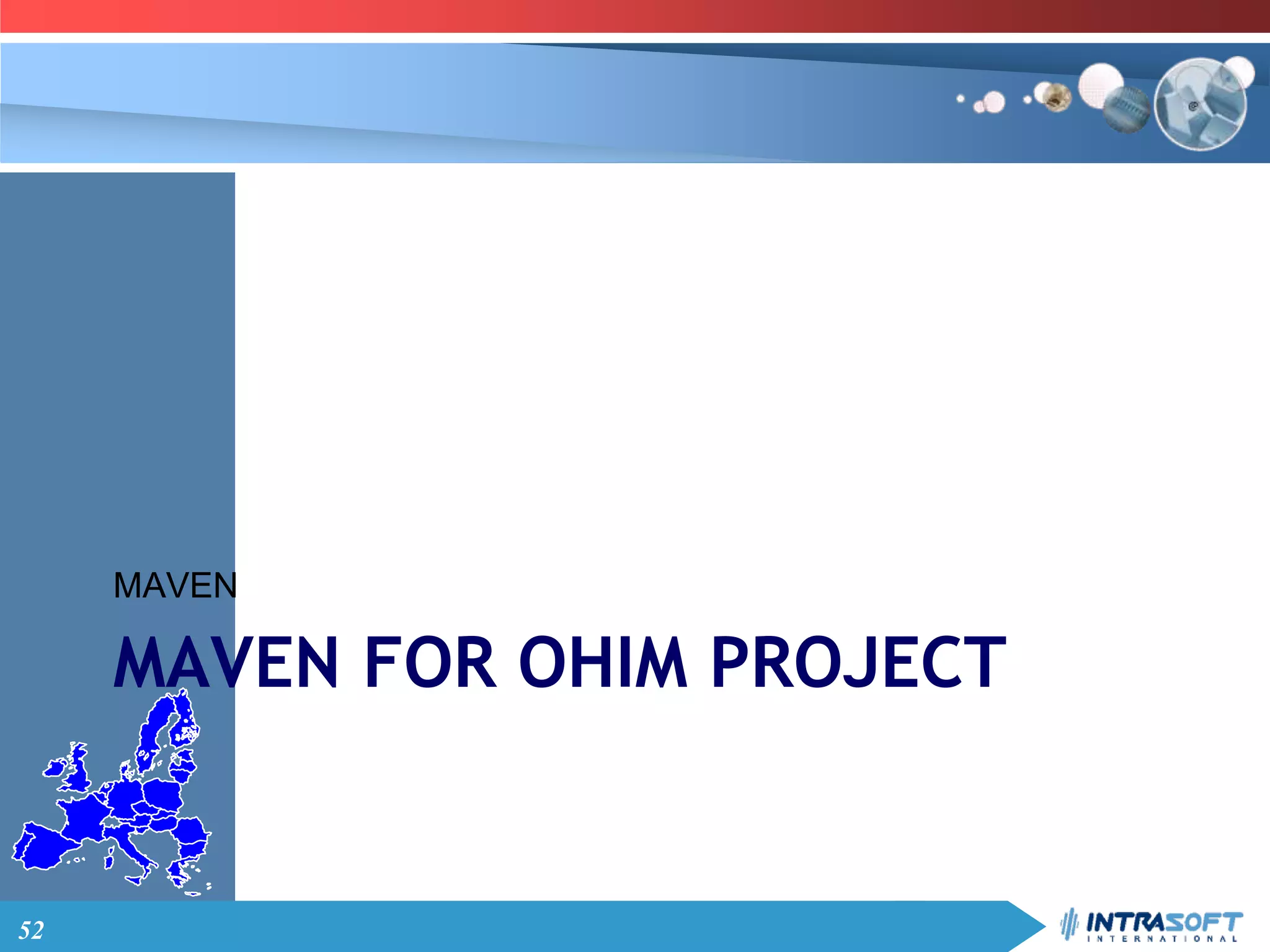

- 52. 52 MAVEN FOR OHIMPROJECT MAVEN
