This document discusses using Maven archetypes to create a Mule domain project and Mule application project that depends on the domain. It provides steps to generate a domain project with an HTTP listener configuration, and an application project that references the domain and uses the shared HTTP listener in its flow. The document also provides a sample test case for the application that sends a request to the listener and validates the response.

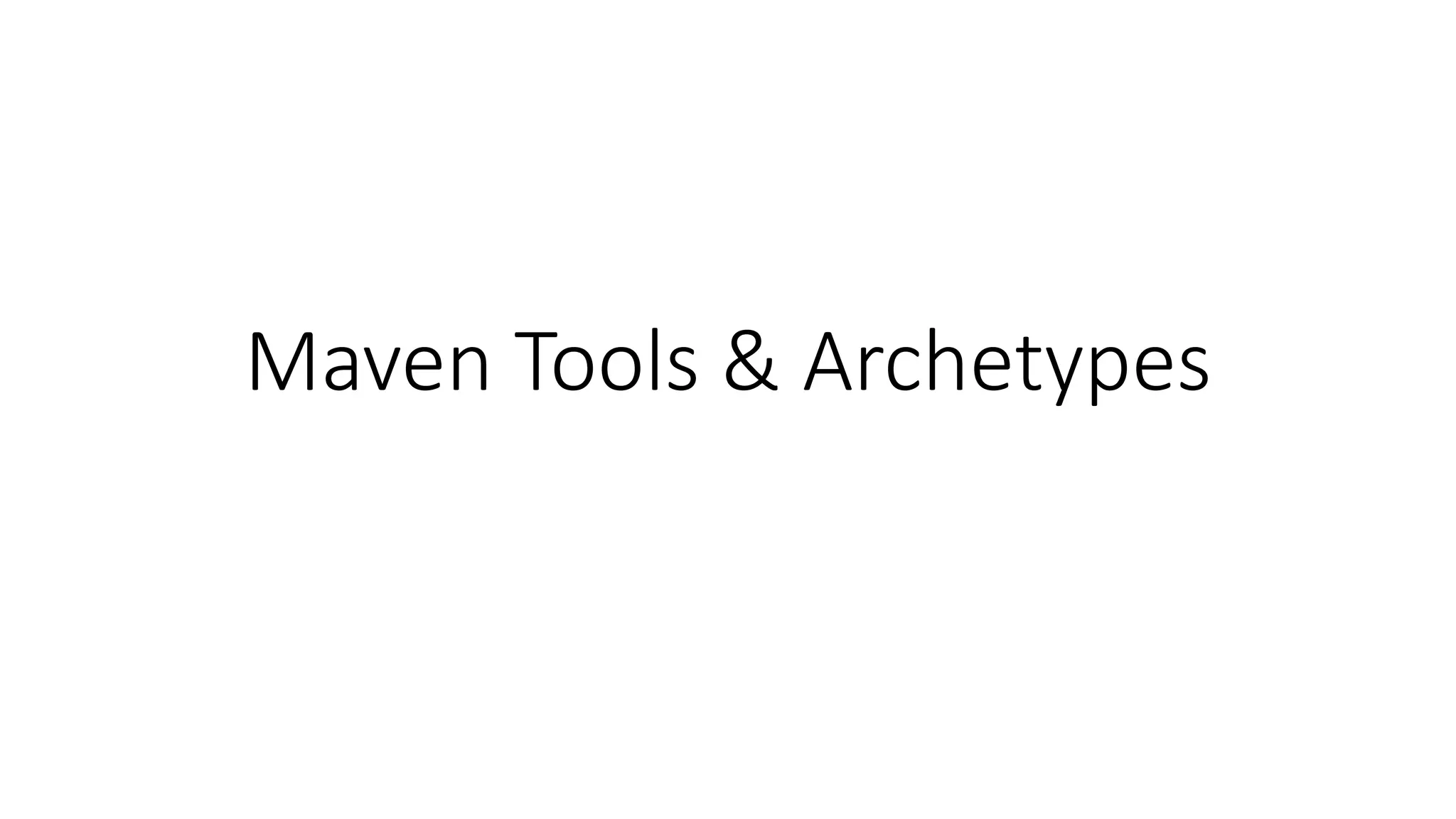

1. Maven Tools & Archetypes

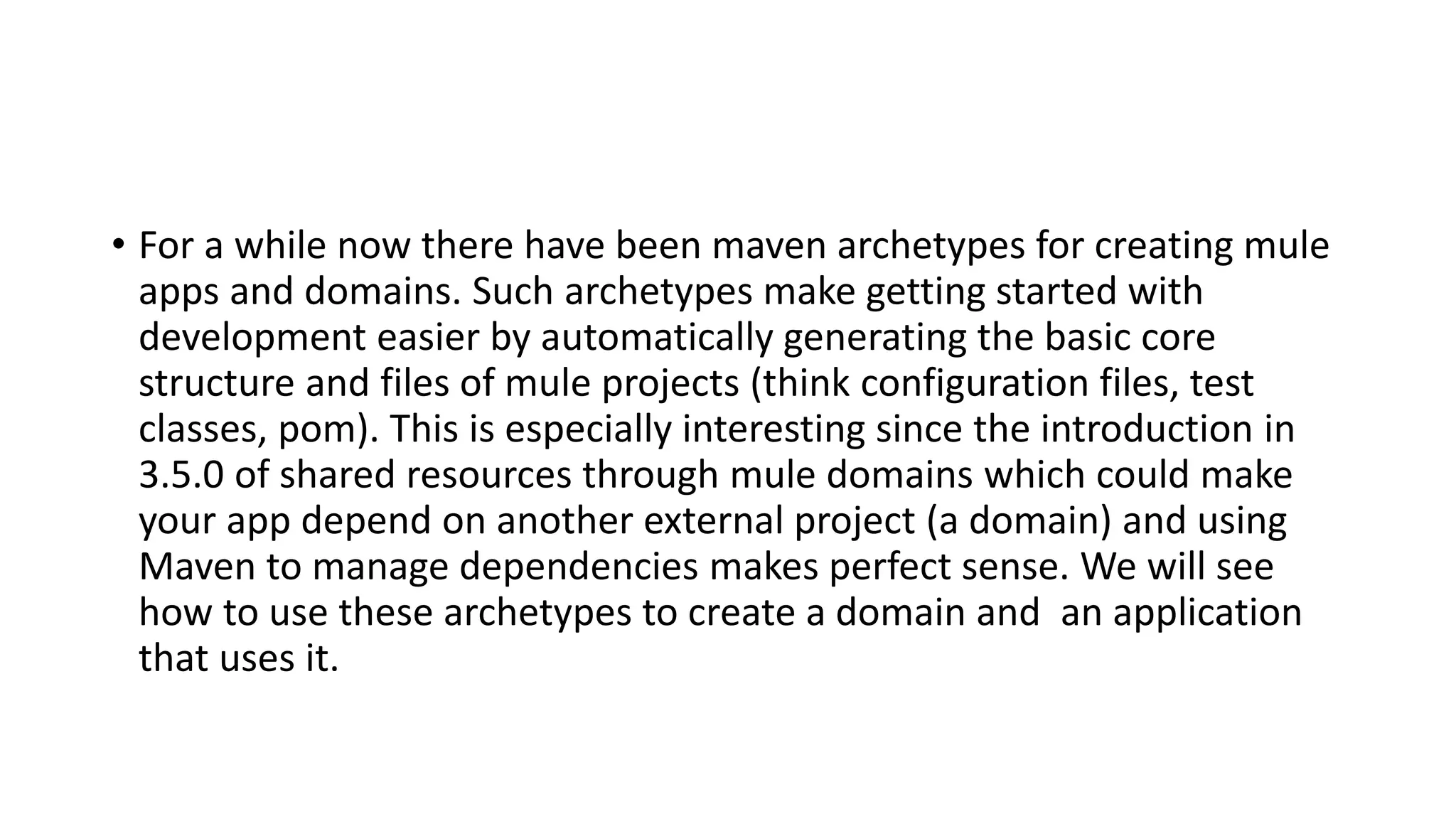

2. • For a while now there have been maven archetypes for creating mule
apps and domains. Such archetypes make getting started with
development easier by automatically generating the basic core
structure and files of mule projects (think configuration files, test
classes, pom). This is especially interesting since the introduction in
3.5.0 of shared resources through mule domains which could make
your app depend on another external project (a domain) and using
Maven to manage dependencies makes perfect sense. We will see
how to use these archetypes to create a domain and an application
that uses it.

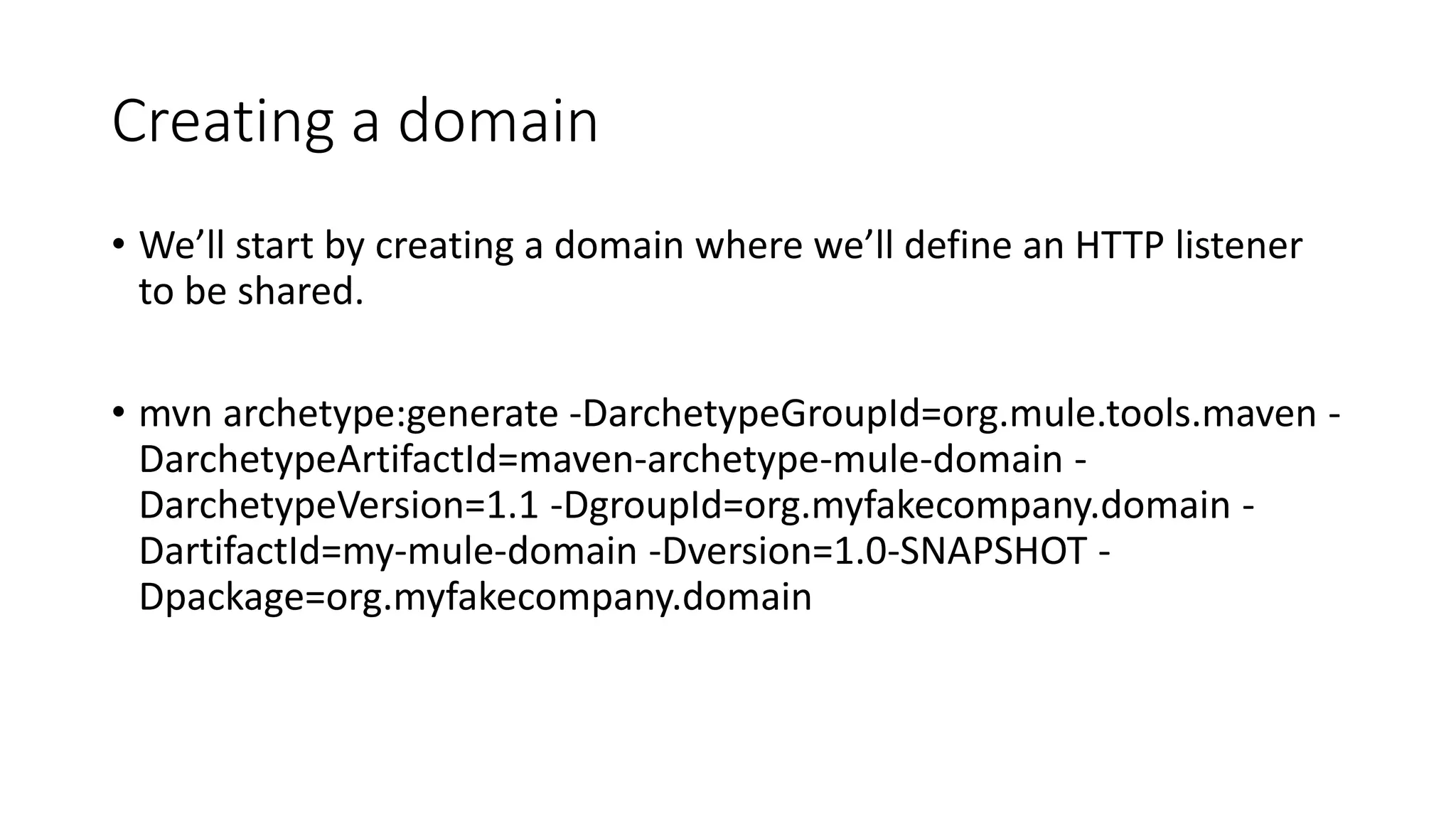

3. Creating a domain
• We’ll start by creating a domain where we’ll define an HTTP listener
to be shared.
• mvn archetype:generate -DarchetypeGroupId=org.mule.tools.maven -
DarchetypeArtifactId=maven-archetype-mule-domain -
DarchetypeVersion=1.1 -DgroupId=org.myfakecompany.domain -
DartifactId=my-mule-domain -Dversion=1.0-SNAPSHOT -
Dpackage=org.myfakecompany.domain

4. This will create a project named my-mule-domain
that contains a mule-domain-config.xml file where
we can define our listener config:<?xml version="1.0" encoding="UTF-8"?>
<domain:mule-domain
xmlns="http://www.mulesoft.org/schema/mule/core"
xmlns:domain="http://www.mulesoft.org/schema/mule/domain"
xmlns:http="http://www.mulesoft.org/schema/mule/http"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:spring="http://www.springframework.org/schema/beans"
xsi:schemaLocation="
http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-current.xsd
http://www.mulesoft.org/schema/mule/domain http://www.mulesoft.org/schema/mule/domain/current/mule-domain.xsd
http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd">
<!-- configure here resources to be shared within the domain -->
<http:listener-config host="localhost" port="8081" basePath="domain" name="listenerConfig"/>
</domain:mule-domain>

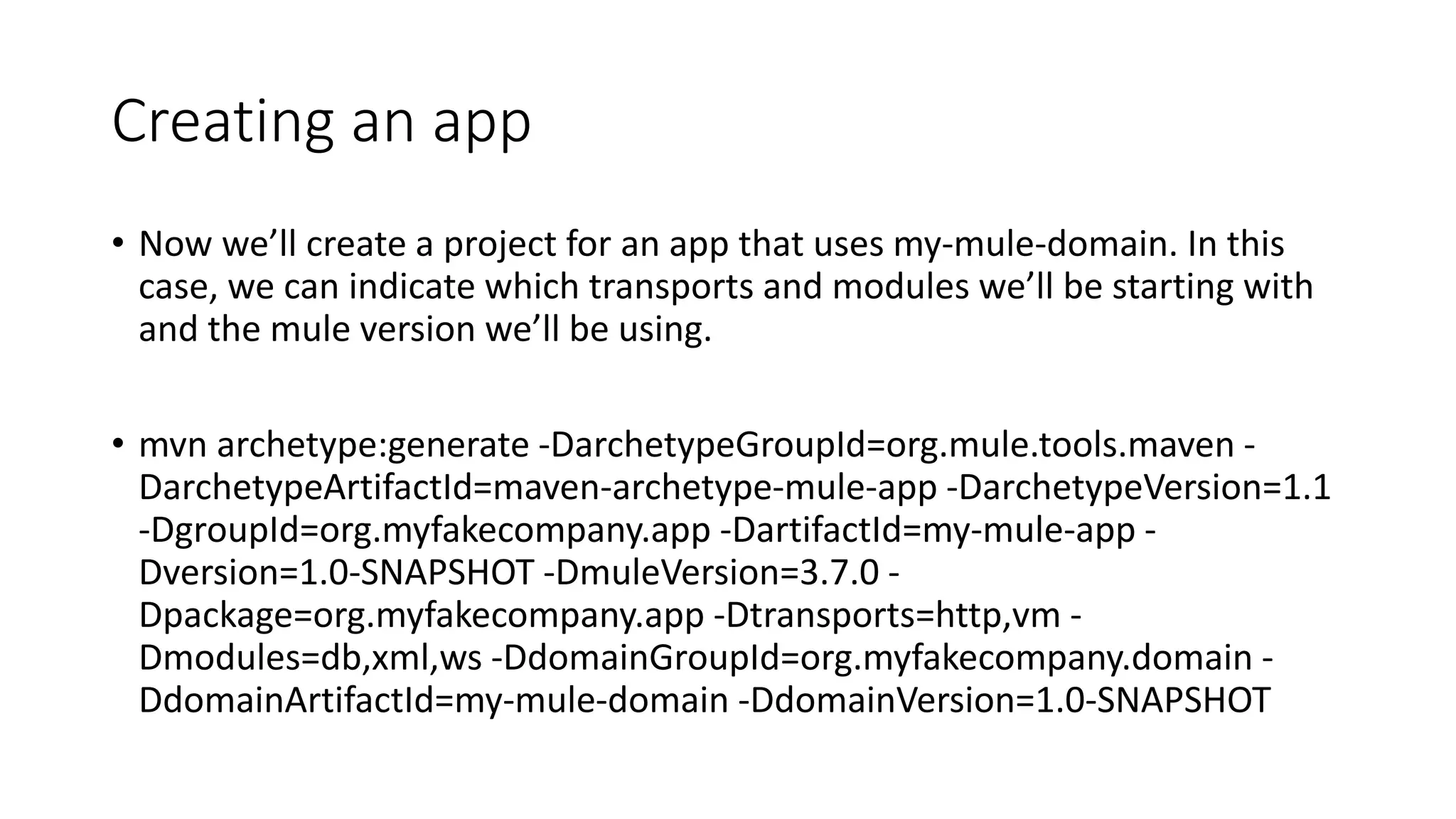

5. Creating an app
• Now we’ll create a project for an app that uses my-mule-domain. In this
case, we can indicate which transports and modules we’ll be starting with
and the mule version we’ll be using.
• mvn archetype:generate -DarchetypeGroupId=org.mule.tools.maven -
DarchetypeArtifactId=maven-archetype-mule-app -DarchetypeVersion=1.1
-DgroupId=org.myfakecompany.app -DartifactId=my-mule-app -
Dversion=1.0-SNAPSHOT -DmuleVersion=3.7.0 -
Dpackage=org.myfakecompany.app -Dtransports=http,vm -
Dmodules=db,xml,ws -DdomainGroupId=org.myfakecompany.domain -
DdomainArtifactId=my-mule-domain -DdomainVersion=1.0-SNAPSHOT

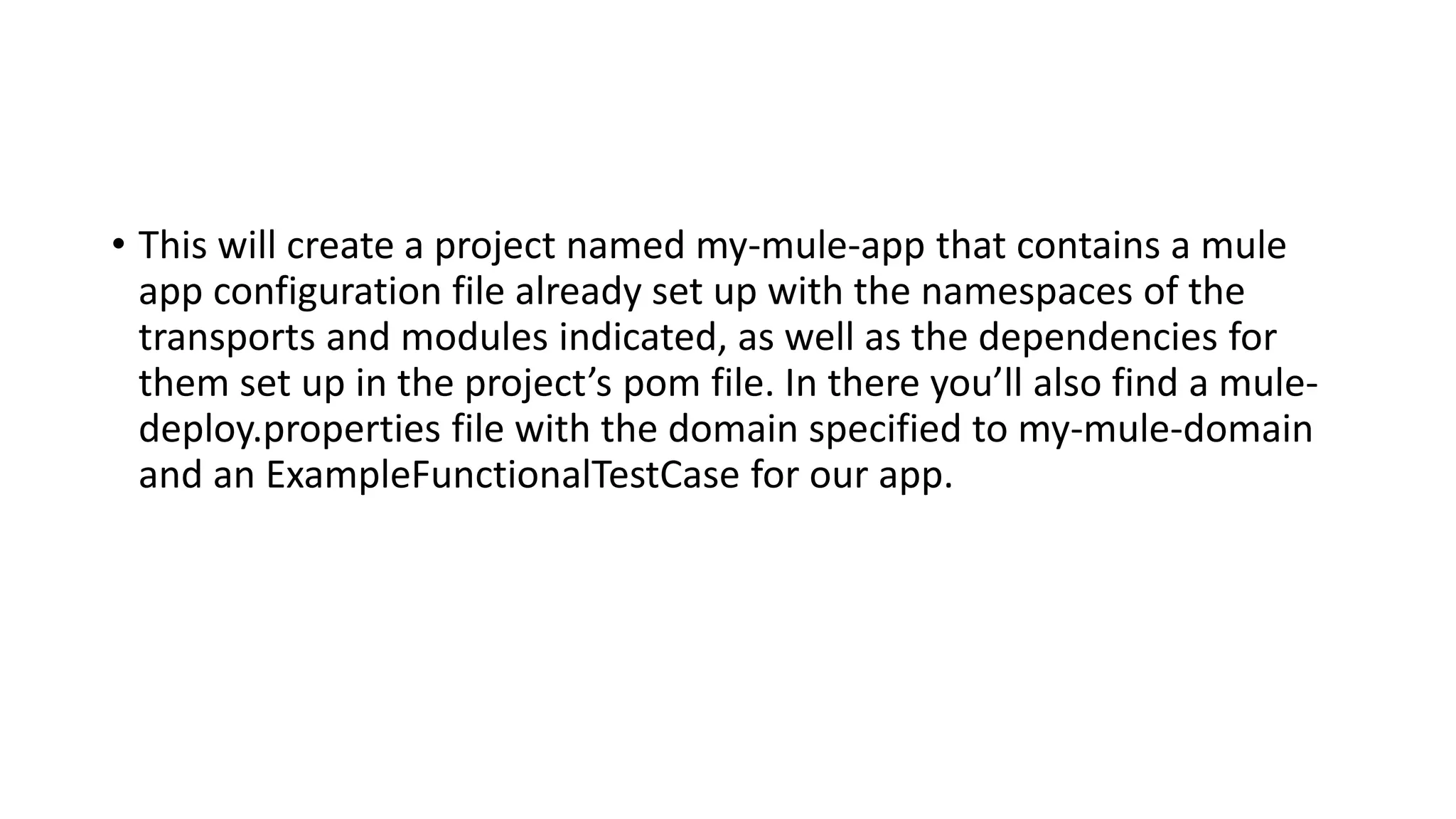

6. • This will create a project named my-mule-app that contains a mule
app configuration file already set up with the namespaces of the
transports and modules indicated, as well as the dependencies for
them set up in the project’s pom file. In there you’ll also find a mule-
deploy.properties file with the domain specified to my-mule-domain
and an ExampleFunctionalTestCase for our app.

7. Let’s modify the app to use the shared HTTP
listener and it’s test accordingly. We’ll get rid of
the vm endpoints and extra initial message
processors and add our listener:
<flow name="main">
<http:listener config-ref="listenerConfig" path="test"/>
<set-payload value="Received" />
</flow>

8. In ExampleFunctionalTestCase we can now use the
MuleClient to send a request to
“http://localhost:8081/domain/test”. Let’s replace
the vm related client code and modify the
expected payload since now we’ll be expecting
“Received”:
@Test
public void testConfiguration() throws Exception
{
MuleClient client = getMuleContextForApp("myApp").getClient();
MuleMessage message = new DefaultMuleMessage("some data", getMuleContextForApp("myApp"));
MuleMessage result = client.send("http://localhost:8081/domain/test", message);
assertNotNull(result);
assertNull(result.getExceptionPayload());
assertFalse(result.getPayload() instanceof NullPayload);
assertEquals("Received", result.getPayloadAsString());
}

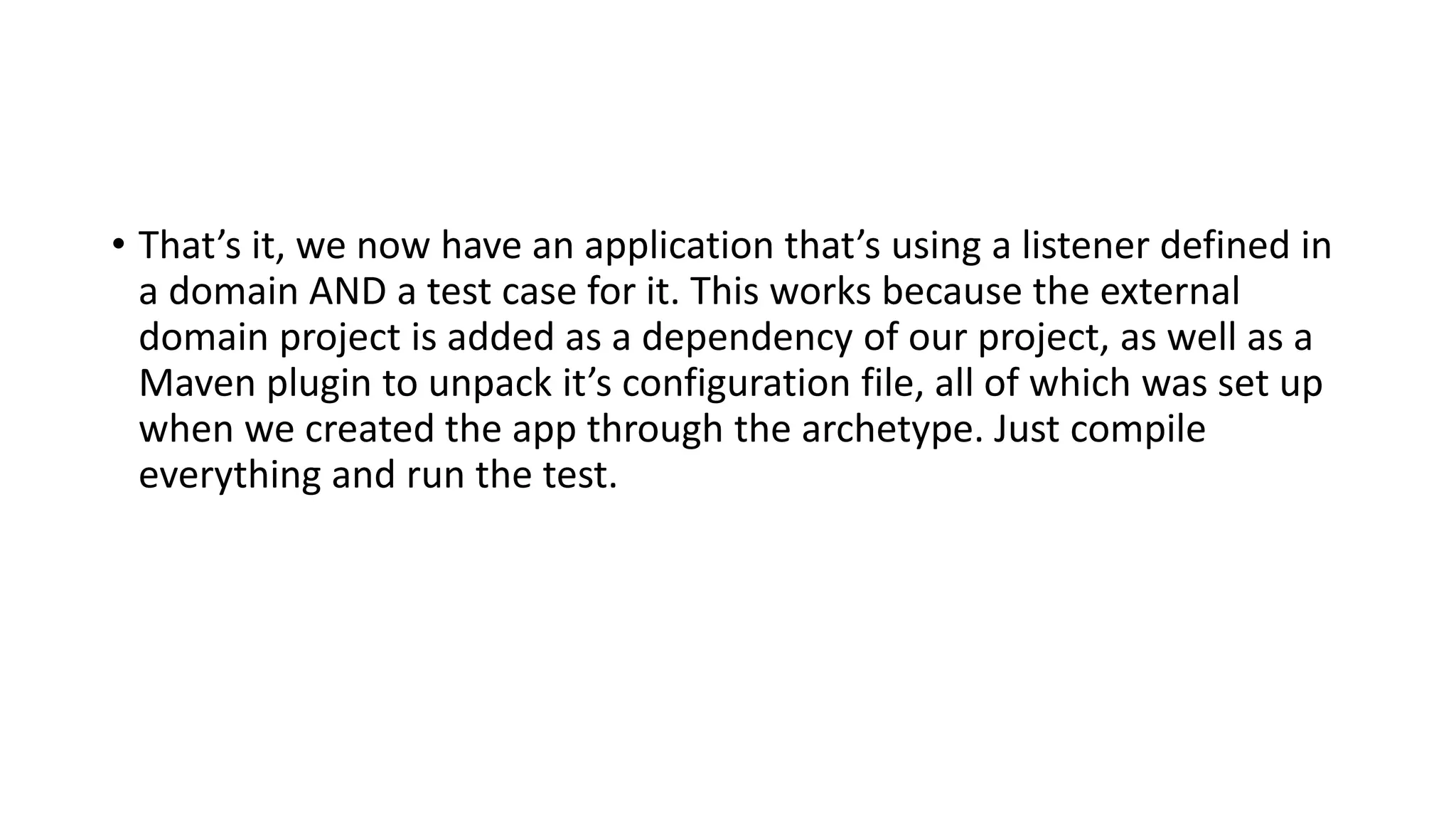

9. • That’s it, we now have an application that’s using a listener defined in
a domain AND a test case for it. This works because the external
domain project is added as a dependency of our project, as well as a
Maven plugin to unpack it’s configuration file, all of which was set up
when we created the app through the archetype. Just compile
everything and run the test.

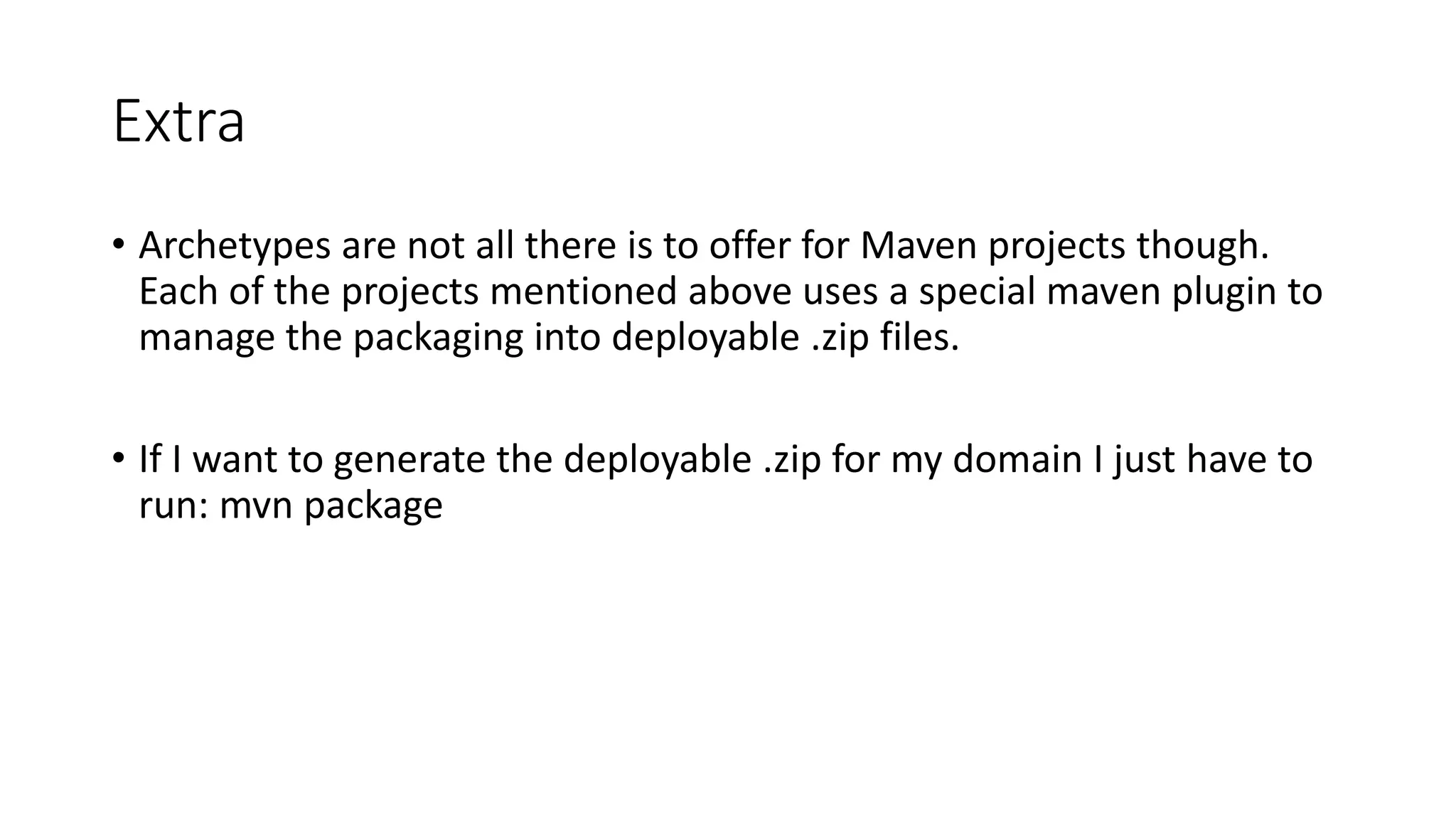

10. Extra
• Archetypes are not all there is to offer for Maven projects though.
Each of the projects mentioned above uses a special maven plugin to
manage the packaging into deployable .zip files.
• If I want to generate the deployable .zip for my domain I just have to
run: mvn package
