This document discusses the potential opportunities and applications of Internet of Things (IoT) technology, with a focus on smart cities and rural applications. It describes how IoT sensors could be used to monitor environments, infrastructure, agriculture and disasters. It also introduces Low Power Wide Area Networks (LPWANs) as a way to connect IoT devices over long ranges using little power. LPWANs are presented as a way to enable new IoT solutions and business cases in cities as well as more remote locations. The document argues that widespread deployment of IoT sensors, combined with LPWAN connectivity, could help optimize resource use, increase agricultural yields, and improve disaster response.

1. iwceexpo.com/nif16 #IWCE20

2. iwceexpo.com/nif16
#IWCE2016

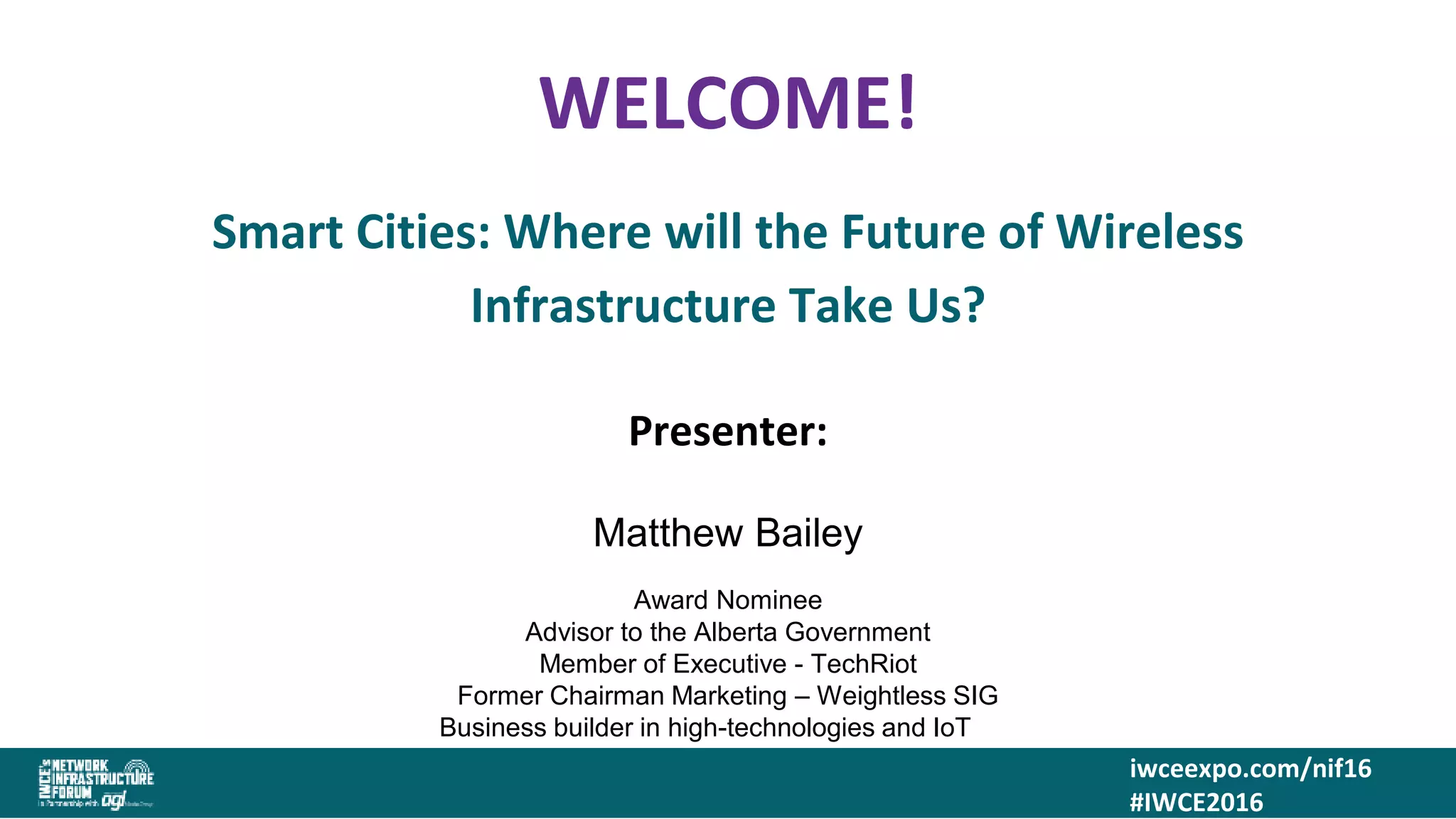

WELCOME!
Smart Cities: Where will the Future of Wireless
Infrastructure Take Us?
Presenter:
Matthew Bailey
Award Nominee
Advisor to the Alberta Government
Member of Executive - TechRiot
Former Chairman Marketing – Weightless SIG
Business builder in high-technologies and IoT IoT

3. iwceexpo.com/nif16
#IWCE2016
Introduction to Matthew
Introduced IoT to
world leaders!
Set world record - IoT wireless standards
IoT business builder, award winners
Designer of IoT business
accelerator
Award Nominee - IoT 28 years high-tech
Cambridge UK
Living in USA

4. iwceexpo.com/nif16 #IWCE20
Introduction to the “IoT” and planetary intelligence

5. iwceexpo.com/nif16
#IWCE2016

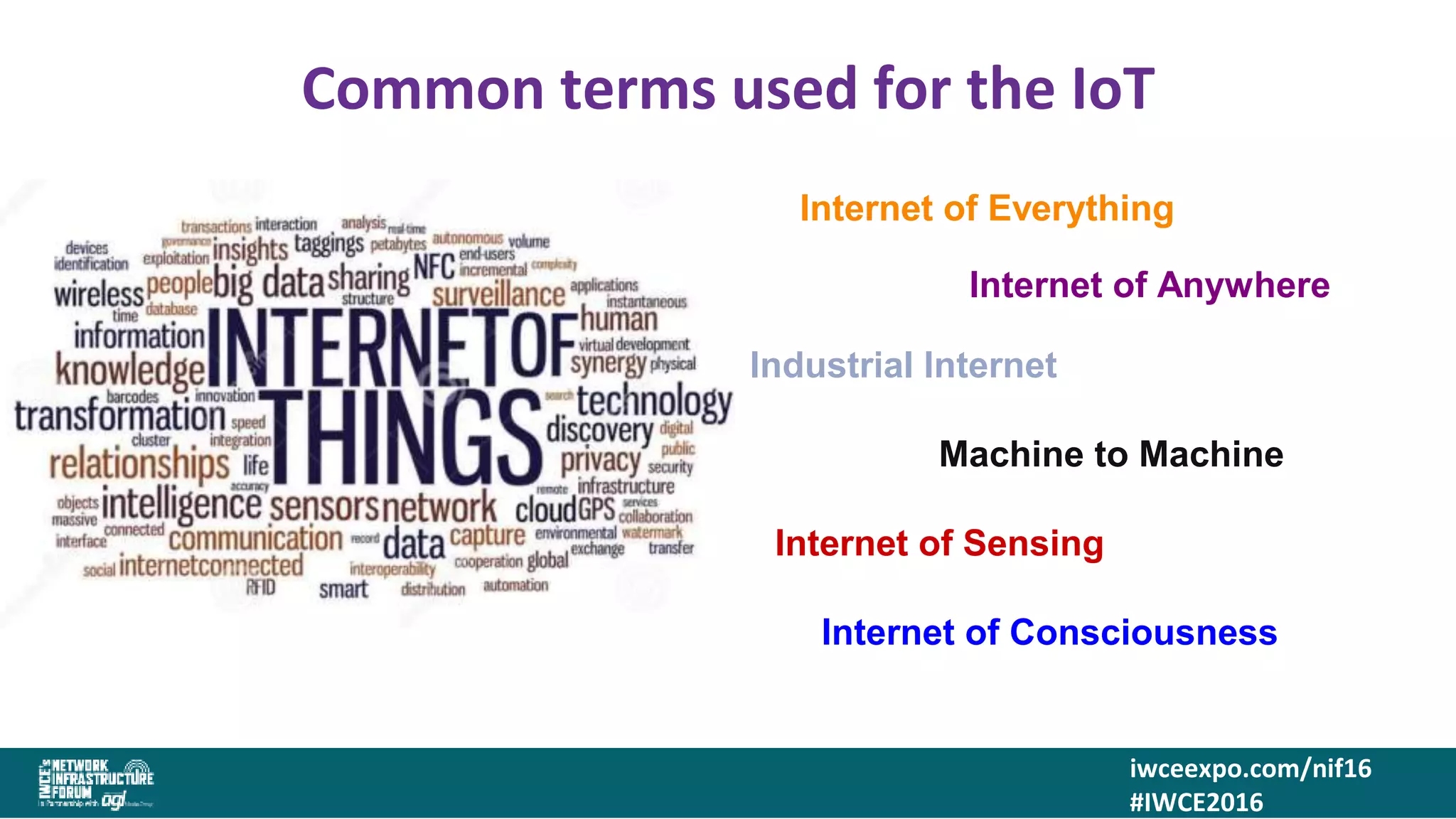

Common terms used for the IoT
Internet of Everything
Internet of Anywhere
Industrial Internet
Internet of Sensing
Internet of Consciousness
Machine to Machine

6. iwceexpo.com/nif16
#IWCE2016

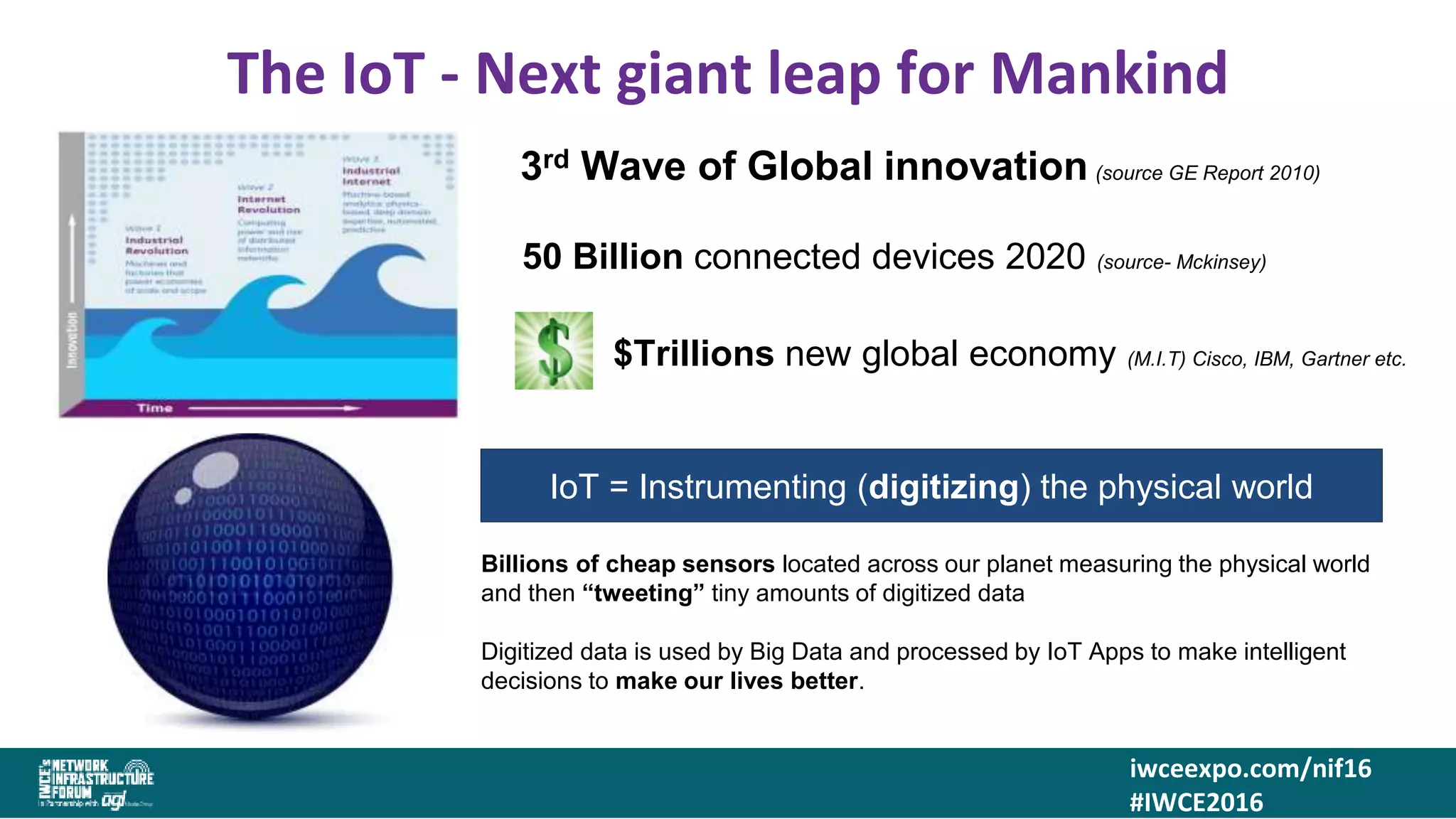

The IoT - Next giant leap for Mankind
Billions of cheap sensors located across our planet measuring the physical world
and then “tweeting” tiny amounts of digitized data
3rd Wave of Global innovation (source GE Report 2010)
50 Billion connected devices 2020 (source- Mckinsey)
$Trillions new global economy (M.I.T) Cisco, IBM, Gartner etc.
IoT = Instrumenting (digitizing) the physical world
Digitized data is used by Big Data and processed by IoT Apps to make intelligent
decisions to make our lives better.

7. iwceexpo.com/nif16
#IWCE2016

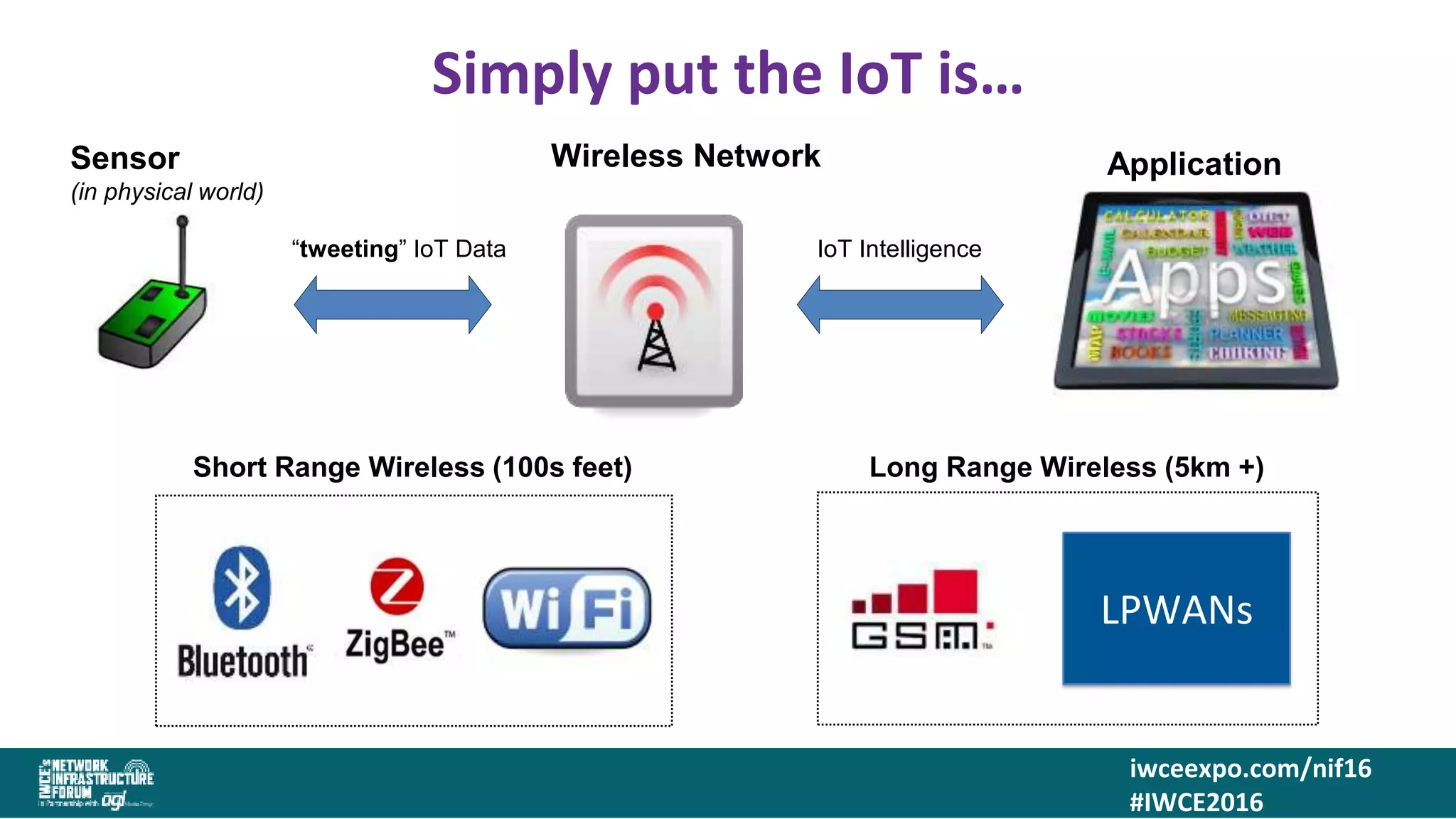

Simply put the IoT is…
Short Range Wireless (100s feet)
Sensor
(in physical world)
Wireless Network Application
“tweeting” IoT Data
Long Range Wireless (5km +)
LPWANs
IoT Intelligence

8. iwceexpo.com/nif16
#IWCE2016

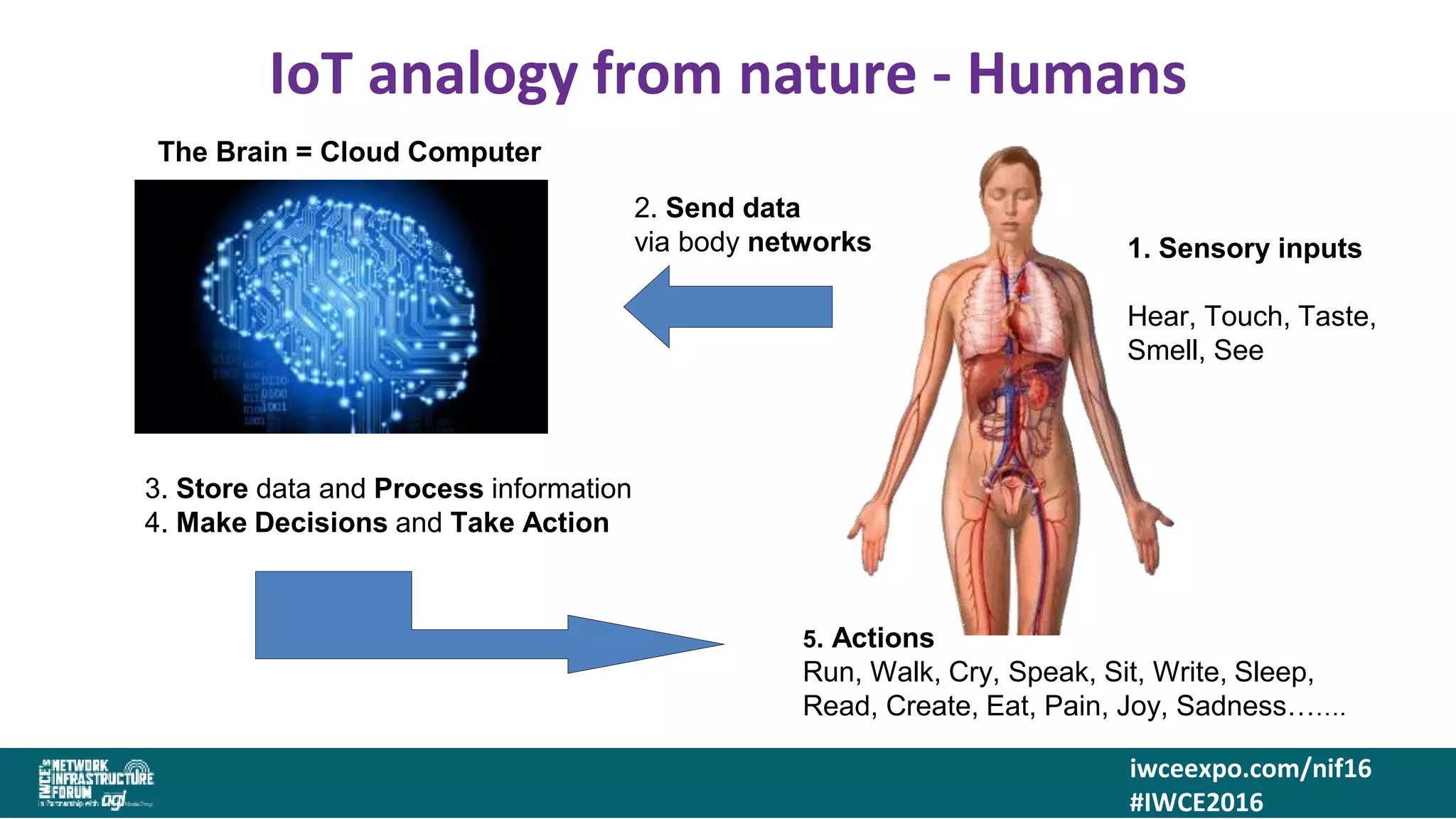

IoT analogy from nature - Humans
2. Send data
via body networks
3. Store data and Process information
4. Make Decisions and Take Action
5. Actions
Run, Walk, Cry, Speak, Sit, Write, Sleep,
Read, Create, Eat, Pain, Joy, Sadness…….
1. Sensory inputs
Hear, Touch, Taste,
Smell, See
The Brain = Cloud Computer

9. iwceexpo.com/nif16
#IWCE2016

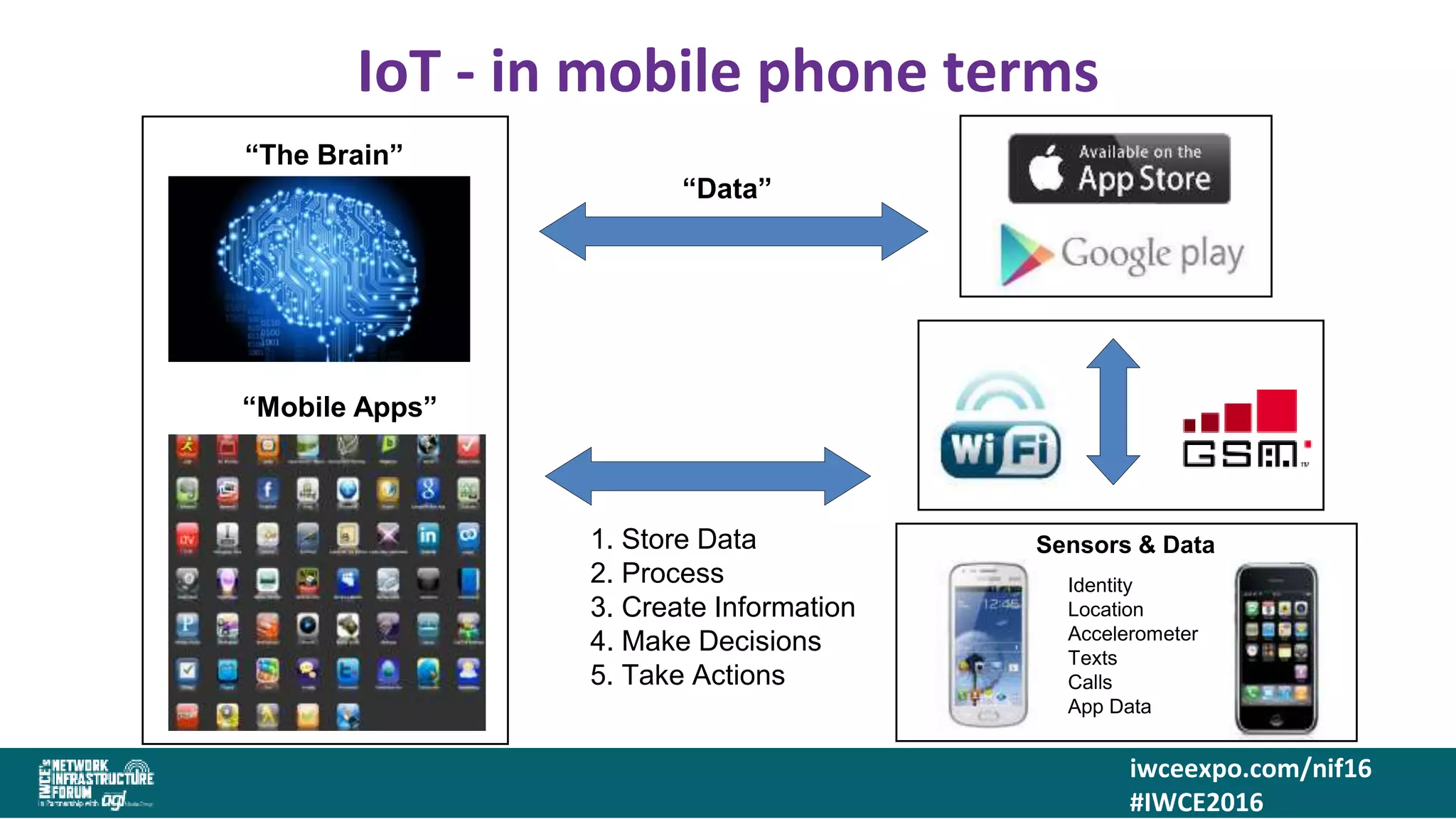

IoT - in mobile phone terms
“The Brain”
Sensors & Data
Identity
Location
Accelerometer
Texts
Calls
App Data
“Data”
“Mobile Apps”
1. Store Data
2. Process
3. Create Information
4. Make Decisions
5. Take Actions

10. iwceexpo.com/nif16
#IWCE2016

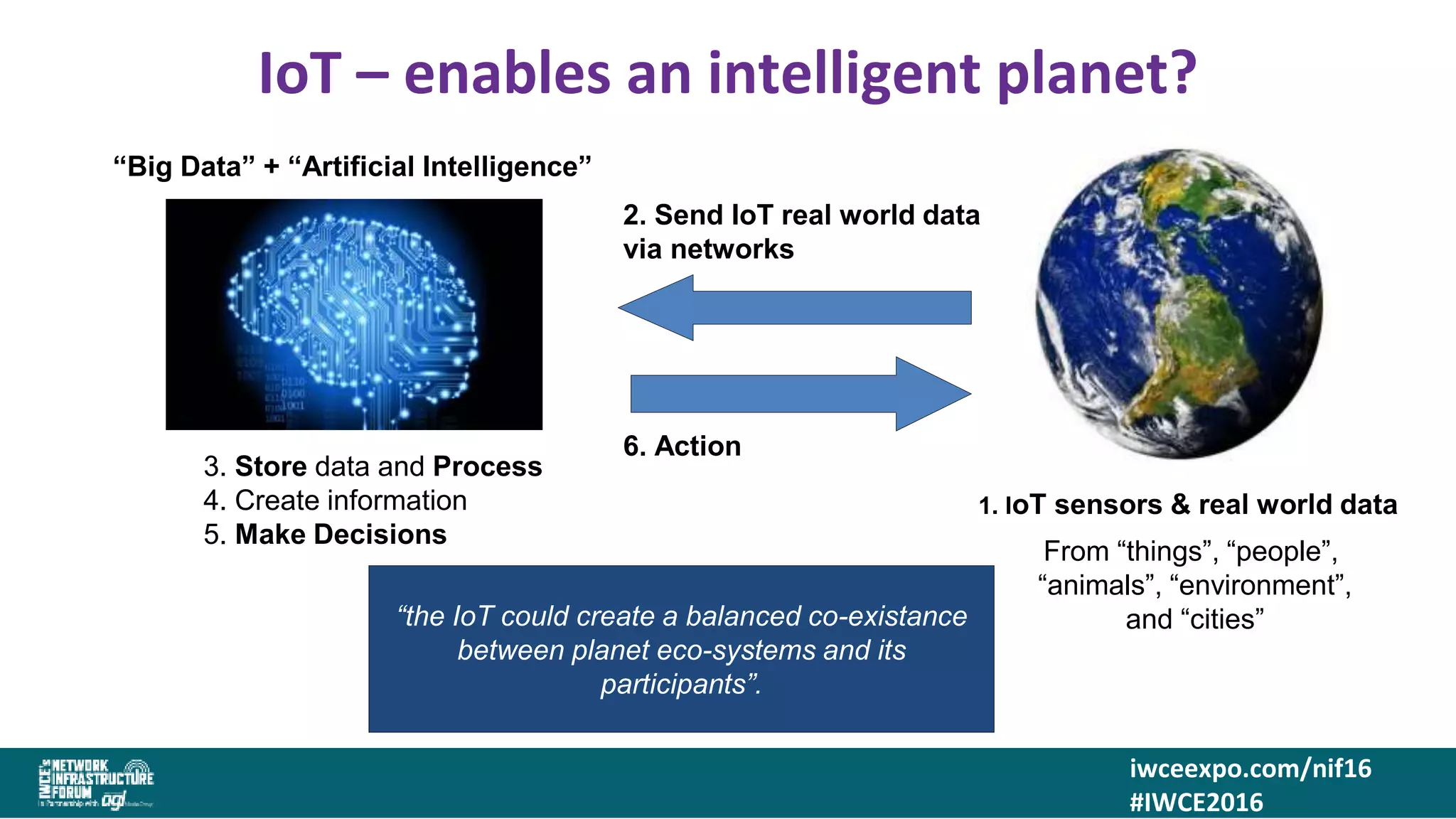

IoT – enables an intelligent planet?
1. IoT sensors & real world data
From “things”, “people”,
“animals”, “environment”,
and “cities”
“Big Data” + “Artificial Intelligence”
3. Store data and Process
4. Create information
5. Make Decisions
2. Send IoT real world data
via networks
“the IoT could create a balanced co-existance
between planet eco-systems and its
participants”.
6. Action

11. iwceexpo.com/nif16
#IWCE2016

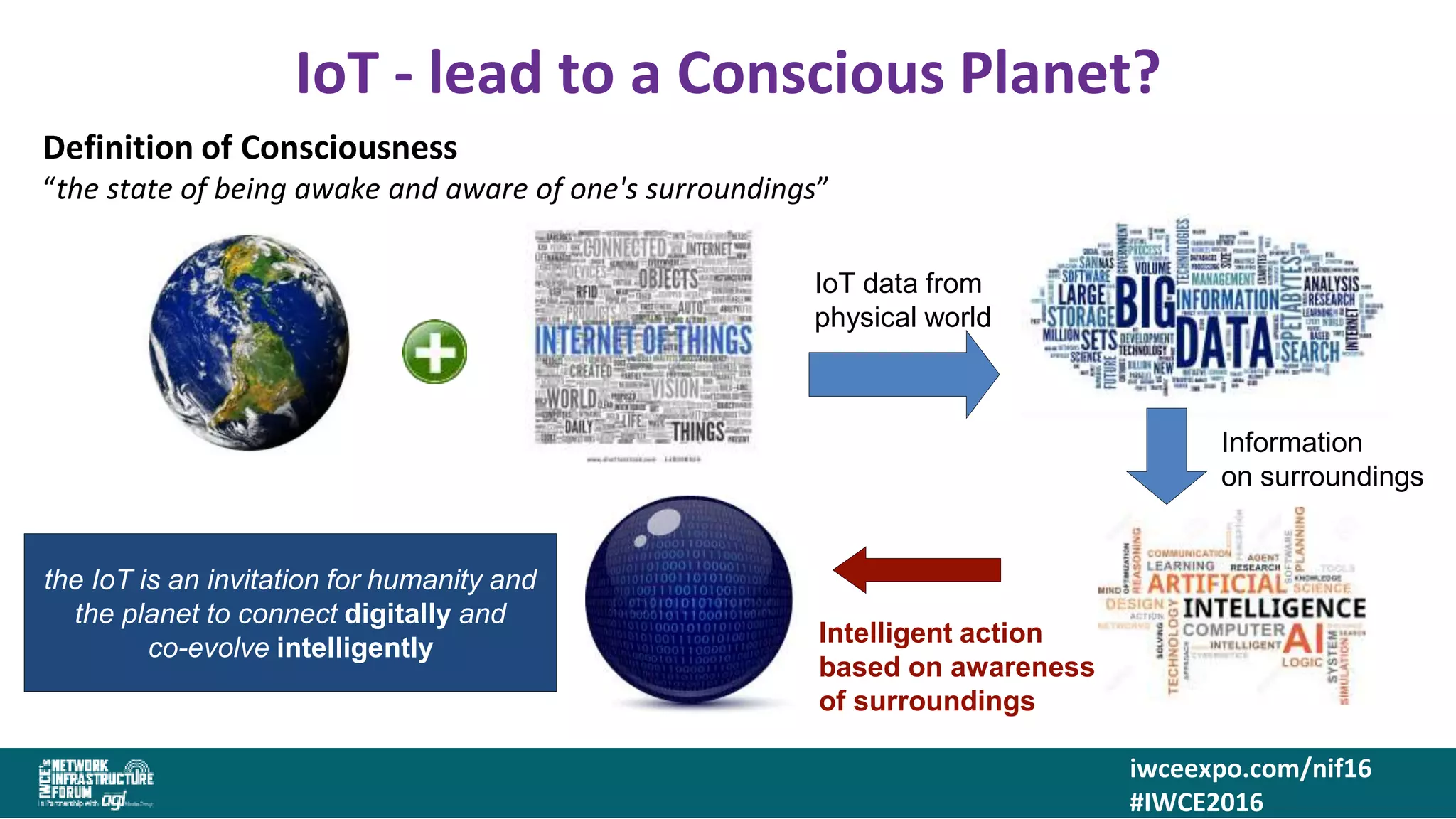

IoT - lead to a Conscious Planet?
Definition of Consciousness
“the state of being awake and aware of one's surroundings”
IoT data from
physical world
Information
on surroundings
Intelligent action
based on awareness
of surroundings
the IoT is an invitation for humanity and
the planet to connect digitally and
co-evolve intelligently

12. iwceexpo.com/nif16
#IWCE2016

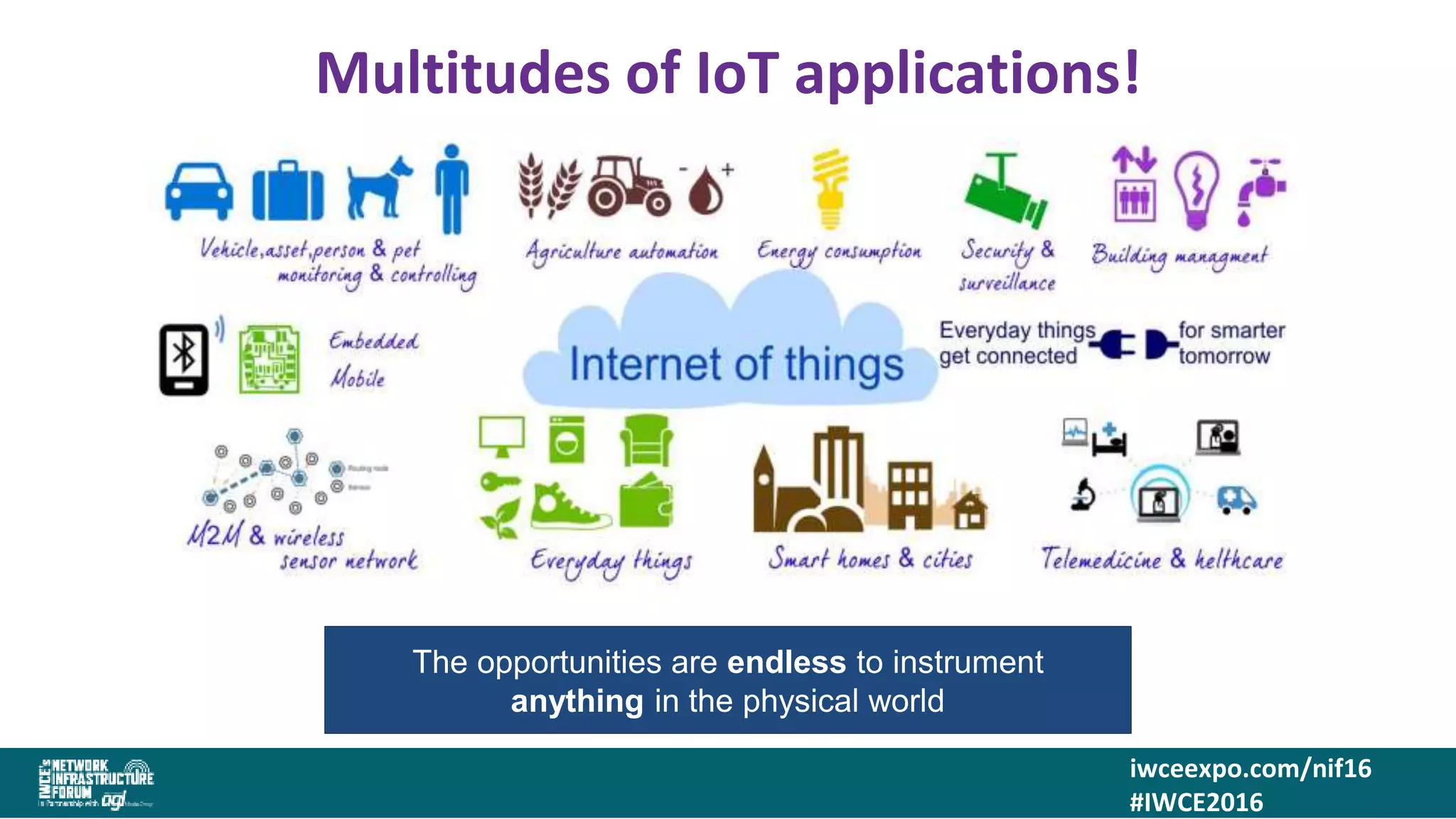

Multitudes of IoT applications!
The opportunities are endless to instrument
anything in the physical world

13. iwceexpo.com/nif16 #IWCE20

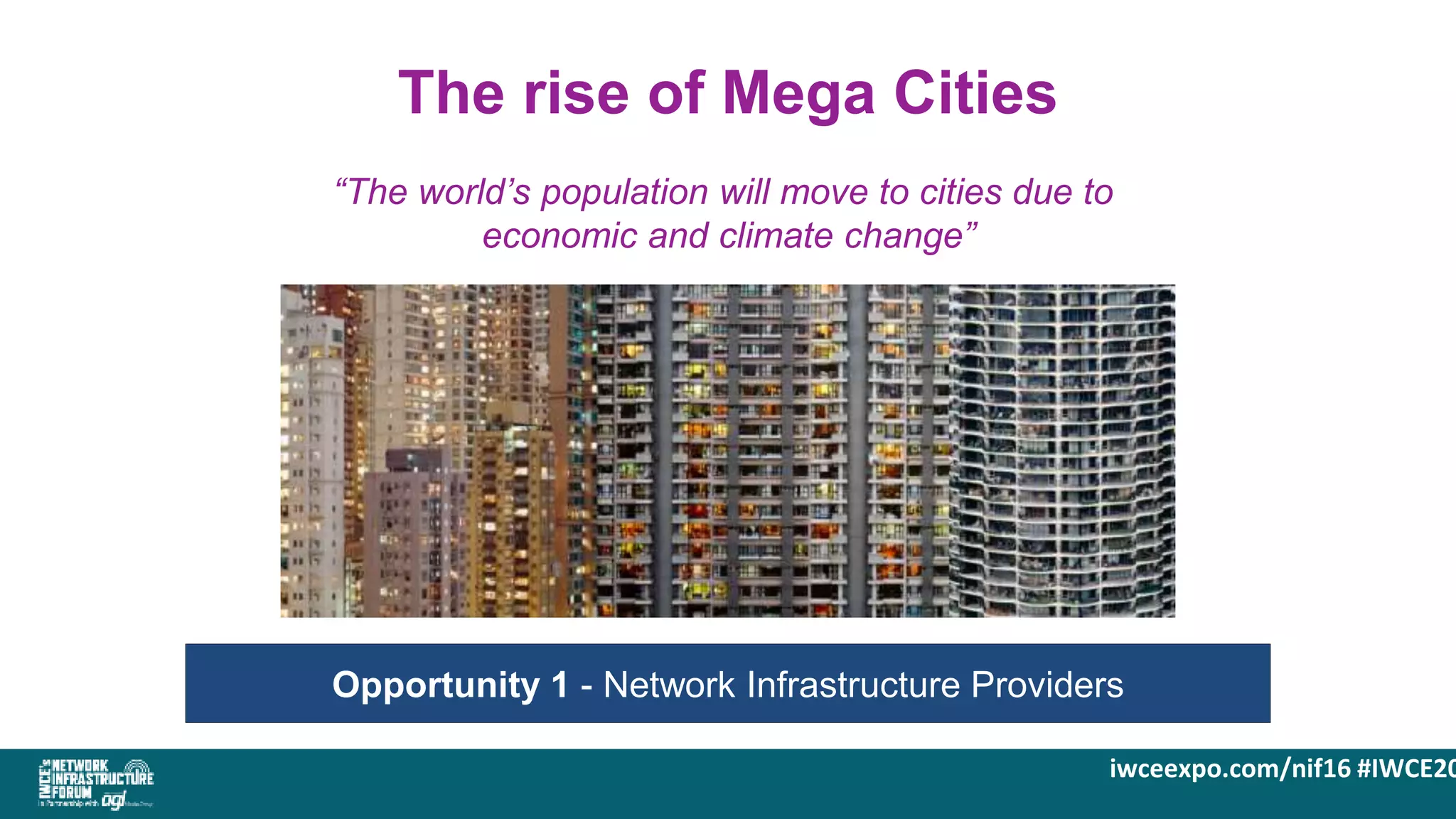

The rise of Mega Cities
“The world’s population will move to cities due to
economic and climate change”
Opportunity 1 - Network Infrastructure Providers

14. iwceexpo.com/nif16
#IWCE2016

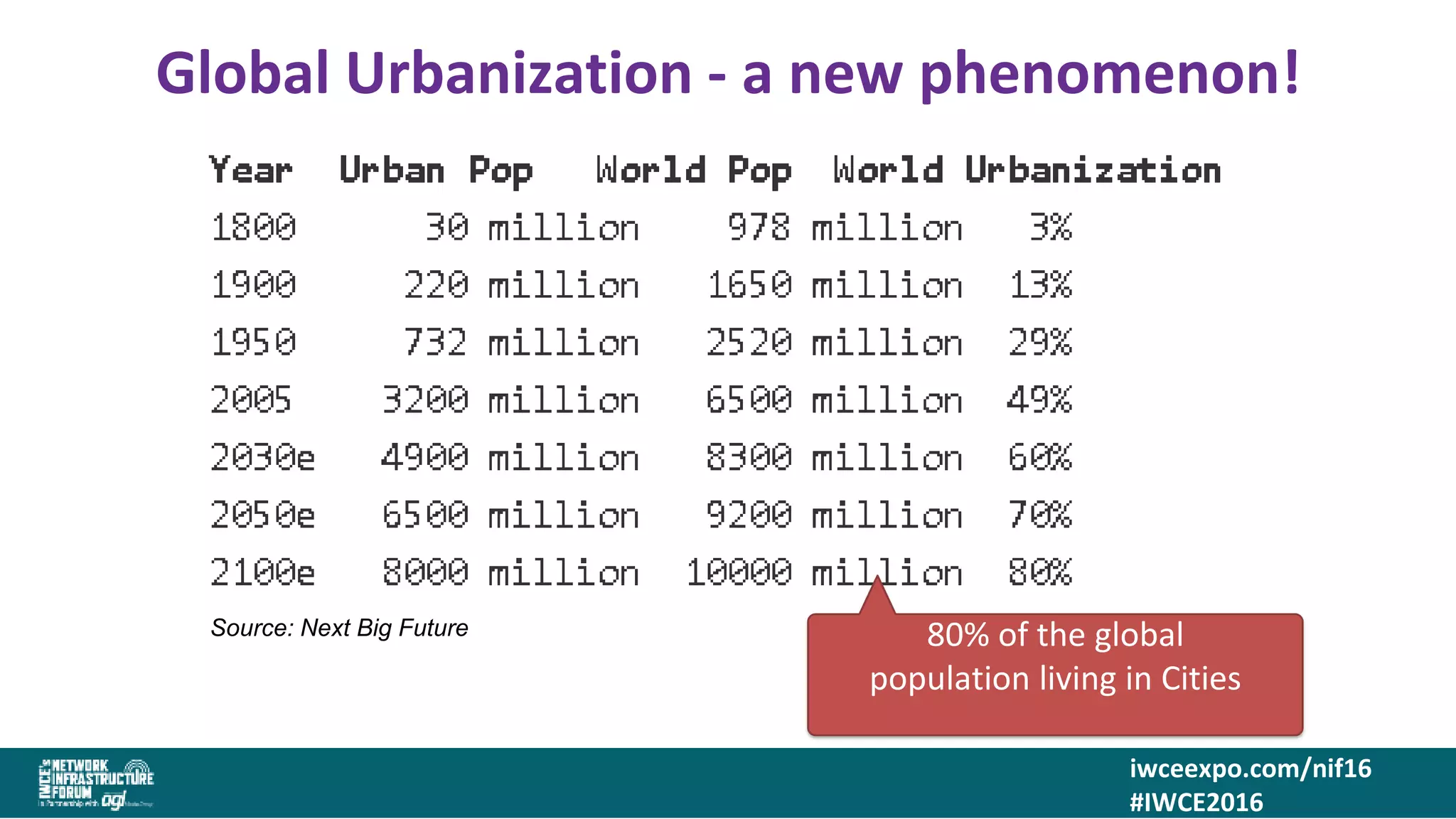

Global Urbanization - a new phenomenon!
Source: Next Big Future 80% of the global
population living in Cities

15. iwceexpo.com/nif16
#IWCE2016

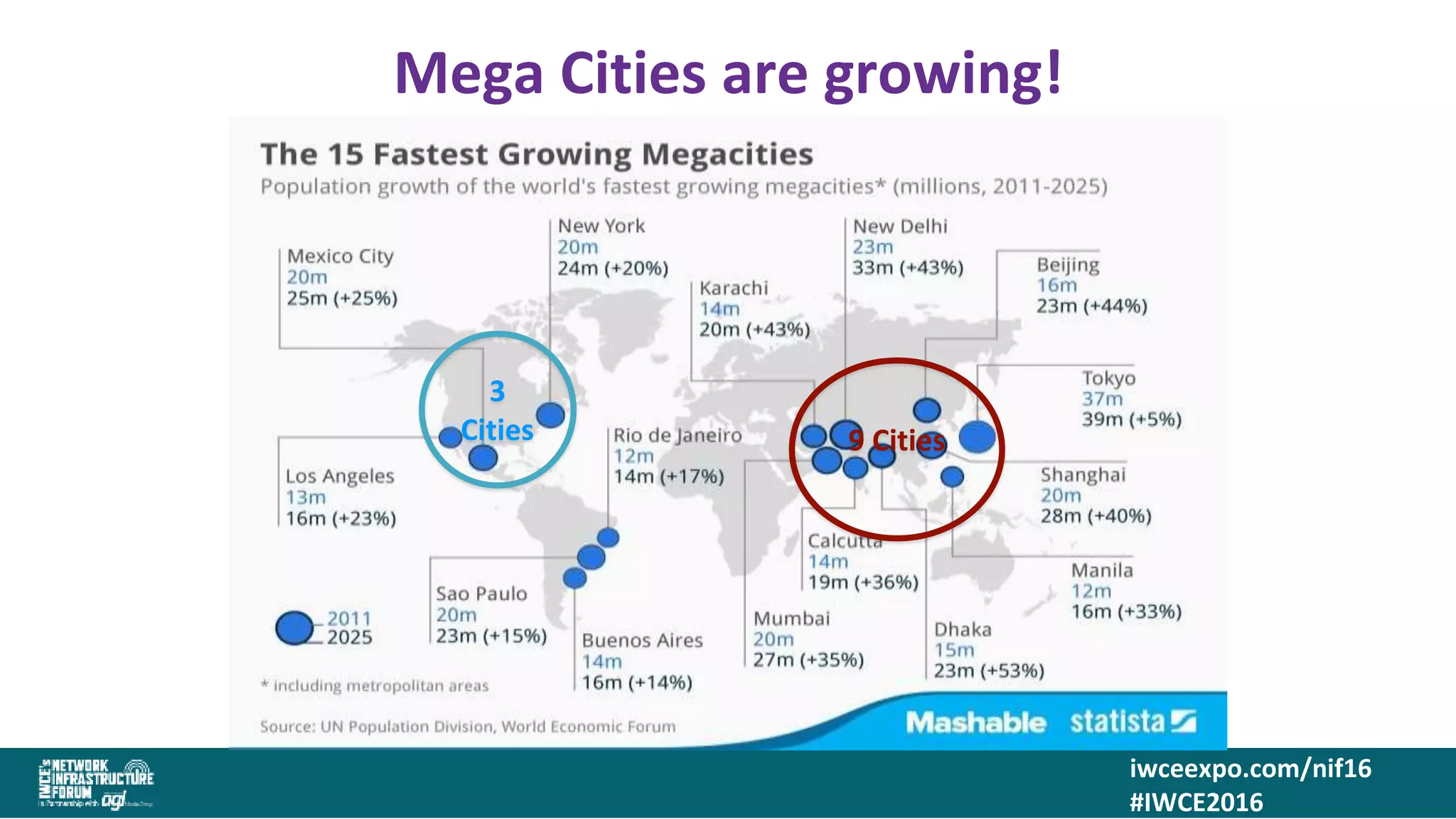

Mega Cities are growing!
3
Cities 9 Cities

16. iwceexpo.com/nif16
#IWCE2016

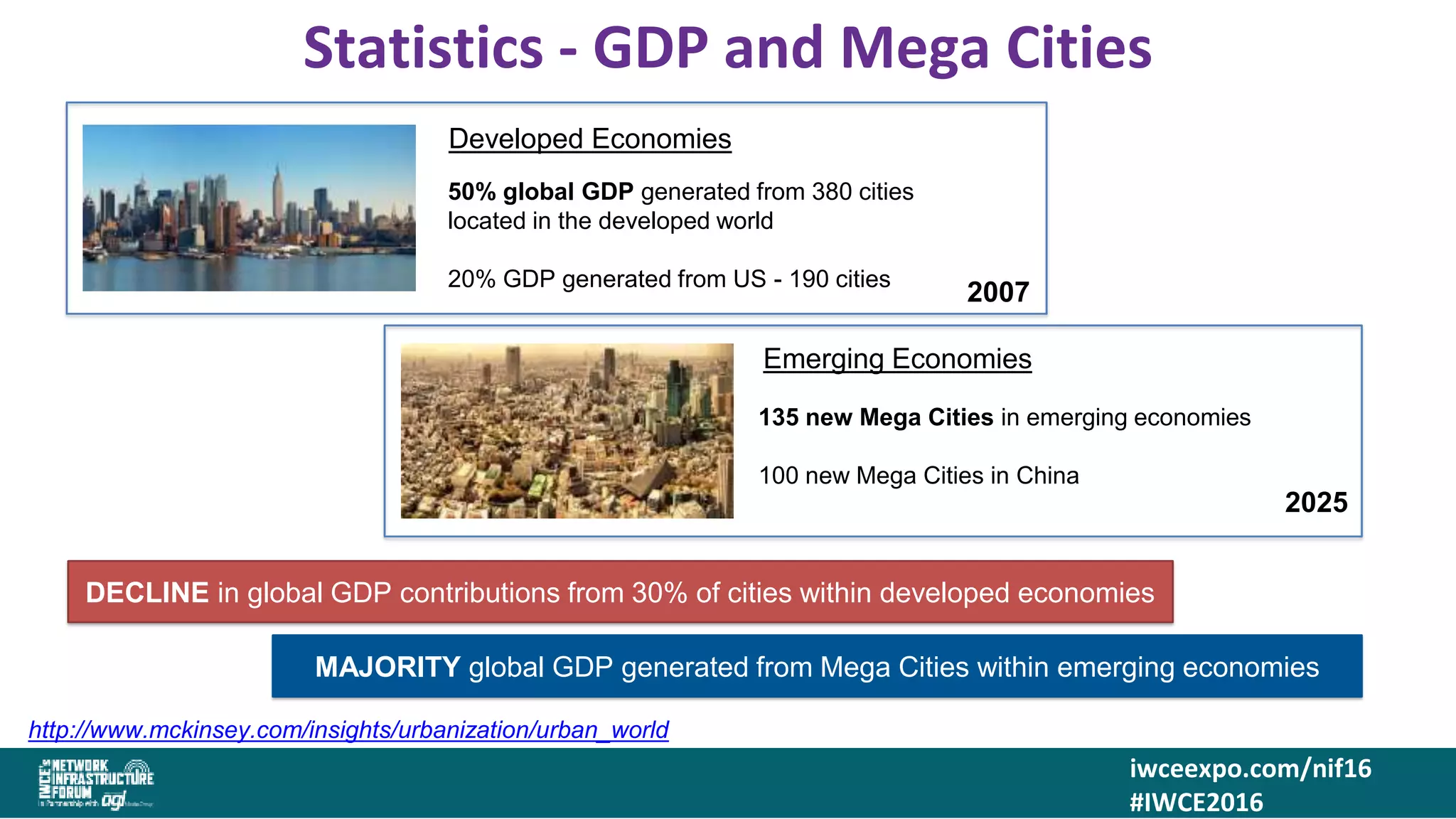

Statistics - GDP and Mega Cities
http://www.mckinsey.com/insights/urbanization/urban_world
DECLINE in global GDP contributions from 30% of cities within developed economies
MAJORITY global GDP generated from Mega Cities within emerging economies
50% global GDP generated from 380 cities
located in the developed world
20% GDP generated from US - 190 cities
2007
Developed Economies
135 new Mega Cities in emerging economies
100 new Mega Cities in China
2025
Emerging Economies

17. iwceexpo.com/nif16 #IWCE20
The rise of Smart Cities

18. iwceexpo.com/nif16
#IWCE2016

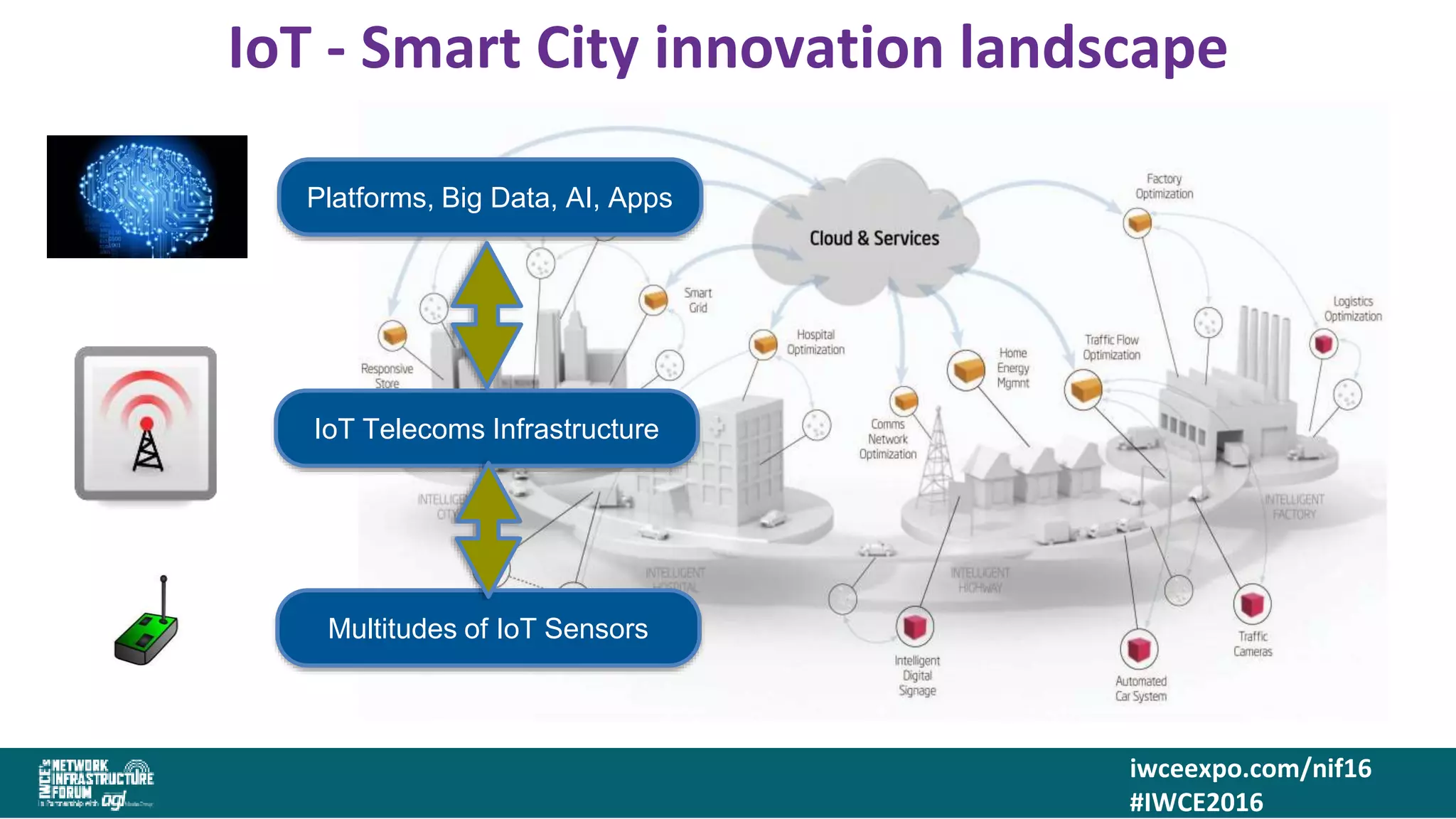

IoT - Smart City innovation landscape
Platforms, Big Data, AI, Apps
IoT Telecoms Infrastructure
Multitudes of IoT Sensors

19. iwceexpo.com/nif16
#IWCE2016

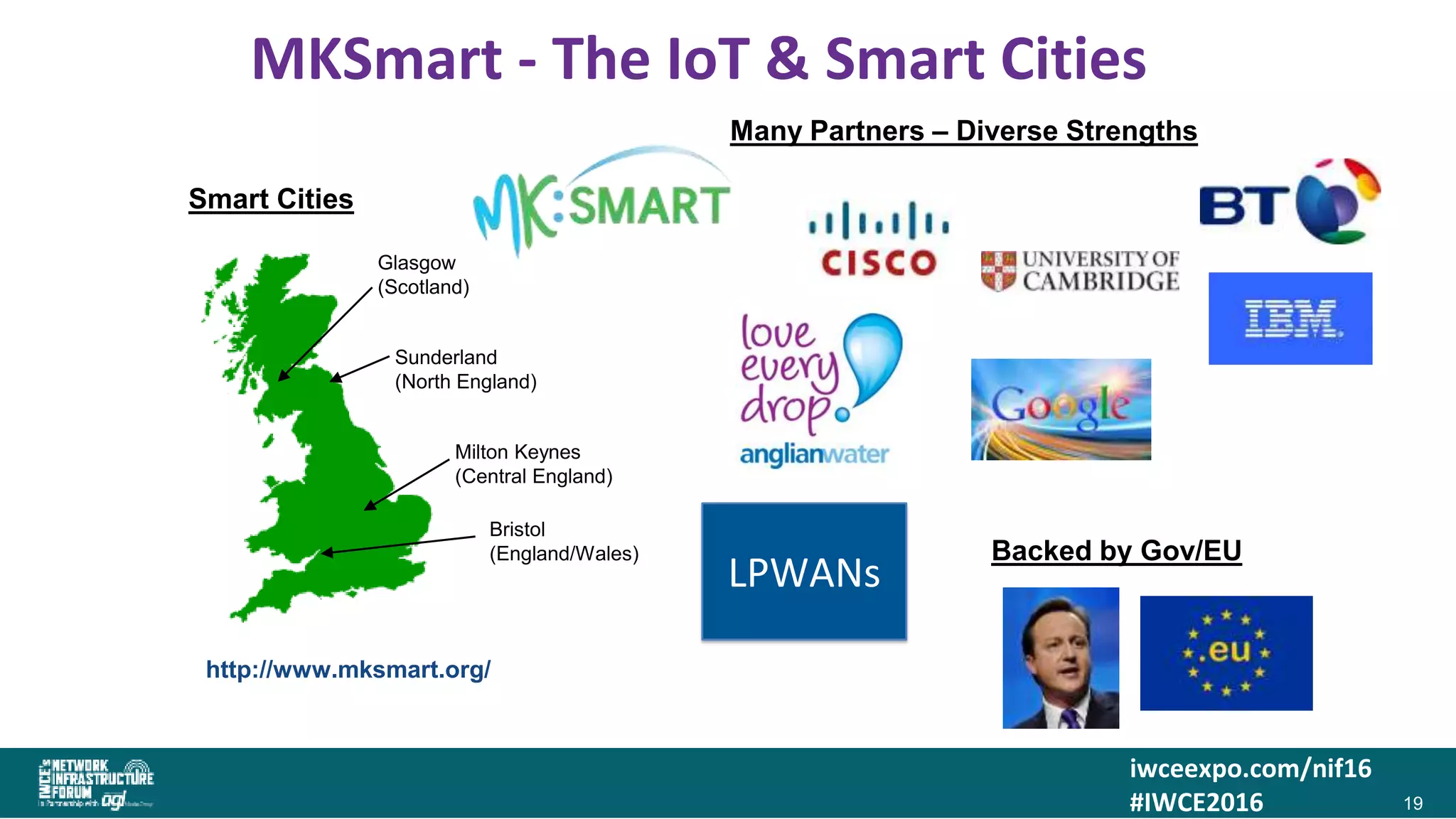

MKSmart - The IoT & Smart Cities
19
Glasgow
(Scotland)
Sunderland
(North England)
Milton Keynes
(Central England)
Bristol
(England/Wales)
Many Partners – Diverse Strengths
Smart Cities
Backed by Gov/EU
http://www.mksmart.org/
LPWANs

20. iwceexpo.com/nif16
#IWCE2016

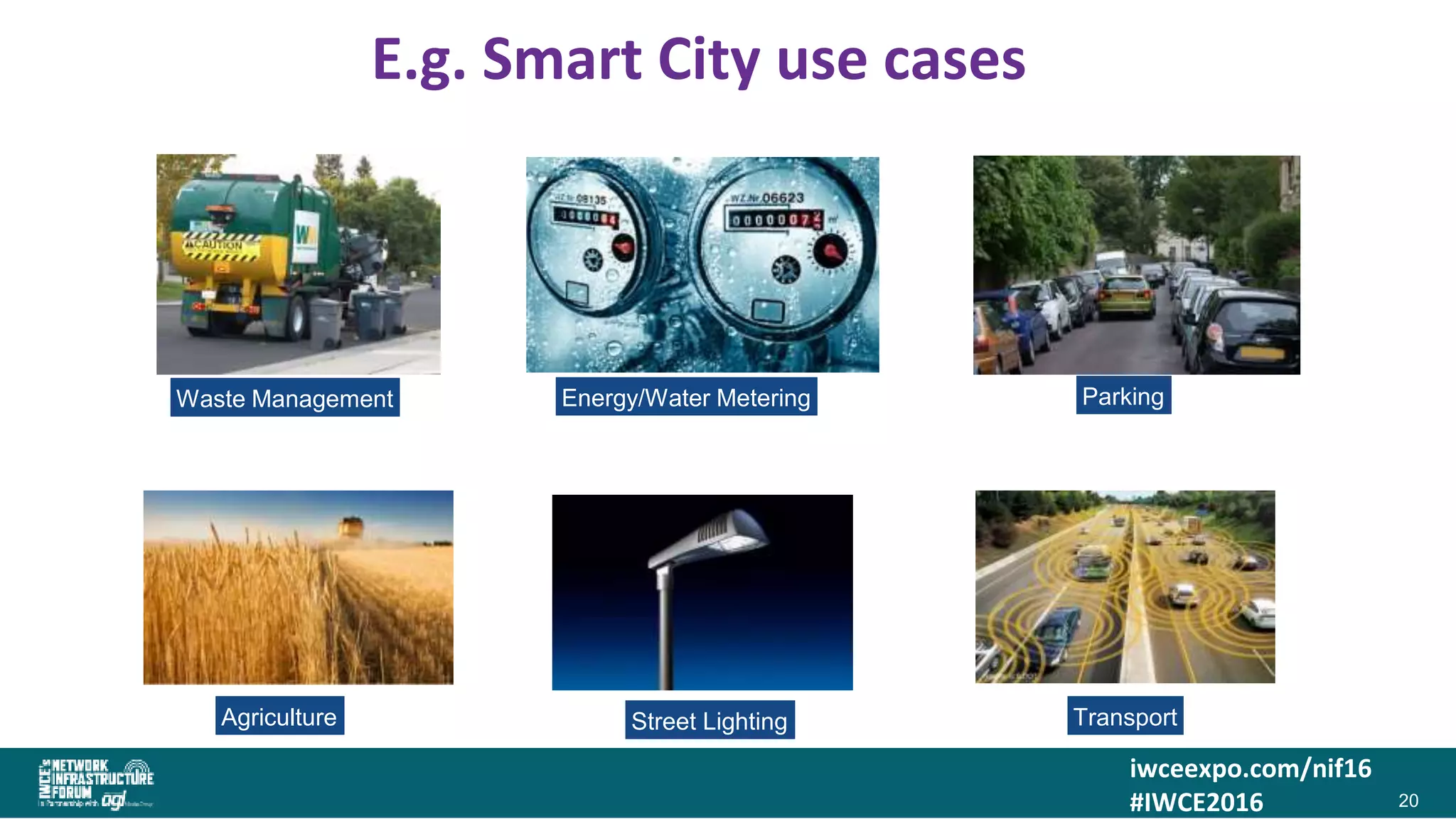

E.g. Smart City use cases
20
Waste Management Energy/Water Metering Parking
Agriculture Street Lighting Transport

21. iwceexpo.com/nif16
#IWCE2016
IoT US State Collaboration - Colorado
21
Accelerating IoT Innovation
Jake Rishavy
Vic Ahmed Suzy Guitiriez
Murdoch Fitzgerald
XLR8 - Optimizing IoT businesses for success
http://www.techriot.org/

22. iwceexpo.com/nif16
#IWCE2016

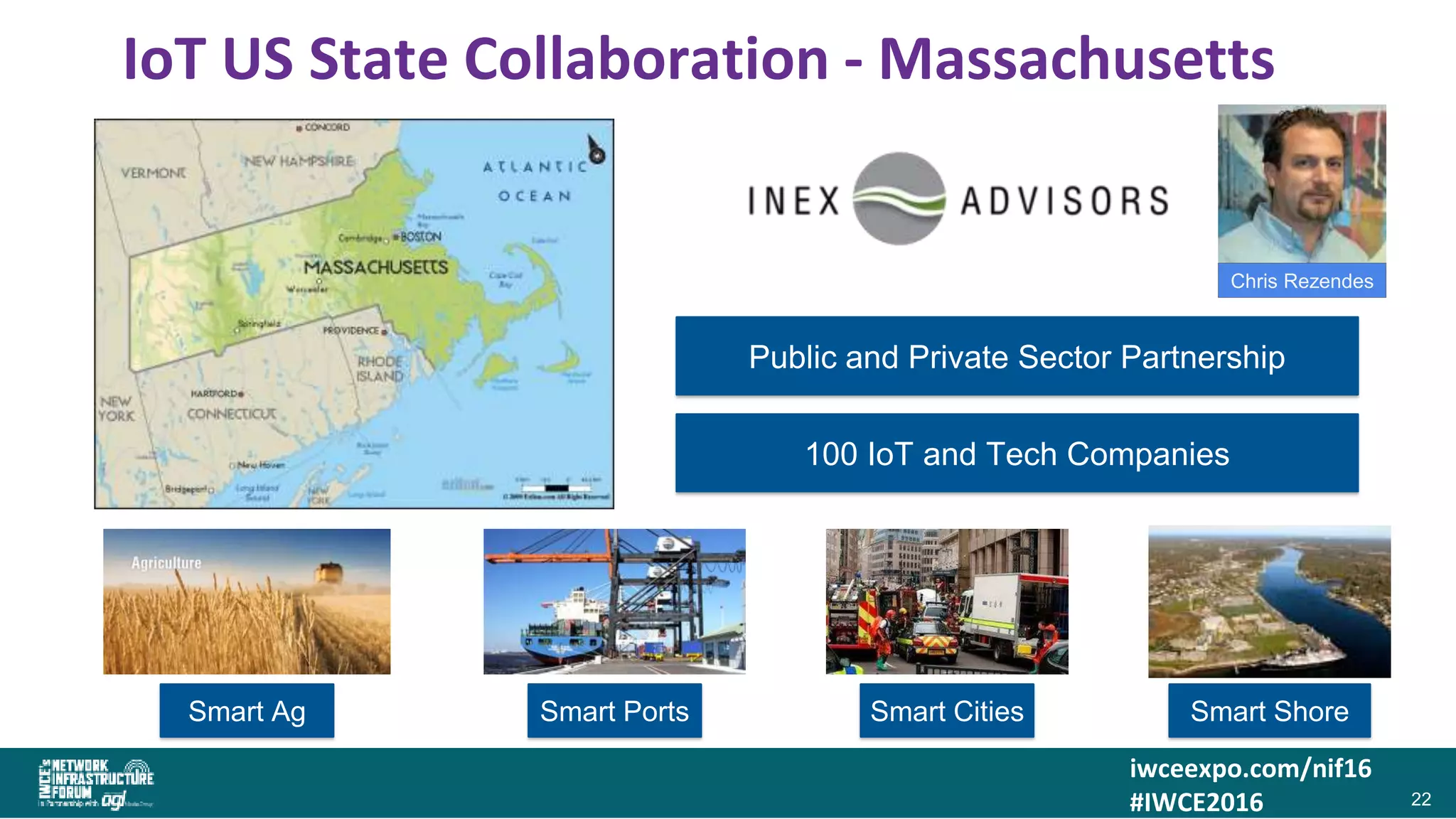

IoT US State Collaboration - Massachusetts
22
Public and Private Sector Partnership
100 IoT and Tech Companies
Smart Ag Smart Ports Smart Cities Smart Shore
Chris Rezendes

23. iwceexpo.com/nif16
#IWCE2016

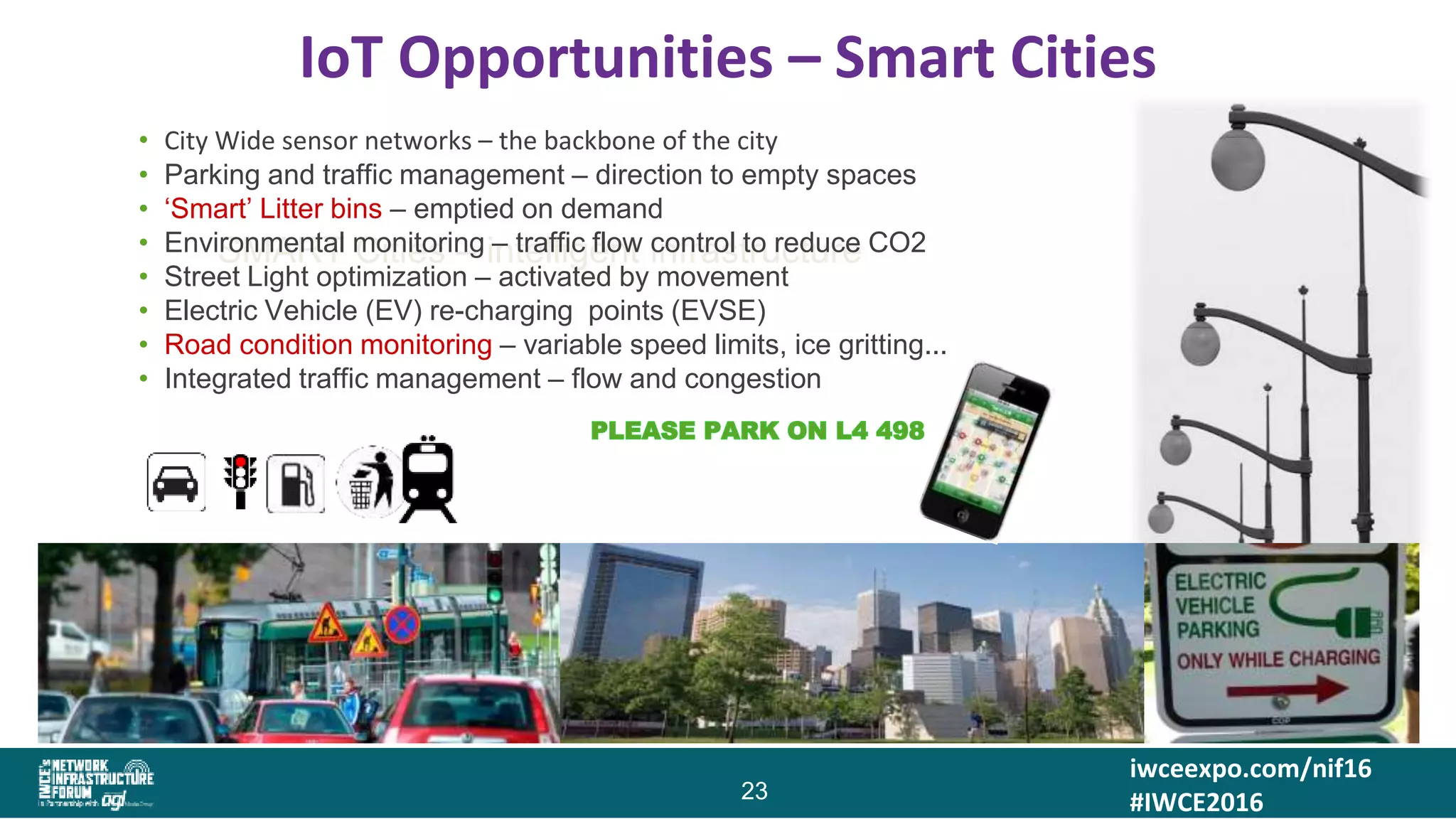

IoT Opportunities – Smart Cities
23
SMART Cities – intelligent infrastructure
• City Wide sensor networks – the backbone of the city
• Parking and traffic management – direction to empty spaces
• ‘Smart’ Litter bins – emptied on demand
• Environmental monitoring – traffic flow control to reduce CO2
• Street Light optimization – activated by movement
• Electric Vehicle (EV) re-charging points (EVSE)
• Road condition monitoring – variable speed limits, ice gritting...
• Integrated traffic management – flow and congestion

24. iwceexpo.com/nif16
#IWCE2016

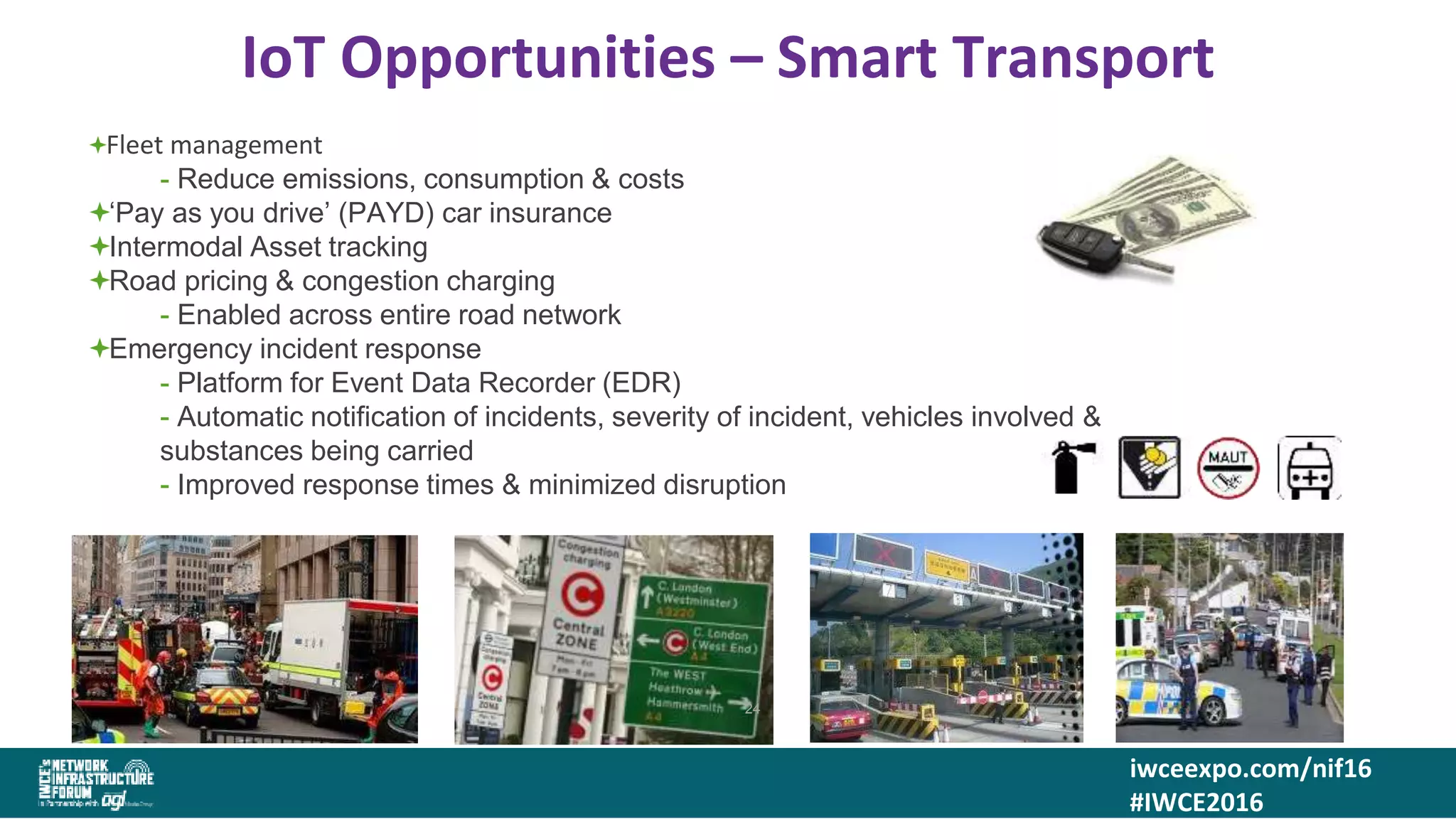

IoT Opportunities – Smart Transport
24
Fleet management
- Reduce emissions, consumption & costs
‘Pay as you drive’ (PAYD) car insurance
Intermodal Asset tracking
Road pricing & congestion charging
- Enabled across entire road network
Emergency incident response
- Platform for Event Data Recorder (EDR)
- Automatic notification of incidents, severity of incident, vehicles involved &
substances being carried
- Improved response times & minimized disruption
24

25. iwceexpo.com/nif16
#IWCE2016

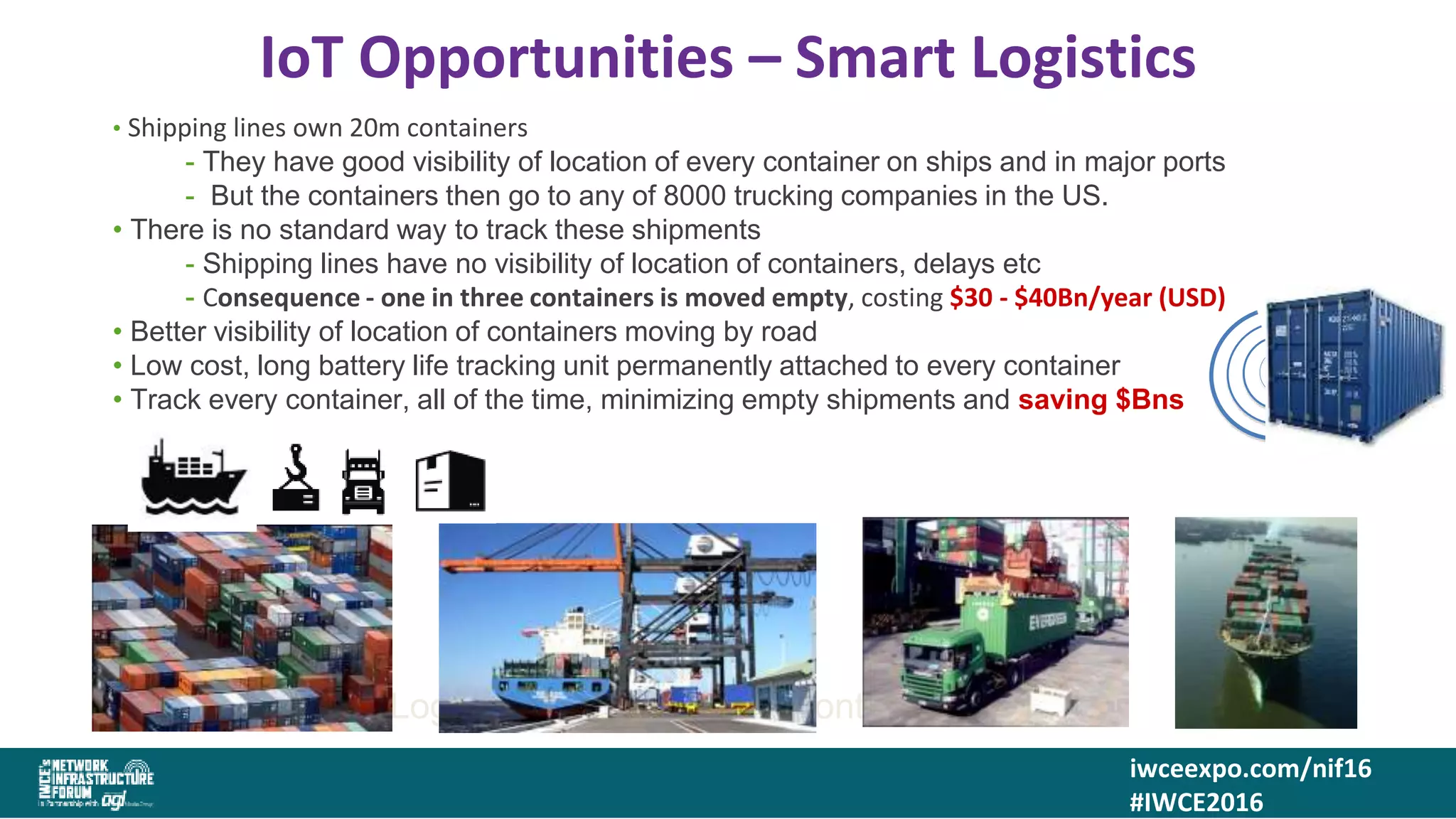

IoT Opportunities – Smart Logistics
2525SMART Logistics – Where is that container?
• Shipping lines own 20m containers
- They have good visibility of location of every container on ships and in major ports
- But the containers then go to any of 8000 trucking companies in the US.
• There is no standard way to track these shipments
- Shipping lines have no visibility of location of containers, delays etc
- Consequence - one in three containers is moved empty, costing $30 - $40Bn/year (USD)
• Better visibility of location of containers moving by road
• Low cost, long battery life tracking unit permanently attached to every container
• Track every container, all of the time, minimizing empty shipments and saving $Bns

26. iwceexpo.com/nif16
#IWCE2016

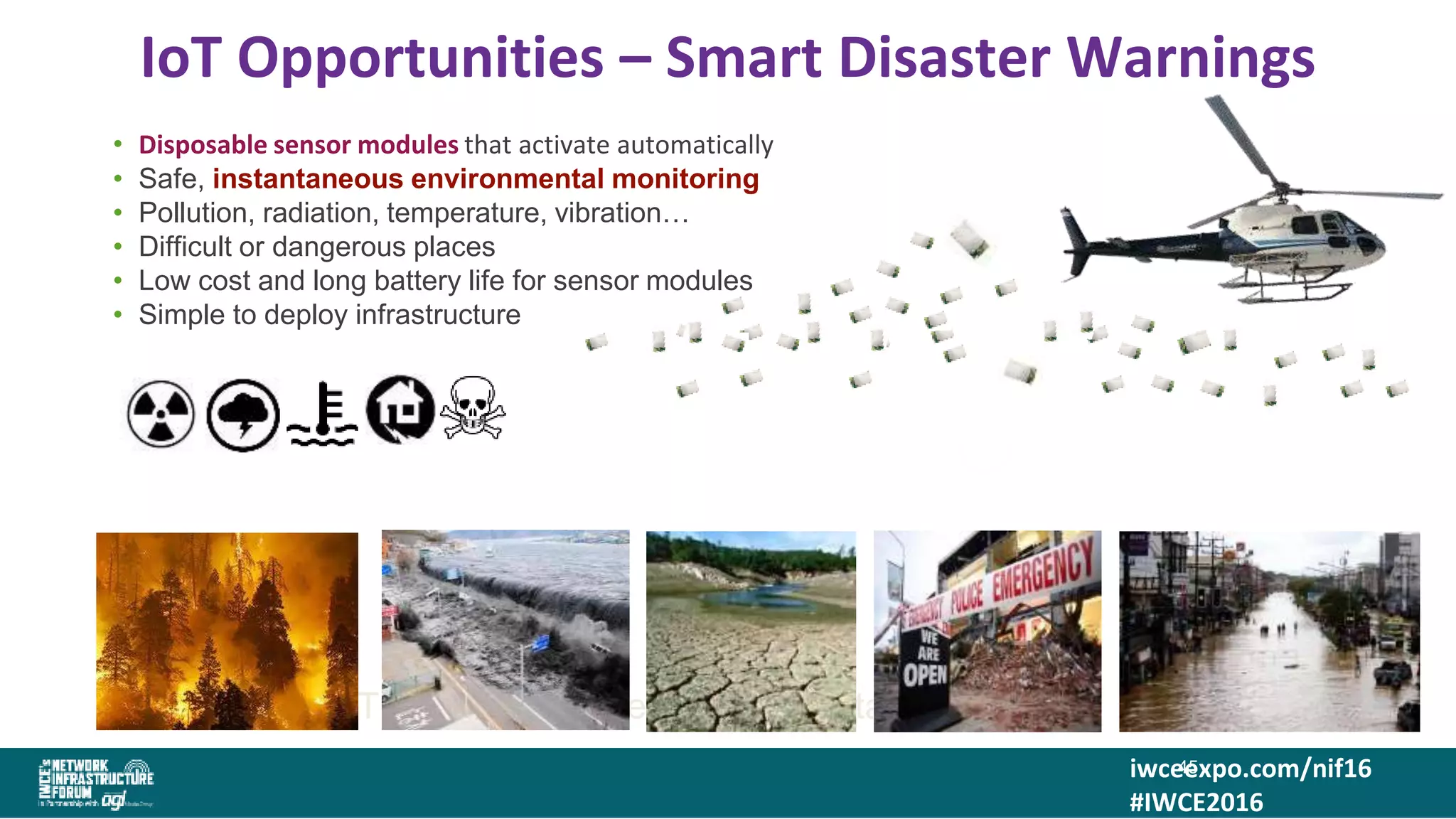

IoT Opportunities – Smart Disaster Warnings
2626SMART Logistics – Where is that container?
• Disposable sensor modules that activate automatically
• Safe, instantaneous environmental monitoring
• Pollution, radiation, temperature, vibration…
• Difficult or dangerous places
• Low cost and long battery life for sensor modules
• Simple to deploy infrastructure
26

27. iwceexpo.com/nif16 #IWCE20

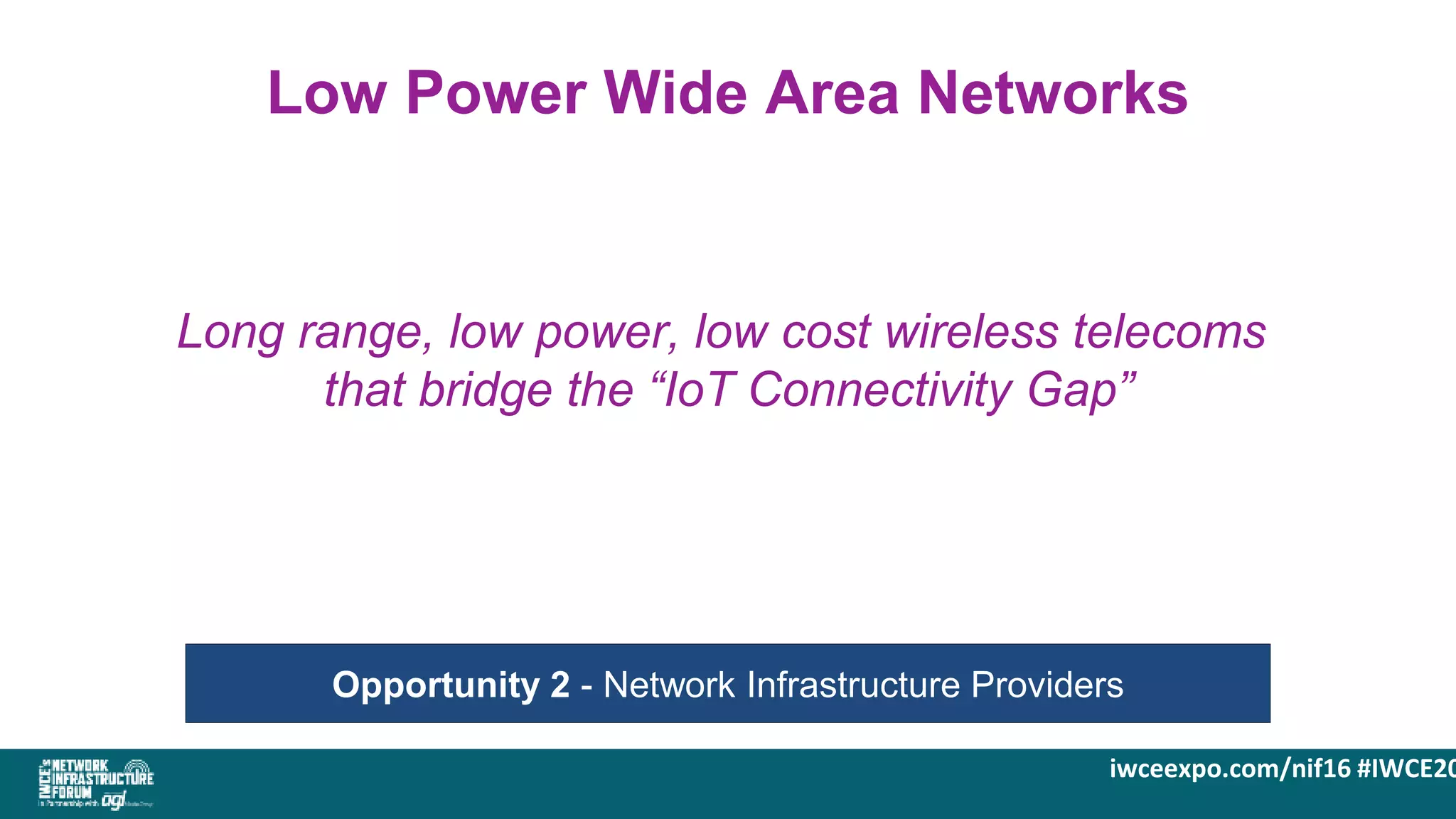

Low Power Wide Area Networks
Opportunity 2 - Network Infrastructure Providers
Long range, low power, low cost wireless telecoms
that bridge the “IoT Connectivity Gap”

28. iwceexpo.com/nif16
#IWCE2016
Bridging IoT “Connectivity Gap”
28
IoT Gap Requirements GSM LPWAN
Long range wireless sensor
communications?
Yes - 10km + ideal
Yes Yes
Low cost to connect sensor
into wireless network?
Yes - Ideally $2 for a radio module.
Enable multitudes of sensor
deployments and business cases as
possible
No ($30-$50) radio module
$40k - $100k certification
process
Yes ($2-$5) radio module
< $1k certification process
Long sensor battery life? Yes - 5-10 years on AA battery
Maybe 6 months Yes - upto 10 years on AA battery
Realistic sensor to base
station range (non-urban)
10km +
10 km 15 km - antenna at height of 60 feet
Low cost to build large scale
wireless IoT networks?
Yes - deployments cheap as possible
Enable organizations to build IoT
networks
$$ Billions - purchase licensed
spectrum
AND then build infrastructure
$$ Millions uses unlicensed
spectrum.
Levers existing telecoms
infrastructure
LPWANs have been specifically designed to bridge
the IoT “connectivity gap” ,
enabling a plethora of cost effective business propositions

29. iwceexpo.com/nif16
#IWCE2016

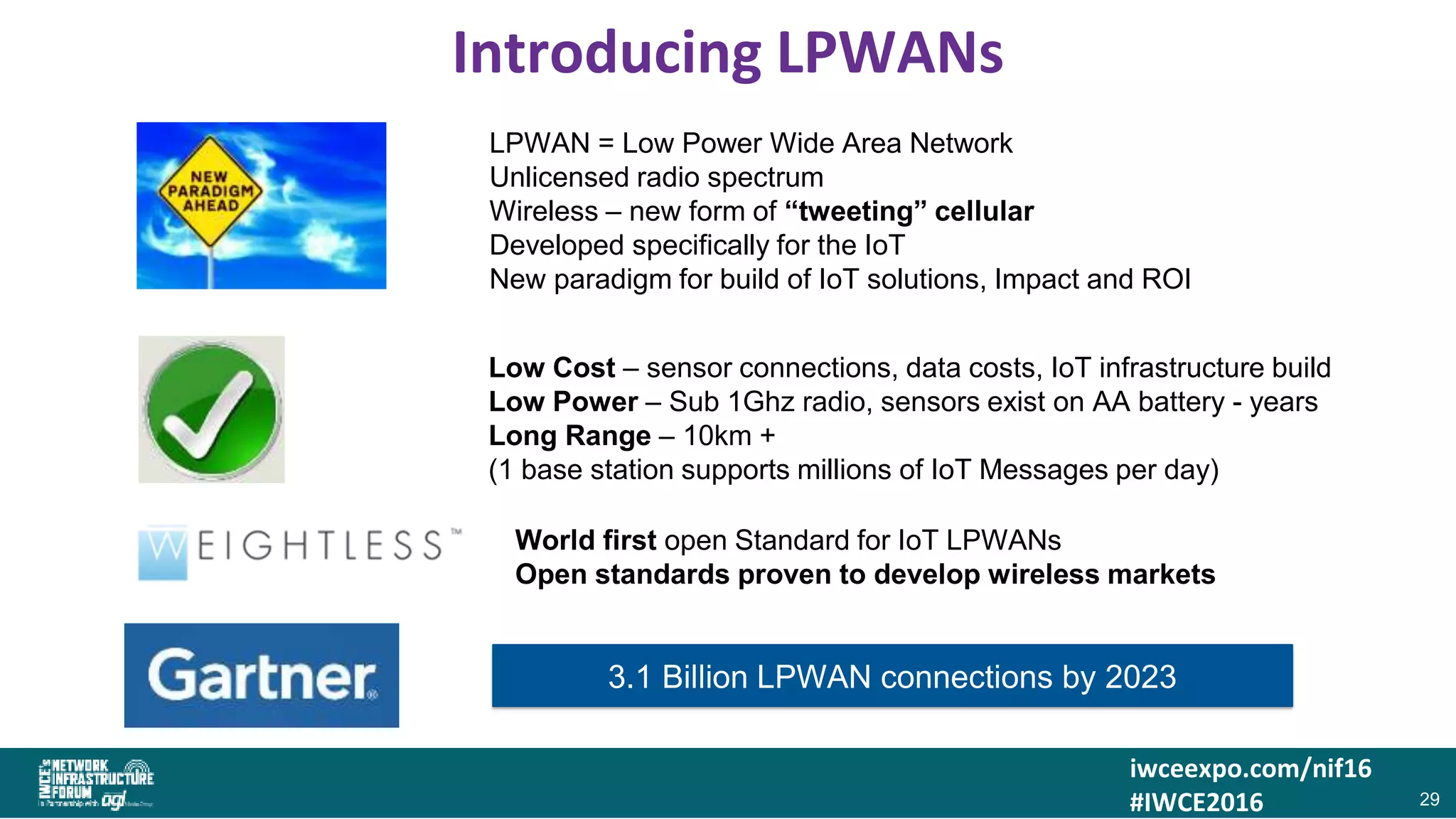

Introducing LPWANs
29
LPWAN = Low Power Wide Area Network
Unlicensed radio spectrum
Wireless – new form of “tweeting” cellular
Developed specifically for the IoT
New paradigm for build of IoT solutions, Impact and ROI
World first open Standard for IoT LPWANs
Open standards proven to develop wireless markets
Low Cost – sensor connections, data costs, IoT infrastructure build
Low Power – Sub 1Ghz radio, sensors exist on AA battery - years
Long Range – 10km +
(1 base station supports millions of IoT Messages per day)
3.1 Billion LPWAN connections by 2023

30. iwceexpo.com/nif16
#IWCE2016
LPWAN Providers
30
30 US Cities 2016
Mumbai - Tata Comms
100 US Cities 2016
Off-Grid LPWAN

31. iwceexpo.com/nif16
#IWCE2016

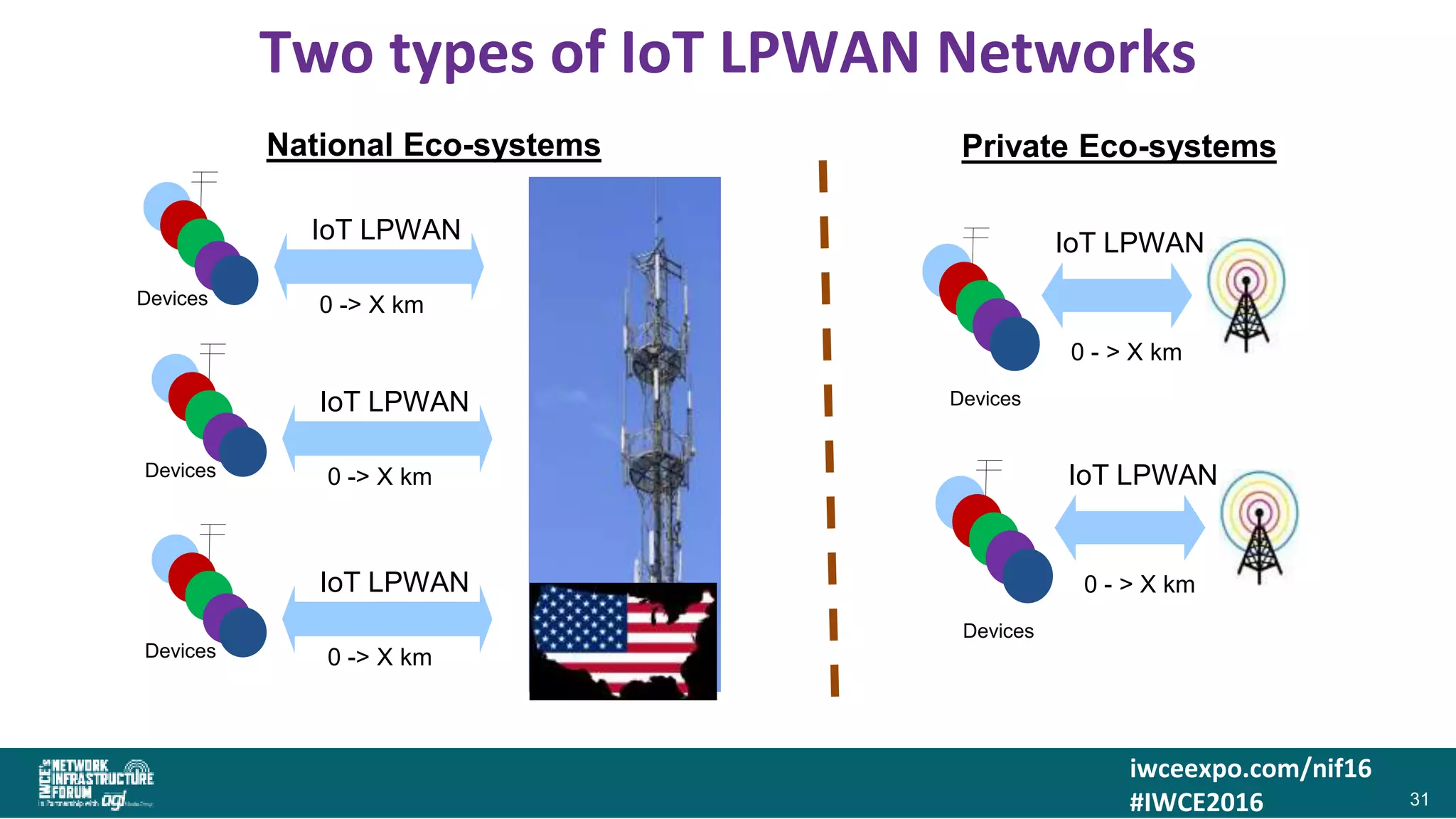

Two types of IoT LPWAN Networks
31
National Eco-systems Private Eco-systems
0 -> X kmDevices
IoT LPWAN
0 -> X kmDevices
IoT LPWAN
0 -> X kmDevices
IoT LPWAN
0 - > X km
Devices
IoT LPWAN
0 - > X km
Devices
IoT LPWAN

32. iwceexpo.com/nif16
#IWCE2016
US IoT Economic Framework
32
How much would it cost to cover the
United States with an IoT LPWAN?
< $100 Million Dollars!
14,000 LPWAN Base Stations
14 Billion IoT sensor connections
LPWANs could be the biggest economic
development phenomenon we have ever seen!
Huge opportunities for new IoT Network Telecoms Infrastructure

33. iwceexpo.com/nif16 #IWCE20

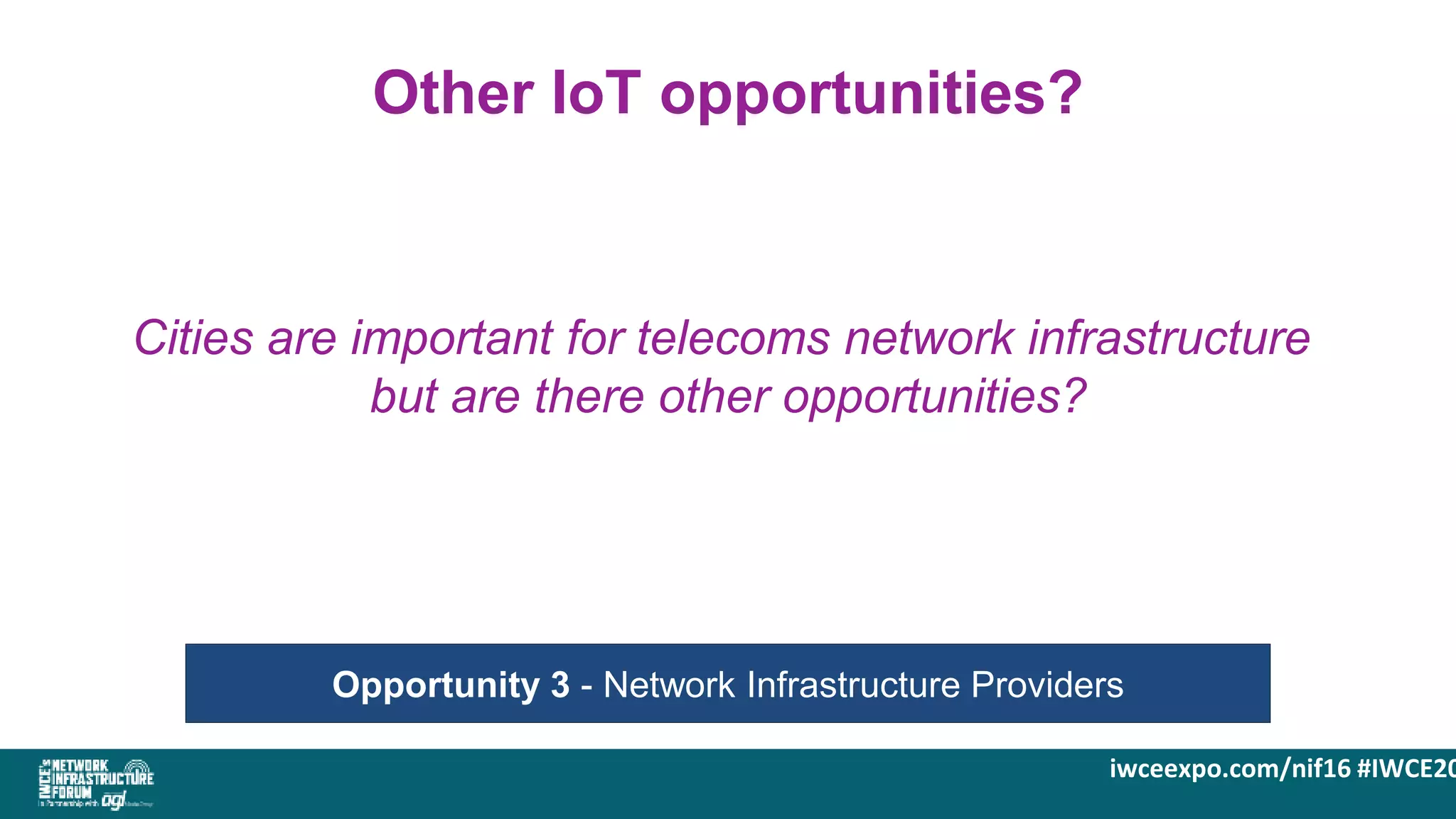

Other IoT opportunities?
Opportunity 3 - Network Infrastructure Providers
Cities are important for telecoms network infrastructure
but are there other opportunities?

34. iwceexpo.com/nif16
#IWCE2016

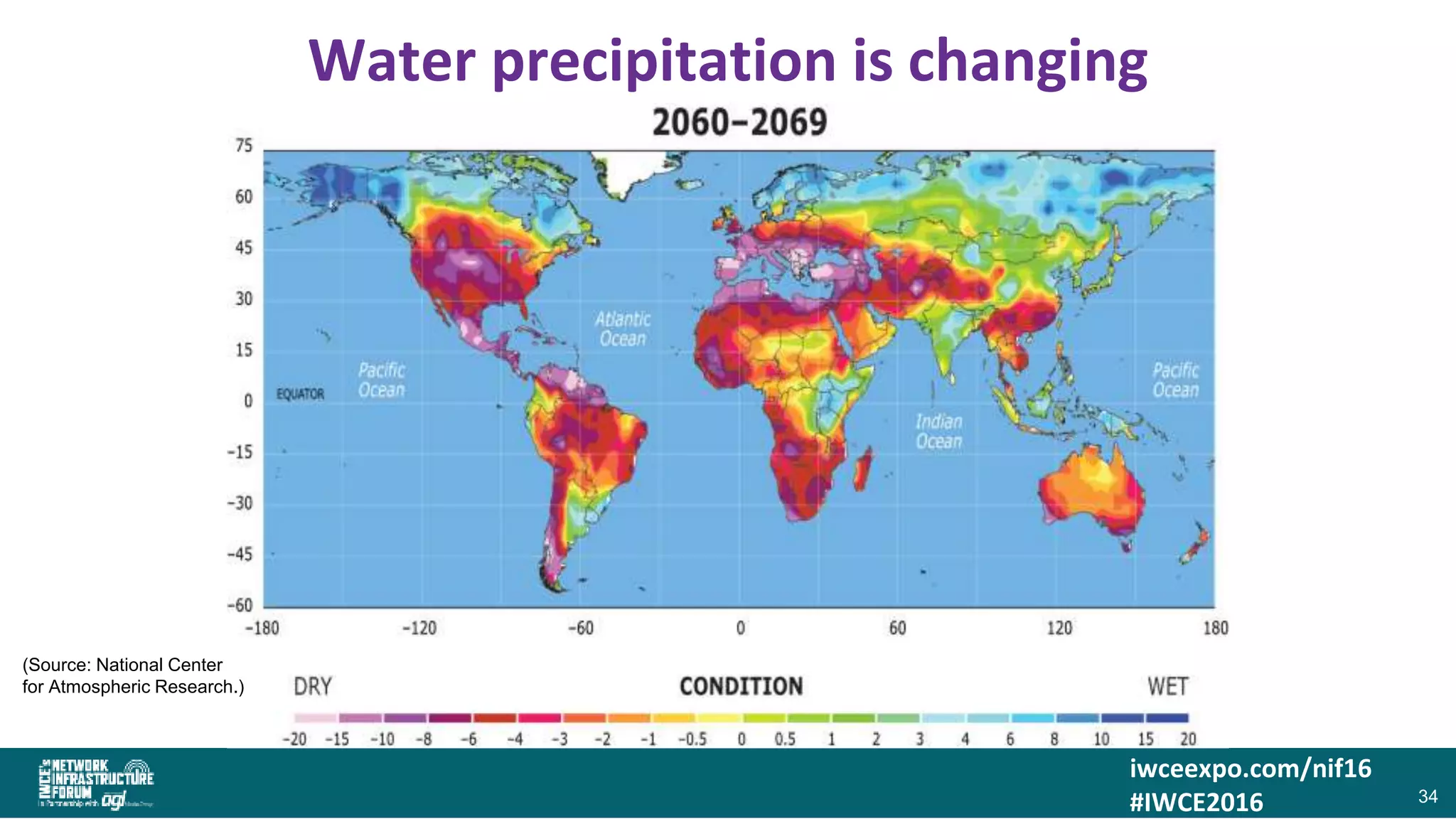

Water precipitation is changing
34
(Source: National Center
for Atmospheric Research.)

35. iwceexpo.com/nif16
#IWCE2016

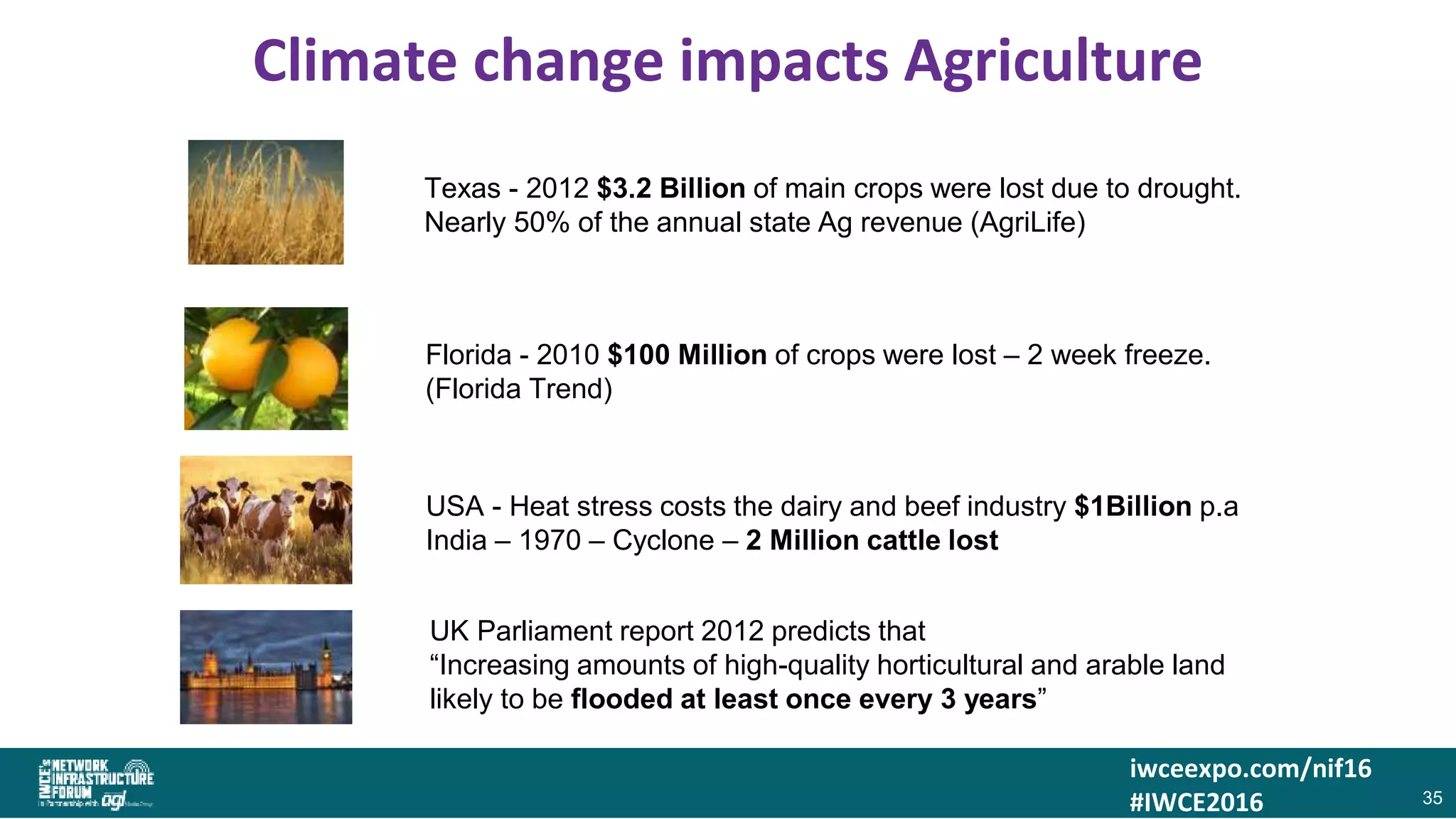

Climate change impacts Agriculture
35
Texas - 2012 $3.2 Billion of main crops were lost due to drought.
Nearly 50% of the annual state Ag revenue (AgriLife)
Florida - 2010 $100 Million of crops were lost – 2 week freeze.
(Florida Trend)
USA - Heat stress costs the dairy and beef industry $1Billion p.a
India – 1970 – Cyclone – 2 Million cattle lost
UK Parliament report 2012 predicts that
“Increasing amounts of high-quality horticultural and arable land
likely to be flooded at least once every 3 years”

36. iwceexpo.com/nif16
#IWCE2016
We need more food (and water)
36
3.8 Trillion cubic liters potable water used by humans p.a.
• 50% water wasted!
• 70% used in Agriculture 2050 - 10-13 Trillion cubic liters of potable water
2050 - Food output must increase by 70%
Smart Agriculture
$4 Trillion IoT economy

37. iwceexpo.com/nif16
#IWCE2016
Rural locations - IoT must create impact
37
Real-time climate information
at a micro level for Agricultural Land
More accurate climate modeling
and prediction leads to better
crop management and yield
Optimize water use in farming.
Globally!
Save 40% water
Crop yields + 25%
Real-time monitoring health and
location of livestock.
Reduce Heat Stress.
Detect disease early
Save 60% of $1Billion losses
Earlier detection of flooding. The
more sensors the better to gather
information.
Results in proactive and
effective disaster management.
The more IoT sensors that are located across non-urban landscapes….
…the more information we have to optimize yield, manage resources and threats

38. iwceexpo.com/nif16
#IWCE2016
Rural IoT Networks are imperative!
38
The more sensors that are located across non-urban landscapes….
…the more information we have to optimize yield, manage resources and threats
Build towers for LPWAN IoT antennas placed at 60 feet
Style IoT LPWAN towers that fit into non-urban landscapes
Sell towers to enable IoT LPWAN deployment in emerging
economy Mega Cities and rural locations
Breaking news - Stealth research with Forbes #10 tech company!
Rural IoT LPWAN stations must become a new phenomenon!

39. iwceexpo.com/nif16
#IWCE2016
What impact will you create using IoT?
39
“Imagination encircles the world”
IoT is a great opportunity for us all to imagine
and co-create a purposeful world.

40. iwceexpo.com/nif16 #IWCE20
Thank you!
Any Questions?
matthew@myamplexus.com
https://www.linkedin.com/in/matthewjbailey
@PioneerIoT

41. iwceexpo.com/nif16
#IWCE2016
Thank You To Our Sponsors

42. iwceexpo.com/nif16 #IWCE20
Backup slides

43. iwceexpo.com/nif16
#IWCE2016
IoT Opportunities – Smart and Remote Healthcare
4343SMART Logistics – Where is that container?
• Aging population – in-home monitoring for health and wellbeing
- Heart rate, blood pressure, temperature, position
- Lowers total health care costs
- Assisted Living
• Panic button alarms and emergency notification
• Rural community remote diagnostics and disease management
- Reduces barriers to access
• Medicine dosage notification and delivery
• Low cost network Infrastructure and ARPU (device) KEY
• Ubiquitous standard for device interoperability
• Simpler architectures!

44. iwceexpo.com/nif16
#IWCE2016
IoT Opportunities – Smart Energy
4444
44
• Smart Meters:
• Domestic demand management and In-Home display for energy
consumption monitoring
• Consumer control of energy management and use
• Japan already deploying to 10 million homes
• UK procurement process begun – contracts awarded Q42012
- 28 Million meters installed & commissioned by 2016
• Smart Grid:
• Saves generating capacity and allows enhanced control of load
• Annual savings of ~$2Bn for UK Plc alone, $100Bn worldwide
44

45. iwceexpo.com/nif16
#IWCE2016
IoT Opportunities – Smart Disaster Warnings
4545SMART Logistics – Where is that container?
• Disposable sensor modules that activate automatically
• Safe, instantaneous environmental monitoring
• Pollution, radiation, temperature, vibration…
• Difficult or dangerous places
• Low cost and long battery life for sensor modules
• Simple to deploy infrastructure
45
