1. #WTMIndia
#WTMIndia
Introduction to
Machine Learning
and Tensorflow
Lakshya Sivaramakrishnan
Program Coordinator, Women Techmakers
@lakshyas90

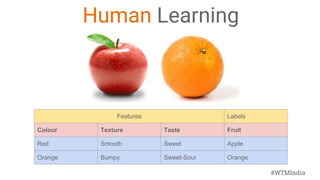

2. #WTMIndia
Human Learning
Features Labels
Colour Texture Taste Fruit
Red Smooth Sweet Apple
Orange Bumpy Sweet-Sour Orange

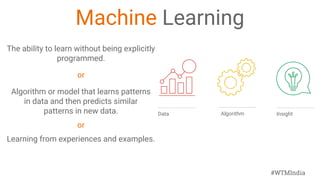

3. #WTMIndia
Machine Learning
The ability to learn without being explicitly
programmed.
or
Algorithm or model that learns patterns
in data and then predicts similar
patterns in new data.
or
Learning from experiences and examples.
Algorithm InsightData

4. #WTMIndia
When is the last
time you
experienced ML ?

5. #WTMIndia

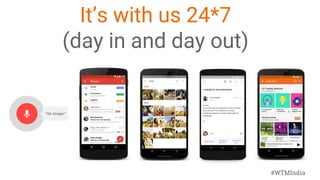

It’s with us 24*7
(day in and day out)

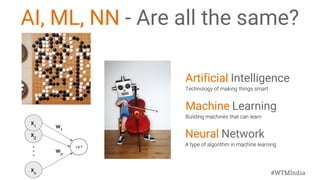

6. #WTMIndia
Machine Learning
Artificial Intelligence
Neural Network
AI, ML, NN - Are all the same?

7. #WTMIndia
Why is ML important?
To solve interesting use cases
● Making speech recognition and machine translation
possible.
● The new search feature in Google Photos, which
received broad acclaim.
● Recognizing pedestrians and other vehicles in
self-driving cars

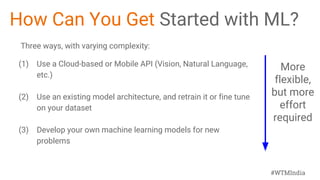

8. #WTMIndia
How Can You Get Started with ML?
Three ways, with varying complexity:
(1) Use a Cloud-based or Mobile API (Vision, Natural Language,
etc.)
(2) Use an existing model architecture, and retrain it or fine tune
on your dataset
(3) Develop your own machine learning models for new
problems
More
flexible,
but more
effort
required

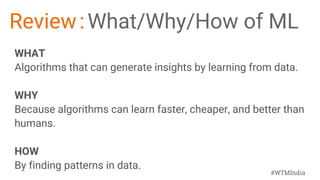

9. #WTMIndia
Review:What/Why/How of ML
WHAT
Algorithms that can generate insights by learning from data.
WHY
Because algorithms can learn faster, cheaper, and better than
humans.
HOW
By finding patterns in data.

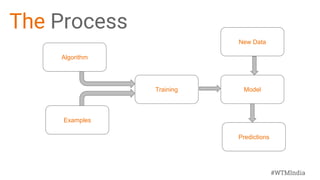

10. #WTMIndia
The Process
Algorithm
Model
New Data
Training
Predictions
Examples

11. #WTMIndia

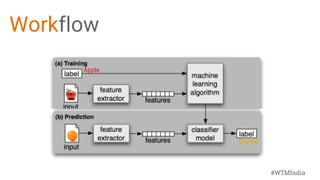

Workflow
Apple
Orange

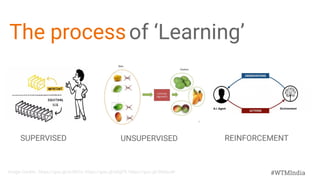

12. #WTMIndia
The processof ‘Learning’
SUPERVISED UNSUPERVISED REINFORCEMENT
Image Credits : https://goo.gl/xU5KCv, https://goo.gl/aDjjFR, https://goo.gl/3NGzuW

13. #WTMIndia
SupervisedLearning
SUPERVISED
● Teach the machine using data that’s well labelled
● Has prior knowledge of output
● Data is labelled with class or value
● Task driven
● Goal : predict class or value label
● Neural network, support vector machines , decision
trees etc
Image Credits : https://goo.gl/xU5KCv

14. #WTMIndia
UnsupervisedLearning
UNSUPERVISED
● Data set with no label
● Learning algo is not told what is being learnt
● No knowledge of output class of value
● Data driven
● Goal : determine patterns or grouping
● K-means, genetic algorithms, clustering
Image Credits : https://goo.gl/aDjjFR

15. #WTMIndia

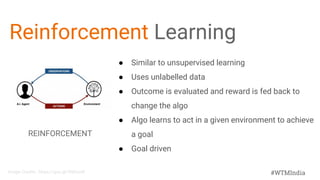

Reinforcement Learning
REINFORCEMENT
● Similar to unsupervised learning
● Uses unlabelled data
● Outcome is evaluated and reward is fed back to
change the algo
● Algo learns to act in a given environment to achieve
a goal
● Goal driven
Image Credits : https://goo.gl/3NGzuW

16. #WTMIndia
Machine Learning use cases at Google
Search
Search ranking
Speech recognition
Android
Keyboard & speech input
Gmail
Smart reply
Spam classification
Drive
Intelligence in Apps
Chrome
Search by image
Assistant
Smart connections
across products
Maps
Parsing local search
Translate
Text, graphic and speech
translation
Cardboard
Smart stitching
Photos
Photos search

17. #WTMIndia

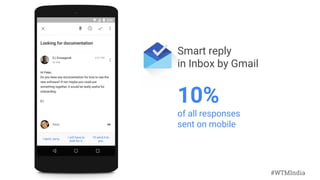

Smart reply
in Inbox by Gmail
10%
of all responses
sent on mobile

18. #WTMIndia

19. #WTMIndia

20. #WTMIndia

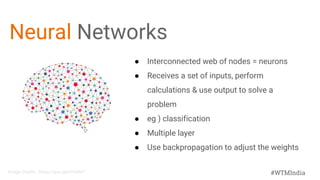

Neural Networks
● Interconnected web of nodes = neurons
● Receives a set of inputs, perform
calculations & use output to solve a
problem
● eg ) classification
● Multiple layer
● Use backpropagation to adjust the weights
Image Credits : https://goo.gl/H7mNnT

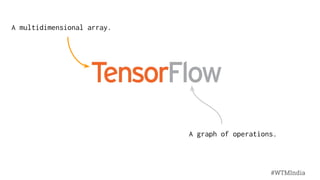

22. #WTMIndia
A multidimensional array.
A graph of operations.

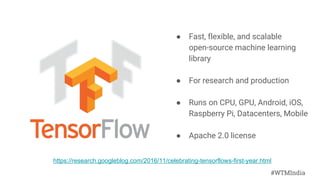

23. #WTMIndia
● Fast, flexible, and scalable
open-source machine learning
library
● For research and production
● Runs on CPU, GPU, Android, iOS,
Raspberry Pi, Datacenters, Mobile
● Apache 2.0 license
https://research.googleblog.com/2016/11/celebrating-tensorflows-first-year.html

24. #WTMIndia

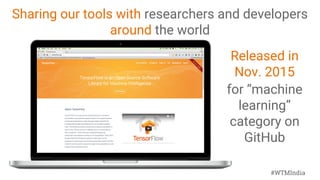

Sharing our tools with researchers and developers
around the world
repository
for “machine
learning”
category on
GitHub
Released in
Nov. 2015

25. #WTMIndia
What can we do with tensor flow?

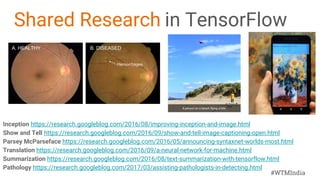

27. #WTMIndia
Shared Research in TensorFlow
Inception https://research.googleblog.com/2016/08/improving-inception-and-image.html
Show and Tell https://research.googleblog.com/2016/09/show-and-tell-image-captioning-open.html
Parsey McParseface https://research.googleblog.com/2016/05/announcing-syntaxnet-worlds-most.html
Translation https://research.googleblog.com/2016/09/a-neural-network-for-machine.html
Summarization https://research.googleblog.com/2016/08/text-summarization-with-tensorflow.html
Pathology https://research.googleblog.com/2017/03/assisting-pathologists-in-detecting.html

28. #WTMIndia

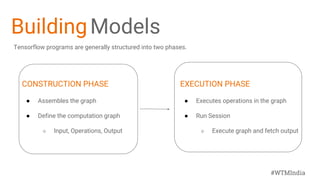

BuildingModels
CONSTRUCTION PHASE
● Assembles the graph
● Define the computation graph
○ Input, Operations, Output
EXECUTION PHASE
● Executes operations in the graph
● Run Session
○ Execute graph and fetch output
Tensorflow programs are generally structured into two phases.

29. #WTMIndia
Build a graph; then run it.
...
c = tf.add(a, b)
...
session = tf.Session()
value_of_c = session.run(c, {a=1, b=2})
add
a b
c
TensorFlow separates computation graph construction from execution.

30. #WTMIndia
Let’s writesome code.

31. #WTMIndia

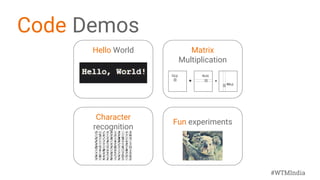

Code Demos
Hello World Matrix
Multiplication
Character
recognition
Fun experiments

32. #WTMIndia
Let’s dive deep into code - Hello World!
import tensorflow as tf
hello = tf.constant('Hello, TensorFlow!')
sess = tf.Session()
print sess.run(hello)
Tell the compiler that you want to use all
functionalities that come with the
tensorflow package.
Create a constant op. This op is added as
a node to the default graph.
Start a session.
Run the operation and get the result.
Source : https://github.com/lakshya90/wwc-workshop/blob/master/hello_world.py

33. #WTMIndia
Let’s try Matrix Multiplication in TF
import tensorflow as tf
matrix1 = tf.constant([[3, 3]])
matrix2 = tf.constant([[2],[2]])
product = tf.matmul(matrix1, matrix2)
Tell the compiler that you want to use all functionalities
that come with the tensorflow package.
Create a constant op that produces a 1x2 matrix. The op is
added as a node to the default graph.The value returned by
the constructor represents the output of the Constant op.
Create another constant that produces a 2x1 matrix.
Create a matmul op that takes 'matrix1' and 'matrix2' as
inputs. The returned value, 'product', represents the result
of the matrix multiplication.
CONSTRUCTION PHASE
Source : https://github.com/lakshya90/wwc-workshop/blob/master/mat_mul.py

34. #WTMIndia
Trying Matrix Multiplication in TF
sess = tf.Session()
result = sess.run(product)
print(result)
sess.close()
Launch the default graph.
To run the matmul op we call the session 'run()' method,
passing 'product' which represents the output of the matmul op.
This indicates to the call that we want to get the output of the
matmul op back. All inputs needed by the op are run
automatically by the session. They typically are run in parallel.
The call 'run(product)' thus causes the execution of three ops in
the graph: the two constants and matmul.
The output of the op is returned in 'result' as a numpy `ndarray`
object. ==> [[ 12]]
Close the Session when we are done.
EXECUTION PHASE
Source : https://github.com/lakshya90/wwc-workshop/blob/master/mat_mul.py

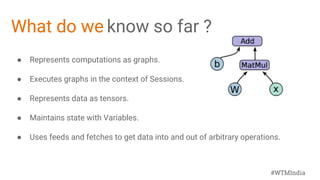

35. #WTMIndia
What do we know so far ?
● Represents computations as graphs.
● Executes graphs in the context of Sessions.
● Represents data as tensors.
● Maintains state with Variables.
● Uses feeds and fetches to get data into and out of arbitrary operations.

36. Image from https://github.com/mnielsen/neural-networks-and-deep-learning
?
Hello Computer Vision World
#WTMIndia

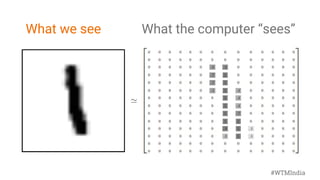

37. What we see What the computer “sees”
#WTMIndia

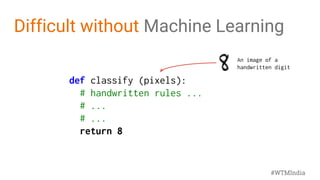

38. Difficult without Machine Learning
def classify (pixels):
# handwritten rules ...
# ...
# ...
return 8
An image of a
handwritten digit
#WTMIndia

39. Machine Learning approach
Data
#WTMIndia

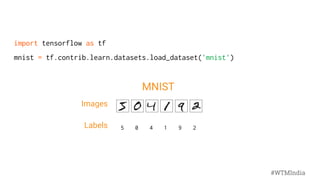

40. import tensorflow as tf
mnist = tf.contrib.learn.datasets.load_dataset('mnist')
Images
Labels 5 0 4 1 9 2
MNIST
#WTMIndia

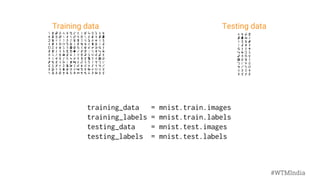

41. Training data Testing data
training_data = mnist.train.images
training_labels = mnist.train.labels
testing_data = mnist.test.images
testing_labels = mnist.test.labels
#WTMIndia

42. Classifier
Training data Testing data
classifier = tf.learn.LinearClassifier(n_classes=10)
#WTMIndia

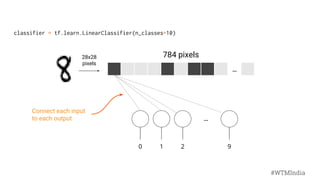

43. classifier = tf.learn.LinearClassifier(n_classes=10)
...
...
0 1 2 9
28x28
pixels
784 pixels
Connect each input
to each output
#WTMIndia

44. ...
...
0 1 2 9
Weights
w1,0 w1,1 w1,2 w1,9
28x28
pixels
784 pixels
classifier = tf.learn.LinearClassifier(n_classes=10)
#WTMIndia

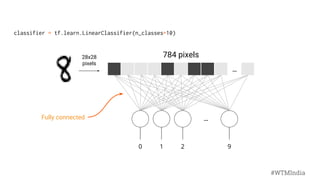

45. Fully connected
...
...
0 1 2 9
28x28
pixels
784 pixels
classifier = tf.learn.LinearClassifier(n_classes=10)
#WTMIndia

46. ...
...
0 1 2 9
28x28
pixels
784 pixels
classifier = tf.learn.LinearClassifier(n_classes=10)
WeightInput
#WTMIndia

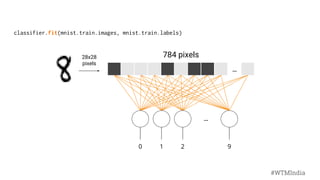

47. classifier.fit(mnist.train.images, mnist.train.labels)
...
...
0 1 2 9
28x28
pixels
784 pixels
#WTMIndia

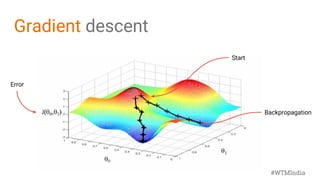

48. Backpropagation
Error
Start
Gradient descent
#WTMIndia

49. Training data Testing data
Output: a prediction “1”
Input:
an image
#WTMIndia

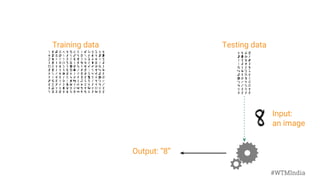

50. Training data Testing data
Output: “8”
Input:
an image
#WTMIndia

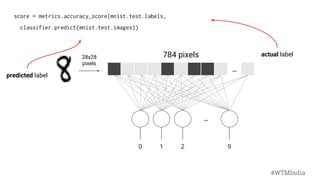

51. score = metrics.accuracy_score(mnist.test.labels,
classifier.predict(mnist.test.images))
...
...
0 1 2 9
28x28
pixels
784 pixels actual label
predicted label
#WTMIndia

52. score = metrics.accuracy_score(mnist.test.labels,
classifier.predict(mnist.test.images))
...
...
0 1 2 9
92% accuracy
Is this good?
28x28
pixels
784 pixels
#WTMIndia

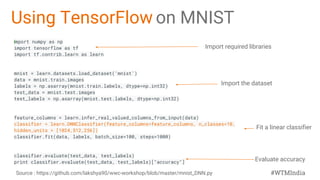

53. #WTMIndia
Using TensorFlow on MNIST
import numpy as np
import tensorflow as tf
import tf.contrib.learn as learn
mnist = learn.datasets.load_dataset('mnist')
data = mnist.train.images
labels = np.asarray(mnist.train.labels, dtype=np.int32)
test_data = mnist.test.images
test_labels = np.asarray(mnist.test.labels, dtype=np.int32)
feature_columns = learn.infer_real_valued_columns_from_input(data)
classifier = learn.LinearClassifier(feature_columns=feature_columns, n_classes=10)
classifier.fit(data, labels, batch_size=100, steps=1000)
classifier.evaluate(test_data, test_labels)
print classifier.evaluate(test_data, test_labels)["accuracy"]
Import required libraries
Import the dataset
Fit a linear classifier
Evaluate accuracy
Source : https://github.com/lakshya90/wwc-workshop/blob/master/mnist.py

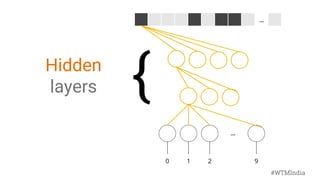

54. ...
...
0 1 2 9
{Hidden
layers
#WTMIndia

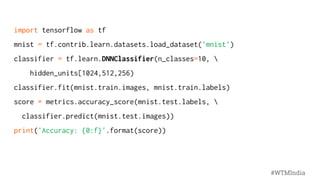

55. import tensorflow as tf
mnist = tf.contrib.learn.datasets.load_dataset('mnist')
classifier = tf.learn.DNNClassifier(n_classes=10,
hidden_units[1024,512,256)
classifier.fit(mnist.train.images, mnist.train.labels)
score = metrics.accuracy_score(mnist.test.labels,
classifier.predict(mnist.test.images))
print('Accuracy: {0:f}'.format(score))
#WTMIndia

56. #WTMIndia
Using TensorFlow on MNIST
import numpy as np
import tensorflow as tf
import tf.contrib.learn as learn
mnist = learn.datasets.load_dataset('mnist')
data = mnist.train.images
labels = np.asarray(mnist.train.labels, dtype=np.int32)
test_data = mnist.test.images
test_labels = np.asarray(mnist.test.labels, dtype=np.int32)
feature_columns = learn.infer_real_valued_columns_from_input(data)
classifier = learn.DNNClassifier(feature_columns=feature_columns, n_classes=10,
hidden_units = [1024,512,256])
classifier.fit(data, labels, batch_size=100, steps=1000)
classifier.evaluate(test_data, test_labels)
print classifier.evaluate(test_data, test_labels)["accuracy"]
Import required libraries
Import the dataset
Fit a linear classifier
Evaluate accuracy
Source : https://github.com/lakshya90/wwc-workshop/blob/master/mnist_DNN.py

57. #WTMIndia
Fun experiments
+ = ?

58. #WTMIndia
Fun experiments
+ =

60. #WTMIndia
What Does A.I. Have To Do With This Selfie?
#WTMIndia

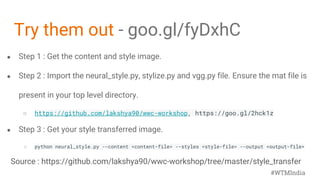

61. ● Step 1 : Get the content and style image.
● Step 2 : Import the neural_style.py, stylize.py and vgg.py file. Ensure the mat file is
present in your top level directory.
○ https://github.com/lakshya90/wwc-workshop, https://goo.gl/2hck1z
● Step 3 : Get your style transferred image.
○ python neural_style.py --content <content-file> --styles <style-file> --output <output-file>
Try them out - goo.gl/fyDxhC
#WTMIndia
Source : https://github.com/lakshya90/wwc-workshop/tree/master/style_transfer

62. #WTMIndia
Challenge
Push your code to GITHUB
https://guides.github.com/activities/hello-world/
http://rogerdudler.github.io/git-guide/
RESOURCES :
https://github.com/lakshya90/wwc-workshop

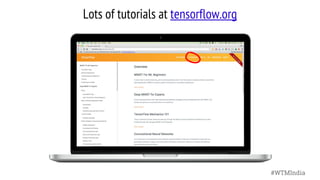

63. Lots of tutorials at tensorflow.org
#WTMIndia

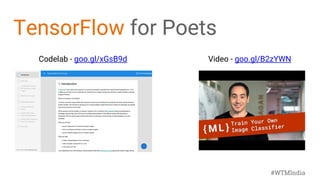

64. Codelab - goo.gl/xGsB9d Video - goo.gl/B2zYWN
TensorFlow for Poets
#WTMIndia

65. tensorflow.org
github.com/tensorflow
Want to learn more?
Udacity class on Deep Learning, goo.gl/iHssII
Guides, codelabs, videos
MNIST for Beginners, goo.gl/tx8R2b
TF Learn Quickstart, goo.gl/uiefRn
TensorFlow for Poets, goo.gl/bVjFIL
ML Recipes, goo.gl/KewA03
TensorFlow and Deep Learning without a PhD, goo.gl/pHeXe7
Next steps
#WTMIndia

66. #WTMIndia
Thank You!
Lakshya Sivaramakrishnan
@lakshyas90
