Reaching for the Clouds
……………………………………………...
CIO, StrataCare & ISG Services
Michael Josephs

© 2013 StrataCare, LLC
All Rights Reserved.
Orientation
The Public Cloud/DRP Opportunity & Challenge
Directionally Speaking
2

Orientation – Workers Compensation
Workers’ Compensation (WC) are state-legislated programs (except for federal government
employees) created to provide compensation for employees suffering on the job injuries or illness
Key Players in the WC ecosystem
– Employer: required in most states to provide employee
benefits for work related injuries/illnesses
– Insurance Company: affords claims management and
wage replacement, rehabilitation as well as survivor
benefits
– TPA (Third Party Administrator): manage state mandated
benefits for self-insured or those employers with large
deductibles/retentions
– Service vendors: e.g., Document Management/Conversion,
Medical Bill Review, Managed Care, Loss Prevention
StrataCare is a leader in providing Software-as-a-Service (SaaS) solutions to support the timely, accurate and secure
recommended payment of medical bills for insurance carriers, third party-administrators and self-insured Fortune 500
companies for Workers Compensation related claims in accordance with regulatory guidelines (processes over 16M
medical bills annually, representing close to $14B in medical charges)
3

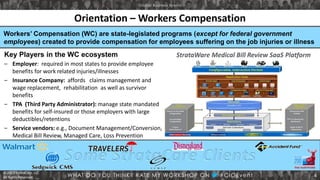

Orientation – Workers Compensation
Workers’ Compensation (WC) are state-legislated programs (except for federal government
employees) created to provide compensation for employees suffering on the job injuries or illness
Key Players in the WC ecosystem
– Employer: required in most states to provide employee
benefits for work related injuries/illnesses
– Insurance Company: affords claims management and
wage replacement, rehabilitation as well as survivor
benefits
– TPA (Third Party Administrator): manage state mandated
benefits for self-insured or those employers with large
deductibles/retentions
– Service vendors: e.g., Document Management/Conversion,
Medical Bill Review, Managed Care, Loss Prevention
StrataCare is a leader in providing Software-as-a-Service (SaaS) solutions to support the timely, accurate and secure
recommended payment of medical bills for insurance carriers, third party-administrators and self-insured Fortune 500
companies for Workers Compensation related claims in accordance with regulatory guidelines (processes over 16M
medical bills annually, representing close to $14B in medical charges)
4

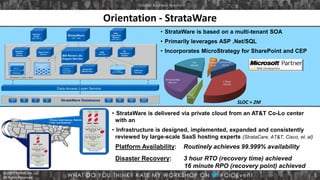

Orientation - StrataWare
• StrataWare is delivered via private cloud from an AT&T Co-Lo center
with an
• Infrastructure is designed, implemented, expanded and consistently
reviewed by large-scale SaaS hosting experts (StrataCare, AT&T, Cisco, et. al)
• StrataWare is based on a multi-tenant SOA
• Primarily leverages ASP .Net/SQL
• Incorporates MicroStrategy for SharePoint and CEP
Platform Availability: Routinely achieves 99.999% availability
Disaster Recovery: 3 hour RTO (recovery time) achieved
16 minute RPO (recovery point) achieved
SLOC ≈ 2M
5

Orientation
6

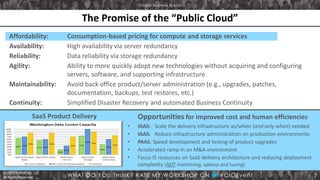

Affordability: Consumption-based pricing for compute and storage services
Availability: High availability via server redundancy
Reliability: Data reliability via storage redundancy
Agility: Ability to more quickly adopt new technologies without acquiring and configuring
servers, software, and supporting infrastructure.
Maintainability: Avoid back office product/server administration (e.g., upgrades, patches,
documentation, backups, test restores, etc.)
Continuity: Simplified Disaster Recovery and automated Business Continuity
The Promise of the “Public Cloud”
SaaS Product Delivery Opportunities for improved cost and human efficiencies
• IAAS: Scale the delivery infrastructure as/when (and only when) needed
• IAAS: Reduce infrastructure administration on production environments
• PAAS: Speed development and testing of product upgrades
• Accelerated ramp in an M&A environment
• Focus IS resources on SaaS delivery architecture and reducing deployment
complexity (NOT monitoring, upkeep and tuning)
7

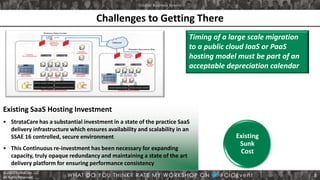

Challenges to Getting There
Existing SaaS Hosting Investment
• StrataCare has a substantial investment in a state of the practice SaaS
delivery infrastructure which ensures availability and scalability in an
SSAE 16 controlled, secure environment
• This Continuous re-investment has been necessary for expanding
capacity, truly opaque redundancy and maintaining a state of the art
delivery platform for ensuring performance consistency
Timing of a large scale migration
to a public cloud IaaS or PaaS
hosting model must be part of an
acceptable depreciation calendar
Existing
Sunk
Cost
8

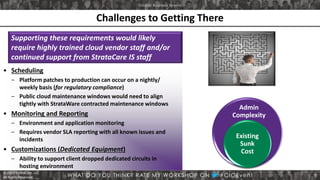

• Scheduling
– Platform patches to production can occur on a nightly/
weekly basis (for regulatory compliance)
– Public cloud maintenance windows would need to align
tightly with StrataWare contracted maintenance windows
• Monitoring and Reporting
– Environment and application monitoring
– Requires vendor SLA reporting with all known issues and
incidents
• Customizations (Dedicated Equipment)
– Ability to support client dropped dedicated circuits in
hosting environment
Supporting these requirements would likely
require highly trained cloud vendor staff and/or
continued support from StrataCare IS staff
Admin
Complexity
Existing
Sunk
Cost
9

• StrataWare is (by-and-large) multi-tenant, but there are some
services tied to a single instance which would need to be
addressed
• Deployment model reconciliation
• Azure PaaS does not support COM objects (which would need to
be re-factored), or SSIS packages and has DB Size Limitations
Refactoring projects would need to be defined,
prioritized and implemented along with other
business and continuing engineering priorities
Platform Changes
Admin
Complexity
Existing
Sunk
Cost
10

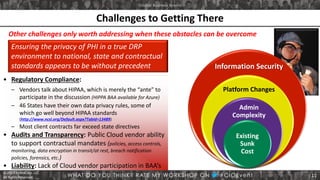

Ensuring the privacy of PHI in a true DRP
environment to national, state and contractual
standards appears to be without precedent
• Regulatory Compliance:
– Vendors talk about HIPAA, which is merely the “ante” to
participate in the discussion (HIPPA BAA available for Azure)
– 46 States have their own data privacy rules, some of
which go well beyond HIPAA standards
(http://www.ncsl.org/Default.aspx?TabId=13489)
– Most client contracts far exceed state directives
• Audits and Transparency: Public Cloud vendor ability
to support contractual mandates (policies, access controls,
monitoring, data encryption in transit/at rest, breach notification
policies, forensics, etc.)
• Liability: Lack of Cloud vendor participation in BAA’s
Other challenges only worth addressing when these obstacles can be overcome
Information Security
Platform Changes
Admin
Complexity
Existing
Sunk
Cost
11

Orientation
12

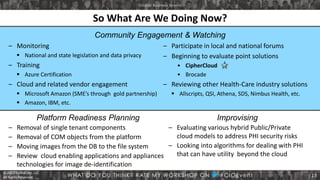

So What Are We Doing Now?
– Monitoring
 National and state legislation and data privacy
– Training
 Azure Certification
– Cloud and related vendor engagement
 Microsoft Amazon (SME’s through gold partnership)
 Amazon, IBM, etc.
Platform Readiness Planning
– Removal of single tenant components
– Removal of COM objects from the platform
– Moving images from the DB to the file system
– Review cloud enabling applications and appliances
technologies for image de-identification
Improvising
– Evaluating various hybrid Public/Private
cloud models to address PHI security risks
– Looking into algorithms for dealing with PHI
that can have utility beyond the cloud
– Participate in local and national forums
– Beginning to evaluate point solutions
• CipherCloud
• Brocade
– Reviewing other Health-Care industry solutions
 Allscripts, QSI, Athena, SDS, Nimbus Health, etc.
Community Engagement & Watching
13

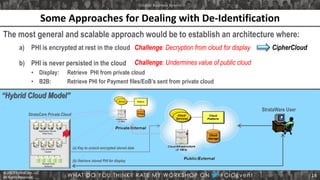

Some Approaches for Dealing with De-Identification
“Hybrid Cloud Model”
The most general and scalable approach would be to establish an architecture where:
(a) Key to unlock encrypted stored data
(b) Retrieve stored PHI for display
StrataWare User
a) PHI is encrypted at rest in the cloud
b) PHI is never persisted in the cloud
• Display: Retrieve PHI from private cloud
• B2B: Retrieve PHI for Payment files/EoB’s sent from private cloud
StrataCare Private Cloud
Challenge: Decryption from cloud for display
Challenge: Undermines value of public cloud
CipherCloud
14
