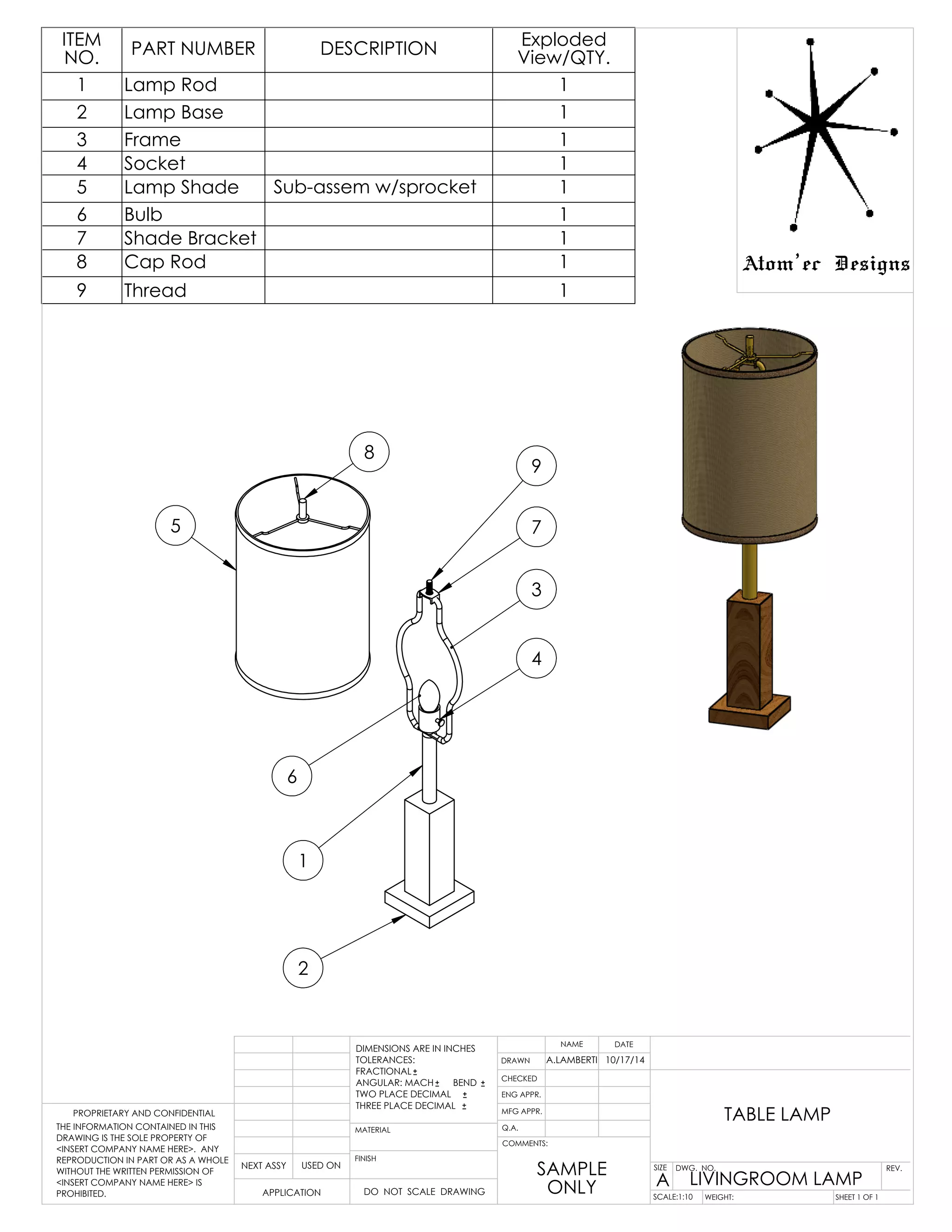

This document contains an exploded view diagram and parts list for a table lamp assembly. It lists 9 individual parts by number, name, and quantity needed. These parts include the lamp rod, base, frame, socket, shade, bulb, shade bracket, cap rod, and thread. Proprietary information text is shown at the bottom indicating the drawing contains confidential company information.

1. 2
3
7
9
5
8
1
4
6
TABLE LAMP
Sub-assem w/sprocket
ITEM
NO. PART NUMBER DESCRIPTION Exploded
View/QTY.
1 Lamp Rod 1
2 Lamp Base 1
3 Frame 1
4 Socket 1
5 Lamp Shade 1
6 Bulb 1
7 Shade Bracket 1
8 Cap Rod 1
9 Thread 1
WEIGHT:
LIVINGROOM LAMP
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
<INSERT COMPANY NAME HERE>. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
<INSERT COMPANY NAME HERE> IS
PROHIBITED.
COMMENTS:
SHEET 1 OF 1
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
DATENAME
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH BEND
TWO PLACE DECIMAL
THREE PLACE DECIMAL
NEXT ASSY USED ON
APPLICATION DO NOT SCALE DRAWING
FINISH
MATERIAL
REV.
A
DWG. NO.SIZE
SCALE:1:10
A.LAMBERTI 10/17/14
SAMPLE
ONLY
Atom'ec Designs
