Power Management and
Linux (3.4.25)
Padmanabha S
<treasure4paddy@gmail.com>

Objective
 Discussing power management in Linux and it's usage
in Embedded Systems
Agenda
 A brief overview on PC power management
 A brief overview on suspand to RAM “STR” and suspend
to disk “SWSUSP” (aka hibernation)
 Fast boot of Embedded Linux using suspend to disk
(aka snapshot booting)

A overview on PC Power
Management
Major motivational factors for Power
management in computer systems
 In earlier days (90's) due to long boot time people left
their desktop PCs on all the time, this led to wastage of
energy
 Once Laptop and battery powered device arrived
(where battery life is a key feature) the need for power
management took commercial incentive

Management
The motivation for POWER Management in
computer system led to multi-vendor
interoperability standards (listed below)
 Advanced Power Management (APM)
➢ Legacy method, also known as BIOS method where
Operating system has no knowledge about APM
➢ Uses device activity time-outs to determine when to
transaction of device into low power states
➢ Vendor specific implementation and maintenance

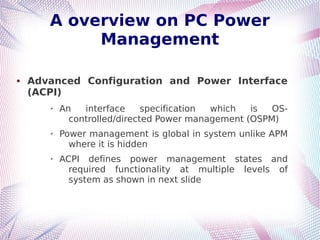

Management
 Advanced Configuration and Power Interface
(ACPI)
➢ An interface specification which is OS-
controlled/directed Power management (OSPM)
➢ Power management is global in system unlike APM
where it is hidden
➢ ACPI defines power management states and
required functionality at multiple levels of
system as shown in next slide

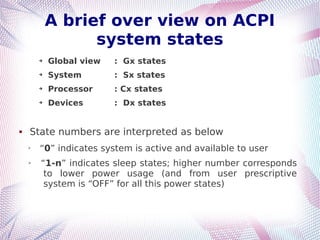

A brief over view on ACPI
system states
➔ Global view : Gx states
➔ System : Sx states
➔ Processor : Cx states
➔ Devices : Dx states
 State numbers are interpreted as below
➢
“0” indicates system is active and available to user
➢ “1-n” indicates sleep states; higher number corresponds
to lower power usage (and from user prescriptive
system is “OFF” for all this power states)

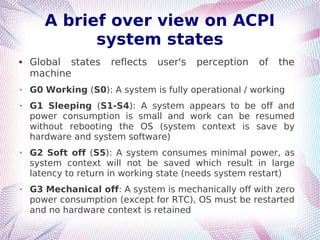

system states
 Global states reflects user's perception of the
machine
➢ G0 Working (S0): A system is fully operational / working
➢ G1 Sleeping (S1-S4): A system appears to be off and
power consumption is small and work can be resumed
without rebooting the OS (system context is save by
hardware and system software)
➢ G2 Soft off (S5): A system consumes minimal power, as
system context will not be saved which result in large
latency to return in working state (needs system restart)
➢ G3 Mechanical off: A system is mechanically off with zero
power consumption (except for RTC), OS must be restarted
and no hardware context is retained

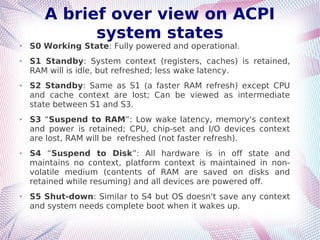

system states
➢ S0 Working State: Fully powered and operational.
➢ S1 Standby: System context (registers, caches) is retained,
RAM will is idle, but refreshed; less wake latency.
➢ S2 Standby: Same as S1 (a faster RAM refresh) except CPU
and cache context are lost; Can be viewed as intermediate
state between S1 and S3.
➢ S3 “Suspend to RAM”: Low wake latency, memory's context
and power is retained; CPU, chip-set and I/O devices context
are lost, RAM will be refreshed (not faster refresh).
➢ S4 “Suspend to Disk”: All hardware is in off state and
maintains no context, platform context is maintained in non-
volatile medium (contents of RAM are saved on disks and
retained while resuming) and all devices are powered off.
➢ S5 Shut-down: Similar to S4 but OS doesn't save any context
and system needs complete boot when it wakes up.

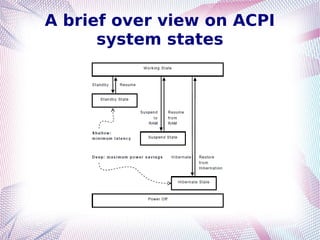

system states

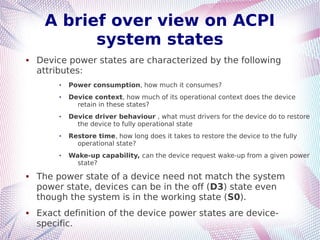

system states
 Device power states are characterized by the following
attributes:
 Power consumption, how much it consumes?
 Device context, how much of its operational context does the device
retain in these states?
 Device driver behaviour , what must drivers for the device do to restore
the device to fully operational state
 Restore time, how long does it takes to restore the device to the fully
operational state?
 Wake-up capability, can the device request wake-up from a given power
state?
 The power state of a device need not match the system
power state, devices can be in the off (D3) state even
though the system is in the working state (S0).
 Exact definition of the device power states are device-
specific.

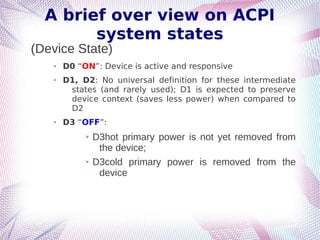

system states
(Device State)
➢ D0 “ON”: Device is active and responsive
➢ D1, D2: No universal definition for these intermediate
states (and rarely used); D1 is expected to preserve
device context (saves less power) when compared to
D2
➢ D3 “OFF”:
➢ D3hot primary power is not yet removed from
the device;
➢ D3cold primary power is removed from the
device

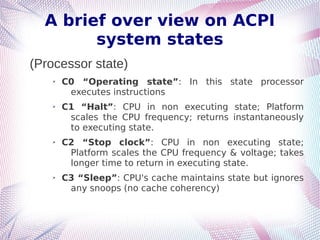

system states
(Processor state)
➢ C0 “Operating state”: In this state processor
executes instructions
➢ C1 “Halt”: CPU in non executing state; Platform
scales the CPU frequency; returns instantaneously
to executing state.
➢ C2 “Stop clock”: CPU in non executing state;
Platform scales the CPU frequency & voltage; takes
longer time to return in executing state.
➢ C3 “Sleep”: CPU's cache maintains state but ignores
any snoops (no cache coherency)

Linux sleep states
 Linux supports below sleep states:
➢ Standby
➢ Suspend to RAM ( standby with memory sleep state,
STR)
➢ Suspend to Disk (aka hibernation)
 When compared to STR, standby saves less power and
resume latency is almost similar with STR. Thus standby
support is usually not provided in computer systems.

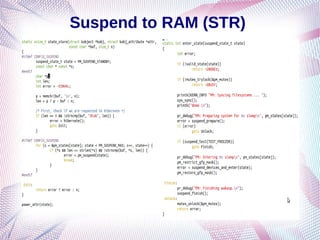

Suspend to RAM (STR)
● The system main memory context will
be retained (powered and refreshed
appropriately)
● Power will be partially removed from
devices to save energy
● Hardware has to provide an
mechanism (or interface) to wakeup
system from STR state and pass
control to OS
● Platform has to export low level
routines for Linux Kernel (PM core,
platform independent) to carry out
platform-specific low-level suspend and
resume operations.
● Platform driver (ex: arch/arm/mach-
omap2/pm.h) exports those routines
via struct platform_suspend_ops

 In 3.4.25:
➢ Platform registers platform_suspend_ops (ex:
arch/arm/mach-omap2/pm.c)
➢ Platform independent code creates sysfs entries
(kernel/power/main.c) with state attributes
(state_show and state_store)
➢ When user stores “disk” (echo disk > /sys/power/state), if
hibernation is supported, hibernation() is invoked.
➢ When user stores “mem” (echo mem > /sys/power/state),
if STR is supported, pm_suspend() is invoked with
appropriate flag (PM_SUSPEND_MEM)
➢ pm_suspend() (kernel/power/suspend.c) than invokes
enter_state() with appropriate state to initate STR

Raise notifer event
PM_SUSPEND_PREPARE
Freeze processes &
kernel threads
“freeze_process”
“freeze_kernel_threads”
Disable printk
“suspend_console”
Prepare devices forPM transistion
( .prepare callaback in dev_pm_ops)
“device_prepare(dev, PMSG_SUSPEND”
.is_prepared=true
&
Suspend the devices
(.suspend callaback in dev_pm_ops)
“dev_suspend(dev)”
.is_suspend=true
Precedence:
dev->pm_domain->ops
dev->type->pm
dev->class->pm
dev->bus->pm
dev->driver->pm
Sync file system
“sys_sync”
Switch to text console
“pm_prepare_console”
PM_SUSPEND_MEM ?
Acquire lock
“pm_mutex”
Prepare the platform to enter the given sleep state
(platform_suspend_ops callback .prepare)
Save the device state “.suspend_late”
Prevent device drivers from receiving interrupts
“.suspend_noirq”
And put the device in appropriate low power state
Finish preparing the platform for entering the given
sleep state
Disable none boot cpu
“disable_nonboot_cpu”
Disable local irqs
“local_irq_disable”
With one cpu online &
Disabled interrupts
Start
executing registered
System core
suspend callbacks
“syscore_suspend”
To complete suspend,
PM core invokes
“.enter”
Callback from
Platform suspend
operations
echo mem >
/sys/power/state
Initalize a transistion to
respective sleep state
platform_pm_ops
“.begin”
Restrict physical IO &
access to low levelFS
“pm_restrict_gfp_mask”
STR
