PRODUCTS
“SIMPLE SOLUTION FOR A COMPLEX WORLD”
FACILITY
MONITORING
SYSTEM
Linkwise Facility Monitoring System
FAC ILITY MONITOR ING SYSTE M
Is our innovative and technological answer, a
proven monitoring system that provides efficient yet
cost-effective solutions to various industries.
Making sure that facility managers will have a
complete peace of mind through having a 24/7
monitoring system which send status updates of
your equipment through SMS/ text messages and
email, anytime and anywhere.
Linkwise Facility Monitoring System
Linkwise Facility Monitoring System

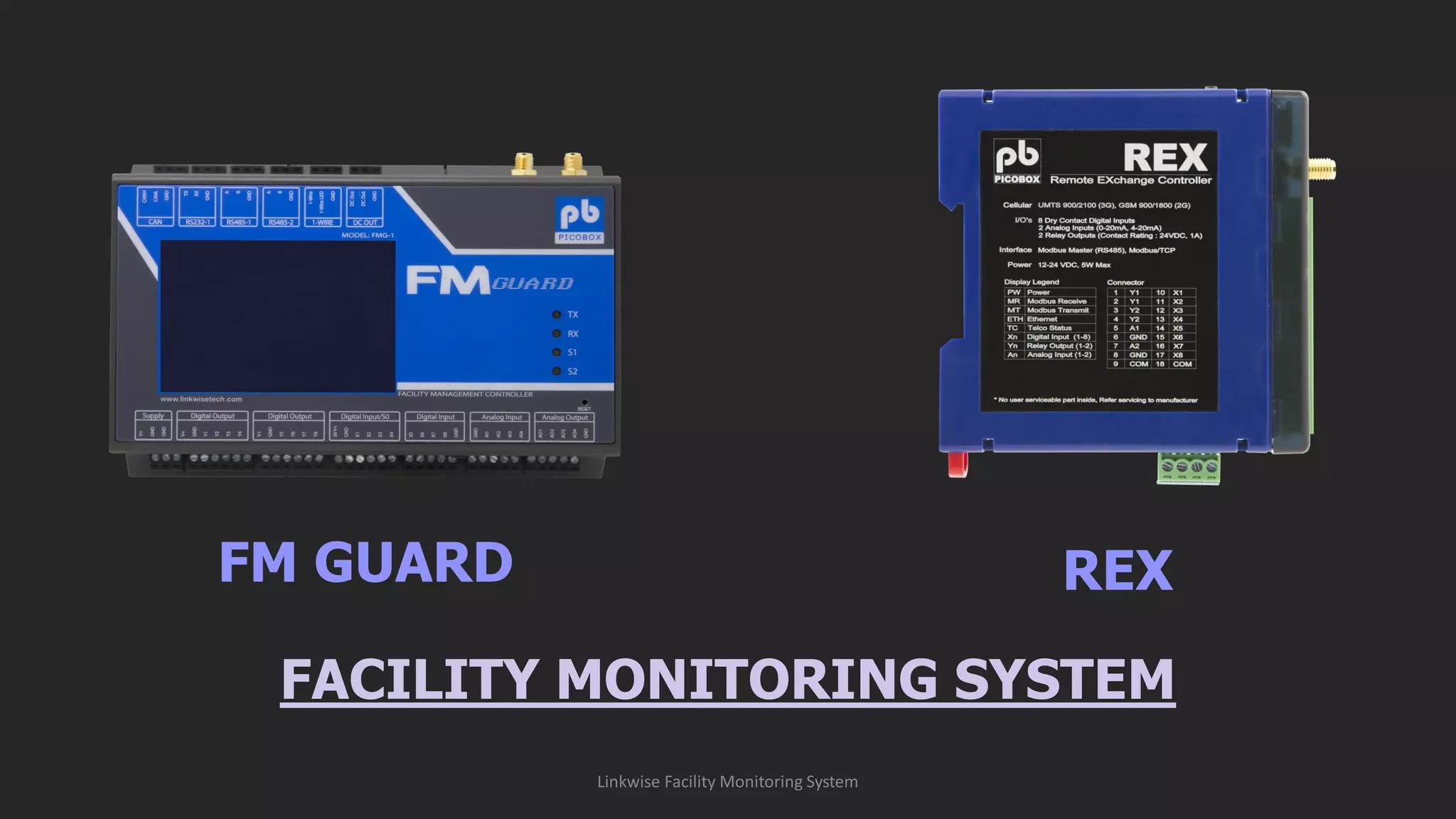

FACILITY MONITORING SYSTEM
FM GUARD REX
Linkwise Facility Monitoring System

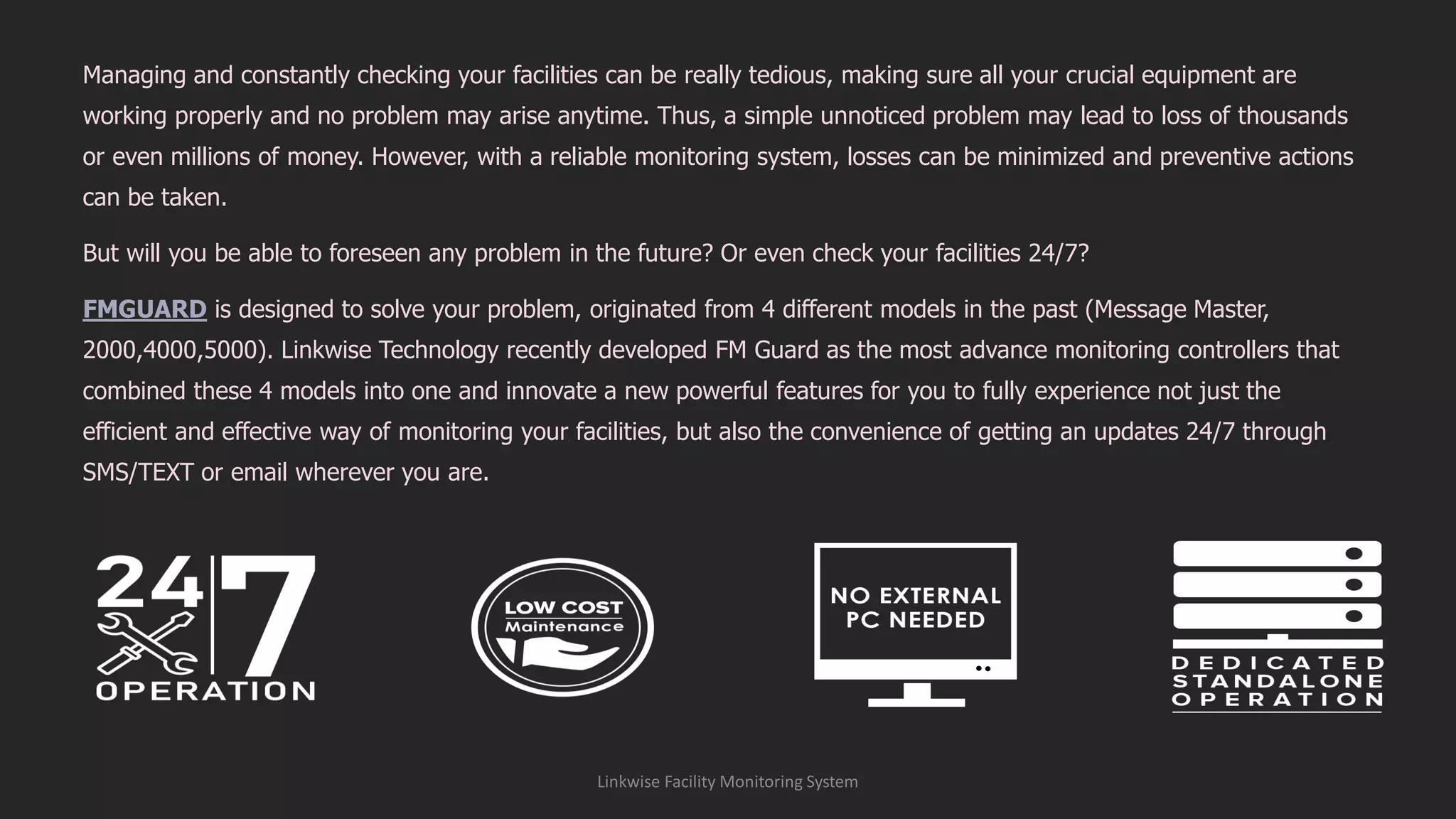

Managing and constantly checking your facilities can be really tedious, making sure all your crucial equipment are
working properly and no problem may arise anytime. Thus, a simple unnoticed problem may lead to loss of thousands
or even millions of money. However, with a reliable monitoring system, losses can be minimized and preventive actions
can be taken.
But will you be able to foreseen any problem in the future? Or even check your facilities 24/7?
FMGUARD is designed to solve your problem, originated from 4 different models in the past (Message Master,
2000,4000,5000). Linkwise Technology recently developed FM Guard as the most advance monitoring controllers that
combined these 4 models into one and innovate a new powerful features for you to fully experience not just the
efficient and effective way of monitoring your facilities, but also the convenience of getting an updates 24/7 through
SMS/TEXT or email wherever you are.
Linkwise Facility Monitoring System
Linkwise Facility Monitoring System

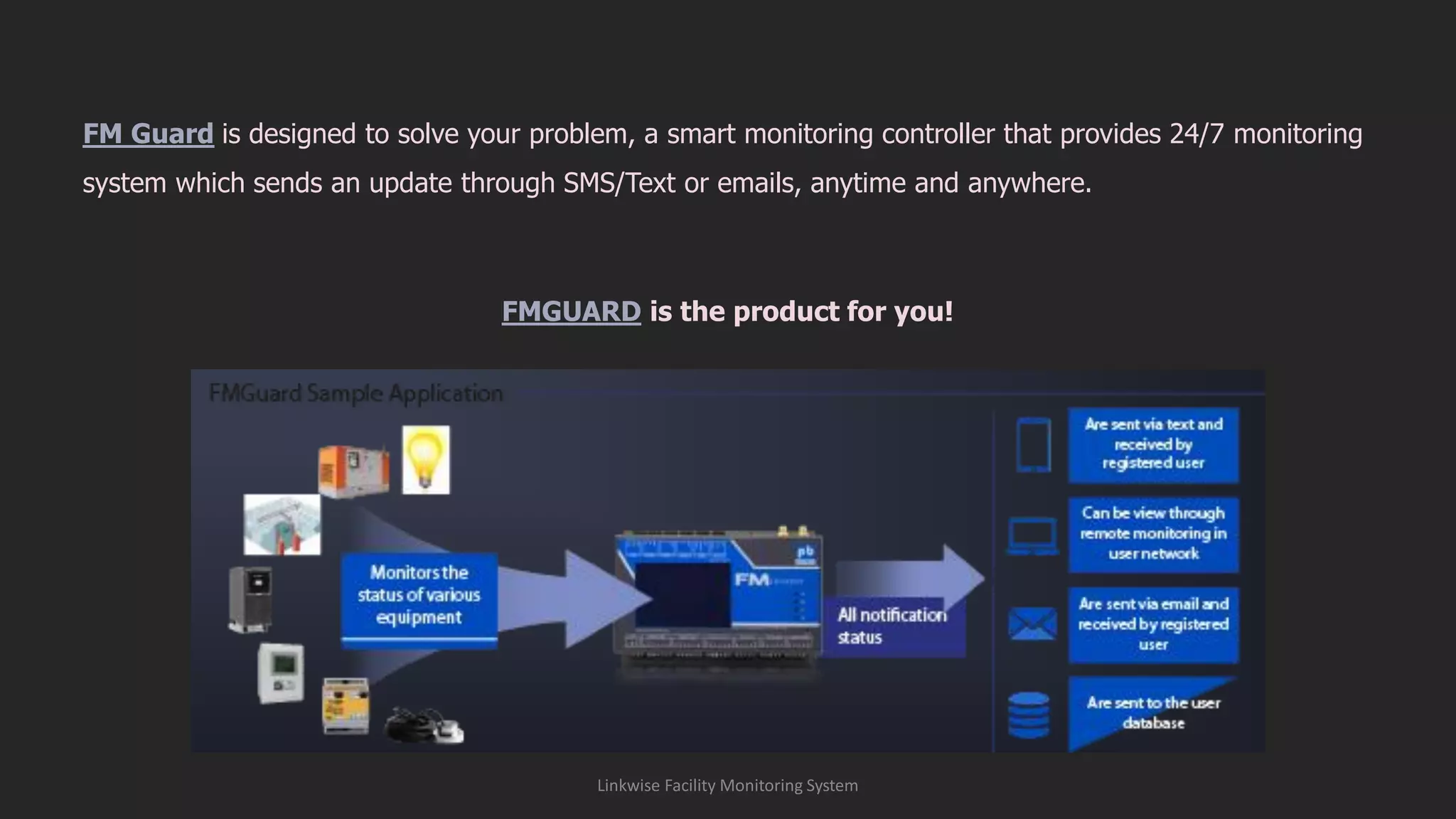

FM Guard is designed to solve your problem, a smart monitoring controller that provides 24/7 monitoring
system which sends an update through SMS/Text or emails, anytime and anywhere.
FMGUARD is the product for you!

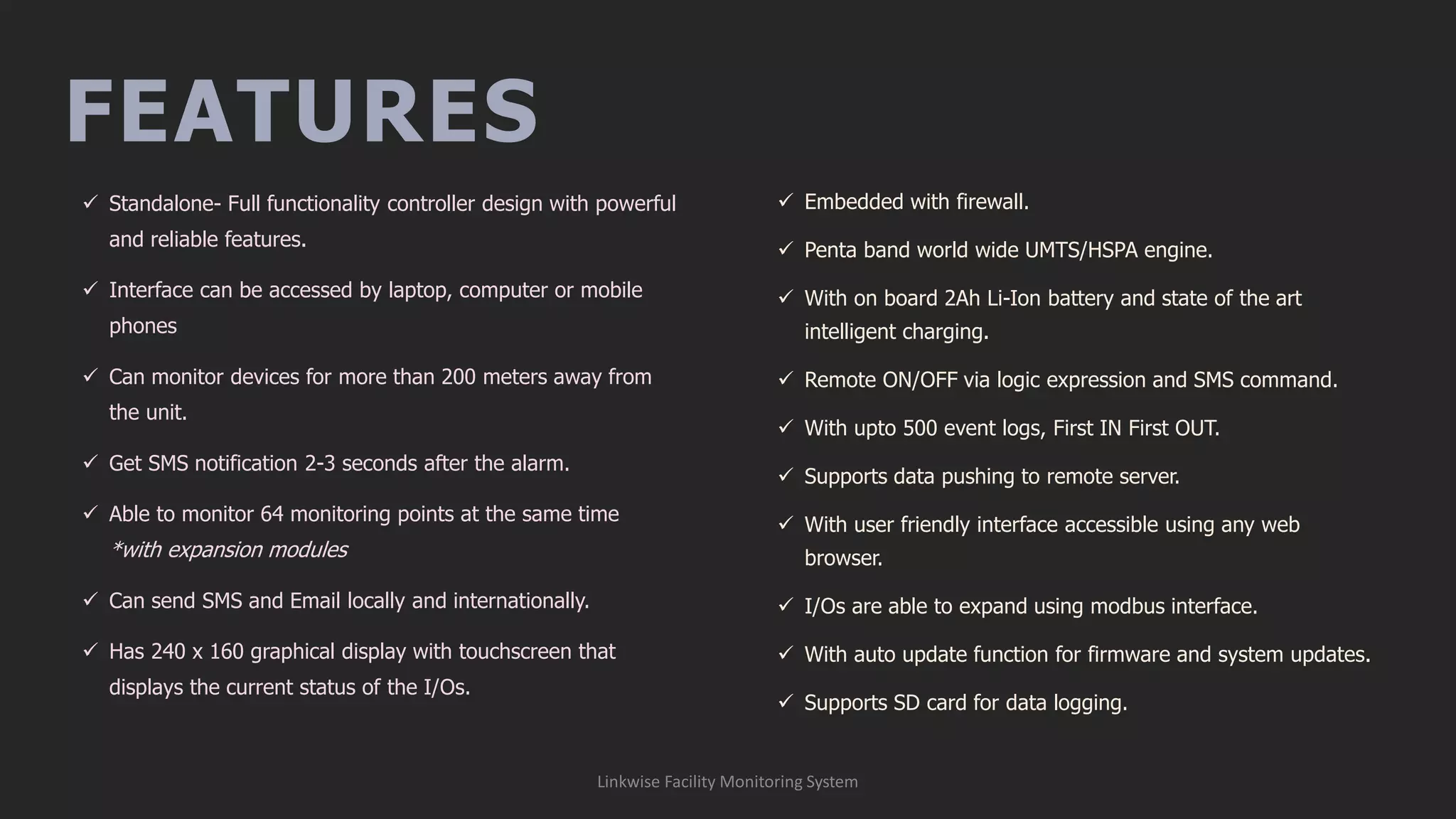

FEATURES
Linkwise Facility Monitoring System
✓ Standalone- Full functionality controller design with powerful
and reliable features.
✓ Interface can be accessed by laptop, computer or mobile
phones
✓ Can monitor devices for more than 200 meters away from
the unit.
✓ Get SMS notification 2-3 seconds after the alarm.
✓ Able to monitor 64 monitoring points at the same time
*with expansion modules
✓ Can send SMS and Email locally and internationally.
✓ Has 240 x 160 graphical display with touchscreen that
displays the current status of the I/Os.
✓ Embedded with firewall.
✓ Penta band world wide UMTS/HSPA engine.
✓ With on board 2Ah Li-Ion battery and state of the art
intelligent charging.
✓ Remote ON/OFF via logic expression and SMS command.
✓ With upto 500 event logs, First IN First OUT.
✓ Supports data pushing to remote server.
✓ With user friendly interface accessible using any web
browser.
✓ I/Os are able to expand using modbus interface.
✓ With auto update function for firmware and system updates.
✓ Supports SD card for data logging.

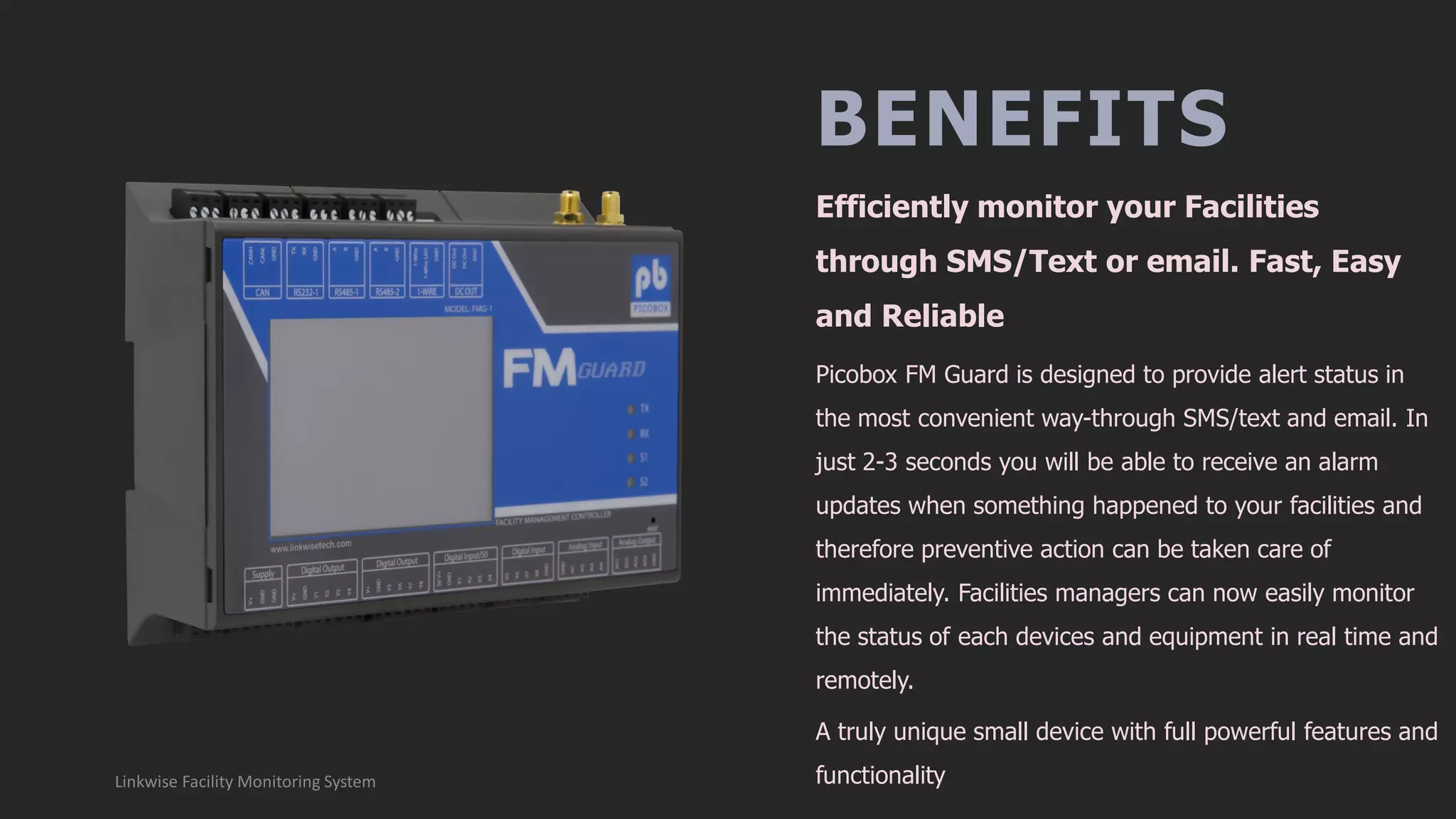

BENEFITS
Picobox FM Guard is designed to provide alert status in
the most convenient way-through SMS/text and email. In
just 2-3 seconds you will be able to receive an alarm
updates when something happened to your facilities and
therefore preventive action can be taken care of
immediately. Facilities managers can now easily monitor
the status of each devices and equipment in real time and
remotely.
A truly unique small device with full powerful features and
functionality
Efficiently monitor your Facilities
through SMS/Text or email. Fast, Easy
and Reliable
Linkwise Facility Monitoring System
BENEFITS

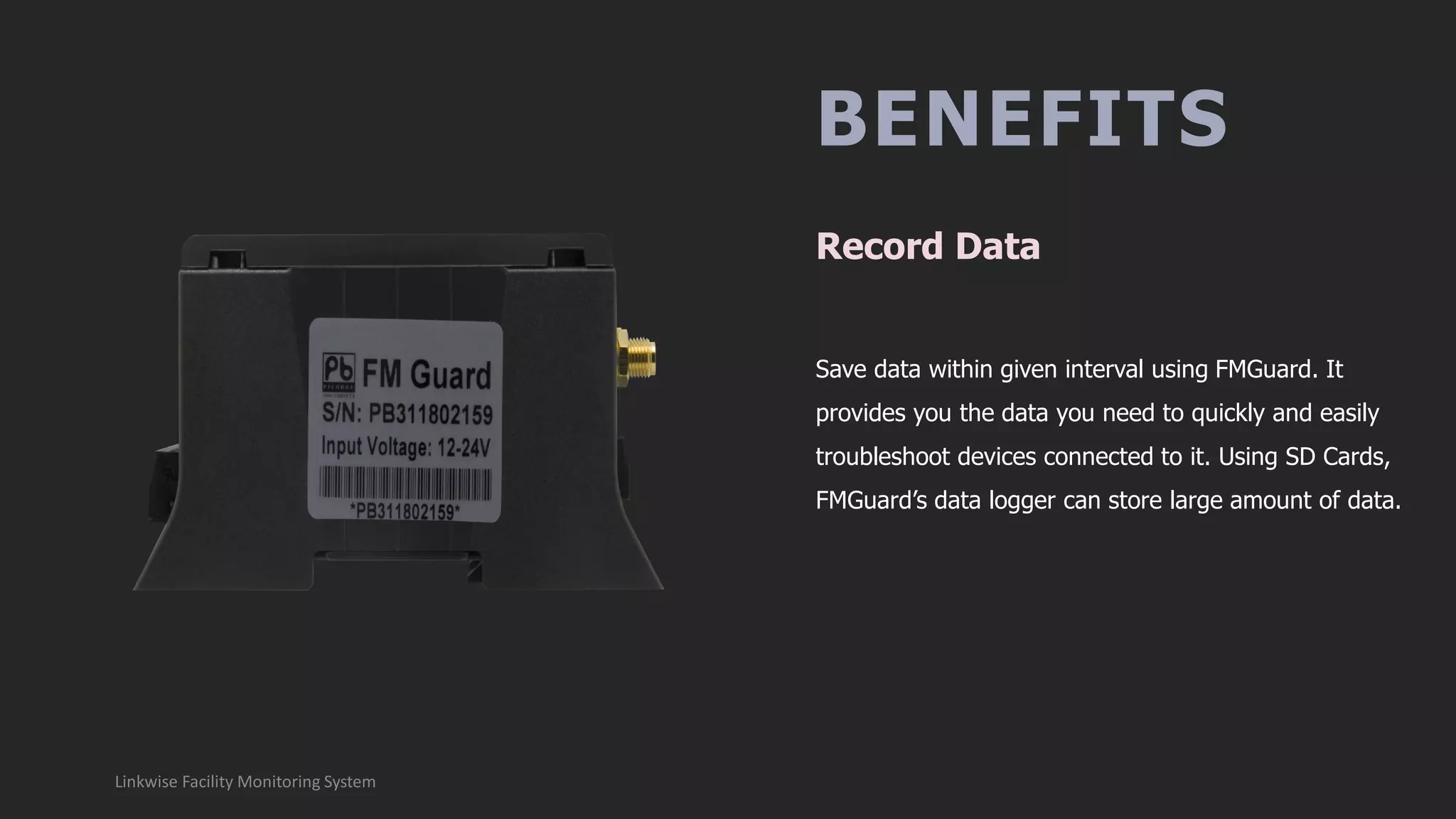

Save data within given interval using FMGuard. It
provides you the data you need to quickly and easily
troubleshoot devices connected to it. Using SD Cards,
FMGuard’s data logger can store large amount of data.
Record Data
Linkwise Facility Monitoring System

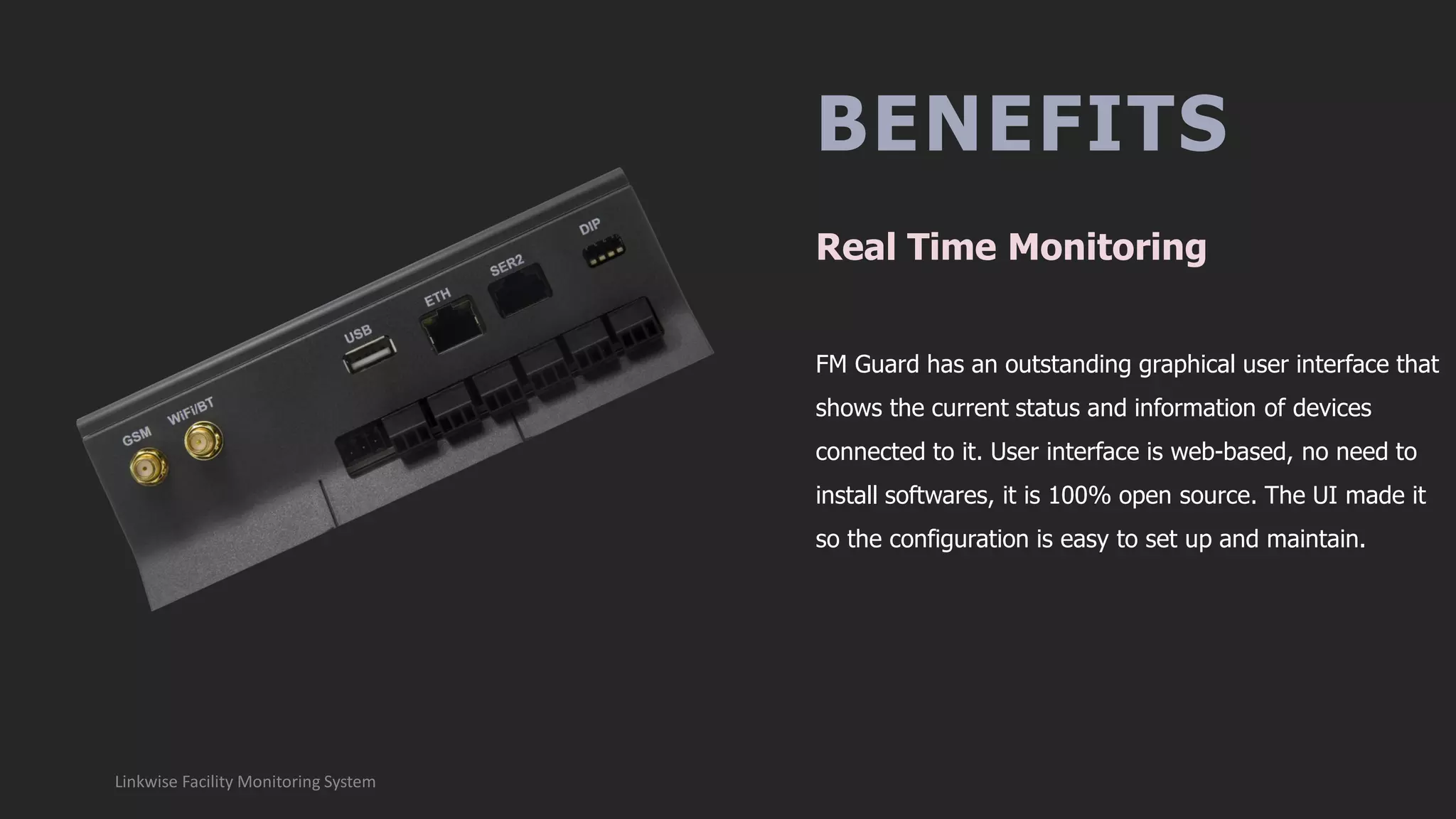

BENEFITS
FM Guard has an outstanding graphical user interface that
shows the current status and information of devices
connected to it. User interface is web-based, no need to
install softwares, it is 100% open source. The UI made it
so the configuration is easy to set up and maintain.
Real Time Monitoring
Linkwise Facility Monitoring System

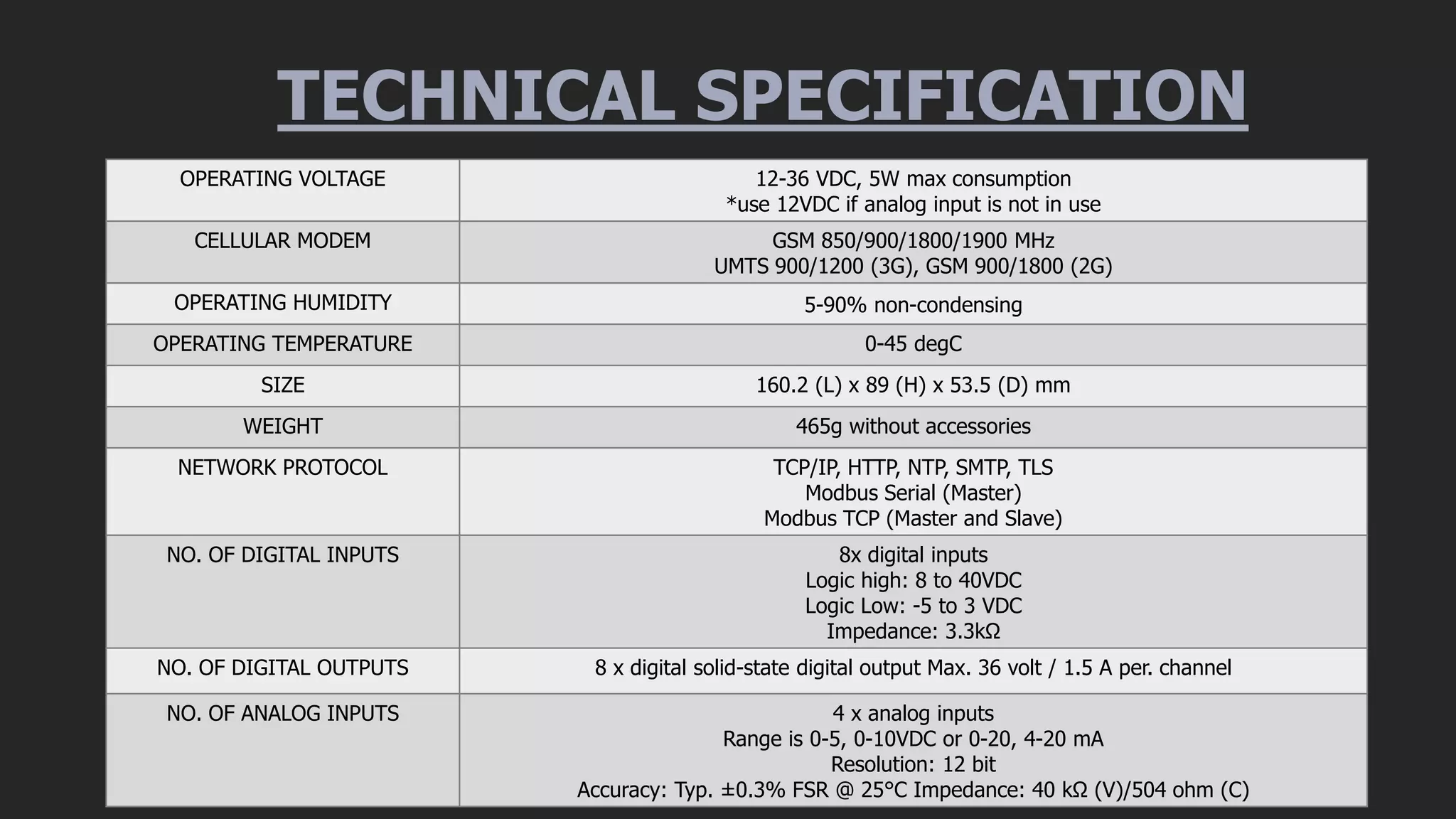

TECHNICAL SPECIFICATION
OPERATING VOLTAGE 12-36 VDC, 5W max consumption
*use 12VDC if analog input is not in use
CELLULAR MODEM GSM 850/900/1800/1900 MHz
UMTS 900/1200 (3G), GSM 900/1800 (2G)
OPERATING HUMIDITY 5-90% non-condensing
OPERATING TEMPERATURE 0-45 degC
SIZE 160.2 (L) x 89 (H) x 53.5 (D) mm
WEIGHT 465g without accessories
NETWORK PROTOCOL TCP/IP, HTTP, NTP, SMTP, TLS
Modbus Serial (Master)
Modbus TCP (Master and Slave)
NO. OF DIGITAL INPUTS 8x digital inputs
Logic high: 8 to 40VDC
Logic Low: -5 to 3 VDC
Impedance: 3.3kΩ
NO. OF DIGITAL OUTPUTS 8 x digital solid-state digital output Max. 36 volt / 1.5 A per. channel
NO. OF ANALOG INPUTS 4 x analog inputs
Range is 0-5, 0-10VDC or 0-20, 4-20 mA
Resolution: 12 bit
Accuracy: Typ. ±0.3% FSR @ 25°C Impedance: 40 kΩ (V)/504 ohm (C)

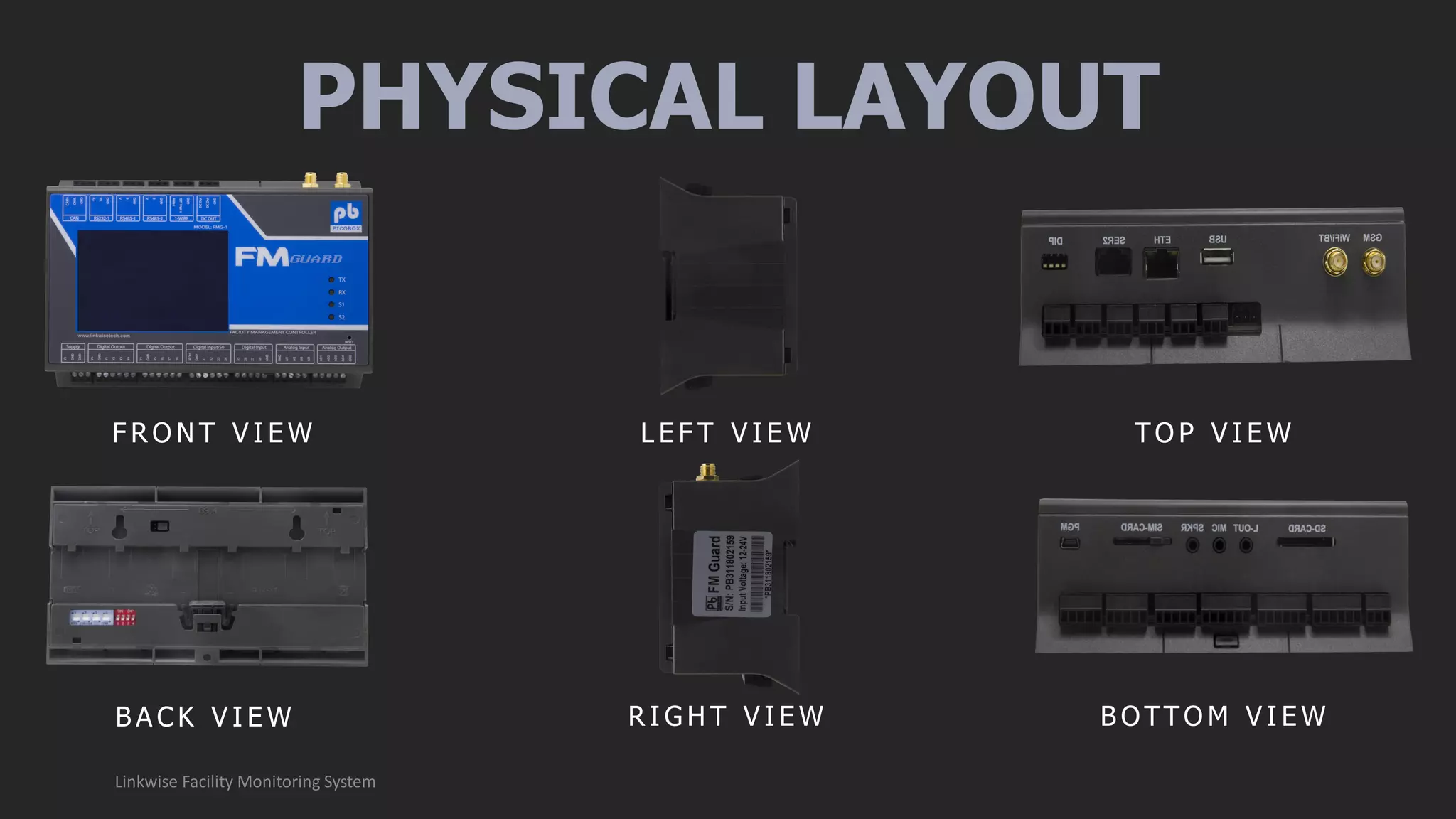

PHYSICAL LAYOUT
Linkwise Facility Monitoring System
F R O N T V I E W L E F T V I E W TO P V I E W
B A C K V I E W R I G H T V I E W B OTTO M V I E W
THANK YOU!
Linkwise Technology Philippines Inc.
Unit 2504 Tycoon Condominium Centre, Pearl Drive,
Ortigas Centre,
Pasig City 1605, Philippines
Tel: (+632) 650-0735 | (+632) 650-0798
Mobile: (+63) 917-810-6685
Fax: (+632) 650-0794
14
LINKWISE TECHNOLOGY GROUP OF
COMPANIES
Singapore
Contact Details
Linkwise Technology Pte. Ltd.
Blk 3, Ang Mo Kio Industrial Park 2A
#06-08/10, AMK Tech 1, Singapore
568050
Tel: +65-6484 6368
Fax: +65-6484 6369
Myanmar
Contact Details
Linkwise Technology Company Ltd.
No 1482, Myin Taw Thar Rd, 1
Ward, Tharkayta ,Yangon, Myanmar
Tel: +65-6484 6368
Mobile: (+95) 94248 88380
Fax: +65-6484 6369
Malaysia
Contact Details
Linkwise Technology Sdn Bhd
Unit 136, Level 1, Lobby 7 Block A,
Damansara Intan No. 1, Jalan SS20/27
Petaling Jaya, 47400 Selangor Darul
Ehsan, Malaysia
Tel: +603-7622 9968
15
