EET 3350 Digital Systems Design Textbook: John Wakerly Chapter 9: 9-5 CPLDs 1

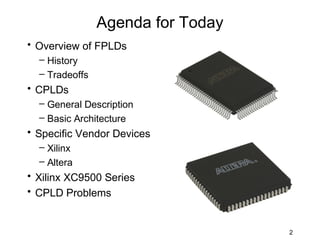

Agenda for Today • Overview of FPLDs – History – Tradeoffs • CPLDs – General Description – Basic Architecture • Specific Vendor Devices – Xilinx – Altera • Xilinx XC9500 Series • CPLD Problems 2

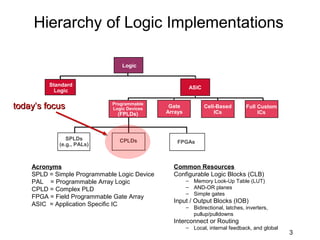

Hierarchy of Logic Implementations Logic Standard ASIC Logic today’s focus Programmable Logic Devices Gate Cell-Based Full Custom (FPLDs) Arrays ICs ICs SPLDs CPLDs (e.g., PALs) FPGAs Acronyms Common Resources SPLD = Simple Programmable Logic Device Configurable Logic Blocks (CLB) PAL = Programmable Array Logic – Memory Look-Up Table (LUT) CPLD = Complex PLD – AND-OR planes – Simple gates FPGA = Field Programmable Gate Array Input / Output Blocks (IOB) ASIC = Application Specific IC – Bidirectional, latches, inverters, pullup/pulldowns Interconnect or Routing – Local, internal feedback, and global 3

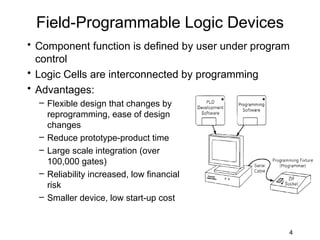

Field-Programmable Logic Devices • Component function is defined by user under program control • Logic Cells are interconnected by programming • Advantages: – Flexible design that changes by reprogramming, ease of design changes – Reduce prototype-product time – Large scale integration (over 100,000 gates) – Reliability increased, low financial risk – Smaller device, low start-up cost 4

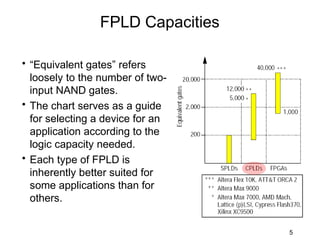

FPLD Capacities • “Equivalent gates” refers loosely to the number of two- input NAND gates. • The chart serves as a guide for selecting a device for an application according to the logic capacity needed. • Each type of FPLD is inherently better suited for some applications than for others. 5

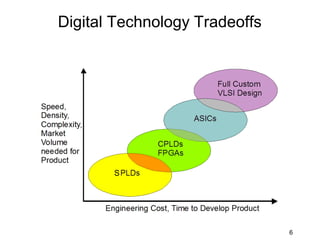

Digital Technology Tradeoffs S 6

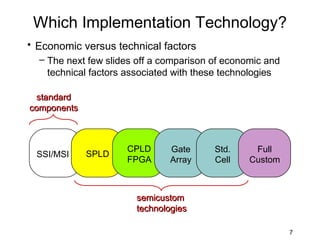

Which Implementation Technology? • Economic versus technical factors – The next few slides off a comparison of economic and technical factors associated with these technologies standard components CPLD Gate Std. Full SSI/MSI SPLD FPGA Array Cell Custom semicustom technologies 7

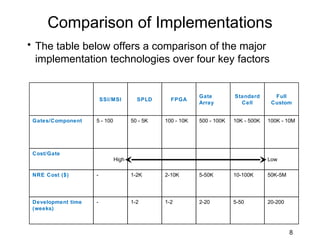

Comparison of Implementations • The table below offers a comparison of the major implementation technologies over four key factors Gate Standard Full SSI/MSI SPLD FPGA Array Cell Custom Gates/Component 5 - 100 50 - 5K 100 - 10K 500 - 100K 10K - 500K 100K - 10M Cost/Gate High Low NRE Cost ($) - 1-2K 2-10K 5-50K 10-100K 50K-5M Development time - 1-2 1-2 2-20 5-50 20-200 (weeks) 8
Comparison of Implementations Circuit Cost As A Function Of Volume Cost Discrete Full custom Volume 9
Evolution of Implementations • CPLDs and FPGAs continue to evolve in parallel ‘standard 1960 components’ SSI ‘semicustom components’ 1970 MSI Gate Array Simple PLD LSI Standard Cells 1980 VLSI CPLD FPGA 1990 2000 parallel development Today 10

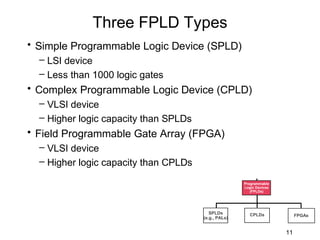

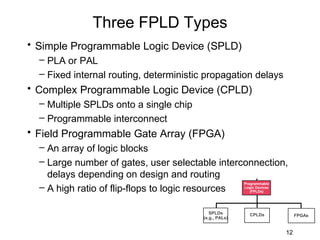

Three FPLD Types • Simple Programmable Logic Device (SPLD) – LSI device – Less than 1000 logic gates • Complex Programmable Logic Device (CPLD) – VLSI device – Higher logic capacity than SPLDs • Field Programmable Gate Array (FPGA) – VLSI device – Higher logic capacity than CPLDs Programmable Logic Devices (FPLDs) SPLDs CPLDs FPGAs (e.g., PALs) 11
Three FPLD Types • Simple Programmable Logic Device (SPLD) – PLA or PAL – Fixed internal routing, deterministic propagation delays • Complex Programmable Logic Device (CPLD) – Multiple SPLDs onto a single chip – Programmable interconnect • Field Programmable Gate Array (FPGA) – An array of logic blocks – Large number of gates, user selectable interconnection, delays depending on design and routing Programmable – A high ratio of flip-flops to logic resources Logic Devices (FPLDs) SPLDs CPLDs FPGAs (e.g., PALs) 12

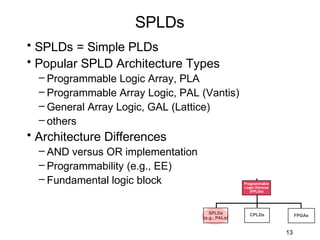

SPLDs • SPLDs = Simple PLDs • Popular SPLD Architecture Types – Programmable Logic Array, PLA – Programmable Array Logic, PAL (Vantis) – General Array Logic, GAL (Lattice) – others • Architecture Differences – AND versus OR implementation – Programmability (e.g., EE) – Fundamental logic block Programmable Logic Devices (FPLDs) SPLDs CPLDs FPGAs (e.g., PALs) 13

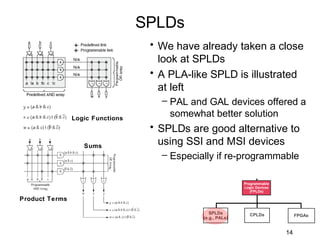

SPLDs • We have already taken a close look at SPLDs • A PLA-like SPLD is illustrated at left – PAL and GAL devices offered a Logic Functions somewhat better solution • SPLDs are good alternative to Sums using SSI and MSI devices – Especially if re-programmable Programmable Logic Devices (FPLDs) Product Terms SPLDs CPLDs FPGAs (e.g., PALs) 14
SPLDs • Conventional programmable logic – PALs, PLAs, GALs – standard parts like GAL22V10 and PAL16R4 are available from multiple vendors • Includes programmable logic cells to a limited degree (programming options in I/O cells, may have fixed AND/OR gates for logic), limited routing network • Lowest density of all programmable devices, however, can offer very high performance • SPLDs have nearly replaced TTL logic which was the Programmable Logic Devices dominate approach to logic (FPLDs) implementation SPLDs CPLDs FPGAs (e.g., PALs) 15

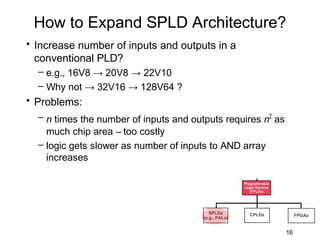

How to Expand SPLD Architecture? • Increase number of inputs and outputs in a conventional PLD? – e.g., 16V8 → 20V8 → 22V10 – Why not → 32V16 → 128V64 ? • Problems: – n times the number of inputs and outputs requires n2 as much chip area – too costly – logic gets slower as number of inputs to AND array increases Programmable Logic Devices (FPLDs) SPLDs CPLDs FPGAs (e.g., PALs) 16
How to Expand SPLD Architecture? • Solution: – Multiple SPLDs with a relatively small programmable interconnect – Less general than a single large PLD – Can use software “fitter” to partition into smaller PLD blocks Programmable Logic Devices (FPLDs) CPLD Architecture SPLDs CPLDs FPGAs (e.g., PALs) 17

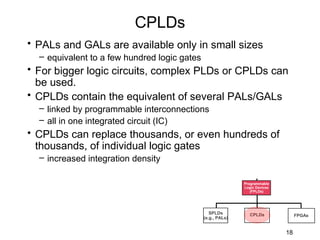

CPLDs • PALs and GALs are available only in small sizes – equivalent to a few hundred logic gates • For bigger logic circuits, complex PLDs or CPLDs can be used. • CPLDs contain the equivalent of several PALs/GALs – linked by programmable interconnections – all in one integrated circuit (IC) • CPLDs can replace thousands, or even hundreds of thousands, of individual logic gates – increased integration density Programmable Logic Devices (FPLDs) SPLDs CPLDs FPGAs (e.g., PALs) 18

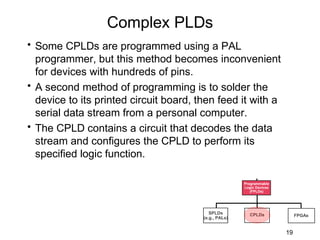

Complex PLDs • Some CPLDs are programmed using a PAL programmer, but this method becomes inconvenient for devices with hundreds of pins. • A second method of programming is to solder the device to its printed circuit board, then feed it with a serial data stream from a personal computer. • The CPLD contains a circuit that decodes the data stream and configures the CPLD to perform its specified logic function. Programmable Logic Devices (FPLDs) SPLDs CPLDs FPGAs (e.g., PALs) 19
Complex PLDs • Each manufacturer has a proprietary name for its CPLD programming system • For example, Lattice calls it "in-system programming" • However, these proprietary systems are beginning to give way to a standard from the Joint Test Action Group (JTAG) Programmable Logic Devices (FPLDs) SPLDs CPLDs FPGAs (e.g., PALs) 20

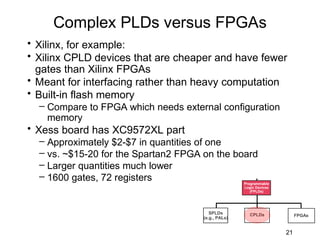

Complex PLDs versus FPGAs • Xilinx, for example: • Xilinx CPLD devices that are cheaper and have fewer gates than Xilinx FPGAs • Meant for interfacing rather than heavy computation • Built-in flash memory – Compare to FPGA which needs external configuration memory • Xess board has XC9572XL part – Approximately $2-$7 in quantities of one – vs. ~$15-20 for the Spartan2 FPGA on the board – Larger quantities much lower – 1600 gates, 72 registers Programmable Logic Devices (FPLDs) SPLDs CPLDs FPGAs (e.g., PALs) 21

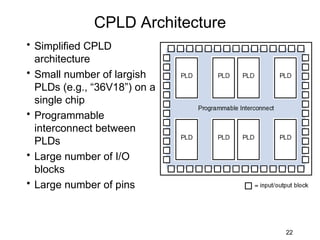

CPLD Architecture • Simplified CPLD architecture • Small number of largish PLDs (e.g., “36V18”) on a single chip • Programmable interconnect between PLDs • Large number of I/O blocks • Large number of pins 22
CPLD Architecture • Generalized architecture for a complex PLD • Programmable Interconnect Array – Capable of connecting any LAB input or output to any other LAB • Logic Array Blocks – Complex SPLD-like structure Programmable Logic Devices (FPLDs) • Input/Output Blocks SPLDs CPLDs FPGAs (e.g., PALs) 23

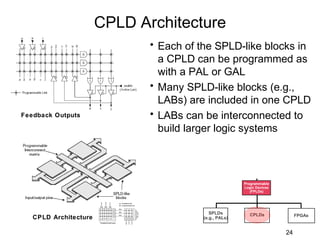

CPLD Architecture • Each of the SPLD-like blocks in a CPLD can be programmed as with a PAL or GAL • Many SPLD-like blocks (e.g., LABs) are included in one CPLD Feedback Outputs • LABs can be interconnected to build larger logic systems Programmable Logic Devices (FPLDs) SPLDs CPLDs FPGAs CPLD Architecture (e.g., PALs) 24

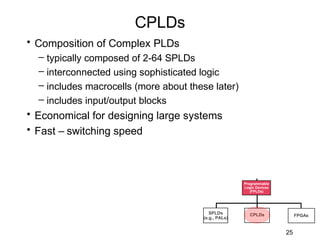

CPLDs • Composition of Complex PLDs – typically composed of 2-64 SPLDs – interconnected using sophisticated logic – includes macrocells (more about these later) – includes input/output blocks • Economical for designing large systems • Fast – switching speed Programmable Logic Devices (FPLDs) SPLDs CPLDs FPGAs (e.g., PALs) 25

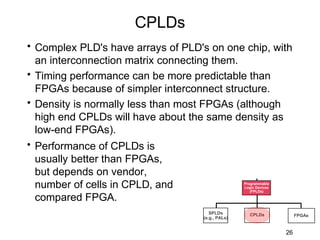

CPLDs • Complex PLD's have arrays of PLD's on one chip, with an interconnection matrix connecting them. • Timing performance can be more predictable than FPGAs because of simpler interconnect structure. • Density is normally less than most FPGAs (although high end CPLDs will have about the same density as low-end FPGAs). • Performance of CPLDs is usually better than FPGAs, but depends on vendor, number of cells in CPLD, and Programmable Logic Devices (FPLDs) compared FPGA. SPLDs CPLDs FPGAs (e.g., PALs) 26
CPLDs • The block diagram at right for the Cypress Semiconductor CPLD (Ultra37128) illustrates the general architecture of CPLDs Programmable Logic Devices (FPLDs) SPLDs CPLDs FPGAs (e.g., PALs) 27
Cypress Ultra 37000 Family • In-system reprogrammable CMOS CPLDs – JTAG interface for reconfigurability – Design changes do not cause pinout changes – Design changes do not cause timing changes • High density – 32 to 512 macrocells – 32 to 264 I/O pins – Five dedicated inputs including four clock pins 28

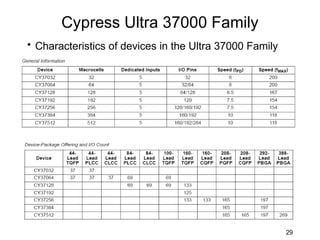

Cypress Ultra 37000 Family • Characteristics of devices in the Ultra 37000 Family 29
CPLDs • Complex Programmable Logic Devices – Contain from 10-1000 macrocells – Each macrocell is equivalent to around 20 gates – Support up to 200 I/O pins • The key resource in a CPLD is the programmable interconnect – Tradeoff between space for macrocells and space for interconnect – Careful design will limit the connections between macrocells Programmable Logic Devices (FPLDs) SPLDs CPLDs FPGAs (e.g., PALs) 30
CPLD Architecture • Complexity of CPLD is between FPGA and SPLD LAB – Logic Array Block / uses PALs PIA – Programmable Interconnect Array 31
CPLD Architecture • Example Logic Array Block Extra function (e.g., g, h) i/ps for OR term 2:1 Mux D-FF PLA-like AND array Literal inputs (e.g., a, b, c) 32

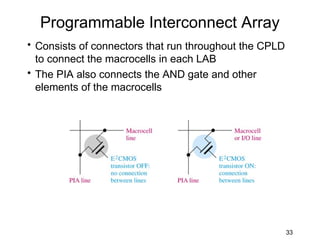

Programmable Interconnect Array • Consists of connectors that run throughout the CPLD to connect the macrocells in each LAB • The PIA also connects the AND gate and other elements of the macrocells 33
CPLD/FPGA Vendors • The main vendors 34

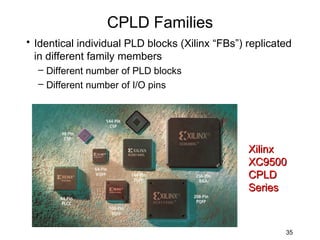

CPLD Families • Identical individual PLD blocks (Xilinx “FBs”) replicated in different family members – Different number of PLD blocks – Different number of I/O pins Xilinx XC9500 CPLD Series 35

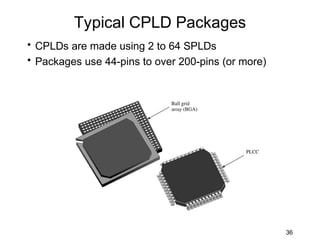

Typical CPLD Packages • CPLDs are made using 2 to 64 SPLDs • Packages use 44-pins to over 200-pins (or more) 36
Typical CPLD Packages • QFP = Quad Flat Package – A QFP is an IC package with leads extending from each of the four sides. – It is used primarily for surface mounting, no socketing • TQFP = Thin Quad Flat Package • PQFP = Plastic Quad Flat Package • VQFP = Very small Quad Flat Package • PLCC = Plastic Leaded Chip Carrier – A package related to QFP – Similar but has pins with larger distance, curved up underneath a thicker body to simplify socketing 37
CPLD Package Types • CSP = Chip Scale Package – IC package with an area no greater than 1.2 times that of the die • BGA = Ball Grid Array – A type of surface-mount packaging used for ICs – Pins are replaced by balls of solder stuck to the bottom of the package – The device is placed on a PCB that carries copper pads in a pattern that matches the solder balls – The assembly is then heated causing the solder balls to melt 38

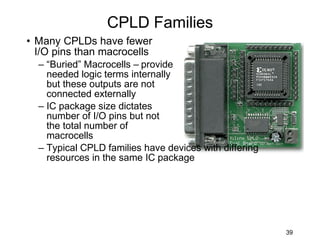

CPLD Families • Many CPLDs have fewer I/O pins than macrocells – “Buried” Macrocells – provide needed logic terms internally but these outputs are not connected externally – IC package size dictates number of I/O pins but not the total number of macrocells – Typical CPLD families have devices with differing resources in the same IC package 39

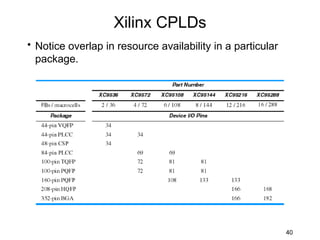

Xilinx CPLDs • Notice overlap in resource availability in a particular package. 40
XC9572 CPLD Datasheet • XC9572 CPLD from Xilinx • 7.5 ns pin-to-pin logic delays on all pins • 72 macrocells with 1,600 usable gates • Up to 72 user I/O pins • Four 36V18 Function Blocks • Available in 44-pin PLCC, 84-pin PLCC, 100-pin PQFP and 100-pin TQFP packages 41

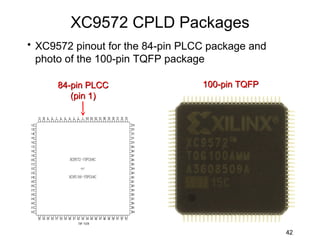

XC9572 CPLD Packages • XC9572 pinout for the 84-pin PLCC package and photo of the 100-pin TQFP package 84-pin PLCC 100-pin TQFP (pin 1) 42
XC9572 CPLD Part Numbers • The part number for Xilinx CPLD devices includes information as follows: 43

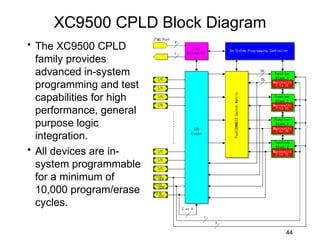

XC9500 CPLD Block Diagram • The XC9500 CPLD family provides advanced in-system programming and test capabilities for high performance, general purpose logic integration. • All devices are in- system programmable for a minimum of 10,000 program/erase cycles. 44

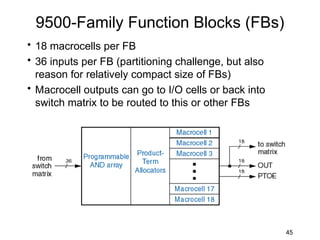

9500-Family Function Blocks (FBs) • 18 macrocells per FB • 36 inputs per FB (partitioning challenge, but also reason for relatively compact size of FBs) • Macrocell outputs can go to I/O cells or back into switch matrix to be routed to this or other FBs 45
9500-Series Macrocell • 18 macrocells per Function Block Set control Programmable inversion or XOR product term Up to 5 product terms Global clock or product-term clock Reset control OE control 46

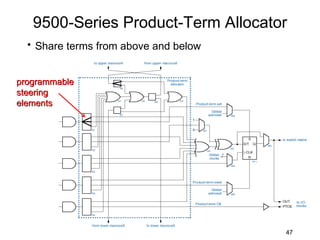

9500-Series Product-Term Allocator • Share terms from above and below programmable steering elements 47
XC9500 Family • An I/O block is composed of input buffer, output buffer, multiplexer for the output control and grounding control • Slew rate control is used to smooth the rising and the falling edges of the output pulse. • Grounding control is used to make the input/output pin (I/O) an earth ground (noise suppression). • Each input/output pin can handle a 24-mA current. 48

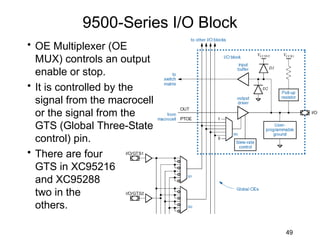

9500-Series I/O Block • OE Multiplexer (OE MUX) controls an output enable or stop. • It is controlled by the signal from the macrocell or the signal from the GTS (Global Three-State control) pin. • There are four GTS in XC95216 and XC95288 two in the others. 49

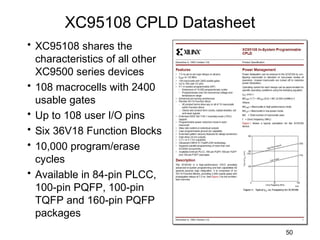

XC95108 CPLD Datasheet • XC95108 shares the characteristics of all other XC9500 series devices • 108 macrocells with 2400 usable gates • Up to 108 user I/O pins • Six 36V18 Function Blocks • 10,000 program/erase cycles • Available in 84-pin PLCC, 100-pin PQFP, 100-pin TQFP and 160-pin PQFP packages 50

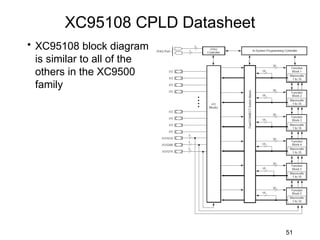

XC95108 CPLD Datasheet • XC95108 block diagram is similar to all of the others in the XC9500 family 51
Switch Matrix for XC95108 • Could be anything from a limited set of multiplexers to a full crossbar – Multiplexer -- small, fast, but difficult fitting – Crossbar -- easy fitting but large and slow 52
Problems with CPLDs • Pin locking – Small changes, and certainly large ones, can cause the fitter to pick a different allocation of I/O blocks and pinout – Locking too early may make the resulting circuit slower or not fit at all • Running out of resources – Design may “blow up” if it doesn’t all fit on a single device – On-chip interconnect resources are much richer than off- chip – Larger devices are exponentially more expensive 53
Assignments • Read section 9.6 54

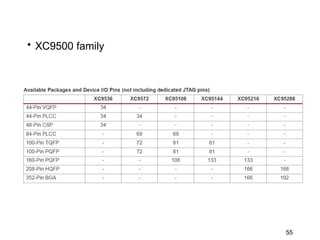

• XC9500 family 55

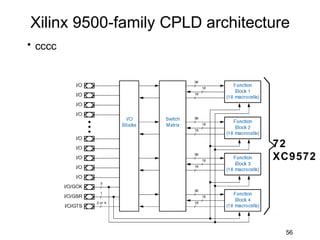

Xilinx 9500-family CPLD architecture • cccc 72 XC9572 56

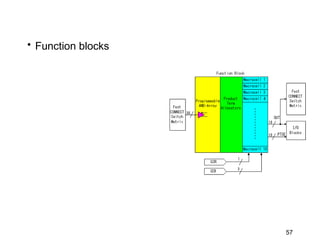

• Function blocks 57
• Prod term alloc 58

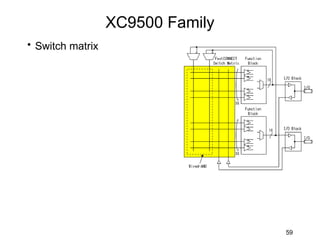

XC9500 Family • Switch matrix 59
