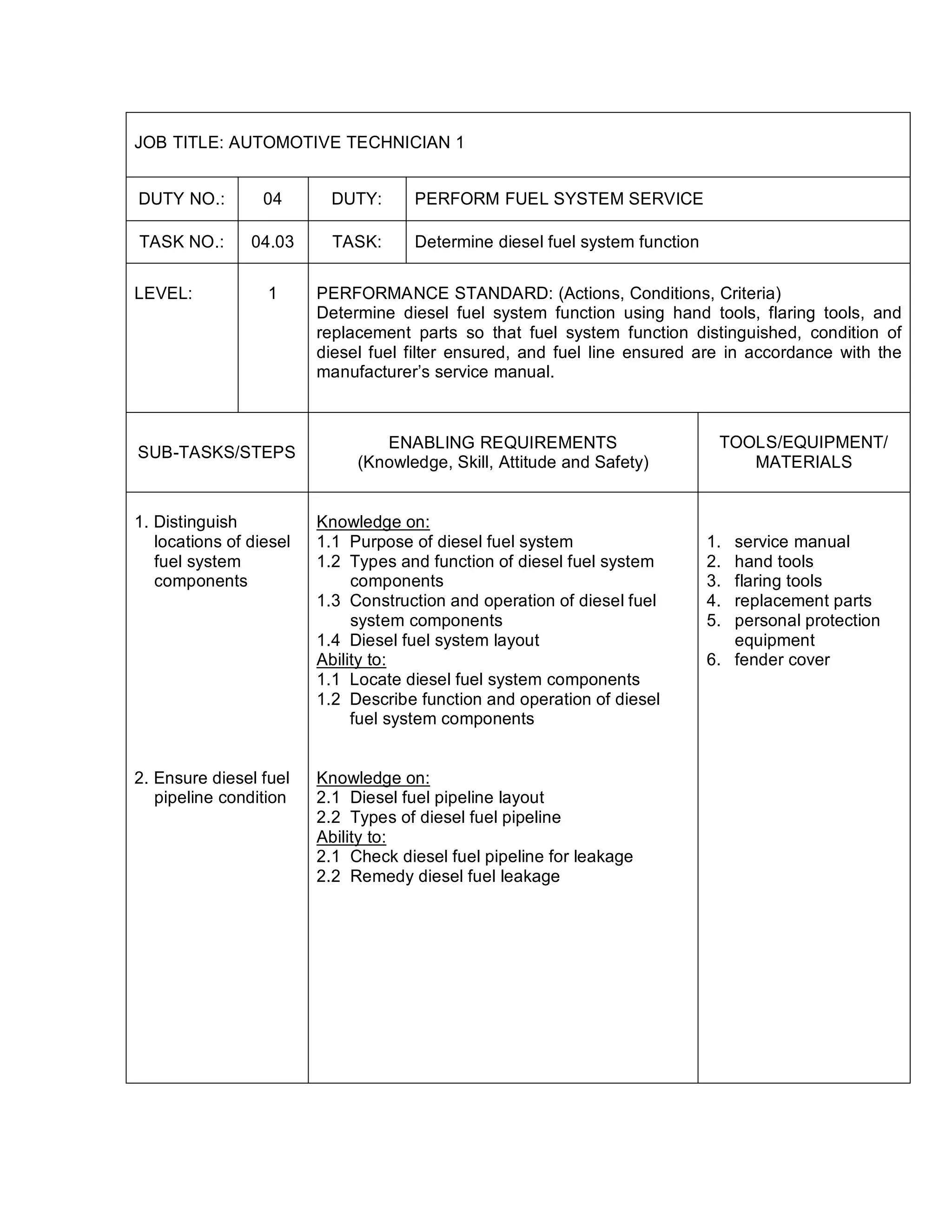

1. JOB TITLE: AUTOMOTIVE TECHNICIAN 1
DUTY NO.: 04 DUTY: PERFORM FUEL SYSTEM SERVICE
TASK NO.: 04.03 TASK: Determine diesel fuel system function
LEVEL: 1 PERFORMANCE STANDARD: (Actions, Conditions, Criteria)
Determine diesel fuel system function using hand tools, flaring tools, and
replacement parts so that fuel system function distinguished, condition of
diesel fuel filter ensured, and fuel line ensured are in accordance with the
manufacturer s service manual.
SUB-TASKS/STEPS
ENABLING REQUIREMENTS
(Knowledge, Skill, Attitude and Safety)
TOOLS/EQUIPMENT/
MATERIALS
1. Distinguish
locations of diesel
fuel system
components
2. Ensure diesel fuel
pipeline condition
Knowledge on:
1.1 Purpose of diesel fuel system
1.2 Types and function of diesel fuel system
components
1.3 Construction and operation of diesel fuel
system components
1.4 Diesel fuel system layout
Ability to:
1.1 Locate diesel fuel system components
1.2 Describe function and operation of diesel
fuel system components
Knowledge on:
2.1 Diesel fuel pipeline layout
2.2 Types of diesel fuel pipeline
Ability to:
2.1 Check diesel fuel pipeline for leakage
2.2 Remedy diesel fuel leakage
1. service manual
2. hand tools
3. flaring tools
4. replacement parts
5. personal protection
equipment
6. fender cover

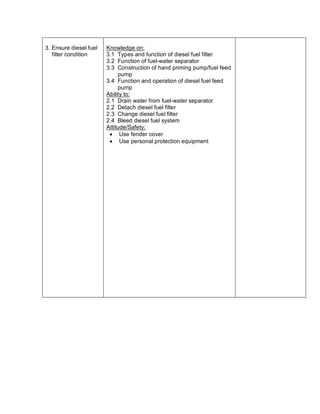

2. 3. Ensure diesel fuel
filter condition
Knowledge on:
3.1 Types and function of diesel fuel filter
3.2 Function of fuel-water separator
3.3 Construction of hand priming pump/fuel feed
pump
3.4 Function and operation of diesel fuel feed
pump
Ability to:
2.1 Drain water from fuel-water separator
2.2 Detach diesel fuel filter
2.3 Change diesel fuel filter
2.4 Bleed diesel fuel system
Attitude/Safety:
· Use fender cover
· Use personal protection equipment
