L angles, also known as angle brackets or steel angle bars, are used in various industries such as framing. They are most commonly made of hot-rolled steel or high-strength low alloy steel. This document provides information on L angle sizes and weights, tolerances, chemical compositions, and mechanical properties from an Indian steel company. Standard L angle sizes range from 19x19x3 mm to 150x150x20 mm and weights range from 0.860 kg/sqm to 44.1 kg/sqm.
L angle
- 1. LAngle The legs ofthe “L” are often equal or unequal long . L angles are used for various purposes during a number of industries. Framing is one among the foremost common uses for L angles, but L angles also are used for brackets, trim, reinforcements, and lots of other uses. L Angle is additionally referred to as angle bracket or steel angle bar. It's basically manufactured by hot-rolled steel or high-strength low steel . Website: https://www.shreejisteelcorp.com/

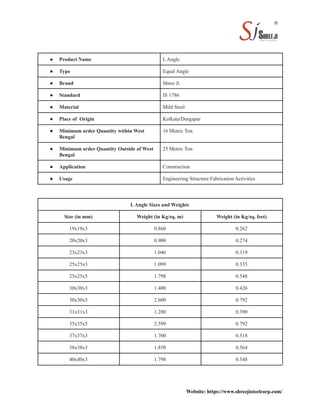

- 2. ● Product NameL Angle ● Type Equal Angle ● Brand Shree Ji ● Standard IS 1786 ● Material Mild Steel ● Place of Origin Kolkata/Durgapur ● Minimum order Quantity within West Bengal 16 Metric Ton ● Minimum order Quantity Outside of West Bengal 25 Metric Ton ● Application Construction ● Usage Engineering Structure Fabrication Activities LAngle Sizes and Weights Size (in mm) Weight (in Kg/sq. m) Weight (in Kg/sq. feet) 19x19x3 0.860 0.262 20x20x3 0.900 0.274 23x23x3 1.046 0.319 25x25x3 1.099 0.335 25x25x5 1.798 0.548 30x30x3 1.400 0.426 30x30x5 2.600 0.792 31x31x3 1.280 0.390 35x35x5 2.599 0.792 37x37x3 1.700 0.518 38x38x3 1.850 0.564 40x40x3 1.798 0.548 Website: https://www.shreejisteelcorp.com/
- 3. 40x40x5 3.002 0.915 40x40x63.498 1.066 LAngle Sizes and Weights Size (in mm) Weight (in Kg/sq. m) Weight (in Kg/sq. feet) 45x45x5 3.380 1.030 50x50x5 3.799 1.158 50x50x6 4.502 1.372 60x60x5 4.501 1.372 60x60x6 5.399 1.645 60x60x8 7.000 2.133 65x65x5 4.900 1.493 65x65x6 5.798 1.767 65x65x8 7.697 2.346 65x65x10 9.399 2.864 70x70x5 5.300 1.615 70x70x5 6.300 1.920 75x75x5 5.700 1.737 75x75x6 6.800 2.072 75x75x8 8.900 2.712 75x75x10 11.000 3.352 75x75x12 12.200 3.718 80x80x6 7.300 2.224 80x80x8 9.600 2.925 80x80x10 11.800 3.596 90x90x6 8.200 2.499 90x90x8 10.801 3.292 Website: https://www.shreejisteelcorp.com/

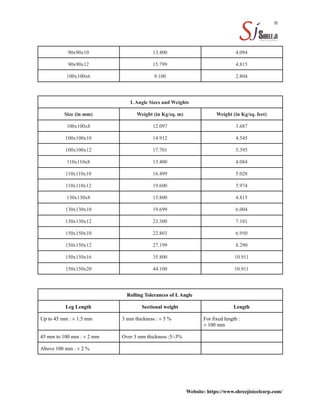

- 4. 90x90x10 13.400 4.094 90x90x1215.799 4.815 100x100x6 9.100 2.804 LAngle Sizes and Weights Size (in mm) Weight (in Kg/sq. m) Weight (in Kg/sq. feet) 100x100x8 12.097 3.687 100x100x10 14.912 4.545 100x100x12 17.701 5.395 110x110x8 13.400 4.084 110x110x10 16.499 5.028 110x110x12 19.600 5.974 130x130x8 15.800 4.815 130x130x10 19.699 6.004 130x130x12 23.300 7.101 150x150x10 22.803 6.950 150x150x12 27.199 8.290 150x150x16 35.800 10.911 150x150x20 44.100 10.911 Rolling Tolerances of LAngle Leg Length Sectional weight Length Up to 45 mm : ± 1.5 mm 3 mm thickness : ± 5 % For fixed length : ± 100 mm 45 mm to 100 mm : ± 2 mm Over 3 mm thickness :5/-3% Above 100 mm : ± 2 % Website: https://www.shreejisteelcorp.com/

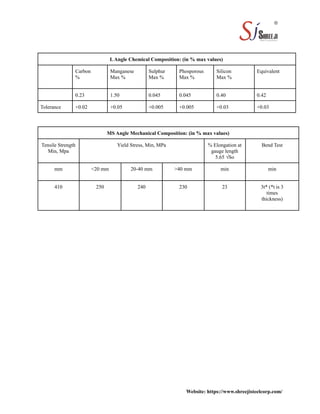

- 5. LAngle Chemical Composition:(in % max values) Carbon % Manganese Max % Sulphur Max % Phosporous Max % Silicon Max % Equivalent 0.23 1.50 0.045 0.045 0.40 0.42 Tolerance +0.02 +0.05 +0.005 +0.005 +0.03 +0.03 MS Angle Mechanical Composition: (in % max values) Tensile Strength Min, Mpa Yield Stress, Min, MPa % Elongation at gauge length 5.65 √Ѕo Bend Test mm <20 mm 20-40 mm >40 mm min min 410 250 240 230 23 3t* (*t is 3 times thickness) Website: https://www.shreejisteelcorp.com/
