1. K U D O SR E F R E S H I N G I N N O V A T I O N
INSPIRE
BATH SCREEN S

2. M A D E I N G R E A T B R I T A I N
B Y A G R E A T B R I T I S H C O M P A N Y
K U D O S
R E F R E S H I N G I N N O V A T I O N
The best of both worlds awaits…
prepare to be inspired
Over-bath showering has long been considered a compromise of practicality over style
and performance, but not anymore. The KUDOS INSPIRE collection makes no compromise.
Each product is engineered to be suitable for use with high performance shower systems, is
guaranteed for life and their minimalist frameless design will complement any design of bathroom.
You can now relax in the comfort only a bath can provide, yet enjoy the refreshing invigorating
pleasure of a shower without sacrificing performance or appearance.
For over 13 years KUDOS have built a reputation for quality, style and value,
the INSPIRE collection of bath screens not only maintains that tradition but sets new standards.

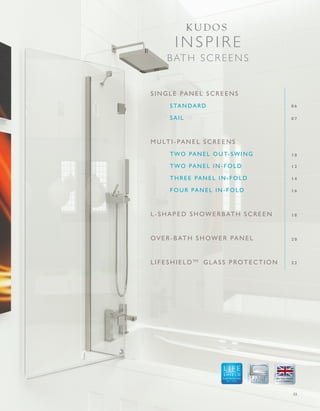

3. 03
SINGLE PANEL SCREENS
STANDARD
SAIL
MULTI-PANEL SCREENS
TWO PANEL OUT-SWING
TWO PANEL IN-FOLD
THREE PANEL IN-FOLD
FOUR PANEL IN-FOLD

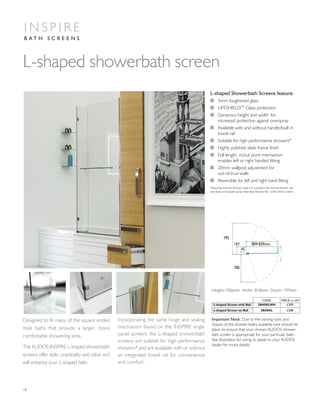

L-SHAPED SHOWERBATH SCREEN
OV ER-BATH SHOWER PA NEL
LIFESHIELDTM
GLA SS PROTECTION
0 6
0 7
1 0
1 2
1 4
1 6
1 8
2 0
2 2
GLASS PROTECTION
A LIFETIME
OF QUALITY
IN SPIRE
B ATH SCREENS
K U D O S

4. 04

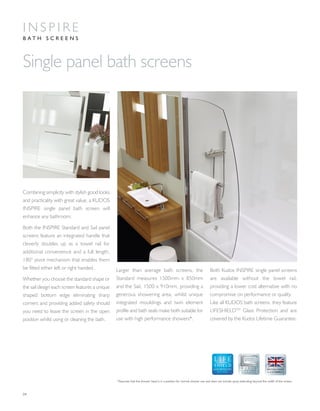

Single panel bath screens
Combining simplicity with stylish good looks
and practicality with great value, a KUDOS
INSPIRE single panel bath screen will
enhance any bathroom.
Both the INSPIRE Standard and Sail panel
screens feature an integrated handle that
cleverly doubles up as a towel rail for
additional convenience and a full length,
180° pivot mechanism that enables them
be fitted either left or right handed.
Whether you choose the standard shape or
the sail design each screen features a unique
shaped bottom edge eliminating sharp
corners and providing added safety should
you need to leave the screen in the open
position whilst using or cleaning the bath.
Larger than average bath screens, the
Standard measures 1500mm x 850mm
and the Sail, 1500 x 910mm, providing a
generous showering area, whilst unique
integrated mouldings and twin element
profile and bath seals make both suitable for
use with high performance showers*.
Both Kudos INSPIRE single panel screens
are available without the towel rail,
providing a lower cost alternative with no
compromise on performance or quality.
Like all KUDOS bath screens, they feature
LIFESHIELDTM
Glass Protection and are
covered by the Kudos Lifetime Guarantee.
*Assumes that the shower head is in a position for normal shower use and does not include spray extending beyond the width of the screen.
I N S P I R E
B A T H S C R E E N S
GLASS PROTECTION
A LIFETIME
OF QUALITY

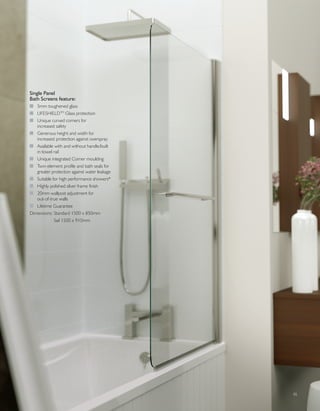

5. 05
Single Panel
Bath Screens feature:
I 5mm toughened glass
I LIFESHIELDTM
Glass protection
I Unique curved corners for
increased safety
I Generous height and width for
increased protection against overspray
I Available with and without handle/built
in towel rail
I Unique integrated Corner moulding
I Twin element profile and bath seals for
greater protection against water leakage
I Suitable for high performance showers*
I Highly polished silver frame finish
I 20mm wallpost adjustment for
out-of-true walls
I Lifetime Guarantee
Dimensions: Standard 1500 x 850mm
Sail 1500 x 910mm

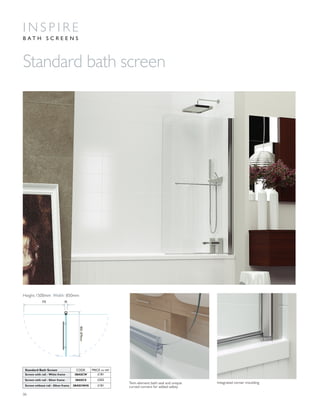

6. 06
Twin element bath seal and unique
curved corners for added safety
Integrated corner moulding
Standard bath screen
I N S P I R E
B A T H S C R E E N S
850-870mm
775 45
Height:1500mm Width: 850mm
Standard Bath Screen CODE PRICE inc VAT
Screen with rail - White frame 3BASCW £181
Screen with rail - Silver frame 3BASCS £202
Screen without rail - Silver frame 3BASCNHS £181

7. 07
Handle/Towel Rail Chrome capped wall posts

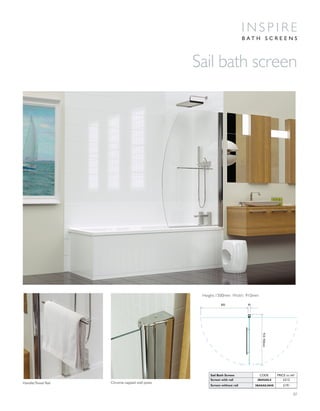

Sail bath screen
I N S P I R E
B A T H S C R E E N S
910-930mm
835 45
Height:1500mm Width: 910mm
Sail Bath Screen CODE PRICE inc VAT
Screen with rail 3BASAILS £212
Screen without rail 3BASAILNHS £191

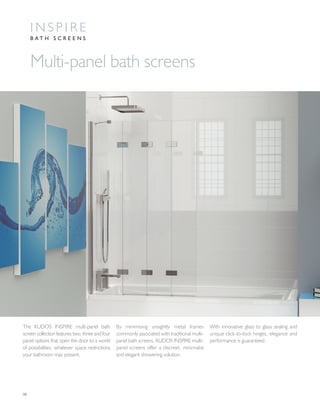

8. 08
The KUDOS INSPIRE multi-panel bath
screen collection features two, three and four
panel options that open the door to a world
of possibilities, whatever space restrictions
your bathroom may present.
By minimising unsightly metal frames
commonly associated with traditional multi-
panel bath screens, KUDOS INSPIRE multi-
panel screens offer a discreet, minimalist
and elegant showering solution.
With innovative glass to glass sealing and
unique click-to-lock hinges, elegance and
performance is guaranteed.
Multi-panel bath screens
I N S P I R E
B A T H S C R E E N S

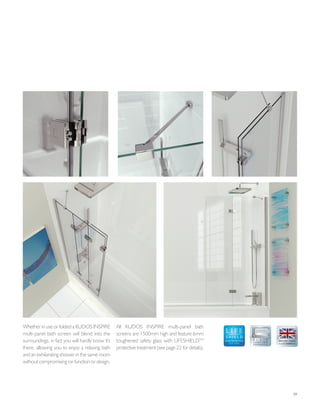

9. Whether in use or folded a KUDOS INSPIRE
multi-panel bath screen will blend into the
surroundings, in fact you will hardly know it's
there, allowing you to enjoy a relaxing bath
and an exhilarating shower in the same room
without compromising on function or design.
All KUDOS INSPIRE multi-panel bath
screens are 1500mm high and feature 6mm
toughened safety glass with LIFESHIELDTM
protective treatment (see page 22 for details).
09
GLASS PROTECTION
A LIFETIME
OF QUALITY

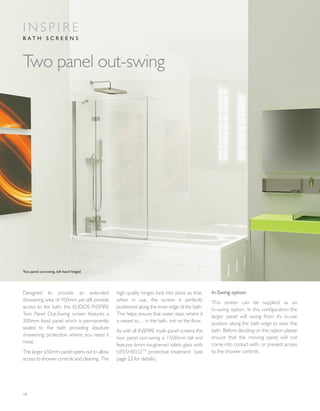

10. 10
Designed to provide an extended
showering area of 950mm yet still provide
access to the bath, the KUDOS INSPIRE
Two Panel Out-Swing screen features a
300mm fixed panel which is permanently
sealed to the bath providing absolute
showering protection where you need it
most.
The larger 650mm panel opens out to allow
access to shower controls and cleaning. The
high quality hinges lock into place so that,
when in use, the screen is perfectly
positioned along the inner edge of the bath.
This helps ensure that water stays where it
is meant to… in the bath, not on the floor.
As with all INSPIRE multi-panel screens the
two panel out-swing is 1500mm tall and
features 6mm toughened safety glass with
LIFESHIELDTM
protective treatment (see
page 22 for details).
In-Swing option:
This screen can be supplied as an
in-swing option. In this configuration the
larger panel will swing from it's in-use
position along the bath edge to over the
bath. Before deciding on this option please
ensure that the moving panel will not
come into contact with, or prevent access
to the shower controls.
Two panel out-swing
I N S P I R E
B A T H S C R E E N S
Two panel out-swing, left hand hinged

11. 11

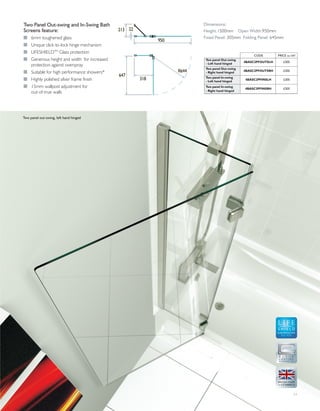

Two Panel Out-swing and In-Swing Bath
Screens feature:
I 6mm toughened glass
I Unique click-to-lock hinge mechanism
I LIFESHIELDTM
Glass protection
I Generous height and width for increased
protection against overspray
I Suitable for high performance showers*
I Highly polished silver frame finish
I 15mm wallpost adjustment for
out-of-true walls
Two panel out-swing, left hand hinged
GLASS PROTECTION
A LIFETIME
OF QUALITY
950
22213
318
647
R644
CODE PRICE inc VAT
Two panel Out-swing
- Left hand hinged 4BASC2PFOUTSLH £305
Two panel Out-swing
- Right hand hinged
4BASC2PFOUTSRH £305
Two panel In-swing
- Left hand hinged
4BASC2PFINSLH £305
Two panel In-swing
- Right hand hinged
4BASC2PFINSRH £305
Dimensions:
Height:1500mm Open Width:950mm
Fixed Panel: 305mm Folding Panel: 645mm

12. 12

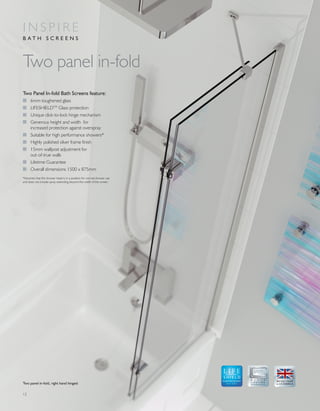

Two Panel In-fold Bath Screens feature:
I 6mm toughened glass
I LIFESHIELDTM
Glass protection
I Unique click-to-lock hinge mechanism
I Generous height and width for
increased protection against overspray
I Suitable for high performance showers*
I Highly polished silver frame finish
I 15mm wallpost adjustment for
out-of-true walls
I Lifetime Guarantee
I Overall dimensions 1500 x 875mm
Two panel in-fold
I N S P I R E
B A T H S C R E E N S
GLASS PROTECTION
A LIFETIME
OF QUALITY
*Assumes that the shower head is in a position for normal shower use
and does not include spray extending beyond the width of the screen.
Two panel in-fold, right hand hinged

13. 13

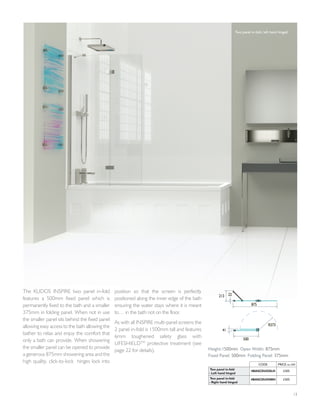

The KUDOS INSPIRE two panel in-fold
features a 500mm fixed panel which is
permanently fixed to the bath and a smaller
375mm in folding panel. When not in use
the smaller panel sits behind the fixed panel
allowing easy access to the bath allowing the
bather to relax and enjoy the comfort that
only a bath can provide. When showering
the smaller panel can be opened to provide
a generous 875mm showering area and the
high quality, click-to-lock hinges lock into
position so that the screen is perfectly
positioned along the inner edge of the bath
ensuring the water stays where it is meant
to… in the bath not on the floor.
As with all INSPIRE multi-panel screens the
2 panel in-fold is 1500mm tall and features
6mm toughened safety glass with
LIFESHIELDTM
protective treatment (see
page 22 for details).
500
41
R373
875
22213
Height:1500mm Open Width: 875mm
Fixed Panel: 500mm Folding Panel: 375mm
CODE PRICE inc VAT
Two panel in-fold
- Left hand hinged
4BASCDUOSLH £305
Two panel in-fold
- Right hand hinged
4BASCDUOSRH £305
Two panel in-fold, left hand hinged

14. 14

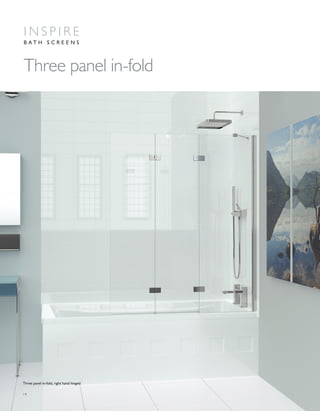

Three panel in-fold
I N S P I R E
B A T H S C R E E N S
Three panel in-fold, right hand hinged

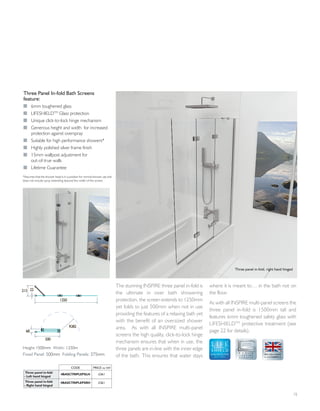

15. The stunning INSPIRE three panel in-fold is
the ultimate in over bath showering
protection, the screen extends to 1250mm
yet folds to just 500mm when not in use
providing the features of a relaxing bath yet
with the benefit of an oversized shower
area. As with all INSPIRE multi-panel
screens the high quality, click-to-lock hinge
mechanism ensures that when in use, the
three panels are in-line with the inner edge
of the bath. This ensures that water stays
where it is meant to… in the bath not on
the floor.
As with all INSPIRE multi-panel screens the
three panel in-fold is 1500mm tall and
features 6mm toughened safety glass with
LIFESHIELDTM
protective treatment (see
page 22 for details).
15
Three Panel In-fold Bath Screens
feature:
I 6mm toughened glass
I LIFESHIELDTM
Glass protection
I Unique click-to-lock hinge mechanism
I Generous height and width for increased
protection against overspray
I Suitable for high performance showers*
I Highly polished silver frame finish
I 15mm wallpost adjustment for
out-of-true walls
I Lifetime Guarantee
GLASS PROTECTION
A LIFETIME
OF QUALITY
1250
22213
68
500
R382
Height:1500mm Width: 1250m
Fixed Panel: 500mm Folding Panels: 375mm
*Assumes that the shower head is in a position for normal shower use and
does not include spray extending beyond the width of the screen.
Three panel in-fold, right hand hinged
CODE PRICE inc VAT
Three panel in-fold
- Left hand hinged
4BASCTRIPLEPSLH £361
Three panel in-fold
- Right hand hinged
4BASCTRIPLEPSRH £361

16. 16
GLASS PROTECTION
A LIFETIME
OF QUALITY

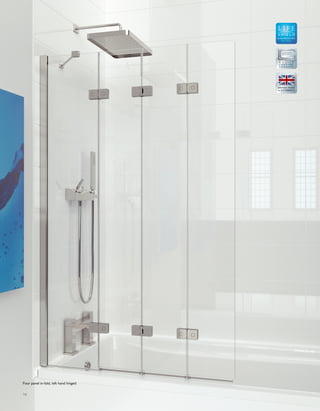

Four panel in-fold, left hand hinged

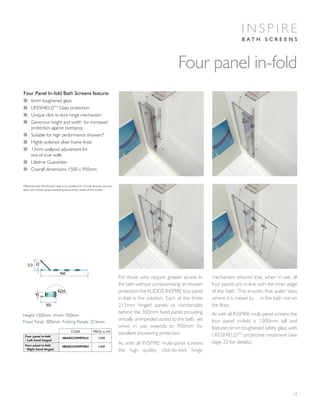

17. For those who require greater access to
the bath without compromising on shower
protection the KUDOS INSPIRE four panel
in-fold is the solution. Each of the three
215mm hinged panels sit comfortably
behind the 300mm fixed panel providing
virtually unimpeded access to the bath, yet
when in use extends to 950mm for
excellent showering protection
As with all INSPIRE multi-panel screens
the high quality, click-to-lock hinge
mechanism ensures that, when in use, all
four panels are in-line with the inner edge
of the bath. This ensures that water stays
where it is meant to… in the bath not on
the floor.
As with all INSPIRE multi-panel screens the
four panel in-fold is 1500mm tall and
features 6mm toughened safety glass with
LIFESHIELDTM
protective treatment (see
page 22 for details).
17
Four Panel In-fold Bath Screens feature:
I 6mm toughened glass
I LIFESHIELDTM
Glass protection
I Unique click-to-lock hinge mechanism
I Generous height and width for increased
protection against overspray
I Suitable for high performance showers*
I Highly polished silver frame finish
I 15mm wallpost adjustment for
out-of-true walls
I Lifetime Guarantee
I Overall dimensions 1500 x 950mm
Four panel in-fold
I N S P I R E
B A T H S C R E E N S
305
95
950
213 22
R224
Height:1500mm Width: 950mm
Fixed Panel: 305mm Folding Panels: 215mm
*Assumes that the shower head is in a position for normal shower use and
does not include spray extending beyond the width of the screen.
CODE PRICE inc VAT
Four panel in-fold
- Left hand hinged
4BASCCOMPSLH £408
Four panel in-fold
- Right hand hinged
4BASCCOMPSRH £408

18. Designed to fit many of the square ended
style baths that provide a larger, more
comfortable showering area.
The KUDOS INSPIRE L-shaped showerbath
screens offer style, practicality and value and
will enhance your L-shaped bath.
Important Note: Due to the varying sizes and
shapes of the shower-baths available care should be
taken to ensure that your chosen KUDOS shower-
bath screen is appropriate for your particular bath.
See illustration for sizing or speak to your KUDOS
dealer for more details.
Incorporating the same hinge and sealing
mechanism found on the INSPIRE single
panel screens the L-shaped showerbath
screens are suitable for high performance
showers* and are available with or without
an integrated towel rail for convenience
and comfort.
18
L-shaped showerbath screen
I N S P I R E
B A T H S C R E E N S
795
197
700
45
809-829mm
L-shaped Showerbath Screens feature:
I 5mm toughened glass
I LIFESHIELDTM
Glass protection
I Generous height and width for
increased protection against overspray
I Available with and without handle/built in
towel rail
I Suitable for high performance showers*
I Highly polished silver frame finish
I Full length, in/out pivot mechanism
enables left or right handed fitting
I 20mm wallpost adjustment for
out-of-true walls
I Reversible for left and right hand fitting
*Assumes that the shower head is in a position for normal shower use
and does not include spray extending beyond the width of the screen.
CODE PRICE inc VAT
L-shaped Screen with Rail 3BASKLWH £309
L-shaped Screen no Rail 3BASKL £288
Height:1556mm Width: 810mm Depth: 197mm

19. 19
GLASS PROTECTION
A LIFETIME
OF QUALITY

20. 20
Designed for use in the hospitality industry the KUDOS Over-bath
shower panel delivers the ultimate protection from water spillage
and is used in many hotels throughout the world. Its robust
construction makes it ideal for use even with the most powerful
shower systems whilst its stylish and attractive design will enhance
any bathroom.
The integrated stainless steel shower rail ensures that the shower
curtain is correctly positioned to provide complete protection along
the length of the bath, preventing dangerous and damaging water
spillage. The bowed rail provides for greater space around the
bather and helps keep the shower curtain against the bath edge
reducing “billowing” when in use.
Simple to install as new or as a retro-fit, the fixed panel features
8mm toughened glass which is 1500mm high x 350mm wide and
is permanently sealed to the bath edge and the wall, providing a
watertight barrier at the showering end of the bath.
Over-bath shower panel
I N S P I R E
B A T H S C R E E N S

21. Overall panel dimension:
1556mm x 350mm (including top fitting)
Product adjustment allows (337-357mm)
Suitable for all straight edged
baths up to 2040mm (Cut rail to suit)
1200 x 800mm corner rail available
(Cut 800mm side to suit bath width)
Minimum required height above bath
edge is 1600mm
Over-bath Shower panel
features and benefits include:
I Prevents water spillage between shower
curtain and bath end
I Bowed rail for greater comfort and space
I Reversible for left or right hand fitting
I Simple to install and features adjustment
for out of true walls
I Suitable for use with standard 1800mm
drop shower curtain (Not supplied)
I Solid brass chrome plated fittings
I Lifetime Guarantee
GLASS PROTECTION
A LIFETIME
OF QUALITY
2040mm MAX
Trim to suit recess width
337-357
158
337-357
1214 - 1234
158
Trimtosuitbathwidth
782
max
CODE PRICE inc VAT
Bath Shower Panel Recess 5OBSPBRR £212
Bath Shower Panel Corner 5OBSPBCR £212
21

22. 22
LIFESHIELDTM
GLASS PROTECTION
Easy to clean, easy to maintain
KUDOS has a reputation for designing
and manufacturing beautiful shower
enclosures, wetroom panels and bath
screens. And now, with Lifeshield as
standard, you’ll find keeping your
KUDOS INSPIRE bath screen looking
as good as new is easy.
Only available from KUDOS,
Lifeshield’s unique system helps to repel
dirt and makes cleaning quick and easy
– maintaining your KUDOS product in
pristine condition for years to come.
How it works
Lifeshield uses the very latest nano-
technology to deliver a unique bond
with the glass that leaves the surface
totally smooth and helps to resist the
build-up of unsightly limescale and soap
deposits. Totally clear, UV stable and
extremely durable, Lifeshield won’t peel
or flake and unlike some other systems
you don’t need any specialist cleaners or
top-up products to maintain its dirt
repellent properties.
The first permanent protection system for glass
comes as standard on all KUDOS products
Permanent coating
Unlike many other glass protection
systems, Lifeshield won’t just last for a
few months – it offers glass protection
for life. KUDOS have built a reputation
for precision engineering and quality
manufacture that’s why Lifeshield is one
of the strongest and most durable
systems available.
Guaranteed for life
Every KUDOS product comes with our
no quibble Lifetime Guarantee to give
you complete peace of mind. And as
part of our commitment to delivering
the very best shower products,
LIFESHIELDTM
Glass Protection is
guaranteed for life too.
Limescale and soap deposits
adhere to untreated glass which
can cause damage, leaving the glass
looking marked and blemished.
KUDOS LIFESHIELDTM
provides
a non-stick coating to the glass
preventing unsightly and
potentially damaging deposits
adhering to the surface.
L LIFESHIELDTM
Coated Glass L Uncoated Glass
GLASS PROTECTION
A LIFETIME
OF QUALITY
I N S P I R E
B A T H S C R E E N S

23. 23
PRODUCT AVAILABILITY:
KUDOS products are available from Specialist Bathroom Retailers and Plumbers
Merchants, for details of your nearest stockist please refer to our website.
ERRORS & OMISSIONS:
Whilst every effort is taken to provide accurate information, the details contained
in this brochure are for guidance purposes. Dimensions shown are nominal and
product specification is subject to change without notice. References to Silver relate
to colour only.
IMAGE REPRODUCTION:
All images contained in this brochure are the copyright of KUDOS Shower Products
Ltd and may not be reproduced in any form without prior written consent.
GENERAL USAGE:
References relating to product suitability for use with power showers assume that
the showerhead is positioned appropriately for normal shower use. Dependent on
the position of the showerhead and the bather, overspray may be experienced
when using door-less, walk-in enclosures.
INSTALLATION:
All KUDOS products are supplied with full fitting instructions. In all cases we
recommend suitably qualified persons fit them and installation instructions are followed.
Shower trays should be installed level, prior to tiling and sealed to adjacent walls
before fitting the shower door/enclosure. Shower enclosures should be fitted on
to tiled walls rather than fitted first and tiled up to. KUDOS shower enclosure are
sized to fit the appropriate shower tray following the correct installation procedure.
LIFETIME GUARANTEE:
All KUDOS enclosures and screens carry a lifetime guarantee against faulty
workmanship or materials excluding consumables (wheel bearings are limited to four
years and all seals/gaskets limited to two years). The guarantee does not cover normal
wear and tear, damage caused by misuse, limescale and mildew or problems arising
from faulty installation. The guarantee is valid only for the original purchaser and is not
transferable. Proof of purchase may be required for a claim under guarantee. The
guarantee covers the product only; KUDOS cannot accept responsibility for
subsequential loss or damage. For full details of our guarantee please visit our website.
Kudos Shower Products Limited
Elmsfield Park · Holme · Cumbria LA6 1RJ
T: +44 (0) 1539 564040 F: +44 (0) 1539 564141
E: info@kudosshowers.co.uk
K U D O SR E F R E S H I N G I N N O V A T I O N
THANK YOU
FOR YOUR INTEREST
IN KUDOS PRODUCTS
DISCOVER
KUDOS SHOWER
ENCLOSURES
In addition to the INSPIRE collection of Bath
Screens, KUDOS produce three stunning
Shower Enclosure ranges.
The ORIGINAL, INFINITE and ULTIMATE
ranges offer a stunning collection of showering
solutions. From hinged, pivot, bifold and sliding
doors to modern walk-in enclosures and wet
room panels, there is a KUDOS shower
awaiting your bathroom.
Download the KUDOS Shower Enclosures
catalogue, to discover more.
For more information and to download
other KUDOS catalogues, scan the code
or visit www.kudosshowers.co.uk
Alternatively, call us on 01539 564040
to request a copy to be posted to you.
K U D O SR E F R E S H I N G I N N O V A T I O N
SHOWER
ENCLOSURES

24. KUDOS SHOWER PRODUCTS LIMITED
ELMSFIELD PARK · HOLME · CUMBRIA LA6 1RJ
T: +44 (0) 1539 564040 F: +44 (0) 1539 564141
E: info@kudosshowers.co.uk www.kudosshowers.co.uk
KDS-INS:OCT14-V2
K U D O SR E F R E S H I N G I N N O V A T I O N
