AuditGard
LA GARD
LA GARD 3125
LA GARD 3190
LA GARD 3750-K
Small and large battery box
01 - Electronic Combination LocksKaba Mauer GmbH
Kaba Group
The Kaba Group is one of the world‘s leading
players in the security industry. An interna-
tionally active, listed company, it employs
around 7,700 staff in more than 60
countries.
Kaba provides innovative, comprehensive
access control solutions for buildings, facili-
ties and sites as well as solutions for staff
and enterprise data collection which meet
client‘s needs for security, organization and
convenience. The company is a key expert
and technology leader for a range of security
solutions. Kaba can look back on more than
145 years of tradition.
Within the Kaba Group Kaba Mauer stands for
safe locks and high security locks. The wide
range of products and the variety of versions
characterise the product spectrum. Besides
their own products Kaba Mauer markets
today also the brands Kaba, Kaba Mas and La
Gard.
Kaba Mauer offers a unique range of prod-
ucts.
Kaba Mauer
Companies and institutions throughout the world rely on Kaba Mauer. They
know and appreciate the quality and wide range of our products and solu-
tions.
Kaba Mauer has become one of the world‘s leading manufacturers of safe
locks and components because, throughout our over 140 years, we have
married long experience in the field with the latest manufacturing technol-
ogy and the most innovative of designs. The result has been the develop-
ment of a range of products, all made in Germany, and unequalled in quality,
design and price. Entrust the care of your safety to us!
At home worldwide
Combining tradition and innovation successfully is not easy to achieve. That
we have succeeded is proven by the long history of our company since its
foundation in 1864 and by the loyalty of our customers, who have come to
rely on the quality of our products. Even if you are based far away from us:
no problem, we are at home worldwide.
New commitment in Bad Berka
Since the re-unification of Germany, Bad Berka has proved to be an ideal,
modern production site for our demanding range of products. The workforce
is highly skilled, based on the former watch making industry in the vicinity.
Production has been launched in 1993 using the latest state of the art
technology in tool making, in the pressroom, the component production,
the electronic components production as well as in the bolt work and lock
assembly. Meanwhile, around 40 people are in charge of precise and innova-
tive products of Kaba Mauer at this site.
With our heart and roots in Heiligenhaus
However, the heart of Kaba Mauer operations still lies in Heiligenhaus - the
centre of Germany‘s lock industry. In our traditional corporate headquarters
you will find approximately 65 people working not only in the development,
administration and sales departments but also on the shop floor where
production is run with great commitment and care. Highly motivated experts
are in charge of the assembly and testing of the locks and also the produc-
tion of keys, hinges and fittings.

4. 09/2010© Kaba Mauer GmbH Heiligenhaus
4
01 - Electronic Combination Locks

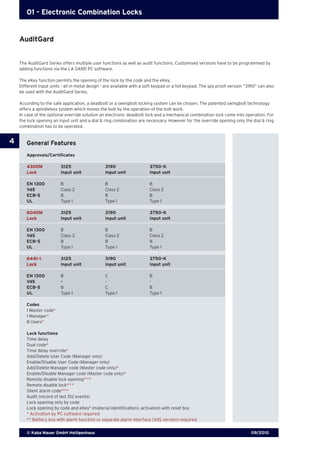

The AuditGard Series offers multiple user functions as well as audit functions. Customised versions have to be programmed by
adding functions via the LA GARD PC software.
The eKey function permits the opening of the lock by the code and the eKey.
Different input units - all in metal design - are available with a soft keypad or a foil keypad. The spy proof version “3190” can also
be used with the AuditGard Series.
According to the safe application, a deadbolt or a swingbolt locking system can be chosen. The patented swingbolt technology
offers a spindleless system which moves the bolt by the operation of the bolt work.
In case of the optional override solution an electronic deadbolt lock and a mechanical combination lock come into operation. For
the lock opening an input unit and a dial & ring combination are necessary. However for the override opening only the dial & ring
combination has to be operated.
General Features
Approvals/Certificates
Codes
1 Master code*
1 Manager*
8 Users*
Lock functions
Time delay
Dual code*
Time delay override*
Add/Delete User Code (Manager only)
Enable/Disable User Code (Manager only)
Add/Delete Manager code (Master code only)*
Enable/Disable Manager code (Master code only)*
Remote disable lock opening*/
**
Remote disable lock*/
**
Silent alarm code*/
**
Audit (record of last 512 events)
Lock opening only by code
Lock opening by code and eKeyII
(material identification), activation with reset box
* Activation by PC software required
** Battery box with alarm function or separate alarm interface (VdS version) required
4300M 3125 3190 3750-K
Lock Input unit Input unit Input unit
EN 1300 B B B
VdS Class 2 Class 2 Class 2
ECB-S B B B
UL Type 1 Type 1 Type 1
6040M 3125 3190 3750-K
Lock Input unit Input unit Input unit
EN 1300 B B B
VdS Class 2 Class 2 Class 2
ECB-S B B B
UL Type 1 Type 1 Type 1
6441-1 3125 3190 3750-K
Lock Input unit Input unit Input unit
EN 1300 B C B
VdS - - -
ECB-S B C B
UL Type 1 Type 1 Type 1
AuditGard

5. 09/2010© Kaba Mauer GmbH Heiligenhaus
5

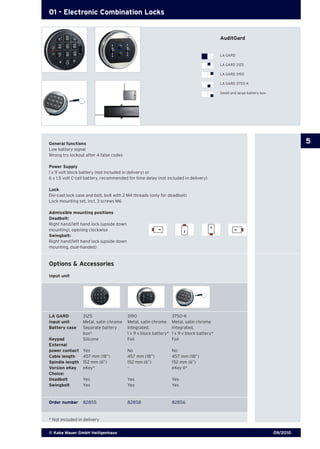

01 - Electronic Combination Locks
Options & Accessories
Input unit
General functions
Low battery signal
Wrong try lockout after 4 false codes
Power Supply
1 x 9 volt block battery (not included in delivery) or
6 x 1.5 volt C-cell battery, recommended for time delay (not included in delivery)
Lock
Die-cast lock case and bolt, bolt with 2 M4 threads (only for deadbolt)
Lock mounting set, incl. 3 screws M6
Admissible mounting positions
Deadbolt:
Right hand/left hand lock (upside down
mounting), opening clockwise
Swingbolt:
Right hand/left hand lock (upside down
mounting, dual-handed)
LA GARD 3125 3190 3750-K
Input unit Metal, satin chrome Metal, satin chrome Metal, satin chrome
Battery case Separate battery Integrated, Integrated,
box* 1 x 9 v block battery* 1 x 9 v block battery*
Keypad Silicone Foil Foil
External
power contact Yes No No
Cable length 457 mm (18”) 457 mm (18”) 457 mm (18”)
Spindle length 152 mm (6”) 152 mm (6”) 152 mm (6”)
Version eKey eKey* - eKey II*
Choice:
Deadbolt Yes Yes Yes
Swingbolt Yes Yes Yes
Order number 82855 82858 82856
* Not included in delivery
AuditGard
LA GARD
LA GARD 3125
LA GARD 3190
LA GARD 3750-K
Small and large battery box

6. 09/2010© Kaba Mauer GmbH Heiligenhaus
6

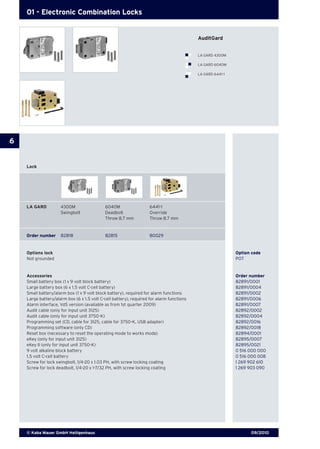

01 - Electronic Combination Locks
Lock
Options lock Option code
Not grounded POT
Accessories Order number
Small battery box (1 x 9 volt block battery) 82891/0001
Large battery box (6 x 1.5 volt C-cell battery) 82891/0004
Small battery/alarm box (1 x 9 volt block battery), required for alarm functions 82891/0002
Large battery/alarm box (6 x 1.5 volt C-cell battery), required for alarm functions 82891/0006
Alarm interface, VdS version (available as from 1st quarter 2009) 82891/0007
Audit cable (only for input unit 3125) 82892/0002
Audit cable (only for input unit 3750-K) 82892/0004
Programming set (CD, cable for 3125, cable for 3750-K, USB adapter) 82892/0016
Programming software (only CD) 82892/0018
Reset box (necessary to reset the operating mode to works mode) 82894/0001
eKey (only for input unit 3125) 82895/0007
eKey II (only for input unit 3750-K) 82895/0021
9 volt alkaline block battery 0 516 000 000
1.5 volt C-cell battery 0 516 000 008
Screw for lock swingbolt, 1/4-20 x 1.03 PH, with screw locking coating 1 269 902 610
Screw for lock deadbolt, 1/4-20 x 1-7/32 PH, with screw locking coating 1 269 903 090
LA GARD 4300M 6040M 6441-1
Swingbolt Deadbolt Override
Throw 8.7 mm Throw 8.7 mm
Order number 82818 82815 80029
AuditGard AuditGard
LA GARD 4300M
LA GARD 6040M
LA GARD 6441-1

7. 09/2010© Kaba Mauer GmbH Heiligenhaus
7
01 - Electronic Combination Locks

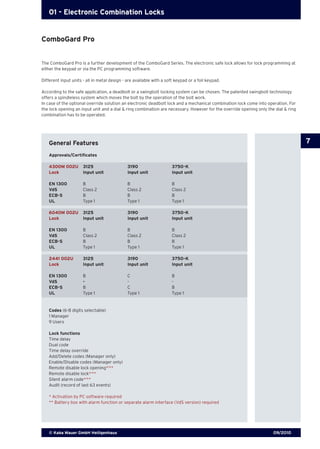

The ComboGard Pro is a further development of the ComboGard Series. The electronic safe lock allows for lock programming at
either the keypad or via the PC programming software.
Different input units - all in metal design - are available with a soft keypad or a foil keypad.
According to the safe application, a deadbolt or a swingbolt locking system can be chosen. The patented swingbolt technology
offers a spindleless system which moves the bolt by the operation of the bolt work.
In case of the optional override solution an electronic deadbolt lock and a mechanical combination lock come into operation. For
the lock opening an input unit and a dial & ring combination are necessary. However for the override opening only the dial & ring
combination has to be operated.
General Features
Approvals/Certificates
Codes (6-8 digits selectable)
1 Manager
9 Users
Lock functions
Time delay
Dual code
Time delay override
Add/Delete codes (Manager only)
Enable/Disable codes (Manager only)
Remote disable lock opening*/
**
Remote disable lock*/
**
Silent alarm code*/
**
Audit (record of last 63 events)
* Activation by PC software required
** Battery box with alarm function or separate alarm interface (VdS version) required
4300M 002U 3125 3190 3750-K
Lock Input unit Input unit Input unit
EN 1300 B B B
VdS Class 2 Class 2 Class 2
ECB-S B B B
UL Type 1 Type 1 Type 1
6040M 002U 3125 3190 3750-K
Lock Input unit Input unit Input unit
EN 1300 B B B
VdS Class 2 Class 2 Class 2
ECB-S B B B
UL Type 1 Type 1 Type 1
2441 002U 3125 3190 3750-K
Lock Input unit Input unit Input unit
EN 1300 B C B
VdS - - -
ECB-S B C B
UL Type 1 Type 1 Type 1
ComboGard Pro

8. 09/2010© Kaba Mauer GmbH Heiligenhaus
8
01 - Electronic Combination Locks

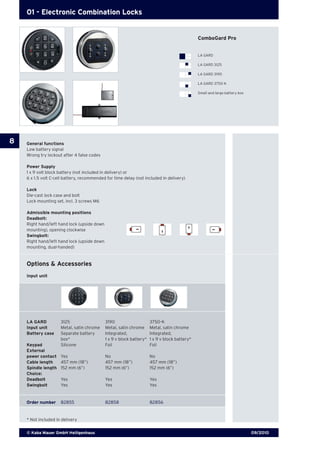

Options & Accessories
Input unit
General functions
Low battery signal
Wrong try lockout after 4 false codes
Power Supply
1 x 9 volt block battery (not included in delivery) or
6 x 1.5 volt C-cell battery, recommended for time delay (not included in delivery)
Lock
Die-cast lock case and bolt
Lock mounting set, incl. 3 screws M6
Admissible mounting positions
Deadbolt:
Right hand/left hand lock (upside down
mounting), opening clockwise
Swingbolt:
Right hand/left hand lock (upside down
mounting, dual-handed)
ComboGard Pro
LA GARD
LA GARD 3125
LA GARD 3190
LA GARD 3750-K
Small and large battery box
LA GARD 3125 3190 3750-K
Input unit Metal, satin chrome Metal, satin chrome Metal, satin chrome
Battery case Separate battery Integrated, Integrated,
box* 1 x 9 v block battery* 1 x 9 v block battery*
Keypad Silicone Foil Foil
External
power contact Yes No No
Cable length 457 mm (18”) 457 mm (18”) 457 mm (18”)
Spindle length 152 mm (6”) 152 mm (6”) 152 mm (6”)
Choice:
Deadbolt Yes Yes Yes
Swingbolt Yes Yes Yes
Order number 82855 82858 82856
* Not included in delivery

9. 09/2010© Kaba Mauer GmbH Heiligenhaus
9
01 - Electronic Combination Locks
Lock
Options lock Option code
Bolt switch RSK
Not grounded POT
Accessories Order number
Small battery box (1 x 9 volt block battery) 82891/0001
Large battery box (6 x 1.5 volt C-cell battery) 82891/0004
Small battery/alarm box (1 x 9 volt block battery), required for alarm functions 82891/0002
Large battery/alarm (6 x 1.5 volt C-cell battery), required for alarm functions 82891/0006
Alarm interface, VdS version (available as from 1st quarter 2009) 82891/0007
Audit cable (only for input unit 3125) 82892/0002
Audit cable (only for input unit 3750-K) 82892/0004
Programming set including software to read the audit (only for input unit 3750-K) 82892/0010
Programming set (CD, cable for 3125, cable for 3750-K, USB adapter) 82892/0017
Programming software (only CD) 82892/0019
Reset box (necessary to reset the operating mode to works mode) 82894/0001
9 volt alkaline block battery 0 516 000 000
1.5 volt C-cell battery 0 516 000 008
Screw for lock swingbolt, 1/4-20 x 1.03 PH, with screw locking coating 1 269 902 610
Screw for lock deadbolt, 1/4-20 x 1-7/32 PH, with screw locking coating 1 269 903 090
LA GARD 4300M 002U 6040M 002U 2441 002U
Swingbolt Deadbolt Override
Throw 8.7 mm Throw 8.7 mm
Order number 82822 82816 80028

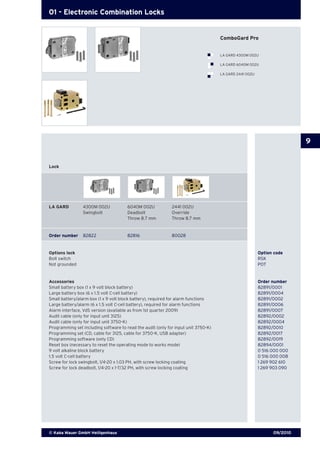

ComboGard Pro
LA GARD 4300M 002U
LA GARD 6040M 002U
LA GARD 2441 002U

10. 09/2010© Kaba Mauer GmbH Heiligenhaus
10
01 - Electronic Combination Locks
The Basic Series offers standard functionality by combining operation comfort and reliability.
Different input units - all in metal design - are available with a soft keypad or a foil keypad. The spy proof version “3190” can also
be used with the Basic Series.
According to the safe application, a deadbolt or a swingbolt locking system can be chosen. The patented swingbolt technology
offers a spindleless system which moves the bolt by the operation of the bolt work. No manual lock bolt retraction is necessary.
General Features
Approvals/Certificates
Codes
1 Manager
1 User
Lock functions
Add/Delete user code (Manager only)
Disable/Enable user code (Manager only)
General functions
Low battery signal
Wrong try lockout after 4 false codes
Power supply
1 x 9 or 2 x 9 volt block battery (not included in delivery)
4200M 3000 3190 3710 3750
Lock Input unit Input unit Input unit Input unit
EN 1300 A B B B
VdS Class 1 Class 2 Class 2 Class 2
ECB-S A B B B
UL Type 1 Type 1 Type 1 Type 1
3740M 3000 3190 3710 3750
Lock Input unit Input unit Input unit Input unit
EN 1300 - B - B
VdS - Class 2 - Class 2
ECB-S - B - B
UL - Type 1 - Type 1
Basic

11. 09/2010© Kaba Mauer GmbH Heiligenhaus
11

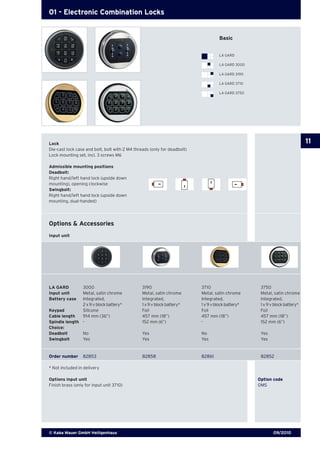

01 - Electronic Combination Locks
Lock
Die-cast lock case and bolt, bolt with 2 M4 threads (only for deadbolt)
Lock mounting set, incl. 3 screws M6
Admissible mounting positions
Deadbolt:
Right hand/left hand lock (upside down
mounting), opening clockwise
Swingbolt:
Right hand/left hand lock (upside down
mounting, dual-handed)
Options & Accessories
Input unit
Options input unit Option code
Finish brass (only for input unit 3710) OMS
LA GARD 3000 3190 3710 3750
Input unit Metal, satin chrome Metal, satin chrome Metal, satin chrome Metal, satin chrome
Battery case Integrated, Integrated, Integrated, Integrated,
2 x 9 v block battery* 1 x 9 v block battery* 1 x 9 v block battery* 1 x 9 v block battery*
Keypad Silicone Foil Foil Foil
Cable length 914 mm (36”) 457 mm (18”) 457 mm (18”) 457 mm (18”)
Spindle length - 152 mm (6”) - 152 mm (6”)
Choice:
Deadbolt No Yes No Yes
Swingbolt Yes Yes Yes Yes
Order number 82853 82858 82861 82852
* Not included in delivery
Basic
LA GARD
LA GARD 3000
LA GARD 3190
LA GARD 3710
LA GARD 3750

12. 09/2010© Kaba Mauer GmbH Heiligenhaus
12

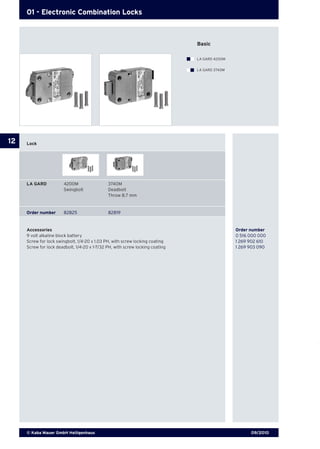

01 - Electronic Combination Locks
Lock
Accessories Order number
9 volt alkaline block battery 0 516 000 000
Screw for lock swingbolt, 1/4-20 x 1.03 PH, with screw locking coating 1 269 902 610
Screw for lock deadbolt, 1/4-20 x 1-7/32 PH, with screw locking coating 1 269 903 090
LA GARD 4200M 3740M
Swingbolt Deadbolt
Throw 8.7 mm
Order number 82825 82819
Basic
LA GARD 4200M
LA GARD 3740M

13. 09/2010
13
+ + + +1)
+1)
+ + + o1) 2)
+1)
+ + + +1)
+1)
+ + + o1) 2)
+1)
+ + + + +
o2)
+ + o2)
+
© Kaba Mauer GmbH Heiligenhaus - Errors and modifications excepted.

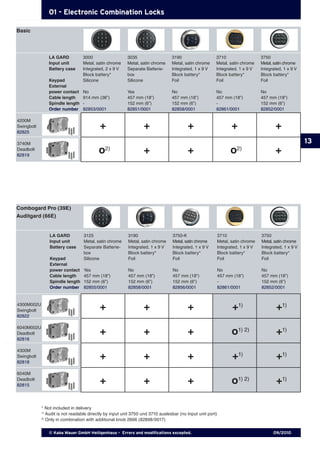

01 - Electronic Combination Locks
LA GARD 3125 3190 3750-K 3710 3750
Input unit Metal, satin chrome Metal, satin chrome Metal, satin chrome Metal, satin chrome Metal, satin chrome
Battery case Separate Batterie- Integrated, 1 x 9 V Integrated, 1 x 9 V Integrated, 1 x 9 V Integrated, 1 x 9 V
box Block battery* Block battery* Block battery* Block battery*
Keypad Silicone Foil Foil Foil Foil
External
power contact Yes No No No No
Cable length 457 mm (18”) 457 mm (18”) 457 mm (18”) 457 mm (18”) 457 mm (18”)
Spindle length 152 mm (6”) 152 mm (6”) 152 mm (6”) - 152 mm (6”)
Order number 82855/0001 82858/0001 82856/0001 82861/0001 82852/0001
3740M
Deadbolt
82819
4200M
Swingbolt
82825
LA GARD 3000 3035 3190 3710 3750
Input unit Metal, satin chrome Metal, satin chrome Metal, satin chrome Metal, satin chrome Metal, satin chrome
Battery case Integrated, 2 x 9 V Separate Batterie- Integrated, 1 x 9 V Integrated, 1 x 9 V Integrated, 1 x 9 V
Block battery* box Block battery* Block battery* Block battery*
Keypad Silicone Silicone Foil Foil Foil
External
power contact No Yes No No No
Cable length 914 mm (36”) 457 mm (18”) 457 mm (18”) 457 mm (18”) 457 mm (18”)
Spindle length - 152 mm (6”) 152 mm (6”) - 152 mm (6”)
Order number 82853/0001 82851/0001 82858/0001 82861/0001 82852/0001
6040M002U
Deadbolt
82816
4300M002U
Swingbolt
82822
6040M
Deadbolt
82815
4300M
Swingbolt
82818
* Not included in delivery
1)
Audit is not readable directly by input unit 3750 und 3710 auslesbar (no Input unit port)
2)
Only in combination with additional knob 2666 (82898/0017)
Basic
Combogard Pro (39E)
Auditgard (66E)

14. 09/2010© Kaba Mauer GmbH Heiligenhaus
14

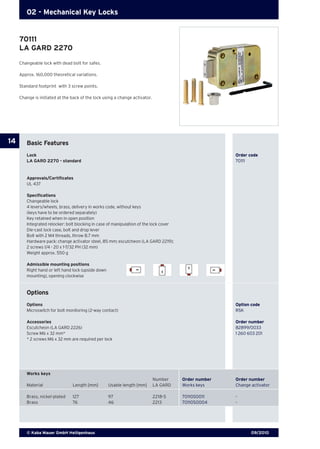

02 - Mechanical Key Locks
Changeable lock with dead bolt for safes.
Approx. 160,000 theoretical variations.
Standard footprint with 3 screw points.
Change is initiated at the back of the lock using a change activator.
Basic Features
Lock Order code
LA GARD 2270 - standard 70111
Approvals/Certificates
UL 437
Specifications
Changeable lock
4 levers/wheels, brass, delivery in works code, without keys
(keys have to be ordered separately)
Key retained when in open position
Integrated relocker: bolt blocking in case of manipulation of the lock cover
Die-cast lock case, bolt and drop lever
Bolt with 2 M4 threads, throw 8.7 mm
Hardware pack: change activator steel, 85 mm; escutcheon (LA GARD 2219);
2 screws 1/4 - 20 x 1-7/32 PH (32 mm)
Weight approx. 550 g
Admissible mounting positions
Right hand or left hand lock (upside down
mounting), opening clockwise
Options
Options Option code
Microswitch for bolt monitoring (2-way contact) RSK
Accessories Order number
Escutcheon (LA GARD 2226) 82899/0033
Screw M6 x 32 mm* 1 260 603 201
* 2 screws M6 x 32 mm are required per lock
Works keys
Number Order number Order number
Material Length [mm] Usable length [mm] LA GARD Works keys Change activator
Brass, nickel-plated 127 97 2218-S 70110S0011 -
Brass 76 46 2213 70110S0004 -
70111
LA GARD 2270

15. 09/2010© Kaba Mauer GmbH Heiligenhaus
15
02 - Mechanical Key Locks

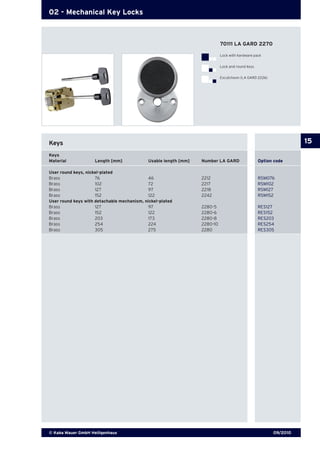

Keys
Keys
Material Length [mm] Usable length [mm] Number LA GARD Option code
User round keys, nickel-plated
Brass 76 46 2212 RSM076
Brass 102 72 2217 RSM102
Brass 127 97 2218 RSM127
Brass 152 122 2242 RSM152
User round keys with detachable mechanism, nickel-plated
Brass 127 97 2280-5 RES127
Brass 152 122 2280-6 RES152
Brass 203 173 2280-8 RES203
Brass 254 224 2280-10 RES254
Brass 305 275 2280 RES305
70111 LA GARD 2270
Lock with hardware pack
Lock and round keys
Escutcheon (LA GARD 2226)

16. 09/2010© Kaba Mauer GmbH Heiligenhaus
16

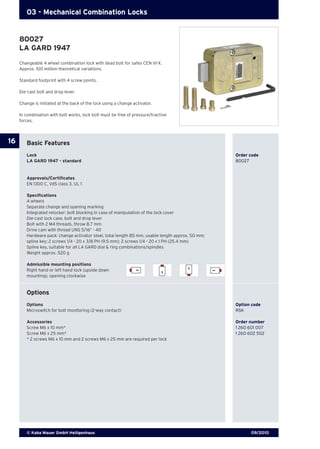

03 - Mechanical Combination Locks
Basic Features
Lock Order code
LA GARD 1947 - standard 80027
Approvals/Certificates
EN 1300 C, VdS class 3, UL 1
Specifications
4 wheels
Separate change and opening marking
Integrated relocker: bolt blocking in case of manipulation of the lock cover
Die-cast lock case, bolt and drop lever
Bolt with 2 M4 threads, throw 8.7 mm
Drive cam with thread UNS 5/16“ - 40
Hardware pack: change activator steel, total length 85 mm, usable length approx. 50 mm;
spline key; 2 screws 1/4 - 20 x 3/8 PH (9.5 mm); 2 screws 1/4 - 20 x 1 PH (25.4 mm)
Spline key, suitable for all LA GARD dial & ring combinations/spindles
Weight approx. 520 g
Admissible mounting positions
Right hand or left hand lock (upside down
mounting), opening clockwise
Options
Options Option code
Microswitch for bolt monitoring (2-way contact) RSK
Accessories Order number
Screw M6 x 10 mm* 1 260 601 007
Screw M6 x 25 mm* 1 260 602 502
* 2 screws M6 x 10 mm and 2 screws M6 x 25 mm are required per lock
Changeable 4 wheel combination lock with dead bolt for safes CEN VI-X.
Approx. 100 million theoretical variations.
Standard footprint with 4 screw points.
Die-cast bolt and drop lever.
Change is initiated at the back of the lock using a change activator.
In combination with bolt works, lock bolt must be free of pressure/tractive
forces.
80027
LA GARD 1947

17. 09/2010© Kaba Mauer GmbH Heiligenhaus
17
03 - Mechanical Combination Locks
Changeable 3 wheel combination lock with dead bolt for safes CEN III-V.
Approx. 1 million theoretical variations.
Standard footprint with 4 screw points.
Die-cast bolt and drop lever.
Change is initiated at the back of the lock using a change activator.
In combination with bolt works, lock bolt must be free of pressure/tractive
forces.
Basic Features
Lock Order code
LA GARD 1985 - standard 80022
Approvals/Certificates
EN 1300 B, VdS class 2 and BSI approval (with dial & ring combination 1730), UL 1
Specifications
3 wheels
Separate change and opening marking
Integrated relocker: bolt blocking in case of manipulation of the lock cover
Die-cast lock case, bolt and drop lever
Bolt with 2 M4 threads, throw 8.7 mm
Drive cam with thread UNS 5/16” - 40
Hardware pack: change activator steel, total length 85 mm, usable length approx. 50 mm;
spline key; 2 screws 1/4 - 20 x 3/8 PH (9.5 mm); 2 screws 1/4 - 20 x 1 PH (25.4 mm)
Spline key, suitable for all LA GARD dial & ring combinations/spindles
Weight approx. 460 g
Admissible mounting positions
Right hand or left hand lock (upside down
mounting), opening clockwise
Options
Options Option code
Microswitch for bolt monitoring (2-way contact) RSK
Accessories Order number
Screw M6 x 10 mm* 1 260 601 007
Screw M6 x 25 mm* 1 260 602 502
* 2 screws M6 x 10 mm and 2 screws M6 x 25 mm are required per lock
80022
LA GARD 1985

18. 09/2010© Kaba Mauer GmbH Heiligenhaus
18
03 - Mechanical Combination Locks
Basic Features
Lock Order code
LA GARD 3390 - standard 80025
Approvals/Certificates
En 1300 B, VdS class 2, UL 2M
Specifications
3 wheels
Separate change and opening marking
Integrated relocker: bolt blocking in case of manipulation of the lock cover
Die-cast lock case, bolt and drop lever
Bolt with 2 M4 threads, throw 8.7 mm
Drive cam with thread UNS 5/16’’ - 40
Hardware pack: change activator steel, total length 85 mm, usable length approx. 50 mm;
spline key; retainer plug; 2 screws M6 x 32 mm; 1 screw M6 x 10 mm
Spline key, suitable for all LA GARD dial & ring combinations/spindles (not usable for all other
LA GARD mechanical combination locks)
Weight approx. 460 g
Admissible mounting positions
Right hand or left hand lock (upside down
mounting), opening clockwise
Options
Options Optionscode
Microswitch for bolt monitoring (2-way contact) RSK
Accessories Order number
Screw 1/4 - 20 x 1-7/32 PH* 1 269 903 090
Screw 1/4 - 20 x 1-3/8 PH* 1 269 900 950
* 2 screws 1/4 - 20 x 1-7/32 PH and 1 screw 1/4 - 20 x 1-3/8 PH are required per lock
Changeable 3 wheel combination lock with dead bolt for safes CEN III-V.
Approx. 1 million theoretical variations.
Standard footprint with 3 screw points.
Die-cast bolt and drop lever.
Change is initiated at the back of the lock using a change activator.
In combination with bolt works, only a maximum of 22 N pressure/tractive
forces are allowed on the lock bolt.
80025
LA GARD 3390

19. 09/2010© Kaba Mauer GmbH Heiligenhaus
19
04 - Dial & Ring Combinations

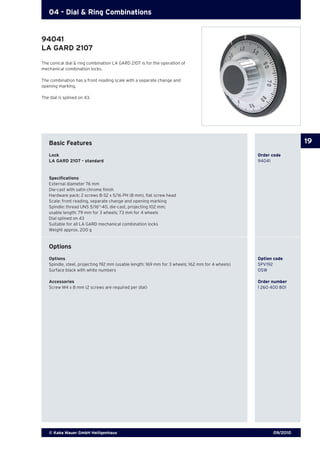

The conical dial & ring combination LA GARD 2107 is for the operation of
mechanical combination locks.
The combination has a front reading scale with a separate change and
opening marking.
The dial is splined on 43.
Basic Features
Lock Order code
LA GARD 2107 - standard 94041
Specifications
External diameter 76 mm
Die-cast with satin chrome finish
Hardware pack: 2 screws 8-32 x 5/16 PH (8 mm), flat screw head
Scale: front reading, separate change and opening marking
Spindle: thread UNS 5/16“-40, die-cast, projecting 102 mm;
usable length: 79 mm for 3 wheels; 73 mm for 4 wheels
Dial splined on 43
Suitable for all LA GARD mechanical combination locks
Weight approx. 200 g
Options
Options Option code
Spindle, steel, projecting 192 mm (usable length: 169 mm for 3 wheels; 162 mm for 4 wheels) SPV192
Surface black with white numbers OSW
Accessories Order number
Screw M4 x 8 mm (2 screws are required per dial) 1 260 400 801
94041
LA GARD 2107

20. 09/2010© Kaba Mauer GmbH Heiligenhaus
20
04 - Dial & Ring Combinations

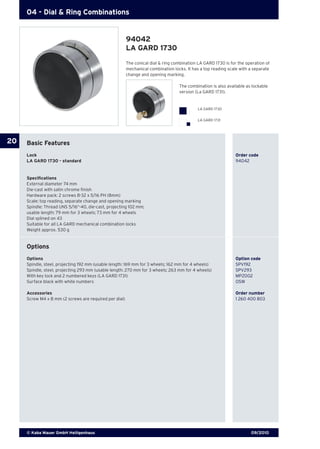

The conical dial & ring combination LA GARD 1730 is for the operation of
mechanical combination locks. It has a top reading scale with a separate
change and opening marking.
The combination is also available as lockable
version (La GARD 1731).
Basic Features
Lock Order code
LA GARD 1730 - standard 94042
Specifications
External diameter 74 mm
Die-cast with satin chrome finish
Hardware pack: 2 screws 8-32 x 5/16 PH (8mm)
Scale: top reading, separate change and opening marking
Spindle: Thread UNS 5/16“-40, die-cast, projecting 102 mm;
usable length: 79 mm for 3 wheels; 73 mm for 4 wheels
Dial splined on 43
Suitable for all LA GARD mechanical combination locks
Weight approx. 530 g
Options
Options Option code
Spindle, steel, projecting 192 mm (usable length: 169 mm for 3 wheels; 162 mm for 4 wheels) SPV192
Spindle, steel, projecting 293 mm (usable length: 270 mm for 3 wheels; 263 mm for 4 wheels) SPV293
With key lock and 2 numbered keys (LA GARD 1731) MPZ002
Surface black with white numbers OSW
Accessories Order number
Screw M4 x 8 mm (2 screws are required per dial) 1 260 400 803
94042
LA GARD 1730
LA GARD 1730
LA GARD 1731

21. 09/2010© Kaba Mauer GmbH Heiligenhaus
21
04 - Dial & Ring Combinations

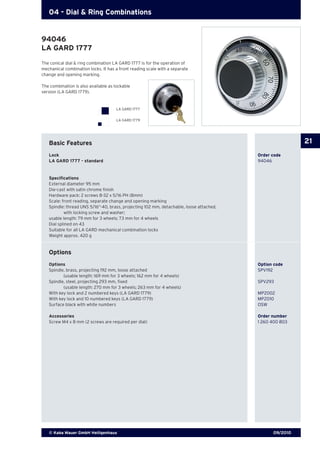

The conical dial & ring combination LA GARD 1777 is for the operation of
mechanical combination locks. It has a front reading scale with a separate
change and opening marking.
The combination is also available as lockable
version (LA GARD 1779).
Basic Features
Lock Order code
LA GARD 1777 - standard 94046
Specifications
External diameter 95 mm
Die-cast with satin chrome finish
Hardware pack: 2 screws 8-32 x 5/16 PH (8mm)
Scale: front reading, separate change and opening marking
Spindle: thread UNS 5/16“-40, brass, projecting 102 mm, detachable, loose attached,
with locking screw and washer;
usable length: 79 mm for 3 wheels; 73 mm for 4 wheels
Dial splined on 43
Suitable for all LA GARD mechanical combination locks
Weight approx. 420 g
Options
Options Option code
Spindle, brass, projecting 192 mm, loose attached SPV192
(usable length: 169 mm for 3 wheels; 162 mm for 4 wheels)
Spindle, steel, projecting 293 mm, fixed SPV293
(usable length: 270 mm for 3 wheels; 263 mm for 4 wheels)
With key lock and 2 numbered keys (LA GARD 1779) MPZ002
With key lock and 10 numbered keys (LA GARD 1779) MPZ010
Surface black with white numbers OSW
Accessories Order number
Screw M4 x 8 mm (2 screws are required per dial) 1 260 400 803
94046
LA GARD 1777
LA GARD 1777
LA GARD 1779

22. 09/2010© Kaba Mauer GmbH Heiligenhaus
22
04 - Dial & Ring Combinations
The conical dial & ring combination LA GARD 2085 is for the operation of
mechanical combination locks. It has a top reading scale with a separate
change and opening marking.
The combination is also available as lockable
version (La GARD 2090).
Basic Features
Lock Order code
LA GARD 2085 - standard 94048
Specifications
External diameter 96 mm
Die-cast with satin chrome finish
Hardware pack: 2 screws 8-32 x 5/16 PH (8mm)
Scale: top reading, separate change and opening marking
Spindle: thread UNS 5/16“-40, brass, projecting 102 mm, detachable, loose attached,
with locking screw and washer;
usable length: 79 mm for 3 wheels; 73 mm for 4 wheels
Dial splined on 43
Suitable for all LA GARD mechanical combination locks
Weight approx. 550 g
Options
Options Option code
Spindle, brass, projecting 192 mm, loose attached SPV192
(usable length: 169 mm for 3 wheels; 162 mm for 4 wheels)
With key lock and 2 numbered keys (LA GARD 2090) MPZ002
Surface brass OMS
Accessories Order number
Screw M4 x 8 mm (2 screws are required per dial) 1 260 400 803
94048
LA GARD 2085
LA GARD 2085
LA GARD 2090

23. 09/2010
23
© Kaba Mauer GmbH Heiligenhaus - Errors and modifications excepted.
A - LA GARD PROGRAM CHOICE incl. programming data
0. Order data: Offer-No.: Order-No.: Position number:
1. Lock selection: Auditgard Combogard Pro Lock number:
2. Input Unit: 3125 3190 3750-K
3000 3035 3710
3. Program choice: Base setting:
Factory mode; lock opens with button “1“ and releases alarm.
Purchaser uses the La Gard Set-Up program and programs by his own.
Program data (surcharge):
A) Codelength: 6-digit 7-digit 8-digit
B) Program choice (please tick off only one line and enter DT=0-99 as well as OW=0-9)
*) Alarmbox or Alarm interface necessary (see „Battery compartment“)
C) Code choice: (Please tick off which codes have to be activated. The code numbers are fixed.
When choosing dual code activate at least user 1 or 2 depending on lock type!
When timedelay override is activated user 9 has to be activated!)
*) Code depends on code length (6, 7 oder 8-digits)!
[] Only used with Auditgard and dual code!
{} Only used with Combogard Pro and dual code!
// Only used when timedelay override is activated!
D) Number of electronic keys: (Only useable with Auditgard!)
4. Battery comp.: 2788 2789 4001 4002
5. Additional Access.: Alarm interface Program cable ____________
Date Company stamp and sign
Kaba Mauer GmbH; Frankenstr. 8-12; D-42579 Heiligenhaus; Tel. +49 2056 596 0; Fax +49 2056 596 139; email: info@kmh.kaba.com
Progr.no. Single code Dual code Timedelay Alarm*
Minutes
DT / OW
Override
0 YES /
1 YES / YES
2 YES /
3 YES / YES
4 YES / YES*
5 YES / YES YES*
6 YES / YES*
7 YES / YES YES*
Code Available for Code assignment
Auditgard Combogard Pro
Mastercode + - 55555555
Manager + + 123456(78)*
User 1 - + {(87)654321*}
User 2 + + [(87)654321*]
User 3 + + -
User 4 + + -
User 5 + + -
User 6 + + -
User 7 + + -
User 8 + + -
User 9 + + /111111(11)*/
(please send with your order to Kaba Mauer)

24. Contact
Sales Safe Locks + Accessories
Germany
Phone +49 (0)2056/596-120 or -122, Fax +49 (0)2056/596-320 or -322,
Email vertrieb@kmh.kaba.com
Worldwide
Phone +49 (0)2056/596-123, -134 or -135, Fax +49 (0)2056/596-323, -334 or -335,
Email sales@kmh.kaba.com
Shipping
Germany
Phone +49 (0)2056/596-142, Fax +49 (0)2056/596-342, Email versand@kmh.kaba.com
Worldwide
Phone +49 (0)2056/596-132, Fax +49 (0)2056/596-332, Email shipping@kmh.kaba.com
Service
Phone +49 (0)2056/596-149, Fax +49 (0)2056/596-349, Email service@kmh.kaba.com
Imprint
Kaba Mauer GmbH
Frankenstraße 8-12
D-42579 Heiligenhaus
Germany
Phone +49 (0)2056/596 - 0
Fax +49 (0)2056/596 - 139
Internet www.kaba-mauer.de
Email info@kmh.kaba.com
