This document provides an overview of JUnit, a unit testing framework for Java. It discusses how JUnit allows developers to write repeatable tests and test classes in a way that each test can run independently without affecting other tests. The document demonstrates how to write test cases using JUnit annotations and assertions for an AccountService class. It also covers test suites that group multiple test cases, the JUnit testing lifecycle using annotations, and dependencies needed to use JUnit.

1. www.SunilOS.com 1
www.sunilos.com
www.raystec.com
JUnit 4
03/17/16

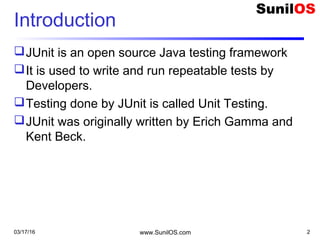

2. 03/17/16 www.SunilOS.com 2
Introduction
JUnit is an open source Java testing framework
It is used to write and run repeatable tests by
Developers.
Testing done by JUnit is called Unit Testing.
JUnit was originally written by Erich Gamma and
Kent Beck.

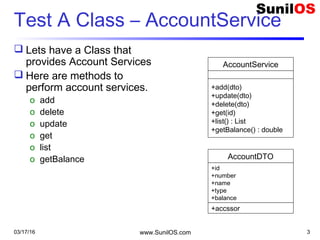

3. Test A Class – AccountService
 Lets have a Class that
provides Account Services
 Here are methods to
perform account services.
o add
o delete
o update
o get
o list
o getBalance
03/17/16 www.SunilOS.com 3
AccountService
+add(dto)
+update(dto)
+delete(dto)
+get(id)
+list() : List
+getBalance() : double
AccountDTO
+accssor
+id
+number
+name
+type
+balance

4. Conventional Testing Approach
 Write test in the main method
 public class TestAccount {
o public static void main(String[] args) {
 AccountDTO dto = new AccountDTO();
 dto.setId(1);
 dto.setNumber("SB123456");
 dto.setName("sunRays Technologies");
 dto.setBalance(10000);
 AccountService.add(dto); //Test#1
 AccountService.update(dto); //Test#2
 AccountService.delete(dto); //Test#3
 dto = AccountService.get(1); //Test#4
o }
 }
03/17/16 www.SunilOS.com 4

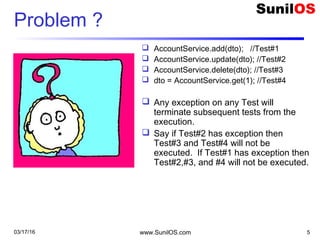

5. Problem ?
 AccountService.add(dto); //Test#1
 AccountService.update(dto); //Test#2
 AccountService.delete(dto); //Test#3
 dto = AccountService.get(1); //Test#4
 Any exception on any Test will
terminate subsequent tests from the
execution.
 Say if Test#2 has exception then
Test#3 and Test#4 will not be
executed. If Test#1 has exception then
Test#2,#3, and #4 will not be executed.
03/17/16 www.SunilOS.com 5

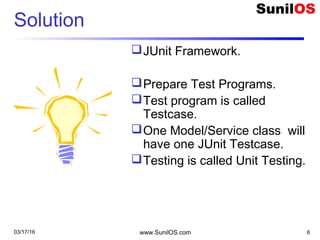

6. Solution
JUnit Framework.
Prepare Test Programs.
Test program is called
Testcase.
One Model/Service class will
have one JUnit Testcase.
Testing is called Unit Testing.
03/17/16 www.SunilOS.com 6

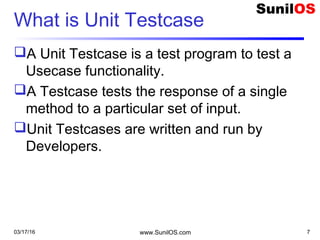

7. What is Unit Testcase
A Unit Testcase is a test program to test a
Usecase functionality.
A Testcase tests the response of a single
method to a particular set of input.
Unit Testcases are written and run by
Developers.
03/17/16 www.SunilOS.com 7

8. What is JUnit
JUnit is an open source Java testing
framework
It is used to write and run repeatable tests
by Developers.
Testing done by JUnit is called Unit Testing.
JUnit was originally written by Erich Gamma
and Kent Beck.
03/17/16 www.SunilOS.com 8

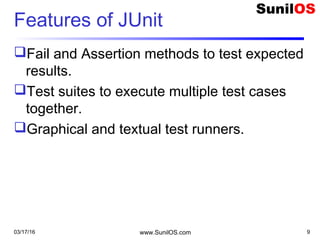

9. Features of JUnit
Fail and Assertion methods to test expected
results.
Test suites to execute multiple test cases
together.
Graphical and textual test runners.
03/17/16 www.SunilOS.com 9

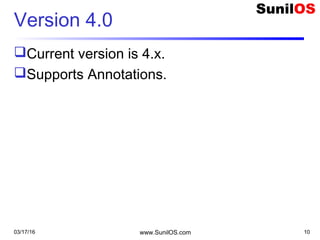

10. Version 4.0
Current version is 4.x.
Supports Annotations.
03/17/16 www.SunilOS.com 10

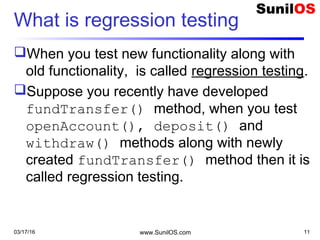

11. What is regression testing
When you test new functionality along with
old functionality, is called regression testing.
Suppose you recently have developed
fundTransfer() method, when you test
openAccount(), deposit() and
withdraw() methods along with newly
created fundTransfer() method then it is
called regression testing.
03/17/16 www.SunilOS.com 11

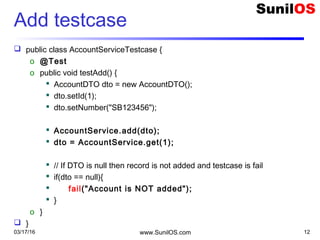

12. Add testcase
 public class AccountServiceTestcase {
o @Test
o public void testAdd() {
 AccountDTO dto = new AccountDTO();
 dto.setId(1);
 dto.setNumber("SB123456");
 AccountService.add(dto);
 dto = AccountService.get(1);
 // If DTO is null then record is not added and testcase is fail
 if(dto == null){
 fail("Account is NOT added");
 }
o }
 }
03/17/16 www.SunilOS.com 12

13. Add testcase assert
 public class AccountServiceTestcase {
o @Test
o public void testAdd() {
 AccountDTO dto = new AccountDTO();
 dto.setId(1);
 dto.setNumber("SB123456");
 AccountService.add(dto);
 dto = AccountService.get(1);
 // If DTO is null then record is not added and testcase is fail
 assertNull("Account is NOT deleted", dto);
o }
 }
03/17/16 www.SunilOS.com 13

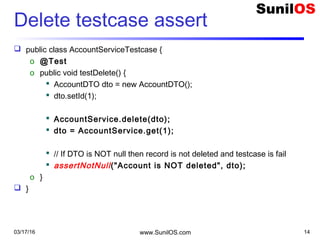

14. Delete testcase assert
 public class AccountServiceTestcase {
o @Test
o public void testDelete() {
 AccountDTO dto = new AccountDTO();
 dto.setId(1);
 AccountService.delete(dto);
 dto = AccountService.get(1);
 // If DTO is NOT null then record is not deleted and testcase is fail
 assertNotNull("Account is NOT deleted", dto);
o }
 }
03/17/16 www.SunilOS.com 14

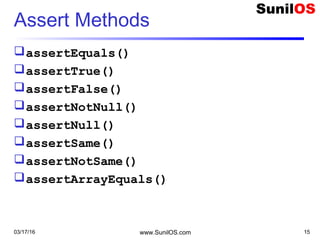

15. Assert Methods
assertEquals()
assertTrue()
assertFalse()
assertNotNull()
assertNull()
assertSame()
assertNotSame()
assertArrayEquals()
03/17/16 www.SunilOS.com 15

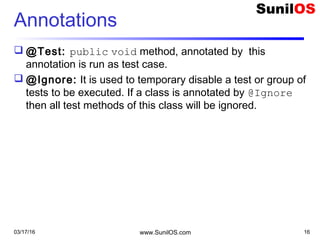

16. Annotations
 @Test: public void method, annotated by this
annotation is run as test case.
 @Ignore: It is used to temporary disable a test or group of
tests to be executed. If a class is annotated by @Ignore
then all test methods of this class will be ignored.
03/17/16 www.SunilOS.com 16

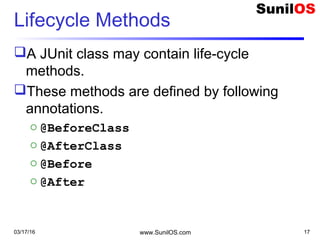

17. Lifecycle Methods
A JUnit class may contain life-cycle
methods.
These methods are defined by following
annotations.
o @BeforeClass
o @AfterClass
o @Before
o @After
03/17/16 www.SunilOS.com 17

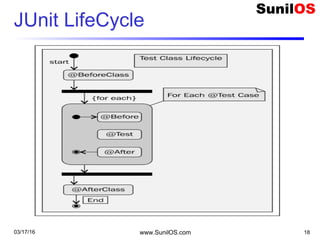

18. JUnit LifeCycle
03/17/16 www.SunilOS.com 18

19. Life Cycle Annotation
 @BeforeClass: An annotated public static void no-
argument method will be executed before execution of any
test method in the class.
 @AfterClass: An annotated public static void no-
argument method will be executed after all test methods of
this class are executed.
 @Before: this method will be called before each test
method in the Class.
 @After: this method will be called after each test method
in the Class.
03/17/16 www.SunilOS.com 19

20. Test Suite
A test suite is a collection of test cases.
A test runner is software that runs tests and
reports results.
03/17/16 www.SunilOS.com 20

21. Test Suite
 public class AllTests {
 public static TestSuite getSuite() {
o TestSuite suite = new TestSuite(“Test All ");
o suite.addTestSuite(AccountServiceTestcase.class);
o suite.addTestSuite(UserServiceTestcase.class);
o return suite;
 }
03/17/16 www.SunilOS.com 21

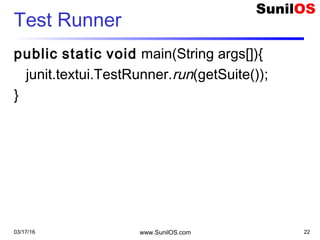

22. Test Runner
public static void main(String args[]){
junit.textui.TestRunner.run(getSuite());
}
03/17/16 www.SunilOS.com 22

23. JUnit Dependency
Jar
o junit-4.12.jar
Maven Dependency
o <dependency>
 <groupId>junit</groupId>
 <artifactId>junit</artifactId>
 <version>4.12</version>
o </dependency>
03/17/16 www.SunilOS.com 23

24. Disclaimer
This is an educational presentation to enhance the
skill of computer science students.
This presentation is available for free to computer
science students.
Some internet images from different URLs are
used in this presentation to simplify technical
examples and correlate examples with the real
world.
We are grateful to owners of these URLs and
pictures.
www.SunilOS.com 2403/17/16
