1. Ivan Sutherland
Atul Narkhede
April 2013
A pioneer in Human Computer Interaction

2. Turing Award
Ivan Sutherland
1988
“For his pioneering and visionary contributions to
computer graphics, starting with Sketchpad, and
continuing after”
2

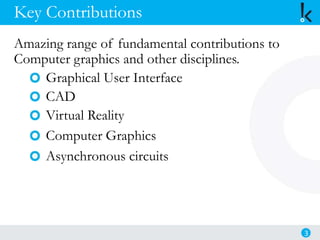

3. Key Contributions
Amazing range of fundamental contributions to
Computer graphics and other disciplines.
Graphical User Interface
CAD
Virtual Reality
Computer Graphics
Asynchronous circuits
3

4. SketchPad
Sketchpad: A Man-machine Graphical
Communications System
Doctoral Dissertation at MIT
1963
First GUI ever!!
4

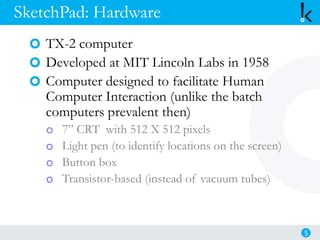

5. SketchPad: Hardware
TX-2 computer
Developed at MIT Lincoln Labs in 1958
Computer designed to facilitate Human
Computer Interaction (unlike the batch
computers prevalent then)
o 7” CRT with 512 X 512 pixels
o Light pen (to identify locations on the screen)
o Button box
o Transistor-based (instead of vacuum tubes)
5

6. SketchPad: Hardware: TX-2
Console Memory Bank
6

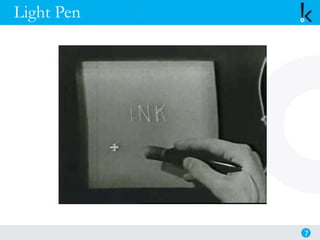

7. Light Pen
7

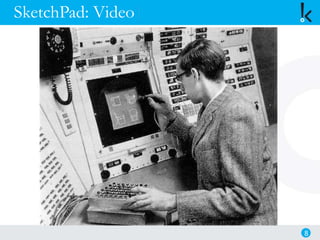

8. SketchPad: Video
8

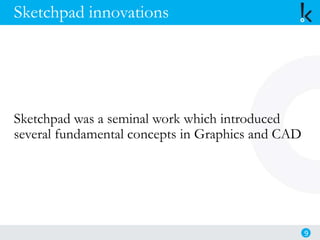

9. Sketchpad innovations
Sketchpad was a seminal work which introduced
several fundamental concepts in Graphics and CAD
9

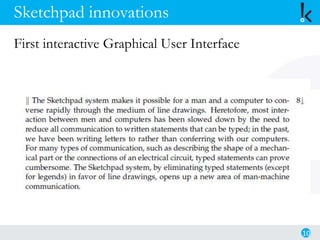

10. Sketchpad innovations
First interactive Graphical User Interface
10

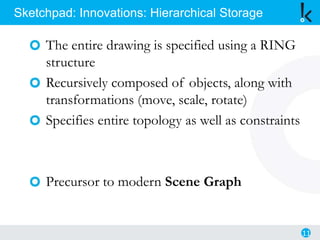

11. The entire drawing is specified using a RING
structure
Recursively composed of objects, along with
transformations (move, scale, rotate)
Specifies entire topology as well as constraints
Precursor to modern Scene Graph
11

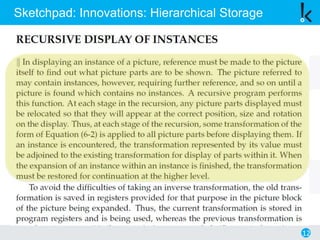

Sketchpad: Innovations: Hierarchical Storage

12. 12
Sketchpad: Innovations: Hierarchical Storage

13. 13

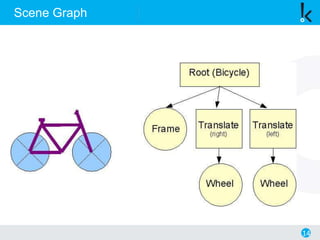

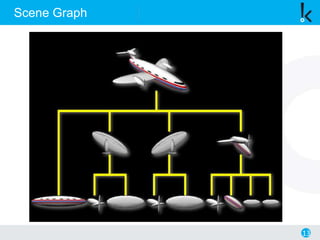

Scene Graph

14. 14
Scene Graph

15. 15

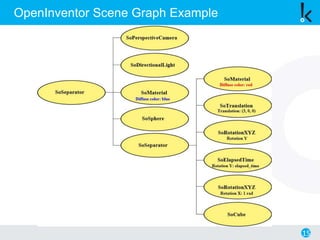

OpenInventor Scene Graph Example

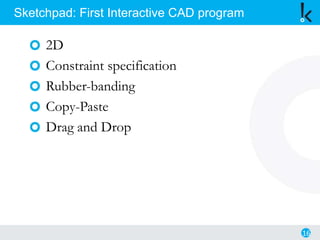

16. 2D
Constraint specification
Rubber-banding
Copy-Paste
Drag and Drop
16
Sketchpad: First Interactive CAD program

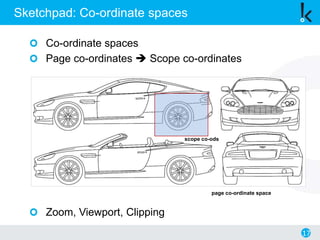

17. Co-ordinate spaces
Page co-ordinates  Scope co-ordinates
Zoom, Viewport, Clipping
17
Sketchpad: Co-ordinate spaces
page co-ordinate space
scope co-ods

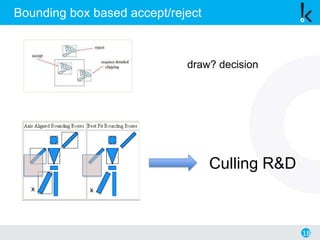

18. 18
Bounding box based accept/reject
draw? decision
x x
Culling R&D

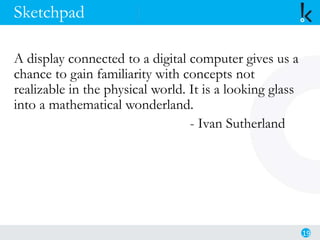

19. Sketchpad
A display connected to a digital computer gives us a
chance to gain familiarity with concepts not
realizable in the physical world. It is a looking glass
into a mathematical wonderland.
- Ivan Sutherland
19

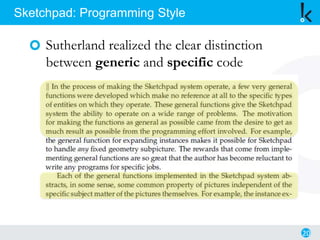

20. Sutherland realized the clear distinction
between generic and specific code
20
Sketchpad: Programming Style

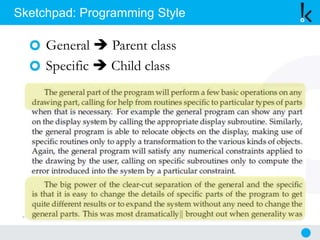

21. Sketchpad: Programming Style
General  Parent class
Specific  Child class

22. 22
Sketchpad: Object Oriented Programming
Classes and Instances
“Master Drawing”  “Instance Drawing"

23. General (applicable to all entities)
o scale()
o translate()
o rotate()
Specific (ex. circle, line, point)
o draw()
o constrain()
Precursor to Object Oriented Programming
23
Sketchpad: Programming Style

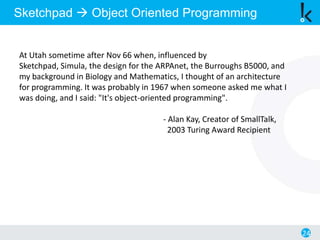

24. 24
Sketchpad  Object Oriented Programming
At Utah sometime after Nov 66 when, influenced by
Sketchpad, Simula, the design for the ARPAnet, the Burroughs B5000, and
my background in Biology and Mathematics, I thought of an architecture
for programming. It was probably in 1967 when someone asked me what I
was doing, and I said: "It's object-oriented programming".
- Alan Kay, Creator of SmallTalk,
2003 Turing Award Recipient

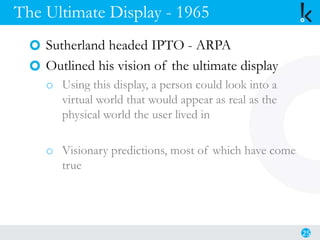

25. The Ultimate Display - 1965
Sutherland headed IPTO - ARPA
Outlined his vision of the ultimate display
o Using this display, a person could look into a
virtual world that would appear as real as the
physical world the user lived in
o Visionary predictions, most of which have come
true
25

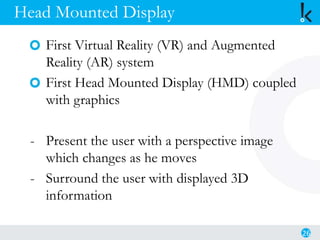

26. Head Mounted Display
First Virtual Reality (VR) and Augmented
Reality (AR) system
First Head Mounted Display (HMD) coupled
with graphics
- Present the user with a perspective image
which changes as he moves
- Surround the user with displayed 3D
information
26

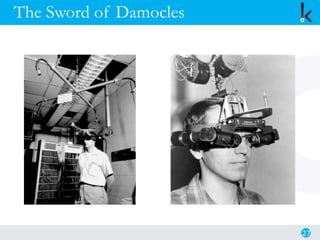

27. The Sword of Damocles
27

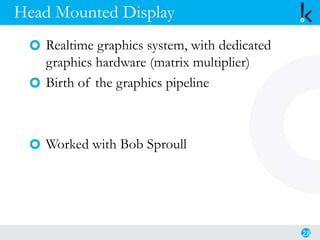

28. Head Mounted Display
Realtime graphics system, with dedicated
graphics hardware (matrix multiplier)
Birth of the graphics pipeline
Worked with Bob Sproull
28

29. HMD System
29

30. 30

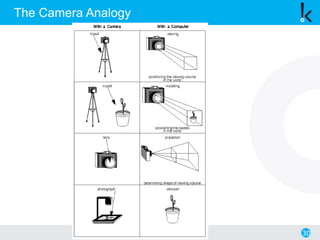

The Camera Analogy

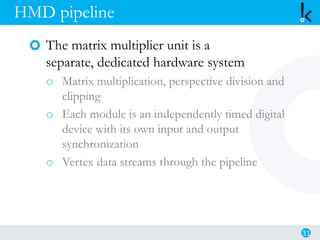

31. HMD pipeline
The matrix multiplier unit is a
separate, dedicated hardware system
o Matrix multiplication, perspective division and
clipping
o Each module is an independently timed digital
device with its own input and output
synchronization
o Vertex data streams through the pipeline
31

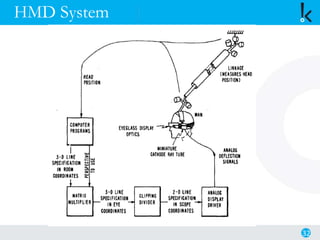

32. HMD System
32

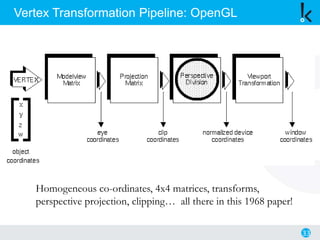

33. 33
Vertex Transformation Pipeline: OpenGL
Homogeneous co-ordinates, 4x4 matrices, transforms,
perspective projection, clipping… all there in this 1968 paper!

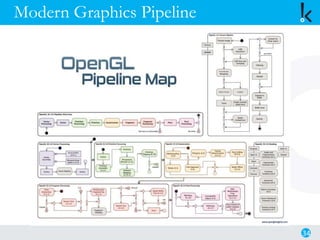

34. Modern Graphics Pipeline
34

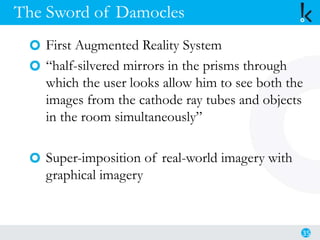

35. The Sword of Damocles
First Augmented Reality System
“half-silvered mirrors in the prisms through
which the user looks allow him to see both the
images from the cathode ray tubes and objects
in the room simultaneously”
Super-imposition of real-world imagery with
graphical imagery
35

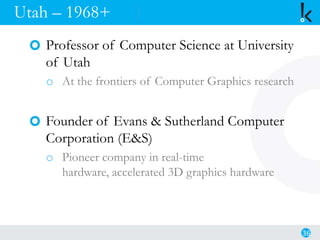

36. Utah – 1968+
Professor of Computer Science at University
of Utah
o At the frontiers of Computer Graphics research
Founder of Evans & Sutherland Computer
Corporation (E&S)
o Pioneer company in real-time
hardware, accelerated 3D graphics hardware
36

37. Graphics action at SLC, Utah
Alan Kay: Smalltalk,
Windowing GUI
Henri Gouraud: Gouraud shading
Ed Catmull: Texture mapping,
Animation, Pixar, Disney
Frank Crow: Anti-aliasing
Jim Clark: Geometry pipeline, SGI
John Warnock: Postscript, Adobe
37

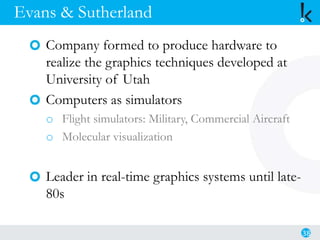

38. Evans & Sutherland
Company formed to produce hardware to
realize the graphics techniques developed at
University of Utah
Computers as simulators
o Flight simulators: Military, Commercial Aircraft
o Molecular visualization
Leader in real-time graphics systems until late-
80s
38

39. Evans and Sutherland
39
Wireframe  Polygonal surfaces

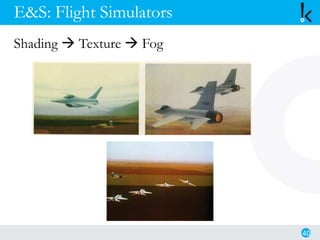

40. E&S: Flight Simulators
40
Shading  Texture  Fog

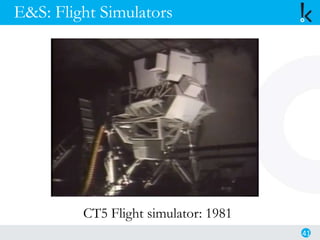

41. E&S: Flight Simulators
41
CT5 Flight simulator: 1981

42. Illustrious Career
B.S. (CMU), M.S. (Caltech), Ph.D. (MIT) in EE (1963)
Associate Professor of CS at Harvard (1966-1967)
Professor of CS at University of Utah (1968-1974)
Professor and Founding Head of CS at Caltech (1974-1978)
Director of Information Processing Techniques, ARPA
Co-founder of E&S
Founding Partner of Advanced Technology Ventures
VP of Sutherland, Sproull and Associates
VP and Sun Fellow at Sun Microsystems (Sun Labs)
Currently @ Asynchronous Research Center, Portland State
42

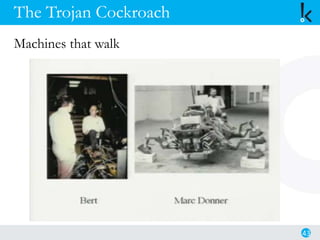

43. The Trojan Cockroach
43
Machines that walk

44. Words of wisdom
“Do things that you like and you’re good at!”
“Focus on one thing, and do it well”
“If it isn’t fun, you’re doing the wrong technology”
44

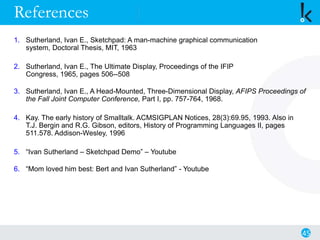

45. References
1. Sutherland, Ivan E., Sketchpad: A man-machine graphical communication
system, Doctoral Thesis, MIT, 1963
2. Sutherland, Ivan E., The Ultimate Display, Proceedings of the IFIP
Congress, 1965, pages 506--508
3. Sutherland, Ivan E., A Head-Mounted, Three-Dimensional Display, AFIPS Proceedings of
the Fall Joint Computer Conference, Part I, pp. 757-764, 1968.
4. Kay. The early history of Smalltalk. ACMSIGPLAN Notices, 28(3):69.95, 1993. Also in
T.J. Bergin and R.G. Gibson, editors, History of Programming Languages II, pages
511.578. Addison-Wesley, 1996
5. “Ivan Sutherland – Sketchpad Demo” – Youtube
6. “Mom loved him best: Bert and Ivan Sutherland” - Youtube
45
